Commercial

Refrigerator&Freezer

Service Manual

M3 Solid Door

Model No.: M3R24-1

M3R24-2 M3R47-2 M3R47-4 M3R72-3 M3R72-6 M3F24-1 M3F24-2 M3F47-2 M3F47-4 M3F72-3 M3F72-6

TABLE OF CONTENTS

1. FEATURE CHART

1-1.FRONT VIEW/PLAN VIEW (1DDOR):M3R24-1 M3R24-2 M3F24-1 M3F24-2

1-2.FRONT VIEW/PLAN VIEW (2DDOR):M3R48-2 M3R48-4 M3R48-2 M3R48-4

1-3.FRONT VIEW/PLAN VIEW (3DDOR):M3R72-3 M3R72-6 M3F72-3 M3F72-6

2. WIRING DIAGRAMS

2-1. 1DDOR: M3R24-1 M3R24-2 M3F24-1 M3F24-2

2-2. 2DDOR: M3R48-2 M3R48-4 M3R48-2 M3R48-4

2-3. 3DDOR: M3R72-3 M3R72-6 M3F72-3 M3F72-6

3. PART DETAIL

3-1. TOP GRILLE

3-2.

REFRIGERATION COMPARTMENT

3-3.CONTROL BOX

3-4. DOOR

3-5.COOLING COMPARTMENT

4. MAIN COMPONENTS

5. ELECTRONIC CONTROLLER INSTRUCTION

5-1.FREEEZER CONTROLLER

5-2.REFRIGERATOR CONTROLLER

6. PARTS LIST

7. REPLACEMENT OF MAIN COMPONENTS

7-1 .TOP GRILLE PART

7-2. REPLACE DOOR

7-2-1．REPLACE DOOR (M3R24-1,M3F24-1,M3R47-2,M3F47-2,M3R72-3,M3F72-3)

7-2-2 . REPLACE DOOR (M3R24-2,M3F24-2,M3R47-4,M3F47-4,M3R72-6,M3F72-6)

7-3. REFRIGERATION COMPARTMENT’S PART.

7-3-1.

REPLACE DUCT AND LAMP

7-3-2 . REPLACE T SENSOR AND D SENSOR

7-3-3. REPLACE THE EVAPORATOR COIL AND F-SENSER

7-3-4.REPLACE THE DEFROST HEATER (FREEZER ONLY)

7-3-5. REPLACE THE EVAPORATOR FAN MOTOR AND FAN BLADE

7-4.

CONTROL BOX PART

7-5.

CONDENSER UNIT

7-6. REPLACE THE CABINET HEATER AND MULLION HEATER

1

1.FEATURE CHART

1-1.FRONT VIEW/PLAN VIEW (1DOOR)

MODEL:

MODEL: PLAN VIEW

M3R24-1 M3F24-1

FRONT VIEW

M3R24-1 M3R24-2

1 TOP GRILLE(T) 2 TOP GRILLE(B) 3 MASCOT

Freezer

4 KEY 5 ASS’Y DOOR 6 DOOR HANDLE 7 CASTER 8 BOTTOM HINGE 9 TOP HINGE 10 FRONT PCB CASE 11 CONDENSER 12 CONDENSER MOTOR 13 MOTOR BRACKET 14 SUCTION PIPE 15 COMPRESSER

16 DRYER 17 DRAIN PAN 18 DRAIN GUIDE 19 DRAIN CASE 20 DRAIN PIPE 21 DRAIN CONNECTOR 22 EVAPORATOR 23 EVAPORATOR

MOTOR 24 LAMP COVER 25 TOP GRILE T 26 TOP GRILE B 27 EVAPORATOR COVER 28 LAMP

2

FEATURE CHART

MODEL:

M3R24-2 M3F24-2

FRONT VIEW

1 TOP GRILLE(T) 2 TOP GRILLE(B) 3 MASCOT 4 KEY 5 ASS’Y DOOR 6 DOOR HANDLE 7 CASTER 8 BOTTOM HINGE 9 MIDDLE HINGE 10 TOP HINGE 11 FRONT PCB CASE 12 CONDENSER 13 CONDENSER MOTOR 14 MOTOR BRACKET 15 SUCTION PIPE 16 COMPRESSER

MODEL: PLAN VIEW

M3R24-1 M3R24-2

17 DRYER 18 DRAIN PAN 19 DRAIN GUIDE 20 DRAIN CASE 21 DRAIN PIPE 22 DRAIN CONNECTOR 23 EVAPORATOR 24EVAPORATOR

MOTOR 25 LAMP COVER 26 TOP GRILE T 27TOP GRILE B 28EVAPORATOR COVER 29 LAMP

3

FEATURE CHAR

1-2.FRONT VIEW/PLAN VIEW (2DOOR)

MODEL:

M3R47-2 M3F47-2

FRONT VIEW

1 TOP GRILLE(T) 2 TOP GRILLE(B) 3 MASCOT 4 KEY 5 ASS’Y DOOR 6 DOOR HANDLE 7 CASTER 8 BOTTOM HINGE 9 TOP HINGE 10 FRONT PCB CASE 11 CONDENSER 12 CONDENSER MOTOR 13 MOTOR BRACKET 14 SUCTION PIPE 15 COMPRESSER

MODEL: PLAN VIEW

M3R47-2 M3R47-4

16 DRYER 17 DRAIN PAN 18 DRAIN GUIDE 19 DRAIN CASE 20 DRAIN PIPE 21 DRAIN CONNECTOR 22 EVAPORATOR 23 EVAPORATOR

MOTOR 24 LAMP COVER 25 TOP GRILE T 26 TOP GRILE B 27 EVAPORATOR COVER 28 LAMP

4

FEATURE CHART

MODEL: M3R47-4 M3F47-4

FRONT VIEW

1 TOP GRILLE(T) 2 TOP GRILLE(B) 3 MASCOT 4 KEY

Freezer

5 ASS’Y DOOR 6 DOOR HANDLE 7 CASTER 8 BOTTOM HINGE 9 MIDDLE HINGE 10 TOP HINGE 11 FRONT PCB CASE 12 CONDENSER 13 CONDENSER MOTOR 14 MOTOR BRACKET 15 SUCTION PIPE 16 COMPRESSER

MODEL:

M3F47-2 M3F47-4

PLAN VIEW

17 DRYER 18 DRAIN PAN 19 DRAIN GUIDE 20 DRAIN CASE 21 DRAIN PIPE 22 DRAIN CONNECTOR 23 EVAPORATOR 24EVAPORATOR

MOTOR 25 LAMP COVER 26 TOP GRILE T 27TOP GRILE B 28EVAPORATOR COVER 29 LAMP

5

FEATURE CHAR

1-3.FRONT VIEW/PLAN VIEW (3DOOR)

MODEL:

M3R72-3 M3F72-3

FRONT VIEW

1 TOP GRILLE(T)

2 TOP GRILLE(B)

3 MASCOT

4 KEY 5 ASS’Y DOOR

Freezer

6 DOOR HANDLE 7 CASTER 8 BOTTOM HINGE 9 TOP HINGE 10 FRONT PCB CASE 11 CONDENSER 12 CONDENSER MOTOR 13 MOTOR BRACKET 14 SUCTION PIPE 15 COMPRESSER

MODEL:

M3R72-3 M3R72-6

PLAN VIEW

16 DRYER 17 DRAIN PAN 18 DRAIN GUIDE 19 DRAIN CASE 20 DRAIN PIPE 21 DRAIN CONNECTOR 22 EVAPORATOR 23 EVAPORATOR

MOTOR 24 LAMP COVER 25 TOP GRILE T 26 TOP GRILE B 27 EVAPORATOR COVER 28 LAMP

6

FEATURE CHART

MODEL: M3R72-6 M3F72-6

FRONT VIEW

1 TOP GRILLE(T) 2 TOP GRILLE(B) 3 MASCOT

Freezer

4 KEY 5 ASS’Y DOOR 6 DOOR HANDLE 7 CASTER 8 BOTTOM HINGE 9 MIDDLE HINGE 10 TOP HINGE 11 FRONT PCB CASE 12 CONDENSER 13 CONDENSER MOTOR 14 MOTOR BRACKET 15 SUCTION PIPE 16 COMPRESSER

MODEL:

M3F47-2 M3F47-4

PLAN VIEW

17 DRYER 18 DRAIN PAN 19 DRAIN GUIDE 20 DRAIN CASE 21 DRAIN PIPE 22 DRAIN CONNECTOR 23 EVAPORATOR 24EVAPORATOR

MOTOR 25 LAMP COVER 26 TOP GRILE T 27TOP GRILE B 28EVAPORATOR COVER 29 LAMP

7

2.WIRING DIAGRAMS

2-1. M3R24-1

WIRING DIGRAM

2-2. M3R24-2

WIRING DIGRAM

8

WIRINGDIAGRAMS

2-3. M3F24-1

WIRING DIGRAM

2-4. M3F24-2

WIRING DIGRAM

9

WIRING DIAGRAMS

2-5. M3R47-2/4

2-6. M3F47-2/4

WIRING DIGRAM

10

WIRINGDIAGRAMS

2-7. M3R72-3/6

WIRING DIGRAM

2-8. M3F72-3/6

WIRING DIGRAM

11

3.PART DETAIL

3-1.TOP GRILLE

TOP GRILLE (T), TOP GRILLE (B)

TOP GRILLE (T)

TOP GRILLE (B)

DISPLAY P.C.B

3-2.Refrigeration Compartment

Cycle Assembly

DOOR LOCK

DISPLAY P.C.B

CONDENSER COIL

CONDENSER PIPE

CONDENSER DRYER

CONDENSER FAN

MOTOR ASSEMBLY

SUCTION PIPE

COMPRESSOR

12

PART DETAIL

Drain Pan Assembly

Drain Case Assembly

HEARTER CONNECTOR

DRAIN PAN HEATER

DRAIN HOSE

DRAIN PAN CONNECTOR DRAIN PAN

DRAIN HOSE HEATER

Condenser Fan Motor Assembly

DRAIN CASE

DRAIN CONNECTOR

CONDENSR FAN MOTOR

BRAKET

CONDENSR FAN MOTOR BLADE

13

PART DETAIL

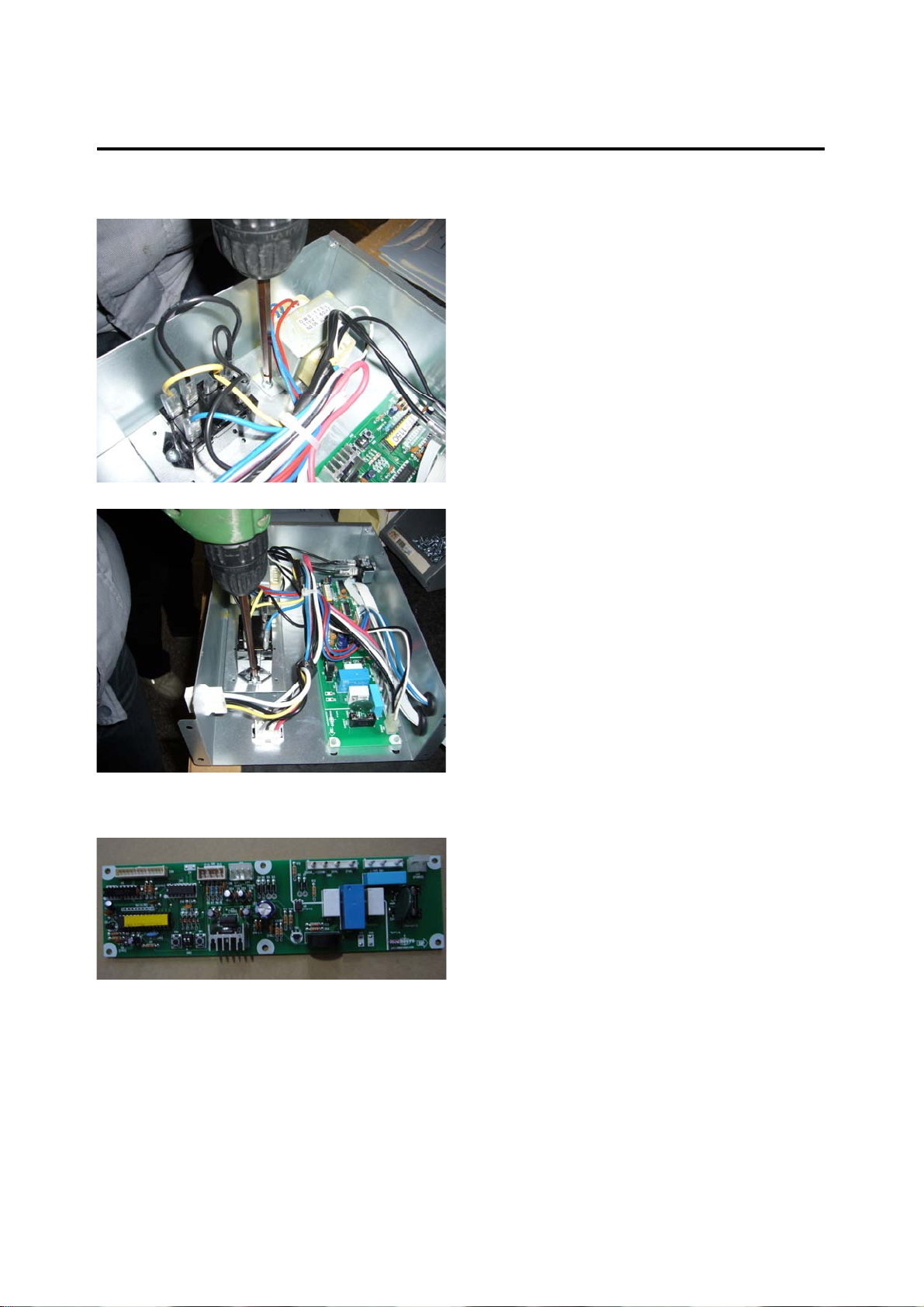

3-3.CONTROL BOX

MAIN PCB

POWER RELAY

TRANSFORMER

3-4.Door

Gesket

FRAME DOOR

DOOR GASKET

3-5.Cooling Compartment

Freezer Duct & Refrigerator Duct (M3R72-3/6,M3F72-3/6,M3R47-2/4,M3F47-2/4)

DUCT(B)

LAMP ASSEMBLY

14

EVAP. FAN MOTOR GUARD

DUCT(A)

PART DETAIL

Freezer EVAP.,Fan(M3R47-2/4,M3F47-2/4)

EVAPORATOR FAN MOTOR BLADE

MOTOR CONNECTOR

D-SENSER

EVAPORATOR

Freezer Duct & Refrigerator Duct (M3R24-1/2,M3F24-1/2)

EVAP. FAN MOTOR GUARD

LAMP ASSEMBLY

DUCT(A)

DUCT(B)

F-SENSER

15

PART DETAIL

Freezer EVAP.,Fan(M3R24-1/2,M3F24-1/2)

EVAPORATOR FAN MOTOR BLADE

MOTOR CONNECTOR

EVAPORATOR

D-SENSER POSITION

16

MAIN COMPONENTS

4-1.COMPRESSOR

Model

Refrigerant

Voltage

Comp. model

Part code

Starting Type

M3R24-1 M3R24-2

R-134a R-404a R-134a R-404a R-134a R-404a

115V 115V 115V 115V 115V

HBL27YE-1 CAJ 2420Z SK1A1C-L2W CAJ2432Z CAJ4476Y CAJ2446Z

G2F5700100 G2F5700100 P2R5700100 P2R5700100 P5F5700100 P8R5700100

CSR CSR CSR CSR CSR CSR

M3F24-1 M3F24-2

M3R47-2 M3R47-4

M3F47-2 M3F47-4

M3R72-3 M3R72-6

M3F72-3 M3F72-6

115V/208-230V

4-2.COMPRESSOR RELAY

Model

Voltage

Relay Model

M3R24-1 M3R24-2

M3F24-1 M3F24-2

M3R47-2 M3R47-4

25A,120V(GEN)

M3F47-2 M3F47-4

UZ-2A-BT110

M3R72-3 M3R72-6

M3F72-3 M3F72-6

4-3.CONDENSER DRYER

Model

Refrigerant

Spec.

M3R24-1 M3R24-2

R-134a R-404a R-134a R-404a R-134a R-404a

C-052-5 C-052-5 C-052-5 C-052-5 C-052-5 C-052-5

M3F24-1 M3F24-2

M3R47-2 M3R47-4

M3F47-2 M3F47-4

M3R72-3 M3R72-6

M3F72-3 M3F72-6

Part code

P994100100

4-4.CAPACITOR

Model

Voltage

Running 230V/10 ㎌

Part code

Starting 200V/100㎌ 160V/51 ㎌ 125V/125㎌ 160V/51 ㎌ 160V/250 ㎌ 160V/250 ㎌

Part code

M3R24-1 M3R24-2

M3F24-1 M3F24-2

M3R47-2 M3R47-4

250V/12 ㎌

M3F47-2 M3F47-4

4OOV A 450V B

500V C / 30 ㎌

M3R72-3 M3R72-6

M3F72-3 M3F72-6

4OOV A 450V B

500V C / 30 ㎌

4-5.EVA FAN MOTOR

Model

Voltage

Motor Model.

Part code

M3R24-1 M3R24-2

M3R47-2 M3R47-4

M3F24-1 M3F24-2

IS-4420DWSN-2A

M3F47-2 M3F47-4

115V/ 60Hz

G8F6600100

M3R72-3 M3R72-6

M3F72-3 M3F72-6

17

MAIN COMPONENTS

4-6.CONDENSOR FAN MOTOR

Model

Voltage

Motor Model.

Part code

M3R24-1 M3R24-2

M3F24-1 M3F24-2

M3R47-2 M3R47-4

M3F47-2 M3F47-4

115V/ 60Hz

IS-4420DWSN-2A

G8F6600100

M3R72-3 M3R72-6

M3F72-3 M3F72-6

4-7.EVA DEFROST HEATER

Model

Voltage

Spec..

Part code

M3R24-1 M3R24-2

X 115V X 115V X 115V X 445W X 600W X 900W X

M3F24-1 M3F24-2

P2F5300300

M3R47-2 M3R47-4

M3F47-2 M3F47-4

X P5F5300200 X P8F5300500

M3R72-3 M3R72-6

M3F72-3 M3F72-6

4-8.LAMP BULB

Model

Voltage

Spec..

Part code

M3R24-1 M3R24-2

M3F24-1 M3F24-2

M3R47-2 M3R47-4

M3F47-2 M3F47-4

115V

40W

P996300100

M3R72-3 M3R72-6

M3F72-3 M3F72-6

4-9.TRANSFORMER

Model

Voltage

Spec..

Part code

M3R24-1 M3R24-2

M3F24-1 M3F24-2

M3R47-2 M3R47-4

M3F47-2

M3F47-4 115V, 60Hz DWS-115U

M3R72-3 M3R72-6

M3F72-3 M3F72-6

4-10.MAIN PCB

Model

Voltage

Spec..

Part code

M3R24-1 M3R24-2

M3F24-1 M3F24-2

M3R47-2 M3R47-4

M3F47-2 M3F47-4

12V/24V

M3R72-3 M3R72-6

M3F72-3 M3F72-6

18

5.ELECTRONIC CONTROLLER INSTRUTION

5-1.FREEZER CONTROLLER

HOW TO USE THE PANEL

19

ELECTRONIC CONTROLLER INSTRUCTION

20

ELECTRONIC CONTROLLER INSTRUCTION

5-2.FREEZER CONTROLLER

HOW TO USE THE PANEL

21

ELECTRONIC CONTROLLER INSTRUCTION

22

6.PARTS LIST FOR M3

Part name Code

Material Description

R24 F24 R24-2 F24-2 R47 F47 R47-4 F47-4 R72 F72 R72-6 F72-6

Model

Cabinet

LINER FRAME COVER (L)(R) P8R3100300 PVC-H 2 2 2 2 2 2 2 2 2 2 2 2

LINER FRAME COVER (T)(U) P8R3100200 PVC-H 2 2 2 2

LINER FRAME COVER (T)(U) P5R3100300 PVC-H 2 2 2 2

LINER FRAME COVER (T)(U) P2R3100500 PVC-H 2 2 2 2

Control box

PANNEL FRONT PCB G8F3200300 ABS 1 1 1 1 1 1 1 1 1 1 1 1

HARNESS PCB G2F5100500 1 1

HARNESS PCB G5F5100101 1 1 1 1 1 1

HARNESS PCB G8R5100201 1 1

HARNESS PCB G8F5100901 1 1

HARNESS SENSOR

MAIN PCB (F) G8F5400100 1 1 1 1 1 1

MAIN PCB (R) P8R5400100 1 1 1 1 1 1

MAIN PCB FIXTURE G8F9200300 NYLON 6 6 6 6 6 6 6 6 6 6 6 6

POWER RELAY P995900100 1 1 1 1 1 1 1 1

POWER SWITCH P995200400 1 1 1 1 1 1 1 1 1 1 1 1

G8F51003……p0

0

1 1 1 1 1 1 1 1 1 1 1 1

Remark

Same As Super Deluxe

Door

ASS'Y DOOR (L) G8F0500200 1 1 1 1

ASS'Y DOOR (M) G8F0500300 1 1

ASS'Y DOOR (R) G8F0500100 1 1 1 1

ASS'Y DOOR (R) G2F0500100 1 1

ASS'Y DOOR (T)(L) G8F0500400 1 1 1 1

ASS'Y DOOR (T)(M)

ASS'Y DOOR (T)(R)

ASS'Y DOOR (U)(L)

ASS'Y DOOR (U)(M)

ASS'Y DOOR (U)(R)

DOOR GASKET

DOOR GASKET P2R3300100 PVC-S 11

DOOR GASKET

DOOR HANDLE

PIVOT CASE FIXTURE B/K

PIVOT MIDDLE

KEY P998200100

G2F0500200

G8F0500500

G2F0500300

G8F0500600

G8F0500700

G2F0500300

G8F0500900

P8F3300100 PVC-S

P8F3300200 PVC-S

P2R3300200 PVC-S

P993200700

P8F2200800 GI

P8F2900300 ZNDC

1 1

1 1 1 1

1 1

1 1 1 1

1 1

11

1 1 1 1

44448866 12 12 4 4

22444466 6 6 2 2

11

11222244 3 3 6 6

11222233 3 3 1 1

Same As Super Deluxe

23

PARTS LIST FOR M3

-

Part name Code

Material Description

R24 F24 R24-2 F24-2 R47 F47 R47-4 F47-4 R72 F72 R72-6 F72

vap housing

DRAIN GUIDE

DRAIN GUIDE PAD

DRAIN GUIDE PAD(LOW)

DEFROST HEATER

DRAIN HOSE G8 F3000100

DRAIN HOSE HEATER

DRAIN PAN HEATER G2F5300200

DRAIN PAN HEATER G5F5300200

DRAIN PAN HEATER G8F5300500

F SENSOR

FAN BLADE G8F2700500

FAN BLADE

MOTOR

T SENSOR G8R5100400

THERMAL FUSE G8F5300600

G2F2700100

G5F2700100

G8F2700100

G2F7300100

G5F7300100

G8F7300100

G8F7300200

P2F5300300 115V445W

P5F5300200

P8F5300500

G8F5300400 PVC

G8F5100800

P8F2700300

P8F2700400

G8F6600100

G8F6600200

AL

F-BS

PVC 115V61.2W

PVC 115V90W

PVC

1 1

115V600W

115V900W

115V10W

115V111.1W

11112222 2 2 2 2

1111

1 1 1 1

1111

1 1 1 1

1 1

11111111 1 1 1 1

1 1 1 1 1 1

1 1

1 1 1 1 1 1

1 1 1 1 2 2

11111111 1 1

2 2

1 1 1 1 1 1

Model

Remark

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

MULLION FRAME (V) G8F3100100

MULLION FRAME (V)

MULLION FRAME COVER

(V)

MULLION HEATER (VER)

SHELF STANDARD

LAMP

LAMP COVER

LAMP SOCKET

SENSOR GUARD

SHELF

SHELF (M)

G8F3101000 PVC 22 4

G8F3100400 PVC 22 4 4

P8F5300201 PVC L=3060 1 2

P8R5300201 PVC L=3060 1 2

P8F2700100 AL

P996300100

G8F3200200

P996400100

P992000300 AL

G2F1800101

G8F1800101

G8F1800201

PVC 22 4 4

44448888 12 12 12 12

11111111 1 1 1 1

3333

6666 6 6 6 6

3 3 3 3

24

Same As Super

Deluxe

PARTS LIST FOR M3

Part name Code

SHELF CLIP

CABINET HEATER

DOOR HANDLE

DOOR SWITCH

HINGE SPRING (L) P998400102 SUS304

HINGE SPRING (R) P998400202 SUS304

MASCOT

MIDDLE HINGE (L) P992900601

MIDDLE HINGE (R) P992900501

MULLION FRAME (H)

MULLION FRAME COVER

MULLION HEATER (VER)

TOP GRILLE (T) FIXTURE

TOP HINGE (L)

TOP HINGE (R)

TRANS FORMER

TOP GRILLE (T3)

TOP GRILLE(B) BACK COVER

TOP GRILLE(T2)

TOP GRILLE(T1)

TOP GRILLE (B) HARNESS GRILLE DOOR

S/W

TOP GRILLE (B)

P993200800

P2F5300101 PVC L=4800

P2R5300101 PVC L=5970

P5F5300101 PVC L=7290

P5R5300101 PVC L=4800

P8F5300100 PVC L=5970

P8R5300100 PVC L=7290

G993200101 ALDC 11112222 3 3 3 3

P995200100

G8F7400300

G8R7400300

G2F1200101

G8F1200302

G2F3100100

G8F3100500

G8F3100600

G8F3100700

G8F3100800

G8F3100900

P8F5300201 PVC

P8R5300201 PVC

P998300200 STS43

P992900204 STS304

P992900104 STS304

P996000100

G8F1600100 SUS304-#4

G8F1600201 GI

G5F1600100 SUS304-#4

G2F1600100 SUS304-#4

G2F1100101 GI BLACK

G2F5100401

G5F1100101 GI BLACK

Material Description

SUS304 SUS304

PVC

Model

R24 F24 R24-2 F24-2 R47 F47 R47-4 F47-4 R72 F72 R72-6 F72-6

16 16 16 16 32 32 32 32 48 48 48 48

1 1

11112222 3 3 3 3

11111111 1 1 1 1

11112222 3 3 3 3

1 1 1 1 1 1

11 1 1

11 11 2 2

22

44 6 6

22

22 2 2

22 4 4

2 2

1 2

22222222 2 2 2 2

1111 1 1 1 1

11111111 2 2 2 2

1 1 1 1

11111111 1 1 1 1

1111

Remark

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

25

PARTS LIST FOR M3

Part name Code

HARNESS GRILLE DOOR S/W

TOP GRILLE (B)

TOP GRILLE (B) FIXTURE HARNESS GRILLE DOOR

S/W

TOP GRILLE (T) FIXTURE

Unit

TEE

PIPE(COMP-DRAIN)

PIPE(DRAIN-CON)

EVAP COIL

CONDENSER COIL

PIPE(COMP-DRAIN)

PIPE(DRAIN-CON)

EVAP COIL

CONDENSER COIL

PIPE(COMP-DRAIN)

EVAP COIL

PIPE(DRAIN-CON)

PIPE(COMP-DRAIN)

PIPE(DRYER-CAPI TUBE)

EVAP COIL

CONDENSER COIL

DRAIN PIPE

PIPE(COMP-SUC)

PIPE(DRAIN-CON)

PIPE(COMP-DRAIN)

PIPE(DRYER-CAPI TUBE)

PIPE(COMP)

PIPE（CON-DRYER）

EVAP COIL

CONDENSER COIL

PIPE(DRAIN-CON)

PIPE(COMP-DRAIN)

EVAP COIL

HARNESS RELAY

FILTER DRYER

Material Description

G5F5100401

G8F1100101 GI BLACK

G8F1900301 GI

G8F5100701

P8F1600401 SUS304-2B

φ7.94X0.6T

Φ9.52X0.6T

φ7.94X0.6T

Φ9.52X0.6T

G994200100

G2F4200401 CU Φ9.52X0.6T

G2F4200501

G2F4400101

G2F4500101

G2R4200102

G2R4200301

G2R4400101

G2R4500101

G5F4200401

G5F4400101

G5R4200101

G5R4200201

MEGA CU

G5R4400101

G5R4500101

G8F4200101 CU

G8F4200200 CU Φ12.7X0.8T

G8F4200701 CU Φ9.52X0.6T

G8F4201000 CU Φ9.52X0.6T

G8F4201100 CU

G8F4201300 CU Φ9.52X0.75T

G8F4400101 CU Φ7.94X0.6T

G8F4500102

G8R4200201

G8R4200300 CU Φ9.52X0.6T

G8R4400101 CU

G8R4500102

G2F5100100

G2R5100100

G8F5100101

G8R5100100

P994100100

CU

CU Φ9.52X0.6T

CU

CU Φ9.52X0.6T

CU

Model

R24 F24 R24-2 F24-2 R47 F47 R47-4 F47-4 R72 F72 R72-6 F72-6

1111

1 1 1 1

22223333 3 3 3 3

1 1 1 1

22222222 2 2 2 2

11111111 1 1 1 1

1 1

1 1 1 1 1

1 1

1 1 1

1 1

1 1 1 1

1

11111111 1 1 1 1

1

1 1

1 1 1 1

1 1

1 1 1 1

1 1

1 1 1 1

11111111 1 1 1 1

Remark

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

26

PARTS LIST FOR M3

Part name Code

TOP HINGE SPACE

DRAIN HOSE CAP

COMPRESSOR

Material Description

P8F2600100 ABS

P8F9900101 RUBBER BLACK

G2F5700100

G2R5700100

P2F5700100

P2R5700100

P5F5700100

P8R5700100

(CAJ 2420Z) 1 1

(HBL 27YE-1) 1 1

(CAJ 2432Z) 1 1

(SK1A1C-L2W) 1 1

(CAJ 2446Z) 1 1

(CAJ 4476Y) 1 1

Model

R24 F24 R24-2 F24-2 R47 F47 R47-4 F47-4 R72 F72 R72-6 F72-6

22444488 6 6 12 12

11111111 1 1 1 1

27

Remark

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

Same As Super

Deluxe

7.REPLACEMENT OF MAIN COMPONENTS

7-1. TOP GRILLE PART

A. Unscrew the screw located on both side of top grille (t) with the top grille (t)

fixture.

B. Hold up the top grille (T)

C. Unscrew the screw located on both side of top grille (B).

28

REPLACEMENT OF MAIN COMPONENTS

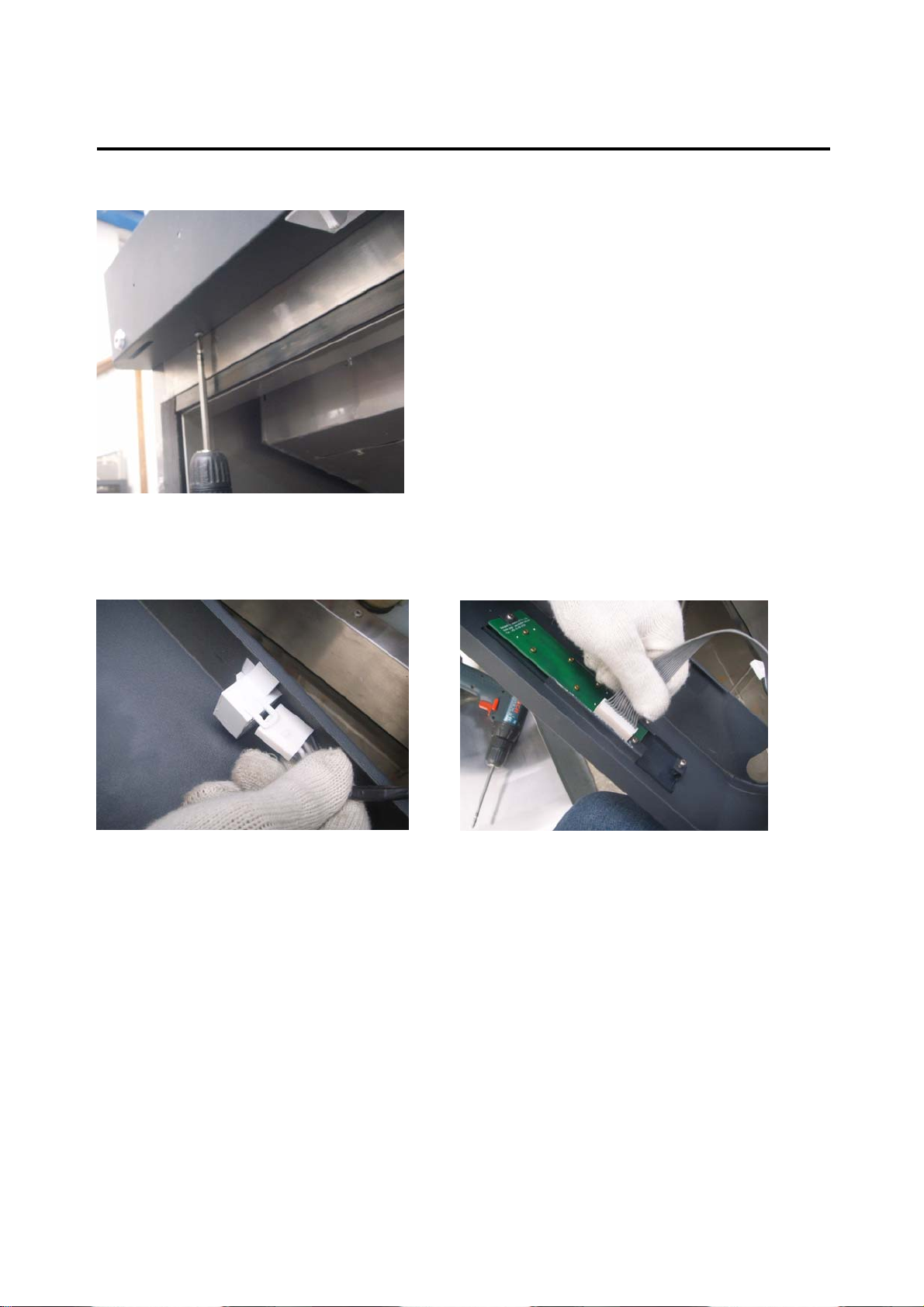

D. Unscrew the screw located on the cabinet top cover.

E. Pull out the harness display pcb and harness grille door s/w located on back of

top grille (B).

You can replace the door switch, mascot, key, front pcb and front pcb case, etc.

29

REPLACEMENT OF MAIN COMPONENTS

7-2. REPLACE DOOR

7-2-1. REPLACE DOOR (M3R24-1,M3F24-1,M3R47-2,M3F47-2,M3R72-3,M3F72-3) A. Disassemble top grille (T) and top grille (B) as described section 7-1.

B. Unscrew pivot stopper.

C. Unscrew the top hinge (R).

D. Lift the door (

R) and pull it out.

30

REPLACEMENT OF MAIN COMPONENTS

E. Replace the door with the new one. (you should assemble pivot middle, hinge

spring etc before this process.)

F. Screw the top hinge (L) and pivot stopper. (this process is opposite to

disassemble them.)

G. Do just like above instructions in replacing the door (L).

7-2-2. REPLACE DOOR (M3R24-2,M3F24-2,M3R47-4,M3F47-4,M3R72-6,M3F72-6) A. Disassemble top grille (t) and top grille (b) as described section 7-1.

B. Unscrew pivot stopper. (both top and bottom side)

C. Unscrew the top hinge (L).

31

REPLACEMENT OF MAIN COMPONENTS

D. Lift the door

(T) (L) and pull it out.

E. Unscrew the middle hinge (L).

F. Lift the door (U) (L) and pull it out.

32

REPLACEMENT OF MAIN COMPONENTS

Then you can replace new doors and assemble them, those processes are opposite to

disassemble them.

G. Do just like above instructions in replacing the door (T)(R) and the door (U)(R).

33

REPLACEMENT OF MAIN COMPONENTS

7-3. REFRIGERATION COMPARTMENT’S PART

- Duct and Lamp

- T-sensor and D-sensor

- Evaporator coil and F-sensor

- Defrost heater (freezer only)

- Evaporator fan motor and fan blade

7-3-1. REPLACE DUCT AND LAMP

A.Disassemble the Duct.

B. Unscrew the screws of lamp cover.

C. Pull out the lamp socket and lamp

34

REPLACEMENT OF MAIN COMPONENTS

You can replace the lamp now.

7-3-2. REPLACE T SENSOR AND D SENSOR (T-SENSOR IS WHITE COLOR, F-SENSOR IS ORANGE

AND D-SENSOR IS BLUE)

A.Disassemble the Duct as in 7-3-1

B. Disconnect the connector and pull out the D-sensor from the evap. replace the

new one.

(D-SENSOR IS BLUE)

C. Take off the T-sensor from the evap. replace the new one.

(T-SENSOR IS WHITE COLOR)

35

REPLACEMENT OF MAIN COMPONENTS

7-3-3. REPLACE THE EVAPORATOR COIL AND F-SENSER

A. Welding off the connection suction pipe(A) and (B).

B. Unscrew the screw located on back side of evap. housing.

C. Take off the evaporator.

36

REPLACEMENT OF MAIN COMPONENTS

D. Disconnect the connector and Unscrew the screws located on sensor cover and pull out the F-sensor from the evap.sensor guide, replace the new one.

7-3-4. REPLACE THE DEFROST HEATER (FREEZER ONLY)

A. After lift the evaporator up, disconnect the connectors with harness defrost

heater and disassemble the defrost fixture spring and split the hooks of the evap..

B. Replace the new defrost heater and fix it with heater fix spring. Connect the

connectors.

*NOTE Why is always 115 voltage detected between connectors of the evaporator defrost

heater in the main harness?

The SNUBBER (located Main PCB) holds two AC power lines simultaneously. The SNUBBER prevents Main PCB malfunction from sparks occurred by other electrical component’s ON/OFF. ( SNUBBER =Spark killer) Because of the SNUBBER, 115 voltage is always detected, but electrical current in this case is very little (small Amps.).So, this electrical current is not enough to operate the evaporator defrost heater.

37

REPLACEMENT OF MAIN COMPONENTS

How to measure the Amps. of the evaporator defrost heater

Disconnect the connectors of the evaporator defrost heater. Then , prepare the additional Power Source(115V/60Hz) and the Amp. Meter. Connect the connectors of the evaporator defrost heater to the additional power source and read amp. Value from the Amp. Meter.

7-3-5. REPLACE THE EVAPORATOR FAN MOTOR AND FAN BLADE

A. After lift the evaporator up, unscrew the screw which used in fixing motor

fixture.

B. Disconnect the connectors of harness motor.

Then you can replace the evaporator fan motor and fan blade.

38

REPLACEMENT OF MAIN COMPONENTS

7-4. CONTROL BOX PART

- Power relay

- Transformer

- Main PCB

A. Disassemble top grille (t) as described section 7-1 A B.

B. Pull out all connectors connected with control box.

C. Unscrew the screws located on front of evap-housing.

E. Pull out the harness main.

39

REPLACEMENT OF MAIN COMPONENTS

F. Unscrew the screws used in fixing pow er relay and trans former.

G. Disconnect the main PCB fixture.

Then you can replace the power relay, trans former and main pcb.

40

REPLACEMENT OF MAIN COMPONENTS

7-5. CONDENSER UNIT

- Compressor

- Condenser fan motor

- Dryer filter

- Pressure switch

The comp. Base is located on both side on the top of the cabinet by screw, and you can replace the Compressor ,Condenser coil Condenser fan motor, ETC. on it.

41

REPLACEMENT OF MAIN COMPONENTS

7-6. REPLACE THE CABINET HEATER AND MULLION HEATER

A. Disassemble the liner frame cover with the and edge of ‘一’type

screwdriver.(left/right/top/bottom side)

B. Disconnect the cabinet heater and pull it out.

You can replace the cabinet heater with the new one.

C. Assemble the liner frame cover.( left/right/top/bottom side)

42

REPLACEMENT OF MAIN COMPONENTS

D. Disassemble the mullion frame cover(v) with the and edge of ‘一’type

screwdriver.

E. Unscrew the screw located on both side of the mullion.

F. Take apart the mullion out cover(v) from the mullion, then disconnect the

harness mullion heater.

43

REPLACEMENT OF MAIN COMPONENTS

G. Change the old mullion heater(v) and install the new one with the gap between

wires 1.2 inch.

H. Insert the mullion out cover(v) into the original position, then screw it on both

side of the mullion.(this process is opposite to disassemble the mullion out cover(v) )

J. Assemble the mullion frame cover(v).(this process is as alike as assembling the

liner frame cover)

K. Do just like above instructions in replacing mullion heater(h).

PRO-26-2R,PRO-26-2F,PRO-50-4R,PRO-50-4F,PRO-77-6R,PRO-77-6F only, but before replacing

( mullion heater(h), doors should be disassembled. )

44

REPLACEMENT OF MAIN COMPONENTS

45

John Deere M3R47-4, M3R47-2, M3R72-6, M3R72-3, M3R24-2 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
