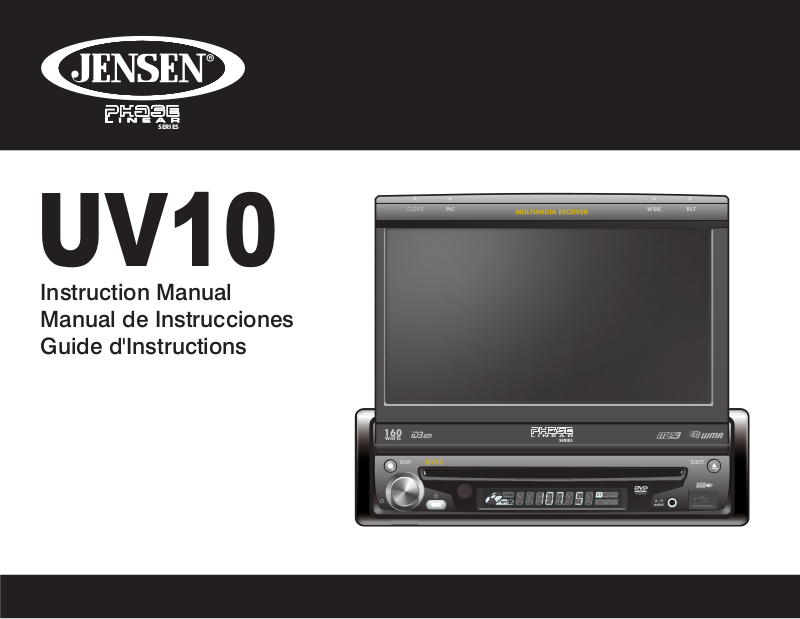

Jensen UV10 User Manual

SERIES

UV10

Instruction Manual Manual de Instrucciones Guide d'Instructions

160

WATTS

PIC

WIDE

A / V INPUT

TILT

CONTENTS

Thank you for choosing a Jensen Phase Linear product. We hope you will find the instructions in this owner’s manual clear and easy to follow. If you take a few minutes to look through it, you’ll learn how to use all the features of your new Jensen Phase Linear UV10 Mobile Multimedia Receiver for maximum enjoyment.

Preparation............................................................................................................................ 1

Controls and Indicators......................................................................................................... 2

Remote Control..................................................................................................................... 3

Using the TFT Monitor .......................................................................................................... 5

Operating Instructions........................................................................................................... 6

Setup Menu........................................................................................................................... 8

Tuner Operation.................................................................................................................. 11

DVD/VCD Video Operation................................................................................................. 13

DVD/CD Audio Operation ................................................................................................... 16

MP3/WMA Operation.......................................................................................................... 17

iPod Operation.................................................................................................................... 19

Bluetooth Operation............................................................................................................ 21

Troubleshooting .................................................................................................................. 24

Specifications...................................................................................................................... 26

CONTENIDO

Gracias por elegir los productos Jensen. Esperamos que encuentre en este manual instrucciones claras y fáciles de seguir. Si se toma unos pocos minutos para leerlo, aprenderá cómo utilizar todas las funciones de su nuevo radio Jensen Phase Linear UV10 para su máximo entretenimiento.

Preparación......................................................................................................................... 27

Controles e Indicadores...................................................................................................... 28

Control Remoto................................................................................................................... 29

Cómo Usar el Monitor TFT.................................................................................................. 32

Instrucciones de Funcionamiento ....................................................................................... 33

Menú de Configuración....................................................................................................... 35

Operación de Sintonizador.................................................................................................. 38

Operación de Video de DVD/VCD ...................................................................................... 40

Operación de Audio de DVD/CD......................................................................................... 43

Operación de MP3/WMA .................................................................................................... 44

Operación de iPod .............................................................................................................. 46

Operación de Bluetooth ...................................................................................................... 48

Resolución de Problemas ................................................................................................... 51

Especificaciones ................................................................................................................. 54

TABLE DES MATIÈRES

Merci d'avoir choisi un produit Jensen. Nous espérons que vous allez trouver les instructions dans ce guide de propriétaire claires et faciles à suivre. Prenez quelques minutes à le consulter, vous apprendrez à utiliser toutes les fonctions de votre nouvelle radio Jensen Phase Linear UV10 pour en tirer une jouissance maximum.

Preparation......................................................................................................................... 55

Commandes et indicateurs................................................................................................. 56

Telecommande................................................................................................................... 57

Utilisation de moniteur TFT................................................................................................ 59

Instructions d’operation...................................................................................................... 60

Menu configuration............................................................................................................. 62

Operation tuner .................................................................................................................. 65

Operation video DVD/VCD................................................................................................. 67

Operation audio DVD/CD................................................................................................... 70

Opération MP3/WMA ......................................................................................................... 71

Opération iPod ................................................................................................................... 73

Operation Bluetooth ........................................................................................................... 75

Depannage......................................................................................................................... 78

Specifications..................................................................................................................... 81

UV10

PREPARATION

Congratulations on your purchase of the Jensen Phase Linear UV10 Mobile Multimedia Receiver.

It’s a good idea to read all of the instructions before beginning the installation. We recommend having your Jensen Phase Linear UV10 installed by a reputable installation shop.

Features

DVD

• Aspect Ratio - Full and Normal

• Fast Forward - 2X, 4X, 8X and 32X

• Slow Motion - 1/2, 1/4, 1/6 and 1/7

• Play, Pause, Stop, Next Chapter and Previous Chapter

CD / MP3 / WMA

• CD-Text Compatible

• ID3 Tag Compatible

• Directory Search (MP3 / WMA Only)

• Direct Track Access via Remote Control

• Burn up to 1500 MP3 and WMA Files onto a DVD+ RW

• Audible Forward / Reverse Track Search (CD-DA Only)

• Random, Repeat and Intro

• Play, Pause, Stop, Next Track and Previous Track

AM-FM

• USA / Europe / Latin America / Asia Frequency Spacing

• 30 Station Presets (18 FM / 12 AM)

• Auto Stereo / Mono

• Local / Distance

• Auto Store / Preview Scan

iPod

• iPod via USB

• High Speed Direct Connect Interface to Access iPod Playlists, Artists, Albums and Songs. Play music and view video/photo* files from your iPod. *Video/photo playback requires jLink-USB iPod interface cable (sold separately).

• Power Management Charges iPod while Connected

Chassis

• 1.0 DIN (Import / ISO-DIN Mountable)

• Motorized Flip-Out / Flip-Up LCD Screen

• 8 Character / Segment Type Secondary LCD Display

• 7" TFT Active Matrix LCD

• 336, 960 Sub Pixels (1440W X 234H)

• Screen Tilt / Angle Adjustment

• Beep Tone Confirmation (On-OFF Option)

• Heat Management System - Forced Air-Cooling To Keep The Chip-Sets Operating at Nominal Temperatures

R /

General

• Navigation Ready (NAV102)

• Bluetooth Ready (with purchase of BTM10) providing hands-free profile for safety / convenience and A2DP profile for streaming music from a PDA / PMP

• 44-Key Infrared Remote Control

• One Composite Video Output for Additional Screens

• Front Panel Audio/Video Input

• Three-Band Tone control (Bass, Mid and Treble) w/ Eight Preset EQ Curves

• Front Panel A/V Aux Input for Portable Media Devices

• Front, Rear and Subwoofer Line Output

• Programmable Volume Control

• Rear Camera Input (Normal and Mirror Image View)

• Touch Screen Calibration Mode

• 2VRMS Line Output - All Channels

• Rotary Encoder Audio Control

• SWC Interface – Compatible with PAC adapter SWI-PS Steering Wheel Control Interface, sold separately

Optional Equipment

• NAV102 The UV10 is "navigation ready." Before accessing any navigation features, you must purchase and install the navigation module (NAV102). All installation and operating instructions will be included with the navigation module. Once the navigation module is connected and operating properly, the NAV source mode will become active. While the navigation module is not installed, the NAV option appears gray, indicating the function is not available.

• BTM10 Before you can connect to a Bluetooth enabled device, you must purchase and install the Jensen BTM10.

• Bluetooth Phone See “Bluetooth Operation” on page 21.

• Rear Camera The UV10 is "camera ready." Before accessing any camera features, you must purchase and install a rear video camera. Once the rear camera is connected and operating properly, the CAMERA source mode will become active. While the camera is not installed, the CAMERA option appears gray, indicating the function is not available.

WARNING! Never install this unit where operation and viewing could interfere with safe driving conditions.

WARNING! To reduce the risk of a traffic accident (except when using for rear view video camera) never use the video display function while driving the vehicle. This is a violation of federal law.

WARNING! Never disassemble or adjust the unit.

WARNING! To prevent injury from shock or fire, never expose this unit to moisture or water.

WARNING! Never use irregular discs.

WARNING! To prevent damage to the mechanism inside this unit, avoid impact to the TFT monitor.

WARNING! The monitor employs an automatic motorized mechanism. To prevent damage to the core mechanism, please do not push, pull or swivel the monitor manually.

CONTROLS AND INDICATORS

1. CLOSE/OPEN

Press to activate the automatic mechanical system and move the TFT monitor into viewing position. Press again to close the TFT.

2. PIC/BAND

Press to adjust the Brightness and Contrast (see “Image/ Display Settings” on page 5).

With the monitor closed, press BAND to change between three FM and two AM bands.

3. DISC SLOT

4. WIDE/ |<<

Press to adjust the display aspect of the picture to one of two settings: Full, Normal or STANDBY.

With the monitor closed, press to seek backward. When the NAV102 is connected to the UV10, press and hold

to display the navigation user interface. The TFT screen must be open for this function to operate.

5. TILT / >>|

Press to activate the tilt function. Use the rotary encoder to make adjustments while the yellow tilt icon is flashing.

With the monitor closed, press to seek forward.

6. EJECT

Press to eject a disc. Press and hold to reset core mechanism position.

7. LCD Display

8. DISP

With the monitor closed, press to view alternate LCD display information.

9. IR Remote Control Receiver

10. SRC

Press to turn unit on. Press and hold to turn the unit off. When on, press once to select playing mode.

11. Rotary Encoder

Rotate to adjust the volume. Press and release to enter and/ or confirm audio settings.

Press to activate the MUTE function and silence the receiver. Press again to resume sound.

Press and hold to activate the Local (LOC) setting. Press and hold again to turn Local reception off.

12. RESET

Press to reset system settings to factory default (except the password and parental lock setting).

13. A/V Input

Attach a compatible A/V device.

14. USB Interface Connector

Connect a USB device for playback of music/video files.

160

WATTS

UV10

A/V

INPUT

OPENBAND AS/PSDISP

PIC

MULTIMEDIA RECEIVER

SERIES

15. TFT Display

UV10

REMOTE CONTROL

Table 1: Remote Control Functions

Button Function

Name Ref# DVD VCD TUNER CD/MP3/USB iPod

MENU 1 Enters the main menu

TITLE 2 Enters the title menu of

MUTE 3 Toggles on/off audio

POWER/ AUDIO 5 Changes the audio lan-

REPT A-B 6 Setup to repeat play-

REPT 7 Repeats playback of

of the disc

the disc

output

4 Turns the power on/off Turns the power on/off Turns the power on/off Turns the power on/off Turns the power on/off

guage for disc playback

back from time frame A to time frame B

current chapter SRC 8 Selects playing mode Selects playing mode Selects playing mode Selects playing mode Selects playing mode SUBTITLE 9 Language selection fo r

DISP/ CLEAR

subtitle

10 Displays playing infor-

mation

Delete entry or move

backwards to correct

error in Direct Access

mode PRESET /\ 11 Navigates the preset

PRESET \/ 12 Navigates the preset

ANGLE 13 Plays back disc in dif-

>> 14 Fast forwards the disc

ferent angle for a

scene

content VOL - 15 Decreases volume Decreases volume Decreases volume Decreases volume Decreases volume VOL + 16 Increases volume Increases volume Increases volume Increases volume Increases volume |<< 17 Selects the previous

>/|| 18 Pauses playback/starts

chapter for playback

playback

Turns on/off PBC when playing VCD

Plays first ten seconds of each chapter/title

Toggles on/off audio output

Setup to repeat playback from time frame A to time frame B

Repeats playback of current chapter

Displays playing information

Delete entry or move backwards to correct error in Direct Access mode

Plays back Picture CD with different angle of picture displayed

Fast forwards the disc content

Selects the previous chapter for playback

Pauses playback/starts playback

Toggles on/off audio output

Displays playing information

Delete entry or move backwards to correct error in Direct Access mode

station list

Searches an available radio station by decreasing tuning frequency

Toggles on/off audio output

Repeats playback of current track

Display playing information

Delete entry or move backwards to correct error in Direct Access mode

Fast forwards the disc content

Selects the previous track for playback

Pauses playback/starts playback

Selects Photo mode

Selects Music mode

Toggles on/off audio output

Selects Music mode

Repeats playback of current track

Selects Photo mode

Displays playing information

Delete entry or move backwards to correct error in Direct Access mode

Selects Video mode

Accesses iPod Menu

Pauses playback/starts playback

MUSIC PHOTO VIDEO

iPod

NOTE: Your remote control may differ slightly from the one pictured here. The above diagram is for illustrative purposes only.

Table 1: Remote Control Functions

Button Function

Name Ref# DVD VCD TUNER CD/MP3/USB iPod

>>| 19 Selects the next chap-

GOTO 21 Open direct entry

<< 22 Slow playback/slow

ZOOM 23 Zooms in/out on an

PIC 24 Displays set-up param-

OPEN/ CLOSE

WIDE 28 Selects display mode:

1, 2, 3, 4, 5, 6, 7, 8, 9, 0 (Numeric Keypad)

||> / BAND 30 Press repeatedly for

SETUP 31 Displays Setup menu Displays Setup menu Displa ys Setup menu Displays Setup menu Displays Setup menu EQ 32 Accesses equalizer

RDM 33 Plays all chapters in

INT 34 Plays the first ten sec-

EJECT 35 Ejects disc Ejects disc Ejects disc Ejects disc Ejects disc

ter for playback

20 Stops playback Stops playback Stops playback

search screen

rewind playback


eters

25 Opens/closes the TFT

monitor

26 Decreases monitor tilt

angle

27 Increases monitor tilt

angle

FULL or NORMAL

29 Directly accesses

chapter

slow motion forward/

backward

random order

Selects the next chapter for playback

Open direct entry search screen

Slow playback/slow rewind playback

Zooms in/out on an image

Displays set-up parameters

Opens/closes the TFT monitor

Decreases monitor tilt angle

Increases monitor tilt angle

Selects display mode: FULL or NORMAL

Press repeatedly for slow motion forward/ backward

Accesses equalizer menu

Searches an available radio station by increasing tuning frequency

Opens/closes the TFT monitor

Decreases monitor tilt angle

Increases monitor tilt angle

1-6 selects preset for current band

Selects FM/AM band

Accesses equalizer menu

Selects the next track for playback

Opens/closes the TFT monitor

Decreases monitor tilt angle

Increases monitor tilt angle

Directly accesses track

Accesses equalizer menu

Plays all tracks in random order

onds of each track

Selects the next track for playback

Opens/Closes the TFT monitor

Decreases monitor tilt angle

Increases monitor tilt angle

Accesses equalizer menu

Plays all tracks in random order

UV10

USING THE TFT MONITOR

Open/Close TFT Monitor

Open TFT Monitor

Press the OPEN button (1) on the front panel or press the ( ) button (25) on the remote control to activate the

mechanism that moves the display panel into the viewing position.

Close TFT Monitor

Press the OPEN button (1) on the front panel or press the ( ) button (25) on the remote control to load the display

panel back into the compartment.

TFT Monitor Auto Open

If “TFT Auto Open” is “on” when the unit is turned on, the monitor automatically moves to the viewing position.

If “TFT Auto Open” is ”off” when the unit is turned on, press the OPEN button (1) or ( ) button (25) on the remote

control to move the monitor into the viewing position. If “TFT Auto Open” is set to ”Manual”, the TFT will not close

when the key is turned off.

Monitor Tilt Angle Adjustment

A known characteristic of LCD panels is the quality of the display in relationship to the viewing angle. The monitor angle can be adjusted for optimum viewing using one of the following methods:

Step by Step Angle Adjustment

• Press the ( ) or ( ) button on the remote control to adjust the tilt angle of the screen one step at a time.

• Press the TILT button (5) on the unit. While the yellow tilt icon is flashing, turn the rotary encoder to adjust the screen angle.

Continuous Angle Adjustment

Press and hold the ( ) or ( ) button on the remote control to adjust the tilt angle in a continuous motion.

Aspect Ratio

Press the DISP button (10) on the remote control or WIDE button (4) on the monitor to adjust the aspect ratio as follows:

FULL The entire screen is extended horizontally to the aspect ratio of 16 to

9. The extension ratio is the same at any point.

NORMAL The conventional display image has a 4 to 3 ratio of horizontal to vertical, leaving a blank area on the right and left sides of the display.

STANDBY Screen becomes black. Touch screen to resume.

Image/Display Settings

Video Output Modes

Table 2 shows the video output mode for each playing source.

Table 2: Video Output Modes

Playing Source Video Output Modes

AM/FM TUNER RGB Mode DVD RGB Mode AUX IN CVBS Mode

*CVBS – Composite Video Baseband Signal

Picture Adjustment

To adjust monitor display settings, perform the floowing steps:

1. Press the PIC button (24) on the remote control or mon- itor (2) repeatedly to move from the “BRIGHT” setting to “CONTRAST, “COLOR” and “HUE.”

2. Turn the rotary encoder to adjust the setting level.

3. Press the PIC button (24) on the remote control or monitor (2) 1-3 times to exit the picture adjustment menu.

Parking Brake Inhibit

When the pink "Parking" wire is connected to the vehicle Parking Brake circuit, the front TFT monitor will display video

when the Parking Brake is engaged. (When the pink wire is grounded via the Parking Brake circuit, video will be displayed.)

Monitor Movement Mechanism

If an obstruction occurs in the monitor path, the following protective measurements can be executed to prevent damage to the mechanism or monitor:

Table 3: Monitor Protective Measures

Obstruction

Monitor loading out horizontally

Monitor loading in horizontally

Monitor loading out vertically

Monitor loading in vertically

After the protective procedure is executed, normal operation is resumed by pressing the OPEN button (1) or disconnecting and reconnecting the power.

Self

Protection

Monitor is automatically loaded into unit

Unit stops at obstruction point

OPEN Button

Pressed

Monitor fully extended horizontally

Monitor swivels back to the unit

Power

Reconnected

Monitor is automatically loaded into unit

Monitor swivels back to the unit

OPERATING INSTRUCTIONS

Power On / Off

Press the /SRC button (10) on the unit (or the button (4) on the remote control) to turn the unit on. The buttons on the front of the unit light up and the current mode status appears in the LCD (7). You can also turn on the unit by pressing the OPEN button (1) and opening the TFT screen.

Press and hold the button to power off the unit.The monitor is drawn back into the main compartment.

Audible Beep Confirmation

An audible beep tone confirms each function selection. The Beep tone can be disabled through the Setup menu.

Mute/Line Mute

Press the rotary encoder button (11) on the front panel or the MUTE button (3) on the remote to mute the volume from the unit. Press the rotary encoder button again to restore the volume. “MUTE” is displayed on the LCD. Adjusting the volume or using any of the audio setup features cancels the mute function.

If the “MUTE” wire is connected, audio output mutes when a telephone call is received by the car phone (using optional BTM10) or when verbal navigation is performed (using optional NAV102).

Playing Source Selection

When the monitor is closed, press the SRC button on the front panel (10) or remote control (8) to change between available audio playing sources in the following order: AM/ FM, DISC, USB1, USB2, BT, NAV, AUX IN and CAMERA. The mode is displayed on the LCD screen.

Source Menu

You can also use the touch screen to change the source through the SOURCE MENU. To access the SOURCE

MENU, touch the top left corner of the screen or press the SRC button on the front panel (10) or remote control (8) .

RADIO

SOURCE MENU

DISC

NAV

USB1

AUX

USB2

CAMERA

Touch the DISC, RADIO, USB1, USB2, NAVI, AUX or CAMERA button to select the corresponding source.

NOTE: If an iPod is attached to a USB1 port, “IPOD” appears instead of the text “USB1.”

External Devices

External peripheral devices, including a game console, camcorder, navigation unit, iPod, Zune, etc. can be connected to this unit via RCA output using an A/V Media Adapter Cable (not included).

EJECT

A/V

INPUT

Right Audio

Left Audio

Ground

Video

UV10

Volume Adjustment

Volume Increase/Decrease

To increase or decrease the volume level, turn the rotary encoder (11) on the front panel or press the VOL-/+ buttons (15, 16) on remote control. When the volume level reaches “0” or “40”, a beep sounds, indicating that the adjustment limit has been reached. The LCD or TFT screen displays the volume level for 3 seconds.

Programmable Turn-On Volume

This feature allows the user to select a turn-on volume setting regardless of the volume setting prior to turning the unit off. To use this feature, the TFT monitor must be displayed.

To program a specific turn-on volume level, turn the rotary encoder (11) to adjust the volume to the desired turn-on volume. Push and hold the rotary encoder while the yellow speaker icon and level indication is displayed on the screen. The unit will beep to confirm your turn-on volume setting.

Audio Control Menu

The Audio Control feature allows you to easily adjust your audio system to meet the acoustical characteristics of your vehicle, which vary depending on the type of vehicle and its measurements. Proper setting of the Fader and Balance boosts the effects of the cabin equalizer.

Touch the EQ button on the left side of the screen or press the EQ button (32) on the remote control to display the audio menu.

• Use the touch screen +/- buttons to adjust the settings for an audio feature.

• To adjust an audio feature using the remote control, perform the following steps: a. Press the (>>|)/(|

the audio feature to be adjusted.

b. Press the >/|| button (18) to select t he highlighted

option.

<<) buttons (19, 17) to highlight

3.5mm A/V Cable (not included)

Connect the external device to the A/V Media Adapter Cable and then plug the cable into the A/V INPUT connector (13) on the front of the radio. Select “AUX” or “AUX IN” (when monitor is closed) mode to access auxiliary devices. You cannot directly control external devices connected to the A/V INPUT. For information regarding the use of USB devices, see “Inserting a USB Device” on page 17.

UV10

c. Press the |<<, >>|, >>, or << buttons (12, 15, 17,

20) on the remote control to adjust the selected feature to the desired setting.

Table 4: Audio Adjustments

Audio Function Adjustable Range

EQ User

Acoustic Urban Rave Latin Dance Hip Hop

Rock BASS -14 to +14 MID -14 to +14 TREBLE -14 to +14 SUB -14 to 0 FAD Grid BAL Grid

NOTE: The EQ mode will automatically change to “USER” when individual audio functions are adjusted.

The Audio menu will automatically exit after a few seconds of inactivity. To exit quickly, touch the top left corner of the screen or press and hold the rotary encoder (11).

System Reset

To correct a system halt or other illegal operation, use the tip of a pen to press the reset button (12) located on the front bottom-right corner of the unit. After a system reset, the unit restores all factory default settings.

[RESET ] Butto

SWC Functions

The following controls are available for most vehicles:

1. Vol Down

2. Vol Up

3. Mute

4. Seek Down / Previous Track / ** Preset Down

5. Seek Up / Next Track / ** Preset Up

6. SRC (Source)

7. ** Select

8. ** Select

9. Band ** If additional steering wheel control buttons are available on

the vehicle, function 7 / 8 may be assigned the "Select" feature. This feature / function may not be available on some vehicles.

Select Operation

If "Select" (function 7 or 8) is held down and function 4 is pressed momentarily, Preset Up will be selected. If "Select" (function 7 or 8) is held down and function 5 is pressed momentarily, Preset Down will be selected.

NOTE: If the unit is reset while a DVD is playing, the DVD resumes play once the reset is complete.

Steering Wheel Control (SWC)

The UV10 is compatible with the PAC (Pacific Accessory Corporation) steering wheel control adapter SWI-PS. A

3.5mm female connector (labeled “SWC Interface”) on the back of the head unit allows connectivity to the PAC adapter. Please refer to the instructions included with the PAC adapter for detailed installation information.

SETUP MENU

To access system settings, press the SETUP button (29) on the remote control or touch the button on the screen to

enter the “SETUP” menu. The “GENERAL” sub-menu appears highlighted in yellow.

RADIO

RDS

Bluetooth

Rating

Hardware

P.VOL TS Cal

SETUP MENU

General Language

Clock Mode 12Hr

Clock 04 : 31 AM

Tuner Region USA

Beep On

Audio Back

DEMO

Accessing Menu Items

Touch the sub-menu name, press the <<, >>, |<<, or >>| direction buttons (22, 14, 17, 19) on the remote control to select a sub-menu (Language, Audio, RDS, etc.).

DIRECTION BUTTONS

The features available for adjustment under the highlighted sub-menu option will appear in the center of the screen.

Adjusting a Feature

1. Use the touchscreen to select the feature to be adjusted.

2. Enter the option field for the feature you want to adjust by using the touchscreen or pressing the >/|| button (18) on the remote control. A submenu appears in a second row with the selected option highlighted in blue.

3. Select a new value by using the touchscreen or pressing the >> or

<< buttons (14, 22) on the remote control.

05:33 AM

4. Use the touchscreen or press the >/|| button (18) on the remote control to confirm setup.

General Sub-menu Features

Setting Options Function

Clock Mode 12Hr Clock displays 12 hour time

24Hr Clock displays 24 hour time up

Clock (HH:MM) Clock appears in the top right

Tuner Region

USA

S.Amer1

Arabia

China

S. Amer2

Europe

Korea

using AM and PM.

to 23:59.

corner of the screen and on the LCD screen during certain operations. NOTE: The AM/PM indication will change as you continue to adjust the hour past

12.

• AM Frequency Spacing - 10kHz

• AM Frequency Band 530kHz~1720kHz

• FM Frequency Spacing - 200kHz

• FM Frequency Band -

87.5MHz~107.9MHz

• AM Frequency Spacing - 10kHz

• AM Frequency Band 530kHz~1720kHz

• FM Frequency Spacing - 100kHz

• FM Frequency Band -

87.5MHz~108.0MHz

• AM Frequency Spacing - 9kHz

• AM Frequency Band 531kHz~1620kHz

• FM Frequency Spacing - 100kHz

• FM Frequency Band -

87.5MHz~108.0MHz

• AM Frequency Spacing - 9kHz

• AM Frequency Band 522kHz~1620kHz

• FM Frequency Spacing - 100kHz

• FM Frequency Band -

87.5MHz~108.0MHz

• AM Frequency Spacing - 5kHz

• AM Frequency Band 520kHz~1600kHz

• FM Frequency Spacing - 100kHz

• FM Frequency Band -

87.5MHz~108.0MHz

• AM Frequency Spacing - 9kHz

• AM Frequency Band 522kHz~1620kHz

• FM Frequency Spacing - 50kHz

• FM Frequency Band -

87.5MHz~108.0MHz

• AM Frequency Spacing - 9kHz

• AM Frequency Band 531kHz~1602kHz

• FM Frequency Spacing - 200kHz

• FM Frequency Band -

88.1MHz~107.9MHz

UV10

Setting Options Function

Beep On When turned on, an audible

Off N o beep sounds.

Language Sub-menu Features

If a DVD supports more than 1 Subtitle or Audio language, all the languages are available for selection during playback. If the selected language is not supported by the DVD, then the default language is used.

Setting Options Function

Language English On Screen Display appears in

Subtitle English DVD subtitles automatically

Auto DVD subtitles appear accord-

Off DVD subtitles do not appear

Audio English DVD Audio is heard in English

DVD Menu English DVD menu (if applicable) is

beep tone confirms each function selection.

English.

appear in English when available.

ing to the default subtitle language specified on the disc.

automatically.

when the option is available.

displayed in English.

UV10

Audio Sub-menu Features

Setting Options Function

DRC Off Employ the Dynamic Range

Loudness Off Turn bass boost on/off

Subwoofer Off Turn the subwoofer on/off.

Sub Filter 80Hz Selecting a crossover fre-

120Hz 160Hz

RDS Sub-menu Features

Control for better playback for low volumes.

quency sets a cut-off frequency of the subwoofer's LPF (lowpass filter).

Setting Options Function

RDS Off

CR Off

Bluetooth Sub-menu Features

Setting Options Function

Bluetooth Off Disable Bluetooth function.

On Enable Bluetooth function.

Connect Manual Connect the last active mobile

Auto Automatically connect when your

Auto Answer Manual Manually answer calls by touching

Auto The unit automatically answers all

Pairing Code The default code is “1234”. Touch

Rating Sub-menu Features

The DVD system has a built-in parental lock feature to prevent unauthorized persons from viewing restricted disc

phone by touching the CONNECT icon when disconnected.

paired phone is in range.

the “call” button.

incoming calls.

the keypad icon to open the keypad and enter the pairing code or pass key required for Bluetooth connection to your mobile phone. Not all phones/devices require a pairing code. The default code is “0000” for many models.

content. By default, the rating system is unlocked. Once setup, the parental lock is released only by entering the correct password. Once the password is entered, rating is available for setup.

Setting Options Function

Password _ _ _ _ Enter a 4-digit password to

Parental Ctrl

1. Kid Safe Select the appropriate rating

2. G

3. PG

4. PG-13

5. PG-R

6. R

7. NC-17

8. Adult

Load Factory

Reset Select “Reset” to restore the

T o reset the p assword, access the “RATING” menu and enter the current password. Once the correct password is entered, you can access the “Password” field and enter a new one.

NOTE: Record the password and keep it in a safe place for future reference. The rating for each disc is marked on the disc, disc packing, or documentation. If the rating is not available on the disc, the parental lock feature is unavailable. Some discs restrict only portions of the disc and the appropriate content will play. For details, please refer to the disc description.

Hardware Sub-menu Features

If the rear-view video camera is connected, the unit is on, and the TFT monitor is retracted inside the unit, the TFT monitor automatically moves into the viewing position and Camera mode is selected upon shifting into REVERSE gear. When shifting into DRIVE gear, the TFT monitor is retracted back inside unit.

activate the “Rating” feature.

level for the intended audience. You may override higher rat-

ings by using your password.

factory default settings for the

Rating system only.

Setting Options Function

Camera In Normal

Mirror Reverse the camera image as

if looking through a rear-view mirror.

Setting Options Function

TFT Auto Open

Video Input (Input circuitry autodetects the video signal from the Aux In source).

If the monitor is in display mode, the monitor automatically switches to CAMERA mode upon reverse driving. When the reverse driving stops, the monitor return to its original input mode.

P.VOL Sub-menu Features

On T he TFT panel automatically

Off You must press the OPEN but-

Manual When the ignition is turned

NTSC The color signals are output in

PAL The color signals are output in

Auto The color signal output is

opens when the unit is turned on.

ton (1) to open the TFT panel.

OFF, the TFT panel DOES NOT retract if it was previously out

the standard NTSC format.

the standard PAL format.

switched automatically based on the current video input signal - NTSC or PAL.

Setting Options Function

Source Radio Choose a source for which you

Disc USB1 USB2 AUX IN NAV BT

Level 0- 6 Increase relative volume for

TS Cal (Screen Calibration)

To access the “Screen Calibration” function from the SETUP menu, select the “TS CAL” option.

After entering calibration mode, a crosshair appears in a corner quadrant of the screen. To begin calibration, press and hold the crosshair for one second until it moves to the next quadrant. Continue for each quadrant until the calibration is completed.

would like to increase the relative volume (LEVEL).

specified source up to 6 decibels.

Demo Sub-Menu Features

You can stop/run demonstration mode or turn Demo Auto Run on/off by chooing the “Demo” option from the SETUP MENU.

When Demo "Auto Run" is Off, you can select "Demo > Run" to start Demo Mode. Demo scrolls through the various source screens, simulating activity on the display. “Demo” is discreetly displayed in yellow text (above the clock), to indicate the unit is in Demo Mode. T o stop Demo Mode, press the upper-left quadrant of the TFT (Source select).

When Demo “Auto Run” is On, the unit will automatically display Demo Mode when powered on.

Exiting the System Setup Menu

To exit setup mode and resume normal playback, press the SETUP button (31) on the remote control or touch the BACK button on the screen.

UV10

TUNER OPERATION

Tuner TFT Display

FM-1 P1 87.5 MHz

RADIO

E Q

P1 87.5 MHz

P2 90.1 MHz

P3 98.1 MHz

P4 106.1MHz

P5 107.9MHz

P6 102.9MHz

PS:

LOC PTY RDS

1. Current radio band indicator

2. Radio frequency indicator

3. Clock

4. Stereo broadcasting indicator

5. Strong Local signal broadcasting indicator

6. Preset radio stations: Touch to recall preset stations

7. Information about the current function

8. EQ: Touch for quick access to Equalizer level settings

9. : Touch to access the direct entry screen

10. Current preset station indicator

11. |<<: Touch to seek backward

12. >>|: Touch to seek forward

13. <<: Touch to tune backward one step

14. >>: Touch to tune forward one step

15. BAND: Touch to change between AM/FM bands

16. 1/2: Touch to view a second screen of menu choices

01:02 PM

BAND

1/2

MEM

PTY

2/2

LOC

17. : T ouch to view the SOURCE MENU and select a new playback source

18. MEM: View screen used to enter current channel into preset memory

19. : Touch to view the SETUP menu

20. PS (Preview Scan): Touch to scan all stations available, stopping for 5 seconds at each and continuing until a station is selected

21. PTY Indicator

22. RDS Indicator

23. AS: Touch to automatically store stations

24. PTY: Touch to activate the PTY function

25. LOC: Press to activate/deactivate the Local function

Switching to Radio Tuner Source

• Touch the top left corner of the screen (the RADIO circle) to view the SOURCE MENU. Touch “Radio”.

• Press the SRC button (10) on the front panel or remote control (8) to switch to the AM/FM or RADIO source.

Selecting FM/AM Band

Touch the BAND button (15) on the screen, or press the ||>/ BAND button on the remote control (30) to change between

the following bands: FM1, FM2, FM3, AM1, and AM2.

NOTE: The BAND button on the unit only works when the TFT is closed.

Seek Tuning

To seek the next higher station:

• Touch the >>| button on screen.

• Press the >>| button (19) on the remote control.

To seek the next lower station:

• Touch the |<< button on screen.

• Press the |<< button (17) on the remote control.

Manual Tuning

To increase or decrease the tuning frequency one step:

• Touch the >> or << buttons on screen.

• Press the >> or << buttons (14, 22) on the remote control.

Direct Tuning

To enter a radio station directly, touch the button or press the GOTO button (21) on the remote control to display the direct entry menu.

FM:___._MHz

Exit

Enter

Clear

Enter the desired radio station using the on-screen number pad. Press the Enter button to tune to the selected station. T o exit the screen without changing the station, touch Exit. To clear your entry and start over, touch Clear.

Using Preset Stations

Six numbered preset buttons store and recall stations for each band. All six stored stations (P1-P6) for the current band appear on the screen.

Storing a Station

1. Select a band (if needed), then select a station.

2. Touch the on-screen MEM button (18) to open the preset screen.

Preset: _

P3 P6

Exit

3. Touch the preset number in which you would like to store the current station (or touch Exit to cancel and close the menu). The preset number and station appears highlighted.

Recalling a Station

1. Select a band (if needed).

2. Touch an on-screen preset button (6) to select the corresponding stored station.

P1 87.5 MHz

P2 90.1 MHz

P3 98.1 MHz

P4 106.1MHz

P5 107.9MHz

P6 102.9MHz

Auto Store/Preview Scan (AS/PS)

Auto Store (AS)

To select six strong stations and store them in the current band:

1. Select a band (if needed).

2. Touch the AS button (23) on page 2/2 of the on-screen controls to activate the Auto Store function.

The new stations replace stations already stored in that band.

Preview Scan (PS)

T o scan the AM or FM band for a preview of available stations in your particular area, touch the PS button (20). Touch again to stop preview scan.

Local Radio Station Seeking (LOC)

When the Local function is on, only radio stations with a strong local radio signal are played. To activate the Local function in AM/FM tuner mode, press and hold the rotary encoder button (11) on the front panel. Press and hold the rotary encoder again to turn Local off. When the Local function is active, the LOC indicator at the top of the screen is illuminated.

UV10

DVD/VCD VIDEO OPERATION

NOTE: When properly installed, DVD video cannot be displayed on the main TFT screen unless the parking brake is applied. If you attempt to play a DVD while the vehicle is moving, the TFT screen displays “PARKING” with a blue background. Rear video screens, if applicable, will operate normally.

Opening/Closing the TFT Video Screen

Opening the TFT Screen

To open the TFT video screen, press the OPEN button (1). The unit beeps and then opens.

Closing the TFT Screen

Press the OPEN button (1) again to close the TFT screen. If the screen is in the “IN” position, it moves out before closing.

Inserting a Disc

Upon inserting a DVD disc, DVD mode is entered and disc play begins.

NOTE: If Parental Lock (Rating) is activated and the disc inserted is not authorized, the 4-digit code must be entered and/or the disc must be authorized (see “Rating Sub-menu Features” on page 9).

Y ou cannot insert a disc if there is already a disc in the unit or if the power is off.

NOTE: DVD-R and DVD-RW will not play unless the recording session is finalized and the DVD is closed.

Ejecting a Disc

Press the button (6) on the unit or remote control (35) to eject the disc. The unit automatically reverts to Tuner mode. You may eject a disc with the unit powered off. The unit will remain off after the disc is ejected.

Resetting the Loading Mechanism

If the disc loads abnormally or an abnormal core mechanism operation occurs, press and hold the button (6) on the unit or remote control (35) to reset the loading mechanism.

Normal operation resumes.

Accessing DVD Mode

To switch to DVD mode when a disc is already inserted, press the SRC button (10) on the front panel or remote control (8).

Controlling Playback

T o access the on-screen controls, touch the bottom 1/3 of the screen while a DVD is playing. Touch the 1/2 button to view a second page of controls

Stopping Playback

Touch the stop button ( ) on the screen or press the ||>/ BAND button (20) on the remote control to stop DVD play.

Pausing Playback

Touch the play/pause button (

>/|| button on the remote control (18) to suspend or resume

disc play.

Slow Motion Playback

Press the << button (22) on the remote control or the << button on the screen to play the current title in slow motion. Keep pressing and releasing the button to increase the rate from “x2” to “x4”, “x8”, and “x20”.

Press play button (>) to resume normal play.

Fast Forward Playback

Press the >> button (14) on the remote control or the >> button on the screen to fast forward. Keep pressing and releasing the button to increase the rate from “x2” to “x4”, “x8”, and “x20”.

Press play button (>) to resume normal play.

Repeat Playback

Press the RPT button (7) on the remote control or the button on screen to alter repeat mode according to the following:

• DVD: Repeat Chapter, Repeat TItle, Repeat Off

AUDIO

A-B

SUB-

TITLE

1/2

>/|| (16) on the remote control or touch the on-screen

>/|| (18) on the remote control or touch the on-screen

TITLE

>) on the screen or press the

2/2

DISP

• VCD (PBC Off): Repeat Single, Repeat Off

NOTE: For VCD play, the repeat function is not available if PBC is on.

Sectional Repeat Function (A-B)

Use the A-B function to define a specific area of a disc to repeat.

• Press the REPT A-B button (6) on the remote control (or the A-B button on screen) to set the start point (A) of the repeated section.

• Press the REPT A-B button again once you reach the desired end point (B) of the repeated section. The selected portion of the DVD will now repeat continuously.

• Press the REPT A-B button again to cancel the A-B section setting and stop repeat play.

Accessing the DVD Menu

Press the MENU button (1) on the remote control to recall the main DVD menu. Use the directional (arrow) buttons on the remote control to select a title from the menu or touch the title on screen.

Press the TITLE button (2) on the remote control or on screen to select a different title for playback.

Press the rotary encoder (11) to confirm your selection and begin playback. You can also select a title using the touch screen.

>/|| button (18) on the remote control or press the

Moving Through Chapters

Press the >>| button (19) on the remote control or the >>| button on screen to advance to the next chapter on the DVD.

Press the |<< button (17) on the remote control or the |<< button on screen to move to the previous chapter.

Goto Search

During DVD or VCD playback, perform the following steps to use the GOTO feature to access a specific location on a disc:

1. Press the GOTO button (21) on remote control to access the “Search” screen.

2. Press the >> or control to select a category (highlighted in yellow).

<< buttons (14, 22) on the remote

UV10

• For DVD mode, you can choose Time or Title/ Chapter search.

Title 20 Chapter 5 Time 00:00:00

• For VCD mode, press the GOTO button to choose between Time search.

Time 00:00:00

3. Enter a time into the field using the numeric keypad (29) on the remote control.

4. Press the >/|| button (18) on the remote control or press the rotary encoder (1 1) to go to the specified location on the disc.

5. Press the GOTO button again to exit.

DVD Search

Title – Go to specific title Chapter – Go to specific

chapter Time – Go to specific time

in current title

VCD Track Search

Time – Go to specific time in the current track

Direct Chapter / Track Selection

Remote Control Direct Entry

During DVD, VCD and CD playback, you can use the numeric keypad on the remote control (29) to access a track directly.

Touch Screen Direct Entry

To select a chapter/track directly, touch the button on screen control to display the direct entry menu.

Chapter: _ _

Exit

Enter

Clear

Enter the desired chapter/track using the on-screen number pad. Press the Enter button to tune to the selected station. T o exit the screen without changing the station, touch Exit. To clear your entry and start over, touch Clear.

Viewing an Alternate Picture Angle (DVD Only)

Some DVDs contain scenes that have been shot simultaneously from different angles. For discs recorded with multiple angles, press the ANGLE button (13) on the remote control to toggle available angles of the on-screen image.

Zooming

Press the ZOOM button (23) on the remote control to enlarge and pan through the video image using the following options: “Q1”, “Q2”, “Q3” and “OFF”.

Multi-Language Discs (DVD Only)

Changing Audio Language

If you are watching a disc recorded in multiple languages, press the AUDIO button (5) on the remote control to choose a language.

Changing Subtitle Language

If you are watching a disc recorded in multiple languages with subtitles, press the SUBTITLE button (9) on the remote control to choose the language in which you would like the subtitles to appear.

PBC - Play Back Control (VCD Only)

For VCDs with play back functionality, play back control (PBC) provides additional controls for VCD playback.

Press the MENU button (1) on the remote control to toggle the PBC function “On”/”Off”. Once PBC is on, playback starts from track one of the play list.

NOTE: When PBC is activated, fast forward, slow playback, and previous/next track are available. Repeat and direct track selection are not available.

When PBC is activated, selecting random, scan, or search playback automatically deactivates PBC.

Playback Information

During DVD and VCD playback, press the DISP button (10) on the remote control to display playback information on the screen, including the media playing and current playback time.

DVD Playback Information

• DVD Video – Format of current disc.

• Time 00:01:30/00:36:10 – Indicates the playback time of the current track.

• Title 5/08 – Indicates the fifth of 8 titles on the DVD is currently playing.

• Chapter 2/16 – Indicates that the second of 16 titles on the DVD is currently playing.

VCD Playback Information

• VCD2.0 – Format of current disc.

• Time 00:01:30/00:36:10 – Indicates the playback time of the current track.

• PBC On/Off – Indocates whether Play Back Control is On or Off.

NOTE: During VCD playback, press the AUDIO button (5) on the remote control to choose between Left Channel, Right Channel, and Stereo.

UV10

General Disc Information

Table 5: Disc Properties

Symbol 12cm Disc Properties

Single side single layer (DVD-5) Single side double layer (DVD-9) Double side single layer (DVD-10) Double side double layer (DVD-18)

Single side single layer (VCD)

Single side single layer 74 minutes

Table 6: Disc Symbols

Symbol Meaning

Number of voice languages recorded. The number inside the icon indicates the number languages on the disc (maximum of 8).

Number of subtitle languages available on the disc (maximum of 32).

Number of angles provided (maximum of

9).

Max Play

Time

(MPEG 2

Method) 133 minutes 242 minutes 266 minutes 484 minutes

(MPEG 1

Method)

74 minutes

Table 6: Disc Symbols

Symbol Meaning

Indicates the region code where the disc can be played.

• Region 1: USA, Canada, East Pacific Ocean Islands

• Region 2: Japan, Western Europe, Northern Europe, Egypt, South Africa, Middle East

• Region 3: Taiwan, Hong Kong, South Korea, Thailand, Indonesia, South-East Asia

• Region 4: Australia, New Zealand, Middle and South America, South Pacific Ocean Islands/Oceania

• Region 5: Russia, Mongolia, India, Middle Asia, Eastern Europe, North Korea, North Africa, North -West Asia

• Region 6: Mainland China

• ALL: All regions

Aspect ratios available. “LB” stands for Letter Box and “PS” stands for Pan/Scan. In the example on the left, the 16:9 video can be converted to Letter Box video.

DVD/CD AUDIO OPERATION

Instructions for TFT control and Insert/Eject are the same for DVD and CD operation. Please see the DVD/Disc Video Operation section for information about these topics.

The UV10 will play music or other audio files from the following disc media:

• CD-DA

• CD-R/RW

•DVD

•DVD+R/RW

•DVD-R/RW Upon inserting a disc with the TFT screen open, the disc and

track title (if available), along with the track number and playing time appear on the screen.

CD Player User Interface

The on-screen indicators and touch key areas for CD playback are outlined below.

E Q

DISC

CDDA 2/10 00:00:23

1 Track 01

2 Track 02

3 Track 03

4 Track 04

5 Track 05

6 Track 06

PS:

ROOT

1. Current track and total number of tracks on disc

2. Elapsed playing time

3. Current time

4. Track titles

5. Disc title

6. /||: Touch to play/pause disc playback

7. : Touch to stop disc playback

8. >>|: Touch to move to next track

9. |<<: Touch to move to previous track

10. >>: Touch to fast forward current track

11. <<: Touch to rewind current track

12. Touch to activate/deactivate Repeat play mode

13. Touch to activate/deactivate Random mode

01:02 PM

14. : Touch to access the direct entry screen

15. : Touch to view the SETUP menu

16. Touch for quick access to Equalizer level settings

17. Touch to view the SOURCE MENU and select a new playback source

Controlling Playback

Stopping Playback

Touch the button on screen or press the ||>/BAND button (30) on the remote control to stop disc play.

To resume playback, touch the /|| button on screen or press the >/|| button on the remote control (18).

Pausing Playback

T ouch the /|| button on screen or press the >/|| button on the remote control (18) to suspend or resume disc play.

Moving Through Tracks

Press the >>| button (19) on the remote control or on screen to advance to the next track on the disc.

Press the |<< button (17) on the remote control or on screen to move to the previous track.

Repeat Playback

Touch the button on screen or press the RPT button (7) on the remote control to alter repeat mode according to the following:

• DVD: Repeat Chapter, Repeat Title, Repeat Off

• CDDA: Repeat Single, Repeat Folder, Repeat Off

• CD-R/RW: Repeat Single, Repeat Off

• DVD-R/RW: Repeat Single, Repeat Off

Track Scan Select (CD-DA discs only)

During disc play, press the INT button (34) on the remote control to play the first 10 seconds of each track. When a desired track is reached, press the INT button again to cancel the function and play the selected track.

Random Play Select

While disc play is stopped, touch the button on screen or the RDM button (33) on the remote control to play the tracks on the disc in a random, shuffled order. Press the (RDM) button again to cancel Random Play mode.

NOTE: CD-R and CD-RW will not play unless the recording session is finalized.

UV10

Fast Forward

Touch the >> button on screen or press the >> button (14) on the remote control to fast forward. Keep pressing and releasing the button to increase the rate from “x2” to “x4”, “x8”, and “x20”. Press the >/|| button to resume normal playback.

Direct Track Entry

To select a track directly, touch the button on screen control to display the direct entry menu.

Chapter: _ _

Exit

Enter

Clear

Enter the desired track using the on-screen number pad. Press the enter button (arrow) to tune to the selected station. T o exit the screen without changing the station, touch Exit. To clear your entry and start over, touch Clear.

UV10

MP3/WMA OPERATION

Instructions for TFT control and Insert/Eject are the same for DVD and MP3 operation. Please see the DVD/Disc Video Operation section for information about these topics.

Media and File Requirements

This player allows you to play back MP3 and WMA files recorded onto CD-R/RWs, DVD+R/RWs, and DVD-R/RWs. For CD-RW discs, please make sure it is formatted using the full method and not the quick method to prevent illegal disc operation.

Up to 1500 songs/files can be burned onto a disc for a MEGA DVD music mix. Do not exceed this number of songs/files or disc readability problems may occur.

MP3 Format Compatibility

The file naming formats listed below are compatible with this unit:

• ISO 9660 – file name: 12 characters, file extension: 3 characters

• ISO 9660 – file name: 31 characters, file extension: 3 characters

• Joliet – 64 characters

If the file or folder name does not conform to ISO 9660 file system standards, it may not be displayed or played back correctly. Use the following settings when compressing audio data for your MP3 disc:

• Transfer Bit Rate: 128kbps

• Sampling Frequency: 48kHz

When recording MP3 up to the maximum disc capacity, disable additional writing. For recording on an empty disc up to maximum disc capacity, use the "Disc at once" setting.

MP3 Playing Order

When selected for play, files and folders (Folder Search, File Search or Folder Select) are accessed in the order they were written by the CD writer. As a result, the order in which they are expected to be played may not match the order in which they are actually played. You may be able to set the order in which MP3/WMA files are to be played by writing them onto a medium such as a CD-R with their file names beginning with play sequence numbers such as "01" to "99".

For example, a medium with the following folder/file hierarchy is subject to Folder Search, File Search or Folder Select, as shown below.

The UV10 player will only recognize three folder levels and does not display folders containing only other folders. In the example above, the unit will display folders 3, 4, 6, and 8, but not 2 and 7 since they do not contain any tracks directly. Folder 5 is not recognized at all since it is at the fourth level.

Inserting a USB Device

NOTE: The USB port will recognize most USB flash memory devices and portable hard drives (hard drives must be formatted to FAT32, NTFS is not supported).

1. Locate the USB connector (14) on the front of the radio.

EJECT

A/V

INPUT

2. Lift the protective cover to reveal the USB slot.

3. Insert the USB device into the USB connector. The unit will read the audio/video files on the USB device automatically.

To remove the USB device, press the SRC button (10) to switch to another mode and then remove the USB device from the USB connector.

Type A USB

Connector

UV10

MP3 User Interface

The on-screen indicators and touch key areas for MP3 playback are outlined below.

DISC

E Q

1. Current track and total number of tracks on disc

2. Elapsed playing time

3. Current time

4. Track titles

5. ID3 information

6. /||: Touch to play/pause disc playback

7. 1/2, 2/2: Touch to move between page 1 and 2 of the on-

8. >>|: Touch to move to next track

9. |<<: Touch to move to previous track

10. >>: Touch to Fast Forward x2, x4, x8, x20

11. <<: Touch to Fast Backward x2, x4, x8, x20

12. DIR -: Touch to view the previous folder

13. DIR +: Touch to view the next folder

14. : Touch to access the direct entry screen

15. : Touch to view the SETUP menu

ROOT

MP3 2/10 00:00:23

1 Cherry Poppin Dad

2 Chris Isaak - Baby

3 Crazy Town - Butt

4 Phish - Birds Of A

5 Phish - Bouncin' R

6 Phish - Freebird (L

Artist: Cherry Poppin Daddys

DIR -

screen controls

01:02 PM

DIR -

DIR +

2/2

DIR +

1/2

16. Touch for quick access to Equalizer level settings

17. Touch to view the SOURCE MENU and select a new playback source

18. Folder name

19. Page Up

20. Page Down

21. Random On > Random Off

22. Repeat Single > Repeat Folder > Repeat Off

23. : Touch to stop disc playback

Controlling Playback

Playing MP3/WMA Files

After inserting a MP3/WMA disc, files will play in the

sequence of the “Root’ directory.

NOTE: When burning MP3 / WMA files onto a DVD disc, use the 2X or 4X burning option, if available. This slower burning speed will help eliminate buffer errors and increase disc reading reliability. Also, use folders when burning large numbers of songs / files to a disc for easy music navigation. Select the "Disc at Once” option and close your disc.

Stopping Playback

Touch the button on screen or press the ||>/BAND button (30) on the remote control to stop disc play.

To resume playback, touch the /|| button on screen or press the >/|| button on the remote control (18).

Pausing Playback

T ouch the /|| button on screen or press the >/|| button on the remote control (18) to suspend or resume disc play.

Moving Through Tracks

Press the >>| button (19) on the remote control or on screen to advance to the next track on the disc.

Press the |<< button (17) on the remote control or on screen to move to the previous track.

Repeat Playback

Press the RPT button (7) on the remote control to alter repeat mode according to the following: Repeat Single, Folder Repeat, Repeat Off

NOTE: CD-R and CD-RW will not play unless the recording session is finalized.

Direct Track Entry

Use the numeric keypad (29) on the remote control to access files directly or press the button (see “Direct Track Entry”

on page 16).

UV10

iPod OPERATION

NOTE: Be sure your iPod has the latest Apple firmware installed to avoid connectivity issues.

Accessing iPod Mode

This unit is Made for iPod. You can control your iPod via touch screen to access Playlist, Artist, Album, Songs, etc. Supported models include, but are not limited to, the following:

• iPod Classic

• iPod Touch

• iPod Touch 2G

• iPod Nano 3G

• iPod Nano 4G The unit will automatically switch to iPod mode when an iPod

is plugged into the front or rear USB connector.

NOTE: For basic iPod connectivity, you can use the white 30-pin to USB iPod cable that came with your Apple device . For iPod video or photo playback, you must purchase the jLink-USB cable.

To return to the iPod menu from any other source menu, press the SRC button (10) on the front panel or remote control (8) until the iPod menu appears on the screen. The on-screen indicators and touch key areas for iPod playback are outlined below.

iPod

1 Acrobat

2 Afterlife

3 Age of Consent

4 Alive

5 All Because of You

6 All the Pretty Faces

Artist: New Order

1. Elapsed playing time for current file

2. File number and total number of files on the disc

Age of Consent

00:00:23 4/412

01:02 PM

3. Current time

4. File titles

5. ID3 information (Artist/Album)

6. OK: Touch to “Enter”

7. Touch to play all files in random order

8. >>|: Touch to move to next file

9. |<<: Touch to move to previous file

10. MENU: Touch to view the iPod main menu

11. : Touch to play/pause disc playback

12. Touch for Repeat File > Repeat Folder

13. Touch to view the album art screen

14. : Touch to view the SETUP menu

15. Touch for quick access to Equalizer level settings

16. View SOURCE MENU and select a new source

17. Current file title

18. : Touch to access the direct entry screen

Controlling your iPod

Touch the MENU button or press the following remote control buttons to access the main iPod menu.

Menu Remote Control

Music AUDIO Photos SUBTITLE Videos ANGLE

Use the touchscreen or the directional keys on the remote control to navigate the iPod menus.

File Playback

To access files, touch the MENU button on screen until you return to the main iPod menu and then select “MUSIC,” “VIDEO” or “PHOTO” or press the remote control button indicated in the table above.

• Touch the >/|| button on screen to play/pause.

• Touch >>| on screen or press the >>| button (19) on the

remote control to move to the next item on the menu.

• Touch |<< on screen or press the |<< button (17) on the remote control to move to the previous item on the menu.

• Use the touch screen or press the >/|| button (18) on the remote control to select the highlighted menu option.

• Press the >> button (14) on the remote control or touch the MENU button on screen, to return to the previous menu.

During music playback, the following screen is displayed:

iPod

E Q

4/412

ALBUM ART

Ain't That A Shame

Dream Police

Cheap Trick

01:18 05:12

01:02 PM

• To return to the iPod music menu from the album art screen, press .

• To return to the Video or Photo menu while viewing video or photo, touch the screen.

Fast Forward/Fast Reverse

Press and hold the |<< or >>| buttons on screen or on the remote control (17, 19) for 1 second and continue to hold for fast forward or fast reverse. Release to resume normal play.

Search Playlist/Artist/Album/Song

T o search through Playlists, Artists, Albums and Songs, press the MENU button (1) on the remote control while in one of the following directories: Playlist, Artist, Album or Song. The selected directory will be accessed with the number of pages and files in that directory displayed at the top of the page. To access the page or file, enter the page or file number directly from the remote control keypad. Press the |<< or >>| button (17, 19) on the remote control to select the desired song or file.

Direct Track Entry

Track: _

1 4

Exit

To select a track directly, touch the button on screen control

to display the direct entry menu.

Enter the desired track using the on-screen number pad.

7 0

Clear

Enter

Press Enter to tune to the selected station. To exit the screen without changing the station, touch Exit. To clear your entry and start over, touch Clear.

NOTE: To transmit the video from your iPod to the UV10 screen, you must set the following options through the iPod video settings menu: TV Out = On, TV Signal = NTSC, and Widescreen = On.

NOTE: After disconnecting your iPod, the UV10 will always return to the last mode accessed when the iPod is plugged back into the unit.

UV10

BLUETOOTH OPERATION

NOTE: Bluetooth operation requires optional BTM10 accessory.

About Bluetooth

Bluetooth is a short-range wireless radio connectivity technology that is developed as a cable replacement for mobile phones, handheld PCs and other devices. Bluetooth operates in 2.4 GHz frequency range and transmits voice and data at speeds up to 1 megabit per second. Bluetooth was launched by a special interest group (SIG) comprised of Ericsson Inc., Intel Corp., Nokia Corp., Toshiba and IBM in 1998, and it is currently developed by nearly 2,000 companies worldwide. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Audiovox Corporation is under license. Other trademarks and trade names are those of their respective owners.

NOTE: The line-of-sight distance between this unit and your cellular phone must be 8 meters or less for sending and receiving voice and data via Bluetooth wireless technology. However, the transmission distance may become shorter than the estimated distance, depending on the environment in use.

Before attempting to use the Bluetooth functions on the UV10, you must purchase and install the BTM10. When connected properly, the blue light appears illuminated. Bluetooth features are only available when the BTM10 is installed.

Please make sure your mobile phone supports Bluetooth functions (Headset or Handsfree profiles or both). Adhere to the following guidelines for successful operation.

• Before using Bluetooth functions, you must pair your mobile phone to the UV10 head unit (see “Pairing the Bluetooth System with Your Mobile Phone and Head Unit”). To ensure the best reception for pairing and reconnection, please make sure the phone battery is fully charged before you begin.

• Try to perform pairing within a few minutes of the phone being turned on.

• Once the unit has been paired with the phone, the unit’s model number, “UV10”, will be displayed on the mobile phone.

• To achieve the best performance, always keep the mobile phone within 3 meters of the head unit.

• Always keep a clear path between the mobile phone and the head unit. Never place a metal object or any other obstacle between the mobile phone and the head unit.

• Some mobile phones (like Sony Ericsson) may have a "Power Saving Mode" option. PLEASE DO NOT use the power saving mode with the UV10.

• Before accepting or making a call, make sure your mobile phone's “Bluetooth function” is turned on.

• To ensure the best conversation quality/performance, stay within one meter of the BTM10 when talking.

• To “disconnect” the mobile phone from the head unit, turn the Bluetooth connectivity off on the mobile phone

or touch the button.

• Phone Book direct searching through the head unit

is only available if the mobile phone supports Phone Book Download. If the feature is not supported, the

head unit will display “Phone book not provided by this phone” when an attempt is made to download a phone book.

Bluetooth User Interface

The on-screen indicators and touch key areas for Bluetooth operation are outlined below.

1 Missed Calls

2 Received Calls 3 Dialed Calls 4 Phone Book

Disconnected

Menu List

161317

01:02 PM

1156

PHONE INTERFACE MUSIC INTERFACE

1. Current connection status/device connected

2. Current time

3. Bluetooth menu

4. Current operation status

5. Toggle Music/Phone menu

6. Transfer active call back to handset

7. Pair your Bluetooth phone (first time use)

8. Exit call listing display

9. Connect/disconnect Bluetooth device (phone, PDA, personal music player, etc.) with hand-free function

10. Mute/un-mute microphone during active call

11. Answer incoming call/make call

12. Reject incoming call/end call/quit pairing process/quit reading phone book or call listing

13. : Touch to view the SETUP menu

14. Touch to view the equalizer

15. Touch to view the SOURCE MENU and select a new playback source

16. Status indicators (phone mode, music mode, mic mute)

17. : Touch to access the direct entry screen

18. : Touch to stop A2DP playback

19. Touch the scroll bar and arrows to view the previous/ next page of choices (only visible when needed)

20. Toggle Music/Phone menu/mode

21. >/||: Play/Pause selected file

22. |<<: Touch to move to the previous file

23. >>|: Touch to move to the next file

UV10

Hands Free Profile (HFP)

To use a phone wirelessly with this unit, it is necessary to first establish a connection using Bluetooth wireless technology. Connection is normally established using HFP (Hands Free Profile), which gives you full control of functions available on the telephone source. However, depending on your phone, the connection may be made using HSP (Head Set Profile), making some functions unavailable. This is a limitation of your phone, not the UV10.

Since there are a number of Bluetooth mobile phone implementations available on the market, operations with your Bluetooth mobile phone using this unit vary greatly.

Please refer to the instruction manual that came with your Bluetooth mobile phone along with this manual while operating your phone with this unit.

Pairing the Bluetooth System with Your Mobile Phone and Head Unit

1. Press the button (7) to initiate the pairing process. Keep the mobile phone within 2 meters of the head unit when pairing. (To terminate the pairing process, press

the button again.)

2. Select the Bluetooth setup option on the mobile phone to be paired (please refer to the phone’s instruction manual to learn how to enter Bluetooth setup, turn Bluetooth on/off, and perform pairing).

NOTE: Some phones require a “pass key” or pairing code to connect. If your phone requires a pass key or pairing code, you will need to enter this number in the Pairing Code field under the Bluetooth SETUP menu. The default pairing code for many phones is “0000”. The default code for the UV10 is “1234”. See “Bluetooth Submenu Features” on page 9 for instructions on entering the pairing code.

3. Select “UV10” from the pairing list on the mobile phone.

• If pairing is successful, the TFT will display the paired

mobile phone model number or name (as specified in your phone’s Bluetooth Setup menu).

• If pairing fails, “Phone Pairing Fail” is displayed at the

bottom of the screen.

Reconnecting

Once the Bluetooth device has been paired, you can touch the connect button (9) to reconnect.

NOTE: You can only connect to a phone using the buttons on the on-screen Phone interface.

Each time the button is pressed, the head unit will automatically reconnect with the mobile phone once (only if the mobile phone was previously paired with the head unit).

Managing Incoming Calls

When connected to a Bluetooth phone, the unit will mute audio output, pause CD play, and change to the Bluetooth screen when a call is received. An incoming phone number will appear at the top of the screen.

Answering an Incoming Call

To answer the call, touch the button (11).

NOTE: The TALK button on the BTM10 can be used to answer calls or hang up.

For best reception, speak loudly and clearly. To end the conversation, press the button (12). The

screen will display the call duration for 3 seconds, and then return to the previous mode.

Rejecting an Incoming Call

Touch the button to reject an incoming call. The call will revert to your phone and can be answered directly or left for voice mail.

Volume Control

To increase or decrease the volume level, turn the AUDIO control (5) on the front panel or press the VOL+/ VOL- buttons on the remote control (15, 16).

Microphone Mute

To mute the microphone, touch the button (10). Touch again to resume microphone functionality.

Making an Outgoing Call

NOTE: Press the button from the main Bluetooth screen to automatically dial the last call received.

1. Touch the button to open the direct dial screen.

1 4 7

23 5 6 8 0

9 #

Exit

Clear

2. Use the 0-9, *, and # buttons to input the phone number.

• Touch the CLEAR button to clear the last digit.

• Touch the button to clear the entire number and start over.

3. After entering the phone number, press the button to dial the call. The direct dial screen will close once your call is connected.

To end the conversation, press the button.

Call Transfer

While talking, to transfer audio from the head unit back to the mobile phone, touch the button (6). The TFT will display

“Transfer”. You can only transfer a call after it has been answered.

Menu List

The menu list appears on the left side of the screen and can be accessed from other modes by touching the MENU button on the right side of the screen.

NOTE: Not all phones allow access to missed, received or dialed calls and some will not allow uploading of your phone’s address book.

Missed Calls

The Missed Calls list retrieves the list of Missed numbers from your phone. The last missed number is the first number on the list. Touch the Missed Calls menu option to view the list. To make a call from the Missed Calls list, touch the

number and then touch the button. The TFT will display “Cannot get missed record” when the feature is not available.

UV10

Dialed Calls

The Dialed Calls list retrieves the list of dialed numbers from your phone. The last dialed number is the first number on the list. Touch the Dialed Calls menu option to view the list. To make a call from the Dialed Calls list, touch the number and

then touch the button. The TFT will display “Cannot get dialed record” when the feature is not available.

Received Calls

Use the Received Calls list to view the last 10 received numbers stored on your phone. To access the Received list, touch the Received Calls menu option. The last received number is the first number on the list. T o make a call from the

Received Calls list, touch the number and then touch the button. The TFT will display “Cannot get received record” when the feature is not available.

Phone Book

1. Touch the Phone Book menu option to display the phone book stored on your mobile phone, if compatible. The screen will display “Ready...” while the phone book is downloading.

2. Once the download is completed, you can use the arrow buttons and scroll bar on the right side of the window to navigate the list. Since the unit downloads one page of entries at a time, there may be a slight delay while the next page of numbers is downloaded.

3. Touch to highlight the number you want to dial and then touch the button.

press the button to re-establish a connection with your phone. To turn auto “Connect” on:

1. Touch the button to view the SETUP menu.

2. Select the “Bluetooth” sub-menu.

3. Touch the area to the right of “Connect” to select “Auto”.

Advanced Audio Distribution Profile (A2DP)

The UV10 allows you to play back audio files from your phone, PDA or personal music player using a Bluetooth connection.

Before using an audio player, it may be necessary to enter a PIN code into the unit. Enter the PIN code referring to “Bluetooth Sub-menu Features” on page 9.

NOTE: Please quit A2DP mode before attempting to make a phone call, as unexpected results may occur depending on your mobile phone model.

The UV10 can control a Bluetooth audio player via Advanced Audio Distribution Profile (A2DP) or Audio/Video Remote Control Profile (AVRCP). Bluetooth audio players (or Bluetooth adapters) compatible with these profiles can be connected to this unit. Functionality varies depending on the profile used.

NOTE: Some mobile phones do not support Phone Book upload through Bluetooth. This is a limitation of the phone, not the UV10.

Bluetooth Setup

Auto Answer

You can choose to have the UV10 automatically answer incoming calls to your paired Bluetooth phone. To turn “Auto answer” on:

1. Touch the button to view the SETUP menu.

2. Select the “Bluetooth” sub-menu.

3. Touch the area to the right of “Auto answer” to select “Auto”.

Auto Connect

The auto Connect option will allow the UV10 to automatically connect to your previously paired Bluetooth when it is in range. When the Connect option is set to “Manual”, you must

+ 63 hidden pages

Jensen UV10 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
