MODEL JTA-222
3-SPEED STEREO TURNTABLE WITH AM/FM
STEREO RADIO
PLEASE READ THIS USER MANUAL COMPLETELY BEFORE
OPERATING THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE
REFERENCE.
Page 2
E-1
WARNING
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE
FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
The Caution Marking is located at the bottom enclosure of the apparatus.
The Rating plate is located at the bottom enclosure of the apparatus
IMPORTANT SAFETY INSTRUCTIONS
1.
Read these instructions.
2.
Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Cleaning – Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or
aerosol cleaners. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit
into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus. When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
15. This appliance shall not be exposed to dripping or splashing water and that no object filled with
liquids such as vases shall be placed on the apparatus.
Page 3
E-2
16. Do not overload wall outlet. Use only power source as indicated.
17. Use replacement part as specified by the manufacturer.
18. Upon completion of any service or repairs to this product, ask the service technician to perform
safety checks.
19. Power Sources - This product should be operated only from the type of power source indicated on
the marking label. If you are not sure of the type of power supply to your home, consult your
product dealer or local power company. For products intended to operate from battery power, or
other sources, refer to the operating instruction.
20. Object and Liquid Entry - Never push objects of any kind into this product through openings as they
may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the product.
21. Mains plug is used as disconnect device and it should remain readily operable during intended use.
In order to disconnect the apparatus from the mains completely, the mains plug should be
disconnected from the mains socket outlet completely.
22. Excessive sound pressure from earphones and headphone can cause hearing loss.
CAUTION:
TO PREVENT ELECTRIC SHOCK,
MATCH WIDE BLADE OF AC PLUG TO WIDE SLOT.
FULLY INSERT.
This symbol indicates that this product incorporates double insulation
between hazardous mains voltage and user accessible parts
SAVE THESE INSTRUCTIONS
Page 4
E-3
COMPLIANCE WITH FCC REGULATIONS
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
WARNING
Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
and, if
the
following
Page 5
E-4
Dear JENSEN Customer
Selecting fine audio equipment such as the unit you've just purchased is only the start of your musical
enjoyment. Now it's time to consider how you can maximize the fun and excitement your equipment offers. This
manufacturer and the Electronic Industries Association's Consumer Electronics Group want you to get the most out
of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without
annoying blaring or distortion and, most importantly, without affecting your sensitive hearing. Sound can be
deceiving. Over time your hearing "comfort level" adapts to higher volumes of sound. So what
can actually be loud and harmful to your hearing. Guard against this by setting your
BEFORE your hearing adapts.
To establish a safe level:
Start your volume control at a low setting.
Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.
Once you have established a comfortable sound level: Set the dial and leave it there.
Take a minute to do this now will help to prevent hearing damage or loss in the future. After all, we want you listening
for a lifetime.
We Want You Listening For a Lifetime
Used wisely, your new sound equipment will provide a lifetime of fun and
enjoyment. Since hearing damage from loud noise is often
undetectable until it is too late, this manufacturer and the Electronic
Industries Association's Consumer Electronics Group recommend you avoid
prolonged exposure to excessive noise.
Customer's Record:
The serial number of this product is found on its bottom. You should note the serial number of this unit in the space
provided as a permanent record of your purchase to aid in identification in the event of theft of loss.
Model Number: JTA-222 Serial Number: ____________________
sounds "normal"
equipment at a safe level
This system is equipped with non-skid rubber ‘feet’ to prevent the product from moving when you operate the
controls. These ‘feet’ are made from non-migrating rubber material specially formulated to avoid leaving any marks or
stains on your furniture. However certain types of oil based furniture polishes, wood preservatives, or cleaning sprays
may cause the rubber ‘feet’ to soften, and leave marks or a rubber residue on the furniture. To prevent any damage
to your furniture we strongly recommend that you purchase small self-adhesive felt pads, available at hardware
stores and home improvement centers everywhere, and apply these pads to the bottom of the rubber ‘feet’ before
you place the product on fine wooden furniture.
PROTECT YOUR FURNITURE!!
Page 6
E-5

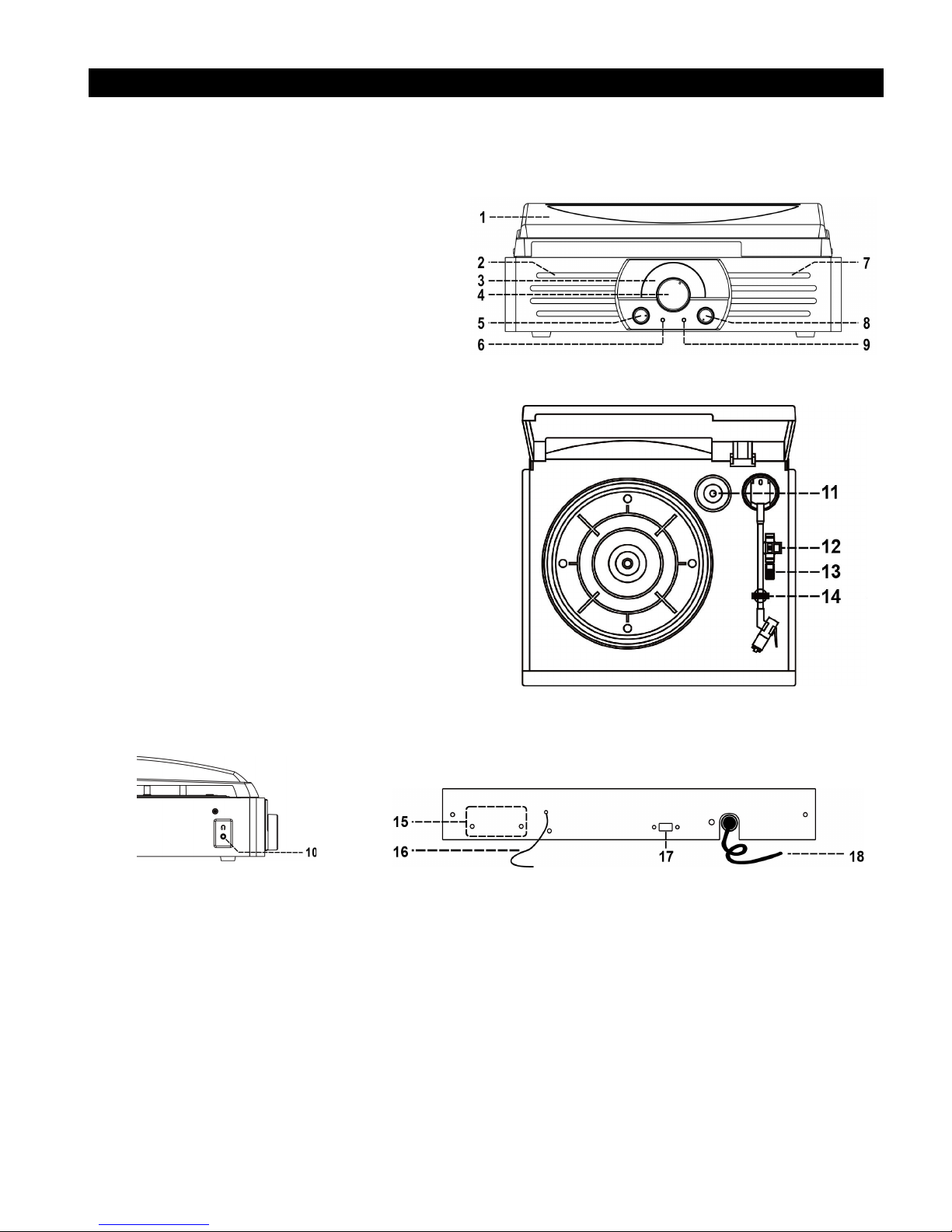

LOCATION OF CONTROLS
LOCATION OF CONTROLS
1) DUST COVER
2) LEFT SPEAKER
3) DIAL POINTER
4) TUNING KNOB
5) FUNCTION SELECTOR
6) FM STEREO INDICATOR
7) RIGHT SPEAKER
8) POWER ON/OFF AND VOLUME CONTROL KNOB
9) POWER LED INDICATOR
10) EARPHONE JACK
11) 45 RPM ADAPTER
12) SPEED SELECTOR
13) AUTO STOP SWITCH
14) TONE ARM REST
15) EXTERNAL SPEAKER TERMINALS
16) FM ANTENNA
17) INTERNAL SPEAKER SHUT-OFF SWITCH
18) AC POWER CORD
Page 7
E-6
IMPORTANT NOTES
Avoid installing the unit in locations described below:
Places exposed to direct sunlight or close to heat radiating appliances such as electric heaters.
Dusty places.
Places subject to constant vibration.
Humid or moist places.
• Do not cover any vents and make sure that there is a space of several centimeters around the unit for
ventilation.
POWER SOURCES
This Music System operates on 120V~ 60Hz. Do not attempt to operate the unit on any other power source. You
could cause damage to the unit and void your warranty.
Please be sure the power outlet you plug this unit into is working and receives constant (unswitched) power.
AC OPERATION
1. Plug the AC POWER CORD (#18) into a 120V AC ~ 60Hz outlet.
2. Rotate the Power ON/OFF and volume control knob (#8) to turn on the system.
3. The power LED indicator (#9) will light. Now your system is ready to play the music.
RADIO OPERATION
1. Rotate the function selector (#5) to select the desired band (AM or FM or FM-stereo).
2. Tune to the required station by turning the tuning knob (#4).
3. Adjust volume knob (#8) to the desired volume level.
4. When you wish to turn off the Radio, rotate the Power on/off and volume knob (#8) to Off position.
FM & FM-stereo reception
Rotate the function selector (#5) to “ FM ” position. Programs are received in mono mode. In particular when
stereo signals are weak. It is preferable to receive the program in mono.
Rotate the function selector (#5) to “FM-St” position for receiving FM stereo programs. The LED “ FM-ST”
indicator (#6) will light up to show FM stereo program is receiving.
Hints for best reception:-
- AM : The receiver has a built-in AM bar antenna. If AM reception is weak, slightly rotate or change the
position of the unit will usually improve the AM reception.
- FM : The receiver has a build-in FM wire antenna (#16) hanging at the rear cabinet. This wire should be
totally unraveled and extended for best reception.
Page 8
E-7

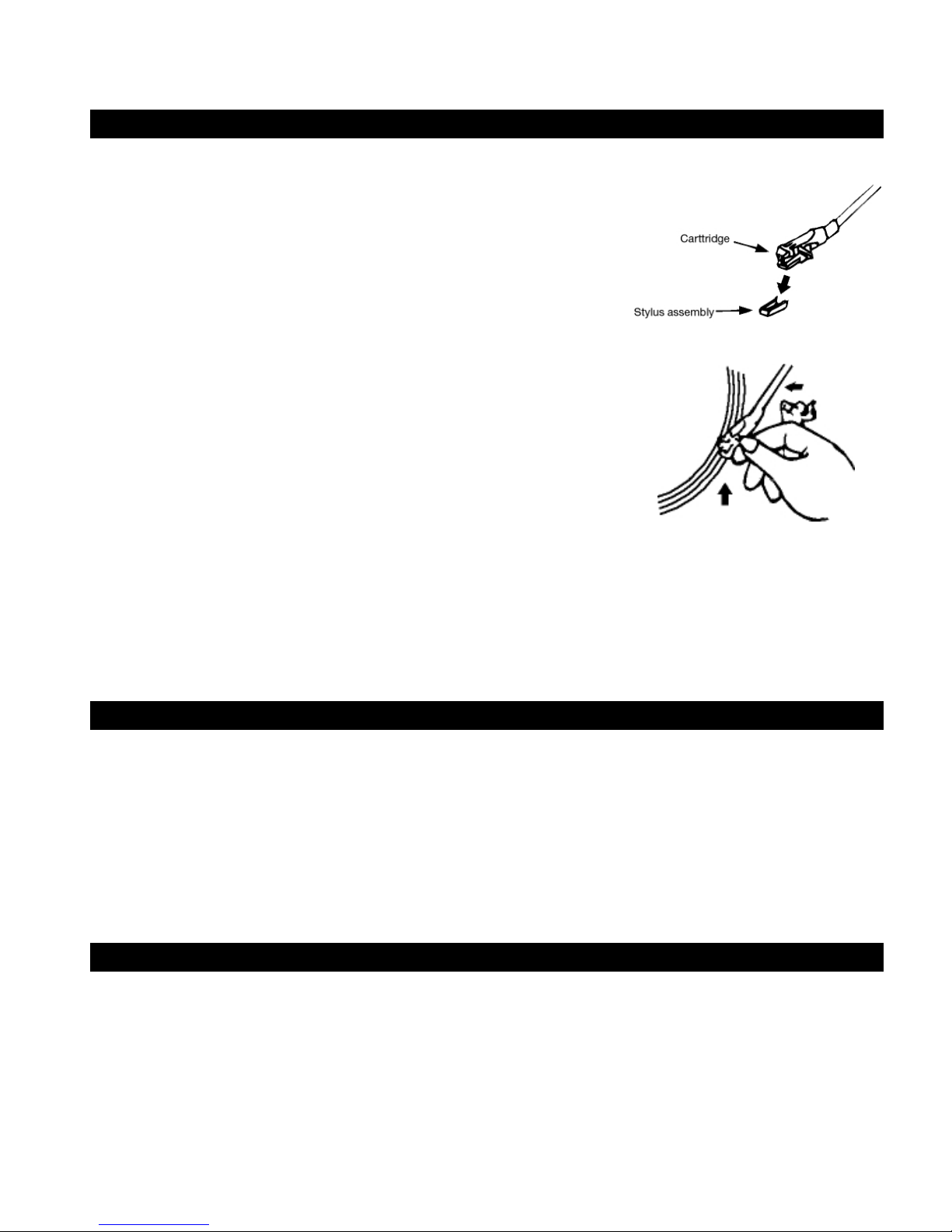

PHONO OPERATION
Noted :
- Remove the stylus protector.
- Be sure that the tone arm is being detached from the tone arm rest before
operating and re-secured again afterwards.
1. Rotate the function selector (#5) to PHONO position.
2. Set the Speed selector (#12) to the proper position depending on the
record to be played.
3. Place the record on the platter; use the 45 RPM adapter (#11) if
required.
4. Lift the tone arm from the rest and slowly move it to the record side. The
platter will start to rotate.
5. Place the tone arm to the desired position of the record.
6. Adjust the volume to the desired level.
7. At the end of record, the platter will automatically stop rotating. Lift the tone
arm from the record and return it to the rest.
8. To stop manually, lift the tone arm from the record and return it to the rest.
Remark : As some kinds of record the auto-stop area was out of the unit setting, so it will stop before the last rack
finish. In this case, select the auto-stop switch (#13) to “ off “ position, then it will run to the end of the record
but will not stop automatically (turn off the unit by power button or switch back the auto-stop switch (#13) to
“on“ position to stop the platter rotate). Then put back the tone arm to the rest position.
EXTERNAL SPEAKER CONNECTION
You can connect the system to your external speaker (4 ohm/ 3Watts) to get better sound quality. Connect the
red/white wire of your speaker to red terminal (#15) of the unit and black wire connect to black terminal (#15) then
slide the built in speaker shut-off switch (#17) to “OFF” position.
Remark : Please do not connect external speaker and built in speaker shut-off switch (#17) set to “ON” position , it
will damage the unit
.
USING HEADPHONE (NOT INCLUDED)
You can enjoy the music personally by connect your earphone to the earphone jack (10) of the unit.
Remark : To avoid damage your listening, please set the volume level (8) in low position during use earphone.
Page 9
E-8
TROUBLESHOOTING GUIDE
If you experience difficulties in the use of this music system please check the following or call 1-800-777-5331 for
Customer Service and Support.
PROBLEM POSSIBLE CAUSE REMEDY
The unit will not
play
Poor AM or FM
reception
Unit ON but there is
low or no volume
Sound is distorted
• The unit is disconnected from the
AC outlet
• Connect to an outlet.
• The AC outlet has no power • Try the unit on another outlet
• AM mode, Rotate or change the
position of the unit for better
• Weak signal on distant stations
reception.
• FM mode, Fully extend the FM wire
antenna.
• The volume Control has been
turned all the way down
• Headphones are inserted into the
Headphone jack
• Turn the Volume control to a higher
output
• Pull the headphone out
• Volume level is set too high • Decrease the volume
environment through responsible recycling.
Please visit us at http://www.spectraintl.com/green.htm for more information on
Spectra’s green initiatives or to find a recycler in your area.
SPECTRA GREEN NOTICE
At Spectra, environmental and social
responsibility is a core value of our business.
We are dedicated to continuous
implementation of responsible initiatives with
an aim to conserve and maintain the
Page 10
E-9
90 DAY LIMITED WARRANTY AND SERVICE VALID IN THE U.S.A. ONLY
SPECTRA MERCHANDISING INTERNATIONAL, INC. warrants this unit to be free from defective
materials or
and provided the
Our obligation under this
thereof, except batteries, when it is
proof of the date of original consumer purchase, such as a duplicate copy of a sales receipt.
You must pay all shipping charges required to ship the product to SPECTRA for warranty service. If the
product is repaired or replaced under warranty, the return charges will be at SPECTRA’s expense. There
are no other express warranties other than those stated herein.
This warranty is valid only in accordance with the conditions set forth below:
1. The warranty applies to the SPECTRA product only while:
a. It remains in the possession of the original purchaser and proof of purchase is demonstrated.
b. It has not been subjected to accident, misuse, abuse, improper service, usage outside the
c. Claims are made within the warranty period.
2. This warranty does not cover damage or equipment failure caused by electrical wiring not in
compliance with
provide reasonable care and
3. Warranty of all SPECTRA products applies to residential use only and is void when products are
used in nonresidential environment or installed outside the United States.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to
state. TO OBTAIN SERVICE please remove all batteries (if any) and pack the unit carefully and send it
freight prepaid to SPECTRA at the address shown below. IF THE UNIT IS RETURNED WITHIN THE
WARRANTY PERIOD
so that we may establish your
include a note with a description explaining
may need to contact you regarding the status of your repair, so please include your name, address,
phone number and email address to expedite the process.
factory workmanship for a period of 90 days from the date of original customer purchase
product is utilized within the U.S.A. This warranty is not assignable or transferable.
warranty is the repair or replacement of the defective unit or any part
returned to the SPECTRA Service Department, accompanied by
descriptions and warnings covered within the user manual or non-SPECTRA approved
modifications.
electrical codes or SPECTRA user manual specifications, or failure to
necessary maintenance as outlined in the user manual.
shown above, please include a proof of purchase (dated cash register receipt)
eligibility for warranty service and repair of the unit without cost. Also
how the unit is defective. A customer service representative
IF THE UNIT IS OUTSIDE THE WARRANTY PERIOD, please include a check for $35.00 to cover the
cost of repair, handling and return postage. All out of warranty returns must be sent prepaid.
It is recommended that you contact SPECTRA first at 1-800-777-5331 or by email at
[email protected] for updated information on the unit requiring service. In some cases the
model you have may be discontinued, and SPECTRA reserves the right to offer alternative options for
repair or replacement.
SPECTRA MERCHANDISING INTERNATIONAL, INC.
4230 North Normandy Avenue,
Chicago, IL60634, USA. 1-800-777-5331
To register your product, visit the link on the website below to enter your information.
http://www.spectraintl.com/wform.htm
0114
Printed in China
Loading...
