Jbsystems light LED STRIP User Manual

LED STRIPLED STRIP

LED WALL COLOR CHANGER TUBE

WWW.BEGLEC.COM

Copyright © 2006 by BEGLEC cva.

Reproduction or publication of the content in any manner, without express permission of the publisher, is prohibited.

Version: 1.1

Operation Manual

Mode d'emploi

Gebruiksaanwijzing

Bedienungsanleitung

Manual de instrucciones

EN

FR
NL
DU
ES

EN - DISPOSAL OF THE DEVICE

Dispose of the unit and used batteries in an environment friendly manner
according to your country regulations.

FR - DÉCLASSER L’APPAREIL

Débarrassez-vous de l’appareil et des piles usagées de manière écologique
Conformément aux dispositions légales de votre pays.

NL - VERWIJDEREN VAN HET APPARAAT

Verwijder het toestel en de gebruikte batterijen op een milieuvriendelijke
manier conform de in uw land geldende voorschriften.

DU - ENTSORGUNG DES GERÄTS

Entsorgen Sie das Gerät und die Batterien auf umweltfreundliche Art und
Weise gemäß den Vorschriften Ihres Landes.

ES - DESHACERSE DEL APARATO

Reciclar el aparato y pilas usadas de forma ecologica conforme a las
disposiciones legales de su pais.

PT - COMO DESFAZER-SE DA UNIDADE

Tente reciclar a unidade e as pilhas usadas respeitando o ambiente e em
conformidade com as normas vigentes no seu país.

ENGLISH OPERATION MANUAL

Thank you for buying this JB Systems product. To take full advantage of all possibilities and for your own
safety, please read these operating instructions very carefully before you start using this unit.

FEATURES

This unit is radio-interference suppressed. This product meets the requirements of the current European and
national guidelines. Conformity has been established and the relevant statements and documents have been
deposited by the manufacturer.

• This device has been designed to produce decorative effect lighting and is used in light show systems.

• Multicolor plastic tubes with RGB LEDs inside, used to change the color of walls, ceilings, etc. in all kinds

of venues: bars, discotheques, taverns, shops, …

• Infinite applications possible: fix the strips behind translucent plexi panels to create slowly changing
colored surfaces, ceilings and walls…

• Mounting clips and screws included.

• Solid 4pin connectors with security lock.

• To be used with our LED-MANAGER (dmx power supply)

• Longlife LED Technology!

BEFORE USE

• Before you start using this unit, please check if there’s no transportation damage. Should there be any, do
not use the device and consult your dealer first.

• Important: This device left our factory in perfect condition and well packaged. It is absolutely necessary
for the user to strictly follow the safety instructions and warnings in this user manual. Any damage caused
by mishandling is not subject to warranty. The dealer will not accept responsibility for any resulting defects
or problems caused by disregarding this user manual.

• Keep this booklet in a safe place for future consultation. If you sell the fixture, be sure to add this user
manual.

Check the contents:

Check that the carton contains the following items:

• Operating instructions

• LED STRIP

• 2 Plastic mounting clips + screws

ENGLISH OPERATION MANUAL

SAFETY INSTRUCTIONS:

• To protect the environment, please try to recycle the packing material as much as possible.

• Do not expose this appliance to rain or moisture.

• To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when

bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full
performance or may even cause damages.

• This unit is for indoor use only.

• Don’t place metal objects or spill liquid inside the unit. If a foreign object enters the unit, immediately

disconnect the installation setup from the mains power.

• Prevent use in dusty environments and clean the unit regularly.

• Keep the unit away from children.

• Inexperienced persons should not operate this device.

• Maximum save ambient temperature is 45°C. Don’t use this unit at higher ambient temperatures.

• Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging

and servicing.

• The electrical installation should be carried out by qualified personal only, according to the regulations for
electrical and mechanical safety in your country.

• The cables should always be in perfect condition: switch the LED Manager immediately off when the
cables are squashed or damaged.

• This appliance must be used with the LED Manager: don’t connect the unit to any dimmer pack or other
power supply.

• In the event of serious operating problems, stop using the fixture and contact your dealer immediately.

• The housing must be replaced if it is visibly damaged.

• Please use the original packing when the device is to be transported.

• Due to safety reasons it is prohibited to make unauthorized modifications to the unit.

Important: Don’t use the effect in the presence of persons suffering from epilepsy.

DESCRIPTION:

1. LED Strip enclosure with high intensity LEDs inside.

2. Plastic mounting clips, including screws.

3. Special female 4-pin connector: output to the next unit.

4. Special male 4-pin connector: input from the previous unit.

JB SYSTEMS® 1/20 LED STRIP

JB SYSTEMS® 2/20 LED STRIP

ENGLISH OPERATION MANUAL

MECHANICAL INSTALLATION

• Important: The installation must be carried out by qualified service personal only. Improper
installation can result in serious injuries and/or damage to property. Overhead rigging requires
extensive experience! Working load limits should be respected, certified installation materials
should be used, the installed device should be inspected regularly for safety.

• Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging
and servicing.

• The device should be installed out of reach of people and outside areas where persons may walk by or be
seated.

• Before rigging make sure that the installation area can hold a minimum point load of 10times the device’s
weight.

• Install both mounting clips in a safe way. Make sure that the surface is strong enough and the screws have
excellent grip in the mounting surface.

• Click the LED STRIP(s) in the mounting clips.

• The device should be well fixed; a free-swinging mounting is dangerous and may not be considered!

• The operator has to make sure that the safety-relating and machine-technical installations are approved by

an expert before using them for the first time. The installations should be inspected every year by a skilled
person to be sure that safety is still optimal.

Hint: You can install the LED STRIP(s) also behind translucent plastic panels to create color changing walls
and ceilings or in a bar you can install the strips under a translucent shelf to lighten bottles and drinking
glasses from the bottom.

ELECTRICAL INSTALLATION

The electrical installation should be carried out by qualified personal only, according to the
regulations for electrical and mechanical safety in your country.

VERY IMPORTANT
its outputs! Do not exceed this maximum allowed power! To know the total power consumption of all
LED products in a chain you simply have to count up the power consumption of all units in the chain.
Check the chapter “specifications” at the end of this manual to see the power consumption of the
different LED STRIPS!

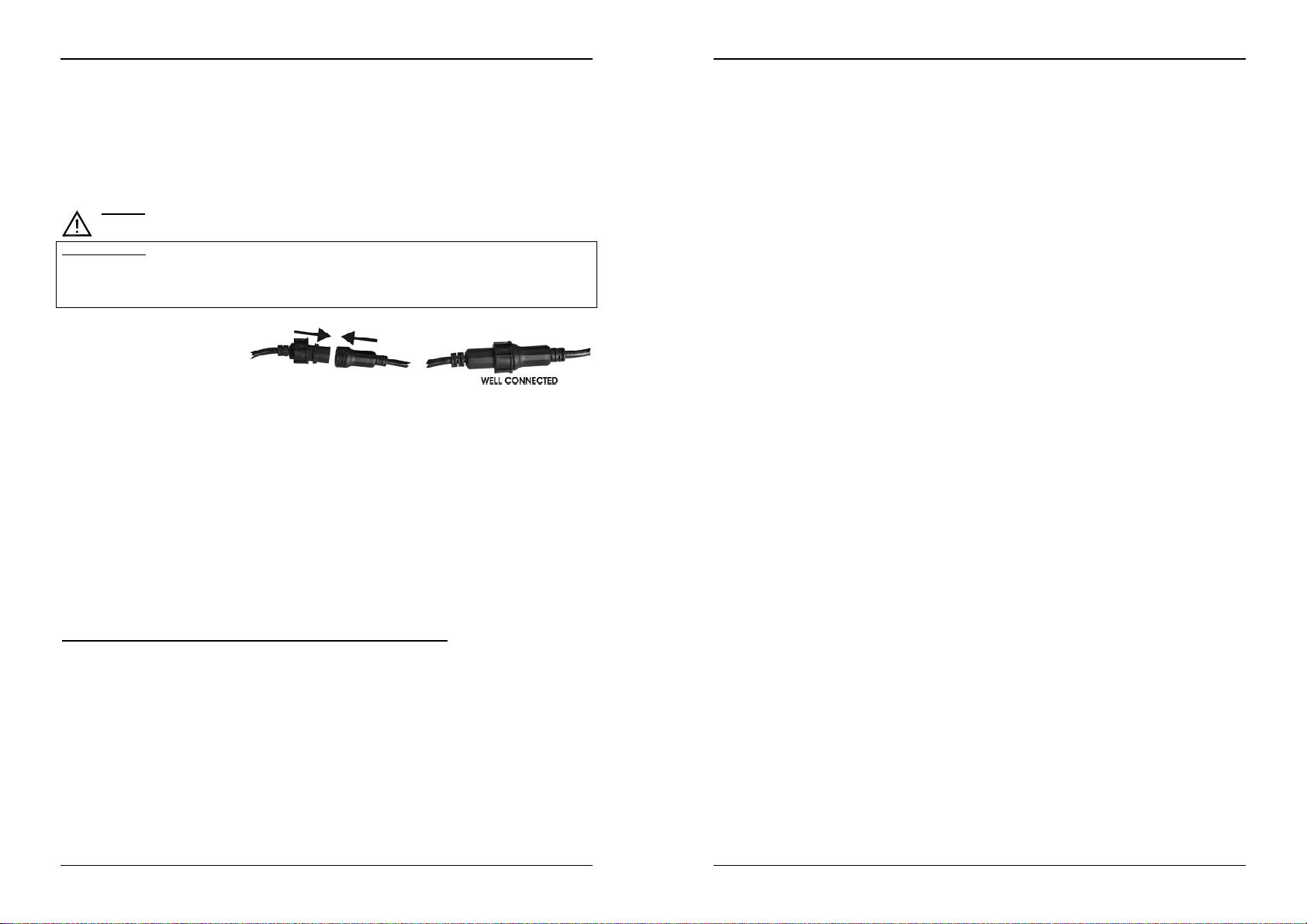

• After installing the units just daisy
chain the in/output cables of all
LED STRIP units until you reach
the maximum allowed load. Make
sure to fasten the plastic ring of
the connector.

• Optional extension cables are available in 1m and 5m lengths.

• After checking that the maximum allowed power is not exceeded, you can connect the chain to one of the

outputs of the LED Manager.

Example: You have to install 11x 1m-LED STRIP and 6x 0,5m LED STRIP Æ 11x10W + 6x5W = 140Watt.
This chain can be connected to one of the LED Manager outputs since it does not exceed the allowed 150W.

: Check the user manual of the LED Manager for the maximum allowed power on

ENGLISH OPERATION MANUAL

MAINTENANCE

• Make sure the area below the installation place is free from unwanted persons during servicing.

• Switch off the LED Manager and unplug the mains cable.

During inspection the following points should be checked:

• All screws used for installing the device and any of its parts should be tightly fastened and may not be
corroded.

• Housings, fixations and installations spots (ceiling, truss, suspensions) should be totally free from any
deformation.

• When an enclosure is visibly damaged due to cracks or deep scratches, it must be replaced.

• The cables must be in impeccable condition and should be replaced immediately when even a small

problem is detected.

• The cleaning of the plastic enclosure must be carried out periodically to optimize light output. Cleaning
frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty
surroundings can cause greater accumulation of dirt on the unit’s optics.

• Clean with a soft cloth using normal glass cleaning products.

• Always dry the parts carefully.

SPECIFICATIONS

Connections: Special 4-pin connectors
Extension cables: optionally available in 1m and 5m lengths
Operation voltage : 24Vdc common anode
Power consumption: LED STRIP 1m: 10Watt (144 LEDs)

LED STRIP 0,5m: 5Watt (72 LEDs)
LED STRIP 0,2m: 3Watt (24 LEDs)
Size/Weight: LED STRIP 1m: D=30 x L=1000mm / 340g.
LED STRIP 0,5m: D=30 x L=500mm / 200g.
LED STRIP 0,2m: D=30 x L=200mm / 140g.

You can download the latest version of this user manual on our website: www.beglec.com

OPERATING INSTRUCTIONS

Since the LED STRIP is controlled by the LED Manager, we strongly advice to read the operation
instructions in the LED Manager user manual.

Every information is subject to change without prior notice

JB SYSTEMS® 3/20 LED STRIP
