Jabra BTE6, WHB006, END003 Quick Start Guide

NEED MORE HELP?

For the latest support info and online User Manuals visit jabra.com/motionoffice

TOLL FREE Customer Contact Details:

Asia pacific

Australia

China

Japan

New Zealand

Singapore

PHONE

1-800-738-521

800-858-0789

03-3242-8722

[phone]

[phone]

EMAIL

[e-mail]

[e-mail]

[e-mail]

[e-mail]

[e-mail]

For more information, please visit

www.jabra.com

81-03881 D

Jabra MOTION OFFICE

GET STARTED

JABRA.COM/MOTIONOFFICE

外

© 2014 GN Netcom A/S (North America: GN Netcom US, Inc.). All rights reserved.
Jabra® is a registered trademark of GN Netcom A/S. All other trademarks included
herein are the property of their respective owners. The Bluetooth® word mark and
logos are owned by the Bluetooth SIG, Inc. and any use of such marks by GN Netcom
A/S is under license. (Design and specications subject to change without notice).

Made in China

MODEL: BTE6
WHB006

KCC-CMM-

GNM-OTE

WHB006

KCC-CMM-

GNM-OTE

BTE6A

箱・中 箱外箱・袋

www.jabra.com

ENGLISH ................................................................ 2

简体中文

繁體中文

한국어

..................................................................20

............................................................... 8

.............................................................14

OVERVIEW

Volume
touch panel

Headset dock

(Cannot be rotated)

2

Touchscreen

Call button

Busy light
indicator

LED indicators

Telephone

port

Voice and Mute
microphone button

Handset

port

AUX
port

USB
port

Jabra Link 360

Power

adapter port

Kensington
lock

Speaker

Busylight
port

1 BASIC SETUP

ENGLISH

1

3

Important!

Download and install the latest Jabra software from jabra.com/direct for full headset functionality.

2

4

3

2 CONNECT TO PHONE OR PC

JABRA MOTION OFFICE CONNECTION

The rst time the base is connected to power, the setup
wizard will automatically start. The setup wizard can also
be accessed at any time via the touchscreen menu.

PHONE SETTINGS

Mobile phone

Setup wizard

1. Tap the Settings menu on the touchscreen.

2. Tap Phone settings > Setup wizard.

3. Tap conrm to start the setup wizard.

JABRA LINK 360 CONNECTION

The Jabra Link 360 enables a connection to a PC without
the base, giving you wireless freedom when you travel.

To connect, simply plug the Jabra Link 360 into a USB
port on your PC. The headset and the Jabra Link 360 are
already pre-paired.

Important!

The Jabra Link 360 and the base
should not be plugged in at the
same time.

4

Reset conguration

!

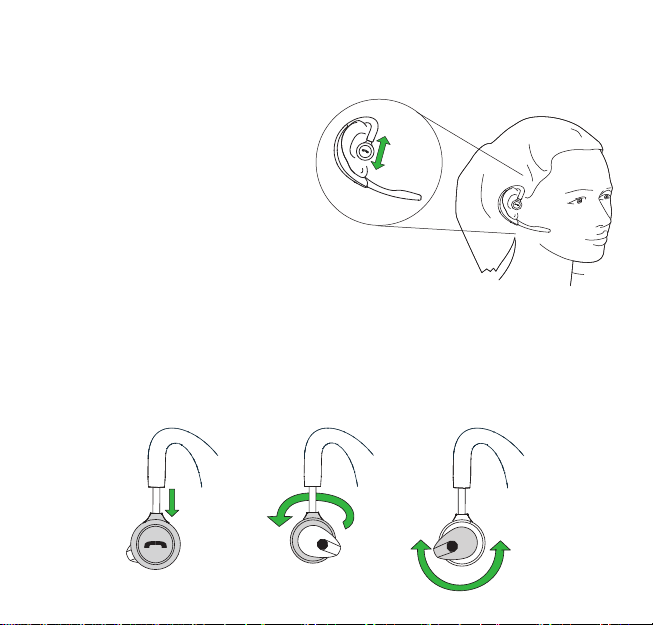

3 WEARING THE HEADSET

HEIGHT ADJUSTMENT

Get the perfect t for your ear
by adjusting the height of the
speaker up or down.

LEFT OR RIGHT EAR WEARING STYLE

The headset can be worn on the left or right ear. To switch ear:

1. Pull the speaker all the way down.

2. Rotate the speaker 180°.

3. Twist the eargel around to t your ear.

5

4 HOW TO USE

Volume

touch panel

Call button

IDLE

Settings menu

Connected devices

(primary device

at front)

Initiate call

INCOMING CALL

Answer call

Reject call

Flip boom-arm

Voice and Mute
microphone button

6

ON A CALL

Call options menu

Mute call

End call
