Invacare IRC1001 User Manual
OWNER'S MANUALOWNER'S MANUAL
OWNER'S MANUAL
OWNER'S MANUALOWNER'S MANUAL
GUIDE DE LUTILISATEURGUIDE DE LUTILISATEUR
GUIDE DE LUTILISATEUR
GUIDE DE LUTILISATEURGUIDE DE LUTILISATEUR
MANUAL DE INSTRUCCIONESMANUAL DE INSTRUCCIONES
MANUAL DE INSTRUCCIONES
MANUAL DE INSTRUCCIONESMANUAL DE INSTRUCCIONES
Envoy
AEROSOL COMPRESSOR
MODEL IRC1001
COMPRESSEUR AÉROSOL
MODÈLE IRC1001
Jr.
COMPRESOR PARA AEROSOL
MODELO IRC1001
SPECIAL NOTES
SPECIAL NOTES
DANGER/WARNING/CAUTION notices as used in this
manual apply to hazards or unsafe practices which could
result in personal injury or property damage.
NOTICE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.
THIS AEROSOL COMPRESSOR IS INTENDED FOR
HOUSEHOLD USE.
WARNING
DO NOT INSTALL, MAINTAIN OR OPERATE
THIS EQUIPMENT WITHOUT FIRST
READING AND UNDERSTANDING THIS
MANUAL. IF YOU ARE UNABLE TO
UNDERSTAND THE DANGERS/WARNINGS/
CAUTIONS AND INSTRUCTIONS, CON-
TACT YOUR HOME HEALTHCARE DEALER
BEFORE ATTEMPTING TO USE THIS EQUIP-
MENT - OTHERWISE INJURY OR DAMAGE
MAY RESULT.
SAVE THESE INSTRUCTIONS
2
TABLE OF CONTENTS
TABLE OF CONTENTS
SPECIAL NOTES................................................................... 2
IMPORTANT SAFEGUARDS .............................................. 4
SPECIFICATIONS AND
SUPPLEMENTAL INFORMATION .................................... 6
FEATURES ............................................................................. 8
HANDLING PROCEDURES ................................................ 9
Shipping and Transportation Instructions ......................................... 9
Unpacking .................................................................................................. 9
Inspection .................................................................................................. 9
Storage ....................................................................................................... 9
OPERATION .......................................................................... 9
MAINTENANCE.................................................................. 12
Cleaning the Outer Case .................................................................... 12
Cleaning the Nebulizer ........................................................................12
Cleaning or Replacing the Foam Intake Filter ................................ 13
ACCESSORIES AND LIMITED WARRANTY ................. 13
GUIDE DE LUTILISATEUR .............................................. 16
MANUAL DE INSTRUCCIONES ...................................... 30
3
IMPORTANT SAFEGUARDS
IMPORTANT SAFEGUARDS
READ ALL INSTRUCTIONS BEFORE USING
Caution: Federal law restricts this device to sale by or on
order of a physician, or any other practitioner licensed by
the law of the State in which he practices to use or order
the use of this device.
When using electrical products, especially when children
are present, basic safety precautions should always be
followed, including the following:
DANGER
TO REDUCE THE RISK OF ELECTROCUTION
ALWAYS unplug this product IMMEDIATELY after using.
DO NOT use while bathing.
DO NOT place or store product where it can fall or be
pulled into a tub or sink.
DO NOT reach for product that has fallen into water.
UNPLUG IMMEDIATELY.
DO NOT place or drop into water or other liquid.
WARNING
TO REDUCE THE RISK OF BURNS, ELECTROCUTION,
FIRE OR INJURY TO PERSONS
This product should NEVER be left unattended when
plugged in.
Close supervision is necessary when this product is used
by, on, or near CHILDREN AND PHYSICALLY
CHALLENGED INDIVIDUALS.
Use this product only for its intended use as described in
this manual. Use this product only under physicians
direction. DO NOT use attachments not recommended
by the manufacturer.
4
IMPORTANT SAFEGUARDS
WARNING
NEVER operate this product with a damaged cord or plug,
if it is not working properly, if it has been dropped or
damaged, or dropped into water; call Qualified Service
Personnel for examination and repair.Keep the cord away
from HEATED or HOT surfaces.
NEVER drop or insert any object into any opening.
NEVER use while sleeping or drowsy.
NEVER block the air openings of the product or place it
on a soft surface, such as a bed or couch, where the air
openings may be blocked. Keep the air openings free from
lint, hair and the like. Blocked openings may cause the
unit to shut down. Contact dealer immediately.
DO NOT use outdoors or operate where aerosol (spray)
products are being used or where oxygen is being administered in a closed environment such as an oxygen tent.
This unit is oil-less. DO NOT lubricate.
CAUTION
Risk of electric shock. Do not disassemble. Refer servicing
to qualified service personnel.
5
SPECIFICATIONS
SPECIFICATIONS AND
SUPPLEMENTAL INFORMATION
STANDARD SPECIFICATIONS
Electrical Requirements:
Running Current:
Sound Level:
Ambient Temperature Range:
Power Wattage:
Thermal Protector:
Foam Intake Filter:
Safety Systems:
Width:
Height:
Depth:
Weight:
Shipping Weight:
Regulatory Listing:
115 VAC, 60Hz, Single Phase
1.8 A @ 10 psig @ 115 volts (approx.)
55 dBA
50°F - 104°F (10°C - 40°C)
80 watts @ 10 psig
UL 547 Class B
Open cell 100 ppi, polyurethane foam.
High temperature compressor shutdown.
4.1-inches
7.0-inches
7.0-inches
3.5 Ibs.
4.5 lbs.
In compliance with UL 1431 Personal
Hygiene and Healthcare Appliances and
CSA 22.2 No. 68-92 Motor Operated
Appliances.
ELECTRICAL
This appliance has a polarized plug (one blade is wider than the other).
As a safety feature, this plug will fit in a polarized outlet only one way. If
the plug does not fit fully in the outlet, reverse the plug. If it still does
not fit, contact a qualified electrician. Do not attempt to defeat this
safety feature.
6
SPECIFICATIONS
Compressor:
If the unit shuts down frequently, you may have a low voltage situation.
Low voltage can also be suspected when:
1. The motor does not get up to full power or speed.
2. Home fuses or circuit breakers activate when starting compressor.
3. Lights dim or remain dim when compressor is started.
4. Other motor operated appliances fail to operate properly or too
many motor operated appliances are on same circuit.
The motor of this compressor has a thermal overload protector. If the
motor should overheat, the overload protector will shut off the motor.
If the unit shuts down and cannot be restarted, the motor must be
replaced. Call your dealer immediately.
Extension Cords:
Make certain extension cord is in good condition. Make certain extension
cord wire is NOT LESS than 18 gauge for 25 feet, 16 gauge for 50 feet and
14 gauge for 100 feet.
MAINTENANCE
Only authorized or factory-trained personnel should perform preventative
maintenance.
7

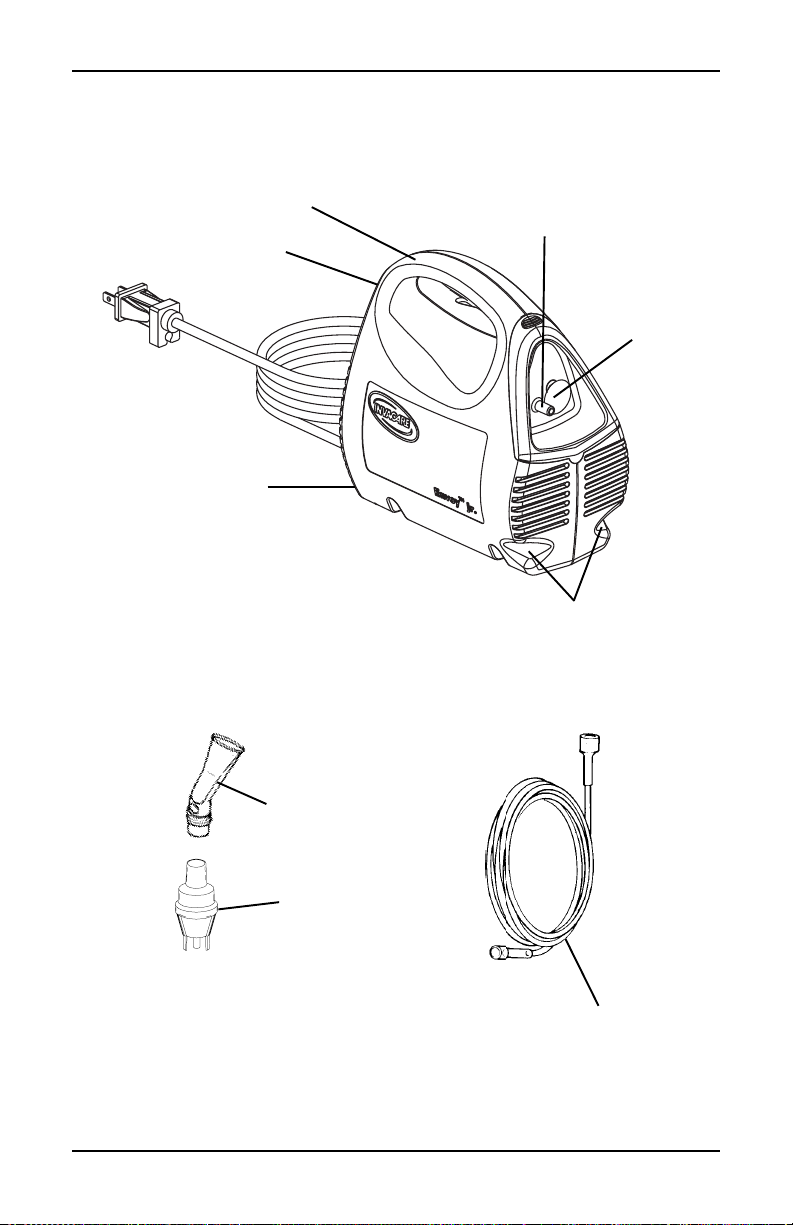

8
HANDLING PROCEDURES/ OPERATION
HANDLING PROCEDURES
SHIPPING AND TRANSPORTATION INSTRUCTIONS
The shipping container has been designed to assure protection of this
device.
If this device is to be reshipped by common carrier, it should be packed
in the same carton. Extra cartons are available from Invacare.
UNPACKING
1. Check for any obvious damage to the carton or its contents. If
damage is evident, do NOT use. Notify Carrier/Invacare or your
local Invacare Dealer.
2. Remove all the loose packing from the carton.
3. Carefully remove all the components from the carton.
NOTE: Retain carton and packing materials for use in shipping or storing the
unit until use is required.
INSPECTION
1. Examine exterior for nicks, dents, scratches or other damage.
Inspect all components.
STORAGE
1. Store the repackaged device in a dry area.
2. DO NOT place other objects on top of the repackaged device.
OPERATION
Your disposable nebulizer package includes a nebulizer mouthpiece,
nebulizer, and air tubing. These items are sold as a package only.
NOTE: Before initial operation, nebulizer should be cleaned. Follow the recommended
Cleaning Instructions in this Owners Manual.
9
OPERATION
WARNING
DO NOT run unit without filter.
Avoid operating this product in a dusty environment
which could cause premature compressor wear.
SETUP
1. Place the device on a table so that the controls can be reached
when seated.
2. Secure one end of the nebulizer tubing to the compressor air
outlet (FIGURE 1).
3. Connect the other end to the nebulizer.

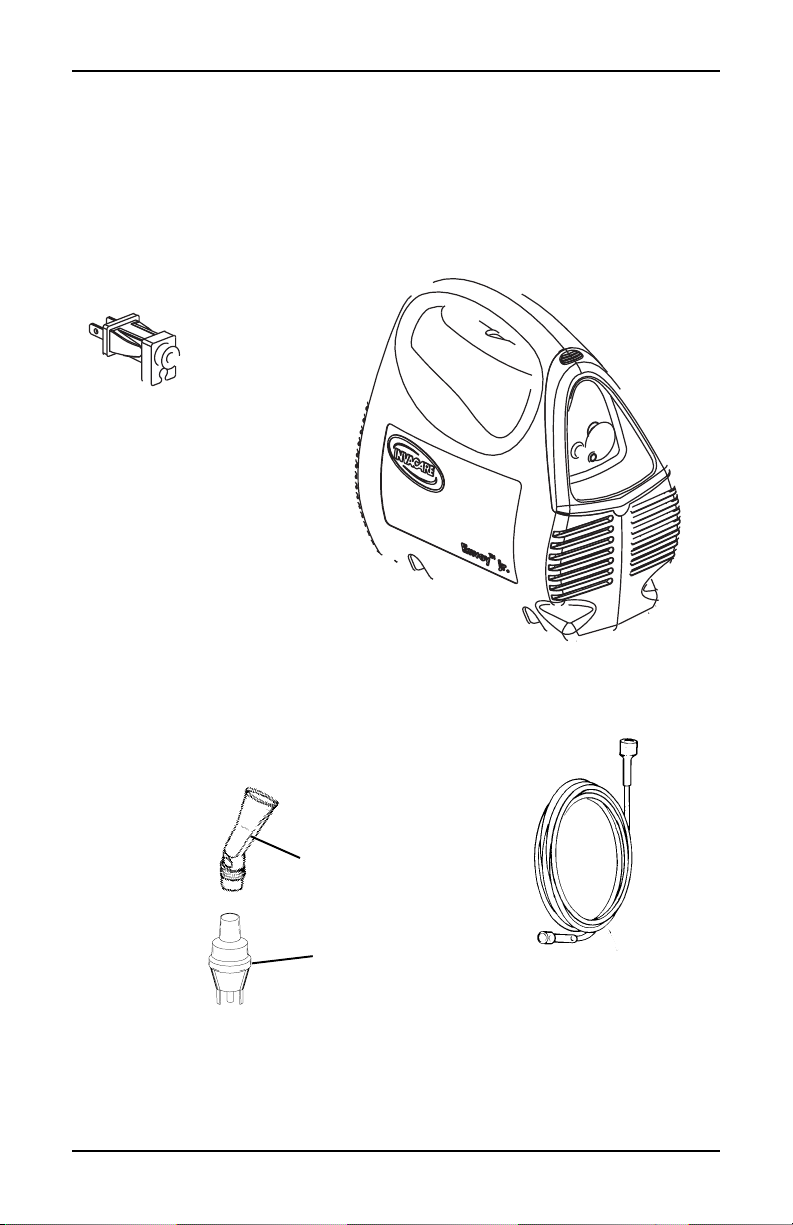

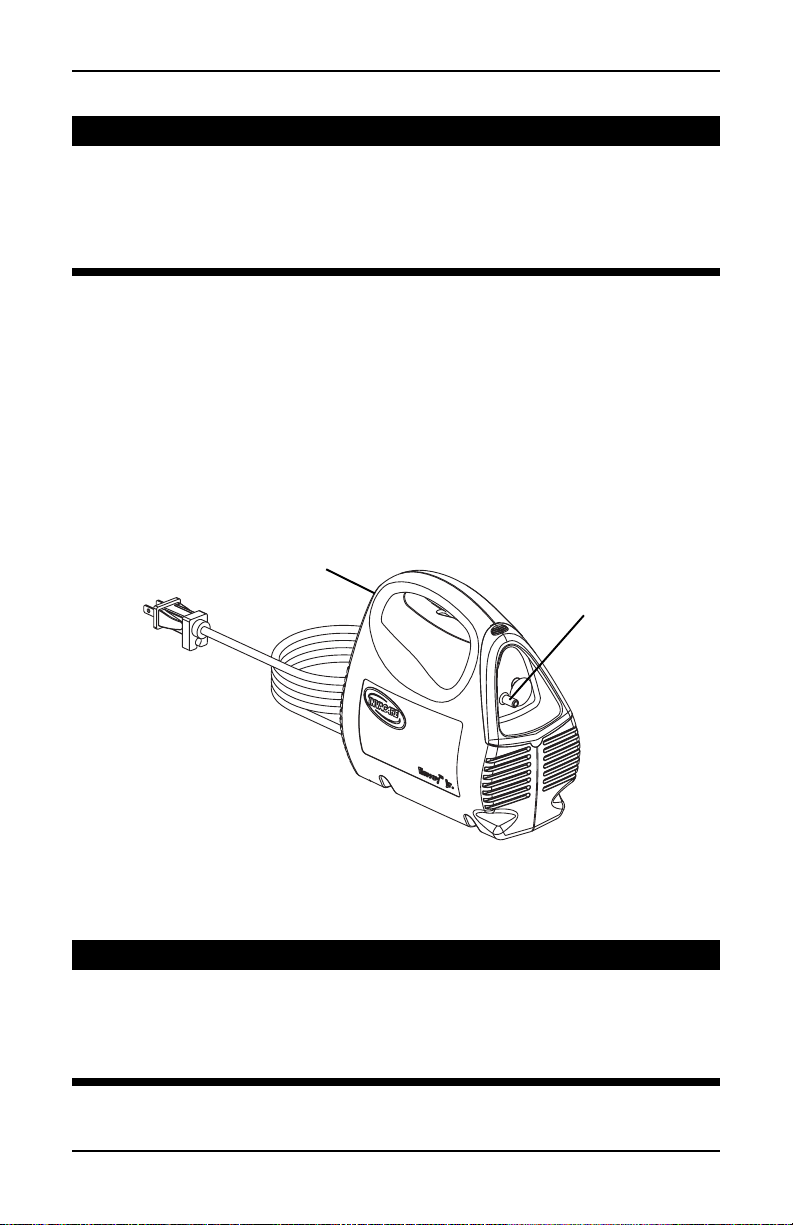

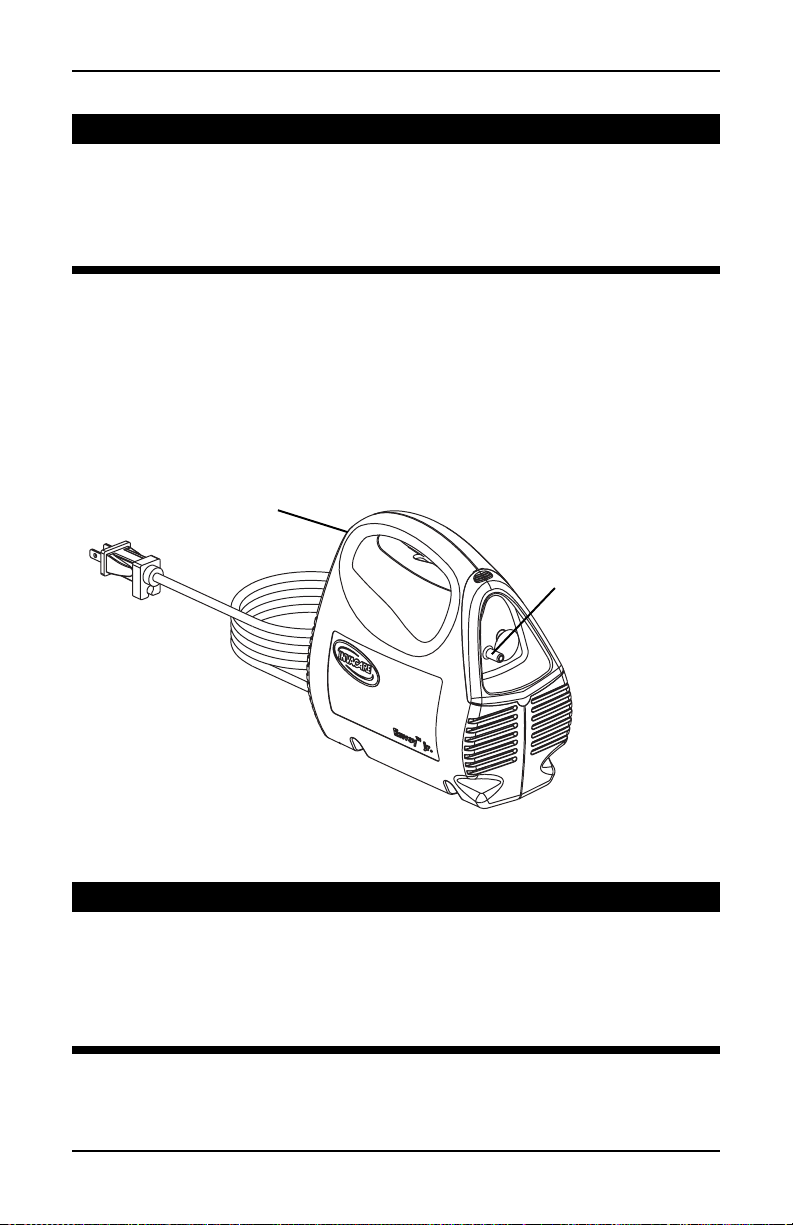

Rear Power Switch
Compressor Air Outlet
for connecting Nebulizer
Air Tubing
FIGURE 1 - LOCATION OF COMPRESSOR AIR OUTLET
WARNING
In the case of high humidity, condensation may form
inside the internal tubing. Run the unit for two (2) minutes
before connecting the nebulizer to the tubing.
10
OPERATION
4. Add liquid medication to the nebulizer according to your
physicians prescription (FIGURE 2).

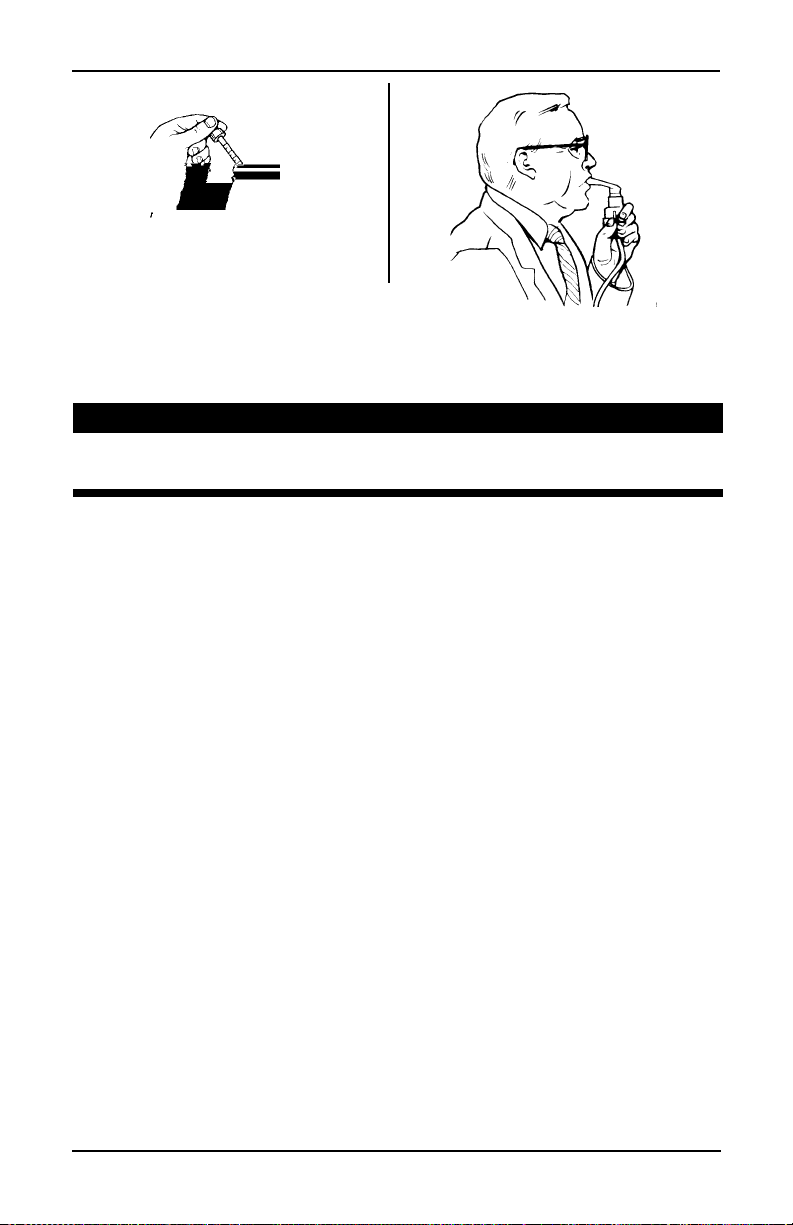

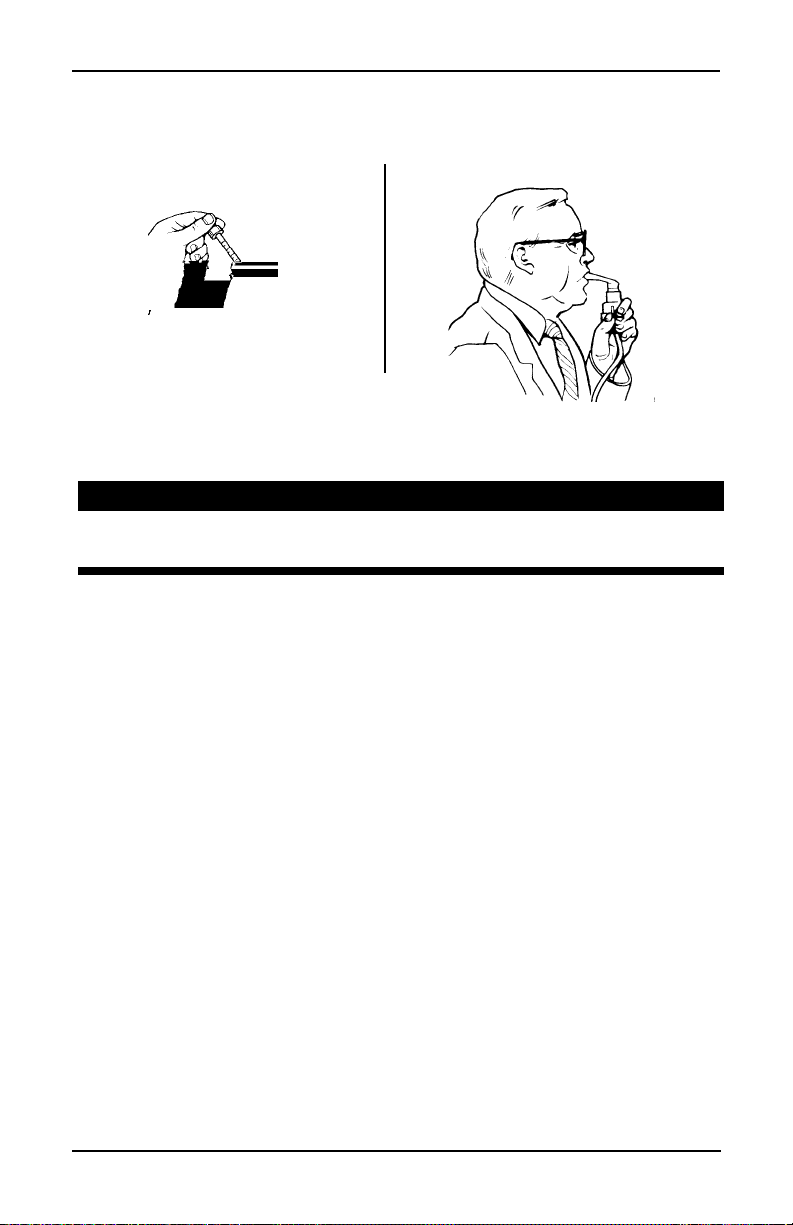

FIGURE 2 - ADDING
LIQUID MEDICATION
TO THE NEBULIZER
FIGURE 3 - USING
THE NEBULIZER
WARNING
Before plugging in the line cord, make sure that the power
switch is in the OFF (O) position.
5. Unwrap the line cord.
6. Plug into a 115V/60Hz wall outlet.
7. Insert the nebulizer mouthpiece into the top of the nebulizer.
NOTE: Before attempting to start a cold unit, let the unit reach room temperature in
a heated area.
8. Press the power switch ON ( I ) to start the compressor.
9. Place mouthpiece between your teeth and close your mouth
(FIGURE 3).
10. As aerosol begins to flow, inhale deeply, slowly, and hold breath for
10 seconds. Then exhale slowly through the mouthpiece.
NOTE: Before storing supplies between treatments, clean and dry nebulizer.
(Refer to Maintenance Section in this manual). Tighten caps on medication jars.
NOTE: In the event a substantial increase in back pressure is achieved, i.e.
kinked tubing, an audible "pop" or air leak may be heard. A relief valve has
been included to reduce possible damage to the compressor; which closes once
the back pressure has decreased.
11
MAINTENANCE
MAINTENANCE
WARNING
Electrical shock hazard. DO NOT remove outer case of
this unit. All disassembly and maintenance of this unit
MUST BE done by a qualified Invacare Dealer.
CLEANING THE OUTER CASE
WARNING
UNPLUG unit before cleaning. DO NOT submerge in
water to clean. Clean outer case with damp cloth.
CLEANING THE NEBULIZER
NOTE: With proper maintenance your nebulizer should last 30 days. Since the nebulizer
is disposable, it is recommended that an extra nebulizer be kept at all times.
NOTE: Clean the Nebulizer after every use and at least once a day.
NOTE: Your physician and/or a Invacare Dealer may specify certain cleaning
procedures. If so, follow their recommendations. If not, clean according to the
following instructions:
1. Remove the nebulizer and mouthpiece from the tubing.
2. Disassemble nebulizer chamber by turning counterclockwise and
separating.
3. Fill two (2) plastic containers or bowls:
A. Washing: Hot water/detergent solution.
B. Soaking: Hot water/vinegar solution (one [1] part vinegar to
three [3] parts water).
4. Thoroughly clean the nebulizer and mouthpiece in hot water/
detergent solution.
5. Remove from the water/detergent solution and rinse with clear hot
tap water.
6. Soak in hot water/vinegar solution for 30 minutes.
7. Rinse with hot tap water again and air dry thoroughly.
12
MAINTENANCE/ACCESSORIES
NOTE: If using medical disinfectant cleaners, follow manufacturers instructions carefully.
8. Keep the outer surface of the tubing dust-free by wiping regularly.
NOTE: The nebulizer air tubing does not have to be washed internally because
only filtered air passes through the tubing.
CLEANING OR REPLACING THE FOAM INTAKE
FILTER
NOTE: Clean the filter once a month or sooner if filter discolors.
1. Unplug unit.
2. Remove filter cover to gain access to filter.
3. Remove filter and clean with soap and water. Let dry thoroughly
before use.
4. Replace filter if it becomes clogged, torn or has a worn appearance.
NOTE: Regular filter cleaning/replacing is necessary to help ensure proper
compressor performance.
WARNING
DO NOT run unit without filter.
ACCESSORIES
NOTE: The nebulizer and accessories are not manufactured by Invacare. Invacare
has maintained the integrity of the nebulizer manufacturer's original sealed
packaging and labeling.
Intake Filter / Filter Cover
Owner's Manual
MS2100 Disposable Nebulizer (5 ml Capacity), w/Mouthpiece, T-Piece, and 7 ft. tubing.
MS2200 Disposable Sidestream® Nebulizer (10 ml Capacity), w/Mouthpiece
and 7 ft. Tubing.
MS2400 Durable Sidestream® Nebulizer (10 ml Capacity), w/Mouthpiece and
7 ft. Tubing. One (1) Year Limited Warranty.
IRC1198 TruZone® PFM Peak Flow Meter
NOTE: See Invacare Dealer for additional Nebulizers.
13
WARRANTY
LIMITED WARRANTY
PLEASE NOTE: THE WARRANTY BELOW HAS BEEN
DRAFTED TO COMPLY WITH FEDERAL LAW APPLICABLE
TO PRODUCTS MANUFACTURED AFTER JULY 4,1975.
This warranty is extended only to the original purchaser of our
products.
This warranty gives you specific legal rights and you may also have
other legal rights which vary from state to state.
Invacare warrants the compressor of the Invacare Aerosol Compressor to be free from defects in materials and workmanship for a
period of three (3) years from date of purchase. The nebulizer
chamber, nebulizer air tubing, and any other accessories are
excluded in this warranty. If within such warranty period any such
product shall be proven to Invacares satisfaction to be defective,
such product shall be repaired or replaced, at Invacares option.
This warranty does not include normal wear and tear or shipping
charges incurred in replacement part installation or repair of such
product. Invacares sole obligation and your exclusive remedy under
this warranty shall be limited to such repair or replacement.
For warranty service, please contact Invacares Service Department during normal working hours at the Toll Free Number listed.
Upon receiving notice of an alleged defect in a product, Invacare
will issue a serialized return authorization. It shall then be the
responsibility of the purchaser to return, at purchasers cost, to
either Invacares plant or service center as specified by Invacare in
advance. Defective component part(s) must be returned for warranty inspection using the serial number as identification within
thirty (30) days of return authorization date. DO NOT return
products to our factory without prior consent. C.O.D shipments will
be refused - please prepay shipping charges.
Limitations and Exclusions: The foregoing warranty shall not apply
to products subjected to negligence, accident, improper operation,
maintenance or storage, commercial or institutional use, products
modified without Invacares express written consent (including, but
not limited to, modification through the use of unauthorized parts
or attachments) or to products damaged by reason of repairs made
to any component without the specific consent of Invacare, or to a
product damaged by circumstances beyond Invacares control.
14
Loading...
