Intermec CK32 I-Safe User Manual

User’s Manual

CK32 I-Safe Handheld Computer

User’s Manual

CK32 I-Safe Handheld Computer

Intermec Technologies Corporation

Worldwide Headquarters 6001 36th Ave.W. Everett, WA 98203 U.S.A.

www.intermec.com

The information contained herein is provided solely for the purpose of allowing customers to operate and service Intermec-manufactured equipment and is not to be released, reproduced, or used for any other purpose without written permission of Intermec Technologies Corporation.

Information and specifications contained in this document are subject to change without prior noticed and do not represent a commitment on the part of Intermec Technologies Corporation.

The word Intermec, the Intermec logo, Norand, ArciTech, Beverage Routebook, CrossBar, dcBrowser, Duratherm, EasyADC, EasyCoder, EasySet, Fingerprint, i-gistics, INCA (under license), Intellitag, Intellitag Gen2, JANUS, LabelShop, MobileLAN, Picolink, Ready-to-Work, RoutePower, Sabre, ScanPlus, ShopScan, Smart Mobile Computing, SmartSystems, TE 2000, Trakker Antares, and Vista Powered are either trademarks or registered trademarks of Intermec Technologies Corporation.

There are U.S. and foreign patents as well as U.S. and foreign patents pending.

Wi-Fi is a registered certification mark of the Wi-Fi Alliance.

Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and/or other countries.

Bluetooth is a trademark of Bluetooth SIG, Inc., U.S.A.

ii CK32 I-Safe Handheld Computer User’s Manual

Document Change

This page records changes to this document. The document was originally released as version 001.

Version Date Description of Change

002 9/07 Removed keypad mapping information,

corrected some material as requested by SAC, and made other miscellaneous changes to the manual.

iii CK32 I-Safe Handheld Computer User’s Manual

iv CK32 I-Safe Handheld Computer User’s Manual

Contents

Before You Begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix

Global Services and Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x

Web Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x

Telephone Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi

Service Location Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi

Who Should Read This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii

Related Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii

Other Copyright Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii

Patent Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xiv

Using the CK32 I-Safe Handheld Computer . . . . . . . . . . . . . . . .1

Introducing the CK32 I-Safe Handheld Computer. . . . . . . . . . . . . . . . . . . . . . . . . . .2

Using the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Charging and Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Maximizing Battery Life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Checking the Battery Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Understanding the Low Battery Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Contents

Using the Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Using the Color-Coded Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Capitalizing All Characters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Using the Power Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Understanding the Status Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Using the Touch Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Using the Stylus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Aligning the Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

About the Audio System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Understanding the Audio Feedback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Scanning Bar Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Enabling or Disabling Symbologies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Scanning a Bar Code Label to Verify Scanner Operation . . . . . . . . . . . . . .23

CK32 I-Safe Handheld Computer User’s Manual v

Contents

Understanding Windows Mobile . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Understanding Windows Mobile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Finding Information in Windows Mobile . . . . . . . . . . . . . . . . . . . . . . . . . 28

Learning the Basic Skills . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Using the Today Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Accessing Programs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Closing an Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Using the Navigation Bar and the Command Bar. . . . . . . . . . . . 30

Using Pop-Up Menus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Entering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Using Transcriber . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Finding and Organizing Information . . . . . . . . . . . . . . . . . . . . . 34

Customizing the CK32 I-Safe . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Using Microsoft ActiveSync . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Using Internet Explorer Mobile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Configuring the CK32 I-Safe. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Configuring the Operating Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Configuring the CK32 I-Safe Using Intermec Settings . . . . . . . . . . . . . . . 40

Remotely Configuring the CK32 I-Safe Using SmartSystems Foundation . 41

Setting Up Ethernet Communications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Setting Up Bluetooth Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Configuring Bluetooth Communications for Wireless Printing . . . . . . . . . 45

Creating an Application That Lets You Print Wirelessly . . . . . . . 45

Selecting the Current Wireless Printer on the CK32 I-Safe. . . . . 46

Connecting to a Bluetooth Audio Device . . . . . . . . . . . . . . . . . . . . . . . . . 49

Setting Up 802.11 Radio Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Configuring the Network Parameters for a TCP/IP Network . . . . . . . . . . 50

Configuring the Network Parameters for a UDP Plus Network. . . . . . . . . 51

Checking the Status of Your Wireless Connection. . . . . . . . . . . . . . . . . . . 51

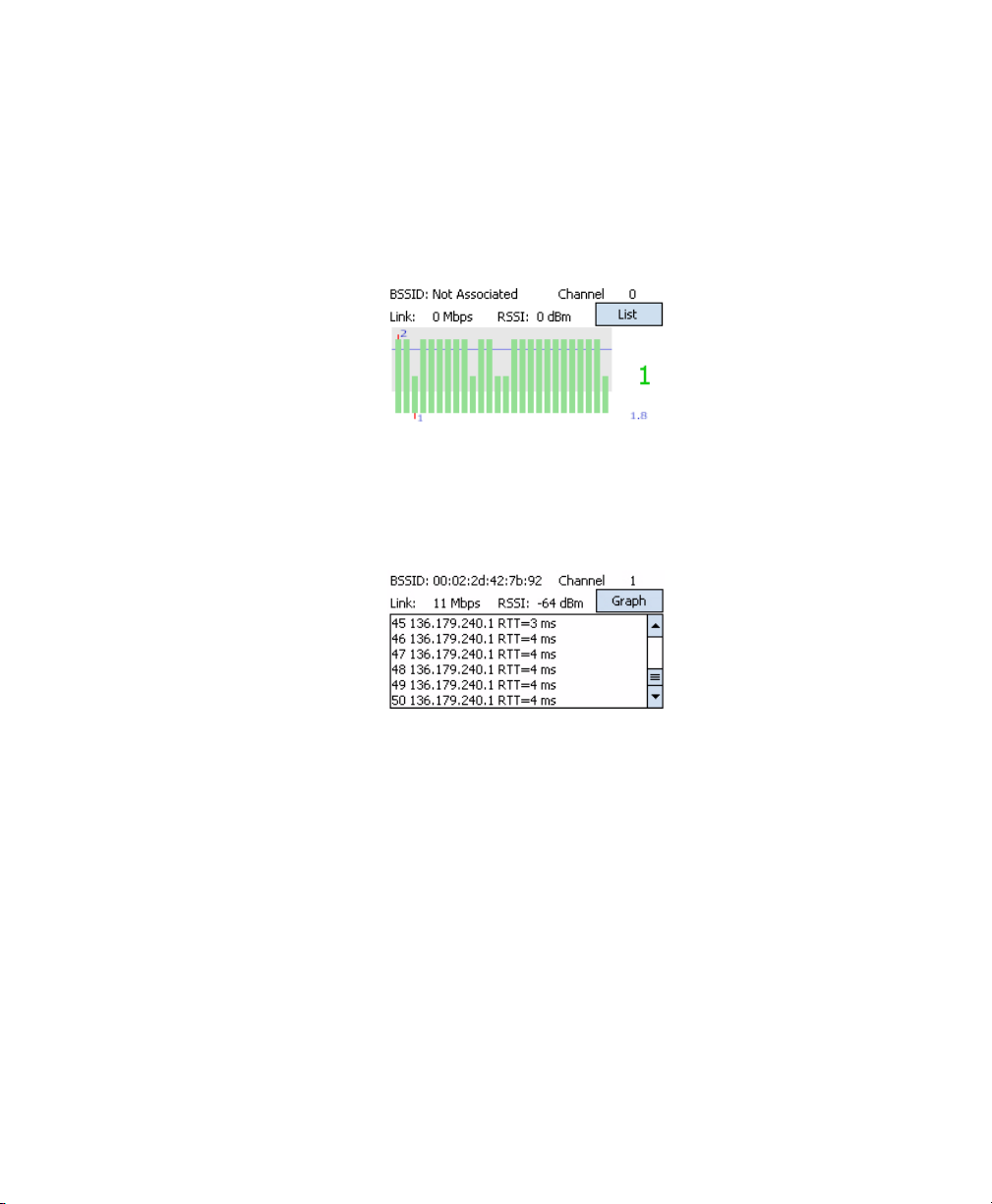

Using ISpyWiFi. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Starting the Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

ISpyWiFi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

WiFi Scan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Supplicant. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Ping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

vi CK32 I-Safe Handheld Computer User’s Manual

Supplicant Logging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Configuring Security on the CK32 I-Safe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Understanding the Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Using WPA Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Using Static WEP Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Using 802.1x Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Using LEAP Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Choosing Between Funk and Microsoft Security . . . . . . . . . . . . . . . . . . . . 64

Configuring Funk Security Using Intermec Settings . . . . . . . . . . 64

Configuring Funk Security Using the Profile Wizard. . . . . . . . . . 69

Configuring EAP-FAST with Profile Wizard . . . . . . . . . . . . . . . . 76

Configuring Microsoft Security . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Loading a Certificate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Disabling Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Developing and Installing Applications . . . . . . . . . . . . . . . . . . . 85

Developing Applications for the CK32 I-Safe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Developing a New Application Using the Intermec Developer Library. . . . 86

Developing a Web-Based Application. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Converting a Trakker Antares Application for the CK32 I-Safe . . . . . . . . . 87

Installing Applications on the CK32 I-Safe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Installing Applications Using SmartSystems Foundation. . . . . . . . . . . . . . . 89

Installing Applications Using Microsoft ActiveSync . . . . . . . . . . . . . . . . . . 89

Installing Applications Using Wavelink Avalanche . . . . . . . . . . . . . . . . . . . 91

Contents

Launching An Application Automatically . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94

RunAutoRun . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

AutoExec . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

AutoRun. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

AutoCopy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .99

AutoReg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

AutoCab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Troubleshooting and Maintenance. . . . . . . . . . . . . . . . . . . . . . . . 103

Upgrading the CK32 I-Safe Using SmartSystems . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Contacting Product Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Troubleshooting the CK32 I-Safe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Problems While Operating the CK32 I-Safe. . . . . . . . . . . . . . . . . . . . . . . 108

CK32 I-Safe Handheld Computer User’s Manual vii

Problems While Configuring Security . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Problems with Wireless Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Resetting Your Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

Preferred Reset Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

Secondary Reset Method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

Performing a Clean Boot. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Cleaning the Scanner Window, Screen, and Computer . . . . . . . . . . . . . . . . . . . . . 115

Cleaning the Scanner Window and Screen . . . . . . . . . . . . . . . . . . . . . . . 115

Cleaning the Handle and Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Physical and Environmental Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Physical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Power Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Electrical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Temperature and Humidity Specifications . . . . . . . . . . . . . . . . 120

LCD Touch Screen Specifications. . . . . . . . . . . . . . . . . . . . . . . 120

Keypad Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Bar Code Symbologies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Linear Imager Reading Distances . . . . . . . . . . . . . . . . . . . . . . . 122

Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

AN1 Communications Adapter (P/N 871-223-xxx) . . . . . . . . . 124

AC11 Quad Battery Charger (P/N 852-914-xxx) . . . . . . . . . . . 124

Handle (P/N 714-625-xxx). . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Hand Strap (P/N 825-183-xxx) . . . . . . . . . . . . . . . . . . . . . . . . 124

Carrying Strap Kit (P/N 825-186-xxx) . . . . . . . . . . . . . . . . . . . 124

AB6 Battery Pack (P/N 318-021-xxx). . . . . . . . . . . . . . . . . . . . 124

Tethered Stylus (P/N 203-828-xxx) . . . . . . . . . . . . . . . . . . . . . 124

Battery Eliminator (P/N 714-619-xxx) . . . . . . . . . . . . . . . . . . . 125

Power Supply (P/N 851-061-xxx). . . . . . . . . . . . . . . . . . . . . . . 125

Screen Protector - Ten Pack (P/N 346-312-xxx). . . . . . . . . . . . 125

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

viii CK32 I-Safe Handheld Computer User’s Manual

Before You Begin

This section provides you with safety information, technical support information, and sources for additional product information.

Safety Information

Your safety is extremely important. Read and follow all warnings and cautions in this document before handling and operating Intermec equipment. You can be seriously injured, and equipment and data can be damaged if you do not follow the safety warnings and cautions.

This section explains how to identify and understand dangers, warnings, cautions, and notes that are in this document. You may also see icons that tell you when to follow ESD procedures and when to take special precautions for handling optical parts.

A warning alerts you of an operating procedure, practice, condition, or statement that must be strictly observed to avoid death or serious injury to the persons working on the equipment.

Before You Begin

A caution alerts you to an operating procedure, practice, condition, or statement that must be strictly observed to prevent equipment damage or destruction, or corruption or loss of data.

Note: Notes either provide extra information about a topic or contain special instructions for handling a particular condition or set of circumstances.

CK32 I-Safe Handheld Computer User’s Manual ix

Before You Begin

• The Intermec Models CK32 I-Safe, AB6 Battery Pack, AN1 Communications Adapter, and AC11 Battery Charger contain no user serviceable components. Return these models ONLY to Intermec Authorized Service Centers for Repair. Intrinsic Safety Certifications and Warranties will be void if these models are opened or serviced at locations not certified by Intermec.

• Only Intermec provided spare parts should be used in the repair of the CK32 I-Safe and accessory products.

• Immediately remove from service any product that exhibits physical damage.

• Wired connections to the CK32 I-Safe must only be made through a model AN1 Communications Adapter.

• Verify that the CK32 I-Safe is appropriately rated for your hazardous location before use. Consult your Safety Department for assistance.

• Use of any accessories not supplied and approved by Intermec could compromise safety.

Global Services and Support

Warranty Information

To understand the warranty for your Intermec product, visit the Intermec web site at www.intermec.com and click Service & Support > Warranty.

Web Support

Visit the Intermec web site at www.intermec.com to download our current manuals (in PDF). To order printed versions of the Intermec manuals, contact your local Intermec representative or distributor.

Visit the Intermec technical knowledge base (Knowledge Central) at intermec.custhelp.com to review technical information or to request technical support for your Intermec product.

x CK32 I-Safe Handheld Computer User’s Manual

Telephone Support

These services are available from Intermec.

Services Description

Order Intermec products

Order Intermec media

Order spare parts

Te c h n i ca l Support

Service • Get a return authorization

Service contracts

• Place an order.

• Ask about an existing order.

Order printer labels and ribbons.

Order spare parts. 1 or 2 and then

Talk to technical support about your Intermec product.

number for authorized service center repair.

• Request an on-site repair technician.

• Ask about an existing contract.

• Renew a contract.

• Inquire about repair billing or other service invoicing questions.

Before You Begin

In the USA and Canada call 1-800755-5505 and choose this option

1 and then choose 2

1 and then choose 1

choose 4 2 and then choose 2

2 and then choose 1

1 or 2 and then choose 3

Outside the U.S.A. and Canada, contact your local Intermec representative. To search for your local representative, from the Intermec web site, click Contact.

Service Location Support

For technical support in South Korea, use the after service locations listed below:

CK32 I-Safe Handheld Computer User’s Manual xi

Before You Begin

AWOO Sys tem s 102-1304 SK Ventium 522 Dangjung-dong Gunpo-si, Gyeonggi-do Korea, South 435-776 Contact: Mr. Sinbum Kang Telephone: +82-31-436-1191 Email: sbkang@awoo.co.kr

Sammi Information Systems Co Ltd 7-9FL, Seo Jo Building 103-15, Galwor-Dong Seoul, Yong San-ku Korea, South 140-807 Contact: Kyung-Hee Koo Telephone: +82-2-790-5508 Email: jlovekoo@sammicomputer.co.kr

Who Should Read This Manual

The CK32 I-Safe Handheld Computer User’s Manual is for the person who is responsible for installing, configuring, and maintaining the CK32 I-Safe.

Before you work with the CK32 I-Safe, you should be familiar with your network and general networking terms, such as IP address.

Related Documents

The Intermec web site at www.intermec.com contains our documents (in PDF) that you can download for free.

To order printed versions of the Intermec manuals, contact your local Intermec representative or distributor.

Other Copyright Information

Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and/or other countries.

Bluetooth is a trademark of Bluetooth SIG, Inc., U.S.A.

Wi-Fi is a registered certification mark of the Wi-Fi Alliance.

This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)

xii CK32 I-Safe Handheld Computer User’s Manual

This product includes cryptographic software written by Eric You n g. ( eay@cryptsoft.com

)

This product uses Regex++, Index software during its operational phases. The owner of Regex++ has granted use of the software to anyone provided such use is accompanied by the following copyright and permission notice:

Regex++, Index. (Version 3.31, 16th Dec. 2001)

Permission to use, copy, modify, distribute and sell this software and its documentation for any purpose is hereby granted without fee, provided that the above copyright notice appear in all copies and that both that copyright notice and this permission notice appear in supporting documentation. Dr. John Maddock makes no representations about the suitability of this software for any purpose. It is provided “as is” without express or implied warranty.

CK32 I-Safe Handheld Computer User’s Manual xiii

Patent Information

This product is covered by one or more of the following US Patents and corresponding international patents worldwide:

4894523, 4953113, 4961043, 4970379, 4988852, 5019699, 5021642, 5038024, 5081343, 5095197, 5144119, 5144121, 5182441, 5187355, 5187356, 5195183, 5216233, 5216550, 5195183, 5195183, 5218191, 5227614, 5233172, 5241488, 5243602, 5258606, 5278487, 5288985, 5308966, 5322991, 5331136, 5331580, 5342210, 5349678, 5359185, 5371858, 5373478, 5389770, 5397885, 5410141, 5414251, 5416463, 5442167, 5464972, 5468947, 5468950, 5477044, 5486689, 5488575, 5500516, 5502297, 5504367, 5508599, 5514858, 5530619, 5534684, 5536924, 5539191, 5541419, 5548108, 5550362, 5550364, 5565669, 5567925, 5568645, 5572007, 5576529, 5592512, 5594230, 5598007, 5608578, 5616909, 5619027, 5627360, 5640001, 5657317, 5659431, 5671436, 5672860, 5684290, 5719678, 5729003, 5742041, 5761219, 5764798, 5777308, 5777309, 5777310, 5786583, 5793604, 5798509, 5798513, 5804805, 5805807, 5811776, 5811777, 5818027, 5821523, 5828052, 5831819, 5834753, 5834749, 5837987, 5841121, 5842070, 5844222, 5854478, 5862267, 5869840, 5873070, 5877486, 5878395, 5883492, 5883493, 5886338, 5889386, 5892971, 5895906, 5898162, 5902987, 5902988, 5912452, 5923022, 5936224, 5949056, 5969321, 5969326, 5969328, 5979768, 5986435, 5987192, 5987499, 5992750, 6003775, 6012640, 6016960, 6018597, 6024289, 6034379, 6859190, 6064763, 6075340, 6095422, 6097839, 6102289, 6102295, 6109528, 6119941, 6128414, 6138915, 6149061, 6149063, 6152370, 6155490, 6158661, 6164542, 6164545, 6173893, 6195053, 6234393, 6234395, 6244512, 6249008, 6328214, 6330975, 6345765, 6356949, 6367699, 6375075, 6375076, 6375344, 6431451, 6435411, 6484944, 6488209, 6497368, 6532152, 6538413, 6539422, 6621942, 6641046, 6681994, 6687403, 6688523, 6732930, 6036093, 6039252, 6889903, 6967280, 7027037, 7035466, 7090137, 7121467

There may be other U.S. and foreign patents pending.

xiv CK32 I-Safe Handheld Computer User’s Manual

Using the CK32 I-Safe Handheld Computer

Use this chapter to familiarize yourself with the CK32 I-Safe Handheld Computer. In this chapter you will find these sections:

• Introducing the CK32 I-Safe Handheld Computer

• Using the Battery

•Using the Keypad

• Understanding the Status Lights

•Using the Touch Screen

•About the Audio System

• Understanding the Audio Feedback

• Scanning Bar Codes

CK32 I-Safe Handheld Computer User’s Manual 1

Chapter 1 — Using the CK32 I-Safe Handheld Computer

Scan button

Battery

Communications port

Power

Scanner window

Backlight

Introducing the CK32 I-Safe Handheld Computer

The Intermec CK32 I-Safe is an ergonomically designed handheld computer built on the Microsoft operating system. It is a easy-to-use, reliable computer that runs client/server and browser-based applications and is certified to be intrinsically safe.

The CK32 I-Safe is designed to support world-wide intrinsic safety standards and comply with relevant European Directives. Testing and certification requires meeting the standards of Underwriters Laboratories, ATEX directives in Europe and IEC standards in the rest of the world.

Windows® Mobile

CK32 I-Safe Handheld Computer

CK32 I-Safe Handheld Computers with an IEEE 802.11b/g radio installed are Wi-Fi

certified for interoperability with other

802.11b/g wireless LAN devices.

2 CK32 I-Safe Handheld Computer User’s Manual

Chapter 1 — Using the CK32 I-Safe Handheld Computer

The CK32 I-Safe includes these features:

• PXA270 Intel Processor

• Windows Mobile 5.0 Operating System

• Voice over IP support. User responsible for software integration.

• Bluetooth support for scanner, RFID, Voice

• 128 MB DRAM, 64 MB Flash

• 512 MB embedded SD Mass Storage Card

• Intrinsic safety certification for North America, Europe and countries accepting IECEx Scheme

• European directive compliance

These options are available for the CK32 I-Safe:

• TE 2000 terminal emulation application including 3270, 5250, VT/ANSI, and Native as well as support for third-party TE applications

• Data Collection Browser (dcBrowser™) application

Use this manual to understand how to use the features and options available on the CK32 I-Safe. For additional help using terminal emulation, see the TE 2000 Terminal Emulation Programmer’s Guide (P/N 977-055-xxx).

For additional help using dcBrowser, see the documentation that ships with the dcBrowser gateway software or the Data Collection Browser Client User’s Guide (P/N 070-011-xxx).

iBrowse is a locked-down web browser for Intermec devices that is compatible with Microsoft’s Internet Explorer but does not allow the user to exit the browser or access non-work related web sites. For additional help using iBrowse, see the iBrowse User’s Guide (P/N 961-055-xxx).

For a complete list of accessories, see “Accessories” on page 124.

CK32 I-Safe Handheld Computer User’s Manual 3

Chapter 1 — Using the CK32 I-Safe Handheld Computer

Using the Battery

The CK32 I-Safe uses a Model AB6 (P/N 318-021-xxx) lithiumion battery as its main power source. You must fully charge the main battery before you can use the CK32 I-Safe. When you change the battery, a backup battery maintains your status, memory, and real-time clock for at least 10 minutes. You must suspend your CK32 I-Safe before removing the battery, or data loss may occur..

If the battery is at a critical level, you may not be able to boot the device. You must replace the battery with a fully charged battery

The lithium-ion battery pack that is used in this device may present a fire or chemical burn hazard if it is mistreated. Do not disassemble it, heat it above 100°C (212°F) or incinerate it.

When the battery reaches the end of its useful life, the spent battery should be disposed of by a qualified recycler or hazardous

Li-ionLi-ion

materials handler. Do not mix this battery with the solid waste stream. Contact your Intermec Technologies Service Center for recycling or disposal information.

Note: In the U.S.A., the EPA does not consider spent lithium-ion batteries as hazardous waste.

4 CK32 I-Safe Handheld Computer User’s Manual

Chapter 1 — Using the CK32 I-Safe Handheld Computer

Charging and Installing the Battery

Make sure you fully charge the AB6 battery before using your CK32 I-Safe.

To charge the battery

• Insert the battery into the AC11 4-slot battery charger. Charging time is approximately 10 to 12 hours.

To install the battery

You must suspend your CK32 I-Safe before removing the battery, or data loss may occur.

• Insert the tabs on the bottom of the charged battery into the CK32 I-Safe and snap the battery into place.

Speaker (internal)

Beeper

Inserting the AB6 Battery

Battery latch

AB6 battery

Explosion Hazard – Use Intermec battery pack Model AB6 only. It is rated as Intrinsically Safe but it MUST NOT BE CHANGED while in a Class II or Class III environment. The battery can be changed in a Class I (gas) environment.

Class I, II, and III apply only to the US and Canada. For most other countries, the battery can be changed in Group II G environments but not in Group II D environments.

CK32 I-Safe Handheld Computer User’s Manual 5

Chapter 1 — Using the CK32 I-Safe Handheld Computer

Maximizing Battery Life

There are several things that you can do to extend the life of your fully charged battery.

• Verify that Radio Power Management is enabled (Fast PSP). Enabling radio power management allows your radio to switch between awake and sleep modes based on network traffic. If you use the default setting of disabled (CAM), you will have the best network performance (data throughput) but it will draw the most power from your battery.

• Verify that the backlight timeout is set to 15 seconds.

• Verify that each setting under Power Management (Device timeout, Screen timeout) has a value of 1 minute.

You can use Intermec Settings to easily make all of these configuration changes.

Checking the Battery Status

You can check the battery status by looking at the Battery icon on the front of the CK32 I-Safe or by checking the Power Settings. Tap the Battery icon on the Status bar or use the following procedure to check the Power Settings on your CK32 I-Safe. Either method will take you to the Settings display which indicates the percent of battery charge remaining.

To check the Power Settings

1 Ta p Start. The Start menu appears.

2 Ta p Settings > System.

3 Tap th e Power icon. The Power Settings display appears.

6 CK32 I-Safe Handheld Computer User’s Manual

Chapter 1 — Using the CK32 I-Safe Handheld Computer

Understanding the Low Battery Warnings

When the battery charge is getting low, you will receive an audible alert and an initial pop-up warning message with a blue border. The warning message indicates “Main Battery Low. To prevent possible data loss, replace or recharge your battery according to the owner’s manual.” A second battery icon with an ! inside also appears on the Status bar.

If the first warning is not dismissed, it is followed by another audible alert and a second pop-up warning message with a red border. This message indicates “Main Battery Very Low. To prevent possible data loss, replace or recharge your battery according to the owner’s manual.”

If the battery charge continues to drop, the red battery status LED blinks and the CK32 I-Safe enters Suspend mode. If the battery charge continues to drop, the battery status LED will stop blinking

You can change the audible alert using the Sounds & Notifications applet.

To c hange t he audible alert

•Tap Settings > Personal > Sounds & Notifications.

CK32 I-Safe Handheld Computer User’s Manual 7

Chapter 1 — Using the CK32 I-Safe Handheld Computer

Using the Keypad

Your CK32 I-Safe has one of the following keypad overlay options:

• 42-key large numeric and function

• 42-key 3270/5250

•42-key VT/ANSI

• 56-key full alphanumeric and function

• 56-key 3260/5250

•56-key VT/ANSI

You enter all of the characters and functions printed above the keys just like you would on a standard keypad.

Note: You must use the color-coded keys to access several hidden characters (such as { and }) on the CK32 I-Safe keypad.

The CK32 I-Safe supports TE 2000 VT100/220/320/340 and ANSI, TE 2000 5250, and TE 2000 3270, and Native. Use the TE 2000 keypad overlays to enter the same keys that you can enter on a VT/ANSI keyboard, and IBM 5250 keyboard, or an IBM 3270 keyboard. Like the standard CK32 I-Safe overlay, the TE 2000 keypad overlays let you enter all the characters printed on or above the keys. The terminal emulation keypads also come with the same color-coded keys that are on the standard overlay.

For help using TE 2000 terminal emulation, see the TE 2000 Terminal Emulation Programmer’s Guide (P/N 977-055-xxx).

8 CK32 I-Safe Handheld Computer User’s Manual

Chapter 1 — Using the CK32 I-Safe Handheld Computer

Enter Enter

Ins

Caps

Shift

Home

Del

F10

XYZ

Ctl

Alt

Programmable

F11

Alpha

Esc

F12

42-Key Large Numeric and Function Keypad: This keypad is designed for applications that enter mainly numeric data (0-9) and that need dedicated function keys (F1- F12). This keypad also lets you enter the entire alphabet and special characters by pressing color-coded key sequences.

CK32 I-Safe Handheld Computer User’s Manual 9

Chapter 1 — Using the CK32 I-Safe Handheld Computer

Home

Page

NewLnHelp

Del

3270/5250

Ins

Caps

Fld

EOF

Reset

PA1

PA2

AutLg

Attn Clear

Erase

Dup Clr

FldExit

Hex FMark

sRq

Roll

PA3

Fld

Enter

FldExit

Shift

Esc

F10

F11

F12

Ctl

Alt

Alpha

42-Key 3270/5250 Keypad

10 CK32 I-Safe Handheld Computer User’s Manual

Chapter 1 — Using the CK32 I-Safe Handheld Computer

VT / ANSI

Page

OPQ
