The NetworX “Operator” is a microcomputer controlled telephone interface module that may be added
to NetworX control panels. The “Operator” converts any TouchTone telephone to a system keypad and
allows system functions to be accessed via telephone on-premise or off-site. There are 48 separate
zone descriptions that may be programmed to fit the owner’s needs. In addition, the “Operator” will
control up to thirty-two X-10 modules (requires only one X-10 Pro PSC04 Interface Module per NetworX
system) with programmable descriptions for each. Each zone/output description is programmable using
the 182-word Library List found on page 8.
ACCESSING THE OPERATOR
FROM A PROTECTED SITE: The “Operator” may be accessed from any TouchTone phone. Press
[r][r][r] to activate.
FROM AN OFF-SITE PREMISE: Call the phone number of the protected site. When the phone is
answered, press [#][#][#] within the first 8 seconds. If a person or device such as a fax/answering
machine answers the call, the “Operator” will come on the line when the person or machine hangs up.
Otherwise, the “Operator” will automatically answer the call after it hears a pre-designated number of
rings as programmed in location 0. The answering machine defeat function can be programmed in
location 179 on page 6. The “Operator” will prompt for a valid user code: “Please enter your code”.
N NOTE: These access codes (rrr and ###) are programmable and can be changed in locations 177
and 178. Refer to page 5.
ENTERING THE PROGRAM MODE: The program mode is accessed through the keypad of a
TouchTone phone by pressing [r][8] once the “Operator” answers. The [r] accesses the main MENU,
and [8] accesses the programming mode.
If accessing from the protected site, the “Operator” will now prompt for a program code: “Enter
your code”. (Factory default code is [9][7][1][3]. You are now in the Program Mode and ready
to select the module to program.
If accessing from an off-site premise, when the “Operator” prompts for a code, enter the download
access code (Factory default code is 84800000). NOTE: Location 179 must be enabled for this
function.
The “Operator” will now prompt for the module: “Enter expander number followed by pound [#]”.
SELECTING THE MODULE TO PROGRAM: The module you are programming should be the first
entry. To program the “Operator”, enter [4][0][#]. The [4][0] is the module number of the
“Operator” and the [#] is the entry key. Other module numbers can be found in their corresponding
manuals.
The “Operator” will now prompt you for a location to program: “Enter location number followed by pound [#]”.
PROGRAMMING A LOCATION: Once the number of the module has been entered, any programming
location can be accessed by directly entering the number of that specific location followed by [#].
EXITING A LOCATION: After the last segment of a location has been programmed, pressing [r] will
exit that location. The [r] key must be pressed or the data will not be saved. To exit before the last
segment, press [#]. As before, you are now ready to enter another programming location.
Page 2
EXITING THE PROGRAM MODE: When all the desired changes in programming have been made, it is
time to exit the Program Mode. Press [9][3][0][#] from a remote phone or [EXIT] [EXIT] from the
keypad.
LOADING THE FACTORY DEFAULTS
To load the factory defaults, enter the Program Mode using the procedure described above, then type
[9][1][0][#]. The loading takes approximately 10 seconds.
N Load factory defaults: [9][1][0][#]
Exit program mode: [9][3][0][#] from remote phone or [EXIT] [EXIT] from keypad
ENROLLING
The NetworX control panels have the ability to automatically find and store in their memory the
presence of all keypads, zone expanders, wireless receivers and any other module connected to the
DATA terminal. This allows these modules to be supervised by the control panel. To enroll the
NetworX “Operator” module, enter the Program Mode as previously described. When the Program
Mode is exited, the NetworX control will automatically enroll the devices. The enrolling process takes
about 12 seconds, during which time the “Service” LED will illuminate. User codes will not be accepted
during the enrolling process. If a speaker is attached to the control panel, it will click at this time. If a
siren or bell is attached to the control panel, it will sound for about 1 second. Once a module is
enrolled, if it is not detected by the control, the “Service” LED will illuminate.
PROGRAMMING THE ZONES AND X-10 OUTPUTS
Location 0 Rings to Answer (2 segments - numerical data)
Segment 1 contains the number of rings the NetworX “Operator” will wait before answering the
telephone. Valid entries are 0-15, where 0 disables.
These locations contain the programming data for voice descriptions (characteristics) of zones 1 - 48.
Each of the 48 locations/zones has a programmable message of 8 words maximum for each location.
The NX-540E is compatible with the NX-8E control panel. However, zones 49-192 do NOT
have custom zone descriptions. The interface module will simply state the zone number,
i.e. “Zone 49” to “Zone 192”.
Location 49 contains the programmable data for voice description (characteristic) of X-10 Output #1.
This location allows a programmable message of 8 words maximum.
Location 50 is used to select the particular function, zone number and time for X-10 Output #1 to trip.
Segment 1 (EVENT) Selects the event that will trigger the X-10 output. Refer to the chart
on the next page for the specific events that can be selected.
Segment 2 (ZONE/USER) Selects the zone or user number necessary to trigger the X-10
output. If this location is programmed as a zero “0”, any zone or
user will activate the X-10 output.
Segment 3 (TIME) Selects the amount of time the X-10 output will remain activated
when triggered. If this location is programmed as a zero “0”, the X10 output will follow the particular event.
Page 3
Table 1.1 Event Table
# Event # Event # Event
/
0
/
1
/
2
/
3
/
4
5 Burglary Siren 22 Not Armed 40 Box Tamper
6 Fire Siren 23 Ready 41 Siren Tamper
7 Any Siren 24 Not Ready 42 Any Zone Faulted
8 Zone Bypass 25 Fire 43
9 AC Failure 26 Fire Trouble 44 Keypad Beeping
10 System Low Battery 27 Chime 45
/
11
/
12
/
13
/
14
15 Keypad Tamper 32 Listen In 50
/
16
34 Failed to Communicate 52 Follow NX-540E Schedule
Burglary Alarm 17Alarm Memory 35Telephone Line Fault
Fire Alarm 18Entry 36Program Mode
24 Hour Alarm 19Exit 37Download
Zone Trouble 20Entry or Exit 38Ground Fault
Zone Tamper 21 Armed 39 Over Current
/
/
Duress 28
Manual Fire 29Dynamic Battery Test 47
Aux 2 Keypad 30
Keypad Panic 31
Automatic Test 33Line Seizure 51 Connected External
/
˜
˜
Expander Trouble 46
Open Schedule 48Follow X10 Command
Closed Schedule 49Flash X-10 for
:
:
Any Alarm
Code Entry
Key FOB Function 1
Key FOB Function 2
Alarm Memory
Flash X-10 for Siren
/ If set to follow condition, these events will be 1 second.
˜ See locations 52 & 53 in control panel.
: Events 46 & 47 require NX-408E, NX-416E, or NX-448E wireless receivers to operate.
Segment 1 selects the following special conditions for X-10 Output #1:
LED 1 = “ON” if output should time in minutes; “OFF” if output times in seconds
LED 2 = “ON” if output should latch until a code is entered.
LED 3 = “ON” if output should reset if a code is entered while it is being timed. Default is “on”.
LED 4 = “ON” if output should only trigger during a closed schedule.
LED 5 = “ON” if output should only trigger during an open schedule
LED 6 = “ON” if output should be inverted.
LED 7 = “ON” if output should not be described in the menu.
Segment 2 selects the following partitions for X-10 Output #1. Factory default is “on”.
LED 1 = “ON” if the event should activate when it occurs in Partition 1.
LED 2 = “ON” if the event should activate when it occurs in Partition 2.
LED 3 = “ON” if the event should activate when it occurs in Partition 3.
LED 4 = “ON” if the event should activate when it occurs in Partition 4.
LED 5 = “ON” if the event should activate when it occurs in Partition 5.
LED 6 = “ON” if the event should activate when it occurs in Partition 6.
LED 7 = “ON” if the event should activate when it occurs in Partition 7.
LED 8 = “ON” if the event should activate when it occurs in Partition 8.
Segment 1: Program a number (0 – 15) to represent the X-10 Module Number for X-10 Output #1
from the table below:
Module# 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Segment 1 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Segment 2: Program a number (0 – 15) to represent the X-10 House Address for X-10 Output #1
from the following table:
X-10 HOUSE ADDRESS CODES
0 = A 2 = C 4 = E 6 = G 8 = I 10 = K 12 = M 14 = O
1 = B 3 = D 5 = F 7 = H 9 = J 11 = L 13 = N 15 = P
Segment 3: Program a number (0 – 15) to represent the X10 Function Code that is sent when the
function is turned ON. Use the following table to determine the code to use. Factory default is 1.
Segment 4: Program a number (0 – 15) to represent the X10 Function Code that is sent when the
function is turned OFF. Use the following table to determine the code to use. Factory default is 0.
X-10 FUNCTION CODES
0 = OFF 2 = ALL UNITS OFF 4 = DIM 6 = ALL LIGHTS OFF
1 = ON 3 = ALL LIGHTS ON 5 = BRIGHT 7 – 15 = SUPPRESS command

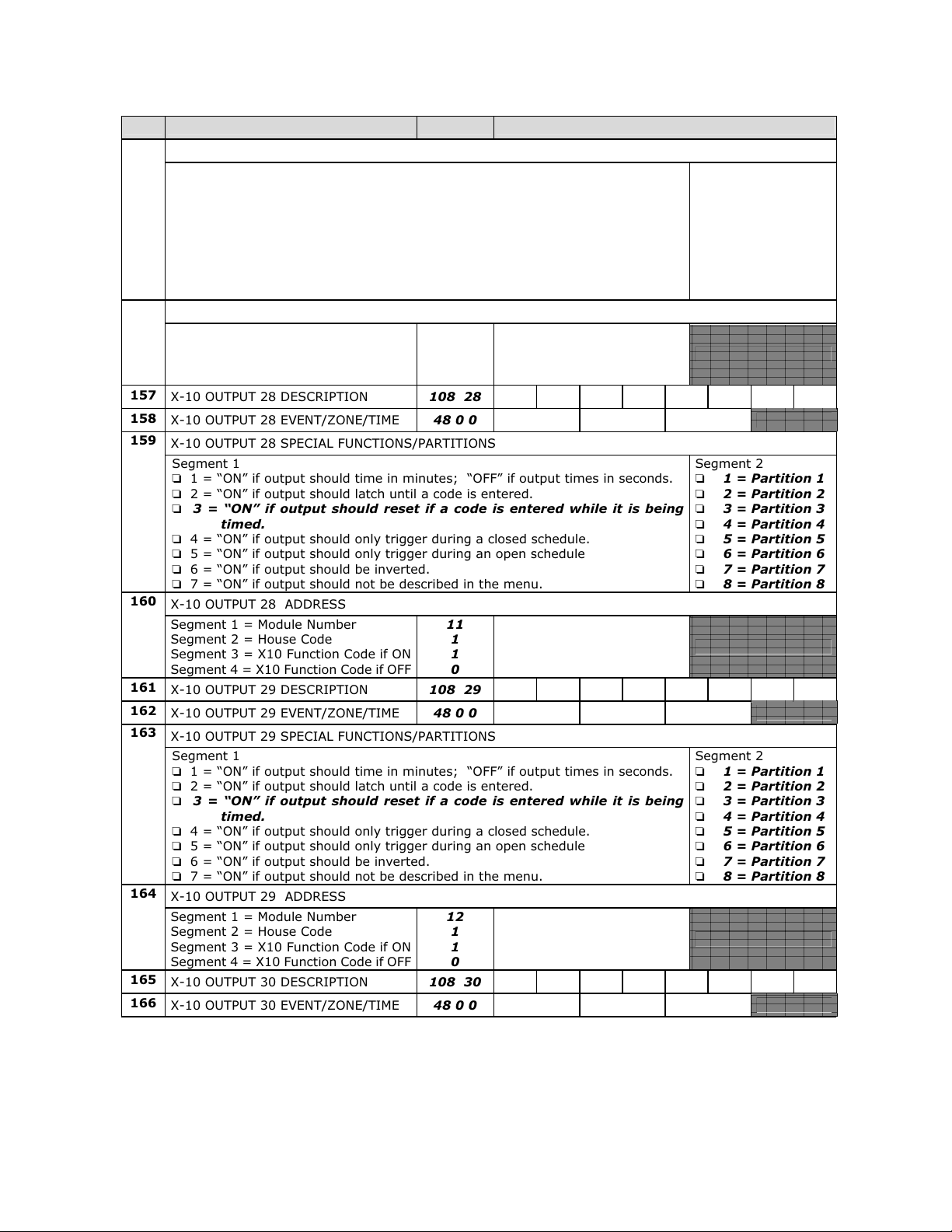

Locations 53 - 176 X-10 Address for Outputs 2-32
Locations 53 through 176 are used to program X-10 Outputs #2 through 32. Each output has four
locations that are programmed using the same steps as X-10 Output #1 described previously. These
locations contain the following:
1) Description (Refer to the instructions in Location 49)
2) Event / Zone, User / Time (Refer to the instructions and table in Location 50)
3) Special Functions / Partitions (Refer to the instructions in Location 51)
4) X-10 Module / House Address (Refer to the instructions and tables in Location 52)
For example, X-10 Output #2 is programmed in Locations 53 – 56 while X-10 Output #32 is
programmed in Locations 173 – 176. Refer to the programming worksheets beginning on page 9.
This location contains the three or four-digit code used to access the “Operator” from the premise
telephone (On-Site). The factory default is 11, 11, 11 = [r][r][r].
This location contains the three or four-digit code used to access the “Operator” away from the
premise telephone (Off-Site). The factory default is 12, 12, 12 = [#][#][#].
Segment 3 selects the partitions that can be accessed through the “Operator”. The factory default
is all eight partitions “on”.
1 = Partition 1
2 = Partition 2
Location 180 “Operator” Menu (3 segments-feature selection
Segment 1 contains the functions that are to be included in the “Operator” MENU. This location also
enables the partition functions, as well as the Home Control menu. NOTE
6, 7,or 8 listed below are disabled, they will still perform as usual; they will simply not be included in
the MENU. However, functions 1 and 5 will NOT perform if they are disabled. Factory defaults are
“on”.
1 = Enables “Change Area” function (r 1).
2 = Includes “Alarm Memory” function (r 3) in MENU.
3 = Includes “Test Siren” function (r 4) in MENU.
4 = Includes “Change Codes” function (r 5) in MENU. Note
be programmed through the “Operator”.
5 = Enables “Home Control” function (r 6).
6 = Includes “Reset Smoke Detector” function (r 7) in MENU.
7 = Includes “Program System” function (r 8) in MENU.
8 = Include “Set Time” function (r 9 7) in MENU.
Segment 2 is used to enable/disable the Home Control functions. Factory defaults are “on”.
1 = Enables “Lights Off” function (r 6 0) and “Lights On” function (r 6 1).
2 = Enables “Thermostat Control” function (r 6 2).
This location programs the number of seconds (0 – 15) the “Operator” is to listen for [#][#][#] to be
entered after the premise phone line is picked up. If the answering machine defeat is enabled in
Location 179, even if someone answers the phone the “Operator” is still waiting for the code. Factory
default is 3 seconds.
This location contains the opening time of Schedule 1. Segment 1 contains the hour of the opening
time in 24-hour format. (1:00 PM = 13) Segment 2 contains the minutes after the hour of the
opening time.
3 = Partition 3
4 = Partition 4
5 = Partition 5
6 = Partition 6
7 = Partition 7
8 = Partition 8
data)
: If any of the items 2, 3, 4,
: PINS for users 100-240 cannot
Page 6
Location 190
SScchheedduullee 11 CClloossiinngg TTiimmee
(2 segments - numerical data)
This location contains the closing time of Schedule 1. Segment 1 contains the hour of the closing time
in 24-hour format. (1:00 PM = 13) Segment 2 contains the minutes after the hour of the closing
time.
Location 191 Schedule 1 Days (1 segment -feature selection data)
Use the following table to program the “days” for Schedule 1.
LED DESCRIPTION LED DESCRIPTION
1 “ON” if the schedule is active on Sunday 5 “ON” if the schedule is active on Thursday
2 “ON” if the schedule is active on Monday 6 “ON” if the schedule is active on Friday
3 “ON” if the schedule is active on Tuesday 7 “ON” if the schedule is active on Saturday
4 “ON” if the schedule is active on Wednesday 8 Reserved
Location 192Schedule 1 Function (1 segment - numerical data)
Schedule 1 controls any one of the 32 X-10 Output functions previously entered in locations 49
through 176. Program a number from 1 to 32 corresponding to the output you desire for Schedule 1.
See corresponding output “Special Functions”, options #4 (closed schedule) and #5 (open schedule).

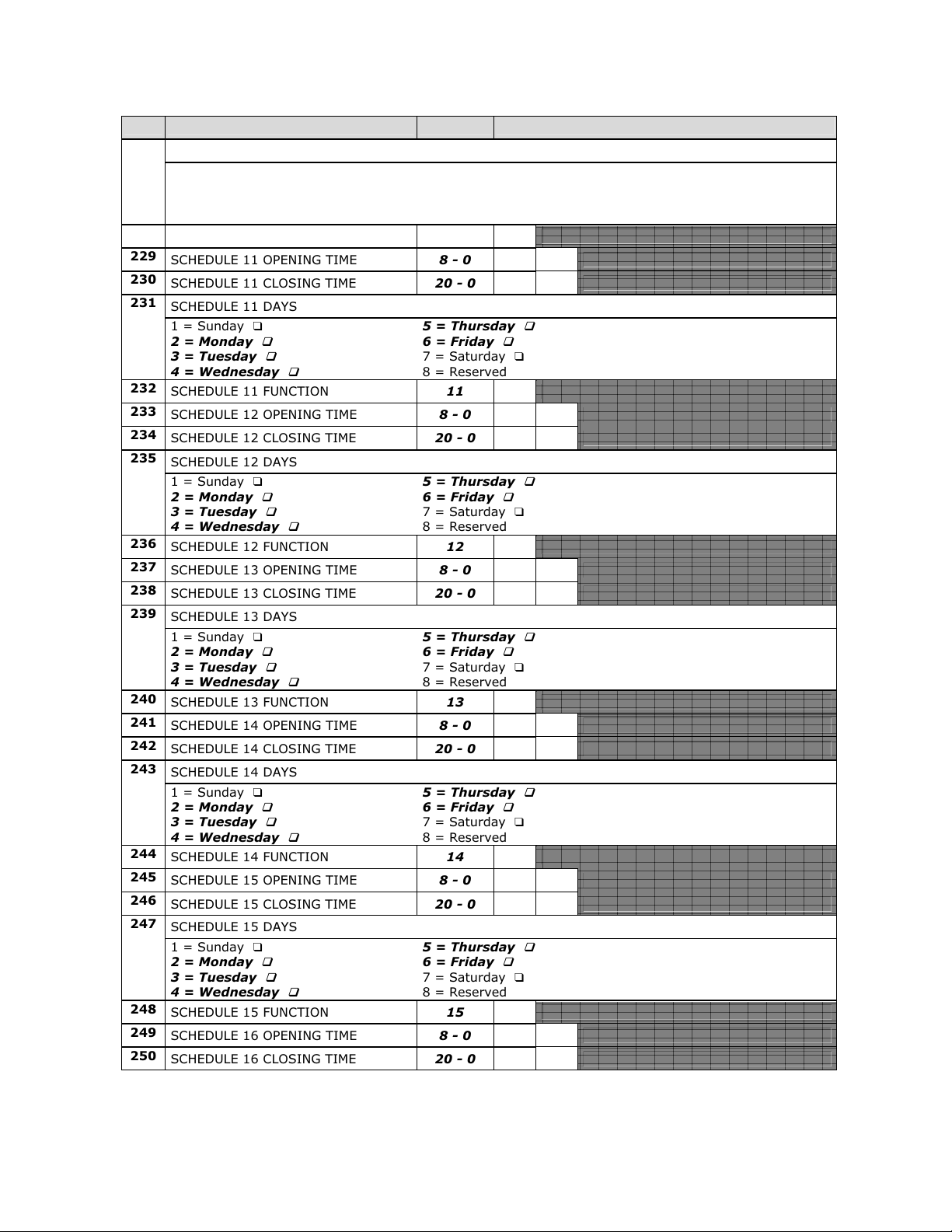

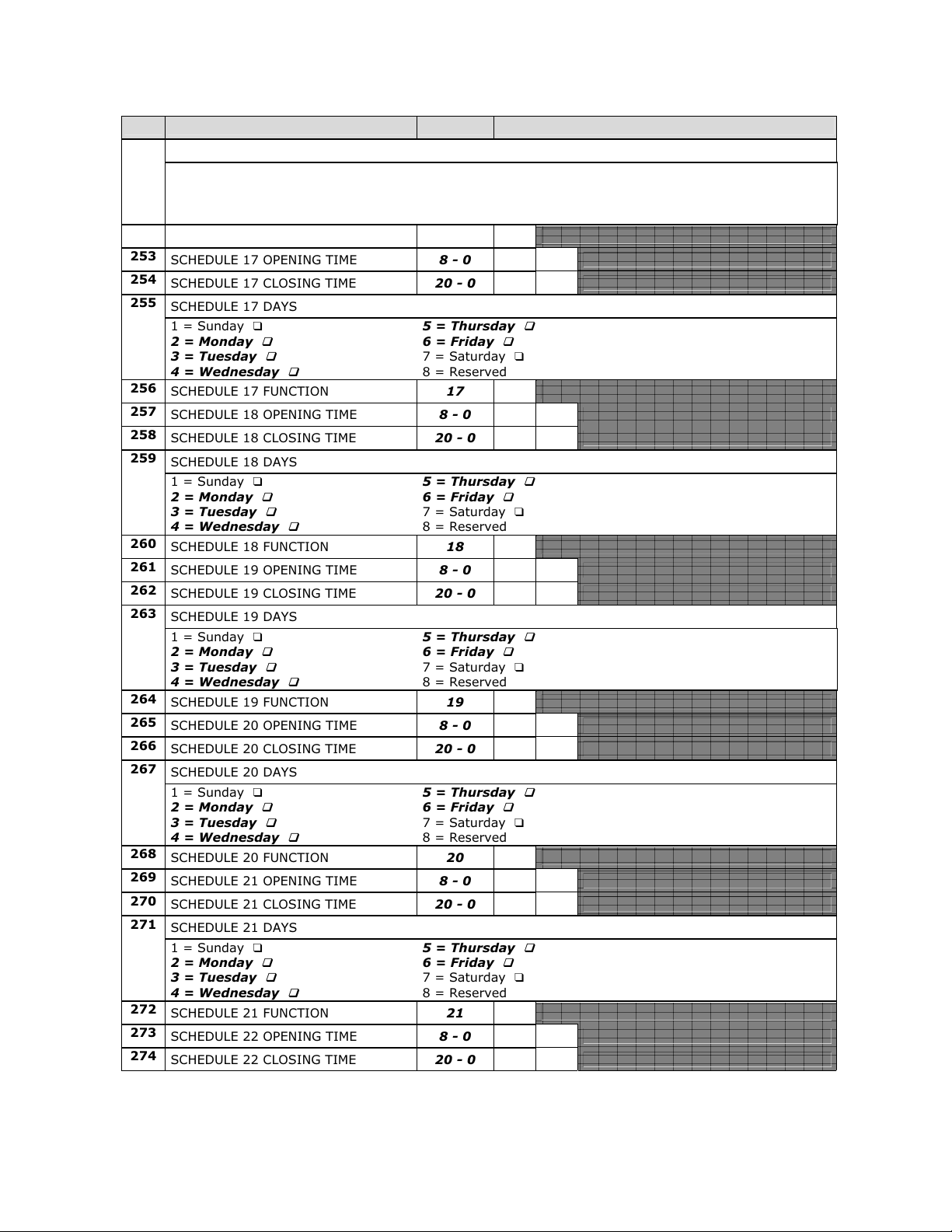

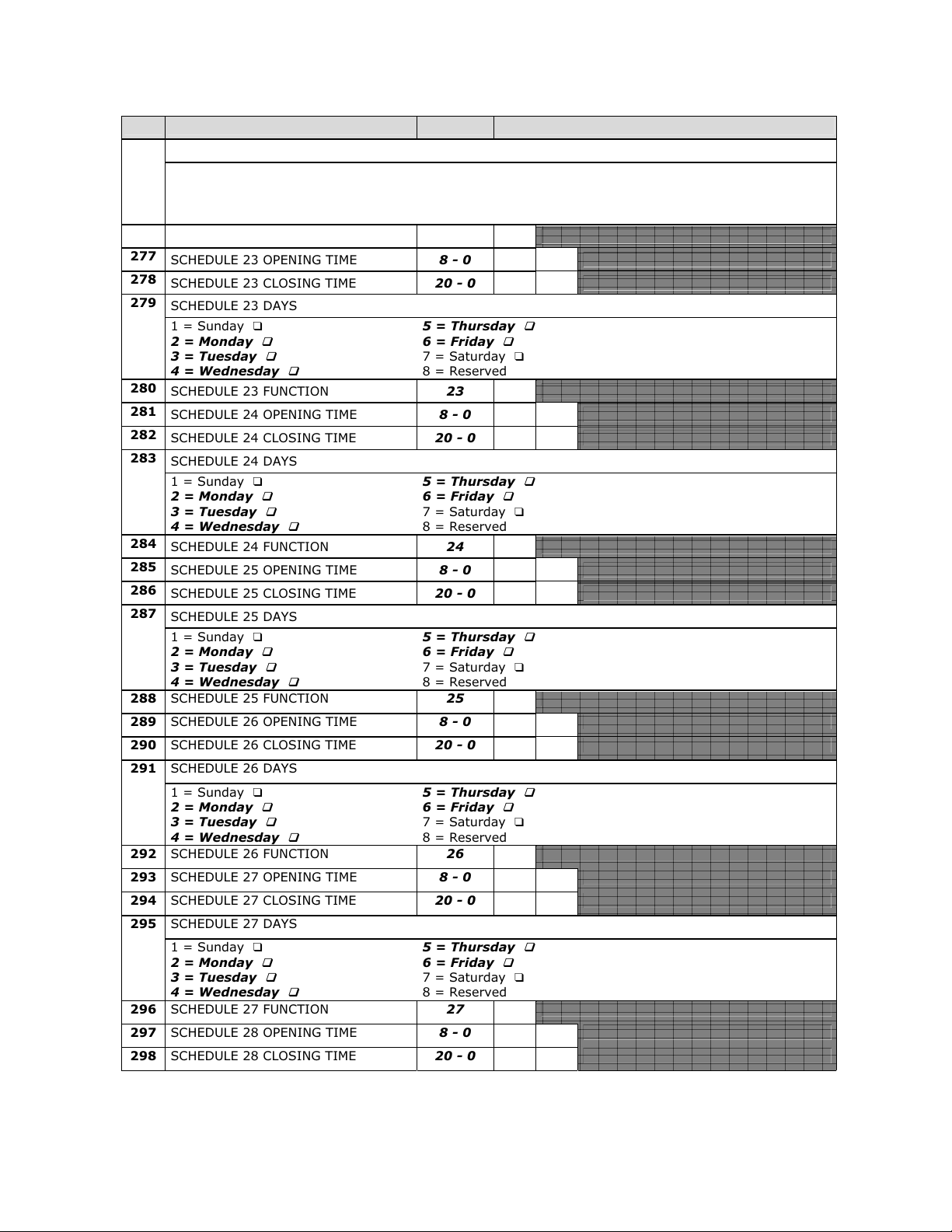

These locations contain Schedules 2 though 32. Each Schedule has four locations, which program the
Opening Time, Closing Time, Days and Function respectively. For example, Schedule 2 is programmed
in locations 193 through 196; and Schedule 32 is programmed in locations 313 through 316. Refer to
instructions of locations 189 – 192, and programming worksheets for more details.
PROGRAMMINGEXAMPLES
EXAMPLE 1: TURNS ON ENTRYWAY LIGHT UPON
ENTRY ONLY DURING NIGHT. Have output #1 trip
and activate an X-10 module with house code C and
unit code 4 for 6 minutes when zone 1 is faulted only
from 5:00PM to 9:00AM, program the following:
EXAMPLE 2: TURNS A DEVICE ON OR OFF DURING
BUSINESS HOURS. Have output #5 trip and activate
an X-10 module with a house code of P and a unit code
of 8 from 9:00AM to 5:00PM Monday through Friday,
but not at all on Saturday or Sunday, program the
following:
NOTE: The NX-540E is compatible with the NX-8E control panel. However, zones 49-192 do NOT have
custom zone descriptions. The module will simply state the zone number, i.e. “Zone 49” to “Zone 192”.
‘ 1 = “ON” if output should time in minutes; “OFF” if output times in seconds.
‘ 2 = “ON” if output should latch until a code is entered.
‘ 3 = “ON” if output should reset if a code is entered while it is being
timed.
‘ 4 = “ON” if output should only trigger during a closed schedule.
‘ 5 = “ON” if output should only trigger during an open schedule
‘ 6 = “ON” if output should be inverted.
‘ 7 = “ON” if output should not be described in the menu.
‘ 1 = “ON” if output should time in minutes; “OFF” if output times in seconds.
‘ 2 = “ON” if output should latch until a code is entered.
‘ 3 = “ON” if output should reset if a code is entered while it is being
timed.
‘ 4 = “ON” if output should only trigger during a closed schedule.
‘ 5 = “ON” if output should only trigger during an open schedule
‘ 6 = “ON” if output should be inverted.
‘ 7 = “ON” if output should not be described in the menu.
X-10 OUTPUT 2 ADDRESS 56
Segment 1 = Module Number
Segment 2 = House Code
Segment 3 = X10 Function Code if ON
Segment 4 = X10 Function Code if OFF
