MicroJack

EYES Pro

Digital Video Surveillance System

User’s Manual

300AAA9K/400/0404

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

FCC NOTICE

This device has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial, industrial or business environment. This equipment can generate, use and radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION ON MODIFICATIONS

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

To comply with the limits for the Class A digital device, pursuant to Part 15 of the FCC Rules, this device must be installed in computer equipment certified to comply with the Class A limits. All cables used to connect the computer and peripherals must be shielded and grounded. Operation with non-certified computers or non-shielded cables may result in interference to radio or television reception. Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment.

CE NOTICE

This is a Class A product.

ENG 02

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Table of Contents

CHAPTER 1 INTRODUCTION....................................................... 1

1.1 Manual Conventions ........................................................... 1

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

3.3 Special Consideration ........................................................33

CHAPTER 4 SYSTEM CONFIGURATION AND OPERATION.......... 34

4.1 System Configuration ........................................................34

1.2 Video Card Specification ..................................................... 2

1.3 Package Contents .............................................................. 2

1.4 Hardware Recommendations ............................................... 3

1.5 Installing the Video Cards ................................................... 5

1.6 Connecting the MicroJack Video C ards .................................. 8

1.7 Attaching Cameras............................................................. 8

1.8 Connecting External Sensor/Relay........................................ 9

CHAPTER 2 DRIVER INSTALLATION ......................................... 13

2.1 Installing the Driver in Windows 98SE/Me ............................13

2.2 Installing the Driver in Windows 2000 .................................18

2.3 Installing the Driver in Windows XP.....................................23

2.4 Remove Your Video Card Driver.......................................... 26

CHAPTER 3 SOFTWARE INSTALLATION.................................... 27

System .....................................................................37

Cameras ....................................................................42

Audio ........................................................................45

Monitoring..................................................................47

Sensors .....................................................................50

Relays........................................................................51

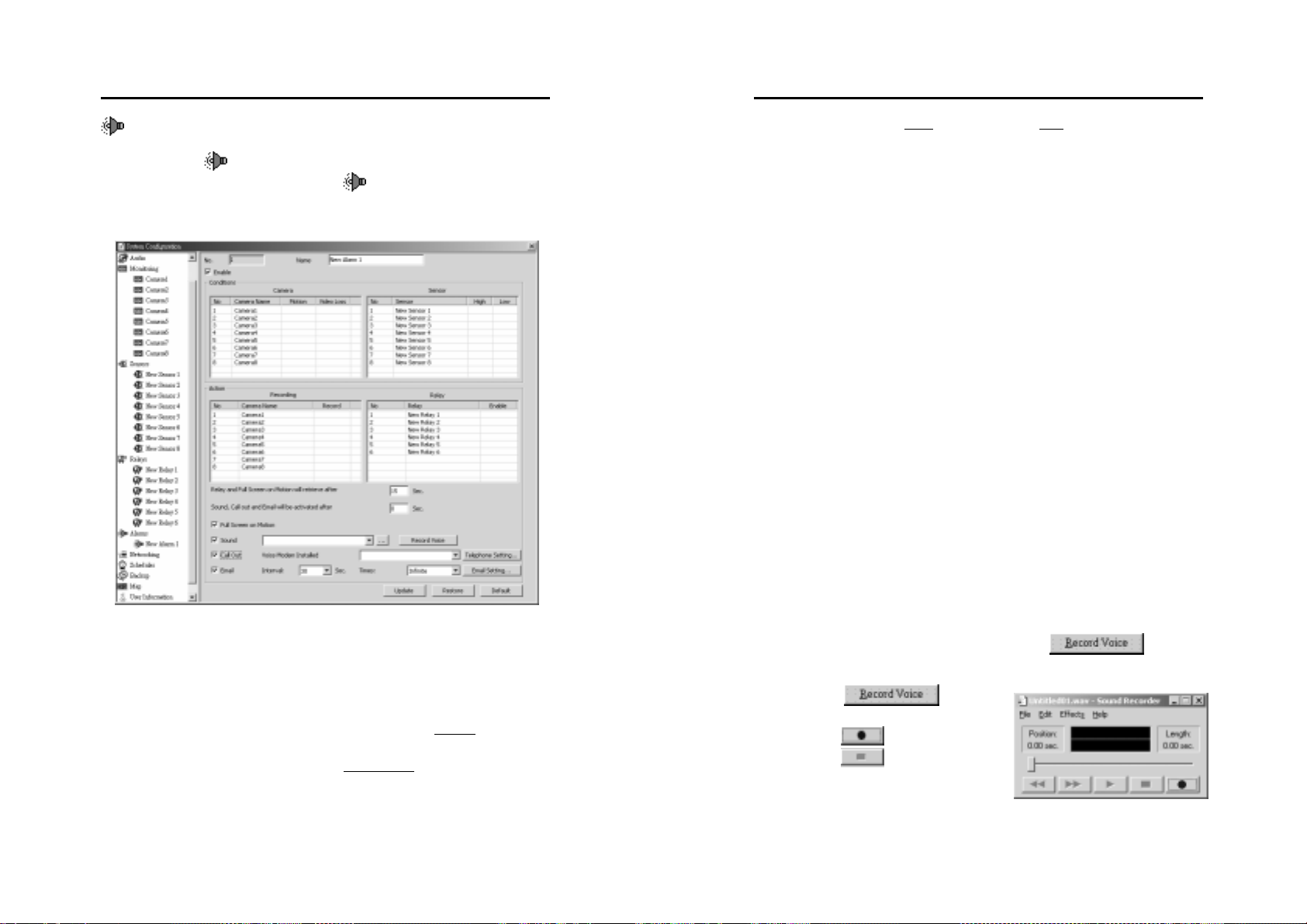

Alarms......................................................................53

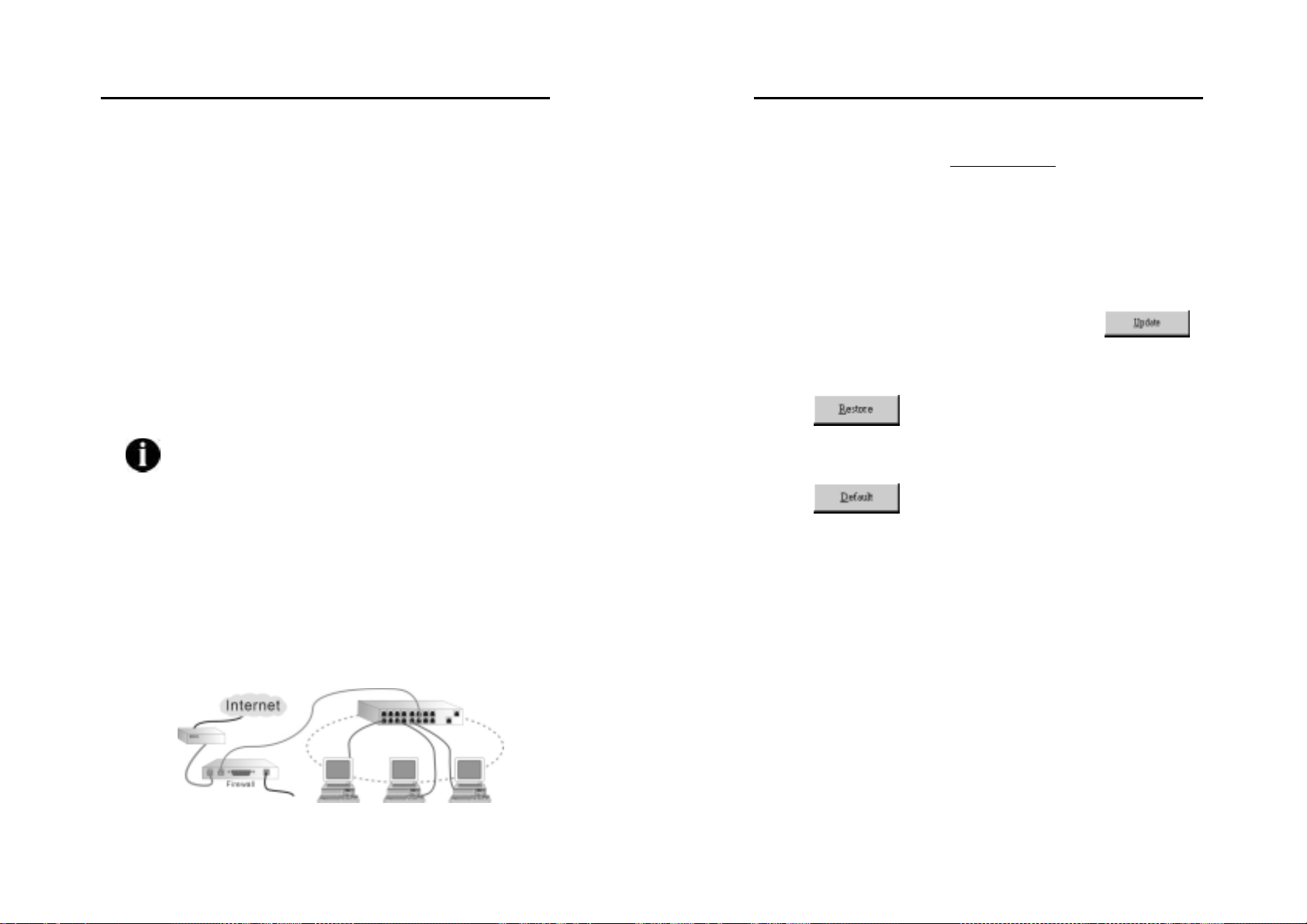

Networking.................................................................58

Scheduler....................................................................61

Backup .....................................................................67

E-Map ....................................................................72

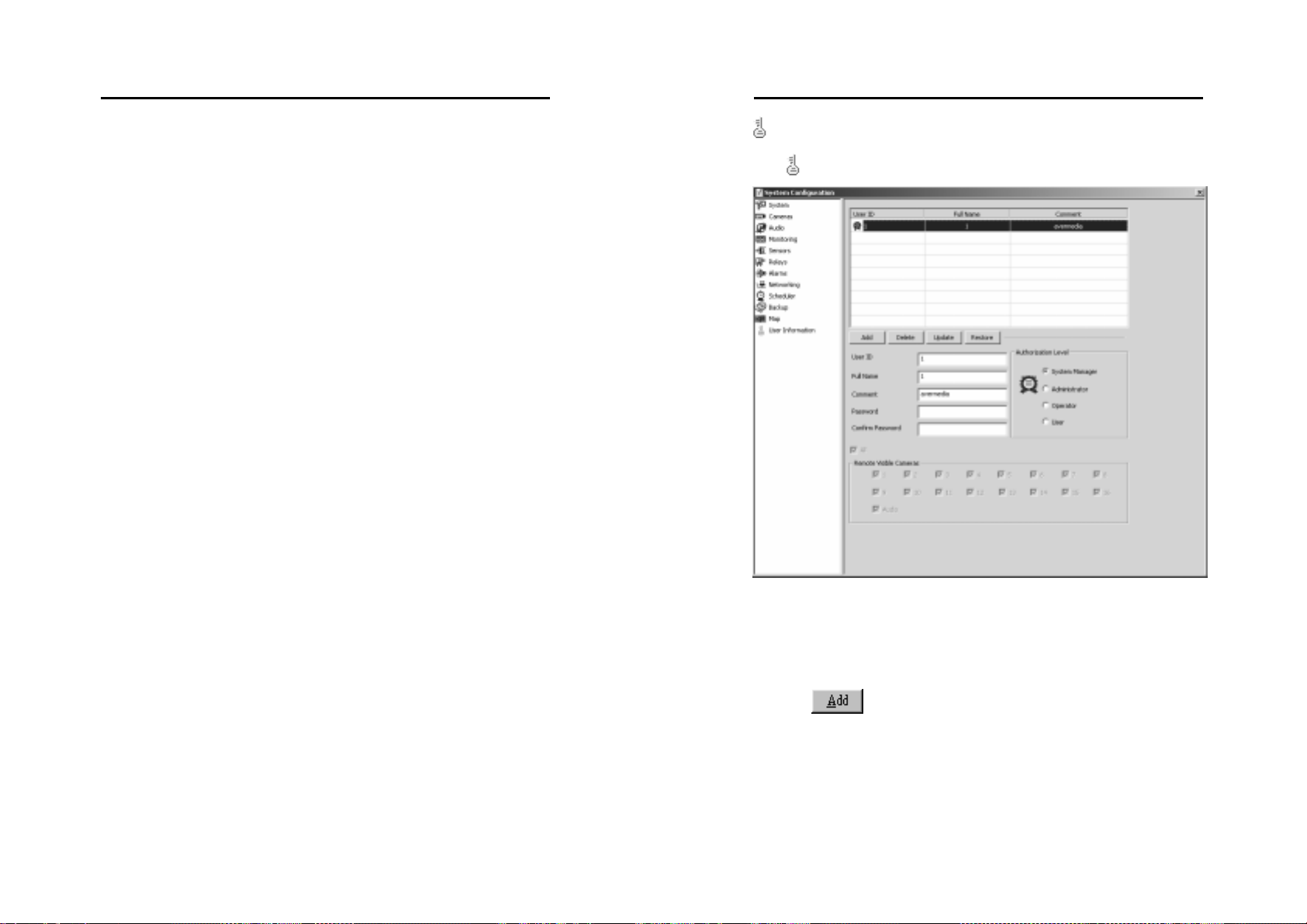

Users Information.........................................................74

4.2 System Operation .............................................................78

3.1 Installing MicroJack EYES Pro /MP2016/MP3000/MP5000

Software ...............................................................................27

3.2 Product Update.................................................................32

Start / Stop Monitoring ..........................................83

Start / Stop Audio Recording.............83

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

E-Map..................................................................84

Load / Close Network Server .................................. 85

System Configuration.............................................85

Log Viewer........................................................... 8 6

PTZ Controller.......................................................95

Status Monitoring .............................................................98

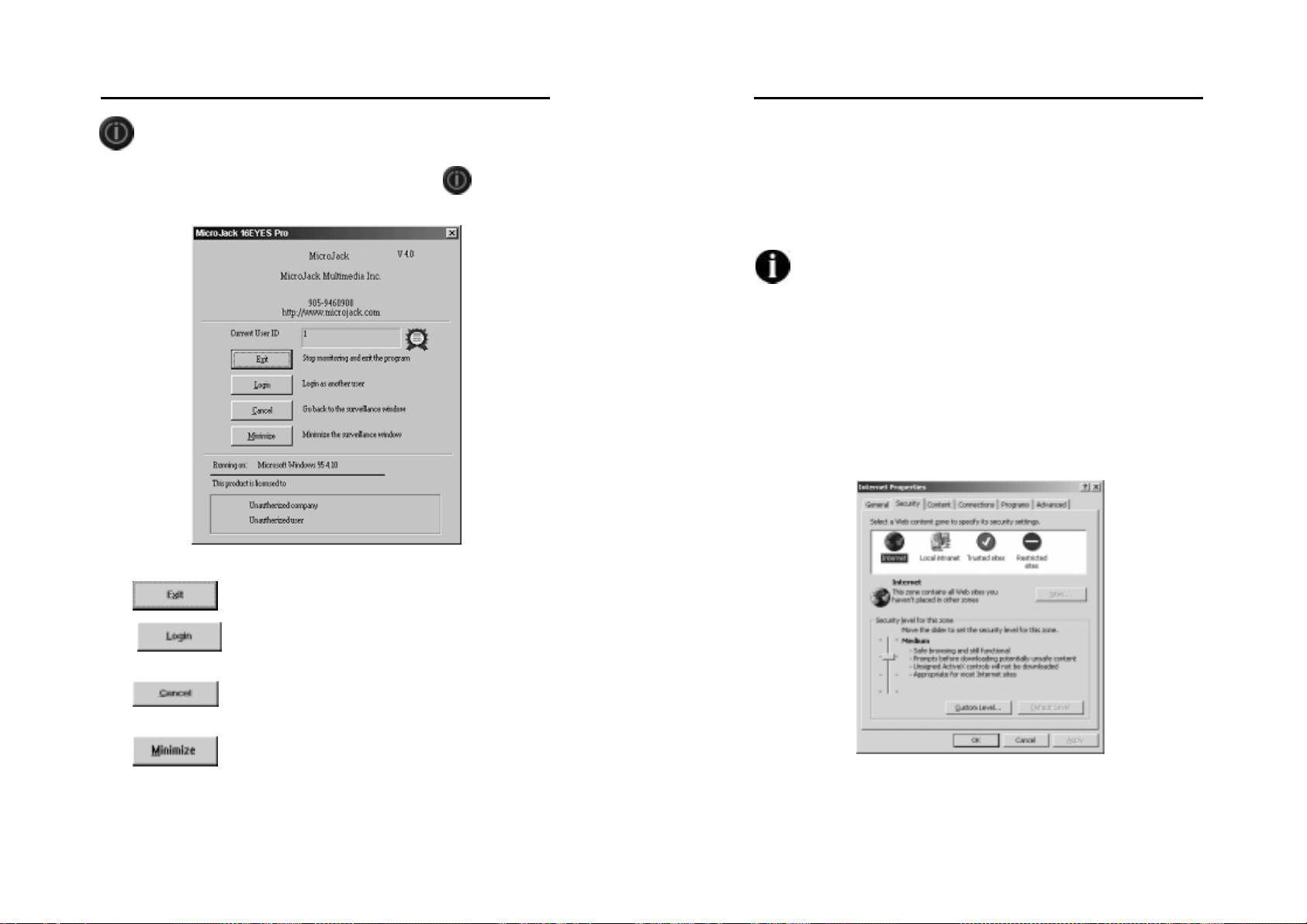

Exit / Re-login EYES Pro/MP2016/MP3000/MP5000.....101

CHAPTER 5 USING THE WEBCAM............................................ 102

5.1 Enable WebCam..............................................................102

6.3.1 Center Management.......................................1 16

6.3.2 Playback.......................................................119

6.3.3 PTZ Co ntrol ..................................................123

6.4 Start Recording .....................................................126

6.5 Exit RemoteManager .............................................. 126

APPENDIX A REMOTE LOGIN WITH AN MODEM-TO-MODEM

CONNECTION ......................................................................... 127

A.1 Windows 98SE / Windows Me...........................................127

A.2 Windows 2000................................................................ 132

A.3 Windows XP ...................................................................139

5.2 Use the WebCam ............................................................ 104

CHAPTER 6 REMOTEMANAGER ............................................... 106

6.1 Accessing RemoteManager ...............................................106

6.2 Setup ................................................................... 108

6.3 Operating the RemoteManager .........................................116

iii

APPENDIX B REGISTERING DOMAIN NAME ON DDNS SERVER148

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Chapter 1 Introduction

Welcome to the realm of MicroJack. MicroJack EYES Pro /MP2016/ MP2016/MP3000/MP5000, composed of one 32-bit PCI video capture card, works as a digital video surveillance system. It allows you to capture true color images and real-time videos from 4/8/16 camera input(s) simultaneously.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

1.2 Video Card Specification

4 ports

With the latest Motion Detection technology, once any movement detected in the monitoring area, MicroJack EYES Pro/MP2016/MP3000/ MP5000 automatically starts recording and triggers the alarm. You don’t need to keep your eyes on the monitor all day long anymore; the system will alert you automatically when specified events occur.

1.1 Manual Conventions

The following conventions are used throughout this manual.

Type Stands for Example

[paren.] Keys on the keyboard [Enter] “Quotes” Words to be typed in “MicroJack” Italic User in each authorization level Administrator Bold Name of a dialog box,

Sections/Option title in the dialo g box/Field names/Buttons

Underlined Table columns Start

Caution Message: These messages are to advise you to proceed carefully. Failure to pay attention could result in damage to the system and may put personnel and environment at risk.

Informational Message: These messages are intended to provide additional inform atio n for the purpose of clarification.

Schedule Backup

Product Video Card Specifications

4 EYES Pro 1 card Each video capture card with 4 video inputs 8 EYES Pro 2 cards Each video capture card with 4 video inputs 16 EYES Pro 4 cards Each video capture card with 4 video inputs MP 3004 1 card Each video capture card with 4 video inputs.

MP 3008

MP 2016/ MP 3016

MP 5004 1 card Each video capture card with 4 video inputs.

MP 5008

MP 5016

1 card w/ 1

daughter card

1 card w/ 3

daughter cards

1 card w/ 1

daughter card

2 cards w/2

daughter cards

Each video capture card with 4 vide o inputs .

Each Video capture card with 4 video inputs

Each video capture card with 4 vide o inputs .

MicroJack has been dedicated to innovating the technology of digital video surveillance system. We have had a significant innovation on promoting hardware that is presented as the par t of MP series above.

1.3 Package Contents

Your MicroJack EYES Pro/MP2016/MP3000/MP5 000 pac kage inc lud es the following：

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

• 1 / 2 / 4 MicroJack Video Card(s) for EYES Pro

• 1/2 MicroJack Video Card(s) and 1/3 daughter card(s) for

MP2016/MP3000/MP5000

• Micro Jack EYES Pro/MP2016/MP3000/MP5000 So ftware CD (Including Driver, Application Software, and User’s Manual)

• MicroJack EYES Pro/MP2016/MP3000/MP5000 User’s Manual

• Optional exter nal I/O Box and 15-pin D-type Connector Cable

1.4 Hardware Recommendati ons

CPU Motherboard

Pentium Intel 815E/815EP (PIII), 845 (P4), 845D(P4),

845E(P4), 845G(P4) List of motherboards tested:

• ASUS P4B

• ASUS P4B266

• ASUS P4B533

• ASUS P4B533-V

• GIGABYTE 8IRX

• GIGABYTE 8IEX

• GIGABYTE 8IEXP

• GIGABYTE 8IGX

• MSI 845 E Max2

• MSI 84 5G Max

(VIA/SiS/ALi chipset motherboards temporarily not supported)

OS Microsoft Windows 98SE/Me/2000 Pr o. /XP Pro.

Expansion Slots 1 / 2 / 3 / 4 × 32-bit PCI 2.1 compliant slots

 Transcend DDR 256MB (DDR-266)

RAM

 KingSton DDR 256MB (DDR-266)  KingMax SD RA M 256MB (PC-133)  KingMax DD R 256MB(DDR-333)



III 800MHz or above recommended

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Hard disk

HDD

Media

40 GB of free hard disk space, at least 6GB free space for each partition.

 Seagate ST340016A (40G 72000rp m )  Seagate ST380021A (80G 7200rpm)

CD-ROM drive 16-bit high color SVGA graphic card with

DirectDraw capability List of VGA Cards tested:

• Leadtek WinFast GeForce2 MX400

VGA

• Leadtek WinFast A170 DDR TDH

• Leadtek WinFast 3D S325 32MB

• Leadte k W inFast A250 TD 128MB

• ATI RADEON 8500 64MB/128MB

• ELSA GLADIAC 525 128MB

• ELSA GLADIAC 517 VIVO 64MB

Audio Sound card and speakers

Modem

List of modems tested:

Modem2modem feature Internal:

• USR 569 9A (Chipset: 3COM)

• Creative Lab DI5630 (Chipset: Broadxent)

• SmartLink 5634PSV-R

• QDK Speedcom+ VPI56SP (Chipset: Conexant)

• GVC 56K V.90 Voice/Fax (Chipset: Motorola)

• Cyber Marmo t Rock Modem (Chipset: Ambient)

• Lemel MD-56 KVR4 (C hips et: Conexant)

External:

• USR 568 6D (Chipset: USR)

• GVC 56Kbps (Chipset: Rockwell)

• Atrie Explore (Chipset: Conexant)

• Zyxel Omni 56K Data/Voice (Chipset: Zyxel)

• SmartLink 56TS (Chip s e t: TI)

• SmartLink 56TPC (Chipset: IC+)

• ART NET V1456VQE (Chipset: TOPIC)

• Well USB Soft Modem FM-56USB-ST (USB

interface)

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Modem

For the current update information, please check our website.

Alarm call out feature Internal:

• Creative Lab DI5630 (Chipset: Broadxent)

• Creative Lab DI5630-5 (Chipset: Broadxent)

1.5 Installing the Video Cards

1.5.1 Installing the MicroJack EYES Pro Video Cards

The following instructions are for installing video cards into the MicroJack EYES Pro system.

Before installing the video c ard, turn off the computer’s power, unplug the power cable and disconnect all other cables attached to the back of the computer.

Video card

Video Card

PCI Slot

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

1. Remove the computer cover.

2. Remove the I/O brackets for the four PCI expansion slot s. Save the screws.

3. Insert the MicroJack video cards into the available PCI expansion slots.

4. Replace the computer cover and rec onnect all cables.

1.5.2 Installing the MicroJack MP2016/MP3000/MP5000 Video

Cards

The following instructions are for installing video cards into the MicroJack MP2016/MP3000/MP5000 syste m.

Before installing the video card, turn off the comp uter ’s power, unplug the power cable and disconnect all other cables attached to the back of the computer.

MP3004/MP5004/MP5008

Video card

MP3008/MP5016

Video card

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

MP3016 Video card MP2016 Video card

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

1.6 Connecting the MicroJack Vide o Cards

Up to four cameras can be connected to each MicroJack video card one camera per BNC terminal.

NOTE: Orient the

PCI Slot

Fig. 1 Fig. 2

1. Remove t he computer cover.

2. Remo ve t he I/ O bra cke ts fo r the fo ur PC I exp an sio n sl ots . Save t he screws.

3. Align AVerMedia video card connector with the available PCI slots.

4. Screw AVerMedia video card and the 3 daughter cards respectively into the rear panel with the screws. See the Fig .1.

5. Connect the 3 daughter cards to AVerMedia video card with ribbon cables. See the Fig.2.

6. Replace the computer cover and reconnect all cables.

red mark u

ward.

Sensor Inputs

Infrared Sensor

Proximity Sensor

Smoke Detector

Reed Switch

Camera 1

Camera 2

D-type 15-pin

Connector Cable

(Optional)

Relay Control

Relay Outputs

1.7 Attaching Cameras

Cameras must be attached to the BNC connectors of the server video cards in a specific order to avoid transmission problems. Video cards are stacked vertically into the chassis. If all four video cards are installed, the rear panel of the server will appear as shown in the diagrams below.

Burglar Alarm

Access Control Lock

EYES Pro MP2016/MP3000/MP5000

12 16

Camera 3

Camera 4

Coaxial Cable

(Not Supplied)

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Cameras need to be installed according to the numerical order displayed on the diagrams above. Whether you have one, two, three or four video cards, the pattern is the same - cameras will be installed from

left to right starting with the t op row for EYES Pro and from top to bottom beginning with the left-most column for MP2016/MP3000/MP5000.

1.8 Connecting External Sensor/ Relay

Each system can come with optional External I/O Boxes and D-type 15pin connector cables enabling you to connect sensor inputs and relay outputs. The pin signals and specifications for the external I/O Box and the D-type 15-pin connectors are described below.

D-type 15-pin Connector Cable

Video Card

External I/O Box

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Sensor Input Specification

Relay Output Specification

Surge strength: 1500 VAC Nominal power 200mw ~ 360mw Operating power 110mw ~ 200mw

COIL RATINGS (at 20

D-type 15-pin conn ector

Sensor Input 2

Sensor Input 1

Sensor Input 3

Relay Output 1

Relay Output 2

External I/O Box

Sensor Input 4

Relay Outputs 3

Coil Nominal Voltage

(VDC) 5 125 3.75 0.5 40 * Max Continuous Voltage at 20oC : 110% of Coil Nominal Voltage

Coil Resistance (

10% )

Pick-up Voltage (VDC)

Drop-Out Voltage

(VDC)

Nominal Current (mA)

EYES Pro/MP2016/MP3000/MP5000

CONTACT RATINGS

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Sensor Inputs

Contact Arrangement 1 Form C (SPDT) max. Switch Power

max. Switch voltage max. Switch current

125VA 60W 125VAC 30VDC

2A Contact Resistance 100m Resistive Load 1A/125VAC

2A/30VDC Contact Material AgNi10

External I/O Box Pin Signals

Pin # Definition

1 INPUT SIGNAL 1+ 2 INPUT SIGNAL 2+ 3 INPUT SIGNAL 3+ 4 INPUT SIGNAL 4+ 5 OUTPUT 3 – N ormally Closed 6 INPUT SIGNAL 1-(GND) 7 INPUT SIGNAL 2-(GND) 8 INPUT SIGNAL 3-(GND)

9 INPUT SIGNAL 4-(GND) 10 OUTPUT 3 – Common 11 OUTPUT 1 – Normal l y Open 12 OUTPUT 1 – Common 13 OUTPUT 2 – Normal l y Open 14 OUTPUT 2 – Common 15 OUTPUT 3 – Normal l y Open

External sensors such as infrared sensors, smoke detectors, proximity sensors, door sensors, etc., can be attached to the MicroJack EYES Pro/ MP2016/MP3000/MP5000’s input-signal connectors on the External I/O Box. These devices trigger the system to respond with a predefined action (e.g. record video)

Relay Outputs

The MicroJack EYES Pro/MP2016/MP3000/MP5000’s output connectors (relay output) can be attached to external output contr ol devices such as alarms. The system can be configured to activate or deactivate these devices. Each MicroJack video card supports three relay outputs. Two of them are normally open relays with one being a toggle switch.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Chapter 2 Driver Installation

MicroJack EYES Pro/MP2016/MP3000/MP5000 are Plug-and-Play digital surveillance systems that supp ort Windows 98SE/Me /2000/XP. To start using this system, first ins tall the drivers and applic ation software from the Software CD that comes with MicroJack EYES Pro/MP2016/MP3000/ MP5000 system.

Check Your Windows Version

Before you install the driver, check to see whether you are using Windows 98SE, Windows Me, Windows 2000 or Windows XP. To do this, click Start Æ Settings Æ Control Panel on the Window’s toolbar, and then double-click System. You will see the Windows version under the General tab.

Depending on the version you use, yo u will encounter different dialog boxes when installing the driver. Those listed in the following sections are for installing drivers in Windows 98SE/Me, Windows 2000 and Windows XP.

2.1 Installing the Driver in Windows 98SE/Me

After you have properly installed the MicroJack video card in your computer, power on your computer and start Windows 98SE/Me.

1. The first time you install the MicroJack video card driver, you will see the Add

New Hardware Wizard. Insert

the Software CD and click the

Next button.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

2. Select Search

for the best driver for your device. (Recommended)

and then click the Next button.

3. Choose Specify a location and click the Browse button to find the drivers in the [driver] folder of the EYES Pro /MP2016/MP3000 /MP5000 Software CD. Click the Next button.

4. The Add Hardware Wizard will find ARGUS.inf from the folder you specified. Click the Next button to continue.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

5. (For Windows 98SE only) Insert the Windows 98SE CD-ROM to start installing the driver.

6. Click the Finish button to complete the installation of video driver.

7. Next you need to install the audio driver. Click the Next button to proceed.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

8. Select Search

for the best driver for your device. (Recommended)

and click the Next button.

9. Select Specify a location and click the Next button.

10. The system will find the video driver you just installed because the audio driver is the same as the video driver. Click the Next button to continue.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

11. Click the Finish button to complete the audio driver installation and reboot your PC.

For EYES Pro, you need to take the procedures (1~14) once for each video card. For MP3000, you are asked to repeat the procedures 4 times; for MP2016/MP5000 8 times at most. If you have installed 4 video cards, you will find the sy stem’s device manager looking like the following figure .

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

2.2 Installing the Driver in Windows 2000

After you have properly installed the video card in your computer, power on your computer and start Windows 20 00.

1. The first time you install the video card, you will see the Found New

Hardware Wizard. Insert

the EYES Pro/ MP2016/MP3000/ MP5000 Software CD and click the Next button.

2. Select Search

for a suitable driver for my device (recommended)

and click the Next button.

3. Select Specify a location and click the Next button.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

4. You‘ll be prompted to enter or browse the location of the video card driver. Set the right path and click the OK button.

5. The system will find argus.inf from the folder you specified. Click the Next button to continue.

6. Click the Yes button to proceed with the installation.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

7. The system will soon show that it has finished the video driver installation. Click the Finish button.

8. Next you need to install the audio driver. Click the Next button to proceed.

9. Select Search for a

suitable driver for my device (recommended)

and click the Next button.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

10. Check Specify a location and click the Next button.

11. You‘ll be prompted to enter or browse the location of the MicroJack video card driver. Set the right path and click the OK button.

12. The system will find the video driver you just installed because the audio driver is the same as the video drive r. Click the Next button to start installing.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

13. Click the Yes button to proceed with the installation.

14. Click the Finish button to complete the installation and reboot your PC.

For EYES Pro, you need to take the procedures (1~14) once for each video card. For MP3000, you are asked to repeat the procedures 4 times; for MP2016/MP50 00 8 times at most. If you have installed 4 video cards, you will find the system’s device manager looking like the following figure.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

2.3 Installing the Driver in Windows XP

After you have properly installed the video card in your computer, power on your computer and start Windows XP.

1. The first time you install the video card, you will see the Found New Hardware Wizard. Insert the EYES Pro/ MP2016/ MP3000/MP5000 Software CD and select Install the

software automatically (recommended).

Click the Next button.

2. The system will then find the driver argus.inf in the Software CD and start installing. When this dialog box shows up, click the Continue Anyway button to proceed.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

3. After the installation finished, click the Finish button.

4. You need to continue installing the audio driver. Select Install

the software automatically (recommended) and

click the Next button.

5. Because the audio capture uses the same driver as the video capture, the system will find the video driver you just installed and start installing. When this dialog box appea rs, click the Continue Anyway button.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

6. After the installation finished, click the Finish button.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

2.4 Remove Your Video Card Driver

While removing your video card driver, you need to follow the steps described below.

1. Find the system’s Device

Manager, ungroup Sound, video and game controllers,

and remove all the drivers by the names of “ARGUS WDM Audio

Capture” and “ARGUS WDM Video Capture”

2. Delete the following files in the specified paths.

• Windows 98/Me: C:\WINDOWS\INF\OTHER\ DVR\ARGUS.inf C:\WINDOWS\SYSTEM32\DRIVERS\argus.sys

• Windows 2000: *C:\WINNT\INF\oemX.inf *C:\WINNT\INF\oemX.pnf C:\WINNT\SYSTEM32\DRIVERS\argus.sys

• Windows XP: *C:\WINDOWS\INF\oemX.inf *C:\WINDOWS\INF\oemX.pnf C:\WINDOWS\SYSTEM32\DRIVERS\argus.sys

* For the files “oemX.inf” and “oemX.pnf,” “X” stands for numbers. Open each of the oemX.inf and locate the [Manufacturer] section. If the value is DVR, then this is the file you need to delete. For

oemX.pnf, delete the one that has the same number (X) as the oemX.inf you deleted. For example, if oem0.inf has DVR in the [Manufacturer] section, then you need to dele te both oem0.inf and oem0.pnf.

3. Please reboot your computer to complete the re move.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Chapter 3 Software Installation

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

3. The system will then start preparing to install the Micro Jack EYES Pro/MP2016/MP3000/MP5000 application software.

3.1 Installing MicroJack EYES Pro/MP2016/MP3000/MP5000 Sof t ware

After you successfully install the video card driver, you then are ready to install the EYES Pro/MP2016/MP30 00/MP50 00 app lication so ftware. You can easily complete the installation of MicroJack EYES Pro/MP2016/ MP3000/MP5000 by follow ing the simp le instructions below.

During the installation, you will be asked to key in a user name and a password. You must remember them because you will be prompted for entering the same user name and password later when entering the MicroJack EYES Pro/MP2016/MP3000/MP5000 surveillance system.

It’s recommended that you exit all other Windows programs before you install MicroJack EYES Pro/MP2016/MP3000/ MP5000 surveillance system.

1. Insert the MicroJack EYES Pro/MP2016/MP3000/MP5000 CD into the CD-ROM drive and wait for it to auto-run.

2. Click the text “MicroJack EYES Pro”, “MicroJack MP2016”, MicroJack MP3000”, or “MicroJack MP5000” and choose the language version you would like to install.

4. Click the Next button to continue.

5. Read the License Agreement and click the Yes button if you accept it; otherwise click the No button to exit the setup program.

EYES Pro/MP2016/MP3000/MP5000

6. Enter your Name, Company Name, and the Serial No. (printed on the CD cover) and click the Next button. The name you enter here will be used as the System Manager when operating t h e software.

7. Choose the components you need and then designate the destination folder for the software to be installed. Click the Next button to continue.

8. Specify the folder name to store the MicroJack EYES Pro/MP2016/3000/ MP5000 program or choose an existing folder from the list. Click the Next button.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

9. Select the video format of the camera used in your country. If you don’t know the correct format, contact your local camera supplier. Click the Next button.

10. Set a password for the System Manager. You need to use this password when entering the EYES Pro/ MP2016/MP3000/ MP5000 system. Click the Next button to continue. The system then starts to install the software.

11. Select the n u mber of video channels you will use on this system and click the Next button.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

12. After the installation finishes, you can choose to create a shortcut of EYES Pro/MP2016/ MP3000/MP5000 program and click the Next button.

13. Before you exit the setup program, you can choose to view the README file. After you click the Finish button, a text file will show up.

14. Choose whether you like to restart your computer now or later and click the Finish button to complete the installation.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

3.2 Product Update

Contact your distributor s to ob tain the latest software of MicroJack EYES Pro/MP2016/MP300 0/MP5000 system. After you successfully downloa d the file, follow the procedur es below to upd ate yo ur so ftware.

1. First you need to remove the older-version software from your computer. Go to Control Panel and double-click on Add/Remove

Programs. Select “Uninstall Digital Video Surveillance System” and click the Add/Remove button. You will need to

reboot the system afterwards.

2. Update your new MicroJack software. Refer to section 3.1 – Software Installation. It is unnecessary to update a new driver manually because the system will execute the procedure automatically during installation.

If your MP3000 series video card driver is beyond version 3.5, notice that the innovation on hardware in V 3.5 has restrained you to update the entire services, which is described as follows:

Product Present H/W

MP 3004 1 card 1 card MP 3008 2 cards 1 card 4 chs

2 sets of

MP 3016

After finishing updating, select the desired channel numbers and disable the unselected channels for keeping the efficiency of the system while reinstalling vid eo c ard dr iver.

1 card w/ 1

extended card

Update Solution

H/W

1 card

1 card w/ 1

extended card

Update Solution

S/W

4 chs

8 chs

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

3.3 Special Consideration

Defrag Your Hard Disk

Files on your hard disk will unavoidably become fragmented. Fragmentation occurs when the operating system must split files into parts and fit each part into different free segment of the hard disk to make full use of the hard disk space. If files on your hard disk become excessively fragmented, your system would have to work very hard to maintain all the necessary information about the files locations. This results in slow and bogged-down performance and it gets more and more seri ous as the time goes on . Therefore, it is recommended tha t you regularly run a defragment utility pro gram on your hard disk such as Windows Disk Defragmenter especially before you start saving recorded videos to the har d d isk .

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Chapter 4 System Configuration and Operation

Before you start running the EYES Pro/MP2016/MP3000/ MP5000 system, please set your monitor resolution to 1024 x 768 and the color to 16-bit true color or above.

4.1 System Configuration

When you first start up the MicroJack EYES Pro/MP2016/MP3000/ MP5000, the system will reque st you to enter user ID and passwo rd to login surveillance system. Key in the user name and password you

entered during the EYES Pro/MP2016/MP3000/MP5000 installation.

Upon the success of authentication, you will see the following main screen of EYES Pro/MP2016/MP3000 /MP5000 Digital Video Surveillance System.

MicroJack User’s Manual

a / op

u o

oad /

a / op

o o g

a / op

ud o

o d

EYES Pro/MP2016/MP3000/MP5000

EYES Pro/MP2016/MP3000/MP5000 Main Screen

Alarm & Relay Status

Network Status

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Click the System Configuration button to enter the configuration dialog. You need to first set up your surveillance system before you start using it.

Exit / Login

Split Screen Display

Status Bar (Hard

Disk/Network/Date &Time)

Full Screen rt St

A t

Sc n

St rt St

A i

Rec

St rt St

M nit rin

E-Map

Cl se Netw

rk Server

System Configuration

Log Viewer

PTZ Controller

After entering the System Configuration page, you can set up the system, cameras, audio, monitoring, sensors, relays, alarms, networking, scheduler, backup, e-map, and user information.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

System

Clicking on

System brings you to the following dialog box for system information. Here you need to provide some basic information for the monitoring and recording operation.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

2. Minimum Space

Next you need to provide the minimum space for hard disk recycling. During hard disk recycling, the new ly recorded files will overwrite the old ones. This way the system will not run out of hard disk space to save the recorded videos. The system will start hard disk rec ycling when the hard disk free space is less than a user-defined number. The user-defined number has to be greater than 450MB, the system defaults to 450MB.

3. Miscellaneous

Beep if no signal:

Check this box to have the system start beeping whenever a video loss from a camera occurs.

1. Assign Recording Disks

First you need to assign the recording disks. Click

to browse for the folder to save the recorded videos and click the Add button. You can click the Delete button to remove any of the recording disks, as long as there is at least 1 disk left to save the recording data.

Auto Reboot: For better system performance and stability, it is recommended for you to check the Auto Reboot box and the system will reboot everyday at a user-defined hour that least interferes with your surveillance operation.

Ask for password when login: Check this box to enable the password protection when users login the surveillance system.

Date Format: Here you can choose to show the date information in the ord er of mm/dd/yy, yy/mm/dd, or dd/mm/yy.

MicroJack User’s Manual

,2,3,

,10,11,

,7,11,

EYES Pro/MP2016/MP3000/MP5000

AutoScan:

This function allows you to view each camera image in numerical sequence under 1-Cam Display mode. Check AutoScan to enable this function and define the scan interval from 1 to 60 seconds (defaults 3 seconds). When in this function is enabled, you need to

return to the main menu and click

to start the AutoScan

function. During AutoScan, you can click Focus Camera to jump to any camera. To stop the AutoScan

function, click

again.

4. Video

For Video Standard, you need to choose from NTSC and PAL according to the system you are using.

5. Display & Recording Rate

With this button you can set display and recording rate by camera. You will see the following dialog box when you click this button. There are 5 levels of display and recording rate. Drag the bar to adjust the display/ recording rate for each camera.

In case All is checked, you will see that while you’re adjusting the rate for one camera, the rate of other cameras will be adjusted at the same time. Cameras that are adjusted together use the same video chip on the video capture card.

…

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

6. 640 x 480 Resolution

The utility provides your particular demand on the better 640 x 480 resolution for the specific cameras. For EYES Pro/MP2016/ MP3000, you can check the cameras to perform the better resolution by clicking this button. Note that the cameras are arranged to be sets according to the same video chip on the video capture card. For MP5000, you can set all cameras randomly to perform 640 x 480 resolution. The arranged camera sets are liste d as follows:

Product Camera Sets

4 EYES Pro 1

8 EYES Pro 1,2,3,4 5,6,7,8 16 EYES Pro

MP2016

1,2,3,4 5,6,7,8 9

12 13,14,15,16

1,2,3,4,5,6,7,8,9,10,11, 12,13,14,15,16

MP3004 1, 2, 3, 4 MP3008 1,5 2,6 3,7 4,8

MP3016

1,5,9,13 2,6,10,14

15 4,8,12,16

3 MP5004 1 2 3 4 MP5008 1, 2, 3, 4, 5, 6, 7, 8

MP5016

1,9 2,10 3,11 4,12

5,13

14 7,15 8,16

That too many cameras were selected to be 640 x 480 resolution will result in overloading for system. For the further information please refer to our website contact your distribution.

7. UPS (Uninterruptible Power Supply)

It enhances the security for system to warn administrators and users if AC power fails and proceeds with system shutdown before the end of battery backup power is reached. The UPS device should be connected to your computer (refer to your UPS user’s guide) before the presetting of this task .

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

A. Check Enable to activate UPS meanwhile the Vendor as well as

Model of your UPS will show up in the individual boxes if your

UPS is completely connected to.

B. Determine a limited value for capacity to shutdown your

computer. The value is ranged between 10 and 90%. It is unavailable to be set lower than 10% or higher than 90%.

UPS application must meet Window NT or above. Windows 2000 or Windows XP are recommended.

8. Update

Cameras

Double-click configure.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Cameras and choose the camera you want to

Whenever the above settings are modified, click update.

10. Restore

Click restore your last settings.

11. Default

Click

to abort all the changes you made so far and

to change all values to their default settings.

1. Camera ID

In the No. field, you can see the c amera numb er you p ick o ut fr om the left list.

2. Card No. / Port No.:

This section indicates the card number and the BNC connector number that this camera is connected to. It is configured by the system automatically and you cannot change otherwise.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

3. Enable

Check Enable to enable this camera for

Figure 1.

Gray-scale image

monitoring. If a camera is not enabled, the image from this camera will show as Figure 1 (gray scal e) on th e screen . Th i s camera’s sign in the menu will change to

If a camera input is not physically connected to a camera, you need to de-select Enable, or the system will not reach its best performance.

4. Camera

Display:

Check Display to display the image from this camera on the screen. If you check

Figure 2.

Color ima

Enable without checking Display, the image from this camera will show as Figure 2 (color) on the screen. Although the image is not shown on the screen, this camera is still performing Record

When Motion Detected, Record When Start Monitoring, or Don’t Record, depending on which one you

chose in the

Monitoring section of

the System Configuration.

Name: In the Name field, you can set the name for the camera. Comment:

This field allows you to add any remarks you have for this camera. Any comment left can serve as a reminder for system manager.

Image Properties:

You may set the following properties for the image of this camera.

brightness contrast color saturation

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Settings for the image properties are configured fo r the designate d card, which may also connect to other cameras. That means, the settings you make for this camera will apply to other cameras that connect to the same card.

The adjustment of image properties will result in inefficiency as the video format is set to be PAL for the unsupported hardware temporarily

5. PTZ Camera PTZ Camera Setup

A. Select a Com Port where PTZ camera connector co nnected and

the PTZ Model you use (refer to your PTZ camera spec.) by the pull-down lists. And click Set to place your setting.

B. To control PTZ camera with server’s camera by entering PTZ

Camera ID at the range of 2~22 5.

Preset Position Setup

A. Choose a position number by the pull-down list to set the

monitoring position with the right side direction interface.

Meanwhile the display you adjust will be shown on the upside. B. Determine a Position Name for the position. C. During AutoPan, Dwell determines the time for the camera to

stay (1~60 seconds) at one position before rotating to the next

position. D. You can set the Speed (5~255 deg/s) with which the camera

rotates from its current position to the nex t pr e set po sition. E. Click Set to involve into the setting.

6. Update

Click this button to update the setting.

7. Restore

Click this button to abort all the changes you made so far and restore your last settings.

8. Default

Click this button to change all values to their default se ttings .

Audio

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

2. Detection Sensitivity

Click Audio to enter the audio page as below.

1. Enable

You can click as a reference when adjusting the se nsitivity. The system defaults the sensitivity to 30%.

3. Properties

You can set the length of time for the system to continue recording the audio once activated. The s ystem defaults to 5 seconds . The length of time you set determines the size of the .WAV file. (1 second long roughly takes up 8 K of space.) The .WAV file format is PCM 8KHz, 16bit, mono. To playback the audi o files, you need

to go to

4. Update

Click this button to update the setting.

5. Restore

Click restore your last settings.

6. Default

Click

to test the volume of your current environment

Log Viewer.

to abort all the changes you made so far and

to change all values to their default settings.

Check here to enable the automatic sound detection. The system will start recording upon detected volume greater than the sensitivity you set. Note that this function only works while

the system is recording videos.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Monitoring

In this section you can configure how the cameras perform monitoring/recording and the related properties. Double-click on

Monitoring and choose the camera you want to configure.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Beep upon detected motion:

By checking Beep upon detected motion, you can enable the alarm to start beeping once motion detected. You can do an

instant test it by clicking

and the following two signs

represent different situations.

: Motion detected in the detecting area

: No motion detected in the detecting area

2. Recording

You can choose the suitable recording mode among these three: Record when start monitoring:

The system starts recording once the monitoring starts.

Record when motion detected:

The system starts recording on l y when mot ion is det ect ed, and continues recording for 1~120 (user-defined) seconds after the motion stops. The user-defined le ngth of time (d efault to 1 seco nd) is set in the Stop recording after sec. section.)

Don’t record:

The system doesn’t record no matter what happ e ns.

1. Motion Detection

Sensitivity:

In this area, you can adjust the motion detec tion sensitivity fr om 0 to 100 (system default: 70). The highe r the value is, the better the sensitivity the system can detect.

Record with Time Stamp:

You can also add time information on the recorded video by checking Record with time stamp and choose the color of the time display.

3. Quality

This section allows you to choose the compressed program and adjust the image quality from 0 to 100 (default 50 ). The highe r the value is, the lower the compression ratio gets, and the larger disk space is required. You can also decide the recorded file size

by changing the compression ratio. If you select Fast Recording with MJEPG format (lower compression ratio), the

system record faster, and therefore, the file size is bigger. On the contrary, if you select High Compression Ratio with MPEG4, the recorded file size will be smaller for they are highly co mpr essed.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

4. Motion Detection Mask Mask

Mask a specific area to leave the rest area for the motion detection.

A. First check Mask in the Enable field to edit the mask area. B. Check Show Mask to make masked area visible. C. To add or cut any masked areas, simply click

Add or Cut, an d then draw the area you want to add to or cut from the masked area. To clear all masked areas, click Clear. And click Invert to invert the masked areas into unmasked ones and vise versa.

D. Choose a mask color out of from red, green, and blue.

Shield

To e n a b le Shield provides you to protect so me private areas fr om the entire surveillance contro l into a black shie ld, ex: a fitting r oom in a department store.

A. First check Shield in the Enable field to edit the shield area. B. Refer to Mask step C.

5. Edit

Click on either the radio button for mask or shield to spe cify the working ar e a by Add/ Cut/ Invert/ Clear in Motion Detection

Mask field.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Sensors

Double-click on

Right-click the mouse on

Sensors to list the sensors already been configured.

Sensors to add a new sensor. Click

any desired sensor to enter the setup scr e e n of that sens or.

6. Update

Click this button to update the setting.

7. Restore

Click this button to abort all the changes you made so far and restore your last settings.

8. Default

Click this button to change all values to their default se ttings .

Start/ Stop Monitoring

After the settings are placed comple te ly, click on the button activate the functions above when you are back to the main screen.

1. Sensor ID

In the No. field, you can see the sensor number. In the Name field, you can set the name for the sensor.

2. Content

Since each card can connect to one external I/O Box, and each I/O box supports 4 sensor inputs, yo u can easily determine the Card

No. and Input No. as to where this sensor is connected. In the Comment field you can add any remarks you have for this sensor.

Any comment left can serve as a reminder for the system manager.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

3. Test

You can test the sensor immediately after you install it. Click

, and if the test area turns red , it indicates the sensor is

Closed/ON. If it turns green, it indicates the sens or is Open/Off.

4. Enable

Check Enable box to activate the previous setting .

5. Update

Click this button to update the setting.

6. Restore

Click Restore to abort all the changes you made so far and restore your last settings.

Relays

Double-click on

Right-click the mouse on

Relays to list the relays already been configured.

Relays to add a new relay. Click any

desired relay to enter the setup screen of that relay.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

1. Relay ID

In the No. field, you can see the relay number. In the Name field, you can set the name for the relay.

2. Content

Since each card can connect to one External I/O Box, and each box supports 3 relay outputs, you can eas ily determine the Card No. and Output No. as to w here this r e lay is connec te d.

In the Comment field you can add any remarks you have for this relay. Any comment you left can serve as a reminder for the system manager.

3. Test

You can test the relay immediately after you install it. Click

, and if the test area turns red, it indicates the relay is ON/HIGH and generates an output signal. If it turns green, it indicates the relay is OFF/LOW.

4. Enable

Check Enable box to activate the previous setting .

5. Update

Click this button to update the setting.

6. Restore

Click

to abort all the changes you made so far and

restore your last settings.

After the sensors and relays are co nfigured, you can go to

Alarm

to create alarms that will alert you when specifie d events take p lace.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Alarms

Double-click on

You may right-click the mouse on

Alarm to list the alarm already been configured.

Alarm to add a new alarm

up to 64 alarms. Click any desired alarm to enter the setup screen of

that alarm.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

For sensors, select High (Closed/ON) or Low (Open/OFF) to be the event condition. Note that for the alarm to be triggered, both

event conditions for the camera and the sensor have to be met.

3. Action

Recording & Relay Output:

To set actions, check the Recording column of the desired camera to start recording, and check the Enabled column of the desired relay to generate outputs when both the event conditions for cameras and sensors are met.

Relay and Full Screen on Motion retrieve

After an input is triggere d, the output of relay and full screen on motion will revert to normal status after the time you set.

Sound, Call out and Email will be activated

The output ways you designate after an alarm is generated offer you to decide the deferment once an alarm is trig ge r ed .

Full Screen on Motion:

During surveillance, you ca n have the system to instantly pop up the image (1-camera display mode) that has motion detected for a user-defined length of time.

1. Alarm ID

In the No. field, yo u can see th e ala rm numb er. Also, you c an set up the alarm name in the Name field.

2. Conditions

To set the event condition for cameras, check Motion

field of the desired cameras to make their detected motion as an event to trigger the alarm. And check Video Loss

field of the desired cameras to make their weak signal or video loss as events to trigger the alarm.

Sound Alarm:

Check Sound to play a .WAV file when an alarm is triggered. You can assign the path of a specific .WAV file for the system play, or

you can record a new .WAV file by clicking

. To do so,

follow the steps below:

A. Click

and the

recording utility pops up. B. Click C. Click

to start recording. to stop recording.

D. Save it as the .wav file.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Call Out:

If you have a voice modem installed, you can make the sy stem to call out to landline/mobile phone or pag er (maximum 5 sets in total) once an alarm is triggered. Follow the following instructions.

A. Check Call Out to enable this function. B. Select a corr ect model for your voice modem from the drop -

down menu of Voice Modem Installed.

C. Click

to bring up the dialog bo x below to set up the telephone information. Here you should follow the steps described below to set the landline/mobile phone or the pager number.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

clicking . After you complete the pager or phone information, click

to add this

number to the table.

c. Select Dial next line if busy or Dial All. In the

former case, the system will dial the next number when the current one is busy. But if the call enters the voice mail of the mobile phone or gets picked up by an answering machine, the system will act as if the call-out is completed and won’t dial the next line. Therefore, it is recommended for you to select the latter one, in which case the system will dial all numbers and send the warning message.

d. The

/ buttons allow you to update/delete a pager or a landline/mobile phone number. To update, you need to first select the target

Email:

number, key in the updated information, and then click number and click

. To delete, simply select the target

You can email alarm messages once an alarm is triggered. Follow the instructions below.

A. Check Email to enable this function. B. Se t the inte rval period and time to send the emergency e-mail.

a. Select Pager or Phone. b. Key in the numbers for the landline/mobile phone or

C. Click

up the email information.

to bring up the dialog box below to set

the pager, whichever you selected in step a. If you’re setting up a pager info., you can compose a text message you wish to send to a pager by using numbers, *, and # in the Message field. If you’re setting up a phone info., you can browse for a .WAV

file by clicking

or create a new .WAV file by

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Networking

Provide information for each field.

• SMTP Server: The domain name of your mail server or IP address. (eg. microjack.com.tw)

• From: The sender’s email address.

• To: The receiver’s email address. Use “;” (semicolon) to

separate each email address.

• Cc: The email addr ess to which you want to send a copy.

• Subjec t: The sub ject of this alar m mes sa ge.

• Alarm Message: The content of this email message.

D. You can click

4. Restore

Click restore your last settings.

to clear all the inputs. Click

to save the email settings or click

to exit the dialog box without saving.

to abort all the changes you made so far and

Click

1. General

Networking to enter the networking setup page.

Server IP:

In this filed, enter the IP address of the server for remote clients to access. Or you can choose from the drop-down menu where lists all the available IP for your computer. Event Log: This file, “history.log” keeps a record of all IP addresses of the

client’s computer during a remote transmission. You can click to change it’s location.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

2. Transmitting Cameras

Here you can select cameras allowed for remote monitoring.

3. Enable WebCam Server

Check here to enable WebCam Server for remote monitoring.

Port:

Set the port no. (default 80) for remote transmiss ion.

Ask for password when remote clients login:

Check here if you need remote clients to pro vide passwords when they login the WebCam server.

Web Root:

In this field, you need to browse for the path where the WebCam home page is stored. When the remote client login the WebCam server, it will link to the WebCam home page from this path.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

5. Dynamic DNS

In case a dynamic server is severed, please register a domain name with the IP address: ddns.dss.com.tw on line. Refer to

Appendix B for the further information.

Domain Name & Password

Enter the domain name and password given in the process of registering a domain name or obtain them by asking network administrator.

6. Update

Whenever the above settings are modified, click update.

7. Restore

The WebCam server doesn’t work under servers with IIS (Internet Information Servic e ) installed.

4. Enable Remote View server (Multicast server) via TCP/IP

If you want to transmit images for remote surveillance via TCP/IP, first check the checkbox to enable this func tion. Determine a port in Port box to connect client to a server with TCP port (default

9090). In addition, a fir ewall NAT function should be configured to enable the mutual transmission.

The following is the detailed illustration to co nfigure the connection:

Click restore your last settings.

8. Default

Click

to abort all the changes you made so far and

to change all values to their default settings.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Scheduler

Click Scheduler to enter the setup page for scheduler. You can schedule for monitoring, recording, or enabling network server by date or by weekday. Depending on your needs, after you set all the schedules, you can only enable the ones you currently need and disable the rest, which might be used later.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

2. Schedule Recording

You can choose to set the schedule by date or by weekday by selecting By Date or By Weekday.

By Date:

If you set the schedule by date, you can key in the date directly or choose from the drop-down menu and click

to add it to the

column. You can set multiple dates (max 60 days) for

a single task. To take off a date from the column, click on the date you wish to delete and press [Delete] or [Backspace] on the keyboard.

By Weekday:

If you set the schedule by weekday, directly choose any day in a week. Multiple days for a single task are also acceptable.

1. Enable

Check this to enable a schedule. Note that you still need to click

after you enable a schedule. Enabled schedules to monitor/record/enable netwo rk server are shown in whereas disabled schedules are shown in

/ / .

/ / ,

You can only set future dates to for a schedule. Dates in the past are not a cceptable.

3. Time

You can key in the start and ending time for the task in the following order: hour, minute, and AM/PM. Or use the up/down button to adjust the time. The start time must be earlier than the ending time. That means you can’t span the time to the next day. To schedule a task that covers more than 1 day, you need to separate it into 2 or more schedules for the sa me task .

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

4. Task

Here you can select the task you’re scheduling for. Monitor

If you select Monitor, the system will activate this button on the main menu when the scheduled time is due. The system will act according to the recording mode set in the

Monitoring

section. Meanwhile, the system will also monitor the eve nt conditions you set in the

Alarm section for the cameras and

sensors and trigger the alarm accordingly.

Record

If you select Record as the task, the system will have the chosen cameras to start recording at the scheduled time. The task you set here enjoys higher priority than the recording mode you set for each camera. That means, even if you have set the camera to

Record when motion detected or Don’t record in the Monitoring section, the camera will still start recording at the

scheduled time. Enable Network Server

When this is selected to be the task, the system will load network

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

If the time of the schedule you set for a task overlaps with the time of an existing schedule for the same task, the system will give you a warning message below. In short, the time of 2 schedules for the same task cannot overlap.

5. Cameras

When you select Record to be the task, you need to select the recording cameras here.

6. Comment

Put your remarks here as a reminder of any schedule.

7. Add

Click

to add a new schedule to the table after all the

necessary information is filled in this p age .

8. Delete

You can select any task you want to remove from the table and click

9. Update

server

based on your settings in the Networking

section and start the remote monitoring for transmitting cameras.

Alarm

If Alarm box is checked, the Alarm will execute according to the Alarm section you plan as long as the Time is due. To exercise the prior privilege of Scheduler, the Alarm will perform by the scheduled time even though it is not enabled in Alarm section of System Configuration.

To update a schedule, select it from the table, revise the information, and then click

to verify.

10. Restore

Click

to abor t all the changes made so far for a schedule

and restore its last settings.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

11. Table

This table lists all the schedules you have set. You can arrange the order of the schedules by clicking d ifferent buttons.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Click to view each camera’s schedules for the task Record.

Click

to view all the scheduled tasks.

Click

to view all schedules for the task Monitor.

Click Server.

to view all schedules for the task Enable Network

Backup

Double-click on

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Backup to view two backup methods:

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

1. Operation

There are three ways to backup your files:

Manual Backup and Schedule Backup. Click either to enter

the setup page for each backup method.

Manual Backup

Click

to enter the setup page for manual backup.

Move: Simply move files from their original folders to the destination folders you assigned in the Location field.

Copy: Copy files to the destination you assigne d in the Location field.

Delete all. Don’t make copies.:

Simply delete all the files and leave no copies.

2. Device

Select your backup device (CD-R or Hard Disk/ZIP) here. If you choose CD-R, you need to specify the size of the CD-R, which will limit the size of each recording folders. After finishing the backup, run a CD-R burning program to burn the folders into CDs

3. From/ To

Here you need to set the start and ending date/time.

4. Cameras

Select the cameras whose files you want to backup. Check

Audio to backup the recorded sound files.

5. Statistic

files and their total size.

6. Backup

Click

to calculate the number of the selected

to start the manual backup.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Schedule Backup

Click to enter the setup page for schedule backup. Depending on your needs, after you set all the schedules, you can only enable the ones you currently need and disable the rest, which might be used later.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

You can set the schedule backup by date or by weekday by selecting By Date or By Weekday.

By Date: If you set the schedule backup by date, you can key in the date directly or choose from the drop-down menu and click

1. Enable

Check this to enable a schedule for a backup. You still need to click

after you check to enable a schedule.

2. Schedule Backup

add it to the (max 60 days) for a backup schedule. To take off a date from the column, click on the date you wish to delete and press [Delete] or [Backspace] on the keyboard.

By Weekday: If you set the schedule backup by weekday, directly choose any day in a week. Multiple days for a backup schedule are also acceptable.

3. Location

You need to specify a destination here to move the backup files if you check Move To. If you check Delete all. Don’t make

copies., the system will delete all the files and leave no copies.

4. Start Time

Set the start time of the backup schedule.

5. Files betwee n the time

Start & End:

The system will look for files of the selected cameras between the Start and End time you set here. Adjust the time by hour/minute and AM/PM with the up/dow n button. Note that the start time cannot be later than the ending time. That means you can’t span the time to the next d ay. To backup files that cover more than 1 day, you need to separate the files into 2 or more backup schedules.

Days before schedule d da te s:

You can also backup files X days (user-defined) before the scheduled dates you put in the Schedule Backup section. Example: If you schedule for 2003/03/03 and 2003/03/06, and you enter “2” in the number of days before scheduled dates field, then the

column. You can set multi p le da tes

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

system will backup on 2003/03 /01 and 2003/03/04. So if you want the system to perform backup on the exact dates you scheduled, simply input “0” as the number of days before scheduled dates.

6. Camera

Select the cameras whose files you want to backup. Check

Audio to backup the sound files from the selected cameras.

7. Comment

Put your remarks here to serve as a reminder of a schedule.

8. Add

After all the necessary information is filled in this page, click

to add a new schedule for a certain task to the table.

All the schedules you have set will show up in the follow ing table.

9. Delete

Select the schedule you want to remove from the table and click

to delete.

10. Update

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

E-Map

Here provides a completely configured map where all cameras, sensors , and relays are set.

Double-click on

Right-click the m ouse on

E-Map to list the e-maps already been configured.

E-Map to add a new e-map. Click

any desired e-maps to enter the setup screen of that e-map.

Select the schedule you want to update, revise the information, and then click

to verify the update.

11. Restore

Click

to abort all the changes made so far for a

schedule and restore its last settings.

1. Fir s t define the name of e-map.

2. Configure e-map Import

If an image of m a p (bmp./jpg. forma t s are supported) has existed, click Import button to input the image which will be shown on the right side screen.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Edit

If you don’t have an image of map in hand or need to modify the image, click Edit button to bring out the bmp. or jpg. programs to create an one or revise it.

3. Arrange Cameras, Sensors, and Relays

To add a new event, drag the button of Camera, Sensor, or Relay in the left side field and drop in the desired position of the map. The buttons not be set up will be disabled. The chosen butto ns will be disabled. To delete, drag and drop it in any positions out of the map. Whichever camera you click on, the monitoring status of which will be displayed in the left bottom field.

4. Information

Put in some information for each event to be reference during operation. Each edit box is limited in 32 bytes.

5. Click Update button to save your current setup.

6. Click Restore button to recover the previous setup.

7. Click Default button to change the setup to default settings.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Users Information

Click to enter the setup page for user information.

1. Add New Users To add a new user, first fill the User ID, Full Name, Comment,

Password, Confirm Password, and Authorization Level

(System Manager, Administrator, Operator and User) f ields. Nex t select the cameras that can be remotely viewe d by this user and

click

2. Remote Visible Camera section

You need to select which cameras and whether the audio files are accessible remotely for the user you are going to add. You can check All Cameras to select all, including the audio.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

3. Delete

To delete a user, selec t that user and click Delete.

4. Update

You can update a user’s information by selecting that user, key in the latest information, and click Update.

5. Restore

During the modification of a user’s information, you can click Restore to abort all the changes made so far and restore the last settings.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Load / Stop Network Server

System Configuration

System

V V V

V V

Cameras V V

Audio

V V

Monitoring V V

6. Authorization Level

The EYES Pro/MP2016/MP3000/MP5000 surveillance system uses the following 4 authorization levels to classify users through password control.

System Manager Administrator

Operator User

You need to enter your ID and password to identify your authorization level when you login/logo ut, stop/start monitor ing, or load/stop network server. The table below illustrates the privilege of users from different levels when accessing each function.

4-Level User

Control

Function / Setup

Start / Stop Monitoring

System

Admin. Oper. User

Manager V V V

V V

Start / Stop Audio R ecording

Sensor V V

Relays

Alarms

V V V V

Networking V V

Scheduler

Backup

E-Map

User Information

Log Viewer

PTZ Controller

V V

V V V V

V V

V V V

V V V V

1-Camera Display

V V V V

2-Camera Display

V V V V

4-Camera Display

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

V V V V

9-Camera Display

12-Camera Display

V V V V

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

4.2 System Operation

This section describes how to operate EYES Pro/MP2016/MP3000/ MP5000 surveillance system.

16-Camera Display

1-Camera Enlarged Display

6-Camera Display

8-Camera Display

10-Camera Display

13-Camera Display

Full Screen Display

Start / Stop AutoScan

…

Focus Camera

The System Manager is allowed to operate all functions and to configure all settings for the system. The Administrator possesses

all the rights as the System Manager except to set the Information section of System Configuration. Operator has no rights to enter System Configuration. The User can only view the monitoring screen.

V V V V

User

Product Models

4 EYES Pro/MP3004/MP5004

4 EYES Pro/MP3004/MP5004 provid es Camera Enlarged Display, Display and

Start/Stop AutoScan.

4-Camera Display, Full-Screen

1-Camera Display, 1-

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

8 EYES Pro/MP3008/MP5008

8 EYES Pro/MP3008/MP5008 provides Camera Enlarged Display, Display, Screen Display an d

16 EYES Pro/MP2016/MP3016/MP5016 provides Display, 6-Camera Display, 10-Camera Display,

16-Camera Display, Full-Screen Display and Start/Stop

AutoScan.

Display Modes Each display mode is illustrated in the grids below. Numbers in the

grids represent the camera number.

1-Camera Display

Click this button to view image from a single camera. If you have more than one camera installed, you can click any number

camera.

8-Camera Display, 9-Camera Display, Full-

Start/Stop AutoScan.

16 EYES Pro/MP2016/MP3016/MP5016

1-Camera Enlarged Display, 4-Camera Display,

8-Camera Display, 9-Camera Display,

12-Camera Display, 13-Camera Display,

… (Focus Camera) to switch to a specific

4-Camera Display , 6-Camera

1-Camera Display, 1-

1-Camera

4-Camera Display

Click this button to split the screen into a 4-camera display. The screen will first display cameras 1~4. Click it again changes the display to cameras 5~8. Furthe r clicking will change the d isplay to cameras 9~12, 13~16, 1~4, and so on. See the followi n g sequence.

1 2

3 4

9-Camera Display

Click this button to split the screen into a 9-camera display. The screen will first display the camera 1~9. Click it again changes the display to camera 5~13. Further clicking will c hange the display to cameras 9~1, 13~5, 1 ~9, an d so on . See the fol l o wi n g sequence.

1 2 3 4 5 6 7 8 9

9 10 11 12 13 14 15 16 1

5 6

7 8

9 10

11 12

5 6 7 8 9 10 11 12 13

13 14 15 16 1 2 3 4 5

13 14

15 16

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

12-Camera Display

Click this button to split the sc reen into a 12-camera display. The screen will first display the camera 1~12. Click it again changes the display to camera 5~16. Further clicking will c hange the display to cameras 9~4, 13~8, 1~12, and so on. See the following sequence.

1 2 3 4

5 6 7 8

9 10 11 12

13 14 15 16

9 10 11 12

5 6 7 8

13 14 15 16

1 2 3 4

9 10 11 12

13 14 15 16

16-Camera Display

Click this button to split the screen into a 16-camera display.

1-Camera Enlarged Display

Click this button to split the screen into a 1-camera enlarged d isplay. Further clicking will change the enlarge d imag e to the next came ra.

6/8/10/13-Camera Display

Click this button to split the s creen into a 6/8 /10/13-camera display. Further clicking will change the enlarge d imag e to the next came ra.

Full Screen Display

Click this button to switch to full scre e n from all display modes.

1 2 3 4

5 6 7 8

9 10 11 12

13 14 15 16

Start / Stop AutoScan

AutoScan allows you to view each camera image in numerical sequence under 1-Cam Display mode. To enable this function, you need to go to

the

System section of System Configuration to check AutoScan and define the scan interval. After this function is enabled, return to the main menu and click this button to start/stop the AutoScan function.

Duri ng A uto S ca n, you c an c li ck

… Focus C am era to

jump to any camera.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

… Focus Camera

The number on each button represents the camera number. These buttons show the status (

enabled / disabled) of each camera. Under all display modes, when you click any of the camera number from the focus camera buttons, that particular camera will be switched to the first camera in display.

Start / Stop Monitoring

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

E-Map

After the configuring in the

E-Map section of System

Configuration, click this button to view the e-maps .

Camera Image

Click

to start/stop monitoring. If the system is recording videos from a camera, a red triangle will appear in the upper left corner of the image frame. If you set this camera image to be recorded upon detected motion, a green triangle will show up together with the red

one when you click

to start monitoring.

While monitoring, the system simultaneously mo nitors the cameras and sensors for the conditions you set in the

Alarms section of System Configuration. Once both conditions for cameras and sensors are met, the corresponding alarm will be triggered.

Start / Stop Audio Recording

Click this button to start/stop re co rd ing audio. Here it shows the volume of the current environment. According to the settings in the

Audio section of System Configuration, once the detected volume is greater than the sensitivity, the system will start to record the sound for a user-defined length of time. It will then save the .WAV file to the path you specified. Note that the auto s ound detection only works while the system is recording images from the camera.

1. Chose a map to view by clicking the map button

2. Check out Cameras, Sensors, Relays on the map Focus on the desired event by clicking on the event button on the map.

3. Monitoring Cameras, Sensors, and Relays. If any event is focused, the relative informatio n will pre sent in the

information field; otherwis e , you c an monito r the s tatus of the camera in the right upper window. The different colors of the icons on the map window will turn to different flashing colors accounting for as follows:

Information Area

… .

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Icon Color Status Icon Color Status

Camera

Yellow Normal

Blue Video Loss

Green

Motion

Detection

Sensor

Relay

Yellow

Yellow Normal

Normal

Red Activated

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Log Viewer

Log viewer allows you to playback log files from single channel as well as from 4/9/16 channels simultaneo usly. All the functions here will be introduced in operational order.

Click this button to enter the follow ing lo g v iewer page.

Video Search

Event Search

Relay

Red Activated

4. Click Exit to leave for main menu.

Load / Close Network Server

Click this button to load/close the network server, which allows for remote surveillance (Web Cam/RemoteManager). You will need to provide a password to identify your authorization level before the system actually loads/closes the network server. To configure the network settings, go to the Configuration.

System Configuration

Refer to section 4.1 - System Configuration.

Networking section of System

Event Indicator

End time of the file

Start time of the file search

Time of the cu rrently play ing file

Playback Speed Control

Playback Control Panel

Search/Stop buttons

Intelligent Search

Exit

Enable/Disable Audio Playback

Playback Display Mode

Image Adjustment, Zoom In, Zoom Out, Print, and Save

Search Result

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

1. Select Display Mode

When you enter this page, first select the d isplay mode by clicking

(1 Channel), (4 Channels), (9 Channels), and

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

B. Play

Click the

Playback button to play files from start to

end. You can also manually drag the slide bar in the directly to

(16 Channels). You can also click these buttons to switch

display mode during playback. To switch to a specific camera, click

… to play videos of that camera.

2. Audio Playback

If you also want to play audio files, click

to enable audio

playback.

3. Select Files to Play

Next you need to choose files that you want to playback.

A. Select Time

Click

to select the date & time for the start time (on the left) and end time (on the right) respectively. The system will instantly show video data that has motion (default event) detected during the specified time frame in the event indicator below.

the frame you want to play and click the

Playback button. The lines in the event indicator represent time points where the specified event has taken place.

4. Playback Control

Once you start to playback videos, you can use the following function buttons during playback.

Previous Frame

Pause

Next Frame

Move to Start

Reverse Playback

Playback

Move to End

5. Playback Speed Control

You can click the up and down buttons from

to adjust the playback speed. You can choose from 8, 4, 2, 1, 1/2, 1/4, and 1/8 times of the normal speed.

6. Image Quality

Click

to adjust the image quality. You can adjust the

brightness, contrast, color and saturation.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

7. Zoom

Click

/ to zoom in/out the image.

8. Print & Save

During playback, you can click the

Print or Save

buttons to print or save the current image.

Note that every image you save with the format of bmp. provides the functions of anti-counterfeit and anti-destruction. You can access Image Verify from

Programs to make verification for the saved images.

Video Search

Searches the recorded files shown in tree diagram by year/ month/ date/ hour/ minute/ second consequence.

To enable this function, complete the following tasks:

A. Click Video S ear ch and the Video Table searching list will pop up

such as the following window:

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

B. Click … the camera no. button to select the

camera no. which is switchable during searching.

C. Select the required recorded file from the Video Table list and

click Close to hide the window.

D. Once the Video Table hides, the initial and end time and status of

the chosen file will be shown on the left bottom of the window where the start and end time of the files and event indicator locate.

E. Click

Playback button to display the recorded file. During playing, the indicator in event indicato r will move with the display going and show the playing time in the field of the start time of the file.

F. Click Search Result to pop up the previous Video Table

searching list and take the steps above to review the recorded file .

Note that the searched peaks in Event indicato r field in this section denote the time points o f starting recording instead of the file positions. Therefore, a peak (not everyone) is likely to be displayed by clicking on a showed peak directly in Event indicator field.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Event Search

Searches the recorded files by the alarm condition and action within a specified period of time.

To make the function workable, complete the following steps:

A. Click Event Search and the playback control panel will turn into

the condition search panel as follow s :

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

G. Select the desired recorded files and click OK to hide Event Table.

Meanwhile, the status of the files will be seen on event indicator and the playback control panel pops up to replace the condition search panel.

H. Click

otherwise move the indicator on event indic ator directly to display the files. During playing, the indicato r will move with the display going and show the displaying time of the file in the field of the start time of the file.

I. Click Search Result to pop up the previous Event Table

searching list and take the steps above to review the recorded file .

Playback button on the playback control panel, or,

Note that the searched purplish red peaks in Event indicator field denote the recorded files that can be displayed on clicking them. However, the other searched peaks with other colors indicate the generations by the selected events that can’t be displayed on clicking them.

B. Choose the camera display mode … (1, 4, 9, 16 ch)

from playback di spl ay mode.

C. Set up the initial and end time for searching in the time fields on

the left bottom of the window.

D. Choose the search condition as the specified condition to search

the file from the condition search panel; Motio n detections, video loss, sensor inputs, relay outputs, audio, system call out, alarm recording.

E. Click Search Result to start searching and the coincident

recorded files will be shown on the pop-up Event Table searching list.

F. Click Stop Search to stop searching if necessary.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Intelligent Search

Searches t he recor ded fi les by Mask Area and Search Interval within a specified period of time.

To enable this function, complete the steps below:

A. Click Intelligent Search and the playback control panel will be

replaced by the search condition setting panel such as the following window:

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

G. Select the desired file and click OK to hide Intelligent Table.

Meanwhile, the status of the file will be seen on Event indicator and the playback panel pops up to replace the search condition setting panel.

H. Click

Playback on the playback control panel, or, otherwise move the indicator in event indicator directly to display the file. During playing, the indicator will move with the display going and show the displaying time of the file in the field of the start time of the file.

I. Click Search Result to pop up the previous Intelligent Table

searching list and take the steps above to review the recorded file .

9. Exit

B. Click

… the camera no. button to select the camera

no. which is switchable during searching. C. Set up the initial and end time for searching in the time fields. D. Determine a time value for Search Interval. E. Drag out a mask area with Mask Area and color box devices for

the specified detecting area. F. Click Search Result to start searching and the coincidently

recorded files will show the searching list on pop-up Intelligent

Table.

Click the

Exit button to exit log viewer.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

PTZ Controller

When you click this button, the PTZ control interface will pop up and allows you to control your PTZ cameras. Click this button again to hide this interface.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Focus

Press the + and – buttons any time during surveillance to increase/decrease the fo c al leng th to get a clearer image.

Direction buttons

Speed buttons

Zoom In/Out

AutoPan

Focus In/Out

AutoPan Path Group

Preset Positi on No.

1. PTZ Control

Direction & Speed

You may click the buttons on the outer circle to adjust the camera’s direction during surveillance. The inner c ircle contains buttons for 4 levels of PTZ rotating speed. Click on them to change the speed.

Zoom

Press the + and – buttons any time during surveillance to zoom in/out the object.

Preset Position No.

Anytime during the surveillance you can turn the camera to any desired position by directly clicking on buttons 1~16.

AutoPan Path Group

These buttons allow you to select the path of the AutoPan. For example, if you click

and then click the

AutoPan button, the AutoPan will do a s can from preset position 5Æ6, 6Æ7, 7Æ8, 8Æ5, 5Æ6 …… until you click the

AutoPan

You need to first choose the group of the AutoPan paths, and then click this button to run the Auto Pan. If you don’t choose a path

before you click the

AutoPan button, the following

warning will show up.

again.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Status Monitoring

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

The PTZ camera will run AutoPan based on your preset position settings. For example, if

is chosen and the Dwell/Speed

of preset position 1 and 2 are 3 seconds/30°per second and 6 seconds/90°per secon d.

Therefore, once you click the

AutoPan button, the camera

first turns at a speed of 30°/sec from its current position to position 1 and stays for 3 seconds, then from position 1 to 2 at a speed of

90°/sec and stays for 6 seconds. The camera continues to go around in such a fashion (2Æ3, 3Æ4, 4Æ1, 1Æ2, …..)

PTZ cameras of different makes can have different ways to run the AutoPan function and might differ from the above. Refer to the res pective user’s manual of the PT Z camera.

2. Exit PTZ Controller

Alarm / Relay /Sensor Status

On the right side of the main surveillance window is a panel that shows alarm, relay and sensor status. Installed sensors are shown in bright color while not installed ones remain dark. Once a sensor is activated, the color will turn yellow. For relays, installed ones are shown in bright color and activated one s turn yellow color.

When an alarm is triggered, the

will turn red color. Double-clicking on this button will bring up the following dialog box.

Simply click

to exit from PTZ controller interface .

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

The red dot next to the camera/sensor number indicates that the event condition for this particular camera/sensor has been met. The green dot indicates no event occurs. And the blue dots means the video signal is too weak or the video cable has been disconnected (video loss.) The list below lists all events in time order.

You may click the Reset button to clear the triggered alarms including camera recording, siren or other relay outputs. However, this action requires a password to confirm your authorization le vel. Click the Save button to save all alarm records. Click the Close button to close the dialog box.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Network Status

This area presents you the curr ent network status. You can also click

in the upper-right corner of the main surveillance window to get a

full list of network related events.

Hard Disk Status

This area shows the remaining hard disk space and time (in hours) for video recording. When you double-click on this area, a dialog box that lists all recording-related events and disk spac e will po p up.

You can click the Save button to save the events. Or click the Recycle button for the system to check if the har d disk needs to start recyc ling. Click the Cancel button to exit.

Note that

will flash in maroon color during data transmission.

Here shows the date and time.

Date / Time

100

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Exit / Re-login EYES Pro/MP2016/MP3000/MP5000

When you want to exit or re-login the system, c lick logout screen below:

to enter the

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Chapter 5 Using the WebCam

You can monitor images from the MicroJack EYES Pro/MP2016/ MP3000/MP5000 server using Internet Explorer browser. The MicroJack EYES Pro/MP2016/MP3000/MP5000 system has built in HTTP protocol and web server services.

Note that WebCam function must be running in Internet Explorer with version 6.0 SP1 (6.0.28) or above.

5.1 Enable WebCam

Before you start monitoring from the remote browser, verify that the MicroJack EYES Pro/MP2016/MP3000/MP5000 server has finished the following settings.

1. IE setting

Access Internet Options setting from Control Panel as the following dialog.

Click

Click surveillance system as another user.

Click window.

Click

to stop monitoring and logout.

to login the EYES Pro/MP2016/MP3000/MP5000

to cancel the logout and go back to the surveillance

to minimize the surveillance window.

a. Select Security page to configure Internet and Local

internet sectors respect i v e ly.

101

102

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

b. Click Custom Level button to pup up the following dialog.

Check Enable or Prompt radio button both in Download

signed ActiveX controls and Download unsigned ActiveX controls. Click OK to save the setting.

2. Enable Web Cam (see

• Verify IP address.

• Select cameras to perform remote transmission.

• Check Enable WebCam server.

• Click the Update button and exit the dialog box.

Networking)

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

3. Load Network Server

Click networking function.

at the bottom of the main menu to enable the

5.2 Use the WebCam

You can browse the home page of WebCam with Microsoft IE or Netscape Navigator to access desired server by key in the IP or domain name of which.

When you enter the home page, you can see the system defaults to 1Camera display. You can click these buttons to change different numbers of split display:

1-Camera Display (640x480)

4-Camera Display (320x240) 6-Camera Display (320x240)

8-Camera Display (Enlarged : 480x360, Small: 160x120)

9-Camera Display (320x240)

10-Camera Display (Enlarg ed: 320x240, Small: 160x120)

16-Camera Display (160x120)

103

104

MicroJack User’s Manual

a ag

EYES Pro/MP2016/MP3000/MP5000

When the remote transmitting cameras are more than the split display number, you can click

to switch the screen to display the following cameras. For example, the server has assigned camera 1, 2, 3, 5, 7, 10, 13, and 16, in total 8 cameras for remote transmission.

If you select 4-Camera Display,

1 2

Downloadin

Downloading

Images…

Downloading

Images…

Downloadin

Images…

Click

Downloading

Images…

Downloadin

Images…

Downloadin

Images…

Downloadin

Images…

Click

If you select 6-Camera Display,

1 2 3

Downloadin

g Images…

Downloadin g Images…

Click

Downloadin g Images…

Downloadin

g Images…

Downloadin

g Images…

Click

Downloading Images…

16 1 2

You can also change the display sequence by assigning different cameras to different channels. Click

drop down menu

in Server Channel No. corresponding

to select a channel from the

to camera no. If the selected cameras are not remote v iewable, then the image on the screen will not change.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Chapter 6 RemoteManager

6.1 Accessing RemoteManager

You need to install the remote surveillance program RemoteManager from the CD-ROM (See Chapter 3 - Software Installation.)



Note that the operation system of Microsoft and XP are recommended for RemoteManager program.

The RemoteManager program allows you to manage the server from a workstation almost as if you were working from the server console. This will allow you to be able to configure the server from a remote loc ation.

Exit Rem

Start Recording

Setup

Playback

Center Mana

PTZ Control

Screen Split

te M

n er

ement

Windows 2000

Alarm Report

Channel Status

Time Date Rest / Total HDD Space

105

106

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Once you first start the program by clicking the shortcut of Remote Manager on your desktop, a Login dialog right side will prompt you to enter the user ID and password to access to the program. Note that only “root” is the acceptable user ID for the initial access. And a User Management window for permitting the beginning into the system will be seen. To set the setting of the permission, refer to the 6.3.1 Center Management for the detailed description.

Alarm Report

The image will turn into red and be flashing once an alarm is trigger ed. An alarm message with the detailed alarm status will be seen after you click on it. It will help you control the situation of sur veillance.

Channel Status

An area where the status of all the channels will be shown as the following description and is with a tip of channel’s, server’s, camera’s names while your cursor points the button:

Dark Gray All Disabled

Flashing Pale Gray Video loss

Azure Normal and the image is displayed on the screen Dull Blue Normal but the image had been disabled to display Pink Red Recording and the image is displayed on the scre e n Dark Red Recording but the image had been disabled to display

If a camera is not enabled, the ima will show as the ima

e from this camera

e above

(gray scale) on the screen .

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

If a camera is disconnected to the server or the si

nal from the server is disconnected to the local camera, the ima above on the screen. The si

e will show as

nal will be picked up at an interval of one minute until it is received.

Display Mode

Select a display mode to arrange the presentation of the screen.

Full Screen

1-Cam Display

4-Cam Display 9-Cam Display 16-Cam Display No matter what channel mode you choose, you can assemble the channels as you wish by clicking Channel Status

to me et the amount of the mode. For example, if you choose 4-Cam display mode, you can click 4-Cam display (1,4, 8, 13), (3, 5, 7, 8), or other groups of the channels to meet the quantity of 4 channels mode.

6.2 Setup

107

108

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

6.2.1 User Management

User Management provides the easy management to safeguard the system from the unidentified users. Only the root is authorized to configure this section.

To achieve the setting, complete the following steps:

1. Click User Management. The following windo w will app e ar:

2. Use Add/Delete/Rename button to arrange User field.

3. Determine a password and make a confirmation.

4. Click Save to save the setup of password.

5. Click OK to save or Cancel to de le te the pr ev ious arrangement.

6. Back to main menu by clicking

6.2.2 Storage Configuration

Assign Recording Disks

First you need to assign the recording disks for your folders’ storage. Click

to browse for the folder to save the recorded videos in a specific path and click Add button to create it. Pay a particular attention on the path definition, the path where the recording files locate has built-in a “\USER\ your ID\” folder., i.e., an indicated path ”C:\Surveillance\record ing” by a root should be searched with the path “C:\Surveillance\recording\USER\root.” You can click Delete button to remove anyone of the recording disks, as long as there is at least 1 disk left to save the recording data.

Minimum Space & Safe ty Q uo t a

Next you need to provide the minimum space and safety quota for hard disk recycling. During hard disk rec ycling, the newly recorded files will overwrite the old ones. This way the system will not run out of hard disk space to save the recorded videos. Minimum Space: The system will start hard disk recycling when the hard disk fr ee sp ac e is less than a user-defined number. The user-defined number has to be greater than 450MB, the system defaults to 450 MB.

109

110

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Safety Quota:

Once the hard disk starts recycling, the system won’t stop until the hard disk free space becomes more than a user-defined number, say 6000MB (default value). Safety quota should be at least 5550 MB more

than the minimum sp ac e you ass igned.

6.2.3

Camera Setup

The setting is placed according to the privilege of every server for the cameras corresponding to the 16 channels respectively. Follow the tasks below to finish this section:

1. Click Camera Setup. It will show a window like the following:

2. Change channel’s names by directly click on .

3. Arrow down the list to selec t the Server’s and Camera’s names for each channel.

4. Check Display to show the images on the screen and Recording to enable the recording functi on fo r each chan n el .

5. Click OK to save or Cancel to de le te the pr ev ious arrangement.

The listed servers and cameras in the pull-down menu are decided by the settings of the each of the servers.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

6.2.4 Schedule Recording

The function allows you to plan the recording schedule by date or weekday for all the channels.

Do the steps following:

1. Click Schedule Recording to get the window besides:

2. Check the recording by date or by weekday and choose the time by clicking the arrow of the box

. The

following window will show as:

3. Click on the yy/mm position directly and use the upper left and upper right arrows and the red circle in the bottom left corner window to specify a date to be an operating time.

111

112

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

4. Click to confirm the time setting. A settled time will appear on the right blank box. Click Delete to delete the previous time setting.

5. Set the Start and End time by the up and down arrows

Time field.

6. Check the desired cameras to be involved into the schedule in Camera field.

7. Mentioned comment is allowed by using Add/ Delete/ Update/ Restore buttons for the further information while reco rd ing.

8. Click Ok to save or Cancel to delete the previous arrang ement.

Once the recording has been generated as the schedule, the r ecording status is observed in Channel Status field.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

server for connecting. Bes ides, establish another f ixed UDP port (9191) for transmitting images fro m server to client. In addition, a firewall NAT function should be configured to enable the mutual transmission.

The following is the detailed illustration to configure the connection:

6.2.5

Network Setup

If you want to transmit images for remote surveillance via TCP/IP, first click this button to pop up the follow ing dialo gue.

1. First determine a UD P por t (Default 9190) to re c eive the images from server.

2. Select TCP port connecting to server via Auto assignment or specify at least 32 ports at a range from 1025 to 65535 for transferring image and receiv ing commands.

3. Click OK to save the setting or Cancel to quit the dialogue without saving.

Make sure leaving a free port (9091 recommended) in

6.2.6

Sensor Status

The sensor status is viewed on the consequent window by clicking this button.

6.2.7

Relay Status

The relay status is viewed on the consequent window by clicking this button. Otherwise, you can set the duration of the relay output after a relay triggered. Note that the duration value ”0” denotes the incessant relay output.

113

114

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

6.2.8 Alarm Control

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

6.3 Operating the RemoteManager

It is available to choose the server and decide to enable or disable the corresponding alarms.

1. Click Alarm Control to see the window for alarm status.

2. To enable an alarm, simply click on

in the Status column and

change the status to

3. Click the OK button to save the setting.

6.2.9

Back to the main menu by clicking this button.

Back to Main Menu

6.3.1

Users can take advantage of this section to manage the connectable servers’ detailed informatio n. The setting should be placed before you commence configuring the system at the first time.

There are two ways to connect server:

First you should connect to the server manually via modem before accessing RemoteManager. Then, it is allowed to add a new server as a dial-up server is installed by server and a dial-up networking established by client.

2. Once the function “Enable Remote View server via TCP/IP” in

the setting of Networking section in system configuration has been checked, you are allowed to add a new server via TCP/IP.

Center Management

Connection via Modem to Modem (refer to Appendix A for the

connection):

Connection via TCP/IP

115

116

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Before arranging center manager section, ple ase make sure RemoteView server enabled in networking section of System Configuration.

To offer the complete information, finish the steps below:

1. Click Center Manager button and the following window appears:

2. Click Add to include an available server to server list. The Add Server window will show as follows or click Delete or Update to modify the setting.

3. The multicast servers in LAN will be listed automatically on the left side of the dialog. You can highlight the server which you want to add and click OK or directly double click the server to add a new multicast server.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

5. The following pop-up window of Add Server will show the Server Name automatically if the IP Address is correct and has been

connected. In that case the ser ver name doesn’t show up, please check the connection between ser ver and remote client.

If the port number has been changed in server end, please delete the server and set a new one.

User Finish the user’s information given by the specifie d s erver. Conneting quality

Here allows user to pick a proper conneting speed for each server to adjust the network quaility. Drag the slide bar to select one connecting speed out of 11 levels. Namely, if the update of the image is almost failed, you sould to increase the connectining speed. Note that the higher quality needs the higher baud rate. Click OK to save to add the new server in center management or Cancel to quit the setting.

4. In order to add a new server in WAN, enter the IP Address or domain name of the desired server and the same port number as the setting in Networking section of the server (default 9090). Check Use Dial-Up Networking to configure the further setting of network if the network connectio n is via modem to modem. Click OK to start connecting or Cancel to quit the dialog.

117

Note that the connecting speed in remote client had better meet with that in server.

6. You will be prompted to click OK in the following window to into the Camera Setup window once one of the users of server has been deleted. About the instruction of the Camera Setup, please refer to 6.2.3 Camera Setup section.

7. Repeat the steps above to add a new server. The maximum numbers of server are limited in 16 for the 16 channels.

118

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

6.3.2 Playback

Once in the playback mode, users can view log files recorded in the local/remote hard disks. Click this button and select the kind of f ile you want for playback: Local Playback or Remote Playback.

Local Playback

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

3. Highlight the file you want to review and use the buttons below to

control the video pl ayback.

Playback

Click this button to playback the selec t ed file .

Reverse Playback.

Pause

Move to Start Move to End

Previous Frame Next Frame

Slide Bar

You can drag the slide bar directly to the frame you want to play.

/ Zoom In/Out

Click the buttons to zoom in or out the images.

1. Click Playback to display the screen below.

2. From the cameras’ list shown in time diagram, choose the desired camera folder first and the time folder by yy/mm/dd then. Consequently, the files ranged within the selected time will be listed in time sequence in the file directory.

The files are located on the local computer so that only the enabled cameras by local user will be found in the file list.

119

Image Quality

You can adjust the brightness, contrast, hue and saturation.

Click the button to print the current image.

Save

Use the playback panel to choose a desired frame and then click Save button.

Delete

Click the button to delete the current file and make sure by clicking Ok button on the pop-up window.

120

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Backup

When you review the log files, you can click this button to save the files onto your local disk.

Remote Playback

1. Select Remote Playback to configure the further setting

Time

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

3. Refer to the 2~3 steps in the previous Local playback section to view the files.

Determine a start time and the duration (up to 60 minutes) by clicking on the arrows.

Channel

Check the desired channels to display while playback.

2. Click OK to save the setup or Cancel without any saving to enter remote playback window below:

121

4. Back to the main menu by clicking

122

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

6.3.3 PTZ Control

Once you have installed a PTZ camera, the functional utility will help you to exert the control on the surveillance.

To enable the function, follow with the steps below:

1. Click PTZ Control to show the following window:

2. Designate a channel ... connected with PTZ camera

for the further setting.

Preset Position Setup

Each PTZ camera can set 16 preset positions. You can move the camera to a desired preset position simply by clicking on the number of the preset position. To set a preset position, first select the number of the preset position and set the direction speed. Then configure the camera’s position with the directional contr o l buttons, f ocus in/fo cus o ut buttons, and zoom in/zoom out buttons. Finally set the stay time, rotation speed, and click the Save button.

Direction Control

Adjust the camera’s direction with the following eight buttons; Up / Down / Left / Right / Upper Left / Bottom Left / Upper Right / Bottom Right.

Direction Speed

There are four speeds to decide the moving speed of the PTZ camera during adjusting Direction Control

Focus in

Decrease the focal length of the camera to focus on the image.

Focus out

Increase the focal length of the camera to focus on the image.

Zoom in

Zoom in to enlarge the image of the object.

Zoom out

Zoom out to reduce the image of the object.

123

124

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Dwell (Sec)

During AutoPan, this button determines the time for the camera to stay (1~60 seconds) at one position before rotating to the next position.

Rotation Speed (deg/s)

You can set the speed (5~255 deg/s) by the left and right arrows at which the camera rotates from its curr ent position to the next preset position.

Save

After you finish setting a preset posi tio n, you need to click this button to save it and go on to set the next preset position.

Clear

Click this button to clear the setting for the current preset position.

Group

Each PTZ camera has 4 groups to comply with the position sequences as follows: Group 1: 1~4 positions Group 2: 5~8 positions Group 3: 9~12 positions Group 4:13~16 positions

6.4 Start Recording

Manually enable the recording setting arranged in the Schedule Recording section by clicking this button. Meanwhile, the recording

status is visible in the Channel Status field and Start Recording button will turn into transparent red.

6.5 Exit RemoteManager

Click this button to exit RemoteManager. First a password control window will prompt you to enter the password to make sure your authorization. Then a window below will appear to confirm the quit. Click OK to ex it or Cancel to bac k to the sy s te m

AutoPan

Choose a group number first, and click this button to enable this function.

Back to Main Menu

Click here to back to main menu.

125

126

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Appendix A Remote Login with an Modem-to-Modem Connection

To run RemoteManager over a direct Modem-to-Modem connection between the MicroJack EYES Pro/MP2016/MP3000/MP5000 server and the remote client, follow the instruc tions in the section of the operating system you are using.

When using Modem-to-Modem connectio n, if the MicroJack EYES Pro/MP2016/MP300 0/MP5000 server is running on a Windows 98 system, the client cannot login from a Windows 2000 or Windows XP system. The client can only login from a

Windows 98 system when the server is running on a Windows 98 syst em. It is suggested that the server ru n with Windows 2000 or Windows XP system.

A.1 Windows 98SE / Windows Me

1. Server:

A. Install the Dial-up Server. Go to Control Panel and double-

click Add/Remove Programs. Select the Windows Setup tab.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

B. Select Communication and click . The

Communication dialog box will show up. Check the box next to Dial-up Server and click the OK button.

C. Click the OK button in the Add/Remove Programs

Properties dialog box and the system will start to install the Dial-up Server. If you’re using Windows 98SE, you will be prompted to insert the Windows 98SE CD -ROM.

127

128

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

D. After finished installing the Dial-up Server, you need to enable

the Dial-up Server. Go to

StartÆProgramsÆAccessoriesÆCommunications and click Dial-up Networking. You will enter the window below.

E. Click the Connections tab and select Dial-up Server to enter

the setup page.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

F. Check Allow caller access to enable the Dial-up Server. Click

to set the login password and then click

to change the server type. Select PPP from the drop-down menu and then click the OK button to finish the ISDN setup for the server end.

2. Client:

A. Go to StartÆProgramsÆAccessoriesÆCommunications

and click Dial-up Networking. Double-click Make New Connection to bring up the Make New Connection wizard. Enter the server’s name and select the ISDN device you are using. Click the Next button to continue.

129

130

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

B. Provide the server’s telephone number, including the area code,

and click the Next button to finish creating the new connection.

C. Go back to the Dial-up Networking window and double-click

the connection you just created. In the Connect to dialog box, enter any User name and the Password set in step F of the

server’s ISDN setup procedure. Click connecting to the MicroJack EYES Pro/MP2016/MP3000/MP5000 server.

D. After you get connected, access Start Æ Programs Æ Digital

Video Surveillance System Æ RemoteManager to launch RemoteManager. Refer to Chapter 6 RemoteManager to login. (Default IP address: 192.168.55.1)

to start

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

A.2 Windows 2000

1. Server:

A. Go to StartÆProgramsÆAccessoriesÆCommunications

Wizard. Click the Next button. and click Network and Dialup Connections. In the Network and Dial-up Connections window, double-click Make New Connection to bring up the Network Connection

B. Select Accept incoming connections and click the Next

button.

131

132

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

C. Select the ISDN device you’re using and click the Next button.

D. Select Allow virtual private connections and click the Next

button.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

E. Select users allow ed to connect to this computer from the list

or click click

to create new users. For each user,

to set the user’s password, which is required when the user login the server. After you finish, click the Next button to continue.

F. Make sure that Internet Protocol (TCP/IP) is selected and

click

to enter the Incoming TCP/IP

Properties dialog box.

133

134

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

G. Check the boxes next to Allow callers to access my local

area network and Specify TCP/IP addresses. Set the

From IP as 192.168.55.1 and the To IP as 192.168.55.2. Click the OK button and then click the Next button in the Network Connection Wizard.

H. Click the Finish button to complete the ISDN setup for the

server end.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

2. Client:

A. Go to StartÆProgramsÆAccessoriesÆCommunications

and click Network and Dial-up Connections. In the

Network and Dial-up Connections window, double-click Make New Connection to bring up the Network Connection Wizard. Click the Next button.

B. Select Dial-up to private network and click the Next button.

135

136

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

C. Provide the server’s telephone number, including the area code,

and click the Next button.

D. Select For all users and click the Next button.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

E. Click the Finish button to complete the connection setup.

F. Go back to the Network and Dial-up Connections window

and double-click the connection you just created. In the dialog box, enter any User name and the Password set in step E of

the server’s ISDN setup procedure. Click connecting to the MicroJack EYES Pro/MP2016/MP3000/ MP5000 server.

G. After you get connected, access Start Æ Programs Æ Digital

Video Surveillance System Æ RemoteManager to launch RemoteManager. Refer to Chapter 6 RemoteManager to login.

to start

137

138

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

A.3 Windows XP

1. Server:

A. Go to StartÆProgramsÆAccessoriesÆCommunications

and click New Connection Wizard. Click the Next button.

B. Select Set up an advanced connection and click the Next

button.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

C. Select Accept incoming connections and click the Next

button.

D. Select the ISDN device you’re using and clic k the Next button.

139

140

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

E. Select Allow virtual private connections and click the Next

button.

F. Selec t users allowed to connect to this computer from the list

or click click

to create new users. For each user,

to set the user’s password, which is required when the user login the server. After you finish, click the Next button to continue.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

G. Make sure that Internet Protocol (TCP/IP) is selected and

click

to enter the Incoming TCP/IP

Properties dialog box.

H. Check the boxes next to Allow callers to access my local

area network and Specify TCP/IP addresses. Set the From IP as 192.168.55.1 and the To IP as 192.168.55.2. Click the OK button and then click the Next button in the Network Connection Wizard.

141

142

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

I. Click the Finish button to complete the ISDN setup for the

server end.

2. Client:

A. Go to StartÆProgramsÆAccessoriesÆCommunications

and click New Connection Wizard. Click the Next button.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

B. Select Connect to the Internet and click the Next button.

C. Select Set up my connection manually and click the Next

button.

143

144

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

D. Select Connect using a dial-up modem and click the Next

button.

E. Enter the name of this connection and c lick the Next button.

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

F. Provid e the server’s telep hone number, including the area code,

and click the Next button.

G. Enter any User name and the Password set in step F of the

server’s ISDN setup procedure. Click the Next button to continue.

145

146

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

H. Click the Finish button to complete the connection setup.

I. Go to StartÆProgramsÆAccessoriesÆCommunications

and click Network Connections. Double-click the connection you just created. In the dialog box, enter any User name and the Password set in step F of the server’s ISDN setup

procedure. Click MicroJack EYES Pro /MP2016/MP3000/MP5000 se rver.

to start connecting to the

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

Appendix B Registering Domain Name on DDNS Server

DDNS (Dynamic Domain Name Service), a data query service chiefly used on Internet for translating hostnames into Interne t address es. I t is allowed the remote clients intelligently searc h dynamic servers without any previous enquiring for servers’ Internet addresses.

In order to take advantage of the intelligent service, please first regis ter your domain name on the website: ddns.dss.com.tw

1. User Login Browse the website ddns.dss.com.tw

Navigator to access the following dialog ue.

First input the serial number of your product and select the product name. Then click OK to login or Reset to clear the previous input.

with Microsoft IE or Netscape

J. After you get connected, access Start Æ Programs Æ Digital

Video Surveillance System Æ RemoteManager to launch RemoteManager. Refer to Chapter 6 RemoteManager to login.

147

2. Pas sword

Set a password to secure your identification.

148

MicroJack User’s Manual

EYES Pro/MP2016/MP3000/MP5000

3. User Information Please provide the following user information, Host Name,

Password, E-mail, Company, and Country to complete the registration procedures.

Note that Host Name and Domain Name (ex: microjack.dss.com.tw) are the replacement for Internet address while a remote client tends to search a dynamic server in RemoteManager 6.3.1.

149

Intel MP5000, MP2016, MP3000 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
