Intel LGA775 User Manual

MB865
LGA775 Pentium 4 Intel 865G
Industrial Motherboard
USER’S MANUAL
Version 1.0
Acknowledgments
Award is a registered trademark of Award Software International, Inc. PS/2 is a trademark of International Business Machines Corporation. Intel and Pentium 4 are registered trademarks of Intel Corporation. Microsoft Windows is a registered trademark of Microsoft Corporation. Winbond is a registered trademark of Winbond Electronics Corporation. All other product names or trademarks are properties of their respective owners.
ii MB865 User’s Manual

Table of Contents

Introduction
Product Description.............................................................1
Checklist..............................................................................2
Specifications......................................................................3
Board Dimensions...............................................................4
Installations
Installing the CPU...............................................................6
ATX Power Installation ......................................................6
Installing the Memory.........................................................7
Setting the Jumpers .............................................................8
Connectors on MB865 ......................................................12
Watchdog Timer Configuration........................................24
BIOS Setup Drivers Installation

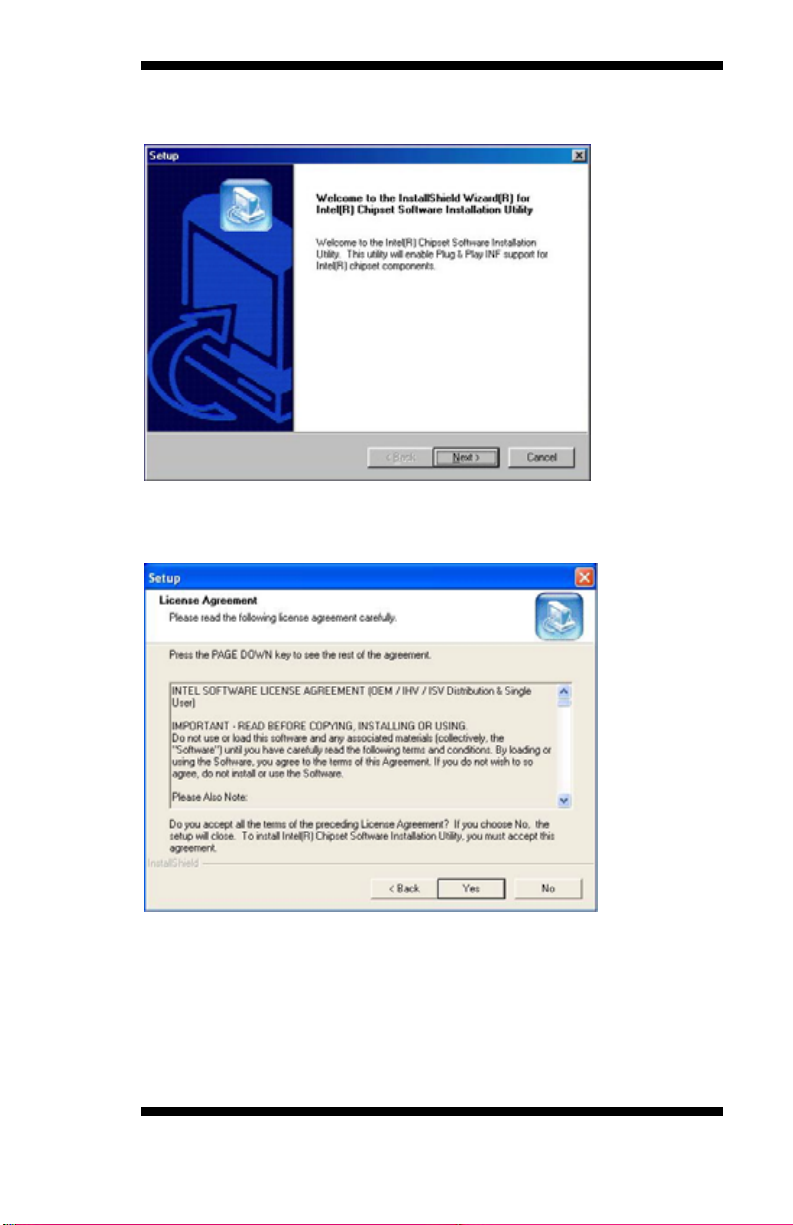

Intel 865G Chipset Software Intallation Utility................52
Intel 865G Chipset Graphics Driver..................................55
Realtek AC97 Codec Audio Driver Installation................57
Intel PRO LAN Drivers Installation..................................58
.......................................................1
.......................................................5
.......................................................27
......................................51
Appendix
A. I/O Port Address Map...................................................59
B. Interrupt Request Lines (IRQ)......................................60
MB865 User’s Manual iii
...........................................................59
This page is intentionally left blank.
iv MB865 User’s Manual
INTRODUCTION
Introduction
Product Description
The world's first Pentium 4 LGA775 industrial motherboard based on the Intel® 865G chipset, MB865, supports processor FSB of 533/800MHz for processor speeds of up to 3.8GHz. With two DDR memory socket on board, the motherboard accommodates a maximum memory capacity of 2GB. Integrated chipset-graphics features CRT VGA support with up to 64MB shared memory, while Ethernet functionality is provided by an Intel® 10/100Mb and an optional Gigabit Ethernet.
Supporting the latest LGA775 processors, the MB865 supports four COM ports based on the Winbond I/O chipset on board. A total of six USB 2.0 ports can be used, as well as two serial ATA ports for high data transfers. Advanced storage comes in the form of a type 2 Compact Flash socket.
Interface function is available with one 8X AGP slot, four PCI slots and two ISA slots. This ATX-form-factor board has dimensions of 305mm by 244mm. Other features include a watchdog timer and 4-in/4-out digital I/O.
The board comes in three models, as of this writing – MB865, MB865F and MB865V. MB865 has 10/100Mb Ethernet, while M B865F has both 10/100Mb and Gigabit Ethernet. MB865V uses the 865GV chipset, has 10/100Mb Ethernet, but without AGP slot.
MB865 User’s Manual 1
INTRODUCTION
Checklist
Your MB865 package should include the items listed below.
The MB865 Industrial motherboard
This User’s Manual
1 IDE Ribbon Cable
1 Bracket for 1 Serial Port
1 Bracket for 2 Serial Ports
1 SATA Cable
I/O Shield Plate
1 CD containing the following:
Chipset Drivers
Flash Memory Utility
2 MB865 User’s Manual
INTRODUCTION
Specifications
Form Factor ATX CPU Type LGA 775 (Intel® Pentium® 4 / Celeron D) System Speed 2.53GHz~3.8GHz CPU Operating Frequency Green /APM APM1.2 CPU Socket LGA775 Chipset
BIOS Award BIOS; Support ACPI function Cache 256K/1MB/2MB Level 2 cache VGA 82865G built-in, support CRT AGP port AGP 8X interface 1’st LAN Intel 82551QM 10/100Mb Ethernet 2’nd LAN Intel 82547GI (CSA port) 1 Gigabit LAN controller Audio ICH5 built-in audio controller + AC97 Codec
Memory type LPC I/O Winbond 83627HF: IrDAx1 Parallel x1, COM1
Secondary IO Fintek F81216 support COM3, COM4 (RS-232) RTC/CMOS ICH5 built-in Battery Lithium Battery Keyboard Controller Winbond 83627HF built-in EPP/ECP Yes IDE ICH5 built-in, IDE1, 2 (Ultra DMA 33/66/100) CF connector 1 port, type II (use IDE2 slave) Serial ATA connector 2 ports Board Size 12” x 9.5” D-type connectors PS/2 keyboard/mouse, VGA (CRT), COM1, Printer,
Power Connector ATX 12V – 24-pin Expansion Slots
PCI to ISA Bridge Winbond 83628,83629 USB 6 ports, USB 2.0 (D-sub x 4 + pin header x 2) IrDA Pin header Digital I/O 4 in / 4 out Watchdog Timer Yes (256 segments, 0,1,2…255. sec/min) System Voltages +5V, +12V, -12V, 5VSB, -5V, 3.3V
533MHz / 800MHz
Intel® 865G / 865GV Chipset GMCH: 82865G 932-pin FC-BGA ICH5: 82801EB 460-pin MBGA FWH
ALC655 (5.1 channel) 2 x DDR 2.5V DDR400/333/266 SDRAM DIMM module (support dual channel), Max. - 2GB
(RS-232), COM2 (RS-232/ RS422/RS485), FDC
1.44MB, Hardware monitor (3 thermal inputs, 8 voltage monitor inputs, VID0-4 , 1 chassis open detection , 3 Fan Header)
Audio, (USBx2 +RJ-45) x2
AGP slot, 4 PCI Slots, 2 ISA slots (MB865V has no AGP slot)
MB865 User’s Manual 3
INTRODUCTION
Board Dimensions
4 MB865 User’s Manual
INSTALLATIONS
Installations
This section provides information on how to use the jumpers and connectors on the MB865 in order to set up a workable system. The topics covered are:
Installing the CPU........................................................................6
ATX Power Installation............................................................... 6
Installing the Memory.................................................................. 7
Setting the Jumpers...................................................................... 8
Connectors on MB865............................................................... 12
Watchdog Timer Configuration................................................. 24
MB865 User’s Manual 5
INSTALLATIONS
Installing the CPU
The MB865 motherboard supports a LGA 775 processor socket for Intel® Pentium® 4 processors.
The LGA 775 processor socket comes with a lever to secure the processor. Refer to the pictures below, from left to right, on how to place the processor into the CPU socket. Please note that the cover of the
LGA775 socket must always be installed during transport to avoid damage to the socket.
ATX Power Installation
Power is provided to the MB865 motherboard with the ATX1 standard 24-pin ATX power supply connector and J5 ATX 12V power connector. These two power connectors should be utilized for the motherboard to function.
6 MB865 User’s Manual
INSTALLATIONS
Installing the Memory
The MB865 motherboard supports two DDR memory sockets for a maximum to tal memory of 2GB in DDR memory ty pe. The memory module capacities supported are 64MB, 128MB, 256MB, 512MB and 1GB. The following table lists the supported DDR DIMM configurations. Intel 865G supports configurations defined in the JEDEC DDR DIMM specification only (A,B,C). Non-JEDEC standard DIMMs such as double-sided x16 DDR SDRAM DIMMs are not supported.
Supported DDR DIMM Configurations.
Density 64 Mbit 128Mbit 256Mbit 512Mbit Device Width Single/ Double 184-pin DDR
Installing and Removing Memory Modules
To install the DDR modules, locate the memory sl ot on the motherboard and perform the following steps:
X8 X16 X8 X16 X8 X16 X8 X16
SS/DS SS/DS SS/DS SS/DS SS/DS SS/DS SS/DS SS/DS
64/128MB 32MB/NA 128/256MB 64MB/NA 256/512MB 128MB/NA 512/1024M 256MB/NA
1. Hold the DDR module so that the key of the DDR module align with
those on the memory slot.
2. Gently push the DDR module in an upright position until the clips of
the slot close to hold the DDR module in place when the DDR module touches the bottom of the slot.
3. To remove the DDR module, press the clips with both hands.
MB865 User’s Manual 7
Lock
Lock
DDR Module
Lock
Lock
INSTALLATIONS
Setting the Jumpers
Jumpers are used on MB865 to select various settings and features according to your needs and applications. Contact your supplier if you have doubts about the best configuration for your needs. The following lists the connectors on MB865 and their respective functions.
Jumper Locations on MB865..........................................................9
Configuring the CPU Frequency.................................................. 10
JP1, JP2, JP3: RS232/422/485 (COM2) Selection....................... 10
JP4: Clear CMOS Contents ..........................................................10
JP5: 10/100Mb LAN Enable/Disable........................................... 10
8 MB865 User’s Manual
Jumper Locations on MB865
INSTALLATIONS
Jumpers on MB865 ...................................................................Page
JP1, JP2, JP3: RS232/422/485 (COM2) Selection....................... 10
JP4: Clear CMOS Contents.......................................................... 10
JP5: 10/100Mb LAN Enable/Disable........................................... 10
MB865 User’s Manual 9
INSTALLATIONS
Configuring the CPU Frequency
The MB865 motherboard does not provide DIP switches to configure the processor speed (CPU frequency). The CPU frequency and processor side bus of the processor can be automatically detected by the motherboard.
JP1, JP2, JP3: RS232/422/485 (COM2) Selection
COM1 is fixed for RS-232 use only. COM2 is selectable for RS232, RS-422 and RS-485. COM3 and COM4 are fixed for RS-232 use only. The following table describes the jumper settings for COM2 selection.
COM2
Function
Jumper
Setting
(pin closed)
RS-232 RS-422 RS-485
JP1:
1-2
JP2:
3-5 & 4-6
JP3:
3-5 & 4-6
JP1:
3-4
JP2:
1-3 & 2-4
JP3:
1-3 & 2-4
JP1:
5-6
JP2:
1-3 & 2-4
JP3:
1-3 & 2-4
JP4: Clear CMOS Contents
Use JP4, a 3-pin header, to clear the CMOS contents. Note that the ATX-power connector should be disconnected from the motherboard before clearing CMOS.
JP4 Setting Function
Pin 1-2
Short/Closed
Pin 2-3
Short/Closed
Normal
Clear CMOS
10 MB865 User’s Manual
INSTALLATIONS
JP5: 10/100Mb LAN Enable/Disable
If your motherboard comes with the Gigabit LAN functionality, you can use this jumper to enable or disable it.
JP5 Setting Function
Pin 1-2
Short/Closed
Pin 2-3
Short/Closed
Enable
Disable
MB865 User’s Manual 11
INSTALLATIONS
Connectors on MB865
The connectors on MB865 allows you to connect external devices such as keyboard, floppy disk drives, hard disk drives, printers, etc. The following table lists the connectors on MB865 and their respective functions.
Connector Locations on MB865................................................... 13
ATX1: ATX Power Supply Connector.........................................14
FDD1: Floppy Drive Connector...................................................14
IDE1, IDE2: EIDE Connectors.....................................................15
FAN1: CPU Fan Power Connector...............................................16
FAN2: Chassis Fan Power Connector.......................................... 16
FAN3: System Fan Power Connector...........................................16
CN1: PS/2 Keyboard and PS/2 Mouse Connectors......................16
CN2, J1, J10, J13: Serial Ports ..................................................... 17
CN3: Parallel Port Connector....................................................... 18
CN4: VGA CRT Connector..........................................................18
CN5: USB and 10/100Mb LAN RJ45 Connectors.......................19
CN6: USB and Gigabit LAN RJ45 Connectors............................19
CN7: Line Out, Line In, Mic Connector.......................................19
J2: Digital 4-in 4-out I/O Connector............................................. 20
J4: IrDA Connector ...................................................................... 20
J5: ATX 12V Power Connector....................................................20
J6: Compact Flash Connector.......................................................20
J7, J8: Serial ATA (SATA) Connectors .......................................20

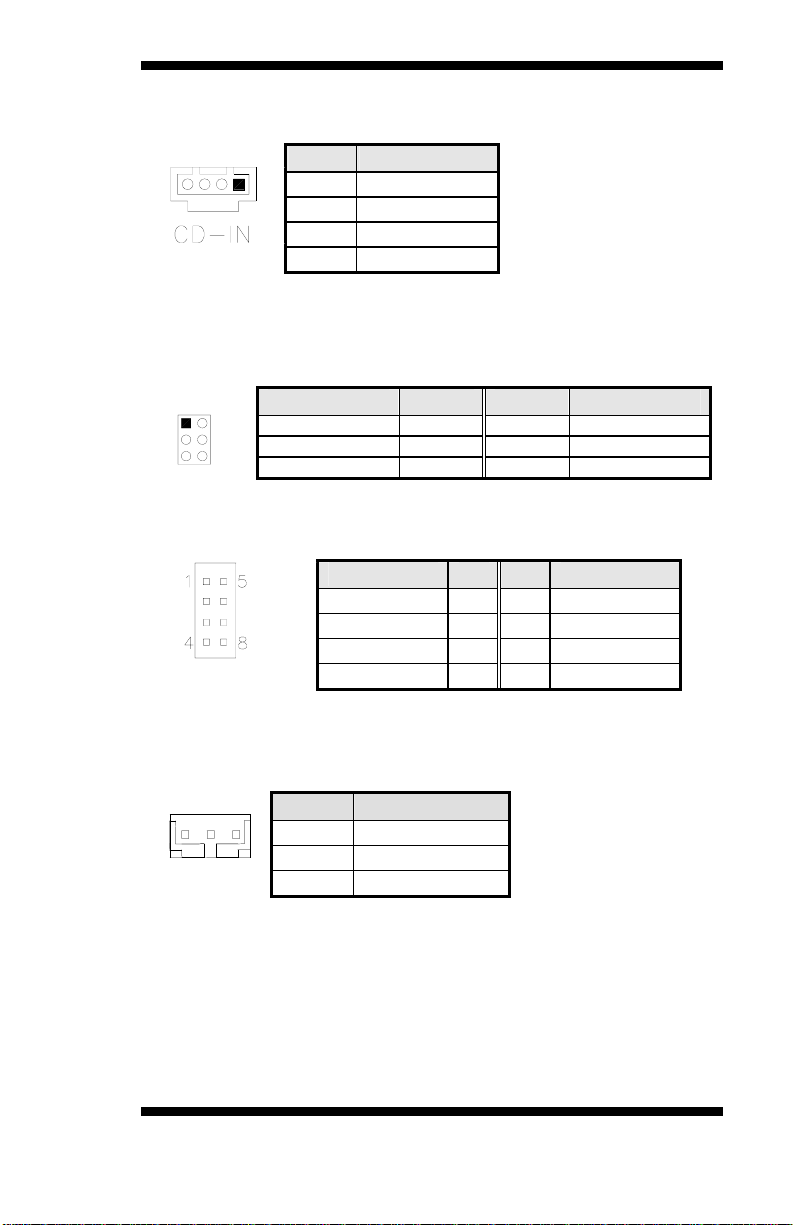

J9: CD-In Audio Connector.......................................................... 21
J11: External Audio Connector .................................................... 21
J12: USB Connector..................................................................... 21
J14: Wake on LAN Connector ..................................................... 21
J15: System Function Connector..................................................22
12 MB865 User’s Manual
Connector Locations on MB865
INSTALLATIONS
Connectors on MB865 ................................................................................................... Page
ATX1: ATX Power Supply Connector........................................................................................ 14
FDD1: Floppy Drive Connector..................................................................................................14
IDE1, IDE2: EIDE Connectors....................................................................................................15
FAN1: CPU Fan Power Connector.............................................................................................. 16
FAN2: Chassis Fan Power Connector.........................................................................................16
FAN3: System Fan Power Connector.......................................................................................... 16
CN1: PS/2 Keyboard and PS/2 Mouse Connectors.....................................................................16
CN2, J1, J10, J13: Serial Ports .................................................................................................... 17
CN3: Parallel Port Connector ...................................................................................................... 18
CN4: VGA CRT Connector......................................................................................................... 18
CN5: USB and 10/100Mb LAN RJ45 Connectors ..................................................................... 19
CN6: USB and Gigabit LAN RJ45 Connectors.......................................................................... 19
CN7: Line Out, Line In, Mic Connector..................................................................................... 19
J2: Digital 4-in 4-out I/O Connector ........................................................................................... 20
J4: IrDA Connector......................................................................................................................20
J5: ATX 12V Power Connector................................................................................................... 20
J6: Compact Flash Connector......................................................................................................20
J7, J8: Serial ATA (SATA) Connectors...................................................................................... 20
J9: CD-In Audio Connector.........................................................................................................21
J11: External Audio Connector...................................................................................................21
J12: USB Connector .................................................................................................................... 21
J14: Wake on LAN Connector .................................................................................................... 21
J15: System Function Connector ................................................................................................. 22
MB865 User’s Manual 13
INSTALLATIONS
ATX1: ATX Power Supply Connector
Signal Name Pin # Pin # Signal Name
3.3V 13 1 3.3V
-12V 14 2 3.3V
Ground 15 3 Ground
PS-ON 16 4 +5V Ground 17 5 Ground Ground 18 6 +5V Ground 19 7 Ground
-5V 20 8 Power good +5V 21 9 5VSB +5V 22 10 +12V +5V 23 11 +12V
Ground 24 12 +3.3V
FDD1: Floppy Drive Connector
FDD1is a slim 26-pin connector and will support up to 1.44MB FDD.
Signal Name Pin # Pin # Signal Name
VCC 1 2 INDEX VCC 3 4 DRV_SEL VCC 5 6 DSK_CH
NC 7 8 NC NC 9 10 MOTOR NC 11 12 DIR
NC 13 14 STEP GND 15 16 WDATA GND 17 18 WGATE GND 19 20 TRACK
NC 21 22 WPROT GND 23 24 RDATA GND 25 26 SIDE
14 MB865 User’s Manual
IDE1, IDE2: EIDE Connectors

IDE1: Primary IDE Connector

IDE1
Signal Name Pin # Pin # Signal Name
Reset IDE 1 2 Ground Host data 7 3 4 Host data 8 Host data 6 5 6 Host data 9 Host data 5 7 8 Host data 10 Host data 4 9 10 Host data 11 Host data 3 11 12 Host data 12 Host data 2 13 14 Host data 13 Host data 1 15 16 Host data 14 Host data 0 17 18 Host data 15
Ground 19 20 Protect pin
DRQ0 21 22 Ground
Host IOW 23 24 Ground
Host IOR 25 26 Ground
IOCHRDY 27 28 Host ALE
DACK0 29 30 Ground
IRQ14 31 32 No connect Address 1 33 34 No connect Address 0 35 36 Address 2
Chip select 0 37 38 Chip select 1
Activity 39 40 Ground
IDE2: Secondary IDE Connector
IDE2
[
Signal Name Pin # Pin # Signal Name
Reset IDE 1 2 Ground
Host data 7 3 4 Host data 8 Host data 6 5 6 Host data 9 Host data 5 7 8 Host data 10 Host data 4 9 10 Host data 11 Host data 3 11 12 Host data 12 Host data 2 13 14 Host data 13 Host data 1 15 16 Host data 14 Host data 0 17 18 Host data 15
Ground 19 20 Protect pin
DRQ1 21 22 Ground Host IOW 23 24 Ground
Host IOR 25 26 Ground
IOCHRDY 27 28 Host ALE
DACK1 29 30 Ground
IRQ15 31 32 No connect Address 1 33 34 No connect Address 0 35 36 Address 2
Chip select 0 37 38 Chip select 1
Activity 39 40 Ground
INSTALLATIONS
MB865 User’s Manual 15
INSTALLATIONS
FAN1: CPU Fan Power Connector
Pin # Signal Name
1 Ground 2 +12V 3 Rotation detection
4 NC
FAN2: Chassis Fan Power Connector
FAN2 is a 3-pin header for the chassis fan. The fan must be a 12V fan.
Pin # Signal Name
1 Ground 2 +12V 3 Rotation detection
FAN3: System Fan Power Connector
FAN3 is a 3-pin header for a 12V fan.
Pin # Signal Name
1 Ground 2 +12V 3 Rotation detection
CN1: PS/2 Keyboard and PS/2 Mouse Connectors
PS/2 Mouse
PS/2 Keyboard
Below are the pin-out assignments of the connectors.
Signal Name Keyboard Mouse Signal Name
Keyboard data 1 1 Mouse data
N.C. 2 2 N.C.
GND 3 3 GND
5V 4 4 5V
Keyboard clock 5 5 Mouse clock
N.C. 6 6 N.C.
16 MB865 User’s Manual
INSTALLATIONS
CN2, J1, J10, J13: Serial Ports
CN2 (COM1) is a DB-9 connector, while J1 (COM2), J10 (COM3) and J13 (COM4) are pin headers.
COM1 COM2/COM3/COM4
Signal Name Pin # Pin # Signal Name
DCD, Data carrier detect 1 6 DSR, Data set ready
RXD, Receive data 2 7 RTS, Request to send
TXD, Transmit data 3 8 CTS, Clear to send
DTR, Data terminal ready 4 9 RI, Ring indicator
GND, ground 5 10 Not Used
J1 (COM2) is jumper selectable for RS-232, RS-422 and RS-485.
Pin # Signal Name
RS-232 R2-422 RS-485
1 DCD TX- DATA­2 RX TX+ DATA+ 3 TX RX+ NC 4 DTR RX- NC 5 Ground Ground Ground 6 DSR RTS- NC 7 RTS RTS+ NC 8 CTS CTS+ NC 9 RI CTS- NC
10 NC NC NC
MB865 User’s Manual 17
INSTALLATIONS
CN3: Parallel Port Connector
CN3 is a DB-25 external. The following table describes the pin-out assignments of this connector.
Signal Name Pin # Pin # Signal Name
Line printer strobe 1 14 AutoFeed PD0, parallel data 0 2 15 Error PD1, parallel data 1 3 16 Initialize PD2, parallel data 2 4 17 Select PD3, parallel data 3 5 18 Ground PD4, parallel data 4 6 19 Ground PD5, parallel data 5 7 20 Ground PD6, parallel data 6 8 21 Ground PD7, parallel data 7 9 22 Ground ACK, acknowledge 10 23 Ground
Busy 11 24 Ground
Paper empty 12 25 Ground
Select 13 N/A N/A
CN4: VGA CRT Connector
The pin assignments of the CN4 VGA CRT connector are as follows:
Signal Name Pin Pin Signal Name
Red 1 2 Green
Blue 3 4 N.C.
GND 5 6 GND
CN4
GND 7 8 GND
N.C. 9 10 GND N.C. 11 12 N.C.
HSYNC 13 14 VSYNC
NC 15
18 MB865 User’s Manual
INSTALLATIONS
CN5: USB and 10/100Mb LAN RJ45 Connectors
CN5 consists of an 10/100 RJ-45 connector (top) and two stacked USB ports. Refer to the section below for their respective pin assignments.
USB0
Pin # Signal Name
1 Vcc 2 USB­3 USB+
USB1
4 Ground
CN6: USB and Gigabit LAN RJ45 Connectors
CN6 consists of a Gigabit RJ-45 connector (top) and two stacked USB ports. Refer to the section below for their respective pin assignments.
USB0
Pin # Signal Name
1 Vcc 2 USB­3 USB+
USB1
4 Ground
CN7: Line Out, Line In, Mic Connector
The figure below shows the location of Line Out, Line In and Mic connectors on CN7.
MB865 User’s Manual 19
INSTALLATIONS
J2: Digital 4-in 4-out I/O Connector
Signal Name Pin Pin Signal Name
Ground 1 2 Vcc
Out3 3 4 Out1 Out2 5 6 Out0
IN3 7 8 IN1 IN2 9 10 IN0
J4: IrDA Connector
Pin # Signal Name
1 +5V 2 No connect 3 Ir RX 4 Ground 5 Ir TX
J5: ATX 12V Power Connector
Pin # Signal Name
1 Ground 2 Ground 3 +12V
4 +12V
J6: Compact Flash Connector J7, J8: Serial ATA (SATA) Connectors
Pin # Signal Name
1 GND 2 TXP 3 TXN 4 GND 5 RXN 6 RXP 7 GND
20 MB865 User’s Manual
INSTALLATIONS
J9: CD-In Audio Connector
Pin # Signal Name
1 CD Audio L 2 Ground 3 Ground 4 CD Audio R
J11: External Audio Connector
J11 is a 6-pin header that is used to connect to the optional audio cable card that integrates jacks for Line Out and Mic.
Signal Name Pin # Pin # Signal Name
LINEOUT_L 1 2 LINEOUT_R
Ground 3 4 Ground
MIC 1 5 6 MIC 2
J12: USB Connector
J12 connector will support the 3rd and 4th USB ports.
Signal Name Pin Pin Signal Name
Vcc 1 5 Ground
USB2- 2 6 USB3+
USB2+ 3 7 USB3-
J19
Ground 4 8 Vcc
J14: Wake on LAN Connector
J14 is a 3-pin header for the Wake on LAN function that will function properly only with an ATX power supply with 5VSB that has 1A.
Pin # Signal Name
1 +5VSB
1 2 3
2 Ground 3 Wake on LAN
MB865 User’s Manual 21
INSTALLATIONS
J15: System Function Connector
J15 provides connectors for system indicators that provide light indication of the computer activities and switches to chang e the computer status.
Hard Disk Drive LED
Reset Switch
Not Defined
SMI / Hardware Switch
ATX Power On Switch
Power LED
Speaker
Speaker: Pins 1 - 4
This connector provides an interface to a speaker for audio tone generation. An 8-ohm speaker is recommended.
Pin # Signal Name
1 Speaker out 2 No connect 3 Ground 4 +5V
Power LED: Pins 11 - 15
The power LED indicates the status of the main power switch.
Pin # Signal Name
11 Power LED 12 No connect 13 Ground 14 No connect 15 Ground
22 MB865 User’s Manual
INSTALLATIONS
SMI/Hardware Switch: Pins 6 and 16
This connector supports the "Green Switch" on the control panel, which, when pressed, will force the system into the power-saving mode immediately.
Pin #
Signal Name
6 SMI
16 Ground
ATX Power ON Switch: Pins 7 and 17
This 2-pin connector is an “ATX Power Supply On/Off Switch” on the system that connects to the power switch on the case. When pressed, the power switch will force th e system to power on. When pressed again, it will force the system to power off.
Reset Switch: Pins 9 and 19
The reset switch allows the user to reset the system without turning the main power switch off and then on again. Orientation is not required when making a connection to this header.
Hard Disk Drive LED Connector: Pins 10 and 20
This connector connects to the hard drive activity LED on control panel. This LED will flash when the HDD is being accessed.
Pin # Signal Name
10 HDD Active 20 5V
MB865 User’s Manual 23
INSTALLATIONS
Watchdog Timer Configuration
The WDT is used to generate a variety of output signals after a user programmable count. The WDT is suitable for use in the prevention of system lock-up, such as when software becomes trapped in a deadlock. Under these sort of circumstances, the timer will count to zero and the selected outputs will be driven. Under normal circumstance, the user will restart the WDT at regular intervals before the timer counts to zero.
SAMPLE CODE: This code and information is provided "as is" without warranty of any kind, either expressed or implied, including but not limited to the implied warranties of merchantability and/or fitness for a particular purpose.
;[]================================================ ; Name : Enable_And_Set_Watchdog ; IN : AL - 1sec ~ 255sec ; OUT : None ;[]================================================ Enable_And_Set_Watchdog Proc Near push ax ;save time interval call Unlock_Chip
mov cl, 2Bh call Read_Reg and al, NOT 10h call Write_Reg ;set GP24 as WDTO
mov cl, 07h mov al, 08h call Write_Reg ;switch to LD8
mov cl, 0F5h call Read_Reg and al, NOT 08h call Write_Reg ;set count mode as second pop ax mov cl, 0F6h call Write_Reg ;set watchdog timer
24 MB865 User’s Manual
INSTALLATIONS
mov al, 01h mov cl, 30h call Write_Reg ;watchdog enabled
call Lock_Chip ret Enable_And_Set_Watchdog Endp ;[]=============================================== ; Name : Disable_Watchdog ; IN : None ; OUT : None ;[]=============================================== Disable_Watchdog Proc Near call Unlock_Chip
mov cl, 07h mov al, 08h call Write_Reg ;switch to LD8
xor al, al mov cl, 0F6h call Write_Reg ;clear watchdog timer
xor al, al mov cl, 30h call Write_Reg ;watchdog disabled
call Lock_Chip ret Disable_Watchdog Endp ;[]=============================================== ; Name : Unlock_Chip ; IN : None ; OUT : None ;[]=============================================== Unlock_Chip Proc Near mov dx, 2Eh mov al, 87h out dx, al out dx, al ret Unlock_Chip Endp ;[]================================================ ; Name : Lock_Chip ; IN : None ; OUT : None
MB865 User’s Manual 25
INSTALLATIONS
;[]================================================ Unlock_Chip Proc Near mov dx, 2Eh mov al, 0AAh out dx, al ret Unlock_Chip Endp ;[]================================================ ; Name : Write_Reg ; IN : CL - register index ; AL - Value to write ; OUT : None ;[]================================================ Write_Reg Proc Near push ax mov dx, 2Eh mov al,cl out dx,al pop ax inc dx out dx,al ret Write_Reg Endp ;[]================================================ ; Name : Read_Reg ; IN : CL - register index ; OUT : AL - Value to read ;[]================================================ Read_Reg Proc Near mov al, cl mov dx, 2Eh out dx, al inc dx in al, dx ret Read_Reg Endp ;[]================================================
26 MB865 User’s Manual
BIOS SETUP
BIOS Setup
This chapter describes the different settings available in the Award BIOS that comes with the motherboard. The topics covered in this chapter are as follows:
BIOS Introduction BIOS Introduction BIOS Setup Standard CMOS Setup Advanced BIOS Features Advanced Chipset Features Integrated Peripherals Power Management Setup PNP/PCI Configurations PC Health Status Frequency/Voltage Control Load Fail-Safe Defaults Load Setup Defaults Set Supervisor/User Password Save & Exit Setup Exit Without Saving
................................................................................ 28
................................................................................ 29
............................................................................................ 29
......................................................................... 31
.................................................................... 34
................................................................. 38
.......................................................................... 40
................................................................... 43
..................................................................... 46
................................................................................... 47
................................................................. 48
....................................................................... 49
............................................................................. 49
............................................................ 49
................................................................................ 49
............................................................................. 49
MB865 User’s Manual 27
BIOS SETUP
BIOS Introduction
This chapter describes the different settings available in the Award BIOS that comes with the board. The topics covered in this chapter are as follows:
BIOS Introduction BIOS Setup
.................................................................................29
Standard CMOS Setup Advanced BIOS Features Advanced Chipset Features Integrated Peripherals Power Management Setup PNP/PCI Configurations PC Health Status Frequency/Voltage Control Load Fail-Safe Defaults Load Setup Defaults Set Supervisor/User Password Save & Exit Setup Exit Without Saving
.....................................................................29
..............................................................31
..........................................................34
......................................................38
................................................................40
........................................................43
...........................................................46
........................................................................47
......................................................48
............................................................49
..................................................................49
.................................................49
......................................................................49
..................................................................49
28 MB865 User’s Manual
BIOS SETUP
BIOS Introduction
The Award BIOS (Basic Input/Output System) installed in your computer system’s ROM supports Intel BIOS provides critical low-level support for a standard device such as disk drives, serial ports and parallel ports. It also adds virus and password protection as well as special support for detailed fine-tuning of the chipset controlling the entire system.
BIOS Setup
The Award BIOS provides a Setup utility program for sp ecifying the system configurations and settings. The BIOS ROM of the system stores the Setup utility. When you turn on the computer, the Award BIO S is immediately activated. Pressing the <Del> key immediately allows you to enter the Setup utility. If you are a little bit late pressing the <Del> key, POST (Power On Self Test) will continue with its test routines, thus preventing you from invoking the Setup. If you still wish to enter Setup, restart the system by pressing the ”Reset” button or simultaneously pressing the <Ctrl>, <Alt> and <Delete> keys. You can also restart by turning the system Off and back On again. The following message will appear on the screen:
In general, you press the arrow keys to highlight items, <Enter> to select, the <PgUp> and <PgDn> keys to change entries, <F1> for help and <Esc> to quit.
When you enter the Setup utility, the Main Menu screen will appear on the screen. The Main Menu allows you to select from various setup functions and exit choices.
Press <DEL> to Enter Setup
®
Pentium® 4 processors. The
MB865 User’s Manual 29
BIOS SETUP
Standard CMOS Features Frequency/Voltage Control Advanced BIOS Features Load Fail-Safe Defaults Advanced Chipset Features Load Optimized Defaults Integrated Peripherals Set Supervisor Password Power Management Setup Set User Password PnP/PCI Configurations Save & Exit Setup PC Health Status Exit Without Saving ESC : Quit Ç È Æ Å : Select Item F10 : Save & Exit Setup
Phoenix - AwardBIOS CMOS Setup Utility
Time, Date, Hard Disk Type…
The section below the setup items of the Main Menu displays the control keys for this menu. At the bottom of the Main Menu just below th e control keys section, there is another section, which displays information on the currently highlighted item in the list.
Note:
If the system cannot boot after making and saving system changes with Setup, the Award BIOS supports an override to the CMOS settings that resets your system to its default.
Warning:
It is strongly recommended that you avoid making any changes to the chipset defaults. These defaults have been carefully chosen by both Award and your system manufacturer to provide the absolute maximum performance and reliability. Changing the defaults could cause the system to become unstable and crash in some cases.
30 MB865 User’s Manual
BIOS SETUP
Standard CMOS Setup
“Standard CMOS Setup” choice allows you to record some basic hardware configurations in your computer system and set the system clock and error handling. If the board is already installed in a working system, you will not need to select this option. You will need to run the Standard CMOS option, however, if you change your system hardware configurations, the onboard battery fails, or the configuration stored in the CMOS memory was lost or damaged.
Date (mm:dd:yy) Thu, May 21, 2001 Item Help Time (hh:mm:ss) 00 : 00 : 00 Menu Level
IDE Primary Master Press Enter 13020 MB Change the day, month, IDE Primary Slave Press Enter None Year and century IDE Secondary Master Press Enter None IDE Secondary Slave Press Enter None
Drive A 1.44M, 3.5 in. Drive B None
Video EGA/VGA Halt On All Errors
Base Memory 640K Extended Memory 129024K Total Memory 130048K
At the bottom of the menu are the control keys for use on this menu. If you need any help in each item field, you can press the <F1> key. It will display the relevant information to help you. The memory display at the lower right-hand side of the menu is read-only. It will adjust automatically according to the memory changed. The following describes each item of this menu.
Date
The date format is:
Day : Sun to Sat Month : 1 to 12 Date : 1 to 31 Year : 1999 to 2099
To set the date, highlight the “Date” field and use the PageUp/ PageDown or +/- keys to set the current time.
Phoenix - AwardBIOS CMOS Setup Utility
Standard CMOS Features
MB865 User’s Manual 31
BIOS SETUP
Time
The time format is:
Minute : 00 to 59 Second : 00 to 59
Hour : 00 to 23
To set the time, highlight the “Time” fiel d and use the <PgUp>/ <PgDn> or +/- keys to set the current time.
IDE Primary HDDs / IDE Secondary HDDs
The onboard PCI IDE connectors provide Primary and Secondary channels for connecting up to four IDE hard disks or other IDE devices. Each channel can support up to two hard disks; the first is the “Master” and the second is the “Slave”.
Press <Enter> to configure the hard disk. The selections include Auto, Manual, and None. Select ‘Manual’ to define the drive information manually. You will be asked to enter the following items.
Capacity : Capacity/size of the hard disk drive Cylinder : Number of cylinders Head : Number of read/write heads Precomp : Write precompensation Landing Zone : Landing zone Sector : Number of sectors
The Access Mode selections are as follows: CHS
LBA (HD > 528MB and supports
Logical Block Addressing)
Large (for MS-DOS only) Auto
Drive A / Drive B
These fields identify the types of floppy disk drive A or drive B that has been installed in the computer. The available specifications are: 360KB
5.25 in.
1.2MB
5.25 in.
720KB
3.5 in.
1.44MB
3.5 in.
2.88MB
3.5 in.
32 MB865 User’s Manual
BIOS SETUP
Video
This field selects the type of video di splay card instal led i n your syst em . You can choose the following video display cards: EGA/VGA For EGA, VGA, SEGA, SVGA or PGA monitor adapters. (default) CGA 40 Power up in 40 column mode. CGA 80 Power up in 80 column mode. MONO For Hercules or MDA adapters.
Halt On
This field determines whether or not the system will halt if an error is detected during power up. No errors The system boot will not be halted for any error
that may be detected.
All errors Whenever the BIOS detects a non-fatal error,
the system will stop and you will be prompted.
All, But Keyboard The system boot will not be halted for a
keyboard error; it will stop for all other errors
All, But Diskette The system boot will not be halted for a disk
error; it will stop for all other errors.
All, But Disk/Key The system boot will not be halted for a key-
board or disk error; it will stop for all others.
MB865 User’s Manual 33
BIOS SETUP
Advanced BIOS Features
This section allows you to configure and improve your system and allows you to set up some system features according to your preference.
CPU Feature Hard Disk Boot Priority Virus Warning Disabled Menu Level CPU L1 and L2 Cache Hyper-Threading Technology Quick Power On Self Test Enabled First Boot Device Floppy Second Boot Device Hard Disk Third Boot Device CDROM Boot Other Device Swap Floppy Drive Boot Up Floppy Seek Boot Up Numlock Status Gate A20 Option Fast Typematic Rate Setting Disabled Typematic Rate (chars/Sec) 6 Typematic Delay (Msec) 250 Security Option Setup APIC Mode Enabled MPS Version Control for OS 1.4 OS Select For DRAM>64MB Report No FDD For WIN 95 Small Logo (EPA) Show Enabled
Delay Prior Thermal
Thermal Management
Limit CPUID MaxVal
Delay Prior to Thermal
Phoenix - AwardBIOS CMOS Setup Utility
Advanced BIOS Features
Press Enter Press Enter
Enabled Enabled
Enabled Disabled Disabled On
Non-OS2 Yes
Phoenix - AwardBIOS CMOS Setup Utility
CPU Features
16 Min Thermal Monitor 1 Disabled
Menu Level
ITEM HELP
Allows you choose the VIRUS warning feature for IDE Hard Disk boot sector protection. If this function is enabled and someone attempt to write data into this area, BIOS will show a warning message on screen and alarm beep
ITEM HELP
This field activates the CPU therm al functi on after the syst ems boot s for the set number of minutes. The options are 16Min and 64Min.
Limit CPUID MaxVal
Enabled : Limit CPUID Maximum value to 3 when use older OS like NT4. (Default value) Disabled : Disables CPUID Limit for windows XP. (Default value)
34 MB865 User’s Manual
BIOS SETUP
Hard Disk Boot Priority
This item allows you to set the priority for hard disk boot. When you press enter, the selections shows the current hard disks used in your system as well as the Bootable Add-in Card that is relevant to other boot sources media such as SCSI cards and LAN cards.
Virus Warning
This item protects the boot sector and partition table of your hard disk against accidental modifications. If an attempt is made, the BIOS will halt the system and display a warning message. If this occurs, you can either allow the operation to continue or run an anti-virus program to locate and remove the problem.
CPU L1 and L2 Cache
Cache memory is additional memory that is much faster than conventional DRAM (system memory). CPUs from 486-type on up contain internal cache memory, and most, but not all, modern PCs have additional (external) cache memory. When the CPU requests data, the system transfers the requested data from the main DRAM into cache memory, for even faster access by the CPU. These items allow you to enable (speed up memory access) or disable the cache function. By default, these items are Enabled.
Hyper-Threading Technology
Hyper-Threading Technology enables two logical processors on a single physical processor by replicating, partitioning, and sharing the resources within the Intel NetBurst microarchitecture pipeline.
Quick Power On Self Test
When enabled, this field speeds up the Power On Self Test (POST) after the system is turned on. If it is set to Enabled, BIOS will skip some items.
First/Second/Third Boot Device
These fields determine the drive that the system searches first for an operating system. The options available include Floppy, LS/ZIP, HDD-0, SCSI, CDROM, HDD-1, HDD-2, HDD-3, LAN and Disable.
Boot Other Device
These fields allow the system to search for an operating system from other devices other than the ones selected in the First/Second/Third Boot Device.
MB865 User’s Manual 35
BIOS SETUP
Swap Floppy Drive
This item allows you to determi ne whether or not to enable Swap Floppy Drive. When enabled, the BIOS swaps floppy drive assignments so that Drive A becomes Drive B, and Drive B becomes Drive A. By default, this field is set to Disabled.
Boot Up Floppy Seek
This feature controls whether the BIOS checks for a floppy drive while booting up. If it cannot detect one (either due to improper configuration or its absence), it will flash an error message.
Boot Up NumLock Status
This allows you to activate the NumLock function after you power up the system.
Gate A20 Option
This field allows you to select how Gate A20 is w orked. Gate A 20 is a device used to address memory above 1 MB.
Typematic Rate Setting
When disabled, continually holding down a key on your keyboard will generate only one instance. When enabled, you can set the two typematic controls listed next. By default, this field is set to Disabled.
Typematic Rate (Chars/Sec)
When the typematic rate is enabled, the system registers repeated keystrokes speeds. Settings are from 6 to 30 characters per second.
Typematic Delay (Msec)
When the typematic rate is enabled, this item allows you to set the time interval for displaying the first and second characters. By default, this item is set to 250msec.
Security Option
This field allows you to limit access to the System and Setup. The default value is Setup. When you select System, the system prompts for the User Password every time you boot up. When you select Setup, the system always boots up and prompts for the Supervisor Password only when the Setup utility is called up.
APIC Mode
APIC stands for Advanced Programmable Interrupt Controller. The default setting is Enabled.
36 MB865 User’s Manual
BIOS SETUP
MPS Version Control for OS
This option is specifies the MPS (Multiprocessor Specification) versio n for your operating system. MPS version 1.4 added extended configuration tables to improve support for multiple PCI bus configurations and improve future expand ability. The default setting is
1.4.
OS Select for DRAM > 64MB
This option allows the system to access greater than 64MB of DRAM memory when used with OS/2 that depends on certain BIOS calls to access memory. The default setting is Non-OS/2.
Report No FDD For WIN 95
If you are using Windows 95/98 without a floppy disk drive, select Enabled to release IRQ6. This is required to pass Windows 95/98's SCT test. You should also disable the Onboard FDC Controller in the Integrated Peripherals screen when there's no floppy drive i n the system. If you set this feature to Disabled, the BIOS will not report the missing floppy drive to Win95/98.
Small Logo (EPA) Show
The EPA logo appears at the right side of the monitor screen when the system is boot up. The default setting is Enabled.
MB865 User’s Manual 37
BIOS SETUP
Advanced Chipset Features
This Setup menu controls the configuration of the chipset.
DRAM Timing Selectable By SPD ITEM HELP CAS Latency Time 2.5 Menu Level Active to Precharge Delay 7 DRAM RAS# to CAS# Delay 3 DRAM RAS# Precharge 3 Memory Frequency For Auto System BIOS Cacheable Enabled Video BIOS Cacheable Memory Hole At 15M-16M AGP Aperture Size (MB) 128
** On-Chip VGA Setting ** On-Chip VGA On-Chip Frame Buffer Size Boot Display
DRAM Timing Selectable
This option refers to the method by which the DRAM ti ming i s selected. The default is By SPD.
CAS Latency Time
You can select CAS latency time in HCLKs of 2/2 or 3/3. The system board designer should set the values in this field, depending on the DRAM installed. Do not change the values in this field unless you change specifications of the installed DRAM or the installed CPU. The choices are 2 and 3.
Active to Precharge Delay
The default setting for the Active to Precharge Delay is 6.
DRAM RAS# to CAS# Delay
This option allows you to insert a delay between the RAS (Row Address Strobe) and CAS (Column Address Strobe) signals. This delay occurs when the SDRAM is written to, read from or refreshed. Reducing the delay improves the performance of the SDRAM.
DRAM RAS# Precharge
This option sets the number of cycles required for the RAS to accumulate its charge before the SDRAM refreshes. The default setting for the Active to Precharge Delay is 3.
Phoenix - AwardBIOS CMOS Setup Utility
Advanced Chipset Features
Enabled Disabled
Enabled 8MB CRT
38 MB865 User’s Manual
BIOS SETUP
Memory Frequency For
This field sets the frequency of the DRAM memory installed. The default setting is Auto. The other settings are DDR266,DDR320 and DDR400.
System BIOS Cacheable
The setting of Enabled allows caching of the system BIOS ROM at F000h-FFFFFh, resulting in better system performance. However, if any program writes to this memory area, a system error may result.
Video BIOS Cacheable
The Setting Enabled allows caching of the video BIOS ROM at C0000h-F7FFFh, resulting in better video performance. However, if any program writes to this memory area, a system error may result.
Memory Hole At 15-16M
In order to improve performance, certain space in memory can be reserved for ISA cards. This memory must be mapped into the memory space below 16 MB. The choices are Enabled and Disabled.
AGP Aperture Size (MB)
The field sets aperture size of the graphics. The aperture is a portion of the PCI memory address range dedicated for graphics memory address space. Host cycles that hit the aperture range are forwarded to the AGP without any translation. The default setting is 128M.
On-Chip VGA
The default setting is Enabled.
On-Chip Frame Buffer Size
The default setting is 8MB. The options available include 1MB, 8MB and 16MB.
Boot Display
The default setting is CRT.
MB865 User’s Manual 39
BIOS SETUP
Integrated Peripherals
On-Chip Primary IDE Device Onboard Device SuperIO Device Press Enter
IDE Block Mode On-Chip Primary PCI IDE IDE Primary Master PIO IDE Primary Slave PIO IDE Primary Master UDMA IDE Primary Slave UDMA On-Chip Secondary PCI IDE IDE Secondary Master PIO IDE Secondary Slave PIO IDE Secondary Master UDMA IDE Secondary Slave UDMA
*** On-Chip Serial ATA Setting ***
SATA Mode On-Chip Serial ATA Serial ATA Port0 Mode Serial ATA Port1 Mode SATA1 master
USB Controller USB 2.0 Controller USB Keyboard Support USB Mouse Support AC97 Audio Auto CSA LAN (Giga-LAN) Init Display First
Onboard FDC Controller Enabled Onboard Serial Port 1 3F8/IRQ4 Onboard Serial Port 2 2F8/IRQ3 UART Mode Select Normal RxD , TxD Active Hi, Lo IR Transmission Delay Enabled UR2 Duplex Mode Half Use IR Pins IR-Rx2Tx2 Onboard Parallel Port 378/IRQ7 Parallel Port Mode SPP EPP Mode Select EPP1.7 ECP Mode Use DMA Onboard Serial Port 3 Serial Port 3 Use IRQ Onboard Serial Port 4 Serial Port 4 Use IRQ PWRON After PWR-Fail Off
Phoenix - AwardBIOS CMOS Setup Utility
Integrated Peripherals Press Enter ITEM HELP
Press Enter Menu Level
Phoenix - AwardBIOS CMOS Setup Utility
OnChip IDE Device
Enabled ITEM HELP Enabled Menu Level Auto Auto Auto Auto Enabled Auto Auto Auto Auto
IDE Auto SATA0 master
Phoenix - AwardBIOS CMOS Setup Utility
Phoenix - AwardBIOS CMOS Setup Utility
Onboard Device
Enabled ITEM HELP Enabled Menu Level Disabled Disabled
Enabled PCI Slot
SuperIO Device
3 3E8
IRQ11 Disabled
IRQ10
ITEM HELP
Menu Level >
40 MB865 User’s Manual
BIOS SETUP
IDE HDD Block Mode
This field allows your hard disk controller to use the fast block mode to transfer data to and from your hard disk drive.
OnChip Primary/Secondary PCI IDE
The integrated peripheral controller contains an IDE interface with support for two IDE channels. Select Enabled to activate each channel separately.
IDE Primary/Secondary Master/Slave PIO
These fields allow your system hard disk controller to work faster. Rather than have the BIOS issue a series of commands that transfer to or from the disk drive, PIO (Programme d Input/Output) allows the BIOS to communicate with the controller and CPU directly.
The system supports five modes, numbered from 0 (default) to 4, which primarily differ in timing. When Auto is selected, the BIOS w ill select the best available mode.
IDE Primary/Secondary Master/Slave UDMA
These fields allow your system to improve disk I/O throughput to 33Mb/sec with the Ultra DMA/33 feature
On-Chip Serial ATA
The default setting of Auto allows the Serial ATA drive to be enabled, when the system detects one.
USB Controller
The options for this field are Enabled and Disabled. By default, this field is set to Enabled.
USB 2.0 Controller
The options for this field are Enabled and Disabled. By default, this field is set to Disabled. In order to use USB 2.0, necessary OS drivers must be installed first.
USB Keyboard Support
The options for this field are Enabled and Disabled. By default, this field is set to Disabled.
USB Mouse Support
The options for this field are Enabled and Disabled. By default, this field is set to Disabled.
MB865 User’s Manual 41
BIOS SETUP
AC97 Audio
The default setting of the AC97 Audio is Auto.
CSA LAN (Giga-LAN)
The field enables or disables this Intel Giga BaseT Ethernet controller.
Init Display First
By default, the system initializes the PCI Slot VGA when the system boots.
Onboard FDC Controller
Select Enabled if your system has a floppy disk controller (FDC) installed on the board and you wish t o use it. If you install an add-in FDC or the system has no floppy drive, select Disabled in this field. This option allows you to select the onboard FDD port.
Onboard Serial/Parallel Port
These fields allow you to select the onboard serial and parallel ports and their addresses. The default values for these ports are: Serial Port 1 3F8/IRQ4 Serial Port 2 2F8/IRQ3 Serial Port 3 3E8/IRQ11 Serial Port 4 Disabled/IRQ10 Parallel Port 378H/IRQ7
UART Mode Select
This field determines the UART 2 mode in your computer. The default value is Normal. Other options include IrDA and ASKIR.
Parallel Port Mode
This field allows you to determine parallel port mode function. SPP Standard Printer Port EPP Enhanced Parallel Port ECP Extended Capabilities Port
PWRON After PWR-Fail
This field sets the system power status whether on or off when power returns to the system from a power failure situation.
42 MB865 User’s Manual
BIOS SETUP
Power Management Setup
The Power Management Setup allows you to save energy of your system effectively.
ACPI Function Power Management Video Off Method Video Off In Suspend Suspend Type Modem Use IRQ Suspend Mode HDD Power Down
Soft-Off by PWR-BTTN CPU THRM-Throttling Wake-Up by PCI Card Power On by Ring Wake Up On LAN Resume by Alarm
Date (of Month) Alarm 0 Time (hh:mm:ss) Alarm 0 : 0 : 0
** Reload Global Timer Events ** Primary IDE 0 Primary IDE 1 Secondary IDE 0 Secondary IDE 1 FDD, COM, LPT Port PCI PIRQ[A-D] #
ACPI Function
Enable this function to support ACPI (Advance Configuration and Power Interface).
Power Management
This field allows you to select the type of power saving management modes. There are four selections for Power Management.
Min. Power Saving Minimum power management Max. Power Saving Maximum power management. User Define Each of the ranges is from 1 min. to
Video Off Method
This field defines the Video Off features. There are three options.
V/H SYNC + Blank Default setting, blank the screen and turn
DPMS Allows BIOS to control the video display. Blank Screen Writes blanks to the video buffer.
Phoenix - AwardBIOS CMOS Setup Utility
Power Management Setup
Enabled ITEM HELP User Define V/H SYNC+Blank Yes Stop Grant 3 Disabled Disabled
Instant-Off 50% Disabled Disabled Disabled Disabled
Enabled Enabled Enabled Enabled Enabled Enabled
1hr. Except for HDD Power Down which ranges from 1 min. to 15 min.
off vertical and horizontal scanning.
MB865 User’s Manual 43
BIOS SETUP
Video Off In Suspend
When enabled, the video is off in suspend mode. The default setting is Yes.
Suspend Type
The default setting for the Suspend Type field is Stop Grant.
Modem Use IRQ
This field sets the IRQ used by the Modem. By default, the setting is 3.
Suspend Mode
When enabled, and after the set time of system inactivity, all devices except the CPU will be shut off.
HDD Power Down
When enabled, and after the set time of system inactivity, the hard disk drive will be powered down while all other devices remain active.
Soft-Off by PWRBTN
This field defines the power-off mode when using an ATX power supply. The Instant Off mode allows powering off immediately upon pressing the power button. In the Delay 4 Sec mode, the system powers off when the power button is pressed for more than four seconds or enters the suspend mode when pressed for less than 4 seconds.
Wake-Up by PCI Cards
Enable this field to allow wake up function through a PCI card or Onboard Intel 10/100 BaseT Ethernet.
Power On by Ring
This field enables or disables the power on of the system through the modem connected to the serial port or LAN.
Wake Up On LAN
Enable this field to allow wake up function through Onboard Intel Giga BaseT Ethernet.
Resume by Alarm
This field enables or disables the resumption of the system operation. When enabled, the user is allowed to set the Date and Time.
44 MB865 User’s Manual
BIOS SETUP
Reload Global Timer Events
The HDD, FDD, COM, LPT Ports, and PCI PIRQ are I/O events which can prevent the system from entering a power saving mode or can awaken the system from such a mode. When an I/O device wants to gain the attention of the operating system, it signals this by causing an IRQ to occur. When the operating system is ready to respond to the request, it interrupts itself and performs the service.
MB865 User’s Manual 45
BIOS SETUP
PNP/PCI Configurations
This option configures the PCI bus system. All PCI bus systems on the system use INT#, thus all installed PCI cards must be set to this value.
PNP OS Installed Reset Configuration Data
Resources Controlled By IRQ Resources DMA Resources
PCI/VGA Palette Snoop INT Pin 1 Assignment INT Pin 2 Assignment INT Pin 3 Assignment INT Pin 4 Assignment INT Pin 5 Assignment INT Pin 6 Assignment INT Pin 7 Assignment INT Pin 8 Assignment
PNP OS Install
Enable the PNP OS Install option if it is supported by the operating system installed. The default value is No.
Reset Configuration Data
This field allows you to determine whether to reset the configuration data or not. The default value is Disabled.
Resources Controlled by
This PnP BIOS can configure all of the boot and compatible devices automatically with the use of a use a PnP operating system such as Windows 95.
PCI/VGA Palette Snoop
Some non-standard VGA display cards may not show colors properly. This field allows you to set whether or not MPEG ISA/VESA VGA cards can work with PCI/VGA. When this field is enabled, a PCI/VGA can work with an MPEG ISA/VESA VGA card. When this field is disabled, a PCI/VGA cannot work with an MPEG ISA/VESA card.
Phoenix - AwardBIOS CMOS Setup Utility
PnP/PCI Configurations
No ITEM HELP Disabled
Auto (ESCD) Press Enter Press Enter
Disabled Auto Auto Auto Auto Auto Auto Auto Auto
Menu Level
Default is Disabled. Select Enabled to reset
Extended System Configuration Data (ESCD) when you exit Setup if you have installed a new add-on and the system reconfiguration has caused such a serious conflict that the OS cannot boot
46 MB865 User’s Manual
BIOS SETUP
PC Health Status
This section shows the parameters in determining the PC Health Status. These parameters include temperatures, fan speeds and voltages.
Hardware Monitor CPU Warning Temperature System Temp. 28°C/82°F CPU Temp 42°C/107°F CPU FAN Speed (FAN1) 5400 RPM System FAN Speed (FAN2) 5463 RPM System FAN Speed (FAN3) 5388 RPM
Vcore(V) 1.02 V +3.3V 3.32 V +5V 4.94 V +12V
-12V
Shutdown Temperature Disabled
CPU Fan Failure Warning Disabled
Sys. Fan Failure Warning Disabled
Aux. Fan Failure Warning Disabled
Hardware Monitor
The Hardware Monitor can be enabled or disabled.
CPU Warning Temperature
This field allows the user to set the temperature so that when the temperature is reached, the system sounds a warning. This function can help prevent damage to the system that is caused by overheating.
Shutdown Temperature
This field allows the user to set the temperature by which the system automatically shuts down once the threshold temperature is reached. This function can help prevent damage to the system that is caused by overheating.
Temperatures/Fan Speeds/Voltages
These fields are the parameters of the hardware monitoring function feature of the board. The values are read-only values as monitored by the system and show the PC health status.
CPU/Chassis Fan Failure Warning
When enabled, this field lets the system sounds a ‘siren’ audible warning to the user that the CPU fan or chassis fan has malfunctioned.
Phoenix - AwardBIOS CMOS Setup Utility
PC Health Status
Enabled Disabled
12.03 V
-12.44 V
ITEM HELP
Menu Level >
MB865 User’s Manual 47
BIOS SETUP
Frequency/Voltage Control
This section shows the user how to configure the processor frequency.
CPU Clock Ratio Auto Detect PCI Clk Spread Spectrum
CPU Clock Ratio
The CPU Ratio, also known as the CPU bus speed multiplier, can be configured through this field. The default setting is 14X. This parameter can be used in conjunction with the above field to change the processor’s speed.
Auto Detect PCI Clk
This field enables or disables the auto detection of the PCI clock.
Spread Spectrum
This field sets the value of the spread spectrum. The default setting is Disabled. This field is for CE testing use only
Phoenix - AwardBIOS CMOS Setup Utility
Frequency/Voltage Control
14X Disabled
Disabled Menu Level
.
ITEM HELP
48 MB865 User’s Manual
BIOS SETUP
Load Fail-Safe Defaults
This option allows you to load the troubleshooting default values permanently stored in the BIOS ROM. These default settings are non-optimal and disable all high-performance features.
Load Setup Defaults
This option allows you to load the default values to your system configuration. These default settings are optimal and enable all high performance features.
Set Supervisor/User Password
These two options set the system password. Supervisor Password sets a password that will be used to protect the system and Setup utility. User Password sets a password that will be used exclusively on the system. To specify a password, highlight the type you want and press <Enter>. The Enter Password: message prompts on the screen. Type the password, up to eight characters in length, and press <Enter>. The system confirms your password by asking you to type it again. After setting a password, the screen automatically returns to the main screen.
To disable a password, just press the <Enter> key when you are prompted to enter the password. A message will confirm the password to be disabled. Once the password is disabled, the system will boot and you can enter Setup freely.
Save & Exit Setup
This option allows you to determine whether or not to accept the modifications. If you type “Y”, you will quit the setup utility and save all changes into the CMOS memory. If you type “N”, you will return to Setup utility.
Exit Without Saving
Select this option to exit the Setup utility without saving the changes you have made in this session. Typing “Y” will quit the Setup utility without saving the modifications. Typing “N” will return you to Setup utility.
MB865 User’s Manual 49
BIOS SETUP
This page is intentionally left blank.
50 MB865 User’s Manual
DRIVERS INSTALLATION
Drivers Installation
This section describes the installation procedures for software and drivers under the Windows 98, Windows NT 4.0 and Windows 2000. The software and drivers are included with the board. If you find the items missing, please contact the vendor where you made the purchase. The contents of this section include the following :
Intel 865G Chipset Software Intallation Utility................52
Intel 865G Chipset Graphics Driver..................................55
Realtek AC97 Codec Audio Driver Installation................57
Intel PRO LAN Drivers Installation..................................58
IMPORTANT NOTE:
After installing your Windows operating system (Windows 98/98SE/ME/2000/XP), you must install first t he Intel Chipset Software Installation Utility before proceeding with the drivers installation.
MB865 User’s Manual 51
DRIVERS INSTALLATION
Intel 865G Chipset Software Intallation Utility
The Intel 865G Chipset Drivers should be installed first before the software drivers to enable Plug & Play INF support for Intel chipset components. Follow the instructions below to complete the installation under Windows 98/98SE/ME/2000/XP.
1. Insert the CD that comes with the board and the screen below would appear. Click Intel Chipsets and then Intel 865G Chipset Family Drivers.
2. Click Intel 865G Chipset Software Intallation Utility.
52 MB865 User’s Manual
DRIVERS INSTALLATION
3. When the Welcome screen appears, click Next to continue.
4. Click Yes to accept the software license agreement and proceed with the installation process.
MB865 User’s Manual 53
DRIVERS INSTALLATION
5. On Readme Information screen, click Next to continue the installation.
6. The Setup process is now complete. Click Finish to restart the computer and for changes to take effect. When the computer has restarted, the system will be able to find some devices. Restart your computer when prompted.
54 MB865 User’s Manual
DRIVERS INSTALLATION
Intel 865G Chipset Graphics Driver
The Intel 865G Chipset Family Graphics Drivers come in the CD with the board . Follow the instructions below to complete the installation under Windows 98/98SE/ME/2000/XP.
1. Insert the CD that comes with the board and the screen below would appear. Click Intel Chipsets and then Intel 865G Chipset Family Drivers.
2. When the Welcome screen appears, click Next to continue.
MB865 User’s Manual 55
DRIVERS INSTALLATION
3. Click Yes to accept the software license agreement and proceed with the installation process.
4. The Setup process is now complete. Click Finish to restart the computer and for changes to take effect. When the computer has restarted, the system will be able to find some devices. Restart your computer when prompted.
56 MB865 User’s Manual
DRIVERS INSTALLATION
Realtek AC97 Codec Audio Driver Installation
Follow the steps below to install the Realtek AC97 Codec Audio Drivers.
1. Insert the CD that comes with the board and the screen below would appear. Click Intel Chipsets, then Intel 865G Chipset Family Drivers. Click Realtek AC97 Codec Audio Drivers to start installation.
2. Click Finish to restart the computer and for changes to take effect. .
MB865 User’s Manual 57
DRIVERS INSTALLATION
Intel PRO LAN Drivers Installation
The Intel PRO LAN drivers support both Intel® PRO/100 and PRO/1000 drivers. Follow the steps below to complete the installation.
1. Insert the CD that comes with the board and the screen below would appear. Click on LAN Card on the left side to make the LAN drivers selection. Click on Intel(R) PRO LAN Drivers.
2. Click Install Now.
3. Click Restart to restart the computer and new settings to take effect.
58 MB865 User’s Manual
APPENDIX
Appendix
A. I/O Port Address Map
Each peripheral device in the system is assigned a set of I/O port addresses which also becomes the identity of the device. The following table lists the I/O port addresses used.
Address Device Description
000h - 01Fh DMA Controller #1 020h - 03Fh Interrupt Controller #1 040h - 05Fh Timer 060h - 06Fh Keyboard Controller 070h - 07Fh Real Time Clock, NMI 080h - 09Fh DMA Page Register 0A0h - 0BFh Interrupt Controller #2 0C0h - 0DFh DMA Controller #2 0F0h Clear Math Coprocessor Busy Signal 0F1h Reset Math Coprocessor 1F0h - 1F7h IDE Interface 278h - 27Fh Parallel Port #2(LPT2) 2F8h - 2FFh Serial Port #2(COM2) 2B0h - 2DFh Graphics adapter Controller 378h - 3FFh Parallel Port #1(LPT1) 360h - 36Fh Network Ports 3B0h - 3BFh Monochrome & Printer adapter 3C0h - 3CFh EGA adapter 3D0h - 3DFh CGA adapter 3F0h - 3F7h Floppy Disk Controller 3F8h - 3FFh Serial Port #1(COM1)
MB865 User’s Manual 59
APPENDIX
B. Interrupt Request Lines (IRQ)
Peripheral devices use interrupt request lines to notify CPU for the service required. The following table shows the IRQ used by t he devices on board.
Level Function
IRQ0 System Timer Output IRQ1 Keyboard IRQ2 Interrupt Cascade IRQ3 Serial Port #2 IRQ4 Serial Port #1 IRQ5 Reserved IRQ6 Floppy Disk Controller IRQ7 Parallel Port #1 IRQ8 Real Time Clock IRQ9 Reserved IRQ10 Reserved IRQ11 Reserved IRQ12 PS/2 Mouse IRQ13 80287 IRQ14 Primary IDE IRQ15 Secondary IDE
60 MB865 User’s Manual
Loading...
