Lenovo Regulatory Notice

Read first — regulatory information

Please read this document before you use the Lenovo computer. Lenovo computer complies with the radio frequency and safety standards of any country or region in which it has been approved for wireless use. You must install and use your computer in strict accordance with the instructions as described hereafter.

You are prohibited to replace or remove the preinstalled Wireless LAN Mini PCI Express Card and the Bluetooth module in your computer, it is not a Customer Replaceable Unit (CRU). If one of your cards requires replacement or repair, Lenovo will request you to send your computer with the preinstalled card(s) to Lenovo so that Lenovo will repair it.

Veuillez lire ce document avant d’utiliser l’ordinateur Lenovo. L’ordinateur Lenovo est conforme aux normes de sécurité et de radiofréquence du pays ou de la région où son utilisation sans fil est agréée. Vous devez installer et utiliser votre ordinateur en respectant scrupuleusement les instructions décrites ci-après.

Vous êtes interdit de remplacer la carte de réseau local sans fil Express mini-PCI et le module Bluetooth qui sont préinstalles dans votre ordinateur, ce ne sont pas des Unités remplaçables par l’utilisateur(CRU). Si l’une de votre carte a besoin d’être remplacée ou reparée, Lenovo va vous demander de lui envoyer votre ordinateur avec des cartes préinstallees, pour qu’il puisse le réparer.

S10-2 RegulatoryNoticeV1.0 (US,EU,Non_EU,AP).book Page 2 Monday, April 13, 2009 9:56 PM

United States and Canada

USA — Federal Communications Commission (FCC)

I. Factory preinstalled Wireless LAN/WiMAX module

• FCC ID: PD9LEN512ANMU (Model: 512AN_MMW)

• FCC ID: GKR- BCM94312MCG (Model: BCM94312MCG)

• FCC ID: PD9512ANXMU (Model: 512ANXMMW)

Wireless LAN Mini PCI Express Cards marketed in the USA and Canada do not support nor function in the extended channels (12ch, 13ch).

i) The FCC RF Exposure compliance:

The radiated energy from the Main and Auxiliary antennas connected to the Wireless LAN Mini PCI Express Card conforms to the FCC limit of the SAR (Specific Absorption Rate) requirement regarding 47 CFR Part 2 section 1093, when the computer was tested in the conventional notebook setting.

Note: The transmission diversity function is implemented for this

product. For WLAN card (Model: BCM94312MCG) using Main and Auxiliary antennas for transmission in the IEEE 802.11 b/g transmission mode, radio frequency energy is not emitted simultaneously from both Main and Auxiliary antennas. One of the antennas is selected automatically or manually (by users) to have good quality of radiocommunication (transmission diversity function). For WLAN cards (Model: 512AN_MMW, 512ANXMMW) in the IEEE 802.11 a/b/g, or MIMO ( Multiple In Multiple Out ) transmission mode, the radio frequency energy is emitted from Main antenna.

S10-2 RegulatoryNoticeV1.0 (US,EU,Non_EU,AP).book Page 3 Monday, April 13, 2009 9:56 PM

ii) FCC ID of wireless module:

There is no FCC ID for Mini PCI Express Card shown on the enclosure of your Lenovo computer. Instead you will find an indicator label pointing to the location of the FCC ID on the bottom side of your Lenovo computer. This label will be of the format “Contains Transmitter Module: FCC ID: XXXX”, where XXXX represents the FCC ID that corresponds to your preinstalled Wireless LAN/WiMAX module.

iii) Radio Frequency interference requirements:

• The devices have been tested and found to comply with the limits for a Class B digital device pursuant to FCC Part 15 Subpart B. The model BCM94312MCG was subject to DoC. Refer to “Electronic emission notices” on page 12. The models 512AN_MMW, 512ANXMMW underwent the certification process with each respective FCC ID number listed in “I. Factory preinstalled Wireless LAN/WiMAX module” on page 2.

• Each device is restricted to indoor use due to its operation in the 5.15 to

5.25 GHz frequency range. FCC requires these products to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems.

• High power radar are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and/or damage this device.

S10-2 RegulatoryNoticeV1.0 (US,EU,Non_EU,AP).book Page 4 Monday, April 13, 2009 9:56 PM

II. Preinstalled integrated Bluetooth module

• FCC ID: MCLBCM92046 (Model: BCM92046)

i) FCC ID and installation of the module:

If you find an indication “Contains Transmitter Module: FCC ID: MCLBCM92046” on the label at the bottom side of your computer, your computer contains the Bluetooth transmitter module (Model: BCM92046). The Bluetooth module is preinstalled by Lenovo, and is not removable by users.

ii) The FCC RF safety requirement:

The radiated output power of the Bluetooth module is far below the FCC radio frequency exposure limits. Therefore, a 20 cm of separation between the Bluetooth antenna and human body is not required.

iii) Radio Frequency interference requirements:

The device has been tested and found to comply with the limits for both a Class B digital device regarding FCC Part 15 Subpart B and an intentional radiator regarding FCC Part 15 Subpart C; then it underwent the certification processes for both rules. Thus the FCC ID MCLBCM92046 of this device includes both certifications of Part 15 Subpart B and C.

S10-2 RegulatoryNoticeV1.0 (US,EU,Non_EU,AP).book Page 5 Monday, April 13, 2009 9:56 PM

III. Simultaneous use of RF transmitters

Your Lenovo computer is approved for simultaneous use of the transmitters listed below:

• Wireless LAN adapter (FCC ID: PD9LEN512ANMU, PD9512ANXMU, or GKR- BCM94312MCG)

• Bluetooth module (FCC ID: MCLBCM92046)

Please make sure of the following conditions on use of these wireless features:

1. When you use any other RF option device, all other wireless features including the above integrated devices in your Lenovo computer are required to be turned off.

2. Users must follow the RF Safety instructions on wireless option devices that are included in the RF option device’s user’s manual.

S10-2 RegulatoryNoticeV1.0 (US,EU,Non_EU,AP).book Page 6 Monday, April 13, 2009 9:56 PM

Canada — Industry Canada (IC)

IC Certification number

I) Factory preinstalled Wireless LAN modules:

• IC: 1000M-512ANMU (Model: 512AN_MMW)

• IC: 2533B-BCM94312MCG (Model: BCM94312MCG)

Wireless LAN Mini PCI Express Cards marketed in the USA and Canada do not support nor function in the extended channels (12ch, 13ch).

There is no certification number of Industry Canada for Mini PCI Express Card shown on the enclosure of your Lenovo computer. Instead you will find an indicator label pointing to the location of the IC Certification number on the bottom side of your Lenovo computer. This label will be of the format “Contains Transmitter Module: Canada IC: XXXX”, where XXXX represents the IC ID that corresponds to your preinstalled WLAN module.

II) Preinstalled integrated Bluetooth module:

• IC: 2878D-BCM92046 (Model: BCM92046)

S10-2 RegulatoryNoticeV1.0 (US,EU,Non_EU,AP).book Page 7 Monday, April 13, 2009 9:56 PM

If you find an indication “Contains Transmitter Module: Canada IC: 2878D-BCM92046 computer integrates the module is preinstalled by Lenovo, and is not removable by users.

III) Low power license-exempt radiocommunication devices (RSS-210):

Operation is subject to the following two conditions:

1. This device may not cause interference, and

2. this device must accept any interference, including interference that may cause undesired operation of the device.

The transmitter devices have been designed to operate with the antennas integrated in Lenovo computer, and having a maximum gain of within 3 dBi.

The maximum antenna gain permitted for devices in the 5250-5350 MHz, 5470-5725 MHz, and 5725-5825 MHz bands complies with the e.i.r.p. limit in section A9.2 of RSS-210.

When you use the model 512AN_MMW:

• The devices for the band 5150–5250 MHz are only for indoor usage to reduce potential for harmful interference to co-channel Mobile Satellite systems.

• High power radars are allocated as primary users (meaning they have priority) of 5250–5350 MHz and 5650–5850 MHz and these radars could cause interference and/or damage to LELAN (LicenceExempt Local Area Network) devices.

” on the label at the bottom side of your computer, your

Bluetooth

transmitter module. The

Bluetooth

S10-2 RegulatoryNoticeV1.0 (US,EU,Non_EU,AP).book Page 8 Monday, April 13, 2009 9:56 PM

IV) Exposure of humans to RF fields (RSS-102):

Lenovo computers employ low gain integral antennas that do not emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada’s Web site at www.hc-sc.gc.ca/rpb

The radiated energy from the antennas connected to the wireless adapters conforms to the IC limit of the RF exposure requirement regarding IC RSS-102, Issue 2 clause 4.2.

Numéro d’homologation IC

I) Modules de réseaux local sans fil pré-installé à l’usine:

• IC: 1000M-L512ANMU (Model: 512AN_MMW)

• IC: 2533B-BCM94312MCG (Model: BCM94312MCG)

Les cartes de réseau local sans fil Express mini-PCI commercialisées aux Etats-Unis et au Canada ne prennent pas en charge les canaux étendus (12ch, 13ch) et ne fonctionnent donc pas sur de tels canaux.

Le boîtier de votre ordinateur Lenovo ne comporte pas de numéro d’homologation IC (Industry Canada) pour la carte mini-PCI Express ; mais sous votre Lenovo, vous trouverez une étiquette indicatrice pointant vers l’emplacement du numéro d’homologation IC. L’étiquette se présente sous la forme “Contains Transmitter Module: Canada IC: XXXX” où XXXX représente l’ID IC qui correspond au module WLAN préinstallé.

S10-2 RegulatoryNoticeV1.0 (US,EU,Non_EU,AP).book Page 9 Monday, April 13, 2009 9:56 PM

II) Module Bluetooth intégré préinstallé:

• IC: 2878D-BCM92046 (Model: BCM92046)

Si la mention “Contains Transmitter Module: Canada IC: 2878D-BCM92046” figure sur l’étiquette située au bas de votre ordinateur, cela signifie que ce dernier intègre le module de transmission Bluetooth. Le module Bluetooth est préinstallé par Lenovo et ne peut pas être retiré par les utilisateurs.

III) Remarque relative aux appareils de communication radio de faible puissance sans licence (CNR-210):

Le fonctionnement de ce type d’appareil est soumis aux deux conditions suivantes:

1. Cet appareil ne doit pas perturber les communications radio, et

2. cet appareil doit supporter toute perturbation, y compris les perturbations qui pourraient provoquer son dysfonctionnement.

S10-2 RegulatoryNoticeV1.0 (US,EU,Non_EU,AP).book Page 10 Monday, April 13, 2009 9:56 PM

Les périphériques d’émission sont conçus pour fonctionner avec des antennes intégrées aux Lenovo et ayant un gain maximal de moins de 3 dBi. Le gain d’antenne maximal pour les périphériques dans les bandes de fréquence 5250-5350 MHz, 5470-5725 MHz, et 5725-5825 MHz est conforme à la limite p.i.r.e énoncée dans la section A9.2 de la CNR-210.

Lorsque vous utilisez le modèle 512AN_MMW:

• Tout appareil destiné à la bande 5150-5250 MHz devra être exclusivement utilisé en intérieur afin de réduire les risques de perturbations électromagnétiques gênantes sur les systèmes de satellite mobile dans un même canal.

• Les radars à forte puissance sont désignés comme les utilisateurs principaux (c’est-à-dire qu’ils sont prioritaires) des bandes 5250-5350 MHz et 5650-5850 MHz. Ils peuvent provoquer des perturbations électromagnétiques sur les appareils de type LELAN (réseau de communication local sans licence) ou les endommager.

IV) Exposition des êtres humains aux champs radioélectriques (RF) (CNR-102):

L’ordinateur Lenovo utilise des antennes intégrales à faible gain qui n’émettent pas un champ électromagnétique supérieur aux normes imposées par le Ministére de la santé canadien pour la population. Consultez le Safety Code 6 sur le site Web du Ministére de la santé canadien à l’adresse “www.hc-sc.gc.ca/rpb”.

L’énergie émise par les antennes reliées aux adaptateurs sans fil respecte la limite d’exposition aux radiofréquences telle que définie par Industrie Canada dans la clause 4.2 du document CNR-102.

S10-2 RegulatoryNoticeV1.0 (US,EU,Non_EU,AP).book Page 11 Monday, April 13, 2009 9:56 PM

Electronic emission notices

Federal Communications Commission (FCC) Statement

• Model: 512AN_MMW

• Model: 512ANXMMW

Note:

The compliance of the FCC Part 15 Subpart B for Models:

512AN_MMW, 512ANXMMW was proceeded by certification, thus the FCC ID: PD9LEN512ANMU, PD9512ANXMU, respectively include both compliances of Part 15 Subpart B and C/E.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult an authorized dealer or service representative for help.

S10-2 RegulatoryNoticeV1.0 (US,EU,Non_EU,AP).book Page 12 Monday, April 13, 2009 9:56 PM

Lenovo is not responsible for any radio or television interference caused by unauthorized changes or modifications to this equipment. Unauthorized changes or modifications could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Responsible Party:

Lenovo (United States) Incorporated 1009 Think Place - Building One Morrisville, NC 27560 Telephone: 1-919-294-5900

Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

Industry Canada Class B Emission Compliance Statement

This Class B digital apparatus complies with Canadian ICES-003.

Avis de conformité à la réglementation d’Industrie Canada

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

S10-2 RegulatoryNoticeV1.0 (US,EU,Non_EU,AP).book Page 13 Monday, April 13, 2009 9:56 PM

EU countries

Lenovo Regulatory Notice

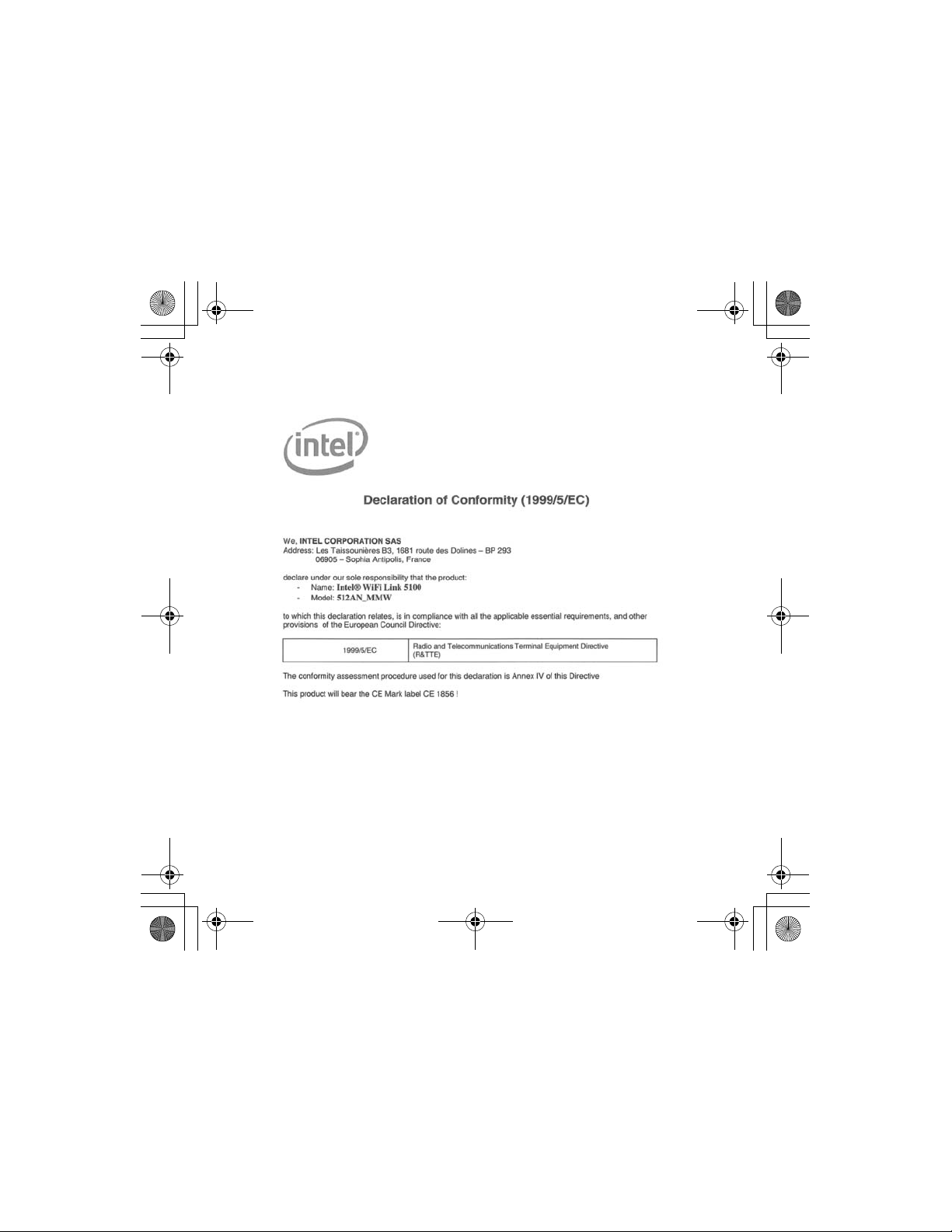

Europe — EU Declaration of Conformity

Products intended for sale within the European Union are marked with the Conformité Européenne (CE) Marking, which indicates compliance with the applicable Directives and European Norms, and amendments, identified below.

For model: 512AN_MMW

For model: BCM94312MCG

For model: BCM92046
