Intel® Desktop Board DG31PR Product Guide
Order Number: D99182-001
Revision Revision History Date
-001 First release of the Intel® Desktop Board DG31PR Product Guide June 2007
If an FCC declaration of conformity marking is present on the board, the following statement applies:
FCC Declaration of Conformity
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
For questions related to the EMC performance of this product, contact: Intel Corporation, 5200 N.E. Elam Young Parkway, Hillsboro, OR 97124
1-800-628-8686 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment to an outlet on a circuit other than the one to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications to the equipment not expressly approved by Intel Corporation could void the user’s authority to operate the equipment.
Tested to comply with FCC standards for home or office use.
Canadian Department of Communications Compliance Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.
Le présent appareil numerique német pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe B prescrites dans le Réglement sur le broullage radioélectrique édicté par le ministére des Communications du Canada.
Disclaimer
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL’S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. Intel products are not intended for use in medical, life saving, or life sustaining applications. Intel may make changes to specifications and product descriptions at any time, without notice.
Desktop Board DG31PR may contain design defects or errors known as errata which may cause the product to deviate from published specifications. Current characterized errata are available on request.
Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order.
Copies of documents which have an ordering number and are referenced in this document, or other Intel literature, may be obtained from Intel Corporation by going to the World Wide Web site at: http://www.intel.com/ or by calling 1-800-548-4725.
Intel, the Intel logo, Pentium, and Celeron are registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.
* Other names and brands may be claimed as the property of others. Copyright © 2007, Intel Corporation. All rights reserved.
OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS
Preface
This Product Guide gives information about board layout, component installation, BIOS update, and regulatory requirements for Intel
®
Desktop Board DG31PR.
Intended Audience
The Product Guide is intended for technically qualified personnel. It is not intended for general audiences.
Use Only for Intended Applications
All Intel Desktop Boards are evaluated as Information Technology Equipment (I.T.E.) for use in personal computers (PC) for installation in homes, offices, schools, computer rooms, and similar locations. The suitability of this product for other PC or embedded non-PC applications or other environments, such as medical, industrial, alarm systems, test equipment, etc. may not be supported without further evaluation by Intel.
Document Organization
The chapters in this Product Guide are arranged as follows: 1 Desktop Board Features: a summary of product features 2 Installing and Replacing Desktop Board Components: instructions on how to install
the Desktop Board and other hardware components 3 Updating the BIOS: instructions on how to update the BIOS A Error Messages and Indicators: information about BIOS error messages and beep
codes B Regulatory Compliance: information about safety standards, EMC regulations, and
product certifications
iii
Intel Desktop Board DG31PR Product Guide
Conventions
The following conventions are used in this manual:
CAUTION
Cautions warn the user about how to prevent damage to hardware or loss of data.
NOTE
Notes call attention to important information.
Terminology
The table below gives descriptions of some common terms used in the product guide.
Term Description
GB Gigabyte (1,073,741,824 bytes) GHz Gigahertz (one billion hertz) KB Kilobyte (1024 bytes) MB Megabyte (1,048,576 bytes) Mbit Megabit (1,048,576 bits) MHz Megahertz (one million hertz)
Box Contents
Intel Desktop Board DG31PR
I/O shield
Diskette drive cable
ATA-66/100 cable
Two locking Serial ATA (SATA) cables
Quick Reference guide
Configuration and battery caution statement labels
Intel
®
Express Installer Driver and Software CD-ROM
iv
Contents
1 Desktop Board Features
Supported Operating Systems..............................................................................10
Desktop Board Components.................................................................................11
Processor..........................................................................................................13
Main Memory.....................................................................................................13
®
Intel
G31 Express Chipset .................................................................................14
®
Intel
G33 Graphics Subsystem....................................................................15
Intel® GMA 3100 Graphics Controller (Intel
Audio Subsystem ...............................................................................................16
Legacy Input/Output (I/O) Controller....................................................................17
LAN Subsystem .................................................................................................17
RJ-45 LAN Connector LEDs...........................................................................17
Hi-Speed USB 2.0 Support ..................................................................................18
Enhanced IDE Interface ......................................................................................18
Serial ATA.........................................................................................................18
Expandability.....................................................................................................19
BIOS................................................................................................................19
Serial ATA and IDE Auto Configuration...........................................................19
PCI* and PCI Express* Auto Configuration .....................................................19
Security Passwords.....................................................................................20
Hardware Management Features ..........................................................................20
Hardware Monitoring and Fan Speed Control ..................................................21
Chassis Intrusion........................................................................................21
Power Management Features ...............................................................................21
ACPI.........................................................................................................21
Hardware Support ......................................................................................22
Power Connectors ...............................................................................22
Fan Headers .......................................................................................22
LAN Wake Capabilities..........................................................................22
Instantly Available PC Technology..........................................................23
+5 V Standby Power Indicator LED ........................................................23
Wake from USB ..................................................................................24
PME# Signal Wake-up Support..............................................................25
WAKE# Signal Wake-up Support ...........................................................25
ENERGY STAR* Capable ..............................................................................25
Speaker............................................................................................................25
Battery.............................................................................................................25
Real-Time Clock.................................................................................................25
®
GMA 3100)...........................15
2 Installing and Replacing Desktop Board Components
Before You Begin ...............................................................................................27
Installation Precautions.......................................................................................28
Prevent Power Supply Overload ....................................................................28
Observe Safety and Regulatory Requirements.................................................28
Installing the I/O Shield ......................................................................................29
Installing and Removing the Desktop Board ...........................................................30
v
Intel Desktop Board DG31PR Product Guide
Installing and Removing a Processor.....................................................................31
Installing a Processor ..................................................................................31
Installing the Processor Fan Heat Sink ...........................................................34
Connecting the Processor Fan Heat Sink Cable................................................35
Removing the Processor ..............................................................................36
Installing and Removing Memory..........................................................................36
Installing DIMMs ........................................................................................37
Removing DIMMs........................................................................................39
Installing and Removing a PCI Express x16 Card ....................................................39
Installing a PCI Express x16 Card .................................................................40

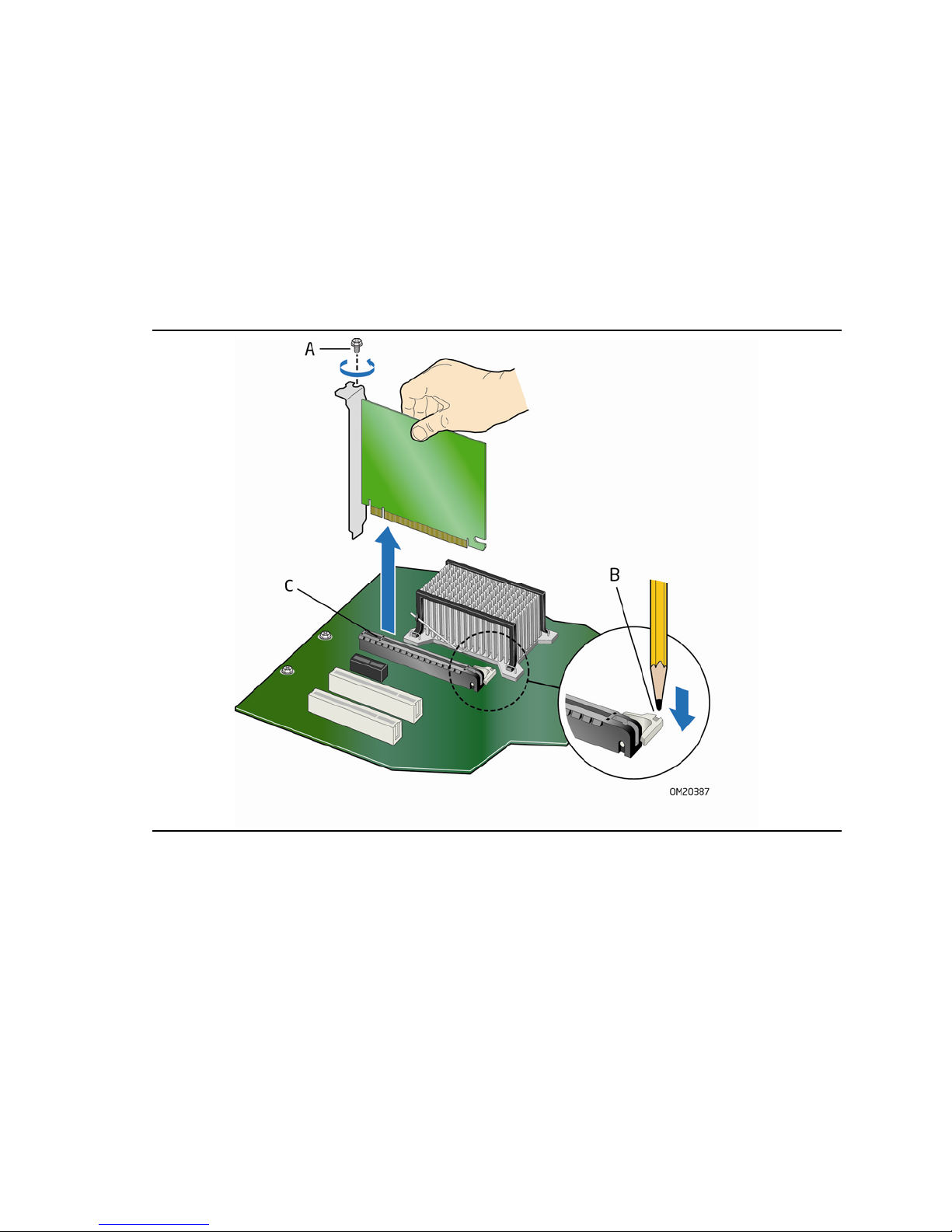

Removing the PCI Express x16 Card..............................................................41
Connecting the Diskette Drive Cable .....................................................................42
Connecting the IDE Cable....................................................................................43
Connecting the Serial ATA (SATA) Cables ..............................................................44
Connecting to the Internal Headers and Connectors ................................................45
Connecting to the Front Panel Audio Header ...................................................46
Connecting to the S/PDIF Connector..............................................................46
Connecting to the Chassis Intrusion Header....................................................46
Connecting to the Serial Port Header.............................................................47
Connecting to the Alternate Front Panel Power LED Header...............................47
Connecting to the Front Panel Header............................................................48
Connecting to the USB 2.0 Headers...............................................................48
Connecting to the Audio System...........................................................................49
Connecting Chassis Fan and Power Supply Cables...................................................50
Connecting Chassis Fan Cables.....................................................................50
Connecting Supply Power Cables ..................................................................51
Setting the BIOS Configuration Jumper .................................................................52
Clearing Passwords ............................................................................................53

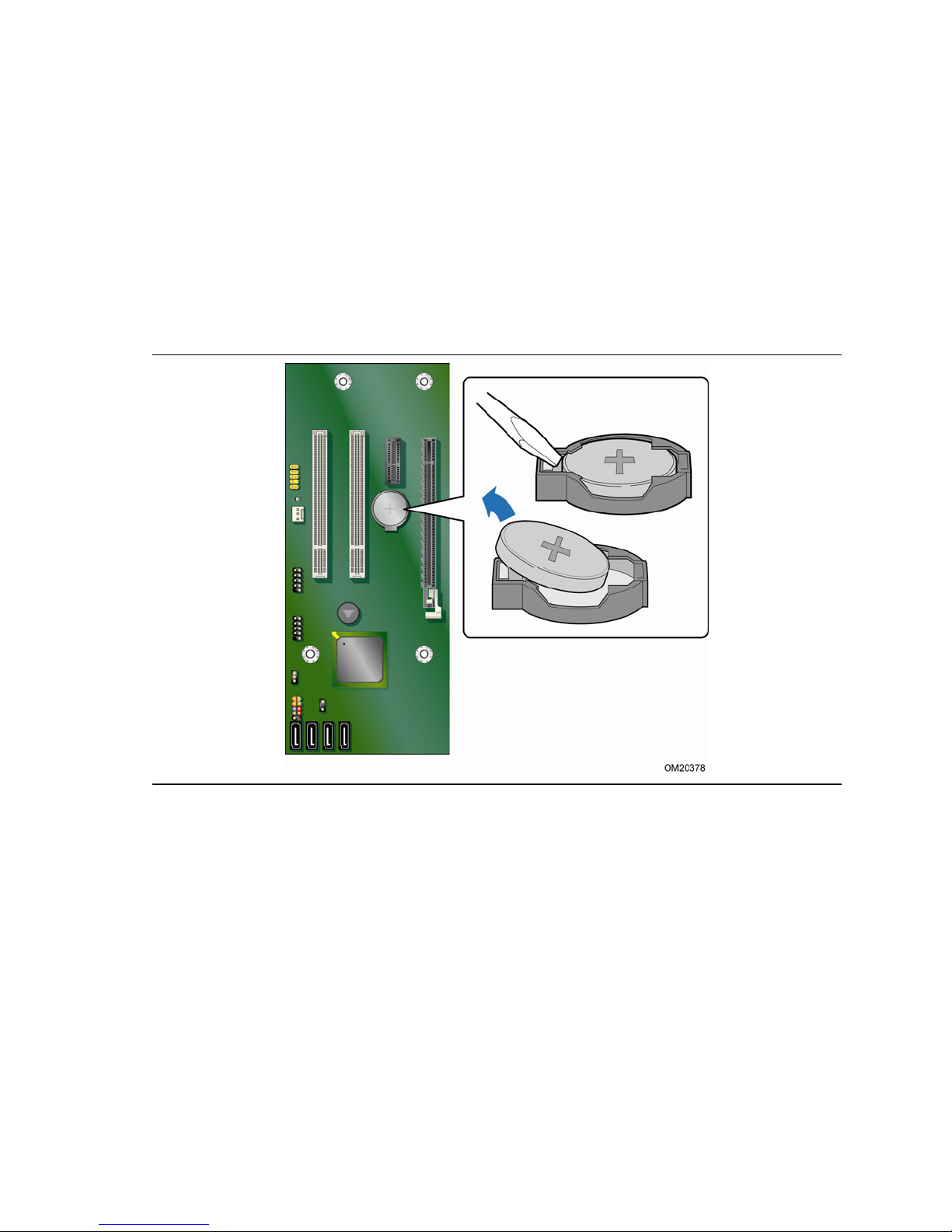

Replacing the Battery .........................................................................................54
3 Updating the BIOS
Updating the BIOS with the Intel Updating the BIOS with the ISO Image BIOS Update File or the Iflash Memory Update
Utility .........................................................................................................60
Obtaining the BIOS Update File ....................................................................60
Updating the BIOS with the ISO Image BIOS Update File .................................60
Updating the BIOS with the Iflash Memory Update Utility .................................61
Recovering the BIOS...................................................................................62
®
Express BIOS Update Utility.................................59
A Error Messages and Indicators
BIOS Beep Codes...............................................................................................63
BIOS Error Messages..........................................................................................63
B Regulatory Compliance
Safety Standards ...............................................................................................65
Place Battery Marking .................................................................................65
European Union Declaration of Conformity Statement..............................................66
Product Ecology Statements ................................................................................67
Recycling Considerations .............................................................................67
Lead-Free Desktop Board.............................................................................69
EMC Regulations ................................................................................................71
Ensure Electromagnetic Compatibility (EMC) Compliance..................................72
vi
Contents
Product Certifications..........................................................................................73
Board-Level Certification Markings ................................................................73
Chassis and Component Certifications............................................................74
Figures
1. Desktop Board DG31PR Components...............................................................11
2. LAN Connector LEDs .....................................................................................17
3. Location of the Standby Power Indicator ..........................................................24
4. Installing the I/O Shield ................................................................................29
5. Desktop Board DG31PR Mounting Screw Hole Locations .....................................30
6. Lift the Socket Lever.....................................................................................31
7. Lift the Load Plate.........................................................................................32
8. Remove the Protective Socket Cover ...............................................................32
9. Remove the Processor from the Protective Processor Cover ................................33
10. Install the Processor .....................................................................................33
11. Close the Load Plate .....................................................................................34
12. Connecting the Processor Fan Heat Sink Cable to the Processor Fan Header..........35
13. Dual Channel Memory Configuration Example ...................................................36
14. Use DDR2 DIMMs .........................................................................................37
15. Installing a DIMM .........................................................................................38
16. Installing a PCI Express x16 Card ...................................................................40
17. Removing a PCI Express x16 Card ..................................................................41
18. Connecting the Diskette Drive Cable................................................................42
19. Connecting the IDE Cable ..............................................................................43
20. Connecting a Serial ATA Cable........................................................................44
21. Internal Headers and Connectors....................................................................45
22. Back Panel Audio Connectors .........................................................................49
23. Location of the Chassis Fan Headers................................................................50
24. Connecting Power Supply Cables ....................................................................51
25. Location of the BIOS Configuration Jumper Block ..............................................52
26. Removing the Battery ...................................................................................58
Tables
1. Feature Summary.......................................................................................... 9
2. Desktop Board DG31PR Components...............................................................12
3. LAN Connector LEDs .....................................................................................18
4. Front Panel Intel High Definition Audio Header Signal Names ..............................46
5. S/PDIF Connector .........................................................................................46
6. Chassis Intrusion Header ...............................................................................46
7. Serial Port Header Signal Names.....................................................................47
8. Alternate Front Panel Power LED Header ..........................................................47
9. Front Panel Header .......................................................................................48
10. USB 2.0 Header Signal Names........................................................................48
11. Jumper Settings for the BIOS Setup Program Modes..........................................52
12. Beep Codes .................................................................................................63
13. BIOS Error Messages ....................................................................................63
14. Safety Standards..........................................................................................65
15. Lead-Free Board Markings .............................................................................70
16. EMC Regulations...........................................................................................71
17. Product Certification Markings ........................................................................73
vii
Intel Desktop Board DG31PR Product Guide
viii
1 Desktop Board Features
This chapter briefly describes the features of Intel® Desktop Board DG31PR. Table 1 summarizes the major features of the Desktop Board.
Table 1. Feature Summary
Form Factor
Processor Support for an Intel® processor in the LGA775 package Main Memory
Chipset Intel® G31 Express Chipset consisting of:
Graphics
Audio
LAN Support Expansion
Capabilities
Peripheral Interfaces
microATX (218.44 millimeters [8.60 inches] x 243.84 millimeters [9.60 inches])
Two 240-pin, DDR2 1.8 V (only) SDRAM Dual Inline Memory Module
(DIMM) sockets
800/667 MHz single or dual channel DDR2 SDRAM interface
Support for up to 4 GB of system memory
Intel G31 Express Chipset Graphics and Memory Controller Hub
(GMCH) with Intel® Graphics Media Accelerator 3100 (Intel® GMA
3100)
Intel
Intel G31 Express Chipset Graphics and Memory Controller Hub
One PCI Express* x16 connector supporting PCI Express graphics
5.1 + 2-channel onboard audio subsystem, featuring:
Onboard S/PDIF connector
One PCI Express x16 connector
One PCI Express x1 connector
Two PCI* bus connectors
Up to 8 USB 2.0 ports
Four Serial ATA (SATA) channels (3.0 Gb/s) via the ICH7
One IDE interface with ATA-66/100 support (two devices)
One diskette drive interface
One VGA port
One serial port header
PS/2* keyboard and mouse ports
®
82801G I/O Controller Hub (ICH7)
(GMCH)
cards
IntelRealtek*ALC888 audio codec
Realtek 8111-GR Gigabit Ethernet Controller
Four ports routed to the back panel Four ports routed to two USB headers
®
High Definition Audio
continued
9
Intel Desktop Board DG31PR Product Guide
Table 1. Feature Summary (continued)
BIOS
Power Management
Hardware Monitor
Intel
4 Mbit symmetrical flash memory device
Support for SMBIOS
Intel
Intel
Support for Advanced Configuration and Power Interface (ACPI)
Suspend to RAM (STR)
Wake on USB, PCI Express, LAN, and front panel
ENERGY STAR* capable
Voltage sense to detect out of range power supply voltages
Thermal sense to detect out of range temperatures
Three fan headers
Three fan sense inputs to monitor fan speed
®
Platform Innovation Framework for extensible firmware
interface
®
Rapid BIOS Boot
®
Express BIOS Update
Related Links:
For more information about Desktop Board DG31PR, including the Technical Product Specification (TPS), BIOS updates, and device drivers, go to:
http://support.intel.com/support/motherboards/desktop/
Supported Operating Systems
The Desktop Board supports the following operating systems:
Microsoft Windows Vista* Ultimate
Microsoft Windows Vista Enterprise
Microsoft Windows Vista Business
Microsoft Windows Vista Home Premium
Microsoft Windows Vista Home Basic
Microsoft Windows Vista Ultimate 64-bit edition
Microsoft Windows Vista Enterprise 64-bit edition
Microsoft Windows Vista Business 64-bit edition
Microsoft Windows Vista Home Premium 64-bit edition
Microsoft Windows Vista Home Basic 64-bit edition
Microsoft Windows* XP Media Center Edition 2005
Microsoft Windows XP Professional
Microsoft Windows XP Professional x64 Edition
Microsoft Windows XP Home
10
Desktop Board Features
Desktop Board Components
Figure 1 shows the approximate location of the major components on Desktop Board DG31PR.
Figure 1. Desktop Board DG31PR Components
11
Intel Desktop Board DG31PR Product Guide
Table 2. Desktop Board DG31PR Components
Label Description
A PCI bus connector 2 B PCI bus connector 1 C Battery D PCI Express x1 connector E PCI Express x16 connector F S/PDIF connector G Back panel connectors H 12 V processor core voltage connector (2 x 2 pin) I Rear chassis fan header (3-pin) J Processor socket K Processor fan header (4-pin) L DDR2 Channel A DIMM 0 socket M DDR2 Channel B DIMM 0 socket N Chassis intrusion header O Serial port header P Diskette drive connector Q Main power connector (2 x 12 pin) R IDE connector S Serial ATA connectors T Front panel header U Alternate front panel power LED header V BIOS configuration jumper block W High-speed USB 2.0 headers X Speaker Y Front chassis fan header (3-pin) Z Front panel audio header
12
Desktop Board Features
Related Links:
Go to the following links for more information about:
Desktop Board DG31PR
Supported processors
Audio software and utilities
LAN software and drivers
http://www.intel.com/design/motherbd http://support.intel.com/support/motherboards/desktop
http://www.intel.com/go/findCPU http://www.intel.com/design/motherbd http://www.intel.com/design/motherbd
Processor
CAUTION
Failure to use an appropriate power supply and/or not connecting the 12 V (2 x 2 pin) power connector to the Desktop Board may result in damage to the board, or the system may not function properly.
Desktop Board DG31PR supports an Intel processor in the LGA775 package. Processors are not included with the Desktop Board and must be purchased separately. The processor connects to the Desktop Board through the LGA775 socket.
Related Links:
Go to the following page or link for more information about:
Instructions on installing or upgrading the processor, page 31 in Chapter 2
Supported
http://www.intel.com/go/findCPU
processors for Desktop Board DG31PR,
Main Memory
NOTE
To be fully compliant with all applicable Intel ® SDRAM memory specifications, the board should be populated with DIMMs that support the Serial Presence Detect (SPD) data structure. If your memory modules do not support SPD, you will see a notification to this effect on the screen at power up. The BIOS will attempt to configure the memory controller for normal operation.
The Desktop Board supports the dual or single channel memory configurations defined below.
Two 240-pin Double Data Rate 2 (DDR2) SDRAM Dual Inline Memory Module
(DIMM) connectors with gold-plated contacts.
13
Intel Desktop Board DG31PR Product Guide
Support for:
Unbuffered, non-registered single or double-sided DIMMs
Non-ECC DDR2 memory
1.8 V DIMMs only
DIMM Type and Timings listed below:
Type Timing
DDR2-800 5-5-5 or 6-6-6 only
DDR2-667 5-5-5 only
Serial Presence Detect (SPD) memory only
Memory configurations listed below:
Up to 2.0 GB utilizing 256 Mb technology
Up to 4.0 GB utilizing 512 Mb or 1 Gb technology
Related Links:
Go to the following links or pages for more information about:
SDRAM specifications,
Installing memory, page 36 in Chapter 2
Tested memory, http://www.cmtlabs.com/mbsearch.asp
http://www.intel.com/technology/memory/
Intel® G31 Express Chipset
The Intel G31 Express Chipset consists of the following devices:
Intel G31 Express Chipset Graphics and Memory Controller Hub (GMCH) with Direct
Media Interface (DMI)
Intel 82801G I/O Controller Hub (ICH7) with DMI The GMCH component provides interfaces to the processor, memory, PCI Express, and
the DMI interconnect. The component also provides integrated graphics capabilities supporting 3D, 2D, and display capabilities. The ICH7 is a centralized controller for the board’s I/O paths.
Related Links:
Go to the following link for more information about the Intel G31 Express Chipset:
http://developer.intel.com/design/nav/pcserver.htm
14
Intel® G33 Graphics Subsystem
Desktop Board Features
The Intel G31 Express Chipset contains two separate, mutually exclusive graphics options. Either the integrated Intel GMA 3100) graphics controller is used or a PCI Express x16 add-in card can be used. When a PCI Express x16 add-in card is installed, the Intel GMA 3100 graphics controller is disabled.
®
Graphics Media Accelerator 3100 (Intel®
Intel® GMA 3100 Graphics Controller (Intel® GMA 3100)
The Intel GMA 3100 features the following:
400 MHz core frequency
High quality texture engine:
DX9.0c* and OpenGL* 1.4 compliant
Hardware Pixel Shader 2.0
Vertex Shader Model 2.0
3D Graphics Rendering enhancements:
1.6 dual texture GigaPixel/s maximum fill rate
16-bit and 32-bit color
Vertex cache
Video
Software DVD at 30 fps full screen
Adaptive deinterlacing
Dynamic Video Memory Technology (DVMT) support up to 256 MB
Display
Up to 2048 x 1536 at 75 Hz refresh (QXGA)
Dual independent display options with digital display
DDC2B compliant interface with Advanced Digital Display 2 card or Media
Expansion Card (ADD2/MEC), support for TV-out/TV-in and DVI digital display connections
NOTE
A minimum of 512 MB of system memory is required in order for the Intel GMA 3100 integrated graphics controller to operate properly.
15
Intel Desktop Board DG31PR Product Guide
Audio Subsystem
The onboard audio subsystem consists of the following:
®
Intel
Realtek ALC888 audio codec
Back panel audio connectors
Onboard audio header/connector:
The audio subsystem supports the following features:
A signal-to-noise (S/N) ratio of 95 dB
Independent multi-streaming 5.1 audio (using the back panel audio connectors)
Related Links:
Go to the following link or pages for more information about:
Audio drivers and utilities
The location of the back panel audio connectors, Figure 22 on page 49
ICH7
Intel High Definition audio front panel audio header
Onboard S/PDIF connector
and stereo (using the Intel High Definition front panel audio header)
http://support.intel.com/support/motherboards/desktop/
16
Desktop Board Features
Legacy Input/Output (I/O) Controller
The legacy I/O controller features the following:
Low pin count (LPC) interface
One serial port interface via an onboard header
Serial IRQ interface compatible with serialized IRQ support for PCI systems
Intelligent power management, including a programmable wake up event interface
PCI power management support
LAN Subsystem
The LAN subsystem includes:
Intel ICH7
Realtek 8111-GR Gigabit Ethernet Controller for operation at 10/100/1000 Mb/s
RJ-45 LAN connector with integrated status LEDs
The subsystem features:
CSMA/CD protocol engine
LAN connect interface between ICH7 and the LAN controller
PCI bus power management
Related Links:
Go to the following link for information about LAN software and drivers:
http://support.intel.com/support/motherboards/desktop
RJ-45 LAN Connector LEDs
Two LEDs are built into the RJ-45 LAN connector located on the back panel (see Figure 2). These LEDs indicate th
Figure 2. LAN Connector LEDs
e status of the LAN.
17
Intel Desktop Board DG31PR Product Guide
Table 3 describes the LED states when the board is powered up and the LAN subsystem is operating.
Table 3. LAN Connector LEDs
LED LED Color LED State Indicates
A Off LAN link is not established
Blinking LAN activity is occurring B
Green
On LAN link is established
N/A Off 10 Mb/s data rate Green On 100 Mb/s data rate Yellow On 1000 Mb/s data rate
Hi-Speed USB 2.0 Support
The Desktop Board supports up to eight USB 2.0 ports (four ports routed to the back panel and four ports routed to two internal headers) via the ICH7. USB 2.0 ports are backward compatible with USB 1.1 devices. USB 1.1 devices will function normally at USB 1.1 speeds.
USB 2.0 support requires both an operating system and drivers that fully support USB 2.0 transfer rates. Disabling Hi-Speed USB in the BIOS reverts all USB 2.0 ports to USB 1.1 operation. This may be required to accommodate operating systems that do not support USB 2.0.
Enhanced IDE Interface
The board’s IDE interface handles the exchange of information between the processor and peripheral devices such as hard disk drives and CD-ROM drives. The interface supports:
Up to two IDE devices (such as hard drives)
ATAPI-style devices (such as CD-ROM drives)
Older PIO Mode devices
Ultra DMA-33 and ATA-66/100 protocols
Serial ATA
The Desktop Board supports four Serial ATA channels (3.0 Gb/s) via ICH7, connecting one device per channel.
18
Desktop Board Features
Expandability
For system expansion, the Desktop Board provides the following expansion slots:
One PCI Express x1 connector
One PCI Express x16 connector
Two PCI bus connectors
BIOS
The BIOS provides the Power-On Self-Test (POST), the BIOS Setup program, the PCI/PCI Express and IDE auto-configuration utilities, and the video BIOS. The BIOS is stored in the Serial Peripheral Interface (SPI) Flash component.
The BIOS can be updated by following the instructions on page
59 in Chapter 3.
Serial ATA and IDE Auto Configuration
If you install a Serial ATA or IDE device (such as a hard drive) in your computer, the auto-configuration utility in the BIOS automatically detects and configures the device for your computer. You do not need to run the BIOS Setup program after installing a Serial ATA or IDE device. You can override the auto-configuration options by specifying manual configuration in the BIOS Setup program.
PCI* and PCI Express* Auto Configuration
If you install a PCI/PCI Express add-in card in your computer, the PCI/PCI Express auto-configuration utility in the BIOS automatically detects and configures the resources (IRQs, DMA channels, and I/O space) for that add-in card. You do not need to run the BIOS Setup program after you install a PCI/PCI Express add-in card.
19
Intel Desktop Board DG31PR Product Guide
Security Passwords
The BIOS includes security features that restrict whether the BIOS Setup program can be accessed and who can boot the computer. A supervisor password and a user password can be set for the BIOS Setup and for booting the computer, with the following restrictions:
The supervisor password gives unrestricted access to view and change all Setup
options. If only the supervisor password is set, pressing <Enter> at the password
prompt of Setup gives the user restricted access to Setup.
If both the supervisor and user passwords are set, you must enter either the
supervisor password or the user password to access Setup. Setup options are then
available for viewing and changing depending on whether the supervisor or user
password was entered.
Setting a user password restricts who can boot the computer. The password
prompt is displayed before the computer is booted. If only the supervisor
password is set, the computer boots without asking for a password. If both
passwords are set, you can enter either password to boot the computer.
Related Links:
For instructions on resetting the password, see
Clearing Passwords on page 53.
Hardware Management Features
The hardware management features of Desktop Board DG31PR enable the board to be compatible with the Wired for Management (WfM) specification. The board has several hardware management features including the following:
Fan speed monitoring and control
Thermal and voltage monitoring
Chassis intrusion detection
20
Desktop Board Features
Hardware Monitoring and Fan Speed Control
The features of the hardware monitoring and fan speed control include:
Monitoring of power supply voltages to detect levels above and below acceptable
values
Fan speed controllers and sensors integrated into the legacy I/O controller
Thermal sensors in the processor, GMCH, and ICH7, plus an onboard remote
sensor
Thermally monitored closed-loop fan control, for all onboard fans, that can adjust
fan speed or switch the fans off as needed
Chassis Intrusion
The board supports a chassis security feature that detects if the chassis cover has been removed. The security feature uses a mechanical switch on the chassis that can be connected to the chassis intrusion header on the Desktop Board. See the location of the c
hassis intrusion header.
Figure 21 for
Power Management Features
Power management is implemented at several levels, including:
Software support through the Advanced Configuration and Power Interface (ACPI)
Hardware support:
Power connectors
Fan headers
LAN wake capabilities
Instantly Available PC technology (Suspend to RAM)
+5 V standby power indicator LED
Wake from USB
Power Management Event signal (PME#) wakeup support
WAKE# signal wake-up support
ENERGY STAR capable
ACPI
ACPI gives the operating system direct control over the power management and Plug and Play functions of a computer. The use of ACPI with the Desktop Board requires an operating system that provides full ACPI support.
21
Intel Desktop Board DG31PR Product Guide
Hardware Support
Power Connectors
ATX12V-compliant power supplies can turn off the computer power through system control. When an ACPI-enabled computer receives the correct command, the power supply removes all non-standby voltages.
When resuming from an AC power failure, the computer returns to the power state it was in before power was interrupted (either on or off). The computer’s response can be set by using the Last Power State feature in the BIOS Setup program’s Boot menu.
The Desktop Board has two power connectors. See location of the power co
nnectors.
Figure 24 on page 51 for the
Fan Headers
The function/operation of the fans is as follows:
The fans are on when the computer is in the ACPI S0 state.
The fans are off when the computer is in the ACPI S3, S4, or S5 state.
Each fan header is wired to a tachometer input of the hardware monitoring and
control device.
All fan headers support closed-loop fan control that can adjust the fan speed or
switch the fan on or off as needed.
All fan headers have a +12 V DC connection. The Desktop Board has a 4-pin processor fan header and two 3-pin chassis fan
headers.
LAN Wake Capabilities
CAUTION
For LAN wake capabilities, the 5 V standby line for the power supply must be capable of delivering adequate +5 V standby current. Failure to provide adequate standby current when using this feature can damage the power supply.
LAN wakeup capabilities enable remote wake-up of the computer through a network. The LAN subsystem monitors network traffic and upon detecting a Magic Packet* frame, it asserts a wake-up signal that powers up the computer.
22
Desktop Board Features
Instantly Available PC Technology
CAUTIONS
For Instantly Available PC technology, the 5 V standby line for the power supply must be capable of delivering adequate +5 V standby current. Failure to provide adequate standby current when using this feature can damage the power supply and/or effect ACPI S3 sleep state functionality.
Power supplies used with this Desktop Board must be able to provide enough standby current to support the standard Instantly Available (ACPI S3 sleep state) configuration. If the standby current necessary to support multiple wake events from the PCI and/or USB buses exceeds power supply capacity, the Desktop Board may lose register settings stored in memory.
Instantly Available PC technology enables the board to enter the ACPI S3 (Suspend-to­RAM) sleep state. While in the S3 sleep state, the computer will appear to be off. If the computer has a dual-colored power LED on the front panel, the sleep state is indicated by the LED turning amber. When signaled by a wake-up device or event, the computer quickly returns to its last known awake state.
The Desktop Board supports the PCI Bus Power Management Interface Specification. Add-in cards that support this specification can participate in power management and can be used to wake the computer.
+5 V Standby Power Indicator LED
CAUTION
If the AC power has been switched off and the standby power indicator is still lit, disconnect the power cord before installing or removing any devices connected to the board. Failure to do so could damage the board and any attached devices.
The Desktop Board’s standby power indicator, shown in Figure 3, is lit when there is standby power still present on the board even when the computer appears to be off. For example, when this LED is lit, standby power is still present at the memory module sockets and the PCI bus connectors.
23
Intel Desktop Board DG31PR Product Guide
Figure 3. Location of the Standby Power Indicator
Related Links:
For more information on standby current requirements for the Desktop Board, refer to the Technical Product Specification by going to the following link, finding the product, and selecting Product Documentation from the left-hand menu:
http://support.intel.com/support/motherboards/desktop/
Wake from USB
NOTE
Wake from USB requires the use of a USB peripheral that supports Wake from USB.
USB bus activity wakes the computer from an ACPI S3 state.
24
Desktop Board Features
PME# Signal Wake-up Support
When the PME# signal on the PCI bus is asserted, the computer wakes from an ACPI S3, S4, or S5 state.
WAKE# Signal Wake-up Support
When the WAKE# signal on the PCI Express bus is asserted, the computer wakes from an ACPI S2, S3, S4, or S5 state.
ENERGY STAR* Capable
In 2007, the US Department of Energy and the US Environmental Protection Agency revised the ENERGY STAR requirements. Intel worked directly with these two governmental agencies to define the new requirements. Currently Intel Desktop Boards are capable of meeting the new ENERGY STAR requirements depending upon system configuration.
Go to the following link for information and recommendations concerning the new ENERGY STAR requirements:
http://www.intel.com/go/EnergyStar
Speaker
A speaker is mounted on the Desktop Board. The speaker provides audible error code (beep code) information during the Power-On Self-Test (POST).
Battery
A battery on the Desktop Board keeps the values in CMOS RAM and the clock current when the computer is turned off. Go to page 54 for instructions on how to replace the battery.
Real-Time Clock
The Desktop Board has a time-of-day clock and 100-year calendar. The battery on the Desktop Board keeps the clock current when the computer is turned off.
25
Intel Desktop Board DG31PR Product Guide
26
2 Installing and Replacing Desktop
Board Components
This chapter tells you how to:
Install the I/O shield
Install and remove the Desktop Board
Install and remove a processor
Install and remove memory
Install and remove a PCI Express x16 card
Connect the diskette drive cable
Connect the IDE and Serial ATA cables
Connect to the internal headers and connectors
Connect to the audio system
Connect chassis fan and power supply cables
Set the BIOS configuration jumper
Clear passwords
Replace the battery
Before You Begin
CAUTIONS
The procedures in this chapter assume familiarity with the general terminology associated with personal computers and with the safety practices and regulatory compliance required for using and modifying electronic equipment.
Disconnect the computer from its power source and from any telecommunications links, networks, or modems before performing any of the procedures described in this chapter. Failure to disconnect power, telecommunications links, networks, or modems before you open the computer or perform any procedures can result in personal injury or equipment damage. Some circuitry on the board can continue to operate even though the front panel power button is off.
Follow these guidelines before you begin:
Always follow the steps in each procedure in the correct order.
Set up a log to record information about your computer, such as model, serial
numbers, installed options, and configuration information.
Electrostatic discharge (ESD) can damage components. Perform the procedures
described in this chapter only at an ESD workstation using an antistatic wrist strap
and a conductive foam pad. If such a station is not available, you can provide
some ESD protection by wearing an antistatic wrist strap and attaching it to a
metal part of the computer chassis.
27
Intel Desktop Board DG31PR Product Guide
Installation Precautions
When you install and test the Intel Desktop Board, observe all warnings and cautions in the installation instructions.
To avoid injury, be careful of:
Sharp pins on connectors
Sharp pins on printed circuit assemblies
Rough edges and sharp corners on the chassis
Hot components (such as processors, voltage regulators, and heat sinks)
Damage to wires that could cause a short circuit
Observe all warnings and cautions that instruct you to refer computer servicing to qualified technical personnel.
Prevent Power Supply Overload
Do not overload the power supply output. To avoid overloading the power supply, make sure that the calculated total current loads of all the modules within the computer is less than the output current rating of each of the power supplies output circuits.
Observe Safety and Regulatory Requirements
Read and adhere the instructions in this section and the instructions supplied with the chassis and associated modules. If you do not follow these instructions and the instructions provided by the chassis and module suppliers, you increase safety risk and the possibility of noncompliance with regional laws and regulations. If the instructions for the chassis are inconsistent with these instructions or the instructions for associated modules, contact the supplier’s technical support to find out how you can ensure that your computer meets safety and regulatory requirements.
Related Links
For information about regulatory compliance, go to Appendix B on page
65.
28
Installing and Replacing Desktop Board Components
Installing the I/O Shield
The Desktop Board comes with an I/O shield. When installed in the chassis, the shield blocks radio frequency transmissions, protects internal components from dust and foreign objects, and promotes correct airflow within the chassis.
Install the I/O shield before installing the Desktop Board in the chassis. Place the shield inside the chassis as shown in t
ightly and securely. If the shield does not fit, obtain a properly sized shield from the
chassis supplier.
Figure 4. Press the shield into place so that it fits
Figure 4. Installing the I/O Shield
29
Intel Desktop Board DG31PR Product Guide
Installing and Removing the Desktop Board
CAUTION
Only qualified technical personnel should do this procedure. Disconnect the computer from its power source before performing the procedures described here. Failure to disconnect the power before you open the computer can result in personal injury or equipment damage.
Refer to your chassis manual for instructions on installing and removing the Desktop Board.
Figure 5 shows the location of t
Figure 5. Desktop Board DG31PR Mounting Screw Hole Locations
he mounting screw holes for Desktop Board DG31PR.
30
Installing and Replacing Desktop Board Components
Installing and Removing a Processor
Instructions on how to install the processor to the Desktop Board are given below.
Installing a Processor
CAUTION
Before installing or removing the processor, make sure the AC power has been removed by unplugging the power cord from the computer; the standby power LED should not be lit (see processor and the boar
To install a processor, follow these instructions:
1. Observe the precautions in "Before You Begin" on page 27.
2. Open the so
(
Figure 6, A and B).
cket lever by pushing the lever down and away from the socket
Figure 3 on page 24). Failure to do so could damage the
d.
Figure 6. Lift the Socket Lever
31
Intel Desktop Board DG31PR Product Guide
3. Lift the load plate (Figure 7, A). Do not touch the socket contacts (Figure 7, B).
Figure 7. Lift the Load Plate
4. Remove the plastic protective socket cover from the load plate (Figure 8). Do not
discard the protective socket cover. Always replace the socket cover if the
processor is removed from the socket.
Figure 8. Remove the Protective Socket Cover
32
Installing and Replacing Desktop Board Components
5. Remove the processor from the protective processor cover. Hold the processor
only at the edges, being careful not to touch the bottom of the processor (see
Figure 9). Do not discard the
protective processor cover. Always replace the
processor cover if the processor is removed from the socket.
Figure 9. Remove the Processor from the Protective Processor Co ver
6. Hold the processor with your thumb and index fingers oriented as shown in
Figure 10. Make sure your fingers align to the socket cutouts (Figure 10, A). Align
notches
dow
(Figure 10, B) with the socket (Figure 10, C). Lower the processor straight
n without tilting or sliding it in the socket.
Figure 10. Install the Processor
33
Intel Desktop Board DG31PR Product Guide
7. Pressing down on the load plate (Figure 11, A), close and engage the socket lever
(Figure 11, B).
Figure 11. Close the Load Plate
Installing the Processor Fan Heat Sink
Desktop Board DG31PR has mounting holes for a processor fan heat sink. For instructions on how to attach the processor fan heat sink to the Desktop Board, refer to the boxed processor manual.
34
Installing and Replacing Desktop Board Components
Connecting the Processor Fan Heat Sink Cable
Connect the processor fan heat sink cable to the 4-pin processor fan header (see Figure 12). A fan with a 4-pi however, a fan with a 3-pin connector (Figure 12, B) can be used. However, since the fan
with a 3-pin connector cannot use the onboard fan control, the fan will always
operate at full speed.
n connector as shown in Figure 12, A is recommended;
Figure 12. Connecting the Processor Fan Heat Sink Cable to the
Processor Fan Header
35
Intel Desktop Board DG31PR Product Guide
Removing the Processor
For instructions on how to remove the processor fan heat sink and processor, refer to the processor installation manual.
Installing and Removing Memory
NOTE
To be fully compliant with all applicable Intel SDRAM memory specifications, the board requires DIMMs that support the Serial Presence Detect (SPD) data structure.
The desktop board has two 240-pin DDR2 DIMM sockets providing Channel A and Channel B. For dual-channel performance, install a matched pair of DIMMs equal in speed and size (see
Figure 13).
Figure 13. Dual Channel Memory Configuration Example
NOTE
All other memory configurations will result in single channel memory operation.
36
Installing and Replacing Desktop Board Components
Installing DIMMs
To make sure you have the correct DIMM, place it on the illustration of the DDR2 DIMM in Figure 14. All the notches should match with the DDR2 DIMM.
Figure 14. Use DDR2 DIMMs
37
Intel Desktop Board DG31PR Product Guide
NOTE
Memory must be installed in the Channel A, DIMM 0 socket to enable Intel® Quiet System Technology.
To install a DIMM, follow these steps:
1. Observe the precautions in "Before You Begin" on page 27.
2. Turn off all peripheral devices connected to the
and disconnect the AC power cord.
3. Remove the computer’s cover and locate the DIMM sockets (see
computer. Turn off the computer
Figure 15).
4. Make sure the clips at either end of the DIMM socket(s) are pushed outward to the
open position.
5. Holding the DIMM by the edges, remove it from its anti-static package.
6. Position the DIMM above the socket. Align the small notch at the bottom edge of
the DIMM with the keys in the socket (see inset in
38
Figure 15. Installing a DIMM
Figure 15).
Installing and Replacing Desktop Board Components
7. Insert the bottom edge of the DIMM into the socket.
8. When the DIMM is inserted, push down on the top edge of the DIMM until the
retaining clips snap into place. Make sure the clips are firmly in place.
9. Replace the computer’s cover and reconnect the AC power cord.
Removing DIMMs
To remove a DIMM, follow these steps:
1. Observe the precautions in "Before You Begin" on page 27.
2. Turn off all peripheral devices connected to the
3. Remove the AC power cord from the computer.
4. Remove the computer’s cover.
5. Gently spread the retaining clips at each end of the DIMM socket. The DIMM pops
out of the socket.
6. Hold the DIMM by the edges, lift it away from the socket, and store it in an
anti-static package.
7. Reinstall and reconnect any parts you removed or disconnected to reach the DIMM
sockets.
8. Replace the computer’s cover and reconnect the AC power cord.
computer. Turn off the computer.
Installing and Removing a PCI Express x16 Card
CAUTION
When installing a PCI Express x16 card on the Desktop Board, ensure that the card is fully seated in the PCI Express x16 connector before you power on the system. If the card is not fully seated in the PCI Express connector, an electrical short may result across the PCI Express connector pins. Depending on the over-current protection of the power supply, certain Desktop Board components and/or traces may be damaged.
39
Intel Desktop Board DG31PR Product Guide
Installing a PCI Express x16 Card
CAUTION
When installing a PCI Express x16 card on the desktop board, ensure that the card is fully seated in the PCI Express x16 connector before you power on the system. If the card is not fully seated in the PCI Express connector, an electrical short may result across the PCI Express connector pins. Depending on the over-current protection of the power supply, certain desktop board components and/or traces may be damaged.
1. Observe the precautions in "
2. Place the card in the PCI E
t
he card until it is completely seated in the connector and the card retention notch
snaps into place around the retention mechanism pin.
3. Secure the card’s metal bracket to the chassis back panel with a screw
(
Figure 16, B).
Before You Begin" on page 27.
xpress x16 connector (Figure 16, A) and press down on
Figure 16. Installing a PCI Express x16 Card
40
Installing and Replacing Desktop Board Components
Removing the PCI Express x16 Card
Follow these instructions to remove the PCI Express x16 card from the connector:
1. Observe the precautions in "Before You Begin" on page 27.
2. Remove the
chassis bac
3. Push the card ejector lever down using the tip of a pencil or similar tool in the
notch (
4. P
ull the card straight up.
screw (Figure 17, A) that secures the card’s metal bracket to the
k panel.
Figure 17, B). This will release the card from the connector (Figure 17, C).
Figure 17. Removing a PCI Express x16 Card
41
Intel Desktop Board DG31PR Product Guide
Connecting the Diskette Drive Cable
The diskette drive cable can be used to connect a single diskette drive to the Desktop Board.
For correct function of the cable:
1. Observe the precautions in "Before You Begin" on page 27.
2. Attach
Desktop Board (Figure 18, A).
3. Attach the c
the cable end labeled P1 to the diskette drive connector on the Intel
able end labeled P2 to the diskette drive (Figure 18, B).
Figure 18. Connecting the Diskette Drive Cable
42
Installing and Replacing Desktop Board Components
Connecting the IDE Cable
The IDE cable can be used to connect two IDE drives to the Desktop Board. The cable supports the ATA-66/100 transfer protocol. Figure 19 shows the correct installation of the cable.
NOTES
ATA-66/100 compatible cables are backward compatible with drives using slower IDE transfer protocols. If an ATA-66/100 disk drive and a disk drive using any other IDE transfer protocol are attached to the same cable, the maximum transfer rate between the drives may be reduced to that of the slowest drive.
Do not connect an ATA device as a slave on the same IDE cable as an ATAPI master device. For example, do not connect an ATA hard drive as a slave to an ATAPI CD-ROM drive.
For correct function of the cable:
1. Observe the precautions in "
2. Attach the cable end with the single connect
(Figure 19, A).
3. Attach the cable end with the two cl
the drives (Figure 19, B).
Before You Begin" on page 27.
osely spaced connectors (gray and black) to
or (blue) to the Intel Desktop Board
Figure 19. Connecting the IDE Cable
43
Intel Desktop Board DG31PR Product Guide
Connecting the Serial ATA (SATA) Cables
SATA cables support the Serial ATA protocol. Each cable can be used to connect a single internal SATA drive to the Desktop Board. For correct cable function:
1. Observe the precautions in “Before You Begin” on page 27.
2. Attach
(
Figure 20, A) and attach the other end of the
(Figure 20, B).
one end of the SATA cable to one of the SATA connectors on the board
cable to the SATA drive
Figure 20. Connecting a Serial ATA Cable
44
Installing and Replacing Desktop Board Components
Connecting to the Internal Headers and Connectors
Before connecting cables to the internal headers and connectors, observe the precautions in “Before You Begin” on page 27. Figure 21 shows the location of the i
nternal headers and connectors for Desktop Board DG31PR.
Figure 21. Internal Headers and Connectors
Item Description A Front Panel Audio B S/PDIF C
Chassis Intrusion
D Serial Port E
Alternate Front Panel Power LED
F
Front Panel
45
Intel Desktop Board DG31PR Product Guide
Connecting to the Front Panel Audio Header
Figure 21, A on page 45 shows the location of the front panel audio header. Table 4 shows the pin assignments for the front panel audio header.
Table 4. Front Panel Intel High Definition Audio Header Signal Names
Pin Signal Name Pin Signal Name
1 PORT 1L 2 GND 3 PORT 1R 4 PRESENCE# 5 PORT 2R 6 SENSE1_RETURN 7 SENSE_SEND 8 KEY (no pin) 9 PORT 2L 10 SENSE2_RETURN
To install the cable that connects the front panel audio solution to the front panel audio header, follow these steps:
1. Observe the precautions in "Before You Begin" on page 27.
2. Turn off all peripheral devices connected to the
and disconnect the AC power cord.
3. Remove the cover.
4. Install a correctly keyed and shielded front panel audio cable.
computer. Turn off the computer
Connecting to the S/PDIF Connector
Figure 21, B on page 45 shows the location of the S/PDIF connector. Table 5 shows the pin assignments for the S/PDIF connector.
Table 5. S/PDIF Connector
Pin Description
1 VCC 2 SPDIF OUT 3 Ground
Connecting to the Chassis Intrusion Header
Figure 21, C on page 45 shows the location of the chassis intrusion header. This header can be connected to a mechanical switch on the chassis to detect if the chassis cover is removed.
Table 6 shows the pin assignments for t
Table 6. Chassis Intrusion Header
Pin Description
1 Intruder 2 Ground
he chassis intrusion header.
46
Installing and Replacing Desktop Board Components
Connecting to the Serial Port Header
See Figure 21, D on page 45 for the location of the serial port header. Table 7 shows the pin assignments for the serial port header.
Table 7. Serial Port Header Signal Names
Pin Signal Name Pin Signal Name
1 DCD 2 RXD# 3 TXD# 4 DTR 5 Ground 6 DSR 7 RTS 8 CTS 9 RI 10 No Connection
Connecting to the Alternate Front Panel Power LED Header
Figure 21, E on page 45 shows the location of the alternate front panel power LED header. Pins 1 and 3 of this header duplicate the signals on pins 2 and 4 of the front panel header. If your chassis has a three-pin power LED cable, connect it to this header.
Table 8 shows the pin assignments for the al
ternate front panel power LED header.
Table 8. Alternate Front Panel Power LED Header
Pin Description In/Out
1 Front panel green LED Out 2 No pin 3 Front panel yellow LED Out
47
Intel Desktop Board DG31PR Product Guide
Connecting to the Front Panel Header
Before connecting to the front panel header, observe the precautions in "Before You Begin" on page 27. See Figure 21, F on page 45 for the location of the multi-colored front panel
header.
Table 9 shows the pin assignments for t
he front panel header.
Table 9. Front Panel Header
Pin Description In/Out Pin Description In/Out
Hard Drive Activity LED Power LED
1 Hard disk LED pull-up to +5 V Out 2 Front panel green LED Out 3 Hard disk active LED Out 4 Front panel yellow LED Out
Reset Switch On/Off Switch
5 Ground 6 Power switch In 7 Reset switch In 8 Ground
Power Not Connected
9 Power Out 10 No pin
Connecting to the USB 2.0 Headers
Before connecting to the USB 2.0 headers, observe the precautions in "Before You Begin" on page 27. See Figure 21, G on page 45 for the location of the three USB 2.0 headers. Table 10 shows the pin assignments for each USB 2.0 header can be used to connect two USB devices.
Table 10. USB 2.0 Header Signal Names
USB Port A USB Port B
Pin Signal Name Pin Signal Name
1 Power (+5 V) 2 Power (+5 V) 3 D- 4 D­5 D+ 6 D+ 7 Ground 8 Ground 9 Key 10 No Connection
Note: USB ports may be assigned as needed.
header. Each USB
NOTE
Computer systems that have an unshielded cable attached to a USB port might not meet FCC Class B requirements, even if no device or a low-speed USB device is attached to the cable. Use a shielded cable that meets the requirements for a full-speed USB device.
48
Installing and Replacing Desktop Board Components
Connecting to the Audio System
After installing the audio driver from the Intel Express Installer CD-ROM, the multi­channel audio feature can be enabled. Figure 22 shows the back panel audio connectors
. The default connector assignments are shown in the table.
Item Description
A Line In
B Line Out
C Mic In
Figure 22. Back Panel Audio Connectors
NOTE
The back panel line out connector is designed to power either headphones or amplified speakers only. Poor audio quality may occur if passive (non-amplified) speakers are connected to this output.
49
Intel Desktop Board DG31PR Product Guide
Connecting Chassis Fan and Power Supply Cables
Connecting Chassis Fan Cables
Connect chassis fan cables to the 3-pin chassis fan headers on the Desktop Board. Figure 23 shows the location of the chassis fa
n headers.
Figure 23. Location of the Chassis Fan Headers
50
Installing and Replacing Desktop Board Components
Connecting Supply Power Cables
CAUTION
Failure to use an appropriate power supply and/or not connecting the 12 V (2 x 2 pin) power connector to the Desktop Board may result in damage to the board or the system may not function properly.
The 2 x 12 pin main power connector on the Desktop Board is backwards compatible with ATX12V power supplies with 2 x 10 connectors. the
Desktop Board power connectors.
Figure 24 shows the location of
Figure 24. Connecting Power Supply Cables
1. Observe the precautions in "Before You Begin" on page 27.
2. Connect the main power supply cable to the 2 x 12 pin connector.
3. Connect the 12 V processor core voltage power supply cable to the 2 x 2 pin
connector.
51
Intel Desktop Board DG31PR Product Guide
Setting the BIOS Configuration Jumper
NOTE
Always turn off the power and unplug the power cord from the computer before moving the jumper. Moving the jumper with the power on may result in unreliable computer operation.
Figure 25 shows the location of the Desktop Board’s BIOS confi
guration jumper block.
Figure 25. Location of the BIOS Configuration Jumper Block
The three-pin BIOS jumper block enables all board configurations to be done in the BIOS Setup program. Table 11 shows the jumper setti
ngs for the BIOS Setup
program modes.
Table 11. Jumper Settings for the BIOS Setup Program Modes
52
Jumper Setting Mode Description
Normal (default) (1-2) The BIOS uses the current configuration and
passwords for booting.
Configure (2-3) After the Power-On Self-Test (POST) runs, the
BIOS displays the Maintenance Menu. Use this menu to clear passwords.
Recovery (None) The BIOS recovers data in the event of a failed
BIOS update.
Installing and Replacing Desktop Board Components
Clearing Passwords
This procedure assumes that the board is installed in the computer and the configuration jumper block is set to normal mode.
1. Observe the precautions in "Before You Begin" on page 27.
2. Turn off all peripheral devices connected to the
Disconnect the computer’s power cord from the AC power source (wall outlet or
power adapter).
3. Remove the computer cover.
4. Find the configuration jumper block (see
5. Place the jumper on pins 2-3 as shown
6. Replace the cover, plug in the computer, turn on the computer, and allow it to
boot.
7. The computer starts the Setup program. Setup displays the Maintenance menu.
8. Use the arrow keys to select Clear Passwords. Press <Enter> and Setup displays a
pop-up screen requesting that you confirm clearing the password. Select Yes and
press <Enter>.
Setup displays the maintenance menu again.
9. Press <F10> to save the current values and exit Setup.
10. Turn off the computer. Disconnect the computer’s power cord from the AC power
source.
11. Remove the computer cover.
12. To restore normal operation, place the jumper on pins 1-2 as shown below.
below.
computer. Turn off the computer.
Figure 25).
13. Replace the cover, plug in the computer, and turn on the computer.
53
Intel Desktop Board DG31PR Product Guide
Replacing the Battery
A coin-cell battery (CR2032) powers the real-time clock and CMOS memory. When the computer is not plugged into a wall socket, the battery has an estimated life of three years. When the computer is plugged in, the standby current from the power supply extends the life of the battery. The clock is accurate to ± 13 minutes/year at 25 ºC with 3.3 VSB applied.
When the voltage drops below a certain level, the BIOS Setup program settings stored in CMOS RAM (for example, the date and time) might not be accurate. Replace the battery with an equivalent one. battery.
CAUTION
Risk of explosion if the battery is replaced with an incorrect type. Batteries should be recycled where possible. Disposal of used batteries must be in accordance with local environmental regulations.
Figure 26 on page 58 shows the location of the
PRÉCAUTION
Risque d'explosion si la pile usagée est remplacée par une pile de type incorrect. Les piles usagées doivent être recyclées dans la mesure du possible. La mise au rebut des piles usagées doit respecter les réglementations locales en vigueur en matière de protection de l'environnement.
FORHOLDSREGEL
Eksplosionsfare, hvis batteriet erstattes med et batteri af en forkert type. Batterier bør om muligt genbruges. Bortskaffelse af brugte batterier bør foregå i overensstemmelse med gældende miljølovgivning.
OBS!
Det kan oppstå eksplosjonsfare hvis batteriet skiftes ut med feil type. Brukte batterier bør kastes i henhold til gjeldende miljølovgivning.
VIKTIGT!
Risk för explosion om batteriet ersätts med felaktig batterityp. Batterier ska kasseras enligt de lokala miljövårdsbestämmelserna.
VARO
Räjähdysvaara, jos pariston tyyppi on väärä. Paristot on kierrätettävä, jos se on mahdollista. Käytetyt paristot on hävitettävä paikallisten ympäristömääräysten mukaisesti.
54
Installing and Replacing Desktop Board Components
VORSICHT
Bei falschem Einsetzen einer neuen Batterie besteht Explosionsgefahr. Die Batterie darf nur durch denselben oder einen entsprechenden, vom Hersteller empfohlenen Batterietyp ersetzt werden. Entsorgen Sie verbrauchte Batterien den Anweisungen des Herstellers entsprechend.
AVVERTIMENTO
Esiste il pericolo di un esplosione se la pila non viene sostituita in modo corretto. Utilizzare solo pile uguali o di tipo equivalente a quelle consigliate dal produttore. Per disfarsi delle pile usate, seguire le istruzioni del produttore.
PRECAUCIÓN
Existe peligro de explosión si la pila no se cambia de forma adecuada. Utilice solamente pilas iguales o del mismo tipo que las recomendadas por el fabricante del equipo. Para deshacerse de las pilas usadas, siga igualmente las instrucciones del fabricante.
WAARSCHUWING
Er bestaat ontploffingsgevaar als de batterij wordt vervangen door een onjuist type batterij. Batterijen moeten zoveel mogelijk worden gerecycled. Houd u bij het weggooien van gebruikte batterijen aan de plaatselijke milieuwetgeving.
ATENÇÃO
Haverá risco de explosão se a bateria for substituída por um tipo de bateria incorreto. As baterias devem ser recicladas nos locais apropriados. A eliminação de baterias usadas deve ser feita de acordo com as regulamentações ambientais da região.
AŚCIAROŽZNAŚĆ
Існуе рызыка выбуху, калі заменены акумулятар неправільнага тыпу. Акумулятары павінны, па магчымасці, перепрацоўвацца. Пазбаўляцца ад старых акумулятараў патрэбна згодна з мясцовым заканадаўствам па экалогіі.
UPOZORNÌNÍ
V případě výměny baterie za nesprávný druh může dojít k výbuchu. Je-li to možné, baterie by měly být recyklovány. Baterie je třeba zlikvidovat v souladu s místními předpisy o životním prostředí.
Προσοχή
Υπάρχει κίνδυνος για έκρηξη σε περίπτωση που η μπαταρία αντικατασταθεί από μία λανθασμένου τύπου. Οι μπαταρίες θα πρέπει να ανακυκλώνονται όταν κάτι τέτοιο είναι δυνατό. Η απόρριψη των χρησιμοποιημένων μπαταριών πρέπει να γίνεται σύμφωνα με τους κατά τόπο περιβαλλοντικούς κανονισμούς.
55
Intel Desktop Board DG31PR Product Guide
VIGYÁZAT
Ha a telepet nem a megfelelő típusú telepre cseréli, az felrobbanhat. A telepeket lehetőség szerint újra kell hasznosítani. A használt telepeket a helyi környezetvédelmi előírásoknak megfelelően kell kiselejtezni.
AWAS
Risiko letupan wujud jika bateri digantikan dengan jenis yang tidak betul. Bateri sepatutnya dikitar semula jika boleh. Pelupusan bateri terpakai mestilah mematuhi peraturan alam sekitar tempatan.
OSTRZEŻENIE
Istnieje niebezpieczeństwo wybuchu w przypadku zastosowania niewłaściwego typu baterii. Zużyte baterie należy w miarę możliwości utylizować zgodnie z odpowiednimi przepisami ochrony środowiska.
PRECAUŢIE
Risc de explozie, dacă bateria este înlocuită cu un tip de baterie necorespunzător. Bateriile trebuie reciclate, dacă este posibil. Depozitarea bateriilor uzate trebuie să respecte reglementările locale privind protecţia mediului.
ВНИМАНИЕ
При использовании батареи несоответствующего типа существует риск ее взрыва. Батареи должны быть утилизированы по возможности. Утилизация батарей должна проводится по правилам, соответствующим местным требованиям.
UPOZORNENIE
Ak batériu vymeníte za nesprávny typ, hrozí nebezpečenstvo jej výbuchu. Batérie by sa mali podľa možnosti vždy recyklovať. Likvidácia použitých batérií sa musí vykonávať v súlade s miestnymi predpismi na ochranu životného prostredia.
POZOR
Zamenjava baterije z baterijo drugačnega tipa lahko povzroči eksplozijo. Če je mogoče, baterije reciklirajte. Rabljene baterije zavrzite v skladu z lokalnimi
okoljevarstvenimi predpisi.
56
.
Installing and Replacing Desktop Board Components
UYARI
Yanlış türde pil takıldığında patlama riski vardır. Piller mümkün olduğunda geri dönüştürülmelidir. Kullanılmış piller, yerel çevre yasalarına uygun olarak atılmalıdır.
OСТОРОГА
Використовуйте батареї правильного типу, інакше існуватиме ризик вибуху. Якщо можливо, використані батареї слід утилізувати. Утилізація використаних батарей має бути виконана згідно місцевих норм, що регулюють охорону довкілля.
57
Intel Desktop Board DG31PR Product Guide
To replace the battery, follow these steps:
1. Observe the precautions in "Before You Begin" (see page 27).
2. Turn off all peripheral devices connected to t
he computer. Disconnect the
computer’s power cord from the AC power source (wall outlet or power adapter).
3. Remove the computer cover.
4. Locate the battery on the board (see
5. Wi
th a medium flat-bladed screwdriver, gently pry the battery free from its
Figure 26).
connector. Note the orientation of the “+” and “-” on the battery.
6. Install the new battery in the connector, orienting the “+” and “-” correctly.
7. Replace the computer cover.
58
Figure 26. Removing the Battery
3 Updating the BIOS
The BIOS Setup program can be used to view and change the BIOS settings for the computer. You can access the BIOS Setup program by pressing the <F2> key after the Power-On Self-Test (POST) memory test begins and before the operating system boot begins.
This chapter tells you how to update the BIOS by either using the Intel Express BIOS Update utility or the Iflash Memory Update utility, and how to recover the BIOS if an update fails.
Updating the BIOS with the Intel® Express BIOS Update Utility
With the Intel Express BIOS Update utility you can update the system BIOS while in the Windows environment. The BIOS file is included in an automated update utility that combines the functionality of the Intel of use of Windows-based installation wizards.
®
Flash Memory Update Utility and the ease
To update the BIOS with the Intel Express BIOS Update utility:
1. Go to the Intel World Wide Web site:
http://support.intel.com/support/motherboards/desktop/
2. Navigate to the DG31PR page, click “[view] Latest BIOS updates,” and select the
Express BIOS Update utility file.
3. Download the file to your hard drive. (You can also save this file to a removable
USB device. This is useful if you are updating the BIOS for multiple identical
systems.)
4. Close all other applications. This step is required. Your system will be rebooted at
the last Express BIOS Update window.
5. Double-click the executable file from the location on your hard drive where it was
saved. This runs the update program.
6. Follow the instructions provided in the dialog boxes to complete the BIOS update.
59
Intel Desktop Board DG31PR Product Guide
Updating the BIOS with the ISO Image BIOS Update File or the Iflash Memory Update Utility
You can use the information in this section to update the BIOS using either the Iflash Memory Update Utility or the ISO Image BIOS update file.
Obtaining the BIOS Update File
You can update to a new version of the BIOS by using the ISO Image BIOS update file (recommended), or Iflash BIOS update file.
The ISO Image BIOS update file is a standardized image of a bootable CD-ROM that can be used to create a bootable CD that will update the BIOS.
The Iflash BIOS update file is a compressed file that contains the files you need to update the BIOS. The Iflash BIOS update file contains:
New BIOS file
Intel
Intel Flash Memory Update Utility
®
Integrator Toolkit Configuration File (optional)
You can obtain either of these files through your computer supplier or by navigating to the Desktop Board DG31PR page on the Intel World Wide Web site at:
http://support.intel.com/support/motherboards/desktop
Navigate to the DG31PR page, click “[view] Latest BIOS updates,” and select the ISO Image BIOS Update or Iflash BIOS Update utility file.
Updating the BIOS with the ISO Image BIOS Update File
The ISO Image BIOS update allows for the update of an Intel® Desktop Board BIOS to the latest production release regardless of the operating system installed on the computer's hard drive and without the need to remove the BIOS configuration jumper. It requires a blank CD-R, a read/writeable CD drive, and software capable of uncompressing and writing the ISO image file to CD.
The image uses ISOLINUX* bootloader and automatically launches a script to upgrade the BIOS via the Iflash utility.
60
Updating the BIOS
CAUTION
Do not interrupt the process or the system may not function properly.
Follow these instructions to upgrade the BIOS using the ISO Image BIOS file:
1. Download the ISO Image BIOS file.
2. Using software capable of uncompressing and writing an ISO image file to CD, burn
the data to a blank CD.
NOTE
Copying the ISO Image BIOS file to CD will not work. The completed CD should contain multiple files and a directory.
3. Insert the CD that was created in the CD-ROM drive of the computer to be
upgraded and boot the system.
4. When the "Press ENTER to continue booting from CD-ROM" prompt appears, press
the Enter key. The system will boot from the hard drive if no key is pressed within
15 seconds.
5. At the "Welcome to the Intel Desktop Board BIOS Upgrade CD-ROM" page, press
any key to confirm the BIOS upgrade operation.
6. Wait for the BIOS upgrade process to complete.
CAUTION
DO NOT POWER DOWN YOUR COMPUTER before the update is complete. The update may take up to 5 minutes.
Updating the BIOS with the Iflash Memory Update Utility
With the Iflash Memory update utility you can update the system BIOS from a bootable CD-ROM, bootable USB flash drive, or other bootable USB media. The utility available on the Intel World Wide Web site provides a simple method for creating a bootable CD-ROM that will automatically update your BIOS. The Iflash BIOS update files can also be extracted locally to your hard drive and copied to a bootable USB flash drive or other bootable USB media.
The Iflash Memory update utility allows you to:
Update the BIOS in flash memory
Update the language section of the BIOS
NOTE
Review the instructions distributed with the update utility before attempting a BIOS update.
61
Intel Desktop Board DG31PR Product Guide
CAUTION
Do not interrupt the process or the system may not function properly.
1. Uncompress the BIOS update file and copy the .BIO file, IFLASH.EXE, and .ITK file
(optional) to a bootable USB flash drive or other bootable USB media.
2. Configure the BIOS or use the F10 option during POST to boot to the USB device.
3. Manually run the IFLASH.EXE file from the USB device and manually update the
BIOS.
Recovering the BIOS
It is unlikely that anything will interrupt the BIOS update; however, if an interruption occurs, the BIOS could be damaged. Due to BIOS size and recovery requirements, a CD-R with the .BIO file in the root directory will be required.
Related Links:
For more information about updating the Intel Desktop Board BIOS or recovering from a BIOS update failure, go to:
http://support.intel.com/support/motherboards/desktop
/sb/CS-022312.htm
62
A Error Messages and Indicators
Desktop Board DG31PR reports POST errors in two ways:
By sounding a beep code
By displaying an error message on the monitor
BIOS Beep Codes
The BIOS also issues a beep code (one long tone followed by two short tones) during POST if the video configuration fails (a faulty video card or no card installed) or if an external ROM module does not properly checksum to zero. codes.
Table 12 lists the BIOS
Table 12.
Beep Description
3 No memory Siren Processor overheat (on reboot)
Beep Codes
BIOS Error Messages
When a recoverable error occurs during the POST, the BIOS displays an error message describing the problem. Table 13 gives an explanation of
Table 13. BIOS Error Messages
Error Message Explanation
PROCESSOR_THERMAL_TRIP_ERROR
MULTI_BIT_ECC_ERROR The firmware has detected that a Multi-Bit ECC Error occurred. SINGLE_BIT_ECC_ERROR The firmware has detected that a Single-Bit ECC Error occurred. CMOS_BATTERY_ERROR The firmware has detected that a CMOS battery failure occurred. CMOS_CHECKSUM_ERROR The firmware has detected that a CMOS Checksum Error occurred. CMOS_TIMER_ERROR
MEMORY_SIZE_DECREASE_ERROR
INTRUDER_DETECTION_ERROR The system chassis was opened. SPD_TOLER_ERROR
MEM_OPTIMAL_ERROR
Processor was previously shutdown due to a thermal event (overheating).
The firmware has detected that the system date/time has not been set.
The firmware has detected that the system memory has decreased.
SERIAL PRESENCE DETECT (SPD) device data missing or inconclusive. Properly programmed SPD device data is required for reliable operation.
The installed amount of memory in Channel A is not equal to the amount of memory in Channel B. Maximum memory performance is achieved with equal amounts of memory installed in each channel.
the BIOS error messages.
63
Intel Desktop Board DG31PR Product Guide
64
B Regulatory Compliance
This appendix contains the following regulatory compliance information for Desktop Board DG31PR:
Safety standards
European Union Declaration of Conformity statement
Product Ecology statements
Electromagnetic Compatibility (EMC) regulations
Product certifications
Safety Standards
Desktop Board DG31PR complies with the safety standards stated in Table 14 when correctly installed in a compatible host system.
Table 14. Safety Standards
Regulation Title
UL 60950-1, First Edition Information Technology Equipment – Safety - Part 1: General
Requirements (USA and Canada)
EN 60950-1:2006, Second Edition
IEC 60950-1:2005, Second Edition
Information Technology Equipment – Safety - Part 1: General Requirements (European Union)
Information Technology Equipment – Safety - Part 1: General Requirements (International)
Place Battery Marking
There is insufficient space on this Desktop Board to provide instructions for replacing and disposing of the Lithium ion coin cell battery. For system safety certification, the statement below or an equivalent statement is required to be permanently and legibly marked on the chassis near the battery.
CAUTION
Risk of explosion if the battery is replaced with an incorrect type. Batteries should be recycled where possible. Disposal of used batteries must be in accordance with local environmental regulations.
Related Links
For information about replacing the battery, go to page 54.
65
Intel Desktop Board DG31PR Product Guide
European Union Declaration of Conformity Statement
We, Intel Corporation, declare under our sole responsibility that the product Intel® Desktop Board DG31PR is in conformity with all applicable essential requirements necessary for CE marking, following the provisions of the European Council Directives 2004/108/EC (EMC Directive) and 2006/95/EC (Low Voltage Directive).
The product is properly CE marked demonstrating this conformity and is for distribution within all member states of the EU with no restrictions.
This product follows the provisions of the European Directives 2004/108/EC and 2006/95/EC.
Čeština Tento výrobek odpovídá požadavkům evropských směrnic 2004/108/EC a 2006/95/EC.
Dansk Dette produkt er i overensstemmelse med det europæiske direktiv 2004/108/EC & 2006/95/EC.
Dutch Dit product is in navolging van de bepalingen van Europees Directief 2004/108/EC & 2006/95/EC.
Eesti Antud toode vastab Euroopa direktiivides 2004/108/EC ja 2006/95/EC kehtestatud nõuetele.
Suomi Tämä tuote noudattaa EU-direktiivin 2004/108/EC & 2006/95/EC määräyksiä. Français Ce produit est conforme aux exigences de la Directive Européenne
2004/108/EC & 2006/95/EC. Deutsch Dieses Produkt entspricht den Bestimmungen der Europäischen Richtlinie
2004/108/EC & 2006/95/EC. Ελληνικά Το παρόν προϊόν ακολουθεί τις διατάξεις των Ευρωπαϊκών Οδηγιών
2004/108/EC και 2006/95/EC. Magyar E termék megfelel a 2004/108/EC és 2006/95/EC Európai Irányelv
előírásainak. Icelandic Þessi vara stenst reglugerð Evrópska Efnahags Bandalagsins númer
2004/108/EC & 2006/95/EC. Italiano Questo prodotto è conforme alla Direttiva Europea 2004/108/EC &
2006/95/EC. Latviešu Šis produkts atbilst Eiropas Direktīvu 2004/108/EC un 2006/95/EC
noteikumiem.
66
Regulatory Compliance
Lietuvių Šis produktas atitinka Europos direktyvų 2004/108/EC ir 2006/95/EC nuostatas.
Malti Dan il-prodott hu konformi mal-provvedimenti tad-Direttivi Ewropej 2004/108/EC u 2006/95/EC.
Norsk Dette produktet er i henhold til bestemmelsene i det europeiske direktivet 2004/108/EC & 2006/95/EC.
Polski Niniejszy produkt jest zgodny z postanowieniami Dyrektyw Unii Europejskiej 2004/108/EC i 2006/95/EC.
Portuguese Este produto cumpre com as normas da Diretiva Européia 2004/108/EC & 2006/95/EC.
Español Este producto cumple con las normas del Directivo Europeo 2004/108/EC & 2006/95/EC.
Slovensky Tento produkt je v súlade s ustanoveniami európskych direktív 2004/108/EC a 2006/95/EC.
Slovenščina Izdelek je skladen z določbami evropskih direktiv 2004/108/EC in 2006/95/EC.
Svenska Denna produkt har tillverkats i enlighet med EG-direktiv 2004/108/EC & 2006/95/EC.
Türkçe Bu ürün, Avrupa Birliği’nin 2004/108/EC ve 2006/95/EC yönergelerine uyar.
Product Ecology Statements
The following information is provided to address worldwide product ecology concerns and regulations.
Recycling Considerations
As part of its commitment to environmental responsibility, Intel has implemented the
®
Intel
Product Recycling Program to allow retail consumers of Intel’s branded products
to return used products to selected locations for proper recycling. Please consult http://www.intel.com/intel/other/ehs/product_ecology
for the details of this program, including the scope of covered products, available locations, shipping instructions, terms and conditions, etc.
中文
作为其对环境责任之承诺的部分,英特尔已实施 Intel Product Recycling Program (英特尔产品回收计划),以允许英特尔品牌产品的零售消费者将使用过的产品退还至指定地点作恰 当的重复使用处理。
请参考 了解此计划的详情,包括涉及产品之范围、回收地点、运送指导、条款和条件等。
http://www.intel.com/intel/other/ehs/
product_ecology
67
Intel Desktop Board DG31PR Product Guide
Deutsch
Als Teil von Intels Engagement für den Umweltschutz hat das Unternehmen das Intel Produkt-Recyclingprogramm implementiert, das Einzelhandelskunden von Intel Markenprodukten ermöglicht, gebrauchte Produkte an ausgewählte Standorte für ordnungsgemäßes Recycling zurückzugeben.
Details zu diesem Programm, einschließlich der darin eingeschlossenen Produkte, verfügbaren Standorte, Versandanweisungen, Bedingungen usw., finden Sie auf der
http://www.intel.com/intel/other/ehs/product_ecology
Español
Como parte de su compromiso de responsabilidad medioambiental, Intel ha implantado el programa de reciclaje de productos Intel, que permite que los consumidores al detalle de los productos Intel devuelvan los productos usados en los lugares seleccionados para su correspondiente reciclado.
Consulte la
http://www.intel.com/intel/other/ehs/product_ecology
para ver los detalles del programa, que incluye los productos que abarca, los lugares disponibles, instrucciones de envío, términos y condiciones, etc.
Français
Dans le cadre de son engagement pour la protection de l'environnement, Intel a mis en œuvre le programme Intel Product Recycling Program (Programme de recyclage des produits Intel) pour permettre aux consommateurs de produits Intel de recycler les produits usés en les retournant à des adresses spécifiées.
Visitez la page Web
http://www.intel.com/intel/other/ehs/product_ecology
pour en savoir plus sur ce programme, à savoir les produits concernés, les adresses disponibles, les instructions d'expédition, les conditions générales, etc.
日本語
インテルでは、環境保護活動の一環として、使い終えたインテル ブランド製品を指定の場所へ返送していただき、リサイクルを適切に行えるよう、インテル製品リサイクル プログラムを発足させました。
対象製品、返送先、返送方法、ご利用規約など、このプログラムの詳細情報は、
http://www.intel.com/in
tel/other/ehs/product_ecology (英語)をご覧ください。
Malay
Sebagai sebahagian daripada komitmennya terhadap tanggungjawab persekitaran, Intel telah melaksanakan Program Kitar Semula Produk untuk membenarkan pengguna-pengguna runcit produk jenama Intel memulangkan produk terguna ke lokasi-lokasi terpilih untuk dikitarkan semula dengan betul.
Sila rujuk
http://www.intel.com/intel/other/ehs/product_ecology
butir-butir program ini, termasuklah skop produk yang dirangkumi, lokasi-lokasi tersedia, arahan penghantaran, terma & syarat, dsb.
68
untuk mendapatkan
Regulatory Compliance
Portuguese
Como parte deste compromisso com o respeito ao ambiente, a Intel implementou o Programa de Reciclagem de Produtos para que os consumidores finais possam enviar produtos Intel usados para locais selecionados, onde esses produtos são reciclados de maneira adequada.
Consulte o site obter os detalhes sobre este programa, inclusive o escopo dos produtos cobertos, os locais disponíveis, as instruções de envio, os termos e condições, etc.
Russian
В качестве части своих обязательств к окружающей среде, в Intel создана программа утилизации продукции Intel (Product Recycling Program) для предоставления конечным пользователям марок продукции Intel возможности возврата используемой продукции в специализированные пункты для должной утилизации.
Пожалуйста, обратитесь на веб-сайт
http://www.intel.com/intel/other/ehs/product_ecology
программе, принимаемых продуктах, местах приема, инструкциях об отправке, положениях и условиях и т.д.
Türkçe
Intel, çevre sorumluluğuna bağımlılığının bir parçası olarak, perakende tüketicilerin Intel markalı kullanılmış ürünlerini belirlenmiş merkezlere iade edip uygun şekilde geri dönüştürmesini amaçlayan Intel Ürünleri Geri Dönüşüm Programı’nı uygulamaya koymuştur.
Bu programın ürün kapsamı, ürün iade merkezleri, nakliye talimatları, kayıtlar ve şartlar v.s dahil bütün ayrıntılarını ögrenmek için lütfen
http://www.intel.com/intel/other/ehs/product_ecology
http://www.intel.com/intel/other/ehs/product_ecology
за информацией об этой
web sayfasına gidin.
(em Inglês) para
Lead-Free Desktop Board
This Desktop Board is a European Union Restriction of Hazardous Substances (EU RoHS Directive 2002/95/EC) compliant product. EU RoHS restricts the use of six materials. One of the six restricted materials is lead.
Intel Desktop Board DG31PR is lead-free although certain discrete components used on the board contain a small amount of lead which is necessary for component performance and/or reliability. This Desktop Board is referred to as “Lead-free second level interconnect.” The board substrate and the solder connections from the board to the components (second-level connections) are all lead-free.
China bans the same substances and has the same limits as EU RoHS; however it requires different product marking and controlled substance information. The required mark shows the Environmental Friendly Usage Period (EFUP). The EFUP is defined as the number of years for which controlled listed substances will not leak or chemically deteriorate while in the product.
69
Intel Desktop Board DG31PR Product Guide
Table 15 shows the lead-free board markings as they appear on the board and accompanying collateral.
Table 15. Lead-Free Board Markings
Description Mark Lead-Free 2
Interconnect: This symbol
is used to identify electrical and electronic assemblies and components in which the lead (Pb) concentration level in the Intel Desktop Board substrate and the solder connections from the board to the components (second-level interconnect) is not greater than 0.1% by weight (1000 ppm).
nd
Level
or
China RoHS/Environmentally Friendly Use Period Logo:
This is an example of the symbol used on Intel Desktop Boards and associated collateral. The color of the mark may vary depending upon the application. The Environmental Friendly Usage Period (EFUP) for Intel Desktop Boards has been determined to be 10 years.
or
70
Regulatory Compliance
EMC Regulations
Desktop Board DG31PR complies with the EMC regulations stated in Table 16 when correctly installed in a compatible host system.
Table 16. EMC Regulations
Regulation Title
FCC 47 CFR Part 15, Subpart B
ICES-003 Issue 4 (Class B)
EN55022:2006 (Class B)
EN55024:1998 Information Technology Equipment – Immunity Characteristics
EN55022:2006 (Class B)
CISPR 22:2005 +A1:2005 +A2:2006 (Class B)
CISPR 24:1997 +A1:2001 +A2:2002
VCCI V-3/2007.04, V-4/2007.04, Class B
Japanese Kanji statement translation: This is a Class B product based on the standard of the Voluntary Control Council for Interference from Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual.
Title 47 of the Code of Federal Regulations, Part 15, Subpart B, Radio Frequency Devices. (USA)
Interference-Causing Equipment Standard, Digital Apparatus. (Canada)
Limits and methods of measurement of Radio Interference Characteristics of Information Technology Equipment. (European Union)
Limits and methods of measurement. (European Union) Australian Communications Authority, Standard for
Electromagnetic Compatibility. (Australia and New Zealand) Limits and methods of measurement of Radio Disturbance
Characteristics of Information Technology Equipment. (International)
Information Technology Equipment – Immunity Characteristics – Limits and Methods of Measurement. (International)
Voluntary Control for Interference by Information Technology Equipment (Japan)
71
Intel Desktop Board DG31PR Product Guide
Korean Class B statement translation: This is household equipment that is certified to comply with EMC requirements. You may use this equipment in residential environments and other non-residential environments.
Ensure Electromagnetic Compatibility (EMC) Compliance
Before computer integration, make sure that the power supply and other modules or peripherals, as applicable, have passed Class B EMC testing and are marked accordingly.
Pay close attention to the following when reading the installation instructions for the host chassis, power supply, and other modules:
Product certifications or lack of certifications
External I/O cable shielding and filtering
Mounting, grounding, and bonding requirements
Keying connectors when mating the wrong connectors could be hazardous
If the power supply and other modules or peripherals, as applicable, are not Class B EMC compliant before integration, then EMC testing may be required on a representative sample of the newly completed computer.
72
Regulatory Compliance
Product Certifications
Board-Level Certification Markings
Desktop Board DG31PR has the product certification markings shown in Table 17.
Table 17. Product Certification Markings
Description Mark
UL joint US/Canada Recognized Component mark. Includes adjacent UL file number for Intel Desktop Boards: E210882.
FCC Declaration of Conformity logo mark for Class B equipment. Includes Intel name and DG31PR model designation.
CE mark. Declaring compliance to European Union (EU) EMC directive and Low Voltage directive.
Australian Communications Authority (ACA) C-tick mark. Includes adjacent Intel supplier code number, N-232.
Japan VCCI (Voluntary Control Council for Interference) mark.
S. Korea MIC (Ministry of Information and Communication) mark. Includes adjacent MIC certification number: CPU-DG31PR (B).
Taiwan BSMI (Bureau of Standards, Metrology and Inspections) mark. Includes adjacent Intel company number, D33025.
Printed wiring board manufacturer’s recognition mark. Consists of a unique UL recognized manufacturer’s logo, along with a flammability rating (solder side).
V-0
73
Intel Desktop Board DG31PR Product Guide
Chassis and Component Certifications
Ensure that the chassis and certain components; such as the power supply, peripheral drives, wiring, and cables; are components certified for the country or market where used. Agency certification marks on the product are proof of certification. Typical product certifications include:
In Europe The CE marking signifies compliance with all applicable European requirements. If the chassis and other components are not properly CE marked, a supplier’s Declaration of Conformity statement to the European EMC directive and Low Voltage directive (as applicable), should be obtained. Additionally, other directives, such as the Radio and Telecommunications Terminal Equipment (R&TTE) directive may also apply depending on product features.
In the United States A certification mark by a Nationally Recognized Testing Laboratory (NRTL) such as UL, CSA, or ETL signifies compliance with safety requirements. Wiring and cables must also be UL listed or recognized and suitable for the intended use. The FCC Class B logo for home or office use signifies compliance with electromagnetic interference (EMI) requirements.
In Canada A nationally recognized certification mark such as CSA or cUL signifies compliance with safety requirements. The Industry Canada statement at the front of this product guide demonstrates compliance with Canadian EMC regulations.
74
