Intel® Data Center Blocks (Intel® DCB) for
Nutanix* Enterprise Cloud
Configuration Guide
Reference guide for ordering parts and accessories to configure a system based on
Intel® Server Board S2600WF family or Intel® Compute Module HNS2600 family.
Rev 1.2
February 2019
Intel® Server Products and Solutions
<Blank page>
Intel® Data Center Blocks for Nutanix* Enterprise Cloud Configuration Guide
Date
Revision
Changes
December 2018
1.0
Initial release.
December 2018
1.1
Corrected DIMM support information in Section 2.3.2, Table 1, and Table 2.
Updated for the addition of Intel® DC P4610 SSD, Intel® Ethernet Network Adapter
XXV710-DA2, and ConnectX-4 Lx EN with RoCE RDMA adapter
February 2019 1.2
Document Revision History
3
Intel® Data Center Blocks for Nutanix* Enterprise Cloud Configuration Guide
Disclaimers
Intel technologies’ features and benefits depend on system configuration and may require enabled hardware, software, or service
activation. Performance varies depending on system configuration. No computer system can be absolutely secure. Check with your
system manufacturer or retailer or learn more at intel.com.
You may not use or facilitate the use of this document in connection with any infringement or other legal analysis concerning Intel
products described herein. You agree to grant Intel a non-exclusive, royalty-free license to any patent claim thereafter drafted which
includes subject matter disclosed herein.
No license (express or implied, by estoppel or otherwise) to any intellectual property rights is granted by this document.
The products described may contain design defects or errors known as errata which may cause the product to deviate from
published specifications. Current characterized errata are available on request.
Intel disclaims all express and implied warranties, including without limitation, the implied warranties of merchantability, fitness
for a particular purpose, and non-infringement, as well as any warranty arising from course of performance, course of dealing, or
usage in trade.
Copies of documents which have an order number and are referenced in this document may be obtained by calling 1-800-548-4725
or by visiting www.intel.com/design/literature.htm
Intel, the Intel logo, and Xeon are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.
*Other names and brands may be claimed as the property of others.
© Intel Corporation
.
4
Intel® Data Center Blocks for Nutanix* Enterprise Cloud Configuration Guide
Table of Contents
1. Overview ........................................................................................................................................................................ 6
1.1 Product Family Summary .............................................................................................................................................. 6
2. System Configurations ............................................................................................................................................... 7
2.1 System Based on Intel® Server Board S2600WF Family .................................................................................. 7
2.2 System Based on Intel® Compute Module HNS2600BPB Family .............................................................. 10
2.3 Required Options ........................................................................................................................................................... 13
2.3.1 Processor Options ......................................................................................................................................................... 13
2.3.2 Memory Options ............................................................................................................................................................. 13
2.3.3 Storage Options .............................................................................................................................................................. 14
2.3.4 Networking Options ...................................................................................................................................................... 14
3. Optional Configuration Accessories and Upgrades .......................................................................................... 16
3.1 Rail Options ...................................................................................................................................................................... 16
3.2 System Based on Intel® Server Board S2600WF Family Options .............................................................. 17
4. Spare and Replacement Parts ............................................................................................................................... 20
5. Extended Warranties ............................................................................................................................................... 21
Appendix A. Additional Resources .......................................................................................................................... 22
A.1. System Based on Intel® Server Board S2600WF Family ............................................................................... 22
A.2. System Based on Intel® Compute Module HNS2600BPB Family .............................................................. 22
Appendix B. Glossary ................................................................................................................................................. 23
List of Figures
Figure 1. System based on Intel® Server Board S2600WF family feature set identification ........................................ 8
Figure 2. Intel® Server Chassis H2224XXLR3 feature set identification ............................................................................. 10
Figure 3. Intel® Compute Module HNS2600BPB24NU feature set identification .......................................................... 11
List of Tables
Table 1. Overview of Intel® DCB for Nutanix* Enterprise Cloud systems ............................................................................. 6
Table 2. System based on Intel® Server Board 2600WF family ............................................................................................... 9
Table 3. System based on Intel® Compute Module HNS2600BP family ........................................................................... 12
Table 4. Intel® DCB for Nutanix* Enterprise Cloud processor options ............................................................................... 13
Table 5. Intel® Ethernet adapters ....................................................................................................................................................... 14
Table 6. Rail options ................................................................................................................................................................................ 16
Table 7. System based on Intel® Server Board S2600WF family options ......................................................................... 17
Table 8. Unique spare parts for Intel® DCB for Nutanix* Enterprise Cloud systems ..................................................... 20
Table 9. Extended warranties ............................................................................................................................................................... 21
5
Intel® Data Center Blocks for Nutanix* Enterprise Cloud Configuration Guide
Platform
sockets
Memory
range
drive bays
per server
Power supply type
cooling
management
184 GB to
1.5 TB
16 (upgradable
to 24)
2130 W common
Platinum)
1. Overview
Intel® Data Center Blocks (Intel® DCB) for Nutanix* Enterprise Cloud are single systems that include
processors, server boards, chassis, power supply, storage, networking, and memory validated together to
work with the Nutanix Enterprise Cloud operating system. Intel DCB systems are configurable to order with a
multitude of hardware configurations certified by Nutanix to best fit current business needs.
1.1 Product Family Summary
Intel® DCB for Nutanix* Enterprise Cloud includes two configurable server platforms:
• System based on Intel® Server Board S2600WF family (single-node)
• System based on Intel® Compute Module HNS2600BP family (four-node)
Intel’s 2U single-node system, based on the Intel® Server Board S2600WF, is architected for up to 24 high
performance flash storage devices with balanced input and output operations. Greater throughput and lower
latency allow for faster access to large datasets which is desirable for enterprise class workloads.
The advanced thermal design of Intel’s 2U four-node system, based on the Intel Compute Module
HNS2600BP, allows for high compute density including options for more powerful processors that deliver
more performance in a 2U space and at a lower hardware cost compared to four separate 1U or 2U systems.
This makes an Intel DCB based on the Intel Compute Module HNS2600BP an excellent choice for virtualized
systems.
Table 1 provides an overview of the available systems and their key features. For additional order
information and full product descriptions, refer to Chapter 2.
Table 1. Overview of Intel® DCB for Nutanix* Enterprise Cloud systems
Intel® DCB
S2600WF
HNS2600BP
# of CPU
2
2
capacity
128 GB to
768 GB
# of 2.5”
24 4
# of nodes
1 1300 W AC Yes Yes
redundant power
supply (80 PLUS*
Redundant
Yes Yes
Remote server
6
Intel® Data Center Blocks for Nutanix* Enterprise Cloud Configuration Guide
2. System Configurations
Intel® DCB for Nutanx* Enterprise Cloud are L9 Integrated systems with fixed and flexible components. These
systems are custom defined using Intel’s configure-to-order (CTO) system with no fixed SKUs. The CTO tool
is designed to take the risk out of component selection allowing only certified and compatible options. Get
started with the CTO tool at
blocks/configure-to-order.html.
Note: The Intel DCB for Nutanix Enterprise Cloud systems do not include Nutanix Enterprise Cloud software.
Contact a qualified Nutanix software provider for details on how to integrate the software.
Intel DCB for Nutanix Enterprise Cloud supports two system configurations; the two systems and their major
components are listed below:
• System based on Intel® Server Board S2600WF family
o Intel® Server System R2216WF0NU
• System based on Intel® Compute Module HNS2600BP family
o Intel® Server Chassis H2224XXLR3
o Intel® Compute Module HNS2600BPB24NU
https://www.intel.com/content/www/us/en/products/docs/servers/data-center-
The following sections provide the configuration details and options for each system.
2.1 System Based on Intel® Server Board S2600WF Family
The product table in this section provides order code information and detailed descriptions for the Intel
Server System R2216WF0NU. Items identified by Intel Product Code (iPC) are orderable accessories or
spares. The table identifies:
• Included components shipped with the server system.
• Required items which include hardware necessary to achieve basic functionality using the default
system feature set.
• Optional accessories that include some of the accessories available to enhance the basic feature set
of the server system. Find additional accessories in section 3.
To identify the feature set of the Intel® Server System R2216WF0NU, refer to Figure 1.
7
Intel® Data Center Blocks for Nutanix* Enterprise Cloud Configuration Guide
Figure 1. System based on Intel® Server Board S2600WF family feature set identification
8
Intel® Data Center Blocks for Nutanix* Enterprise Cloud Configuration Guide
Intel® Server System R2216WF0NU
Included
(1) – 2U chassis with Quick Reference Label affixed to top cover
(2) – CPU heat sinks – iPC FXXCA78X108HS
Required items
• (1) or (2) Intel® Xeon® Scalable processors (see 2.3.1)
o Intel Ethernet Converged Network Adapter X710-DA2 – iPC X710DA2
Optional
• Upgraded storage capacity (enables up to 8 additional SSDs). This upgrade is included as a “one click”
o 2U 2 post brackets (hard mount) – iPC AXX2POSTBRCKT
Table 2. System based on Intel® Server Board 2600WF family
(1) – Intel® Server Board S2600WF0 – iPC S2600WF0
(2) – PCIe Riser card brackets. Includes:
• (2) – 3-slot PCIe* riser cards – iPC A2UL8RISER2
• (1) – 2-slot low profile PCIe* riser card – iPC A2UX8X4RISER
(16) – 2.5” hot-swap drive bays with drive carriers and drive blanks. Includes:
• (1) – SAS/NVMe hot-swap backplane – iPC F2U8X25S3PHS
• (16) – 2.5” hot-swap drive tool less carriers – iPC FXX25HSCAR3
(1) – Standard control panel assembly – iPC FXXFPANEL2
(3) – 730 mm mini SAS HD cable – iPC AXXCBL730HDHD
(1) – 875 mm mini SAS HD cable – iPC AXXCBL875HDHD
(1) – Intel® Storage Module RMSP3JD160J – iPC RMSP3JD160J
(1) – SSD DC S3520 series (150 GB, M.2 80 mm SATA 6 Gb/s, 3D1, MLC) – iPC SSDSCKJB150G701
(1) – Intel® Remote Management Module – iPC AXXRMM4LITE
(1) – Standard 2U air duct
(6) – Hot swap system fans – iPC FR2UFAN60HSW
(1) – 1300 W AC power supply module – iPC AXX1300TCRPS
• ECC DDR4 memory (see 2.3.2)
o Up to (24) DIMMs for dual processors
o Up to (12) DIMMs for a single processor
• At least (2) SATA SSDs (see 2.3.3)
• Intel® Ethernet adapter (choose one)
o Intel Ethernet Converged Network Adapter X550-T2 – iPC X550T2
accessories
option in the CTO tool that automatically adds the following components to the system:
o (1) SAS/NVMe hot-swap backplane – iPC F2U8X25S3PH
o (1) Intel® Storage Module RMSP3JD160J – iPC RMSP3JD160J
o (1) Cable kit AXXCBL730HDHD – iPC AXXCBL730HDHD
o (1) Rack handle kit A2UHANDLKIT – iPC A2UHANDLKIT
• Kit of serial port DB9 adapters – iPC AXXRJ45DB93
• Trusted Platform Module (TPM) 2.0 – iPC AXXTPMENC8 or iPC AXXTPMCHNE8 (China)
• Rail options (choose one)
o 2U premium rail – iPC AXXSHRTRAIL
o 2U premium rail and cable management arm – iPC AXXFULLRAIL, iPC AXXCMA2
o Enhanced value rail – iPC AXXELVRAIL
9
Intel® Data Center Blocks for Nutanix* Enterprise Cloud Configuration Guide
A
2.2 System Based on Intel® Compute Module HNS2600BPB Family
The product table in this section provides order code information and detailed descriptions for the Intel
Server Chassis H2224XXLR3 and Intel Compute Module HNS2600BPB24NU. Items identified by Intel
Product Code (iPC) are orderable accessories or spares. The table identifies:
• Included components shipped with the server chassis.
• Included components shipped with each compute module. Four compute modules are required.
• Required items which include hardware necessary to achieve basic functionality using the default
system feature set.
• Optional accessories that include some of the accessories available to enhance the basic feature set
of the server system. Find additional accessories in section 3.

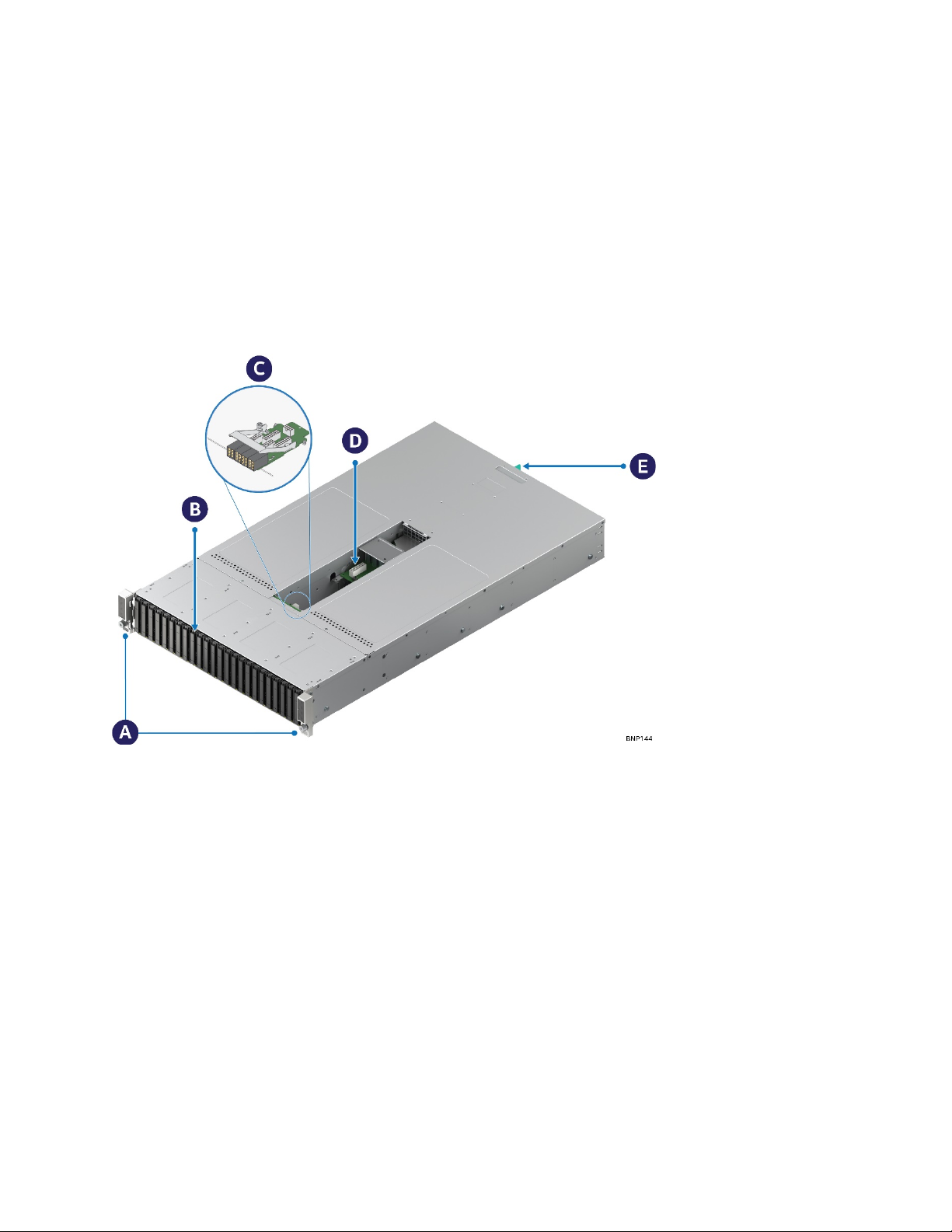

To identify the feature set of the Intel® Server Chassis H2224XXLR3, refer to Figure 2.
– Front control panel
B – Drive bays
C – Hot-swap backplane
D – Power distribution module
E – Power supply modules
Figure 2. Intel® Server Chassis H2224XXLR3 feature set identification
To identify the feature set of the Intel® Compute Module HNS2600BPB24NU, refer to Figure 3.
10
Intel® Data Center Blocks for Nutanix* Enterprise Cloud Configuration Guide
Figure 3. Intel® Compute Module HNS2600BPB24NU feature set identification
11
Intel® Data Center Blocks for Nutanix* Enterprise Cloud Configuration Guide

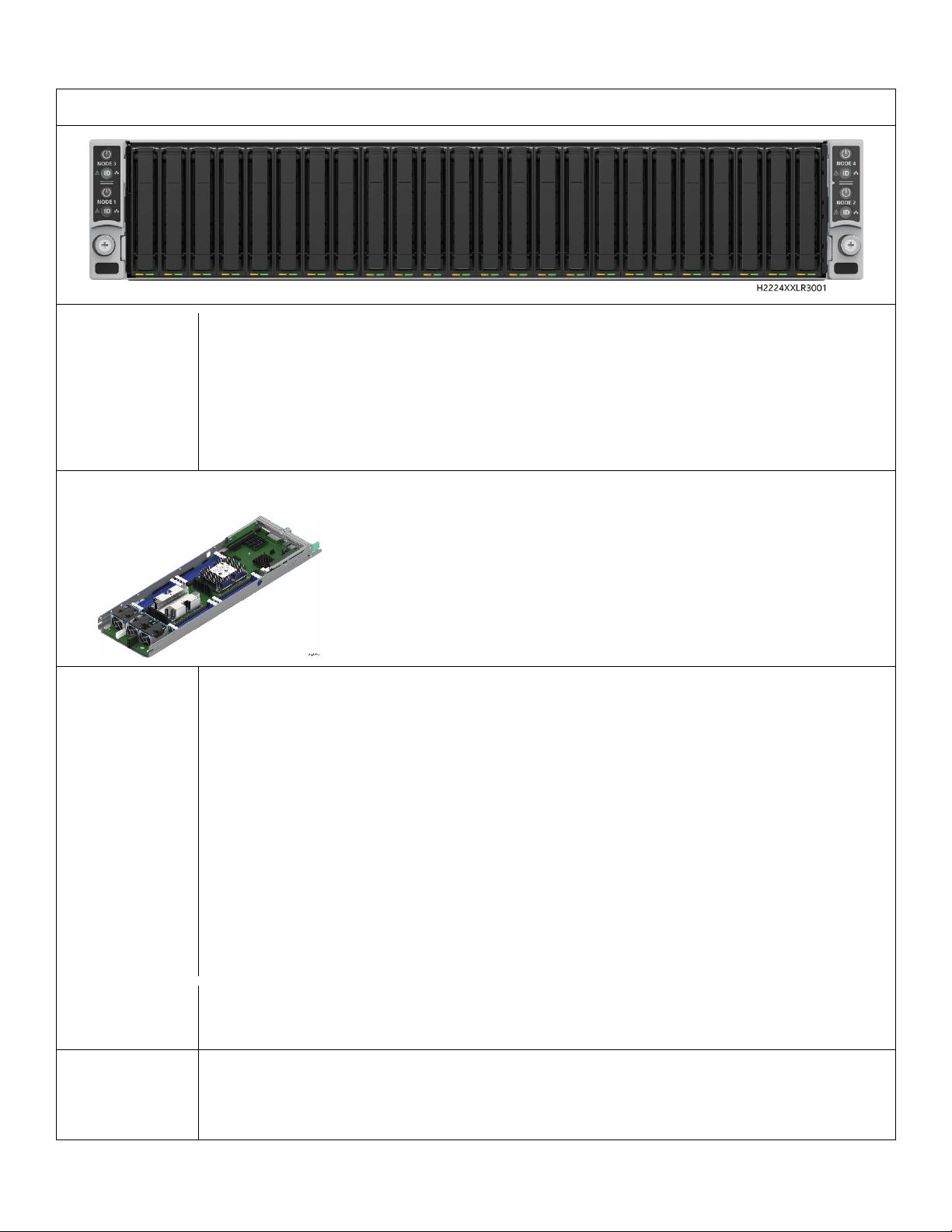

Intel® Server Chassis H2224XXLR3
Included with
(1) – Standard control panel assembly – iPC FXXFPANEL2
(1) – Enhanced value rail – iPC AXXELVRAIL
Intel® Compute Module HNS2600BPB24NU – (4) required per chassis
Included with
(1) – Intel® Server Board S2600BPB – iPC S2600BPB
(1) – 1U node tray
Required items
(2) Intel® Xeon® Scalable processors (see 2.3.1)
• Up to (24) SATA SSDs (see 2.3.3)
Optional
• 2U premium rail – iPC AXXFULLRAIL
o Intel Ethernet Converged Network Adapter X710-DA2 – iPC X710DA2
Table 3. System based on Intel® Compute Module HNS2600BP family
Intel® Server
Chassis
Intel® Compute
Module
(1) – 24 x 2.5” hot-swap drive bay. Includes:
• (1) – 12 Gb SAS backplane – iPC HW24X25HS12G
• (24) – 2.5” hot-swap drive tool less carriers – iPC FXX25HSCAR3
(2) – 2130 W common redundant power supply (80 PLUS* Platinum) – iPC FXX2130PCRPS
(1) – Power distribution board – iPC FXXCRPSPDB2
(1) – Power interposer board – iPC FXXCRPSPIB
• Includes (2) integrated 10 GbE RJ-45 connectors based on Intel® Ethernet Adapter X550
(1) – Power docking board – iPC PHWBPNPB24
(1) – Front 1U passive heat sink – iPC FXX2678X108HS
(1) – Rear 1U passive heat sink – iPC FXXCA78X108HS
(3) – 40 x 56 mm dual rotor fan – iPC FXX4056DRFAN2
(1) – Slot 1 PCIe* x16 riser card for low-profile PCIe card – iPC AHW1URISER1
(1) – Slot 2 PCIe x16 riser card for low-profile PCIe card and M.2 device – iPC AHW1UM2RISER2
(1) – External VGA cable bracket – iPC AXXBPVIDCBL
(1) – 6-port SAS 12 Gb/s (NVMe*) bridge board – iPC AHWBPBGB24
(1) – SSD DC S3520 series (150 GB, M.2 80 mm SATA 6 Gb/s, 3D1, MLC) – iPC SSDSCKJB150G701
(1) – M.2 add-in card (AIC)– iPC ABPM2A2T1P
(1) – M.2 AIC cable – iPC AXXCBL135HD7S
(1) – Intel® Remote Management Module – iPC AXXRMM4LITE
(1) – Standard 2U air duct
•
• Up to (12) ECC DDR4 DIMMs (see 2.3.2)
accessories
• Intel® Ethernet adapter
o Intel Ethernet Converged Network Adapter X550-T2 – iPC X550T2
12
Intel® Data Center Blocks for Nutanix* Enterprise Cloud Configuration Guide
Processor
System based on
2600WF family
System based on Intel®
HNS2600BP family
Intel® Xeon® Silver 4108 Processor (11M Cache, 1.80 GHz)
Intel® Xeon® Silver 4110 Processor (11M Cache, 2.10 GHz)
Intel® Xeon® Silver 4114 Processor (13.75M Cache, 2.20 GHz)
Intel® Xeon® Silver 4116 Processor (16.5M Cache, 2.10 GHz)
Intel® Xeon® Gold 5117 Processor (19.25M Cache, 2.00 GHz)
Intel® Xeon® Gold 5118 Processor (16.5M Cache, 2.30 GHz)
Intel® Xeon® Gold 5120 Processor (19.25M Cache, 2.20 GHz)
Intel® Xeon® Gold 5122 Processor (16.5M Cache, 3.60 GHz)
Intel® Xeon® Gold 6126 Processor (19.25M Cache, 2.60 GHz)
Intel® Xeon® Gold 6130 Processor (22M Cache, 2.10 GHz)
Intel® Xeon® Gold 6138 Processor (27.5M Cache, 2.00 GHz)
Intel® Xeon® Gold 6140 Processor (24.75M Cache, 2.30 GHz)
Intel® Xeon® Gold 6148 Processor (27.5M Cache, 2.40 GHz)
Intel® Xeon® Gold 6152 Processor (30.25M Cache, 2.10 GHz)
Intel® Xeon® Platinum 8153 Processor (22M Cache, 2.00 GHz)
Intel® Xeon® Platinum 8160 Processor (33M Cache, 2.10 GHz)
Intel® Xeon® Platinum 8164 Processor (35.75M Cache, 2.00 GHz)
Intel® Xeon® Platinum 8170 Processor (35.75M Cache, 2.10 GHz)
Intel® Xeon® Platinum 8176 Processor (38.5M Cache, 2.10 GHz)
2.3 Required Options
2.3.1 Processor Options
Intel DCB for Nutanix* Enterprise Cloud supports Intel® Xeon® Scalable processors. The system based on
Intel Server Board 2600WF family supports single or dual processors. The system based on Intel Compute
Module HNS2600BP family supports dual processors only. For dual processor systems, the processors must
be identical. Table 4 lists the compatible processors for each system.
Table 4. Intel® DCB for Nutanix* Enterprise Cloud processor options
Intel® Server Board
Compute Module
2.3.2 Memory Options
The system based on Intel Server Board 2600WF family supports up to 24 DIMMs (12 DIMMs per processor).
The system based on Intel Compute Module HNS2600BP family supports up to 12 DIMMs per node. All
DIMMs in a system must be identical. The following memory options are available for both systems:
• 16GB (1x16GB) RDIMM, DDR4, 2 Rank, 2666MHz
• 32GB (1x32GB) RDIMM, DDR4, 2 Rank, 2666MHz
• 64GB (1X64GB) LRDIMM, DDR4, 4 Rank, 2666MHz
For Nutanix certification purposes, only memory populations of 100% or 50% are allowed (i.e. 12 or 24
DIMMs with Intel Server Board S2600WF; 6 or 12 DIMMs per node with Intel Compute Module HNS3600BP).
13
Intel® Data Center Blocks for Nutanix* Enterprise Cloud Configuration Guide
Product Image
Details
Description
Intel® Ethernet Converged
iPC
X550T2
MM#
940128
Dual-port Ethernet adapter
Intel® Ethernet Converged
iPC
X710DA2
MM#
933206
Dual-port Ethernet adapter
Intel® Ethernet Network Adapter
iPC
FTXXV710-AM2
MM#
954103
Dual-port Ethernet adapter
2.3.3 Storage Options
The system based on Intel Server Board 2600WF family supports up to 16 drive devices in the default
configuration with an optional upgrade to support up to eight additional devices for a total of 24. The system
based on Intel Compute Module HNS2600BP family supports up to 24 drive devices or six per node.
Storage can be populated in two tiers as listed below. A minimum of two SSDs are required.
Meta data tier:
• SSD DC P4610 Series (3.2 TB, 2.5” PCIe 3.1 x4, 3D2, TLC)
• SSD DC P4610 Series (1.6 TB, 2.5” PCIe 3.1 x4, 3D2, TLC)
• SSD D3-S4510 Series (3.84 TB, 2.5” SATA 6Gb/s, 3D2, TLC)
• SSD D3-S4610 Series (960 GB, 2.5” SATA 6Gb/s, 3D2, TLC)
• SSD D3-S4610 Series (1.92 TB, 2.5” SATA 6Gb/s, 3D2, TLC)
Storage tier:
• SSD D3-S4510 Series (3.84 TB, 2.5” SATA 6Gb/s, 3D2, TLC)
• SSD D3-S4610 Series (960 GB, 2.5” SATA 6Gb/s, 3D2, TLC)
• SSD D3-S4610 Series (1.92 TB, 2.5” SATA 6Gb/s, 3D2, TLC)
• Seagate Enterprise Capacity 2.5” HDD ST2000NX0433 - hard drive - 2 TB - SAS
2.3.4 Networking Options
An Intel® Ethernet adapter is required for systems based on Intel Server Board S2600WF. Choose one of
three available Intel® Ethernet adapters described in Table 5.
An Intel Ethernet adapter is an optional accessory for systems based on Intel Compute Module HNS2600BP.
Table 5. Intel® Ethernet adapters
Network Adapter X550-T2
Network Adapter X710-DA2
10 GbE/5 GbE/2.5 GbE/1 GbE/100 Mb
10/1 GbE
14
XXV710-DA2
25/10/1 GbE
Intel® Data Center Blocks for Nutanix* Enterprise Cloud Configuration Guide
For RoCE-based RDMA storage networks, a Mellanox* MCX4121A-XCAT ConnectX-4 Lx EN adapter can be
installed by a system integrator under Nutanix certification criteria. If a Mellanox adapter is used in RDMA
mode, the use of a non-RDMA mode Ethernet adapter is also required to allow for standard server/virtual
machine network communications.
15
Intel® Data Center Blocks for Nutanix* Enterprise Cloud Configuration Guide
Product Image
Details
Description
Premium Rail AXXFULLRAIL
iPC
AXXFULLRAIL
MM#
939209
UPC
735858291989
EAN
5032037070546
MOQ
1
2U premium quality rails with cable management arm
Tool less installation
Cable Management Arm
iPC
AXXCMA2
MM#
939211
UPC
735858292009
EAN
5032037070560
MOQ
1
Cable management arm compatible with AXXFULLRAIL.
Premium Rail AXXSHRTRAIL
iPC
AXXSHRTRAIL
MM#
939210
UPC
735858291996
EAN
5032037070553
MOQ
1
2U premium quality rails with no CMA support.
System based on Intel Server Board S2600WF family only.
Enhanced Value Rail
iPC
AXXELVRAIL
MM#
920970
UPC
735858244367
EAN
5032037038980
MOQ
1
Enhanced value rail kit with no CMA support.
System based on Intel Server Board S2600WF family only.
3. Optional Configuration Accessories and Upgrades
3.1 Rail Options
CAUTION: Exceeding the rail kit’s specified maximum weight limit or misalignment of the server in the rack
may result in failure of the rack rails and damage to the systems or personal injury. Using two people or the
use of a mechanical assist tool to install and align the server into the rack is highly recommended.
Table 6. Rail options
AXXCMA2
(CMA) support.
• Travel distance of 800 mm
• Adjustment within 594.8mm~813 mm to fit difference
depth rack
• Full extension from rack
•
System based on Intel Server Board S2600WF family only.
• Travel distance of 788 mm
• Adjustment within 594.8mm ~ 813 mm to fit
difference depth rack
• Bracket adjustment from 594.8 mm to 813 mm
• Full extension from rack
• Supports up to 45 kg
AXXELVRAIL
16
• Maximum travel length of 424.2 mm
• Adjustment within 609.6 mm ~ 765 mm to fit
difference depth rack
• 2/3 extension from rack
• Supports up to 59 kg
• Tool less chassis attach
Intel® Data Center Blocks for Nutanix* Enterprise Cloud Configuration Guide
Product Image
Details
Description
2-Post Brackets
iPC
AXX2POSTBRCKT
MM#
918808
UPC
735858245319
EAN
5032037039833
MOQ
1
Fixed mounting brackets for center mount on two-post
Product Image
Details
Description
2U Hot-Swap 8x2.5”
iPC
A2U8X25S3PHS
MM#
955858
UPC
735858344852
EAN
5032037105569
MOQ
1
Kit includes:
(1) – Rack handle A2UHANDLKIT
Intel® Storage Adapter
iPC
RSP3QD160J
MM#
954491
Low-profile, half-length MD2 PCIe* add-in
AXX2POSTBRCKT
racks. Tools are required to attach components to the
rack.
System based on Intel Server Board S2600WF family only.
3.2 System Based on Intel® Server Board S2600WF Family Options
Additional options are available for the system based on Intel® Server Board S2600WF family.
Table 7. System based on Intel® Server Board S2600WF family options
SAS/NVMe* Combo Drive
Bay Kit A2U8X25S3PHS
(1) – drive bay assembly module
(1) – 8x2.5 SAS/NVMe combo backplane
(8) – 2.5” drive carriers and drive blanks
(1) – 75 mm 6pin – 6pin I2C jumper cable
(1) – 75 mm 5pin-6pin I2C jumper cable
Required (sold separately):
(1) – RAID storage adapter RSP3QD160J
(2) – Cable kit AXXCBL730HDHD
RSP3QD160J
card for use with 2U hot-swap 8x2.5”
SAS/NVMe* combo drive bay kit
A2U8X25S3PHS.
Note: In the Intel® Configurator Tool, this is
automatically populated when the option for
eight (8) additional storage devices is selected.
17
Intel® Data Center Blocks for Nutanix* Enterprise Cloud Configuration Guide
Product Image
Details
Description
4-Port PCIe Gen3 x8 Switch
iPC
AXXP3SWX08040
MM#
958241
SB X8 4-port switch add-in card allowing four
Cable Kit AXXCBL730HDHD
iPC
AXXCBL730HDHD
MM#
936178
UPC
735858284745
EAN
5032037065030
MOQ
1
Required by 2U Hot-Swap 8x2.5” SAS/NVMe*
Rack Handle Kit
iPC
A2UHANDLKIT
MM#
936038
UPC
735858288866
EAN
5032037068147
MOQ
1
Set of storage rack handles with control panel
replacement handles that are not used.
Serial Port Cable Kit
iPC
AXXRJ45DB93
MM#
920430
UPC
735858242820
EAN
5032037037525
MOQ
1
This kit provides serial port cables for use with
(1) – 100 mm DSR RJ45 to DB9 dongle

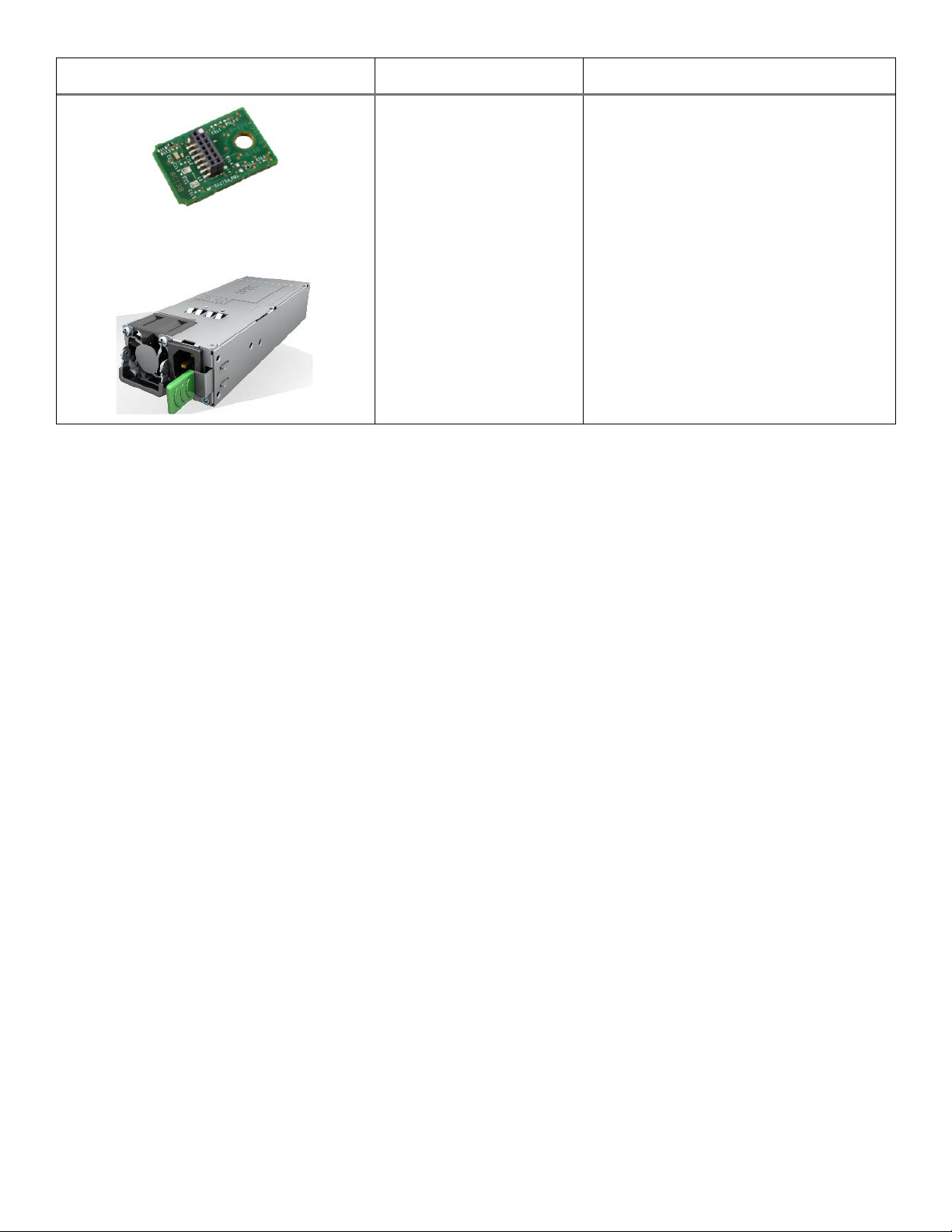

Trusted Platform Module
iPC
AXXTPMENC8
MM#
955867
UPC
735858291989
EAN
5032037070546
MOQ
1
A TPM is a hardware-based security device
encryption and hash functions.
AIC AXXP3SWX08040
(4) additional PCIe* SSD drives within the
system.
Note: In the Intel® Configurator Tool, this
switch is automatically populated within Intel®
Server Board S2600WF-based systems if
more than two (2) NVMe* SSD are used.
Combo Drive Bay Kit A2U8X25S3PHS.
Includes:
(2) – 730 mm cables with straight SFF8643 to
straight SFF8643 connectors.
A2UHANDLKIT
and USB support. Required by 2U Hot-Swap
8x2.5” SAS/NVMe* Combo Drive Bay Kit
A2U8X25S3PHS. These storage rack handles
replace the included standard chassis rack
handles.
Note: Kit includes two additional types of
AXXRJ45DB93
systems that include a back panel cut out to
support a DB9 Serial ‘B’ port as routed from
the server board and for systems that include
an external RJ45 Serial ‘A’ port that need to
convert the connector to a DB9 style
connector. Kit includes:
(1) – 1040 mm internal serial ‘B’ port cable
(onboard DH10 header) to external mount
DB9
(1) – 520 mm internal serial ‘B’ port cable
(onboard DH10 header) to external mount
DB9
(1) – 100 mm DCD RJ45 to DB9 dongle
(TPM) 2.0 AXXTPMENC8
that addresses the growing concern on boot
process integrity and offers better data
protection. TPM protects the system start-up
process by ensuring it is tamper-free before
releasing system control to the operating
system. A TPM device provides secured
storage to store data, such as security keys
and passwords. In addition, a TPM device has
18
Intel® Data Center Blocks for Nutanix* Enterprise Cloud Configuration Guide
Product Image
Details
Description
Trusted Platform Module
iPC
AXXTPMCHNE8
MM#
960608
UPC
735858347341
EAN
5032037107068
MOQ
1
TPM 2.0 for use in China
AXX1300TCRPS
iPC
AXX1300TCRPS
MM#
956542
UPC
735858345705
EAN
5032037106191
MOQ
1
1300W AC CRPS 80 PLUS* Titanium efficiency
(TPM) 2.0 AXXTPMCHNE8
power supply module.
Power cord sold separately.
19
Intel® Data Center Blocks for Nutanix* Enterprise Cloud Configuration Guide
Details
Description
M.2 Add-In Card (AIC)
iPC
ABPM2A2T1P
M.2 Adapter Add-In_Card (AIC) allows for installation of two M.2 SATA SSDs and one M.2 PCI SSD (or
length.
M.2 AIC Cable
iPC
AXXCBL135HD7S
Cable to allow for connecting the 7-pin SATA ports of the M.2 AIC to the HD mini-SAS (8643)
4. Spare and Replacement Parts
The following table lists the spare parts that are unique to Intel® DCB for Nutanix* Enterprise Cloud systems.
For other spare and replacement parts, refer to the respective system configuration guides listed in
Appendix A.
Table 8. Unique spare parts for Intel® DCB for Nutanix* Enterprise Cloud systems
M.2 NVMe* SSD) using a PCIe* adapter card slot. Designed to accommodate M2 in 42, 60 or 80 mm
connector of Intel® Compute Module HNS2600BP.
20
Intel® Data Center Blocks for Nutanix* Enterprise Cloud Configuration Guide
Product Image
Details
Description
Server System Extended Warranty
iPC
SVCEWHWSY
MM#
923113
MOQ
1
Product type
Warranty
Extended warranty for complete server systems.
5. Extended Warranties
Table 9. Extended warranties
21
Intel® Data Center Blocks for Nutanix* Enterprise Cloud Configuration Guide
Appendix A. Additional Resources
For additional information on Intel® DCB and Nutanix*, refer to the following resources.
• Intel® Data Center Block support page
• Intel® Server Configurator Tool
• Nutanix Intel partner site
A.1. System Based on Intel® Server Board S2600WF Family
For additional information about this family of products and its supported accessories, refer to the following
resources.
• Intel® Server Board S2600WF Family Technical Product Specification
• Intel® Server Board S2600WF Family Configuration Guide
• Intel® Server Board S2600WF Family Integration and Service Guide
A.2. System Based on Intel® Compute Module HNS2600BPB Family
For additional information about this family of products and its supported accessories, refer to the following
resources.
• Intel® Compute Module HNS2600BP Family Technical Product Specification
• Intel® Server S2600BP Product Family Configuration Guide
• Intel® Compute Module HNS2600BP Family Integration and Service Guide
22
Intel® Data Center Blocks for Nutanix* Enterprise Cloud Configuration Guide
Term
Definition
AIC
Add-In Card
CMA
Cable Management Arm
CTO
Configure-to-Order
Intel® DCB
Intel® Data Center Blocks
EAN
International Article Number (barcode)
FRU
Field Replaceable Unit
iPC
Intel Product Code
MM#
Master Material order number
MOQ
Minimum Order Quantity
NVMe*
NVM Express (Non-Volatile Memory Host Controller Interface Specification (NVMHCI))
PCIe*
PCI Express*
RAID
Redundant Array of Independent Drives
Intel® RMM4 Lite
Intel® Remote Management Module 4 Lite
ROC
RAID on Chip
ROHS
Restriction of Hazardous Substance Directive
SAS
Serial Attached SCSI
SATA
Serial ATA
TPM
Trusted Platform Module
UPC
Universal Product Code (barcode)
Appendix B. Glossary
23
Loading...
