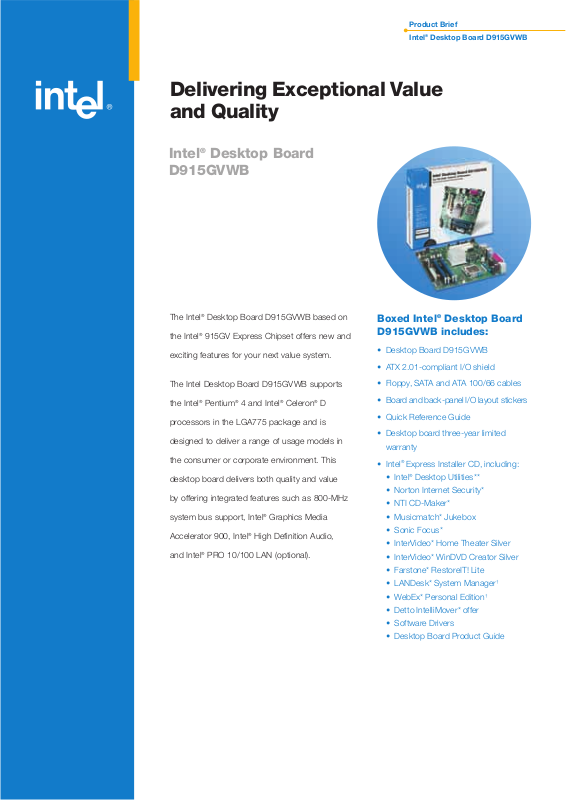

Intel®Desktop Board D915GVWB
Product Brief
Intel®Desktop Board D915GVWB
Delivering Exceptional Value and Quality
The Intel®Desktop Board D915GVWB based on
the Intel
®
915GV Express Chipset offers new and
exciting features for your next value system.
The Intel Desktop Board D915GVWB supports
the Intel
®
Pentium®4 and Intel®Celeron®D
processors in the LGA775 package and is
designed to deliver a range of usage models in
the consumer or corporate environment. This
desktop board delivers both quality and value
by offering integrated features such as 800-MHz
system bus support, Intel
®
Graphics Media
Accelerator 900, Intel
®
High Definition Audio,
and Intel
®
PRO 10/100 LAN (optional).
Boxed Intel®Desktop Board D915GVWB includes:
• Desktop Board D915GVWB
• ATX 2.01-compliant I/O shield
• Floppy, SATA and ATA 100/66 cables
• Board and back-panel I/O layout stickers
• Quick Reference Guide
• Desktop board three-year limited
warranty
• Intel
®
Express Installer CD, including:
• Intel
®
Desktop Utilities**
• Norton Internet Security*
• NTI CD-Maker*
• Musicmatch* Jukebox
• Sonic Focus*
• InterVideo* Home Theater Silver
• InterVideo* WinDVD Creator Silver
• Farstone* RestoreIT! Lite
• LANDesk* System Manager
• WebEx* Personal Edition
• Detto IntelliMover* offer
• Software Drivers
• Desktop Board Product Guide
FEATURES AND BENEFITS
Intel®Desktop Board D915GVWB
9 9
5
PS/2
USB
AUDIO
USB
LAN
SERIAL
PARALLEL
8
6
4
9
9
1
Support for the Intel®Pentium®4 and Intel®Celeron®D processor: Supports Intel
®
processors featuring the 800- or 533-MHz system bus via the LGA775 socket. Supports boxed Intel processors with packaging designated by 04A or 04B Platform Compatibility Guide.
2
Intel®915GV Express Chipset featuring Intel®Graphics Media Accelerator 900: Low-cost high-performance integrated graphics solution.
3
Dual-Channel DDR 400/333 SDRAM support: Four DIMM sockets designed to support up to 4 GB1of SDRAM memory.
4
Four Serial ATA150 ports: Facilitates high-speed storage transfers at up to
1.5 GB/s per port, allows easy hard drive upgrades and expansion for new SATA optical drives.
5
Integrated Intel®PRO 10/100 LAN (optional): Onboard 10/100-Mbps Ethernet LAN connectivity.
6
Intel®High Definition Audio: Flexible six-channel audio with jack sensing. This new standard in PC audio provides an outstanding user experience for movies, music, and games with higher bit rate processing (24-bit), flexible
5.1 audio capability, and improved jack sensing.
7
Two PCI connectors: Expansion slots for custom system configurations and future add-in card upgrades.
8
One PCI Express* x1 connector: With up to a 500 MB/s concurrent data transfer bandwidth, more than doubles the I/O bandwidth of traditional PCI architecture.
9
Eight Hi-Speed USB 2.0 ports: Four back-panel ports and an additional four front-panel USB ports via two internal headers.
10
Intel®Precision Cooling Technology: Advanced management ASIC supports temperature-based fan control. System fan noise may be reduced by controlled chassis and processor fans operating at the minimum necessary speeds.
11
Instantly-Available PC (suspend-to-RAM): Enables advanced power savings (not pictured).
7
10
3
1
2
5
9 6
9
9.6"
9.6"
3
1
Intel®Desktop Board D915GVWB was designed to support up to 4-GB total system memory using DIMMs based on 512-Mbit or 1-Gbit technologies. 1-Gbit technology has not been validated on this Intel
®
desktop board. For more information about the latest list of tested memory, refer to the Intel World Wide Web site at: http://support.intel.com/
support/motherboards/desktop/
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL
®
PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL’S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
Intel products are not intended for use in medical, life-saving, or life-sustaining applications. Intel may make changes to specifications and product descriptions at any time, without notice.
All products, dates and figures specified are preliminary based on current expectations, and are subject to change without notice. Availability in different channels may vary.
The Intel
®
desktop boards, processors, and chipsets may contain design defects or errors known as errata, which may cause the product to deviate from published specifications.
Current characterized errata are available on request.
Intel, Pentium, Celeron, and the Intel logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.
* Other names and brands may be claimed as the property of others.
** Intel
®
Desktop Utilities includes: hardware monitoring, Diskeeper* Lite defragmentation, NTI Backup Now*, StressTest*, Symantec* Security Check
Available by Internet download only. Third-party user registration required.
Copyright © 2004 Intel Corporation. All rights reserved. 1104/MS/AT/PDF C304563-001
Ordering Information
See Intel’s Web site at www.intel.com
For the most current product information available, visit Intel’s Web site at:
developer.intel.com/design/motherbd/
Processor
Processors Supported • Intel®Pentium®4 processors with 800-MHz
system bus in the LGA775 package
• Intel
®
Celeron®D processors with 533-MHz
system bus in the LGA775 package
•Supports boxed Intel
®
processors with packaging designated by 04A or 04B Platform Compatibility Guide
Intel®915GV Express • Intel®82915GV Graphics Memory Controller Hub Chipset (GMCH)
• Intel
®
82801DB I/O Controller Hub (Intel®ICH6)
• Firmware Hub (FWH)
Graphics Memory Designed to support up to 4 GB1of system memory Controller Hub (GMCH) using DDR400/333 SDRAM memory
Intel®ICH6 I/O Controller Hub • Four SATA (1.5 Gb/s) ports
• Up to two ATA 100/66 devices
• Intel
®
PRO 10/100 network connection (optional)
I/O Features • Integrated super I/O LPC bus controller
• One PCI Express* x1 local bus slot
• Two PCI local bus slots
USB 2.0 Integrated Intel®ICH6 controllers:
• Four back-panel ports (two dual stack)
• Four front-panel ports (via 2-headers requiring cabling to front panel)
Firmware Hub
System BIOS • 4-Mb Flash EEPROM featuring the Intel®Platform
Innovation Framework for EFI Plug and Play, IDE drive auto-configure
• Advanced configuration and power interface V1.0b, DMI 2.0, multilingual support
Intel®Rapid BIOS Boot • Optimized POST for faster access to PC from
power-on
System Memory
Memory Capacity • Four 184-pin DIMM connectors supporting up to
two double-sided DIMMs
Memory Types • DDR400/333 SDRAM Memory Support
• Non-ECC RAM (ECC memory will attempt to run in Non-ECC mode only)
Memory Modes • Dual- and single-channel operation support
Memory Voltage • 2.5V
Hardware Management Features
• Processor fan speed control
• System chassis fan speed control
• Voltage and temperature sensing
• Fan sensor inputs used to monitor fan activity
• Power management support for ACPI 1.0b
Wake-Up From Network
• Wired for Management (WfM) 2.0-compatible
• Support for system wake-up using an add-in network interface card with remote wake-up capability or integrated LAN
Expansion Capabilities
• Two PCI bus add-in card connectors
• One PCI Express* x1 bus add-in card connector
Jumpers and Front-Panel Connectors
Jumpers • Single configuration jumper design
• Jumper access for BIOS configuration mode
Front-Panel Connectors • Reset, HD LED, Power LEDs, power on/off
• Two front-panel Hi-Speed USB 2.0 headers
• Front-panel audio header
Mechanical
Board Style • MicroATX 1.0-compliant
Board Size • 9.6" x 9.6"
Baseboard Power
Requirements • ATX 12V or SFX 12V
Environment
Operating Temperature •0°C to +55°C
Storage Temperature • -40° C to +70° C
Regulations
Safety Regulations
U.S. and Canada UL 1950, Third edition—CAN/CSA C22.2 No. 950-95
with recognized U.S. and Canadian component marks
Europe Nemko* certified to EN 60950
International Nemko certified to IEC 60950 (CB report with CB
certificate)
EMC regulations (tested in representative chassis)
U.S. FCC Part 15, Class B
U.S. FCC Part 15, Class B open-chassis (cover off) testing
Canada ICES-003, Class B
Europe EMC directive 89/336/EEC; EN 55022:1998 Class B;
EN 55024:1998
Australia/New Zealand AS/NZS 3548, Class B
Tai wa n CNS 13438, Class B
International CISPR 22:1997, Class B
Power requirements vary. Complies with US CRF via EN55022 +6 db in system configurations with an open chassis and EU Directive 89/336/EEC and use via EN55022 and EN50082-1 in a representative chassis.
TECHNICAL SPECIFICATIONS
