Thin Mini-ITX Component Catalog
2H, 2013
All-In-One PC Chassis
1
All-In-One PCs combine compelling design with support for a wide range of computing components.
Integrate the appropriate blend of components with the AIO chassis of your choice to enable a variety
of computing environments.
Graphic and Multimedia Design Business Productivity Educational Environments
Introduction
Home Media Hub Interactivity in the Kitchen Training Environments
Help Customers Experience Windows* 8 at Its Best
2
Windows* 8 Integration
Offer Intel-based All-In-One PCs for full software, application, and device compatibility
Help Customers Experience Windows* 8 at Its Best
3
Flexibility Performance Compatibility
Windows* 8 Integration
The versatility of the Windows* 8 interface is
leading to new touch-enabled features,
convertible formats, and other device
innovations enabled by Intel® technologies.
From fast boot times and longer battery life
to richer graphics and multimedia, new Intel®
processors make the Windows* 8 user
experience even better.
Intel-based devices provide a full, consistent
Windows* 8 experience from one device to
another, without the need for new hardware or
software.
Offer Intel-based All-In-One PCs for full software, application, and device compatibility
Mitac* 8 Series All-In-One PC
4
Windows* 8 Integration
Optimized for
Nuance* Dragon
Assistant
Voice
Certification
Capabilities
The Mitac* 8 series All-In-One PC is available in 21.5” and 23.6” touch and no-touch configurations, with a
removable one-piece aluminum L-stand & VESA mount, edge-to-edge 1920 x 1080 HD IPS wide viewing
angle LED panel, HD 720p webcam, dual array digital microphone, and voice certification capabilities.
Mitac* 7 Series All-In-One PC
5
Windows* 8 Integration
The Mitac* 7 series All-In-One PC is available in 21.5” and 23.6” touch and no-touch configurations, with a
removable one-piece aluminum L-stand & VESA mount, edge-to-edge 1920 x 1080 HD IPS wide viewing
angle LED panel and HD 720p webcam and dual array digital microphone.
ECS* G24 All-In-One PC
6
Windows* 8 Integration
The ECS* G24 All-In-One PC is available in touch and no-touch configurations, with optional infrared
remote control, edge-to-edge 23.6” 1920 x 1080 LED with optional 10-finger multi-touch display and
a 1.3 megapixel web camera with digital microphone.
Loop* LP-2150 All-In-One PC
7
Windows* 8 Integration
The Loop* LP-2150 All-In-One PC is available in touch and no-touch configurations, edge-to-edge 21.5”
1920 x 1080 LED with optional 10-finger multi-touch display, 1.3 megapixel camera, digital microphone,
aluminium and glass stand with internal cable routing capabilities.
Loop* LP-2151 All-In-One PC
8
Windows* 8 Integration
The Loop* LP-2151 All-In-One PC is available in touch and no-touch configurations, edge-to-edge
21.5” 1920 x 1080 LED with optional 10-finger multi-touch display and a 1.3 megapixel web camera
with digital microphone.
Wibtek* A23 All-In-One PC
9
Windows* 8 Integration
The Wibtek* A23 All-In-One PC is available in touch and no-touch configurations, edge-to-edge 23.6”
1920 x 1080 LED with optional 10-finger multi-touch display and a 2.0 megapixel web camera with
digital microphone.
KME* A2E7X All-In-One PC
10
Windows* 8 Integration
The KME* A2E7X All-In-One PC is available in touch and no-touch configurations, edge-to-edge
21.5” 1920 x 1080 LED with optional 10-finger multi-touch display and VESA mount capability.
Gigabyte* AC21BT All-In-One PC
11
Windows* 8 Integration
The Gigabyte* AC21BT All-In-One PC is available in touch and no-touch configurations, edge-to-edge
21.5” 1920 x 1080 LED with optional 10-finger multi-touch display and VESA mount capability.
The Thin Mini-ITX Platform
12
The Thin Mini-ITX platform is fueling the transformation of the desktop. Built around the standard thermal solution and
a motherboard with a 25mm I/O shield, this platform gives users the power of a desktop in a thin, stylish package.
Introduction
Thermal Solution Thin Mini-ITX Motherboard
Small Form Factor PCAll-In-One PC
mSATA Solid-State Drive Hard Disk Drive Optical Drive Memory Processor Wireless
All-in-One Multi-Touch Enabled Chassis
13
AIO Chassis
ECS*
Model: G24 Aura
Size: 23.6 inches
Loop*
Model: LP-2150 Touch
Size: 21.5 inches
Wibtek*
Model: A23
Size: 23.6 inches
Loop*
Model: LP-2151 Touch
Size: 21.5 inches
Mitac*
Model: 7 Series: 770/780; 8 Series: 870/880
Size: 770/870 – 21.5 inches
780/880 – 23.6 inches
KME*
Model: A2E7X
Size: 21.5 inches
All-in-One Multi-Touch Enabled Chassis
14

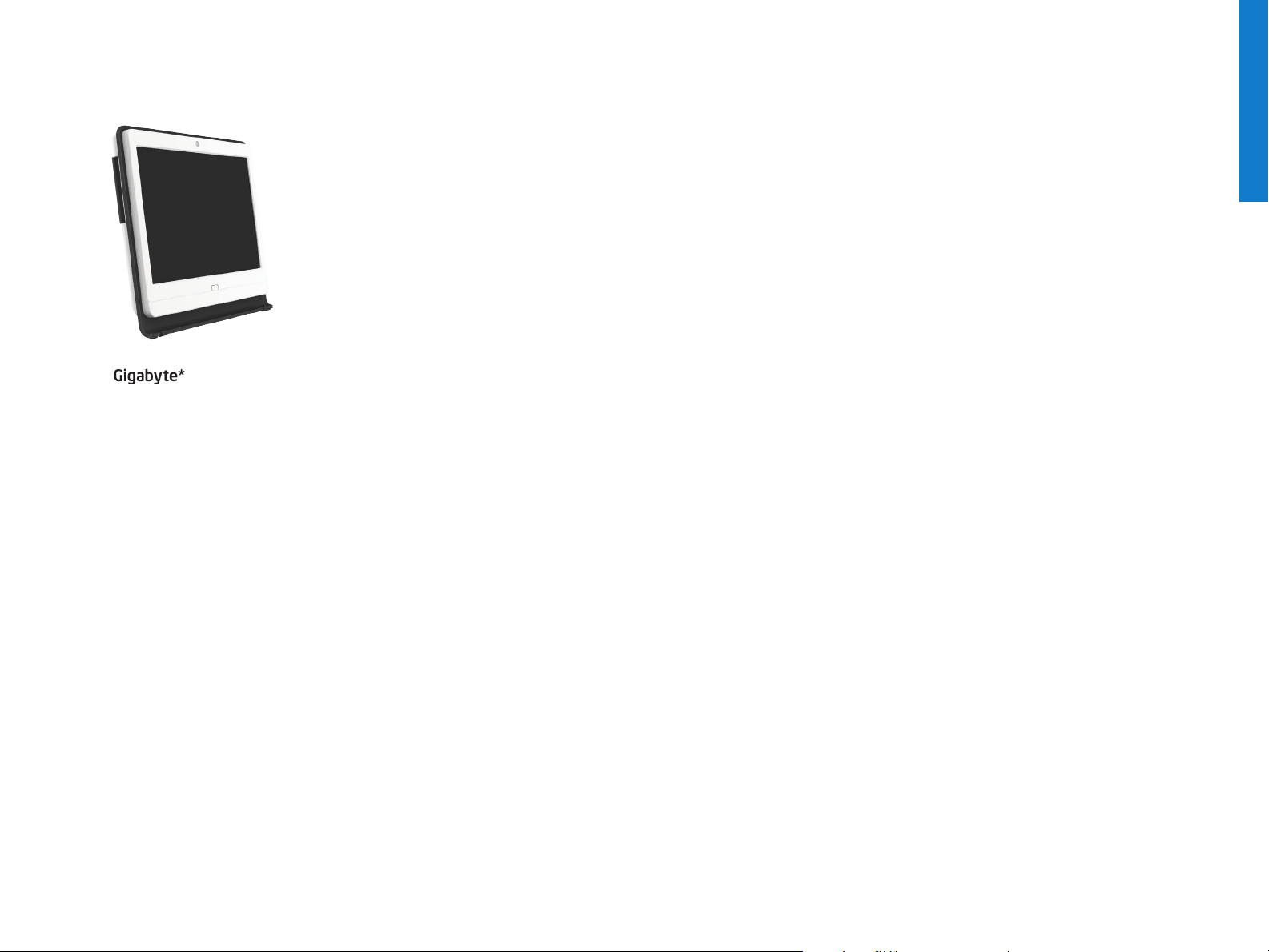

Gigabyte*
Model: AC21BT
Size: 21.5 inches
AIO Chassis
All-in-One Chassis
15
AIO Chassis
ECS*
Model: G24 Aura
Size: 23.6 inches
Loop*
Model: LP-2150
Size: 21.5 inches
Wibtek*
Model: A23
Size: 23.6 inches
LG*
Model: LGE 22AM33NB
Size: 21.5 inches
Mitac*
Model: 7 Series: 770/780; 8 Series: 870/880
Size: 770/870 – 21.5 inches
780/880 – 23.6 inches
Loop*
Model: LP-2151
Size: 21.5 inches
All-in-One Chassis
16
AIO Chassis
Gigabyte*
Model: GB-AEDT
Size: 21.5 inches
Shuttle*
Model: AIO Panel C
Size: 18.5 inches
Gigabyte*
Model: GB-AEGT
Size: 24 inches
Mitac*
Model: Maestro 650 Stand
Size: 21.5 inches
KME*
Model: HP-A205
Size: 21.5 inches
Wibtek*
Model: A21
Size: 21.5 inches
All-in-One Chassis
17
AIO Chassis
ECS*
Model: G11
Size: 21.5 inches
DQ*
Model: Maxx Series
Size: 18.5 inches; 21.5 inches; 23.6 inches
Gigabyte*
Model: GB-AEBN
Size: 18.5 inches
Jumper*
Model: ET30/Sail
Size: 21.5 inches
Mitac*
Model: Maestro 650
Size: 21.5 inches
Wibtek*
Model: AMV 18
Size: 21.5 inches
VESA Mount Options
18
Select AIO PCs can be VESA mounted. This creates the opportunity for single, dual or triple mount solutions using supported VESA desk and wall mounts.
VESA Mounting
Example of VESA Mounted System
Wall Mounted Desk Mounted
Standardized Bracket
Thin Mini-ITX Desktop Boards
19
Thin Mini-ITX Motherboards are the foundation of the platform. These motherboards utilize 4th generation Intel® Core™ processors in the LGA1150 package and
innovative premium features to deliver a rich user experience with all the power of a desktop in a minimal form factor. This combination represents the perfect solution
for high-performance AIO systems, Tiny PCs, and home theater PC systems.
Powerful Computing Rich Multimedia Exceptional Graphics
Desktop Boards
Thin mini-ITX Desktop Boards based on the Intel®
8-Series Chipset support 4th generation Intel® Core™
i7, Intel® Core™ i5 processors and other Intel®
processors with a 65 Watt TDP in the LGA1150
package.
Connect a wide range of supported devices to the
available IO ports on the chosen thin mini-ITX
based desktop boards. These can include
high-speed USB3, HDMI and Intel® Wireless
Adapters to support loading, modifying and
streaming digital media.
The built-in visuals of the 4th Generation Intel® Core™
processors deliver everything you need to enjoy a
stunning graphic experience when interacting with
pictures and media on your PC thanks to Intel® HD
Graphics 4600—the new baseline for all 4th gen
Intel® Core™ i5 and Intel® Core™ i7 processors.
Mini PCI-Express LVDS & EDP mSATA
Many thin mini-ITX Desktop boards support a
combination of full size PCI-Express* mini-card and
half-size PCI-Express* mini-card connectors. The
mini-card connectors are ideal for support of mSATA
solid state drives, WiFi adapters and third party TV
Thin Mini-ITX Desktop Boards may support a local
flat panel display via on-board LVDS connectivity
that can enable a wide range of display panels for
maximum flexibility when defining All-in-One
system configurations.
mSATA is available on many thin mini-ITX Desktop
Boards. It is generally implemented as a low profile,
full-size Mini PCI Express* connector combined with
specific desktop board functionality.
Tuner modules.

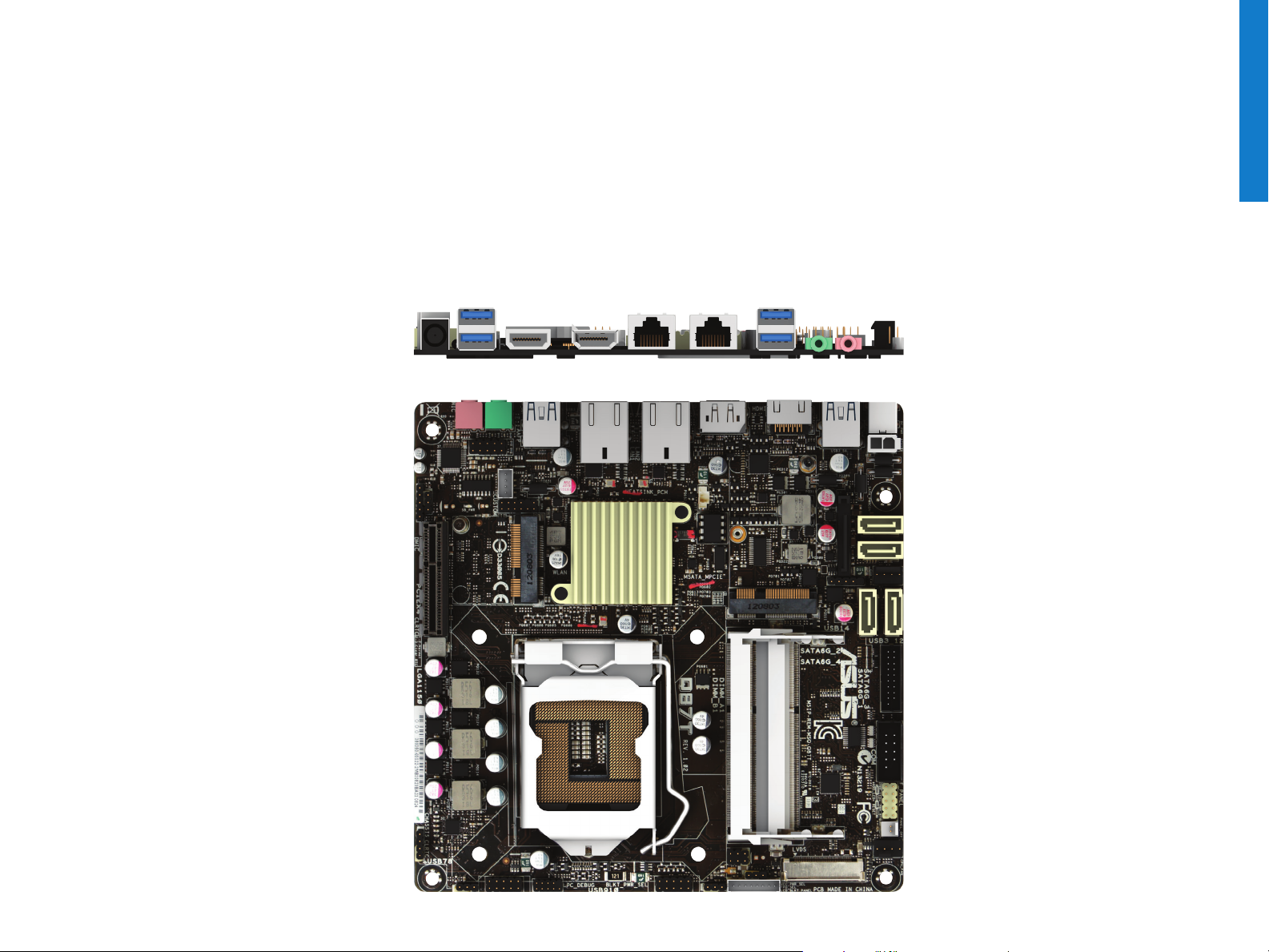

Asus* Q87T Thin Mini-ITX Desktop Board
20
This Thin Mini-ITX Desktop board based on the Intel® Q87 Express chipset, supports Intel® 4th Generation Core™ processors in the LGA1150 package up to
65W TDP, with iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets and 2-channel(2 SODIMM)
DDR3 memory. The Intel® Q87 Express chipset is a single-chipset design. It natively supports up to six USB 3.0 ports for up to ten times faster transfer rates
than USB 2.0. Moreover, the Intel® Q87 Express chipset also supports iGPU functionality, letting users enjoy the latest Intel integrated graphics performance.
In addition this Thin Mini-ITX Desktop board supports Intel® vPro™ Technology and Intel® Small Business Advantage. For more information on these technologies
and their implementation, please visit http://www.asus.com.
Desktop Boards
Thin Mini-ITX Desktop
Boards Support:
• LGA1150 Socket
• SODIMM Memory
• LVDS and/or EDP Headers internal
display
• Onboard DC Power Connector
• Mini PCI-E* ports for expandability
The Asus* Q87T Thin Mini-ITX
Desktop Board includes:
• Support for Intel® 4th Generation
Core™ processors in the LGA1150
package up to 65W TDP
• Support for 1600MHz Memory
• 2 Mini PCI-E* Slots
• Gigabit LAN
• HDMI* Full Display Out

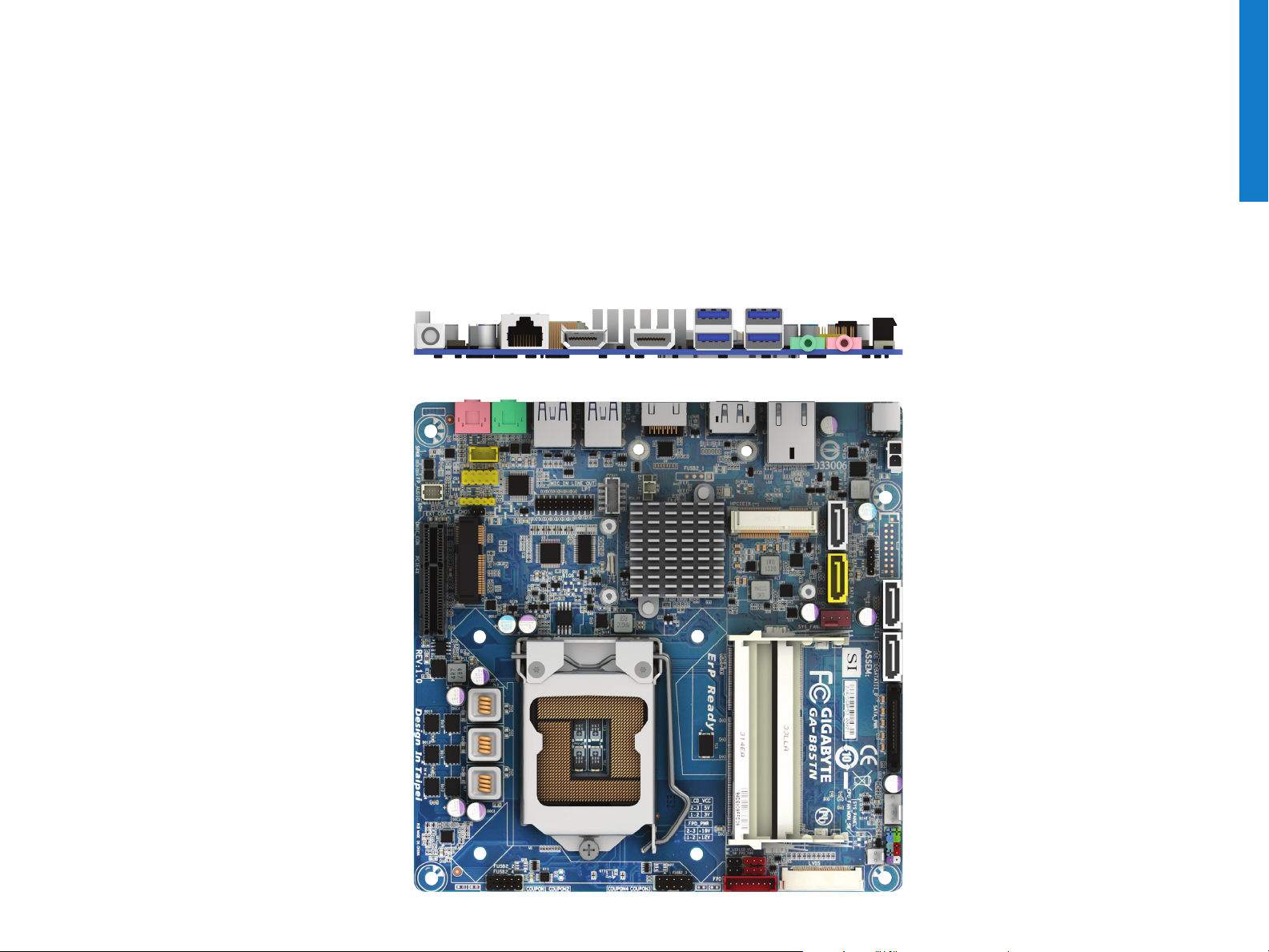

Gigabyte* B85T Thin Mini-ITX Desktop Board
21
Gigabyte* 8 Series Thin Mini-ITX Desktop Boards support the latest 4th Generation Intel® Core™ processors up to 65W TDP, bringing together a unique blend
of features to promote a compelling user experience with the power of a desktop in a compact form factor. The latest Intel 8 Series platform offers significant
improvements in performance and power consumption with the latest 4th generation Intel® Core™ processors and Intel® B85 chipsets. As well as a boost in
overall productivity, the latest HD4600 Intel® processor graphics provide native 4K resolution playback over standard HDMI connectivity, with significantly
higher frame rates in the latest DX11 3D game titles. The range of Gigabyte* 8 Series Thin Mini-ITX Desktop Boards includes the H81TN, B85TN, H87TN
and Q87TN models. For more information, please visit http://www.gigabyte.com.
Desktop Boards
Thin Mini-ITX Desktop
Boards Support:
• LGA1150 Socket
• SODIMM Memory
• LVDS and/or EDP Headers internal
display
• Onboard DC Power Connector
• Mini PCI-E* ports for expandability
Gigabyte* B85T Thin Mini-ITX
Desktop Board includes:
• Support for Intel® 4th Generation
Core™ processors in the LGA1150
package up to 65W TDP
• Support for 1600MHz Memory
• 2 Mini PCI-E* Slots
• Gigabit LAN
• HDMI* Full Display Out
Intel® 8 Series Desktop Boards
22
Desktop Boards
Asus*
Model: Q87-TI
Chipset: Q87
Gigabyte*
Model: B85TN
Chipset: B85
ECS*
Model: H87H3-TI
Chipset: H87
Gigabyte*
Model: H87TN
Chipset: H87
Mitac*
Model: M87OD
Chipset: H87
Gigabyte*
Model: Q87TN
Chipset: Q87
Gigabyte*
Model: H81TN
Chipset: H81
Wibtek*
Model: TH87G-SA
Chipset: H87
Intel® 6 Series and 7 Series Desktop Boards
23
Desktop Boards
Asrock*
Model: B75TM-ITX
Chipset: B75
ECS*
Model: H61H-G11
Chipset: H61
Asrock*
Model: H61TM-ITX
Chipset: H61
Gigabyte*
Model: GA-B75TN
Chipset: B75
Asrock*
Model: H77TM-ITX
Chipset: H77
Gigabyte*
Model: GA-H77TN
Chipset: H77
Asrock*
Model: Z77TM-ITX
Chipset: Z77
Intel*
Model: DH61AG
Chipset: H61
Intel® 6 Series and 7 Series Desktop Boards
24
Motherboards
Desktop Boards
Intel*
Model: DQ77KB
Chipset: Q77
Intel*
Model: DH61AGL
Chipset: H61
Wibtek*
Model: TH61G-S
Chipset: H61
Wibtek*
Model: TH61G-P
Chipset: H61
Other Compatible Components
25
Other Components
4th Generation Intel® Core™ Processors 3rd Generation Intel® Core™ Processors
Intel® SSD 520, 335, 330, 320 Series
• 2.5 Inch or 1.8 Inch (model dependent)
Intel® SSD 313 Series
• 2.5 Inch or mSATA Interface
Intel® Wireless Adapters
• Intel® Dual Band Wireless-AC 7260 (802.11ac)
• Intel® Dual Band Wireless-N 7260 (802.11agn)
• Intel® Centrino® Ultimate-N 6300 (802.11agn)
Intel® SSD 525 Series
• mSATA Interface
Please note: Component support depends on the combination of AIO Chassis and Desktop board.
Power Adapter Designs for AIO* and Small Form Factor Chassis
26
Maker Model P/N
Bestec*
BT-AG151EBF-H
BT-AG151EBF
BT-AG181EGF-H
Delta*
FSP*
ADP-150TB B*
FSP120-ABAN1
FSP150-ABAN1
FSP180-ABAN1
Liteon* PA-1151-03XX
PA-1181-02XX
Great Wall*
GA120S
GA150S
Table A: High Wattage Power Adapters for AIOs and Small Form Factor Chassis
Wattage
150 W
150 W
180 W
150 W
120 W
150 W
180 W
150 W
180 W
120 W
150 W
Voltage
19 V
19 V
19 V
19 V
19 V
19 V
19 V
19 V
19 V
19 V
19 V
Maker Model P/N Wattage Voltage
FSP*
FSP075-DMAB1
FSP090DMAB1
Table B: Power Adapters for Atom Based Systems
* For more information on High Wattage Power Adapter
Designs for AIO PCs, visit intel.com/go/poweradapters
75 W
90 W
19 V
19 V
Power Supply
Mainstream Motherboard
Power Connector
Standard 19 V Connector for
Intel® Core™ Based Boards
Standard 19 V Connector for
Intel® Atom™ Based Boards
Small Form Factor Chassis
27
SFF Chassis
Monitor not included
In Win*
Model: K1 Co
Morex*
Model: 5505
nvertible
G-Alantic*
Model: GA6501
Morex*
Model: 8810
Lian-Li*
Model: PC-Q05
Morex*
Model: 887
Small Form Factor Chassis
28
SFF Chassis
Morex*
Model: 557
In Win*
Model: K1-HTPC
OEM Productions*
Model: ITX-100H-H6100A
In Win*
Model: K2 Convertible
SilverStone*
Model: DH61AG chassis
Avance*
Model: Z100
For more information on designing for the Thin Mini-ITX
29
platform, visit intel.com/go/aio
For more information on purchasing these components,
visit intel.com/reseller
**
may affect actual performance. Buyers should consult other sources of information to evaluate the performance of systems or components they are considering purchasing. For more information on performance tests and on the performance of Intel products,
visit intel.com/performance/resources/benchmark_limitations.htm.
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL
EXCEPT AS PROVIDED IN INTEL’S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF
INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY R
OTHERWISE AGREED IN WRITING BY INTEL, THE INTEL PRODUCTS ARE NOT DESIGNED NOR INTENDED FOR ANY APPLICATION IN WHICH THE FAILURE OF THE INTEL PRODUCT COULD CREATE A SITUATION WHERE PERSONAL INJURY OR
DEATH MAY OCCUR.
site at www.intel.com.
Copyright © 2011 Intel Corporation. All rights reserved. Intel, the Intel logo, and Core are trademarks of Intel Corporation in the U.S. and other countries.
*Other names and brands may be claimed as the property of others.
Please Recycle
®
PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT.
IGHT. UNLESS
Loading...
