Integra DTR-70.3, DTR-80.3 Owner's Manual

AV Receiver

DTR-80.3 DTR-70.3

Instruction Manual

Introduction

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

PORTABLE CART WARNIN

S3125A

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to

persons. The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

AVIS

RISQUE DE CHOC ELECTRIQUE

NE PAS

OUVRIR

15. Damage Requiring Service Unplug the apparatus from the wall outlet and refer servicing to qualified service personnel under the following conditions:

A. When the power-supply cord or plug is damaged, B. If liquid has been spilled, or objects have fallen

into the apparatus,

C. If the apparatus has been exposed to rain or water, D. If the apparatus does not operate normally by

following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the apparatus to its normal operation,

E. If the apparatus has been dropped or damaged in

any way, and

F. When the apparatus exhibits a distinct change in

performance this indicates a need for service.

16. Object and Liquid Entry Never push objects of any kind into

the apparatus through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases shall be placed on the apparatus. Don’t put candles or other burning objects on top of this unit.

17. Batteries Always consider the environmental issues and follow local regulations when disposing of batteries.

18. If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is adequate ventilation. Leave 20 cm (8") of free space at the top and sides and 10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4") away from the rear panel or wall, creating a flue-like gap for warm air to escape.

Precautions

1. Recording Copyright—Unless it’s for personal use only, recording copyrighted material is illegal without the permission of the copyright holder.

2. AC Fuse—The AC fuse inside the unit is not userserviceable. If you cannot turn on the unit, contact the dealer from whom you purchased this unit.

3. Care—Occasionally you should dust the unit all over with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild detergent and water. Dry the unit immediately afterwards with a clean cloth. Don’t use abrasive cloths, thinners, alcohol, or other chemical solvents, because they may damage the finish or remove the panel lettering.

4. Power WARNING

BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY. AC outlet voltages vary from country to country. Make sure that the voltage in your area meets the voltage requirements printed on the unit’s rear panel (e.g., AC 230 V, 50 Hz or AC 120 V, 60 Hz).

The power cord plug is used to disconnect this unit from the AC power source. Make sure that the plug is readily operable (easily accessible) at all times.

For models with [Power] button, or with both [Power] and [On/Standby] buttons: Pressing the [Power] button to select OFF mode does not fully disconnect from the mains. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet.

For models with [On/Standby] button only: Pressing the [On/Standby] button to select Standby mode does not fully disconnect from the mains. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet.

5. Preventing Hearing Loss Caution

Excessive sound pressure from earphones and headphones can cause hearing loss.

6. Batteries and Heat Exposure Warning

Batteries (battery pack or batteries installed) shall not be exposed to excessive heat as sunshine, fire or the like.

7. Never Touch this Unit with Wet Hands—Never handle this unit or its power cord while your hands are wet or damp. If water or any other liquid gets inside this unit, have it checked by the dealer from whom you purchased this unit.

8. Handling Notes

• If you need to transport this unit, use the original

packaging to pack it how it was when you originally bought it.

• Do not leave rubber or plastic items on this unit for

a long time, because they may leave marks on the case.

• This unit’s top and rear panels may get warm after prolonged use. This is normal.

• If you do not use this unit for a long time, it may not work properly the next time you turn it on, so be sure to use it occasionally.

For U.S. models

FCC Information for User CAUTION:

The user changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer from whom you purchased this unit or an experienced radio/TV technician for help.

For Canadian Models

NOTE: THIS CLASS B DIGITAL APPARATUS

COMPLIES WITH CANADIAN ICES-003. For models having a power cord with a polarized plug:

CAUTION: TO PREVENT ELECTRIC SHOCK,

MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

Modèle pour les Canadien

REMARQUE: CET APPAREIL NUMÉRIQUE DE

LA CLASSE B EST CONFORME À LA NORME NMB003 DU CANADA.

Sur les modèles dont la fiche est polarisée:

ATTENTION: POUR ÉVITER LES CHOCS

ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

Thank you for purchasing an Integra AV receiver. Please read this manual thoroughly before making

connections and plugging in the unit. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment

from your new AV receiver. Please retain this manual for future reference.

Supplied Accessories

Make sure you have the following accessories:

Indoor FM antenna (➔ page 21)

AM loop antenna (➔ page 21)

Power cord (➔ page 21)

Speaker cable labels (➔ page 13)

Speaker setup microphone (➔ page 31)

Remote controller (RC-811M) and two batteries (AA/R6)

In catalogs and on packaging, the letter at the end of the product name indicates the color. Specifications and operations are the same regardless of color.

■ Installing the batteries

Note

• If the remote controller doesn’t work reliably, try replacing the batteries.

• Don’t mix new and old batteries or different types of batteries.

• If you intend not to use the remote controller for a long time, remove the batteries to prevent damage from leakage or corrosion.

• Remove expired batteries as soon as possible to prevent damage from leakage or corrosion.

Batteries (AA/R6)

■ Aiming the remote controller

To use the remote controller, point it at the AV receiver’s remote control sensor, as shown below.

Transmission

Remote control sensor

AV receiver

Approx. 16 ft. (5 m)

Reception

Transmitter

AV receiver

Input sensor

Approx. 16 ft. (5 m)

Introduction

Important Safety Instructions ......................................... 2

Precautions....................................................................... 3

Supplied Accessories...................................................... 4

Contents............................................................................ 5

Features ............................................................................ 6

Front & Rear Panels......................................................... 8

Front Panel..................................................................... 8

Display............................................................................ 9

Rear Panel ................................................................... 10

Remote Controller.......................................................... 11

Controlling the AV Receiver ......................................... 11

Connections

Connecting the AV Receiver ......................................... 12

Connecting Your Speakers .......................................... 12

About AV Connections ................................................. 16

Connecting Components with HDMI ............................ 17

Connecting Your Components ..................................... 18

Connecting Integra/Onkyo u Components ................ 20

Connecting a Recording Component ........................... 20

Connecting the Antennas ............................................. 21

Connecting the Power Cord ......................................... 21

Turning On & Basic Operations

Turning On/Off the AV Receiver ................................... 22

Turning On ................................................................... 22

Turning Off ................................................................... 22

Playback.......................................................................... 23

Selecting the Language for the Onscreen

Setup Menus.............................................................. 23

Playing the Connected Component.............................. 23

Controlling Contents of USB or Network Devices ........ 23

Understanding Icons on the Display............................. 24

Playing an iPod/iPhone via USB .................................. 24

Playing a USB Device .................................................. 25

Listening to Internet Radio ........................................... 25

Playing Music Files on a Server ................................... 27

Remote Playback ......................................................... 27

Listening to AM/FM Radio ............................................ 28

Using Basic Functions .................................................. 31

Using the Automatic Speaker Setup ............................ 31

Using the Listening Modes ........................................... 34

Using the Home Menu.................................................. 41

Using the Sleep Timer.................................................. 41

Setting the Display Brightness ..................................... 41

Displaying Source Information ..................................... 42

Changing the Input Display .......................................... 42

Selecting Speaker Layout ............................................ 42

Muting the AV Receiver................................................ 42

Using Headphones....................................................... 43

Using Easy Macros ...................................................... 43

Recording ..................................................................... 44

Advanced Operations

Advanced Setup .............................................................45

On-screen Setup Menus............................................... 45

Common Procedures in Setup Menu ........................... 45

Input/Output Assign ......................................................46

Speaker Setup.............................................................. 49

Audio Adjust .................................................................53

Source Setup................................................................ 56

Listening Mode Preset.................................................. 61

Miscellaneous............................................................... 62

Hardware Setup............................................................ 63

Remote Controller Setup .............................................. 66

Lock Setup.................................................................... 67

Using the Audio Settings ..............................................67

Multi Zone ....................................................................... 70

Making Multi Zone Connections ...................................70

Controlling Zone 2/3/4 Components............................. 72

Using the 12V Triggers................................................. 73

Using the Remote Controller in

Zone and Multiroom Control Kits ............................... 74

Controlling Other Components

iPod/iPhone Playback via Onkyo Dock ........................75

Using the Onkyo Dock.................................................. 75

Controlling Your iPod/iPhone .......................................76

Controlling Other Components..................................... 78

Preprogrammed Remote Control Codes ...................... 78

Looking up for Remote Control Code ........................... 78

Entering Remote Control Codes................................... 79

Remote Control Codes for Integra/

Onkyo Components Connected via u .....................80

Resetting Remote Mode Buttons.................................. 80

Resetting the Remote Controller ..................................80

Controlling Other Components .....................................80

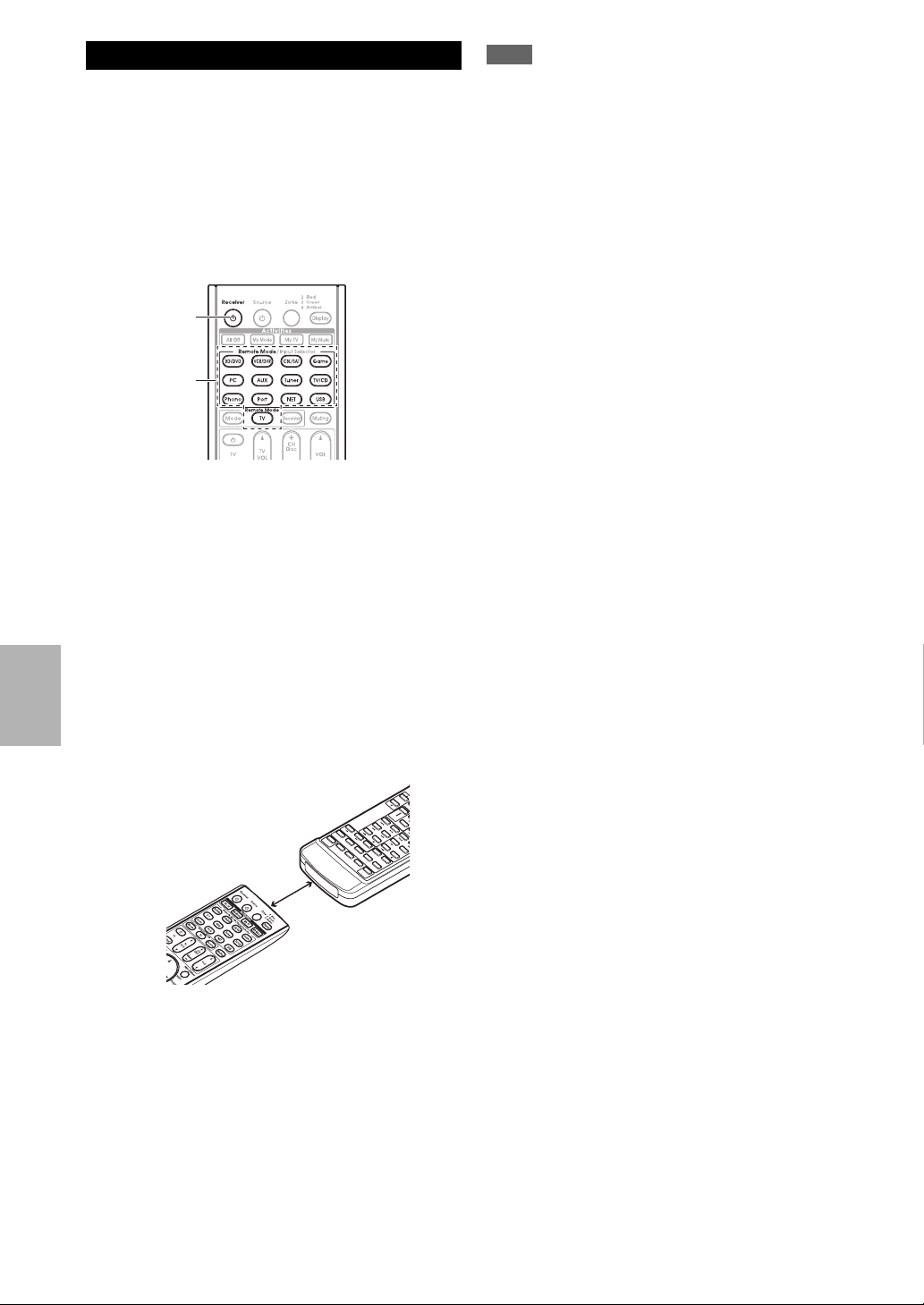

Learning Commands ....................................................82

Using Normal Macros ................................................... 83

Appendix

Troubleshooting .............................................................84

Firmware Update ............................................................90

Connection Tips and Video Signal Path ...................... 93

Using an RIHD-compatible TV, Player, or Recorder ... 96

About HDMI..................................................................... 98

Network/USB Features...................................................99

Specifications (DTR-80.3) ............................................102

Specifications (DTR-70.3) ............................................104

To reset the AV receiver to its factory defaults, turn it on and, while holding down VCR/DVR, press

8On/Standby (➔ page 84).

Features

Amplifier

(DTR-80.3)

• 145 Watts/Channel @ 8 ohms (FTC)

• 220 Watts/Channel @ 6 ohms (IEC)

• 280 Watts/Channel @ 6 ohms (JEITA)

(DTR-70.3)

• 140 Watts/Channel @ 8 ohms (FTC)

• 200 Watts/Channel @ 6 ohms (IEC)

• 250 Watts/Channel @ 6 ohms (JEITA)

• WRAT–Wide Range Amplifier Technology (5 Hz to 100 kHz bandwidth)

• Linear Optimum Gain Volume Circuitry

• 3 Stage Inverted Darlington Amplifier Design

• (DTR-80.3) Massive Toroidal Transformer

• (DTR-70.3) H.C.P.S.(High Current Power Supply) Massive High Power Transformer

Processing

• THX Ultra2 Plus*1 Certified

• Incorporates Qdeo™ Upscaling (to 4K Compatible)

•HQV

-Vida Video Processing with 1080p Video

upscaling of All Video Sources via HDMI

• HDMI (Audio Return Channel, 3D, DeepColor, x.v.Color

, Lip Sync, DTS-HD Master Audio*5, DTS-HD High Resolution Audio, Dolby TrueHD Dolby Digital Plus, DSD and Multi-CH PCM)

• Dolby TrueHD

• Dolby Pro Logic IIz*6 and Audyssey DSX™

•DTSNeo:X

• Non-Scaling Configuration

• A-Form Listening Mode Memory

• Direct Mode

• Music Optimizer

• (DTR-80.3) High-Performance 192 kHz/32-Bit D/A Converters

• (DTR-70.3) 192 kHz/24-Bit D/A Converters

• Powerful and Highly Accurate 32-bit Processing DSP

• Jitter Cleaning Circuit Technology

• DSD Direct for Super Audio CD

technology for HDMI Video

and DTS-HD Master Audio

for Compressed Digital Music files

Connections

•8HDMI*9 Inputs (1 on front panel) and 2 Outputs

• Integra/Onkyo p for System Control

• (DTR-80.3) 7 Digital Inputs (4 Optical/3 Coaxial)

• (DTR-70.3) 6 Digital Inputs (3 Optical/3 Coaxial)

• Component Video Switching (3 Inputs/2 Outputs)

• Universal Port for the Dock for iPod HD Radio™

*11

tuner module (North American

/iPhone

*10

models)/DAB+ tuner module (Australian models)

• (DTR-80.3) Gold-plated, color-coded, transparent speaker posts

• Banana Plug-Compatible Speaker Posts

• Powered Zone 2/3/4

• Bi-Amping Capability

• Analog RGB Video Input (D-sub 15) for PC

• Internet Radio Connectivity (SiriusXM Internet Radio/vTuner/Last.fm/Pandora/Rhapsody/Slacker/ Mediafly/Napster/Spotify)

Services available may vary depending on the region.

• 2 Independent Subwoofer Pre Outs

• Network Capability for Streaming Audio Files

*12

• 2 USB Inputs* (Front/Rear) for Memory Devices and

iPod®/iPhone

*10

models (Enables Display of Album

Artwork)

Only front-panel USB input is compatible with iPod/iPhone.

Miscellaneous

• 40 AM/FM Presets

•Dolby Volume

• Audyssey MultEQ®XT32*7 to correct room acoustic problems

• Audyssey Dynamic EQ

• Audyssey Dynamic Volume listening level and dynamic range

• Crossover Adjustment (40/45/50/55/60/70/80/90/100/110/120/130/150/200 Hz)

• A/V Sync Control Function (up to 800 ms)

• Auto Standby Function

• On-Screen Display via HDMI

• Bi-Directional Preprogrammed (with onscreen display setup) RI-Compatible Learning Remote with 4 Activities and Mode-Key LEDs

• ISF (Imaging Science Foundation) Video Calibration

*13

•VLSC Channels

for loudness correction

to maintain optimal

(Vector Linear Shaping Circuitry) for All

*10

THX Ultra2 Plus

Before any home theater component can be THX Ultra2 Plus certified, it must pass a rigorous series of quality and performance tests. Only then can a product feature the THX Ultra2 Plus logo, which is your guarantee that the Home Theater products you purchase will give you superb performance for many years to come. THX Ultra2 Plus requirements define hundreds of parameters, including power amplifier performance, and pre-amplifier performance and operation for both digital and analog domains. THX Ultra2 Plus receivers also feature proprietary THX technologies (e.g., THX Mode) which accurately translate movie soundtracks for home theater playback.

Qdeo and QuietVideo are trademarks of Marvell or its affiliates.

HQV® (Hollywood Quality Video) is registered trademark of IDT, inc.

“x.v.Color” is a trademark of Sony Corporation.

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567; 7,003,467; 7,283,634 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, and DTS + the Symbol together are registered trademarks & the DTS logos are trademarks of DTS, Inc Product includes software. © DTS, Inc. All Rights Reserved.

Manufactured under license from Dolby Laboratories. Dolby, Pro Logic, Surround EX and the double-D symbol are trademarks of Dolby Laboratories.

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. “Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

*11

HD Radio™, HD Radio Ready™, and the HD Radio Ready logo are proprietary trademarks of iBiquity Digital Corporation. This HD Radio Ready™ receiver is ready to receive HD Radio broadcasts when connected to the Onkyo UP-HT1 HD Radio tuner module (sold separately).

*12

“DLNA®, the DLNA Logo and DLNA CERTIFIED™ are trademarks, service marks, or certification marks of the Digital Living Network Alliance.”

*12

Windows and the Windows logo are trademarks of the Microsoft group of companies.

*13

VLSC™ is a trademark of Onkyo Corporation.

“Xantech” is a registered trademark of Xantech Corporation.

“Niles” is a registered trademark of Niles Audio Corporation.

Re-Equalization and the “Re-EQ” logo are trademarks of THX Ltd.

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

Manufactured under license from Audyssey Laboratories™, Inc. U.S. and foreign patents pending.

Audyssey MultEQ Audyssey Dynamic Volume

XT32, Audyssey Dynamic EQ®,

and Audyssey DSX™ are

registered trademarks and trademark of Audyssey Laboratories, Inc.

Music Optimizer™ is a trademark of Onkyo Corporation.

“HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.”

Front & Rear Panels

Front Panel

(North American models)

a

r

(Australian models)

ts

e h i jklm

g o

u

n p

v

qbcd

w

For detailed information, see the pages in parentheses.

a 8On/Standby button (22) b Zone 2 and Off buttons (72) c Zone 3 and Off buttons (72) d Zone 4 and Off buttons (72) e Monitor Out button (46) f Remote control sensor and transmitter (4) g Tone and Tone Level buttons (67, 72) h Display (9) i Listening Mode buttons (34) j Dimmer button (North American models) (41) k Memory button (29) l Tuning Mode button (28)

m Display button (42) n Setup button (45) o Tuning, Preset (28 to 29), arrow and Enter

buttons

p Return button q Master Volume control (23) r Zone Level buttons (72) s Phones jack (43) t Setup Mic ja u Input selector buttons (23) v USB port (18) w AUX Input jacks (17, 18) x RT/PTY/TP button (Australian models) (30)

ck (31)

Display

edbc f hga i

lj

k

For detailed information, see the pages in parentheses.

a Speaker/channel indicators b Z3 (Zone 3) indicator (72) c Z2 (Zone 2) indicator (72) d Z4 (Zone 4) indicator (72) e Listening mode and format indicators (34, 68) f 1, 3 and cursor indicators (23) g NET indicator (25, 65) h Tuning indicators

RDS indicator (excluding North American models) (29)

AUTO indicator (28) TUNED indicator (28) FM STEREO indicator (28)

m

i Audio input indicators j Bi AMP indicator (14, 49) k Audyssey indicator (31, 56)

Dynamic EQ indicator (56)

- (Dolby) Vol indicator (54)

Dynamic Vol indicator (57)

l Headphone indicator (43) m Message area n MUTING indicator (42) o Volume level (23) p USB indicator (24, 25) q SLEEP indicator (41, 61)

n o p

q

Rear Panel

Illustration based on DTR-80.3.

b

a c

ed

p

a UNIVERSAL PORT jack b IR IN A/B and OUT jacks c DIGITAL IN COAXIAL and OPTICAL jacks d USB port e ETHERNET port f u REMOTE CONTROL jack g RS232 port

Terminal for control.

h HDMI IN and HDMI output (HDMI OUT MAIN and

HDMI OUT SUB) jacks

i MONITOR OUT V and S jacks j COMPONENT VIDEO IN and MONITOR OUT

jacks

k COMPONENT VIDEO ZONE 2 OUT jacks l ZONE 2 OUT V jack m PC IN jack n FM ANTENNA jack and AM ANTENNA terminal o AC INLET p GND screw

f g h j ki l nm

q

r s t

o

u v

q 12V TRIGGER OUT A/B/C jacks r Composite, S-Video and analog audio jacks

(BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT IN, GAME IN, PC IN, TV/CD IN and PHONO IN)

s MULTI CH input jacks

(FRONT L/R, CENTER, SURR SURR BACK L/R and SUBWOOFER)

t PRE OUT jacks

(FRONT L/R, CENTER, SURROUND L/R,

SURR BACK L/R, FRONT HIGH/WIDE L/R, SW1, SW2)

u ZONE 2 and ZONE 3 L/R/SUBWOOFER

PRE/LINE OUT jacks

v Speaker Terminals

(FRONT L/R, CENTER, SURR/ZONE 4 L/R,

SURR BACK/ZONE 3 L/R, FRONT HIGH L/R and FRONT WIDE/ZONE 2 L/R)

See “Connecting the AV Receiver” for connection (➔ pages 12 to 21).

OUND L/R,

Remote Controller

Controlling the AV Receiver

d e

To control the AV receiver, press Receiver to select Receiver mode.

You can also use the remote controller to control Integra/Onkyo Blu-ray Disc/DVD player, CD player, and other components. See “Entering Remote Control Codes” for more details (➔ page 79).

For detailed information, see the pages in parentheses.

a 8Receiver button (22) b Activities buttons (43, 83)

c Remote Mode/Input Selector buttons (23) d SP Layout button (42)

e Arrow q/w/e/r and Enter buttons f Setup button (45) g Listening Mode buttons (34) h Dimmer button (41) i Display button (42) j Muting button (42) k VOL q/w button (23) l Return button

m Home button (41, 67) n Sleep button (41)

■ Controlling the tuner

To control the AV receiver’s tuner, press Tuner (or Receiver). You can select AM or FM by pressing Tuner repeatedly.

a Arrow q/w buttons (28) b D.

TUN button (29)

c Display button d CH +/– button (29) e Number buttons (29)

When you want to change the remote controller mode (target component) without changing the current input source, press Mode and within about 8 seconds, press Remote Mode. Then, using the same AV receiver’s remote controller, you can control the component corresponding to the button you pressed.

These buttons can also be used when a Remote Mode other than Receiver mode is selected. (Pressing Home switches to Receiver mode.)

Connections

Connecting the AV Receiver

Connecting Your Speakers

Connecting the Speaker Cables

■ 9.2-channel Playback

The following illustration shows how to connect the speakers to each pair of terminals. If you’re using only one surround back speaker, connect it to the SURR BACK/ZONE 3 L terminals.

Front high

right

Surround

right

Front wide

right

Surround

back right

■ Screw-type speaker terminals

Strip 1/2" to 5/8" (12 to 15 mm) of insulation from the ends of the speaker cables, and twist the bare wires tightly, as shown.

Front wide

Front leftFront right Center

1/2" to 5/8" (12 to 15 mm)

left

Surround

back left

Front high

left

Surround

left

■ Banana Plugs (North American models)

• If you are using banana plugs, tighten the speaker terminal before inserting the banana plug.

• Do not insert the speaker code directly into the center hole of the speaker terminal.

Speaker Configuration

Speaker Connection Precautions

The following table indicates the channels you should use depending on the number of speakers that you have.

No matter how many speakers you use, 2 powered subwoofers are recommended for a really powerful and solid bass. To get the best from your surround sound system, you need to set the speaker settings automatically (➔ page 31) or manually (➔ page 49).

Number of speakers

Front speakers ✔✔✔✔✔✔✔✔✔✔✔✔✔✔ ✔ Center

speaker Surround

speakers Surround back

speaker Surround back

speakers Front high

speakers Front wide

speakers

If you’re using only one surround back speaker, connect it to the SURR BACK/ZONE 3 L terminals.

23456777889991011

✔ ✔✔✔✔✔✔✔✔✔✔✔ ✔

✔✔✔✔✔✔✔✔✔✔✔✔ ✔

✔✔✔✔

✔✔✔✔✔✔

Read the following before connecting your speakers:

• You can connect speakers with an impedance of between 4 and 16 ohms. If the impedance of any of the connected speakers is 4 ohms or more, but less than 6 ohms, be sure to set the minimum speaker impedance to “4ohms” (➔ page 49). If you use speakers with a lower impedance, and use the amplifier at high volume levels for a long period of time, the built-in protection circuit may be activated.

• Disconnect the power cord from the wall outlet before making any connections.

• Read the instructions supplied with your speakers.

• Pay close attention to speaker wiring polarity. In other words, connect positive (+) terminals only to positive (+) terminals, and negative (–) terminals only to negative (–) terminals. If you get them the wrong way around, the sound will be out of phase and will sound unnatural.

• Unnecessarily long, or very thin speaker cables may affect the sound quality and should be avoided.

• Be careful not to short the positive and negative wires. Doing so may damage the AV receiver.

• Make sure the metal core of the wire does not have contact with the AV receiver’s rear panel. Doing so may damage the AV receiver.

Attaching the Speaker Cable Labels

The speaker terminals are color-coded for identification purpose.

Speaker Color

Front left, Front high left, Front wide left, Zone 2 left

Front right, Front high right, Front wide right, Zone 2 right

Center Green Surround left, Zone 4 left Blue Surround right, Zone 4 right Gray Surround back left, Zone 3 left Brown Surround back right, Zone 3 right Tan

The supplied speaker cable labels are also color-coded and you should attach them to the positive (+) side of each speaker cable in accordance with the table above. Then all you need to do is to match the color of each label to the corresponding speaker terminal.

White

Red

• Don’t connect more than one cable to each speaker terminal. Doing so may damage the AV receiver.

• Don’t connect one speaker to several terminals.

Using Dipole Speakers

You can use dipole speakers for the surround and surround back speakers. Dipole speakers output the same sound in two directions.

Dipole speakers typically have an arrow printed on them to indicate how they should be positioned. The surround dipole speakers (a) should be positioned so that their arrows point toward the TV/screen, while the surround back dipole speakers (b) should be positioned so that their arrows point toward each other, as shown.

Using Powered Subwoofers

You can connect the powered subwoofers with SW1 PRE OUT and SW2 PRE OUT respectively.

The level and distance can be set individually for each output. If you’re using only one subwoofer, connect it to SW1 PRE

OUT.

LINE INPUT

TV/screen

To find the best position for your subwoofer, while playing a movie or some music with good bass, experiment by placing your subwoofer at various positions within the room, and choose the one that provides the most satisfying results.

Tip

• If your subwoofer is unpowered and you’re using an external amplifier, connect the subwoofer pre out jack to an input on the amplifier.

Bi-amping the Front Speakers

Important:

• When making the bi-amping connections, be sure to remove the jumper bars that link the speakers’ tweeter (high) and woofer (low) terminals.

• Bi-amping can be used only with speakers that support biamping. Refer to your speaker manual.

LINE INPUT

Powered subwoofers

LINE INPUT

1/3 of wall

position

Corner position

Bi-amping provides improved bass and treble performance.

When bi-amping is used, the AV receiver is able to drive up to a 7.2 speaker system in the main room.

Once you’ve completed the bi-amping connections as shown and turned on the AV receiver, you must set the speaker setting to enable bi-amping (➔ page 49).

Tweeter (high)

Woofer (low)

Front right Front left

Connecting Passive Subwoofers

The FRONT WIDE/ZONE 2 L/R terminal posts can be used with front wide speakers or passive subwoofers.

• Once you’ve connected the passive subwoofers and turned on the AV receiver, you need to enable the “Passive Subwoofer” setting (➔ page 49).

• If you use one passive subwoofer, connect it to the

SUBWOOFER1 terminals.

Connecting a Power Amplifier

If you want to use a more powerful power amplifier, you can use the AV receiver as a preamp. Connect all speaker outputs to the power amplifier. See the manuals supplied with your amplifier for details.

Note

Specify “None” for any channel that you don’t want to output (➔ page 50).

Subwoofer 1Subwoofer 2

Power amplifier

About AV Connections

Connecting AV components

HDMI cable Other cables

: Video & Audio : Video : Audio

AV receiverAV receiver

TV, projector, etc.

Blu-ray Disc/

DVD player

Game console

TV, projector, etc.

Blu-ray Disc/

DVD player

Game console

• Before making any AV connections, read the manuals supplied with your AV components.

• Don’t connect the power cord until you’ve completed and double-checked all AV connections.

Right!

• Push plugs in all the way to make good connections (loose connections can cause noise or malfunctions).

• To prevent interference, keep audio and video cables away from power cords and speaker cables.

AV Cables and Jacks

Wrong!

Signal Cable Jack Description

Video and Audio

Video Component video Component video separates the luminance (Y) and color

HDMI HDMI connections can carry digital video and audio.

HDMI

Green

Blue

Red

difference signals (P

B, PR), providing the best picture

quality (some TV manufacturers label their component video sockets slightly differently).

Analog RGB This is a conventional analog interface to connect a PC and

a display device (also called D-Sub or D-subminiature).

S-Video S-Video separates the luminance from color signals and

Composite video Composite video is commonly used on TVs, VCRs, and

Audio Optical digital

audio

Yellow

OPTICAL

provides better picture quality than composite video.

other video equipment. Optical digital connections allow you to enjoy digital

sound such as PCM

, Dolby Digital or DTS. The audio

quality is the same as coaxial.

Coaxial digital audio

Orange

Coaxial digital connections allow you to enjoy digital sound such as PCM

, Dolby Digital or DTS. The audio

quality is the same as optical.

Analog audio (RCA)

Multichannel analog audio (RCA)

White

Red

Analog audio connections (RCA) carry analog audio.

This cable carries multichannel analog audio and is typically used to connect DVD players with a 7.1-channel analog audio output. Several standard analog audio cables can be used instead of a multichannel cable.

Available sampling rate for PCM input signal (stereo/mono) is 32/44.1/48/88.2/96 kHz. In case of an HDMI connection,

176.4/192 kHz is also available.

Note

• The AV receiver does not support SCART plugs.

• The AV receiver’s optical digital jacks have shutter-type covers that open when an optical plug is inserted and close when it’s removed. Push plugs in all the way.

Caution

• To prevent shutter damage, hold the optical plug straight when inserting and removing.

Connecting Components with HDMI

VCR or DVD recorder/Digital Video Recorder

Game console

Personal computer

Satellite/cable set-top box, etc.

TV, projector, etc.

Blu-ray Disc/DVD player

Camcorder

Connect your components to the appropriate jacks. The default input assignments are shown below.

✔: Assignment can be changed (➔ page 47).

Jack Components Assignable

Input HDMI IN 1 Blu-ray Disc/DVD player ✔

HDMI IN 2 VCR or DVD recorder/Digital Video Recorder ✔ HDMI IN 3 Satellite/cable set-top box, etc. ✔ HDMI IN 4 Game console ✔ HDMI IN 5 Personal computer ✔ HDMI IN 6 Other components ✔ HDMI IN 7 Other components ✔ AUX Input HDMI Camcorder

Output HDMI OUT MAIN TV

HDMI OUT SUB projector, etc.

See also:

• “Connection Tips and Video Signal Path” (➔ page 93)

• “Using an RIHD-compatible TV, Player, or Recorder” (➔ page 96)

• “About HDMI” (➔ page 98)

■ Audio Return Channel (ARC) function

Audio Return Channel (ARC) function enables an HDMI capable TV to send the audio stream to the HDMI OUT MAIN of the AV receiver.

• This function can be used when: – your TV is ARC capable, and –the TV/CD input selector is selected, and

–“HDMI Control(RIHD)” is set to “On”(➔ page 64), and –“Audio Return Channel” is set to “Auto” (➔ page 65).

Tip

• To listen to audio received by the HDMI IN jacks through your TV’s speakers: – Set the “HDMI Control(RIHD)” setting to “On” (➔ page 64) for an p-compatible TV. – Set the “Audio TV Out” setting to “On” (➔ page 64) when the TV is not compatible with p, or the “HDMI

Control(RIHD)” setting to “Off”.

– Set your Blu-ray Disc/DVD player’s HDMI audio output setting to PCM.

Note

• When listening to an HDMI component through the AV receiver, set the HDMI component so that its video can be seen on the TV screen (on the TV, select the input of the HDMI component connected to the AV receiver). If the TV power is off or the TV is set to another input source, this may result in no sound from the AV receiver or the sound may be cut off.

•As the “Audio TV Out” setting is set to “On” (➔ page 64) to hear from your TV speakers, the sound will also be output from the AV receiver’s speakers if you adjust the volume of the AV receiver. Similarly, as the (➔ page 64) to hear from the speakers of an p-compatible TV, the AV receiver’s speakers will produce sound if you adjust the volume of the AV receiver, while the TV speakers will be muted. To stop the AV receiver’s speakers from producing sound, you can either change the settings on the AV receiver or on the TV, or turn down the volume of the AV receiver.

“HDMI Control(RIHD)” setting is set to “On”

Connecting Your Components

The on-screen menus appear only on a TV that is connected to the HDMI OUT MAIN. If your TV is connected to other video outputs, use the AV receiver’s display when changing settings.

Front

CA B

Rear

EDJF G I

Connect your components to the appropriate jacks. The default input assignments are shown below. See “Connection Tips and Video Signal Path” for more information (➔ page 93).

✔: Assignment can be changed (➔ page 48).

No. Jack/Port Components Assignable

USB

USB, AUX Input Video iPod/iPhone (video playback)

AUX Input Video Camcorder, etc.

Audio L/R Digital

UNIVERSAL PORT Universal port option dock (UP-A1 etc.)

iPod/iPhone, MP3 player, USB flash drive

No. Jack/Port Components Assignable

DIGITAL IN COAXIAL 1 (BD/DVD) Blu-ray Disc/DVD player ✔

2 (VCR/DVR) VCR or DVD recorder/digital video recorder, RI

✔

dock

3 (CBL/SAT) Satellite/cable set-top box, RI dock, etc. ✔

OPTICAL 1 (GAME) Game console ✔

2 (TV/CD) TV, CD player ✔

USB

ETHERNET Router

MONITOR OUT TV, projector, etc.

Other components ✔ MP3 player, USB flash drive

BD/DVD IN Blu-ray Disc/DVD player VCR/DVR IN VCR or DVD recorder/digital video recorder, RI

dock CBL/SAT IN Satellite/cable set-top box, etc. GAME IN Game console, RI dock PC IN

Personal computer TV/CD IN TV, CD player, cassette tape deck, MD, CD-R,

, RI dock

PHONO IN COMPONENT

VIDEO

Turntable

IN 1 (BD/DVD) Blu-ray Disc/DVD player, RI dock ✔ IN 2 (CBL/SAT) Satellite/cable set-top box, RI dock, etc. ✔ IN 3 (GAME) Game console ✔ MONITOR OUT TV, projector, etc.

PC IN

MULTI CH (Multichannel input)

Personal computer

DVD player, DVD-Audio, Super Audio CD-

✔

capable player, MPEG decorder

Note

DTR-80.3 only.

Do not connect the AV receiver’s USB port to a USB port on your computer. Music on your computer cannot be played through the AV receiver in this way.

Connect a turntable (MM) that has a built-in phono preamp to TV/CD IN, or connect it to PHONO IN with the phono preamp turned off. If your turntable (MM) doesn’t have a phono preamp, connect it to PHONO IN. If your turntable has a moving coil (MC) type cartridge, you’ll need a commercially available MC head amp or MC transformer to connect to PHONO IN. See your turntable’s manual for details. If your turntable has a ground wire, connect it to the AV receiver’s GND screw. With some turntables, connecting the ground wire may produce an audible hum. If this happens, disconnect it.

When you connect your personal computer to PC IN and select the PC input selector, the video of the personal computer is output from the HDMI outputs. However, if you have assigned the HDMI inputs to the PC input selector, the AV receiver will output signals received from the HDMI inputs instead of signals from PC IN, based on the priority order of HDMI > component video > PC IN (analog RGB). To have the signals output from PC IN, select “-----” for “PC” in the “HDMI Input” setting (➔ page 47).

Before using the multichannel input, you must assign it to an input selector. See “Analog Audio Input” (➔ page 48) for details. To select the multichannel input, see “Audio Selector” (➔ page 60). To adjust the subwoofer sensitivity of the multichannel input, see “Subwoofer Input Sensitivity” (➔ page 49).

• With connection E, you can enjoy Dolby Digital and DTS. (To record or listen the audio in Zone 2/3/4 as well, use E

H.)

and

• With connection

H, you can listen to and record audio from external components while you are in Zone 2/3/4.

• With connection H, if your Blu-ray Disc/DVD player has both the main stereo and multichannel outputs, be sure to connect to the main stereo.

■ How to record a video source

With the connections described above, you cannot record the videos through the AV receiver. See “Recording” about connections for video recording (➔ page 44).

Connecting Integra/Onkyo u Components

Make sure that each Integra/Onkyo component is

connected with an analog audio cable (connection

H in the hookup examples) (➔ page 18).

Make the u connection (see the illustration).

If you’re using an RI Dock or cassette tape deck,

change the Input Display (➔ page 42).

With u (Remote Interactive), you can use the following special functions:

■ Auto Power On

When you start playback on a component connected via u while the AV receiver is on Standby, the AV

receiver will automatically turn on and select that component as the input source.

■ Direct Change

When playback is started on a component connected via u, the AV receiver automatically selects that

component as the input source.

■ System Off

When you turn off the AV receiver, the components turn off automatically.

■ Remote Control

You can use the AV receiver’s remote controller to control your other u-capable Integra/Onkyo

components, pointing the remote controller at the AV receiver’s remote control sensor instead of the component. You must enter the appropriate remote control code first (➔ page 80).

L R

ANALOG

e.g., cassette tape deck

RI Dock

Note

•Use only u cables for u connections. u cables are supplied with Integra/Onkyo components.

• Some components have two u jacks. You can connect either one to the AV receiver. The other jack is for connecting

additional u-capable components.

• Connect only Integra/Onkyo components to u jacks. Connecting other manufacturer’s components may cause a malfunction.

• Some components may not support all u functions. Refer to the manuals supplied with your Integra/Onkyo components.

• While Zone 2/3/4 is on, the System Off, Auto Power On and Direct Change u functions do not work.

AUDIO OUT

ANALOG

AUDIO OUT

L R

Connecting a Recording Component

See “Recording” for details on recording (➔ page 44).

VCR, DVD recorder,

cassette tape deck,

CDR, MD recorder, etc.

AUDI O

VIDEO

Note

• The AV receiver must be turned on for recording. Recording is not possible while it’s in standby mode.

• If you want to record directly from your TV or playback VCR to the recording VCR without going through the AV receiver, connect the TV/VCR’s audio and video outputs directly to the recording VCR’s audio and video inputs. See the manuals supplied with your TV and VCR for details.

• Video signals connected to composite video inputs can be recorded only via composite video outputs. For example, if your TV/VCR is connected to a composite video input, the recording VCR must be connected to a composite video output.

• The surround sound and DSP listening modes cannot be recorded.

• Copy-protected Blu-ray Discs and DVDs cannot be recorded.

• Sources connected to a digital input cannot be recorded. Only analog inputs can be recorded.

• DTS signals will be recorded as noise, so don’t attempt analog recording of DTS CDs or LDs.

Connecting the Antennas

This section explains how to connect the supplied indoor FM antenna and AM loop antenna. The AV receiver won’t pick up any radio signals without any antenna connected, so you must connect the antenna to use

the tuner.

North American models Australian models

Insert the plug fully into the jack.

Caution

Insert the plug fully into the jack.

Push. Insert wire. Release.

Assembling the AM loop antenna

• Be careful not to injure yourself when using thumbtacks.

Thumbtacks, etc.

Indoor FM antenna (supplied)

Note

• Once your AV receiver is ready for use, you’ll need to tune into a radio station and position the antenna to achieve the best possible reception.

• Keep the AM loop antenna as far away as possible from your AV receiver, TV, speaker cables, and power cords.

Tip

• If you cannot achieve good reception with the supplied indoor FM antenna, try a commercially available outdoor FM antenna instead.

• If you cannot achieve good reception with the supplied indoor AM loop antenna, try using it with a commercially available outdoor AM antenna.

AM loop antenna (supplied)

Connecting the Power Cord

Connect the supplied power cord to the AV

receiver’s AC INLET.

To AC wall outlet

Plug the power cord into an AC wall outlet.

Note

• Before connecting the power cord, connect all of your speakers and AV components.

• Turning on the AV receiver may cause a momentary power surge that might interfere with other electrical equipment on the same circuit. If this is a problem, plug the AV receiver into a different branch circuit.

• Do not use a power cord other than the one supplied with the AV receiver. The supplied power cord is designed exclusively for use with the AV receiver and should not be used with any other equipment.

• Never disconnect the power cord from the AV receiver while the other end is still plugged into a wall outlet. Doing so may cause an electric shock. Always disconnect the power cord from the wall outlet first, and then the AV receiver.

Turning On & Basic Operations

Turning On/Off the AV Receiver

8On/Standby

Turning On

Press 8On/Standby on the front panel.

Press Receiver followed by 8Receiver on the remote controller.

The AV receiver comes on, the display lights.

8Receiver

Receiver

Turning Off

Press 8On/Standby on the front panel.

Press Receiver followed by 8Receiver on the remote controller.

The AV receiver will enter standby mode. To prevent any loud surprises when you turn on the AV receiver, always turn down the volume before you turn it off.

Tip

• For details on power management settings, see “Auto Standby” (➔ page 65).

Playback

The on-screen menus appear only on a TV that is connected to the HDMI OUT MAIN. If your TV is connected to other video outputs, use the AV receiver’s display when changing settings.

This section describes the procedure for using the remote controller unless otherwise specified.

Selecting the Language for the Onscreen Setup Menus

You can determine the language used for the onscreen setup menus. See “Language” in the “OSD Setup” (➔ page 62).

Playing the Connected Component

■ Operating with the remote controller

Press Receiver followed by Input Selector.

Start playback on the source component.

See also:

• “Playing an iPod/iPhone via USB” (➔ page 24)

• “Playing a USB Device” (➔ page 25)

• “Listening to Internet Radio” (➔ page 25)

• “Playing Music Files on a Server” (➔ page 27)

• “Remote Playback” (➔ page 27)

• “Listening to AM/FM Radio” (➔ page 28)

• “iPod/iPhone Playback via Onkyo Dock” (➔ page 75)

• “Controlling Other Components” (➔ page 78)

To adjust the volume, use VOL q/w.

Select a listening mode and enjoy!

See also:

• “Using the Listening Modes” (➔ page 34)

• “Sound Program Edit” (➔ page 55)

• “Audyssey” (➔ page 56)

■ Operating on the AV receiver

Use the input selector buttons to select the input

source.

Start playback on the source component.

To adjust the volume, use the Master Volume

control.

Select a listening mode and enjoy!

Controlling Contents of USB or Network Devices

See “Controlling Other Components” about the operation of other components (➔ page 78).

Press USB or NET first.

c d

e f

l m

n o

p q

Top Menu

This button displays the top menu for each media or service.

q/w and Enter

These buttons navigate through the menus.

e/r

This button cycles through pages.

Playlist e/r

In Standard Mode (iPod/iPhone), this button selects playlists.

This button starts playback.

This button selects the beginning of the current song. Pressing this button twice selects the previous song.

This button fast-reverses the current song.

This button pauses playback.

You can toggle between the playback screen and the list screen during playback.

Display

This button switches between song informations.

Album +/–

In Standard Mode (iPod/iPhone), this button selects albums.

This button returns to top menu of the Internet Radio service.

Return

This button returns to the previous menu.

This button selects the next song.

This button fast-forwards the current song.

This button stops playback.

Mode

You can switch between Standard Mode and Extended Mode during iPod/iPhone playback.

Random

This button performs random playback.

Repeat

Press this button repeatedly to cycle through the repeat modes.

Note

• The buttons you can use will differ depending on the devices and media used for playback.

Understanding Icons on the Display

This section describes icons that appear on the display during media playback.

Displayed Icons

Icon Description

Folder

Track

Playback

Pause

Fast Forward

Playing an iPod/iPhone via USB

This section explains how to play music/video files on the iPod/iPhone.

Compatible iPod/iPhone models Made for: iPod touch (1st, 2nd, 3rd and 4th generation), iPod classic, iPod with video, iPod nano (1st, 2nd, 3rd, 4th, 5th and 6th

generation), iPhone 4, iPhone 3GS, iPhone 3G, iPhone

Press USB repeatedly to select the “USB(Front)”

input.

Connect the USB cable that comes with the

iPod/iPhone to the USB port on the front of the AV receiver.

While reading the contents of your iPod/iPhone, the message “Connecting...” appears on the display.

The USB indicator lights. It will flash if the AV receiver cannot read the iPod/iPhone.

Press Mode repeatedly to switch to Extended

Mode (Music) or Extended Mode (Video).

A list of your iPod/iPhone model’s contents appears. To open a folder, use q/w to select it, and then press

Enter.

Tip

• With the default settings, the iPod/iPhone is operated in Standard Mode.

• Pressing Mode repeatedly switches back to Standard Mode.

• When you disconnect the iPod/iPhone, the AV receiver stores the mode. This means that if you disconnect when in Extended Mode (Music), the AV receiver will start in Extended Mode (Music) the next time you connect the iPod/iPhone.

• You can also use q/w, Enter and Tuning Mode buttons on the front panel. Tuning Mode allows you to switch modes.

• When connecting your iPod/iPhone with a USB cable, we recommend you use an official USB cable from Apple Inc.

Use q/w to select a music/video file, and press

Enter or 1 to start playback.

Fast Reverse

Artist

Album

Repeat One Track

Repeat Folder (USB Device)

Repeat

Shuffle

Shuffle Album (iPod/iPhone)

Note

• Do not disconnect the USB device or USB cable that comes with iPod/iPhone from the USB port at the front of the AV receiver, while the message “Connecting...” appears on the display.

• If you connect an iPod or iPhone to the USB port on this device, no sound will be output from the headphones jack.

Extended Mode (Music) control

The music content information is displayed (lists are displayed), and you can control the music content while looking at the screen.

Top screen list: Playlists, Artists, Albums, Genres, Songs, Composers,

Shuffle Songs, Now Playing.

Extended Mode (Video) control

The video content information is displayed (lists are displayed), and you can control the video content while looking at the screen. Top screen list: Movies, Music Videos, TV Shows, Video Podcasts, Rentals.

Note

• To view the video contents of your iPod/iPhone, connect it to the USB port and AUX Input Video jack on the AV receiver’s front panel, using the official Apple Composite AV Cable.

• Depending on your iPod/iPhone model and generation, the displayed items may vary and the support for Extended Mode (Video) is not guaranteed.

Standard Mode control

The content information is not displayed, but can be operated using the iPod/iPhone or the remote controller (USB).

Note

• The following iPod models are not supported in Standard Mode. (They can only be controlled in Extended Mode). – iPod with video – iPod nano (1st generation)

Playing a USB Device

This section explains how to play music files from a USB device (e.g., USB flash drives and MP3 players).

See also:

• “Network/USB Features” (➔ page 99).

Listening to Internet Radio

You need to connect the AV receiver to your home network (➔ page 99).

You can select Internet radio stations by connecting to the AV receiver from your computer and selecting stations in your web browser. Internet radio URLs in the following formats are supported: PLS, M3U, and podcast (RSS). However, depending on the type of data or audio format used by the Internet radio station, you may not be able to listen to some stations.

Note

• Services available may vary depending on the region. See the separate instructions for more information.

Listening to vTuner Internet Radio

This unit includes the full vTuner Internet Radio Service at no additional charge. Once you have connected your unit to the Internet you can select vTuner Internet Radio to search for and play Internet radio stations and podcasts at any time. To enhance your Internet radio experience, the http://onkyo.vtuner.com/ portal is available to you as an easy way to browse to find stations, set up/organize your favorites, add your own stations, get help, etc. After the first time you try vTuner Internet Radio on your unit you can use the MAC Address of your unit to create a member login account (email address and password) on the http://onkyo.vtuner.com/ portal. To verify your MAC Address, please see “Network” (➔ page 65).

Press NET.

The “NET” screen appears, and the NET indicator lights. If it flashes, verify that the Ethernet cable is firmly connected to the AV receiver.

Use q/w/e/r to select “vTuner Internet Radio”

and then press Enter.

Press USB repeatedly to select the “USB(Front)”

or “USB(Rear)” input.

Plug your USB device into the AV receiver’s USB

port.

The USB indicator lights. It will flash if the AV receiver cannot read the USB device.

Press Enter.

A list of the device’s contents appears. To open a folder, use q/w to select it, and then press Enter.

Use q/w to select a music file, and press Enter or

1 to start playback.

Note

• Do not disconnect the USB device or USB cable that comes with iPod/iPhone from the USB port at the front of the AV receiver, while the message “Connecting...” appears on the display.

Use q/w to select a program and then press Enter.

Playback starts.

My Music

0 : 11

Greate Artist

My Favorite

Press Menu to enable selection from the following menu items.

` Stations like this:

Stations like the one currently being played back are displayed.

` Add to My Favorites:

Adds a station to My Favorites list.

Press Top Menu to go to the top menu of the Internet Radio services.

Tip

• By pressing Search, you can toggle between the playback screen and the radio list screen.

Listening to Other Internet Radio

To listen to other internet radio stations, insert the following step after step 1 in the “Listening to vTuner Internet Radio” section.

On your computer, start your web browser and

enter the AV receiver’s IP address in the browser’s Internet address (URL) field.

The browser connects to the AV receiver (WEB Setup Menu).

Note

• The AV receiver’s IP address is shown on “IP Address” (➔ page 65).

• If you’re using DHCP, your router may not always allocate the same IP address to the AV receiver, so if you find that you can’t connect to the AV receiver, recheck the AV receiver’s IP address on the “Network” screen.

Click on the “My Favorites” tab.

Registering My Favorites

You can add the currently playing song or station to the “My Favorites”. You can save up to 40 Internet radio stations.

Once you’ve added a station to the list, simply select it in the “My Favorites” menu, and then press Enter to start playback.

From the search results you can save the stations and songs but cannot listen to them directly.

■ Top menu of Internet Radio

` Create new station:

Add a favorite station or Internet radio to the My Favorites.

` Rename this station:

You can rename the stations and songs saved in “My Favorites” list.

` Delete from My Favorites:

You can delete the stations and songs saved in “My Favorites” list.

Press Menu with the station selected or while a

song is playing.

Use q/w to select “Add to My Favorites”, and press

Enter.

Use q/w/e/r to select “OK”, and then press

Enter.

Tip

• If you choose to rename the station, see “Name Edit”

➔ page 57).

(

Enter the preset name and Internet address

(URL).

Click “Save” to save the Internet radio station.

The Internet radio station is then added to “My

Favorites”.

Playing Music Files on a Server

You need to connect the AV receiver to your home network (➔ page 99).

Windows Media Player 11 Setup

This section explains how to configure Windows Media Player 11 so that the AV receiver can play the music files stored on your computer.

This section explains how to play music files on a computer or media server through the AV receiver (Server Playback).

Start your computer or media server.

Press NET.

The “NET” screen appears. The NET indicator lights. If it flashes, confirm the network connection.

Use q/w/e/r to select “dlna”, and press Enter.

Tip

• To go back to the previous screen, press Return.

Use q/w to select a server, and then press Enter.

The menu is displayed according to the server functions.

Note

• The search function does not work with media servers which do not support this function.

• Photos and movies stored on a media server cannot be accessed from the AV receiver.

• Depending on the sharing settings in the media server, the AV receiver may not able to access the content. See the instruction manual of the media server.

Use q/w to select an item, and then press Enter or

1 to start playback.

Start Windows Media Player 11.

On the “Library” menu, select “Media Sharing”.

The “Media Sharing” dialog box appears.

Select the “Share my media” check box, and then

click “OK”.

Select the AV receiver in the list, and then click

“Allow”.

Click “OK” to close the dialog box.

This completes the Windows Media Player 11 configuration. You can now play the music files in your Windows Media Player 11 library through the AV receiver.

Tip

• Windows Media Player 11 can be downloaded for free from the Microsoft web site.

Remote Playback

You need to connect the AV receiver to your home network (➔ page 99).

Remote Playback means you can play the music files stored on a media server or personal computer with the AV receiver by operating the controller device in the home network.

My favorite song 1

0 : 11

Artist name

My favorite album

Note

• Depending on the media server, 5/4/3 may not work.

• If the message “No Item.” appears, this means that no information can be retrieved from the server. In this case, check your server, network, and AV receiver connections.

Windows Media Player 12 Setup

This section explains how to configure Windows Media Player 12 so that the AV receiver can play the music files stored on your personal computer.

Start Windows Media Player 12.

On the “Stream” menu, select “Turn on media

streaming”.

A dialog box appears.

Move your cursor and click on “Turn on media

streaming”.

A list of media server appears. Wording may vary slightly depending on the network location.

Select the product in the list, and then click

“Allowed”.

Click “OK” to close the dialog box.

This completes the Windows Media Player 12 configuration.

You can now play the music files in your Windows Media Player 12 library.

Using Remote Playback

Listening to AM/FM Radio

Start Windows Media Player 12.

To enable remote playback, you must first configure Windows Media Player 12.

Press NET.

The “NET” screen appears. The NET indicator lights. If it flashes, verify the network connection.

Use q/w/e/r to select “dlna”, and press Enter.

A list of media server appears.

Note

• Remote playback cannot be used while the music files of another media server are being played. You must stop their playback first.

On Windows Media Player 12, right-click on a

music file.

The right-click menu appears. For selecting another media server, select the desired media server from the “Other Libraries” menu on Windows Media Player

12.

Select the AV receiver from the right-click menu.

The “Play to” window appears and playback on the product starts. Operations during remote playback can be made from the “Play to” window of Windows 7 on your personal computer. During remote playback, operations (such as Playback, Pause, Fast Forward, Fast Rewind, Previous, Next, Repeat, Random) cannot be made.

Adjusting the Volume

You can adjust the volume by adjusting the volume bar in the “Remote playback” window. The default maximum volume level is 82 (0dB). If you wish to change this, enter the value from the Web Setup in your browser.

The volume value of the remote window and the volume value of the AV receiver may not always match. Adjustments you make to the volume in the AV receiver will not be reflected in the “Remote

playback” window.

This section describes the procedure using the buttons on the front panel unless otherwise specified.

Using the Tuner

With the built-in tuner you can enjoy AM and FM radio stations. You can store your favorite stations as presets for quick selection.

You can also change the frequency steps (➔ page 64).

Press Tuner to select either “AM” or “FM”.

In this example, FM has been selected. Each time you press Tuner, the radio band changes between AM and FM.

Band Frequency

(Actual display depends on the country.)

Tuning into Radio Stations

■ Auto tuning mode

Press Tuning Mode so that the AUTO indicator

lights on the display.

Press Tuning q/w.

Searching stops when a station is found. When tuned into a station, the TUNED indicator lights. When tuned into a stereo FM station, the FM

STEREO indicator lights on the display, as shown.

TUNED

AUTO

TERE

Tip

• Tuning into weak FM stereo stations

If the signal from a stereo FM station is weak, it may be impossible to get good reception. In this case, switch to manual tuning mode and listen to the station in mono.

■ Manual tuning mode

In manual tuning mode, FM stations will be in mono.

Press Tuning Mode so that the AUTO indicator

goes off on the display.

Press and hold Tuning q/w.

The frequency stops changing when you release the button.

Press the buttons repeatedly to change the frequency one step at a time.

■ Tuning into stations by frequency

You can tune into AM and FM stations directly by entering the appropriate frequency.

On the remote controller, press Tuner repeatedly

to select “AM” or “FM”, followed by D.TUN.

■ Deleting Presets

Select the preset that you want to delete.

See the previous section.

While holding down Memory, press Tuning

Mode.

The preset is deleted and its number disappears from the display.

(Actual display depends on the country.)

Within 8 seconds, use the number buttons to enter

the frequency of the radio station.

For example, to tune to 87.5 (FM), press 8, 7, 5. If you have entered the wrong number, you can retry

after 8 seconds.

Presetting AM/FM Stations

You can store a combination of up to 40 of your favorite AM/FM radio stations as presets.

Tune into the AM/FM station that you want to

store as a preset.

See the previous section.

Press Memory.

The preset number flashes.

(Actual display depends on the country.)

While the preset number is flashing (about 8

seconds), use Preset e/r to select a preset from 1 through 40.

Press Memory again to store the station or

channel.

The station or channel is stored and the preset number stops flashing.

Repeat this procedure for all of your favorite AM/FM radio stations.

Note

• You can name your radio presets for easy identification (➔ page 57). Its name is displayed instead of the band and

frequency.

■ Selecting Presets

To select a preset, use Preset e/r on the AV

receiver, or the remote controller’s CH +/–.

Tip

• You can also use the remote controller’s number buttons to select a preset directly.

Using RDS (excluding North American models)

RDS works only in areas where RDS broadcasts are available.

When tuned into an RDS station, the RDS indicator lights. When the station is broadcasting text information, the text can be displayed.

■ What is RDS?

RDS stands for Radio Data System and is a method of transmitting data in FM radio signals. It was developed by the European Broadcasting Union (EBU) and is available in most European countries. Many FM stations use it these days. In addition to displaying text information, RDS can also help you find radio stations by type (e.g., news, sport, rock, etc.).

The AV receiver supports four types of RDS information:

PS (Program Service)

When tuned to an RDS station that’s broadcasting PS information, the station’s name will be displayed. Pressing Display will display the frequency for 3 seconds.

RT (Radio Text)

When tuned to an RDS station that’s broadcasting text information, the text will be shown on the display as described in the next section (➔ page 30).

PTY (Program Type)

This allows you to search for RDS radio stations by type (➔ page 30).

TP (Traffic Program)

This allows you to search for RDS radio stations that broadcast traffic information (➔ page 30).

Note

• In some cases, the text characters displayed on the AV receiver may not be identical to those broadcast by the radio station. Also, unexpected characters may be displayed when unsupported characters are received. This is not a malfunction.

• If the signal from an RDS station is weak, RDS data may be displayed intermittently or not at all.

■ Displaying Radio Text (RT)

Press RT/PTY/TP once.

The RT information scrolls across the display.

Note

• The message “Waiting” may appear while the AV receiver waits for the RT information.

• If the message “No Text Data” appears on the display, no RT information is available.

■ Finding Stations by Type (PTY)

You can search for radio stations by type.

Press RT/PTY/TP twice.

The current program type appears on the display.

Use Preset e/r to select the type of program you

want.

See the table shown later in this chapter.

To start the search, press the Enter button.

The AV receiver searches until it finds a station of the type you specified, at which point it stops briefly before continuing with the search.

When a station you want to listen to is found, press

the Enter button.

If no stations are found, the message “Not Found” appears.

■ Listening to Traffic News (TP)

You can search for stations that broadcast traffic news.

Press RT/PTY/TP three times.

If the current radio station is broadcasting TP (Traffic Program), “[TP]” will appear on the display, and traffic news will be heard as and when it’s broadcast. If “TP” without square brackets appears, this means that the station is not broadcasting TP.

To locate a station that is broadcasting TP, press

the Enter button.

The AV receiver searches until it finds a station that’s broadcasting TP.

If no stations are found, the message “Not Found” appears.

RDS program types (PTY)

Type Display

None None News reports News Current affairs Affairs Information Info Sport Sport Education Educate Drama Drama Culture Culture Science and technology Science Varied Varied Pop music Pop M Rock music Rock M Middle of the road music Easy M Light classics Light M Serious classics Classics Other music Other M Weather Weather Finance Finance Children’s programmes Children Social affairs Social Religion Religion Phone in Phone In Travel Travel Leisure Leisure Jazz music Jazz Country music Country National music Nation M Oldies music Oldies Folk music Folk M Documentary Document Alarm test TEST Alarm Alarm!
