Page 1

AV Receiver

DTR-70.1 DTR-80.1

Instruction Manual

Page 2

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Important Safety Instructions

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to

persons. The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

AVIS

RISQUE DE CHOC ELECTRIQUE

NE PAS

OUVRIR

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart,

PORTABLE CART WARNIN

stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus

S3125A

combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Damage Requiring Service Unplug the apparatus from the wall outlet and refer

servicing to qualified service personnel under the following conditions: A. When the power-supply cord or plug is dam-

aged,

B. If liquid has been spilled, or objects have fallen

into the apparatus,

C. If the apparatus has been exposed to rain or

water,

D. If the apparatus does not operate normally by

following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the apparatus to its normal operation,

E. If the apparatus has been dropped or damaged in

any way, and

F. When the apparatus exhibits a distinct change in

performance this indicates a need for service.

16. Object and Liquid Entry Never push objects of any kind into the apparatus

through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases shall be placed on the apparatus. Don’t put candles or other burning objects on top of this unit.

17. Batteries Always consider the environmental issues and fol-

low local regulations when disposing of batteries.

18. If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is adequate ventilation. Leave 20 cm (8") of free space at the top and sides

and 10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4") away from the rear panel or wall, creating a fluelike gap for warm air to escape.

Page 3

Precautions

1. Recording Copyright—Unless it’s for personal use only, recording copyrighted material is illegal without the permission of the copyright holder.

2. AC Fuse—The AC fuse inside the unit is not userserviceable. If you cannot turn on the unit, contact the dealer from whom you purchased this unit.

3. Care—Occasionally you should dust the unit all over with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild detergent and water. Dry the unit immediately afterwards with a clean cloth. Don’t use abrasive cloths, thinners, alcohol, or other chemical solvents, because they may damage the finish or remove the panel lettering.

4. Power WARNING

BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY. AC outlet voltages vary from country to country. Make sure that the voltage in your area meets the voltage requirements printed on the unit’s rear panel (e.g., AC 230 V, 50 Hz or AC 120 V, 60 Hz).

The power cord plug is used to disconnect this unit from the AC power source. Make sure that the plug is readily operable (easily accessible) at all times.

Pressing the [On/Standby] button to select Standby mode does not fully shutdown the unit. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet.

5. Preventing Hearing Loss Caution

Excessive sound pressure from earphones and headphones can cause hearing loss.

6. Batteries and Heat Exposure War nin g

Batteries (battery pack or batteries installed) shall not be exposed to excessive heat as sunshine, fire or the like.

7. Never Touch this Unit with Wet Hands—Never handle this unit or its power cord while your hands are wet or damp. If water or any other liquid gets inside this unit, have it checked by the dealer from whom you purchased this unit.

8. Handling Notes

• If you need to transport this unit, use the original

packaging to pack it how it was when you originally bought it.

• Do not leave rubber or plastic items on this unit

for a long time, because they may leave marks on the case.

• This unit’s top and rear panels may get warm

after prolonged use. This is normal.

• If you do not use this unit for a long time, it may

not work properly the next time you turn it on, so be sure to use it occasionally.

For U.S. models

FCC Information for User

CAUTION:

The user changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer from whom you purchased this unit or an experienced radio/TV technician for help.

For Canadian Models

NOTE: THIS CLASS B DIGITAL APPARATUS

COMPLIES WITH CANADIAN ICES-003. For models having a power cord with a polarized plug:

CAUTION: TO PREVENT ELECTRIC SHOCK,

MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

Modèle pour les Canadien

REMARQUE: CET APPAREIL NUMÉRIQUE DE

LA CLASSE B EST CONFORME À LA NORME NMB-003 DU CANADA. Sur les modèles dont la fiche est polarisée:

AT TE NT IO N : POUR ÉVITER LES CHOCS ÉLEC-

TRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

Page 4

Thank you for purchasing an Integra AV receiver. Please read this manual thoroughly before making connections and plugging in the unit. Following the instructions in this manual will enable you

to obtain optimum performance and listening enjoyment from your new AV receiver.

Please retain this manual for future reference.

Supplied Accessories

Make sure you have the following accessories:

Remote controller & two batteries (AA/R6)

Speaker setup microphone

Indoor FM antenna

AM loop antenna

Power cord

(Plug type varies from country to country.)

LEFT

RIGHT

FRONT

SURROUND

FRONT

LEFT

FRONT

RIGHT

FRONT

LEFT

SURROUND

LEFT

FRONT

RIGHT

Speaker Cable

LEFT

RIGHT

SURROUND

LEFT

SURROUND

RIGHT

SURROUND

RIGHT

CENTER

SP-B/ZONE2

SURROUND BACK

SP-B/ZONE2

RIGHT

SURROUND BACK

RIGHT

CENTER

SURROUND BACK

LEFT

SP-B/ZONE2

RIGHT

SP-B/ZONE2

LEFT

SURROUND BACK

RIGHT

CENTER

SURROUND BACK

LEFT

SP-B/ZONE2

LEFT

RIGHT

FRONT HIGH

FRONT WIDE

FRONT HIGH

RIGHT

FRONT WIDE

LEFT

FRONT WIDE

LEFT

FRONT WIDE

RIGHT

FRONT WIDE

RIGHT

FRONT HIGH

RIGHT

FRONT HIGH

LEFT

FRONT HIGH

LEFT

Speaker cable labels

* In catalogs and on packaging, the letter at the end of the product

name indicates the color. Specifications and operations are the same regardless of color.

Page 5

Contents

Introduction

Important Safety Instructions ............................................ 2

Precautions ....................................................................... 3

Supplied Accessories ....................................................... 4

Features............................................................................ 6

Front & Rear Panels ......................................................... 8

Front Panel ................................................................... 8

Display ........................................................................ 10

Rear Panel .................................................................. 11

Remote Controller........................................................... 14

Installing the Batteries................................................. 14

Aiming the Remote Controller..................................... 14

Controlling the AV Receiver........................................ 15

About Home Theater ...................................................... 17

Enjoying Home Theater ..............................................17

Connection

Connecting the AV receiver ............................................18

Connecting Your Speakers ......................................... 18

Bi-amping the Front Speakers ....................................21

Bridging the Front Speakers .......................................22

Connecting Passive Subwoofers ................................23

Connecting Antenna ................................................... 24

About AV Connections................................................ 26

Connecting Components with HDMI ........................... 27

Connecting Both Audio & Video.................................. 29

Which Connections Should I Use? ............................. 29

Connecting a TV or Projector......................................32

Connecting a DVD Player ........................................... 33

Connecting a VCR or DVD Recorder for Playback ..... 35

Connecting a VCR or DVD Recorder for Recording ... 36 Connecting a Satellite, Cable, Terrestrial Set-top box,

or Other Video Source.............................................. 37

Connecting a Game Console...................................... 38

Connecting a Camcorder or Other Device .................. 39

Connecting a CD Player or Turntable ......................... 40

Connecting a Cassette, CDR, MiniDisc, or DAT Recorder

Connecting a Power Amplifier..................................... 42

Connecting an RI Dock ............................................... 43

Connecting a Universal Port Option Series ................ 43

Connecting Integra/Onkyo u Components............... 44

Connecting the Power Cord........................................ 44

.... 41

Turning On & First Time Setup

Turning On the AV receiver ............................................ 45

Turning On and Standby............................................. 45

First Time Setup ............................................................. 46

Monitor Setup.............................................................. 46

Selecting the Language used for the onscreen setup menus

Using the Onscreen Setup Menus .............................. 48

Using the Display to change the settings.................... 48

Monitor Out Setup....................................................... 49

Video Input Setup ....................................................... 51

Digital Audio Input Setup ............................................ 53

Analog Audio Input Setup ...........................................54

Speaker Settings......................................................... 54

TV Format Setup (Australian models)......................... 56

FM/AM Frequency Step Setup.................................... 56

Changing the Input Display......................................... 57

Audyssey MultEQ

Speaker Setup.......................................................... 58

XT Room Correction and

... 47

Basic Operations

Basic Operations ............................................................ 64

Selecting the Input Source.......................................... 64

Adjusting the Bass & Treble........................................ 65

Displaying Source Information .................................... 65

Setting the Display Brightness .................................... 66

Muting the AV Receiver ..............................................66

Using the Sleep Timer ................................................ 66

Selecting Speaker Layout ........................................... 66

Using Headphones ..................................................... 66

Using Easy Macros ..................................................... 67

Listening to the Radio ..................................................... 69

Using the Tuner .......................................................... 69

Presetting AM/FM Stations .........................................70

Listening to Satellite Radio (North American models)

Using RDS (Australian models) ..................................82

.... 71

Universal Port Option UP-A1 Dock for iPod ................... 84

About the UP-A1 Dock ............................................... 84

Compatible iPod models............................................. 84

Function Overview ...................................................... 84

Controlling iPod .......................................................... 85

Recording ....................................................................... 87

Using the Listening Modes

Using the Listening Modes ............................................. 88

Selecting Listening Modes.......................................... 88

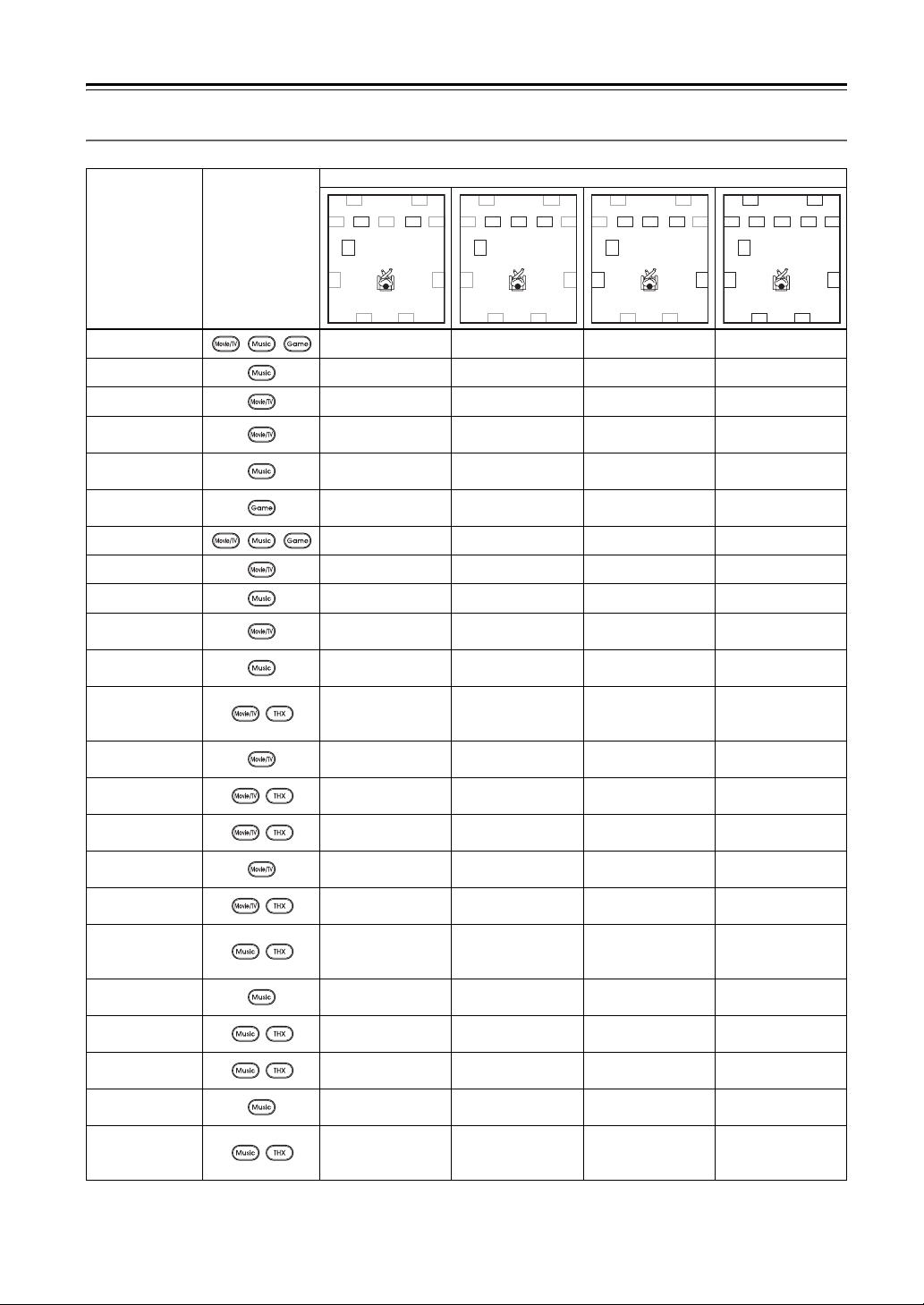

Listening Modes Available for Each Source Format... 89

About the Listening Modes ......................................... 96

Advanced Setup

Advanced Setup ............................................................. 99

Onscreen Setup Menus .............................................. 99

Input/Output Assign .................................................. 100

Speaker Setup .......................................................... 102

Audio Adjust ............................................................. 106

Source Setup ............................................................ 110

Assigning Listening Modes to Input Sources............ 115

Miscellaneous (Volume/OSD) Setup ........................ 116

Hardware Setup........................................................ 117

Lock Setup................................................................ 122

Digital Input Signal Formats ..................................... 122

Using the Audio Settings .......................................... 123

NET/USB

NET/USB ...................................................................... 126

About NET ................................................................ 126

Connecting the AV Receiver .................................... 126

Listening to Internet Radio........................................ 127

Playing Music Files on a Server ............................... 128

Network Settings ...................................................... 132

About USB................................................................ 133

Playing Music Files on a USB Device ...................... 134

Multi Zone

Multi Zone..................................................................... 136

Multiroom Capability ................................................. 136

Connecting Zone 2 ................................................... 137

Connecting Zone 3 ................................................... 139

Connecting Zone 4 ................................................... 140

Setting the Powered Zone 2/3/4 ............................... 141

Setting the Multi Zone............................................... 142

Using Zone 2/3/4 ...................................................... 143

Using the 12V Triggers ............................................. 145

Using the Remote Controller in Zone 2/3/4 and

Multiroom Control Kits............................................ 147

Controlling Other Components

Controlling Other Components ..................................... 148

Preprogrammed Remote Control Codes .................. 148

Looking up for Remote Control Code ....................... 148

Entering Remote Control Codes............................... 150

Remote Control Codes for Integra/Onkyo

Components Connected via u ............................ 151

Resetting Remote Mode Buttons.............................. 151

Resetting the Remote Controller .............................. 151

Controlling a TV........................................................ 152

Controlling a DVD Player or DVD Recorder ............. 153

Controlling a VCR or PVR ........................................ 154

Controlling a Satellite Receiver or Cable Receiver ... 155 Controlling a CD Player, CD Recorder or MD Recorder

Controlling an RI Dock.............................................. 157

Controlling a Cassette Recorder .............................. 158

Activities Setup ......................................................... 159

Learning Commands ................................................ 161

Using Normal Macros ............................................... 162

... 156

Others

Troubleshooting............................................................ 163

Specifications (DTR-70.1) ............................................ 169

Specifications (DTR-80.1) ............................................ 170

Video Resolution Chart................................................. 171

To reset the AV receiver to its factory defaults, turn it on and, while holding down the [VCR/DVR] button, press the [On/Standby] button (see page 163).

Page 6

Features

Amplifier

(DTR-70.1)

• 140 Watts/Channel @ 8 ohms (FTC)

• 200 Watts/Channel @ 6 ohms (IEC)

• 250 Watts/Channel @ 6 ohms (JEITA) (DTR-80.1)

• 145 Watts/Channel @ 8 ohms (FTC)

• 220 Watts/Channel @ 6 ohms (IEC)

• 280 Watts/Channel @ 6 ohms (JEITA)

• WRAT–Wide Range Amplifier Technology (5 Hz-100 kHz bandwidth)

• Linear Optimum Gain Volume Circuitry

• 3-Step Inverted Darlington Circuitry

• H.C.P.S. (High Current Power Supply) Massive High Power Transformer

• Toroidal transformer (DTR-80.1)

Processing

• THX Ultra2 Plus*1 Certified

• HQV-Reon-VX Video Processing with 1080p Video Upscaling of All Video Sources via HDMI

• HDMI ver.1.3a with (Deep Color, x.v.Color, Lip Sync,

DTS

-HD Master Audio, Dolby TrueHD*3, DSD and

Multi-CH PCM)

• Dolby Pro Logic IIz high)

• Audyssey Dynamic Surround Expansion™*8 for New Surround Channels (front-wide/front-high)

• 4 DSP Modes for Gaming; Rock/Sports/Action/RPG

• Non-Scaling Configuration

•Direct Mode

• Music Optimizer

• A-Form Listening Mode Memory

• Latest Burr-Brown 192 kHz/32-Bit DACs Improve Jitter Performance for Cleaner Sound (DTR-80.1)

• Burr-Brown 192 kHz/24-Bit DACs Improve Jitter Performance for Cleaner Sound (DTR-70.1)

• Three TI (Aureus) 32-bit Processing DSP

• Neural Surround Decoding

•DSD Direct

– New Surround Format (front-

for Digital Music Files

• Banana Plug-Compatible Speaker Posts

• Powered Zone 2/3/4

• Internet Radio* Connectivity (SIRIUS Internet

Radio

/vTuner/Pandora/Rhapsody)

* Services available may vary depending on the

region.

• Network Capability for Streaming Audio Files

• Bi-Amping and BTL Capability

• USB Port for a USB Mass Storage Device (Audio Only)

Miscellaneous

• 40 SIRIUS*7/AM/FM Presets (North American models)

• 40 AM/FM Presets (Australian models)

•Dolby Volume

• Audyssey MultEQ®XT*8 to Correct Room Acoustic Problems

• Audyssey Dynamic EQ™

• Audyssey Dynamic Volume™

• Crossover Adjustment (40/45/50/55/60/70/80/90/100/110/120/130/150/200 Hz)

• A/V Sync Control Function (up to 250 ms)

• Bi-Directional Preprogrammed (with onscreen display setup) RI-Compatible Learning Remote with 4 Activities and Mode-Key LEDs

• ISF (Imaging Science Foundation) Video Calibration

*1.

*2.

Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567 & other U.S. and worldwide patents issued & pending. DTS is a registered trademark and the DTS logos, Symbol, DTS-HD and DTS-HD Master Audio are trademarks of DTS, Inc. © 1996-2008 DTS, Inc. All Rights Reserved.

*3.

for Loudness Correction

Connections

• 7 HDMI*5 Inputs and 2 Outputs (DTR-70.1)

• 8 HDMI

• Integra/Onkyo for System Control

• 6 Digital Inputs (3 Optical/3 Coaxial) (DTR-70.1)

• 7 Digital Inputs (4 Optical/3 Coaxial) (DTR-80.1)

• Universal Port for UP-A1 (Dock for the iPod)/HD Radio™ DAB+ tuner module (Australian models)

• 2 Independent Subwoofer Pre Outs

• SIRIUS can models)

Inputs and 2 Outputs (DTR-80.1)

tuner module (North American models)/

Satellite Radio Connectivity (North Ameri-

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, “Surround EX” and the double-D symbol are trademarks of Dolby Laboratories.

*4. Music Optimizer™ is a trademark of Onkyo Corporation.

*5.

HDMI, the HDMI logo and High Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.

Page 7

Features—Continued

*6.

HD Radio™ and the HD Radio Ready logo are proprietary trademarks of iBiquity Digital Corporation. To receive HD Radio broadcasts, you must install an Onkyo UP-HT1 HD Radio tuner module (sold separately).

*7.

SIRIUS, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. and its subsidiaries. All other marks and logos are the property of their respective owners. All rights reserved. SIRIUS and XM subscriptions sold separately. Taxes and a one-time activation fee may apply. XM tuners and home docks or SIRIUS tuners (each sold separately) are required to receive the SIRIUS or XM satellite radio service. All programming and fees subject to change. It is prohibited to copy, decompile, disassemble, reverse engineer, hack, manipulate or otherwise make available any technology or software incorporated in receivers compatible with the SIRIUS or XM Satellite Radio Systems. Service not available in Alaska and Hawaii.

*8.

Manufactured under license from Audyssey Laboratories. U.S. and foreign patents pending. Audyssey MultEQ®XT,

Audyssey Dynamic Surround Expansion™, Audyssey Dynamic Volume™ and Audyssey Dynamic EQ™ are trademarks of Audyssey Laboratories.

*9.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited consumer uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

THX Ultra2 Plus

Before any home theater component can be THX Ultra2 Plus certified, it must pass a rigorous series of quality and performance tests. Only then can a product feature the THX Ultra2 Plus logo, which is your guarantee that the Home Theater products you purchase will give you superb performance for many years to come. THX Ultra2 Plus requirements define hundreds of parameters, including power amplifier performance, and pre-amplifier performance and operation for both digital and analog domains. THX Ultra2 Plus receivers also feature proprietary THX technologies (e.g., THX Mode) which accurately translate movie soundtracks for home theater playback.

* “Xantech” is a registered trademark of Xantech Corporation. * “Niles” is a registered trademark of Niles Audio Corporation. * Apple and iPod are trademarks of Apple Inc., registered in the

U.S. and other countries.

* “x.v.Color” is a trademark of Sony Corporation. * Rhapsody and the Rhapsody logo are registered trademarks of

RealNetworks, Inc.

* “DLNA®, the DLNA Logo and DLNA CERTIFIED™ are

trademarks, service marks, or certification marks of the Digital Living Network Alliance.”

* Re-Equalization and the “Re-EQ” logo are trademarks of THX

Ltd.

Page 8

Front & Rear Panels

Front Panel

jigfh klmnproq sabdec

zxwuv

yABC

The actual front panel has various logos printed on it. They are not shown here for clarity. The page numbers in parentheses show where you can find the main explanation for each item.

a On/Standby button (45)

This button is used to set the AV receiver to On or Standby.

b Standby indicator (45)

Lights when the AV receiver is in Standby mode, and it flashes while a signal is being received from the remote controller.

c Zone 2 indicator (143)

Lights when Zone 2 is selected.

d Zone 3 indicator (143)

Lights when Zone 3 is selected.

e Zone 4 indicator (143)

Lights when Zone 4 is selected.

f Remote control sensor/transmitter (14)

The sensor receives control signals from the remote controller. The transmitter transmits setting data to the remote controller.

g Monitor Out button (46)

Used to set the “Monitor Out” setting.

h Tone button (65, 144)

Used to select the tone (bass and treble) for the main room and the tone and balance for Zone 2 or Zone 3.

Down and Up [–]/[+] buttons (65, 144)

Used to adjust the tone (bass and treble) for the main room and the tone and balance for Zone 2 or Zone 3.

i Display

See “Display” on page 10.

j Movie/TV button (88)

Selects the listening modes intended for use with movies and TV.

k Music button (88)

Selects the listening modes intended for use with music.

l Game button (88)

Selects the listening modes intended for use with video games.

m Dimmer button (66)

(North American models)

This button is used to adjust the display brightness.

RT/PTY/TP button (82) (Australian models)

This button is used for RDS (Radio Data System). The [RT/PTY/TP] button does not work in areas where RDS broadcasts are not available. See “Using RDS (Australian models)” on page 82.

n Memory button (70)

This button is used when storing or deleting radio presets.

o Tuning Mode button (69)

This button is used to select the Auto or Manual tuning mode.

Page 9

Front & Rear Panels—Continued

The page numbers in parentheses show where you can find the main explanation for each item.

p Display button (65)

This button is used to display various information about the currently selected input source.

q Setup button

This button is used to access the onscreen setup menus that appear on the connected TV.

r Arrow, Tuning, Preset and Enter buttons

When the AM or FM input source is selected, the Tuning [q]/[w] buttons are used to tune the tuner, and the Preset [e]/[r] buttons are used to select radio presets (see pages 70 and 83). When the onscreen setup menus are used, they work as arrow buttons and are used to select and set items. The [Enter] button is also used with the onscreen setup menus.

s Return button

This button is used to return to the previously displayed onscreen setup menu.

t Master Volume control (64)

This control is used to adjust the volume of the AV receiver to –Q dB, –81.5 dB through +18.0 dB (relative display). The volume level can also be displayed as an absolute value. See “Volume Setup” on page 116.

u Zone 2 and Off buttons (143)

The [Zone 2] button is used to select Zone 2. The [Off] button is used to turn off the output of Zone 2.

v Zone 3 and Off buttons (143)

The [Zone 3] button is used to select Zone 3. The [Off] button is used to turn off the output of Zone 3.

w Zone 4 and Off buttons (143)

The [Zone 4] button is used to select Zone 4. The [Off] button is used to turn off the output of Zone 4.

x Phones jack (66)

This 1/4-inch phone jack is for connecting a standard pair of stereo headphones for private listening.

y Zone Level Down and Up [w]/[q] buttons

(144)

Used when adjusting the volume level of Zone 2, Zone 3, or Zone 4.

z Setup Mic jack (59)

Audyssey MultEQ Speaker Setup microphone connects here.

XT Room Correction and

A Input selector buttons (64)

These buttons are used to select from the following input sources: DVD/BD, VCR/DVR, CBL/SAT, Game, AUX1, AUX2, TV/Tape, Tuner, CD, Phono, Port, Net/USB.

B USB port (133)

A USB mass storage device, such as a USB flash drive or MP3 player, containing music files can be plugged in here and the music selected can be played through the AV receiver.

C AUX1 Input (3 9)

This input can be used to connect a camcorder, game console, and so on. There are jacks for composite video, analog audio, and optical digital audio.

AUX1 Input HDMI (28)

Used to connect an HD camcorder etc.

Page 10

Front & Rear Panels—Continued

Display

bedgfa ch

i jk

For detailed information, see the pages in parentheses.

a Speaker/channel indicators

Indicate the speaker channels used by the current listening mode. The following abbreviations indicate which audio channels are outputted for the current listening mode.

LW: Front wide left LH: Front high left RH: Front high right RW: Front wide right FL: Front left C: Center FR: Front right SL: Surround left SW: Subwoofer (Low Frequency Effects) SR: Surround right SBL: Surround back left SB: Surround back SBR: Surround back right

b Z3 indicator (143)

Lights when Powered Zone 3 is being used.

c Z2 indicator (143)

Lights when Powered Zone 2 is being used.

d Z4 indicator (143)

Lights when Powered Zone 4 is being used.

e Listening mode and format indicators (88)

Show the selected listening mode and audio input signal format.

Audyssey (58, 104):

Flashes during Audyssey MultEQ rection and Speaker Setup. Lights when the “Equalizer Settings” is set to “Audyssey” or Audyssey Dynamic Surround Expansion™ listening mode is selected.

Dynamic EQ (108):

Lights when “Dynamic EQ” is enabled.

Vol (108, 124):

Lights when “Dynamic Volume” is enabled.

Vol (107, 124):

Lights when “Dolby Volume” is enabled.

XT Room Cor-

f NETWORK indicator (127)

Lights when the Net input selector is selected.

g Tuning indicators

RDS (Australian models) (82):

Lights when tuned to a radio station that supports RDS (Radio Data System).

AUTO (69 ):

Lights when Auto Tuning mode is selected for AM or FM radio. Goes off when Manual Tuning mode is selected.

TUNED (69):

Lights when tuned to a radio station.

FM STEREO (69):

Lights when tuned to a stereo FM station.

h SLEEP indicator (66)

Lights when the Sleep function has been set.

i Bi AMP indicator (21)

Lights when the “Speakers Type(Front)” setting is set to “Bi-Amp”.

j BTL indicator (22)

Lights when the “Speakers Type(Front)” setting is set to “BTL” for bridged front speaker operation.

k Headphone indicator (66)

Lights when a pair of headphones are plugged into the Phones jack.

l Message area

Displays various information.

m USB indicator (134)

Lights up when a USB mass storage device is detected.

n Volume level (64)

Displays the volume level.

o MUTING indicator (66)

Flashes while the AV receiver is muted.

p Audio input indicators

Indicate the type of audio input that’s selected as the audio source: HDMI, ANALOG, or DIGITAL.

mno

Page 11

Front & Rear Panels—Continued

Rear Panel

* North American models(DTR-80.1)

dkelpnmqobhgijac f

rs w B C DEtxuv zyA F*

a UNIVERSAL PORT

This port is for connecting the component with the Universal Port option such as UP-A1 Dock.

b IR IN/OUT

A commercially available IR receiver can be connected to the IR IN jack, allowing you to control the AV receiver while you’re in Zone 2/3/4, or control it when it’s out of sight, for example, installed in a cabinet.

A commercially available IR emitter can be connected to the IR OUT jack to pass IR (infrared) remote control signals through to other components.

c Digital OPTICAL IN 1 and 2 (DTR-70.1)

Digital OPTICAL IN 1, 2, and 3 (DTR-80.1)

These optical digital audio inputs are for connecting components with optical digital audio outputs, such as CD and DVD/BD players. They’re assignable, which means you can assign each one to an input selector to suit your setup. See “Digital Audio Input Setup” on page 53.

d Digital COAXIAL IN 1, 2, and 3

These coaxial digital audio inputs are for connecting components with coaxial digital audio outputs, such as CD and DVD/BD players. They’re assignable, which means you can assign each one to an input selector to suit your setup. See “Digital Audio Input Setup” on page 53.

e USB port (DTR-80.1)

A USB mass storage device, such as a USB flash drive or MP3 player, containing music files can be plugged in here and the music selected can be played through the AV receiver.

f ETHERNET

This port is for connecting the AV receiver to your Ethernet network (e.g., router or switch) for playing music files on a networked computer or media server, or for listening to Internet radio.

g u REMOTE CONTROL

This u (Remote Interactive) jack can be connected to an u jack on another Integra/Onkyo AV component. The AV receiver’s remote controller can then be used to control that component. To use u, you must make an analog audio connection (RCA) between the AV receiver and the other AV component, even if they are connected digitally.

h RS232

Terminal for control.

i HDMI IN 1–6, OUT MAIN, and OUT SUB

(DTR-70.1) HDMI IN 1–7, OUT MAIN, and OUT SUB

(DTR-80.1)

HDMI (High Definition Multimedia Interface) connections carry digital audio and digital video. The HDMI inputs are for connecting components with an HDMI output, such as a DVD player, Bluray Disc Player, DVD recorder, or DVR (digital video recorder). They’re assignable, which means you can assign each one to an input selector to suit your setup. See “HDMI Input Setup” on page 51. The HDMI outputs are for connecting a TV or projector with an HDMI input.

Page 12

Front & Rear Panels—Continued

j MONITOR OUT

These S-Video and composite video jacks should be connected to a video input on your TV or projector.

k COMPONENT VIDEO IN 1, 2 and 3

These RCA component video inputs are for connecting components with a component video output, such as a DVD player, DVD recorder, or DVR (digital video recorder). They’re assignable, which means you can assign each one to an input selector to suit your setup. See “Component Video Input Setup” on page 52.

l COMPONENT VIDEO MONITOR OUT

These RCA component video outputs are for connecting a TV or projector with a component video input.

m COMPONENT VIDEO ZONE 2 OUT

This RCA component video output is for connecting a TV or projector with a component video input located in your main listening room or Zone 2.

n ZONE 2 OUT

This composite video output can be connected to a video input on a TV in Zone 2.

o PC INPUT ANALOG RGB (DTR-80.1)

This input terminal is for connecting a personal computer with an analog RGB output. You can assign it to an input selector to suit your setup. See “Component Video Input Setup” on page 52.

p FM ANTENNA

This jack is for connecting an FM antenna.

AM ANTENNA

These push terminals are for connecting an AM antenna.

q AC INLET

The supplied power cord is connected here. The other end of the power cord should be connected to a suitable wall outlet.

r GND screw

This screw is for connecting a turntable’s ground wire.

s PHONO IN

These analog audio inputs are for connecting a turntable.

t CD IN

These analog audio inputs are for connecting a CD player’s analog audio output.

u 12V TRIGGER OUT (A/B/C)

These outputs can be connected to the 12-volt trigger inputs on other components.

v TV/TAPE IN/OUT

These analog audio inputs and outputs are for connecting a TV or recorder with an analog audio input and output (cassette, Mini Disc, etc.).

w AUX 2 IN

This analog audio input is for connecting an analog audio output, such as an audio device, etc.

x GAME IN

Here you can connect a game console, etc. Input jacks include S-Video, composite video, and analog audio.

y CBL/SAT IN

Here you can connect a cable/satellite receiver, settop box, etc. Input jacks include S-Video, composite video, and analog audio.

z VCR/DVR IN/OUT

Here you can connect a VCR or DVR (digital video recorder). Input and output jacks include S-Video, composite video, and analog audio.

A DVD/BD IN

Here you can connect a DVD/BD player. Input jacks include S-Video, composite video, and analog audio. You can connect a DVD/BD player’s 2-channel analog audio output.

B MULTI CH input: FRONT L/R, CENTER,

SUBWOOFER, SURR L/R, and SURR BACK L/R

This analog multichannel input is for connecting a component with a 5.1/7.1-channel analog audio output, such as a DVD player, DVD-Audio or Super Audio CD-capable player, or an MPEG decoder.

C PRE OUT: FRONT L/R, CENTER, SURR L/R,

SURR BACK L/R, and FRONT HIGH/WIDE L/R

These multichannel analog audio outputs can be connected to the analog audio input on a multichannel power amplifier for when you want to use the AV receiver solely as a preamplifier.

PRE OUT: SW1, SW2

These analog audio outputs can be connected to a powered subwoofer. You can connect the powered subwoofer with each jacks respectively. Level and distance can be set individually for each output.

D PRE OUT: ZONE 2, ZONE 3

These analog audio outputs can be connected to the line inputs on amplifiers in Zone 2 and Zone 3. The SW jacks can be connected to the inputs on powered subwoofers in Zone 2 and Zone 3.

Page 13

Front & Rear Panels—Continued

E FRONT L/R, CENTER, SURR/ZONE 4 L/R,

SURR BACK/ZONE 3 L/R, FRONT HIGH L/R, and FRONT WIDE/ZONE 2 L/R

These terminal posts are for connecting the front L/R, center, surround/zone 4 L/R, surround back/zone 3 L/R, front high L/R, and front wide/zone 2 L/R speakers. The FRONT L/R and SURR BACK/ZONE 3 L/R terminal posts can be used with front speakers and surround back speakers respectively, or used to biamp or bridge the front speakers. See “Bi-amping the Front Speakers” on page 21 and “Bridging the Front Speakers” on page 22. The FRONT WIDE/ZONE 2 L/R terminals can be used with front wide speakers or zone 2 speakers respectively, or used to connect the passive subwoofers. See “Connecting Zone 2” on page 137. The SURR BACK/ZONE 3 L/R terminals can be used with surround back speakers respectively, or used to connect the speakers in Zone 3. See “Connecting Zone 3” on page 139. The SURR/ZONE 4 L/R terminals can be used with surround speakers respectively, or used to connect the speakers in Zone 4. See “Connecting Zone 4” on page 140.

F SIRIUS antenna

(North American models)

This jack is for connecting a SIRIUS Satellite Radio antenna, sold separately (see the separate SIRIUS instructions).

See pages 18 to 44 for connection information.

Page 14

Remote Controller

Installing the Batteries

To open the battery compartment, press

the small lever and remove the cover.

Insert the two supplied batteries (AA/R6)

in accordance with the polarity diagram inside the battery compartment.

Replace the cover and push it shut.

Aiming the Remote Controller

To use the remote controller, point it at the AV receiver’s remote control sensor, as shown below.

Transmission

Remote control sensor

AV r e c eive r

30° off center (Left/Right/Up/Down)

Received

Transmitter

Incoming sensor

15° off center (Left/Right/Up/Down)

Approx. 16 ft. (5 m)

AV r e c eive r

Approx. 16 ft. (5 m)

Notes:

• If the remote controller doesn’t work reliably, try replacing the batteries.

• Don’t mix new and old batteries or different types of batteries.

• If you intend not to use the remote controller for a long time, remove the batteries to prevent damage from leakage or corrosion.

• Expired batteries should be removed as soon as possible to prevent damage from leakage or corrosion.

Notes:

• The remote controller may not work reliably if the AV receiver is subjected to bright light, such as direct sunlight or inverter-type fluorescent lights. Keep this in mind when installing.

• If another remote controller of the same type is used in the same room, or the AV receiver is installed close to equipment that uses infrared rays, the remote controller may not work reliably.

• Don’t put anything, such as a book, on the remote controller, because the buttons may be pressed inadvertently, thereby draining the batteries.

• The remote controller may not work reliably if the AV receiver is installed in a rack behind colored glass doors. Keep this in mind when installing.

• The remote controller will not work if there’s an obstacle between it and the AV receiver’s remote control sensor.

• When the remote control codes have been registered and you want to operate another component (page 150), or when you want to operate an Integra/Onkyo component without u connection, point the remote controller at the other component to use it.

• When you want to operate an Integra/Onkyo component with u connection or an -compatible component connected via HDMI (pages 152 and 153), point the remote controller at the AV receiver’s remote control sensor.

Page 15

Remote Controller—Continued

Controlling the AV Receiver

To control the AV receiver, press the [Receiver] button to select Receiver mode.

You can also use the remote controller to control your DVD/BD player, CD player, and other components. See pages 148 to 162 for more details.

a b

c d

n o

e f g

For detailed information, see the pages in parentheses.

a Standby button (45)

Sets the AV receiver to Standby.

b On button (45)

Turns on the AV receiver.

c Activities buttons (67, 162)

Used with the MACRO function.

d Remote Mode/Input Selector buttons

(64, 152 to 158)

Selects the remote controller modes and the input sources.

e SP Layout button (66)

This button is used to change the speaker selection: Front High speakers or Front Wide speakers

*2 If you use surround back speakers, you can select the combina-

tion of surround back and front high, or surround back and front wide speakers.

f Arrow [q]/[w]/[e]/[r] and Enter buttons

Used to select and adjust settings.

g Setup button

Used to change settings.

h Listening Mode buttons (88)

Used to select the listening modes.

i Dimmer button (66)

Adjusts the display brightness.

j Display button (65)

Displays information about the current input source.

k Muting button (66)

Mutes or unmutes the AV receiver.

l VOL [q]/[w] button (64)

Adjusts the volume of the AV receiver regardless of the currently selected remote controller mode.

m Video button (46, 50, 111)

Used to change video settings.

n Return button

Returns to the previous display when changing settings.

o Audio button (123)

Used to change audio settings. When the “Audio TV Out” setting is set to “On” (page 119), this button is disabled.

p Sleep button (66)

Used with the Sleep function.

*1 When you want to change the remote controller mode without

changing the current input source, press the [Mode] button and within about eight seconds, press the Remote Mode button. Then, with the AV receiver’s remote controller, you can control the component corresponding to the button you pressed.

Page 16

Remote Controller—Continued

■ Controlling the tuner

To control the AV receiver’s tuner, press the [Tuner] (or [Receiver]) button.

You can select AM or FM by pressing the [Tuner] button repeatedly.

1 Arrow [q]/[w] buttons

Used to tune into radio stations.

2 D.TUN button (69)

(Tuner remote mode only) Selects the Direct tuning mode.

3 Display button

Displays information about the band, frequency, preset number, and so on.

4 CH +/– button (70)

Used to select radio presets.

5 Number buttons (69, 70)

Used to select radio stations directly in the Direct tuning mode. Also you can select a preset directly.

Note:

An Onkyo cassette recorder connected via u can also be controlled in Receiver mode (see page 158).

Page 17

About Home Theater

Enjoying Home Theater

Thanks to the AV receiver’s superb capabilities, you can enjoy surround sound with a real sense of movement in your own home—just like being in a movie theater or concert hall. With DVDs you can enjoy DTS and Dolby Digital. With analog or digital TV, you can enjoy Dolby Pro Logic IIx, DTS Neo:6, or Onkyo’s original DSP listening modes.

You can also enjoy THX Surround EX (THX-certified THX speaker system recommended).

Front left and right speakers

These output the overall sound. Their role in a home theater is to provide a solid anchor for the sound image. They should be positioned facing the listener at about ear level, and equidistant from the TV. Angle them inward so as to create a triangle, with the listener at the apex.

Front high left and right speakers

These speakers are necessary to enjoy Dolby Pro Logic IIz Height, and Audyssey Dynamic Surround Expansion™. They significantly enhance the spatial experience. Position them at least 3.3 feet (100 cm) above the front left and right speakers (preferably as high as possible) and at an angle slightly wider than the front left and right speakers.

Center speaker

This speaker enhances the front left and right speakers, making sound movements distinct and providing a full sound image. In movies it’s used mainly for dialog. Position it close to your TV facing forward at about ear level, or at the same height as the front left and right speakers.

Front wide left and right speakers

These speakers are necessary to enjoy Audyssey Dynamic Surround Expansion™ (DSX). They significantly enhance the spatial experience. Position them well outside of the front left and right speakers. See also http://www.audyssey.com/technology/dsx.html about optimum speaker placement for Audyssey Dynamic Surround Expansion™.

Subwoofer

The subwoofer handles the bass sounds of the LFE (Low-Frequency Effects) channel. The volume and quality of the bass output from your subwoofer will depend on its position, the shape of your listening room, and your listening position. In general, a good bass sound can be obtained by installing the subwoofer in a front corner, or at one-third the width of the wall, as shown. Tip: To find the best position for your subwoofer, while playing a movie or some music with good bass, experiment by placing your subwoofer at various positions within the room, and choose the one that provides the most satisfying results.

1/3 of wall position

Surround back left and right speakers

These speakers are necessary to enjoy Dolby Digital EX, DTS-ES Matrix, DTS-ES Discrete, THX Surround EX, etc. They enhance the realism of surround sound and improve sound localization behind the listener. Position them behind the listener about 2 to 3 feet (60 to 100 cm) above ear level.

Surround left and right speakers

These speakers are used for precise sound positioning and to add realistic ambience. Position them at the sides of the listener, or slightly behind, about 2 to 3 feet (60 to 100 cm) above ear level. Ideally they should be equidistant from the listener.

Corner position

Page 18

Connecting the AV receiver

Connecting Your Speakers

Speaker Configuration

For 9.2-channel surround-sound playback, you need nine speakers and two powered subwoofers. The following table indicates the channels you should use depending on the number of speakers that you have.

Number of speakers: 2 3 4 5 6 7 7 7 8 89991011

Front left ✓✓✓✓✓✓✓✓✓✓✓✓✓✓✓

Front right ✓✓✓✓✓✓✓✓✓✓✓✓✓✓✓

Center ✓ ✓✓✓✓✓✓✓✓✓✓✓✓

Surround left ✓✓✓✓✓✓✓✓✓✓✓✓✓

Surround right ✓✓✓✓✓✓✓✓✓✓✓✓✓

Surround back* ✓✓✓✓

Surround back left ✓✓✓✓

Surround back right ✓✓✓✓

Front high left ✓✓✓✓✓✓

Front high right ✓✓✓✓✓✓

Front wide left ✓ ✓ ✓✓✓✓

Front wide right ✓ ✓ ✓✓✓✓

* If you’re using only one surround back speaker, connect it to the SURR BACK/ZONE 3 L terminal.

No matter how many speakers you use, two powered subwoofers are recommended for a really powerful and solid bass. To get the best from your surround sound system, you need to set the speaker settings. You can do this automatically (see page 58) or manually (see page 102).

Note:

Front high and front wide speakers produce no sound at the same time.

Attaching the Speaker Labels

The AV receiver’s positive (+) speaker terminals are all red (the negative (–) speaker terminals are all black).

Speaker Color

Front left White

Front right Red

Center Green

Surround left, Zone 4 left Blue

Surround right, Zone 4 right Gray

Surround back left, Zone 3 left Brown

Surround back right, Zone 3 right Tan

Front high left White

Front high right Red

Front wide left, Zone 2 left White

Front wide right, Zone 2 right Red

The supplied speaker cable labels are also color-coded and you should attach them to the positive (+) side of each speaker cable in accordance with the above table. Then all you need to do is to match the color of each label to the corresponding speaker terminal.

• If you are using banana plugs, tighten the speaker terminal before inserting the banana plug.

• Do not insert the speaker code directly into the center hole of the speaker terminal.

Connecting Powered Subwoofers

Using a suitable cable, connect the AV receiver’s PRE OUT: SW1, SW2 to an input on your powered subwoofer, as shown. If your subwoofer is unpowered and you’re using an external amplifier, connect the PRE OUT: SW1, SW2 to an input on the amp.

You can connect the powered subwoofer with each jacks respectively. Level and distance can be set individually for each output. If you use one subwoofer, connect it to PRE OUT: SW1.

Powered subwoofer

LINE INPUT

Page 19

Connecting the AV receiver—Continued

Using Dipole Speakers

You can use dipole speakers for the surround left and right, surround back left and right speakers. Dipole speakers output the same sound in two directions.

Dipole speakers typically have an arrow printed on them to indicate how they should be positioned. The surround left and right dipole speakers should be positioned so that their arrows point toward the TV/screen, while the surround back left and right and front high left and right and front wide left and right dipole speakers should be positioned so that their arrows point toward each other, as shown.

Dipole speakers

9 10

TV/screen

11 12

7 8

1. Subwoofers

2. Front left speaker

3. Center speaker

4. Front right speaker

5. Surround left speaker

6. Surround right speaker

7. Surround back left speaker

Normal speakers

9 10

TV/screen

11 12

8. Surround back right speaker

9. Front high left speaker

10.Front high right speaker

11.Front wide left speaker

12.Front wide right speaker

7 8

Speaker Connection Precautions

Read the following before connecting your speakers:

• You can connect speakers with an impedance of between 4 and 16 ohms. If the impedance of any of the connected speakers is 4 ohms or more, but less than 6 ohms, be sure to set the minimum speaker impedance to “4ohms” (see page 54). If you use speakers with a lower impedance, and use the amplifier at high volume levels for a long period of time, the built-in protection circuit may be activated.

• Disconnect the power cord from the wall outlet before making any connections.

• Read the instructions supplied with your speakers.

• Pay close attention to speaker wiring polarity. In other words, connect positive (+) terminals only to positive (+) terminals, and negative (–) terminals only to negative (–) terminals. If you get them the wrong way around, the sound will be out of phase and will sound unnatural.

• Unnecessarily long, or very thin speaker cables may affect the sound quality and should be avoided.

• If you use 4 or 5 speakers, connect each of the two

surround speakers to the SURR/ZONE 4 L/R terminals. Do not connect them to the SURR BACK/ZONE 3 L/R, FRONT WIDE/ZONE 2 L/R, or FRONT HIGH L/R terminals.

• Be careful not to short the positive and negative wires. Doing so may damage the AV receiver.

• Make sure the metal core of the wire does not have contact with the AV receiver’s rear panel. Doing so may damage the AV receiver.

• Don’t connect more than one cable to each speaker terminal. Doing so may damage the AV receiver.

• Don’t connect one speaker to several terminals.

Page 20

Connecting the AV receiver—Continued

Connecting the Speaker Cables

Strip 1/2" to 5/8" (12 to

15 mm) of insulation from the ends of the speaker cables, and twist the bare wires tightly, as shown.

Unscrew the terminal.

The following illustration shows which speaker should be connected to each pair of terminals. If you’re using only one surround back speaker, connect it to the SURR BACK/ZONE 3 L terminal.

1/2" to 5/8"

(12 to 15 mm)

Fully insert the bare

wires.

Screw the terminal tight.

Front high

right　

speaker

Surround

right

speaker

Front wide

right

speaker

Front right

speaker

Surround back right

speaker

Front left

speaker

Front wide

left

speaker

Surround

back left

speaker

Front high

left

speaker

Center

speaker

Surround

left

speaker

Page 21

Connecting the AV receiver—Continued

Bi-amping the Front Speakers

The FRONT L/R and SURR BACK/ZONE 3 L/R terminal posts can be used with front speakers and surround back speakers respectively, or bi-amped to provide separate tweeter and woofer feeds for a pair of front speakers that support bi-amping, providing improved bass and treble performance.

• When bi-amping is used, surround back speakers cannot be used.

• For bi-amping, the FRONT L/R terminal posts connect to the front speakers’ woofer terminals. And the SURR BACK/ZONE 3 L/R terminal posts connect to the front speakers’ tweeter terminals.

• Once you’ve completed the bi-amping connections shown below and turned on the AV receiver, you must set the “Speakers Type(Front)” setting to “Bi-Amp” to enable biamping (see page 54).

Important:

• When making the bi-amping connections, be sure to remove the jumper bars that link the Speakers’ tweeter (high) and woofer (low) terminals.

• Bi-amping can only be used with speakers that support bi-amping. Refer to your speaker manual.

Bi-amping Speaker Hookup

Connect the AV receiver’s FRONT R positive (+)

terminal to the right speaker’s positive (+) Woofer (low) terminal. And connect the AV receiver’s FRONT R negative (–) terminal to the right speaker’s negative (–) Woofer (low) terminal.

Connect the AV receiver’s SURR BACK/ZONE 3

R positive (+) terminal to the right speaker’s positive (+) Tweeter (high) terminal. And connect the AV receiver’s SURR BACK/ZONE 3 R negative (–) terminal to the right speaker’s negative (–) Tweeter (high) terminal.

Connect the AV receiver’s FRONT L positive (+)

terminal to the left speaker’s positive (+) Woofer (low) terminal. And connect the AV receiver’s FRONT L negative (–) terminal to the left speaker’s negative (–) Woofer (low) terminal.

Connect the AV receiver’s SURR BACK/ZONE 3

L positive (+) terminal to the left speaker’s positive (+) Tweeter (high) terminal. And connect the AV receiver’s SURR BACK/ZONE 3 L negative (–) terminal to the left speaker’s negative (–) Tweeter (high) terminal.

Tweeter (high)

Right speaker

Woofer (low)

Tweeter (high)

Woofer (low)

Left speaker

Page 22

Connecting the AV receiver—Continued

Bridging the Front Speakers

The FRONT L/R and SURR BACK/ZONE 3 L/R terminal posts can be used with front speakers and surround back speakers respectively, or bridged together to provide almost double the output power for the front speakers.

• When bridging is used, surround back speakers cannot be used.

• For bridging, the positive (+) FRONT L/R and SURR BACK/ZONE 3 L/R terminal posts are used, but the negative (–) FRONT L/R and SURR BACK/ZONE 3 L/R terminals are not.

• Once you’ve completed the bridging connections shown below and turned on the AV receiver, you must set the “Speakers Type(Front)” setting to “BTL” to enable bridging (see page 54).

Notes:

• Use only front speakers with an impedance of 8 ohms or higher for bridging. Failure to do so may seriously damage the AV receiver.

• When using bridging, make sure that your front speakers can handle the additional power.

Bridged Speaker Hookup

Connect the AV receiver’s FRONT R positive (+)

terminal to the right speaker’s positive (+) terminal. And connect the AV receiver’s SURR BACK/ZONE 3 R positive (+) terminal to the right speaker’s negative (–) terminal.

Connect the AV receiver’s FRONT L positive (+)

terminal to the left speaker’s positive (+) terminal. And connect the AV receiver’s SURR BACK/ZONE 3 L positive (+) terminal to the left speaker’s negative (–) terminal.

Right speaker Left speaker

Page 23

Connecting the AV receiver—Continued

Connecting Passive Subwoofers

The FRONT WIDE/ZONE 2 L/R terminal posts can be used with front wide speakers or passive subwoofers.

• Once you’ve connected the passive subwoofers shown below and turned on the AV receiver, you must set the “Passive Subwoofer” setting to “Use” (see page 54).

• When the passive subwoofers are used, the Powered Zone2/4 cannot be used.

• If you use one passive subwoofer, connect it to the SUBWOOFER1 terminals.

Subwoofer 2

Subwoofer 1

Page 24

Connecting the AV receiver—Continued

Connecting Antenna

This section explains how to connect the supplied indoor FM antenna and AM loop antenna, and how to connect commercially available outdoor FM and AM antennas. The AV receiver won’t pick up any radio signals without any antenna connected, so you must connect the antenna to use the tuner.

AM ANTENNA push terminals

FM ANTENNA jack

Connecting the Indoor FM Antenna

The supplied indoor FM antenna is for indoor use only.

Attach the FM antenna, as shown.

(North American models)

If you cannot achieve good reception with the supplied indoor FM antenna, try a commercially available outdoor FM antenna instead (see page 25).

Connecting the AM Loop Antenna

The supplied indoor AM loop antenna is for indoor use only.

Assemble the AM loop antenna, inserting

the tabs into the base, as shown.

Connect both wires of the AM loop

antenna to the AM antenna push terminals, as shown.

(The antenna’s wires are not polarity sensitive, so they can be connected either way around.)

Make sure that the wires are attached securely and that the push terminals are gripping the bare wires, not the insulation.

Insert the plug fully into the jack.

(Australian models)

Insert the plug fully into the jack.

Once your AV receiver is ready for use, you’ll need to tune into an FM radio station and adjust the position of the FM antenna to achieve the best possible reception.

Use thumbtacks or something similar to

fix the FM antenna into position.

Thumbtacks, etc.

Push Insert wire Release

Once your AV receiver is ready for use, you’ll need to tune into an AM radio station and adjust the position of the AM antenna to achieve the best possible reception. Keep the antenna as far away as possible from your AV receiver, TV, speaker cables, and power cords.

If you cannot achieve good reception with the supplied indoor AM loop antenna, try using it with a commercially available outdoor AM antenna (see page 25).

Caution:

Be careful that you don’t injure yourself when using thumbtacks.

Page 25

Connecting the AV receiver—Continued

Connecting an Outdoor FM Antenna

If you cannot achieve good reception with the supplied indoor FM antenna, try a commercially available outdoor FM antenna instead.

Notes:

• Outdoor FM antennas work best outside, but usable results can sometimes be obtained when installed in an attic or loft.

• For best results, install the outdoor FM antenna well away from tall buildings, preferably with a clear line of sight to your local FM transmitter.

• Outdoor antenna should be located away from possible noise sources, such as neon signs, busy roads, etc.

• For safety reasons, outdoor antenna should be situated well away from power lines and other high-voltage equipment.

• Outdoor antenna must be grounded in accordance with local regulations to prevent electrical shock hazards.

Connecting an Outdoor AM Antenna

If good reception cannot be achieved using the supplied AM loop antenna, an outdoor AM antenna can be used in addition to the loop antenna, as shown.

Outdoor antenna

Insulated antenna cable

AM loop antenna

Outdoor AM antennas work best when installed outside horizontally, but good results can sometimes be obtained indoors by mounting horizontally above a window. Note that the outdoor antenna should be right connected. Outdoor antenna must be grounded in accordance with local regulations to prevent electrical shock hazards.

■ Using a TV/FM Antenna Splitter

It’s best not to use the same antenna for both FM and TV reception, as this can cause interference problems. If circumstances demand it, use a TV/FM antenna splitter, as shown.

TV/FM antenna splitter

To AV receiver To TV (or VCR)

Page 26

Connecting the AV receiver—Continued

About AV Connections

• Before making any AV connections, read the manuals supplied with your other AV components.

• Don’t connect the power cord until you’ve completed and double-checked all AV connections.

Optical Digital Jacks

The AV receiver’s optical digital jacks have shutter-type covers that open when an optical plug is inserted and close when it’s removed. Push plugs in all the way.

Caution:

To prevent shutter damage, hold the optical plug straight when inserting and removing.

AV Cables & Jacks

Video / Audio

Cable Jack Description

HDMI

AV Connection Color Coding

RCA-type AV connections are usually color-coded: red, white, and yellow. Use red plugs to connect right-channel audio inputs and outputs (typically labeled “R”). Use white plugs to connect left-channel audio inputs and outputs (typically labeled “L”). And use yellow plugs to connect composite video inputs and outputs.

Left (white)

Right (red) Right (red)

(Yellow)

• Push plugs in all the way to make good connections (loose connections can cause noise or malfunctions).

• To prevent interference, keep audio and video cables away from power cords and speaker cables.

HDMI

HDMI connections can carry uncompressed standard- or high-definition digital video and audio and offer the best picture and sound quality.

Analog audio

Composite video

Left (white)

(Yellow)

Right!

Wrong!

Video

Component video cable

S-Video cable

Composite video cable

Audio

Optical digital audio cable

Coaxial digital audio cable

Analog audio cable (RCA)

Multichannel analog audio cable (RCA)

B/CB

PR/CR

B/CB

PR/CR

Component video separates the luminance (Y) and color difference signals (PR, PB), providing the best picture quality (some TV manufacturers label their component video sockets slightly differently).

S-Video separates the luminance and color signals and

OPTICAL

provides better picture quality than composite video. Composite video is commonly used on TVs, VCRs,

and other video equipment.

Offers the best sound quality and allows you to enjoy surround sound (e.g., Dolby Digital, DTS). The audio quality is the same as for coaxial.

Offers the best sound quality and allows you to enjoy surround sound (e.g., Dolby Digital, DTS). The audio quality is the same as for optical.

This cable carries analog audio. It’s the most common connection format for analog audio, and can be found on virtually all AV components.

This cable carries multichannel analog audio and is typically used to connect DVD players with a 7.1channel analog audio output. Several standard analog audio cables can be used instead of a multichannel cable.

The AV receiver does not support SCART plugs.

Page 27

Connecting the AV receiver—Continued

Connecting Components with HDMI

About HDMI

Designed to meet the increased demands of digital TV, HDMI (High Definition Multimedia Interface) is a new digital interface standard for connecting TVs, projectors, DVD/BD players, set-top boxes, and other video components. Until now, several separate video and audio cables have been required to connect AV components. With HDMI, a single cable can carry control signals, digital video, and up to eight channels of digital audio (2-channel PCM, multichannel digital audio, and multichannel PCM). The HDMI video stream (i.e., video signal) is compatible with DVI (Digital Visual Interface) with a DVI input can be connected by using an HDMI-to-DVI adapter cable. (This may not work with some TVs and displays, resulting in no picture.) The AV receiver uses HDCP (High-bandwidth Digital Content Protection)*2, so only HDCP-compatible components can display the picture.

The AV receiver’s HDMI interface is based on the following standard: x.v.Color, Deep Color, Lip Sync, DTS-HD Master Audio, DTS-HD High Resolution Audio, Dolby TrueHD, Dolby

Digital Plus, DSD, and Multichannel PCM

Supported Audio Formats

• 2-channel linear PCM (32–192 kHz, 16/20/24 bit)

• Multichannel linear PCM (up to 7.1 ch, 32–192 kHz, 16/20/24 bit)

• Bitstream (DSD, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS Express, DTS-HD High Resolution Audio, DTS-HD Master Audio)

Your DVD/BD players must also support HDMI output of the above audio formats.

■ Integra/Onkyo for System Control

, which stands for Remote Interactive over HDMI, is the name of the system control function found on Integra/Onkyo components. The AV receiver can be used with CEC (Consumer Electronics Control), which allows system control over HDMI and is part of the HDMI standard. CEC provides interoperability between various components, however, operation with components other than -compatible components cannot be guaranteed.

• Set “HDMI Control (RIHD)” to “On” (page 120).

• See “Controlling a TV” (page 152) and “Controlling a DVD Player or DVD Recorder” (page 153) for operation.

, so TVs and displays

Notes:

• Do not connect the -compatible component more than the following number to the HDMI input terminal so

that the linked operations work properly.

a. DVD/BD player is up to three. b. DVD/BD recorder is up to three. c. Cable/Satellite Set-top box is up to four.

• Do not connect the AV receiver to the other AV receiver /AV amplifier via HDMI.

• When the -compatible component more than the above-mentioned is connected, the linked operations are

not guaranteed.

• The control does not support HDMI OUT SUB. Use HDMI OUT MAIN instead.

About Copyright Protection

The AV receiver supports HDCP (High-bandwidth Digital Content Protection)*2, a copy-protection system for digital video signals. Other devices connected to the AV receiver via HDMI must also support HDCP.

*1 DVI (Digital Visual Interface): The digital display interface standard set by the DDWG *2 HDCP (High-bandwidth Digital Content Protection): The video encryption technology developed by Intel for HDMI/DVI. It’s designed to

protect video content and requires a HDCP-compatible device to display the encrypted video.

*3 DDWG (Digital Display Working Group): Lead by Intel, Compaq, Fujitsu, Hewlett Packard, IBM, NEC, and Silicon Image, this open

industry group’s objective is to address the industry’s requirements for a digital connectivity specification for high-performance PCs and digital displays.

in 1999.

Page 28

Connecting the AV receiver—Continued

Making HDMI Connections

Step 1:

Use HDMI cables to connect the AV receiver’s HDMI jacks to your HDMI-compatible DVD/BD player, TV, projector, and so on.

Step 2:

Assign each HDMI IN to an input selector in the HDMI Input Setup (see page 51).

■ Video Signals

Digital video signals received by the HDMI IN jacks are normally output by the HDMI MAIN OUT and SUB OUT for display on your TV. Composite video, S-Video, and component video sources can be upconverted for the HDMI output. See “Video Connection Formats” on page 29 for more information.

■ Audio Signals

Digital audio signals received by the HDMI IN jacks are output by the speakers and headphones connected to the AV receiver. Normally, they are not output by the HDMI outputs, unless the “Audio TV Out” setting is set to “On” (see page 119).

Hint!

To listen to audio received by the HDMI IN jacks through your TV’s speakers:

•Set the “TV Control” setting to “On” (see page 120) for an -compatible TV.

•Set the “Audio TV Out” setting to “On” (see page 119) when the TV is not compatible with or the “TV Control” setting to “Off”.

•Set your DVD/BD player’s HDMI audio output setting to PCM.

HDMI

HD camcorder, etc

DVD/BD player

HDMI

OUT

Notes:

• The HDMI video stream is compatible with DVI (Digital Visual Interface), so TVs and displays with a DVI input can be connected by using an HDMI-to-DVI adapter cable. (Note that DVI connections only carry video, so you’ll need to make a separate connection for audio.) However, reliable operation with such an adapter is not guaranteed. In addition, video signals from a PC are not guaranteed.

• When listening to an HDMI component through the AV receiver, set the HDMI component so that its video can be seen on the TV screen (on the TV, select the input of the HDMI component connected to the AV receiver). If the TV power is off or the TV is set to another input source, this may result in no sound from the AV receiver or the sound may be cut off.

• When the “Audio TV Out” setting is set to “On” (see page 119) to hear from your TV’s speakers, by controlling the AV receiver’s volume, the sound will be output from the AV receiver’s speakers, too. When the

“On” to hear from speakers of -compatible TV, by controlling the AV receiver’s volume, the AV

is set to

“TV Control” setting

receiver’s speakers will produce sound while the TV’s speakers are muted. To stop the AV receiver’s speakers producing sound, change the settings, change your TV’s settings, or turn down the AV receiver’s volume.

• The HDMI audio signal (sampling rate, bit length, etc.) may be restricted by the connected source component. If the picture is poor or there’s no sound from a component connected via HDMI, check its setup. Refer to the connected component’s instruction manual for details.

Page 29

Connecting the AV receiver—Continued

Connecting Both Audio & Video

By connecting both the audio and video outputs of your DVD/BD player and other AV components to the AV receiver, you can select both the audio and video simultaneously simply by selecting the appropriate input source on the AV receiver.

: Signal Flow

Video

Audio

DVD/BD player, etc.

Speakers

(see pages 18 to 20 for connection information)

Video

Audio

TV, projector,

etc.

Which Connections Should I Use?

The AV receiver supports several connection formats for compatibility with a wide range of AV equipment. The format you choose will depend on the formats supported by your other components. Use the following sections as a guide.

Video Connection Formats

Video equipment can be connected to the AV receiver by using any one of the following video connection formats: composite video, S-Video, component video, or HDMI, the latter offering the best picture quality. The AV receiver can upconvert and downconvert between video formats, depending on the “Monitor Out” setting, which generally determines whether video signals are upconverted for the component video output or the HDMI output.

For optimal video performance, THX recommends that video signals pass through the system without upconversion (e.g., component video input through to component video output).

It is also recommended that you press the [VCR/DVR] and [Return] buttons on the AV receiver at the same time. Select “Skip” in the “VideoProcessor” setting by pressing the [Return] button repeatedly on the display. To reset back to the original setting, press the same button at the same time.

■ “Monitor Out” Setting Set to “HDMI Main” or “HDMI Sub”

With the “Monitor Out” setting set to “HDMI

DVD/BD player, etc.

Main” or “HDMI Sub” (see page 49), video input signals flow through the AV receiver as shown, with composite video, S-Video, and component video sources all being upconverted for the

Composite

HDMI output. Use the “HDMI Main” or “HDMI Sub” setting if you connect the AV receiver’s HDMI OUT MAIN or HDMI OUT

AV receiver

SUB, respectively, to your TV.

The composite video, S-Video, and component video outputs pass through their respective input

Composite

signals as they are.

Note:

If not connected to the same output you have selected in the “Monitor Out” setting, the “Monitor Out” setting will be automatically switched

TV, projector, etc.

to “Analog” (see page 49). In this case, the setting of the output resolution will be that for HDMI output (see page 49). However, it will be switched to “1080i” when “1080p” is selected, and to “Through” when “Auto” is selected.

Video Signal Flow Chart

S-Video

MONITOR OUT

S-Video

Component

HDMI

Page 30

Connecting the AV receiver—Continued

■ “Monitor Out” Setting Set to “Both”, “Both(Main)” or “Both(Sub)”

With the “Monitor Out” setting set to “Both”,

DVD/BD player, etc.

“Both(Main)” or “Both(Sub)” (see page 49), video input signals flow through the AV receiver as shown, with composite video, S-Video, and component video sources all being upconverted

Composite

for both HDMI outputs. Use the “Both”, “Both(Main)” or “Both(Sub)” setting if you connect the AV receiver’s HDMI OUT MAIN

AV receiver

and HDMI OUT SUB to your TVs.

The composite video, S-Video, and component video outputs pass through their respective input signals as they are.

Composite

Both: Video signals are output from both HDMI outputs at the resolution supported by both TVs. You cannot select “Resolution” setting. The picture adjust setting will be that for “HDMI Main”.

TV, projector, etc.

Both (Main): Video signals are output from both HDMI outputs but HDMI OUT MAIN will become a priority; depending on the resolution, video signals may not be output from HDMI OUT SUB. Both (Sub): Video signals are output from both HDMI outputs but HDMI OUT SUB will become a priority; depending on the resolution, video signals may not be output from HDMI OUT MAIN.

Note:

The “Monitor Out” setting will be automatically switched to “Analog” (see page 49) if not connected to both outputs when “Both” is selected or if not connected to a priority output when “Both(Main)” or “Both(Sub)” is selected.

Video Signal Flow Chart

S-Video

MONITOR OUT

S-Video

Component

HDMI

■ “Monitor Out” Setting Set to “Analog”

With the “Monitor Out” setting set to “Analog” (see page 49), video input signals flow through the AV receiver as shown, with composite video and S-Video sources being upconverted for the component video output. Use this setting if you

connect the AV receiver’s COMPONENT VIDEO MONITOR OUT to your TV.

Composite video is upconverted to S-Video and S-Video is downconverted to composite video. Note that these conversions only apply to the MONITOR OUT V and S outputs, not the VCR/DVR OUT V and S outputs. The composite video, S-Video, and component video outputs pass through their respective input signals as they are. This signal flow also applies when the “Resolution” setting is set to “Through” (see page 49).

Video Signal Flow and the Resolution Setting

When the “Monitor Out” setting is set to “Analog” (see page 49), if the “Resolution” setting is set to anything other than “Through” (see page 49), the video signal flow will be as shown here, with composite video and S-Video sources being upconverted for the component video output.

The composite video, S-Video, and component video outputs pass through their respective analog input signals as they are. HDMI input signals are not output.

DVD/BD player, etc.

AV receiver

TV, projector, etc.

DVD/BD player, etc.

AV receiver

Composite

Video Signal Flow Chart

S-Video

MONITOR OUT

S-Video

Video Signal Flow Chart

S-Video

MONITOR OUT

S-Video

Component

HDMI

TV, projector, etc.

Page 31

Connecting the AV receiver—Continued

Audio Connection Formats

Audio equipment can be connected to the AV

DVD/BD player, etc.

Audio Signal Flow Chart

receiver by using any of the following audio connection formats: analog, optical, coaxial, analog multichannel, or HDMI. When choosing a connection format, bear in

Optical CoaxialMultichannelAnalog HDMI

mind that the AV receiver does not convert digital input signals for analog line outputs and vice

AV receiver

versa. For example, audio signals connected to an optical or coaxial digital input are not output by the analog TV/TAPE OUT.

TV, projector, etc.

*1 Depends on the “Audio TV Out” setting (see

page 119).

*2 Only the front L/R channels are output.

HDMI Analog

If signals are present at more than one input, the inputs will be selected automatically in the following order of priority: HDMI, digital, analog.

Page 32

Connecting the AV receiver—Continued

Connecting a TV or Projector

See “Connecting Components with HDMI” on page 27 for HDMI connection information.

Step 1: Video Connection

Choose a video connection that matches your TV ( , , or ), and then make the connection.

Step 2: Audio Connection

Choose an audio connection that matches your TV ( , , or ), and then make the connection.

A B C

a b c

• With connection , you can listen to and record audio from your TV or listen in Zone 2, Zone 3 or Zone 4.

• To enjoy Dolby Digital and DTS, use connection or . (To record or listen in Zone 2, Zone 3 or Zone 4 as well, use and , or and .)

b c

a b a c

Connection AV receiver Signal flow TV, projector, etc.

COMPONENT VIDEO MONITOR OUT ⇒ Component video input

MONITOR OUT S ⇒ S-Video input

MONITOR OUT V ⇒ Composite video input

TV/TAPE IN L/R ⇐ Analog audio L/R output

DIGITAL COAXIAL IN 2 (VCR/DVR) ⇐ Digital coaxial output

DIGITAL OPTICAL IN 1 (GAME) (DTR-70.1)

DIGITAL OPTICAL IN 2 (TV/TAPE) (DTR-80.1)

⇐ Digital optical output

When you use connection , you need to assign the digital audio input (see page 53).

Hint!

(DTR-70.1) When you use connection ,

you need to assign the digital audio input (see page 53).

TV, projector,

COAXIAL

OUT

OPTICAL

OUT

AUDIO

OUT

S VIDEOINVIDEO

YPB PR

IN COMPONENT VIDEO IN

etc.

If your TV has no audio outputs, connect an audio output from your VCR or cable or satellite receiver to the AV receiver and use its tuner to listen to TV programs through the AV receiver (see pages 35 and

37).

Page 33

Connecting the AV receiver—Continued

Connecting a DVD Player

See “Connecting Components with HDMI” on page 27 for HDMI connection information.

Step 1: Video Connection

Choose a video connection that matches your DVD player ( , , or

A B C

You must connect the AV receiver to your TV via the same type of connection.

Step 2: Audio Connection

Choose an audio connection that matches your DVD player ( , , or ), and then make the connection.

a b c

), and then make the connection.

• With connection , you can listen to and record audio from your DVD player or listen in Zone 2, Zone 3 or

Zone 4.

• To enjoy Dolby Digital and DTS, use connection or . (To record or listen in Zone 2, Zone 3 or Zone 4 as well, use and , or and .)

a b a c

b c

• If your DVD player has main left and right outputs and multichannel left and right outputs, be sure to use the main left and right outputs for connection .

Connection AV receiver Signal flow DVD player

COMPONENT VIDEO IN 1 (DVD/BD) ⇐ Component video output

DVD/BD IN S ⇐ S-Video output

DVD/BD IN V ⇐ Composite video output

DVD/BD IN L/R ⇐ Analog audio L/R output

DIGITAL COAXIAL IN 1 (DVD/BD) ⇐ Digital coaxial output

DIGITAL OPTICAL IN 1 (GAME) ⇐ Digital optical output

COAXIAL

OUT

OPTICAL

OUT

When you use connection , you need to assign the digital audio input (see page 53).

AUDIO

OUT

S VIDEO

OUT

VIDEO

YPB PR

OUT COMPONENT VIDEO OUT

DVD player

Page 34

Connecting the AV receiver—Continued

Hooking Up the Multichannel Input

If your DVD player supports multichannel audio formats such as DVD-Audio and Super Audio CD, and it has a multichannel analog audio output, you can connect it to the AV receiver’s multichannel input.

Use a multichannel analog audio cable, or several normal audio cables, to connect the AV receiver’s MULTI CH: FRONT L/R, CENTER, SURR L/R, SURR BACK L/R, and SUBWOOFER jacks to the 7.1-channel analog audio output on your DVD player. If your DVD player has a 5.1-channel analog audio output, don’t connect anything to the AV receiver’s SURR BACK L/R jacks.

Before using the multichannel input, you must assign it to an input selector. See “Analog Audio Input Setup” on page 54. To select the multichannel input, see “Audio Selector” on page 125. To adjust the subwoofer sensitivity for the multichannel input, see “Subwoofer Input Sensitivity” on page 101.

7.1 ch

5.1 ch

CENTER

FRONTRLSUB

WOOFER

DVD player

SURROUND

SURR BACK

Page 35

Connecting the AV receiver—Continued

Connecting a VCR or DVD Recorder for Playback

Hint!

With this hookup, you can use your VCR’s tuner to listen to your favorite TV programs via the AV receiver, useful if your TV has no audio outputs.

Step 1: Video Connection

Choose a video connection that matches your VCR or DVD recorder ( , , or ), and then make the connection.

A B C

You must connect the AV receiver to your TV via the same type of connection.

Step 2: Audio Connection

Choose an audio connection that matches your VCR or DVD recorder ( , , or ), and then make the connection.

• With connection , you can listen to the VCR or DVD recorder in Zone 2, Zone 3 or Zone 4.

• To enjoy Dolby Digital and DTS, use connection or . (To listen in Zone 2, Zone 3 or Zone 4 as well, use

and , or and .)

a b a c

Connection AV receiver Signal flow VCR or DVD recorder

b c

COMPONENT VIDEO IN 2 (CBL/SAT) ⇐ Component video output

VCR/DVR IN S ⇐ S-Video output

VCR/DVR IN V ⇐ Composite video output

VCR/DVR IN L/R ⇐ Analog audio L/R output

DIGITAL COAXIAL IN 2 (VCR/DVR) ⇐ Digital coaxial output

DIGITAL OPTICAL IN 1 (GAME) ⇐ Digital optical output

a b c

COAXIAL

OUT

OPTICAL

OUT

When you use connection , you need to assign the digital audio input (see page 53).

AUDIO

OUT

S VIDEO

OUT

VIDEO

YPB PR

OUT COMPONENT VIDEO OUT

When you use connection , you need to assign the component video input (see page 52).

VCR or DVD

recorder

Page 36

Connecting the AV receiver—Continued

Connecting a VCR or DVD Recorder for Recording

Step 1: Video Connection

Choose a video connection that matches your VCR or DVD recorder ( or ), and then make the connection. The video source to be recorded must be connected to the AV receiver via the same type of connection.

Step 2: Audio Connection

Make the audio connection .

Connection AV receiver Signal flow VCR or DVD recorder

VCR/DVR OUT S

VCR/DVR OUT V

VCR/DVR OUT L/R

A B

⇒

S-Video input

Composite video input

Analog audio L/R input

VCR or DVD

recorder

L R

AUDIO

S VIDEO

VIDEO

Notes:

• The AV receiver must be turned on for recording. Recording is not possible while it’s in Standby mode.

• If you want to record directly from your TV or playback VCR to the recording VCR without going through the AV receiver, connect the TV/VCR’s audio and video outputs directly to the recording VCR’s audio and video inputs. See the manuals supplied with your TV and VCR for details.

• Video signals connected to composite video inputs can only be recorded via composite video outputs. If your TV/VCR is connected to a composite video input, the recording VCR must be connected to a composite video output. Similarly, video signals connected to S-Video inputs can only be recorded via S-Video outputs. If your TV/VCR is connected to an S-Video input, the recording VCR must be connected to an S-Video output.

• Sources connected to a digital input cannot be recorded. Only analog inputs can be recorded.

Page 37

Connecting the AV receiver—Continued

Connecting a Satellite, Cable, Terrestrial Set-top box, or Other Video Source

Hint!

With this hookup, you can use your satellite or cable receiver to listen to your favorite TV programs via the AV receiver, useful if your TV has no audio outputs.

Step 1: Video Connection

Choose a video connection that matches the video source ( , , or ), and then make the connection.

A B C

You must connect the AV receiver to your TV via the same type of connection.

Step 2: Audio Connection

Choose an audio connection that matches the video source ( , , or ), and then make the connection.

• With connection , you can listen to and record audio from the video source or listen in Zone 2, Zone 3 or

a b c

Zone 4.

• To enjoy Dolby Digital and DTS, use connection or . (To record or listen in Zone 2, Zone 3 or Zone 4 as well, use and , or and .)

Connection AV receiver Signal flow Video source

a b a c

COMPONENT VIDEO IN 2 (CBL/SAT) ⇐ Component video output

CBL/SAT IN S ⇐ S-Video output

CBL/SAT IN V ⇐ Composite video output

CBL/SAT IN L/R ⇐ Analog audio L/R output

DIGITAL COAXIAL IN 3 (CBL/SAT) ⇐ Digital coaxial output

DIGITAL OPTICAL IN 1 (GAME) ⇐ Digital optical output

b c

COAXIAL

OUT

OPTICAL

OUT

When you use connection , you need to assign the digital audio input (see page 53).

AUDIO

OUT

S VIDEO

OUT

VIDEO

YPB PR

OUT COMPONENT VIDEO OUT

Satellite, cable,

set-top box, etc.

Page 38

Connecting the AV receiver—Continued

Connecting a Game Console

Step 1: Video Connection

Choose a video connection that matches your game console ( , , or

A B C

You must connect the AV receiver to your TV with the same type of connection.

Step 2: Audio Connection

Choose an audio connection that matches your game console ( or ), and then make the connection.

a b

), and then make the connection.

• With connection , you can listen to and record audio from your game console or listen in Zone 2, Zone 3 or

Zone 4.

• To enjoy Dolby Digital and DTS, use connection . (To record or listen in Zone 2, Zone 3 or Zone 4 as well, use and .)

a b

Connection AV receiver Signal flow Game console

COMPONENT VIDEO IN 3 (GAME) ⇐ Component video output

GAME IN S ⇐ S-Video output

GAME IN V ⇐ Composite video output

GAME IN L/R ⇐ Analog audio L/R output

DIGITAL OPTICAL IN 1 (GAME) ⇐ Digital optical output

OPTICAL

OUT

L R

AUDIO

OUT

S VIDEO

OUT

VIDEO

Y PB PR

OUT COMPONENT VIDEO OUT

Game Console

Page 39

Connecting the AV receiver—Continued

Connecting a Camcorder or Other Device

Step 1: Video Connection

Make the connection .

Step 2: Audio Connection

Choose an audio connection that matches your camcorder ( or ), and then make the connection.

Connection AV receiver Signal flow Camcorder etc.

a b

AUX1 Input Video ⇐ Composite video output

AUX1 Input L-Audio-R ⇐ Analog audio L/R output

AUX1 Input Digital ⇐ Digital optical output

Camcorder etc.

AUX1 InputAUX1 Input

L R

Video

VIDEO

OUT

Audio

A b

L R

AUDIO

OUT

AUX1 Input

Digital

OPTICAL

OUT

Page 40

Connecting the AV receiver—Continued

Connecting a CD Player or Turntable

■ CD Player or Turntable (MM) with Built-in Phono Preamp

Step 1:

Choose a connection that matches your CD player ( , , or ). Use connection for a turntable with a built-in phono preamp.

a b c a

• With connection , you can listen to and record audio from your CD player or listen in Zone 2, Zone 3 or

Zone 4.

• To connect the CD player digitally, use connection or . (To record or listen in Zone 2, Zone 3 or Zone 4 as well, use and , or and .)

Connection AV receiver Signal flow CD or turntable

When you use connection , you need to assign the digital audio input (see page 53).

a b a c

CD IN L/R ⇐ Analog audio L/R output

DIGITAL COAXIAL IN 2 (VCR/DVR) ⇐ Digital coaxial output

DIGITAL OPTICAL IN 2 (CD) (DTR-70.1) DIGITAL OPTICAL IN 3 (CD) (DTR-80.1)

COAXIAL

IN 2

(VCR/DVR)

OPTICAL

IN 3

COAXIAL

OUT

(CD)

OPTICAL

OUT

AUDI O

OUT

b c

⇐ Digital optical output

CD player

Turntable (MM) with

built-in phono preamp

■ Turntable (MM) with no Phono Preamp Built-in

The AV receiver’s PHONO IN is designed for use with a moving magnet (MM) type cartridge. Use an analog audio cable to connect the AV receiver’s PHONO IN L/R jacks to the audio output on your turntable.

Notes:

• If your turntable has a ground wire, connect it to the AV receiver’s GND screw. With some turntables, connecting the ground wire may produce an audible hum. If this happens, disconnect it.

• If your turntable has a moving coil (MC) type cartridge, you’ll need a commercially available MC head amp or MC transformer. Connect your turntable to the head amp or transformer, and connect that to the AV receiver’s PHONO IN L/R jacks.

• You can also use a phono equalizer to connect a turntable with an MC-type cartridge. See your phono equalizer’s manual for details.

Turntable (MM) with no

phono preamp built-in

AUDIO

OUTPUT

AUDI O

OUTPUT

Page 41

Connecting the AV receiver—Continued

Connecting a Cassette, CDR, MiniDisc, or DAT Recorder

Step 1:

Choose a connection that matches the recorder ( , or ), and then make the connection.

a b c

• With connection , you can play and record or listen in Zone 2, Zone 3 or Zone 4.

• To connect the recorder digitally for playback, use connections and , or and .

a b a c

Connection AV receiver Signal flow Cassette, CDR, MD, or DAT recorder

(TV/TAPE)

TV/TAPE IN L/R

TV/TAPE OUT L/R

DIGITAL COAXIAL IN 3 (CBL/SAT) ⇐ Digital coaxial output

DIGITAL OPTICAL IN 1 (GAME) (DTR-70.1)

DIGITAL OPTICAL IN 2 (TV/TAPE) (DTR-80.1)

COAXIAL

IN 3

(CBL/SAT)

OPTICAL

IN 2

(DTR-70.1) When you use connection , you need to

⇐ ⇒

Analog audio L/R output

Analog audio L/R input

⇐ Digital optical output

TV/TAPE

assign the digital audio input (see page 53).

When you use connection ,

you need to assign the digital audio input (see page 53).

COAXIAL

OUT

OPTICAL

OUT

L R

AUDI O

L R

AUDI O

OUT

Cassette, CDR, MD, or

DAT recorder

Page 42

Connecting the AV receiver—Continued

Connecting a Power Amplifier

If you want to use a more powerful power amplifier and use the AV receiver as a preamp, connect it to the PRE OUT jacks, and connect all speakers and the subwoofer to the power amplifier. You can connect the powered subwoofer with each jacks respectively. If you use one subwoofer, connect it to PRE OUT: SW1.

Power amplifier

234567891

1. Front left speaker

2. Center speaker

3. Front right speaker

4. Surround left speaker

5. Surround right speaker

6. Surround left back speaker

7. Surround right back speaker

8. Front wide/Front high left speaker* 9 Front wide/Front high right speaker*

Note:

* Specify “None” for the channel that you don’t want to output in the “Speaker Configuration” (page 102).

Powered subwoofer

See “Connecting Powered Subwoofers” on page 18 for more information.

Page 43

Connecting the AV receiver—Continued

Connecting an RI Dock

Not all iPod models output video. For information about which iPod models are supported by the RI Dock, see the RI Dock’s instruction manual.

■ If Your iPod Supports Video:

Connect your RI Dock’s audio output jacks to the AV receiver’s GAME IN or VCR/DVR IN L/R jacks, and connect its video output jack to the AV receiver’s GAME IN V or VCR/DVR IN V jack. (Onkyo DSA2 hookup shown below.)

■ If you have an Onkyo DS-A1 RI Dock

Connect its video output jack to the AV receiver’s GAME IN S or VCR/DVR IN S jack.

■ If Your iPod Doesn’t Support Video:

Connect your RI Dock’s audio output jacks to the AV receiver’s TV/TAPE IN L/R jacks. (Onkyo DSA2 hookup shown below.)

TV/TAPE

GAME

VCR/DVR

Make either connection.

Notes:

• Enter the appropriate remote control code before using the AV receiver’s remote controller for the first time (see page 150).

• Connect the RI Dock to the AV receiver with an u cable (see page 44).

• Set the RI Dock’s RI MODE switch to “HDD” or “HDD/DOCK”.

• Set the AV receiver’s Input Display to “DOCK” (see page 57).

• See the RI Dock’s instruction manual for more information.

Connecting a Universal Port Option Series

ex. UP-A1

Note:

When UP-A1 Dock that seated iPod is connected, the power consumption on standby mode slightly increases.

Page 44

Connecting the AV receiver—Continued

Connecting Integra/Onkyo u Components

Step 1:

Make sure that each Integra/Onkyo component is connected to the AV receiver with an analog audio cable (connection in the hookup examples) (see pages 32 to 41, 43).

Step 2:

Make the u connection (see illustration right).

Step 3:

If you’re using an MD, CDR, or RI Dock, change the Input Display (see page 57).

With u (Remote Interactive), you can use the following special functions:

■ Auto Power On/Standby

When you start playback on a component connected via u, if the AV receiver is on Standby, it will auto-

matically turn on and select that component as the input source. Similarly, when the AV receiver is set

to Standby, all components connected via u will also go on Standby.

■ Direct Change

When playback is started on a component connected via u, the AV receiver automatically selects that

component as the input source.

■ Remote Control

You can use the AV receiver’s remote controller to control your other u-capable Integra/Onkyo com-

ponents, pointing the remote controller at the AV receiver’s remote control sensor instead of the component. You must enter the appropriate remote control code first (see page 151).

Notes:

• Use only u cables for u connections. u cables are supplied with Integra/Onkyo players (DVD, CD, etc.).

• Some components have two u jacks. You can con- nect either one to the AV receiver. The other jack is for connecting additional u-capable components.

• Connect only Integra/Onkyo components to u jacks. Connecting other manufacturer’s components may cause a malfunction.

• Some components may not support all u functions. Refer to the manuals supplied with your other Integra/Onkyo components.

• While Zone 2, Zone 3 or Zone 4 is on, the Auto Power On/Standby and Direct Change u functions do not work.

REMOTE CONTROL

e.g., CD player

e.g., DVD player

ANALOG

AUDIO OUT

ANALOG

AUDIO OUT

DVD/BD

Connecting the Power Cord

Notes:

• Before connecting the power cord, connect all of your speakers and AV components.

• Turning on the AV receiver may cause a momentary power surge that might interfere with other electrical equipment on the same circuit. If this is a problem, plug the AV receiver into a different branch circuit.

• Do not use a power cord other than the one supplied with the AV receiver. The supplied power cord is designed exclusively for use with the AV receiver and should not be used with any other equipment.

• Never disconnect the power cord from the AV receiver while the other end is still plugged into a wall outlet. Doing so may cause an electric shock. Always disconnect the power cord from the wall outlet first, and then the AV receiver.

Step 1:

Connect the supplied power cord to the AV receiver’s AC INLET.

To AC wall outlet

Step 2:

Plug the power cord into an AC wall outlet.

Page 45

Turning On the AV receiver

On/Standby

Standby indicator

Turning On and Standby

AV receiver

Remote

controller

On the AV receiver, press the [On/Standby] button.

On the remote controller, press the [Receiver] button, followed by the [On] button.

The AV receiver comes on, the display lights up, and the Standby indicator goes off. Pressing the remote controller’s [On] button again will turn on any components

connected via u.

To turn the AV receiver off, press the [On/Standby] button, or press the remote controller’s [Standby] button. The AV receiver will enter Standby mode. To prevent any loud surprises when you turn on the AV receiver, always turn down the volume before you turn it off.

Standby

Receiver

Smooth Operation in a Few Easy Steps

To ensure smooth operation, here’s a few easy steps to help you configure the AV receiver before you use it for the very first time. These settings only need to be made once.

■ Did you connect your TV to an HDMI output or COMPONENT VIDEO MONITOR OUT?

If you did, “Monitor Setup” on page 46.

■ Run MultEQ XT Room Correction and Speaker Setup—this is essential!

See “Audyssey MultEQ

■ Have you connected a component to an HDMI input, component video input, or digital audio input?

If you have, see “HDMI Input Setup” on page 51, “Component Video Input Setup” on page 52, or “Digital Audio Input Setup” on page 53 respectively.

■ Have you connected an Integra/Onkyo MD recorder, CD recorder, or RI Dock?

If you have, see “Changing the Input Display” on page 57.

XT Room Correction and Speaker Setup” on page 58.

HDMI

OUT IN

TV/TAPE

MD recorder, CD recorder,

RI Dock

Page 46

First Time Setup

This section explains the settings that you need to make before using the AV receiver for the very first time.

Monitor Setup

If you connect your TV to HDMI OUT MAIN, “Monitor Out” setting is automatically set so that the onscreen setup menus are displayed and composite video, SVideo, and component video sources are upconverted* and output.

Composite video, S-Video,

component video

OUT

Composite video, S-Video,

component video

On the “Monitor Out” settings, you can select whether or not to have the video sources’ images output through the HDMI output, as well as whether to have the onscreen setup menu output through the HDMI output or through an analog output.

If you connect your TV to the COMPONENT VIDEO MONITOR OUT (not the HDMI output), “Monitor Out” setting is automatically set so that the onscreen setup menus are displayed and composite video and S-Video sources are upconverted* and output.

Composite video, S-Video

OUT

Composite video, S-Video

HDMI

Component video

■ Change “Monitor Out” setting manually

Monitor Out

Tips:

• The “Monitor Out” setting can also be set using the [Video] button on the remote controller.

• This setting can also be performed by using Onscreen Setup Menu (see page 49).

Notes:

• See page 29 for charts showing how the “Monitor Out” and “Resolution” (see page 49) settings affect the video signal flow through the AV receiver.

• You can specify the output resolution for the HDMI outputs and COMPONENT VIDEO MONITOR OUT and have the AV receiver upconvert the picture resolution as necessary to match the resolution supported by your TV (see page 49).

Press the [Monitor Out] button.

The current setting is displayed.

Press the [Monitor Out] button repeatedly to select: Analog, HDMI Main, HDMI Sub, Both, Both(Main) or Both(Sub)

For details on each item, see step 4 in the page 49.

Page 47

First Time Setup—Continued

In this Instruction Manual, illustrations from the onscreen menu or explanations referring to the menu will be in the same language as the Instruction Manual. The default Language setting for the onscreen menu is English. If your Instruction Manual is in a language other than English, first follow the instructions below to change the Language.

Selecting the Language used for the onscreen setup menus

This setting determines the language used for the onscreen setup menus. You can select: English, German, French, Spanish, Italian, Dutch, Swedish, or Chinese.

Receiver

qwer

Enter

Setup

Press the [Receiver] button, followed by the [Setup] button.

The main menu appears onscreen. If the main menu doesn’t appear, make

sure the appropriate external input is selected on your TV.

1. Input/Output Assign

2. Speaker Setup

3. Audio Adjust

4. Source Setup

5. Listening Mode Preset

6. Miscellaneous

7. Hardware Setup

8. Remote Controller Setup

9. Lock Setup

Use the Up and Down [q]/[w] buttons to select “6. Miscellaneous”, and then press [Enter].

The “Miscellaneous” menu appears.

Use the Up and Down [q]/[w] buttons to select “2. OSD Setup”, and then press [Enter].

The “OSD Setup” menu appears.

6–2. OSD Setup

Immediate Display Display Position TV Format Language

(Australian models)

Use the Up and Down [q]/[w] buttons to select “Language”, and

Bottom

Auto

English

then use the Left and Right [e]/ [r] buttons to select:

English, Deutsch, Français, Español, Italiano, Nederlands, Svenska, 中文

Press the [Setup] button.

The setup menu closes.

Note:

This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.

6. Miscellaneous

1. Volume Setup

2. OSD Setup

3. 12V Trigger A Setup

4. 12V Trigger B Setup

5. 12V Trigger C Setup

Page 48

First Time Setup—Continued

Using the Display to change the settings

The settings of the AV receiver can be changed using the Display.

Receiver

qwer

Enter

Setup

Using the Onscreen Setup Menus

Carry out the settings for the AV receiver by using the Onscreen Setup Menu.

Press the [Receiver] button followed by the [Setup] button.

The main menu appears onscreen. If the main menu doesn’t appear, make

sure the appropriate external input is selected on your TV.

1. Input/Output Assign

2. Speaker Setup

3. Audio Adjust

4. Source Setup

5. Listening Mode Preset

6. Miscellaneous

7. Hardware Setup

8. Remote Controller Setup

9. Lock Setup

Tip:

On several functions, the explanation will be displayed under the screen.

Use the Up and Down [q]/[w] buttons to select item and then press [Enter].

The submenu appears. Press the [Setup] button to close the

menu. Press the [Return] button to return to the previous menu.

Press the [Receiver] button followed by the [Setup] button.

The main menu item appears on the display.

Use the Up and Down [q]/[w] buttons to select item and then press [Enter].

The submenu item appears on the display. Press the [Setup] button to close the menu. Press the [Return] button to return to the previous menu.

Onscreen Setup Menus and Display

As each item in the Onscreen Setup Menus is selected, the selected items will be displayed one by one.

Onscreen Setup Menus

1. Input/Output Assign

2. Speaker Setup

3. Audio Adjust

4. Source Setup

5. Listening Mode Preset

6. Miscellaneous

7. Hardware Setup

8. Remote Controller Setup

9. Lock Setup

Display

Note:

During Audyssey MultEQ Speaker Setup, messages, etc., that are displayed on the TV screen will appear in the Display.

XT Room Correction and

Page 49

First Time Setup—Continued

Monitor Out Setup

If you connect your TV to the HDMI output, set the “Monitor Out” setting so that the onscreen setup menus are displayed and composite video, S-Video, and component video sources are upconverted and output. If you connect your TV to the COMPONENT VIDEO MONITOR OUT, set the “Monitor Out” setting so that the onscreen setup menus are displayed and composite video and S-Video sources are upconverted and output. You can specify the output resolution for the HDMI outputs and COMPONENT VIDEO MONITOR OUT and have the AV receiver upconvert the picture resolution as necessary to match the resolution supported by your TV.

Press the [Receiver] button, followed by the [Setup] button.

The main menu appears onscreen. If the main menu doesn’t appear, make sure the appropriate external input is

selected on your TV.

Use the Up and Down [q]/[w] buttons to select “1. Input/Output Assign”, and then press [Enter].

The “Input/Output Assign” menu appears.

1. Input/Output Assign

1. Monitor Out

2. HDMI Input

3. Component Video Input

4. Digital Audio Input

5. Analog Audio Input

6. Gamma Curve

Use the Up and Down [q]/[w] buttons to select “1. Monitor Out”, and then press [Enter].

The “Monitor Out” menu appears.

1–1. Monitor Out

Monitor Out Resolution Brightness Contrast Hue Saturation

HDMI Main

Through

0 0 0 0

Use the Up and Down [q]/[w] buttons to select “Monitor Out”, and use the Left and Right [e]/[r] buttons to select:

Analog:

Select this if your TV is connected to the COMPONENT VIDEO MONITOR OUT, S MONITOR OUT, or V MONITOR OUT.

HDMI Main:

Select this if your TV is connected to the HDMI OUT MAIN.

HDMI Sub:

Select this if your TV is connected to the HDMI OUT SUB.

Both:

Select this if your TVs are connected to the HDMI OUT MAIN and HDMI OUT SUB. Video signals are output from both HDMI outputs at the resolution supported by both TVs.

Both (Main):

Select this if your TVs are connected to the HDMI OUT MAIN and HDMI OUT SUB. Video signals are output from both HDMI outputs but HDMI OUT MAIN will become a priority; depending on the resolution, video signals may not be output from HDMI OUT SUB.

Both (Sub):

Select this if your TVs are connected to the HDMI OUT MAIN and HDMI OUT SUB. Video signals are output from both HDMI outputs but HDMI OUT SUB will become a priority; depending on the resolution, video signals may not be output from HDMI OUT MAIN.

Notes:

• If not connected to the same output you have selected in the“Monitor Out” setting, the “Monitor Out” setting will be automatically switched to “Analog”.

• When you select other than “Analog”, the onscreen setup menus are output by only the HDMI outputs. If you’re not using the

HDMI output and select settings by mistake and the menus disappear, press the [Monitor Out] button to select “Analog”.

• For Deep Color output, if the “Monitor Out” setting is set to “Both (Main)” or “Both (Sub)”, the number of bit may be limited due to the capability of your TV connected to a priority output.

Page 50

First Time Setup—Continued

Use the Up and Down [q]/[w] buttons to select “Resolution”, and use the Left and Right [e]/[r] buttons to select:

Through:

Select this to pass video through the AV receiver at the same resolution and with no conversion.

Auto :

Select this to have the AV receiver automatically convert video at resolutions not supported by your TV.

480p (480p/576p):

Select this for 480p or 576p output and video conversion as necessary.

720p:

Select this for 720p output and video conversion as necessary.

1080i:

Select this for 1080i output and video conversion as necessary.

1080p :

Select this for 1080p output and video conversion as necessary.

1080p/24 :

Source:

Tips:

• The “Resolution” setting can also be

• The “Resolution” setting is set

Notes:

• Settings marked with an asterisk ( )

• If the “Monitor Out” setting is set to

• Depending on the incoming video

Select this for 1080p output at 24 frames per second and video conversion as necessary.

Output will be according to the resolution level which was set in the “Picture Adjust” setting (see page 111).

set using the [Video] button on the remote controller.

respectively of main, sub, and analog.

are not available when the “Monitor Out” setting is set to “Analog”.

“Both”, this setting is fixed at “Auto”.

signal, video playback may not be smooth or the vertical resolution may be lowered. In this case select other than “1080p/24”.

Notes:

• See page 29 for charts showing how the “Monitor Out” and “Resolution” settings affect the video signal flow through the AV receiver.

• This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.

Press the [Setup] button.

The setup menu closes.

Page 51

First Time Setup—Continued

Video Input Setup

HDMI Input Setup

If you connect a video component to HDMI IN, you must assign that input to an input selector. For example, if you connect your DVD/BD player to HDMI IN 1, you must assign HDMI IN 1 to the DVD/BD input selector. If you’ve connected your TV to the AV receiver with an HDMI cable, you can set the AV receiver so that composite video, S-Video, and component video sources are upconverted* and output by the HDMI output. You can set this for each input selector by selecting the “- - - - -” option.

Composite video, S-Video,

component video

Composite video, S-Video,

component video

Press the [Receiver] button followed by the [Setup] button.

The main menu appears onscreen. If the main menu doesn’t appear, make

sure the appropriate external input is selected on your TV.

OUT

HDMI

Use the Up and Down [q]/[w] buttons to select an input selector, and use the Left and Right [e]/ [r] buttons to select:

HDMI1, HDMI2, HDMI3, HDMI4, HDMI5, HDMI6, HDMI7 (DTR-80.1):

Select the HDMI IN to which the video component has been connected.

-----: Output composite video, S-Video, and component video sources from the HDMI outputs. The video output signal from the HDMI outputs is the one configured in “Component Video Input Setup” (see page 52).

• Each HDMI IN cannot be assigned to more than one input selector. When HDMI IN have already been assigned, you must set first any unused input selectors to “- - - - -” or you will be unable to assign HDMI IN to input selector.

• “AUX 1” is used only for digital input from the front panel terminals.

Press the [Setup] button.

The setup menu closes.

Use the Up and Down [q]/[w] buttons to select “1. Input/Output Assign”, and then press [Enter].

The “Input/Output Assign” menu appears.

1. Input/Output Assign

1. Monitor Out

2. HDMI Input

3. Component Video Input

4. Digital Audio Input

5. Analog Audio Input

6. Gamma Curve

Use the Up and Down [q]/[w] buttons to select “2. HDMI Input”, and then press [Enter].

The “HDMI Input” menu appears.

1–2. HDMI Input

DVD/BD VCR/DVR CBL/SAT GAME

AUX 1

HDMI1 HDMI2 HDMI3 HDMI4

FRONT

Notes:

• For composite video, S-Video, and component video upconversion for the HDMI output, the “Monitor Out” setting must be set to other than “Analog” (see page 49), and the “HDMI Input” setting must be set to “- - - - -”. See page 29 for more information on video signal flow and upconversion.

• If no video component is connected to HDMI output (even if the HDMI input is assigned), the AV receiver selects the video source based on the setting of Component Video Input.

• When an HDMI IN is assigned to an input selector, the AV receiver will select audio from HDMI IN as a priority. See “Digital Audio Input Setup” on page 53.

• The Tuner input selector cannot be assigned and is fixed at the “- - - - -” option.

• If you connect an input component (such as UP-A1 Dock that seated iPod) to the UNIVERSAL PORT jack, you cannot assign any input to Port selector.

• Do not assign the component connected with the HDMI input to the TV/Tape selector when you set “TV Control” setting to “On” (see page 120). Otherwise, appropriate CEC (Consumer Electronics Control) operation is not guaranteed.

• This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.

Page 52

First Time Setup—Continued

Component Video Input Setup

If you connect to a COMPONENT VIDEO IN or PC INPUT ANALOG RGB (DTR-80.1), you must assign it to an input selector. For example, if you connect your DVD/BD player to COMPONENT VIDEO IN 2, you should assign it to the DVD/BD input selector.

If you’ve connected your TV to the AV receiver with a component video cable, you can set the AV receiver so that composite video and S-Video sources are upconverted* and output by the COMPONENT VIDEO MONITOR OUT selector by selecting the “- - - - -” option.

Composite video, S-Video

*1 Only when “Monitor Out” setting is set to “Analog”.

. You can set this for each input

Component video

OUT

Component video

Press the [Receiver] button followed by the [Setup] button.

The main menu appears onscreen. If the main menu doesn’t appear, make sure the appropriate external input is

selected on your TV.

Use the Up and Down [q]/[w] buttons to select an input selector, and then use the Left and Right [e]/[r] buttons to select:

IN1: Select if the video component

is connected to COMPONENT VIDEO IN 1.

IN2: Select if the video component

is connected to COMPONENT VIDEO IN 2.

IN3: Select if the video component

is connected to COMPONENT VIDEO IN 3.

PC IN: (DTR-80.1) Select if the per-

sonal computer is connected to PC INPUT ANALOG RGB.

-----: Select if you are using the HDMI outputs, rather than the COMPONENT VIDEO OUT, for the output from composite video, S-Video, and component video sources.

Press the [Setup] button.

The setup menu closes.

Use the Up and Down [q]/[w] buttons to select “1. Input/Output Assign”, and then press [Enter].

The “Input/Output Assign” menu appears.

1. Input/Output Assign

1. Monitor Out

2. HDMI Input

3. Component Video Input

4. Digital Audio Input

5. Analog Audio Input

6. Gamma Curve

Use the Up and Down [q]/[w] buttons to select “3. Component Video Input”, and then press [Enter].

The “Component Video Input” menu appears.

1–3. Component Video Input

DVD/BD VCR/DVR CBL/SAT GAME AUX 1

IN1

- - - - IN2 IN3

- - - - -

Notes:

• For composite video and S-Video upconversion for the COMPONENT VIDEO MONITOR OUT, the “Monitor Out” setting must be set to “Analog” (see page 49), and the “Component Video Input” setting must be set to “- - - - -”. See page 29 for more information on video signal flow and upconversion.

• If not connected to the same output you have selected in the “Monitor Out” setting, the “Monitor Out” setting will be automatically switched to “Analog” (see page 49).

• If you connect an input component (such as UP-A1 Dock that seated iPod) to the UNIVERSAL PORT jack, you cannot assign any input to Port selector.

• This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.

■ About PC Input (DTR-80.1)

Signals from PC INPUT ANALOG RGB are output from the HDMI output without the resolution conversion.

Supported Resolution:

• VGA (640 480) 60/72/75/85 Hz

• SVGA (800 600) 56/60/72/75/85 Hz

• XGA (1024 768) 60/70/75/85 Hz

• SXGA (1280 1024) 60/75 Hz

Note:

The picture adjust setting is effective for only 60 Hz.

Page 53

First Time Setup—Continued

Digital Audio Input Setup

If you connect a component to a digital input jack, you must assign that jack to an input selector. For example, if you connect your CD player to the OPTICAL IN1 jack, you should assign that jack to the CD input selector. By default, the COAXIAL IN1 jack is assigned to the DVD/ BD input selector, although this can be changed. Here are the default assignments.

Input selector

DVD/BD COAX1 COAX1

VCR/DVR COAX2 COAX2

CBL/SAT COAX3 COAX3

Game OPT1 OPT1 AUX 1 FRONT (Fixed) FRONT (Fixed) AUX2 ----- -----

TV/Tape ----- OPT2

Tuner - - - - - (Fixed) - - - - - (Fixed)

CD OPT2 OPT3

Phono - - - - - - - - - -

Port ----- -----

Press the [Receiver] button followed by the [Setup] button.

The main menu appears onscreen. If the main menu doesn’t appear, make

sure the appropriate external input is selected on your TV.

Use the Up and Down [q]/[w] buttons to select “1. Input/Output Assign”, and then press [Enter].

The “Input/Output Assign” menu appears.

Default assignment

(DTR-70.1) (DTR-80.1)

1. Input/Output Assign

1. Monitor Out

2. HDMI Input

3. Component Video Input

4. Digital Audio Input

5. Analog Audio Input

6. Gamma Curve

Use the Up and Down [q]/[w] buttons to select an input selector, and use the Left and Right [e]/ [r] buttons to select “COAX1”, “COAX2”, “COAX3”, “OPT1”, “OPT2”, “OPT3” (DTR-80.1), or “----- (analog)”.

• When an HDMI IN is assigned to an input selector in “HDMI Input Setup” on page 51, the AV receiver will select audio from HDMI IN as a priority.

• Press the [Enter] button when you do not use the signal of audio from the HDMI IN. The “ ” mark is displayed like “COAX1 ”.

• “AUX 1” is used only for digital input from the front panel terminals.

Examples:

If you connect your DVD player to the OPTICAL IN 1 jack, set “DVD/BD” to “OPT1”.

If you want to listen to audio from the component connected to the OPTICAL IN 2 jack when the VCR/DVR input selector is selected, set “VCR/DVR” to “OPT2”. If you want to listen to audio from the component connected to the COAXIAL IN 1 jack when the CBL/ SAT input selector is selected, set “CBL/SAT” to “COAX1”. For input selectors that you don’t want to assign a digital input jack, set to “- - - - - (analog)”.

Press the [Setup] button.

The setup menu closes.

Use the Up and Down [q]/[w] buttons to select “4. Digital Audio Input”, and then press [Enter].

The “Digital Audio Input” menu appears.

1–4. Digital Audio Input

DVD/BD VCR/DVR CBL/SAT GAME AUX 1

COAX1 COAX2 COAX3

OPT1

FRONT

Notes:

• Available sampling rate for PCM signals from a digital input (optical and coaxial) is 32/44.1/48/88.2/ 96 kHz/16, 20, 24 bit.

• If you connect an input component (such as UP-A1 Dock that seated iPod) to the UNIVERSAL PORT jack, you cannot assign any input to Port selector.

• This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.

Page 54

First Time Setup—Continued

Analog Audio Input Setup

If you connect a component to the AV receiver’s analog multichannel input, you must assign that input to an input selector. For example, if you connect your DVD/ BD player to the MULTI CH input, you must assign it to the DVD/BD input selector.

Press the [Receiver] button, followed by the [Setup] button.

The main menu appears onscreen. If the main menu doesn’t appear, make

sure the appropriate external input is selected on your TV.

Use the Up and Down [q]/[w] buttons to select “1. Input/Output Assign”, and then press [Enter].

The “Input/Output Assign” menu appears.

1. Input/Output Assign

1. Monitor Out

2. HDMI Input

3. Component Video Input

4. Digital Audio Input

5. Analog Audio Input

6. Gamma Curve

Use the Up and Down [q]/[w] buttons to select “5. Analog Audio Input”, and then press [Enter].

The “Analog Audio Input” menu appears.

1–5. Analog Audio Input

Multich

Subwoofer Input Sensitivity

- - - - -

0dB

Press the [Setup] button.

The setup menu closes.

Notes:

• To listen to the component connected to the multichannel input, press the [Audio] button and select the “Audio selector” (see page 125).

• This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.

Speaker Settings

If you change these settings, you must run Audyssey MultEQ® XT Room Correction and Speaker Setup again (see page 58).

If the impedance of any speaker is 4 ohms or more but less than 6, set the minimum speaker impedance to 4 ohms.

To use bi-amping, bridging or passive subwoofer, you must change the “Speakers Type(Front)” setting. For hookup information, see pages 21 to 23.

Notes:

• When bridging is used, the AV receiver is able to drive up to 7.2 speakers in the main room.

• When bi-amping is used, the AV receiver is able to drive up to 7.2 speakers in the main room.

• Before you change these settings, turn down the volume.

Press the [Receiver] button, followed by the [Setup] button.

The main menu appears onscreen. If the main menu doesn’t appear, make sure the appropriate external input is

selected on your TV.

Use the Left and Right [e]/[r] buttons to select an input selector.

You can assign the multichannel input to the following input selectors: “DVD/BD”, “VCR/DVR”, “CBL/ SAT”, “Game”, “AUX1”, “AUX2”, “TV/Tape”, “CD”, or “Phono”. If you don’t want to assign the multichannel input, set to “- - - - -”.

Page 55

First Time Setup—Continued

Use the Up and Down [q]/[w] buttons to select “2. Speaker Setup”, and then press [Enter].

The “Speaker Setup” menu appears.

2. Speaker Setup

1. Speaker Settings

2. Speaker Configuration

3. Speaker Distance

4. Level Calibration

5. Equalizer Settings

6. THX Audio Setup

Use the Up and Down [q]/[w] buttons to select “1. Speaker Settings”, and then press [Enter].

The “Speaker Settings” menu appears.

2–1. Speaker Settings

Speaker Impedance Speakers Type(Front) Passive Subwoofer Powered Zone2 Powered Zone3 Powered Zone4

6ohms

Normal

Not Use

Not Act Not Act Not Act

Use the Up and Down [q]/[w] buttons to select “Speaker Impedance”, and then use the Left and Right [e]/[r] buttons to select:

4ohms: Select if the impedance of any

speaker is 4 ohms or more but less than 6.

6ohms: Select if the impedances of all

speakers are between 6 and 16 ohms.

Note:

When bridging is used, “Speaker Impedance” setting is fixed at “8ohms”.

Use the Up and Down [q]/[w] buttons to select “Speakers Type(Front)”, and then use the Left and Right [e]/[r] buttons to select:

Normal: Select this if you’ve con-

nected your front speakers normally.

Bi-Amp: Select this if you’ve con-

nected your front speakers for bi-amped operation.

BTL: Select this if you’ve con-

nected your front speakers for bridged operation. The BTL indicator will appear on the display.

Note:

Surround back speakers and Powered Zone 3/4 cannot be used if you select “Bi-Amp” or “BTL”.

Use the Up and Down [q]/[w] buttons to select “Passive Subwoofer”, and then use the Left and Right [e]/[r] buttons to select:

Use: Select this if you’ve con-

nected passive subwoofers.

Not Use: Select this if you’ve con-

nected no passive subwoofers.

Note:

Powered Zone 2/4 cannot be used if “Passive Subwoofer” is set to “Use”.

Press the [Setup] button.

The setup menu closes.

Powered Zone 2/3/4

See “Setting the Powered Zone 2/3/4” on page 141.

Note:

This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.

Page 56

First Time Setup—Continued

TV Format Setup (Australian models)

For the onscreen setup menus to display properly, you must specify the TV system used in your area.

Press the [Receiver] button followed by the [Setup] button.

The main menu appears onscreen. If the main menu doesn’t appear, make

sure the appropriate external input is selected on your TV.

Use the Up and Down [q]/[w] buttons to select “6. Miscellaneous”, and then press [Enter].

The “Miscellaneous” menu appears.

6. Miscellaneous

1. Volume Setup

2. OSD Setup

3. 12V Trigger A Setup

4. 12V Trigger B Setup

5. 12V Trigger C Setup

When you’ve finished, press the [Setup] button.

The setup menu closes.

Note:

This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.

FM/AM Frequency Step Setup

For FM/AM tuning to work properly, you must specify the FM/AM frequency step used in your area. Note that when this setting is changed, all radio presets are deleted.

Press the [Receiver] button, followed by the [Setup] button.

The main menu appears onscreen. If the main menu doesn’t appear, make

sure the appropriate external input is selected on your TV.

Use the Up and Down [q]/[w] buttons to select “2. OSD Setup”, and then press [Enter].

The “OSD Setup” menu appears.

6–2. OSD Setup

Immediate Display Display Position TV Format Language

Bottom

Auto

English

Use the Up and Down [q]/[w] buttons to select “TV Format”, and then use the Left and Right

[e]/[r] buttons to select:

Auto: Select this to automatically

detect the TV system from the video input signals.

NTSC: Select if the TV system in

your area is NTSC.

PAL: Select if the TV system in

your area is PAL.

Use the Up and Down [q]/[w] buttons to select “7. Hardware Setup”, and then press [Enter].

The “Hardware Setup” menu appears.

7. Hardware Setup

1. Remote ID

2. Multi Zone

3. Tuner

4. HDMI

5. Network

6. Firmware Update

Page 57

First Time Setup—Continued

Use the Up and Down [q]/[w] buttons to select “3. Tuner”, and then press [Enter].

The “Tuner” menu appears.

(North American models)

7–3. Tuner

FM/AM Frequency Step SAT Radio Mode

(Australian models)

7–3. Tuner

AM Frequency Step 9kHz

Use the Left and Right [e]/[r] buttons to select:

(North American models)

200kHz/10kHz:

Select if 200 kHz/10 kHz steps are used in your area.

50kHz/9kHz:

Select if 50 kHz/9 kHz steps are used in your area.

200kHz/10kHz

None

VCR/DVR TV/ Tape

Game

Press the [TV/Tape], [Game] or [VCR/DVR] input selector button so that “TV/TAPE”, “GAME” or “VCR/DVR” appears on the display.

(Australian models)

10kHz: Select if 10 kHz steps are

used in your area.

9kHz: Select if 9 kHz steps are used

in your area.

Note:

This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.

Press the [Setup] button.

The setup menu closes.

Changing the Input Display

If you connect an u-capable Onkyo MiniDisc recorder, CD recorder, or RI Dock to the TV/TAPE IN/ OUT jacks, or connect an RI Dock to the GAME IN or VCR/DVR IN jacks, for u to work properly, you must change this setting. This setting can only be changed on the AV receiver.

(3 seconds)

Notes:

• DOCK can be selected for the TV/Tape or Game or VCR/DVR input selector, but not at the same time.

• Enter the appropriate remote control code before using the AV receiver’s remote controller for the first time (see page 150).

Press and hold down the [TV/ Tape], [Game] or [VCR/DVR] input selector button (about 3 seconds) to change the setting.

Repeat this step to select MD, CDR, or DOCK.

For the TV/Tape input selector, the setting changes in this order:

TV/TAPE → MD → CDR

→

DOCK For the Game input selector, the setting changes in this order: GAME

↔ DOCK

For the VCR/DVR input selector, the setting changes in this order: VCR/DVR

→

↔ DOCK

Page 58

First Time Setup—Continued

Audyssey MultEQ® XT Room Correction and Speaker Setup

With the supplied calibrated microphone, Audyssey MultEQ XT automatically determines the number of speakers connected, their size for purposes of bass management, optimum crossover frequencies to the subwoofer (if present), and distances from the primary listening position.

Audyssey MultEQ XT then removes the distortion caused by room acoustics by capturing room acoustical problems over the listening area in both the frequency and time domain. The result is clear, well-balanced sound for everyone. Enabling Audyssey MultEQ XT allows you to also use Audyssey Dynamic EQ maintains the proper octave-to-octave balance at any volume level (see page 108).

Before using this function, connect and position all of your speakers.

If Audyssey Dynamic EQ is set to “On”, Audyssey Dynamic Volume™ becomes available.

About Audyssey Dynamic EQ

Audyssey Dynamic EQ solves the problem of deteriorating sound quality as volume is decreased by taking into account human perception and room acoustics. Dynamic EQ selects the correct frequency response and surround levels moment-by-moment at any userselected volume setting. The result is bass response, tonal balance, and surround impression that remain constant despite changes in volume. Dynamic EQ combines information from incoming source levels with actual output sound levels in the room, a prerequisite for delivering a loudness correction solution. Audyssey Dynamic EQ works in tandem with Audyssey MultEQ XT to provide well-balanced sound for every listener at any volume level.

About Audyssey Dynamic Volume

Audyssey Dynamic Volume solves the problem of large variations in volume level between television programs, commercials, and between the soft and loud passages of movies. Dynamic Volume looks at the preferred volume setting by the user and then monitors how the volume of program material is being perceived by listeners in real time to decide whether an adjustment is needed. Whenever necessary, Dynamic Volume makes the necessary rapid or gradual adjustments to maintain the desired playback volume level while optimizing the dynamic range. Audyssey Dynamic EQ is integrated into Dynamic Volume so that as the playback volume is adjusted automatically, the perceived bass response, tonal balance, surround impression, and dialog clarity remain the same whether watching movies, flipping between television channels, or changing from stereo to surround sound content.

™

, which

Measurement Positions

To create a listening environment in your home theater that all listeners will enjoy, Audyssey MultEQ XT takes measurements at up to eight positions within the listening area.

■ First measurement point

Also referred to as the Main Listening Position this refers to the most central position where one would normally sit within the listening environment. MultEQ XT uses the measurements from this position to calculate speaker distance, level, polarity, and the optimum crossover value for the subwoofer.

■ Second

These are the other listening positions (i.e., the places where the other listeners will sit). You can measure up to eight positions.

The following examples show some typical home theater seating arrangements. Choose the one that best matches yours, and position the microphone accordingly when prompted.

−eighth measurement positions

TV TV TV

: listening area : listening position

–

Page 59

First Time Setup—Continued

Using Audyssey MultEQ® XT

On/Standby

Speaker setup microphone

Enter

qwer

Turn on the AV receiver and the connected TV.

On the TV, select the input to which the AV receiver is connected.

Set the speaker setup microphone at the Main Listening Position a (page 58), and connect it to the Setup Mic jack.

The speaker setting menu appears.

MultEQ XT: Auto Setup

Speakers Type(Front) Passive Subwoofer Powered Zone2 Powered Zone3 Powered Zone4

Normal

Not Use

Not Act Not Act Not Act

If you change these settings, refer to step 5 on “Speaker Settings” (page 54) or step 4 on “Setting the Powered Zone 2/3/4” (page 141).

When you’ve finished, press the [Enter] button.

MultEQ XT: Auto Setup

Please place setup microphone at

center of listening area at

ear height.

Notes:

• If any of your speakers is 4 ohms, change “Speaker Impedance” setting before running Audyssey MultEQ XT Room Correction and Speaker Setup (see page 54).

• If the AV receiver is muted, it will be unmuted automatically when Audyssey MultEQ XT Room Correction and Speaker Setup starts.

• Room correction and speaker setup cannot be performed while a pair of headphones is connected.

• It takes about 30 minutes to complete the room correction and speaker setup for eight positions. Total measurement time varies depending on the number of speakers.

• Do not disconnect the speaker setup microphone during the room correction and speaker setup, unless you want to cancel the setup.

• Do not connect or disconnect any speakers during the room correction and speaker setup.

Notes:

• Before starting Audyssey MultEQ XT Room Correction and Speaker Setup, arrange the room and connect the speakers as you would for enjoying movies. Changes to the room after auto setup requires you run the auto setup again, as room EQ characteristics may have changed.

• When starting the room correction and speaker setup, do not stand between the speakers and microphone, and avoid obstacles blocking the path between speakers and microphone. This will produce inaccurate results.

• Position the microphone at ear height of a seated listener with the microphone tip pointed directly at the ceiling using a tripod. Do not hold the microphone in your hand during measurements as this will produce inacurate results.

Page 60

First Time Setup—Continued

• Make the room as quiet as possible. Background noise can disrupt the room measurements. Close windows, silence cell phones, televisions, radios, air conditioners, fluorescent lights, home appliances, light dimmers, or other devices.

• Cell phones should be turned off or placed away from all audio electronics during the measurement process as Radio Frequency Interference (RFI) may cause measurement disruptions (even if the cell phone is not in use).

Press [Enter].

The room correction and speaker setup starts.

MultEQ XT: Auto Setup

Do not unplug setup microphone.

Please keep quiet.

Now measuring. . .

Test tones are played through each speaker as Audyssey MultEQ

XT Room Correction and Speaker Setup runs. This process takes a few minutes. Please refrain from talking during measurements and do not stand between speakers and the microphone.

The following screen appears.

MultEQ XT: Auto Setup

When prompted, place the setup microphone at the next position, and repeat step 5.

After the 3rd to the 8th measurement, the following screen appears.

MultEQ XT: Auto Setup

Please select [Next], when measuring next position,

and select [Finish], when ending.

Next Finish(Calculate)

Use the Up and Down [q]/[w] buttons to select an option, and then press [Enter].

Select “Next” to begin measuring the next measurement position. After the 8th measurement has been taken, the procedure automatically proceeds to step 8.

Finish(Calculate):

Select this if you don’t want to measure any more listening positions and are ready to calculate the results, then go to step 8.

When the measurements are complete, the following screen appears.

MultEQ XT: Auto Setup

Please place setup microphone at 2nd position at

ear height.

Place the setup microphone at the next position (page 58), and then press [Enter].

Audyssey MultEQ XT performs more measurements. This takes a few minutes.

MultEQ XT: Auto Setup

Do not unplug setup microphone.

Please keep quiet.

Now measuring. . .

Calculating...

Page 61

First Time Setup—Continued

When the calculations are complete, the following screen appears.

MultEQ XT: Auto Setup

Review SP Configuration Subwoofer No Front Full Band Center 40Hz Surround 120Hz Front Wide Full Band Front High Full Band Surr Back 150Hz Surr Back Ch 2ch

Save Cancel

Use the Up and Down [q]/[w] buttons to select an option, and then press [Enter].

The options are:

Save:

Save the calculated settings and exit the room correction and speaker setup.

Cancel:

Cancel the room correction and speaker setup.

Note:

You can view the calculated settings for the speaker configuration, speaker distances, and speaker levels by using the Left and Right [e]/[r] buttons.

If you selected “Save”, the results are saved, and the following screen appears.

MultEQ XT: Auto Setup

Saving...

Notes:

• When the room correction and speaker setup is complete, the “Equalizer Settings” (page 104) will be set to “Audyssey” and “Dynamic EQ” (page 108) will be set to “On”.

• You can cancel the Room Correction and Speaker Setup at any point in this procedure simply by disconnecting the setup microphone.

Error Messages

While the room correction and speaker setup is in progress, one of the following error messages may appear:

❏ Ambient noise is too high.

MultEQ XT: Auto Setup

Ambient noise is too high.

Retry Cancel

This message appears if the background noise is too loud and the measurements cannot be performed properly.

Remove the source of the noise and try again.

Retry: Return to the measured point immediately

before and start set up again.

Cancel: Cancel the room correction and speaker setup.

❏ Speaker Detect Error

This message appears if a speaker is not detected. “Yes” means that a speaker was detected. “No” means that no speaker was detected.

Tip:

See “Speaker Configuration” (page 18) for appropriate settings.

Disconnect the speaker setup microphone.

MultEQ XT: Auto Setup

Please, unplug setup microphone.

MultEQ XT: Auto Setup

Speaker Detect Error

Retry Cancel

FL : No SL : --FWL : --FHL : --SBL : --C : ---

FR : --SR : --FWR : --FHR : --SBR : --SW1 : --SW2 : ---

The front speaker has not been detected.

Page 62

First Time Setup—Continued

MultEQ XT: Auto Setup

Speaker Detect Error

Retry Cancel

FL : Yes SL : --FWL : Yes FHL : Yes SBL : --C : Yes

FR : No SR : --FWR : Yes FHR : Yes SBR : --SW1 : --SW2 : ---

One of the front speakers has not been detected.

MultEQ XT: Auto Setup

Speaker Detect Error

Retry Cancel

FL : Yes SL : --FWL : Yes FHL : Yes SBL : --C : Yes

FR : --SR : --FWR : No FHR : Yes SBR : --SW1 : --SW2 : ---

One of the front wide speakers has not been detected.

MultEQ XT: Auto Setup

Speaker Detect Error

Retry Cancel

FL : Yes SL : --FWL : Yes FHL : Yes SBL : --C : Yes

FR : --SR : --FWR : --FHR : No SBR : --SW1 : --SW2 : ---

One of the front high speakers has not been detected.

MultEQ XT: Auto Setup

Speaker Detect Error

Retry Cancel

FL : Yes SL : No FWL : Yes FHL : Yes SBL : Yes C : Yes

FR : Yes SR : Yes FWR : Yes FHR : Yes SBR : Yes SW1 : --SW2 : ---

One of the surround speakers has not been detected.

MultEQ XT: Auto Setup

Speaker Detect Error

Retry Cancel

FL : Yes SL : --FWL : No FHL : No SBL : --C : Yes

FR : Yes SR : No FWR : No FHR : No SBR : Yes SW1 : --SW2 : ---

The surround back speakers have been detected but the surround speakers haven’t.

MultEQ XT: Auto Setup

Speaker Detect Error

Retry Cancel

FL : Yes SL : --FWL : No FHL : Yes SBL : --C : Yes

FR : Yes SR : No FWR : No FHR : Yes SBR : --SW1 : --SW2 : ---

The front high speakers have been detected but the surround speakers haven’t.

MultEQ XT: Auto Setup

Speaker Detect Error

Retry Cancel

FL : Yes SL : --FWL : Yes FHL : No SBL : --C : Yes

FR : Yes SR : No FWR : Yes FHR : No SBR : --SW1 : --SW2 : ---

The front wide speakers have been detected but the surround speakers haven’t.

MultEQ XT: Auto Setup

Speaker Detect Error

Retry Cancel

FL : Yes SL : --FWL : Yes FHL : Yes SBL : No C : Yes

FR : Yes SR : Yes FWR : Yes FHR : Yes SBR : Yes SW1 : --SW2 : ---

The right surround back speaker has been detected but the left surround back speaker hasn’t.

MultEQ XT: Auto Setup

Speaker Detect Error

Retry Cancel

FL : Yes SL : --FWL : No FHL : No SBL : Yes C : Yes

FR : Yes SR : No FWR : No FHR : No SBR : No SW1 : --SW2 : ---

The left surround back speaker has been detected but the surround speaker hasn’t.

MultEQ XT: Auto Setup

Speaker Detect Error

Retry Cancel

FL : Yes SL : Yes FWL : Yes FHL : Yes SBL : Yes C : Yes

FR : Yes SR : Yes FWR : Yes FHR : Yes SBR : Yes SW1 : No SW2 : Yes

Subwoofer 2 has been detected but Subwoofer 1 has not.

Page 63

First Time Setup—Continued

MultEQ XT: Auto Setup

Speaker Detect Error

Retry Cancel

FL : Error SL : Yes FWL : --FHL : --SBL : Yes C : Yes

FR : Yes SR : Yes FWR : --FHR : --SBR : Yes SW1 : Yes SW2 : Yes

The speaker type detected does not match what was expected. The speaker may be incorrect type or broken. Please check that it is the correct speaker type.

❏ Speaker Matching Error!

MultEQ XT: Auto Setup

Speaker Matching Error!

Retry Cancel

The number of speakers detected on the second measurement and later was different to the number detected on the first measurement.

Make sure speakers that could not be detected are connected properly.

Retry: Return to step 2 and try again.

Cancel: Cancel the room correction and speaker setup.

❏ Writing Error!

MultEQ XT: Auto Setup

Writing Error!

Changing the Speaker Settings Manually

If you wish to make changes to the settings found during the room correction and speaker setup, follow the directions on pages 102 to 105.

Notes:

• Please note that THX recommends any THX main speakers be set to “80Hz(THX)”. If you set up your speakers using Audyssey MultEQ XT Room Correction and Speaker Setup, please make sure manually that any THX speakers are set to 80 Hz (THX) crossover (see page 102).

• Sometimes due to the electrical complexities of subwoofers and the interaction with the room, THX recommends setting the level and the distance of the subwoofer manually.

• Sometimes due to interaction with the room, you may notice irregular results when setting the level and/or distance of the main speakers. If this happens, THX recommends setting them manually.

Using Powered Subwoofers

If you’re using powered subwoofers that output very low-frequency sound at a low volume level, it may not be detected by Audyssey MultEQ and Speaker Setup.

If the “Subwoofer” appears on the “Review SP Configuration” screen as “No”, increase the subwoofer’s volume to the half-way point, set it to its highest crossover frequency, and then try running Audyssey MultEQ XT Room Correction and Speaker Setup again. Note that if the volume is set too high and the sound distorts, detection issues may occur, so use an appropriate volume level. If the subwoofer has a lowpass filter switch, set it to Off or Direct. Refer to your subwoofer’s instruction manual for details.

XT Room Correction

Retry Cancel

This message appears if saving fails.

Try saving again. If this message appears after 2 or 3 attempts, the AV receiver is probably malfunctioning. Contact the dealer from whom you purchased this unit.

Retry: Return to step 2 and try again.

Cancel: Cancel the room correction and speaker setup.

Page 64

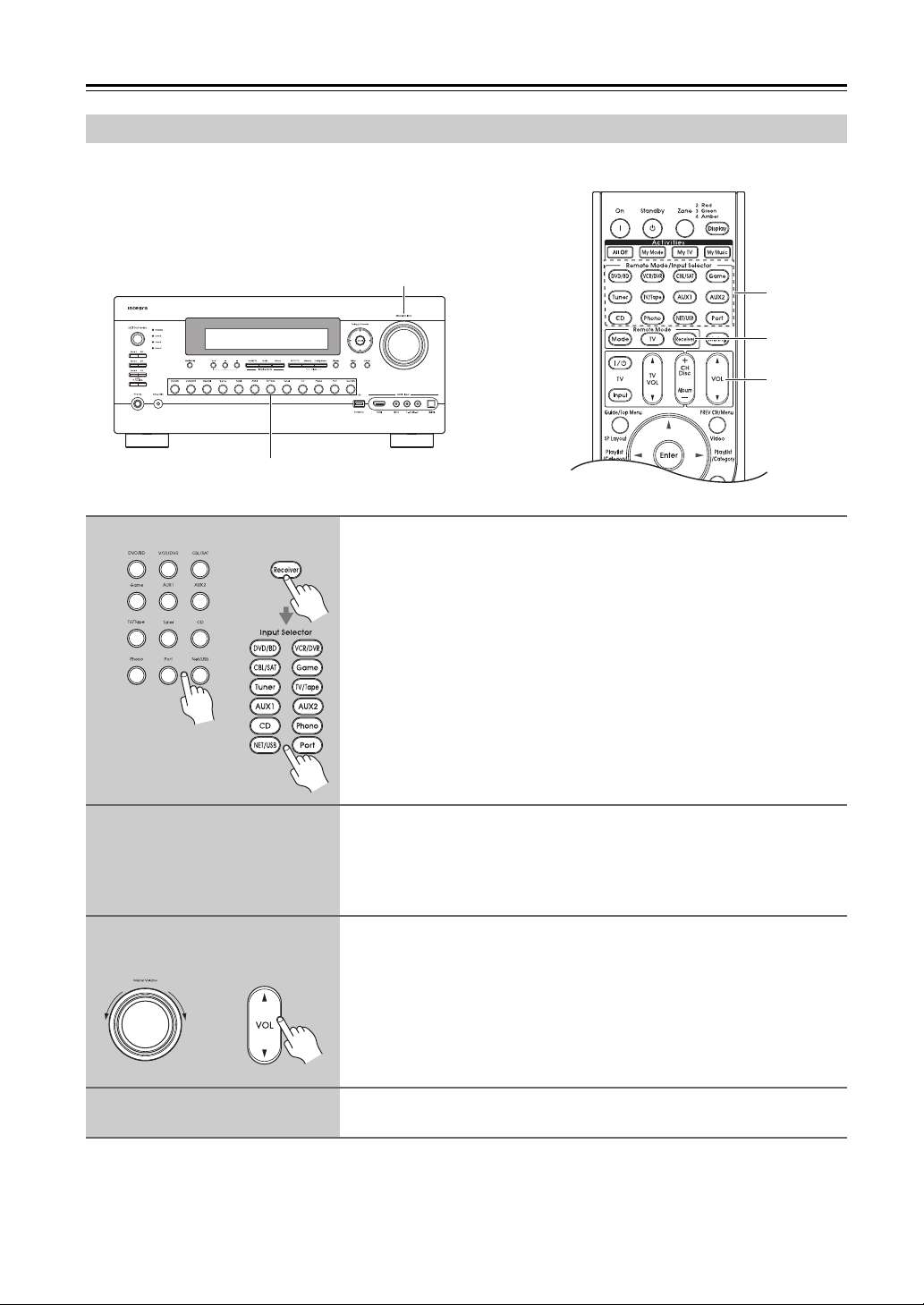

Basic Operations

Selecting the Input Source

This section explains how to select the input source (i.e., the AV component that you want to listen to or watch).

AV receiver

Input selector buttons

Remote

controller

Master Volume

Input Selector

Receiver

VOL q/w

Use the AV receiver’s input selector buttons to select the input source.

To select the input source with the remote controller, press the [Receiver] button, and then press the Input Selector buttons.

AV receiver Remote

controller

Start playback on the source component.

When you select DVD or another video component, on your TV, you’ll need to select the video input that’s connected to the AV receiver’s HDMI outputs, COMPONENT VIDEO MONITOR OUT or MONITOR OUT.

On some DVD players, you may need to turn on the digital audio output.

To adjust the volume, use the Master Volume control, or the remote controller’s VOL [q]/[w] button.

The volume can be set to –Q play). The AV receiver is designed for home theater enjoyment. It has a wide volume range, allowing precise adjustment. The volume level can also be displayed as an absolute value. See “Volume Setup” on page 116.

Select a listening mode and enjoy!

See “Using the Listening Modes” on page 88.

dB, –81.5 dB through +18.0 dB (relative dis-

Page 65

Basic Operations—Continued

Tone, –, + Dimmer

Display

Press [Receiver] first.

SP Layout

Dimmer

Adjusting the Bass & Treble

You can adjust the bass and treble for the front speakers, except when the Direct or THX listening mode is selected.

AV receiver

Press the [Tone] button repeatedly to select either “Bass” or “Treble” for each speaker or subwoofer.

Use the Down and Up [–]/[+] buttons to adjust.

Muting

Sleep

Notes:

• This setting is not available when the multichannel Analog input is selected.

• To bypass the bass and treble tone circuits, select the Direct or THX listening mode.

Displaying Source Information

You can display various information about the current input source as follows.

Remote

controller

Note:

This procedure can also be performed on the AV receiver by using its [Display] button.

The following information can typically be displayed for input sources.

Input source

Listening

Signal format*

Sampling

frequency

Input Signal

Resolution

Output

Resolution

* If the input signal is analog, no format information is displayed.

If the input signal is PCM, the sampling frequency is displayed. If the input signal is digital but not PCM, the signal format and the number of channels is displayed. For some digital input signals, including multichannel PCM, the signal format, number of channels, and sampling frequency is displayed. Information is displayed for about three seconds, then the previously displayed information reappears.

Press the [Receiver] button, and then press the [Display] button repeatedly to cycle through the available information.

mode

Tip:

This procedure can also be performed on the remote controller by using [Audio] button (see page 123).

■ Bass

You can boost or cut low-frequency sounds output by the front speakers from –10 dB to +10 dB in 2 dB steps.

■ Tr eble

You can boost or cut high-frequency sounds output by the front speakers from –10 dB to +10 dB in 2 dB steps.

Page 66

Basic Operations—Continued

Setting the Display Brightness

You can adjust the brightness of the AV receiver’s display.

Remote

controller

Press the [Receiver] button, and then press the [Dimmer] button repeatedly to select: dim, dimmer, or normal brightness.

Alternatively, you can use the AV receiver’s [Dimmer] button (North American models).

Muting the AV Receiver

You can temporarily mute the output of the AV receiver.

Remote

controller

Press the [Receiver] button, and then press the [Muting] button.

The output is muted and the MUTING indicator flashes on the display, as shown.

To unmute the AV receiver, press the [Muting] button again, or adjust the volume.

The Mute function is cancelled when the AV receiver is set to Standby.

[Sleep] button while the sleep time is being displayed, you’ll shorten the sleep time by 10 minutes.

Selecting Speaker Layout

Remote

controller

Front High or Front Wide Speakers

• When the Powered Zone 2 is being used (page 141), this setting cannot be selected.

• When the listening mode that doesn’t support Front High or Front Wide speakers is used, the setting cannot be selected.

• If you use surround back speakers, the speaker selection will be based on the combination of surround back and front high speakers, or surround back and front wide speakers.

Press the [Receiver] button, and then press the [SP Layout] button repeatedly.

Using Headphones

You can connect a pair of stereo headphones (1/4-inch phone plug) to the AV receiver’s Phones jack for private listening, as shown.

Tip:

You can specify how much the output is muted with the “Muting Level” setting (page 116).

Using the Sleep Timer

With the sleep timer, you can set the AV receiver to turn off automatically after a specified period.

Remote

controller

Press the [Receiver] button, and then press the [Sleep] button repeatedly to select the required sleep time.

The sleep time can be set from 90 to 10 minutes in 10 minute steps.

The SLEEP indicator appears on the display when the sleep timer has been set. The specified sleep time appears on the display for about five seconds, then the previous display reappears.

If you need to cancel the sleep timer, press the [Sleep] button repeatedly until the SLEEP indicator disappears.

To check the time remaining until the AV receiver sleeps, press the [Sleep] button. Note that if you press the

Notes:

• Always turn down the volume before connecting your headphones.

• While the headphones plug is inserted in the Phones jack, the Headphone indicator, speaker/channel indicator FL and FR light up. (The Powered Zone 2/3/4 speakers are not turned off.)

• When you connect a pair of headphones, the listening mode is set to Stereo, unless it’s already set to Stereo, Mono or Direct.

• The following listening modes can be used with headphones (the listening modes available also depend on the currently selected input source): Stereo, Direct, and Mono.

Page 67

Basic Operations—Continued

Using Easy Macros

Using the Easy macro command in the Easy macro mode, you can sequentially operate Integra/Onkyo components with simple commands by simply pressing one button. These commands are user-specifiable (see page 159) and the default actions are described below. Press the Activities buttons to start the Easy macro command. Once the AV receiver has entered the normal macro mode, all of the Activities buttons will automatically switch to the normal macro mode. In this case, pressing the [All Off] button will set only the AV receiver to Standby mode.

Activities buttons

All Off, My Movie, My TV, My Music

Receiver

Audio

My Music (default):

1. The Integra/Onkyo CD player connected to the AV receiver is turned on.

2. The AV receiver is turned on.

3. The input selector of the AV receiver is set to “CD”.

4. The player starts playback.

Note:

Once you start the Easy macro command, you cannot use other Activities buttons during the execution. If you want to operate other components halfway, press the [All Off] to stop and press desired Activities button.

Press the [All Off] button.

1. The connected component stops and turns off.

2. The AV receiver turns off.

3. The TV connected to the AV receiver turns off (Standby).

*1. Depending on the start-up time of the DVD/BD player, the AV

receiver may not activate this playback command. In this case, press the Play [1] button on the remote controller.

*2. When [My Music] is selected, with the default settings, this will

not be performed.

*3. With some televisions, the power may not be turned off (or enter

standby).

*2*3

Press the [My Movie], [My TV], or [My Music] button.

My Movie (default):

1. The TV connected to the AV receiver is turned on.

2. The Integra/Onkyo DVD player connected to the AV receiver is turned on.

3. The AV receiver is turned on.

4. The input selector of the AV receiver is set to “DVD/BD”.

5. The player starts playback.

My TV (default):

1. The TV connected to the AV receiver is turned on.

2. The cable set-top box connected to the AV receiver is turned on.

3. The AV receiver is turned on.

4. The input selector of the AV receiver is set to “CBL/SAT”. You can enjoy cable TV.

Page 68

Basic Operations—Continued

Changing Source Component

When you want to operate the component that is not assigned as the source component, you can assign it as the source component. For the default assignment, see page 160.

While holding down the Remote Mode button, press and hold down the [My Movie], [My TV], or [My Music] button (about 3 seconds).

The Activities buttons that you pressed flashes twice, indicating that the setting has been established.

Examples:

When you press the [My Music] button and want to start the Onkyo Cassette recorder, while holding down [TV/ Tape] button, press and hold down the [My Music] button (about 3 seconds)

(3 seconds)

flashes twice.

Tip:

This procedure can also be performed via onscreen menu (see page 159).

Restoring Default

(3 seconds)

While holding down the [Audio] button, press and hold down the [All Off] button until the [All Off] button lights up (about 3 seconds).

Release the [Audio] and [All Off] buttons and press the [All Off] button again.

The [All Off] button flashes twice.

Page 69

Listening to the Radio

Using the Tuner

With the built-in tuner you can enjoy AM and FM radio stations. You can store your favorite stations as presets for quick selection.

Tuning q/wTuner

Tuning Mode

Listening to the Radio

Use the [Tuner] input selector button to select either AM or FM.

In this example, FM has been selected. Each time you press the [Tuner] button, the input source changes between AM

and FM.

Band Frequency

(Actual display depends on country.)

Tuning into Radio Stations

TUNED

AUTO

TERE

■ Manual Tuning Mode

This model changes FM/AM frequency in 200k/10k (or 50k/9k) Hz steps. In Manual Tuning mode, FM stations will be in mono.

Tuning into weak FM stereo stations

If the signal from a stereo FM station is weak, it may be impossible to get good reception. In this case, switch to

Manual Tuning mode and listen to the station in mono.

■ Tuning into Stations by Frequency

You can tune into AM and FM stations directly by entering the appropriate frequency.

Press the [Tuning Mode] button so that the AUTO indicator disappears from the display.

Press and hold the Tuning Up or Down [q]/[w] buttons.

The frequency stops changing when you release the button.

Press the buttons repeatedly to change the frequency one step at a time.

■ Auto Tuning Mode

When tuned into a station, the TUNED indicator appears. When tuned into a stereo FM station, the FM STEREO indicator appears on the display, as shown.

Press the [Tuning Mode] button so that the AUTO indicator appears on the display.

Press the Tuning Up or Down [q]/ [w] buttons.

Searching stops when a station is found.

Remote

controller

Remote

controller

Press the [Tuner] button repeatedly to select AM or FM, followed by the [D.TUN] button.

(Actual display depends on country.)

Within 8 seconds, use the number buttons to enter the frequency of the radio station.

For example, to tune to 87.5 (FM), press 8, 7, 5.

Page 70

Listening to the Radio—Continued

Presetting AM/FM Stations

Preset e/r

You can store a combination of up to 40 of your favorite AM/FM radio stations as presets.

Tune into the AM/FM station that you want to store as a preset.

Press the [Memory] button.

The preset number flashes.

While the preset number is flashing (about 8 seconds), use the Preset [e]/[r] buttons to select a preset from 1 through 40.

Memory

AV receiver

Remote

controller

Remote

controller

To select a preset, use the Preset [e]/[r] buttons, or the remote controller’s CH [+/–] button.

You can also use the remote controller’s number buttons to select a preset directly.

Deleting Presets

Memory, Tuning Mode

Note:

You can name your radio presets for easy identification (see page 111). Its name is displayed instead of the band and frequency.

Press the [Memory] button again to store the station or channel.

The station or channel is stored and the preset number stops flashing.

Repeat this procedure for all of your favorite AM/FM radio stations.

Selecting Presets

Preset e/r

Select the preset that you want to delete.

See the previous section.

While holding down the [Memory] button, press the [Tuning Mode] button.

The preset is deleted and its number disappears from the display.

Page 71

Listening to the Radio—Continued

Listening to Satellite Radio (North American models)

To listen to Satellite Radio, you’ll need to connect a SIRIUS Satellite Radio tuner (sold separately) to your Sirius-Ready receiver. SIRIUS Satellite Radio is available to residents of the US (except Alaska and Hawaii) and Canada.

Satellite Radio delivers a variety of commercial-free music from categories ranging from Pop, Rock, Country, R&B, Dance, Jazz, Classical and many more plus coverage of all the top professional and college sports including play by play games from select leagues and teams. Additional programming includes expert sports talk, uncensored entertainment, comedy, family programming, local traffic and weather and news from your most trusted sources.

Once you’ve purchased a SIRIUS tuner you’ll need to activate it and subscribe to begin enjoying the service. Easy to follow installation and setup instructions are provided with the SIRIUS tuner. There are a variety of programming packages available, including the option of adding “The Best of XM” programming to the SIRIUS service. The Best of XM service is not available to SIRIUS Canada subscribers at this time. Please check with SIRIUS Canada for any updates using the numbers and web address below.

Family friendly packages are also available to restrict channels featuring content that may be inappropriate for children.

To subscribe to SIRIUS, U.S. and Canadian customers can call 1-888-539-SIRI (1-888-539-7474) or visit sirius.com (US) or siriuscanada.ca (Canada).

Indoor/outdoor antenna with 21-foot cable

SiriusConnect

receiver

8-pin mini DIN connector cable

SIRIUS jack

AV receiver

AC power

To use the included antenna indoors, you must place it at a north-, west-, or east-facing window, depending on where you live. If this isn’t possible, you’ll need to install it outside, away from any overhead obstructions.

Positioning the Antenna

For a consistent satellite signal, the antenna must be positioned correctly. Use the following map to determine which area you are in and position the antenna accordingly.

SKY

NORTH

Setting Up the SiriusConnect™ Home Tuner

The optional SiriusConnect Home tuner kit includes everything for easy home installation, including the SiriusConnect receiver, indoor/outdoor antenna with 21foot cable, 8-pin mini DIN connector cable, and an AC power adapter. See the SiriusConnect Home tuner’s instructions for more information. Use the 8-pin mini DIN connector cable to connect the SiriusConnect receiver to the SIRIUS jack on the rear of the AV receiver.

WEST EAST

SOUTH

HORIZON

Area 1: Point the antenna toward the sky in the east, northeast, or southeast, either through a window or out-

side.

Area 2: Point the antenna toward the sky in the north or northeast, either through a window or outside.

Area 3: Point the antenna toward the sky in the north or northwest, either through a window or outside.

Area 4: Point the antenna toward the sky in the west, northwest, or southwest, either through a window or

outside. Area 5: Put the antenna outside and point it straight up.

The antenna cannot be used indoors.

Page 72

Listening to the Radio—Continued

Setting the Satellite Radio Mode

Before you can listen to SIRIUS Satellite Radio, you must set the “SAT Radio Mode” to “SIRIUS”.

Receiver

qwer

Enter

Setup

Remote

controller

Press the [Receiver] button, followed by the [Setup] button.

The main menu appears onscreen.

Use the Up and Down [q]/[w] buttons to select “3. Tuner”, and then press [Enter].

The “Tuner” screen appears.

7–3. Tuner

FM/AM Frequency Step SAT Radio Mode

200kHz/10kHz

None

Use the Up and Down [q]/[w] buttons to select “SAT Radio Mode”,

and use the Left and Right [e]/ [r] buttons to select “SIRIUS”.

Pressing the Left and Right [e]/[r] buttons cycles through the following options: None

Q SIRIUS

None: Select if you’re not using

Satellite Radio.

SIRIUS: Select to use SIRIUS Satel-

lite Radio.

Use the Up and Down [q]/[w] buttons to select “7. Hardware Setup”, and then press [Enter].

The “Hardware Setup” menu appears.

7. Hardware Setup

1. Remote ID

2. Multi Zone

3. Tuner

4. HDMI

5. Network

6. Firmware Update

When you’ve finished, press the [Setup] button.

The setup menu closes.

Note:

This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.

Page 73

Listening to the Radio—Continued

Selecting SIRIUS Satellite Radio

Remote

controller

Note:

This procedure can also be performed on the AV receiver. Press the [Tuner] button repeatedly to select “SIRIUS”.

Press the [Receiver] button, and then press the [Tuner] button repeatedly to select “SIRIUS”.

If “CHECK SR TUNER” appears on the display, make sure the SiriusConnect receiver is connected properly. If “ANTENNA ERROR” appears, make sure the antenna is connected properly.

Signing Up for SIRIUS Satellite Radio

Before you can use SIRIUS Satellite Radio, you must first sign up for an account. You’ll need a major credit card and your SIRIUS Satellite Radio ID, which you can get from the AV receiver, as explained below, or from the SiriusConnect Home tuner package.

Tuning q/w

Tuner

Receiver

qwer

Enter

Selecting SIRIUS Satellite Radio Channels

There are three ways to select SIRIUS Satellite Radio channels:

1. Channel Search mode: select any channel.

2. Category Search mode: select channels by category.

3. Direct tuning: enter channel number.

■ Channel Search Mode

Remote

controller

Press the [Tuner] button, and then press the [Enter] button repeatedly to select Channel Search mode.

AV receiver

Note:

Your ID is also displayed on the Satellite Radio screen. See “Positioning the SiriusConnect Home Antenna” on page 80.

Use the Tuning Up and Down [q]/ [w] buttons to select channel 0.

Your SIRIUS Satellite Radio ID number is displayed. Write it below.

To sign up, go to: http://activate.siriusradio.com

or call: 1-888-539-SIRIUS (7474)

Use the Up and Down [q]/[w] buttons to select a channel.

Channel number

Channel name

You can also use the Left and Right [e]/[r] buttons to select a category.

Page 74

Listening to the Radio—Continued

Tuner

■ Direct Tuning

You can select a SIRIUS Satellite Radio channel directly by entering its number.

Number

buttons

D.TUN

■ Category Search Mode

Remote

controller

Press the [Tuner] button, and then press the [Enter] button repeatedly to select Category Search mode.

CH +/–

qwer

Return

Remote

controller

Notes:

• If you select an unavailable channel, “INVALID CHANNEL” appears on the display.

• If you select a channel that you are not subscribed to, “CALL SIRIUS” appears on the display.

• Channels that are locked must be unlocked before you can listen to them. See “SIRIUS Parental Lock” on page 76 for more information.

Press the [Tuner] button, followed by the [D.TUN] button.

Within 8 seconds, use the number buttons to enter the channel number.

For example, to select channel #20, press 0, 2, 0, or 2, 0.

Use the Left and Right [e]/[r] buttons to select a category, and

use the Up and Down [q]/[w] buttons to select a channel in that category.

■ Selecting the Previous Channel

AV receiver

Remote

controller

To listen to the previously selected SIRIUS Satellite Radio channel, press the [Return] button.

Page 75

Listening to the Radio—Continued

Selecting Channels on the AV Receiver Presetting SIRIUS Satellite Radio Channels

You can store a combination of up to 40 of your favorite SIRIUS Satellite Radio channels and AM/FM radio stations as presets.

Tuner

Tuning q/w

Return

AV receiver

Tuning Mode

Press the [Tuner] button repeatedly to select “SIRIUS”.

Press the [Tuning Mode] button repeatedly to select Channel Search mode or Category Search mode.

Press the [Enter] button repeatedly to select a category.

Use the Tuning Up and Down [q]/ [w] buttons to select a channel.

In Channel Search mode, you can select any channel.

In Category Search mode, you can only select channels from the currently selected category.

Enter

AV receiver

Memory

Tune into the SIRIUS channel that you want to store as a preset.

Press the [Memory] button.

The preset number flashes.

While the preset number is flashing (about 8 seconds), use the

Preset [e]/[r] buttons to select a preset from 1 through 40.

Press the [Memory] button again to store the channel.

The channel is stored and the preset number stops flashing.

Repeat this procedure for all of your favorite SIRIUS Satellite Radio channels.

Tuning Mode

Preset e/

Page 76

Listening to the Radio—Continued

■ Selecting Presets

AV receiver

To select a preset, use the Preset [e]/[r] buttons, or the remote

controller’s CH [+/–] button.

Remote

controller

You can also use the remote controller’s number buttons to select a preset directly.

■ Deleting Presets

SIRIUS Parental Lock

With SIRIUS Parental Lock, you can lock out channels that you do not want to receive and use a 4-digit PIN number to prevent others from unlocking them.

Receiver

qwer

Enter

Setup

Remote

controller

Press the [Receiver] button, followed by the [Setup] button.

The main menu appears onscreen.

AV receiver

Select the preset that you want to delete.

See the previous section.

While holding down the [Memory] button, press the [Tuning Mode] button.

The preset is deleted and its number disappears from the display.

Use the Up and Down [q]/[w] buttons to select “7. Hardware Setup”, and then press [Enter].

The “Hardware Setup” menu appears.

7. Hardware Setup

1. Remote ID

2. Multi Zone

3. Tuner

4. HDMI

5. Network

6. Firmware Update

Page 77

Listening to the Radio—Continued

Use the Up and Down [q]/[w] buttons to select “3. Tuner”, and then press [Enter].

The “Tuner” screen appears.

7–3. Tuner

FM/AM Frequency Step SAT Radio Mode Antenna Aiming SIRIUS Parental Lock

200kHz/10kHz

SIRIUS

Use the Up and Down [q]/[w] buttons to select “SIRIUS Parental Lock”, and then press [Enter].

The “SIRIUS Parental Lock” screen appears.

SIRIUS Parental Lock

Enter Code

0 1 2 3 4 5 6 7 8 9

Use the Left and Right [e]/[r] buttons to select a number on the screen, and then press [Enter].

Repeat this for each of the four digits in the PIN number.

If you’re entering the PIN number for the very first time, the PIN is stored, and the following screen appears.

SIRIUS Parental Lock

Edit Code Parental Lock

If you’ve already set a PIN number, you must enter the correct PIN to get to this screen. If you enter the wrong PIN, the message “Wrong Code!” appears and you’ll have to enter the PIN again.

Note:

The “SIRIUS Parental Lock” cannot be set unless the AV receiver and the SiriusConnect receiver are connected.

Note:

If the “SAT Radio Mode” is set to “None” (see page 72), the “SIRIUS Parental Lock” item is not available.

Use the Up and Down [q]/[w] buttons to select “Parental Lock”, and then press [Enter].

The “Parental Lock” screen appears.

Use the Up and Down [q]/[w] buttons to select a channel, and use

the Left and Right [e]/[r] buttons to select “Locked” or “Unlocked”.

The number, name, and status of the currently selected channel is displayed.

Page 78

Listening to the Radio—Continued

When you’ve finished, press [Enter] to save your changes, or press [Return] to return to the previous screen without saving.

When [Enter] is pressed, the confirmation message “Locked” or “Unlocked” appears.

Press the [Setup] button.

The setup menu closes.

Notes:

• While a channel is locked, it cannot be selected for listening.

• To unlock a channel, you must enter the correct PIN number and change it to Unlocked in step 6.

• This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.

Changing the PIN Number

Use the Up and Down [q]/[w] buttons to select “7. Hardware Setup”, and then press [Enter].

The “Hardware Setup” menu appears.

7. Hardware Setup

1. Remote ID

2. Multi Zone

3. Tuner

4. HDMI

5. Network

6. Firmware Update

Use the Up and Down [q]/[w] buttons to select “3. Tuner”, and then press [Enter].

The “Tuner” screen appears.

7–3. Tuner

FM/AM Frequency Step SAT Radio Mode Antenna Aiming SIRIUS Parental Lock

200kHz/10kHz

SIRIUS

Enter

Setup

Remote

controller

Receiver

qwer

Press the [Receiver] button, followed by the [Setup] button.

The main menu appears onscreen.

Use the Up and Down [q]/[w] buttons to select “SIRIUS Parental Lock”, and then press [Enter].

The “SIRIUS Parental Lock” screen appears.

SIRIUS Parental Lock

Enter Code

0 1 2 3 4 5 6 7 8 9

Note:

If the “SAT Radio Mode” is set to “None” (see page 72), the “SIRIUS Parental Lock” item is not available.

Page 79

Listening to the Radio—Continued

Use the Left and Right [e]/[r] buttons to select a number on the screen, and then press [Enter].

Repeat this for each of the four digits in the PIN number.

If you’re entering the PIN number for the very first time, the PIN is stored, and the following screen appears.

SIRIUS Parental Lock

Edit Code Parental Lock

If you’ve already set a PIN number, you must enter the correct PIN to get to this screen. If you enter the wrong PIN, the message “Wrong Code!” appears and you’ll have to enter the PIN again.

Note:

The “SIRIUS Parental Lock” cannot be set unless the AV receiver and the SiriusConnect receiver are connected.

Confirm the new PIN number by entering it again.

If you confirm the PIN number correctly, the new PIN is saved and the message “Complete” appears.

If you confirm the PIN number incorrectly, “Wrong Code!” appears, and

you’ll be returned to step 5 to try again.

Press the [Setup] button.

The setup menu closes.

Displaying SIRIUS Satellite Radio Information

Display

Use the Up and Down [q]/[w] buttons to select “Edit Code”, and then press [Enter].

The “New Code” screen appears.

SIRIUS Parental Lock

New Code

0 1 2 3 4 5 6 7 8 9

Use the Left and Right [e]/[r] buttons to select a number on the screen, and then press [Enter]. Repeat this for each of the four digits in the new PIN number.

The “Confirm” screen appears.

SIRIUS Parental Lock

Confirm

0 1 2 3 4 5 6 7 8 9

Remote

controller

Press the [Display] button repeatedly to cycle through the available information.

The following information can be displayed:

Channel name

Using RDS (Australian models)

RDS only works in areas where RDS broadcasts are available.

When tuned into an RDS station, the RDS indicator appears.

RDS indicator

■ What is RDS?

RDS stands for Radio Data System and is a method of transmitting data in FM radio signals. It was developed by the European Broadcasting Union (EBU) and is available in most European countries. Many FM stations use it these days. In addition to displaying text information, RDS can also help you find radio stations by type (e.g., news, sport, rock, etc.).

The AV receiver supports four types of RDS information:

PS (Program Service)

When tuned to an RDS station that’s broadcasting PS information, the station’s name will be displayed. Pressing the [Display] button will display the frequency for 3 seconds.

RT (Radio Text)

When tuned to an RDS station that’s broadcasting text information, the text will be shown on the display (see page 83).

PTY (Program Type)

This allows you to search for RDS radio stations by type (see page 83).

TP (Traffic Program)

This allows you to search for RDS radio stations that broadcast traffic information (see page 83).

Notes:

• In some cases, the text characters displayed on the AV receiver may not be identical to those broadcast by the radio station. Also, unexpected characters may be displayed when unsupported characters are received. This is not a malfunction.

• If the signal from an RDS station is weak, RDS data may be displayed intermittently or not at all.

RDS Program Types (PTY)

Typ e Di spl ay

None None

News reports News

Current affairs Affairs

Information Info

Sport Sport

Education Educate

Drama Drama

Culture Culture

Science and technology Science

Varied Varied

Pop music Pop M

Rock music Rock M

Middle of the road music Easy M

Light classics Light M

Serious classics Classics

Other music Other M

Weather Weather

Finance Finance

Children’s programmes Children

Social affairs Social

Religion Religion

Phone in Phone In

Travel Travel

Leisure Leisure

Jazz music Jazz

Country music Country

National music Nation M

Oldies music Oldies

Folk music Folk M

Documentary Document

Alarm test TEST

Alarm Alarm!

Page 83

Listening to the Radio—Continued

When tuned to an RDS station that’s broadcasting text information, the text can be displayed.

Displaying Radio Text (RT)

RT/PTY/TP

Press the [RT/PTY/TP] button once.

The RT information scrolls across the display.

Notes:

• The message “Waiting” may appear while the AV receiver waits for the RT information.

• If the message “ no RT information is available.

No Text Data” appears on the display,

Finding Stations by Type (PTY)

Preset e/r

RT/PTY/TP Enter

You can search for radio stations by type.

Press the [RT/PTY/TP] button twice.

The current program type appears on the display.

To start the search, press [Enter].

The AV receiver searches until it finds a station of the type you specified, at which point it stops briefly before continuing with the search.

When a station you want to listen to is found, press [Enter].

If no stations are found, the message “Not Found” appears.

Listening to Traffic News (TP)

RT/PTY/TP Enter

You can search for stations that broadcast traffic news.

Press the [RT/PTY/TP] button three times.

If the current radio station is broadcasting TP (Traffic Program), “[TP]” will appear on the display, and traffic news will be heard as and when it’s broadcast. If “TP” without square brackets appears, this means that the station is not broadcasting TP.

To locate a station that is broadcasting TP, press [Enter].

The AV receiver searches until it finds a station that’s broadcasting TP.

If no stations are found, the message “Not Found” appears.

Use the Preset [e]/[r] buttons to select the type of program you want.

See the table on page 82.

Page 84

Universal Port Option UP-A1 Dock for iPod

About the UP-A1 Dock

With the UP-A1 Dock (sold separately), you can easily play the music, photo, or movie stored on your Apple iPod through the AV receiver and enjoy great sound. You can use the AV receiver’s remote controller to operate your iPod.

For the latest information on the Dock, see the Onkyo Web site at: http://www.onkyo.com

iPod adapter

Dock connector

Compatible iPod models

For information about which iPod models are supported by the UP-A1 Dock, see the UP-A1 Dock instruction manual.

Note:

Before using the UP-A1 Dock, update your iPod with the latest software, available from the Apple Web site.

Function Overview

■ Basic Operation

Note:

The AV receiver may take several seconds to startup, so you might not hear the first few seconds of the first song.

• Auto Power On Function

If you start iPod playback while the AV receiver is on Standby, the AV receiver will automatically turn on and select your iPod as the input source.

• Direct Change Function

If you start iPod playback while listening to another input source, the AV receiver will automatically select your iPod as the input source.

• Using the AV receiver’s Remote Controller

You can use the AV receiver’s remote controller to control basic iPod functions.

Operating Notes:

• Functionality depends on your iPod model and generation.

• Before selecting a different input source, stop iPod playback to prevent the AV receiver from selecting the iPod input source by mistake.

• If any accessories are connected to your iPod, the AV receiver may not be able to select the input source properly.

• While your iPod is in the UP-A1 Dock, its volume control has no effect. If you adjust your iPod models volume control while it’s in the UP-A1 Dock, make sure it’s not set too high before you reconnect your headphones.

• The Auto Power On function will not work if you set your iPod in the UP-A1 Dock while it is playing.

• When Zone 2, 3 or 4 is turned on, you can’t use Auto Power On and Direct Change functions.

■ Using Your iPod models Alarm Clock

You can use your iPod models Alarm Clock function to automatically turn on your iPod and the AV receiver at a specified time. The AV receiver’s input source will automatically be set to the [Port] selector.

Notes:

• To use this function, your iPod must be in the UP-A1 Dock, and the UP-A1 Dock must be connected to the AV r ec eiv er .

• When you use this function, be sure to set the AV receiver’s volume control to a suitable level.

• The AV receiver may take several seconds to startup, so you might not hear the first few seconds of the first song.

• When Zone 2, 3 or 4 is turned on, you can’t use this function.

• You cannot use this function for sound effects on your iPod.

■ Charging Your iPod models Battery

The UP-A1 Dock charges your iPod models battery while your iPod is in the UP-A1 Dock and connected to the UNIVERSAL PORT jacks on the AV receiver. While your iPod is seated in the UP-A1 Dock, its battery will be charged when the AV receiver is set to “On” or “Standby”.

Note:

When UP-A1 Dock that seated iPod is connected, the power consumption on standby mode slightly increases.

Page 85

Universal Port Option UP-A1 Dock for iPod—Continued

Controlling iPod

By pressing the Remote Mode button that’s been programmed with the remote control code for your Dock, you can control your iPod in the Dock with the following buttons. The [Port] button is preprogrammed with the remote control code for controlling a Dock with Universal Port connector. For details on entering a remote control code, see page 150.

When Using a Dock with Universal Port connector:

• Connect the Dock to the UNIVERSAL PORT jack.

• See the Dock’s instruction manual for more information.

You can control your iPod when “Port” is selected as the input source.

Press [Port] button first.

g h

k l

b c

Notes:

• With some iPod models and generations, certain buttons may not work as expected.

• For detailed operation of the iPod, please refer to the instruction manual.

m n

a Arrow [q]/[w] and Enter buttons

Used to navigate menus and select items.

b Previous [7] button

Restarts the current song. Press it again to select the previous song.

c Fast Reverse [5] button

Press and hold to fast reverse.

d Pause [3] button

Pauses playback. Press it again to start playback.

e Repeat button

Used with the repeat function.

f Display button

Select Standard or Extended mode

g Muting button (66)

Mutes or unmutes the AV receiver.

h Album +/– button

Selects the next or previous album.

i VOL [q]/[w] button (64)

Adjusts the volume of the AV receiver.

j Playlist [e]/[r] buttons

Selects the previous or next playlist on the iPod.

k Return button

Exits the menu or returns to the previous menu.

l Play [1] button

Starts playback. If the component is off, it will turn on automatically.

m Next [6] button

Selects the next song.

n Fast Forward [4] button

Press and hold to fast forward.

o Stop [2] button

Stops playback and displays a menu.

p Random button

Used with the shuffle function.

Standard mode

Nothing is displayed on your TV and you navigate and select your contents by using your iPod’s display. Only this mode can playback the video.

Extended mode

Playlists (artists, albums, songs, and so on) are displayed on your TV, and you can navigate and select your music while looking at your TV.

Notes:

• In Extended mode, the playback will be continued even if the AV receiver is turned off.

• In Extended mode, you cannot operate your iPod directly.

• In Extended mode, it may take some time to acquire the contents.

• In Extended mode, video contents can not display on your TV.

Page 86

Universal Port Option UP-A1 Dock for iPod—Continued

Status messages

❏ PORT Reading

The AV receiver is checking the connection with the dock.

❏ PORT Not Support

The AV receiver do not support the connected dock.

❏ PORT UP-A1

UP-A1 Dock is connected.

Notes:

• The AV receiver displays the message “UP-A1” for several seconds after recognizing the UP-A1.

• When the status message is not displayed on the AV receiver’s display, check the connection to your iPod.

Page 87

Recording

This section explains how to record the selected input source to a component with recording capability, and how to record audio and video from different sources.

Notes:

• The surround sound and DSP listening modes cannot be recorded.

• Copy-protected DVDs cannot be recorded.

• Sources connected to a digital input cannot be recorded. Only analog inputs can be recorded.

• DTS signals will be recorded as noise, so don’t attempt analog recording of DTS CDs or LDs.

AV Recording

Audio sources can be recorded to a recorder (e.g., cassette deck, CDR, MD) connected to the TV/TAPE OUT jack. Video sources can be recorded to a video recorder (e.g., VCR, DVD recorder) connected to the VCR/DVR OUT jack. See pages 29 to 44 for hookup information.

Use the input selector buttons to select the source that you want to record.

You can watch the source while recording. The AV receiver’s Master Volume control has no effect on recording.

Recording Separate AV Sources

Here you can record audio and video from completely separate sources, allowing you to overdub audio onto your video recordings. This function takes advantage of the fact that when an audio-only input source (i.e., TV/ Tape, Tuner, CD or Phono) is selected, the video input source remains unchanged.

In the following example, audio from the CD player connected to the CD IN, and video from the camcorder connected to the AUX1 Input Video jack are recorded by the VCR connected to the VCR/DVR OUT jacks.

Camcorder

video signal audio signal

On your recorder, start recording.

On the source component, start playback.

If you select another input source during recording, that input source will be recorded.

VCRCD player

Prepare the camcorder and CD player for

playback.

Prepare the VCR for recording.

Press the [AUX1] input selector button.

Press the [CD] input selector button.

This selects the CD player as the audio source, but leaves the camcorder as the video source.

Start recording on the VCR and start play-

back on the camcorder and CD player.

The video from the camcorder and the audio from the CD player are recorded by the VCR.

Page 88

Using the Listening Modes

Selecting Listening Modes

See “About the Listening Modes” on page 96 for detailed information about the listening modes.

• The Dolby Digital and DTS listening modes can only be selected if your DVD player is connected to the AV receiver with a digital audio connection (coaxial, optical, or HDMI).

• The listening modes you can select depend on the format of the input signal. To check the format, see “Displaying Source Information” on page 65.

• While a pair of headphones is connected, you can only select the Mono, Direct, or Stereo listening mode.

Selecting on the AV receiver

Listening Mode

Selecting with the Remote Controller

Movie/TV

Music

Remote

controller

Press the [Receiver] button, and then press the Listening Mode button repeatedly to select the listening mode.

THX Game

■ Listening Mode buttons

[Movie/TV] button

This button selects the listening modes intended for use with movies and TV.

[Music] button

This button selects the listening modes intended for use with music.

[Game] button

This button selects the listening modes intended for use with video games.

■ Listening Mode buttons

[Movie/TV] button

This button selects the listening modes intended for use with movies and TV.

[Music] button

This button selects the listening modes intended for use with music.

[Game] button

This button selects the listening modes intended for use with video games.

[THX] button

This button selects the THX listening modes.

Page 89

Using the Listening Modes—Continued

Listening Modes Available for Each Source Format

The Speaker layout illustration shows which speakers are set to active in the “Speaker Configuration” setting (see page 102).

The Listening Mode button illustration shows that listening modes can be selected.

LH RH

FL FR

LW RW

SL SR

SBRSBL

: active in the speaker settings

: non-active in the speaker settings

: Front left speaker

: Front wide left speaker

: Front high left speaker

: Center speaker

: Front high right speaker

: Front wide right speaker

: Front right speaker

: Surround right speaker

: Surround back right speaker

SBR

: Surround back left speaker

SBL

: Surround left speaker

: Subwoofer

Mono/Multiplex Sources

✔: Available Listening Modes

Speaker layout

LH RH

*1 *1*2

FL FR

LW RW

*1 *1 *2

SL SR

✔

*1*2

*2*2

SBRSBL

Listening Mode Button

LH RH

FL FR

LW RW

SL SR

SBRSBL

LH RH

FL FR

LW RW

SL SR

SBRSBL

LH RH

FL FR

LW RW

SL SR

SBRSBL

Direct ✔✔✔✔

Stereo ✔✔✔✔

Mono ✔✔✔✔

Orchestra ✔

Unplugged ✔

Studio-Mix ✔

TV Logic ✔

Game-RPG ✔

Game-Action ✔

Game-Rock ✔

Game-Sports ✔

All Ch Stereo ✔✔

Full Mono ✔✔ T-D (Theater-

Dimensional)

✔✔✔✔

Notes:

*1 For 7ch output, output can be switched between Front high or Front wide speakers by pressing the [SP Layout] button (depending on the

“Speaker Configuration” setting (see page 102)).

*2 For 9ch output, output can be switched between the combination of Surround back and Front high, or Surround back and Front wide

speakers by pressing the [SP Layout] button.

• Available sampling rate for PCM input signal is 32/44.1/48/88.2/96/176.4/192kHz.

• The listening modes cannot be selected with some source formats.

Page 90

Using the Listening Modes—Continued

Stereo Source (1/2)

✔: Available Listening Modes

Speaker layout

LH RH

*1 *1 *2*2

FL FR

LW RW

*1 *1 *2 *2

SL SR

*2*2

SBRSBL

✔

Listening Mode Button

LH RH

FL FR

LW RW

SL SR

SBRSBL

LH RH

FL FR

LW RW

SL SR

SBRSBL

LH RH

FL FR

LW RW

SL SR

SBRSBL

Direct ✔✔✔✔

Stereo ✔✔✔✔

Mono ✔✔✔✔

PLII/PLIIx

Movie* PLII/PLIIx

Music* PLII/PLIIx

Game*

✔✔✔

PLIIz Height ✔

Neo:6 Cinema ✔✔✔

Neo:6 Music ✔✔✔

Neural Surround Neural Digital Music PLII/PLIIx

Movie*

✔✔✔

✔✔

THX Cinema PLII/PLIIx Movie Audyssey DSX*

PLllz Height THX Cinema Neo:6 Cinema THX Cinema Neo:6 Cinema Audyssey DSX* Neural THX Cinema PLII/PLIIx

Music*

✔✔

THX Music PLII/PLIIx Music Audyssey DSX*

PLllz Height THX Music Neo:6 Music THX Music Neo:6 Music Audyssey DSX*

✔✔

Neural Digital Music

✔✔

THX Music

Page 91

Using the Listening Modes—Continued

Stereo Source (2/2)

✔: Available Listening Modes

Speaker layout

LH RH

*1 *1 *2*2

FL FR

LW RW

*1 *1 *2 *2

SL SR

*2*2

SBRSBL

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

Listening Mode Button

PLII/PLIIx

Game*

LH RH

FL FR

LW RW

SL SR

SBRSBL

LH RH

FL FR

LW RW

SL SR

SBRSBL

LH RH

FL FR

LW RW

SL SR

SBRSBL

✔✔

THX Games PLII/PLIIx Game Audyssey DSX*

PLllz Height THX Games Neural THX Games

✔

PLII Game THX Ultra2 Games PLIIz Height THX Ultra2 Games

Orchestra ✔

Unplugged ✔

Studio-Mix ✔

TV Logic ✔

Game-RPG ✔

Game-Action ✔

Game-Rock ✔

Game-Sports ✔

All Ch Stereo ✔✔

Full Mono ✔✔

T-D (TheaterDimensional)

✔✔✔✔

Notes:

*1 For 7ch output, output can be switched between Front high or Front wide speakers by pressing the [SP Layout] button (depending on the

“Speaker Configuration” setting (see page 102)).

*2 For 9ch output, output can be switched between the combination of Surround back and Front high, or Surround back and Front wide

speakers by pressing the [SP Layout] button.

*3 If there are no surround back speakers, or Powered Zone 3 is being used, Dolby Pro Logic II is used. *4 • This listening mode can be selected only when all the following conditions are satisfied:

a. Center speaker is connected to the AV receiver. b. Either of Front High speakers or Front Wide speakers is connected to the AV receiver.

• Output can be switched between Front high or Front wide speakers by pressing the [SP Layout] button (depending on the “Speaker Configuration” setting (see page 102)).

• Available sampling rate for PCM input signal is 32/44.1/48/88.2/96/176.4/192kHz.

• The listening modes cannot be selected with some source formats.

Page 92

Using the Listening Modes—Continued

5.1 channel Sources (1/2)

✔: Available Listening Modes

Speaker layout

LH RH

*1 *1 *2*2

FL FR

LW RW

*1 *1 *2 *2

SL SR

*2*2

SBRSBL

✔

Listening Mode Button

LH RH

FL FR

LW RW

SL SR

SBRSBL

LH RH

FL FR

LW RW

SL SR

SBRSBL

LH RH

FL FR

LW RW

SL SR

SBRSBL

Direct ✔✔✔✔

Stereo ✔✔✔✔

Mono ✔✔✔✔

DolbyDigital/ DolbyDigital Plus/TrueHD/ Multichannel/ DTS/

DTS 96/24 DTS Express/

✔✔✔

DTS-HD High Resolution Audio/DTS-HD Master Audio/

DSD

PLIIx Movie ✔

PLIIx Music ✔

PLIIz Height

DolbyEX ✔

DolbyEX Audyssey DSX

Neo:6 ✔

Neo:6 Audyssey

DSX

Neural Surround

Audyssey DSX

THX Cinema ✔✔

PLIIx Movie THX Cinema PLIIx Movie

Audyssey DSX

PLIIz Height THX Cinema Neo:6 THX Cinema Neural THX Cinema

THX Music ✔✔

Page 93

Using the Listening Modes—Continued

5.1 channel Sources (2/2)

✔: Available Listening Modes

Speaker layout

LH RH

*1 *1 *2*2

FL FR

LW RW

SL SR

*1 *1 *2 *2

*2*2

SBRSBL

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

Listening Mode Button

LH RH

FL FR

LW RW

SL SR

SBRSBL

LH RH

FL FR

LW RW

SL SR

SBRSBL

LH RH

FL FR

LW RW

SL SR

SBRSBL

PLIIx Music THX Music PLIIx Music

Audyssey DSX

PLIIz Height THX Music Neo:6 THX Music Neural THX Music

THX Games ✔✔

PLIIx Height THX Games Neo:6 THX Games Neural THX Games THX Surround EX THX Ultra2 Cinema PLIIz THX Ultra2 Cinema THX Ultra2 Music PLIIz THX Ultra2 Music THX Ultra2 Games PLIIz THX Ultra2 Games

Orchestra ✔

Unplugged ✔

Studio-Mix ✔

TV Logic ✔

Game-RPG ✔

Game-Action ✔

Game-Rock ✔

Game-Sports ✔

All Ch Stereo ✔✔

Full Mono ✔✔

T-D (TheaterDimensional)

✔✔✔✔

Page 94

Using the Listening Modes—Continued

Notes:

*1 For 7ch output, output can be switched between Front high or Front wide speakers by pressing the [SP Layout] button (depending on the

“Speaker Configuration” setting (see page 102)).

*2 For 9ch output, output can be switched between the combination of Surround back and Front high, or Surround back and Front wide

speakers by pressing the [SP Layout] button.

*3 AV receiver can input the DSD signal from HDMI IN. Setting the output setting on the player side to PCM might obtain a better sound

according to the player. In that case, set the output setting on the player side to PCM.

*4 • This listening mode can be selected only when all the following conditions are satisfied:

a. Center speaker is connected to the AV receiver. b. Either of Front High speakers or Front Wide speakers is connected to the AV receiver.

• Output can be switched between Front high or Front wide speakers by pressing the [SP Layout] button (depending on the “Speaker

Configuration” setting (see page 102)).

*5 Depending on the input source, DTS is used.

• Available sampling rate for PCM input signal is 32/44.1/48/88.2/96/176.4/192kHz.

• The listening modes cannot be selected with some source formats.

Page 95

Using the Listening Modes—Continued

7.1 channel Sources

✔: Available Listening Modes

Speaker layout

LH RH

*1 *1 *2*2

FL FR

LW RW

SL SR

*1 *1 *2 *2

*2*2

SBRSBL

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

Listening Mode Button

LH RH

FL FR

LW RW

SL SR

SBRSBL

LH RH

FL FR

LW RW

SL SR

SBRSBL

LH RH

FL FR

LW RW

SL SR

SBRSBL

Direct ✔✔✔✔

Stereo ✔✔✔✔

Mono ✔✔✔✔

Multichannel/ DolbyDigital Plus/TrueHD/ DTS-HD High Resolution Audio/DTS-HD

✔✔

Master Audio/ DTS-ES Discrete*

DTS-ES Matrix*

PLIIz Height ✔

Audyssey DSX*

✔

THX Cinema ✔✔

PLIIz Height THX Cinema

THX Music ✔✔

PLIIz Height THX Music

THX Games ✔✔

PLIIz Height THX Games

Orchestra ✔

Unplugged ✔

Studio-Mix ✔

TV Logic ✔

Game-RPG ✔

Game-Action ✔

Game-Rock ✔

Game-Sports ✔

All Ch Stereo ✔✔

Full Mono ✔✔

T-D (TheaterDimensional)

✔✔✔✔

Page 96

Using the Listening Modes—Continued

Notes:

*1 For 7ch output, output can be switched between Front high or Front wide speakers by pressing the [SP Layout] button (depending on the

“Speaker Configuration” setting (see page 102)).

*2 For 9ch output, output can be switched between the combination of Surround back and Front high, or Surround back and Front wide

speakers by pressing the [SP Layout] button.

*3 Based on the audio channels contained in the source, the corresponding speakers will output the sound. *4 • This listening mode can be selected only when all the following conditions are satisfied:

a. Center speaker is connected to the AV receiver. b. Either of Front High speakers or Front Wide speakers is connected to the AV receiver.

• Output can be switched between Front high or Front wide speakers by pressing the [SP Layout] button (depending on the “Speaker

Configuration” setting (see page 102)).

*5 If there are no surround back speakers, DTS is used.

• Available sampling rate for PCM input signal is 32/44.1/48/88.2/96/176.4/192kHz.

• The listening modes cannot be selected with some source formats.

About the Listening Modes

The AV receiver’s listening modes can transform your listening room into a movie theater or concert hall, with high fidelity and stunning surround sound.

Direct

In this mode, audio from the input source is output directly with minimal processing, providing high-fidelity reproduction. All of the source’s audio channels are output as they are.

Stereo

Sound is output by the front left and right speakers and subwoofer.

Mono

Use this mode when watching an old movie with a mono soundtrack, or use it with the foreign language soundtracks recorded in the left and right channels of some movies. It can also be used with DVDs or other sources containing multiplexed audio, such as karaoke DVDs.

Multichannel

This mode is for use with PCM multichannel sources.

Dolby Pro Logic IIx

Dolby Pro Logic II

Dolby Pro Logic IIx expands any 2-channel source for

7.1-channel playback. It provides a very natural and seamless surround-sound experience that fully envelops the listener. As well as music and movies, video games can also benefit from the dramatic spatial effects and vivid imaging. If you’re not using any surround back speakers, Dolby Pro Logic II will be used instead of Dolby Pro Logic IIx.

• Dolby PLIIx Movie

Use this mode with any stereo or Dolby Surround (Pro Logic) movie (e.g., TV, DVD, VHS).

• Dolby PLIIx Music

Use this mode with any stereo or Dolby Surround (Pro Logic) music source (e.g., CD, radio, cassette, TV, VHS, DVD).

• Dolby PLIIx Game

Use this mode with video games, especially those that bear the Dolby Pro Logic II logo.

Dolby Pro Logic IIz Height

Dolby Pro Logic IIz Height is designed to more effectively use existing program material when height channel speaker outputs are present. Dolby Pro Logic IIz Height can be used to upmix a variety of sources from movies and music, but are particularly well-suited to upmix game content.

Dolby Digital

Use this mode with DVDs that bear the Dolby Digital logo, and Dolby Digital TV broadcasts. This is the most common digital surround-sound format, and it’ll put you right in the middle of the action, just like being in a movie theater or concert hall.

Audyssey Dynamic Surround Expansion™

Audyssey Dynamic Surround Expansion™ is a scalable system that adds new speakers to improve surround impression. Starting with a 5.1 system Dynamic Surround Expansion first adds Wide channels for the biggest impact on envelopment. Research in human hearing has proven that information from the Wide channels is much more critical in the presentation of a realistic soundstage than then Back Surround channels found in traditional

7.1 systems. Dynamic Surround Expansion then creates a pair of Height channels to reproduce the next most important acoustical and perceptual cues. In addition to these new Wide and Height channels, Dynamic Surround Expansion applies Surround Envelopment Processing to enhance the blend between the front and surround channels.

Page 97

Using the Listening Modes—Continued

5.1-channel source + Dolby EX

These modes expand 5.1-channel sources for 6.1/7.1channel playback. They’re especially suited to Dolby EX soundtracks that include a matrix-encoded surround back channel. The additional channel adds an extra dimension and provides an enveloping surround sound experience, perfect for rotating and fly-by sound effects.

Dolby Digital Plus

Developed for use with HDTV, including the new video disc formats Blu-ray and HD DVD, this is the latest multichannel audio format from Dolby. It supports up to 7.1 channels with 48 kHz sampling rate.

Dolby TrueHD

Designed to take full advantage of the additional storage space offered by the new Blu-ray and HD DVD disc formats, this new Dolby format offers up to 7.1 discrete channels of digital audio with 48/96 kHz, up to 5.1-channels with 192 kHz sampling rate.

5.1-channel source + Dolby PLIIx Music

These modes use the Dolby Pro Logic IIx Music mode to expand 5.1-channel sources for 6.1/7.1-channel playback.

5.1-channel source + Dolby PLIIx Movie

These modes use the Dolby Pro Logic IIx Movie mode to expand 5.1-channel sources for 7.1-channel playback.

DTS

The DTS digital surround-sound format supports up to

5.1 discrete channels and uses less compression for highfidelity reproduction. Use it with DVDs and CDs that bear the DTS logo.

DTS 96/24

This mode is for use with DTS 96/24 sources. This is high-resolution DTS with a 96 kHz sampling rate and 24-bit resolution, providing superior fidelity. Use it with DVDs that bear the DTS 96/24 logo.

DTS-ES Discrete

This mode is for use with DTS-ES Discrete soundtracks, which use a discrete surround back channel for true 6.1/

7.1-channel playback. The seven totally separate audio channels provide better spatial imaging and 360-degree sound localization, perfect for sounds that pan across the surround channels. Use it with DVDs that bear the DTSES logo, especially those with a DTS-ES Discrete soundtrack.

DTS-ES Matrix

This mode is for use with DTS-ES Matrix soundtracks, which use a matrix-encoded back-channel for 6.1/7.1channel playback. Use it with DVDs that bear the DTSES logo, especially those with a DTS-ES Matrix soundtrack.

DTS Neo:6

This mode expands any 2-channel source for up to 7.1channel playback. It uses seven full-bandwidth channels of matrix decoding for matrix-encoded material, providing a very natural and seamless surround sound experience that fully envelops the listener.

•Neo:6 Cinema

Use this mode with any stereo movie (e.g., TV, DVD, VHS).

• Neo:6 Music

Use this mode with any stereo music source (e.g., CD, radio, cassette, TV, VHS, DVD).

5.1-channel source + Neo:6

This mode uses Neo:6 to expand 5.1-channel sources for

6.1/7.1-channel playback.

DTS-HD High Resolution Audio

Developed for use with HDTV, including the new video disc formats Blu-ray and HD DVD, this is the latest multichannel audio format from DTS. It supports up to 7.1 channels with 96 kHz sampling rate.

DTS-HD Master Audio

Designed to take full advantage of the additional storage space offered by the new Blu-ray and HD DVD disc formats, this new DTS format offers up to 7.1 discrete channels of digital audio with 48/96 kHz, up to 5.1-channels with 192 kHz sampling rate.

DTS Express

This format supports up to 5.1 channels and a lower sampling rate of 48 kHz. Applications include interactive audio and commentary encoding for HD DVD Sub Audio and Blu-ray Secondary Audio. Also broadcast and media servers.

Neural Digital Music

Neural Digital Music is a new surround mode specifically designed to enhance the playback of compressed digital music content. It provides listeners with an expanded sound stage and clean surround experience, even with compressed audio sources such as MP3s and Internet streams.

DSD

DSD stands for Direct Stream Digital and is the format used to store digital audio on Super Audio CDs (SACD). This mode can be used with Super Audio CDs that feature multichannel audio.

Page 98

Using the Listening Modes—Continued

THX

Founded by George Lucas, THX develops stringent standards that ensure movies are reproduced in movie theaters and home theaters just as the director intended.

THX Modes carefully optimize the tonal and spatial characteristics of the soundtrack for reproduction in the home-theater environment. They can be used with 2channel matrixed and multichannel sources.

Surround back speaker output depends on the source material and the selected listening mode.

•THX Cinema

THX Cinema mode corrects theatrical soundtracks for playback in a home theater environment. In this mode, THX Loudness Plus is configured for cinema levels and Re-EQ, Timbre Matching, and Adaptive Decorrelation are active.

•THX Music

THX Music mode is tailored for listening to music, which is typically mastered at significantly higher levels than movies. In this mode, THX Loudness Plus is configured for music playback and only Timbre Matching is active.

•THX Games

THX Games mode is meant for spatially accurate playback of game audio, which is often mixed similarly to movies but in a smaller environment. THX Loudness Plus is configured for game audio levels, with Timbre Matching active.

• THX Ultra2 Cinema

This mode expands 5.1-channel sources for 7.1channel playback. It does this by analyzing the composition of the surround source, optimizing the ambient and directional sounds to produce the surround back channel output.

• THX Ultra2 Music

This mode is designed for use with music. It expands

5.1-channel sources for 7.1-channel playback.

•THX Ultra2 Games

This mode is designed for use with video games. It can expand 5.1-channel sources for 6.1/7.1-channel playback.

• THX Surround EX

This mode expands 5.1-channel sources for 6.1/7.1channel playback. It’s especially suited to Dolby Digital EX sources. THX Surround EX, also known as Dolby Digital Surround EX, is a joint development between Dolby Laboratories and THX Ltd.

Neural Surround

Neural Surround employs psychoacoustic frequency domain processing, which allows delivery of a more detailed sound stage, with superior channel separation and localization of audio elements. The Neural Surround modes can expand any 2-channel stereo source for 5.1or 7.1-channel playback, respectively. Use them with CD, radio, cassette, TV, VHS, DVD, and other 2-channel

stereo sources, including video games. Neural Surround can also be used by broadcasters to encode and transmit surround-sound content over a stereo signal, which listeners can enjoy as either surround sound or normal stereo.

Onkyo Original DSP Modes

Orchestra

Suitable for classical or operatic music, this mode emphasizes the surround channels in order to widen the stereo image, and simulates the natural reverberation of a large hall.

Unplugged

Suitable for acoustic instruments, vocals, and jazz, this mode emphasizes the front stereo image, giving the impression of being right in front of the stage.

Studio-Mix

Suitable for rock or pop music, listening to music in this mode creates a lively sound field with a powerful acoustic image, like being at a club or rock concert.

TV Logic

This mode adds realistic acoustics to TV shows produced in a TV studio, surround effects to the entire sound, and clarity to voices.

Game-RPG

Use this mode when playing role playing game discs.

Game-Action

Use this mode when playing action game discs.

Game-Rock

Use this mode when playing rock game discs.

Game-Sports

Use this mode when playing sports game discs.

All Ch Stereo

Ideal for background music, this mode fills the entire listening area with stereo sound from the front, surround, and surround back speakers.

Full Mono

In this mode, all speakers output the same sound in mono, so the sound you hear is the same regardless of where you are within the listening room.

T-D (Theater-Dimensional)

With this mode you can enjoy a virtual surround sound even with only two or three speakers. This works by controlling how sounds reach the listener’s left and right ears. Good results may not be possible if there’s too much reverb, so we recommend that you use this mode in an environment with little or no natural reverb.

Page 99

Advanced Setup

Onscreen Setup Menus

The onscreen setup menus appear on the connected TV and provide a convenient way to change the AV receiver’s various settings. Settings are organized into nine categories on the main menu, most containing a submenu.

Main menu

1. Input/Output Assign

2. Speaker Setup

3. Audio Adjust

4. Source Setup

5. Listening Mode Preset

6. Miscellaneous

7. Hardware Setup

8. Remote Controller Setup

9. Lock Setup

pages 116–117

6. Miscellaneous

1. Volume Setup

2. OSD Setup

3. 12V Trigger A Setup

4. 12V Trigger B Setup

5. 12V Trigger C Setup

pages 117–121

7. Hardware Setup

1. Remote ID

2. Multi Zone

3. Tuner

4. HDMI

5. Network

6. Firmware Update

page 145

page 132

page 56

page 142

Submenus

pages 100–101

1. Input/Output Assign

1. Monitor Out

2. HDMI Input

3. Component Video Input

4. Digital Audio Input

5. Analog Audio Input

6. Gamma Curve

page 54

pages 102–105

2. Speaker Setup

1. Speaker Settings

2. Speaker Configuration

3. Speaker Distance

4. Level Calibration

5. Equalizer Settings

6. THX Audio Setup

pages 106–109

3. Audio Adjust

Multiplex/Mono

Dolby

DTS

Audyss ey

Theater-Dimensional

LFE Level

Direct

pages 110–114

4. Source Setup

1. IntelliVolume

2. A/V Sync

3. Name Edit

4. Picture Adjust

page 49page 51page 52page 53

page 54

DVD/BD

Remote Controller Setup

1. Remote Mode Setup

2. Activities Setup

page 148page 159

page 122

9. Lock Setup

Lock Unlocked

page 115

5. Listening Mode Preset

1. DVD/BD

2. VCR/DVR

3. CBL/SAT

4. GAME

5. AUX1

Page 100

Advanced Setup—Continued

Input/Output Assign

This section explains items on the “Input/Output Assign” menu.

Press the [Receiver] button followed by

the [Setup] button.

The main menu appears onscreen. If the main menu doesn’t appear, make sure the

appropriate external input is selected on your TV.

Use the Up and Down [q]/[w] buttons to

select “1. Input/Output Assign”, and then press [Enter].

Use the Up and Down [q]/[w] buttons to

select the submenu, and then press [Enter].

Monitor Out

Resolution

Brightness –50 to +50 (default: 0)

With this setting you can adjust the picture brightness. “–50” is the darkest. “+50” is the brightest.

Contrast –50 to +50 (default: 0)

With this setting you can adjust contrast. “–50” is the least. “+50” is the greatest.

Hue –20 to +20 (default: 0)

With this setting you can adjust the red/green balance. “–20” is the strongest green. “+20” is the strongest red.

Saturation –50 to +50 (default: 0)

With this setting you can adjust saturation. “–50” is the weakest color. “+50” is the strongest color.

Red Brightness –50 to +50 (default: 0)

With this setting you can adjust the picture red brightness. “–50” is the darkest. “+50” is the brightest.

Red Contrast –50 to +50 (default: 0)

With this setting you can adjust red contrast. “–50” is the least. “+50” is the greatest.

Green Brightness –50 to +50 (default: 0)

With this setting you can adjust the picture green brightness. “–50” is the darkest. “+50” is the brightest.

Green Contrast –50 to +50 (default: 0)

With this setting you can adjust green contrast. “–50” is the least. “+50” is the greatest.

Blue Brightness –50 to +50 (default: 0)

With this setting you can adjust the picture blue brightness. “–50” is the darkest. “+50” is the brightest.

Blue Contrast –50 to +50 (default: 0)

With this setting you can adjust blue contrast. “–50” is the least. “+50” is the greatest.

See “Monitor Out Setup” on page 49.

Use the Up and Down [q]/[w] buttons to

select setting, and then use the Left and Right [e]/[r] buttons to set them.

When you’ve finished, press the [Setup]

button.

The setup menu closes.

Note:

This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.

HDMI Input
