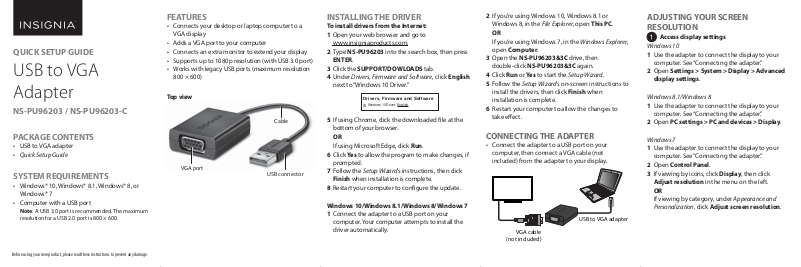

Insignia NS-PU96203, NS-PU96203-C Quick Setup Guide

QUICK SETUP GUIDE
USB to VGA Adapter
NS-PU96203 / NS-PU96203-C
PACKAGE CONTENTS
• USB to VGA adapter
Quick Setup Guide
SYSTEM REQUIREMENTS
• Windows® 10, Windows® 8.1, Windows® 8, or Windows® 7
• Computer with a USB port
Note: A USB 3.0 port is recommended. The maximum
resolution for a USB 2.0 port is 800 × 600.
FEATURES
• Connects your desktop or laptop computer to a VGA display
• Adds a VGA port to your computer
• Connects an extra monitor to extend your display
• Supports up to 1080p resolution (with USB 3.0 port)
• Works with legacy USB ports (maximum resolution 800 × 600)
Top view
Cable
VGA port
USB connector
INSTALLING THE DRIVER
To install drivers from the Internet: 1 Open your web browser and go to
www.insigniaproducts.com.
2 Type NS-PU96203 into the search box, then press
ENTER. 3 Click the SUPPORT/DOWLOADS tab. 4 Under Drivers, Firmware and Software, click English
next to “Windows 10 Driver.”
Drivers, Firmware and Software
5 If using Chrome, click the downloaded file at the
bottom of your browser. OR If using Microsoft Edge, click Run. 6 Click Yes to allow the program to make changes, if
prompted.
7 Follow the Setup Wizard’s instructions, then click
Finish when installation is complete. 8 Restart your computer to configure the update.
Windows 10/Windows 8.1/Windows 8/Windows 7 1 Connect the adapter to a USB port on your
computer. Your computer attempts to install the
driver automatically.
Windows 10 Driver: English
2 If you’re using Windows 10, Windows 8.1 or
Windows 8, in the File Explorer, open This PC. OR If you’re using Windows 7, in the Windows Explorer,
open Computer. 3 Open the NS-PU96203&3C drive, then
double-click NS-PU96203&3C again.
4 Click Run or Yes to start the Setup Wizard. 5 Follow the Setup Wizard’s on-screen instructions to
install the drivers, then click Finish when
installation is complete. 6 Restart your computer to allow the changes to
take effect.
CONNECTING THE ADAPTER
• Connect the adapter to a USB port on your
computer, then connect a VGA cable (not
included) from the adapter to your display.
USB to VGA adapter
VGA cable
(not included)
ADJUSTING YOUR SCREEN RESOLUTION
Access display settings
Windows 10
1 Use the adapter to connect the display to your
computer. See “Connecting the adapter.”
2 Open Settings > System > Display > Advanced
display settings.
Windows 8.1/Windows 8
1 Use the adapter to connect the display to your
computer. See “Connecting the adapter.”
2 Open PC settings > PC and devices > Display.
Windows 7
1 Use the adapter to connect the display to your
computer. See “Connecting the adapter.”
2 Open Control Panel. 3 If viewing by icons, click Display, then click
Adjust resolution in the menu on the left.
OR If viewing by category, under Appearance and
Personalization, click Adjust screen resolution.
Before using your new product, please read these instructions to prevent any damage.
Extend or duplicate your displays 1 Use the Multiple Displays drop-down to select
Duplicate these displays or Extend these
displays. 2 Click Apply to view the change. 3 Click Keep changes to save your settings or
click Revert to go back to your previous
settings.
Change your screen resolution 1 Select the display you want to adjust. 2 Use the Resolution drop-down menu (Windows
10/Windows 7) or slider (Windows 8.1/Windows
8) to select the resolution you want.
Note: If your adapter is connected to a USB 2.0 port,
the maximum resolution is 800 × 600.
3 Click Apply. 4 Click Keep Changes to save your settings or
click Revert to go back to your previous
settings.
TROUBLESHOOTING
My computer does not detect the adapter
• Make sure that all of the cables and plugs are securely fastened.
• Try using another USB port on the PC or laptop.
• Make sure that your monitor is functioning properly by testing it with a VGA cable connected to the VGA port on another computer.
The driver did not install correctly
• Reinstall the driver by going into Device Manager, selecting USB Video Class Device, right clicking on
Insignia USB Display Adapter then selecting Uninstall. Reboot your system, then plug in the
adapter and repeat the installation process.
LEGAL NOTICES
FCC Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment
and receiver.
—Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV
technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
ICES-003
This Class B digital apparatus complies with Canadian ICES-003; Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
ONEYEAR LIMITED WARRANTY
Visit www.insigniaproducts.com for details.
CONTACT INSIGNIA:
For customer service, call 877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico)
www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC ©2016 Best Buy. All rights reserved.
Made in China
V2 ENGLISH 16-0371
