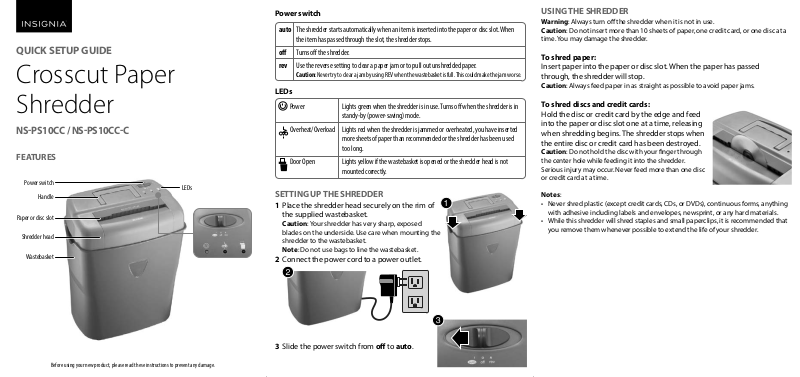

Insignia NS-PS10CC-C Quick Setup Guide

QUICK SETUP GUIDE
Crosscut Paper Shredder
NS-PS10CC / NS-PS10CC-C
FEATURES
Power switch
Handle
Paper or disc slot
Shredder head
Wastebasket
LEDs
Power switch
auto The shredder starts automatically when an item is inserted into the paper or disc slot. When
the item has passed through the slot, the shredder stops.
o Turns o the shredder.
rev Use the reverse setting to clear a paper jam or to pull out unshredded paper.
Caution: Never try to clear a jam by using REV when the wastebasket is full. This could make the jam worse.
LEDs
Power
Overheat/Overload
Door Open
Lights green when the shredder is in use. Turns o when the shredder is in standy-by (power-saving) mode.
Lights red when the shredder is jammed or overheated, you have inserted more sheets of paper than recommended or the shredder has been used too long.
Lights yellow if the wastebasket is opened or the shredder head is not mounted correctly.
SETTING UP THE SHREDDER
1 Place the shredder head securely on the rim of
the supplied wastebasket.
Caution: Your shredder has very sharp, exposed
blades on the underside. Use care when mounting the shredder to the wastebasket.
Note: Do not use bags to line the wastebasket.
2 Connect the power cord to a power outlet.
USING THE SHREDDER
Warning: Always turn o the shredder when it is not in use. Caution: Do not insert more than 10 sheets of paper, one credit card, or one disc at a
time. You may damage the shredder.
To shred paper:
Insert paper into the paper or disc slot. When the paper has passed through, the shredder will stop.
Caution: Always feed paper in as straight as possible to avoid paper jams.
Hold the disc or credit card by the edge and feed into the paper or disc slot one at a time, releasing when shredding begins. The shredder stops when the entire disc or credit card has been destroyed.
Caution: Do not hold the disc with your nger through the center hole while feeding it into the shredder. Serious injury may occur. Never feed more than one disc or credit card at a time.
Notes:
• Never shred plastic (except credit cards, CDs, or DVDs), continuous forms, anything with adhesive including labels and envelopes, newsprint, or any hard materials.
• While this shredder will shred staples and small paperclips, it is recommended that you remove them whenever possible to extend the life of your shredder.
Before using your new product, please read these instructions to prevent any damage.
3 Slide the power switch from o to auto.
TROUBLESHOOTING
PROBLEM
The shredder does not stop running
The shredder is jammed
The shredder will not run
The Door Open LED turned on
The Overheat/Overload LED turned on
SOLUTION
• Slide the switch to o, unplug it from the power outlet, then empty the wastebasket.
• Slide the switch to o, unplug it from the power outlet, then push the shredded paper down to make sure that it is away from the shredder head.
• Slide the switch to rev to remove extra paper, disc, or credit card from the shredder.
• Slide the switch to rev to remove the stuck paper, disc, or credit card.
• Make sure that you only send 10 sheets of paper, one credit card, or one disc through the shredder at a time.
• Change the position of the paper as you insert it.
• The paper may be too thin or crumpled for the shredder to recognize it. Fold the paper, then reinsert it.
• Slide the switch to rev to remove any stuck paper, discs, or credit cards.
• Make sure that you only send 10 sheets of paper, one credit card, or one disc through the shredder at a time.
• Unplug the shredder from the power outlet and let it cool for at least 50 minutes.
• Make sure that the shredder head is placed on the wastebasket correctly.
• Make sure that the shredder head is placed on the wastebasket correctly.
• Slide the switch to o, unplug the shredder from the power outlet, then empty the wastebasket.
• Reduce the number of sheets you are shredding or stop shredding until the LED turns o.
SPECIFICATIONS
Sheet capacity 10 sheets of 20 lb. bond paper
Credit card capacity One at a time
Disc capacity One at a time
Paper shred size 5/32 × 1 9/20 in. (0.4 × 3.7 cm) pieces
Voltage 120V - 60 HZ 4.3A
IMPORTANT SAFETY INFORMATION
• RISK OF FIRE. NEVER dispose of ammable chemicals or materials that have come into contact with ammable chemicals (for example, nail polish, acetone, gasoline) in the wastebasket.
• Always turn the shredder o and unplug the power cord from the AC outlet before cleaning it, moving it, or emptying the wastebasket.
• Never place the shredder near water or any heat source.
• Never use any petroleum based or ammable oils or lubricants in or around the machine as some oils can combust causing serious injury.
• Never spray any aerosol based products in or around shredder.
• Never shred envelopes, labels, or anything with glue or any sticky substance as this will lead to paper jams.
• Do not use the shredder if the power cord is damaged in any way.
• Do not attempt to service this product yourself as doing so may expose you to sharp cutting blades and electricity and will void the manufacturer’s warranty.
• Never let the wastebasket become full. This will lead to shredded material being pulled back up into the shredder and cause jams.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
ONE-YEAR LIMITED WARRANTY
Visit www.insigniaproducts.com for details.
CONTACT INSIGNIA:
For customer service, call 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its aliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richeld, MN 55423 U.S.A. ©2016 Best Buy. All rights reserved.
Made in China
MAINTAINING
Once a month, drizzle vegetable oil or cooking oil (nothing petroleum based) on a few pieces of paper and feed them through the shredder.
WARNING
Product is not intended for use by children (product is not a toy)
Avoid touching the paper or disc slot with hands
Avoid loose clothing or jewelry touching the paper or disc slot
Do not spray or keep any aerosol products in or around shredder
Avoid getting hair near the paper or disc slot
Do not insert foreign objects into the paper or disc slot
V3 ENGLISH 16-0711
