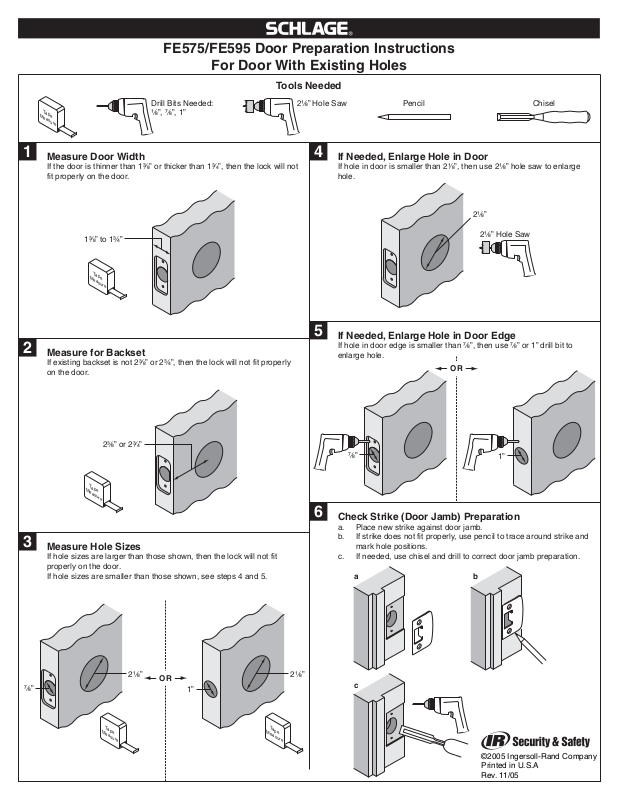

FE575/FE595 Door Preparation Instructions
For Door With Existing Holes
Tools Needed
T
ape
M
eas
ure
1
Measure Door Width
If the door is thinner than 1³⁄₈” or thicker than 1³⁄₄”, then the lock will not
fit properly on the door.
1³⁄₈” to 1 ³⁄₄”
Tap e
M
easure
2
Measure for Backset
If existing backset is not 2³⁄₈” or 2³⁄₄”, then the lock will not fit properly
on the door.
Drill Bits Needed:
¹⁄₈”, ⁷⁄₈”, 1”
2¹⁄₈” Hole Saw
4
If Needed, Enlarge Hole in Door
If hole in door is smaller than 2¹⁄₈”, then use 2¹⁄₈” hole saw to enlarge
hole.
5
If Needed, Enlarge Hole in Door Edge
If hole in door edge is smaller than ⁷⁄₈”, then use ⁷⁄₈” or 1” drill bit to
enlarge hole.
Pencil Chisel
2¹⁄₈”
2¹⁄₈” Hole Saw
OR
2³⁄₈” or 2³⁄₄”
T
a
p
Measure
e
3
Measure Hole Sizes
If hole sizes are larger than those shown, then the lock will not fit
properly on the door.
If hole sizes are smaller than those shown, see steps 4 and 5.
⁷⁄₈”
M
Tap e
easure
2¹⁄₈”
OR
1”
M
Tap e
easure
2¹⁄₈”
⁷⁄₈”
6
Check Strike (Door Jamb) Preparation
a. Place new strike against door jamb.
b. If strike does not fit properly, use pencil to trace around strike and
mark hole positions.
c. If needed, use chisel and drill to correct door jamb preparation.
a
c
1”
b
