Ingersoll Rand 325B User Manual

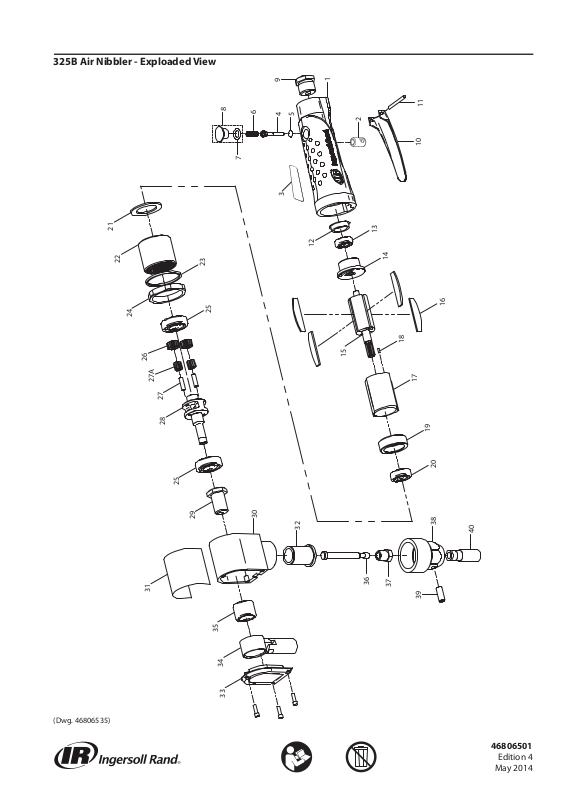

325B Air Nibbler - Exploaded View
3
31
29
25
28
27
27A
26
24
22
21
25
20
19
17
18
15
16
14
13
12
2
10
11
9
8
1
23
35
32
30
36
37
39
40
38
34
33
6
4
5
7
(Dwg. 46806535)
46806501
Edition 4
May 2014
325B Air Nibbler - Parts List
Item Part Description Part Number Item Part Description Part Number
Housing Assembly 325A-A40 21 Motor Clamp Washer 325A-18
1 Housing --- 22 Internal Gear Case 325A-625
2 Valve Bushing --- 23 Ring 325A-338
3 Nameplate 325B-301 24 Gear Case Nut 325A-302
Throttle Kit 325A-TK 25 Spindle Bearing 325A-110
4 Throttle valve --- Planet Gear Kit 325A-A9
5 O-Ring --- 26 Planet Gear (2 Per Kit) ---
6 Spring --- 27 Pin (2 Per Kit) ---
7 O-Ring --- 27A Needle Roller Package (2 Per Kit) ---
8 Valve Plug and O-ring 325A-A229 28 Spindle 325A-8
9 Inlet Bushing 325A-565 29 Eccentric Nut 325A-10
Lever Kit 325A-LK Nibbler Housing Assembly 325A-A25
10 Lever --- 30 Housing ---
11 Pin --- 31 Warning Label 7804-99
12 End Cap 325A-207 32 Crank Shaft Bushing 325A-318
13 Rear Rotor Bearing 325A-97 33 Housing Cover With Screws 325A-A316
14 Rear End Plate 325A-12 34 Nibbler Crank Assembly (includes crankshaft and pin) 325A-A303
15 Rotor 325A-53 35 Crank Bearing 325A-510
16 Vane Kit (4 vanes) 325A-42-4 36 Cutter 325A-350
Cylinder Kit 325A-A3 37 Cutter Lock Nut 325A-351
17 Cylinder --- Nibbler Housing Nut 325A-A352
18 Alignment Pin --- 38 Housing Nut ---
19 Front End Plate 325A-11 39 Set Screw ---
20 Front Rotor Bearing 325A-22 40 Cutter Die 325A-354
Parts and Maintenance
When the life of the tool has expired, it is recommended that the tool be disassembled, degreased and parts be separated by material so
that they can be recycled.
Tool repair and maintenance should only be carried out by an authorized Service Center.
Refer all communications to the nearest Ingersoll Rand Oce or Distributor.
Related Documentation
For additional information refer to:
Air Nibbler Product Safety Information Manual 04580494.
Air Nibbler Product Information Manual 46806519.
Manuals can be downloaded from ingersollrandproducts.com
ingersollrandproducts.com
© 2014 Ingersoll Rand
46806501
Edition 4
May 2014
