Inficon IRwin S, IRwin SX, IRwin SXT, IRwin SXG, 580-000 Original Operating Instructions
...
Original operating instructions
IRwin S/SX/SXT/SXG/SXGT
Portable Methane Leak Detector
mina66en1-12-(1802)
580-000, 580-010, 580-015, 580-020, 580-030, 580-712
From software version:
2.01.01
INFICON GmbH
Bonner Strasse 498
50968 Cologne, Germany
INFICON Table of Contents
IRwin-Operating-instructions-mina66en1-12-(1802) iii
Table of Contents
1 About these instructions ...................................................................................................................................6
1.1 Target groups ...........................................................................................................................................6
1.2 Warnings...................................................................................................................................................6
2 Safety ...............................................................................................................................................................7
2.1 Intended use .............................................................................................................................................7
2.2 Special conditions for safe use .................................................................................................................8
2.2.1 Intrinsic Safety (Ex protection) ......................................................................................................8
2.2.2 Certified Gas Measurement ..........................................................................................................8
2.3 Owner/supervisor responsibilities .............................................................................................................9
2.4 Duties of the operator .............................................................................................................................10
2.5 Safe operation ........................................................................................................................................10
3 Scope of delivery ............................................................................................................................................11
4 Description......................................................................................................................................................12
4.1 Function ..................................................................................................................................................12

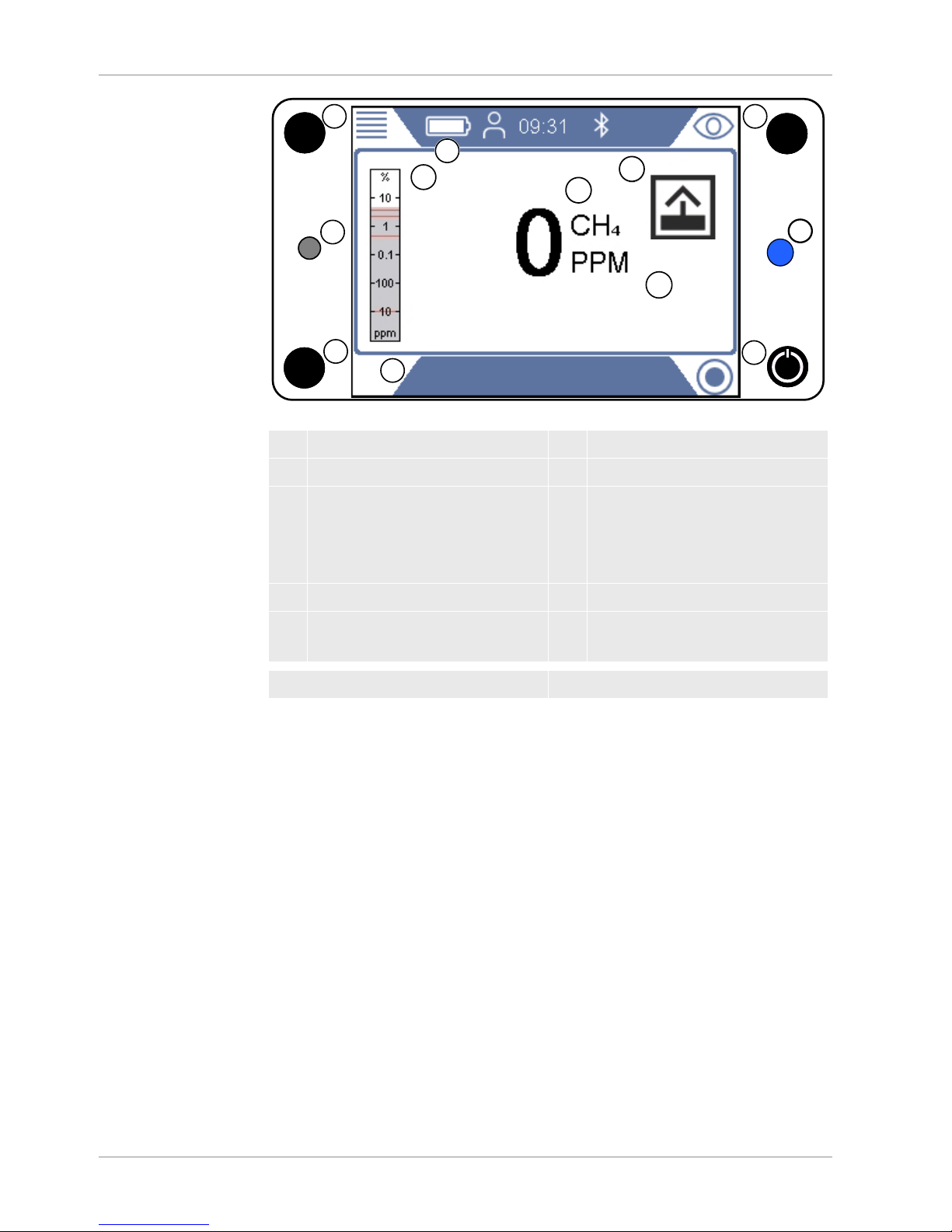

4.2 Design of the leak detector .....................................................................................................................13

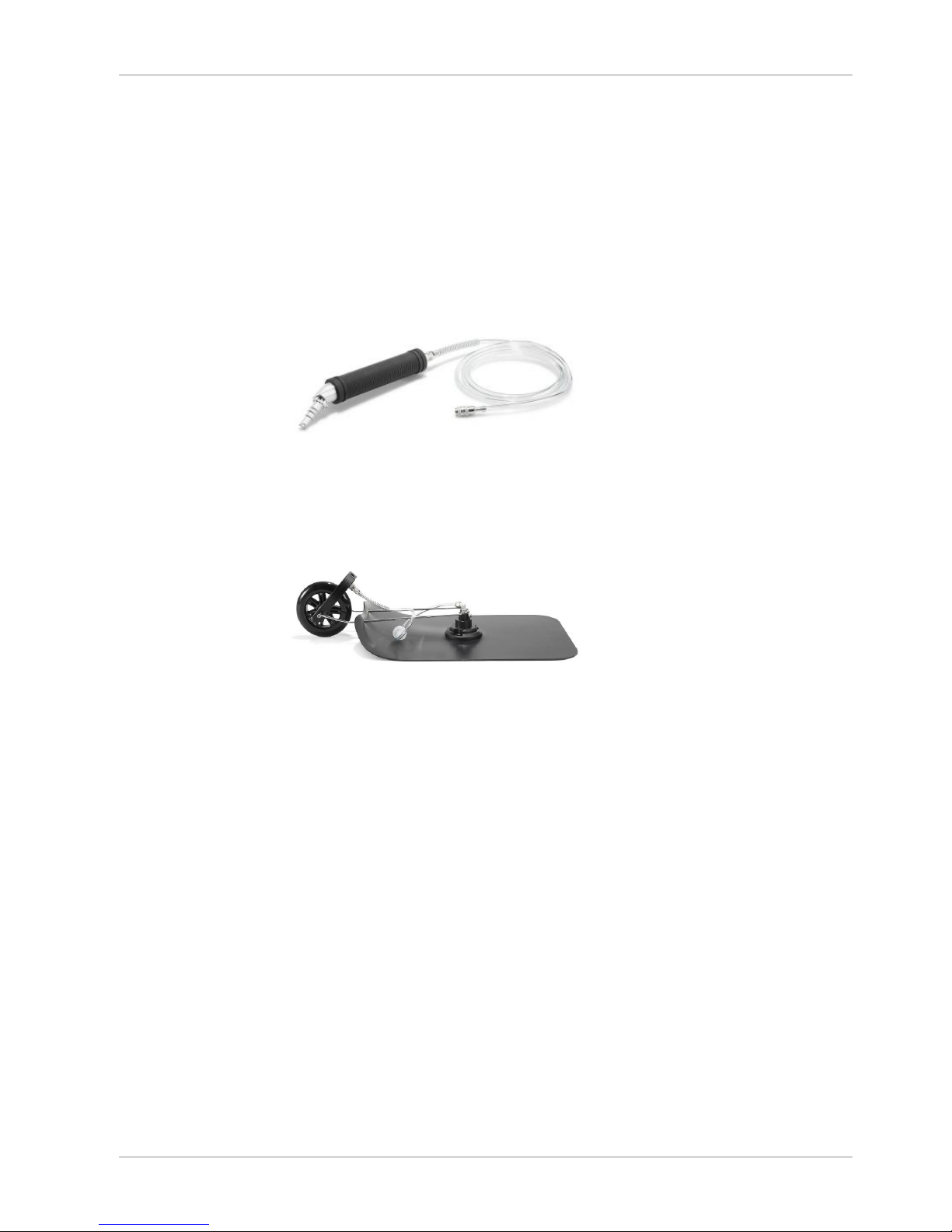

4.3 Probes ....................................................................................................................................................14

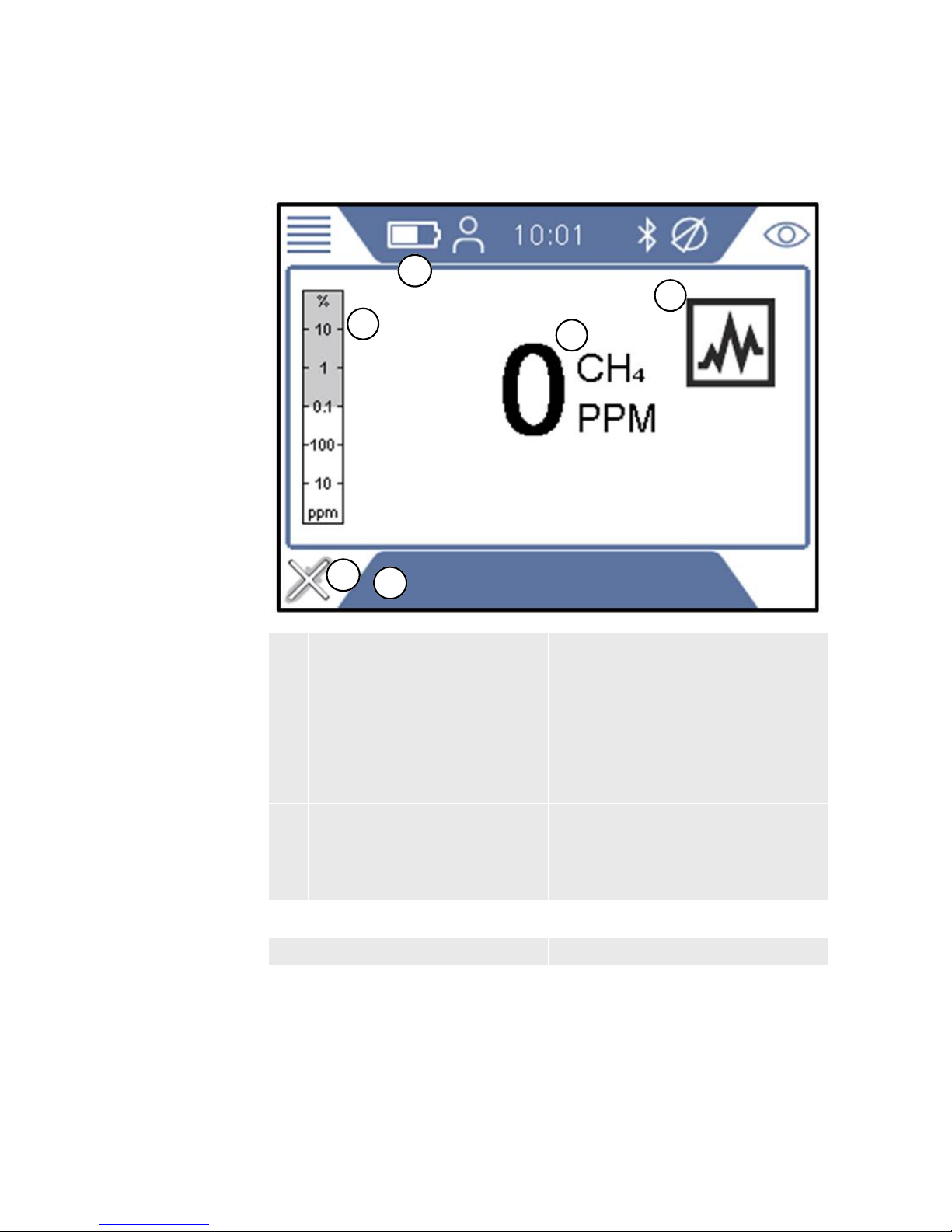

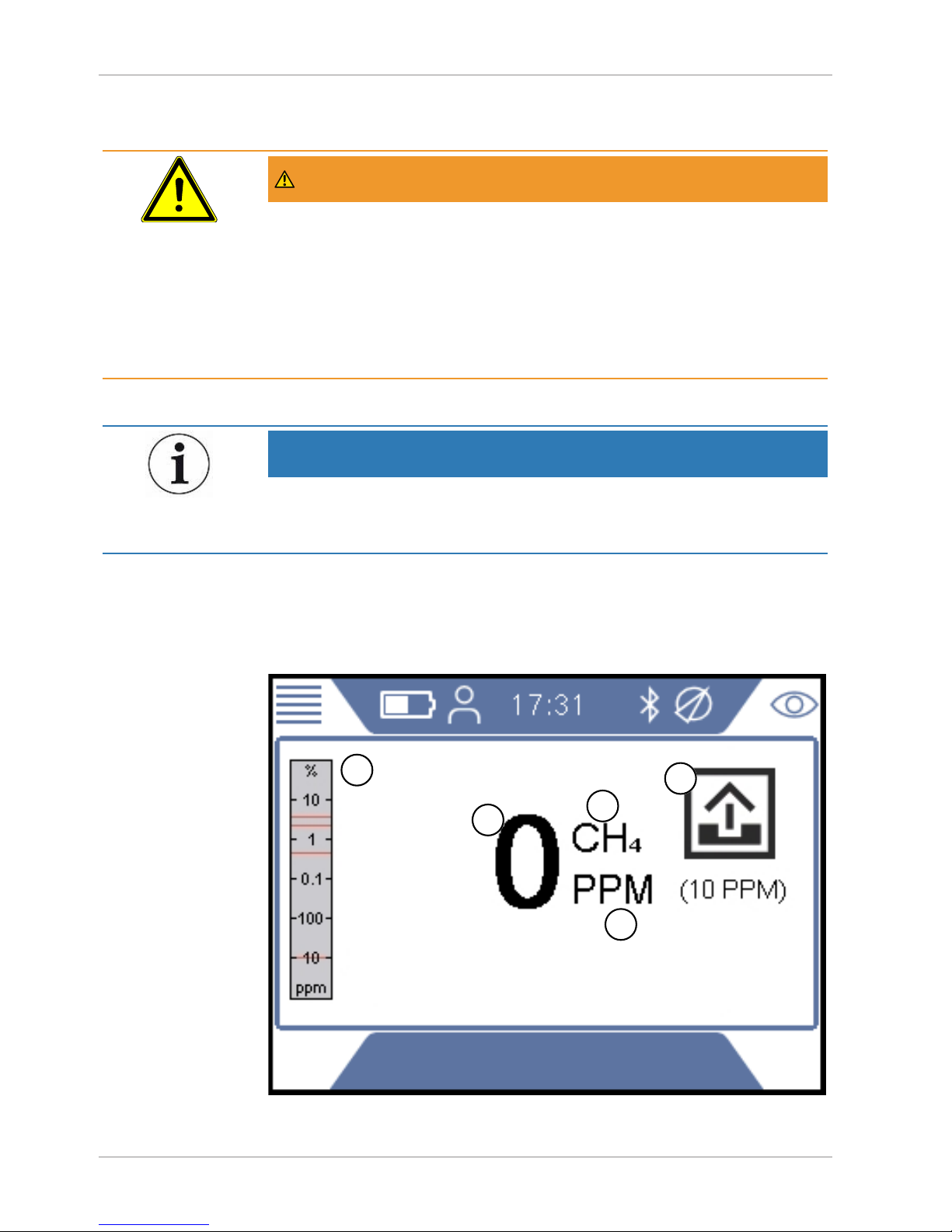

4.4 Display ....................................................................................................................................................16
4.5 Technical data ........................................................................................................................................19
4.5.1 EX certification (intrinsic safety).................................................................................................. 21
4.5.2 Sensors....................................................................................................................................... 21
4.6 Factory settings ......................................................................................................................................26
4.7 Concentration of calibration and test gases............................................................................................28
5 Getting started ................................................................................................................................................29
5.1 Charging the battery ...............................................................................................................................29

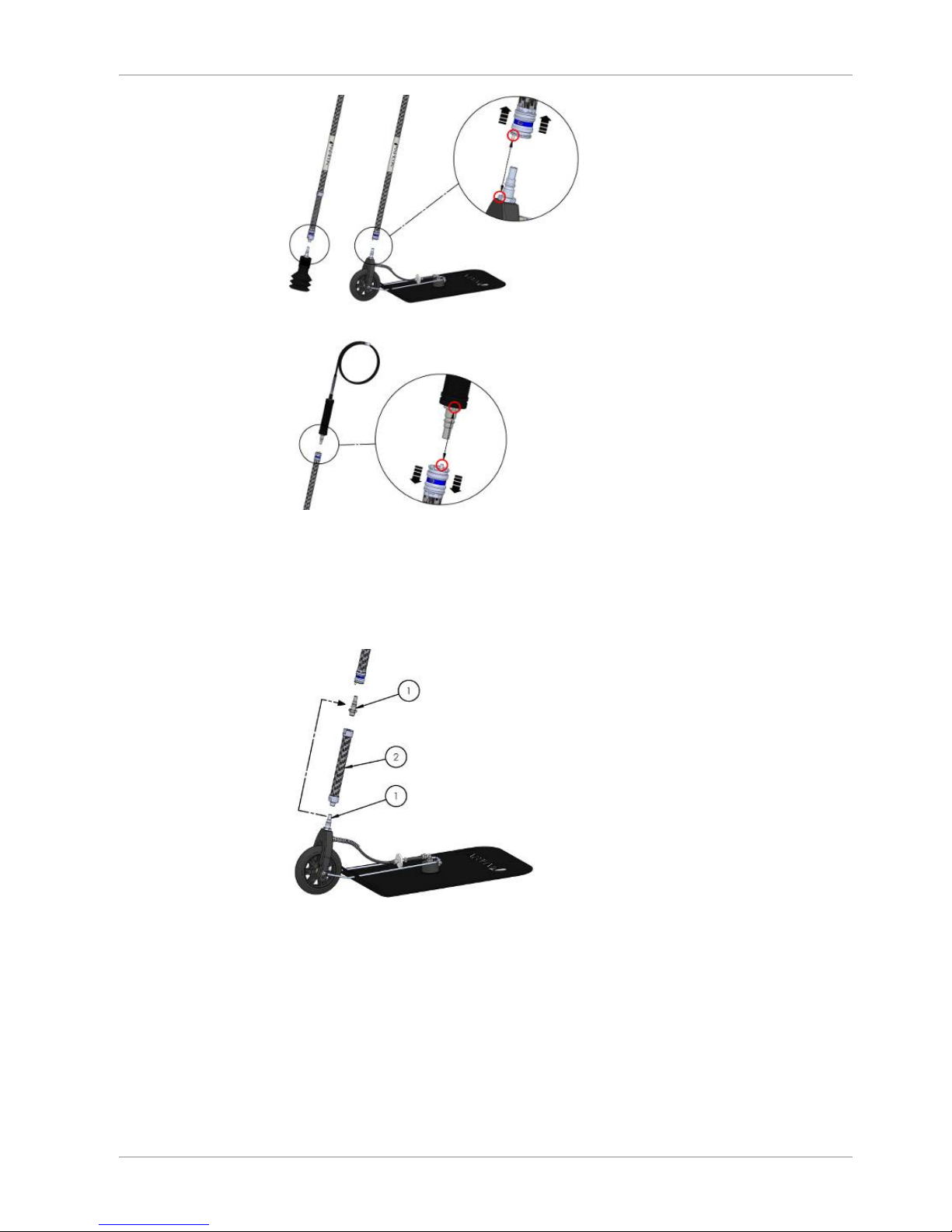

5.2 Assembling the probe system.................................................................................................................32
5.3 Transfer data to computer ......................................................................................................................34
5.3.1 Install software for data transfer.................................................................................................. 34
5.3.2 Pairing the leak detector with computer via Bluetooth interface .................................................34
5.3.3 Transfer log files from leak detector to computer........................................................................ 35

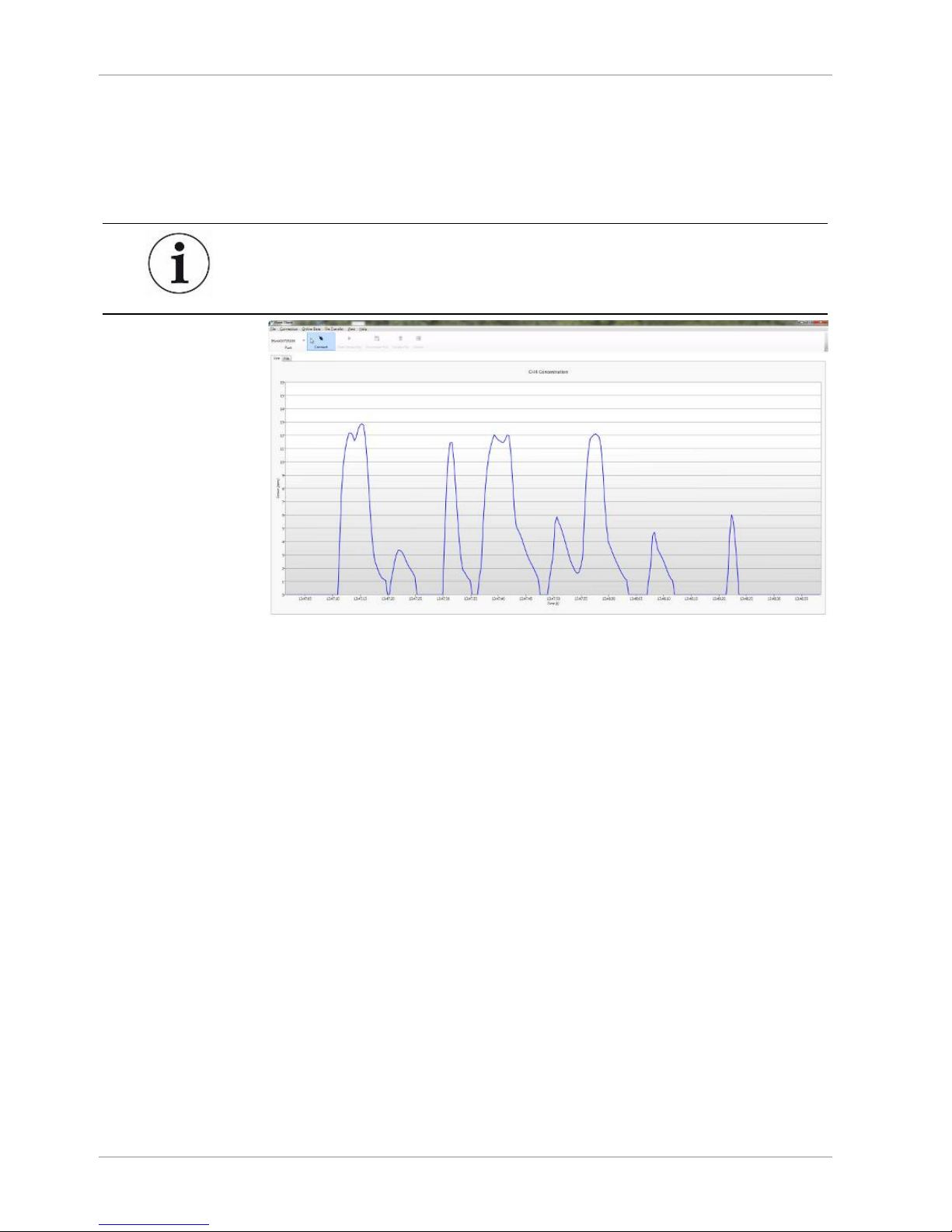

5.3.4 Real-time streaming from leak detector to computer ..................................................................35
6 Operation........................................................................................................................................................37
6.1 Switch ON...............................................................................................................................................37
6.2 Initial setup..............................................................................................................................................38
6.2.1 Adjust the local time.................................................................................................................... 38
Table of Contents INFICON
iv IRwin-Operating-instructions-mina66en1-12-(1802)
6.2.2 Setting the language ...................................................................................................................38
6.2.3 Change permission level............................................................................................................. 38
6.2.4 Screensaver timeout ...................................................................................................................39
6.2.5 Configure data logging................................................................................................................ 39
6.2.6 Enable dead band suppression (IRwin SXnn only)..................................................................... 40
6.2.7 Setting the Function Test interval ............................................................................................... 40
6.2.8 Calibration................................................................................................................................... 40
6.2.8.1 Standard calibration procedures ........................................................................................42
6.2.8.2 Setting of calibration gas concentrations ...........................................................................43
6.2.9 Adjust calibration reminder ......................................................................................................... 44
6.3 Operating modes ....................................................................................................................................45
6.3.1 Select operating mode ................................................................................................................45
6.3.2 Operating mode “Above Ground”................................................................................................ 45
6.3.3 Operating mode “Bar Hole”......................................................................................................... 47
6.3.3.1 Automatic “Bar Hole” testing ..............................................................................................48
6.3.3.2 Setting parameters for “Auto Bar Hole”..............................................................................49

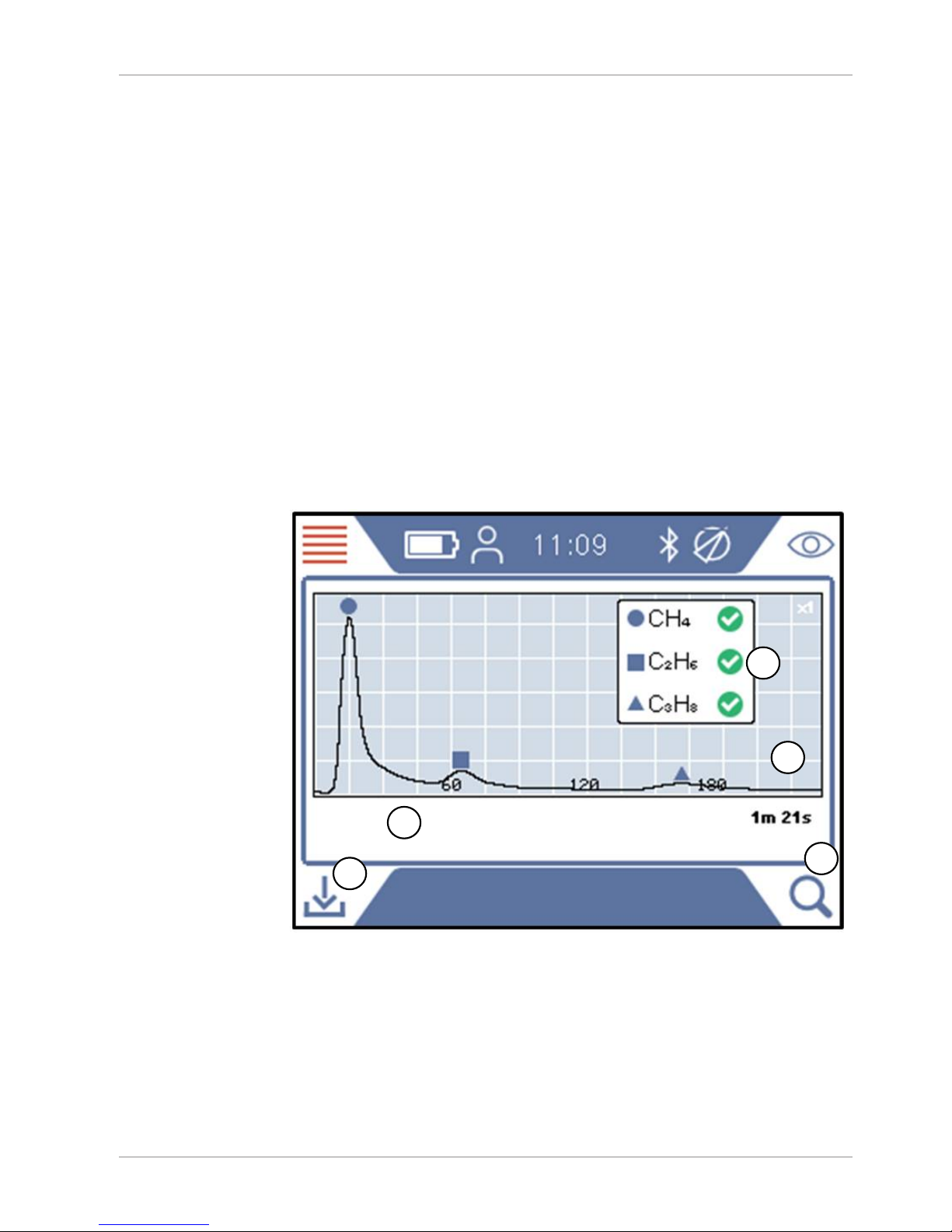

6.3.4 Operating mode "GC Ethane Analysis" ...................................................................................... 50
6.3.5 Operating mode “Confined Space” .............................................................................................52

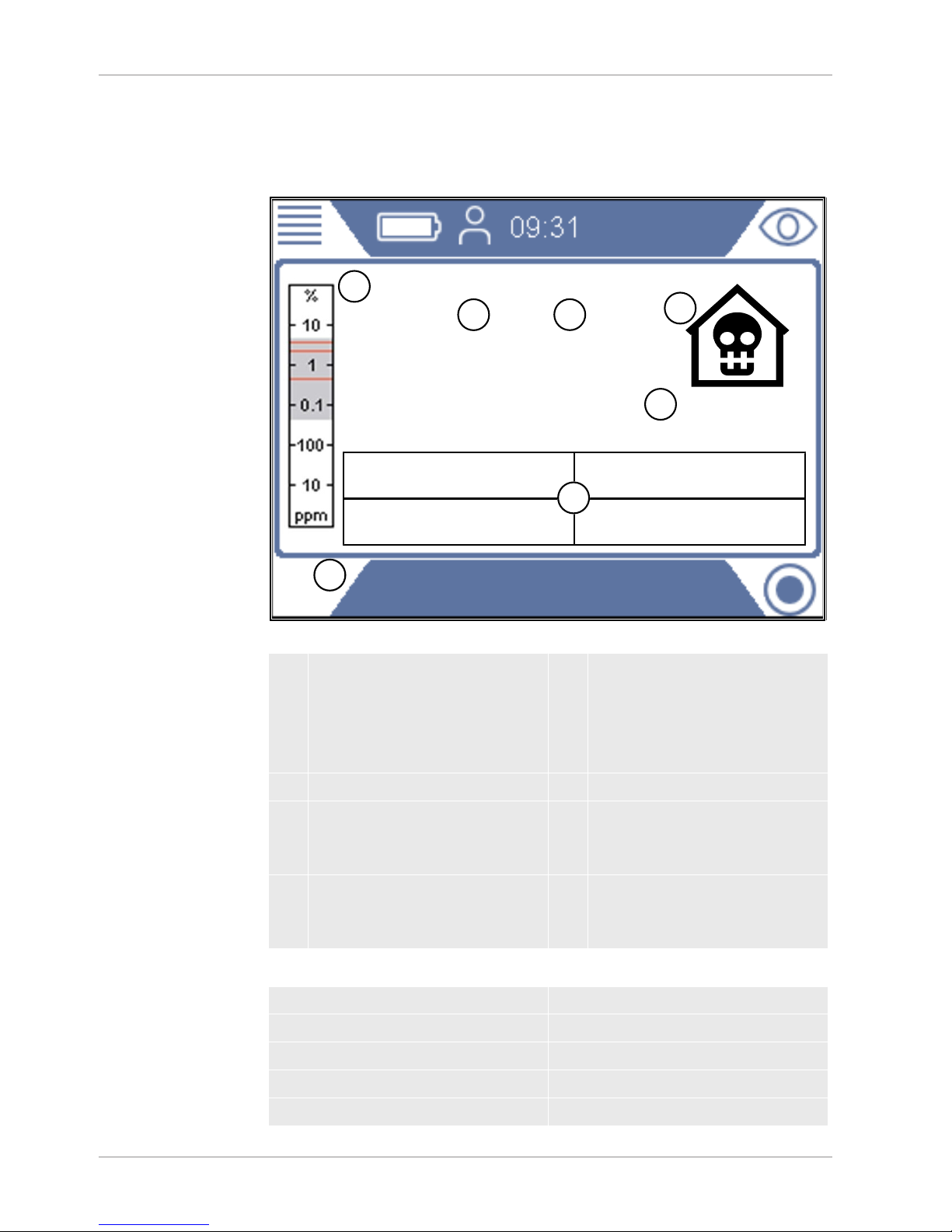

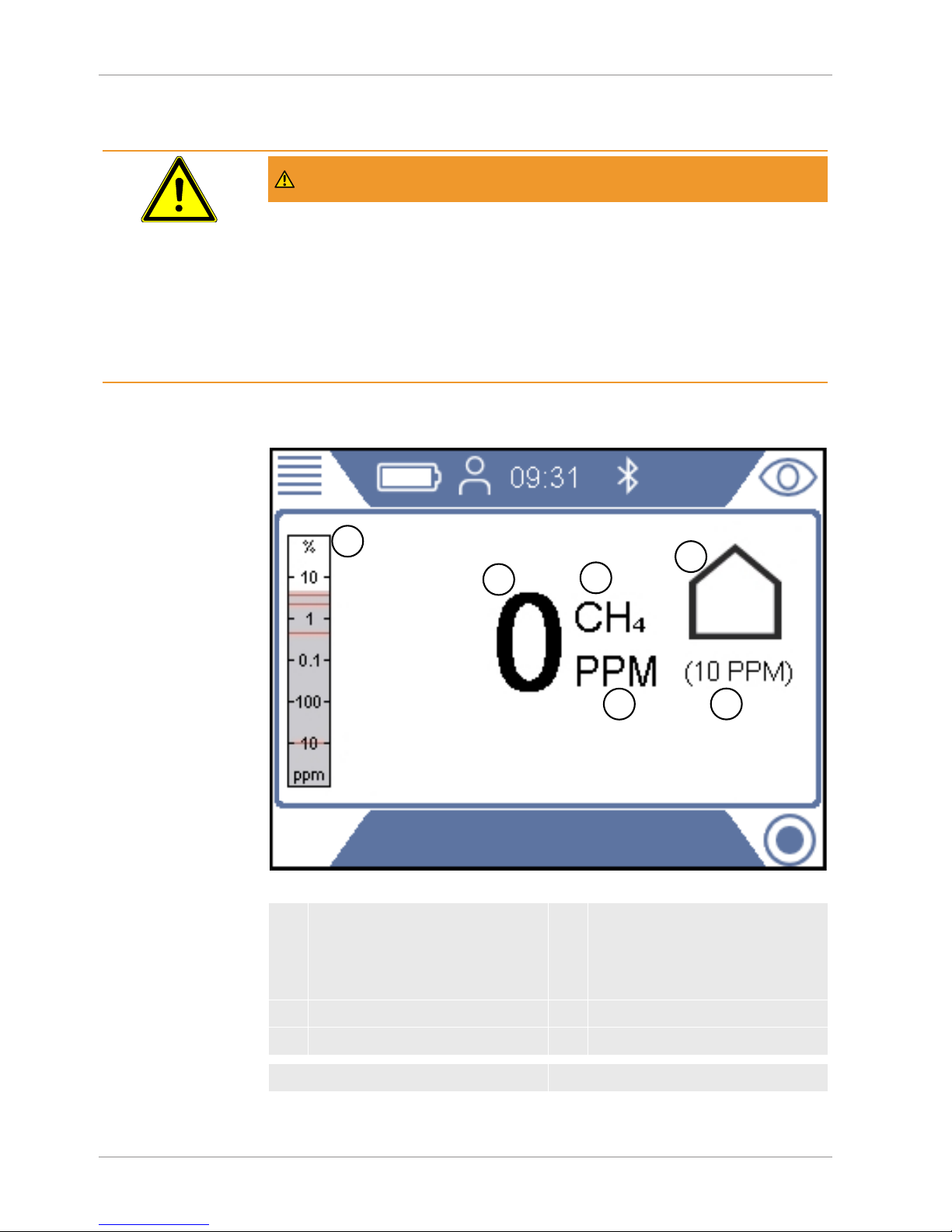

6.3.6 Operating mode "House" ............................................................................................................54
6.3.7 Operating mode "Gas Purity” ...................................................................................................... 55
6.3.8 Operating mode "Ex" .................................................................................................................. 57
6.3.9 Operating mode "Ex Tox” ........................................................................................................... 60
6.3.9.1 Change gas type for %LEL measurement .........................................................................62
6.3.10 IR Ethane Analysis and compensation .......................................................................................63
6.3.10.1 Entering ethane concentration manually............................................................................63
6.3.10.2 Setting reminder for IR Ethane Analysis ............................................................................64
6.3.10.3 Performing IR Ethane Analysis after automatic reminder ..................................................64
6.3.10.4 Starting IR Ethane Analysis manually................................................................................65
6.3.10.5 Viewing IR Ethane Analysis info ........................................................................................66
6.3.11 Set limits and alarm levels ..........................................................................................................66
6.3.12 Set the brightness of the display................................................................................................. 67
6.3.13 Performing function tests ............................................................................................................67
6.4 Measuring ...............................................................................................................................................68
6.5 Perform self test......................................................................................................................................69
6.6 Viewing Status menu ..............................................................................................................................69
6.7 Logging data to file .................................................................................................................................69
6.8 Viewing logfile list ...................................................................................................................................69
6.9 Information..............................................................................................................................................70
6.9.1 Retrieve information and statistics ..............................................................................................70
6.9.2 Viewing the Service Screen ........................................................................................................70
INFICON Table of Contents
IRwin-Operating-instructions-mina66en1-12-(1802) v
6.10 Activating Auto-Rotate Screen................................................................................................................70
6.11 Resetting to factory settings ...................................................................................................................71
6.12 Switching OFF ........................................................................................................................................71
6.13 Warnings and error messages................................................................................................................71
7 Maintenance ...................................................................................................................................................76
7.1 Maintenance plan ...................................................................................................................................76
7.2 Spare parts list........................................................................................................................................76
7.3 Maintenance of the leak detector............................................................................................................77
7.3.1 Seasonal shut-down ................................................................................................................... 77

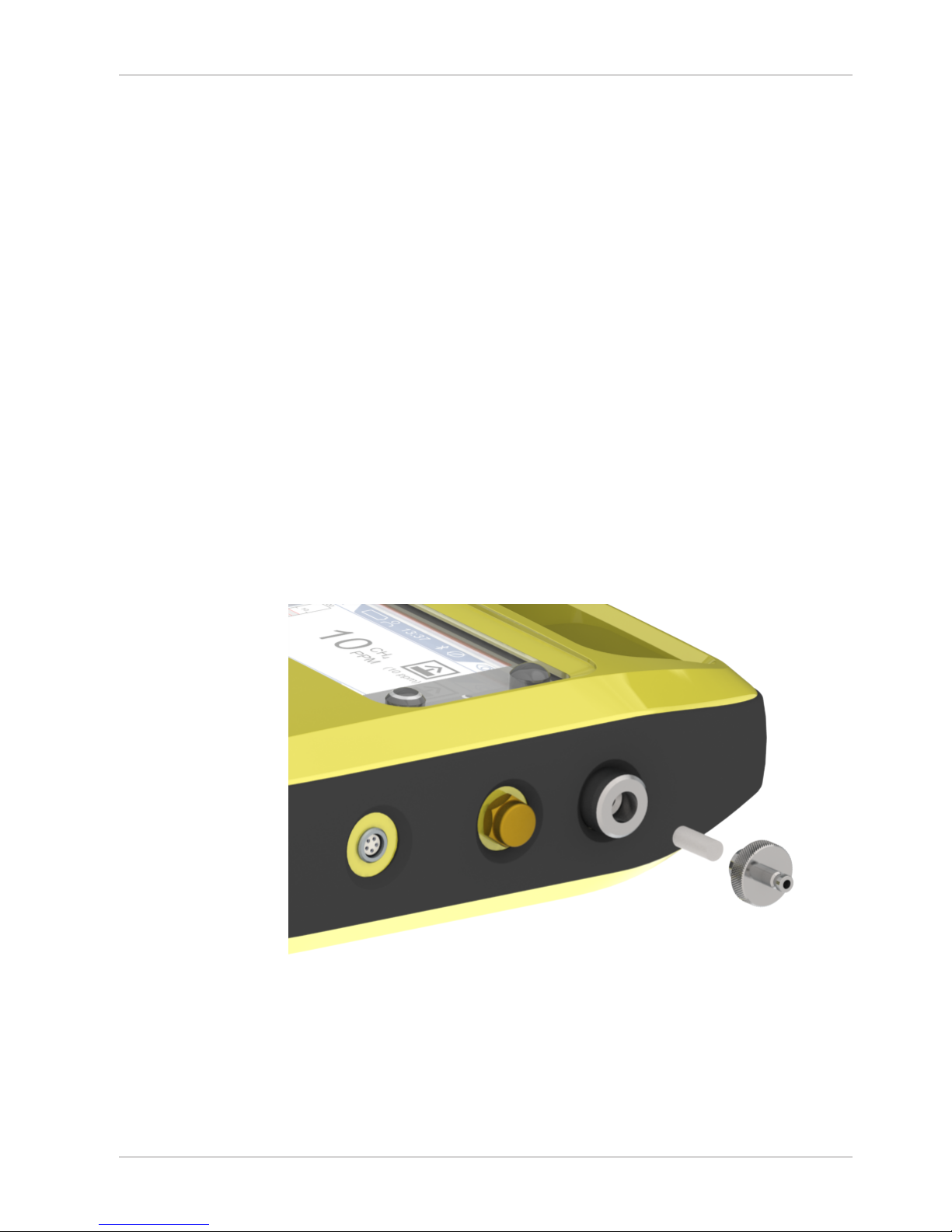

7.3.2 Change the cigarette filter in the sample inlet............................................................................. 77
7.4 General check of the probe system ........................................................................................................77
7.5 Maintenance of the hand probe ..............................................................................................................79
7.5.1 Replace cigarette filter in the hand probe ...................................................................................79
7.6 Change the inline filter of the carpet probe.............................................................................................79
7.7 Maintenance of the bell probe ................................................................................................................79

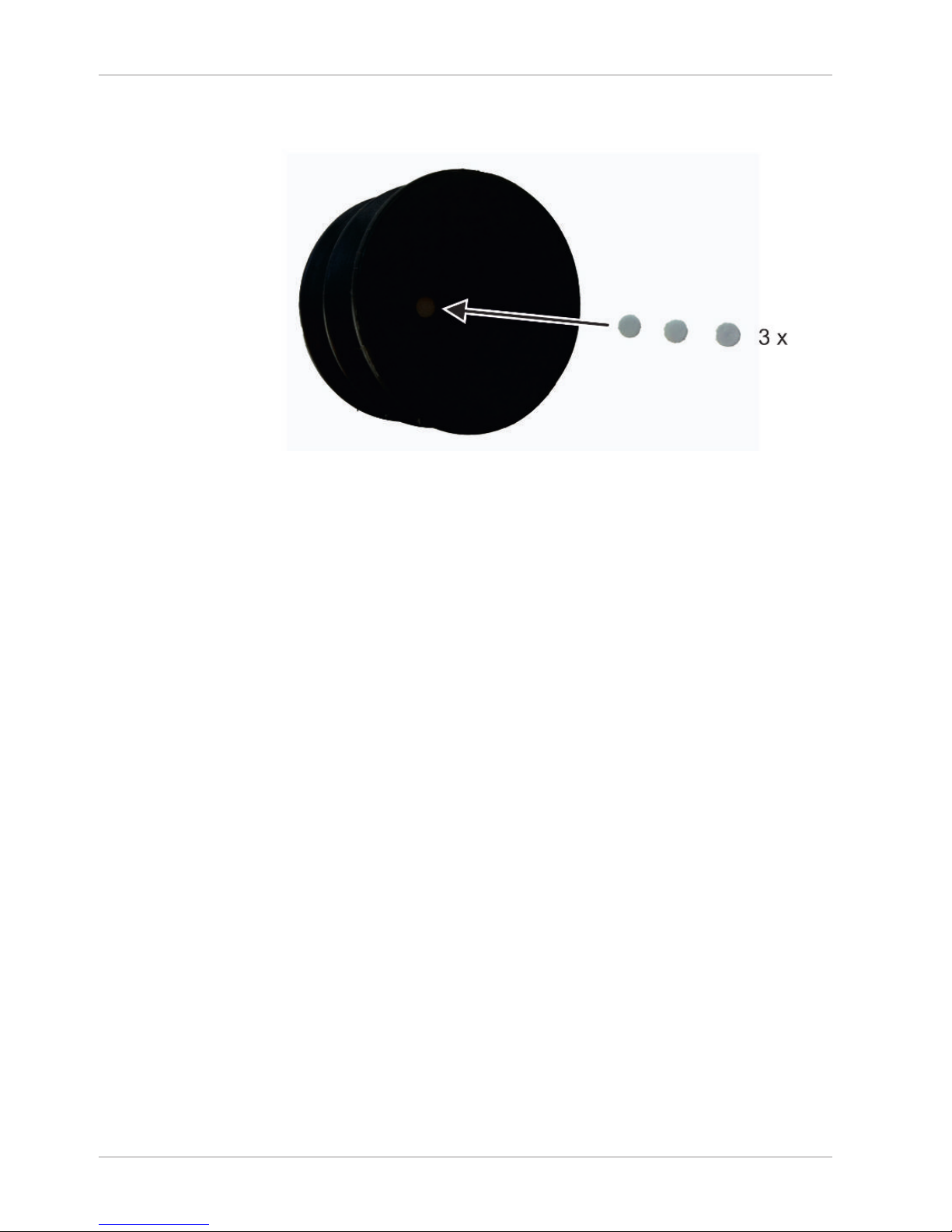

7.7.1 Change the filter discs in the bell ................................................................................................79
7.7.2 Change the paper filter in the bell ...............................................................................................81
8 Decommissioning the leak detector................................................................................................................82
8.1 Sending in the leak detector ...................................................................................................................82
8.2 Disposing of the equipment ....................................................................................................................84
9 Certificates......................................................................................................................................................85

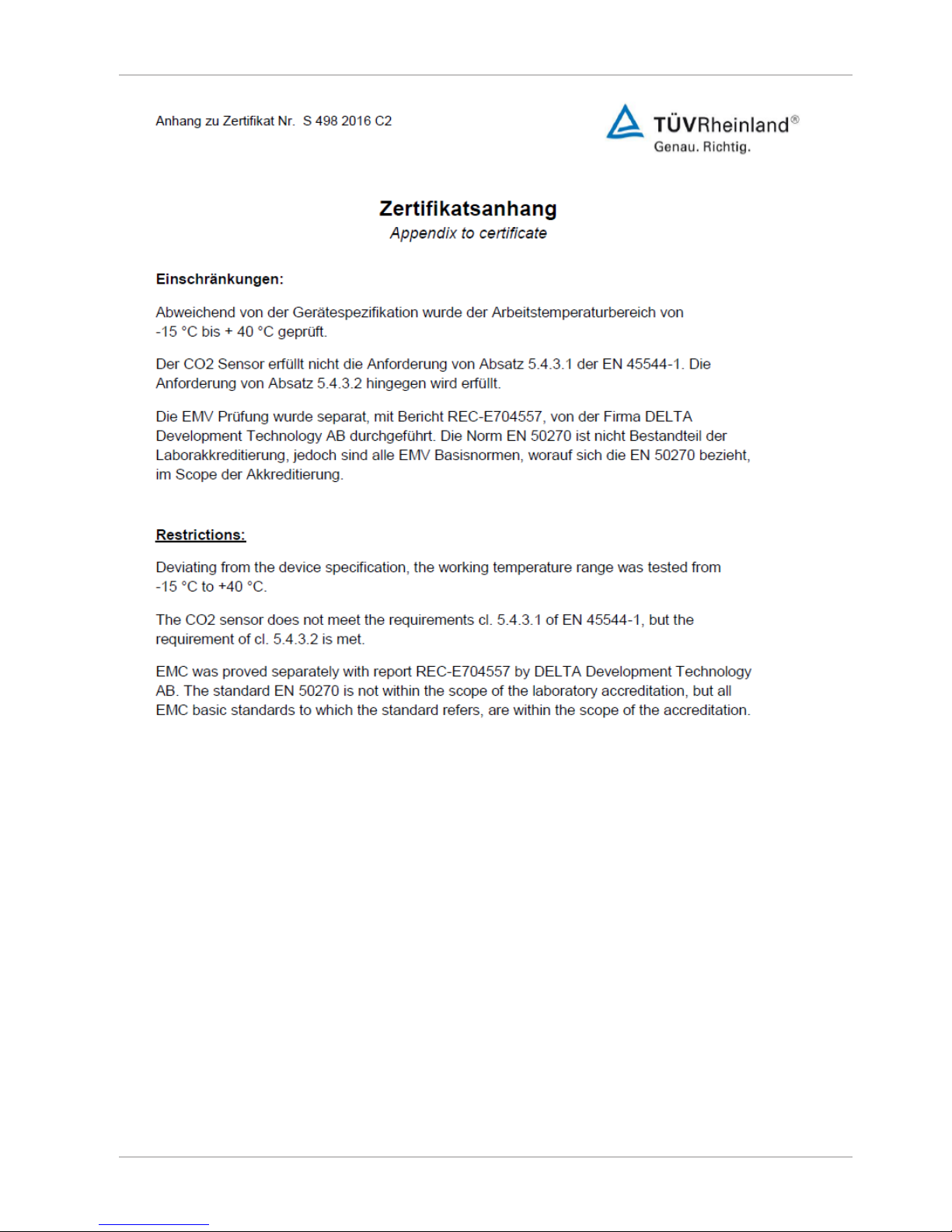

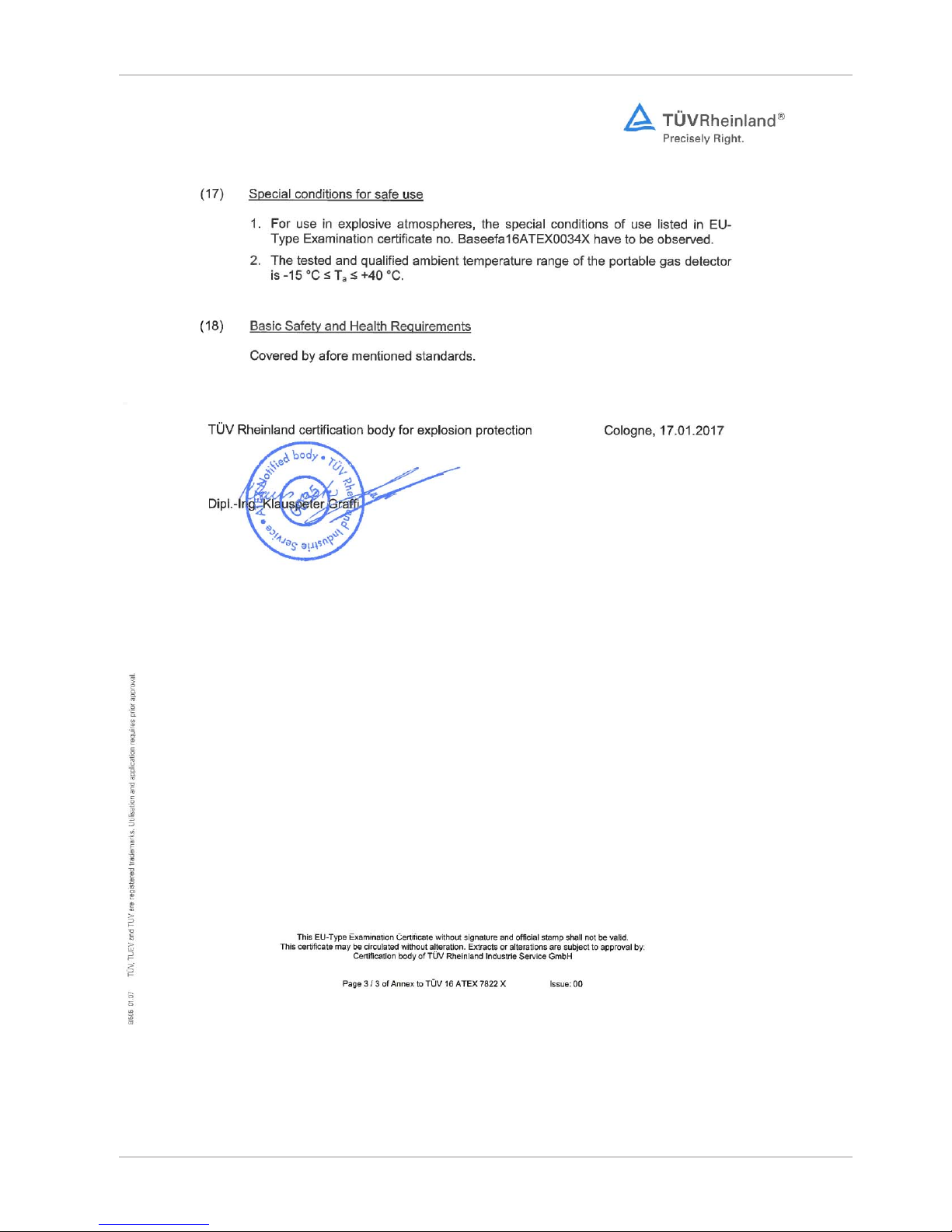

9.1 TÜV, Certificate for lower explosive limit (LEL) ......................................................................................86

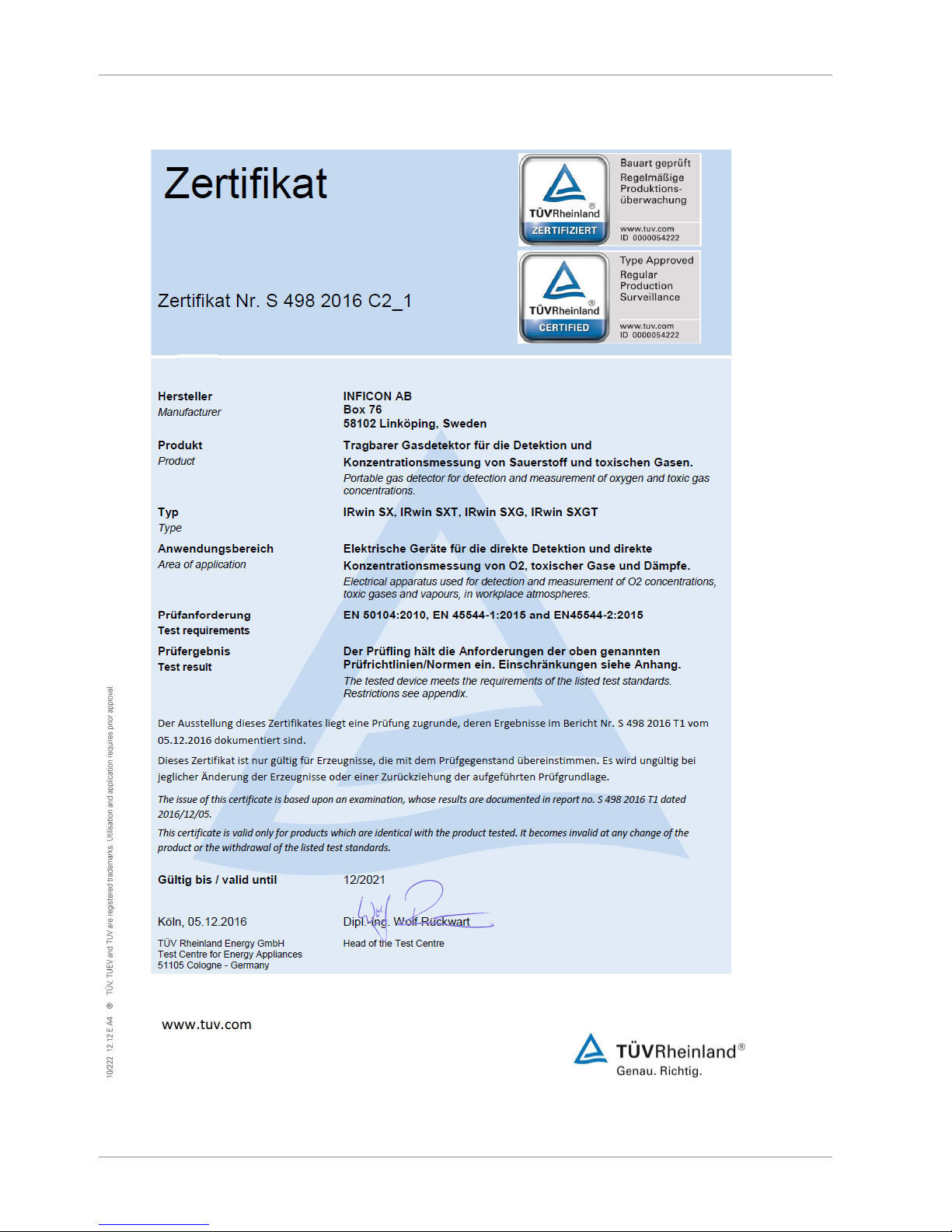

9.2 Certificate for oxygen and toxic gases....................................................................................................90
9.3 Certificate for software for Ex/ExTox ......................................................................................................92

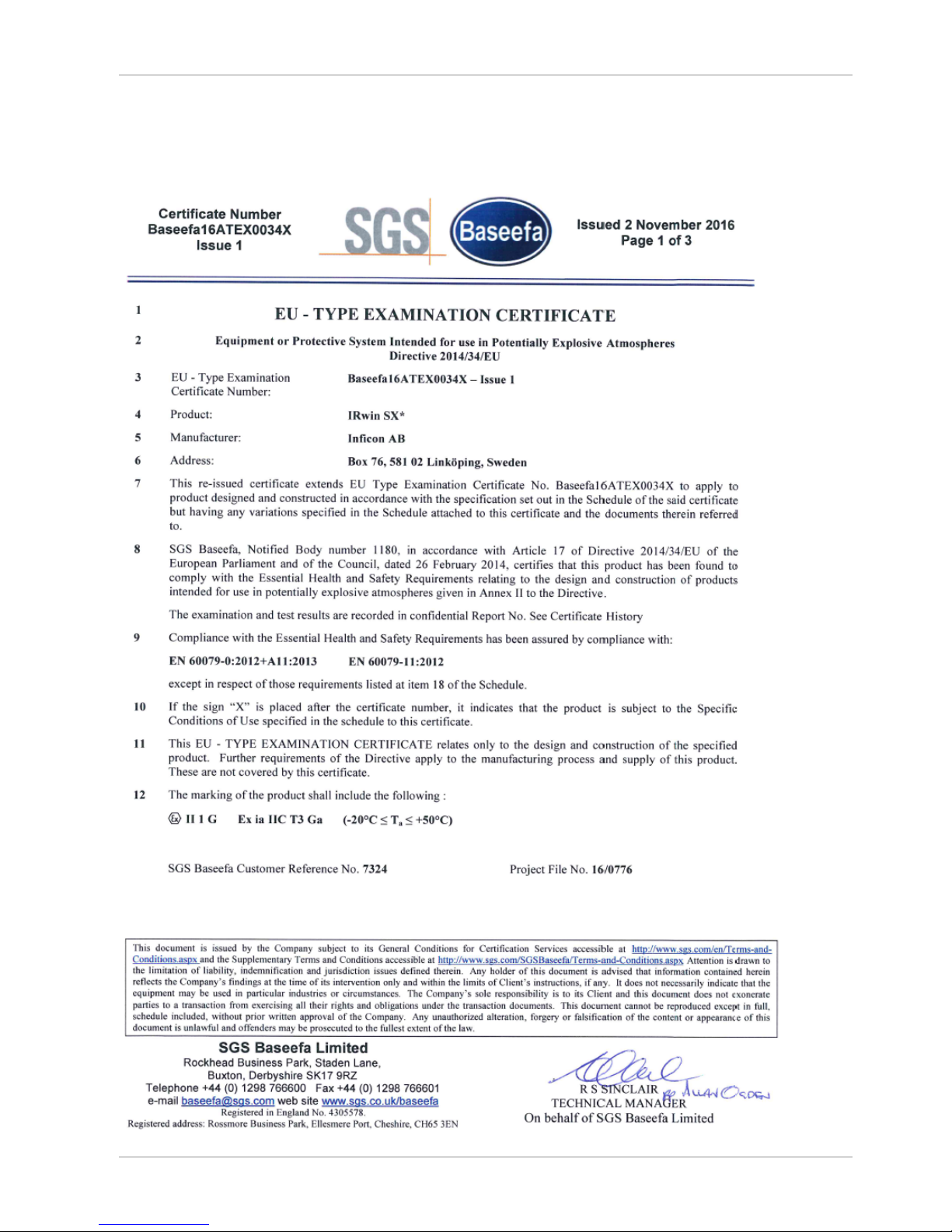

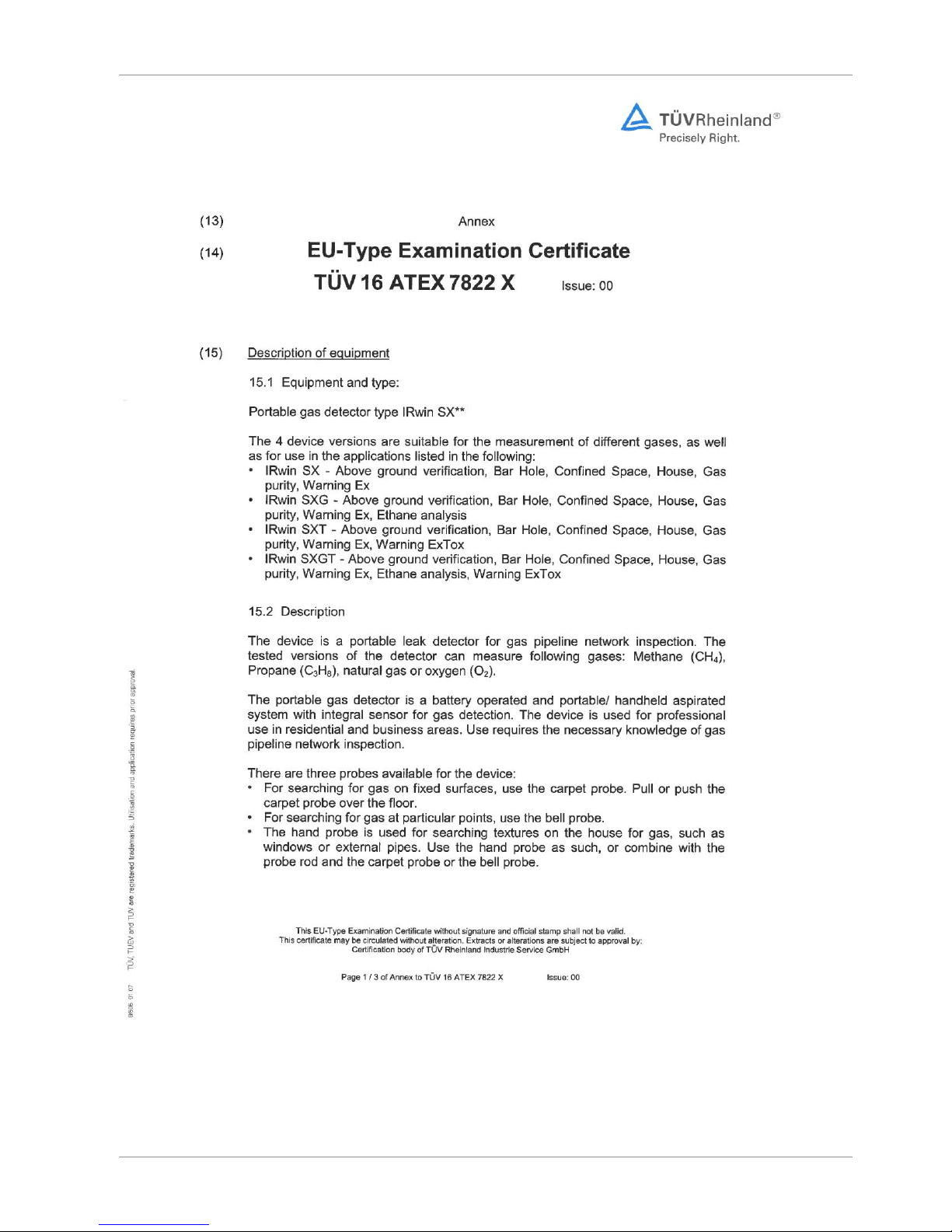

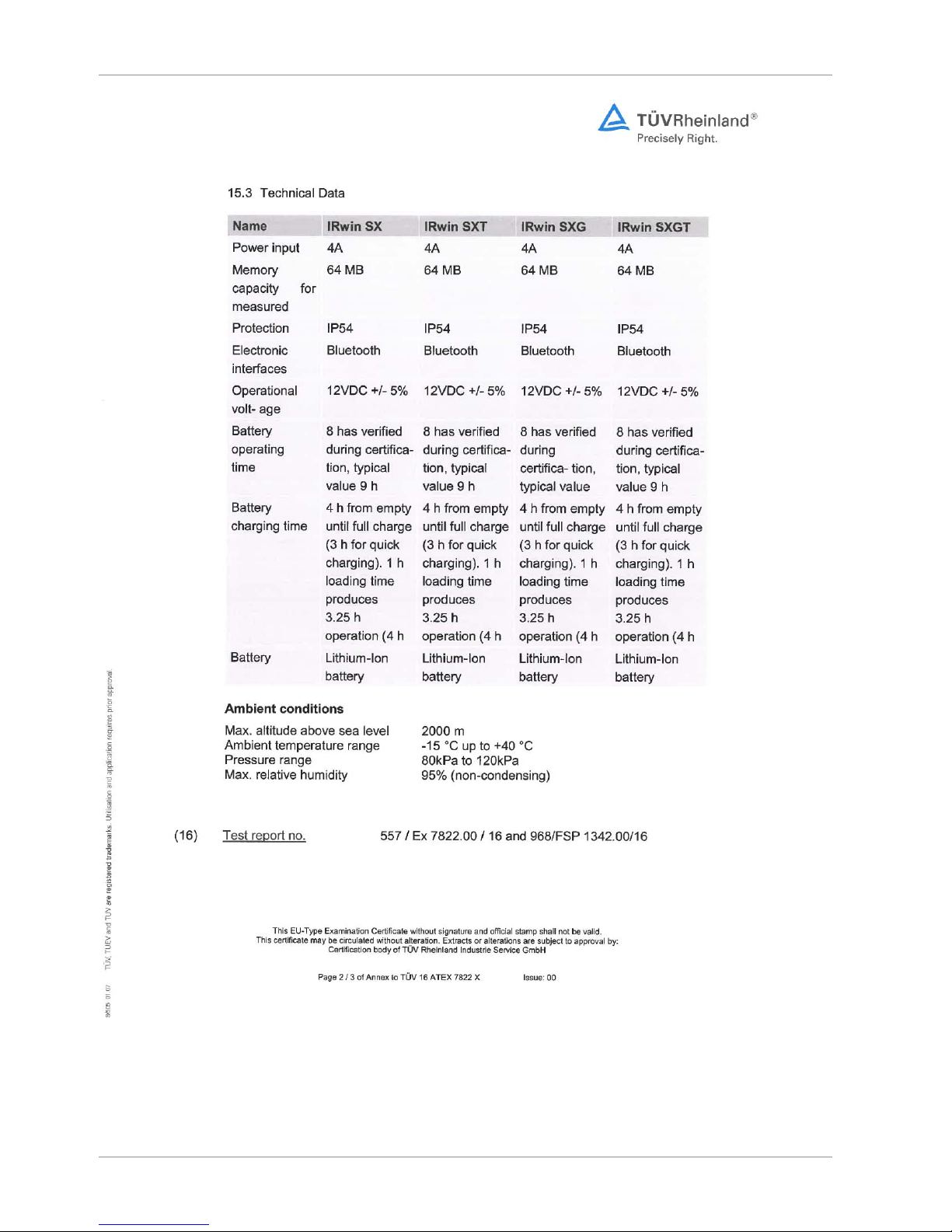

9.4 ATEX certificate for explosion protection (IRwin SXnn)..........................................................................93
9.5 CSA (US/Canada) certificate for explosion protection (IRwin SXnn)......................................................94

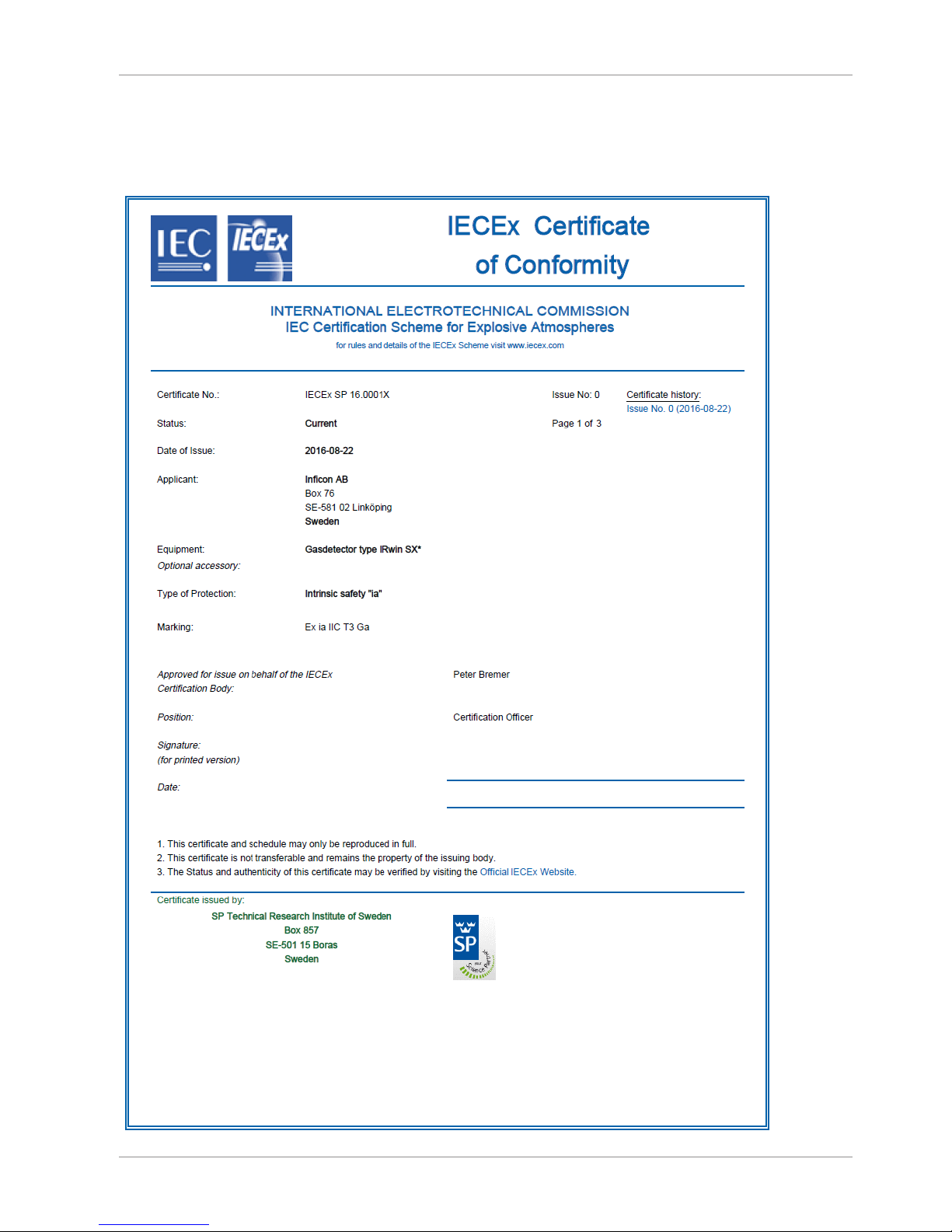

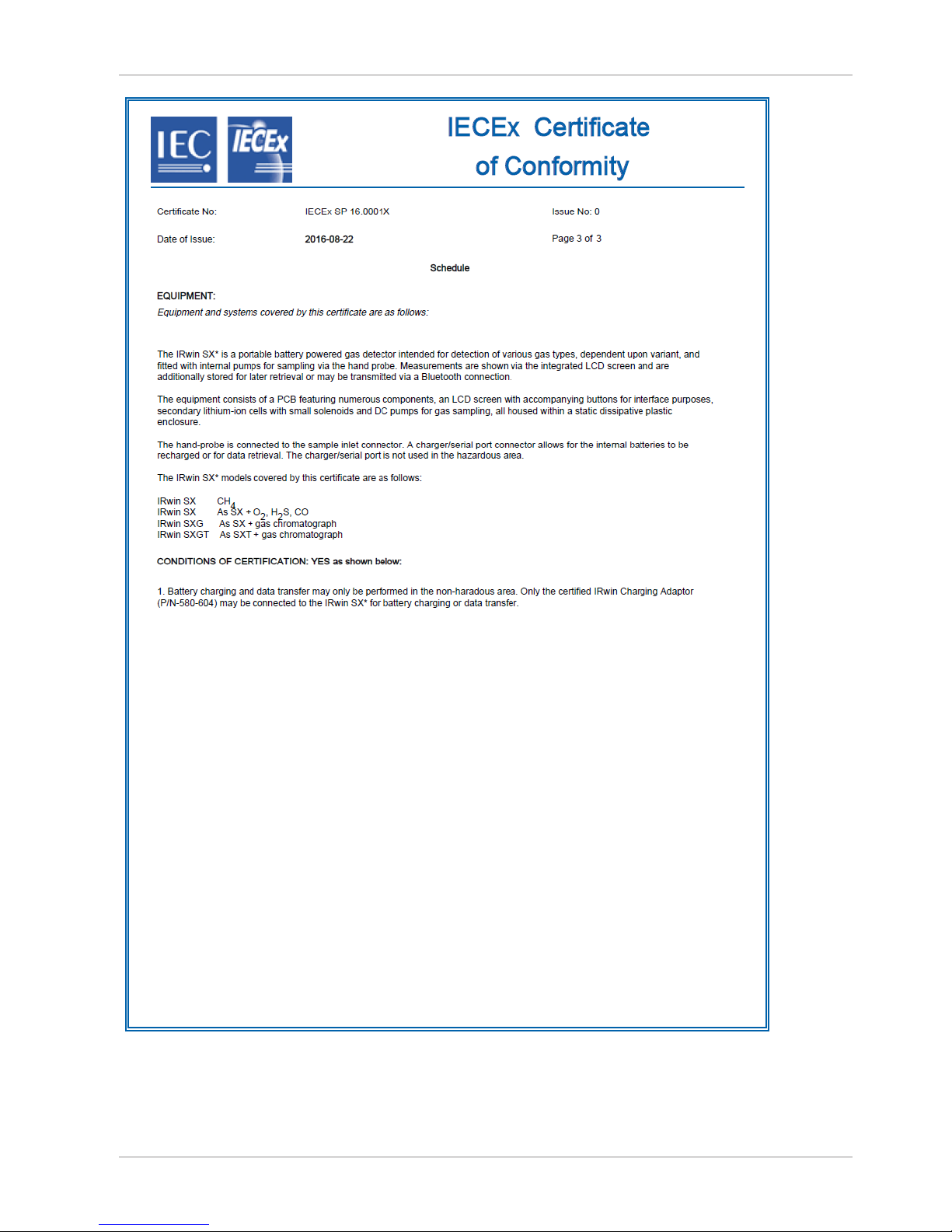

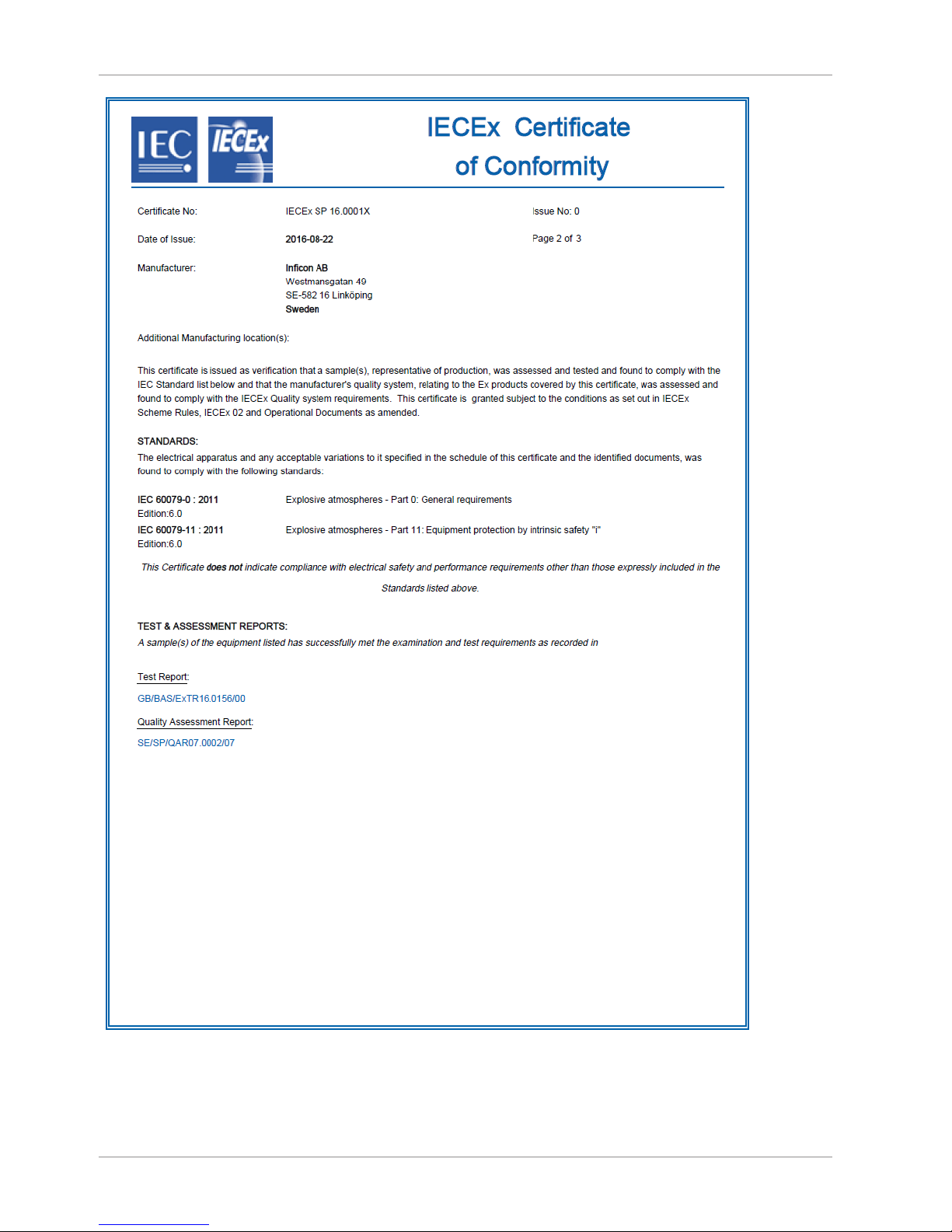

9.6 IECEx certificate for explosion protection (IRwin SXnn).........................................................................95

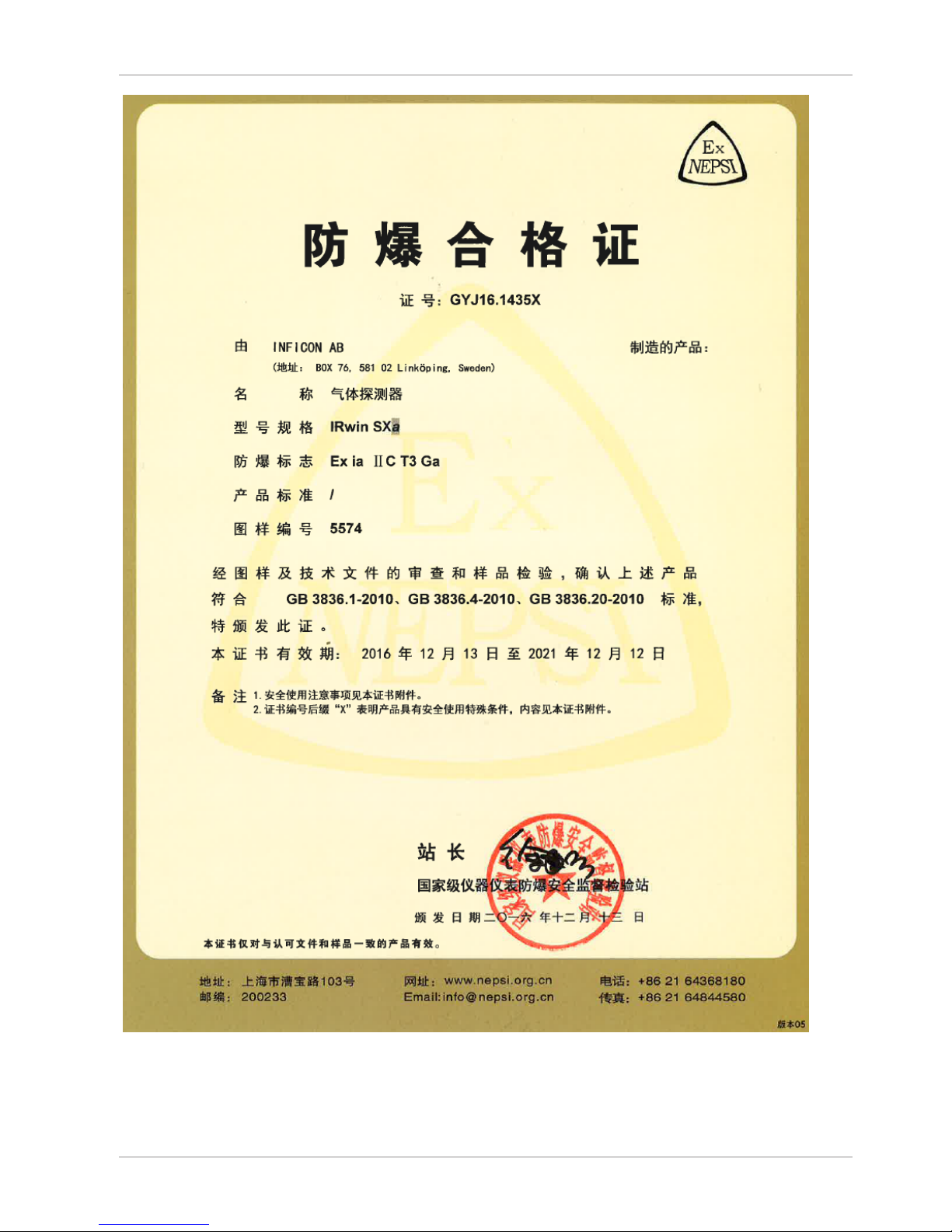

9.7 NEPSI (China) certificate for explosion protection..................................................................................98
9.8 CE Declaration of Conformity ...............................................................................................................104
Index.............................................................................................................................................................108
1 | About these instructions INFICON
6 / 112 IRwin-Operating-instructions-mina66en1-12-(1802)
1 About these instructions
This document applies to the software version stated on the title page.
Product names may occur in the document, which are added for identification purposes only and belong to the respective owner of the rights.
1.1 Target groups
These Operating Instructions are written for trained and experienced gas pipeline survey operators.
1.2 Warnings
DANGER
Imminent hazard resulting in death or serious injuries
WARNING
Hazardous situation potentially resulting in death or serious injuries
CAUTION
Hazardous situation potentially resulting in minor injuries
NOTICE
Risk for damage to property or the environment
INFICON Safety | 2
IRwin-Operating-instructions-mina66en1-12-(1802) 7 / 112
2 Safety
2.1 Intended use
The IRwin Methane Leak Detector is intended for professional use in residential and
commercial areas. The operation of the equipment requires sufficient knowledge and
experience in gas pipeline inspection. The different IRwin versions are equipped for
the measurement of different gases, see Technical data [}19] as well as for the applications listed below:
• IRwin S
Above ground, Bar hole
• IRwin SX (EX certified)
Above ground, Bar hole, Confined Space, House, Gas Purity, Ex
• IRwin SXT (EX certified)
Above ground, Bar hole, Confined Space, House, Gas Purity, Ex, Ex Tox
• IRwin SXG (EX certified)
Above ground, Bar hole, Confined Space, House, Gas Purity, Ex, GC Ethane
Analysis
• IRwin SXGT (EX certified)
Above ground, Bar hole, Confined Space, House, Gas Purity, Ex, Ex Tox, GC Ethane Analysis
The IRwin SX, IRwin SXG, IRwin SXT and IRwin SXGT are intrinsically safe and can
be used in areas with potentially explosive atmospheres according to the EX rating
and EX application it is certified for (see EX certification (intrinsic safety) [}21]).
These models are jointly referred to as
IRwin SXnn
in the following.
The IRwin S is not EX certified.
Pay attention to the safety instructions Safe operation [}10].
• You must assemble, operate and maintain the equipment only in compliance with
these operating instructions.
• Use only within the allowed ambient conditions Technical data. Operating or storing the equipment outside the given range can result in erroneous readings and
possible malfunction.
• Use the leak detector exclusively for the detection of the specified gases.
Improper use
• Do not suck liquids into the leak detector.
• Do not suck dirt or sand into the leak detector.
• Do not use the IRwin S in areas with potentially explosive atmospheres.
See also
2 | Safety INFICON
8 / 112 IRwin-Operating-instructions-mina66en1-12-(1802)
2 Safe operation [}10]
2.2 Special conditions for safe use
2.2.1 Intrinsic Safety (Ex protection)
IRwin is certified intrinsically safe to prevent ignition of flammable atmospheres.
IRwin holds an ATEX certificate for EU and corresponding certificates for several other
regions as shown by the attached certificates, see Certificates [}85]).
For details of rating, see EX certification (intrinsic safety) [}21].
The "X" after the respective type certificate number relates to the following special
conditions for safe use:
The only device allowed to be connected to the charging socket on any of the models
• IRwin SX
• IRwin SXT
• IRwin SXG
• IRwin SXGT
is the Ex Certified IRwin Charging adapter (PN 580-604).

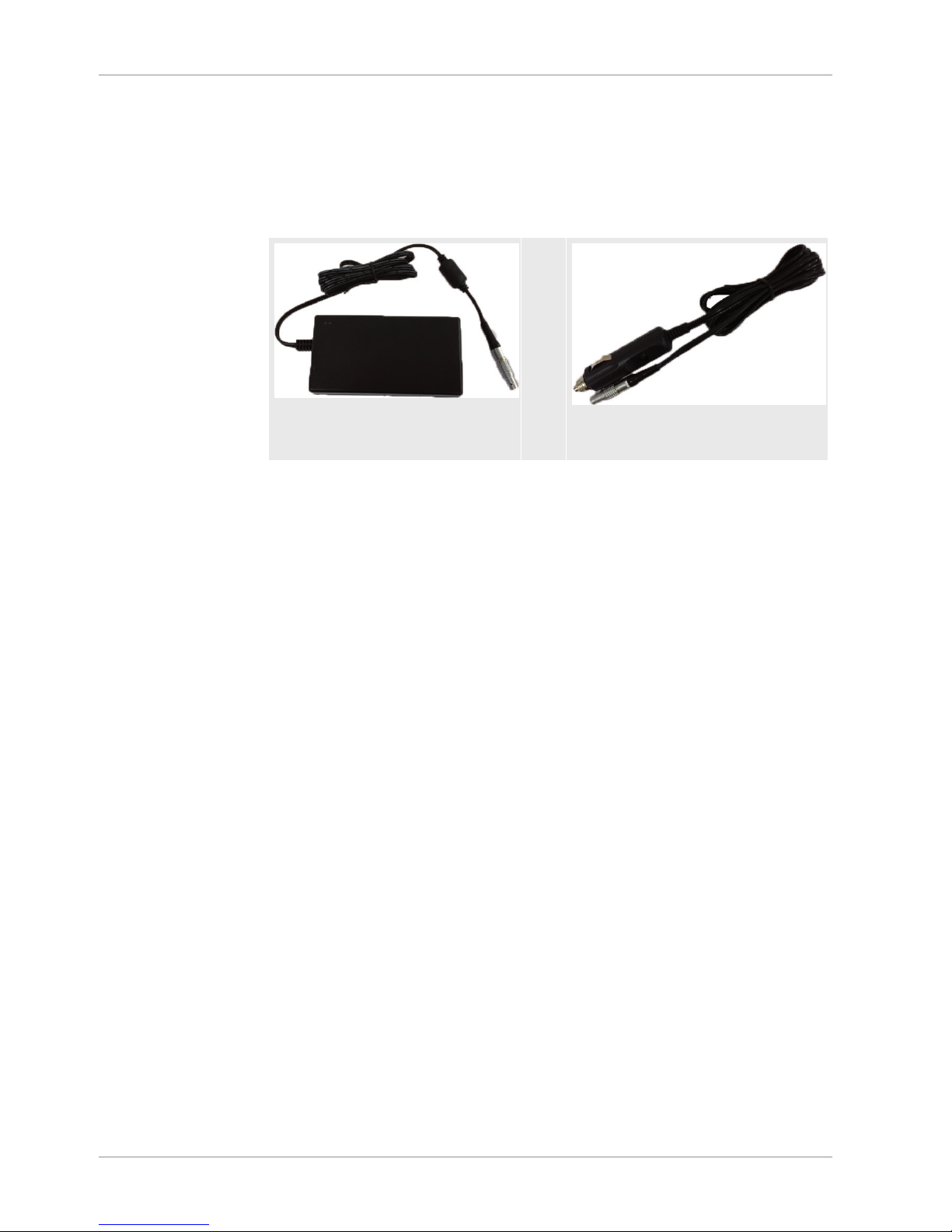

The charger or car adapter is subsequently connected to the inlet of the Ex Certified
IRwin Charging Adapter.
This means that the charger for IRwin S must, under no circumstances, be connected
directly to the charging socket on any of IRwin models SX, SXT, SXG, and SXGT. See
also Charging the battery [}29].
IRwin SXnn is certified as intrinsically safe at an ambient temperature of -20 - +50°C.
Further temperature restrictions apply to oxygen and toxic gas measurment of IRwin
SXT and SXGT. See Certified Gas Measurement.
IRwin SXnn is certified for use in Gas groups IIA, IIB and IIC and in Zones 0, 1 and 2.
The external surface of the enclosure is therefore slightly conductive to prevent electrostatic charging and sparks. Labels added for marking purposes must not be larger
than 400 mm2. If larger the instrument should not be used in gas group IIC, Zone 0 applications. Natural gas applications are not affected by this regulation.
2.2.2 Certified Gas Measurement
IRwin SX, IRwin SXG, IRwin SXT, and IRwin SXGT are certified by TÜV Rheinland to
EN 60079-29-1 for measuring methane (CH4), propane C3H8, butane C4H10 and natural
gas concentration in units of percentage of lower flammability level. In IRwin we use
the more widely known acronym LEL as synonymous with the more correct LFL.
Special conditions for safe use
Traduction française pour CANADA
Le X après le numéro de certificat ATEX concerne les conditions particulières suivantes
pour une utilisation en toute sécurité:
Le seul accessoire autorisé à être connecté à la prise de charge sur l'un des modèles
IRwin SX
IRwin SXT
IRwin SXG
IRwin SXGT
est l'adaptateur de recharge Ex certifié IRwin (PN 580-604).
Le chargeur ou l'adaptateur de voiture est ensuite connecté à l'entrée de l'adaptateur de
recharge.
Le chargeur pour IRwin S ne doit en aucun cas être connecté directement à la prise de
charge de l'un des modèles IRwin SX, SXT, SXG ou SXGT.
INFICON Safety | 2
IRwin-Operating-instructions-mina66en1-12-(1802) 9 / 112
IRwin SXT and IRwin SXGT are, in addition, also certified by TÜV Rheinland to
EN50104 and EN 45544 for measuring Oxygen (O2), Carbon Dioxide (CO2), Carbon
Monoxide (CO) and Hydrogen Sulfide (H2S).
The certification is valid in an ambient temperature of -15 to +40 °C and subject to periodic calibration, see Calibration [}40]
IRwin S, IRwin SX and IRwin SXG are operable within -20 to +50 °C. The certification
is valid in an ambient temperature of -15 to +40 °C. The accuracy may not be according to specification outside this range.
IRwin SXT and IRwin SXGT are operable within -20 to +40 °C. The certification is
valid in an ambient temperature of -15 to +40 °C.
2.3 Owner/supervisor responsibilities
The following notes are for organizations or any person responsible for the safe and
effective use of this equipment.
Safety conscious operation
• Check that the leak detector is properly calibrated and not damaged before using
it.
• Make sure you operate the leak detector in accordance with this manual.
• Adhere to the following regulations:
– Intended use
– General applicable safety and accident prevention regulations
– International, national and local standards and guidelines
– Additional equipment-related provisions and regulations
• Use only original parts or parts approved by the manufacturer.
• Keep this instruction manual available on site.
Staff qualifications
• Only properly trained staff should be permitted to work with and on the equipment.
The training must cover the actual equipment model used.
• Make sure that users have read and understood the operating instructions and all
other applicable documents.
Non-authorized repairs
forbidden
The manufacturer (INFICON) denies all responsibility for the compliance of this product with any of the type certificates for this product if any repairs or service involving
opening the instrument enclosure (yellow box) has been performed by individuals or
organizations not qualified therefore in writing by INFICON AB, Sweden. The manufacturer (INFICON) denies all responsibility for the compliance of this product with any
of the type certificates for this product if the equipment is used in any way not conforming to the instructions in this User Manual. Replacement of externally accessible
parts such as probes and filters is allowed with the exception of the Hand Probe and
the hose between Hand Probe and IRwin detector. These two parts are certified antistatic and must not be replaced with non-original parts.
2 | Safety INFICON
10 / 112 IRwin-Operating-instructions-mina66en1-12-(1802)
2.4 Duties of the operator
• Read, observe, and follow the information in this manual and in the work instructions provided by the owner. This concerns in particular the safety instructions and
warnings.
• Always observe the complete operating instructions for all work.
• If you have any questions about operation or maintenance that are not answered
in this manual, please contact Customer Service.
2.5 Safe operation
Hazards due to chemical substances and explosive gases
• Do not expose the leak detector to excess heat or a naked flame.
• Agressive substances such as solvents and other chemicals can damage the
equipment.
• Adhere to the restrictions of use.
• Do not suck liquids into the leak detector. Proper maintenance of all filters reduces
this risk.
Operation mode and
Ex
The safety related modes Ex and Ex Tox has certified safety features. The detector
monitors its functionality and proper function is indicated by an acoustic alive signal
beeping every 20 s and by the LED being green. This requires that the leak detector is
calibrated according to the instructions and intervals stated in this manual.
If the signal LED is red, this indicates an alarm or an error.
Green LED and short beep every 20 s: Function OK.
Red LED: Gas alarm or instrument error.
Yellow LED: Special state Special state indicates functioning system but alarms are
typically not active. This special state may occur for example during calibration or
when changing a setting in the leak detector.
IRwin Methane Leak Detector was built according to the state-of-the-art and the recognized safety regulations. Nevertheless, improper use may result in risk to life and
limb on the part of the user or third parties, or damage to the leak detector or other
property may occur.
INFICON Scope of delivery | 3
IRwin-Operating-instructions-mina66en1-12-(1802) 11 / 112
3 Scope of delivery
The following is included in the delivery of IRwin (580-712):
Article (catalog number) Quantity
Harness (580-405) 1
Charger for IRwin S, 100-240V (580-603) 1 (IRwin S only)*
Car adapter for IRwin S, 12V (580-602) 1 (IRwin S only)*
Charger cable for car (591-361) 1
Charger for IRwin SXnn models, 100-240V (580-605) 1
Certified IRwin Charging Adapter (580-604) 1
Operating instructions 1
*Only valid for IRwin S up to serial number 92000700.
The following is included in the delivery of the IRwin Kit in addition to the above:
Article (catalog number) Quantity
Rod 850mm (580-150) 1
Extension Rod 150mm (580-160) 1
Carpet (580-211) 1
Bell (580-301) 1
Carrying Case IRwin (580-450) 1
Filter-kit (580-700) 1
Bar Hole Probe (580-115) 1
Extension Connector (580-220) 1
►
Check that the delivery is complete.
4 | Description INFICON
12 / 112 IRwin-Operating-instructions-mina66en1-12-(1802)
4 Description
4.1 Function
The IRwin is a portable methane leak detector for gas pipeline survey. It measures following gases depending on the leak detector version:
• Methane
• Carbon dioxide
• Ethane
• Propane
• Butane
• Oxygen
• Hydrogen sulfide
• Carbon monoxide
There are several probes available for the leak detector:
• The carpet probe is used for surveying paved or smooth surfaces. Pull or push the
carpet along the surface.
• Use the bell probe for measuring gas at specific points. Press the bell firmly down
to pull gas through the surface.
• The hand probe is used for checking features on or in buildings. The hand probe
also constitutes the handle for the carpet probe and bell probe.
• The Bar Hole probe is used to sample air from drilled holes. Push into hole and
tighten screw to expand rubber before connecting sample line.
• The optional Hand Probe Flexible Extension can be connected to the hand probe
or rod for easier access.
INFICON single-cell
wide range technology
(patent pending)
IRwin methane leak detector uses the unique INFICON single-cell wide range technology for detecting all concentrations from 1 ppm to 100 Vol% methane. This technology
is very sensitive to the ethane content of natural gas. Therefore, large deviations can
occur at higher methane concentrations if the ethane concentration is not compensated for. The instrument has built-in routines for ethane compensation. The actual
ethane concentration can be determined using the IR Ethane Analysis function. This
can be used to automatically set the compensation concentration. If preferred you can
instead set the ethane content manually. The safety certified modes Ex and Ex Tox
are not affected by this phenomenon. See IR Ethane Analysis and compensation
[}63].
INFICON Description | 4
IRwin-Operating-instructions-mina66en1-12-(1802) 13 / 112
IRwin SXG and SXGT models also have GC Ethane Analysis capability for distinguishing between Natural gas (NG), liquid petroleum gas (LPG) and swamp gas by
determining the presence of methane, ethane and propane in the sampled gas.
The GC Ethane Analysis function is not affecting the ethane compensation.
4.2 Design of the leak detector
Fig.1:
Design of the leak detetctor
1 Display 4 Gas outlet
2 Reference inlet 5 Charging socket
3 Gas inlet
4 | Description INFICON
14 / 112 IRwin-Operating-instructions-mina66en1-12-(1802)
4.3 Probes
WARNING
Risk of explosion due to not approved probe parts.
The original INFICON Hand probe is the only part of the probe system that is certified
for use in potentially explosive areas. Other parts of the probe system, or third party
accessories are not allowed in potentially explosive areas.
► Pay proper attention to safety when using other accessories for locating and pin-
pointing gas leaks in none classified areas.
Carpet probe
When you are looking for gas leaks on paved surfaces, use the Carpet probe. Pull or
push the Carpet probe along the surface.
Fig.2:
Carpet probe
Bell probe
When searching for or measuring gas leaks at particular spots, use the Bell probe.
This can be used to pull gas through most pavings. It is also suitable for emergency
testing if surface is wet.
Fig.3:
Bell probe
Hand probe
You can use the Hand probe to search for gas in building installations. The hand
probe also constitutes the handle for the Carpet probe and for the Bell probe.
INFICON Description | 4
IRwin-Operating-instructions-mina66en1-12-(1802) 15 / 112
Fig.4:
Hand probe
Bar Hole Probe
The Bar Hole Probe is used to pump out and take samples from holes drilled in the asphalt or concrete when pin-pointing a leak. Note that the Bell Probe can be used first
to reduce the number of holes.
Fig.5:
Bar Hole Probe
Hand Probe Flexible
Extension
The flexible extension is practical when locating leaks in hard to reach installations.
Use the Extension Connector to attach it to the long rod to reach even further.
Fig.6:
Hand Probe Flexible Extension
4 | Description INFICON
16 / 112 IRwin-Operating-instructions-mina66en1-12-(1802)
4.4 Display
7
5
1
2
3
4
6
1 1
1
2
3
4
8
9
Above ground
5
(10 PPM)
1010
1 Navigation buttons 2 Navigation and on / off button
3 Battery status indicator 4 Mode icon
5 Measured value, target gas and
unit
6 Measurement range (in % or PPM
CH4 depending on the operation
mode)
7 Status indicator LED 8 Operation mode and menu bar
9 Buzzer 10 PPM threshold in Above Ground
and Confined Space modes.
Navigation buttons
Menu Upper left
Settings Upper left after pressing “Menu”
Operation Upper right
Information Lower left after pressing “Menu”
Diagnosis At lower right after pressing “Menu”
Table1:
Navigation buttons
To select a menu, press the navigation button to go to desired tab or field.
Press check mark button , select or open a highlighted option.
Function buttons
OK/Select/Confirm
Navigation buttons (in this case go right)
Cancel process
Start process
Start data logging
Stop data logging
INFICON Description | 4
IRwin-Operating-instructions-mina66en1-12-(1802) 17 / 112
Mute the alarm
Table2:
Function buttons
Symbols of the status
bar
Bluetooth activated
Symbol ON = GPS connected and
tracking
Symbol flashing = GPS not connected
Battery status indicator
The color of the battery status indicator shows the remaining runtime before shutdown:
White: > 1h remaining
Orange: < 1h remaining
Red flashing: < 10 min remaining
Progress bars for calibration processes etc.
White bar: Process has not yet started
Light green bar: Process running
Dark green bar: Process completed
Red bar: Process failed
Table3:
Status indicators
Mode icons
• Operation mode- Above ground
• Operation mode- Bar hole
• Operation mode- Confined Space
• Operation mode- House
• Operation mode- Gas Purity
• Operation mode- Ex
• Operation mode- Ex Tox
• Operating mode- GC Ethane Analysis
Permission levels
Symbol Permission level Password
Basic none
Intermediate 1111
Advanced 1422
Table4:
Permission levels
4 | Description INFICON
18 / 112 IRwin-Operating-instructions-mina66en1-12-(1802)
Status LED
Green • Leak detector is charging normal
(power off)
• Normal operation in the modes Ex and
Ex Tox.
Cyan Leak detector is charging fast.
Blue Normal operation
(in all operation modes except Ex and Ex
Tox)
Red • Alarm
• Error message
Yellow The leak detector is in a state in which
functions like for example alarms could
be disabled. For example, during warm
up or calibration.
INFICON Description | 4
IRwin-Operating-instructions-mina66en1-12-(1802) 19 / 112
4.5 Technical data
Mechanical data
580-000 580-010 580-015 580-020 580-030
Name IRwin S IRwin SX IRwin SXT IRwin SXG IRwin SXGT
Weight 1,4 kg (3 lb.) 1.6 kg (3.5 lb.) 1.6 kg (3.5 lb.) 1.6 kg (3.5 lb.) 1.6 kg (3.5 lb.)
Dimensions
(lxwxh)
197 x 256 x 62
mm (6.6 x 9.7 x
2.3 in.)
197 x 256 x 62
mm (6.6 x 9.7 x
2.3 in.)
197 x 256 x 62
mm (6.6 x 9.7 x
2.3 in.)
197 x 256 x 62
mm (6.6 x 9.7 x
2.3 in.)
197 x 256 x 62
mm (6.6 x 9.7 x
2.3 in.)
Electrical data
580-000 580-010 580-015 580-020 580-030
Name IRwin S IRwin SX IRwin SXT IRwin SXG IRwin SXGT
Power input 4 A 4 A 4 A 4 A 4 A
Memory capacity for measured
data
64 MB 64 MB 64 MB 64 MB 64 MB
Type of protection
IP54 IP54 IP54 IP54 IP54
Electronic interfaces
Bluetooth 3.0
Class 1
Bluetooth 3.0
Class 1
Bluetooth 3.0
Class 1
Bluetooth 3.0
Class 1
Bluetooth 3.0
Class 1
Battery operating time
8 h as verified
during certification, typical value
9 h
8 h as verified
during certification, typical value
9 h
8 h as verified
during certification, typical value
9 h
8 h as verified
during certification, typical
value 9 h
8 h as verified
during certification, typical value
9 h
Battery charging
time
4 h from empty
to full charge (3
h for fast charging). 4 hours operation by 1 hour
fast loading
4 h from empty
to full charge (3
h for fast charging). 4 hours operation by 1 hour
fast loading
4 h from empty
to full charge (3
h for fast charging). 4 hours operation by 1 hour
fast loading
4 h from empty
to full charge (3
h for fast charging). 4 hours operation by 1 hour
fast loading
4 h from empty
to full charge (3 h
for fast charging). 4 hours operation by 1 hour
fast loading
Battery Lithium-Ion Lithium-Ion Lithium-Ion Lithium-Ion Lithium-Ion
Physical data
580-000 580-010 580-015 580-020 580-030
Name IRwin S IRwin SX IRwin SXT IRwin SXG IRwin SXGT
Noise level < 70 dB (A) < 70 dB (A) < 70 dB (A) < 70 dB (A) < 70 dB (A)
4 | Description INFICON
20 / 112 IRwin-Operating-instructions-mina66en1-12-(1802)
580-000 580-010 580-015 580-020 580-030
Detectable
gases
Methane, ethane, propane,
butane, carbon
dioxide
Methane, carbon
dioxide, ethane,
propane, butane
Methane, carbon
dioxide, ethane,
propane, butane,
oxygen, hydrogen sulfide, carbon monoxide
Methane, carbon
dioxide, ethane,
propane, butane
Methane, carbon
dioxide, ethane,
propane, butane,
oxygen, hydrogen sulfide, carbon monoxide
Gas flow through
sniffer line
Typically 60 l/h Typically 60 l/h Typically 60 l/h Typically 60 l/h Typically 60 l/h
Ambient conditions
580-000 580-010 580-015 580-020 580-030
Name IRwin S IRwin SX IRwin SXT IRwin SXG IRwin SXGT
Max. altitude
above sea level
2000 m 2000 m 2000 m 2000 m 2000 m
Permissible ambient temperature (during operation)
-20° - +50°C (-4
- 122°F)
-20 - 50°C (-4 122°F)
-15 - 40°C (-5 104°F)
-20 - 50°C (-4 122°F)
-15 - 40°C (-5 104°F)
Storage temperature
-25 - +70°C (-13
- 158°F)
-25 - 70°C (-13 158°F)
-25 - 70°C (-13 158°F)
-25 - 70°C (-13 158°F)
-25 - 70°C (-13 158°F)
Pressure range 80 kPa - 120
kPa
80 kPa - 120
kPa
80 kPa - 120
kPa
80 kPa - 120
kPa
80 kPa - 120
kPa
Max. relative humidity
95% (non-condensing)
95% (non-condensing)
95% (non-condensing)
95% (non-condensing)
95% (non-condensing)
INFICON Description | 4
IRwin-Operating-instructions-mina66en1-12-(1802) 21 / 112
4.5.1 EX certification (intrinsic safety)
Type certificate
Type certificates, see Certificates [}85]
The products:
• IRwin SX 580-010,
• IRwin SXT 580-015,
• IRwin SXG580-020,
• IRwin SXGT580-030,
are Ex certified with rating according to the following table. The IRwin S 580-000 is not
Ex certified.
EX rating
EX rating Ex ia IIC T3, T
amb
: -20°C - +50°C,
II 1G (EPL Ga)
USA: Intrinsically safe, Class I, Division 1, Groups A,
B, C and D.
EX ranges of applications • Zones: 0, 1 and 2
• Gas groups: IIA, IIB and IIC
• Temperature classes: T1, T2 and T3
• USA: Zone 0, Class I, Division 1, Groups A, B, C
and D.
4.5.2 Sensors
Basic sensor data
Gas (measurement range) Sensor Warm up time
CH4, C2H
6
Infrared (IR) < 30 s
CO
2
Infrared (IR) < 30 s
O2, CO, H2S Electrochemical < 120 s
O2 sensor: 1 - 12 hours if
stored with flat battery.
Sensor performance
data
The calibration gases defined below are the typical gases and gas mixes used to calibrate the different modes. For optimum performance adjust these settings to the actual concentrations of the gases used. See Calibration [}40].
Above ground mode:
Measurement
principle
Infrared (IR)
Measurement
range
CH4, C3H8, C4H10: 1 ppm - 5 Vol%
Resolution 1 ppm (0 - 100 ppm), 10 ppm (110 - 990 ppm), 0,1 Vol% (0,1 - 5
Vol%)
4 | Description INFICON
22 / 112 IRwin-Operating-instructions-mina66en1-12-(1802)
Measurement error
+5/-2 ppm (<20 ppm) +/-10% (20 - 50 ppm) +/-5% (50 ppm - 2.2
Vol%) +/-20% (2.2 - 5 Vol%)
Response time t50 <3 s, t90 <5 s
Recovery time t50 <3 s, t10 <5 s
Cross sensitivity All hydrocarbons CxHy
Lifetime Guaranteed 1 years, expected > 2 years
Calibration
gases
Fresh air, CH4 in air: 10 ppm, 100 ppm, 2.2 Vol%
Bar hole mode:
Measurement
principle
Infrared (IR)
Measurement
range
CH4, C3H8, C4H10: 0.5 - 100 Vol%
C2H6 content in CNG: 0.5 - 8 Vol%
CO2: 0.1 - 20 Vol%
Resolution CH4 & CO2: 0.1 Vol% (0.1 - 1 Vol%), 1 Vol% (>1 Vol%)
C2H6: 0.1 Vol% (Auto test) 0.5 Vol% (manual selection)
Measurement error
CH4: ±3 Vol%
CO2: +/-1% (<10 Vol%), +/-20% (>10 Vol%)
Response time t50 <5 s, t90 <10 s
Recovery time t50 <5 s, t10 <10 s
Cross sensitivity All hydrocarbons CxHy
CO2: Negligible
Lifetime Guaranteed 1 years, expected > 2 years
Calibration
gases
Fresh air, CH4 in air: 2.2 Vol%, 100 Vol%. CO2, 20 Vol%
GC Ethane Analysis mode:
Measurement
principle
Gas Chromatography separation with semiconductor detector
Measurement
range
1000 ppm gas needed in sample. This refers to total hydrocarbon content (i.e., natural gas, swamp gas or LPG etc.).
Capability Can identify Natural Gas at 0.5% C2H6level.
Automatic interpretation of result as either of:
• NG with Ethane detected
• Swamp gas detected
• LPG detected
INFICON Description | 4
IRwin-Operating-instructions-mina66en1-12-(1802) 23 / 112
• Gas type not identified (given if result is not clear)
Cycle time*: Ethane only: 2 min at 25°C, 3 min at 0°C
Ethane and Propane: 5 min at 25°C, Propane detection not possible at 0°C
Purge time (before new GC
test):
3 min
Lifetime Separation column: Guaranteed 3 years, expected > 10 years
Semiconductor sensor: Guaranteed 1 year, expected 3 years.
* Times given are valid after 1 h operation in given ambient temperature. Times include 30 s sensor purge before analysis. Three minutes column purge after analysis is
not included. The column purge can be postponed.
House mode:
Measurement
principle
Infrared (IR)
Measurement
range
CH4, C3H8, C4H10: 1 ppm - 5 Vol%
Resolution 1 ppm (0 - 100 ppm), 10 ppm (110 - 990 ppm), 0.1 Vol% (0.1 - 1
Vol%), 1 Vol% (>1 Vol%)
Measurement error
+5/-2 ppm (<20 ppm) +/-10% (20 - 50 ppm) +/-5% (50 ppm - 2.2
Vol%) +/-20% (2.2 - 5 Vol%)
Response time t50 <3 s, t90 <5 s
Recovery time t50 <3 s, t10 <5 s
Cross sensitivity All hydrocarbons CxHy
Lifetime Guaranteed 1 years, expected > 2 years
Calibration
gases
Fresh air, CH4 in air: 10 ppm, 100 ppm, 2.2 Vol%
Confined Space mode:
Measurement
principle
Infrared (IR)
Measurement
range
CH4, 1 ppm – 100 Vol% for natural gas with up to 8% C2H6 (ethane) content
Resolution 1 ppm (0 - 100 ppm), 10 ppm (110 - 990 ppm), 0.1 Vol% (0.1 - 1
Vol%), 1 Vol% (>1 Vol%)
Measurement error
+5/-2 ppm (<20 ppm) +/-10% (20 - 50 ppm) +/-5% (50 ppm - 2.2
Vol%) +/-3 Vol% (2.2 - 100 Vol%)
Response time t50 <5 s, t90 <10 s
4 | Description INFICON
24 / 112 IRwin-Operating-instructions-mina66en1-12-(1802)
Recovery time t50 <5 s, t10 <10 s
Cross sensitivity All hydrocarbons CxHy
Lifetime Guaranteed 1 years, expected > 2 years
Calibration gas Fresh air, CH4 in air: 10 ppm, 100 ppm, 2.2 Vol%, 100 Vol%
Gas Purity mode:
Measurement
principle
Infrared (IR)
Measurement
range
CH4: 0.5 - 100 Vol%
Resolution 0.5 Vol% (0.5 - 1 Vol%), 1 Vol% (>1 Vol%)
Measurement ±3 Vol%
Response time t50 <5 s, t90 <10 s
Recovery time t50 <5 s, t10 <10 s
Cross sensitivity All hydrocarbons CxHy
Lifetime Guaranteed 1 years, expected > 2 years
Calibration gas Fresh air, CH4 in air: 2.2 Vol%, 100 Vol%
Ex mode:
Measurement
principle
Infrared (IR)
Measurement
range
CH4, C3H8, C4H10: 1 - 100% LEL
Resolution 1%LEL
Measurement error
±5%LEL
Response time CH4: t50 = 3 s, t90 = 5 s
Recovery time t50 <3 s, t10 <5 s
Cross sensitivity All hydrocarbons CxHy
Lifetime Guaranteed 1 years, expected > 2 years
Calibration gas Fresh air, CH4: 2.2 Vol%
Ex Tox mode:
Measurement
principle
Infrared (IR)
Measurement
range
CH4, C3H8, C4H10: 1 - 100% LEL
CO2: 0.1 - 5 Vol%
INFICON Description | 4
IRwin-Operating-instructions-mina66en1-12-(1802) 25 / 112
O2: 0.1 - 25 Vol%
CO: 1 - 500 ppm
H2S: 1 - 400 ppm
Resolution CH4, C3H8, C4H10: 1% LEL
CO2: 0.05 Vol%
O2: 0.1 Vol%
CO: 1 ppm
H2S: 0.1 ppm
Measurement error
CH4: ±5 % LEL C3H8: +/-40% of indicated value C4H10: +/-50% of
indicated value
CO2: ±0.1 Vol%
O2: ±0.3 Vol%
CO: ±3 ppm
H2S: ±0.5 ppm
Response time CH4: t50 <3 s, t90 <5 s
O2: t50 <16 s, t90 <40 s
CO: t50 < 15 s, t90 <30 s
CO2: t50 <12 s, t90 <36 s
H2S: t50 <18 s, t90 <66 s
Recovery time CH4: t50 <3 s, t10 <5 s
CO2: t50 <12 s, t10 <36 s
O2: t50 <16 s, t10 <39 s
CO: t50 <15 s, t10 <30 s
H2S: t50 < 18 s, t10 <66 s
Sensitivity drift CH4, C3H8, C4H10: <±5 %LEL in 1 month
CO2: <±5 Vol% in 1 month
O2: <±1 Vol% in 3 months
CO: <±4% in 12 months
H2S: <±2% in 12 months
Cross sensitivity CH4: All hydrocarbons CxHy.
O2: negligible
CO: <12% of applied H2S concentration, <8% of applied H2 concentration
H2S: <1.5% of applied CO concentration, <0.3% of applied H
2
concentration
CO2: negligible
4 | Description INFICON
26 / 112 IRwin-Operating-instructions-mina66en1-12-(1802)
Lifetime CH4, C3H8, C4H10: Guaranteed 1 years, expected > 2 years
CO2: Guaranteed 1 years, expected > 2 years
O2: Guaranteed 4 years, expected > 5 years
CO: Guaranteed 2 years, expected > 3 years
H2S: Guaranteed 2 years, expected > 3 years
Calibration gas Fresh air, ToxMix (CH4 2.2 Vol%, CO2 2 Vol%, CO 40 ppm, H2S
40 ppm, O2 0 Vol% in N2)
4.6 Factory settings
Parameter Factory Setting Options
Screen timeout (auto
standby)
30 s Off
5, 30 s
1, 2, 5, 10, 20, 30 min
1, 2
Brightness 10 1 -10
Screensaver (IRwin S only) enabled enabled or disabled
CH4 PPM Alarm 10 PPM 3, 5, 10, 15, 20, 25, 50,
100
CH4 AL1
CH4 AL2
CH4 AL3
10% LEL
50% LEL
100% LEL
3, 5, 10
30, 40, 50
80, 90, 100
C3H8 PPM alarm 10 PPM 3, 5, 10, 15, 20, 25, 50,
100
C3H8 AL1
C3H8 AL2
C3H8 AL3
10% LEL
50% LEL
100% LEL
3, 5, 10
30, 40, 50
80, 90, 100
C4H10 PPM alarm 10 PPM 3, 5, 10, 15, 20, 25, 50,
100
C4H10 AL1
C4H10 AL2
C4H10 AL3
10% LEL
50% LEL
100% LEL
3, 5, 10
30, 40, 50
80, 90, 100
CO2 AL1
CO2 AL2
CO2 AL3
CO2 STEL
CO2 LTEL
0.5 Vol%
1.0 Vol%
5 Vol%
1.0 Vol%
0.5 Vol%
0.1, 0.2, 0.3, 0.4, 0.5
0.6, 0.7, 0.8, 0.9, 1.0
1.0, 2.0, 3.0, 4.0, 5.0
0.5, 0.6, 0.7, 0.8, 0.9, 1.0
0.1, 0.2, 0.3, 0.4, 0.5
INFICON Description | 4
IRwin-Operating-instructions-mina66en1-12-(1802) 27 / 112
Parameter Factory Setting Options
CO AL1
CO AL2
CO AL3
CO STEL
CO LTEL
30 ppm
60 ppm
500 ppm
30 ppm
30 ppm
10, 20, 30
40, 50, 60
100, 200, 300, 400, 500
10, 20, 30
10, 20, 30
H2S AL1
H2S AL2
H2S AL3
H2S STEL
H2S LTEL
10 ppm
20 ppm
100 ppm
10 ppm
10 ppm
3, 5, 7, 10
10, 15, 20
50, 60, 70, 80, 90, 100
3, 5, 7, 10
3, 5, 7, 10
O2 AL1
O2 AL2
O2 AL3
10 Vol%
18 Vol%
23 Vol%
3, 5, 10, 15
16, 17, 18, 19, 20
21, 22, 23, 24, 25
Calibration reminder Off Off, 1 - 7, 14, 30 days
Function test reminder Off Off, 2, 4, 8 h.
Time UTC +2 h. -11 - +12 h.
Language English English, Deutsch, Italiano,
Nederlands, Polskie
Ethane % 0% 0 - 8% (in increments of
0.5%)
Log to file enabled enabled / disabled
Logging Interval (log file
period)
1 s 1, 2, 3, 5, 10, 30 s, 1 min
Start menu Ex, (Above ground in IRwin
S)
Autorotations Off On, Off
Re-test C2H6 in Bar Hole Off Off, startup, always
Measuring duration (Auto
bar hole)
10 s 10, 15, 20, 25, 30 s
Evacuation duration (Auto
bar hole)
3min 3, 4, 5, 10, 15 min
CO2-limit at evacuation
(Auto bar hole)
Off Off, 1, 2, 3, 4, 5%
4 | Description INFICON
28 / 112 IRwin-Operating-instructions-mina66en1-12-(1802)
4.7 Concentration of calibration and test gases
Calibration routine Gases Default Options
Above Ground
10 ppm CH
4
10 ppm 8 - 15 ppm in 0.1
ppm increments
100 ppm CH
4
100 ppm 90 - 110 ppm in 1
ppm increments
2.2 Vol% CH
4
2.2 Vol% 2.0 - 2.5 Vol% in
0.1 Vol% increments
Ex Tox (Tox)
Mixture of:
2.2 Vol% CH
4
2.2 Vol% 1.4 - 2.5 Vol% in
0.1 Vol% increments
2.0 Vol% CO
2
2.0 Vol% 0.5 - 3.0 Vol% in
0.1 Vol% increments
0 Vol% O
2
0.0 Vol% 0.0 - 18.0 Vol% in
0.1 Vol% increments
40 ppm H2S 40 ppm 4 - 50 ppm in 1 ppm
increments
40 ppm CO 40 ppm 20 - 160 ppm in 1
ppm increments
Balance: N
2
Not applicable Not applicable
Ex
2.2 Vol% CH
4
2.2 Vol% 2.0 - 2.5 Vol% in
0.1 Vol% increments
Bar Hole CO
2
20.0 Vol% CO
2
20.0 Vol% 10.0 - 20.0 Vol% in
0.1 Vol% increments
Bar Hole CH
4
2.2 Vol% CH
4
2.2 Vol% 2.0 - 2.5 Vol% in
0.1 Vol% increments
100 Vol% 100 Vol% 80 - 100 Vol% in 1
Vol% increments
GC Ethane analysis
*
Mixture of:
1 Vol% CH
4
Not applicable Not applicable
50 ppm C2H
6
Not applicable Not applicable
*Used only for Function Test of GC Ethane Analysis.
Balance gas is Synthetic Air if nothing else stated (Ex Tox balance is N2).
INFICON Getting started | 5
IRwin-Operating-instructions-mina66en1-12-(1802) 29 / 112
5 Getting started
5.1 Charging the battery
WARNING
Explosion hazard
The equipment for charging IRwin is not ATEX certified/ex-protected.
► Never charge IRwin (all models) in potentially explosive atmospheres.
WARNING
Using the wrong charger could damage the explosion protection of IRwin
SXnn models.
The only equipment allowed to be connected to the Charging socket of any of the IRwin SXnn models is the Ex Certified IRwin Charging Adapter. Connect this adapter to
the leak detector first and then connect the charger or car cable to the adapter.
NOTICE
Fast charging reduces the lifetime of the battery.
► Do not use fast charging regularly.
► The ambient temperature during the charging process should be between 10 and
30 °C.
Loading...
