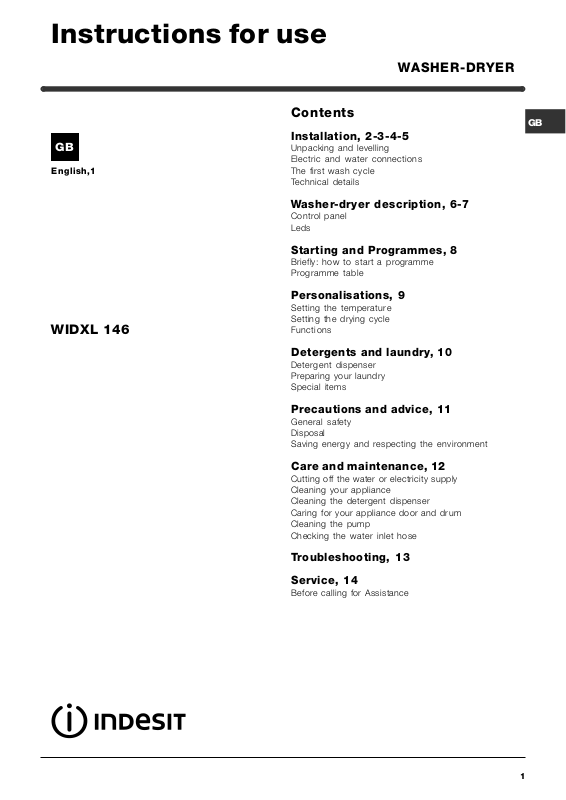

Instructions for use

WASHER-DRYER

English,1

WIDXL 146

Contents

Installation, 2-3-4-5

Unpacking and levelling Electric and water connections The first wash cycle Technical details

Washer-dryer description, 6-7

Control panel Leds

Starting and Programmes, 8

Briefly: how to start a programme Programme table

Personalisations, 9

Setting the temperature Setting the drying cycle Functions

Detergents and laundry, 10

Detergent dispenser Preparing your laundry Special items

Precautions and advice, 11

General safety Disposal Saving energy and respecting the environment

Care and maintenance, 12

Cutting off the water or electricity supply Cleaning your appliance Cleaning the detergent dispenser Caring for your appliance door and drum Cleaning the pump Checking the water inlet hose

Troubleshooting, 13

Service, 14

Before calling for Assistance

Installation

 Keep this instruction manual in a safe place for

future reference. Should the appliance be sold, transferred or moved, make sure the instruction manual accompanies the washer-dryer to inform the new owner as to its operation and features.

 Read these instructions carefully: they contain vital

information on installation, use and safety.

Unpacking and levelling

Unpacking

1. Unpack the washer-dryer.

2. Check whether the washer-dryer has been damaged during transport. If this is the case, do not install it and contact your retailer.

3. Remove the four protective screws and the rubber bush with the respective spacer, situated on the rear of the appliance (see also the installation leaflet). NB:The plastic spacers may fall down inside the

machine once the bolt has been removed, and will not interfere with the operation of the machine.

4. Seal the gaps using the plastic plugs provided.

5. Keep all the parts: you will need them again if the washing machine needs to be moved to another location.

 Packaging materials are not children's toys.

Levelling

Your machine may make a considerable amount of noise if the two front feet have not been adjusted correctly.

1. Install the washer-dryer on a flat sturdy floor, without resting it up against walls, furniture cabinets or other.

2. If the floor is not perfectly level, compensate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured according to the worktop, must not exceed 2°.

Levelling your appliance correctly will provide it with stability and avoid any vibrations, noise and shifting during operation. If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the washer-dryer.

Electric and water connections

Connecting the water inlet hose

1. Insert seal A into the end of the inlet hose and screw the latter onto a cold water tap

3. Make sure there are no kinks or bends in the hose.

 The water pressure at the tap must be within the

values indicated in the Technical details table (on the next page).

 If the water inlet hose is not long enough, contact

a specialist store or an authorised serviceman.

 Ensure that the supply taps are allowing water

through. Old taps may seize in the closed position and thus prevent water reaching the machine.

with a 3/4 gas threaded mouth (see figure). Before making the connection, allow the water to run freely until it is perfectly clear.

2. Connect the other end of the water inlet hose to the washer-dryer, screwing it onto the appliance's cold water inlet, situated on the top right-hand side on the rear of the appliance (see figure).

Connecting the drain hose

65 - 100 cm

Connect the drain hose, without bending it, to a draining duct or a wall drain situated between 65 and 100 cm from the floor;

 the supply voltage is included within the values

indicated on the Technical details table (see page 5);

 the socket is compatible with the washer-dryer's

plug. If this is not the case, replace the socket or the plug.

Your appliance is now supplied with a 13 amp fused plug it can be plugged into a 13 amp socket for immediate use. Before using the appliance please read the instructions below.

The drain hose may be connected to an under-sink trap. Before connecting the drain hose from the machine ensure that any blanks

Where it connects to the waste water pipe cut end off spigot or remove the blanking cap

or removable ends have been taken off the spigot.

If it is place over the edge of a basin or sink be sure the free end of the hose should not be underwater.

 We advise against the use of hose extensions; in

case of absolute need, the extension must have the same diameter as the original hose and must not exceed 150 cm in length. Ensure that if the drain hose is pushed into a standpipe, that the end does not go down more than 15cms (6 inches). If the hose is pushed down too far, this may cause the machine to self -syphon ie. continuously empty as it is filling.

Electric connection

Before plugging the appliance into the mains socket, make sure that:

 the socket is earthed and in compliance with the

applicable law;

 the socket is able to sustain the appliance's

maximum power load indicated in the Technical details table (see page 5);

WARNING - THIS APPLIANCE MUST BE EARTHED. THE FOLLOWING OPERATIONS SHOULD BE CARRIED OUT BY A QUALIFIED ELECTRICIAN.

Replacing the fuse:

When replacing a faulty fuse, a 13 amp ASTA approved fuse to BS 1362 should always be used, and the fuse cover re-fitted. If the fuse cover is lost, the plug must not be used until a replacement is obtained. Replacement fuse covers: If a replacement fuse cover is fitted, it must be of the correct colour as indicated by the coloured marking or the colour that is embossed in words on the base of the plug. Replacements can be obtained directly from your nearest Service Depot.

Removing the plug:

If your appliance has a non-rewireable moulded plug and you should wish to re-route the mains cable through partitions, units etc., please ensure that either: the plug is replaced by a fused 13 ampere rewearable plug bearing the BSI mark of approval. or: the mains cable is wired directly into a 13 amp cable outlet, controlled by a switch, (in compliance with BS 5733) which is accessible without moving the appliance.

Disposing of the plug:

Ensure that before disposing of the plug itself, you make the pins unusable so that it cannot be accidentally inserted into a socket.

Instructions for connecting cable to an alternative plug: Important: the wires in the mains lead are coloured in accordance with the following code:

Green & Yellow Earth Blue Neutral Brown Live

As the colours of the wires in the lead may not correspond with the coloured markings identifyng the terminals in your plug, proceed as follows: Connect Green & Yellow wire to terminal marked E

or coloured Green or Green & Yellow.

or Connect Brown wire to terminal marked L or coloured Red. Connect Blue wire to terminal marked N or coloured Black. If a 13 amp plug (BS 1363) is used it must be fitted with a 13 amp fuse, either in the plug or adaptor or at the distribution board. If you are in any doubt the electrical supply to your machine, consult a qualified electrician before use. How to connect an alternative plug: The wires in this mains lead are coloured in accordance with the following code:

BLUE NEUTRAL (N) BROWN LIVE (L) GREEN & YELLOW EARTH (E)

Disposing of the appliance:

When disposing of the appliance please remove the plug by cutting the mains cable as close as possible to the plug body and dispose of it as described above.

Warning! The company denies all liability if and when these norms are not respected.

The first wash cycle

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, setting the 90°C programme without a pre-wash cycle.

GREEN & YELLOW

BROWN

BLUE

13 ampere fuse

CROSS-BAR CORD GRIP

 The washing machine should not be installed in an

outdoor environment, not even when the area is sheltered, because it may be very dangerous to leave it exposed to rain and thunderstorms.

 When the washing machine is installed, the mains

socket must be within easy reach.

 Do not use extensions or multiple sockets.

 The power supply cable must never be bent or

dangerously compressed.

 The power supply cable must only be replaced by

an authorised serviceman.

Technical details

Model

Dimensions

Capacity

Electric connections

Wat er

connections

Spin speed

Control programmes according to EN 50229 directive

WIDXL 146

59.5 cm wide 85 cm high

53.5 cm deep from 1 to 6 kg for the wash programme;

from 1 to 5 kg for the drying programme

please refer to the technical data plate fixed to the machine

maximum pressure 1 MPa (10 bar) minimum pressure 0.05 MPa (0.5 bar) drum capacity 52 litres

up to 1400 rpm

Wash: programme 2; temperature 60°C; run with a load of 6 kg. Dry in g: first drying cycle performed with a 1 kg load, by selecting a drying time of 60 min; Second drying cycle performed with a 5 kg load and the DRYING knob on the setting.

This appliance is compliant with the following European Community Directives:

- 89/336/CEE of 03/05/89 (Electromagnetic Compatibility) and subsequent amendments

- 2002/96/CE

- 2006/95/CE (Low Voltage)

Washer-dryer description

Control panel

Detergent dispenser

Detergent dispenser: to add detergent and fabric

softener (see page 10).

FUNCTION

Buttons

Leds

DRYING

Knob

TEMPERATURE knob: to set the temperature or the cold wash cycle (see page 9).

ON-OFF/ DOOR LOCK

Led

START/RESET

Button

TEMPERATURE

Knob

ON-OFF

Button

PROGRAMME

Knob

LEDS: to find out the wash cycle progress. If the Delay Timer function has been set, the time left until the programme starts will be indicated (see page 7).

DRYING knob: to set the desired drying cycle

(see page 9).

FUNCTION buttons: to select the functions available. The button corresponding to the function selected will remain on.

START/RESET button: to start the programmes or cancel any incorrect settings.

ON-OFF/DOOR LOCK Led: to find out whether the Washer-dryer is on and if the appliance door can be opened (see page 7).

ON/OFF button: to turn the Washer-dryer on and off.

PROGRAMME knob: to select the wash

programmes. The knob stays still during the cycle.

Leds

The LEDS provide important information. This is what they can tell you:

Delay set:

If the Delay Timer function has been enabled (see page. 9), once you have started the programme,

the LED corresponding to the delay set will begin to flash:

As time passes, the remaining delay will be displayed, and the corresponding LED will flash:

Once the set delay is complete, the flashing LED will turn off and the programme set will start.

Cycle progress:

During the wash cycle, the LEDs gradually illuminate on to indicate the cycle progress:

Prewash / Wash

Rinse

Spin cycle

Drying

Note:

- during draining, the LED corresponding to the Spin cycle phase will be turned on.

- when the drying cycle is complete, the indicator light relative to phase the DRYING knob needs to be set back to the 0 setting.

Function buttons

The FUNCTION BUTTONS also act like LEDS. When a function is selected, the corresponding button is illuminated. If the function selected is incompatible with the programme set, the button will flash and the function will not be enabled. If you set a function that is incompatible with another function you selected previously, only the last one selected will be enabled.

will flash, to indicate that

ON-OFF/DOOR LOCK led:

If this LED is on, the appliance door is locked to prevent it from being opened accidentally; to avoid any damages, wait for the LED to flash before you open the appliance door.

 The rapid flashing of the ON-OFF/DOOR LOCK Led together with the flashing of at least one other LED

indicates there is an abnormality. Call for Technical Assistance (see page 13).

Starting and Programmes

Briefly: starting a programme

1. Switch the Washer-dryer on by pressing button . All the LEDS will light up for a few seconds and the ON-OFF/DOOR LOCK Led will begin to flash.

2. Load your laundry into the washing machine and shut the appliance door.

3. Set the PROGRAMME knob to the programme required.

4. Set the wash temperature (see page 9).

5. Set the drying cycle if necessary (see page 9).

6. Add the detergent and any fabric softener (see page 10).

Programme table

Type of fab ric and degree of soil

Standard

Extrem ely soiled whites (sheets, tablecloths, etc.)

Heavily s oiled wh ites and fast colours

Heavily s oiled wh ites and delicate colours

Slig htly so iled w h ites and delicate colours (shirts, jum pers, etc.)

Heavily soiled fast colours (baby linen, etc.)

Wool

Very delicate fabrics (curtain s, silk, vis cose, etc.)

Drying cotton

Prog. Temp.

Drying Cycle

90°C    

90°C   

60°C   

40°C   

0°C

40°C   

40°C  

30°C  

Detergent

pre-

wash





7. Start the programme by pressing the START/RESET button for one second. Once the programme has been accepted all of the option and status LED's will illuminate momentarily, the Door Lock LED will be lit and the relevant wash cycle progress LED will also be lit. To cancel it, keep the START/RESET button pressed for at least 2 seconds.

8. When the programme is finished, the ON-OFF/ DOOR LOCK Led will flash to indicate that the appliance door can be opened. Take out your laundry and leave the appliance door ajar to allow the drum to dry thoroughly. Turn the Washer-dryer

Description of wash cycle

Pre-wash, wash cycle, rinse cycles, intermediate and final spin cycles

Wash cycle, rinse cycles, intermediate and final spin cycles

Wash cycle, rinse cycles, anti-crease or delicate spin cycle

Wash cycle, rins e cycles , delicate s pin cycle

Wash cycle, rinse cycles, anti-crease or drainin g cycle

Fabric

softener

off by pressing button

Cycle length (m inu te s )

Max. Spin Speeds (r.p.m .)

155 Max.

150 Max.

140 Max.

125 Max.

85 Max.

72 800

70 800

50 600

45 no

Max.

Drying delicates

Tim e 4 y o u

Heavily s oiled wh ites and fast colours

Delicate colou rs (all types of slightly soiled garments)

Sport

Sports shoes

Fabrics for sportswear (Tracksuits, shorts, etc.)

PARTIAL PROGR AMM ES

Rinse   Spin cycle  Drain

(MAX. 2 pairs)

60°C  

30°C    30

30°C   60

°C





 50

60 Max.

40 800

800

600

800

Wash cycle, rinse cycles, intermediate and final spin cycles

Wash cycle, rinse cycles, delicate spin cycle

Wash cycle, rins e cycles and delicate spin cycle

Cold wash (without detergents), wash cycle, rinse cycles, and delicate spin cycle

Wash cycle, rinse cycles, intermediate and final spin cycles

Rinse cycles and spin cycle Draining and spin cycle Drain

Notes

-For programme 9, we advise against exceeding a wash load of 3.5 kg.

-For programme 13 we advise against exceeding a wash load of 2 kg.

-For the anti-crease function: see Easy iron, opposite page. The information contained in the table is purely indicative.

Special programme

Daily (programme 11 for Synthetics) is designed to wash lightly soiled garments in a short amount of time: it only lasts 30 minutes and allows you to save on both time and energy. By setting this programme (11 at 30°C), you can wash different fabrics together (except for woollen and silk items), with a maximum load of 3 kg.

We recommend the use of liquid detergent.

Personalisations

Setting the temperature

Turn the TEMPERATURE knob to set the wash temperature (see Programme table on page 8). The temperature can be lowered, or even set to a cold wash (

Set the drying cycle

Turn the DRYING knob to set the desired drying type. Two options are available:

A - Based on time: From 40 minutes to 180. B - Based on the damp level of the dry clothes:

Iron Hanger Cupboard

and bathrobes. A cooling stage is foreseen at the end of the drying cycle.

: slightly damp clothes, easy to iron.

: dry clothes to put away.

: very dry clothes, recommended for towelling

Table of drying times

Fabric type

Cotton, Linen

Cotton Terry towels

Ter i t al , Cotton

Acrylics Pyjamas, socks, etc.

Load type Max.

Clothing of different sizes

Sheets, Shirts

The data contained in the table are purely indicative.

load (kg) Cup-

5 180 170 140

2,5 140 120 100

170 6560

board

Hanger Iron

If your laundry load to wash and dry is exceptionally in excess

Nylon Slips, tights, stockings, etc.

170 6560

of the maximum load foreseen (see table opposite), perform the wash cycle, and when the programme is complete, divide up the garments and put part of them back in the drum. Now follow the instructions provided for a dry only cycle. Repeat this procedure for the remainder of the load.

Dry only

Turn the PROGRAMME knob to one of the drying settings (7-8) depending on the type of fabric, then select the desired drying type using the DRYING knob.

Important: - A spin cycle is carried out during the drying if you have set a cotton programme and a level of dryness (Cupboard

, Hanger , Iron ).

- For cotton loads of less than 1 Kg, use the drying programme designed for delicate fabrics.

Functions

To enable a function:

1. press the button corresponding to the desired function, according to the table below;

2. the function is enabled when the corresponding button is illuminated. Note: The rapid flashing of the button indicates that the corresponding function cannot be selected for the programme set.

Function Effect Comments

Press the button repeatedly until the LED corresponding to the desired delay is turned on. The fifth time the button is pressed, the function will be disabled. N.B.: Once you have pressed the Start/Reset button, the delay can only be decreased if you wish to modify it.

When this function is set, programmes 4, 6 will end with the laundry left to soak (Anti-crease) and the Rinse cycle phase LED will flash.

- to conclude the cycle, press the START/RESET button;

- to run the draining cycle alone, set the knob to the relative symbol and press the START/RESET button.

Recommended when the appliance has a full load or with large quantities of detergent.

D ela y T i m e r

Ea s y iro n

Extra R inse

1400-600

Delays the start of the wash by up to 9 hours.

This option reduces the amount of creasing on fabrics, making them easier to iron.

Increases the efficiency of the rinse.

Reduces the spin speed.

Enabled with programmes:

All

3, 4, 6, 9, 10, Rinse cycle.

1, 2, 3, 4, 9, 10, 12, 13, Rinse cycle.

All programmes except for 6 and draining.

 The machine has an intelligent built in check for out of balance loads. To let protect your machine it may reduce the final spin

speed if an unbalanced load is detected.

Detergents and laundry

Detergent dispenser

Good washing results also depend on the correct dose of detergent: adding too much detergent won't necessarily make for a more efficient wash, and may in fact cause build up on the interior of your appliance and even pollute the environment.

Open up the detergent dispenser and pour in the detergent and fabric softener, as follows.

compartment 1: Detergent for pre-wash (powder) compartment 2: Detergent for the wash cycle (powder or liquid)

Liquid detergent should only be poured in immediately prior to the wash cycle start.

compartment 3: Additives (fabric softeners, etc.)

The fabric softener should not overflow from the grid.

 Do not use hand wash detergent because it may

form too much foam.

Special items

Curtains: fold curtains and place them in a pillow

case or mesh bag. Wash them separately without exceeding half the appliance load. Use programme 6 which excludes the spin cycle automatically. Quilted coats and windbreakers: if they are padded with goose or duck down, they can be machine-washed. Turn the garments inside out and load a maximum of 2-3 kg, repeating the rinse cycle once or twice and using the delicate spin cycle. Wool: for best results, use a specific detergent, taking care not to exceed a load of 1,5 kg.

Preparing your laundry

 Divide your laundry according to:

- the type of fabric/the symbol on the label.

- the colours: separate coloured garments from

whites.  Empty all pockets and check for loose buttons.  Do not exceed the weight limits stated below,

which refer to the weight when dry:

Sturdy fabrics: max 6 kg

Synthetic fabrics: max 2.5 kg

Delicate fabrics: max 2 kg

Wool: max 1,5 kg

How much does your laundry weigh?

1 sheet 400-500 g

1 pillow case 150-200 g

1 tablecloth 400-500 g

1 bathrobe 900-1,200 g

1 towel 150-250 g

Precautions and advice

 The Washer-dryer was designed and built in

compliance with the applicable international safety regulations. The following information is provided for your safety and should consequently be read carefully.

General safety

 This appliance has been designed for non-

professional, household use and its functions must not be changed.

 This washing machine should only be used by

adults and in accordance with the instructions provided in this manual.

 Never touch the washing machine when barefoot

or with wet or damp hands or feet.

 Do not pull on the power supply cable to unplug

the appliance from the electricity socket. Pull the plug out yourself.

 Do not open the detergent dispenser while the

appliance is in operation.

 Do not touch the drain water as it could reach

very high temperatures.

 Never force the washing machine door: this could

damage the safety lock mechanism designed to prevent any accidental openings.

 In the event of a malfunction, do not under any

circumstances touch internal parts in order to attempt repairs.

 Always keep children well away from the

appliance while in operation.

 The appliance door tends to get quite hot during

the wash cycle.

 Should it have to be moved, proceed with the

help of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.

 Before loading your laundry into the washing

machine, make sure the drum is empty.

 During the drying phase, the door tends to get

quite hot.

 Do not use the appliance to dry clothes that have

been washed with flammable solvents (e.g. trichlorethylene).

 Do not use the appliance to dry foam rubber or

similar elastomers.

 Make sure that the water tap is turned on during

the drying cycles.

Disposal

 Disposing of the packaging material:

observe local regulations, so the packaging can be re-used.

 The European Directive 2002/96/EC on Waste

Electrical and Electronic Equipment, requires that old household electrical appliances must not be disposed of in the normal unsorted municipal

waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Saving energy and respecting the environment

Environmentally-friendly technology

If you only see a little water through your appliance door, this is because thanks to the latest Ariston technology, your washing machine only needs less than half the amount of water to get the best results: an objective reached to respect the environment.

Saving on detergent, water, energy and time

 To avoid wasting resources, the Washer-dryer

should be used with a full load. A full load instead of two half loads allows you to save up to 50% on energy.

 The pre-wash cycle is only necessary on extremely

soiled garments. Avoiding it will save on detergent, time, water and between 5 and 15% energy.

 Treating stains with a stain remover or leaving

them to soak before washing will cut down the need to wash them at high temperatures. A programme at 60°C instead of 90°C or one at 40°C instead of 60°C will save up to 50% on energy.

 Use the correct quantity of detergent depending

on the water hardness, how soiled the garments are and the amount of laundry you have, to avoid wastage and to protect the environment: despite being biodegradable, detergents do contain ingredients that alter the natural balance of the environment. In addition, avoid using fabric softener as much as possible.

 If you use your washing machine from late in the

afternoon until the early hours of the morning, you will help reduce the electricity board's peak load. The Delay Timer option (see page 9) helps to organise your wash cycles accordingly.

 If your laundry has to be dried in a tumble dryer,

select a high spin speed. Having the least water possible in your laundry will save you time and energy in the drying process.

Care and maintenance

Cutting off the water or electricity supply

 Turn off the water tap after every wash. This will

limit the wear of your appliance's water system and also prevent leaks.

 Unplug your appliance when cleaning it and

during all maintenance operations.

Cleaning your appliance

The exterior and rubber parts of your appliance can be cleaned with a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

Cleaning the detergent dispenser

Remove the dispenser by raising it and pulling it out (see figure). Wash it under running water; this operation should be repeated frequently.

Cleaning the pump

The Washer-dryer is fitted with a self-cleaning pump that does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber that protects the pump, situated in the lower part of the same.

 Make sure the wash cycle has ended and unplug

the appliance.

To access the pre-chamber:

1. using a screwdriver, remove the cover panel on the lower front of the Washer-dryer (see figure);

2. unscrew the lid rotating it anticlockwise (see figure): a little water may trickle out. This is perfectly normal;

Caring for your appliance door and drum

 Always leave the appliance door ajar to prevent

unpleasant odours from forming.

3. clean the interior thoroughly;

4. screw the lid back on;

5. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Checking the water inlet hose

Check the water inlet hose at least once a year. If you see any cracks, replace it immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

 Never use hoses that have already been used.

Troubleshooting

Your washer-dryer could fail to work. Before calling for Assistance (see page 14), make sure the problem can't easily be solved by consulting the following list.

Problem

The washer-dryer won't start.

The washer-dryer does not fill with water.

The machine continuously fills and empties with water.

The washer-dryer does not drain or spin.

Possible causes/Solution:

 The appliance is not plugged into the socket, or not enough to make contact.  There has been a power failure.  The appliance door is not shut properly.  The  The START/RESET button has not been pressed.

NB: It should be held minimum one second.  The water tap is not turned on.  A delayed start has been set (using the Delay Timer, see page 9).

 The water inlet hose is not connected to the tap.  The hose is bent.  The water tap is not turned on.  There is a water shortage.  The water pressure is insufficient.  The START/RESET button has not been pressed.

 The drain hose is too low or too far in to the stand pipe (see page 3) for correct installation.  The wall drainage system doesn't have a standard pipe (min. 38 mm).

 Some programs have a slower final spin to taked best care of the

fabrics. See page 8 for details of the final spin speed for each program.  The programme does not foresee the draining: some programmes

require enabling the draining manually (see page 8).  The Easy iron option is enabled: to complete the programme, press

the START/RESET button (see page 9).  The drain hose is bent (see page 3).  Remove the drain hose from the standpipe or under-sink trap and check for

blockages, ensuring that the water can drain freely away from the machine.

button has not been pressed.

The washer-dryer vibrates too much during the spin cycle.

The washer-dryer leaks.

The ON-OFF/DOOR LOCK Led flashes rapidly at the same time as at least one other LED.

There is too much foam.

The washer-dryer does not dry.

 When the machine is installed, the locking screws for the oscillating

assembly are still in place. Remove the screws (see page 2).  The washer-dryer is not level (see page 2).  The washer-dryer is closed in between furniture cabinets and the wall (see page 2).

 The water inlet hose is not screwed on correctly (see page 2).  The detergent dispenser is obstructed (to clean it, see page 12).  The drain hose is not secured properly (see page 3).

 This means there is a problem with the machine. Before calling

Assistance, please follow the set of instructions below:

1. Switch off the machine;

2. Remove the plug connecting the appliance to the mains supply

and wait for at least 40 seconds;

3. Place the plug back into the socket;

4. Switch on the machine;

5. If the problem is still evident after this process has been carried out,

contact Assistance.  The detergent is not suitable for machine washing (it should bear the

definition "for washing machines" or "hand and machine wash", or the like).  You used too much detergent.

 The appliance is not plugged into the socket, or not enough to make contact.  There has been a power failure.  The appliance door is not shut properly.  A delayed start has been set (using the Delay Timer, see page 9).  the DRYING knob is on the 0 setting.

Service

195068642.00

12 /2007 - Xerox Business Services

Before calling for Assistance:

 Check whether you can solve the problem on your own (see page 13);  Restart the programme to check whether the problem has been solved;  If this is not the case, contact an authorised Technical Service Centre on the telephone number

provided on the guarantee certificate.

 If the machine has been installed or used incorrectly, you may be charged for the maintenance callout

service.

 Always request the assistance of authorised servicemen.

Notify the operator of:

 the type of problem;  the appliance model (Mod.);  the serial number (S/N). This information can be found on the data plate situated on the rear of the washer-dryer.

Indesit WIDXL 146 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
