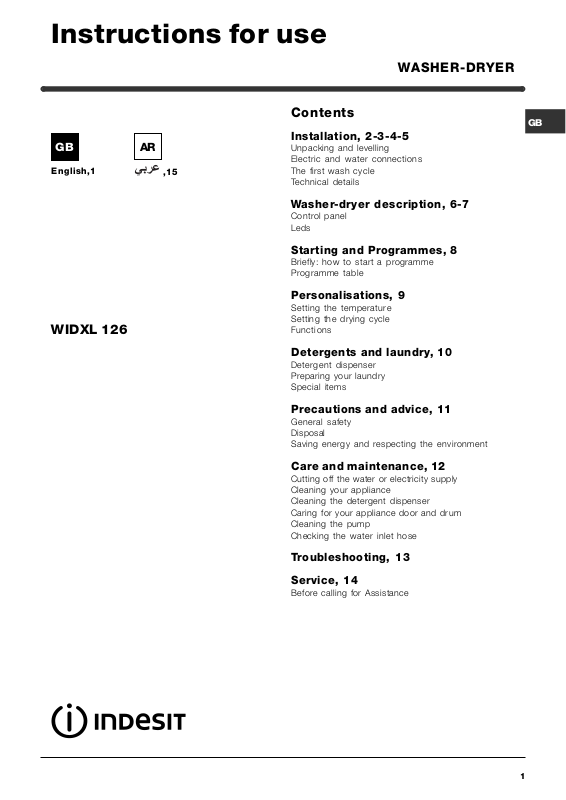

Indesit WIDXL 126 User Manual

Instructions for use

WASHER-DRYER

English,1

WIDXL 126

,15

Contents

Installation, 2-3-4-5

Unpacking and levelling Electric and water connections The first wash cycle Technical details

Washer-dryer description, 6-7

Control panel Leds

Starting and Programmes, 8

Briefly: how to start a programme Programme table

Personalisations, 9

Setting the temperature Setting the drying cycle Functions

Detergents and laundry, 10

Detergent dispenser Preparing your laundry Special items

Precautions and advice, 11

General safety Disposal Saving energy and respecting the environment

Care and maintenance, 12

Cutting off the water or electricity supply Cleaning your appliance Cleaning the detergent dispenser Caring for your appliance door and drum Cleaning the pump Checking the water inlet hose

Troubleshooting, 13

Service, 14

Before calling for Assistance

Installation

 Keep this instruction manual in a safe place for

future reference. Should the appliance be sold, transferred or moved, make sure the instruction manual accompanies the washer-dryer to inform the new owner as to its operation and features.

 Read these instructions carefully: they contain vital

information on installation, use and safety.

Unpacking and levelling

Unpacking

1. Unpack the washer-dryer.

2. Check whether the washer-dryer has been damaged during transport. If this is the case, do not install it and contact your retailer.

3. Remove the four protective screws and the rubber bush with the respective spacer, situated on the rear of the appliance (see also the installation leaflet). NB:The plastic spacers may fall down inside the

machine once the bolt has been removed, and will not interfere with the operation of the machine.

4. Seal the gaps using the plastic plugs provided.

5. Keep all the parts: you will need them again if the washing machine needs to be moved to another location.

 Packaging materials are not children's toys.

Levelling

Your machine may make a considerable amount of noise if the two front feet have not been adjusted correctly.

1. Install the washer-dryer on a flat sturdy floor, without resting it up against walls, furniture cabinets or other.

2. If the floor is not perfectly level, compensate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured according to the worktop, must not exceed 2°.

Levelling your appliance correctly will provide it with stability and avoid any vibrations, noise and shifting during operation. If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the washer-dryer.

Electric and water connections

Connecting the water inlet hose

1. Insert seal A into the end of the inlet hose and screw the latter onto a cold water tap

3. Make sure there are no kinks or bends in the hose.

 The water pressure at the tap must be within the

values indicated in the Technical details table (on the next page).

 If the water inlet hose is not long enough, contact

a specialist store or an authorised serviceman.

 Ensure that the supply taps are allowing water

through. Old taps may seize in the closed position and thus prevent water reaching the machine.

with a 3/4 gas threaded mouth (see figure). Before making the connection, allow the water to run freely until it is perfectly clear.

2. Connect the other end of the water inlet hose to the washer-dryer, screwing it onto the appliance's cold water inlet, situated on the top right-hand side on the rear of the appliance (see figure).

Connecting the drain hose

65 - 100 cm

Connect the drain hose, without bending it, to a draining duct or a wall drain situated between 65 and 100 cm from the floor;

 the supply voltage is included within the values

indicated on the Technical details table (see page 5);

 the socket is compatible with the washer-dryer's

plug. If this is not the case, replace the socket or the plug.

Your appliance is now supplied with a 13 amp fused plug it can be plugged into a 13 amp socket for immediate use. Before using the appliance please read the instructions below.

The drain hose may be connected to an under-sink trap. Before connecting the drain hose from the machine ensure that any blanks

Where it connects to the waste water pipe cut end off spigot or remove the blanking cap

or removable ends have been taken off the spigot.

If it is place over the edge of a basin or sink be sure the free end of the hose should not be underwater.

 We advise against the use of hose extensions; in

case of absolute need, the extension must have the same diameter as the original hose and must not exceed 150 cm in length. Ensure that if the drain hose is pushed into a standpipe, that the end does not go down more than 15cms (6 inches). If the hose is pushed down too far, this may cause the machine to self -syphon ie. continuously empty as it is filling.

Electric connection

Before plugging the appliance into the mains socket, make sure that:

 the socket is earthed and in compliance with the

applicable law;

 the socket is able to sustain the appliance's

maximum power load indicated in the Technical details table (see page 5);

WARNING - THIS APPLIANCE MUST BE EARTHED. THE FOLLOWING OPERATIONS SHOULD BE CARRIED OUT BY A QUALIFIED ELECTRICIAN.

Replacing the fuse:

When replacing a faulty fuse, a 13 amp ASTA approved fuse to BS 1362 should always be used, and the fuse cover re-fitted. If the fuse cover is lost, the plug must not be used until a replacement is obtained. Replacement fuse covers: If a replacement fuse cover is fitted, it must be of the correct colour as indicated by the coloured marking or the colour that is embossed in words on the base of the plug. Replacements can be obtained directly from your nearest Service Depot.

Removing the plug:

If your appliance has a non-rewireable moulded plug and you should wish to re-route the mains cable through partitions, units etc., please ensure that either: the plug is replaced by a fused 13 ampere rewearable plug bearing the BSI mark of approval. or: the mains cable is wired directly into a 13 amp cable outlet, controlled by a switch, (in compliance with BS 5733) which is accessible without moving the appliance.

Disposing of the plug:

Ensure that before disposing of the plug itself, you make the pins unusable so that it cannot be accidentally inserted into a socket.

Instructions for connecting cable to an alternative plug: Important: the wires in the mains lead are coloured in accordance with the following code:

Green & Yellow Earth Blue Neutral Brown Live

As the colours of the wires in the lead may not correspond with the coloured markings identifyng the terminals in your plug, proceed as follows: Connect Green & Yellow wire to terminal marked E

or coloured Green or Green & Yellow.

or Connect Brown wire to terminal marked L or coloured Red. Connect Blue wire to terminal marked N or coloured Black. If a 13 amp plug (BS 1363) is used it must be fitted with a 13 amp fuse, either in the plug or adaptor or at the distribution board. If you are in any doubt the electrical supply to your machine, consult a qualified electrician before use. How to connect an alternative plug: The wires in this mains lead are coloured in accordance with the following code:

BLUE NEUTRAL (N) BROWN LIVE (L) GREEN & YELLOW EARTH (E)

Disposing of the appliance:

When disposing of the appliance please remove the plug by cutting the mains cable as close as possible to the plug body and dispose of it as described above.

Warning! The company denies all liability if and when these norms are not respected.

The first wash cycle

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, setting the 90°C programme without a pre-wash cycle.

GREEN & YELLOW

BROWN

BLUE

13 ampere fuse

CROSS-BAR CORD GRIP

 The washing machine should not be installed in an

outdoor environment, not even when the area is sheltered, because it may be very dangerous to leave it exposed to rain and thunderstorms.

 When the washing machine is installed, the mains

socket must be within easy reach.

 Do not use extensions or multiple sockets.

 The power supply cable must never be bent or

dangerously compressed.

 The power supply cable must only be replaced by

an authorised serviceman.

Technical details

Model

Dimensions

Capacity

Electric connections

Wat er

connections

Spin speed

Control programmes according to EN 50229 directive

WIDXL 126

59.5 cm wide 85 cm high

53.5 cm deep from 1 to 6 kg for the wash programme;

from 1 to 4 kg for the drying programme

please refer to the technical data plate fixed to the machine

maximum pressure 1 MPa (10 bar) minimum pressure 0.05 MPa (0.5 bar) drum capacity 52 litres

up to 1200 rpm

Wash: programme 2; temperature 60°C; run with a load of 6 kg. Drying: first drying cycle performed with a 2 kg load and the DRYING knob on the setting; Second drying cycle performed with a 4 kg load and the DRYING knob on the setting.

This appliance is compliant with the following European Community Directives:

- 89/336/CEE of 03/05/89 (Electromagnetic Compatibility) and subsequent amendments

- 2002/96/CE

- 2006/95/CE (Low Voltage)

Washer-dryer description

Control panel

Detergent dispenser

Detergent dispenser: to add detergent and fabric

softener (see page 10).

FUNCTION

Buttons

Leds

DRYING

Knob

TEMPERATURE knob: to set the temperature or the cold wash cycle (see page 9).

ON-OFF/ DOOR LOCK

Led

START/RESET

Button

TEMPERATURE

Knob

ON-OFF

Button

PROGRAMME

Knob

LEDS: to find out the wash cycle progress. If the Delay Timer function has been set, the time left until the programme starts will be indicated (see page 7).

DRYING knob: to set the desired drying cycle

(see page 9).

FUNCTION buttons: to select the functions available. The button corresponding to the function selected will remain on.

START/RESET button: to start the programmes or cancel any incorrect settings.

ON-OFF/DOOR LOCK Led: to find out whether the Washer-dryer is on and if the appliance door can be opened (see page 7).

ON/OFF button: to turn the Washer-dryer on and off.

PROGRAMME knob: to select the wash

programmes. The knob stays still during the cycle.

Leds

The LEDS provide important information. This is what they can tell you:

Delay set:

If the Delay Timer function has been enabled (see page. 9), once you have started the programme,

the LED corresponding to the delay set will begin to flash:

As time passes, the remaining delay will be displayed, and the corresponding LED will flash:

Once the set delay is complete, the flashing LED will turn off and the programme set will start.

Cycle progress:

During the wash cycle, the LEDs gradually illuminate on to indicate the cycle progress:

Prewash / Wash

Rinse

Spin cycle

Drying

Note:

- during draining, the LED corresponding to the Spin cycle phase will be turned on.

- when the drying cycle is complete, the indicator light relative to phase the DRYING knob needs to be set back to the 0 setting.

Function buttons

The FUNCTION BUTTONS also act like LEDS. When a function is selected, the corresponding button is illuminated. If the function selected is incompatible with the programme set, the button will flash and the function will not be enabled. If you set a function that is incompatible with another function you selected previously, only the last one selected will be enabled.

will flash, to indicate that

ON-OFF/DOOR LOCK led:

If this LED is on, the appliance door is locked to prevent it from being opened accidentally; to avoid any damages, wait for the LED to flash before you open the appliance door.

 The rapid flashing of the ON-OFF/DOOR LOCK Led together with the flashing of at least one other LED

indicates there is an abnormality. Call for Technical Assistance (see page 13).

Starting and Programmes

Briefly: starting a programme

1. Switch the Washer-dryer on by pressing button . All the LEDS will light up for a few seconds and the ON-OFF/DOOR LOCK Led will begin to flash.

2. Load your laundry into the washing machine and shut the appliance door.

3. Set the PROGRAMME knob to the programme required.

4. Set the wash temperature (see page 9).

5. Set the drying cycle if necessary (see page 9).

6. Add the detergent and any fabric softener (see page 10).

Programme table

Type of fab ric and degree of soil

Standard

Extrem ely soiled whites (sheets, tablecloths, etc.)

Heavily s oiled wh ites and fast colours

Heavily s oiled wh ites and delicate colours

Slig htly so iled w h ites and delicate colours (shirts, jum pers, etc.)

Heavily soiled fast colours (baby linen, etc.)

Wool

Very delicate fabrics (curtain s, silk, vis cose, etc.)

Drying cotton

Prog. Temp.

Drying Cycle

90°C    

90°C   

60°C   

40°C   

0°C

40°C   

40°C  

30°C  

Detergent

pre-

wash





7. Start the programme by pressing the START/RESET button for one second. Once the programme has been accepted all of the option and status LED's will illuminate momentarily, the Door Lock LED will be lit and the relevant wash cycle progress LED will also be lit. To cancel it, keep the START/RESET button pressed for at least 2 seconds.

8. When the programme is finished, the ON-OFF/ DOOR LOCK Led will flash to indicate that the appliance door can be opened. Take out your laundry and leave the appliance door ajar to allow the drum to dry thoroughly. Turn the Washer-dryer

Description of wash cycle

Pre-wash, wash cycle, rinse cycles, intermediate and final spin cycles

Wash cycle, rinse cycles, intermediate and final spin cycles

Wash cycle, rinse cycles, anti-crease or delicate spin cycle

Wash cycle, rins e cycles , delicate s pin cycle

Wash cycle, rinse cycles, anti-crease or drainin g cycle

Fabric

softener

off by pressing button

Cycle length (m inu te s )

Max. Spin Speeds (r.p.m .)

155 Max.

150 Max.

140 Max.

125 Max.

85 Max.

72 800

70 800

50 600

45 no

Max.

Drying delicates

Tim e 4 y o u

Heavily s oiled wh ites and fast colours

Delicate colou rs (all types of slightly soiled garments)

Sport

Sports shoes

Fabrics for sportswear (Tracksuits, shorts, etc.)

PARTIAL PROGR AMM ES

Rinse   Spin cycle  Drain

(MAX. 2 pairs)

60°C  

30°C    30

30°C   60

°C





 50

60 Max.

40 800

800

600

800

Wash cycle, rinse cycles, intermediate and final spin cycles

Wash cycle, rinse cycles, delicate spin cycle

Wash cycle, rins e cycles and delicate spin cycle

Cold wash (without detergents), wash cycle, rinse cycles, and delicate spin cycle

Wash cycle, rinse cycles, intermediate and final spin cycles

Rinse cycles and spin cycle Draining and spin cycle Drain

Notes

-For programme 9, we advise against exceeding a wash load of 3.5 kg.

-For programme 13 we advise against exceeding a wash load of 2 kg.

-For the anti-crease function: see Easy iron, opposite page. The information contained in the table is purely indicative.

Special programme

Daily (programme 11 for Synthetics) is designed to wash lightly soiled garments in a short amount of time: it only lasts 30 minutes and allows you to save on both time and energy. By setting this programme (11 at 30°C), you can wash different fabrics together (except for woollen and silk items), with a maximum load of 3 kg.

We recommend the use of liquid detergent.

Personalisations

Setting the temperature

Turn the TEMPERATURE knob to set the wash temperature (see Programme table on page 8). The temperature can be lowered, or even set to a cold wash (

Set the drying cycle

Turn the DRYING knob to set the desired drying type. Two options are available:

A - Based on time: From 40 minutes to 150. B - Based on the damp level of the dry clothes:

Iron Hanger Cupboard

and bathrobes. A cooling stage is foreseen at the end of the drying cycle.

: slightly damp clothes, easy to iron.

: dry clothes to put away.

: very dry clothes, recommended for towelling

Table of drying times

Fabric type

Cotton, Linen

Cotton Terry towels

Ter i t al , Cotton

Acrylics Pyjamas, socks, etc.

Load type Max.

Clothing of different sizes

Sheets, Shirts

The data contained in the table are purely indicative.

load (kg) Cup-

4 130 120 110

2,5 90 80 70

165 6060

board

Hanger Iron

If your laundry load to wash and dry is exceptionally in excess

Nylon Slips, tights, stockings, etc.

165 6060

of the maximum load foreseen (see table opposite), perform the wash cycle, and when the programme is complete, divide up the garments and put part of them back in the drum. Now follow the instructions provided for a dry only cycle. Repeat this procedure for the remainder of the load.

Dry only

Turn the PROGRAMME knob to one of the drying settings (7-8) depending on the type of fabric, then select the desired drying type using the DRYING knob.

Important: - A spin cycle is carried out during the drying if you have set a cotton programme and a level of dryness (Cupboard

, Hanger , Iron ).

- For cotton loads of less than 1 Kg, use the drying programme designed for delicate fabrics.

Functions

To enable a function:

1. press the button corresponding to the desired function, according to the table below;

2. the function is enabled when the corresponding button is illuminated. Note: The rapid flashing of the button indicates that the corresponding function cannot be selected for the programme set.

Function Effect Comments

Press the button repeatedly until the LED corresponding to the desired delay is turned on. The fifth time the button is pressed, the function will be disabled. N.B.: Once you have pressed the Start/Reset button, the delay can only be decreased if you wish to modify it.

When this function is set, programmes 4, 6 will end with the laundry left to soak (Anti-crease) and the Rinse cycle phase LED will flash.

- to conclude the cycle, press the START/RESET button;

- to run the draining cycle alone, set the knob to the relative symbol and press the START/RESET button.

Recommended when the appliance has a full load or with large quantities of detergent.

D ela y T i m e r

Ea s y iro n

Ex tra R i n s e

1200-600

Delays the start of the wash by up to 9 hours.

This option reduces the amount of creasing on fabrics, making them easier to iron.

Increases the efficiency of the rinse.

Reduces the spin speed.

Enabled with programmes:

All

3, 4, 6, 9, 10, Rinse cycle.

1, 2, 3, 4, 9, 10, 12, 13, Rinse cycle.

All programmes except for 6 and draining.

 The machine has an intelligent built in check for out of balance loads. To let protect your machine it may reduce the final spin

speed if an unbalanced load is detected.

+ 19 hidden pages
