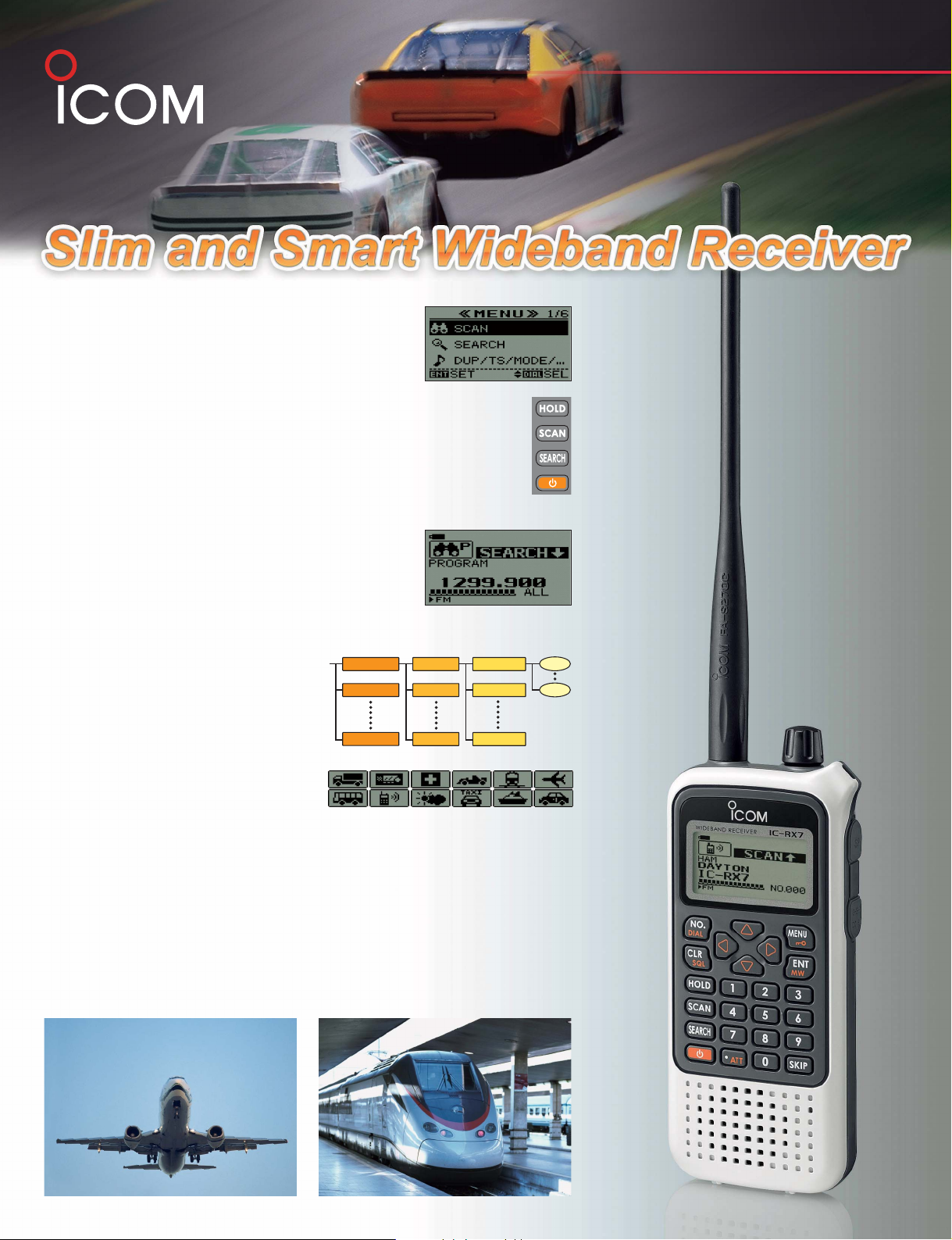

Icom IC-RX7 Leaflet

New User Interface

Ch 1

•

Memory 01

Memory 02

Memory 100

Group 01

Group 02

Group 100

Category 01

Category 02

Category 26

Ch 6

Pre-release Information

WIDEBAND RECEIVER

iC- rx7

The IC-RX7 has a menu driven user interface that allows in­tuitive user-friendly operation. The 4-way cursor buttons pro­vide quick navigation to menus and settings.

Independent Scan Button

The IC-RX7 will come with preset memory channels for ham radio, air band,
railroads, car racing, and more. Select your desired listening subject and, with
the push of the “Scan” button, the IC-RX7 will automatically find active chan­nels within that area of interest.

Independent Search Button

The channel mode and channel step are preprogrammed for
each frequency range. Easily search new active channels
within a designated frequency range or fixed category with a
push of the “Search” button. The auto memory write func­tion automatically stores detected channels in your memory.

3-level Memory Management

A total of 1650 memory channels can be
classified 3 different ways: by “Category”

to 26 categories)

by “Memory Name”

, by “Group” (up to 100), and

(up to 100). An alphanu-

meric name of up to 16 characters may be
used for each channel, and up to 6 channels
can be stored per “Memory Name” heading.
In addition, each “Category” can be labeled
with an icon, for faster recognition.

(up

Computer Programmable

With the optional CS-RX7 software, the programming and cloning of the IC-RX7 is a
breeze. Connect the IC-RX7 to your PC and you can update or customize channel
names, scan lists and more.

Slim and Stylish Design

Modern consumer device design distinguishes the IC-RX7 from other scanner prod­ucts. The IC-RX7 has only 23 mm slim depth*

129

*

/

32 in; Projections are not included. *

2

7.1oz (approx) with BP-244 and antenna.

1

and weighs just 200g.*

2

1-1-32, Kami-minami, Hirano-ku, Osaka 547-0003, Japan Phone: [phone] Fax: [phone]

Count on us!

URL: http://www.icom.co.jp/world/index.html

Printed in Japan

2380 116th Avenue NE,
Bellevue, WA 98004, U.S.A.
Phone : [phone]
Fax : [phone]
E-mail : [e-mail]
URL : http://www.icomamerica.com

Communication Equipment
Himmelgeister Str. 100,
D-40225 Düsseldorf, Germany
Phone : [phone]
Fax: [phone]
E-mail : [e-mail]
URL : http://www.icomeurope.com

Unit 1 / 103 Garden Road,
Clayton, VIC 3168 Australia
Phone : [phone]
Fax: [phone]
E-mail : [e-mail]
URL : http://www.icom.net.au

Unit 9, Sea St., Herne Bay,
Kent, CT6 8LD, U.K.
Phone : [phone]
Fax : [phone]
E-mail : [e-mail]
URL : http://www.icomuk.co.uk

Zac de la Plaine,
1 Rue Brindejonc des Moulinais, BP 45804,
31505 Toulouse Cedex 5, France
Phone : [phone]
Fax: [phone]
E-mail : [e-mail]
URL : http://www.icom-france.com

Ctra. Rubi, No. 88 "Edificio Can Castanyer"
Bajos A 08174, Sant Cugat del Valles,
Barcelona, Spain
Phone : [phone]
Fax: [phone]
E-mail : [e-mail]
URL : http://www.icomspain.com

146A Harris Road, East Tamaki,
Auckland, New Zealand
Phone : [phone]
Fax : [phone]
E-mail : [e-mail]
URL : http://www.icom.co.nz

Glenwood Centre #150-6165 Highway 17,
Delta, B.C., V4K 5B8, Canada
Phone : [phone]
Fax : [phone]
E-mail : [e-mail]
URL : http://www.icomcanada.com

Your local distributor/dealer:

6F No. 68, Sec. 1 Cheng-Teh Road,
Taipei, Taiwan, R.O.C.
Phone : [phone]
Fax : [phone]
E-mail : [e-mail]
URL : http://www.asia-icom.com

10C07, Long Silver Mansion, No.88, Yong Ding
Road, Haidian District, Beijing, 100039, China
Phone : [phone]
Fax: [phone]
E-mail : [e-mail]
URL : http://www.bjicom.com

81-850 Sopot, ul. 3 Maja 54, Poland
Phone : [phone]
Fax: [phone]
E-mail : [e-mail]
URL : http://www.icompolska.com.pl

WIDEBAND RECEIVER

Other features

• 150kHz–1300MHz* wide frequency coverage

(* Cellular blocked in the USA version)

• Large, backlit full dot-matrix display

• High speed scan and high speed search (100ch/sec.)

• Rain resistance equivalent to IPX4

• Basic search function allows you to search common preset

bands

• CTCSS/DTCS decode

SPECIFICATIONS

GENERAL RECEIVER

•Frequency coverage : 0.150–1300.000MHz*

•Mode : AM, FM, WFM

•No. of memory channels : 1650

•Usable temperature range :–10˚C to +60˚C ; +14˚F to +140˚F

• Frequency stability : ±6ppm

•Tuning steps : 5, 6.25, 7.5, 8.33*, 9*, 10, 12.5, 15, 20, 25, 30, 50,

•Battery requirement : 3.7V DC (with BP-244)

• External power supply : 6.0V DC ±5% (with BC-149A/D, CP-18A/E)

•Current drain : Rated audio 150mA typ.

(at 3.7V DC)

•Antenna impedance : 50Ω

•Dimensions

(projections not included)

•Weight

The specifications described above are target values. They are subject to change without notice.

(W×H×D) : 57×128×23 mm;

(approx.) : 200g; 7.1oz (With BP-244 and antenna)

(* Cellular blocked in the U.S.A. version.)

(1400 regular, 50 scan edges and 200 automatic write

memory)

(–10˚C to +60˚C)

100, 125 and 200kHz

(* Selectable depending on operating bands.)

4.5V DC

(3×AA (LR6) cells with BP-262)

Standby 100mA typ.
Power save 35mA typ.

(SMA)

1

⁄4×31⁄32×29⁄

2

32 in

• VSC

(Voice Squelch Control)

• Built-in RF-gain control and attenuator

• Built-in AM bar antenna

• Earphone antenna function for FM broadcast RX

• 3.7V/1100mAh Li-Ion battery pack supplied

• Auto power save

• DC power jack for external DC operation

•Intermediate frequencies : 429.1MHz, 19.65MHz, 450kHz

•Sensitivity

•Selectivity AM, FM : More than 12kHz/–6dB

•AF output power

•External SP connector : 3-conductor 3.5 (d) mm (1⁄8″) /8Ω

(except spurious points) :

FM 1.625– 4.995MHz Less than 0.56µV

(12dB SINAD) 5.000– 246.995MHz Less than 0.4µV

247.000– 832.995MHz Less than 0.56µV

1300.000

833.000–

MHz* Less than 0.79µV

(* USA version 851.000– 866.995MHz Less than 1.26µV

1300.000

896.000–

MHz Less than 0.79µV)

WFM 76.000– 108.000MHz Less than 1.78µV

(12dB SINAD) 175.000–221.995MHz Less than 1.78µV

470.000– 770.000MHz Less than 2.5µV

AM 0.495– 4.995MHz Less than 2.5µV

(10dB S/N) 5.000– 29.995MHz Less than 1.78µV

118.000–136.000MHz Less than 1.78µV

222.000– 246.995MHz Less than 1.78µV

247.000– 329.995MHz Less than 1.78µV

Less than 30kHz/–60dB

WFM More than 150kHz/–6dB

(at 3.7V DC) :75mW

typ. at 10% distortion with an 8Ω load

OPTIONS

• BP-244 Li-Ion BATTERY PACK

3.7V/1100mAh Lithium Ion battery pack.

• BP-262 BATTERY CASE
Battery case for AA (LR6)×3 alkaline cells.

• BC-149A/D WALL CHARGER
6V DC, 1A output AC adapter. Same as supplied.

• CP-18A/E CIGARETTE LIGHTERCABLE
6V DC, 2A output from 12V cigarette lighter socket.

This device has not been approved by the appropriate authorities in each country. This device may not be sold or leased, or be offered for sale or lease, until approval has been obtained.
ances, screen shots and specifications may be subject to change without notice. Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in the United States, the United Kingdom,
Germany, France, Spain, Russia and/or other countries.

All other trademarks are the properties of their respective holders.

• AD-92SMA ANTENNA CONNECTOR ADAPTER
Allows you to connect a BNC-type antenna.

• MB-112G BELT CLIP
Alligator type. Same as supplied.

• HP-4 HEADPHONE
Light weight monaural headphone.

• LC-170 CARRYING CASE
Helps protect the receiver from scratches, etc.

• SP-13 EARPHONE
Provides clear audio even in noisy environments.

• CS-RX7 CLONING SOFTWARE
Use a PC to easily edit stored memory channel data.
OPC-478UC, USB cable is included.

• OPC-474 CLONING CABLE
Used for receiver-to-receiver data cloning.

• OPC-478/UC CLONING CABLE
OPC-478: RS-232C type. OPC-478UC: USB type.
