Icom IC-M602 User Manual

INSTRUCTION MANUAL

iM602

VHF MARINE TRANSCEIVER

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FOREWORD

Thank you for purchasing this Icom product. The ICM602 V

HF MARINE TRANSCEIVER

is designed and built with Icom’s state of the art technology and craftsmanship. With proper care, this product should provide you with years of trouble-free operation.

We want to take a couple of moments of your time to thank you for making the IC-M602 your radio of choice, and hope you agree with Icom’s philosophy of “technology ﬁrst.” Many hours of research and development went into the design of your IC-M602.

FEATURES

❍ Standard 4×8″ﬂush mount design

❍ Built-in DSC meets ITU Class D requirement

❍ Rugged waterproof construction

❍ Large LCD with dot matrix characters

❍ Superior receiver performance

❍ Optional COMMANDMIC

(2 systems are connectable)

Icom, Icom Inc. and the logo are registered trademarks of Icom Incorporated (Japan) in the United states, the United Kingdom, Germany, France, Spain, Russia and/or other countries.

IMPORTANT

READ THIS INSTRUCTION MANUAL CAREFULLY before attempting to operate the trans-

ceiver.

SAVE THIS INSTRUCTION MANUAL. This

manual contains important safety and operating instructions for the IC-M602.

CLEAN THE TRANSCEIVER AND MICROPHONE THOROUGHLY WITH FRESH WATER after exposure to

water including salt water, otherwise, the keys and switches may become inoperable due to salt crystallization.

IN CASE OF EMERGENCY

If your vessel requires assistance, contact other vessels and the Coast Guard by sending a distress call on Ch 16.

Or, transmit your distress call using digital selective calling on Ch 70.

USING CHANNEL 16

DISTRESS CALL PROCEDURE

1. “MAYDAY MAYDAY MAYDAY.”

2. “THIS IS ...............” (name of vessel)

3. Your call sign or other indication of the vessel (AND 9digit DSC ID if you have one).

4. “LOCATED AT ...............” (your position)

5. The nature of the distress and assistance required.

6. Any other information which might facilitate the rescue.

USING DIGITAL SELECTIVE CALLING (Ch 70)

DISTRESS CALL PROCEDURE

1. While lifting up the switch cover, push and hold [DISTRESS] for 5 sec. until you hear 5 short beeps change to one long beep.

2. Wait for an acknowledgment from a coast station.

• Channel 16 is automatically selected.

3. Push and hold [PTT], then transmit the appropriate information as at above.

NOTE

A WARNING STICKER is supplied with the transceiver. To comply with FCC regulations, this sticker must be afﬁxed in such a location as to be readily seen from the operating controls of the radio as in the diagram below. Make sure the chosen location is clean and dry before applying the sticker. (p. 48)

EXAMPLE

WARNING STICKER

iii

Icom requires the radio operator to meet the FCC Requirements for Radio Frequency Exposure. An omnidirectional antenna with gain not greater than 9 dBi must be mounted a minimum

of 5 meters (measured from the lowest point of the antenna) vertically above the main deck and all possible personnel. This is the minimum safe separation distance estimated to meet all RF exposure compliance requirements. This 5 meter distance is based on the FCC Safe Maximum Permissible Exposure (MPE) distance of 3 meters added to the height of an adult (2 meters) and is appropriate for all vessels.

For watercraft without suitable structures, the antenna must be mounted so as to maintain a minimum of 1 meter vertically between the antenna, (measured from the lowest point of the antenna), to the heads of all persons AND all persons must stay outside of the 3 meter MPE radius.

Do not transmit with radio and antenna when persons are within the MPE radius of the antenna, unless such persons (such as driver or radio operator) are shielded from antenna ﬁeld by a grounded metallic barrier. The MPE Radius is the minimum distance from the antenna axis that person should maintain in order to avoid RF exposure higher than the allowable MPE level set by FCC.

FAILURE TO OBSERVE THESE LIMITS MAY ALLOW THOSE WITHIN THE MPE RADIUS TO EXPERIENCE RF RADIATION ABSORPTION WHICH EXCEEDS THE FCC MAXIMUM PERMISSIBLE EXPOSURE (MPE) LIMIT. IT IS THE RESPONSIBILITY OF THE RADIO OPERATOR TO ENSURE THAT THE MAXIMUM PERMISSIBLE EXPOSURE LIMITS ARE OBSERVED AT ALL TIMES DURING RADIO TRANSMISSION. THE RADIO OPERATOR IS TO ENSURE THAT NO BYSTANDERS COME WITHIN THE RADIUS OF THE MAXIMUM PERMISSIBLE EXPOSURE LIMITS.

Determining MPE Radius THE MAXIMUM PERMISSIBLE EXPOSURE (MPE) RADIUS HAS BEEN ESTIMATED TO BE A RADIUS OF ABOUT 3M PER OET BULLETIN 65 OF THE FCC. THIS ESTIMATE IS MADE ASSUMING THE MAXIMUM POWER OF THE RADIO AND ANTENNAS WITH A MAXIMUM GAIN OF 9dBi ARE USED FOR A SHIP MOUNTED SYSTEM.

RADIO OPERATOR WARNING

WARNING

FOREWORD ............................................. i

IMPORTANT .............................................. i

IN CASE OF EMERGENCY ...................... ii

NOTE ........................................................ ii

RADIO OPERATOR WARNING ............... iii

TABLE OF CONTENTS ........................... iv

PRECAUTION .......................................... v

1 OPERATING RULES .................. 1

2 PANEL DESCRIPTION .......... 2– 7

■ Panel description ............................ 2

■ Function display .............................. 6

■ Microphone (HM-136) ..................... 7

3 BASIC OPERATION ............ 8 – 13

■ Channel selection ........................... 8

■ Receiving and transmitting ........... 10

■ Call channel programming ............ 11

■ Channel comments ....................... 11

■

Optional voice scrambler operation ... 13

DUALWATCH/TRI-WATCH

... 14–15

■ Description .................................... 14

■ Operation ...................................... 15

5 SCAN OPERATIONS ......... 16 – 17

■ Scan types .................................... 16

■ Setting tag channels ..................... 17

■ Starting a scan .............................. 17

6 DSC OPERATION .............. 18 – 39

■ MMSI code programming ............. 18

■ Position and time programming .... 18

■ Position indication ......................... 19

■ Distress call .................................. 20

■ Transmitting DSC calls ................. 22

■ Setting the distress information .... 30

■ DSC individual ID ......................... 31

■ Receiving DSC calls ..................... 34

■ DSC set mode .............................. 36

■ Received messages ..................... 38

7 OTHER FUNCTIONS .......... 40–46

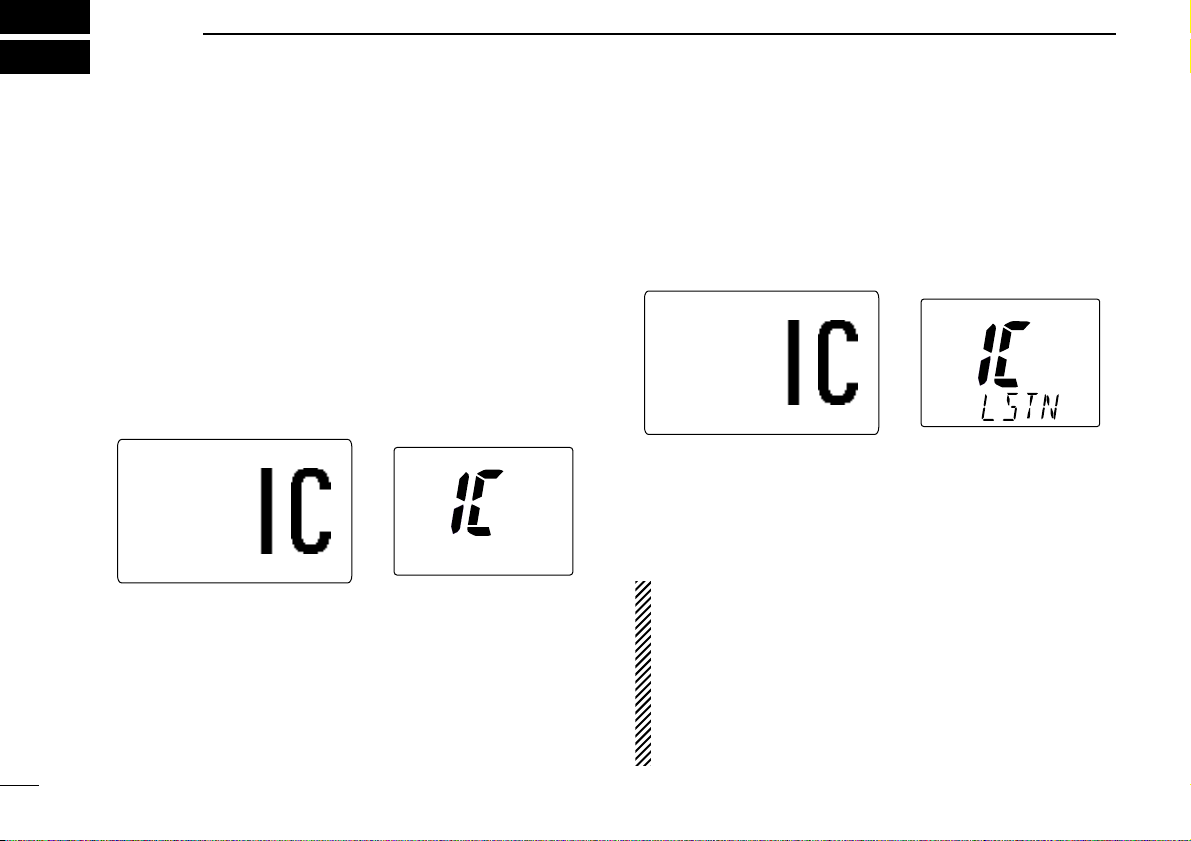

■ Intercom operation ........................ 40

■ Hailer operation ............................ 41

■ Automatic fog horn ........................ 42

■ Microphone lock function .............. 43

8 SET MODE ........................ 44– 47

■ Set mode programming ................ 44

■ Set mode items ............................. 45

9 CONNECTIONS AND

MAINTENANCE ................. 48– 53

■ Supplied accessories .................... 48

■ Antenna ........................................ 48

■ Fuse replacement ......................... 48

■ Cleaning ....................................... 48

■ Connections .................................. 49

■ Mounting the transceiver .............. 50

■ Optional unit installation ............... 52

■ Dimensions ................................... 53

10 TROUBLESHOOTING .............. 54

11 CHANNEL LIST ........................ 55

12 SPECIFICATIONS AND

OPTIONS ........................... 56 – 57

■ Speciﬁcations ............................... 56

■ Options ......................................... 57

13 HM-127 REMOTE-CONTROL

MICROPHONE ................... 58 – 70

■ Panel description .......................... 58

■ Function display ............................ 60

■ HM-127 supplied accessories ...... 61

■ Installation .................................... 62

■ Channel selection ......................... 64

■ Receiving and transmitting ........... 65

■ RF attenuator function .................. 65

■ Lock functions ............................... 66

■ Display backlighting ...................... 66

■ Monitor function ............................ 66

■ Call channel programming ............ 67

■

Optional voice scrambler operation ... 67

■ Starting a scan .............................. 68

■ Setting tag channels ..................... 68

■ Dualwatch/Tri-watch operation ..... 68

■ Set mode programming ................ 69

■ Intercom operation ........................ 70

■ Channel comments ....................... 70

TEMPLATE

TABLE OF CONTENTS

1 2 3 4 5 6 7 8 9 10 11 12 13

RWARNING! NEVER connect the transceiver to an AC

outlet. This may pose a fire hazard or result in an electric shock.

CAUTION: Changes or modiﬁcations to this device, not ex-

pressly approved by Icom Inc., could void your authority to operate this device under FCC regulations.

NEVER connect the transceiver to a power source of more

than 16 V DC or use reverse polarity. This will ruin the transceiver.

NEVER cut the DC power cable between the DC plug and

fuse holder. If an incorrect connection is made after cutting, the transceiver may be damaged.

NEVER place the transceiver where normal operation of the

vessel may be hindered or where it could cause bodily injury.

KEEP the transceiver at least 3.3 ft (1 m) away from the

ship’s navigation compass.

DO NOT use or place the transceiver in areas with temper-

atures below –4°F (–20°C) or above +140°F (+60°C) or, in areas subject to direct sunlight, such as the dashboard.

AVOID the use of chemical agents such as benzine or al-

cohol when cleaning, as they may damage the transceiver surfaces.

BE CAREFUL! The transceiver rear panel will become

hot when operating continuously for long periods.

Place the transceiver in a secure place to avoid inadvertent use by children.

BE CAREFUL! The transceiver and optional HM-127 em-

ploy waterproof construction, which corresponds to JIS waterproof speciﬁcation, Grade 7 (1 m/30 min.). However, once the transceiver or microphone has been dropped, waterprooﬁng cannot be guaranteed due to the fact that the case may be cracked, or the waterproof seal damaged, etc.

EXPLICIT DEFINITIONS

WORD DEFINITION

WARNING

Personal injury, fire hazard or electric shock may occur.

CAUTION Equipment damage may occur.

NOTE

If disregarded, inconvenience only. No risk or personal injury, fire or electric shock.

PRECAUTION

OPERATING RULES

PRIORITIES

•Read all rules and regulations pertaining to priorities and keep an up-to-date copy handy. Safety and distress calls take priority over all others.

•You must monitor Channel 16 when you are not operating on another channel.

• False or fraudulent distress signals are prohibited and punishable by law.

PRIVACY

• Information overheard but not intended for you cannot lawfully be used in any way.

• Indecent or profane language is prohibited.

RADIO LICENSES

(1) SHIP STATION LICENSE

You must have a current radio station license before using the transceiver. It is unlawful to operate a ship station which is not licensed.

Inquire through your dealer or the appropriate government agency for a Ship-Radiotelephone license application. This government-issued license states the call sign which is your craft’s identiﬁcation for radio purposes.

(2) OPERATOR’S LICENSE

A Restricted Radiotelephone Operator Permit is the license most often held by small vessel radio operators when a radio is not required for safety purposes.

The Restricted Radiotelephone Operator Permit must be posted or kept with the operator. Only a licensed radio operator may operate a transceiver.

However, non-licensed individuals may talk over a transceiver if a licensed operator starts, supervises, ends the call and makes the necessary log entries.

Keep a copy of the current government rules and regulations handy.

Radio license for boaters (U.S.A. only)

The Telecommunications Act of 1996 permits recreational boaters to have and use a VHF marine radio, EPIRB, and marine radar without having an FCC ship station license. Boaters traveling on international voyages, having an HF single sideband radiotelephone or marine satellite terminal, or required to carry a marine radio under any other regulation must still carry an FCC ship station license. For further information, see the FCC Ship Radio Stations Fact Sheet.

PANEL DESCRIPTION

■ Panel description

WATERPROOF

VOL

iM602

VHF MARINE

MIC

U/I/C

H/L

CH/ WX

SQL

DISTRESS

Speaker

MIC connector

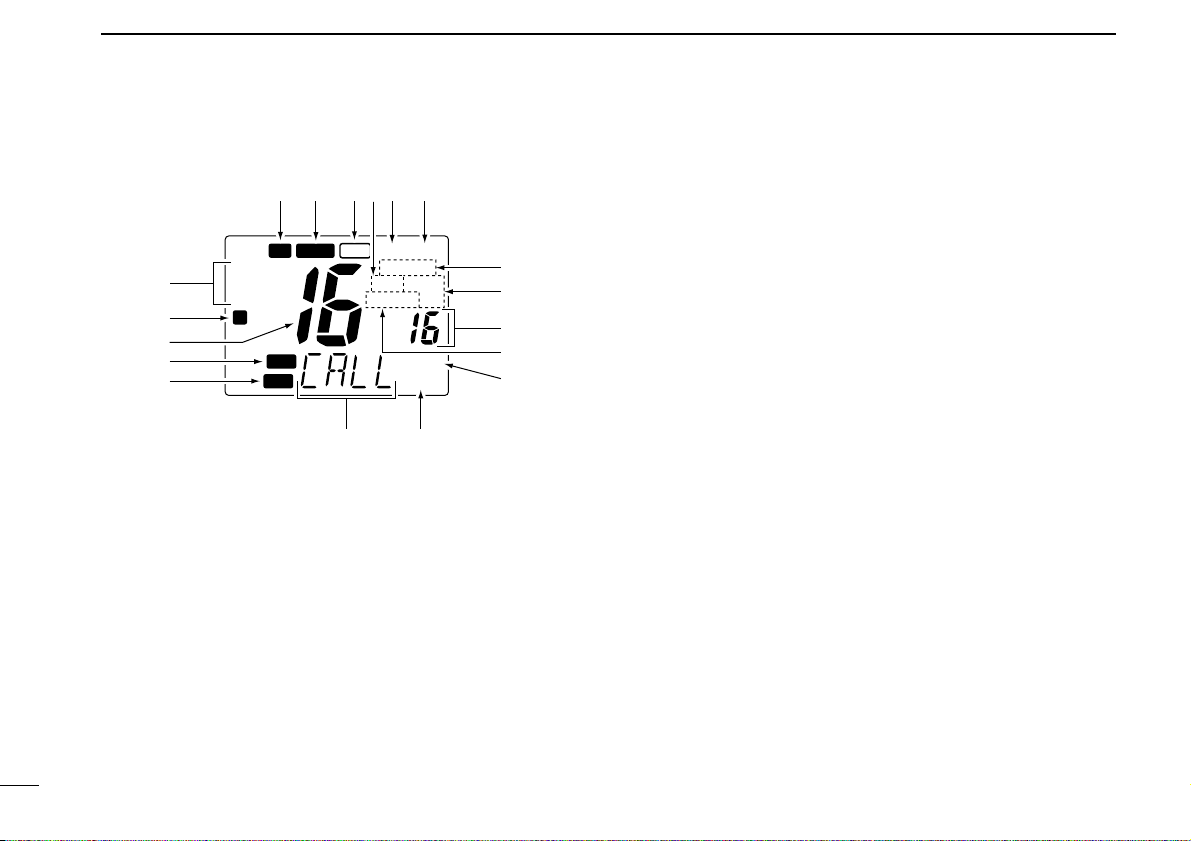

Function display

wertyu oi!0

(Connect

HM-136 ONLY)

CAUTION: NEVER connect

other microphones here, such as the optional HM-127, may cause damage to the transceiver.

q TRANSMIT POWER SWITCH [H/L]

➥ Toggles high or low power when pushed. (p. 10)

• Some channels are set to low power only.

➥ While pushing this switch, some switches perform sec-

ondary functions.

w VOLUME CONTROL [VOL] (P. 10)

Adjusts the audio level.

e SQUELCH CONTROL [SQL] (P. 10)

Sets the squelch threshold level.

r CHANNEL SWITCH [CH/WX•U/I/C] (p. 9)

➥ Selects and toggles the regular channels or weather

channel when pushed momentarily.

➥ While pushing [H/L], push to select one of 3 regular

channels in sequence.

•International, U.S.A. and Canadian channels are available for regular channels.

t CHANNEL SELECTOR [CHANNEL] (p. 10)

Rotate [CHANNEL] to select the operating channels, set mode contents, etc.

y CHANNEL 16/CALL CHANNEL SWITCH [16•9]

➥ Selects Channel 16 when pushed. (p. 8) ➥ Selects call channel when pushed for 1 sec. (p. 8)

•“CALL” appears when call channel is selected.

➥ Push for 3 sec. to enter call channel programming con-

dition when call channel is selected. (p. 11)

➥ While pushing [H/L], enters memory name programming

condition. (p. 11)

➥ While turning power ON, enters set mode when pushed

and held. (p. 44)

u POWER SWITCH [POWER]

Push to turn the transceiver power ON or OFF.

i CLEAR SWITCH [CLR]

Push to cancel the entered function.

o DISTRESS SWITCH [DISTRESS] (p. 20)

Transmits distress call when pushed for 5 sec.

!0 FUNCTION SWITCH

[F]

After pushing, activates the secondary functions.

•“F” appears when a secondary function can be accessed.

!1 DSC MENU SWITCH [MENU] (P. 18)

➥ Toggles the DSC menu ON or OFF when pushed.

PANEL DESCRIPTION

!2 KEYPAD

➥ Inputs the numeral “1” for channel number

input, etc.

➥ Inputs “1,” “Q,” “Z,” “q,” “z” or space for channel

comment input.

➥ After pushing [F], turns the dualwatch function

ON or OFF. (p. 15)

➥ Inputs the numeral “2” for channel number

input, etc.

➥ Inputs “2,” “A,” “B,” “C” “a,” “b” or “c” for chan-

nel comment input.

➥ After pushing [F], turns the tri-watch function

ON or OFF. (p. 15)

➥ Inputs the numeral “3” for channel number

input, etc.

➥ Inputs “3,” “D,” “E,” “F,” “d,” “e” or “f” for channel

comment input.

➥ After pushing [F], push this switch and rotate

[CHANNEL] to adjust the brightness of the LCD and switch backlight.

➥ Inputs the numeral “4” for channel number

input, etc.

➥ Inputs “4,” “G,” “H,” “I,” “g,” “h” or “i” for channel

comment input.

➥ After pushing [F], starts or stops the scan

function. (p. 17)

PANEL DESCRIPTION

➥ Inputs the numeral “5” for channel number

input, etc.

➥ Inputs “5,” “J,” “K,” “L,” “j,” “k” or “l” for channel

comment input.

➥ After pushing [F], sets the displayed channel

as a tag (scanned) channel. (p.17)

➥ While pushing [H/L], push for 3 sec. to clear all

tag channels. (p.17)

➥ Inputs the numeral “6” for channel number

input, etc.

➥ Inputs “6,” “M,” “N,” “O,” “m,” “n” or “o” for

channel comment input.

➥ After pushing [F], turns the attenuator function

ON or OFF. (p. 10)

•“LOCAL” appears when the attenuator is in use.

➥ Inputs the numeral “7” for channel number

input, etc.

➥ Inputs “7,” “P,” “R,” “S,” “p,” “r” or “s” for chan-

nel comment input.

➥ After pushing [F], turns the hailer function ON

or OFF. (p. 41)

➥ Inputs the numeral “8” for channel number

input, etc.

➥ Inputs “8,” “T,” “U,” “V,” “t,” “u” or “v” for channel

comment input.

➥ After pushing [F], turns the auto fog horn func-

tion ON or OFF. (p. 43)

➥ Inputs the numeral “9” for channel number

input, etc.

➥ Inputs “9,” “W,” “X,” “Y,” “w,” “x” or “y” for chan-

nel comment input.

➥ After pushing [F], turns the intercom function

ON or OFF. (p. 40)

➥ Inputs the numeral “0” for channel number

input, etc.

➥ Push for 1 sec. to edit “A” channel for channel

number input.

➥ Inputs “0” and symbols (“–” “/” “.”) for channel

comment input.

➥ After pushing [F], activates an optional voice

scrambler function. (p. 13)

•The optional voice scrambler function cannot be used on Channel 16 and 70.

➥ Fixes input of channel number and channel

comment, etc.

➥ Clears entered digits and retrieves the previ-

ous frequency, channel or channel names during setting.

■ Function display

q BUSY/TRANSMIT INDICATOR (p. 10)

➥ “BUSY” appears when receiving a signal or when the

squelch opens.

➥ “TX” appears while transmitting.

w RECEIVER ATTENUATOR INDICATOR (p. 10)

“LOCAL” appears when the receiver attenuator is in use.

e SCRAMBLER INDICATOR (p. 13)

“SCRAM” appears when an optional voice scrambler is ac- tivated.

r SCAN INDICATOR

➥ Either “NORMAL SCAN” or “PRI-SCAN 16” scan

type appears while scanning. (p. 17)

➥ “DUAL 16” appears during dualwatch; “TRI 16”

appears during tri-watch. (p. 15)

t POSITION INDICATOR

➥ Shows the GPS position data.

•“??” may blink every 2 sec. instead of position data when

the GPS position data is invalid. In such a case, the last position data is held for up to 23.5 hours.

•“??” may blink every 2 sec. instead of position data 4

hours after the position data is input manually, up until

23.5 hours have past.

➥ “No Position” appears when no GPS receiver is con-

nected and no position data is input manually.

y TIME ZONE INDICATOR

➥ “Local” appears when the offset time data in the ‘Set

up’ menu is entered. (p. 36)

➥ “No Time” appears when no GPS receiver is con-

nected and no time data is input manually.

u CHANNEL COMMENT INDICATOR

➥ Channel comment appears if programmed. (p. 11) ➥ “Low Batt” ﬂashes when the battery voltage drops to

approx. 10 V DC or below.

BUSY-25W---INT---CALL LOCAL--DUP SCRAM--TAG NORMAL-SCAN

-34"34.506N

123"23.236W Local--1:10--CALLING

!2!3 !1 !0 o

PANEL DESCRIPTION

■ Microphone (HM-136)

q PTT SWITCH [PTT] (p. 10)

Push and hold to transmit; release to receive.

w CHANNEL UP/DOWN SWITCHES [YY]/[ZZ] (P. 10)

Push either switch to change the operating channel, set mode contents, etc.

e CHANNEL 16/CALL CHANNEL SWITCH [16/9]

➥ Push to select Channel 16; push for 1 sec. to Channel 9.

(p. 8)

➥

While pushing [16/9], turn power ON to toggle the lock function ON or OFF. (p. 43)

Speaker

Microphone

16/9

i CHANNEL NUMBER READOUT

➥ Indicates the selected operating channel number.

“A” appears when a simplex channel is selected. (p. 9) “b” appears when a receive only channel for a Canadian channel group is selected.

➥ “F” appears when [F] switch is pushed.

o CALL CHANNEL INDICATOR (p. 8)

“CALL” appears when the call channel is selected.

!0 CHANNEL GROUP INDICATOR (p. 9)

Indicates whether an International “INT,” U.S.A. “USA,” Canadian “CAN” or weather “WX” channel is selected.

!1 DUPLEX INDICATOR (p. 9)

Appears when a duplex channel is selected.

!2 POWER INDICATOR (p. 10)

➥ “25W” appears when high power is selected. ➥ “1W” appears when low power is selected.

!3 TAG CHANNEL INDICATOR (p. 17)

Appears when a tag channel is selected.

BASIC OPERATION

■ Channel selection

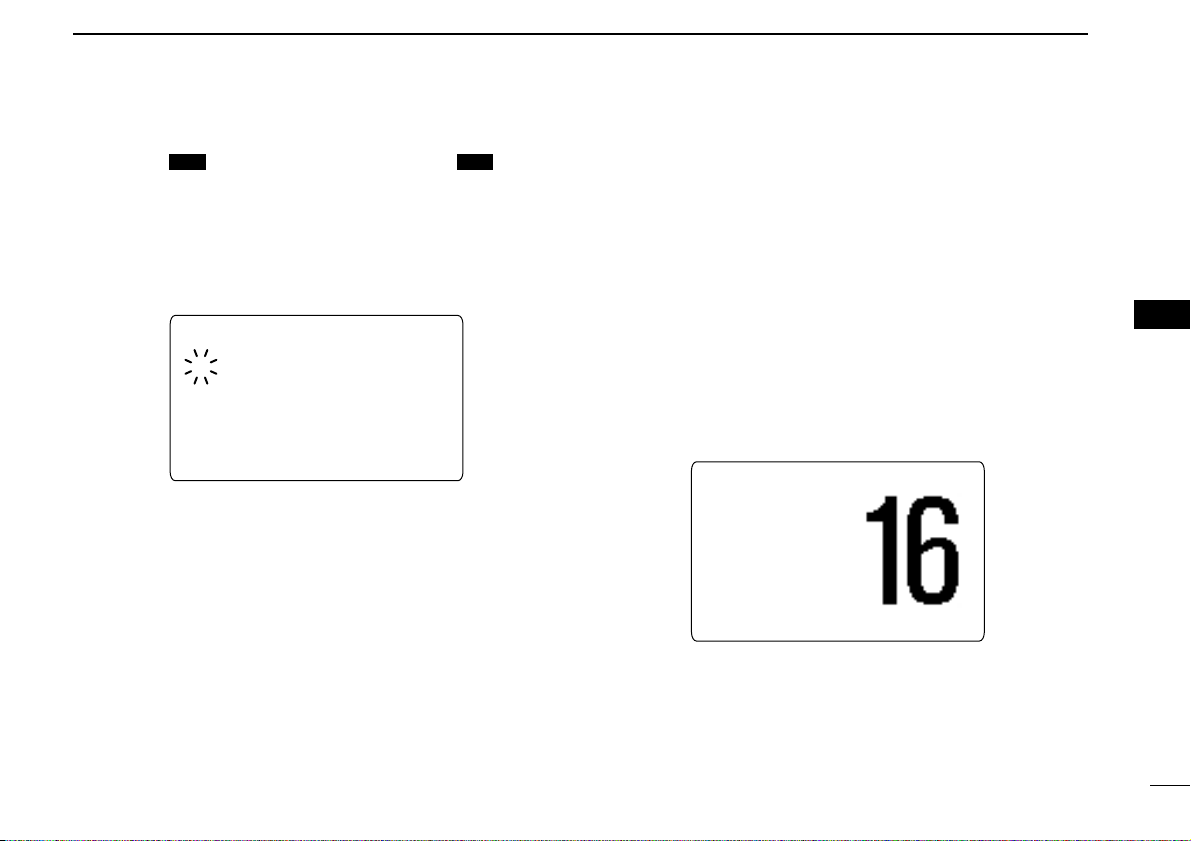

Channel 16

Channel 16 is the distress and safety channel. It is used for establishing initial contact with another station and for emergency communications. Channel 16 is monitored during both dualwatch and tri-watch. While standing by, you must monitor Channel 16.

➥ Push [16•9] momentarily to select Channel 16. ➥ Push [CH/WX•U/I/C] to return to the condition before se-

lecting Channel 16, or rotate [CHANNEL] to select operating channel.

Channel 9 (Call channel)

Each regular channel group has a separate leisure-use call channel. The call channel is monitored during tri-watch. The call channels can be programmed (p. 11) and are used to store your most often used channels in each channel group for quick recall. ➥ Push [16•9] for 1 sec. to select the call channel of the se-

lected channel group.

•“CALL” and call channel number appear.

• Each channel group may have an independent call channel after programming a call channel.

➥ Push [CH/WX•U/I/C] to return to the condition before se-

lecting the call channel

, or rotate [CHANNEL] to select an

operating channel.

Push for 1 sec.

BUSY-25W---INT---CALL

LOCAL--DUP SCRAM--TAG NORMAL-SCAN

-34"34.206N

123"23.236W

--UTC-10:10--CALLING

Push

BUSY-25W---INT---CALL

LOCAL--DUP SCRAM--TAG NORMAL-SCAN

-34"34.206N

123"23.236W

--UTC-10:10--CALLING

BASIC OPERATION

U.S.A., Canadian and International channels

There are 57 U.S.A., 61 Canadian and 57 International channels. These channel groups may be speciﬁed for the operating area.

q Push [CH/WX•U/I/C] to select a regular channel.

• If a weather channel appears, push [CH/WX•U/I/C] again.

w While pushing [H/L], push [CH/WX•U/I/C] to change the

channel group, if necessary.

•U.S.A., International (INT) and Canadian channels can be selected in sequence.

e Rotate [CHANNEL] to select a channel.

•“DUP” appears for duplex channels.

• “A” appears for simplex channels.

Weather channels

There are 10 weather channels. Used for monitoring weather channels from the NOAA (National Oceanographic and Atmospheric Administration) broadcasts.

The transceiver can detect a weather alert tone on the selected weather channel while receiving that channel, during standby on a regular channel or while scanning. See “Weather alert” on p. 45. q Push [CH/WX•U/I/C] once or twice to select a weather

channel.

•“WX” appears when a weather channel is selected.

• “WX ALERT” appears when the weather alert function is in use.

(p. 45)

w Rotate [CHANNEL] to select a channel.

Push once or twice

When weather alert is OFF.

When weather alert is ON.

WXALERT

CH/WX

Push +

U.S.A. channels

H/L

CH/WX

Canadian channels

CAN

International channels

INT

DUP

USA

■ Receiving and transmitting

CAUTION: Transmitting without an antenna may dam-

age the transceiver.

q Push [POWER] to turn power ON. w Set the audio and squelch levels.

➥ Rotate [SQL] fully counterclockwise in advance. ➥ Rotate [VOL] to adjust the audio output level. ➥ Rotate [SQL] clockwise until the noise disappears.

e To change the channel group, push [CH/WX•U/I/C] while

pushing [H/L]. (p. 9)

r Rotate [CHANNEL] or push [Y]/[Z] on the microphone to

select the desired channel.

• When receiving a signal, “BUSY” appears and audio is emitted

from the speaker.

• Further adjustment of [VOL] may be necessary at this point.

• Use the optional voice scrambler function for privacy. (p. 13)

t Push [F], then push [6 LO/DX] to turn the receive attenua-

tor function ON or OFF if necessary.

•“LOCAL” appears when the receive attenuator is in use.

y Push [H/L] to select the output power if necessary.

•“25W” or “1W” appears when high or low power is selected, re-

spectively.

•Choose low power to conserve power, choose high power for longer distance communications.

• Some channels are for low power only.

u Push and hold [PTT] to transmit, then speak into the mi-

crophone.

•“TX” appears.

• Channel 70 cannot be used for transmission.

Simplex channels, 3, 21, 23, 61, 64, 81, 82 and 83 CAN- NOT be lawfully used by the general public in U.S.A. waters.

i Release [PTT] to receive.

IMPORTANT: To maximize the readability of your transmitted signal, pause a few sec. after pushing [PTT], hold the microphone 1 to 2 inches (2.5 to 5 cm) from your mouth and speak at a normal voice level.

WATERPROOF

VOL

iM602

VHF MARINE

MIC

U/I/C

SQL

16/9

qrr

yui

BASIC OPERATION

■ Call channel programming

The call channel is used to select Channel 9, however, you can program your most often-used channels in each channel group for quick recall.

q While pushing [H/L], push [CH/WX•U/I/C] one or more

times to select the desired channel group (U.S.A., International, Canada) to be programmed.

w Push [16•9] for 1 sec. to select the call channel of the se-

lected channel group.

•“CALL” and call channel number appear.

e Push [16•9] again for 3 sec. (until a long beep changes to

2 short beeps) to enter call channel programming condition.

•Channel number starts blinking.

r Rotate [CHANNEL] to se-

lect the desired channel.

t Push [16•9] to program the

displayed channel as the call channel.

•Push [CH/WX•U/I/C] to cancel.

•The channel number stops blinking.

■ Channel comments

Memory channels can be tagged with alphanumeric names of up to 10 characters each.

Capital letters, small letters, numerals, some symbols (- . /) and space can be used.

q Select the desired memory channel.

• Cancel dual watch, tri-watch or scan in advance.

w While pushing [H/L], push [16•9] to edit the channel com-

ment.

•A cursor appears and blinks.

e Push the appropriate key several times to enter the de-

sired character.

• See the table on page 12 for available characters.

• Rotate [CHANNEL] or push [Y]/[Z] on the microphone to move

the cursor.

r Push [ENT] to input and set the comment.

• Push [CLR] to cancel.

• The cursor disappears.

t Repeat steps q to r to program other channel com-

ments, if desired.

BUSYBUSY-25W25W------INTINT------CALLCALL

LOCAL--DUPLOCAL--DUP SCRAMSCRAM----TAGTAG NORMAL-SCANNORMAL-SCAN

-34"34.206N34"34.206N

123"23.236W123"23.236W

----UTCUTC-10:1010:10----CALLINGCALLING

BUSYBUSY-25W25W------INTINT------CALLCALL LOCAL--LOCAL--DUPDUP SCRAMSCRAM----TAGTAG NORMAL-SCANNORMAL-SCAN

-34"34.206N34"34.206N

123"23.236W123"23.236W

----UTCUTC-10:1010:10------INTLINTL

BUSY-BUSY-25W25W------INTINT------CALLCALL LOCAL--LOCAL--DUPDUP SCRAMSCRAM----TAGTAG NORMAL-SCANNORMAL-SCAN

-34"34.206N34"34.206N

123"23.236W123"23.236W

----UTCUTC-10:1010:10-PLEASURELEASURE

BASIC OPERATION

KEY CHARACTERS KEY CHARACTERS

z (space)

mno

• Available characters

BASIC OPERATION

■ Optional voice scrambler operation

Activating the scrambler

The optional voice scrambler provides private communications. In order to receive or send scrambled transmissions you must ﬁrst activate the scrambler function. To activate the function, an optional UT-112 is necessary. See p. 47 for setting the scrambler unit. Ask your dealer for details.

The scrambler function automatically turns OFF when

Channel 16 or 70 is selected.

Select an operating channel other than Channel 16 and 70.

w Push [F], then push [0 SCRM] to turn the optional scram-

bler function ON.

• “SCRAM” appears.

e To turn the scrambler function OFF, repeat step w.

• “SCRAM” disappears.

Programming scrambler codes

There are 32 codes (1 to 32) available for programming when the optional UT-112 is installed. In order to understand one another, all transceivers in your group must have the same scramble code. This function may not be available depending on dealer setting.

q Turn power OFF. w While pushing [16•9], turn power ON to enter set mode. e After the display appears, release [16•9]. r Rotate [CHANNEL] to select the “Scrambler Code,”

push [ENT].

t Rotate [CHANNEL] to select the desired scrambler code. y Push [ENT] to set and exit the scrambler code item. u Rotate [CHANNEL] to select “Exit,” then push [ENT] to

exit set mode.

Enter set mode

POWER

ENT ENT

Select item

then push

Select code

then push

Scrambler Code

˘9

˘7

--Set Mode--

˘5

˘6

˘8

˘<ENT˘OK>

˘Scan Type

˘Scan Timer

--Set Mode--

˘Internal Speaker ˘Contrast

˘Beep

˘Dual/Tri COMMANDMIC

˘WX Alert

˘Internal Speaker ˘Contrast

--Set Mode--

˘Scrambler Code

˘Exit

˘Scrambler Type

˘Foghorn Frequency

˘RF Attenuator

[Example]: Programming scrambler code 8.

DUAL WATCH/TRI-WATCH

■ Description

Dualwatch monitors Channel 16 while you are receiving another channel; tri-watch monitors Channel 16 and the call channel while receiving another channel.

DUALWATCH/TRI-WATCH SIMULATION

• If a signal is received on Channel 16, dualwatch/tri-watch pauses on Channel 16 until the signal disappears.

• If a signal is received on the call channel during tri-watch, tri-watch becomes dualwatch until the signal disappears.

• To transmit on the selected channel during dualwatch/tri-watch, push and hold [PTT].

Call channel

Dualwatch Tri-watch

DUAL WATCH/TRI-WATCH

■ Operation

q Select the desired operating channel. w Push [F], then push [1

DUAL] to start dualwatch or [2 TRI]

to start tri-watch.

•“DUAL” appears during dualwatch; “TRI” appears during tri- watch.

• A beep tone sounds when a signal is received on Channel 16.

e To cancel dualwatch or tri-watch, push [CLR] or repeat

step w.

[Example]: Operating dualwatch on INT Channel 25.

[Example]: Operating tri-watch on INT Channel 25.

BUSY-25W---INT---CALL LOCAL--DUP SCRAM--TAG

DUALAL-SC16

-34"34.206N

123"23.236W

--UTC-10:10-TELEPHONE

BUSY-25W---INT---CALL

LOCAL--DUP SCRAM--TAG

DUALAL-SC16

-34"34.206N

123"23.236W

--UTC-10:10-TELEPHONE

BUSY-25W---INT---CALL LOCAL--DUP SCRAM--TAG

DUALAL-SC16

-34"34.206N

123"23.236W

--UTC-10:10-TELEPHONE

Tri-watch starts.

Signal received on Channel 16 takes priority.

Dualwatch resumes after the signal disappears.

BUSY-25W---INT---CALL LOCAL--DUP SCRAM--TAG

TRIMAL-SC16

-34"34.206N

123"23.236W

--UTC-10:10-TELEPHONE

BUSY-25W---INT---CALL

LOCAL--DUP SCRAM--TAG

TRIMAL-SC16

-34"34.206N

123"23.236W

--UTC-10:10--CALLING

BUSY-25W---INT---CALL

LOCAL--DUP SCRAM--TAG

TRIMAL-SC16

-34"34.206N

123"23.236W

--UTC-10:10-TELEPHONE

BUSY-25W---INT---CALL LOCAL--DUP SCRAM--TAG

TRIMAL-SC16

-34"34.206N

123"23.236W

--UTC-10:10-TELEPHONE

Tri-watch starts.

Signal is received on call channel.

Signal received on Channel 16 takes priority.

Tri-watch resumes after the signal disappears.

SCAN OPERATIONS

■ Scan types

Scanning is an efﬁcient way to locate signals quickly over a wide frequency range. The transceiver has priority scan and normal scan.

When the weather alert function is in use, the selected weather channel is checked while scanning. (p. 45)

Set the tag channels (scanned channel) before scanning. Clear the tag channels which inconveniently stop scanning, such as those for digital communication use.

Choose priority or normal scan in set mode. (p. 45)

NORMAL SCAN

Normal scan, like priority scan, searches through all tag channels in sequence. However, unlike priority scan, Channel 16 is not checked unless Channel 16 is set as a tag channel.

PRIORITY SCAN

Priority scan searches through all tag channels in sequence while monitoring Channel 16. When a signal is detected on Channel 16, scan pauses until the signal disappears; when a signal is detected on a channel other than Channel 16, scan becomes dualwatch until the signal disappears.

CH 01

CH 06

CH 05 CH 04

CH 16

CH 02

CH 03

CH 01 CH 02

CH 06

CH 05 CH 04

CH 03

SCAN OPERATION

Push

SCN

GHI

then

Scan starts. When a signal is received

BUSY-25W---INT---CALL LOCAL--DUP SCRAM--TAG NORMAL-SCAN

-34"34.206N

123"23.236W

--UTC-10:10---INTL-

BUSY-25W---INT---CALL LOCAL--DUP SCRAM--TAG

NORMAL-SCAN

-34"34.206N

123"23.236W

--UTC-10:10---INTL-

BUSY-25W---INT---CALL

LOCAL--DUP SCRAM--TAG

NORMAL-SCAN

-34"34.206N

123"23.236W

--UTC-10:10---INTL-

[Example]: Starting a normal scan.

■ Setting tag channels

For more efficient scanning, add desired channels as tag channels or clear tag channels for unwanted channels. Channels set as non-tag channels will be skipped during scanning. Tag channels can be assigned to each channel group (U.S.A., International, Canada) independently.

q While pushing [H/L], push [CH/WX•U/I/C] one or more

times to select the desired channel group, if desired.

w Select the desired channel to set as a tag channel. e Push [F], then push [5

TAG ] to set the displayed channel

as a tag channel.

•“TAG” appears in the display.

r To cancel the tag channel setting, repeat step e.

•“TAG” disappears.

• Clearing all tag channels in the selected channel group

➥ While pushing [H/L], push [5

TAG ] for 3 sec. to clear all tag

channels in the channel group.

■ Starting a scan

Set scan type (priority or normal scan) and scan resume timer in advance using set mode. (p. 45)

q Set tag channels as described at left. w Make sure the squelch is closed to start a scan. e While pushing [H/L], push [CH/WX•U/I/C] one or more

times to select the desired channel group, if desired.

Push [F], then push [4

SCN

] to start priority or normal scan.

•“PRI-SCAN 16” or “NORMAL SCAN” appears in the function

display.

•When a signal is detected, scan pauses until the signal disappears or resumes after pausing 5 sec. according to set mode setting. (Channel 16 is still monitored during priority scan.)

•Rotate [CHANNEL] to check the scanning tag channels, to change the scanning direction or resume the scan manually.

•“16” blinks and a beep tone sounds when a signal is received on Channel 16 during priority scan.

t To stop the scan, push [CLR] or repeat step r.

DSC OPERATION

■ MMSI code programming

The 9-digit MMSI (Maritime Mobile Service Identity: DSC self ID) code can be programmed at power ON.

This code programming can be performed only twice.

q Turn power OFF. w While pushing [MENU], turn power ON to enter MMSI

code programming condition.

e After the display appears, release [MENU]. r Push [MENU] to enter the DSC menu. t Rotate [CHANNEL] to select “Set up,” push [ENT]. y

Rotate [CHANNEL] to select “MMSI check,” push [ENT].

u Edit the speciﬁc MMSI code directly with the keypad.

• Rotate [CHANNEL] to move the cursor backward or forward.

i Input the 9 digit code, then push [ENT] to set the code.

• Returns to the DSC set up menu.

o Rotate [CHANNEL] to select “Exit,” push [ENT].

• Returns to the DSC menu.

• Repeat again to return to the normal operation condition.

■

Position and time programming

A distress call should include the ship’s position and time. If no GPS is connected, your position and UTC (Universal Time Coordinated) time should be input. They are included automatically when a GPS receiver (NMEA0183 ver. 2.0) is connected.

This manual programming is not available when a GPS receiver (NMEA0183 ver. 2.0) is connected.

q Push [MENU] to enter the DSC menu. w Rotate [CHANNEL] to select “Position Input,” push

[ENT].

e Edit the digit of your latitude data directly with the keypad.

•Push [6• ] to edit N; North latitude or [7• ] to edit S; South latitude.

• Rotate [CHANNEL] to move the cursor backward or forward.

• Push [CE] to clear the position data.

PRSMNO

Input Position Latitude

Longitude

--DSC Menu--

<CE˘Null Data>

___°__.___W˘˘˘˘˘˘˘˘Null

˘_°__.___N˘˘˘˘˘˘˘˘Null

<CLR˘Exit / ENT˘OK>

MMSI Check

ä ________________

--DSC Menu--

<CLR˘Exit / ENT˘OK>

DSC OPERATION

Edit the digit of your longitude data directly with the keypad.

•Push [3• ] to edit E; East longitude or [9• ] to edit W; West longitude.

• Rotate [CHANNEL] to move the cursor backward or forward.

• Push [CE] to clear the position data.

t Push [ENT] to set the position and advance to the time set-

ting condition.

• Push [CLR] to abandon the setting and exit the condition.

y Edit the digit of the current UTC time directly with the key-

pad.

• Rotate [CHANNEL] to move the cursor backward or forward.

• Push [CE] to clear the time.

u Push [ENT] to set the time.

• Push [CLR] to abandon the setting and exit the condition.

■ Position indication

When a GPS receiver (NMEA0183 ver. 2.0) is connected, the transceiver displays the current position and time. When no GPS receiver is connected, the transceiver displays the manually entered position and time.

A GPS receiver appropriate for the IC-M602 is not supplied from Icom. A GPS receiver with NMEA0183 ver. 2.0 format is required for position indication. Ask your dealer about suitable GPS receivers.

BUSY-25W---INT---CALL LOCAL--DUP SCRAM--TAG NORMAL-SCAN

-34"34.506N

123"23.236W

--UTC-19:10--CALLING

Input UTC time

˘__:__˘˘˘˘˘˘˘˘˘˘˘˘Null

--DSC Menu--

<CE˘Null Data>

<CLR˘Exit / ENT˘OK>

WXYDEF

DSC OPERATION

■ Distress call

A distress call should be transmitted, if in the opinion of the Master, the ship or a person is in distress and requires immediate assistance.

NEVER USE THE DISTRESS CALL WHEN YOUR SHIP IS NOT IN AN EMERGENCY. A DISTRESS CALL CAN BE USED ONLY WHEN IMMEDIATE HELP IS NEEDED.

q Conﬁrm no distress call is being received. w While lifting up the switch cover, push [DISTRESS] for 5

sec. to transmit the distress call.

• An emergency channel (Ch 70) is automatically selected and the distress call is transmitted.

• When no GPS is connected, input your position and UTC time, if possible.

e After transmitting the call, the transceiver waits for an ac-

knowledgment call on Ch 70.

•The distress call is automatically transmitted every 3.5 to 4.5 minutes.

r After 5 sec., the transceiver is set to Channel 16 automat-

ically.

BUSY-25W---INT---CALL LOCAL--DUP SCRAM--TAG NORMAL-SCAN

Wait ACK

-34"34.506N

<CLR˘ Cancel ACK---CALLING

Distress Call

TX Complete

Now Wating for ACK

<CLR˘Cancel ACK>

Distress Call

Push for 5 sec.

DSC OPERATION

t When receiving the acknowledgment, reply using the mi-

crophone.

➥ A distress alert contains (default);

• Kind of distress : Undesignated distress

• Position data : GPS or manual input position data held for

23.5 hrs.

➥ The distress call is repeated every 3.5–4.5 min., until re-

ceiving an ‘acknowledgement.’

➥ Push [DISTRESS] to transmit a renewed distress call, if

required.

➥ Push [CLR] to cancel the ‘Call repeat’ mode. ➥ “??” may blink instead of position and time indications

when the GPS data is invalid, or has not been updated after 4 hours the position and time data input manually.

BUSY-25W---INT---CALL LOCAL--DUP SCRAM--TAG

ReceivedCAN DistressACK <Osaka Bay >Chuck3

-<CLR˘Exit>--CALLING

DSC OPERATION

■ Transmitting DSC calls

Transmitting Individual call

The individual call function allows you to transmit a DSC signal to a speciﬁc ship only.

q Push [MENU] to enter the DSC menu. w Rotate [CHANNEL] to select “Individual Call,”

push [ENT].

e Rotate [CHANNEL] to select the desired pre-programmed

individual address or “Manual Input,” push [ENT].

• The ID code for the individual call can be set in advance. (p. 31)

• When “Manual Input” is selected, set the 9-digit ID code for the individual you wish to call with the keypad.

r Rotate [CHANNEL] to select a desired intership channel

or “Manual Input,” push [ENT].

• When “Manual Input” is selected, rotate [CHANNEL] to select the desired channel other than Channel 70.

Select Intership CH

<CLR˘Exit / ENT˘OK>

˘08

˘77

--DSC Menu--

˘06

˘69

Select Address

<CLR˘Exit / ENT˘OK>

˘Manual Input

˘Margaret

--DSC Menu--

˘Ricky

˘John

Select item

˘Received Calls

˘Individual Call

˘All Ships Call

--DSC Menu--

˘Polling Request

˘Position Request

˘Group Call

DSC OPERATION

t Push [ENT] to transmit the individual call.

• If Channel 70 is busy, the transceiver stands by until the channel becomes clear.

y Standby on Channel 70 until an acknowledgement is re-

ceived.

u When the acknowledgement is received, the display

changes to the previously selected channel with beeps.

i Push and hold [PTT] to communicate your message to the

responding ship.

Transmitting Individual acknowledgement

Transmit an acknowledgement (‘able to comply’ or ‘unable to comply’) when an individual call for you is received.

q Push [MENU] to enter the DSC menu. w Rotate [CHANNEL] to select “Individual ACK,” push

[ENT].

•“Individual ACK” item appears after an individual call is

received.

e Rotate [CHANNEL] to select the desired individual address

or ID code, push [ENT].

Select Address

<CLR˘Exit / ENT˘OK>

˘Manual Input

˘Margaret

--DSC Menu--

˘Ricky

˘John

Select item

˘Polling Request

˘Individual Call

˘Group Call

--DSC Menu--

˘Position Request

˘All Ships Call

˘Individual ACK

Individual Call

<CLR˘Exit>

TX Complete

Now Waiting for ACK

--DSC Menu--

˘Ricky

˘Icom

Individual Call Ready

<CLR˘Exit / ENT˘OK>

--DSC Menu-Individual Call

CH70 BUSY

<CLR˘Exit>

--DSC Menu--

Push [ENT] to transmit DSC call. When Ch 70 is busy.

DSC OPERATION

r Rotate [CHANNEL] to select an acknowledgement “Able

to Comply” or “Unable to Comply,” push [ENT].

t If you select “Unable to Comply,” select the reason

by rotating [CHANNEL], push [ENT].

• ‘No reason given,’ ‘Congestion,’ ‘Busy,’ ‘Queue indication,’ ‘Station Barred,’ ‘No operator,’ ‘Operator Unavailable,’ ‘Equipment Disable,’ ‘Channel Unable’ and ‘Mode Unable’ are available.

y Push [ENT] to transmit the acknowledgement to the se-

lected station.

u After the individual acknowledgement has been transmit-

ted, the following indication is displayed.

i Then the display changes to the channel speciﬁed by the

calling station, automatically.

Individual ACK

TX Complete

--DSC Menu--

Individual ACK Ready

<CLR˘Exit / ENT˘OK>

--DSC Menu--

Select Reason

˘No Reason Given

˘Busy

--DSC Menu--

˘Queue Indication ˘Station Barred

˘Channel Unable

˘No Operator ˘Operator Unavailable ˘Equipment Disable

<CLR˘Exit / ENT˘OK>

˘Mode Unable ˘Equipment Disable

˘Congestion

Select Action

<CLR˘Exit / ENT˘OK>

˘Able to Comply

˘77

--DSC Menu--

˘06

˘Unable to Comply

DSC OPERATION

Transmitting Group call

The Group call function allows you to transmit a DSC signal to a speciﬁc group only.

q Push [MENU] to enter the DSC menu. w Rotate [CHANNEL] to select “Group Call,” push

[ENT].

e Rotate [CHANNEL] to select the desired pre-programmed

group address or “Manual Input,” push [ENT].

• The ID code for the group call can be set in advance. (p. 33)

• When “Manual Input” is selected, set the 8-digit ID code for

the group you wish to call with keypad.

r Rotate [CHANNEL] to select a desired intership channel

or “Manual Input,” push [ENT].

• When “Manual Input” is selected, rotate [CHANNEL] to se-

lect the desired channel other than Channel 70.

t Push [ENT] to transmit the group call.

• If Channel 70 is busy, the transceiver stands by until the channel becomes clear.

y After the group call has been transmitted, the following in-

dication is displayed.

u Push [CLR] to exit the condition.

Group Call

TX Complete

<CLR˘Exit>

--DSC Menu--

Group Call ready

<CLR˘Exit / ENT˘OK>

--DSC Menu--

Select Address

<CLR˘Exit / ENT˘OK>

˘Manual Input

˘Osaka

--DSC Menu--

˘Tokyo

˘I-com

Select item

˘Received Calls

˘Individual Call

˘All Ships Call

--DSC Menu--

˘Polling Request

˘Position Request

˘Group Call

DSC OPERATION

Transmitting All ships call

Large ships use Channel 70 as their ‘listening channel.’ When you want to announce a message to these ships, use the ‘all ships call’ function.

q Push [MENU] to enter the DSC menu. w Rotate [CHANNEL] to select “All Ships Call,” push

[ENT].

e Rotate [CHANNEL] to select the desired category, push

[ENT].

• Output power of ‘Routine’ category is 1 W (low power) only.

r Push [ENT] to transmit the all ships call.

• Channel 70 is selected and the all ships call is transmitted.

t After the all ships call has been transmitted, the following

indication is displayed.

y Push [CLR] to exit the condition.

•Even if [CLR] hasn’t been pushed, the display automatically changes to channel 16 after 5 sec. inactivity.

All Ships Call

TX Complete

<CLR˘Exit>

--DSC Menu--

All Ships Call Ready

<CLR˘Exit / ENT˘OK>

--DSC Menu--

Select Category

˘Received Calls

˘Routine

˘Urgency

--DSC Menu--

˘Polling Request

˘Position Request

˘Safety

Select item

˘Received Calls

˘Individual Call

˘All Ships Call

--DSC Menu--

˘Polling Request

˘Position Request

˘Group Call

DSC OPERATION

Transmitting Position request call

Transmit a position request call when you want to know a speciﬁc ship’s current position, etc.

q Push [MENU] to enter the DSC menu. w Rotate [CHANNEL] to select “Position Request,”

push [ENT].

e Rotate [CHANNEL] to select the desired pre-programmed

individual address or “Manual Input,” push [ENT].

• The ID code for the individual call can be set in advance. (p. 31)

• When “Manual Input” is selected, set the 9-digit ID code for

the individual you wish to call with the keypad.

r Push [ENT] to transmit the position request call.

t After the position request call has been transmitted, the fol-

lowing indication is displayed.

y Push [CLR] to exit the condition.

• Even if [CLR] hasn’t been pushed, the display automatically returns to the original indication after 5 sec. of inactivity.

Position Request

TX Complete

--DSC Menu--

˘<CLR˘Exit>

Now Waiting for ACK

Position Request Ready

<CLR˘Exit / ENT˘OK>

--DSC Menu--

Select Address

<CLR˘Exit / ENT˘OK>

˘Manual Input

˘Margaret

--DSC Menu--

˘Ricky

˘John

Select item

˘Received Calls

˘Individual Call

˘All Ships Call

--DSC Menu--

˘Polling Request

˘Position Request

˘Group Call

DSC OPERATION

Transmitting Position reply call

Transmit a position reply call when a position request call is received.

q When a position request call is received, the following in-

dication is displayed.

w Push [ENT] to reply to the position request call; push [CLR]

to ignore the position request call.

Transmitting Polling request call

Transmit a polling request call when you want to know a speciﬁc ship is in the communication area, etc.

q Push [MENU] to enter the DSC menu. w Rotate [CHANNEL] to select “Polling Request,”

push [ENT].

e Rotate [CHANNEL] to select the desired pre-pro-

grammed individual address or “Manual Input,” push [ENT].

• The ID code for the individual call can be set in advance. (p. 31)

• When “Manual Input” is selected, set the 9-digit ID code for

the individual you wish to call with the keypad.

Select Address

<CLR˘Exit / ENT˘OK>

˘Manual Input

˘Margaret

--DSC Menu--

˘Ricky

˘John

Select item

˘Received Calls

˘Individual Call

˘All Ships Call

--DSC Menu--

˘Polling Request

˘Position Request

˘Group Call

BUSY-25W---INT---CALL LOCAL--DUP SCRAM--TAG

ReceivedCAN POS REQ <Chuck3 <CLR˘Exit> <ENT˘Reply>COMMERCIAL

DSC OPERATION

r Push [ENT] to transmit the polling request call.

t After the polling request call has been transmitted, the fol-

lowing indication is displayed

y Push [CLR] to exit the condition.

• Even if [CLR] hasn’t been pushed, the display automatically returns to the original indication after 5 sec. of inactivity.

Transmitting Polling reply call

Transmit a polling reply call when a polling request call is received.

q When a polling request call is received, the following indi-

cation is displayed.

w Push [ENT] to reply to the polling request call; push [CLR]

to ignore the polling request call.

BUSY-25W---INT---CALL LOCAL--DUP SCRAM--TAG

ReceivedCAN POLL REQ <Chuck3 <CLR˘Exit> <ENT˘Reply>COMMERCIAL

Polling Request

TX Complete

--DSC Menu--

<CLR˘Exit>

Now Waiting for ACK

Polling Request Ready

˘<CLR˘Exit / ENT˘OK>

--DSC Menu--

DSC OPERATION

■

Setting the distress information

The nature of the distress call should be included in the distress call.

q Push [MENU] to enter the DSC menu. w Rotate [CHANNEL] to select “Distress Setting,”

push [ENT].

e Rotate [CHANNEL] to select the nature of the distress,

push [ENT].

•‘Undesignated,’ ‘Explosion,’ ‘Flooding,’ ‘Collision,’ ‘Grounding,’ ‘Capsizing,’ ‘Sinking,’ ‘Adrift (Disable adrift),’ ‘Abandoning (Abandoning ship),’ ‘Piracy (Piracy attack)’ and ‘MOB (Man overboard)’ are available.

r The position information appears. Set the current position,

then push [ENT].

• Edit the digit of your position data directly with the keypad.

•Push [6• ] to edit N; North latitude or [7• ] to edit S; South latitude.

•Push [3• ] to edit E; East longitude or [9• ] to edit W; West longitude.

• Rotate [CHANNEL] to move the cursor backward or forward.

• Push [CE] to clear the position data.

WXYDEF

PRSMNO

Select Nature

˘Undesignated

˘Flooding

--DSC Menu--

˘Collision ˘Grounding

˘Abandoning

˘Capsizing ˘Sinking ˘Adrift

<CLR˘Exit / ENT˘OK>

˘Piracy ˘MOB ˘-----

˘Explosion

Select item

˘Exit

˘Position Request

˘Received Calls

--DSC Menu--

˘Set up

˘Distress Setting

˘Polling Request

DSC OPERATION

t The time information appears. Set the current UTC time,

push [ENT].

• Edit the digit of the current UTC time directly with the keypad.

• Push [CLR] to abandon the setting and exit the condition to selecting the nature menu.

• Rotate [CHANNEL] to move the cursor backward or forward.

• Push [CE] to clear the time.

• The selected nature of the distress is stored for 10 minutes.

y Push [DISTRESS] for 5 sec. to transmit the distress call.

■ DSC individual ID

A total of 100 DSC address IDs can be programmed and named with up to 10 characters.

Programming Address ID

q Push [MENU] to enter the DSC menu. w Rotate [CHANNEL] to select “Set up,” push [ENT].

e Rotate [CHANNEL] to select “Add: INDV ID,” push

[ENT].

Set up

˘MMSI Check

˘Add:INDV ID

˘DEL:INDV ID

--DSC Menu--

˘Offset time

˘DEL:Group ID

˘Add:Group ID

Select item

˘Exit

˘Position Request

˘Received Calls

--DSC Menu--

˘Set up

˘Distress Setting

˘Polling Request

Input UTC time

˘__:__˘˘˘˘˘˘˘˘˘˘˘˘Null

--DSC Menu--

<CE˘Null Data>

<CLR˘Exit / ENT˘OK>

Input Position Latitude

Longitude

--DSC Menu--

<CE˘Null Data>

___°__.___W˘˘˘˘˘˘˘˘Null

˘_°__.___N˘˘˘˘˘˘˘˘Null

<CLR˘Exit / ENT˘OK>

DSC OPERATION

r Set the individual ID and ID name.

•Edit the 9-digits of the appropriate distress ID directly with the

keypad.

• Push keypad several times to edit the character.

• Rotate [CHANNEL] to move the cursor backward or forward.

• Push [CE] to clear the ID and name.

• Push [CLR] to cancel and exit the condition to DSC set up menu.

t Push [ENT] to program and exit the condition to DSC set

up menu.

Deleting address ID

q Push [MENU] to enter the DSC menu. w Rotate [CHANNEL] to select “Set up,” push [ENT]. e Rotate [CHANNEL] to select “DEL: INDV ID,” push

[ENT].

•When no address ID is programmed, the transceiver exits the condition automatically.

r Rotate [CHANNEL] to select the desired ID name for delet-

ing.

t Push [ENT] to delete the address ID and exit the condition.

Select ID

<CLR˘Exit / ENT˘OK>

˘Turtle

˘Margaret

--DSC Menu--

˘Ricky

˘John

Set up

˘MMSI Check

˘Add:INDV ID

˘DEL:INDV ID

--DSC Menu--

˘Offset time

˘DEL:Group ID

˘Add:Group ID

Add:Individual ID Input 9 digits

Input name

--DSC Menu--

__________________

ä ________________

DSC OPERATION

Programming Group ID

q Push [MENU] to enter the DSC menu. w Rotate [CHANNEL] to select “Set up,” push [ENT].

e Rotate [CHANNEL] to select “Add: Group ID,” push

[ENT].

r Set the group ID and ID name.

• Edit the 8-digits of the group ID directly with the keypad.

• Push the appopriate keypad several times to edit the character.

• Rotate [CHANNEL] to move the cursor backward or forward.

• Push [CE] to clear the ID and name.

• Push [CLR] to cancel and exit the condition to DSC set up menu.

t Push [ENT] to program and exit the condition to DSC set

up menu.

Deleting group ID

q Push [MENU] to select the DSC menu. w Rotate [CHANNEL] to select “Set up,” push [ENT]. e

Rotate [CHANNEL] to select “DEL: Group ID,” push [ENT].

• When no group ID is programmed, the transceiver exits the condition automatically.

Rotate [CHANNEL] to select the desired ID name for deleting.

t Push [ENT] to delete the group ID and exit the condition

DSC set up menu.

Set up

˘MMSI Check

˘Add:INDV ID

˘DEL:INDV ID

--DSC Menu--

˘Offset time

˘DEL:Group ID

˘Add:Group ID

Add:Individual ID Input 8 digits

Input name

--DSC Menu--

__________________

˘0

ä ______________

Set up

˘MMSI Check

˘Add:INDV ID

˘DEL:INDV ID

--DSC Menu--

˘Offset time

˘DEL:Group ID

˘Add:Group ID

Select item

˘Exit

˘Position Request

˘Received Calls

--DSC Menu--

˘Set up

˘Distress Setting

˘Polling Request

DSC OPERATION

■ Receiving DSC calls

Receiving a distress call

While monitoring Channel 70 and a distress call is received: ➥ The emergency alarm sounds for 2 minutes.

• Push any switch to stop the alarm.

➥ “Received Distress” appears in the display; then

Channel 16 is automatically selected.

➥ Continue monitoring Channel 16 as a coast station may re-

quire assistance.

Receiving a distress acknowledgement

While monitoring Channel 70 and a distress acknowledgement to other ship is received: ➥ The emergency alarm sounds for 2 minutes.

• Push any switch to stop the alarm.

➥ “Received Distress ACK” appears in the display;

then Channel 16 is automatically selected.

Receiving an all ships call

While monitoring Channel 70 and an all ships call is received: ➥ The emergency alarm sounds when the category is ‘Dis-

tress’ or ‘Urgency’; 3 beeps sound for other categories.

➥ “Received All Ships” appears in the display; then

Channel 16 is automatically selected for voice communication.

➥ Monitor channel 16 for an announcement from the calling

vessel.

BUSY-25W---INT---CALL LOCAL--DUP SCRAM--TAG

ReceivedCAN All Ships <Chuck3

><CLR˘Exit>

-<CLR˘OK> --CALLING

BUSY-25W---INT---CALL LOCAL--DUP SCRAM--TAG

ReceivedCAN DistressACK <Osaka Bay >Chuck3

-<CLR˘Exit>--CALLING

BUSY-25W---INT---CALL LOCAL--DUP SCRAM--TAG

ReceivedCAN Distress <Chuck3

-<CLR˘Exit>--CALLING

DSC OPERATION

Receiving an individual call

While monitoring Channel 70 and an individual call is received: ➥ The emergency alarm or beeps sound depending on the

received category.

➥ “Received Individual” appears in the display. ➥ Push [ENT] to change to the channel speciﬁed by the call-

ing station for voice communication; push [CLR] to ignore the individual call.

Receiving a position request call

While monitoring Channel 70 and a position request call is received:

➥ “Received POS REQ” appears in the display. ➥ Push [ENT] to reply to the call.

Receiving a polling request call

While monitoring Channel 70 and a polling request call is received:

➥ “Received POLL REQ” appears in the display. ➥ Push [ENT] to reply to the call.

BUSY-25W---INT---CALL LOCAL--DUP SCRAM--TAG

ReceivedCAN POLL REQ <Chuck3 <CLR˘Exit> <ENT˘Reply>COMMERCIAL

BUSY-25W---INT---CALL LOCAL--DUP SCRAM--TAG

ReceivedCAN POS REQ <Chuck3 <CLR˘Exit> <ENT˘Reply>COMMERCIAL

BUSY-25W---INT---CALL LOCAL--DUP SCRAM--TAG

ReceivedCAN Individual <Chuck3 <CLR˘Exit> <ENT˘OK> COMMERCIAL

DSC OPERATION

■ DSC set mode

Offset time

This item sets the offset time from the UTC (Universal Time Coordinated) time.

q Push [MENU] to enter the DSC menu. w Rotate [CHANNEL] to select “Set up,” push [ENT].

e Rotate [CHANNEL] to select “Offset time,” push

[ENT].

r Set the offset time from the UTC (Universal Time Coordi-

nated) time.

• Edit the digit of offset time directly with the keypad

• Push [0• ] to edit or delete “-”, when the cursor is on the ﬁrst

digit.

• Rotate [CHANNEL] to move the cursor backward or forward.

• Push [CE] to clear the time data.

•Push [CLR] to cancel and exit the condition to DSC set up menu.

t Push [ENT] to program and to exit the condition to DSC

set up menu.

The local time indication is not available when a GPS receiver (sentence formatter RMC) is input, the transceiver’s display indicates UTC time only.

Input Offset Time

--DSC Menu--

No offset time (default) –12 hours

_0:__

Input Offset Time

--DSC Menu--

-12:00

– /.

Set up

˘MMSI Check

˘Add:INDV ID

˘DEL:INDV ID

--DSC Menu--

˘Offset time

˘DEL:Group ID

˘Add:Group ID

Select item

˘Exit

˘Position Request

˘Received Calls

--DSC Menu--

˘Set up

˘Distress Setting

˘Polling Request

DSC OPERATION

MMSI code check

The programmed 9-digit MMSI (DSC self ID) code can be checked in DSC set mode.

q Push [MENU] to enter the DSC menu. w Rotate [CHANNEL] to select “Set up,” push [ENT].

e Rotate [CHANNEL] to select “MMSI check,” push

[ENT].

r Check the 9-digit MMSI (DSC self ID) code.

t Push [CLR] or [ENT] to exit the condition to DSC set up

menu.

MMSI Check

˘123456789

--DSC Menu--

<CLR˘Exit>

Set up

˘MMSI Check

˘Add:INDV ID

˘DEL:INDV ID

--DSC Menu--

˘Offset time

˘DEL:Group ID

˘Add:Group ID

Select item

˘Exit

˘Position Request

˘Received Calls

--DSC Menu--

˘Set up

˘Distress Setting

˘Polling Request

DSC OPERATION

■ Received messages

The transceiver automatically stores up to 20 distress messages and 20 other messages. The messages can be used as an assistance to the logbook.

q Push [MENU] to select the DSC menu. w Rotate [CHANNEL] to select “Received Calls,” push

[ENT].

Distress message

q Rotate [CHANNEL] to select “Distress,” push [ENT].

w Rotate [CHANNEL] to scroll to the desired message, push

[ENT].

•When some messages are blinking, the messages have not been read yet.

e Rotate [CHANNEL] to scroll the message.

r Push [CLR] to exit the condition or push [CE] to clear the

displayed message and returns to DSC menu.

Distress

<Chuck3

LAT: 23"45.234N

--DSC Menu--

LON:123"45.456W

MOB

<CLR˘Exit / CE˘Del>

Distress

--DSC Menu--

UTC: 8:00

LAT: 23"45.234N LON:123"45.456W

MOB

<CLR˘Exit / CE˘Del>

--DSC Menu--

<CLR˘Exit / ENT˘OK>

Select Item

˘16:00 Ricky ˘14:56 Chuck3

˘12:34 Smith

--DSC Menu--

<CLR˘Exit / ENT˘OK>

Select Message ˘Distress

˘Other

Select item

˘Exit

˘Position Request

˘Received Calls

--DSC Menu--

˘Set up

˘Distress Setting

˘Polling Request

DSC OPERATION

Other messages

q Rotate [CHANNEL] to select “Other,” push [ENT].

w Rotate [CHANNEL] to scroll to the desired message, push

[ENT].

•When some messages are blinking, the messages have not been read yet.

e Rotate [CHANNEL] to scroll the message.

• The stored message has various information and depending on the type of distress call.

r Push [CLR] to exit the condition or push [CE] to clear the

displayed message and rerurns to DSC menu.

Group Call <Chuck3

>OSAKA-1

--DSC Menu--

F3E simplex

Routine

<CLR˘Exit / CE˘Del>

Group Call

--DSC Menu--

CH10

>OSAKA-1 F3E simplex

Routine

<CLR˘Exit / CE˘Del>

--DSC Menu--

<CLR˘Exit / ENT˘OK>

Select Message

˘Position Request ˘Individual Call

˘Group Call

˘Individual Call

--DSC Menu--

<CLR˘Exit / ENT˘OK>

Select Message

˘Distress

˘Other

OTHER FUNCTIONS

■ Intercom operation

The optional intercom function allows you to talk to the deck from the cabin. The optional HM-127

REMOTE-CONTROL MI-

CROPHONE is required for intercom operation.

Connect an optional HM-127 as described on p. 62.

• Transmitting is impossible during intercom operation.

• The received signal is muted during intercom operation.

q Push [F], then push [9 IC] to enter intercom mode.

• The HM-127 power is automatically turned ON, even if the power is OFF.

w Push and hold [9 IC] again to call up.

• The transceiver and microphone emit call beeps.

e Push and hold [PTT] and speak at a normal voice level into

the microphone.

• “TALK” or “LISTEN” appears on the caller or listener function display, respectively.

• To adjust the IC-M602’s speaker output level, rotate [VOL].

• To adjust the HM-127’s speaker output level, push [Y]/[Z] after pushing [VOL].

r After releasing [PTT] you can hear the response through

the speaker.

To return to normal operation, push [CLR] or repeat step q.

•While in the intercom mode, the transceiver functions (transmit and receive) are interrupted. If the transceiver is in transmit condition, the intercom function is not available.

•When a DSC call is received, the intercom function is interrupted with an automatic return to the transceiver mode. The transceiver’s display indicates ‘Receiving DSC calls.’ (p 34)

INT

BUSY-25W---INT---CALL LOCAL--DUP SCRAM--TAG NORMAL-SCAN

INTERCOM

-34"34.206N

TALK123"23.236W

--UTC-10:10COMMERCIAL

IC-M602 (caller) HM-127 (listener)

INT

BUSY-25W---INT---CALL LOCAL--DUP SCRAM--TAG NORMAL-SCAN

INTERCOM

-34"34.206N 123"23.236W

--UTC-10:10COMMERCIAL

IC-M602 HM-127

OTHER FUNCTIONS

■ Hailer operation

The IC-M602 has a 2-way hailer function for voice ampliﬁcation and reception over a loudspeaker, making it unnecessary to leave the bridge to hear a hailing party.

Connect an external hailer speaker as described on p. 49.

• Transmitting is not possible during hailer operation.

• The received signal is muted during hailer operation.

q Push [F], then push [7 HAIL] to enter hailer mode.

w Push and hold [PTT] and speak at a normal voice level into

the microphone.

• “TALK” or “LISTEN” appears on the caller or listener function display, respectively.

• To adjust the hailer level , rotate [CHANNEL].

e After releasing [PTT] you can hear the response through

the speaker.

To return to normal operation, push [CLR] or repeat step q.

• While in the hailer mode, the transceiver functions (transmit and receive) are interrupted. If the transceiver is in transmit condition, the hailer function is not available.

•When a DSC call is received, the hailer function is interrupted with an automatic return to the transceiver mode. The transceiver’s display indicates ‘Receiving DSC calls.’ (p 34)

BUSY-25W---INT---CALL LOCAL--DUP SCRAM--TAG NORMAL-SCAN

HAILER

-34"34.506N

LISTEN.236W ___cal--1:10--CALLING

■ Automatic fog horn

The automatic fog horn function sounds a horn repeatedly until the function is turned OFF. Four patterns are available for varying conditions.

The fog horn outputs from the hailer speaker. To use this function, the hailer speaker must be connected to the transceiver. See p.49 for connection details.

TYPE PATTERN USAGE

UNDERWAY

STOP

SAIL

TOW

OTHER FUNCTIONS

The audio frequency of the fog horn is selectable. See p.47 for details on selecting the audio frequency.

One 5-second blasts every 120 seconds.

Two 5-second blasts (separated by 2 seconds) every 120 seconds.

One 5-second blast followed by two 1-second blasts (each separated by 2 seconds) every 120 seconds.

One 5-second blast followed by three 1-second blasts (each separated by 2-seconds) every 120 seconds.

Motor vessel underway and making way.

Motor vessel underway but stopped (not making way).

Sailing vessel underway, fishing vessel (underway or anchored), vessel not under command, a vessel restricted in her ability to maneuver (underway or at anchor), or a vessel towing or pushing another ahead.

Vessel under tow (manned).

5s±1

120s

5s±1

120s

5s±1

120s

5s±1

120s

OTHER FUNCTIONS

q Push [F], then push [8 FOG] to enter auto fog horn mode. w Rotate [CHANNEL] to select the desired fog horn pattern,

push [ENT].

• ‘UNDERWAY,’ ‘STOP,’ ‘SAIL,’ ‘TOW’ are available. (p.42)

•Even if [ENT] hasn’t been pushed, the display automatically changes to the next step after 5 sec. of inactivity.

e Rotate [CHANNEL] to adjust the fog horn level, push

[ENT].

• The fog horn level is adjustable in 7 steps.

•Even if [ENT] hasn’t been pushed, the display automatically changes to the next step after 5 sec. of inactivity.

To return to normal operation, repeat step q.

When a DSC call is received, the automatic fog horn function is interrupted with an automatic return to the transceiver mode. The transceiver’s display indicates ‘Receiving DSC calls.’ (p 34)

■ Microphone lock function

The microphone lock function electrically locks the [Y]/[Z] and [16/9] switches on the supplied microphone. This prevents accidental channel changes and accidental function access.

➥ While pushing [16/9] on the HM-136, turn power ON to tog-

gle the lock function ON or OFF.

BUSY-25W---INT---CALL LOCAL--DUP SCRAM--TAG ReceivedCAN

FOG HORN

OUTPUT

UNDERWAY

E<ENT˘OK> COMMERCIAL

___

BUSY-25W---INT---CALL LOCAL--DUP SCRAM--TAG ReceivedCAN

FOG HORN OUTPUT <CLR˘Exit>

E<ENT˘OK> COMMERCIAL

___

BUSY-25W---INT---CALL LOCAL--DUP SCRAM--TAG ReceivedCAN

˘UNDERWAY

<STOP

<CLR˘Exit> <ENT˘OK> COMMERCIAL

SET MODE

Foghorn Frequency

■ Set mode programming

Set mode is used to change the conditions of the transceiver’s functions: scan type (normal or priority), scan resume timer, weather alert, dual/tri-watch of COMMANDMIC, transceiver’s beep tone, internal speaker, LCD contrast, RF attenuation level, automatic fog horn frequency, scrambler type and scrambler code.

Available functions may differ depending on dealer setting.

q Turn power OFF. w While pushing [16•9], turn power ON to enter set mode. e After the display appears, release [16•9]. r Rotate [CHANNEL] to select the desired item, push [ENT].

Or push [16•9] to select the item when using an optional HM-127.

t Rotate [CHANNEL] to select the desired condition of the

item. Use [Y]/[Z] when using an optional HM-127.

y Rotate [CHANNEL] to select “Exit,” push [ENT] to exit

set mode and returns to normal operation condition

• SET MODE CONSTRUCTION

Rotate

˘Scan Type

˘Scan Timer ˘WX Alert ˘Dual/Tri COMMANDMIC ˘Beep ˘Internal Speaker ˘Contrast ˘RF Attenuator ˘Foghorn Frequency ˘Scrambler Type ˘Scrambler Code ˘Exit

[CHANNEL]

--Set Mode--

Push when using HM-127

Scan type

Scrambler code

Scrambler type

Scan resume timer

Scan timer

Weather alert

WX Alert

Dual/tri-watch of COMMANDMIC

Dual/Tri COMMANDMIC

Foghorn Frequency Internal speaker

not selectable when using HM-127.

Attenuation level

and

items are

LCD contrast

Contrast

Beep tone

Beep

Attenuator

SET MODE

■ Set mode items

Scan type

The transceiver has 2 scan types: normal scan and priority scan. Normal scan searches all tag channels in the selected channel group. Priority scan searches all tag channels in sequence while monitoring Channel 16.

Scan resume timer

The scan resume timer can be selected as a pause (OFF) or timer scan (ON). When OFF is selected, the scan pauses until the signal disappears. When ON is selected, the scan pauses 5 sec. and resumes even if a signal has been received on channels except for Channel 16.

Weather alert

An NOAA broadcast station transmits a weather alert tone before important weather information. When the weather alert function is turned ON, the transceiver detects the alert, then ﬂashes the “WX ALERT” indicator until the transceiver is operated. The previously selected (used) weather channel is checked any time during standby or while scanning.

•“WX ALERT” appears instead of “WX” indication when the function

is set ON.

Dual/Tri-watch of COMMANDMIC (Appears when connecting HM-127)

This item sets the HM-127’s [CH/WX•DW] switch function as dual watch or tri-watch.

Dual/Tri COMMANDMIC

˘Tri-watch

˘OFF

--Set Mode--

˘Polling Request

˘Position Request

˘Dualwatch

˘<ENT˘OK>

(Default: Dualwatch)

WX Alert

˘ON

˘OFF

--Set Mode--

˘Polling Request

˘Position Request

˘ON with WX SCAN

<ENT˘OK>

(Default: OFF)

Scan Timer

˘ON

˘All Ships Call

--Set Mode--

˘Polling Request

˘Position Request

˘OFF

<ENT˘OK>

(Default: OFF)

Scan Type

˘Priority

˘All Ships Call

--Set Mode--

˘Polling Request

˘Position Request

˘Normal

<ENT˘OK>

(Default: Normal)

SET MODE

Beep tone

You can select silent operation by turning beep tones OFF, or you can have confirmation beeps sound at the push of a switch by turning beep tones ON.

The optional HM-127 has it’s own setting for the beep tone.

Internal speaker

When an external speaker is connected and the transceiver’s internal speaker is not required, the speaker on the transceiver and microphone can be deactivated.

LCD contrast

This item adjusts the contrast of the LCD in 8 steps.

The optional HM-127 has it’s own setting for the LCD contrast.

Attenuation level

This item sets the receive attenuation level for the attenuator function from 3 levels.

RF Attenuator

˘Max

˘Min

--Set Mode--

˘1

˘2

˘Mid

˘<ENT˘OK>

(Default: Min)

Contrast ˘5

˘3

--Set Mode--

˘1

˘2

˘4

˘<ENT˘OK>

(Default: 5)

Internal Speaker ˘ON

˘OFF

--Set Mode--

˘Polling Request

˘Position Request

˘OFF

˘<ENT˘OK>

(Default: ON)

Beep ˘ON

˘OFF

--Set Mode--

˘Polling Request

˘Position Request

˘OFF

˘<ENT˘OK>

(Default: ON)

SET MODE

Automatic fog horn frequency

The audio frequency of the automatic fog horn can be adjusted to suit your preference. While this item is selected, pushing [PTT] outputs the fog horn—experiment with the frequencies available until you ﬁnd one you like.

•Available frequency range is 200 Hz to 850Hz in 50 Hz step.

Scrambler type (Appears when a scrambler unit is installed)

When an optional scrambler unit is installed, the scrambler type can be selected in set mode depending on dealer setting.

Although the UT-98 is not listed on the option list, M602

would take UT-98 as well as UT-112.

Scrambler code (Appears when a scrambler unit is installed)

When an optional scrambler unit is installed, the scrambler code can be set depending on dealer setting. When the UT-112 is installed, 32 codes (1 to 32) can be selected.

Scrambler Code

˘5

˘300

--Set Mode--

˘100

˘250

˘4

˘<ENT˘OK>

(Default: 1)

Scrambler Type

˘UT-98

˘300

--Set Mode--

˘200

˘250

˘UT-112

˘<ENT˘OK>

(Default: UT-112)

Foghorn Frequency ˘400

˘300

--Set Mode--

˘200

˘250

˘350

˘<ENT˘OK>

(Default: 400)

■ Supplied accessories

The following accessories are supplied

Qty.

q Microphone (HM-136) 1

w DC power cable (OPC-1174) .......................................... 1

e Microphone hanger ........................................................ 1

r Mic hanger screws (3 × 16) ............................................ 2

t Mounting bracket ............................................................ 1

y Knob bolts for mounting bracket...................................... 2

u Mounting screws (5 × 20) ............................................... 4

i Spring washers (M5) ...................................................... 4

o Flat washers (M5) ........................................................... 4

!0 Accessory connectors (3 pin, 6 pin) ...................... 1 each

!1 Sponges .......................................................................... 2

!2 Warning sticker ............................................................... 1

■ Antenna

A key element in the performance of any communication system is an antenna. Ask your dealer about antennas and the best places to mount them.

■ Fuse replacement

One fuse is installed in the supplied DC power cable. If a fuse blows or the transceiver stops functioning, track down the source of the problem, if possible, and replace the damaged fuse with a new, rated one.

■ Cleaning

If the transceiver becomes dusty or dirty, wipe it clean with a soft, dry cloth.

AVOID the use of solvents such as benzene or alcohol, as they may damage transceiver surfaces.

Fuse rating: 10 A

qwe

!2 i

CONNECTIONS AND MAINTENANCE

■ Connections

q ANTENNA CONNECTOR

Connects a marine VHF antenna with a PL-259 connector.

CAUTION: Transmitting without an antenna may dam-

age the transceiver.

w HAILER/FOG HORN CONNECTOR

Connects to a hailer speaker.

e EXTERNAL MICROPHONE JACKS

Connects to optional HM-127

REMOTE-CONTROL MICRO-

PHONE.

CAUTION: NEVER

connect other microphones, such

as the HM-136, as this may cause damage to the transceiver.

r GPS RECEIVER/EXTERNAL SPEAKER JACK

➥Connects to a GPS receiver for position and time indi-

cations.

•An NMEA0183 ver. 2.0 (sentence formatters RMC, GGA, GNS, GLL) compatible GPS receiver is required. Ask your dealer about suitable GPS receivers.

➥Connects to a PC or navigation equipment (NMEA0183

ver. 3.01 sentence formatters DSC, DSE compatible) for plotting received other ships position data.

➥Connects to an external speaker.

t DC POWER CONNECTOR

Connects the supplied DC power cable from this connector to an external 13.8 V DC power source.

CAUTION: After connecting the DC power cable, cover

the connectors with a rubber vulcanising tape as shown below, to prevent water seeping into the transceiver.

Rubber vulcanizing tape

NMEAOUT (+) NMEAOUT (–)

NMEAIN (+)NMEAIN (–)

SP (+) SP (–)

HAIL (+) HAIL (–)

CONNECTIONS AND MAINTENANCE

■ Mounting the transceiver

Using the supplied mounting bracket

The universal mounting bracket supplied with your transceiver allows overhead or onboard mounting.

•Mount the transceiver securely with the 4 supplied screws (M5 × 20) to a surface which is more than 10 mm thick and can support more than 5 kg.

• Mount the transceiver so that the face of the transceiver is at 90° to your line of sight when operating it.

CAUTION: KEEP the transceiver and microphone at

least 1 meter away from your vessel’s magnetic navigation compass.

NOTE: Check the installation angle; the function display may not be easy-to-read at some angles.

NOTE: When mounting the transceiver on the place that is prone to strong vibration, use the supplied sponges between the transceiver and mounting bracket for reducing the effect of the vibration.

These screws are shown as mounting example only. Not supplied with accsesories.

• OVERHEAD MOUNTING

• MOUNTING ON THE BOARD

Sponges to reduce vibration effects

See NOTE

CONNECTIONS AND MAINTENANCE

Using the optional MB-75

An optional MB-75 FLUSH MOUNT is available for mounting the transceiver to a ﬂat surface such as an instrument panel.

CAUTION: KEEP the transceiver and microphone at

least 1 meter away from your vessel’s magnetic navigation compass.

q Using the attached template, carefully cut a hole into the

instrument panel (or wherever you plan to mount the transceiver).

w Slide the transceiver through the hole as shown below.

e Attach the 2 supplied bolts (M5 × 8 mm) on either side of

the IC-M602.

r Attach the clamps on either side of the IC-M602.

• Make sure that the clamps align parallel to the IC-M602’s body.

t Tighten the end bolts on the clamps (rotate clockwise) so

that the clamps press firmly against the inside of the instrument control panel.

y Tighten the locking nuts (rotate counterclockwise) so that

the IC-M602 is securely mounted in position as below.

u Connect the antenna and control cable, then return the in-

strument control panel to its original place.

CONNECTIONS AND MAINTENANCE

■ Optional unit installation

CAUTION: DISCONNECT the DC power cable from the

transceiver before performing any work on the transceiver. Otherwise, there is danger of electric shock and/or equipment damage.

Follow the case opening procedure shown here when you want to install an optional unit, etc.

q Remove the 12 screws as shown below and open the

transceiver.

w Plug an optional unit (UT-112) to J3 on the AF unit as

shown below.

e Assemble the units to their original positions.

CAUTION:

• When re-assembling the case and tightening the screws, you must keep the speciﬁed torque (0.7 N.m). Otherwise the transceiver may be damaged (torque too high) or lose waterproof efﬁciency (torque too low).

• When unistalling the optional unit, remove it vertically. Wiggling the unit from side to side may damage the optional unit's connector.

Torque (0.7 N.m)

CONNECTIONS AND MAINTENANCE

■ Dimensions

220.0 (8 21⁄32˝)

31.4

(1 1⁄4˝)

78.0

(3 1⁄16˝)

110.0 (4

⁄32˝)

109.4 (4

⁄32˝)

200.0 (7

⁄8˝)

Unit: mm (inch)

90.0 (3

⁄32˝)

TROUBLESHOOTING

No power comes ON.

PROBLEM POSSIBLE CAUSE SOLUTION REF.

•Bad connection to the power supply. •Check the connection to the transceiver. p. 49

No sound comes from the speaker.

Sensitivity is low. •The attenuator is activated. •

Transmitting is impossible, or high power cannot be selected.

Scan does not start. •“TAG ” channel is not programmed. • Set the desired channels as “TA G” chan-

No beep sounds. • Beep tone is turned OFF.

Receive signal cannot be understood.

Distress call cannot be transmitted.

•Squelch level is too deep.

•Volume level is too low.

•Speaker has been exposed to water.

•Internal speaker is turned OFF.

•Some channels are for low power or re-

ceive only.

•The output power is set to low.

• The squelch is open.

•Optional voice scrambler is turned OFF.

•Scramble code is not set correctly.

•MMSI (DSC self ID) code is not pro-

grammed.

•Set squelch to the threshold point.

•Set [VOL] to a suitable level.

•Drain water from the speaker.

• Turn the internal speaker ON in set mode.

Push [F], then [6 LO/DX] to turn the function OFF.

•Change channels.

•Push [H/L] to select high power.

nels.

• Turn the beep tone ON in set mode.

•Set squelch to the threshold point.

•Turn the optional voice scrambler ON.

•Reset the scramble code.

•Program the MMSI (DSC self ID) code. p. 18

p. 10 p. 10

—

p. 46

p. 10

pgs. 8, 55 p. 10

p. 17

p. 46 p. 10

p. 13 p. 47

CHANNEL LIST

NOTE: Simplex channels, 3, 21, 23, 61, 64, 81, 82 and 83 CANNOT be lawfully used by the general public in U.S.A. waters.

10 11

Channel number

USA CAN

INT

01A 156.050 156.050

03A 156.150 156.150

05A 05A 156.250 156.250

06 06 156.300 156.300

07A 07A 156.350 156.350

08 08 156.400 156.400

09 09 156.450 156.450

10 10 156.500 156.500

11 11 156.550 156.550

12 12 156.600 156.600

†

14 14 156.700 156.700

†

16 16 156.800 156.800

†

18A 18A 156.900 156.900

†

Low power only.

Frequency (MHz)

Transmit

01 156.050 160.650

02 156.100 160.700

03 156.150 160.750

156.200 160.800

04A 156.200 156.200

156.250 160.850

156.350 160.950

†

156.650 156.650

†

156.750 156.750

†

156.850 156.850

156.900 161.500

156.950 161.55019

‡

Receive

Receive only.

Channel number Frequency (MHz)

USA CAN

INT

19A 19A 156.950 156.950

20A 157.000 157.000

21A 21A 157.050 157.050

22A 22A 157.100 157.100

23A 157.150 157.150

24 24 157.200 161.800

25 25 157.250 161.850

26 26 157.300 161.900

27 27 157.350 161.950

28 28 157.400 162.000

61A 61A 156.075 156.075

63A 156.175 156.175

Transmit

†

157.000 161.600

21 157.050 161.650

21b Rx only 161.650

157.100 161.700

23 157.150 161.750

25b Rx only 161.850

28b Rx only 162.000

60 156.025 160.625

156.075 160.675

156.125 160.725

62A 156.125 156.125

156.175 160.775

64 156.225 160.825

Receive

Channel number

USA CAN

INT

64A 64A 156.225 156.225

65A 65A 156.275 156.275

65A

66A

†

68 68 156.425 156.425

69 69 156.475 156.475

‡

71 71 156.575 156.575

72 72 156.625 156.625

73 73 156.675 156.675

74 74 156.725 156.725

†

78A 78A 156.925 156.925

79A 79A 156.975 156.975

80A 80A 157.025 157.025

81A 81A 157.075 157.075

82A 82A 157.125 157.125

Frequency (MHz)

Transmit

156.275 160.87565

156.325 160.925

†

156.325 156.32566A

66A

67 156.375 156.375

‡

156.525 156.525

†

156.875 156.875

156.925 161.525

156.975 161.575

157.025 161.625

157.075 161.675

157.125 161.725

83 157.175 161.77583

Receive

Channel number

USA CAN

INT

83A 83A 157.175 157.175

84 84 157.225 161.825

84A

85 85 157.275 161.875

85A 157.275 157.275

86 86 157.325 161.925

86A 157.325 157.325

87 87 157.375 161.975

87A 157.375 157.375

88 88 157.425 162.025

88A 157.425 157.425

WX channel

1 RX only 162.550

2 RX only 162.400

3 RX only 162.475

5 RX only 162.450

6 RX only 162.500

7 RX only 162.525

8 RX only 161.650

9 RX only 161.775

10 RX only 163.275

Frequency (MHz)

Transmit

Receive

83b Rx only 161.775

157.225 157.225

Frequency (MHz)

Transmit Receive

RX only 162.425

SPECIFICATIONS AND OPTIONS

■ Speciﬁcations

General

• Frequency coverage : Transmit 156.025–157.425 MHz Receive 156.050–163.275 MHz

• Mode : FM (16K0G3E)

DSC (16K0G2B)

• Current drain (at 13.8 V) : TX high (25 W) 5.2 A typical

Max. audio 1.2 A typical

• Power supply requirement: 13.8 V DC ±15%

(negative ground)

• Frequency stability : ±5 ppm

(–20°C to +60°C; –4°F to +140°F)

• Antenna impedance : 50 Ω nominal

• Input impedance (MIC) : 2 kΩ

• Output impedance (audio) : 4 Ω

• Intermediate frequencies : 1st; 31.05 MHz, 2nd; 450 kHz

(CH 70 receiver) 1st; 21.7 MHz, 2nd; 450 kHz

• Dimensions : 220(W) × 110(H)× 109.4(D) mm

(Projections not included) 8

⁄32(W) × 411⁄32(H) × 45⁄16(D) in

• Weight : 1350 g; 2 lb 16 oz

Transmitter

• RF output power : 25 W and 1 W

• Modulation system : Variable reactance frequency modulation

• Max. frequency deviation : ±5.0 kHz

• Spurious emissions : Less than –70 dBc

• Adjacent channel power : More than 70 dB

• Audio harmonic distortion : Less than 10% (at 1 kHz, 60% deviation)

• Residual modulation : More than 40 dB

• Audio frequency response: +1 to –3 dB of 6 dB/octave range from 300 Hz to 3000 Hz

Receiver

• Receive system :

Double conversion superheterodyne

• Sensitivity (12 dB SINAD) : Less than 0.32 µV Less than 0.32 µV (CH 70 receiver)

• Squelch sensitivity : Less than 0.32 µV

• Spurious response : More than 80 dB

• Intermodulation : More than 80 dB

•

Adjacent channel selectivity

: More than 80 dB

• Hum and noise : More than 40 dB

• Audio output power : 5 W typical at 10% distortion with a 4 Ω load

All stated specifications are subject to change without notice or obligation.

SPECIFICATION AND OPTIONS

■ Options

• MB-75 FLUSH MOUNT (p. 51) For mounting the transceiver to a panel.

• UT-112 VOICE SCRAMBLER UNIT (pgs. 13, 47) Ensures private communications. 32 codes are available. Not available in some countries.

• HM-127 REMOTE-CONTROL MICROPHONE (p. 58) External microphone-type controller. Provides optional intercom operation. 6 m (20 feet) microphone cable and mounting base included. Black and white colors are available.

• HM-136 SMART-SPEAKER-MICROPHONE (p. 7) Same as supplied. Black and white colors are available.

• OPC-999 MICROPHONE EXTENSION CABLE

6 m (20 feet) microphone extension cable for optional HM-127. Up to 2 OPC-999 can be connected. (18 m; 60 feet maximum)

HM-127 REMOTE-CONTROL MICROPHONE

OPTIONAL

■ Panel description

The optional HM-127 remotely controls the IC-M602 and provides an optional intercom function.

q POWER SWITCH [PWR] (pgs. 10, 65)

Push for 2 sec. to turn the HM-127 power ON or OFF when the IC-M602 power is turned ON.

w PTT SWITCH [PTT] (pgs. 10, 65)

Push and hold to transmit; release to receive.

e CHANNEL UP/DOWN SWITCHES [YY]/[ZZ]

➥ Push either switch to change the operating channel, set

mode contents, etc. (pgs. 10, 65)

➥ Push either switch to adjust audio level or noise squelch

level after [VOL] or [SQL] is pushed, respectively. (pgs. 10, 65)

➥

Push either switch to adjust the brightness of the LCD and switch backlight after [VOL] is pushed for 1 sec. (p. 66)

➥ In set mode, changes setting of the selected item. (pgs.

44, 69)

➥ Checks tag channels or changes scanning direction dur-

ing scan. (pgs. 17, 68)

r CHANNEL 16/CALL CHANNEL SWITCH [16•9]

➥ Selects channel 16 when pushed. (pgs. 8, 64) ➥ Selects call channel when pushed for 1 sec. (pgs. 8, 64)

•“CALL” appears when call channel is selected.

➥ Push for 3 sec. to enter call channel programming con-

dition when call channel is selected. (pgs. 11, 67)

➥ While pushing [H/L], enters memory name programming

condition. (pgs. 11, 70)

➥ Enters set mode when pushed while turning power ON.

(pgs. 44, 69)

t CHANNEL/DUALWATCH/TRI-WATCH SWITCH

[CH/WX•DW•U/I/C]

➥ Selects and toggles the regular channels and weather

channel when pushed momentarily. (pgs. 9, 64)

u y t

HM-127 REMOTE-CONTROL MICROPHONE

➥ While pushing [H/L], selects one of 3 regular channels

in sequence when pushed. (pgs. 9, 64)

•International, U.S.A. and Canadian channels are available for regular channels.

➥ Starts dualwatch or tri-watch when pushed for 1 sec.

(pgs. 15, 68)

➥ Stops dualwatch or tri-watch when either is activated.

y ATTENUATOR/INTERCOM/SCRAMBLER SWITCH

[LO/DX•IC•SCR]

➥ Toggles the attenuator function ON or OFF when

pushed momentarily. (pgs. 10, 65)

•“LOCAL” appears when the attenuator is in use.

➥ Activates the intercom function when pushed for 1 sec.

(pgs. 40, 70)

➥ Calls the IC-M602 when pushed and held while in inter-

com mode. (pgs. 40, 70)

➥ While pushing [H/L], activates an optional voice scram-

bler function. (pgs. 13, 67)

•The optional voice scrambler function cannot be used on channel 16 and 70.

u SQUELCH/MONITOR/LOCK SWITCH [SQL•MONI•L]

➥ [Y]/[Z] sets the squelch threshold level after pushing

[SQL]. (p. 65)

➥ Push [SQL•MONI] for 1 sec. to turn the monitor function

ON. (p. 66)

➥ While pushing [H/L], push [SQL•MONI•L] to toggle the

microphone key lock function ON or OFF. (p. 66)

•“ T ” appears while key lock function is in use.

•[PWR], [PTT], [VOL], [SQL] and [H/L] still function when the microphone key lock function is turned ON.

➥ Advance the cursor while in memory name program-

ming condition. (pgs. 11, 70)

i VOLUME/DIMMER SWITCH [VOL•DIM]

➥ [Y]/[Z] adjusts the audio level after pushing [VOL]. ➥ Push [VOL•DIM] for 1 sec. to adjust the brightness of

the LCD and switch backlight. (p. 66)

➥ Move the cursor backward while in memory name pro-

gramming condition. (pgs. 11, 70)

o TRANSMIT POWER SWITCH [H/L]

➥ Toggles high or low power when pushed. (pgs. 10, 65)

• Some Channels are set to low power only.

➥ While pushing this switch, other switches perform sec-

ondary functions.

➥ Toggles the all key lock function ON or OFF when

pushed while turning power ON. (p. 66)

•“ T ” ﬂashes while the all key lock function is in use.

•Only [PWR] and [PTT] function when the all key lock function is in use.

!0 SCAN SWITCH [SCN•TAG] (pgs. 17, 68)

➥ Starts and stops normal or priority scan when tag chan-

nels are programmed.

➥ Push [SCN•TAG] for 1 sec. to set the displayed channel

as a tag (scanned) channel.

➥ While pushing [H/L], push for 3 sec. to clear all tag chan-

nels.

HM-127 REMOTE-CONTROL MICROPHONE

■ Function display

q CHANNEL GROUP INDICATOR (pgs. 9, 64)

Indicates whether an International (INT), U.S.A. (USA) or Canadian (CAN) channel is selected.

w KEY LOCK INDICATOR (p. 66)

➥ Appears while the key lock function is in use. ➥ Flashes while the all key lock function is in use.

e CHANNEL NUMBER READOUT

➥ Indicates the selected operating channel number. “A”

appears when a simplex channel is selected. “b” appears when a receive only channel for a Canadian channel group is selected. (pgs. 9, 64)

➥ In set mode, indicates the selected condition. (pgs. 44,

69)

➥ “IC” appears during intercom mode. (pgs. 40, 70)

r VOLUME INDICATOR (p. 65)

Appears while audio output level is adjusted.

t SQUELCH INDICATOR (p. 65)

Appears while noise squelch level is adjusted.

y CHANNEL NAME INDICATOR

➥ Channel comment appears (and scrolls) if programmed.

(pgs. 11, 70)

➥ In set mode, indicates or scrolls the selected set mode

item. (pgs. 44, 69)

u ATTENUATOR INDICATOR (pgs. 10, 65)

Appears when the RF attenuator is in use.

i SCRAMBLER INDICATOR (pgs. 13, 67)

Appears when an optional voice scrambler is activated.

o SCAN INDICATOR (pgs. 17, 68)

➥ “SCAN” appears during normal scan. ➥ “P SCAN” appears during priority scan.

!0 PRIORITY CHANNEL INDICATOR

➥ Indicates a priority channel during priority scan or

dual/tri-watch. (pgs. 14, 17, 68)

CALL

WX ALT

DUP

P SCAN

SCRM

LOCAL

TRI

DUAL

LOW

TAG CAN USA

INT

BUSY

VOL

SQL

r t

!8 !7 !4!5 !3

!2 !1

!0 o

HM-127 REMOTE-CONTROL MICROPHONE

!1 DUAL/TRI WATCH INDICATOR (pgs. 15, 68)

“DUAL” appears during dualwatch; “TRI” during tri-watch.

!2 WEATHER CHANNEL INDICATOR (pgs. 9, 64)

➥ “WX” appears when a weather channel is selected. ➥ “WX ALT” appears when the weather alert function is

in use; ﬂashes when an alert tone is received.

!3 LOW POWER INDICATOR (pgs. 10, 65)

Appears when low power is selected.

!4 CALL CHANNEL INDICATOR (pgs. 8, 64)

Appears when the call channel is selected.

!5 DUPLEX INDICATOR (pgs. 9, 64)

Appears when a duplex channel is selected.

!6 TAG CHANNEL INDICATOR (pgs. 17, 68)

Appears when a tag channel is selected.

!7 BUSY INDICATOR (pgs. 10, 65, 66)

Appears when receiving a signal or when the squelch opens.

!8 TRANSMIT INDICATOR (pgs. 10, 65)

Appears while transmitting.

■ HM-127 supplied accessories

Accessories included with the HM-127: Qty.

q Connection cable (OPC-1000: 6 m; 20 ft) ...................... 1

w Mounting base ................................................................ 1

e Microphone hanger ........................................................ 1

r Screws (M3 × 16; tapping) ............................................. 5

HM-127 REMOTE-CONTROL MICROPHONE

■ Installation

The optional HM-127 can be connected to the transceiver directly, as well as via the supplied connection cable for longer distance remote operation. The connector of the connection cable can be installed into a cabinet, wall, etc., as a built-in plug.

For longer distance remote operation, the optional extension cable, OPC-999 (6 m; 20 ft/connecting between transceiver and the connection cable), is available, and up to 2 OPC-999 can be added.

q Insert the supplied cable into the external microphone jack

and tighten the cable nut as shown below.

w To use the supplied cable as a wall socket, follow the

below steps.

e Using the mounting base, carefully mark off the 2 spots

where the cable and screws will be fastened.

r Drill holes at these marks. t Install the mounting base using the supplied screws as

shown below.

y The completed installation

should look like this.

Gasket

Cap

Mounting base Nut

Screw holes (approx. 2 (d) mm; 3⁄32″)

HM-127 REMOTE-CONTROL MICROPHONE

50 (d) mm; 1

⁄32˝

23 (d) mm;

⁄32˝

24 to 27 (d) mm

(

⁄16 to 1

⁄16˝)

5 mm; 3⁄16˝

Gasket

Mounting base

Cap

Nut

2 mm; 3⁄32˝

HM-127 REMOTE-CONTROL MICROPHONE

■ Channel selection

Channel 16

q Push [16] to select Channel 16. w Push [CH/WX] to return to the

condition before selecting Channel 16, or push [Y] or [Z] to select an operating channel.

Call channel

q Push [16•9] for 1 sec. to select

the call channel.

w Push [CH/WX] to return to the

condition before selecting the call channel, or push [Y] or [Z] to select an operating channel.

Weather channels

q Push [CH/WX] once or twice to

select the weather channel group.

w Push [Y] or [Z] to select a

weather channel.

e Push [CH/WX] to return to the

condition before selecting the weather channel group.

U.S.A., International and Canadian channels

q Push [CH/WX] to select a regular channel.

• Push [CH/WX] again, if a weather channel appears.

w Push [CH/WX•U/I/C], while pushing [H/L], to select a chan-

nel group.

• U.S.A., International and Canadian channels can be selected in sequence.

Push

Push for 1 sec.

Push

while pushing

U.S.A. channels

Canadian channelsInternational channels

HM-127 REMOTE-CONTROL MICROPHONE

■ Receiving and transmitting

q Push [PWR] to turn power ON. w Push [VOL], then [Y]/[Z] to adjust audio output level.

• Push [SQL], then push [Y]/[Z] to mute any audio noise, if nec-

essary.

e Push [Y]/[Z] to select the desired channel.

•When receiving a signal, “ ” appears and audio is emitted from the speaker.

• Further adjustment of the audio level may be necessary at this point.

• Use the optional voice scrambler function for privacy. (pgs. 13, 67)

r Push [H/L] to select the output power, if necessary.

• “LOW” appears when low power is selected.

•Choose low power for shorter, high power for longer distance communications.

• Some channels are low power only.

t Push and hold [PTT] to transmit, then speak into the mi-

crophone.

• “ ” appears.

• Channel 70 cannot be used for transmission.

Simplex channels, 3, 21, 23, 61, 64, 81, 82 and 83 CAN- NOT be lawfully used by the general public in U.S.A. waters.

y Release [PTT] to receive.

IMPORTANT: To maximize the readability of your transmitted signal (voice), pause a few sec. after pushing [PTT], hold the microphone 1 to 2 inches (2.5 to 5 cm) from your mouth and speak at a normal voice level.

■ RF attenuator function

➥ Push [LO/DX] to turn the RF

attenuator function ON and OFF.

w Set volume

w Set squelch,

if required

r Set output power

t Speak into

microphone

q Turn power ON

e Set channel

t Push to

transmit

y Release to receive

Appears when the RF attenuator function is in use

HM-127 REMOTE-CONTROL MICROPHONE

■ Lock functions

The lock function electronically locks keys and switches to prevent accidental changes and function access from the microphone.

• All keys, switches and controllers on the transceiver are functional.

Activating the lock function

➥ Push [SQL] while pushing

[H/L] to turn the lock function ON or OFF.

• “ ” appears.

•Only [PWR], [PTT], [H/L],

[SQL•MONI], [VOL]+[Y]/[Z] and [SQL]+[Y]/[Z] are functional.

Activating the all key lock function

➥ Turn the power ON by pushing

[PWR] while pushing [H/L] to turn the all key lock function ON or OFF.

• “ ” ﬂashes.

• Only [PWR] and [PTT] are functional.

■ Display backlighting

The function display and switches can be backlit for better visibility under low light conditions. The backlighting condition can also be adjusted independently from the transceiver.

q Push [VOL•DIM] for 1 sec. to enter backlight adjusting

mode.

• “ ” with the number of the backlight level appears in the channel name indicator.

w Push [Y]/[Z] to adjust the backlight level.

•The backlight level is adjustable between 0 (light OFF) and 7 (brightest).

■ Monitor function

The monitor function releases the noise squelch mute of the microphone only. (An independent noise squelch system is employed.) ➥ Push [SQL•MONI] for 1 sec. to activate the monitor func-

tion.

• “ ” ﬂashes and audio is emitted.

• Any key cancels the monitor function.

Appears when the lock function is in use.

Flashes when the all lock function is in use.

HM-127 REMOTE-CONTROL MICROPHONE

■ Call channel programming

q Push [CH/WX•U/I/C] several times

while pushing [H/L] to select the desired channel group (USA, INT, CAN) to be programmed.

w Push [16•9] for 1 sec. to select the

call channel of the selected channel group.

•“CALL” and call channel number appear.

e Push [16•9] again for 3 sec. (until a

long beep changes to 2 short beeps) to enter call channel programming condition.

•Call channel number and channel group to be programmed ﬂashes.

r Push [Y]/[Z] to select the desired

channel.

t Push [16•9] to program the dis-

played channel as the call channel.

• The call channel number and channel group stop ﬂashing.

■ Optional voice scrambler operation

Activating the scrambler

q Select an operating channel, except for Channel 16, Chan-

nel 70 or weather channels.

w Push [LO/DX•IC•SCR] while

pushing [H/L] to turn the voice scrambler function ON.

• “SCRM” appears.

e To turn the scrambler func-

tion OFF, repeat step w.

• “SCRM” disappears.

Programming scramble codes

There are 32 codes (01 to 32) available with the UT-112 for programming. In order to understand one another, all transceivers in your group must have the same scrambler code. The scrambler code is programmed in set mode. See pgs. 13, 47 for details.

Appears when the voice scrambler function is in use.

HM-127 REMOTE-CONTROL MICROPHONE

■ Starting a scan

q Push [CH/WX•U/I/C] several times

while pushing [H/L] to select the channel group (USA, INT, CAN), if desired.

•When the weather alert function is in use, select the desired weather channel with [CH/WX] and [Y]/[Z].

w Push [SCN] to start priority or normal

scan.

• “SCAN” appears during normal scan.

•The priority channel readout indicates “16”, and “P” and “SCAN” indicators appear during priority scan.

• When a signal is received, scan pauses until the signal disappears or resumes after pausing 5 sec. according to the set mode setting (Channel 16 is still monitored during priority scan).

• Push [Y]/[Z] to check the scanning tag channels, to change the scanning direction or resume the scan manually.

e To stop the scan, push [SCN].

• “SCAN” disappears.

•Pushing [PTT], [16•9] or [CH/WX] also stops the scan.

■ Setting tag channels

q Push [CH/WX•U/I/C] several times

while pushing [H/L] to select the channel group (USA, INT, CAN), if desired.

w Push [Y]/[Z] to select the desired

channel to set as a tag channel.

e Push [SCN•TAG] for 1 sec. to set the

displayed channel as a tag channel.

• “ ” appears.

r To cancel the tag channel setting,

push [SCN•TAG] for 1 sec.

• “ ” disappears.

• Clearing all tag channels in the

selected channel group

➥ Push [SCN•TAG] while pushing [H/L]

for 3 sec. (until a long beep changes to 2 short beeps).

■ Dualwatch/Triwatch operation

q Push [Y]/[Z] to select the desired

channel.

• Push [CH/WX•U/I/C] several times while pushing [H/L] to select the channel group (USA, INT, CAN), if desired.

w Push [CH/WX•DW] for 1 sec. to start

dualwatch or tri-watch.

• “DUAL” appears during dualwatch; “TRI” appears during tri-watch.

• A beep tone sounds when a signal is received on Channel 16.

• Tri-watch becomes dualwatch when receiving a signal on the call channel.

•Dualwatch or tri-watch can be selected in the transceiver’s set mode.

e To cancel dualwatch/tri-watch, push

[CH/WX•DW] again.

HM-127 REMOTE-CONTROL MICROPHONE

■ Set mode programming

Set mode is used to change the condition of the transceiver’s functions and the microphone’s own functions:

Transceiver’s functions— scan type (normal or priority), scan resume timer, weather alert, dualwatch/tri-watch of COMMANDMIC, transceiver’s beep tone, internal speaker (transceiver), LCD contrast (transceiver), RF attenuation level, foghorn frequency, scrambler type and scrambler code. Microphone’s own functions— beep tone function (microphone) and LCD contrast (microphone).

In this section, instructions are for the microphone’s own functions only. Refer to pgs. 44–47 for the setting of the other functions. (Some functions cannot be selected from the microphone.)

Entering set mode

q Turn power OFF. w While pushing [16•9], turn power ON.

•

After a beep emission, a set mode item (in the channel name indicator and the condition in the channel number readout) is displayed.

e Push [16•9] to select the desired item, if necessary. r Push [Y]/[Z] to select the desired condition of the item. t Turn power OFF, then ON to exit set mode.

• Beep tone “BEEP”

➥ Push [Y] to turn ON, [Z] to turn OFF the beep output.

• LCD contrast “LCD CONTRAST”

➥ Push [Y]/[Z] to adjust to a suitable LCD contrast.

Push

• •

Push

HM-127 REMOTE-CONTROL MICROPHONE

■ Intercom operation

q Push [LO/DX•IC] for 1 sec. to ac-

tivate the intercom function.

• “IC” appears in the channel readout.

• The channel name disappears.

w Push [PTT] to talk.

•“ ” appears in the channel name indicator.

e Release [PTT] to listen.

•“ ” appears in the channel name indicator when the transceiver is in talking mode.

r Push [LO/DX•IC] to cancel the intercom function.

• Pushing [16] also cancels the intercom function.

For your reference:

In case the intercom mode is selected with the transceiver while the microphone power is OFF, the microphone power is automatically turned ON and the intercom mode is selected.

Intercom beep function

➥ Push [LO/DX•IC] for more than 1 sec.

• Emits the intercom beep while holding.

■ Channel comments

Push [Y]/[Z] to select a channel to program the channel comment.

• Push [CH/WX•U/I/C] several times while pushing [H/L] to select the channel group (USA, INT, CAN), if desired.

w While pushing [H/L], push [16•9].

• The 1st character of the currently programmed comment ﬂashes.

e Push [Y]/[Z] to select a character. r Push [SQL] to move to right; then push [Y]/[Z] to select a

character.

• Push [VOL] to move to left.

t Continue until the desired characters have been selected,

then push [16•9] to return to normal operation.

• Available characters

(r)

(s) (t) (u) (v) (w) (x) (y) (z)

(q)

(3)

(D)

(N)

(X)

(h)

(+)

(4)

(E)

(O)

(Y)

(i)

(–)

(5)

(F)

(P)

(Z)

(j)

(✱)

(6)

(G)

(Q)

(a)

(k)

(/)

(7)

(H)

(R)

(b)

(l)

(,)

(8)

(I)

(S)

(c)

(m)

(space)

(9)

(T)

(d)

(n)

(0)

(A)

(U)

(e)

(o)

(1)

(B)

(V)

(f)

(p)

(2)

(C)

(J) (K) (L)

(M)

(W)

(g)

(.)

( ))(( )(’)(&)(%)($)(#)(")(!)

Appears when the intercom function is in use.

TEMPLATE

HM-127 TEMPLATE

Cut here

HM-127

24 to 27 (d) mm

(

⁄16 to 11⁄16˝)

2 mm;

⁄32˝

Unit: mm (inch)

Count on us!

1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003 Japan

Icom IC-M602 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
