User's Manual
Digital Satellite Receiver
Viaccess Embedded
Warning!
Please do not insert metal or alien substance in hole for Smart Card.
In this case, it is possible that life span of STB is damaged.
CONTENTS
Safety 1
STB Connection 2
Remote Control Unit (RCU) 3
Guide of Functions
4
Guide of Main Menu 7
Parameters 7
Organizing Channels 9
Status 10
Smart Card 10
Installation 12
Specification 15
Trouble Shooting Guide 17
Safety
WARNING
RISK ELECTRIC SHOCK
DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
This symbol indicates "dangerous
voltage" inside the product that
presents a risk of electric shock
or personal injury.
This symbol indicates
important instructions
accompanying the
product.
This STB has been manufactured to satisfy the international safety standards.
Please read the following recommended safety precautions carefully.
MAINS SUPPLY : 190 ~ 260V AC 50/60Hz.
OVERLOADING : Do not overload wall outlets, extension cords or adapters as
this can result in fire or electrical shock.
LIQUIDS : Keep liquids away from the STB.
SMALL OBJECTS : Coins or other small objects must be kept away from the STB
as they can fall through the ventilation slots of the STB
and cause serious damage.
CLEANING : Disconnect the STB from the wall socket before cleaning it.
Use a cloth lightly dampened with water (no solvents) to clean
the exterior of the STB.
VENTILATION : Do not block the STB’s ventilation slots.
Ensure that a free airflow is maintained around the STB.
NEVER stand the STB on soft furnishings or carpets.
Do not use or store the STB where it is exposed to direct
sunlight or near a heater.
NEVER stack other electronic equipment on top of the STB.
ATTACHMENTS : Do not use any attachments that are not recommended as
these may cause hazards or damage the equipment.
CONNECTION TO THE SATELLITE DISH LNB :
Disconnect the STB from the mains before connecting or
disconnecting the cable from the satellite dish.
FAILURE TO DO SO CAN DAMAGE THE LNB.
CONNECTION TO THE TV or VCR SET :
Disconnect the STB from the mains before connecting or
disconnecting the cable from the satellite dish.
FAILURE TO DO SO CAN DAMAGE THE TV or VCR SET.
EARTHING : The LNB cable MUST BE EARTHED to the system earth for
the satellite dish.
The earthing system must comply with SABS 061.
LOCATION : Locate the STB indoor place properly to prevent lightening,
raining and direct sunlight.
1
STB Connection
TV
VCR
LNB IN
RF OUT
RF IN
VIDEO
AUDIO
L
R
LNB OUT
RS-232
TV SCART
VCR SCART
0/12V OUT
50mA
RF IN RF OUT
SATELLITE DISH
SCART SCART RF IN
TV ANTENNA
POWER
Max. power consumption : 35 W
Power supply : 230V 50Hz
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
Introduction
There are several ways of connecting the STB to your existing TV/Audio system.
Some of the methods enable you to listen to music in stereo sound of CD like
quality.
Consult your local supplier for assistance in setting up an Video/Audio
configuration best suited to your unique requirements.
Hints to Quality TV System Configurations
●
Connect cables via Audio/Video Outputs/Inputs or SCART connector instead
of RF connectors, where possible.
●
Use an appropriate, correctly installed antenna system.
●
Ensure that the system is properly earthed and protected against lightning.
●
Connect the STB to high quality stereo TV and Hi-Fi equipment.
Note : When Video/Audio Input Outputs or SCART connector are available
a “Video” mode may need to be selected in place of a “TV” mode
on the VCR and the TV.
Connection
1. Switch off the mains supply in the STB before connecting or disconnecting
the LNB.
Connect the TV antenna connector into the RF IN socket on the STB.
2. Use the flylead supplied with the STB to connect the RF OUT socket
on the STB to the RF IN (aerial) connector on the VCR.
3. Use the flylead supplied with the VCR to connect the RF OUT socket
on the VCR to the RF IN (aerial) connector on the TV.
4. Connect the coaxial cable from the LNB into the socket marked LNB IN
on the STB.
The connector on the LNB IN should be turned until it is finger tight.
5. Connect the power plug of the STB into the mains wall socket and switch
the power on.
Note : As the SCPC channel is a weak signal it is important that the satellite dish is
installed precisely to receive it, or moving pictures may be displayed with
picture break up errors.
CAUTION
DISCONNECT THE IRD
FROM THE MAINS BEFORE
CONNECTING OR
DISCONNECTING THE LNB.
2
Remote Control Unit (RCU)
Switch between normal mode and standby mode
Select TV or SAT Service
Select audio service
Display the main menu on the screen or
return to on the screen from a submenu
Return to the previous menu and the screen
( display mode )
Display the Subtitle Information
Audio mute
Use to select the TV or Audio channels and
enter the channel information & PIN code.
Display the programme information box
on the screen or remove it
View programme information,
schedule and reservation facilities
Display and alter the UHF setting in menu
Select previously viewed channel
Use to reserve a programme in the TV Guide
Select programme in TV Guide and item
in submenu. Display Channel List on the screen
Use to page Up/Down in Channel List &
Organising Channels
Use to select parameter of submenu and
move highlight bar for selecting submenu
in main menu & TV Guide
EXIT MENU
UHF
RECALL
TV
GUIDE
TV/SAT AUDIO
OK
P
VOL VOL
P
Pg Up Pg Dn
123
456
90
EXIT
MENU
UHF
RECALL
TV
GUIDE
TV/SAT
AUDIO
OK
Use to select TV or Audio channels and to
control volume on screen
P
VOL VOL
P
Pg Up Pg Dn
Select language for soundtrack and
Dual/Mono function.
It depends on broadcaster
0 9
UP
DOWN
LEFT RIGHT
78
We designed the most friendly shape to use. You can operate every function
of our STB using the RCU. Please read this section to help your understanding
of the STB’s functions.
3
Guide of Functions
TV Guide
Using the TV GUIDE key on the RCU, will give
the description of the programme information.
You can view the programme schedules from -12
to 72 hours.
If you want to know more detail on a programme,
refer to information box. Move the Highlight bar
using the ARROW keys on the RCU and the
contents in information box will change according
to highlighted programme.
The items displayed in the programme box are as
follows:
●
Service number and name
●
Title of programme
●
A brief description of the programme
●
Start and end times
●
Local time
Programme Reservation : It is possible to
reserve a future programme. To reserve a future
programme, select the required programme using
the ARROW keys then press key. The
reserved programme box will change background
colour.
A reserved programme will automatically change
(or display) the channel at the starting time of the
programme.
To cancel the reservation, select the reserved
programme, then press key one more.
Information Box
Press i key, to view the programme information
on the screen. Supplies the detailed content
about the channels being viewed.
A signal level is shown between the channel
name and programme information.
When a channel has subtitles and/or teletext, it
will be displayed as symbol( , ) in information
box for your convenience.
4
Subtitle
To enable and select the language of subtitle,
press key. Select the required language with
the UP/DOWN key, then press OK key on the
required language for display.
Some broadcasters do not provide subtitles.
However, you will be able to confirm in the
information box whether subtitles are available or
not. If subtitles are provided, the symbol is
shown at the bottom in the information box.
Teletext
You will be able to confirm in the information box
whether teletext is supported from the
broadcaster or not. If teletext is provided, the
symbol is shown at the bottom in the information
box.
To view teletext, use your TV remote control.
( Not supplied on the STB’s RCU ) because the
teletext service is controlled by the television.
Soundtrack
12 : 00
12 : 00
Some broadcasters supply multiple language
Soundtracks. To select the language of
Soundtrack, press key.
Use the UP/DOWN keys to select the required
language and press OK key to select it.
In addition, you are able to choose either only the
left sound or right sound of Dual/Mono of
soundtrack using the LEFT or RIGHT key.
Channel List
While you are viewing a channel, press OK key
and you can view the channel List.
Select the required channel using UP/DOWN or
PgDn/PgUp keys and press OK key to select the
required channel.
5
To download new software
The software upgrade function allows the STB to
be upgraded when new functions become
available.
Embedded Viaccess Module
and 2 x Smart Card
You can enjoy not only scrambled channels for
Viaccess but also free channels by this STB.
And you can watch the scrambled channels
without Common Interface Module beacuse this
STB includes functions of Common Interface
Module by oneself. Therefore you need only
Smart Card of Viaccess for pay TV channels.
Your required Smart Card is supported by service
provider or distributor.
6
Guide of Main Menu
This section introduces the Main Menu structure
of STB.
Using Menus
By pressing the ARROW key on the RCU you can
select menus.
You can always confirm the option by pressing
OK on the RCU.
This is a valid in all menus.
Parameters
Language Setting
Use to select the Menu and Audio language.
Menu Language
You are able to select the language for the menu
and OSD( On-Screen Display ).
It supports English, French, German, Italian and
more.
Main Audio Language
Some channel providers broadcast with one or
more alternative language soundtracks. You can
select your preferred Audio language in this
submenu.
Time Setting
Time Adjustment
If your time zone is different from that of the
service provider, you can adjust to your local
time. It changes in steps of 30 minutes intervals.
Turn On Time (Automatic switch on time)
To set a wake up time, you can enter the 4 digits
of hours and minutes using the 0~9 number keys.
After setting, the STB is automatically turned on
at the set time. If DISABLE is selected, the STB
will not automatically turn on.
7
Turn Off Time (Automatic switch off time)
To set a sleep time, you can enter the 4 digits of
hours and minutes. After setting, the STB is
automatically turned off at the set time.
If DISABLE is selected, the STB will not
automatically turn off.
System Setting
This menu is used to configure the Audio/Video
output parameters, including setting the type of
A/V output on the SCART, RF and RCA
connector.
The Video output can be set for RGB, Composite
video (CVBS) or S-VHS depending on the
function of TV when you have connected to the
SCART.
You can select Stereo or Mono Audio output.
If you have a widescreen TV, the aspect ratio
setting in screen mode should be adjusted to
16:9 to allow the STB to automatically switch to
widescreen format for a widescreen programme.
Otherwise, set to 4:3.
Info. Box display type setting and
Info. Box display time setting
The brightness and display duration of the
information box is set here. The duration can be
set in the region of 0 to 20 seconds.
If you enter 5 seconds, information box is
displayed for 5 seconds after a channel change.
Selecting duration of 0 seconds, prevents the
Info. Box from being displayed when changing
channel or pressing i key.
UHF Tuning
This menu is used to configure the UHF TV
output setting. The required UHF channel, the
PAL sound mode and channel offset adjustment
are set here.
The UHF tuning on the TV may need to be altered
after changing the UHF output channel on the
STB.
8
Organizing Channels
The Organizing Channel menu allows the user to
re-arrange or delete channels that the STB has
registered during a channel search.
Note : To restore the deleted channels, you must try
the channel searching again.
Organizing Bouquets
All Bouquets found are listed in the left hand
column of the screen. A Bouquet is a group of
channels organized together by the broadcaster.
You can delete any un-required bouquets using
the DELETE function.
Organizing TV Channels
All TV channels found are listed in the left hand
column of the screen.
Use this menu to reorganize and/or delete
unwanted TV channels.
To Delete a channel, move the highlight bar to
the required channel, then press RIGHT key.
This will move the selected channel in the
DELETE box.
To confirm deletion, press OK or to restore the
channel press LEFT key. Once a deletion has
been confirmed, only way to restore the channel
is to activate a Channel installation menu.
To re-position a channel in the channel list, e.g.
to move it from channel 23 to channel 1, move
the highlight bar by UP/DOWN key to the
selected channel and press OK.
This places a marker by the selected channel.
Now use UP key to move the channel to the
required position ( channel 1 ) then press OK.
Organizing Audio Channels
All the Audio channels found are listed in the left
hand column of the screen. (Use the same
procedure as the Organizing TV actions
described above)
9
Status
IRD Status
IRD Status provides important diagnostic and
version information for a technician.
You may be asked to read some of this
information to helpline person.
Signal Detection
Signal detection can be used to help the
alignment of the satellite dish and to view the
strength and quality of signal from satellite. Also,
you can view Network information (Frequency,
Symbol Rate, FEC, Polarization). The signal
quality is more important than signal strength in
digital systems.
Smart Card
This menu allows the user to view and change
information on the smart cards like the Service
List, the PIN code and Maturity Rating.
Note : The UA is the same as the number that
is printed on the smart card.
It is automatic detected and displayed when
smart card is inserted into the smart card
slot of the STB.
Service List
Channels or Bouquets are encrypted by only
Viaccess and operators name are displayed on
the TV screen such as TPS or ABsat and more.
To get more detailed information of viewing rights
of channels or bouquets, press OK.
10
Change PIN Code
When you buy a new smart card, the initial PIN
code is set to ‘NULL’.
Therefore, it is recommended that this PIN code
should be changed.
Enter Old PIN Code
At first ‘NULL’ will be shown on this display, but
after the PIN code has been changed ‘NULL’ will
no longer be shown on this display. From then
on, when ‘NULL’ is not shown, if you require to
change the PIN code, you must insert in your
current PIN code.
Enter New PIN Code
Insert in your new PIN code using the 0 ~ 9
number keys on the RCU.
Verify New PIN Code
Insert in you new PIN code again and the STB
will verify new PIN code. If you do not enter the
same PIN code for this, you will have to enter the
new PIN code again.
Change Maturity Rating
The STB is required by Viaccess to include a
parental control facility for the viewing of
restricted programmes.
This can be set to ‘No block’ or for ages ranging
from 4 to 18 in steps of 1. The correct PIN code
is required to change this option.
11
Installation
Used to register wanted channels. Searching
time is faster than another STB.
Note : Check the signal level, quality or Network
information when channel searching failed.
This submenu includes signal quality as
graphic bar shape so that you can check the
status of antenna or Network information.
Antenna Setting
More than one satellite antenna may be
connected to the STB. It can store the
characteristics of at least 8 different antenna
configurations using the this sub menu. Press OK
after Antenna Setting and go to Manual Search.
Antenna Alternative : Select an antenna alternative
from 1 to 8.
To separate each satellite from
connected dishs.
Satellite Name : Select a satellite name of LNB
configuration.
LNB Frequency : Select a LNB frequency or type on
the dish - Universal, 5150, 9750,
10600, 11475, User( Use to enter
another alternative ).
22 Khz Tone : To support the universal LNB.
-Enable, Disable.
0/12 Volt Switch : It is possible automatically switch
between two LNBs.
DiSEqC Input Selection : It is possible to connection
up to 4 LNBs. Select DiSEqC 1,2,3
and 4 according to LNB’s
connected configuration of DiSEqC.
Refer to right table.
Matrix Option S/W Satellite position S/W
A
B
C
D
a
a
b
b
a
b
a
b
Manual Search
Use to search for channels using the frequency,
polarisation, symbol rate and FEC of known
transponders. This submenu includes signal level
as graphic bar shape so that you can view the
status of antenna.
12
Antenna Alternative : Select the number of the
Antenna Setting.
Frequency : Input a frequency of wanted
transponder using the 0~9 number
keys on the RCU.
Polarization : Select the type of polarization -
Horizontal, Vertical.
Symbol Rate : Input a symbol rate of transponder
using the 0~9 number keys.
FEC(Forward Error Correction) :
Select the type of FEC.
- 1/2, 2/3, 3/4, 5/6, 7/8.
Network Search : Use to scan other associated
transponder frequencies of similar
channels during the search.
Automatic Skip : Use to skip the scrambled channels.
This is search only free channels.
Note : If you want to watch the required bouquet
information( Frequency, Symbol Rate and
so on ), enter the Manual Search on the
screen of the channel or the Organising
Bouquets.
Advanced Channel Search
Use to search for channels under test for which
you have PID codes( Video, Audio, and PCR code ).
For your convenience, there is included an AUTO
function.
Video PID : You can enter not only Decimal code but
also ‘Hex’ code.
Audio PID : You can enter not only Decimal code but
also ‘Hex’ code.
PCR PID : You can enter not only Decimal code but
also ‘Hex’ code.
In case of need to insert a ‘Hex’ Code.
1. Select the ‘Hex’ position using the
LEFT/RIGHT keys.
2. Press OK then appears to Code Input Box.
3. Select the required ‘Hex’ Code by
ARROW/OK keys.
13

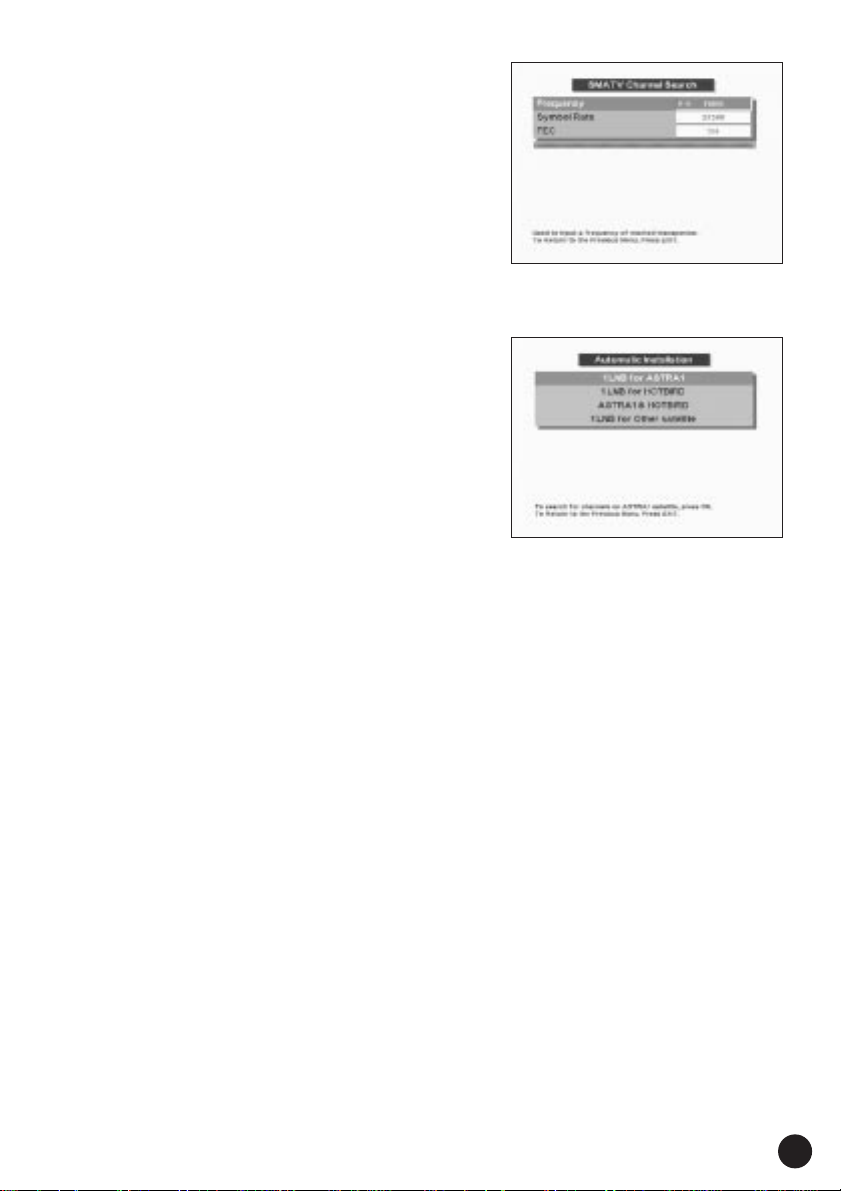

SMATV Channel Search
Use to search for channels when using SMATV
equipment.
Frequency : Input a frequency of L-Band
(950 ~ 2150 MHz).
Symbol Rate : Input a symbol rate of signal.
FEC : Select the type of FEC.
Automatic Installation
This menu offers the user a simple and straight
forward method of carrying out a standard
installation.
This installation method will store all the channels
that it finds, including the scrambled channels.
The undesired and scrambled channels can be
deleted by using the Organizing Channel menu.
Note : It channels do not describe on the screen,
should be check the antenna alignment or
LNB frequency again.
14
Specification
Items Specification
Power
Input frequency
CPU
RAM
Flash Memory
EEPROM
SCART
Data service
RCA
LNB power
Modulation/FEC type
DiSEqC Bus
Tone Switching
RF Modulator
Specification
Video compression
Aspect ratio
On-screen display
EPG
190 ~ 250V AC 50/60Hz
950 ~ 2150 MHz
L64108 (MIPS R3000)
2Mbyte
2Mbyte
16Kbyte
1 RS-232C, 19KBPS, 9P DSUB
2 SCART ; 1 VCR, 1 TV
2 left and right Audio/Video
Switchable 13.5/18V (400mA max)
QPSK/Multiple convolutional coding (DVB compliant)
DiSEqC Ver 1.0 Supported
22KHz
UHF ch21 ~ 69 with PAL I/B/G
MPEG-2/DVB Compliant SI
MP@ML in MPEG-2
4:3 and 16:9 with pan vector
16 colours
supported
LNB Selector (Control output) 0/12V
MCPC/SCPC supported
IRD Specification
15
Items
Channel Processing
Video Specification
MPEG Audio
RF Modulator
Specification
Input Frequency Range
Tuning System
Tuning Step Size
Modulation
Inner FEC
Input Signal Data Rate
Outer FEC
IF Bandwidth
Connector Type
950 ~ 2150 MHz
PLL Digital Synthesis channels
125KHz max
QPSK (DVB Specification)
Rates is 1/2, 2/3, 3/4, 5/6 or 7/8 (DVB Specification)
Reed Solomon coding RS (204,188,t=8) DVB compliant
2 ~ 31Ms/s
36MHz
F-Type (IEC 169 - 24 female)
Items Specification
Specification
TV system
Video Decoding
Multiple video resolutions
Meets ETR 154 amended in ALM-95-021
PAL I, G or B
ISO/IEC 13818-2, MP@ML
704 pixels x 576lines x 25 frames per second
544 pixels x 576lines x 25 frames per second
480 pixels x 576lines x 25 frames per second
352 pixels x 576lines x 25 frames per second
Items Specification
Features
Connector
Channel Range
Preset Channel
Input and lossless RF bypass supported
IEC coaxial female 9.5 mm. (IEC 169-2)
CCIR UHF E21-E69 adjustable
channel 38 (or TBD)
Items Specification
Operation Modes
Sampling rates
Resolution
Mono, dual, stereo and joint stereo audio
32, 44.1 and 48KHz
18 bit digital to analogue converters
16
Trouble Shooting Guide
Symptoms Check Points
About STB
About Error Message on screen
Does not display any message
on the front panel or STB
does not work.
Check the main power cable and main power
switch on the rear panel.
Check Standby mode is On or Off.
Picture does not appear Check the video output port (SCART & CINCH) is
firmly connected to TV or VCR.
No Sound Refer to "Picture does not appear".
Remote Control does not
operate
Check the battery exhausted.
No or Bad signal Check the LNB cable and dish position.
Service is not running or
scramble / No access to the
service slot.
Check whether smart card is correctly inserted.
Check whether smart card and receiving stream
are same.
Check whether Smart Card is appropriate.
Check the volume level of TV or STB.
Check Mute is On or Off.
Check that LNB cable is well connected from dish
to STB.
Check the LNB
- If LNB has problems, change to new LNB.
Check the SAT/TV/VCR status of STB by RCU.
Check the bright level of TV.
Check the signal level
- If you have weak level, adjust the dish
Viaccess is not applicable to
this service.
Check the insert of smart card.
Check whether smart card and receiving stream
are same.
17
Symptoms Check Points
About Front message (in case of Software download)
: Incorrect data block
(CRC-16)
Try to turn STB power Off and On.
: Invalid
system ID
Check whether the system ID is different for
Software and STB.
: UART RX/TX time out Try to turn STB power Off and On.
18
Loading...
