Humanscale QuickStand User Manual

INSTALLATION INSTRUCTIONS

PARTS REQUIRED

Single QuickStand Parts

A (1) QuickStand Unit

B (1) Base Plate

C (1) Platform

D (1) Palm Support

E (1) VESA Plate

F (6) M8 x 18 mm Flat Head Machine Screws

G (4) M4 x 18 mm Pan Head Phillips

H (4) M4 x 8 mm Pan Head Phillips

I (4) VESA Spacer

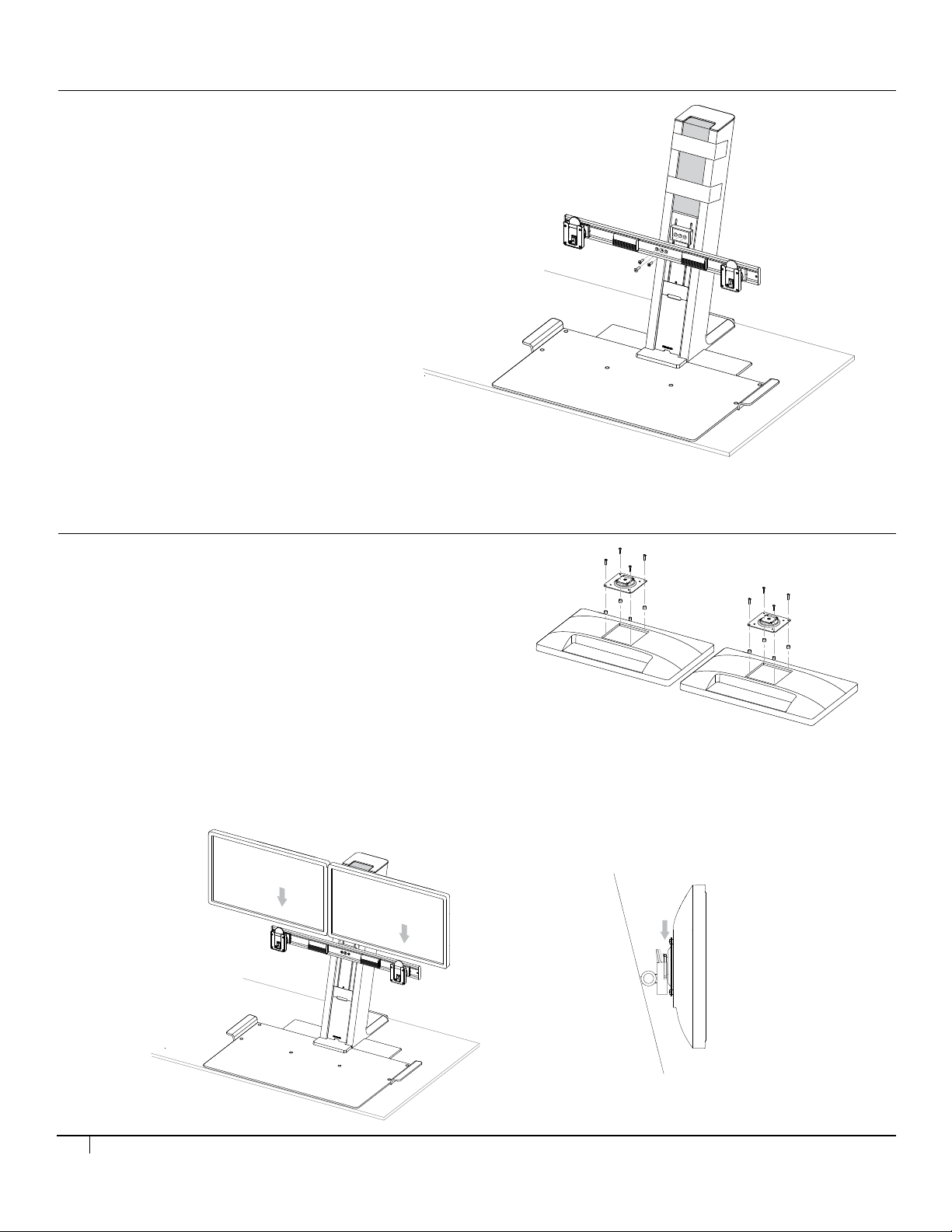

Additional Parts for Dual Monitor QuickStand

J (1) Dual Monitor Crossbar

K (1) M6 x 22 mm Flat Head Machine Screws

L (2) M5 x 18 mm Flat Head Machine Screws

M (2) VESA Plate

N (8) M4 x 18 mm Pan Head Phillips

O (8) M4 x 8 mm Pan Head Phillips

P (8) VESA Spacer

A

B

D

E

C

Tools Required

3 mm Hex Key (supplied)

4 mm Hex Key (supplied)

5 mm Hex Key (supplied)

6 mm Hex Key (supplied)

Box Knife

Tape Measure

#2 Phillips Screwdriver

Flat-Head Screwdriver

J

M

Hardware

F

G

H

I

K

L

N

O

P

www.humanscale.comCustomer Service: N America [phone] / International [phone]

Read all instructions carefully before installing this product or attempting to use it

This product contains a loaded mechanism that is under tension. Do not attempt to
remove or alter any part of this product or in any way modify or tamper with any
component of this product other than as set forth in these instructions. Failure to
comply with the instructions provided may result in property damage or serious injury.

Do not remove bracing box attached to QuickStand unit until your QuickStand is
fully assembled

STEP 1

Remove Shipping Plate

Tools: 6 mm Hex Key

• Lay the QuickStand unit on the work surface facing up
and unscrew the (2) M8 x 10 mm Cap Head Machine
Screws holding the Shipping Plate in place (fig. A)

WARNING

• Set aside the (2) M8 x 10 mm Cap Head Machine
Screws and the Washers for Step 3

STEP 2

Attach Base Plate

Tools: 5 mm Hex Key

• Secure the Base Plate in place using (6) M8 x 18 mm
Flat Head Machine Screws (fig. B)

A

B

3

STEP 3

Attach Platform

Tools: 6 mm Hex Key

• Ensure the Platform is equally spaced from
the Base Plate on either side ( fig. C)

• Using the (2) M8 x 10 mm Cap Head Machine
Screws and the Washers from step 1, secure
the Platform to the QuickStand unit

C

STEP 4

Measure Work Surface Depth

IMP ORTAN T: Please check the depth of your work surface

- If you are installing a QuickStand with a Large Platform, your QuickStand
is pre-set to attach to a 29” (750 mm) deep work surface

Platform

Base Plate

- If you are installing a QuickStand with a Small Platform, your QuickStand
is pre-set to attach to a 23” (600 mm) deep work surface

Tools: Measuring Tape

• The distance between the front edge of the Platform to

the inside face of the Base Clamp must be equal to the
work surface depth (fig. D)

• If the Base Clamp is in the correct position, please proceed to step 6

• If the Base Clamp needs to be adjusted, please proceed to step 5

STEP 5

Adjust Base Clamp for Correct Work Surface Depth

Tools: Measuring Tape
5 mm Hex Key

• Loosen or remove the (4) M8 x 10 mm Pan Head Machine

Screws and slide/reposition the Base Clamp to achieve the
correct work surface depth (fig. E)

D

E

4
