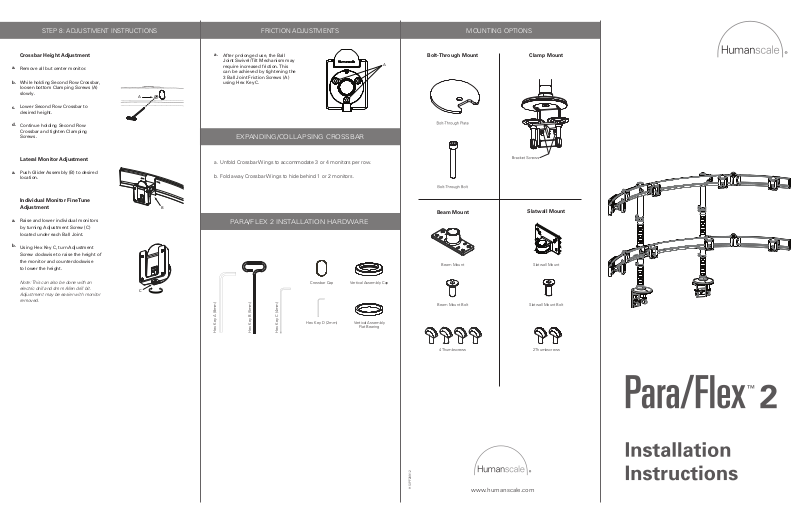

Humanscale ParaFlex 2 User Manual

STEP 8: ADJUSTMENT INSTRUCTIONS

Crossbar Height Adjustment

a.

Remove all but center monitor.

While holding Second Row Crossbar,

b.

loosen bottom Clamping Screws (A)
slowly.

Lower Second Row Crossbar to

c.

desired height.

d.

Continue holding Second Row
Crossbar and tighten Clamping
Screws.

FRICTION ADJUSTMENTS MOUNTING OPTIONS

a.

After prolonged use, the Ball
Joint Swivel/Tilt Mechanism may
require increased friction. This
can be achieved by tightening the
3 Ball Joint Friction Screws (A)
using Hex Key C.

A

A

Bolt-Through Mount Clamp Mount

EXPANDING/COLLAPSING CROSSBAR

Lateral Monitor Adjustment

a.

Push Glider Assembly (B) to desired
location.

Individual Monitor Fine Tune
Adjustment

a.

Raise and lower individual monitors
by turning Adjustment Screw (C)
located under each Ball Joint.

b.

Using Hex Key C, turn Adjustment
Screw clockwise to raise the height of
the monitor and counterclockwise
to lower the height.

Note: This can also be done with an
electric drill and 4mm Allen drill bit.
Adjustment may be easier with monitor
removed.

a. Unfold Crossbar Wings to accommodate 3 or 4 monitors per row.

b. Fold away Crossbar Wings to hide behind 1 or 2 monitors.

B

Beam Mount

Slatwall Mount

PARA/FLEX 2 INSTALLATION HARDWARE

Beam Mount

Vertical Assembly CapCrossbar Cap

C

Beam Mount Bolt

Hex Key A (8mm)

Hex Key B (5mm)

Hex Key D (2mm)

Hex Key C (4mm)

Vertical Assembly

Flat Bearing

Slatwall Mount

Slatwall Mount Bolt

4 Thumbscrews

HSIPF20912

www.humanscale.com

2 Thumbscrews

STEP 1: MOUNT POST TO CLAMP MOUNT ASSEMBLY

a.

Fully tighten screw to post.

Install Top Cap

b.

iv. Fully tighten Clamp Screw (D).

v. Proceed to Step 3.

M/Flex

STEP 4 : ATTACH FIRST ROW CROSSBAR

a.

Slide First Row Crossbar (D)
onto posts. Tighten all 6
Clamping Screws (E + F).

STEP 6: ATTACH VISA TO MONITOR

Note: Do not mount post to clamp if
installing a bolt-through mount.

STEP 2: ATTACH MOUNT TO WORK SURFACE

B

ii. Proceed to Step 3.

A

b.

Snap in provided Caps (G) to
cover large clamp screw hold (F).

D

E

A

M/Flex

B

C

A B

B

STEP 5 : ATTACH SECOND ROW CROSSBAR

F

G

STEP 7: ATTACH MONITORS TO PARA/FLEX

ii. Proceed to Step 3.

M/Flex

v. Proceed to Step 3.

C

Repeat Step 4 with Second Row and

a.

adjust to the required height.

Slide VESA Bracket (A) into Ball

a.

Joint (B) until it clicks.

To remove, depress Quick-Release

b.

Tab (C) and slide monitor up and
away from Paraflex 2.

c.

Repeat steps for each monitor
required.

A

C

B

STEP 3: ADDITION OF SECOND ROW

C

Remove Top Cap from originally

a.

mounted post.

A B

Attach 2nd Post to original Clamp

b.

mounted post.

i. Posts must be fully seated
against each other.

ii. Place Top Cap on top of 2nd Post.

Repeat steps 1-3 for 2nd post

c.

installation. Posts are placed 19.7”
(500mm) apart from center to center
of posts.

Note: If security is required, tighten

Security Screw using Hex Key D.

Security Screw
