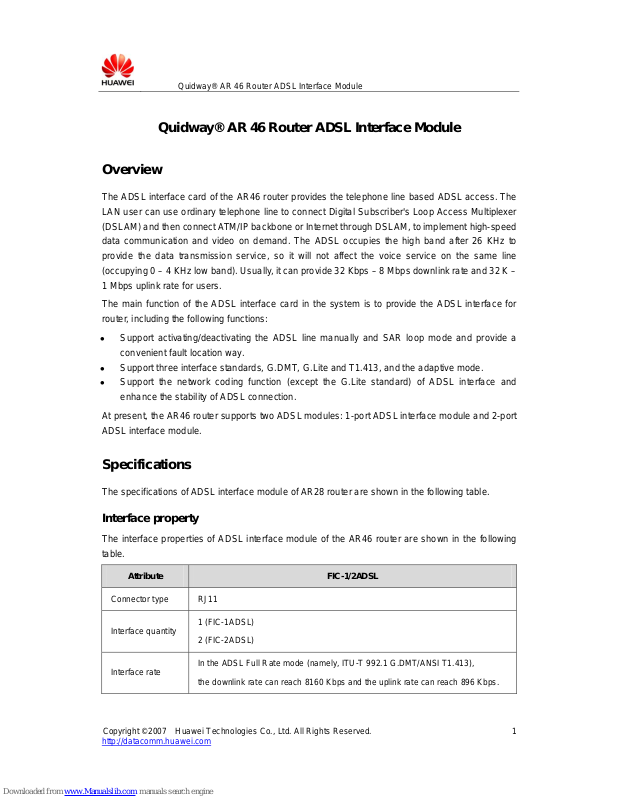

Huawei FIC-1/2ADSL Specifications

Quidway® AR 46 Router ADSL Interface Module

Copyright ©2007 Huawei Technologies Co., Ltd. All Rights Reserved. 1

http://datacomm.huawei.com

z

z
z

Quidway® AR 46 Router ADSL Interface Module

Overview

The ADSL interface card of the AR46 router provides the telephone line based ADSL access. The
LAN user can use ordinary telephone line to connect Digital Subscriber's Loop Access Multiplexer
(DSLAM) and then connect ATM/IP backbone or Internet through DSLAM, to imp lement high-speed
data communication and video on demand. The ADSL occupies the high band after 26 KHz to
provide the data transmission service, so it will not affect the voice service on the same line
(occupying 0 – 4 KHz low band). Usually , it can prov ide 32 Kbps – 8 Mbp s downlink rate and 3 2 K –
1 Mbps uplink rate for users.

The main function of the ADSL interface card in the system is to provide the ADSL interface for
router, includi ng the following functions:

Support activating/deactivating the ADSL line manually and SAR loop mode and provide a
convenient fault location way.
Support three interface standards, G.DMT, G.Lite and T1.413, and the adaptive mode.
Support the network coding function (except the G.Lite standard) of ADSL interface and
enhance the stability of ADSL connection.

At present, the AR46 router supports two ADSL modules: 1-port ADSL interface module and 2-port
ADSL interface module.

Specifications

The specifications of ADSL interface module of AR28 router are shown in the following t able.

Interface property

The interface properties of ADSL interface module of the AR46 router are shown in the following
table.

Attribute FIC-1/2ADSL

Connector type RJ11

Interface quantity

1 (FIC-1ADSL)
2 (FIC-2ADSL)

Interface rate

In the ADSL Full Rate mode (namely, ITU-T 992.1 G.DMT/ANSI T1.413),
the downlink rate can reach 8160 Kbps and the uplink rate can reach 896 Kbps.

Quidway® AR 46 Router ADSL Interface Module

Copyright ©2007 Huawei Technologies Co., Ltd. All Rights Reserved. 2

http://datacomm.huawei.com

Attribute FIC-1/2ADSL

Interface standard

ITU-T 992.1 G.DMT
ITU-T 992.2 G.Lite
ANSI T1.413 Issue 2

Cable type and
the maximum
transmission
distance

The ADSL interface cable is telephone line.
In the Full rate mode, it can reach 1.8 Km at most (namely, 6000 feet. The

maximum transmission distance is related to the quality of line).

Service provided

On ordinary telephone line it also provides the ADSL access.
