QuickSpecs
HP Z6 G4 Workstation
Overview
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 1
HP Z6 G4 Workstation

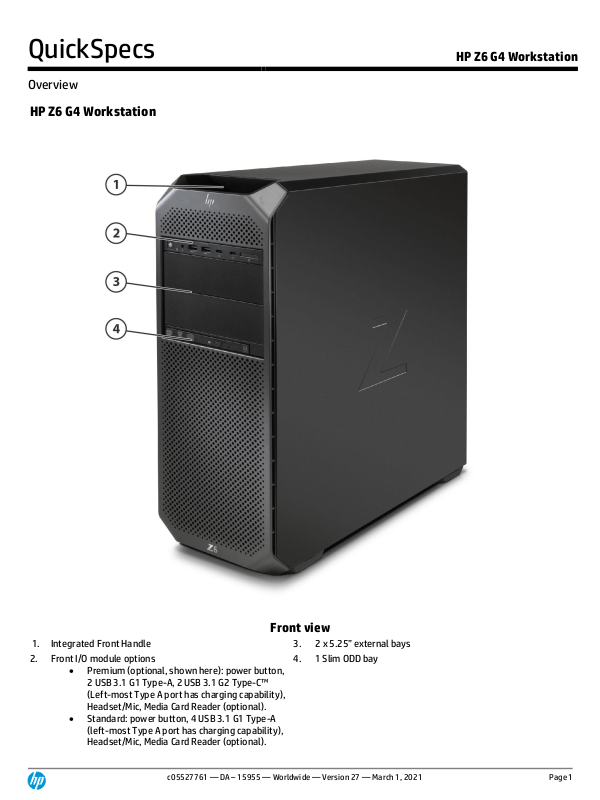

Front view
1.
Integrated Front Handle
3.
2 x 5.25” external bays
2.
Front I/O module options
• Premium (optional, shown here): power button,
2 USB 3.1 G1 Type-A, 2 USB 3.1 G2 Type-C™
(Left-most Type A port has charging capability),
Headset/Mic, Media Card Reader (optional).
• Standard: power button, 4 USB 3.1 G1 Type-A
(left-most Type A port has charging capability),
Headset/Mic, Media Card Reader (optional).
4.
1 Slim ODD bay
QuickSpecs
HP Z6 G4 Workstation
Overview
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 2
Internal view
5.
Power supply: 1000W 90% efficient with 2 graphics power
adapters
10.
6 x 6Gb/s SATA ports
6.
6 DIMM slots: DDR4-2666 Registered RAM
11.
2 PCIe G3 x4 M.2 for SSDs
7.
Intel® Xeon® processor Scalable family
12.
2 x 2.5”/3.5” internal drive bays
8.
2nd CPU & memory riser connector:
adds 2nd CPU socket and (6) DIMM slots
13.
2 x 5.25” external drive bays
9.
PCIe slots: 2 PCIe G3 x16, 3 PCIe G3 x4, 1 PCIe G3 x8
QuickSpecs
HP Z6 G4 Workstation
Overview
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 3
Rear view
14.
Rear handle
18.
HP Dual Port 10GBase-T NIC module slot (optional)
15.
Padlock loop
19.
Side panel barrel keylock (optional)
16.
Rear power button
20.
Kensington lock slot
17.
Rear I/O (top to bottom):
audio in/out, keyboard/mouse PS/2,
6 USB 3.1 G1 Type-A,
2 x 1GbE LAN ports
QuickSpecs
HP Z6 G4 Workstation
Overview
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 4
Overview
Form Factor
Tower
Operating Systems
Preinstalled:
• Windows 10 Pro for Workstations
1
• Ubuntu 20.04 LTS
2
• HP Linux-ready (minimal OS ready for customer OS installation)
• Red Hat® Enterprise Linux® Desktop Workstation (Paper license with 1 year support; no
preinstalled OS)
Supported:
• Red Hat Enterprise Linux Workstation 6, 7, 8
3
• SUSE Linux Enterprise Desktop 12, 15
3
• Ubuntu 16.04, 18.04, 20.04 LTS
2
1
Not all features are available in all editions or versions of Windows. Systems may require upgraded
and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of
Windows functionality. Windows 10 is automatically updated, which is always enabled. ISP fees may
apply, and additional requirements may apply over time for updates. See http://www.windows.com.
2
Not all features are available in all editions or versions of Ubuntu. Systems may require upgraded
and/or separately purchased hardware, drivers, software or BIOS to take full advantage of Ubuntu
functionality. Ubuntu may be automatically updated. ISP fees may apply, and additional requirements
may apply over time for updates.
3
Notes: For detailed Linux® OS/hardware support information, see:
http://www.hp.com/support/linux_hardware_matrix
Note: In accordance with Microsoft’s support policy, HP does not support the Windows® 7 operating
system on products configured with Intel® 7th Generation and forward processors.
Available Processors
Name
Cores
Clock
Speed
(GHz)
Cache
(MB)
Memory
Speed
(MT/s)
Hyper-
Threading
Intel® Turbo
Boost
Technology1
Supports
Intel®
DCPMM
Technology2
TDP
(W)
Intel® Xeon® W Processors
Intel® Xeon® W-3245
processor
16
3.2 GHz
22
2933
YES
4.4, 4.6
NO
205
Intel® Xeon® W-3235
processor
12
3.3 GHz
19.25
2933
YES
4.4, 4.5
NO
180
Intel® Xeon® W-3225
processor
8
3.7 GHz
16.5
2666
YES
4.3, 4.4
NO
160
Intel® Xeon® W-3223
processor
8
3.5 GHz
16.5
2666
YES
4, 4.2
NO
160
Intel® Xeon® Scalable Processors
Intel® Xeon® Platinum 8280
processor
28
2.7 GHz
38.50
2933
YES
3.3, 4.0
YES
205
Intel® Xeon® Platinum 8260
processor
24
2.4 GHz
35.75
2933
YES
3.1, 3.9
YES
165
Intel® Xeon® Gold 6258R
processor
28
2.7 GHz
38.50
2933
YES
4.0, 3.4
YES
205
QuickSpecs
HP Z6 G4 Workstation
Overview
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 5
Intel® Xeon® Gold 6254
processor
18
3.1 GHz
24.75
2933
YES
3.9, 4.0
YES
200
Intel® Xeon® Gold 6252
processor
24
2.1 GHz
35.75
2933
YES
2.8, 3.7
YES
150
Intel® Xeon® Gold 6248R
processor
24
3.0 GHz
35.75
2933
YES
4.0, 3.9
YES
205
Intel® Xeon® Gold 6248
processor
20
2.5 GHz
27.50
2933
YES
3.2, 3.9
YES
150
Intel® Xeon® Gold 6246R
processor
16
3.4 GHz
35.75
2933
YES
4.1, 4.0
YES
205
Intel® Xeon® Gold 6244
processor
8
3.6 GHz
24.75
2933
YES
4.3, 4.4
YES
150
Intel® Xeon® Gold 6242R
processor
20
3.1 GHz
35.75
2933
YES
4.1, 3.8
YES
205
Intel® Xeon® Gold 6242
processor
16
2.6 GHz
22
2933
YES
3.5, 3.9
YES
150
Intel® Xeon® Gold 6240R
processor
24
2.4 GHz
35.75
2933
YES
4.0, 3.2
YES
165
Intel® Xeon® Gold 6240Y
processor
18
2.6 GHz
24.75
2933
YES
3.3, 3.9
YES
150
Intel® Xeon® Gold 6240
processor
18
2.6 GHz
24.75
2933
YES
3.3, 3.9
YES
150
Intel® Xeon® Gold 6238R
processor
28
2.2 GHz
38.5
2933
YES
4.0, 3.0
YES
165
Intel® Xeon® Gold 6238
processor
22
2.1 GHz
30.25
2933
YES
3.4, 3.7
YES
140
Intel® Xeon® Gold 6234
processor
8
3.3 GHz
24.75
2933
YES
4.0, 4.0
YES
130
Intel® Xeon® Gold 6230R
processor
26
2.1 GHz
35.75
2933
YES
4.0, 3.0
YES
150
Intel® Xeon® Gold 6230
processor
20
2.1 GHz
27.50
2933
YES
2.8, 3.9
YES
125
Intel® Xeon® Gold 6226R
processor
16
2.9 GHz
22
2933
YES
3.9, 3.6
YES
150
Intel® Xeon® Gold 6226
processor
12
2.7 GHz
19.25
2933
YES
3.5, 3.7
YES
125
Intel® Xeon® Gold 6154
processor
18
3.0 GHz
24.75
2666
YES
3.7, 3.7
NO
200
Intel® Xeon® Gold 6136
processor
12
3.0 GHz
24.75
2666
YES
3.6, 3.7
NO
150
Intel® Xeon® Gold 6132
processor
14
2.6 GHz
19.25
2666
YES
3.3, 3.7
NO
140
Intel® Xeon® Gold 6128
processor
6
3.4 GHz
19.25
2666
YES
3.7, 3.7
NO
115
Intel® Xeon® Gold 5222
processor
4
3.8 GHz
16.5
2666
YES
3.9, 3.9
YES
105
Intel® Xeon® Gold 5220R
processor
24
2.2 GHz
35.75
2666
YES
4.0, 2.9
YES
150
Intel® Xeon® Gold 5220
processor
18
2.2 GHz
24.75
2666
YES
2.7, 3.9
YES
105
Intel® Xeon® Gold 5218R
processor
20
2.1GHz
27.5
2666
YES
4.0, 2.9
YES
125
Intel® Xeon® Gold 5218
processor
16
2.3 GHz
22
2666
YES
2.8, 3.9
YES
125
Intel® Xeon® Gold 5215
processor
10
2.5 GHz
13.75
2666
YES
3.0, 3.4
YES
85
QuickSpecs
HP Z6 G4 Workstation
Overview
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 6
Intel® Xeon® Gold 5118
processor
12
2.3 GHz
16.50
2400
YES
2.7, 3.2
NO
105
Intel® Xeon® Silver 4216
processor
16
2.1 GHz
22
2400
YES
2.7, 3.2
NO
100
Intel® Xeon® Silver 4215R
processor
8
3.2 GHz
11
2400
YES
4.0, 3.6
YES
130
Intel® Xeon® Silver 4215
processor
8
2.5 GHz
11
2400
YES
3.0, 3.5
YES
85
Intel® Xeon® Silver 4214R
processor
12
2.4 GHz
16.5
2400
YES
3.0, 3.5
NO
100
Intel® Xeon® Silver 4214Y
processor
12
2.2 GHz
16.5
2400
YES
2.7, 3.2
NO
85
Intel® Xeon® Silver 4214
processor
12
2.2 GHz
16.5
2400
YES
2.7, 3.2
NO
85
Intel® Xeon® Silver 4210R
processor
10
2.4 GHz
13.75
2400
YES
2.9, 3.2
NO
100
Intel® Xeon® Silver 4210
processor
10
2.2 GHz
13.75
2400
YES
2.7, 3.2
NO
85
Intel® Xeon® Silver 4208
processor
8
2.1 GHz
11
2400
YES
2.5, 3.2
NO
85
Intel® Xeon® Silver 4114
processor
10
2.2 GHz
13.75
2400
YES
2.5, 3.0
NO
85
Intel® Xeon® Silver 4112
processor
4
2.6 GHz
8.25
2400
YES
2.9, 3.0
NO
85
Intel® Xeon® Silver 4108
processor
8
1.8 GHz
11.00
2400
YES
2.1, 3.0
NO
85
Intel® Xeon® Bronze 3206R
processor
8
1.9 GHz
11.00
2133
YES
N/A
NO
85
Intel® Xeon® Bronze 3204
processor
6
1.9 GHz
8.25
2133
YES
N/A
NO
85
Intel® Xeon® Bronze 3106
processor
8
1.7 GHz
11.00
2133
NO
N/A
NO
85
All Z6G4 Intel® Xeon® CPUs Feature Intel® vPro™ Technology.
1
The specifications shown in this column represent the following: (all core maximum turbo frequency,
one core maximum turbo frequency). Processors that do not have turbo functionality are denoted as
N/A.
2
Intel® Data Center Persistent Memory Modules availability will be announced at a future date.
Available Processors
Disclaimers
When ordering two processors, the second processor must be the same as the first. Intel processor
numbers are not a measurement of higher performance. Processor numbers differentiate features
within each processor family, not across different processor families.
Multicore is designed to improve performance of certain software products. Not all customers or
software applications will necessarily benefit from use of this technology. Performance and clock
frequency will vary depending on application workload and your hardware and software
configurations. Intel’s numbering, branding and/or naming is not a measurement of higher
performance.
Color
Black
Convertibility
No
QuickSpecs
HP Z6 G4 Workstation
Overview
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 7
Expansion Slots (see
system board section for
more details)
Slot 0:
Mechanical-only, for use with devices that require only rear bulkhead mounting or when 2nd CPU riser
is installed
Slot 1:
PCI Express Gen3 x4 - CPU with open-ended connector*
Slot 2:
PCI Express Gen3 x16 - CPU
Slot 3:
PCI Express Gen3 x4 - PCH with open-ended connector*
Slot 4:
PCI Express Gen3 x8 – CPU with open-ended connector (slot converts to x4 electrical when SSD is
installed in 2nd M.2 slot)*
Slot 5:
PCI Express Gen3 x16 - CPU
Slot 6:
PCI Express Gen3 x4 - PCH with open-ended connector*
M.2 Slot 1:
M.2 PCIe Gen 3 x4 - CPU up to 80mm storage devices
M.2 Slot 2:
M.2 PCIe Gen 3 x4 - CPU up to 80mm storage devices
* Open-ended connector allows a greater bandwidth (e.g. x16) card to be installed physically into a
lower bandwidth connector/slot.
Expansion Bays (see
storage section for more
details)
2 internal 3.5" bays (with acoustic dampening rail assemblies pre-installed)
2 external 5.25" bays
• 3rd and 4th 3.5" HDD each occupy one external bay
• 3rd and 4th 2.5" HDD/SSD occupy a single external bay within a 2:1 carrier)
1 dedicated 9.5mm slim optical disk drive bay
Front I/O
• Base: Power button, 1 Headset audio port, 4 USB 3.1 G1 Type A (1 charging)
• Premium (optional): Power button, 1 Headset audio port, 2 USB 3.1 G2 Type C™, 2 USB 3.1 G1
Type A (1 charging)
• Optional: SD reader
Internal I/O
1 USB 3.1 G1 (aka USB 3.0) single-port header, 1 USB 2.0 single-port header and 1 USB 2.0 dual-port
header
Rear I/O
6 USB 3.1 G1 (aka USB 3.0) Type A ports, 2 1Gbe LAN ports (1x supporting Intel® AMT), Audio: 1 Line
out, 1 Line in (Line in can be retasked as microphone), 1 PS/2 mouse port, 1 PS/2 keyboard port, 1
Rear power button
Optional: 1 serial port (cable up to rear bulkhead)
Interfaces Supported
SD card reader (optional)
6-channel SATA interface (6 @ 6.0 Gb/s)
6 channels are eSATA configurable for use with eSATA CTO/AMO Kit (No hot plug / hot swap
supported)
QuickSpecs
HP Z6 G4 Workstation
Overview
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 8
USB 2.0, USB 3.1 G1 (aka USB 3.0), USB 3.1 G2 (optional)
On-board RAID Support
SATA RAID 0 Striped Array
SATA RAID 1 Mirrored Array
SATA RAID 5 Striped/Parity
SATA RAID 10 Striped/Mirrored
Chassis Dimensions (H x
W x D)
H: 17.5" (445mm)
W: 6.65" (169mm)
D: 18.3" (465mm)
Packaged Dimensions
H: 24" (610mm)
W: 12.3" (313mm)
D: 23.3" (593mm)
Palletization Profile
6 units x 3 layers = 18 units per pallet
1200x1000x1836mm (pallet included)
Rack Dimensions
4U
Weight
Exact weights depend upon configuration (System weight only).
Minimum: 13.1 kg (29 lbs.)
Standard: 13.6 kg (30.1 lbs.)
Maximum: 23.9 kg (52.7 lbs.)
Temperature
Operating: 5° to 35°C (40° to 95°F)
Non-operating: -40° to 60°C (-40° to 140°F)
Note: Above 1524 m (5,000 feet) altitude, maximum operating temperature is reduced by 1° C (1.8° F)
per 305 m (1,000 feet) elevation increase
Humidity
Operating: 10% to 85% relative humidity, non-condensing, 35° C maximum wet bulb
Non-operating: 10% to 90% relative humidity, non-condensing, 35° C maximum wet bulb
Maximum Altitude (nonpressurized)
Operating: 3,048m (10,000ft)
Non-operating: 9,144m (30,000ft)
Note: Above 1524 m (5,000 feet) altitude, maximum operating temperature is reduced by 1° C (1.8° F)
per 305 m (1,000 feet) elevation increase
Power Supply
1000 watts wide-ranging, active Power Factor Correction, 90% Efficient, with 2X 6-pin graphics power
cables (graphics power cables are 6/8-pin convertible)
The Z6 G4 1000W power supply efficiency report can be found at this link:
https://plugloadsolutions.com/psu_reports/HP_D15-1K0P1A_1000W_ECOS%204838_Report.pdf
Workstation ISV
Certifications
See the latest list of certifications at
http://www8.hp.com/us/en/campaigns/workstations/industries-and-partners.html
QuickSpecs
HP Z6 G4 Workstation
Supported Components
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 9
Processors
Factory
Configured
Option
Kit
Option Kit
Part
Number1
Support
Notes
Intel® Xeon® W-3200 Series CPU
Intel® Xeon® W-3245 3.2 2933 16C processor
Y N
Intel® Xeon® W-3235 3.3 2933 12C processor
Y N
Intel® Xeon® W-3225 3.7 2666 8C processor
Y N
Intel® Xeon® W-3223 3.5 2666 8C processor
Y N
Intel® Xeon® Scalable CPU
Intel® Xeon® Platinum 8280 processor
Y N
1
Intel® Xeon® Platinum 8260 processor
Y N
1
Intel® Xeon® Gold 6258R processor
Y N
Intel® Xeon® Gold 6254 processor
Y N
1
Intel® Xeon® Gold 6252 processor
Y
Y
5YT07AA
1
Intel® Xeon® Gold 6248R processor
Y N
Intel® Xeon® Gold 6248 processor
Y
Y
5YT06AA
1
Intel® Xeon® Gold 6246R processor
Y N
Intel® Xeon® Gold 6244 processor
Y
Y
5YT05AA
1
Intel® Xeon® Gold 6242R processor
Y N
1
Intel® Xeon® Gold 6242 processor
Y
Y
5YT04AA
1
Intel® Xeon® Gold 6240R processor
Y N
1
Intel® Xeon® Gold 6240Y processor
Y
5YT03AA
1
Intel® Xeon® Gold 6240 processor
Y
Y
5YT02AA
1
Intel® Xeon® Gold 6238R processor
Y N
1
Intel® Xeon® Gold 6238 processor
Y
Y
5YT01AA
1
Intel® Xeon® Gold 6234 processor
Y
Y
5YT00AA
1
Intel® Xeon® Gold 6230R processor
Y
Y
9VA87AA
1
Intel® Xeon® Gold 6230 processor
Y
Y
5YS99AA
1
Intel® Xeon® Gold 6226R processor
Y
Y
9VA85AA
1
Intel® Xeon® Gold 6226 processor
Y
Y
5YS98AA
1
Intel® Xeon® Gold 6154 processor
Y N
Intel® Xeon® Gold 6136 processor
Y
Y
1XM39AA
Intel® Xeon® Gold 6134 processor
Y
Y
1XM41AA
Intel® Xeon® Gold 6132 processor
Y
Y
1XM42AA
Intel® Xeon® Gold 6128 processor
Y
Y
1XM44AA
Intel® Xeon® Gold 5222 processor
Y
Y
5YS97AA
1
Intel® Xeon® Gold 5220R processor
Y
Y
8BC99AA/AT
1
Intel® Xeon® Gold 5220 processor
Y
Y
5YS96AA
1
Intel® Xeon® Gold 5218R processor
Y
Y
9VA83AA
1
Intel® Xeon® Gold 5218 processor
Y
Y
5YS95AA
1
Intel® Xeon® Gold 5215 processor
Y
Y
5YS94AA
1
Intel® Xeon® Gold 5118 processor
Y
Y
1XM45AA
Intel® Xeon® Gold 4216 processor
Y
Y
5YS93AA
Intel® Xeon® Gold 4215R processor
Y
Y
9VA81AA
Intel® Xeon® Gold 4215 processor
Y
Y
5YS92AA
1
QuickSpecs
HP Z6 G4 Workstation
Supported Components
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 10
Intel® Xeon® Gold 4214R processor
Y
Y
8BC96AA/AT
1
Intel® Xeon® Gold 4214Y processor
Y
Y
5ZB33AA
Intel® Xeon® Gold 4214 processor
Y
Y
5YS91AA
Intel® Xeon® Gold 4210R processor
Y
Y
8BC95AA
Intel® Xeon® Gold 4210 processor
Y
Y
5YS90AA
Intel® Xeon® Gold 4208 processor
Y
Y
5YS89AA
Intel® Xeon® Silver 4114 processor
Y
Y
1XM49AA
Intel® Xeon® Silver 4112 processor
Y
Y
1XM50AA
Intel® Xeon® Silver 4108 processor
Y
Y
1XM51AA
Intel® Xeon® Bronze 3206R processor
Y
Y
8BC93AA
Intel® Xeon® Bronze 3204 processor
Y
Y
5YS88AA
Intel® Xeon® Bronze 3106 processor
Y
Y
1XM52AA
1
Options kits available for second processor upgrade.
Disclaimers: When ordering two processors, the second processor must be the same as the first. Intel
processor numbers are not a measurement of higher performance. Processor numbers differentiate
features within each processor family, not across different processor families.
Note 1: Intel® DCPMM® (Data Center Persistent Memory) Supported.
Monitors /
Displays
Factory
Configured
Option
Kit
Option Kit
Part
Number
Support
Notes
HP Z Display Z22n G2
Y
1JS05AA
HP Z Display Z23n G2
Y
1JS06AA
HP Z Display Z24i G2
Y
1JS08AA
HP Z Display Z24n G2
Y
1JS09AA
HP Z Display Z24nf G2
Y
1JS07AA
HP Z Display Z27n G2
Y
1JS10AA
HP Z Display Z27s (4K display)
Y
J3G07AA
Supported by all operating systems available from HP
Screen size measured diagonally
Storage / Hard Drives
SAS Hard Drives
SAS Hard Drives for HP Workstations
Factory
Configured
Option
Kit
Option
Kit Part
Number
Support
Notes
HP 300GB 15k SAS SFF
Y
Y
L5B74AA
NOTE: SAS controller add-in card required
QuickSpecs
HP Z6 G4 Workstation
Supported Components
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 11
SATA Hard Drives
Factory
Configured
Option Kit
Option
Kit Part
Number
Support
Notes
SATA (Serial ATA) Hard Drives for HP Workstations
500GB SATA 7200RPM 6Gb/s 3.5” HDD
Y
Y
LQ036AA
500GB SATA 7200RPM 6Gb/s OPAL2 SFF 3.5” HDD
Y
Y
D8N29AA
1TB SATA 7200RPM 3.5” HDD
Y
Y
LQ037AA
1TB SATA 7200RPM Ent 3.5” HDD
Y
Y
W0R10AA
2TB SATA 7200RPM HDD
Y
Y
QB576AA
2TB 7200RPM SATA 3.5in Enterprise
Y
Y
2Z274AA
4TB SATA 7200RPM Ent 3.5” HDD
Y
Y
K4T76AA
6TB SATA 7200RPM Ent 3.5” HDD
Y
Y
3DH90AA
8TB 7200RPM SATA 3.5in Enterprise
Y
Y
2Z273AA
NOTES:
Up to (4) 3.5-inch 7200 rpm SATA drives: 500 GB, 1.0, 2.0, 4.0 TB; maximum system HDD storage:
16.0TB
QuickSpecs
HP Z6 G4 Workstation
Supported Components
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 12
SATA Solid State Drives
Factory
Configured
Option
Kit
Option
Kit Part
Number
Support
Notes
HP Solid State Drives (SSDs) for Workstations
HP 256GB SATA SSD
Y Y A3D26AA
HP 512GB SATA SSD
Y Y D8F30AA
HP 1TB SATA SSD
Y Y F3C96AA
HP 2TB SATA SSD
Y
Y
Y6P08AA/AT
HP 256GB SATA SED OPAL2 SSD
Y Y G7U67AA
HP 512GB SATA SED OPAL2 SSD
Y Y N8T26AA
HP 240GB SATA Enterprise SSD
Y Y T3U07AA
HP 480GB SATA Enterprise SSD
Y Y T3U08AA
HP 960GB 2.5in Enterprise SATA-3 SSD
Y
Y
1W6P8AA
1920GB 2.5in Enterprise SATA-3 SSD Y Y 1W6P9AA
PCIe Solid State Drives
Factory
Configured
Option
Kit
Option
Kit Part
Number
Support
Notes
PCIe SSDs for HP Workstations
HP Z Turbo Drive 256GB MLC Z4/Z6 G4 SSD Kit
Y
Y
1PD56AA
4
HP Z Turbo Drive 512GB MLC Z4/Z6 G4 SSD Kit
Y
Y
1PD57AA/AT
4
HP Z Turbo Drive 1TB MLC Z4/Z6 G4 SSD Kit
Y
Y
1PD58AA
4
HP Z Turbo Drive 256GB TLC Z4/Z6 G4 SSD Kit
Y
Y
1PD59AA/AT
HP Z Turbo Drive 512GB TLC Z4/Z6 G4 SSD Kit
Y
Y
1PD60AA
HP Z Turbo Drive 1TB TLC Z4/Z6 G4 SSD Kit
Y
Y
1PD61AA
HP Z Turbo Drive 2TB TLC Z4/Z6 G4 SSD Kit
Y
Y
3KP39AA
HP Z Turbo Drive 256GB Z4/Z6 G4 SED Kit
N N EOL
4
HP Z Turbo Drive 512GB Z4/Z6 G4 SED Kit
N N EOL
4
HP Z Turbo Drive 1TB TLC Z4/Z6 G4 SED Kit
Y
Y
6YT76AA
HP Z Turbo Drive 1TB TLC Z4/Z6 G4 SED Module
Y
Y
6YT79AA
HP Z Turbo 2TB SED OPAL2 TLC M.2 Z4/Z6 SSD
Y
Y
2Y7W6AA
HP 256GB M.2 2280 PCIe NVMe TLC SSD Z2/Z4/Z6 Kit
Y
Y
8PE68AA
3
HP 512GB M.2 2280 PCIe NVMe TLC SSD Z2/Z4/Z6 Kit
Y
Y
8PE69AA
3
HP 1TB M.2 2280 PCIe NVMe TLC SSD Z2/Z4/Z6 Kit
Y
Y
8PE70AA
3
HP 256GB M.2 2280 PCIe NVMe TLC SSD Module
N
Y
8PE62AA
2
HP 512GB M.2 2280 PCIe NVMe TLC SSD Module
N
Y
8PE63AA
2
HP 1TB M.2 2280 PCIe NVMe TLC SSD Z2 Module
N
Y
8PE64AA
2
HP 2TB PCIe NVME TLC M.2 Z4/6 G4 SSD
Y
Y
35F74AA
HP Z Turbo Drive Dual Pro
HP Z Turbo Drive Dual Pro 256GB TLC SSD
Y
Y
4YF60AA
3
HP Z Turbo Drive Dual Pro 512GB TLC SSD
Y
Y
4YF61AA
3
HP Z Turbo Drive Dual Pro 1TB TLC SSD
Y
Y
4YF62AA
3
QuickSpecs
HP Z6 G4 Workstation
Supported Components
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 13
HP Z Turbo Drive Dual Pro 2TB TLC SSD
Y
Y
4YF63AA
3
HP 256GB M.2 2280 PCIe NVMe TLC SSD Dual Pro Kit
Y
Y
8PE74AA
3
HP 512GB M.2 2280 PCIe NVMe TLC SSD Dual Pro Kit
Y
Y
8PE75AA
3
HP 1TB M.2 2280 PCIe NVMe TLC SSD Dual Pro Kit
Y
Y
8PE76AA
3
HP Z Turbo Drive Quad Pro
HP Z Turbo Drive Quad Pro 2x256GB PCIe TLC SSD
Y
Y
4YZ38AA
1
HP Z Turbo Drive Quad Pro 2x512GB PCIe TLC SSD
Y
Y
4YZ39AA
1
HP Z Turbo Drive Quad Pro 2x1TB PCIe TLC SSD
Y
Y
4YZ40AA
1
HP Z Turbo Drive Quad Pro 2x2TB PCIe TLC SSD
Y
Y
3KP42AA
HP Z Turbo Drive Quad Pro 256GB SSD module
N
Y
N2N00AA
2
HP Z Turbo Drive Quad Pro 512GB SSD module
N
Y
N2N01AA
2
HP Z Turbo Drive Quad Pro 1TB SSD module
N
Y
T9J00AA
2
HP Z Turbo Drive Quad Pro 2TB SSD module
N
Y
3KP43AA
Intel® 905p Series SSD (Opatane SSD)
Intel® Optane SSD 905p 280GB AiC**
Y
Y
2SC47AA
Intel® Optane SSD 905p 480GB AiC**
Y
Y
2SC48AA
Intel® Optane SSD 905p 380GB M.2 SSD Module
Y
Y
6LA66AA
Note 1: Dual M.2 SSD modules plus carrier and heat sink
Note 2: M.2 SSD module only, for Quad Pro or Dual Pro carrier
Note 3: Single M.2 SSD module plus dual carrier and heat sink
Note 4: These M.2 SSD kits and module are End of Life and no longer available.
** PCIe card installed in standard PCIe x4 slot
Hard Drive Controllers
Factory
Configured
Option
Kit
Option
Kit Part
Number
Support
Notes
SAS Controller
MicroSemi SmartHBA2100-4i4e SAS Controller
Y
Y
1FV90AA
Graphics
Factory
Configured
Option
Kit
Option Kit
Part Number
Support
Notes
Supported
# of cards
Graphics Cable Adapters
HP DisplayPort to VGA Adapter
Y
Y
AS615AA
HP DisplayPort to HDMI Adapter
Y
Y
K2K92AA
HP DisplayPort to Dual Link DVI Adapter
Y
Y
NR078AA
1
HP DisplayPort to DVI-D Adapter
Y
Y
FH973AA
1
HP DisplayPort to DVI-D Adapter (2-pack)
Y N 1
HP DisplayPort to DVI-D Adapter (4-pack)
Y N 1
HP DisplayPort to DVI-D Adapter (6-pack)
Y N 1
NVIDIA® SLI 3-slot Graphics Connector
Y
Y
2YY85AA
1
Entry 3D
QuickSpecs
HP Z6 G4 Workstation
Supported Components
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 14
NVIDIA® Quadro® P400 2GB Graphics
Y
Y
1ME43AA
2
NVIDIA® Quadro® P620 2GB Graphics
Y
Y
3ME25AA
2
AMD FirePro™ W2100 2GB Graphics
Y Y J3G91AA
2
Mid-range 3D
NVIDIA® Quadro® P1000 4GB Graphics
Y Y 1ME01AA
3
NVIDIA® Quadro® P2000 5GB Graphics
Y
Y
1ME41AA
2
NVIDIA® Quadro® P2200 5GB Graphics
Y
Y
6YT67AA
2
AMD Radeon™ Pro WX 3100 4GB Graphics
Y
Y
2TF08AA
2
AMD Radeon™ Pro WX 3200 4GB Graphics
Y
Y
6YT68AA
2
AMD Radeon™ Pro WX 4100 4GB Graphics
Y Y Z0B15AA
2
High End 3D
NVIDIA® Quadro® P4000 8GB Graphics
Y Y 1ME40AA
2
NVIDIA® Quadro RTX 4000 8GB Graphics
Y Y 5JV89AA
2
AMD Radeon™ Pro W5500 8GB 4DP GFX
Y Y 9GC16AA/AT
2
AMD Radeon™ Pro W5700 8GB 5mDP+USBc GFX
Y
Y
9GC15AA/AT
1
AMD Radeon™ Pro WX 7100 8GB Graphics
Y Y Z0B14AA
2
Ultra High-End 3D
NVIDIA® Quadro® GP100 16GB Graphics
Y
1ZE81AA
1
NVIDIA® Quadro® P5000 16GB Graphics
Y
Y
Z0B13AA
2
NVIDIA® Quadro® P6000 24GB Graphics
Y
Y
Z0B12AA
1
NVIDIA® Quadro RTX 5000 16GB Graphics
Y Y 5JH81AA
1
NVIDIA® Quadro RTX 6000 24GB Graphics
Y Y 5JH80AA
1
NVIDIA® Quadro RTX 8000 48GB Graphics
Y Y 6NB51AA
1
AMD Radeon™ Pro WX 9100 16GB Graphics
Y Y 2TF01AA
1
NVIDIA® Quadro® Sync II
Y
Y
1WT20AA
Memory
CTO
Factory
Configured
Option
Kit
Option Kit
Part Number
Support
Notes
DDR4-2666 ECC Registered DIMMs
8GB (1x8GB) DDR4-2666 ECC Reg Memory
Y Y 1XD84AA
1
16GB (1x16GB) DDR4-2666 ECC Reg Memory
N
Y
1XD85AA
1
32GB (1x32GB) DDR4-2666 ECC Reg Memory
N
Y
1XD86AA
1
DDR4-2933 ECC Registered DIMMs
8GB (1x8GB) DDR4-2933 ECC Reg Memory
Y
Y
5YZ56AA
1
16GB (1x16GB) DDR4-2933 ECC Reg Memory
N
Y
5YZ54AA
1
32GB (1x32GB) DDR4-2933 ECC Reg Memory
N
Y
5YZ55AA
1
64GB (1x64GB) DDR4-2399 ECC Reg Memory
N
Y
5YZ57AA
1
NOTE 1: For details on the supported memory configurations on the HP Z6 G4 Workstation, please refer to the
System Technical Specifications - System Board section of this document.
Each processor supports up to 6 channels of DDR4 memory. To realize full performance at least 1 DIMM must
be inserted into each channel.
QuickSpecs
HP Z6 G4 Workstation
Supported Components
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 15
With single-processor configurations, 6 DIMM slots are available. 6 additional DIMM slots are available with
the 2nd CPU & Memory Module.
The CPUs determine the speed at which the memory is clocked. If a 2400MT/s capable CPU is used in the
system, the maximum speed the memory will run at is 2400MT/s, regardless of the specified speed of the
memory.
The Z6 G4 is designed to work ONLY with DDR4 memory. The system will not work with DDR3 memory.
NOTE 2: Z6 G4 configurations that include a 2nd CPU require the HP Z6 Memory Cooling
Solution, which is available
both CTO (2JA81AV) and AMO (2HW44AA). Z6 G4 configurations
that include greater than 32GB total system
memory require the HP Z6 Memory Cooling
Solution, which is available both CTO (2JA81AV) and AMO
(2HW44AA).
NOTE: Factory-configured CTO (xxxxxAV) and aftermarket AMO (xxxxxAA, xxxxxAT) HP memory part numbers
designated as “2666” may ship with "2933" or "3200" speed memory components. Similarly, HP Memory part
numbers designated as "2933" may ship with "3200" speed memory. This does not affect HP part number
availability, nor does it affect system performance or operation. All hardware configurations currently
supporting HP memory part numbers designated as “2666” or 2933 have been fully qualified to work with
fast speed memory and are fully supported by HP under standard support terms.
NVDIMM Memory
Factory
Configured
Option
Kit
Option Kit
Part Number
Support
Notes
Intel® Optane™ DC Persistent Memory (DCPMM)
128GB (1x128GB) DC Persistent Memory Module
Y
Y
9NH78AA
1
256GB (2x128GB) DC Persistent Memory Configuration
Y N
1
512GB (4x128GB) DC Persistent Memory Configuration
Y N
1,2
NOTE 1: Supported only with Xeon 82xx, 62xx, 52xx and 4215/4215R processors.
a. Available as factory configured in Memory Mode or Storage Mode.
b. Systems configured with DCPMM memory will operate the memory subsystem at 2666 MT/s.
c. Operating System Support:
i. Windows 10 Pro for Workstations v1903 or later with all updates applied.
ii. Linux OS support may be found in the Linux Hardware Support Matrix.
d. Detailed setup, security and support information may be found in the Intel® Optane™ DC Persistent
Memory: Configuration and Setup on HP Z6 G4 and Z8 G4 Workstation white paper.
e. DCPMM solutions require additional DRAM memory to be included in the solution:
i. Systems configured with DCPMM in Memory Mode will include DRAM memory to be used as cache.
The amount of included DRAM memory is based on an 8:1 DCPMM to DRAM capacity ratio.
ii. Systems configured with DCPMM in Storage Mode will require DRAM System Memory to be
ordered separately.
iii. DCPMM Memory will report approximately 2% less than advertised capacity .
f. Total Memory (DCPMM + DRAM) per processor must be <= 1TB or 2TB per dual processor system.
i. When configured in memory mode, additional DRAM does not count against maximum processor
memory.
g. Maximum number of DCPMM modules in a Z6G4 is 4 per processor.
h. Customer is responsible for additional required DRAM when adding DCPMM modules in Memory
Mode.
i. HP Z6G4 configured with some AMD Graphics are limited to 1TB of total DCPMM and DRAM memory.
See AMD Graphics specifications for details.
NOTE 2: Requires 2nd processor option.
Multimedia and Audio Devices
QuickSpecs
HP Z6 G4 Workstation
Supported Components
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 16
Multimedia and Audio Devices
Factory
Configured
Option
Kit
Option
Kit Part
Number
Support
Notes
Integrated Realtek HD ALC221 Audio
Y N
Optical and Removable Storage
Factory
Configured
Option Kit
Option Kit Part
Number
Support
Notes
HP SlimTray Optical Drives
HP 9.5mm Slim Blu Ray Disc Writer
Y Y K3R65AA
HP 9.5mm Slim DVD ROM
Y Y K3R63AA
HP 9.5mm Slim DVD Writer
Y Y K3R64AA
HP Half Height Optical Drives
HP HH DVD Writer (16X RW DVD-R)
N Y 4AR67AA
HP SD Card Reader
HP SD 4 Card Reader
Y Y Y0L99AA
HDD Frame/Carriers
HP DX175 Removable HDD Carrier
N Y 1ZX72AA
HP DX175 Removable HDD Frame/Carrier
N Y 1ZX71AA
NVMe Frame/Carrier
HP QX310 Removable NVMe Frame/Carrier
w/PCIe card
Y N 8GQ89AA/AT
HP QX310 Removable Carrier only
N Y 8GQ91AA/AT
Actual speeds may vary. No support for DVD-RAM (DVD Writer). Does not permit copying of
commercially available DVD movies or other copyright protected materials. Intended for creation and
storage of your original material and other lawful uses. Double Layer discs can store more data than
single layer discs. However, double-layer discs burned with this drive may not be compatible with
many existing single-layer DVD drives and players.
With Blu-ray, certain disc, digital connection, compatibility and/or performance issues may arise, and
do not constitute defects in the product. Flawless playback on all systems is not guaranteed. In order
for some Blu-ray titles to play, they may require a DVI or HDMI digital connection and your display may
require HDCP support. HD-DVD movies cannot be played on this workstation.
Networking and Communications
Factory
Configured
Option
Kit
Option
Kit Part
Number
Support Notes
HP i350-T2 PCIe Dual Port Gigabit NIC
Y
Y
V4A91AA
Intel® i350-T4 PCIe 4-Port Gigabit NIC
N
Y
W8X25AA
Intel® Ethernet I210-T1 PCIe x1 Gb NIC
Y
Y
E0X95AA
Aquantia® NBASE-T 5GbE PCIe NIC
N
Y
1PM63AA
HP Dual Port 10GBase-T NIC Module
Y
Y
1QL49AA
Intel® 8265 802.11 a/b/g/n/ac + BT PCIe WLAN
N
Y
1QL48AA
QuickSpecs
HP Z6 G4 Workstation
Supported Components
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 17
Intel® X550-T2 10GbE Dual Port NIC
Y
Y
1QL46AA
Intel® X710-DA2 10GbE SFP+ Dual Port NIC
Y
Y
1QL47AA
1
HP 10GbE SFP+ SR Transceiver
Y
Y
C3N53AA
Intel® Wi-Fi 6 AX200 & BT PCIe
N
Y
7CE01AA
1
Allied Telesis AT-2914SX/LC-901 1GB LC Fiber NIC Y Y 1C7Q2AA
Note 1: Windows 7 is NOT supported
Racking and Physical Security
QuickSpecs
HP Z6 G4 Workstation
Supported Components
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 18
Racking and Physical Security
Factory
Configured
Option
Kit
Option
Kit Part
Number
Support
Notes
HP Z4/Z6 Side Panel Barrel Keylock
Y N
HP Solenoid Lock / Hood Sensor
Y N
HP Z4/Z6 Depth Adjustable Fixed Rail Rack Kit
N
Y
2HW42AA
HP Z2 Mini/Z2 TWR/Z4/Z6 Dept Adj Fixed Rail Rack Kit
Y
2A8Y5AA
HP Keyed Cable Lock 10mm
N
Y
T1A62AA
Input Devices
Factory
Configured
Option
Kit
Option Kit
Part
Number
Support
Notes
HP Wireless Business Slim Keyboard and Mouse
Y
Y
N3R88AA
Business Slim PS/2 Wired Keyboard
Y
Y
N3R86AA
USB Business Slim Wired Keyboard
Y
Y
N3R87AA
USB Premium Wired Keyboard
Y
Y
Z9N40AA
USB Wired SmartCard CCID Keyboard
Y
Y
E6D77AA
3Dconnexion CADMouse
N
Y
M5C35AA
3DConnexion 3 Button Wired CAD Mouse Pro
N
Y
2H5H5AA
HP Optical USB Mouse
Y
Y
QY777AA
HP PS/2 Mouse
Y
Y
QY775AA
HP USB Hardened Mouse
Y
Y
P1N77AA
Other Hardware
Factory
Configured
Option Kit
Option Kit
Part
Number
Support Notes
HP ENERGY STAR® Certified Configuration
Y
HP Z Premium Front I/O 2xUSB-A 2xUSB-C
Y
Y
1XM32AA
HP Z6 G4 Memory Cooling Solution
Y
Y
2HW44AA
Note 1
HP Internal USB Port Kit
N
Y
EM165AA
Note 2
HP eSATA 2 port PCI Bulkhead Kit
Y
Y
GM110AA
HP Serial Port Adapter
Y
Y
PA716A
HP Workstation Mouse Pad
Y
Note 1: Z6 G4 configurations that include a 2nd CPU require the HP Z6 Memory Cooling Solution, which
is available both CTO (2JA81AV) and AMO (2HW44AA). Z6 G4 configurations that include greater than
32GB total system memory require the HP Z6 Memory Cooling Solution, which is available both CTO
(2JA81AV) and AMO (2HW44AA).
Note 2: The HP Internal USB Port kit has a single USB 2.0 type A connector.
QuickSpecs
HP Z6 G4 Workstation
Supported Components
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 19
Software
Factory
Configured
Option Kit
Option Kit
Part
Number
Support Notes
Sobey Video Editing SW
Y
N
SW HP RGS for Z
Y
N
HP Sure Start Gen3
Y
N
HP Performance Advisor
Y
N
QuickSpecs
HP Z6 G4 Workstation
Supported Components
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 20
Operating Systems
Support Notes
Windows 10 Pro
Windows 7 Professional 64-bit
Ubuntu 20.04 LTS
HP Linux® Installer Kit
Note 2
Red Hat® Enterprise Linux® (RHEL) Workstation - Paper License (1yr)
Note 1
NOTE 1: This second OS must be ordered with the HP Linux® Installer Kit as the first OS.
NOTE 2: For detailed Linux® OS/hardware support information, see:
http://www.hp.com/support/linux_hardware_matrix
For detailed Windows 7 OS hardware support information see
http://h10032.www1.hp.com/ctg/Manual/c05857891.pdf.
Intel Xeon® SP Processors: Platinum 8100, Gold 6100, Gold 5100, Silver 4100, & Bronze 3100 Family
support Microsoft Windows 7 Professional 64-bit.
QuickSpecs
HP Z6 G4 Workstation
System Technical Specifications
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 21
System Board
System Board Form
Factor
Main System Board:
24 x 31 cm
9.6 x 12.2 inches
2nd CPU/Memory Board (optional):
14.9 x 29.2 cm
5.85 x 11.50 inches
Processor Socket
FCLGA3647 (Socket P)
1st CPU on system board
2nd CPU on optional 2nd CPU/Memory Module
CPU Bus Speed
UPI: Up to 10.4GT/second, depending on processor
Chipset
Intel® C622 Chipset
Super I/O Controller
Nuvoton SIO15
Memory Expansion
Slots
6 on system board (CPU0) + 6 on optional 2nd CPU/Memory Module (CPU1)
Memory Type
Supported
DDR4 R-DIMM (Registered), ECC: 8GB, 16GB, 32GB, and 64GB
Memory Modes
NUMA (Non-Uniform Memory Architecture), Memory Node Interleave
Memory Speed
Supported
2133MT/s, 2400MHz, 2666MT/s, and 2933MT/s
Available Memory Configurations:
Single Processor
CPU 0
Top Slots
Bottom Slots
Capacity
DIMM1
DIMM2
DIMM3
DIMM4
DIMM5
DIMM6
Perf
Rating
8 GB
8 GB Fair
16 GB
8 GB
8 GB
Good
24 GB
8 GB
8 GB
8 GB Better
32 GB
8 GB
8 GB
8 GB 8 GB
Better
16 GB
16 GB
Good
48 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
Best
16 GB
16 GB
16 GB Better
64 GB
16 GB
16 GB
16 GB
16 GB
Better
32 GB
32 GB
Good
96 GB
16 GB
16 GB
16 GB
16 GB
16 GB
16 GB
Best
32 GB
32 GB
32 GB Better
128 GB
32 GB
32 GB
32 GB
32 GB
Better
192 GB
32 GB
32 GB
32 GB
32 GB
32 GB
32 GB
Best
256 GB
64 GB
64 GB
64 GB
64 GB
Better
384 GB
64 GB
64 GB
64 GB
64 GB
64 GB
64 GB
Best
QuickSpecs
HP Z6 G4 Workstation
System Technical Specifications
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 22
Dual Processor
CPU 0
CPU 1
Top Slots
Bottom Slots
Top Slots
Bottom Slots
Capacity
DIMM
1
DIMM
2
DIMM
3
DIMM
4
DIMM
5
DIMM
6
DIMM
1
DIMM
2
DIMM
3
DIMM
4
DIMM
5
DIMM
6
Rating
16 GB
8 GB 8 GB Fair
32 GB
8 GB
8 GB
8 GB
8 GB
Good
48 GB
8 GB
8 GB
8 GB 8 GB
8 GB
8 GB Better
64 GB
8 GB 8 GB
8 GB 8 GB
8 GB 8 GB
8 GB 8 GB
Better
16 GB
16 GB
16 GB
16 GB
Good
96 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
Best
16 GB
16 GB
16 GB 16 GB
16 GB
16 GB Better
128 GB
16 GB
16 GB
16 GB
16 GB
16 GB
16 GB
16 GB
16 GB
Better
32 GB
32 GB
32 GB
32 GB
Good
192 GB
16 GB
16 GB
16 GB
16 GB
16 GB
16 GB
16 GB
16 GB
16 GB
16 GB
16 GB
16 GB
Best
32 GB
32 GB
32 GB 32 GB
32 GB
32 GB Better
256 GB
32 GB
32 GB
32 GB
32 GB
32 GB
32 GB
32 GB
32 GB
Better
64 GB
64 GB
64 GB
64 GB
Best
384 GB
32 GB
32 GB
32 GB
32 GB
32 GB
32 GB
32 GB
32 GB
32 GB
32 GB
32 GB
32 GB
Better
64 GB
64 GB
64 GB 64 GB
64 GB
64 GB Best
512 GB
64 GB
64 GB
64 GB
64 GB
64 GB
64 GB
64 GB
64 GB
Fair
768 GB
64 GB
64 GB
64 GB
64 GB
64 GB
64 GB
64 GB
64 GB
64 GB
64 GB
64 GB
64 GB
Good
QuickSpecs
HP Z6 G4 Workstation
System Technical Specifications
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 23
Memory Loading Order:
Load Order for Single and Dual Processor Configuration
Maximum Memory
Supports up to 768 GB DDR4-2933 ECC RAM* (transfer rates up to 2933MT/s) and 384 GB DDR4-2666 ECC
RAM (transfer rates up to 2666MT/s).
Memory Configuration
(Supported)
• Only Registered ECC DIMMs are supported.
• Do not install memory modules into memory slots if corresponding processor is not installed.
• Dual processor configurations with memory modules installed for only one processor is not
supported.
Notes
For systems installed with Microsoft Windows 7 (Ultimate, Enterprise or Pro), the maximum accessible
system memory is 192GB
*768 GB configuration requires 2 CPUs configuration.
NVDIMM Memory
Intel® Optane™ DC Persistent Memory is available factory configured in the following capacities:
• 128GB (1x128GB) Single Processor Configuration
• 256GB (2x128GB) Single Processor Configuration
• 512GB (4x128GB) Dual Processor Configuration
NOTES:
a. Supported only with Xeon 82xx, 62xx, 52xx and 4215/4215R processors.
b. Available as factory configured in Memory Mode or Storage Mode.
c. Systems configured with DCPMM memory will operate the memory subsystem at 2666 MT/s.
d. Operating System Support:
i. Windows 10 Pro for Workstations v1903 or later with all updates applied.
ii. Linux OS support may be found in the Linux Hardware Support Matrix.
e. Detailed setup, security and support information may be found in the Intel® Optane™ DC
Persistent Memory: Configuration and Setup on HP Z6 G4 and Z8 G4 Workstation white paper.
f. DCPMM solutions require additional DRAM memory to be included in the solution:
QuickSpecs
HP Z6 G4 Workstation
System Technical Specifications
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 24
i. Systems configured with DCPMM in Memory Mode will include DRAM memory to be used as
cache. The amount of included DRAM memory is based on an 8:1 DCPMM to DRAM capacity
ratio.
ii. Systems configured with DCPMM in Storage Mode will require DRAM System Memory to be
ordered separately.
iii. DCPMM Memory will report approximately 2% less than advertised capacity .
g. Total Memory (DCPMM + DRAM) per processor must be <= 1TB or 2TB per dual processor system.
i. When Configured in Memory Mode, additional DRAM does not count against maximum
processor memory.
ii. Maximum number of DCPMM modules in a Z6G4 is 4 per processor.
h. Customer is responsible for additional required DRAM when adding DCPMM modules in Memory
Mode.
i. HP Z6G4 configured with some AMD Graphics are limited to 1TB of total DCPMM and DRAM
memory. See AMD Graphics specifications for details.
PCI Express Connectors
Slot 0:
Mechanical-only, for use with devices that require only rear bulkhead mounting or when 2nd CPU riser is
installed
Slot 1:
PCI Express Gen3 x4 - CPU with open-ended connector*
Slot 2:
PCI Express Gen3 x16 - CPU
Slot 3:
PCI Express Gen3 x4 - PCH with open-ended connector*
Slot 4:
PCI Express Gen3 x8 – CPU with open-ended connector (slot converts to x4 electrical when SSD is
installed in 2nd M.2 slot)*
Slot 5:
PCI Express Gen3 x16 - CPU
Slot 6:
PCI Express Gen3 x4 - PCH with open-ended connector*
M.2 Slot 1:
M.2 PCIe Gen 3 x4 - CPU up to 80mm storage devices
M.2 Slot 2:
M.2 PCIe Gen 3 x4 - CPU up to 80mm storage devices
* Open-ended connector allows a greater bandwidth (e.g. x16) card to be installed physically into a lower
bandwidth connector/slot.
Supported Drive
Interfaces
SATA
6 SATA @6Gb/s, supports RAID 0, 1, 5, & 10
Serial Attached SCSI
Requires Optional PCIe card
Factory Configured
RAID
SATA RAID 0 Striped Array
SATA RAID 1 Mirrored Array
SATA RAID 10 Striped/Mirrored
QuickSpecs
HP Z6 G4 Workstation
System Technical Specifications
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 25
Notes:
Factory integrated Intel® SATA RAID is Microsoft Windows only.
External SATA (eSATA)
Supported on all SATA ports configurable with optional eSATA* cable kit
* hot plug / hot swap not supported with eSATA
Network Controller
Integrated Intel®
I219LM GbE LAN
Supports the following management functionalities: Intel® AMT11.2, TXT, DASH
1.1, WOL, VLAN, and PXE 2.1
Integrated Intel X722
for 1GbE
Data rates supported: 1000 Mb/s
Compliance IEEE 802.1as/1588v2, 802.1p, 802.1Q, 802.3, 802.3ab, 802.3az,
802.3x
Up to 16 UDP/TCP programmable filters
Bus architecture: PCIe 3.0
UEFI and PXE Boot ROM support
Intel iWARP Support (RDMA)
Network transfer rates:
1000BASE-T (full-duplex) 2000 Mb/s
Management capabilities: WOL (Excluding Max Power Savings), auto MDI
crossover, PXE, Quad Hash filtering, RSS, Advanced cable
diagnostics
USB Connector(s)
Front
Front I/O Entry: 4 USB 3.1 Gen1 (Left-most Port has Charging Capability)
Front I/O Premium: 2x USB 3.1 Gen1, 2x USB 3.1 Gen2 Type-C™ (Left-most Port
has Charging Capability)
• Charging Ports provide 1.5 Amps @ 5 Volts
• Standard USB Type A Ports provide 900mA @ 5 Volts
• USB Type C Ports provide 3 Amps @ 5 Volts and adhere to the Power
Delivery 3.0 specification.
Rear
6 USB 3.1 G1 Type A
Internal
1 USB 3.1 G1 single-port header
1 USB 2.0 single-port header
1x USB 2.0 dual-port header
Integrated Graphics
No
HD Integrated Audio
Realtek ALC221
Flash ROM
Yes
CPU Fan Header
One for each CPU socket
Rear Chassis Fan Header
Yes
Front PCI Fan Header
Yes
CMOS Battery Holder Lithium
Yes
Integrated Trusted
Platform Module
Common Criteria EAL4+ Certified
FIPS 140-2 Certified
TPM Certified products list:
https://trustedcomputinggroup.org/membership/certification/tpm-certifiedproducts/
Power Supply Headers
Yes
Power Switch, Power
LED & Hard Drive LED
Header
Yes
Clear Password Jumper
Yes
QuickSpecs
HP Z6 G4 Workstation
System Technical Specifications
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 26
Serial Port
1 internal header
Parallel Port
No
Keyboard/Mouse
USB or PS/2
Hood Lock Header
Yes
Hood Sensor Header
Yes
Memory Fan
1 Memory Fan Header per CPU
AUX IN (audio)
No
Z6 Required Power Supply Info
Power Supply
1000W 90% Efficient, Custom PSU
(Wide Ranging, Active PFC)
Operating Voltage Range
90–269 VAC
Rated Voltage Range
100-127 VAC
200-240 VAC
118 VAC
Rated Line Frequency
50-60 Hz
400 Hz
Operating Line Frequency Range
47-66 Hz
393-407 Hz
Rated Input Current
12 A @ 100-127 VAC
6.3 A @ 200-240 VAC
12A @ 118 VAC
Heat Dissipation
(Configuration and software dependent)
Typical = 2467 btu/hr
Maximum = 4112 btu/hr
Power Supply Fan
80x25 mm variable speed
ENERGY STAR® Qualified
(Configuration dependent)
Yes
80 PLUS® Compliant
Yes, 90% Efficient
The Z6 G4 1000W power supply efficiency report can be found at this
link:
https://plugloadsolutions.com/psu_reports/HP_D15-
1K0P1A_1000W_ECOS%204838_Report.pdf
FEMP Standby Power Compliant @115V
(<1W in S5 – Power Off)
Yes
EuP Compliant @ 230V
(<0.5 W in S5 – Power Off)
Yes
CECP Compliant @ 220V
(<4W in S3 – Suspend to RAM)
Yes; Configuration dependent
Power Consumption in sleep mode
(as defined by ENERGY STAR®) – Suspend to RAM
(S3)
(Instantly Available PC)
<= 20W
Built-in Self Test LED
Yes
Surge Tolerant Full Ranging Power Supply
(withstands power surges up to 2000V)
Yes
Sensor Header
Integrated in Front User Interface (Power Switch, Power LED, HDD LED,
Speaker) Cable
Integrated Gigabit Ethernet
Integrated Intel® I219LM GbE LAN
Clear CMOS Button
Yes
QuickSpecs
HP Z6 G4 Workstation
System Technical Specifications
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 27
System Configuration
Example Z6 G4
Configuration #1
Processor
1x Intel Xeon 3104 (Six-core)
Memory
1x 8GB DDR4-2666 (Registered DIMM)
Graphics
1x NVIDIA Quadro P400
Disks / Optical
1x 500GB SATA 7200 ; 1x Slim DVD-ROM SATA
Power Supply
1000W 90% custom PSU
Other NA
Energy Consumption
115 VAC
230 VAC
100 VAC
LAN Enabled
LAN Disabled
LAN Enabled
LAN Disabled
LAN Enabled
LAN Enabled
Windows Idle (S0)
54.109
54.586
54.906
Windows Busy Typ(S0)
94.256
94.275
94.043
Windows Busy Max (S0)
95.992
95.268
95.643
Sleep (S3)
6.219
6.205
6.319
6.306
6.334
6.239
Off (S5)
3.354
3.343
3.521
3.341
3.350
3.342
Zero Power Mode (ErP)
0.209
0.388
0.195
Heat Dissipation
(Btu/hr)
115 VAC
230 VAC
100 VAC
LAN Enabled
LAN Disabled
LAN Enabled
LAN Enabled
LAN Disabled
LAN Enabled
Windows Idle (S0)
184.619
186.247
187.339
Windows Busy Typ(S0)
321.601
321.666
320.875
Windows Busy Max (S0)
327.524
325.054
326.334
Sleep (S3)
21.219
21.171
21.561
21.516
21.611
21.287
Off (S5)
11.444
11.406
12.014
11.399
11.430
11.403
Zero Power Mode (ErP)
0.713
1.323
0.665
Example Z6 G4
Configuration #2
Processor
1x Intel Xeon 4108 (Eight-core)
Memory
4x 8GB DDR4-2666 (Registered DIMM)
Graphics
1x NVIDIA Quadro P2000
Disks / Optical
2x 1TB SATA 7200 ; 1x Slim DVDRW SATA
Power Supply
1000W 90% custom PSU
Other NA
Energy Consumption
(Watts)
115 VAC
230 VAC
100 VAC
LAN Enabled
LAN Disabled
LAN Enabled
LAN Disabled
LAN Enabled
LAN Enabled
Windows Idle (S0)
61.661
61.531
61.354
Windows Busy Typ(S0)
168.665
167.375
166.535
Windows Busy Max (S0)
166.097
163.682
169.674
Sleep (S3)
7.231
7.177
7.229
7.217
7.324
7.248
Off (S5)
3.376
3.366
3.527
3.512
3.354
3.350
Zero Power Mode (ErP)
0.211
0.386
0.195
Heat Dissipation
(Btu/hr)
115 VAC
230 VAC
100 VAC
LAN Enabled
LAN Disabled
LAN Enabled
LAN Enabled
LAN Disabled
LAN Enabled
Windows Idle (S0)
210.387
209.944
209.340
QuickSpecs
HP Z6 G4 Workstation
System Technical Specifications
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 28
Windows Busy Typ(S0)
575.485
571.084
568.217
Windows Busy Max (S0)
576.959
575.543
578.928
Sleep (S3)
24.672
24.488
24.665
24.624
24.989
24.730
Off (S5)
11.519
11.484
12.034
11.983
11.443
11.430
Zero Power Mode (ErP)
0.720
1.317
0.665
Example Z6 G4
Configuration #3
ENERGY STAR
QUALIFIED
Processor
1x Intel Xeon 6136 (Twelve-core)
Memory
6x 8GB DDR4-2666 (Registered DIMM)
Graphics
1x NVIDIA QuadroP4000
Disks/Optical
2x 1TB SATA 7200 ; 1x Slim DVDRW SATA
Power Supply
1000W 90% custom PSU
Other NA
Energy Consumption
(Watts)
115 VAC
230 VAC
100 VAC
LAN Enabled
LAN Disabled
LAN Enabled
LAN Disabled
LAN Enabled
LAN Enabled
Windows Idle (S0)
79.074
79.109
79.938
Windows Busy Typ(S0)
324.975
317.991
327.451
Windows Busy Max (S0)
328.268
320.296
329.668
Sleep (S3)
7.847
7.756
7.878
7.826
7.931
7.852
Off (S5)
3.353
3.348
3.535
3.489
3.373
3.355
Zero Power Mode (ErP)
0.206
0.386
0.196
Heat Dissipation
(Btu/hr)
115 VAC
230 VAC
100 VAC
LAN Enabled
LAN Disabled
LAN Enabled
LAN Enabled
LAN Disabled
LAN Enabled
Windows Idle (S0)
269.801
269.920
272.748
Windows Busy Typ(S0)
1108.815
1084.985
1117.262
Windows Busy Max (S0)
1120.051
1092.850
1124.827
Sleep (S3)
26.774
26.463
26.880
26.702
27.061
26.791
Off (S5)
11.441
11.426
12.061
11.904
11.509
11.447
Zero Power Mode (ErP)
0.703
1.317
0.669
Example Z6 G4
Configuration #4
Processor
2x Intel Xeon 8160 (Dual 24-core)
Memory
12x 32GB DDR4-2666 (Registered DIMM)
Graphics
2x NVIDIA Quadro P5000
Disks / Optical
4x 2TB SATA 7200 ; 1x Slim DVDRW SATA
Power Supply
1000W 90% custom PSU
Other NA
Energy Consumption
(Watts)
115 VAC
230 VAC
100 VAC
LAN Enabled
LAN Disabled
LAN Enabled
LAN Disabled
LAN Enabled
LAN Enabled
Windows Idle (S0)
112.388
115.635
112.102
Windows Busy Typ(S0)
512.368
490.165
526.905
Windows Busy Max (S0)
698.548
673.465
706.461
Sleep (S3)
14.208
13.833
14.698
14.487
15.176
13.886
QuickSpecs
HP Z6 G4 Workstation
System Technical Specifications
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 29
Off (S5)
3.511
3.418
3.575
3.570
3.509
3.412
Zero Power Mode (ErP)
0.287
0.387
0.272
Heat Dissipation
(Btu/hr)
115 VAC
230 VAC
100 VAC
LAN Enabled
LAN Disabled
LAN Enabled
LAN Enabled
LAN Disabled
LAN Enabled
Windows Idle (S0)
383.469
394.547
382.492
Windows Busy Typ(S0)
1748.120
1672.443
1797.800
Windows Busy Max (S0)
2383.446
2297.863
2410.445
Sleep (S3)
48.478
47.198
50.150
49.430
51.781
47.379
Off (S5)
11.980
11.662
12.198
12.181
11.973
11.642
Zero Power Mode (ErP)
0.979
1.321
0.928
NOTE: Power consumption measurements do not take advantage of the Intel Turbo Boost Technology. As a result, power consumption
measurements may be higher.
DECLARED NOISE EMISSIONS
System Configuration
(Entry level)
Processor Info
Intel® Xeon® Gold 6130 processor 2.1GHz 12C CPU
Memory Info
24GB (3x8GB) DDR4-2666 ECC Memory RDIMMs
Graphics Info
1-NVIDIA® Quadro® P400 2GB
Disks/Optical
1-500GB SATA 7200RPM 3.5” HDD / 1-HP 9.5mm Slim Blu Ray Disc Writer
Power Supply
1000 W
Declared Noise Emissions
(in accordance with ISO
7779 and ISO 9296)
Sound Power
(LWAd, bels)
Deskside Sound Pressure
(LpAm, decibels)
Idle
3.3
15
Hard drive Operating
(random reads)
3.5
18
System Configuration
(Mid-range)
Processor Info
Intel® Xeon® Platinum 8168 processor 2.7GHz 24C CPU
Memory Info
96GB (6x16GB) DDR4-2666 ECC Memory RDIMMs
Graphics Info
1-NVIDIA® Quadro® P6000 24GB
Disks/Optical
2-4TB 6Gb/s 7200RPM SATA HDD / 1-HP 9.5mm Slim Blu Ray Disc Writer
Power Supply
1000 W
Declared Noise Emissions
(in accordance with ISO
7779 and ISO 9296)
Sound Power
(LWAd, bels)
Deskside Sound Pressure
(LpAm, decibels)
Idle
3.8
23
Hard drive Operating
(random reads)
3.9
23
QuickSpecs
HP Z6 G4 Workstation
System Technical Specifications
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 30
System Configuration
(High end)
Processor Info
2-Intel® Xeon® Gold 6136 processor 3.0GHz 12C CPU
Memory Info
192GB (12x16GB) DDR4-2666 ECC Memory RDIMMs
Graphics Info
1-NVIDIA® Quadro® P6000 24GB
Disks/Optical
2-4TB 6Gb/s 7200RPM SATA HDD / 1-HP 9.5mm Slim Blu Ray Disc Writer
Power Supply
1000 W
Declared Noise Emissions
(in accordance with ISO
7779 and ISO 9296)
Sound Power
(LWAd, bels)
Deskside Sound Pressure
(LpAm, decibels)
Idle
3.8
23
Hard drive Operating
(random reads)
3.9
24
ENVIRONMENTAL DATA
Environmental
Requirements
Temperature
Operating: 5° to 35° C (40° to 95° F)
Non-operating: -40° to 60° C (-40° to 140° F)
Humidity
Operating: 10% to 85% RH, non-condensing, 35° C maximum wet bulb
Non-operating: 10% to 90% RH, non-condensing, 35° C maximum wet bulb
Maximum Altitude
Operating: 3,048 m (10,000 feet)
Above 1524 m (5,000 feet) altitude, the maximum operating temperature is
reduced by 1° C (1.8° F) for every 305 m (1,000 feet) increase in elevation
Non-operating: 9,144 m (30,000 feet)
Shock (non-repetitive)
Operating: ½-sine: 40g, 2-3ms (~62 cm/sec)
Non-operating: ½-sine: 160 cm/s, 2-3ms (~105g)
square: 422 cm/s, 20g
Vibration
Operating random: 0.5g (rms), 5-300 Hz, up to 0.0025g²/Hz
Non-operating random: 2.0g (rms), 5-500 Hz, up to 0.0150 g²/Hz
Physical Security and Serviceability
Access Panel
Tool-less
Includes system board and memory information.
Optical Drive
Tool-less, no carrier or rails required
Hard Drives
Tool-less
Optional 5.25" external bay carriers
Expansion Cards
Tool-less
Processor Socket
1st socket on main system board. 2nd socket on optional 2nd CPU/Memory Module.
Blue User Touch Points
Yes, on primary serviceable components.
Color-coordinated Cables
and Connectors
Yes
QuickSpecs
HP Z6 G4 Workstation
System Technical Specifications
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 31
Memory
Tool-less
System Board
Torx T15 screws
2nd CPU/Memory Module: Tool-less
Front of Computer LEDs
Dual Color Power/Failure LED = Yes
HDD Activity LED = Yes
Configuration Record SW
Yes
Over-Temp Warning on
Screen
Yes, at POST screen on reboot
Restore CD/DVD Set
Yes, restores the computer to its original factory shipping image; can be obtained via HP Support.
Dual Function Front
Power Switch
Yes, also acts as a reset switch when held for 4 seconds.
Padlock Support
Yes
Cable Lock Support
Kensington Cable Lock (optional): Prevents entire system theft and system access. 3mm x 7mm slot at
rear of system
Universal Chassis Clamp
Lock Support
No
Solenoid Lock and Hood
Sensor
Access Panel Solenoid Lock: Yes (optional). Activated remotely to prevent system entry.
Access Panel Intrusion Sensor: Yes (optional).
Removable Media
Write/Boot Control
Yes, user can prevent the workstation from writing to or booting from removable media.
Power-On Password
Yes, prevents an unauthorized person from booting up the workstation
Setup Password
Yes, prevents an unauthorized person from changing the workstation configuration
3.3V Aux Power LED on
System PCA
Yes
NIC LEDs (integrated)
(Green & Amber)
Yes
CPUs and Heatsinks
CPU heatsink removal requires a T-30 Torx screwdriver.
Power Supply Diagnostic
LED
Yes
Front Power Button
Yes
Rear Power Button
Yes
Front Power LED
Yes, white (normal), red (fault)
Front Hard Drive Activity
LED
Yes, white
Front ODD Activity LED
Yes on device
Internal Speaker
Yes System/Emergency ROM
Flash Recovery
Recovers corrupted system BIOS.
Cooling Solutions
Air cooled forced convection
Power Supply Fans
1 - 80 mm x 80 mm x 25 mm (non-serviceable)
CPU Heatsink Fan
1st CPU: 1 - 80mm
Optional 2nd CPU: 1 - 60
mm x 25mm
Memory Fan
Fr ont memory fan: 1 – 80mm x 25m m
Memory duct blower: 1 – 90mm x 25mm
2nd CPU/Memory Module: 1 - 60mm x 25mm
QuickSpecs
HP Z6 G4 Workstation
System Technical Specifications
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 32
Chassis Fans
Front chassis fan : 1 - 120mm x 25mm
Rear chassis fan: 1 - 120mm x 25mm
HP Vision Diagnostics
Offline Edition
HP PC Hardware Diagnostics (UEFI) enables hardware level testing outside the operating system on
many components. The diagnostics can be invoked by pressing ESC then F2 upon the PC reboot, and is
available as a download from HP Support.
Access Panel Key Lock
Yes, side panel barrel keylock (optional from the factory only)
ACPI-Ready Hardware
Advanced Configuration and Power Management Interface (ACPI).
• Allows the system to wake from a low-power mode.
• Controls system power consumption, making it possible to place individual cards and
peripherals in a low-power or powered-off state without affecting other elements of the
system
Trusted Platform Module
Chip
Integrated Infineon TPM 2.0. TCG and FIPS 140-2 Certified
Integrated Chassis
Handles
Yes, Front handle and dedicated rear recess
Power Supply
Requires T15 Torx or flat blade screwdriver
PCIe Card Retention
Yes, tool-less
Rear (all)
Middle (full-height cards)
Front (full-length cards with extender)
Flash ROM
Yes
Diagnostic Power Switch
LED on board
Yes
Clear Password Jumper
Yes
Clear CMOS Button
Yes
CMOS Battery Holder
Yes
DIMM Connectors
Yes
BIOS
BIOS 32-bit Services
Standard BIOS 32-bit Service Directory Proposal v0.4
PCI 3.0 Support
Full BIOS support for PCI Express through industry standard interfaces.
ATAPI
ATAPI Removable Media Device BIOS Specification Version 1.0.
BBS
BIOS Boot Specification v1.01.
WMI Support
WMI is Microsoft's implementation of Web-Based Enterprise Management (WBEM) for Windows. WMI is
fully compliant with the Distributed Management Task Force (DMTF) Common Information Model (CIM)
and WBEM specifications.
BIOS Boot Spec 1.01+
Provides more control over how and from what devices the workstation will boot.
BIOS Power On
Users can define a specific date and time for the system to power on.
ROM Based Computer
Setup Utility (F10)
Review and customize system configuration settings controlled by the BIOS.
System/Emergency ROM
Flash Recovery with
Video
Recovers system BIOS in corrupted Flash ROM.
Replicated Setup
Saves BIOS settings to USB flash device in human readable file (HpSetup.txt).
BiosConfigurationUtility.exe utility can then replicate these settings on machines being deployed
without entering Computer Configuration Utility (F10 Setup).
SMBIOS
System Management BIOS 2.8, for system management information.
Boot Control
Disables the ability to boot from removable media on supported devices.
Memory Change Alert
Alerts management console if memory is removed or changed.
QuickSpecs
HP Z6 G4 Workstation
System Technical Specifications
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 33
Thermal Alert
Monitors the temperature state within the chassis. Three modes:
• NORMAL - normal temperature ranges.
• ALERTED - excessive temperatures are detected. Raises a flag so action can be taken to avoid
shutdown or provide for a smoother system shutdown.
• SHUTDOWN - excessive temperatures are encountered. Automatically shuts down the computer
without warning before hardware component damage occurs.
Remote ROM Flash
Provides secure, fail-safe ROM image management from a central network console.
ACPI (Advanced
Configuration and Power
Management Interface)
Allows the system to enter and resume from low power modes (sleep states).
Enables an operating system to control system power consumption based on the dynamic workload.
Makes it possible to place individual cards and peripherals in a low-power or powered-off state without
affecting other elements of the system.
Supports ACPI 5.0 for full compatibility with 64-bit operating systems.
Ownership Tag
A user-defined string stored in non-volatile memory that is displayed in the BIOS splash screen.
Remote Wakeup/Remote
Shutdown
System administrators can power on, restart, and power off a client computer from a remote location.
Instantly Available PC
(Suspend to RAM - ACPI
sleep state S3)
Allows for very low power consumption with quick resume time.
Remote System
Installation via F12 (PXE
2.1) (Remote Boot from
Server)
Allows a new or existing system to boot over the network and download software, including the
operating system.
ROM revision levels
Reports the system BIOS revision level in Computer Configuration Utility (F10 Setup). Version is
available through an industry standard interface (SMBIOS and WMI) so that management SW
applications can use and report this information.
System board revision
level
Allows management SW to read revision level of the system board.
Revision level is digitally encoded into the HW and cannot be modified.
Start-up Diagnostics
(Power-on Self-Test)
Assesses system health at boot time with selectable levels of testing.
Auto Setup when new
hardware installed
System automatically detects addition of new hardware.
Keyboard-less Operation
The system can be booted without a keyboard.
Localized ROM Setup
Common BIOS image supports System Configuration Utility (F10 Setup) menus in 14 languages with
local keyboard mappings.
Asset Tag
The user or MIS to set a unique tag string in non-volatile memory.
Per-slot Control
Allows I/O slot parameters (option ROM enable/disable, bus latency) to be configured individually.
Adaptive Cooling
Control parameters are set according to detected hardware configuration for optimal acoustics.
Pre-boot Diagnostics
(Pre-video) critical errors are reported via beeps and blinks on the power LED.
Industry Standard
Specification Support
Industry Standard
Revision Supported by the BIOS
UEFI Specification
Revision
2.6
ACPI
Advanced Configuration and Power Management Interface, Version 5.0
ATA (IDE)
AT Attachment 6 with Packet Interface (ATA/ATAPI-6), Revision 3b
CD Boot
"El Torito" Bootable CD-ROM Format Specification Version 1.0
EDD
- Enhanced Disk Drive Specification Version 1.1
- BIOS Enhanced Disk Drive Specification Version 3.0
EHCI
Enhanced Host Controller Interface for Universal Serial Bus, Revision 1.0
PCI
PCI Local Bus Specification, Revision 2.3
PCI Power Management Specification, Revision 1.1
PCI Firmware Specification, Revision 3.0, Draft .7
QuickSpecs
HP Z6 G4 Workstation
System Technical Specifications
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 34
PCI Express
PCI Express Base Specification, Revision 2.0
PCI Express Base Specification, Revision 3.0
PMM
POST Memory Manager Specification, Version 1.01
SATA
Serial ATA Specification, Revision 1.0a
Serial ATA 3 Gb/s: Serial ATA Specification, Revision 2.5
Serial ATA 6 Gb/s: Serial ATA Specification, Revision 3.0
SPD
PC SDRAM Serial Presence Detect (SPD) Specification, Revision 1.2B
TPM
Trusted Platform Module (TPM) 2.0 (Infineon SLB 9670)
Common Criteria EAL4+ Certified
FIPS 140-2 Certification
TCG TPM Certified products list:
http://www.trustedcomputinggroup.org/certification/tpm-certified-products/
UHCI
Universal Host Controller Interface Design Guide, Revision 1.1
USB
Universal Serial Bus Revision 1.1 Specification
Universal Serial Bus Revision 2.0 Specification
Universal Serial Bus Revision 3.1 Specification
SMBIOS
System Management BIOS Reference Specification, Version 2.8
External BIOS simulator found at: http://csrsml.itcs.hp.com/
Social and Environmental Responsibility
Eco-Label Certifications &
Declarations
This product has received or is in the process of being certified to the following approvals and may be
labeled with one or more of these marks:
• ENERGY STAR® (energy-saving features available on selected configurations-Windows only)
• US Federal Energy Management Program (FEMP)
• China Energy Conservation Program
• The ECO declaration (TED)
The Z6 G4 is registered EPEAT® Gold in the US and Canada. EPEAT® registration varies by country. See
http://www.epeat.net for registration status by country. Search keyword generator on HP’s 3rd party
option store for solar generator accessories at http://www.hp.com/go/options
Batteries
The battery in this product complies with EU Directive 2006/66/EC
Battery mass: 3g
Battery type: Lithium Metal
The battery in this product does not contain:
• Mercury greater than 5ppm by weight
• Cadmium greater than 10ppm by weight
• Lead greater than 40ppm by weight
Restricted Material Usage
This product meets the material restrictions specified in HP's General Specification for the Environment.
HP Inc. is committed to compliance with all applicable environmental laws and regulations, including
the European Union Restriction of Hazardous Substances (RoHS) Directive. HP's goal is to exceed
compliance obligations by meeting the requirements of the RoHS Directive on a worldwide basis
.
Low Halogen Statement
This product is low-halogen except for power cords, external cables and peripherals. Service parts
obtained after purchase may not be low-halogen.
QuickSpecs
HP Z6 G4 Workstation
System Technical Specifications
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 35
End-of-Life Management
and Recycling
HP Inc. offers end-of-life HP product return and recycling programs in many geographic areas. To
recycle your product, please go to: http://www.hp.com/recycle or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a responsible manner. This
product is greater than 90% recyclable by weight when properly disposed of at end of life.
HP Inc. Corporate
Environmental
Information
For more information about HP's commitment to the environment:
Sustainability Report
Eco-label certifications:
http://www.hp.com/hpinfo/globalcitizenship/environment/productdesign/ecolabels.html
ISO 14001 certificate:
http://www.hp.com/hpinfo/globalcitizenship/environment/operations/envmanagement.html
Additional Information
• This HP product is designed to comply with the Waste Electrical and Electronic Equipment
(WEEE) Directive – 2002/96/EC. Product Disassembly Instructions
• Plastic parts weighing over 25 grams used in the product are marked per ISO 11469 and
ISO1043.
Packaging
HP Workstation product packaging meets the HP's General Specification for the Environment
• Does not contain restricted substances listed in HP Standard 011-1 General Specification for
the Environment
• Does not contain ozone-depleting substances (ODS)
• Does not contain heavy metals (lead, mercury, cadmium or hexavalent chromium) in excess of
100 ppm sum total for all heavy metals listed
• Maximizes the use of post-consumer recycled content materials in packaging materials
• All packaging material is recyclable
• All packaging material is designed for ease of disassembly
• Reduced size and weight of packages to improve transportation fuel efficiency
• Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards
formatting
• A multi-unit eco packaging option is available to institutional customers that uses less
packaging material or has a lower volume footprint than conventional single-unit packaging.
Please contact your sales representative for additional details.
Packaging Materials
Internal
Cushions and plastic bags made of low density polyethylene (LDPE).
External
Outer carton, accessories carton, and insert made of corrugated paper board.
Manageability
Industry Standard
Specifications
This product meets the following industry standard specifications for manageability functionality:
• DASH 1.1 (via Intel® LAN on motherboard)
Intel® Active Management
Technology (AMT)
Intel® Active Management Technology (AMT) 11.2x
An advanced set of remote management features and functionality providing IT administrators the
latest and most effective tools to remotely discover, heal, and protect networked client systems
regardless of the system's health or power state. AMT 11.2x includes the following advanced
management functions:
• Power Management (on, off, reset, graceful shutdown, sleep and hibernate)
o Support in Max Power Savings (Shutdown and Hibernate Modes)
• Hardware Inventory (includes BIOS and firmware revisions)
• Hardware Alerting
QuickSpecs
HP Z6 G4 Workstation
System Technical Specifications
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 36
• Agent Presence
• System Defense Filters
• Serial Over LAN (SOL)
•
USB Redirect (Media Redirection)
• ME Wake-on-LAN (WOL)
, even with Maximum Power Savings Enabled
• DASH 1.1 compliance
• IPv6 Support
• Fast Call for Help - a client inside or outside the firewall may initiate a call for help via BIOS
screen, periodic connections, or alert triggered connection
• Remote Scheduled Maintenance - pre-schedule when the system connects to the IT or service
provider console for maintenance.
• Remote Alerts - automatically alert IT or service provider if issues arise
• Access Monitor - Provides oversight into Intel® AMT actions to support security requirements
• PC Alarm Clock
• Microsoft NAP Support
• Host Base set-up and configuration
• Management Engine (ME) firmware roll back
• Local Time Sync to UTC
• Remote Memory Dump Command – Creates memory dump for debug
Intel® vPro™ Technology
The HP Z6 G4 Workstation supports Intel® vPro™ technology when configured as outlined below:
• Intel® Xeon® processor Scalable Family
• Intel® C622 chipset
• Intel® I219LM GbE LAN
Remote Manageability
Software Solutions
The HP Z6 G4 Workstation is supported on the following remote manageability software consoles:
• LANDesk Management Suite (HP recommended solution)
• Microsoft System Center Configuration Manager
• HP Client Automation Enterprise
For questions or support for manageability needs, please visit
http://www.hp.com/go/clientmanagement
System Software
Manager
For questions or support for SSM, please visit: http://www.hp.com/go/ssm
Service, Support, and
Warranty
On-site Warranty and Service (Note 1): Three-years, limited warranty and service offering delivers onsite, next business-day (Note 2) service for parts and labor and includes free telephone support (Note 3)
8am - 5pm. Global coverage (Note 2) ensures that any product purchased in one country and
transferred to another, non-restricted country will remain fully covered under the original warranty and
service offering. 24/7 operation will not void the HP warranty.
NOTE 1: Terms and conditions may vary by country. Certain restrictions and exclusions apply.
NOTE 2: On-site service may be provided pursuant to a service contract between HP and an authorized
HP third-party provider, and is not available in certain countries. Global service response times are
based on commercially reasonable best effort and may vary by country.
NOTE 3: Technical telephone support applies only to HP-configured, HP and HP-qualified, third-party
hardware and software. Toll-free calling and 24x7 support service may not be available in some
countries.
HP Care Pack Services extend service contracts beyond the standard warranties. Service starts from
date of hardware purchase. To choose the right level of service for your HP product, use the HP Care
Pack Services Lookup Tool at: http://www.hp.com/go/lookuptool. Additional HP Care Pack Services
information by product is available at: http://www.hp.com/hps/carepack. Service levels and response
times for HP Care Packs may vary depending on your geographic location.
QuickSpecs
HP Z6 G4 Workstation
System Technical Specifications
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 37
Product Change
Notification
• Program to proactively communicate Product Change Notifications (PCNs) and Customer
Advisories by email to customers, based on a user-defined profile.
• PCNs provide advance notification of hardware and software changes to be implemented in the
factory providing time to plan for transition.
• Customer Advisories provide concise, effective problem resolution, greatly reducing the need
to call technical support.
QuickSpecs
HP Z6 G4 Workstation
Stable & Consistent Offerings
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 38
Global Series SKUs
As part of its commitment to hardware, software, and solution innovation, HP is proud to introduce
this breakthrough platform configuration stability to HP Workstation customers. HP Stable &
Consistent Offerings are built on the foundation of a carefully chosen set of hardware and software
designed and tested to work with all HP Z Workstation platforms through their end of life. These
components and their corresponding HP Workstation platform compatibility are outlined in this
section.
Stable & Consistent
Offerings
HP Stable & Consistent Offerings are available worldwide to all HP Workstation customers-no
special programs, no additional cost-no kidding. Simply select your hardware and software
components when you customize your HP Workstation and be assured that you'll be able to buy that
same configuration throughout the lifecycle of the product.
Processors
Product #
Offering
2DL32AV
Intel® Xeon® Gold 6128 processor
2DL32AV, 1XM44AA
Intel® Xeon® Gold 6128 2nd processor
2DL22AV
Intel® Xeon® Silver 4114 processor
2DL22AV, 1XM49AA
Intel® Xeon® Silver 4114 2nd processor
2DL18AV
Intel® Xeon® Silver 4108 processor
2DL18AV, 1XM51AA
Intel® Xeon® Silver 4108 2nd processor
Hard Drives
Product #
Offering
Z5H22AV, LQ037AA
1TB SATA 7200 RPM 3.5” HDD
Graphics
Product #
Offering
2TF08AA
AMD Radeon™ Pro WX 3100 4GB Graphics
Memory
Product #
Offering
TBD
TBD
Optical and Removable
Storage
Product #
Offering
TBD
TBD
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Processors
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 39
Intel® Xeon® W-3200 Series CPU
Intel® Xeon® W-3245 3.2 2933 16C processor
Intel® Xeon® W-3235 3.3 2933 12C processor
Intel® Xeon® W-3225 3.7 2666 8C processor
Intel® Xeon® W-3223 3.5 2666 8C processor
Intel® Xeon® Scalable CPU
Intel® Xeon® Platinum 8280 processor
Intel® Xeon® Platinum 8260 processor
Intel® Xeon® Gold 6258R processor
Intel® Xeon® Gold 6254 processor
Intel® Xeon® Gold 6252 processor
Intel® Xeon® Gold 6248R processor
Intel® Xeon® Gold 6248 processor
Intel® Xeon® Gold 6246R processor
Intel® Xeon® Gold 6244 processor
Intel® Xeon® Gold 6242R processor
Intel® Xeon® Gold 6242 processor
Intel® Xeon® Gold 6240R processor
Intel® Xeon® Gold 6240Y processor
Intel® Xeon® Gold 6240 processor
Intel® Xeon® Gold 6238R processor
Intel® Xeon® Gold 6238 processor
Intel® Xeon® Gold 6234 processor
Intel® Xeon® Gold 6230R processor
Intel® Xeon® Gold 6230 processor
Intel® Xeon® Gold 6226R processor
Intel® Xeon® Gold 6226 processor
Intel® Xeon® Gold 6154 processor
Intel® Xeon® Gold 6136 processor
Intel® Xeon® Gold 6134 processor
Intel® Xeon® Gold 6132 processor
Intel® Xeon® Gold 6128 processor
Intel® Xeon® Gold 5222 processor
Intel® Xeon® Gold 5220R processor
Intel® Xeon® Gold 5220 processor
Intel® Xeon® Gold 5218R processor
Intel® Xeon® Gold 5218 processor
Intel® Xeon® Gold 5215 processor
Intel® Xeon® Gold 5118 processor
Intel® Xeon® Gold 4216 processor
Intel® Xeon® Gold 4215R processor
Intel® Xeon® Gold 4215 processor
Intel® Xeon® Gold 4214R processor
Intel® Xeon® Gold 4214Y processor
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Processors
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 40
Intel® Xeon® Gold 4214 processor
Intel® Xeon® Gold 4210R processor
Intel® Xeon® Gold 4210 processor
Intel® Xeon® Gold 4208 processor
Intel® Xeon® Silver 4114 processor
Intel® Xeon® Silver 4112 processor
Intel® Xeon® Silver 4108 processor
Intel® Xeon® Bronze 3206R processor
Intel® Xeon® Bronze 3204 processor
Intel® Xeon® Bronze 3106 processor
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Hard Drives
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 41
STORAGE/HARD DRIVES
HP SAS (Serial Attached
SCSI) Hard Drives for HP
Workstations
HP 300GB SAS 15K SFF
HDD
Capacity
300GB
Height
5.9 in; 15 cm
Width
Media Diameter
3.5 in; 8.9 cm
Interface
12Gb/s SAS
Synchronous Transfer
Rate (Maximum)
Up to 1200 MB/s (SAS single port)*
Buffer
128MB
Seek Time (typical reads,
includes controller
overhead, including
settling)
Average
2.0ms *
Rotational Speed
15K rpm
Operating Temperature
41° to 131° F (5° to 55° C)
*Actual performance may vary.
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Hard Drives
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 42
SATA (Serial ATA) Hard
Drives for HP
Workstations
500GB SATA 7200 rpm
6Gb/s 3.5" HDD
Capacity
500GB
Height
1 in; 2.54 cm
Width
Media Diameter
3.5 in; 8.9 cm
Physical Size
4 in; 10.17 cm
Interface
Serial ATA (6.0Gb/s), NCQ enabled
Synchronous Transfer
Rate (Maximum)
Up to 600MB/s*
Buffer
16MB
Seek Time (typical reads,
includes controller
overhead, including
settling)
Single Track
2 ms*
Average
11 ms*
Full Stroke
21 ms*
Rotational Speed
7,200 rpm
Logical Blocks
976,773,168
Operating Temperature
41° to 131° F (5° to 55° C)
*Actual performance may vary.
1TB SATA 7200 rpm
6Gb/s 3.5" HDD
Capacity
1TB
Height
1 in; 2.54 cm
Width
Media Diameter
3.5 in; 8.9 cm
Physical Size
4 in; 10.17 cm
Interface
Serial ATA (6.0Gb/s), NCQ enabled
Synchronous Transfer
Rate (Maximum)
Up to 600 MB/s*
Buffer
64MB
Cache
Adaptive
Seek Time (typical reads,
includes controller
overhead, including
settling)
Single Track
2 ms*
Average
11 ms*
Full Stroke
21 ms*
Rotational Speed
7,200 rpm
Operating Temperature
41° to 131° F (5° to 55° C)
*Actual performance may vary.
2.0TB SATA 7200 rpm
6Gb/s 3.5" HDD CMR
Capacity
2.0TB
Height
1 in; 2.54 cm
Width
Media Diameter
3.5 in; 8.9 cm
Physical Size
4 in; 10.17 cm
Interface
Serial ATA (6.0 Gb/s), NCQ Enabled
Synchronous Transfer
Rate (Maximum)
Up to 600 MB/s*
Buffer
64MB
Seek Time (typical reads,
includes controller
overhead, including
settling)
Single Track
1.0 ms*
Average
11 ms*
Full Stroke
18 ms*
Rotational Speed
7,200 rpm
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Hard Drives
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 43
Logical Blocks
3,907,029,168
Operating Temperature
41° to 131° F (5° to 55° C)
*Actual performance may vary.
2.0TB SATA 7200 rpm
6Gb/s 3.5" HDD SMR
Capacity
2.0TB
Height
1 in; 2.54 cm
Width
Media Diameter
3.5 in; 8.9 cm
Physical Size
4 in; 10.17 cm
Interface
Serial ATA (6.0 Gb/s), NCQ Enabled
Synchronous Transfer
Rate (Maximum)
Up to 600 MB/s*
Buffer
64MB
Seek Time (typical reads,
includes controller
overhead, including
settling)
Single Track
1.2 ms*
Average
12 ms*
Full Stroke
21 ms*
Rotational Speed
7,200 rpm
Logical Blocks
3,907,029,168
Operating Temperature
41° to 140° F (5° to 60° C)
*Actual performance may vary.
3.0TB SATA 7200 rpm
6Gb/s 3.5" HDD
Capacity
3.0TB
Height
1 in; 2.54 cm
Width
Media Diameter
3.5 in; 8.9 cm
Physical Size
4.0 in; 10.17 cm
Interface
Serial ATA (6.0Gb/s), NCQ enabled
Synchronous Transfer
Rate (Maximum)
Up to 6.0 Gb/s*
Buffer
64MB
Seek Time (typical reads,
includes controller
overhead, including
settling)
Single Track
0.6 ms*
Average
11 ms*
Full Stroke
Not Specified*
Rotational Speed
7,200 rpm
Operating Temperature
41° to 140° F (5° to 60° C)
*Actual performance may vary.
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Hard Drives
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 44
1TB SATA 7200 rpm
6Gb/s 3.5" HDD
(Enterprise Class)
Capacity
1TB
Protocol
SATA
Form Factor
3.5"
Controller
AHCI
Reliability (MTBF)
2.0M hours
Rated Power On Hours
8760/yr
Annualized Failure Rate
(based on Rated POH)
<0.62%
Rated for 24/7/365
operation
YES
Physical Size (Height)
1 in; 2.54 cm
Physical Size (Width)
4 in; 10.17 cm
Media Diameter
3.5 in; 8.9 cm
Interface
Serial ATA (6Gb/s), NCQ enabled
Synchronous Transfer
Rate (Maximum)
Up to 600MB/s*
Buffer
128MB
Seek Time (typical reads,
includes controller
overhead, including
settling)
Single Track
0.32ms*
Average
7.45ms*
Full Stroke
14.2ms*
Operating Temperature
41° to 140° F (5° to 60° C)
Performance
Sequential Read
up to 226MB/s*
Sequential Write
up to 226MB/s*
Enterprise Class Features
High Reliability
*Actual performance may vary.
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Hard Drives
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 45
4TB SATA 7200 rpm
6Gb/s 3.5" HDD
(Enterprise Class)
Capacity
4TB
Height
0.275 in; 0.7 cm
Width
Media Diameter
2.5 in; 6.36 cm
Physical Size
2.75 in; 6.99 cm
Interface
Serial ATA (6Gb/s), NCQ enabled
Synchronous Transfer
Rate (Maximum)
Up to 600MB/s*
Buffer
128MB
Seek Time (typical reads,
includes controller
overhead, including
settling)
Single Track
0.7ms*
Average
8.5ms*
Full Stroke
15.7ms*
Rotational Speed
7,200 rpm
Operating Temperature
32° to 140° F (0° to 60° C)
*Actual performance may vary.
500GB SATA 7.2K SED
SFF HDD
Capacity
500GB
Height
0.275 in; 0.7 cm
Width
Media Diameter
2.5 in; 6.36 cm
Physical Size
2.75 in; 6.99 cm
Interface
Serial ATA (6Gb/s)
Synchronous Transfer
Rate (Maximum)
Up to 600MB/s*
Buffer
32MB
Seek Time (typical reads,
includes controller
overhead, including
settling)
Single Track
1ms*
Average
4.2ms*
Full Stroke
25ms (typical)*
Rotational Speed
7,200 rpm
Operating Temperature
32° to 140° F (0° to 60° C)
*Actual performance may vary.
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Hard Drives
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 46
SATA SSDs for HP
Workstations
HP 256GB SATA 6Gb/s
SSD
Capacity
256GB
Protocol
SATA
Form Factor
2.5"
Controller
AHCI
NAND Type
3D TLC
Endurance
192TBW (TB Written)
Reliability (MTTF)
1.5M hours
Physical Size (Height)
0.28 in; 0.7 cm
Physical Size (Width)
2.5 in; 6.36 cm
Interface
SATA 6Gb/s
Synchronous Transfer
Rate (Maximum)
Up to 600MB/s*
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
530MB/s (max)*
Sequential Write
500MB/s (max)*
Random Read
95K IOPS (max)*
Random Write
83K IOPS (max)*
*Actual performance may vary.
HP 256GB SATA 6Gb/s
SED Opal 2 SSD
Capacity
256GB
Protocol
SATA
Form Factor
2.5"
Controller
AHCI
NAND Type
3D TLC
Endurance
192TBW (TB Written)
Reliability (MTTF)
1.5M hours
Physical Size (Height)
0.28 in; 0.7 cm
Physical Size (Width)
2.5 in; 6.36 cm
Interface
6Gb/s SATA
Synchronous Transfer
Rate (Maximum)
Up to 550MB/s (Sequential Read)*
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
530MB/s*
Sequential Write
500 MB/s*
Random Read
95K IOPS*
Random Write
83K IOPS*
Self-Encrypting Drive
Support
OPAL 2
*Actual performance may vary.
HP 512GB SATA 6Gb/s
SSD
Capacity
512GB
Protocol
SATA
Form Factor
2.5"
Controller
AHCI
NAND Type
3D TLC
Endurance
388TBW (TB Written)
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Hard Drives
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 47
Reliability (MTTF)
1.5M hours
Physical Size (Height)
0.28 in; 0.7 cm
Physical Size (Width)
2.5 in; 6.36 cm
Interface
SATA 6Gb/s
Synchronous Transfer
Rate (Maximum)
Up to 550MB/s (Sequential Read)*
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
530 MB/s*
Sequential Write
500 MB/s*
Random Read
95K IOPS*
Random Write
83K IOPS*
*Actual performance may vary.
HP 512GB SATA SED SSD
Capacity
512GB
Protocol
SATA
Form Factor
2.5"
Controller
AHCI
NAND Type
3D TLC
Endurance
388TBW (TB Written)
Reliability (MTTF)
1.5M hours
Physical Size (Height)
0.28 in; 0.7 cm
Physical Size (Width)
2.5 in; 6.36 cm
Interface
SATA 6Gb/s
Synchronous Transfer
Rate (Maximum)
Up to 600MB/s*
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
530 MB/s*
Sequential Write
500 MB/s*
Random Read
95K IOPS*
Random Write
83K IOPS*
Self-Encrypting Drive
Support
OPAL 1 and 2
*Actual performance may vary.
HP 1TB SATA 6Gb/s SSD
Capacity
1TB
Protocol
SATA
Form Factor
2.5"
Controller
AHCI
NAND Type
3D TLC
Endurance
400TBW (TB Written)
Reliability (MTTF)
1.5M hours
Physical Size (Height)
0.28 in; 0.7 cm
Physical Size (Width)
2.5 in; 6.36 cm
Interface
SATA 6Gb/s
Synchronous Transfer
Rate (Maximum)
Up to 550MB/s (Sequential Read)*
Operating Temperature
32° to 158° F (0° to 70° C)
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Hard Drives
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 48
Performance
Sequential Read
530 MB/s*
Sequential Write
500 MB/s*
Random Read
95K IOPS*
Random Write
83K IOPS*
*Actual performance may vary.
HP 2TB SATA 6Gb/s SSD
Capacity
2TB
Protocol
SATA
Form Factor
2.5"
Controller
AHCI
NAND Type
3D TLC
Endurance
400TBW (TB Written)
Reliability (MTTF)
1.5M hours
Physical Size (Height)
0.28 in; 0.7 cm
Physical Size (Width)
2.5 in; 6.36 cm
Interface
SATA 6Gb/s
Synchronous Transfer
Rate (Maximum)
Up to 550MB/s (Sequential Read)*
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
530 MB/s*
Sequential Write
500 MB/s *
Random Read
95K IOPS*
Random Write
83K IOPS*
*Actual performance may vary.
HP Enterprise Class
240GB SATA SSD
Capacity
240GB
Protocol
SATA
Form Factor
2.5"
Controller
AHCI
NAND Type
3D TLC
Endurance
2,200TBW (TB Written)
Reliability (MTTF)
2.0M hours
Physical Size (Height)
0.28 in; 0.7 cm
Physical Size (Width)
2.5 in; 6.36 cm
Interface
6Gb/s SATA
Synchronous Transfer
Rate (Maximum)
Up to 600MB/s*
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
540 MB/s*
Sequential Write
310 MB/s*
Random Read
93K IOPS*
Random Write
48K IOPS*
Enterprise Class Features
High Endurance NAND
Power Loss Protection
End-to-End Data Protection
*Actual performance may vary.
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Hard Drives
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 49
HP Enterprise Class
480GB SATA SSD
Capacity
480GB
Protocol
SATA
Form Factor
2.5"
Controller
AHCI
NAND Type
3D TLC
Endurance
4,400TBW (TB Written)
Reliability (MTTF)
2.0M hours
Physical Size (Height)
0.28 in; 0.7 cm
Physical Size (Width)
2.5 in; 6.36 cm
Interface
6Gb/s SATA
Synchronous Transfer
Rate (Maximum)
Up to 600MB/s*
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
540 MB/s*
Sequential Write
460 MB/s*
Random Read
93K IOPS*
Random Write
74K IOPS*
Enterprise Class Features
High Endurance NAND
Power Loss Protection
End-to-End Data Protection
*Actual performance may vary.
Performance PCIe SSDs
for HP Workstations
HP Z Turbo Drive 256GB
M.2 2280 TLC SSD
Capacity
256GB
Protocol
PCIe
Form Factor
M.2
Controller
NVMe
NAND Type
3D TLC
SED Support
Opal 2
Endurance
200TB
Reliability (MTBF)
1.5M hours
Interface
PCI Express 3.0 x4 electrical x4 physical
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
3500 MB/s *
Sequential Write
2200 MB/s *
Random Read
240K IOPS *
Random Write
480K IOPS *
*Actual performance may vary.
HP ZTurbo Drive 512GB
M.2 2280 TLC SSD
Capacity
512GB
Protocol
PCIe
Form Factor
M.2
Controller
NVMe
NAND Type
3D TLC
SED Support
Opal 2
Endurance
300TB
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Hard Drives
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 50
Reliability (MTBF)
1.5M hours
Interface
PCI Express 3.0 x4 electrical x4 physical
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
3500 MB/s*
Sequential Write
2900 MB/s*
Random Read
460 K IOPS*
Random Write
500K IOPS*
*Actual performance may vary.
HP ZTurbo Drive 1TB M.2
2280 TLC SSD
Capacity
1TB
Protocol
PCIe
Form Factor
M.2
Controller
NVMe
NAND Type
3D TLC
SED Support
Opal 2
Endurance
400TB
Reliability (MTBF)
1.5M hours
Interface
PCI Express 3.0 x4 electrical x4 physical
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
3500 MB/s*
Sequential Write
3000 MB/s*
Random Read
580K IOPS*
Random Write
500K IOPS*
*Actual performance may vary.
HP ZTurbo Drive 2TB M.2
2280 TLC SSD
Capacity
2TB
Protocol
PCIe
Form Factor
M.2
Controller
NVMe
NAND Type
3D TLC
SED Support
Opal 2
Endurance
500TB
Reliability (MTTF)
1.5M hours
Interface
PCI Express 3.0 x4 electrical x4 physical
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
3300 MB/s*
Sequential Write
2400 MB/s*
Random Read
500K IOPS*
Random Write
440K IOPS*
*Actual performance may vary.
HP Z Turbo Drive Quad
Pro 2x256GB PCIe TLC
SSD
Capacity
512GB
Protocol
PCIe
Form Factor
PCIe Card, Full Height PCIe Slot
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Hard Drives
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 51
Controller
NVMe
NAND Type
3D TLC
SED Support
Opal 2
Endurance
200TB
Reliability (MTBF)
1.5M hours
Interface
PCIe Gen3 x4 architecture
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
3500 MB/s*
Sequential Write
2200 MB/s*
Random Read
240K IOPS*
Random Write
480K IOPS*
*Actual performance may vary.
HP Z Turbo Drive Quad
Pro 2x512GB PCIe TLC
SSD
Capacity
1TB
Protocol
PCIe
Form Factor
PCIe Card, Full Height PCIe Slot
Controller
NVMe
NAND Type
3D TLC
SED Support
Opal 2
Endurance
300TB
Reliability (MTBF)
1.5M hours
Interface
PCIe Gen3 x4 architecture
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
3500 MB/s*
Sequential Write
2900 MB/s*
Random Read
460 K IOPS*
Random Write
500K IOPS*
*Actual performance may vary.
HP Z Turbo Drive Quad Pro
2x1TB PCIe TLC SSD
Capacity
2TB
Protocol
PCIe
Form Factor
PCIe Card, Full Height PCIe Slot
Controller
NVMe
NAND Type
3D TLC
SED Support
Opal 2
Endurance
400TB
Interface
PCI Express 3.0 x4 electrical x4 physical
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
3500 MB/s*
Sequential Write
3000 MB/s*
Random Read
580K IOPS*
Random Write
500K IOPS*
*Actual performance may vary.
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Hard Drives
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 52
HP Z Turbo Drive Dual
Pro 256GB SSD
Capacity
256GB
Protocol
PCIe
Form Factor
M.2 in Half-height, half-length card
Controller
NVMe
NAND Type
3D TLC
Endurance
200TBW (TB Written)
Reliability (MTBF)
1.5M hours
Interface
PCI Express 3.0 x4 electrical x4 physical
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
3500 MB/s*
Sequential Write
2200 MB/s*
Random Read
240K IOPS*
Random Write
480K IOPS*
*Actual performance may vary.
HP Z Turbo Drive Dual
Pro 512GB SSD
Capacity
512GB
Protocol
PCIe
Form Factor
M.2 in Half-height, half-length card
Controller
NVMe
NAND Type
3D TLC
Endurance
300TBW (TB Written)
Reliability (MTBF)
1.5M hours
Interface
PCI Express 3.0 x4 electrical x4 physical
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
3500 MB/s*
Sequential Write
2900 MB/s*
Random Read
460 K IOPS*
Random Write
500K IOPS*
*Actual performance may vary.
HP Z Turbo Drive Dual
Pro 1TB SSD
Capacity
1TB
Protocol
PCIe
Form Factor
M.2 in Half-height, half-length card
Controller
NVMe
NAND Type
3D TLC
Endurance
400TBW (TB Written)
Reliability (MTBF)
1.5M hours
Interface
PCI Express 3.0 x4 electrical x4 physical
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
3500 MB/s*
Sequential Write
3000 MB/s*
Random Read
580K IOPS*
Random Write
500K IOPS*
*Actual performance may vary.
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Hard Drives
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 53
HP Z Turbo Drive Dual
Pro 2TB SSD
Capacity
2TB
Protocol
PCIe
Form Factor
M.2 in Half-height, half-length card
Controller
NVMe
NAND Type
3D TLC
Endurance
500TBW (TB Written)
Reliability (MTBF)
1.5M hours
Interface
PCI Express 3.0 x4 electrical x4 physical
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
3500 MB/s*
Sequential Write
3000 MB/s *
Random Read
600K IOPS*
Random Write
500K IOPS*
*Actual performance may vary.
Mainstream PCIe SSDs
for HP Workstations
HP 256GB M.2 2280 TLC
SSD
Capacity
256GB
Protocol
PCIe
Form Factor
M.2
Controller
NVMe
NAND Type
3D TLC
Endurance
200TB
Reliability (MTBF)
1.5M hours
Interface
PCI Express 3.0 x4 electrical x4 physical
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
3100 MB/s *
Sequential Write
1400 MB/s *
Random Read
200 K IOPS *
Random Write
320 K IOPS *
*Actual performance may vary.
HP 512GB M.2 2280 TLC
SSD
Capacity
512GB
Protocol
PCIe
Form Factor
M.2
Controller
NVMe
NAND Type
3D TLC
Endurance
300TB
Reliability (MTBF)
1.5M hours
Interface
PCI Express 3.0 x4 electrical x4 physical
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
3300 MB/s*
Sequential Write
2500 MB/s*
Random Read
225 K IOPS*
Random Write
430 K IOPS*
*Actual performance may vary.
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Hard Drives
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 54
HP 1TB M.2 2280 TLC SSD
Capacity
1TB
Protocol
PCIe
Form Factor
M.2
Controller
NVMe
NAND Type
3D TLC
Endurance
400TB
Reliability (MTBF)
1.5M hours
Interface
PCI Express 3.0 x4 electrical x4 physical
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
3300 MB/s*
Sequential Write
2500 MB/s*
Random Read
400 K IOPS*
Random Write
440 K IOPS*
*Actual performance may vary.
HP 2TB M.2 2280 TLC SSD
Capacity
2TB
Protocol
PCIe
Form Factor
M.2
Controller
NVMe
NAND Type
3D TLC
Endurance
500TB
Reliability (MTBF)
1.5M hours
Interface
PCI Express 3.0 x4 electrical x4 physical
Operating Temperature
32° to 158° F (0° to 70° C)
Performance
Sequential Read
3300 MB/s*
Sequential Write
2700 MB/s*
Random Read
430 K IOPS*
Random Write
500 K IOPS*
*Actual performance may vary.
Intel® 905p Series AIC
PCIe SSD
Intel® 905p Series AIC
280GB PCIe SSD
Capacity
280GB
Protocol
PCIe
Form Factor
PCIe Card, Half Height
Controller
NVMe
NVM Type
3DXPoint
Endurance
5.11 PBW (PB Written)
Reliability (MTBF)
1.6M hours
Operating Temperature
32° to 185° F (0° to 85° C)
Performance
Sequential Read
2730 MB/s*
Sequential Write
2280 MB/s*
Random Read
587K IOPS*
Random Write
559K IOPS*
*Actual performance may vary.
Capacity
480GB
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Hard Drives
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 55
Intel® 905p Series AIC
480GB PCIe SSD
Protocol
PCIe
Form Factor
PCIe Card, Half Height
Controller
NVMe
NVM Type
3DXPoint
Endurance
8.76 PBW (PB Written)
Reliability (MTBF)
1.6M hours
Operating Temperature
32° to 185° F (0° to 85° C)
Performance
Sequential Read
2710 MB/s*
Sequential Write
2280 MB/s*
Random Read
582K IOPS*
Random Write
561K IOPS*
*Actual performance may vary.
Intel® Optane™ DC
Persistent Memory
Intel® Optane™ DC
Persistent Memory
128GB Module
Capacity
128GB
Protocol
DDR-T
Form Factor
DDR4
Controller
NVMe
NVM Type
3DXPoint
Endurance
292 PBW (256B Sequential Write)
91 PBW (64B Sequential Write)
Reliability (MTBF)
2M hours
Operating Temperature
32° to 185° F (0° to 85° C)
Performance
Sequential Read
6800 MB/s*
Sequential Write
1850 MB/s*
*Actual performance may vary.
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Hard Drive Controllers
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 56
HARD DRIVE CONTROLLERS
Microsemi
SmartHBA2100-4i4e SAS
Card
PCI Bus
8 lanes, PCI Express 3.0
RAID Levels
Offers Integrated RAID (0, 1, and 10)
PCI Data Burst Transfer
Rate
Half Duplex x8, PCIe, 8000 MB/s
SAS Bandwidth
Half Duplex
1200 MB/s per lane
PCI Card Type
3.3V Add-in Card
PCI Voltage
12 V ± 10%
PCI Power
9.8W typical, Airflow min 200 LFM
Bracket
Full height and low profile
Certification Level
PCI Express 3.0 compliant
SAS Processor
Microsemi SmartIOC 2100 SAS IO Controller
Internal Connectors
One x4 internal mini-SASHD (SFF-8643)
External Connectors
One x4 external mini-SASHD (SFF-8644)
Maximum Number of SCSI
Devices
256 Non-RAID SAS/SATA devices
LED Indicators
Connector for Drive Activity Light
NOTE: RAID 5 is not supported on MicroSemi 2100-4i4e 8-port SAS 12Gb/s
RAID Card
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Graphics
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 57
GRAPHICS
NVIDIA® Quadro® P400
2GB Graphics
Form Factor
Dimensions: 2.713” H x 5.7” L
Single Slot, Low Profile
Cooling: Active
Weight: 129 grams
Graphics Controller
NVIDIA® Quadro® P400 Graphics Card
GPU: 256 NVIDIA® CUDA® cores
Max Power: 30 Watts
Bus Type
PCI Express 3.0 x16
Memory
Size: 2 GB GDDR5, 2000 MHz
Memory Interface: 64-bit
Memory Bandwidth: 32 GB/s
Connectors
3mDP Outputs
Maximum Resolution
DisplayPort™ 1.4:
- up to 3x 5120 x 2880 x 24 bpp @ 60Hz
- supports Multi-Stream Transport (MST)
Image Quality Features
10-bit internal display processing pipeline
10-bit scan-out support
Display Output
3 mDP Connectors
Shading Architecture
Full Microsoft DirectX® 12 Shader Model 5.1
Supported Graphics APIs
OpenGL® 4.5
DirectX® 12
Vulkan™ 1.0
API support includes:
CUDA C, CUDA C++, DirectCompute , OpenCL™
Available Graphics
Drivers
Microsoft Windows 10
Microsoft Windows 7 Professional 64-bit
Linux®
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
NVIDIA® Quadro® P620
2GB Graphics
Form Factor
Dimensions: 2.713” H x 5.7” L
Single Slot, Low Profile
Cooling: Active
Weight: 129 grams
Graphics Controller
NVIDIA® Quadro® P620 Graphics Card
GPU: 512 CUDA cores
Max Power: 40 Watts
Bus Type
PCI Express 3.0 x16
Memory
Size: 2 GB GDDR5, 2000 MHz
Memory Interface: 128-bit
Memory Bandwidth: 64 GB/s
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Graphics
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 58
Connectors
4mDP Outputs *
Maximum Resolution
DisplayPort™ 1.4:
- up to 4x 5120 x 2880 x 24 bpp @ 60Hz
- supports Multi-Stream Transport (MST)
Image Quality Features
10-bit internal display processing pipeline
10-bit scan-out support
Display Output
4 mDP Connectors
Shading Architecture
Full Microsoft DirectX 12 Shader Model 5.1
Supported Graphics APIs
OpenGL 4.5
DirectX 12
Vulkan 1.0
API support includes:
CUDA C, CUDA C++, DirectCompute , OpenCL
Available Graphics
Drivers
Windows10 (64-bit)
Windows 7 Professional 64-bit
Linux®
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
*P620 only have mini-DisplayPort™ (mDP) video ports.
Factory Configured (Z4 G4/ Z6 G4/ Z8 G4 Workstations): No adapters
included
After market option kit:Two mDP-to-DP Adapters included
Additional mDP-to-DP Adapters are available as Factory Configuration or
Option Kit accessories:
- 2MY05AA - HP miniDP-to-DP Adapter Cables
- 2KW87A6 - HP (Bulk 12) miniDP-to-DP Adapter Cables
AMD FirePro™ W2100
2GB Graphics
Form Factor
Low Profile, half length (full-height bracket included)
Graphics Controller
AMD FirePro™ W2100 professional graphics based on Oland GPU.
GPU: 320 Stream Processors organized into 5 Compute Units
GPU Frequency: 630Mhz
Power: 26W
Cooling: Active
Bus Type
PCI Express® x8, Generation 3.0
Memory
2GB DDR3 memory
Memory Bandwidth: up to 28.8 GB/s
Memory Width: 128 bit
Connectors
2x Display Port™ 1.2 connectors
Factory Configured: No video cable adapter included
After market option kit: No video cable adapter included
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Graphics
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 59
Additional DisplayPort™-to-VGA or DisplayPort™-to-DVI adapters are
available as Factory Configuration or Option Kit accessories.
Maximum Resolution
DisplayPort™ 1.2:
- up to 4096x2160 x 24 bpp @ 60Hz
Dual Link DVI(I) (requires adapter cable):
- up to 2560 x 1600 x 32 bpp @ 60Hz
Single Link-DVI(I)(requires adapter cable):
- up to 1920 x 1200 x 32 bpp @ 60Hz
VGA (requires adapter cable):
- up to 1920 x 1200 x 32 bpp @ 60Hz
Image Quality Features
Advanced support for 8-bit, 10-bit, and 16-bit per RGB color component.
High bandwidth scaler for high quality up and downscaling.
Display Output
2 x DisplayPort™ 1.2a
Maximum number of displays: 2
Shading Architecture
Shader Model 5.0
Supported Graphics APIs
OpenCL™ 1.2, DirectX® 11.2/12, OpenGL® 4.4
OpenGL® 4.4 support with driver release 14.301.xxx
OpenCL™ 1.2 conformance expected with drive release 14.301.xxx
Available Graphics
Drivers
Windows10 (64-bit)
Windows 7 Professional 64-bit
Linux®
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
Depending on the card model, native DisplayPort™ connectors and/or
certified DisplayPort™ active or passive adapters to convert your monitor’s
native input to your card’s DisplayPort™ or Mini-DisplayPort™ connector(s)
may be required. See www.amd.com/FirePro™ for details.
NVIDIA® Quadro® P1000
4GB Graphics
Form Factor
Dimensions:2.713” H x 5.7” L
Single Slot, Low Profile
Cooling: Active
Weight: 129 grams
Graphics Controller
NVIDIA® Quadro® P1000 Graphics Card
GPU: 640 NVIDIA® CUDA® cores
Max Power: 47 Watts
Bus Type
PCI Express 3.0 x16
Memory
Size: 4 GB GDDR5, 2500 MHz
Memory Interface: 128-bit memory interface
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Graphics
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 60
Memory Bandwidth: 80 GB/s memory bandwidth
Connectors
4mDP Outputs
Maximum Resolution
DisplayPort™ 1.4:
- up to 4x 5120 x 2880 x 24 bpp @ 60Hz
- supports Multi-Stream Transport (MST)
Image Quality Features
10-bit internal display processing pipeline
10-bit scan-out support
Display Output
4 mDP Connectors
Shading Architecture
Full Microsoft DirectX® 12 Shader Model 5.1
Supported Graphics APIs
OpenGL® 4.5
DirectX® 12
Vulkan™ 1.0
API support includes:
CUDA C, CUDA C++, DirectCompute , OpenCL™
Available Graphics
Drivers
Microsoft Windows 10
Microsoft Windows 7 Professional 64-bit
Linux®
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
NVIDIA® Quadro® P2000
5GB Graphics
Form Factor
Dimensions: 4.4”Hx7.9”L
Single Slot
Cooling: Active
Weight: 260 grams
Graphics Controller
NVIDIA® Quadro® P2000 Graphics Card
Power: 75 Watts
Bus Type
PCI Express 3.0 x16
Memory
Size: 5GB GDDR5
Memory Bandwidth: 140 GB/s
Memory Width: 160-bit
Connectors
4x DisplayPort™ 1.4
Factory Configured Option: No adapter included with card
After Market Option: No video cable adapter included
Additional DVI to VGA, DisplayPort™ to VGA, DisplayPort™ to DVI, and
DisplayPort™ to Dual-Link DVI adapters available as accessories.
Maximum Resolution
DisplayPort™:
- up to 5120 x 2880 x 24 bpp @ 60Hz
- supports High Bit Rate 2 (HBR2) and Multi-Stream Transport (MST) DP 1.3
& 1.4 ready.
DL-DVI(I) output:
- up to 2560 x 1600 x 32 bpp @ 60 Hz
Single Link-DVI(I) output:
- up to 1920 x 1200 x 32 bpp @ 60Hz
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Graphics
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 61
HDMI 2.0 (requires DP to HDMI adapter):
5120 x 2880 x 24 bpp @ 60Hz
Image Quality Features
12-bit internal display pipeline (hardware support for 12-bit scanout on
supported panels, applications and connection)
Stereoscopic 3D display support including NVIDIA® 3D Vision™ technology,
NVIDIA® Mosaic and nView.
Display Output
Maximum number of displays
- 4 direct attached monitors
Maximum number of monitors across all available Quadro P2000 outputs
is 4.
Shading Architecture
Shader Model 5.1
Supported Graphics APIs
OpenGL® 4.5
DirectX® 12
API support includes:
CUDA C, CUDA C++, DirectCompute 5.0, OpenCL™, Java, Python, and Fortran
software
Available Graphics
Drivers
Microsoft Windows 10
Microsoft Windows 7 Professional 64bit
Linux® - Full OpenGL® implementation, complete with NVIDIA® and ARB
extensions
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
NVIDIA® Quadro® P2200
5GB Graphics
Form Factor
Dimensions: 4.4”H x 7.9”L
Single Slot, Full Height
Weight: 260 grams
Graphics Controller
NVIDIA® Quadro® P2200 Graphics Card
GPU: 1280 CUDA cores
Power: 75 Watts
Cooling: Active
Bus Type
PCI Express 3.0 x16
Memory
Size: 5GB GDDR5X
Memory Bandwidth: 200 GB/s
Memory Width: 160-bit
Connectors
4x DisplayPort™ 1.4
Factory Configured Option: No adapter included with card
After Market Option: No video cable adapter included
Additional DVI to VGA, DisplayPort™ to VGA, DisplayPort™ to DVI, and
DisplayPort™ to Dual-Link DVI adapters available as accessories.
Maximum Resolution
DisplayPort™:
- up to 5120 x 2880 x 24 bpp @ 60Hz
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Graphics
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 62
- supports High Bit Rate 2 (HBR2) and Multi-Stream Transport (MST) DP 1.3
& 1.4 ready.
DL-DVI(I) output:
- up to 2560 x 1600 x 32 bpp @ 60 Hz
Single Link-DVI(I) output:
- up to 1920 x 1200 x 32 bpp @ 60Hz
HDMI 2.0 (requires DP to HDMI adapter):
5120 x 2880 x 24 bpp @ 60Hz
Image Quality Features
12-bit internal display pipeline (hardware support for 12-bit scanout on
supported panels, applications and connection)
Stereoscopic 3D display support including NVIDIA® 3D Vision™ technology,
NVIDIA® Mosaic and nView.
Display Output
Maximum number of displays
- 4 direct attached monitors
Maximum number of monitors across all available NVIDIA® Quadro® P2200
outputs is 4.
Shading Architecture
Shader Model 5.1
Supported Graphics APIs
OpenGL® 4.5
DirectX® 12
API support includes:
CUDA C, CUDA C++, DirectCompute 5.0, OpenCL™, Java, Python, and Fortran
software
Available Graphics
Drivers
Microsoft Windows 10
Microsoft Windows 7 Professional 64bit
Linux® - Full OpenGL® implementation, complete with NVIDIA® Quadro® and
ARB extensions
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
1. Quadro P2200 offered as Factory Configured Option does not
include a video cable adapter. Video cable adapters must be
ordered separately.
2. Quadro P2200 offered as an After Market Option does not include
video cables. Video cable adapters must be ordered separately.
AMD Radeon™ Pro WX
3100 4GB Graphics
Form Factor
Low-Profile Single Slot (6.6” Length )
Graphics Controller
Polaris12 GL
GPU: 512 Stream Processors organized into 8 Compute Units
Power: 50 Watts
Cooling: Active
Memory
4GB GDDR5 memory
Memory Bandwidth: 6 Gbps / 96 GB/s
Memory Width: 128 bit
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Graphics
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 63
Connectors
2x Mini DisplayPort™ 1.4 plus 1x DisplayPort™ 1.4 – HDR ready connectors
with HBR3 and MST support.
Factory Configured: No adapters included
After market option kit: One mDP-to-DP cable adapters included
Additional Mini DisplayPort™-to-DisplayPort™, DisplayPort™-to-VGA or
DisplayPort™-to-DVI adapters are available as Factory Configuration or
Option Kit accessories.
Maximum Resolution
5K support @ 60Hz
• 1x single-cable 5K monitor, or 2x dual-cable 5K monitors
3x 4K support @ 60Hz
Image Quality Features
Advanced support for 8-bit and 10-bit per RGB color component. High
bandwidth scaler for high quality up and downscaling
Display Output
3 full physical DP1.3 HBR3 / DP1.4 HDR outputs
FreeSync support
GPU Architecture
Polaris
Supported Graphics APIs
DirectX®12
OpenGL® 4.5
OpenCL™ 2.0
Vulkan™ 1.0
Available Graphics
Drivers
Windows 10
(Windows® 7 64-bit available from AMD)
Linux® 64-bit (selected Enterprise distributions)
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
1. HDR content requires that the system be configured with a
fully HDR-ready content chain, including: graphics card,
monitor/TV, graphics driver and application. Video content
must be graded in HDR and viewed with an HDR-ready player.
Windowed mode content requires operating system support.
2. AMD PowerTune and AMD ZeroCore Power are technologies
offered by certain FirePro™ and Radeon™ Pro products, which
are designed to intelligently manage GPU power consumption
in response to certain GPU load conditions.
3. As of September 2016, certified for DisplayPort™ 1.4 HBR3
and ready for DisplayPort™ 1.4 HDR based on independent
verification by DisplayPort™ testing authority. HDR content
requires that the system be configured with a fully HDRready content chain, including: graphics card, monitor/TV,
graphics driver and application. Video content must be graded
in HDR and viewed with an HDR-ready player. Windowed
mode content requires operating system support.
AMD Radeon™ Pro WX
3200 4GB Graphics
Form Factor
Low-Profile Single Slot (2.75 "H x 6.6” L)
Graphics Controller
Radeon™ Pro WX 3200 Graphics Card
GPU: 640 Stream Processors organized into 8 Compute Units
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Graphics
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 64
Power: 56 Watts
Cooling: Active
Memory
4GB GDDR5 memory
Memory Bandwidth: 96 GB/s
Memory Width: 128 bit
Connectors
4x Mini DisplayPort™ 1.4 – HDR ready connectors with HBR3 and MST
support.
Factory Configured: No adapters included
After market option kit: One mDP-to-DP cable adapters included
Additional Mini DisplayPort™-to-DisplayPort™, DisplayPort™-to-VGA or
DisplayPort™-to-DVI adapters are available as Factory Configuration or
Option Kit accessories.
Maximum Resolution
5K support @ 60Hz
• 1x single-cable 5K monitor, or 2x dual-cable 5K monitors
4x 4K support @ 60Hz
Image Quality Features
Advanced support for 8-bit and 10-bit per RGB color component. High
bandwidth scaler for high quality up and downscaling
Display Output
4 full physical DP1.3 HBR3 / DP1.4 HDR outputs
FreeSync support
GPU Architecture
Polaris
Supported Graphics APIs
DirectX®12
OpenGL® 4.6
OpenCL™ 2.0
Vulkan™ 1.0
Available Graphics
Drivers
Windows 10
Linux® 64-bit (selected Enterprise distributions)
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
4. HDR content requires that the system be configured with a
fully HDR-ready content chain, including: graphics card,
monitor/TV, graphics driver and application. Video content
must be graded in HDR and viewed with an HDR-ready player.
Windowed mode content requires operating system support.
5. AMD PowerTune and AMD ZeroCore Power are technologies
offered by certain FirePro™ and Radeon™ Pro products, which
are designed to intelligently manage GPU power consumption
in response to certain GPU load conditions.
6. As of September 2016, certified for DisplayPort™ 1.4 HBR3
and ready for DisplayPort™ 1.4 HDR based on independent
verification by DisplayPort™ testing authority. HDR content
requires that the system be configured with a fully HDRready content chain, including: graphics card, monitor/TV,
graphics driver and application. Video content must be graded
in HDR and viewed with an HDR-ready player. Windowed
mode content requires operating system support.
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Graphics
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 65
Radeon™ Pro WX 4100
4GB Graphics
Form Factor
Low-Profile Single Slot (6.6” Length)
Graphics Controller
Polaris 11 Baffin GL XT
GPU: 1024 Stream Processors organized into 16 Compute Units
Power: 50 Watts
Cooling: Active
Memory
4GB GDDR5 memory
Memory Bandwidth: 6 Gbps / 96 GB/s
Memory Width: 128 bit
Connectors
4x Mini DisplayPort™ 1.4 – HDR ready connectors with HBR3 and MST
support.
Factory Configured: Four mDP-to-DP cable adapters included
After market option kit: Four mDP-to-DP cable adapters included
Additional DisplayPort™-to-VGA or DisplayPort™-to-DVI adapters are
available as Factory Configuration or Option Kit accessories.
Maximum Resolution
5K support @ 60Hz
• 1x single-cable 5K monitor, or 2x dual-cable 5K monitors
4x 4K support @ 60Hz
Image Quality Features
Advanced support for 8-bit and 10-bit per RGB color component. High
bandwidth scaler for high quality up and downscaling
Display Output
4 full physical DP1.3 HBR3 / DP1.4 HDR outputs
FreeSync support
GPU Architecture
GCN 4th Generation
Supported Graphics APIs
DirectX®12
OpenGL® 4.5
OpenCL™ 2.0
Vulkan™ 1.0
Available Graphics
Drivers
Windows 10
Windows® 7 64-bit
Linux® 64-bit (selected Enterprise distributions)
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
7. HDR content requires that the system be configured with a
fully HDR-ready content chain, including: graphics card,
monitor/TV, graphics driver and application. Video content
must be graded in HDR and viewed with an HDR-ready player.
Windowed mode content requires operating system support.
8. AMD PowerTune and AMD ZeroCore Power are technologies
offered by certain FirePro™ and Radeon™ Pro products, which
are designed to intelligently manage GPU power consumption
in response to certain GPU load conditions.
9. As of September 2016, certified for DisplayPort™ 1.4 HBR3
and ready for DisplayPort™ 1.4 HDR based on independent
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Graphics
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 66
verification by DisplayPort™ testing authority. HDR content
requires that the system be configured with a fully HDRready content chain, including: graphics card, monitor/TV,
graphics driver and application. Video content must be graded
in HDR and viewed with an HDR-ready player. Windows mode
content requires operating system support.
NVIDIA® Quadro® P4000
8GB Graphics
Form Factor
Dimensions: 4.4”H x 9.5”L
Single-slot, full-height
Weight: 475 grams (without extender)
Graphics Controller
NVIDIA® Quadro® P4000 Graphics Card
GPU: 1792 CUDA cores
Power: 120 Watts
Bus Type
PCI Express 3.0 x16
Memory
Size: 8GB GDDR5
Memory Bandwidth: 243 GB/s
Memory Width: 256-bit
Connectors
4 x DisplayPort 1.4
3-pin mini-DIN connector via optional bracket
1 x 6-pin auxiliary power connector
4-pin header for stereo signal
SYNC connector for Quadro® Sync II
2 x SLI connectors
Factory Configured Option: No video cable adapter included
After Market Option: No video cable adapter included
Additional DisplayPort-to-VGA, DisplayPort-to-HDMI, or DisplayPort-toDVI adapters are available as accessories
Maximum Resolution
Dual-link internal TMDS (DVI 1.0):
- up to 2560 x 1600 x 32 bpp @ 60 Hz
Single-link internal TMDS (DVI 1.0):
- up to 1920 x 1200 x 32 bpp @ 60 Hz
HDMI™ 2.0b (requires DP to HDMI adapter):
- up to 5120 x 2880 x 24 bpp @ 60Hz
DisplayPort:
- up to 4096 x 2160 x 30 bpp @ 60Hz
- up to 2560 x 1600 x 30 bpp @ 120 Hz
- supports High Bit Rate 2 (HBR2) and Multi-Stream Transport (MST)
Using two DP outputs, the P4000 can drive one dual DP input display with
5120 x 2880 x 30 bpp @ 60Hz resolution.
Image Quality Features
Advanced support for 8-bit, 10-bit, and 12-bit per RGB color
component.
HDCP 2.2 support over DisplayPort, DVI, and HDMI connectors
NVIDIA 3D Vision™ and other 3D stereo technologies
NVIDIA Mosaic and nView
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Graphics
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 67
Display Output
Maximum number of displays
- 4 direct attached monitors
Maximum number of monitors across all available Quadro P4000 outputs
is 4.
Shading Architecture
Shader Model 5.1
Supported Graphics APIs
OpenGL 4.5
DirectX 12
Vulcan 1.0
API support includes:
CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
Available Graphics
Drivers
Microsoft Windows 10
Microsoft Windows 7
Linux - Full OpenGL implementation, complete with NVIDIA and ARB
extensions
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
1. Quadro P4000 offered as Factory Configured Option does not
include a video cable adapter. Video cable adapters must be
ordered separately.
2. Quadro P4000 offered as an After Market Option does not include
video cables. Video cable adapters must be ordered separately.
NVIDIA® Quadro®
GP100 16GB Graphics
Form Factor
Dual Slot (4.4” Height x 10.5” Length)
Weight: 989 grams +72 grams extender
Graphics Controller
NVIDIA® QUADRO® GP100
GPU: 3584 NVIDIA CUDA® Parallel Processing Cores
Power: 235 Watts
Cooling: Active
Memory
16GB HBM2
Memory Bandwidth: Up to 717 GB/s
Memory Width: 4096-bit
ECC Memory (disabled by default)
Connectors
DP (x4) with HDR support
DL-DVI(D)
3-pin mini-DIN connector via optional bracket
4-pin header for stereo signal
Quadro Sync connector (compatible with Quadro II Sync)
One 8-pin auxiliary power connector
(2x) NVLink connectors
Factory configured option: 8-pin power adapter included with card.
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Graphics
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 68
After market option Kit: 8-pin power adapter included with card.
DVI to VGA, DisplayPort™ to VGA, DisplayPort™ to DVI, and
DisplayPort™ to Dual-Link DVI adapters available as accessories.
Maximum Resolution
5K support @ 60Hz
1x single-cable 5K monitor, or 2x dual-cable 5K monitors
Image Quality Features
HDR support over DisplayPort™ 1.4 (SMPTE 2084/2086,
BT. 2020) (4K @ 60 Hz 10b/12b HEVC Decode, 4K @ 60
Hz 10b HEVC Encode)
HDCP 2.2 support over DisplayPort™, DVI, and HDMI
connectors
NVIDIA 3D Vision™ technology
NVIDIA Mosaic and nView Desktop Management
Display Outputs
4x DP1.4 MST & HDR2 outputs (up to 5120 x 2880 @ 60Hz)
1x Dual-link DVI-D output (up to 2560 x 1600 @ 60 Hz)
1x Single-link DVI-D output (up to 1920 x 1200 @ 60 Hz)
HDMI™ 2.0b (up to 5120 x 2880 @ 60Hz)*
*requires DP to HDMI adapter
GPU Architecture
NVIDIA Pascal™
Supported Graphics
APIs
DirectX®12 , OpenGL® 4.5, Vulkan™ 1.0
Developer API support includes: CUDA C, CUDA C++, DirectCompute
5.0, OpenCL, Java, Python, and Fortran
Available Graphics
Drivers
Windows® 10
Windows® 7 Professional 64-bit
Linux®
HP qualified drivers may be preloaded or available from the HP
support Web site:
http://welcome.hp.com/country/us/en/support.html
Factory Configured (Z4 G4/ Z6 G4/ Z8 G4 Workstations): No adapters
included
After market option kit: No adapters included
NVIDIA® Quadro®
P5000 16GB Graphics
Form Factor
Full-Height Dual Slot (4.4” Height x 10.5” Length)
Weight: 815 grams / 1.80 lbs
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Graphics
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 69
Graphics Controller
Quadro™ P5000 graphics
GPU: 2560 NVIDIA® CUDA® Parallel Processing Cores
Power: 180 Watts
Cooling: Active
Memory
16GB GDDR5X memory
Memory Bandwidth: Up to 288 GB/s
Memory Width: 256 bit
ECC Memory (disabled by default)
Connectors
DP (x4) with HDR support
DL-DVI(D)
3-pin mini-DIN connector
SLI connector
Quadro Sync connector (compatible with Quadro II Sync)
One 8-pin auxiliary power connector
Factory configured option: No video cable adapter included with card.
After market option Kit: No video cable adaptor included with card.
DVI to VGA, DisplayPort™ to VGA, DisplayPort™ to DVI, and
DisplayPort™ to Dual-Link DVI adapters available as accessories.
Maximum Resolution
5K support @ 60Hz
1x single-cable 5K monitor, or 2x dual-cable 5K monitors
Image Quality
Features
Advanced support for 8-bit, 10-bit, and 12-bit per RGB
color component.
HDCP 2.2 support over DisplayPort™, DVI, and HDMI
connectors
NVIDIA 3D Vision™ and other 3D stereo technologies
NVIDIA® Mosaic and nView Desktop Management
Display Outputs
1
4x DP1.4 HDR outputs (up to 3840x2160 UHD @ 120Hz refresh, or up
to 8K at 30Hz)
1x Dual-link DVI-D output (up to 2560 x 1600 @ 60 Hz and
1920x1200 @ 120 Hz)
GPU Architecture
NVIDIA® Pascal™
Supported Graphics
APIs
DirectX®12 , OpenGL® 4.5, OpenCL™ 1.0, Vulkan™ 1.0
Developer API support includes: CUDA C, CUDA C++, DirectCompute
5.0, OpenCL™, Java, Python, and Fortran
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Graphics
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 70
Available Graphics
Drivers
Windows® 10 64-bit
Windows® 7 64-bit
Linux® 64-bit
HP qualified drivers may be preloaded or available from the HP
support Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
1- Supports up to a total of 4 displays
NVIDIA® Quadro®
P6000 24GB Graphics
Form Factor
Full-Height Dual Slot (4.4” Height x 10.5” Length)
Weight: 967 grams / 2.14 lbs
Graphics Controller
NVIDIA® Quadro® P6000 graphics
GPU: 3840 NVIDIA® CUDA® Parallel Processing Cores
Power: 250 Watts
Cooling: Active
Memory
24GB GDDR5X memory
Memory Bandwidth: Up to 432 GB/s
Memory Width: 384 bit
ECC Memory (disabled by default)
Connectors
DP (x4) with HDR support
DL-DVI(D)
3-pin mini-DIN connector
SLI connector
Quadro Sync connector (compatible with Quadro II Sync)
One 8-pin auxiliary power connector
Factory configured option: No video cable adapter included with
card.
After market option Kit: No video cable adaptor included with card.
DVI to VGA, DisplayPort™ to VGA, DisplayPort™ to DVI, and
DisplayPort™ to Dual-Link DVI adapters available as accessories.
Maximum Resolution
5K support @ 60Hz
1x single-cable 5K monitor, or 2x dual-cable 5K monitors
Image Quality Features
Advanced support for 8-bit, 10-bit, and 12-bit per RGB
color component.
HDCP 2.2 support over DisplayPort™, DVI, and HDMI
connectors
NVIDIA® 3D Vision™ and other 3D stereo technologies
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Graphics
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 71
NVIDIA® Mosaic and nView
Display Outputs1
4x DP1.4 HDR outputs (up to 3840x2160 UHD @ 120Hz refresh, or
up to 8K at 30Hz)
1x Dual-link DVI-D output (up to 2560 x 1600 @ 60 Hz and
1920x1200 @ 120 Hz)
GPU Architecture
NVIDIA® Pascal™
Supported Graphics
APIs
DirectX®12, OpenGL® 4.5, OpenCL™ 1.0, Vulkan™ 1.0
Developer API support includes: CUDA C, CUDA C++, DirectCompute
5.0, OpenCL™, Java, Python, and Fortran
Available Graphics
Drivers
Windows® 10 64-bit
Windows® 7 64-bit
Linux® 64-bit
HP qualified drivers may be preloaded or available from the HP
support Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
1- Supports up to a total of 4 displays
NVIDIA® Quadro® RTX
4000 8GB Graphics
Form Factor
Full-Height Single Slot (4.4” Height x 9.5” Length)
Weight: 550 grams / 1.21 lbs
Graphics Controller
NVIDIA® Quadro® RTX 4000 Graphics
GPU: 2304 NVIDIA® CUDA® Parallel Processing Cores
Power: 160 Watts
Cooling: Active
Memory
8GB GDDR6 memory
Memory Bandwidth: Up to 416 GB/s
Memory Width: 384 bit
Connectors
3x DP 1.4a and VirtualLink
Quadro Sync connector (compatible with Quadro II Sync)
One 8-pin auxiliary power connector
Factory configured option: No video cable adapter included with
card.
After market option Kit: No video cable adaptor included with card.
DVI to VGA, DisplayPort™ to VGA, DisplayPort™ to DVI, and
DisplayPort™ to Dual-Link DVI adapters available as accessories.
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Graphics
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 72
Maximum Resolution
7680x4320 @ 60Hz
Image Quality Features
Advanced support for 8-bit, 10-bit, and 12-bit per RGB
color component.
HDCP 2.2 support over DisplayPort™, DVI, and HDMI
connectors
NVIDIA® 3D Vision™ and other 3D stereo technologies
NVIDIA® Mosaic and nView
Display Outputs1
3x DP 1.4a and VirtualLink (7680x4320 @ 60Hz)
Supported Graphics
APIs
DirectX®12, OpenGL® 4.5, OpenCL™ 1.0, Vulkan™ 1.0
Developer API support includes: CUDA C, CUDA C++, DirectCompute
5.0, OpenCL™, Java, Python, and Fortran
Available Graphics
Drivers
Windows® 10 64-bit
Windows® 7 64-bit
Linux® 64-bit
HP qualified drivers may be preloaded or available from the HP
support Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
1- Supports up to a total of 4 displays
NVIDIA® Quadro® RTX
5000 16GB Graphics
Form Factor
Full-Height Dual Slot (4.4” Height x 10.5” Length)
Weight: 1050 grams / 2.31 lbs
Graphics Controller
NVIDIA® Quadro® RTX 5000 Graphics
GPU: 3072 NVIDIA® CUDA® Parallel Processing Cores
Power: 265 Watts
Cooling: Active
Memory
16GB GDDR6 memory
Memory Bandwidth: Up to 448 GB/s
Memory Width: 384 bit
Connectors
4x DP 1.4a and VirtualLink
Quadro Sync connector (compatible with Quadro II Sync)
One 8-pin + 6-pin auxiliary power connector
Factory configured option: No video cable adapter included with
card.
After market option Kit: No video cable adaptor included with card.
DVI to VGA, DisplayPort™ to VGA, DisplayPort™ to DVI, and
DisplayPort™ to Dual-Link DVI adapters available as accessories.
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Graphics
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 73
Maximum Resolution
7680x4320 @ 60Hz
Image Quality Features
Advanced support for 8-bit, 10-bit, and 12-bit per RGB
color component.
HDCP 2.2 support over DisplayPort™, DVI, and HDMI
connectors
NVIDIA® 3D Vision™ and other 3D stereo technologies
NVIDIA® Mosaic and nView
Display Outputs1
4x DP 1.4a and VirtualLink (7680x4320 @ 60Hz)
Supported Graphics
APIs
DirectX®12, OpenGL® 4.5, OpenCL™ 1.0, Vulkan™ 1.0
Developer API support includes: CUDA C, CUDA C++, DirectCompute
5.0, OpenCL™, Java, Python, and Fortran
Available Graphics
Drivers
Windows® 10 64-bit
Windows® 7 64-bit
Linux® 64-bit
HP qualified drivers may be preloaded or available from the HP
support Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
1- Supports up to a total of 4 displays
NVIDIA® Quadro® RTX
6000 24GB Graphics
Form Factor
Full-Height Dual Slot (4.4” Height x 10.5” Length)
Weight: 1070 grams / 2.35 lbs
Graphics Controller
NVIDIA® Quadro® RTX 6000 Graphics
GPU: 4608 NVIDIA® CUDA® Parallel Processing Cores
Power: 295 Watts
Cooling: Active
Memory
24GB GDDR6 memory
Memory Bandwidth: Up to 672 GB/s
Memory Width: 384 bit
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Graphics
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 74
Connectors
4x DP 1.4a and VirtualLink
Quadro Sync connector (compatible with Quadro II Sync)
One 8-pin + 6-pin auxiliary power connector
Factory configured option: No video cable adapter included with
card.
After market option Kit: No video cable adaptor included with card.
DVI to VGA, DisplayPort™ to VGA, DisplayPort™ to DVI, and
DisplayPort™ to Dual-Link DVI adapters available as accessories.
Maximum Resolution
7680x4320 @ 60Hz
Image Quality Features
Advanced support for 8-bit, 10-bit, and 12-bit per RGB
color component.
HDCP 2.2 support over DisplayPort™, DVI, and HDMI
connectors
NVIDIA® 3D Vision™ and other 3D stereo technologies
NVIDIA® Mosaic and nView
Display Outputs1
4x DP 1.4a and VirtualLink (7680x4320 @ 60Hz)
Supported Graphics
APIs
DirectX®12, OpenGL® 4.5, OpenCL™ 1.0, Vulkan™ 1.0
Developer API support includes: CUDA C, CUDA C++, DirectCompute
5.0, OpenCL™, Java, Python, and Fortran
Available Graphics
Drivers
Windows® 10 64-bit
Windows® 7 64-bit
Linux® 64-bit
HP qualified drivers may be preloaded or available from the HP
support Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
1- Supports up to a total of 4 displays
NVIDIA® Quadro® RTX
8000 48GB Graphics
Form Factor
Full-Height Dual Slot (4.4” Height x 10.5” Length)
Weight: 1070 grams / 2.35 lbs
Graphics Controller
NVIDIA® Quadro® RTX 8000 Graphics
GPU: 4608 NVIDIA® CUDA® Parallel Processing Cores
Power: 295 Watts
Cooling: Active
Memory
48GB GDDR6 memory
Memory Bandwidth: Up to 672 GB/s
Memory Width: 384 bit
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Graphics
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 75
Connectors
4x DP 1.4a and VirtualLink
Quadro Sync connector (compatible with Quadro II Sync)
One 8-pin + 6-pin auxiliary power connector
Factory configured option: No video cable adapter included with card.
After market option Kit: No video cable adaptor included with card.
DVI to VGA, DisplayPort™ to VGA, DisplayPort™ to DVI, and DisplayPort™ to
Dual-Link DVI adapters available as accessories.
Maximum Resolution
7680x4320 @ 60Hz
Image Quality Features
Advanced support for 8-bit, 10-bit, and 12-bit per RGB color
component.
HDCP 2.2 support over DisplayPort™, DVI, and HDMI
connectors
NVIDIA® 3D Vision™ and other 3D stereo technologies
NVIDIA® Mosaic and nView
Display Outputs1
4x DP 1.4a and VirtualLink (7680x4320 @ 60Hz)
Supported Graphics APIs
DirectX®12, OpenGL® 4.5, OpenCL™ 1.0, Vulkan™ 1.0
Developer API support includes: CUDA C, CUDA C++, DirectCompute 5.0,
OpenCL™, Java, Python, and Fortran
Available Graphics
Drivers
Windows® 10 64-bit
Linux® 64-bit
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
1- Supports up to a total of 4 displays
2- VirtualLink's USB-C™ (data) cannot be disabled at a hardware
level
Radeon™ Pro WX 7100
8GB Graphics
Form Factor
Full-Height Single Slot (9.5” Length )
Graphics Controller
Radeon™ Pro WX 7100 graphics
GPU: 2304 Stream Processors organized into 36 Compute Units
Power: 130 Watts
Cooling: Active
Memory
8GB GDDR5 memory
Memory Bandwidth: 7 Gbps / 224 GB/s
Memory Width: 256 bit
Connectors
4x DisplayPort™ 1.4 – HDR ready connectors with HBR3 and MST support.
Factory Configured: No video cable adapter included
After market option kit: No video cable adapter included
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Graphics
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 76
Additional DisplayPort™-to-VGA or DisplayPort™-to-DVI adapters are
available as Factory Configuration or Option Kit accessories.
Maximum Resolution
5K support @ 60Hz
• 1x single-cable 5K monitor, or 2x dual-cable 5K monitors
Image Quality Features
Advanced support for 8-bit, 10-bit, and 16-bit per RGB color
component. High bandwidth scaler for high quality up and
downscaling
Display Output
4 full physical DP1.3 HBR3 / DP1.4 HDR outputs
FreeSync support
GPU Architecture
GCN 4th Generation
Supported Graphics APIs
DirectX®12
OpenGL® 4.5
OpenCL™ 2.0
Vulkan™ 1.0
Available Graphics
Drivers
Windows 10
Windows® 7 64-bit
Linux® 64-bit
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
10. HDR content requires that the system be configured with a
fully HDR-ready content chain, including: graphics card,
monitor/TV, graphics driver and application. Video content
must be graded in HDR and viewed with an HDR-ready
player. Windowed mode content requires operating system
support.
11. Radeon VR Ready Creator Products are select Radeon Pro and
AMD FirePro™ GPUs that meet or exceed the Oculus Rift or
HTC Vive recommended specifications for video cards/GPUs.
Other hardware (including CPU) and system requirements
recommended by Oculus Rift or HTC Vive should also be met
in order to operate the applicable HMDs as intended. As VR
technology, HMDs and other VR hardware and software
evolve and/or become available, these criteria may change
without notice.
12. AMD PowerTune and AMD ZeroCore Power are technologies
offered by certain FirePro™ and Radeon™ Pro products, which
are designed to intelligently manage GPU power consumption
in response to certain GPU load conditions.
13. As of September 2016, certified for DisplayPort™ 1.4 HBR3
and ready for DisplayPort™ 1.4 HDR based on independent
verification by DisplayPort™ testing authority. HDR content
requires that the system be configured with a fully HDR-ready
content chain, including: graphics card, monitor/TV, graphics
driver and application. Video content must be graded in HDR
and viewed with an HDR-ready player. Windowed mode
content requires operating system support.
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Graphics
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 77
AMD Radeon™ Pro WX
9100 16GB Graphics
Form Factor
Full-Height Dual Slot (4.4” Height x 10.5” Length)
Weight: 1100 grams / 2.42 lbs
Graphics Controller
AMD Radeon™ Pro WX 9100
Vega architecture GPU
GPU: 4096 NVIDIA® CUDA® Parallel Processing Cores
Power: 250 Watts
Cooling: Active
Memory
16GB HBM2 memory
Memory Bandwidth: Up to 483 GB/s
Memory Width: 384 bit
Connectors
6x mDP 1.4
Quadro Sync connector (compatible with Quadro II Sync)
One 8-pin + 6-pin auxiliary power connector
Factory configured option: No video cable adapter included with
card.
After market option Kit: 2x mini-DP to DP.
DVI to VGA, DisplayPort™ to VGA, DisplayPort™ to DVI, and
DisplayPort™ to Dual-Link DVI adapters available as accessories.
Maximum Resolution
7680 × 4320 resolution @ 60Hz
6x DP 1.3 4K @60Hz
or 3x 5K @60Hz
or 1x 8K @60Hz
Image Quality Features
Advanced support for 8-bit, 10-bit, and 12-bit per RGB
color component.
HDCP 2.2 support over DisplayPort™, DVI, and HDMI
connectors
NVIDIA® 3D Vision™ and other 3D stereo technologies
NVIDIA® Mosaic and nView
Display Outputs1
6x mDP 1.4 (7680x4320 @ 60Hz)
Supported Graphics
APIs
DirectX®12, OpenGL® 4.5, OpenCL™ 1.0, Vulkan™ 1.0
Developer API support includes: CUDA C, CUDA C++, DirectCompute
5.0, OpenCL™, Java, Python, and Fortran
Available Graphics
Drivers
Windows® 10 64-bit
Windows® 7 64-bit
Linux® 64-bit
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Graphics
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 78
HP qualified drivers may be preloaded or available from the HP
support Web site:
http://welcome.hp.com/country/us/en/support.html
Notes
1- Supports up to a total of 6 displays
NVIDIA® Quadro® Sync II
Part number
1WT20AA
Dimensions (HxD)
6.0 inches × 4.2 inches
Devices Supported
NVIDIA® Quadro® P4000
NVIDIA® Quadro® P5000
NVIDIA® Quadro® P6000
Bus Type
Requires one free mechanical PCIe bus slot. 6-pin PCI or SATA power
connector
PCI Form Factor
Full Height, half length, single slot
Ports
2 RJ45 connectors for carrying frame lock signals over CAT5 cables.
BNC Connector for external house synchronization.
Internal Connectors
6 NVIDIA SLI® style edge fingers for connection to compatible GPUs
• Included with the board are 4 12-Inch Short Sync Cables to connect
to GPU's
• Included with the board are 2 24-Inch Long Sync Cables to connect
to GPU's
System Requirements
Requires one free mechanical PCIe bus slot. 6-pin PCI or SATA power
connector
Must be used with NVIDIA Quadro P4000, P5000 or P6000 graphics cards.
Requires Quadro driver version R375 or later.
Temperature Operating
0° to 55° C
Temperature - Storage
-40° to 60° C
Relative Humidity Operating
10% to 80%
Power Requirements
Board power dissipation: <15W
Operating Systems
Supported
Windows 10
Windows 7 64-bit
Linux® 64-bit
Kit Contents
Contains:
• Quadro Sync II Card
• 4 x 12-Inch Short Sync Cables
• 2 x 24-Inch Long Sync Cables (Two)
• Quick Start Guide
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications – Optical and Removable Storage
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 79
OPTICAL AND REMOVABLE STORAGE
HP 9.5mm Slim DVD
Writer
Description
9.5mm height, tray-load
Mounting Orientation
Either horizontal or vertical
Interface Type
SATA/ATAPI
Dimensions (WxHxD)
128 x 9.5 x 127mm
Supported Media Types
DVD+R
DVD+RW
DVD+R DL
DVD-R DL
DVD-R
DVD-RW
CD-R
CD-RW
Disc Capacity
DVD-ROM
8.5 GB DL or 4.7 GB standard
Full Stroke DVD
< 200 ms (seek)
Full Stroke CD
< 200 ms (seek)
Maximum Data Transfer
Rates
CD ROM Read
CD-ROM, CD-R Up to 24X
CD-RW Up to 24X
DVD ROM Read
DVD+RW Up to 8X
DVD-RW Up to 8X
DVD+R DL Up to 8X
DVD-R DL Up to 8X
DVD-ROM Up to 8X
DVD-ROM DL Up to 8X
DVD+R Up to 8X
DVD-R Up to 8X
Power
Source
SATA DC power receptacle
DC Power Requirements
5 VDC ± 5%-100 mV ripple p-p
DC Current
5 VDC -< 800 mA typical, <1600 mA
maximum
Operating Environmental
(all conditions noncondensing)
Temperature
41° to 122° F (5° to 50° C)
Relative Humidity
10% to 80%
Maximum Wet Bulb Temperature
84° F (29° C)
Operating Systems
Supported
Windows 10, Windows 7 Professional 64-bit,
Red Hat® Enterprise Linux®(RHEL) WS4**, 5, 6 Desktop/Workstation
SUSE Linux® Enterprise Desktop 10 & 11
* No driver is required for this device. Native support is provided by the
operating system.
Kit Contents
HP SATA DVD Writer drive, installation guide.
HP 9.5mm Slim DVD-ROM
Drive
Description
9.5mm height, tray-load
Mounting Orientation
Either horizontal or vertical
Interface Type
SATA / ATAPI
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications – Optical and Removable Storage
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 80
Dimensions (WxHxD)
128 x 9.5 x 127mm
Disc Capacity
DVD-ROM
Single layer: Up to 4.7 GB
Double layer: Up to 8.5 GB
Access Times
DVD-ROM Single Layer
< 110 ms (typical)
CD-ROM Mode 1
< 110 ms (typical)
Full Stroke DVD
< 230 ms (typical)
Full Stroke CD
< 220 ms (typical)
Power
Source
SATA DC power receptacle
DC Power Requirements
5 VDC ± 5%-100 mV ripple p-p
DC Current
5 VDC – <800mA typical, < 1600 mA
maximum
Operating Environmental
(all conditions noncondensing)
Temperature
41° to 122° F (5° to 50° C)
Relative Humidity
10% to 80%
Maximum Wet Bulb Temperature
84° F (29° C)
Operating Systems
Supported
Windows 10, Windows 7 Professional 64-bit
Red Hat® Enterprise Linux®(RHEL) WS4**, 5, 6 Desktop/Workstation
SUSE Linux® Enterprise Desktop 10 & 11
No driver is required for this device. Native support is provided by the
operating system.
Kit Contents
9.5mm Slim DVD-ROM Drive, 5.25" ODD Bay adapter/carrier, slim SATA
data/power cable, installation guide
HP HH DVD Writer (16X
RW DVD-R)
Description
HP Half Height DVD Writer
Mounting Orientation
Either Horizontal or vertical
Interface Type
SATA
Dimensions (WxHxD)
146x42x165mm
Supported Media Types
DVD+R
DVD+RW
DVD+R DL
DVD-R DL
DVD-R
DVD-RW
CD-R
CD-RW
Disc Capacity
DVD-ROM
8.5 GB DL or 4.7 GB standard
Full Stroke DVD
145ms (seek)
Full Stroke CD
120ms (seek)
Maximum Data Transfer
Rates
CD ROM Read
CD-ROM, CD-R Up to 24X
CD-RW Up to 24X
DVD ROM Read
DVD+RW Up to 13X
DVD-RW Up to 13X
DVD+R DL Up to 12X
DVD-R DL Up to 12X
DVD-ROM Up to 12X
DVD-ROM DL Up to 12X
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications – Optical and Removable Storage
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 81
DVD+R Up to 16X
DVD-R Up to 16X
Power
Source
SATA DC power receptacle
DC Power Requirements
5 VDC ± 5% -100 mV ripple p-p
12 VDC ± 10% -200 mV ripple p-p
DC Current
5 VDC -<1500mA typical, <2000 mA
maximum.
Operating Environmental
(all conditions noncondensing)
Temperature
41° to 122° F (5° to 50° C)
Relative Humidity
10% to 90% (Non-Condensing)
Operating Systems
Supported
Windows 10, Windows 7 Professional 64-bit. Red Hat Enterprise Linux
WS4**,5,6 Desktop/Workstation.
No driver is required for this device, Native support is provided by
operating system.
Kit Contents
HP SATA DVD Writer drive, Installation guide.
HP 9.5mm Slim BDXL BluRay Writer
Description
9.5mm height, tray-load
Mounting Orientation
Either horizontal or vertical
Interface Type
SATA/ATAPI
Dimensions (WxHxD)
128 x 9.5 x 127mm
Supported Media Types
BD-ROM
BD-R
BD-RE
DVD+R
DVD+RW
DVD+R DL
DVD-R DL
DVD-R
DVD-RW
CD-R
CD-RW
Disc Capacity
DVD-ROM
8.5 GB DL or 4.7 GB standard
Blu-ray
25 GB (single-layer)
50 GB (dual-layer)
100/128 GB (BDXL)
Full Stroke DVD
< 230 ms (seek)
Full Stroke CD
< 220 ms (seek)
Blu-ray
< 230 ms (seek) (Full Stroke Blu-ray)
Startup Time
(Time to drive ready from tray
loading)
BD-ROM (SL/DL) 25S / 28S
BD-R (SL/DL) 25S / 28S
BD-RE (SL/DL) 25S / 28S
DVD-ROM (SL/DL) 18S / 18S
DVD-R (SL/DL) 25S / 25S
DVD-RW 25S
DVD+R (SL/DL) 25S / 25S
DVD+RW 25S
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications – Optical and Removable Storage
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 82
CD-ROM 15S
Maximum Data Transfer
Rates
CD ROM Read
CD-ROM, CD-R Up to 24X
CD-RW Up to 24X
DVD ROM Read
DVD+RW Up to 8X
DVD-RW Up to 8X
DVD+R DL Up to 8X
DVD-R DL Up to 8X
DVD-ROM Up to 8X
DVD-ROM DL Up to 8X
DVD+R Up to 8X
DVD-R Up to 8X
Blu-ray
BD-ROM Up to 6X
BD-ROM DL Up to 6X
BD-R Up to 6X
BD-R DL Up to 6X
BD-R Up to 6X
BD-RE SL/DL Up to 6X
Power
Source
SATA DC power receptacle
DC Power Requirements
5 VDC ± 5%-100 mV ripple p-p
DC Current
5 VDC -900 mA typical, 2000mA
maximum
Operating Environmental
(all conditions noncondensing)
Temperature
41° to 122° F (5° to 50° C)
Relative Humidity
10% to 80%
Maximum Wet Bulb Temperature
84° F (29° C)
Operating Systems
Supported
Windows 10, Windows 7 Professional 64-bit
Red Hat® Enterprise Linux® (RHEL) 6, 7 Desktop/Workstation
SUSE Linux® Enterprise Desktop 12
No driver is required for this device. Native support is provided by the
operating system.
Kit Contents
9.5mm Slim BDXL Blu-Ray Writer, 5.25" ODD Bay adapter/carrier, slim
SATA data/power cable, installation guide
As Blu-ray is a new format containing new technologies, certain disc,
digital connection, compatibility and/or performance issues may arise, and
do not constitute defects in the product. Flawless playback on all systems
is not guaranteed. In order for some Blu-ray titles to play, they may
require a DVI or HDMI digital connection and your display may require
HDCP support. HD-DVD movies cannot be played on this workstation.
HP SD Card Reader
Description
Supports hardware ECC (Error Correction Code) function
Supports hardware CRC (Cyclic Redundancy Check) function
Supports SD 4-bit parallel transfer mode
Interface Type
USB 3.1 GEN 1 High-speed interface
Dimensions (WxHxD)
1.15 x .9 x .15 in (29.00 x 23.6 x 3.15 mm) Fits conveniently in the Front IO
Bay
Supported Media Types
Secure Digital Card (SD)
Secure Digital High Capacity (SDHC)
SD Extended Capacity Memory Card (SDXC)
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications – Optical and Removable Storage
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 83
SD Ultra High Speed II(SD UHSII)
These additional media types are supported with a card adapter.
Memory Stick Micro (M2)
miniSD
miniSD High Capacity
Micro SD Memory Card (MicroSD)
Micro SD High Capacity Memory Card (MicroSDHC)
Test Parameters/Conditions - Power applied, unit operating on system
±5%
Operating Systems
Supported
Windows 10
No driver is required for this device. Native support is provided by the
operating system.
Kit Contents
Media card reader
Approvals
USB-IF, WHQL, Compliant with USB Mass Storage Class Bulk only Transport
Specification Rev. 1.0,
Compliant Intel® Front Panel I/O Connectivity Design Guide V. 1.3, FCC, CE,
BSMI, C-Tick, VCCI, MIC, cUL, TUVT
Weight
0.35 lbs. (0.16 kg)
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Controller Cards
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 84
CONTROLLER CARDS
HP Thunderbolt-3 Dual
Port2 PCIe 1-port I/O
Card
Data Transfer Rate
Supports up to 40 Gb/s (40,000 Mb/s)
Devices Supported
Thunderbolt™, Thunderbolt™ 2 and Thunderbolt™ 3 certified for Windows
devices
Bus Type
PCIe card, full height PCIe slots
Ports
Two Thunderbolt™ 3 external USB type-C output connectors (Rear)
Two full size DisplayPort input connectors (Rear)
Internal Connectors
One 2x5-Pin header connector
System Requirements
Windows 10 Professional, available dedicated PCH PCIe slot.
Temperature - Operating
50° to 131° F (10° to 55° C)
Temperature - Storage
-22° to 140° F (-30° to 60° C)
Relative Humidity Operating
20% to 80%
Compliances
FCC Part 15B, cULus 60950, CE Mark EN55022B(1995)/EN55024-1998 STD,
Taiwan BSMI CNS13438, Korea MIC
Operating Systems
Supported
Windows 10 Professional.
Kit Contents
HP Thunderbolt™ 3 Dual Port PCIe I/O Card, 2- DisplayPort cables, GPIO
(General-Purpose Input/Output) cables, Installation documentation and
warranty card.
*Maximum speed requires DisplayPort™ and PCIe aggregation.
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Networking and Communications
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 85
NETWORKING AND COMMUNICATIONS
Integrated Intel® I219LM
Connector
RJ-45
Controller
Intel® I219LM
Data Rates Supported
10/100/1000 Mbps
Boot ROM Support
PXE, UEFI
Connect Speed LED
Indicators
Link/Activity LED
• Off = No link
• Blinking = Activity
Speed LED
• Off = 10Mbps
• Amber = 100Mbps
• Green = 1000Mbps
Management Capabilities
Intel ® Active Management Technology™ 11
Integrated Intel® X722
for 1GbE
Connector
1 RJ-45
Controller
Intel® X722 for 1GbE
Data Rates Supported
1000 Mbps
Boot ROM Support
PXE, UEFI
Connect Speed LED
Indicators
Link/Activity LED
• Off = No link
• Blinking = Activity
Speed LED
• Off = No Link
• Green = 1000Mbps
Management Capabilities
Wake-On-LAN
HP Z Dual 10GbE Network
Module
Networking Interface
2 RJ-45
System Interface
Cabled from Dedicated Rear I/O Slot
Networking Speeds
Supported
1Gbps, 10Gbps
Cabling (up to 100m)
Cat5e (or higher) for 1Gbps
Cat6a (or higher) for 10Gbps
Power Consumption
(active-typical)
5.5W at 1Gbps
11.2W at 10Gbps
Physical Dimensions
0.875 in x 3 in x 2.75 in
Connect Speed LED
Indicators
Link/Activity LED
• Off = No link
• Blinking = Activity
Speed LED
• Amber = 1Gbps
• Green = 10Gbps
Operating Temperature
0 °C to 55 °C (32 °F to 131 °F)
Intel® I210-T1
Networking Interface
1 RJ-45
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Networking and Communications
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 86
System Interface
PCI Express 2.1 x1
Networking Speeds
Supported
10Mbps, 100Mbps, 1Gbps
Cabling (up to 100m)
Cat3 (or higher) for 10Mbps
Cat5 (or higher) for 100Mbps
Cat5e (or higher) for 1Gbps
Power Consumption
(active-typical)
0.81W
Physical Dimensions
Length: 6.7cm (2.64 inches)
(Bracket) Width: 1.8cm (0.709 inches)
Full-height end bracket: 12.07cm (4.755 inches)
Low-profile end bracket: 8cm (3.15 inches)
Connect Speed LED
Indicators
Link/Activity LED
• Off = No link
• Blinking = Activity
Speed LED
• Off = 10Mbps
• Green = 100Mbps
• Amber = 1Gbps
Operating Temperature
0 °C to 55 °C (32 °F to 131 °F)
Hardware Certifications
USA: FCC B,
EU: UL CE,
Japan: VCCI,
Taiwan: BSMI,
Australia/New Zealand: CTICK,
Korea: KCC,
Canada: ICES-003/NMB-003
Intel® I350-T2
Networking Interface
2 RJ-45
System Interface
PCI Express 2.1 x4
Networking Speeds
Supported
10Mbps, 100Mbps, 1Gbps
Cabling (up to 100m)
Cat3 (or higher) for 10Mbps
Cat5 (or higher) for 100Mbps
Cat5e (or higher) for 1Gbps
Power Consumption
(active-typical)
4.4W
Physical Dimensions
Length: 13.54cm (5.33 inches)
Width: 6.89 (2.71 inches)
Full-height end bracket: 12.0cm (4.725 inches)
Low-profile end bracket: 7.92cm (3.117 inches)
Connect Speed LED
Indicators
Link/Activity LED
• Off = No link
• Blinking = Activity
Speed LED
• Off = 10Mbps
• Green = 100Mbps
• Amber = 1Gbps
Operating Temperature
0 °C to 55 °C (32 °F to 131 °F)
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Networking and Communications
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 87
Hardware Certifications
USA: FCC B,
EU: UL CE,
Japan: VCCI,
Taiwan: BSMI,
Australia/New Zealand: CTICK,
Korea: KCC,
Canada: ICES-003/NMB-003
Intel® I350-T4
Networking Interface
4 RJ-45
System Interface
PCI Express 2.1 x4
Networking Speeds
Supported
10Mbps, 100Mbps, 1Gbps
Cabling (up to 100m)
Cat3 (or higher) for 10Mbps
Cat5 (or higher) for 100Mbps
Cat5e (or higher) for 1Gbps
Power Consumption
(active-typical)
5W
Physical Dimensions
Length: 13.54cm (5.33 inches)
Width: 6.89 (2.71 inches)
Full-height end bracket: 12.0cm (4.725 inches)
Low-profile end bracket: 7.92cm (3.117 inches)
Connect Speed LED
Indicators
Link/Activity LED
• Off = No link
• Blinking = Activity
Speed LED
• Off = 10Mbps
• Green = 100Mbps
• Amber = 1Gbps
Operating Temperature
0 °C to 55 °C (32 °F to 131 °F)
Hardware Certifications
USA: FCC B,
EU: UL CE,
Japan: VCCI,
Taiwan: BSMI,
Australia/New Zealand: CTICK,
Korea: KCC,
Canada: ICES-003/NMB-003
Aquantia® AQN-108
Networking Interface
RJ-45
System Interface
PCI Express 3 x1
Networking Speeds
Supported
100Mbps, 1Gbps, 2.5Gbps, 5Gbps
Cabling (up to 100m)
Cat5e (or higher) for all speeds
Power Consumption
(active-typical)
3.5W at 5Gbps, 3.0W at 2.5Gbps
Physical Dimensions
3.72 in x 3.18 in (without bracket)
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Networking and Communications
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 88
Connect Speed LED
Indicators
Link/Activity LED
• Off = No link
• Blinking = Activity
Speed LED
• Off = No link
• Amber = <5Gbps
• Green = 5Gbps
Operating Temperature
0 °C to 55 °C (32 °F to 131 °F)
Hardware Certifications
USA: FCC B,
EU: UL CE,
Japan: VCCI,
Taiwan: BSMI,
Australia/New Zealand: CTICK,
Korea: KCC,
Canada: ICES-003/NMB-003
Intel® X550-T2
Networking Interface
2 x RJ-45
System Interface
PCI Express 3 x4
Networking Speeds
Supported
100Mbps, 1Gbps, 2.5Gbps, 5Gbps, 10Gbps
Cabling (up to 100m)
Cat5 (or higher) for 100Mbps
Cat5e (or higher) for 1Gbps, 2.5Gbps, or 5Gbps
Cat6a (or higher) for 10Gbps
Power Consumption
(active-typical)
3.9W at 100Mbps
5.5W at 1Gbps
11.2W at 10Gbps
Physical Dimensions
5.2 in x 2.7 in (without bracket)
Connect Speed LED
Indicators
Link/Activity LED
• Off = No link
• Blinking = Activity
Speed LED
• Off = No link
• Amber = <10Gbps
• Green = 10Gbps
Operating Temperature
0 °C to 55 °C (32 °F to 131 °F)
Hardware Certifications
USA: FCC B,
EU: UL CE,
Japan: VCCI,
Taiwan: BSMI,
Australia/New Zealand: CTICK,
Korea: KCC,
Canada: ICES-003/NMB-003
Allied Telesis
AT-2914SX/LC-901 1GB
LC Fiber NIC
Network Interface
System Interface
Networking Speeds
Supported
1Gb LC Fiber 850 nm
PCIeG2 x1, Half Height, Half Length
1000Base-X (1Gbps)
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Networking and Communications
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 89
Cabling
Power Consumption
(active- typical)
Physical Dimensions
Connect Speed LED
Indicators
Operating Temperature
Hardware Certifications
50/125 µm (core/cladding) multimode fiber optic cable up to 500m
62.5/125 µm (core/cladding) multimode fiber optic cable up to 220m
1.5 Watts
8.8 cm x 6.9 cm (3.5 in x 2.7 in)
ON: 1Gbps Link OFF: Link down
-25°C to 70°C (-13°F to 158°F)
IEEE 802.1p (Quality of Service), IEEE 802.1Q (VLANs), IEEE 802.2 (LLC),
IEEE 802.3ac (MAC), IEEE 802.3x (Flow control auto-negotiation), IEEE
802.3z (1000 Base-X), IEEE 802.3ad (Link aggregation)
RoHS, UL, FCC/EN55022 Class A, TUV, EN55024, CE, C-TICK, VCCI
Intel® X710-DA2
Networking Interface
2 SFP+ Ports for LC SFP+ Transceivers
10GBASE-SR Converged
Network Adapter
System Interface
PCI Express 3.0 x8
Networking Speeds
Supported
1Gbps, 10Gbps
Cabling
LC fiber optic cabling with LC SFP+ Transceivers
Power Consumption
(active-typical)
4.3W
Physical Dimensions
6.578 in x 2.703 in
Connect Speed LED
Indicators
Link/Activity LED
• Off = No link
• Blinking = Activity
Speed LED
• Off = 10Mbps
• Green = 100Mbps
• Amber = 1Gbps
Operating Temperature
0 °C to 55 °C (32 °F to 131 °F)
Hardware Certifications
USA: FCC B,
EU: UL CE,
Japan: VCCI,
Taiwan: BSMI,
Australia/New Zealand: CTICK,
Korea: KCC,
Canada: ICES-003/NMB-003
Note: Windows 7 is NOT supported
10GbE SFP+ SR
Transceiver
Connector Type
LC
Cable Type
62.5/125um or 50/125um (core/cladding), graded-index, low metal
content, multimode fiber optic, complying with ITU-T G.651 and ISO/IEC
793-2 Type A1b or A1a, respectively.
Cable Length
2-300m
Wavelength
850nm
Form Factor
SFP+
Physical Dimensions
0.47(h) x 0.54(w) x 2.19(d) inches
(1.19 x 1.38 x 5.57 cm)
QuickSpecs
HP Z6 G4 Workstation
Technical Specifications - Networking and Communications
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 90
Operating Temperature
0C to 45C (32F to 113F)
Operating Humidity
0% to 85%, noncondensing
Intel® 8265 WLAN
Networking Speeds
802.11ac MU-MIMO (up to 867 Mbps)
Bluetooth 4.2
IEEE WLAN Standard
IEEE 802.11a/b/g/n/ac, 802.11d, 802.11e, 802.11h, 802.11i, 802.11w;
802.11r, 802.11k, 802.11v pending
Bluetooth
4.2
System Interface
PCI Express 2.1 x1
Antenna
2x2
QuickSpecs
HP Z6 G4 Workstation
Summary of Changes
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 91
SUMMARY OF CHANGES
Date of change:
Version History:
Description of change:
November 1, 2017
From v1 to v2
Added
HP DisplayPort to HDMI Adapter, HP DisplayPort to VGA Adapter, NVIDIA SLI
3-slot Graphics Connector and NVIDIA Quadro Sync II to Graphics section
and Microsemi 3152-8i SAS ROC RAID Controller
Changed
Graphics, Storage / Hard Drives and Memory sections, changed Front and
internal view info on the Overview section, changed Operating Systems
section, changed System Board section, Physical Security and Serviceability
sections
November 29, 2017
From v2 to v3
Added
Processors, hard drives and graphics to offerings, added Declared Noise
Emissions information
January 30, 2018
From v3 to v4
Removed
NVIDIA SLI Graphics Connectors from Graphics Cable Adapters section
March 27, 2018
From v4 to v5
Added
Intel Xeon processors added
April 16, 2018
From v5 to v6
Removed
RAID 5
August 13, 2018
From v6 to v7
Added
Footnote to Networking and Communications section
Changed
Processors section and Operating Systems section
September 4, 2018
From v7 to v8
Removed
HP IEEE 1394b FireWire PCIe Card
September 6, 2018
From v8 to v9
Removed
Microsemi 3152-8i SAS ROC RAID Controller
September 21, 2018
From v9 to v10
Added
Intel Optane SSD 905p AiC 280GB & 480GB
September 26, 2018
From v10 to v11
Changed
NVIDIA Quadro P6000 Graphics specs
April 8, 2019
From v11 to v12
Added
New Intel Xeon Processors and graphics, added HP DX175 Removable HDD
Carrier into the HDD Frame/Carriers section
Changed
Storage / Hard Drives, Memory sections and format changes
May 15, 2019
From v12 to v13
Added
NVIDIA Quadro RTX 8000 48GB Graphics
Changed
External BIOS simulator link on Physical Security and Serviceability section
Removed
Intel 9260 WLAN
June 12, 2019
From v13 to v14
Changed
Storage section
July 7, 2019
From v14 to v15
Added
Intel Xeon W Processors
July 15, 2019
From v15 to v16
Changed
Corrected Intel 905p Series AIC 480GB PCIe SSD
August 1, 2019
From v16 to v17
Changed
Processors Matrix
September 1, 2019
From v17 to v18
Added
Footnote to Memory section, Added Optane 905P 380GB M.2 SSD Module,
HP Z Turbo Drive 1TB SED TLC Z4/Z6 G4 SSD Kit & module to Storage
section, Added Intel® Wi-Fi 6 AX200 & BT PCIe to Networking section
October 26, 2019
From v18 to v19
Changed
Graphics section
November 1, 2019
From v19 to v20
Added
NVDIMM Memory sections, Added HP QX310 Removable NVMe
Frame/Carrier w/PCIe card to Optical and Removable Storage section
January 2, 2020
From v20 to v21
Changed
Storage section
February 26, 2020
From v21 to v22
Added
New Intel Xeon Processors
Changed
Overview, PCIe Solid State Drives sections
April 2, 2020
From v22 to v23
Changed
Processors and NVDIMM Memory sections
July 18, 2020
From v23 to v24
Changed
Processors, Graphics section
January 5, 2021
From v24 to v25
Changed
Processors, Memory, Graphics, Racking and Physical Security, Operating
Systems and Hard Drives sections
February 1, 2021
From v25 to v26
Changed
NETWORKING AND COMMUNICATIONS section
March 1, 2021
From v26 to v27
Changed
Overview section
QuickSpecs
HP Z6 G4 Workstation
c05527761 — DA – 15955 — Worldwide — Version 27 — March 1, 2021
Page 92
© 2021 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties
for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing
herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or
omissions contained herein. Intel, Xeon, and Thunderbolt are trademarks of Intel Corporation in the U.S. and other countries.
Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation. Red Hat is a registered trademark of Red Hat, Inc.
in the United States and other countries. Firewire is a trademark of Apple Inc. Linux® is the registered trademark of Linus Torvalds
in the U.S. and other countries. Bluetooth is a trademark of its proprietor used by HP Inc. under license.
Loading...
