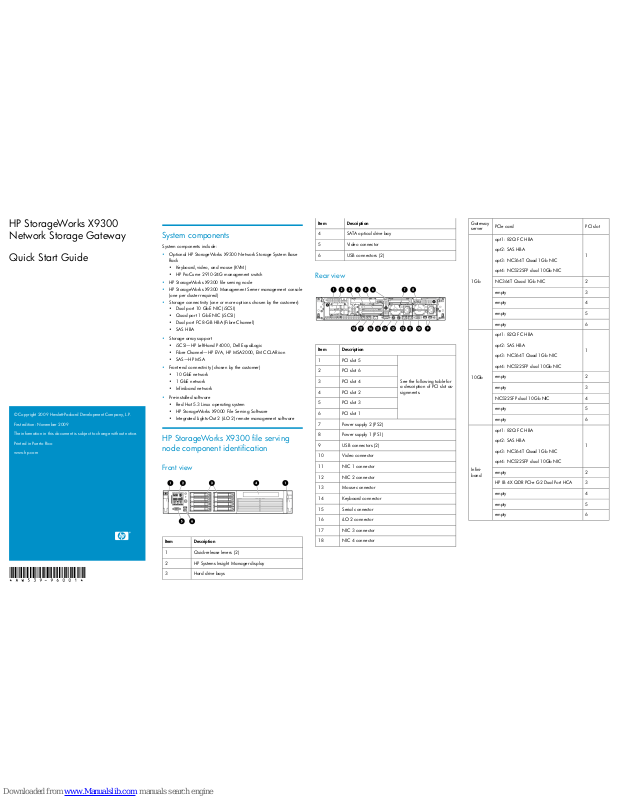

HP StorageWorks X9300 Quick Start Manual
HP StorageWorks X9300
Network Storage Gateway
Quick Start Guide
© Copyright 2009 Hewlett-Packard Development Company, L.P.
First edition: November 2009
The information in this document is subject to change without notice.
Printed in Puerto Rico
www.hp.com
*AW539-96001*
System components
System components include:
• Optional HP StorageWorks X9300 Network Storage System Base
Rack
• Keyboard, video, and mouse (KVM)
• HP ProCurve 2910-24G management switch
• HP StorageWorks X9300 file serving node
• HP StorageWorks X9300 Management Server management console
(one per cluster required)
• Storage connectivity (one or more options chosen by the customer):
• Dual port 10 GbE NIC (iSCSI)
• Quad port 1 GbE NIC (iSCSI)
• Dual port FC 8-GB HBA (Fibre Channel)
• SAS HBA
• Storage array support
• iSCSI—HP LeftHand P4000, Dell EqualLogic
• Fibre Channel—HP EVA, HP MSA2000, EMC CLARiion
• SAS—HP MSA
• Front-end connectivity (chosen by the customer)
• 10 GbE network
• 1 GbE network
• Infiniband network
• Pre-installed software
• Red Hat 5.3 Linux operating system
• HP StorageWorks X9000 File Serving Software
• Integrated Lights-Out 2 (iLO 2) remote management software
HP StorageWorks X9300 file serving
node component identification
Front view
DescriptionItem
Quick-release levers (2)1
HP Systems Insight Manager display2
Hard drive bays3
DescriptionItem
SATA optical drive bay4
Video connector5
USB connectors (2)6
Rear view
DescriptionItem
See the following table for
a description of PCI slot assignments.
PCI slot 51
PCI slot 62
PCI slot 43
PCI slot 24
PCI slot 35
PCI slot 16
Power supply 2 (PS2)7
Power supply 1 (PS1)8
USB connectors (2)9
Video connector10
NIC 1 connector11
NIC 2 connector12
Mouse connector13
Keyboard connector14
Serial connector15
iLO 2 connector16
NIC 3 connector17
NIC 4 connector18
PCI slotPCIe card
Gateway
server
1
opt1: 82Q FC HBA
1Gb
opt2: SAS HBA
opt3: NC364T Quad 1Gb NIC
opt4: NC522SFP dual 10Gb NIC
2NC364T Quad 1Gb NIC
3empty
4empty
5empty
6empty
1
opt1: 82Q FC HBA
10Gb
opt2: SAS HBA
opt3: NC364T Quad 1Gb NIC
opt4: NC522SFP dual 10Gb NIC
2empty
3empty
4NC522SFP dual 10Gb NIC
5empty
6empty
1
opt1: 82Q FC HBA
Infiniband
opt2: SAS HBA
opt3: NC364T Quad 1Gb NIC
opt4: NC522SFP dual 10Gb NIC
2empty
3HP IB 4X QDR PCI-e G2 Dual Port HCA
4empty
5empty
6empty
System setup
HP service specialists can perform any or all of the following
implementation steps, as specified in your statement of work:
• Remove the product from the shipping cartons that have been placed
in the location where the product will be installed.
• Confirm the contents of each carton using the list of included items,
check for physical damage to the exterior of the product, and connect
the product to power and network provided by the customer.
• Ensure that all prerequisites for the server, network, and storage en-
vironment have been met.
• Validate the file system performance, availability, and manageability
requirements.
• Finalize the product implementation plan and software configuration,
and then implement the configuration.
• Document the configuration details.
• Conduct a brief, informal orientation to the product.
• Ensure that virtual disks (Vdisks) are initialized.
Until initialization is complete, performance will be slower than usual;
however, after the first few minutes, the system can still be used to
create LUNs, file systems, and so on, and clusters can be set up.
• Configure file systems.
• Verify that the system is functional by testing file serving in the cluster
server environment and the failover process.
IMPORTANT:
Do not interrupt power to the storage system during initialization.
Next steps
Depending on which services the HP service specialist performs, your
next step could be any of the above system setup tasks. If optional
functions such as continuous remote replication, data tiering, snapshots,
and high availability were not set up by the HP service specialist, you
can set them up at any time by following the instructions in the HP
StorageWorks X9000 File Serving Software User Guide.
Related information
• HP StorageWorks X9300 Network Storage Gateway documentation
• HP StorageWorks X9000 File Serving Software User Guide
• HP StorageWorks X9000 File Serving Software CLI Reference
• HP StorageWorks X9000 File Serving Software Release Notes
To locate the X9300 Network Storage Gateway documents, go to
http://www.hp.com/go/X9000.
• HP StorageWorks X9300 Management Server documentation
• HP ProLiant DL360 G6 Server User Guide
• HP ProLiant DL360 G6 Server Maintenance and Service Guide
To locate the HP StorageWorks X9300 Management Server documents, go to http://www.hp.com/support/manuals, In the servers
section, click ProLiant ml/dl and tc series servers,and then click HP
ProLiant DL360 G6 Server series.
• HP StorageWorks X9300 file serving node documentation
• HP ProLiant DL380 G6 Server User Guide
• HP ProLiant DL380 G6 Server Maintenance and Service Guide
To locate the HP StorageWorks X9300 file serving node documents,
go to http://www.hp.com/support/manuals, In the servers section,
click ProLiant ml/dl and tc series servers,and then click HP ProLiant
DL380 G6 Server series.
HP websites
For additional information, see the following HP websites:
• http://www.hp.com/go/X9000
• http://www.hp.com
• http://www.hp.com/go/storage
• http://www.hp.com/support/manuals
HP technical support
For worldwide technical support information, see the HP support website:
http://www.hp.com/support
Before contacting HP, collect the following information:
• Product model names and numbers
• Technical support registration number (if applicable)
• Product serial numbers
• Error messages
• Operating system type and revision level
• Detailed questions
