Presario 1700 Series
Models: XL260, XL261, XL262, XL264, XL265, XL266, XL274, XL275, XL360, XL361,
XL362, XL363, XL364, XL365, XL366, XL367, XL368, XL369, XL370, XL371, XL372, XL373,
XL374, XL375, XL376, XL377, and XL378
Product Description
This chapter describes the features of each of the Presario 1700XL Series Notebooks. It
also provides illustrations of the exterior components of these units.
P
RESARIO NOTEBOOK MAINTENANCE AND SERVICE GUIDE
1700XL S
ERIES
P
RODUCT DESCRIPTION
1
Page 3
Presario 1700 Series
Models: XL260, XL261, XL262, XL264, XL265, XL266, XL274, XL275, XL360, XL361,
XL362, XL363, XL364, XL365, XL366, XL367, XL368, XL369, XL370, XL371, XL372, XL373,
XL374, XL375, XL376, XL377, and XL378
Models and Features
Compaq Presario 1700 Series Portable Notebook Computer Models
XL260 XL261 XL262 XL264 XL265
Display 13.3 in. 13.3 in. &
14.1 in.
Processor PIII/500(256) PIII/500(256) &
PIII/650(256)
Hard Drive 6.0 6.0 & 12.0 6.0 6.0 6.0
CD or DVD
DVD DVD DVD 24X DVD
Drive
Diskette
Drive
Modem 56K Mini PCI
1.44 Std.
Diskette
d/f 1*
1.44 Std.
Diskette
56K Mini PCI d/f
2 & 3* & 56K
Mini PCI
Modem/NIC
combo d/f 1*
Networking None None None None None
Battery 3.2 Li-ion 3.2 Li-ion 3.2 Li-ion 3.2 Li-ion 3.2 Li-ion
System
64 MB 64 & 96 MB 64 MB 64 MB 64 MB
Memory
14.1 in. 13.3 in. 14.1 in.
PIII/600(256) PIII/500(256) PIII/600(256)
1.44 Std.
Diskette
56K Mini PCI
d/f 1*
1.44 Std.
Diskette
56K Mini PCI
d/f 2 & 3*
1.44 Std.
Diskette
56K Mini PCI
d/f 1*
* Modem Legend
56K Mini PCI d/f 1 = Bear/Grizzly Modem/NIC Combo = All NA, CKK, LA
56K Mini PCI d/f 2 = Seminole = All EMEA/APD
56K Mini PCI d/f 3 = Seminole 2 = All AUS/NZ
Continued on the next page
2 P
RODUCT DESCRIPTION
P
RESARIO NOTEBOOK MAINTENANCE AND SERVICE GUIDE
1700XL S
ERIES
Page 4
Presario 1700 Series
Models: XL260, XL261, XL262, XL264, XL265, XL266, XL274, XL275, XL360, XL361,
XL362, XL363, XL364, XL365, XL366, XL367, XL368, XL369, XL370, XL371, XL372, XL373,
XL374, XL375, XL376, XL377, and XL378
Compaq Presario 1700 Series Portable Notebook Computer Models (Continued)
XL266 XL274 XL275
Display 13.3 in. 14.1 in. 14.1 in.
Processor PIII/500(256) PIII/600(256) PIII/650(256)
Hard Drive 6.0 12.0 6.0
CD or DVD Drive 24X 24X DVD
Diskette Drive 1.44 Std. Diskette 1.44 Std. Diskette 1.44 Std. Diskette
Modem 56K Mini PCI d/f 1* 56K Mini PCI d/f 1* 56K Mini PCI d/f 2 & 3*
& 56K Mini PCI Modem/
NIC combo
d/f 1*10/100 MBIT
Ethernet NIC
Networking None None None
Battery 3.2 Li-ion 3.2 Li-ion 3.2 Li-ion
System Memory 64 MB 128 MB 128 MB
* Modem Legend
56K Mini PCI d/f 1 = Bear/Grizzly Modem/NIC Combo = All NA, CKK, LA
56K Mini PCI d/f 2 = Seminole = All EMEA/APD
56K Mini PCI d/f 3 = Seminole 2 = All AUS/NZ
Continued on the next page
P
RESARIO NOTEBOOK MAINTENANCE AND SERVICE GUIDE
1700XL S
ERIES
P
RODUCT DESCRIPTION
3
Page 5
Presario 1700 Series
Models: XL260, XL261, XL262, XL264, XL265, XL266, XL274, XL275, XL360, XL361,
XL362, XL363, XL364, XL365, XL366, XL367, XL368, XL369, XL370, XL371, XL372, XL373,
XL374, XL375, XL376, XL377, and XL378
Compaq Presario 1700 Series Portable Notebook Computer Models (Continued)
XL360 XL361 XL362
Display 14.1 in. 13.3 in. 14.1 in.
Processor PIII/600 (256) PIII/700 (256) PIII/700 (256)
Hard Drive 10.0 GB 15.0 GB 15.0 GB
CD or DVD Drive DVD 8X DVD 8X DVD
Diskette Drive 1.44 Std. Diskette 1.44 Std. Diskette 1.44 Std. Diskette
Modem 56K Mini PCI d/f 4**
iNIC
Networking None None None
Battery 3.2 Li-ion 3.2 Li-ion 3.2 Li-ion
System Memory 64 MB 64 MB 128 MB
* Modem and NIC Legend
56K Mini PCI v.90 d/f - 1 = Bear = US, CA, CKK, APD, LA
56K Mini PCI v.90 d/f - 2 = Seminole1 = CTR21, EMEA
56K Mini PCI v.90 d/f - 3 = Seminole2 = AUS/NZ
56K Mini PCI d/f
4 & 5** iNIC
56K Mini PCI d/f 4**
iNIC
** Modem/NIC Combo Legend
56K Mini v.90/NIC - 4 = Grizzly = US, CA, CKK, LA, APD Eng, Korea, Taiwan
56K Mini v.90/NIC - 5 = Yogi = CTR21, EMEA, AUS/NZ, PRC
Continued on the next page
4 P
RODUCT DESCRIPTION
P
RESARIO NOTEBOOK MAINTENANCE AND SERVICE GUIDE
1700XL S
ERIES
Page 6
Presario 1700 Series
Models: XL260, XL261, XL262, XL264, XL265, XL266, XL274, XL275, XL360, XL361,
XL362, XL363, XL364, XL365, XL366, XL367, XL368, XL369, XL370, XL371, XL372, XL373,
XL374, XL375, XL376, XL377, and XL378
Compaq Presario 1700 Series Portable Notebook Computer Models (Continued)
XL363 XL364 XL365 XL366
Display 13.3 in. 13.3 in. & 14.1 in. 14.1 in. 13.3 in.
Processor PIII/650 (256) PIII/650 (256)
PIII/750 (256)
Hard Drive 15.0 GB 10.0 GB & 20 GB 15.0 GB 10.0 GB
CD or DVD
Drive
24X 24X or CDRW or
DVD
Diskette Drive 1.44 Std. Diskette 1.44 Std. Diskette 1.44 Std. Diskette 1.44 Std. Diskette
Modem 56K Mini PCI d/f
5** iNIC
56K Mini PCI d/f
4 & 5** iNIC
Networking None None None None
Battery 3.2 Li-ion 3.2 Li-ion 3.2 Li-ion 3.2 Li-ion
System Memory 64 MB 64 MB & 128 MB 128 MB 64 MB
* Modem and NIC Legend
56K Mini PCI v.90 d/f - 1 = Bear = US, CA, CKK, APD, LA
56K Mini PCI v.90 d/f - 2 = Seminole1 = CTR21, EMEA
56K Mini PCI v.90 d/f - 3 = Seminole2 = AUS/NZ
PIII/700 (256) PIII/600 (256)
DVD 24X
56K Mini PCI d/f
4** iNIC
56K Mini PCI d/f
4** iNIC
** Modem/NIC Combo Legend
56K Mini v.90/NIC - 4 = Grizzly = US, CA, CKK, LA, APD Eng, Korea, Taiwan
56K Mini v.90/NIC - 5 = Yogi = CTR21, EMEA, AUS/NZ, PRC
Continued on the next page
P
RESARIO NOTEBOOK MAINTENANCE AND SERVICE GUIDE
1700XL S
ERIES
P
RODUCT DESCRIPTION
5
Page 7
Presario 1700 Series
Models: XL260, XL261, XL262, XL264, XL265, XL266, XL274, XL275, XL360, XL361,
XL362, XL363, XL364, XL365, XL366, XL367, XL368, XL369, XL370, XL371, XL372, XL373,
XL374, XL375, XL376, XL377, and XL378
Compaq Presario 1700 Series Portable Notebook Computer Models (Continued)
XL367 XL368 XL369
Display 14.1 in. 14.1 in. 13.3 in.
Processor Cel/600 (128) PIII/600 (256) Cel/650 (128)
Hard Drive 15.0 GB 15.0 GB 10.0 GB
CD or DVD Drive 24X 8X DVD CD-RW
Diskette Drive 1.44 Std. Diskette 1.44 Std. Diskette 1.44 Std. Diskette
Modem 56K Mini PCI d/f 1* 56K Mini PCI d/f 1* 56K Mini PCI d/f 5**
iNIC
Networking None None None
Battery 3.2 Li-ion 3.2 Li-ion 3.2 Li-ion
System Memory 64 MB 64 MB 64 MB
* Modem and NIC Legend
56K Mini PCI v.90 d/f - 1 = Bear = US, CA, CKK, APD, LA
56K Mini PCI v.90 d/f - 2 = Seminole1 = CTR21, EMEA
56K Mini PCI v.90 d/f - 3 = Seminole2 = AUS/NZ
** Modem/NIC Combo Legend
56K Mini v.90/NIC - 4 = Grizzly = US, CA, CKK, LA, APD Eng, Korea, Taiwan
56K Mini v.90/NIC - 5 = Yogi = CTR21, EMEA, AUS/NZ, PRC
Continued on the next page
6 P
RODUCT DESCRIPTION
P
RESARIO NOTEBOOK MAINTENANCE AND SERVICE GUIDE
1700XL S
ERIES
Page 8
Presario 1700 Series
Models: XL260, XL261, XL262, XL264, XL265, XL266, XL274, XL275, XL360, XL361,
XL362, XL363, XL364, XL365, XL366, XL367, XL368, XL369, XL370, XL371, XL372, XL373,
XL374, XL375, XL376, XL377, and XL378
Compaq Presario 1700 Series Portable Notebook Computer Models (Continued)
XL370 XL371 XL372
Display 14.1 in. 14.1 in. 13.3 in.
Processor PIII/650 (256) PIII/750 (256) PIII/650 (256)
Hard Drive 10.0 GB 20.0 GB 10.0 GB
CD or DVD Drive 8X DVD 8X DVD CD-RW
Diskette Drive 1.44 Std. Diskette 1.44 Std. Diskette 1.44 Std. Diskette
Modem 56K Mini PCI d/f 5**
iNIC
Networking None None None
Battery 3.2 Li-ion 3.2 Li-ion 3.2 Li-ion
System Memory 128 MB & 64 MB 128 MB 64 MB
* Modem and NIC Legend
56K Mini PCI v.90 d/f - 1 = Bear = US, CA, CKK, APD, LA
56K Mini PCI v.90 d/f - 2 = Seminole1 = CTR21, EMEA
56K Mini PCI v.90 d/f - 3 = Seminole2 = AUS/NZ
56K Mini PCI d/f 4**
iNIC
56K Mini PCI d/f 5**
iNIC
** Modem/NIC Combo Legend
56K Mini v.90/NIC - 4 = Grizzly = US, CA, CKK, LA, APD Eng, Korea, Taiwan
56K Mini v.90/NIC - 5 = Yogi = CTR21, EMEA, AUS/NZ, PRC
Continued on the next page
P
RESARIO NOTEBOOK MAINTENANCE AND SERVICE GUIDE
1700XL S
ERIES
P
RODUCT DESCRIPTION
7
Page 9
Presario 1700 Series
Models: XL260, XL261, XL262, XL264, XL265, XL266, XL274, XL275, XL360, XL361,
XL362, XL363, XL364, XL365, XL366, XL367, XL368, XL369, XL370, XL371, XL372, XL373,
XL374, XL375, XL376, XL377, and XL378
Compaq Presario 1700 Series Portable Notebook Computer Models (Continued)
XL373 XL374 XL375
Display 14.1 in. 14.1 in. 14.1 in.
Processor PIII/750 (256) PIII/700 (256) PIII/750 (256)
Hard Drive 20.0 GB 15.0 GB 20.0 GB
CD or DVD Drive DVD 8X DVD 8X DVD
Diskette Drive 1.44 Std. Diskette 1.44 Std. Diskette 1.44 Std. Diskette
Modem 56K Mini PCI d/f 4**
iNIC
Networking None None None
Battery 3.2 Li-ion 3.2 Li-ion 3.2 Li-ion
System Memory 64 MB 128 MB 128 MB
* Modem and NIC Legend
56K Mini PCI v.90 d/f - 1 = Bear = US, CA, CKK, APD, LA
56K Mini PCI v.90 d/f - 2 = Seminole1 = CTR21, EMEA
56K Mini PCI v.90 d/f - 3 = Seminole2 = AUS/NZ
56K Mini PCI d/f 4**
iNIC
56K Mini PCI d/f 4**
iNIC
** Modem/NIC Combo Legend
56K Mini v.90/NIC - 4 = Grizzly = US, CA, CKK, LA, APD Eng, Korea, Taiwan
56K Mini v.90/NIC - 5 = Yogi = CTR21, EMEA, AUS/NZ, PRC
Continued on the next page
8 P
RODUCT DESCRIPTION
P
RESARIO NOTEBOOK MAINTENANCE AND SERVICE GUIDE
1700XL S
ERIES
Page 10
Presario 1700 Series
Models: XL260, XL261, XL262, XL264, XL265, XL266, XL274, XL275, XL360, XL361,
XL362, XL363, XL364, XL365, XL366, XL367, XL368, XL369, XL370, XL371, XL372, XL373,
XL374, XL375, XL376, XL377, and XL378
Compaq Presario 1700 Series Portable Notebook Computer Models (Continued)
XL376 XL377 XL378 XLTBD
Display 14.1 in. 14.1 in. 13.3 in. 14.1 in.
Processor PIII/750 (256) PIII/700 (256) Cel/700 (128) PIII/700 (256)
Hard Drive 20.0 GB 20.0 GB 10.0 GB 10.0 GB
CD or DVD Drive CD-RW 8 X DVD DVD 8X DVD
Diskette Drive 1.44 Std. Diskette 1.44 Std. Diskette 1.44 Std. Diskette 1.44 Std. Diskette
Modem 56K Mini PCI d/f
4 & 5** iNIC
Networking None None None None
Battery 3.2 Li-ion 3.2 Li-ion 3.2 Li-ion 3.2 Li-ion
System Memory 128 MB 64 MB 64 MB 128 MB
* Modem and NIC Legend
56K Mini PCI v.90 d/f - 1 = Bear = US, CA, CKK, APD, LA
56K Mini PCI v.90 d/f - 2 = Seminole1 = CTR21, EMEA
56K Mini PCI v.90 d/f - 3 = Seminole2 = AUS/NZ
56K Mini PCI d/f
5** iNIC
56K Mini PCI d/f
5** iNIC
56K Mini PCI d/f
5** iNIC
** Modem/NIC Combo Legend
56K Mini v.90/NIC - 4 = Grizzly = US, CA, CKK, LA, APD Eng, Korea, Taiwan
56K Mini v.90/NIC - 5 = Yogi = CTR21, EMEA, AUS/NZ, PRC
P
RESARIO NOTEBOOK MAINTENANCE AND SERVICE GUIDE
1700XL S
ERIES
P
RODUCT DESCRIPTION
9
Page 11
Presario 1700 Series
Models: XL260, XL261, XL262, XL264, XL265, XL266, XL274, XL275, XL360, XL361,
XL362, XL363, XL364, XL365, XL366, XL367, XL368, XL369, XL370, XL371, XL372, XL373,
XL374, XL375, XL376, XL377, and XL378
Front of Unit
10 P
RODUCT DESCRIPTION
Display Release Latch
1
Display
2
Power (On/Off) Button
3
Lid Switch
4
Keyboard
5
P
Description
TouchPad
6
Speakers
7
Left TouchPad Button
8
Scroll Button
9
Right TouchPad Button
-
RESARIO NOTEBOOK MAINTENANCE AND SERVICE GUIDE
1700XL S
ERIES
Page 12
Presario 1700 Series
Models: XL260, XL261, XL262, XL264, XL265, XL266, XL274, XL275, XL360, XL361,
XL362, XL363, XL364, XL365, XL366, XL367, XL368, XL369, XL370, XL371, XL372, XL373,
XL374, XL375, XL376, XL377, and XL378
Internet Zone Buttons and Lights
Description
Volume Down Button
1
Volume Up Button
2
Digital Audio Button
3
Power Button
4
Instant Internet Access
5
Button
Instant E-Mail Button
6
Retail Central Button
7
AC Adapter Light
8
Num Lock Light
9
Caps Lock Light
-
Scroll Lock Light
q
P
RESARIO NOTEBOOK MAINTENANCE AND SERVICE GUIDE
1700XL S
ERIES
P
RODUCT DESCRIPTION
11
Page 13
Presario 1700 Series
Models: XL260, XL261, XL262, XL264, XL265, XL266, XL274, XL275, XL360, XL361,
XL362, XL363, XL364, XL365, XL366, XL367, XL368, XL369, XL370, XL371, XL372, XL373,
XL374, XL375, XL376, XL377, and XL378
Front Bezel Components
Description
Power (On/Off) Light
1
Battery Charge Light
2
12 P
RODUCT DESCRIPTION
P
RESARIO NOTEBOOK MAINTENANCE AND SERVICE GUIDE
1700XL S
ERIES
Page 14
Presario 1700 Series
Models: XL260, XL261, XL262, XL264, XL265, XL266, XL274, XL275, XL360, XL361,
XL362, XL363, XL364, XL365, XL366, XL367, XL368, XL369, XL370, XL371, XL372, XL373,
XL374, XL375, XL376, XL377, and XL378

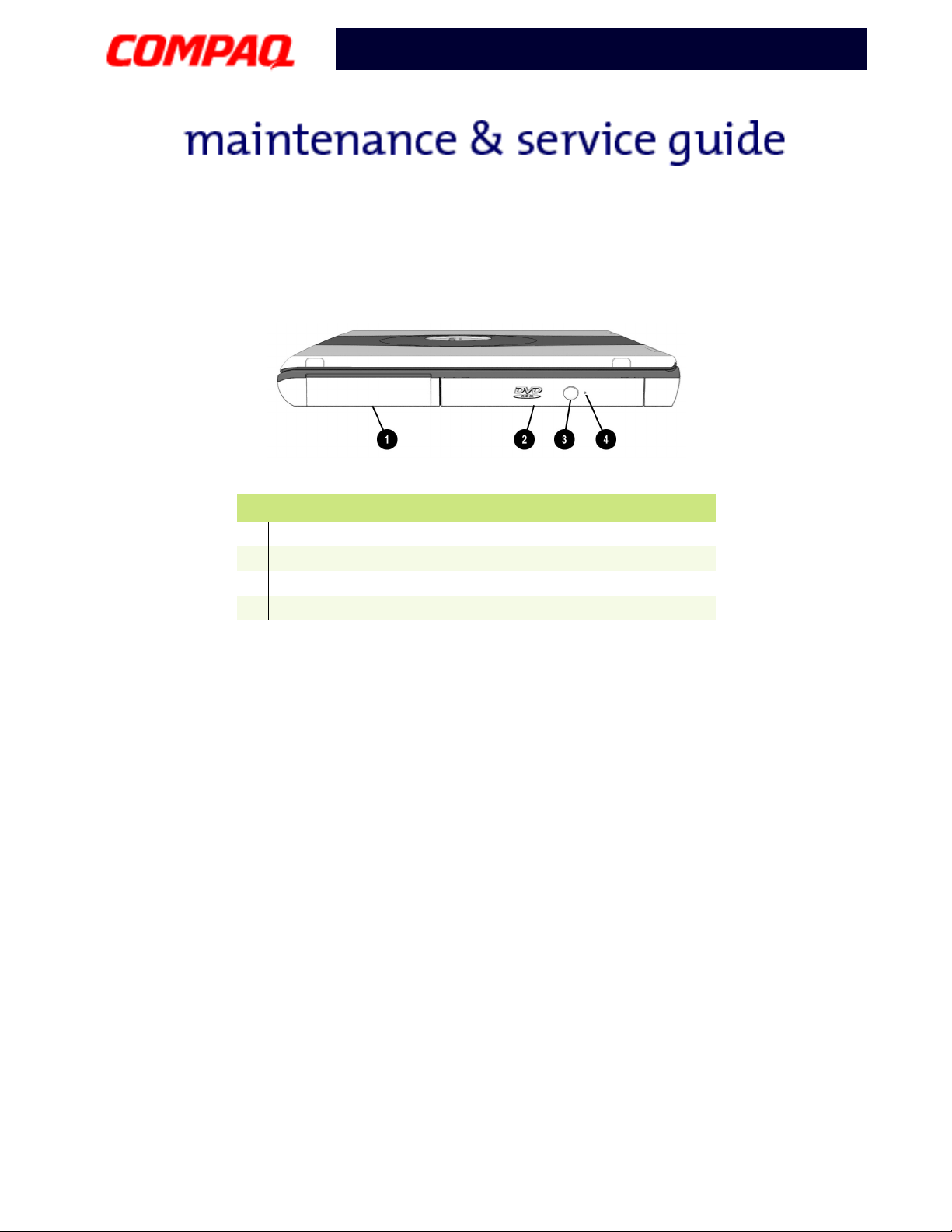

Right-Side Components with CD, DVD, or CD-RW Installed
Description
Battery Compartment
1
Future Bay™ Removable CD, DVD*, or CD-RW* Drive
2
CD or DVD Eject Button
3
CD or DVD Manual Eject Hole
4
*A DVD or CD-RW is available on select models.
P
RESARIO NOTEBOOK MAINTENANCE AND SERVICE GUIDE
1700XL S
ERIES
P
RODUCT DESCRIPTION
13
Page 15
Presario 1700 Series
Models: XL260, XL261, XL262, XL264, XL265, XL266, XL274, XL275, XL360, XL361,
XL362, XL363, XL364, XL365, XL366, XL367, XL368, XL369, XL370, XL371, XL372, XL373,
XL374, XL375, XL376, XL377, and XL378
Right-Side Components with Diskette or SuperDisk Drive Installed
Description
Battery Compartment
1
Future Bay™ Removable Diskette or SuperDisk* Drive
2
Diskette or SuperDisk Eject Button
3
*SuperDisk is available on select models.
14 P
RODUCT DESCRIPTION
P
RESARIO NOTEBOOK MAINTENANCE AND SERVICE GUIDE
1700XL S
ERIES
Page 16
Presario 1700 Series
Models: XL260, XL261, XL262, XL264, XL265, XL266, XL274, XL275, XL360, XL361,
XL362, XL363, XL364, XL365, XL366, XL367, XL368, XL369, XL370, XL371, XL372, XL373,
XL374, XL375, XL376, XL377, and XL378
Left-Side Components
Description
Air Vent
1
Microphone Jack
2
Headphone Jack
3
PC Card Slot (Type I or II)
4
PC Card Eject Button
5
P
RESARIO NOTEBOOK MAINTENANCE AND SERVICE GUIDE
1700XL S
ERIES
P
RODUCT DESCRIPTION
15
Page 17
Presario 1700 Series
Models: XL260, XL261, XL262, XL264, XL265, XL266, XL274, XL275, XL360, XL361,
XL362, XL363, XL364, XL365, XL366, XL367, XL368, XL369, XL370, XL371, XL372, XL373,
XL374, XL375, XL376, XL377, and XL378
Underneath the Unit
16 P
RODUCT DESCRIPTION
Description
Memory Compartment
1
Model and Serial Number
2
Battery Release Switch
3
FutureBay™ Release
4
Switch
QuikDock Port
5
P
RESARIO NOTEBOOK MAINTENANCE AND SERVICE GUIDE
1700XL S
ERIES
Page 18
Presario 1700 Series
Models: XL260, XL261, XL262, XL264, XL265, XL266, XL274, XL275, XL360, XL361,
XL362, XL363, XL364, XL365, XL366, XL367, XL368, XL369, XL370, XL371, XL372, XL373,
XL374, XL375, XL376, XL377, and XL378
Rear Connectors
Description
Ethernet Port
1
Modem Port
2
USB Port
3
USB Port
4
S-Video Out Port
5
Printer/Parallel Port
6
External Monitor (VGA)
7
Port
Security Slot
8
AC Adapter
9
P
RESARIO NOTEBOOK MAINTENANCE AND SERVICE GUIDE
1700XL S
ERIES
P
RODUCT DESCRIPTION
17
Page 19
Presario 1700 Series
Models: XL260, XL261, XL262, XL264, XL265, XL266, XL274, XL275, XL360, XL361,
XL362, XL363, XL364, XL365, XL366, XL367, XL368, XL369, XL370, XL371, XL372, XL373,
XL374, XL375, XL376, XL377, and XL378
QuikDock Components
Description
Release Mechanisms
1
Alignment Pins
2
QuikDock Latch
3
Docking Connector
4
QuikDock Connectors
Mouse
1
Keyboard
2
USB Port
3
USB Port
4
AC-3 Digital Audio-Out
5
Composite TV-Out
6
Description
7
8
9
-
q
w
S-Video
Serial Port
Printer
Monitor
1394 (Digital Interface)
AC Adapter
18 P
RODUCT DESCRIPTION
P
RESARIO NOTEBOOK MAINTENANCE AND SERVICE GUIDE
1700XL S
ERIES
Loading...
