get help

help description win mac

Setup Poster The Setup Poster provides instructions for setting up and

configuring your HP OfficeJet. Make sure you use the correct poster for your operating system (Windows or Macintosh).

Product Tour The tour provides a brief introduction to the HP OfficeJet and

its capabilities, so you can start using it immediately. You can take the tour immediately after installing the HP OfficeJet software, or to take the tour at any time, do the following:

1 Double-click the HP OfficeJet D Series shortcut on the

Windows desktop.

2 In the HP Director, click Help, then choose Product

Tour.

3 After the Product Tour dialog box appears, insert the

HP OfficeJet D Series CD-ROM into your computer’s CD-ROM drive, and click Search.

User’s Guide The onscreen User’s Guide provides detailed information on

using your HP OfficeJet and its features. It also provides detailed information on topics ranging from paper types to using other programs with your HP OfficeJet. For Windows users: Go to the Director, click Help, and then choose User’s Guide. For Macintosh users: Go to the Director, click Tools, and then choose View Onscreen Guide.

Reference Guide This printed Reference Guide contains information on using

your HP OfficeJet and provides additional troubleshooting assistance for the installation process.

Support and Specifications booklet

The printed Support and Specifications booklet provides information for your HP OfficeJet, including how to order supplies and accessories, technical specifications, support, and warranty information.

hp officejet d series

help description win mac

Troubleshooting help To access troubleshooting information, go to the Director,

click Help, then choose Troubleshooting. Troubleshooting is also available via the Help button that appears on some error messages.

Internet help and technical support

If you have Internet access, you can get help from the HP website at:

www.officejetsupport.com

The website also provides answers to frequently-asked questions.

Readme file After you install your software, you can access the Readme

file from either the HP OfficeJet D Series CD-ROM or the HP OfficeJet D Series program folder. To access the Readme file, do the following: For Windows: go to the Windows taskbar, click Start, point to Programs or All Programs (XP), point to Hewlett-Packard, point to HP OfficeJet D Series, and then choose View the

Readme File. For Macintosh: go to the HD:Applications:HP OfficeJet Software folder.

Dialog-box help For Windows: Clicking Help in a dialog box displays

information about options and settings within the dialog box.

To get help while working in a dialog box, click

Help.

Accessories guide The Accessories guide provides information on attaching

and setting up the HP 250-sheet plain paper tray, as well as how to load paper into it. It also includes information about the two-sided printing accessory.

get help

tutorial

quick start

You can perform many functions using either the front panel or the HP OfficeJet software.

Even if you do not connect your HP OfficeJet to a computer, you can use the front panel to copy or print documents. You can change a wide variety of settings using the front-panel buttons and menu system.

This brief tutorial teaches you how to use your HP OfficeJet to make a copy, adjust copy settings, and change settings. This is not a comprehensive tutorial; its purpose is to familiarize you with the front panel and the different buttons. It should take about ten minutes to complete the tutorial, after which you can experiment on your own.

We highly recommend that you take this tutorial before you start using your HP OfficeJet for daily tasks.

before you begin

tutorial

Review the table of contents or the index to find out about the other frontpanel tasks covered in this Reference Guide.

Do the following:

• Follow the instructions in the Setup Poster to set up your HP OfficeJet. You should install the HP OfficeJet software before connecting the HP OfficeJet to the computer.

• Make sure paper is loaded in the main tray. If you need more information, see load paper on page 15.

• Have available a color photograph or picture that is smaller than Letter or A4 size. You will use this image for tutorial activities.

• Obtain a two or three-page document. You will use it for tutorial activities.

hp officejet d series

front panel features

Left side of the front pane

Use keypad to enter numbers.

Access copy, scan, and network settings options.

Choose the paper type and paper tray.

The front panel is divided into the following main regions:

•Keypad

• Shared buttons and front-panel display

•Copy area

•Scan area

•On button Review the illustrations below and identify the location of the buttons on the

front panel. You will not use all of the front-panel features in the tutorial, but you may find it helpful to note the locations of all the buttons.

Scroll through settings options.

Make two-sided copies.

Make brightness and contrast adjustments when copying.

Front-panel display.

Select a currently displayed menu item or value.

Stop a job or exit a menu.

Right side of the front pane

Choose the number of copies.

Set the copy quality.

Start a copy.

Reduce or enlarge a copy.

Access special copy features, such as Fit to Page, Mirror, MarginShift, or Poster.

Select a specific software program to scan to, or a computer, if on a network

Turn the HP OfficeJet on or off.

Start a scan.

quick start

hp officejet d series

make a copy Follow the instructions below to make a copy of your color photo or picture.

1 Open the lid of your HP OfficeJet and place your picture face down

in the bottom-right corner of the scanner glass with the sides of the picture touching the right and bottom edges.

Top edge of original

enhance your copy

tutorial

2 In the Copy area of the front panel, press Start Copy, Color.

If you had wanted to save the picture to the computer, you would have pressed Start Scan. For this tutorial, you will continue making a copy.

The default is a single copy. Pressing the Start Copy, Color button on the HP OfficeJet automatically prints one color copy of the picture on the glass. If you had pressed the Start Copy, Black button, the HP OfficeJet would have made a single grayscale copy of your color picture.

1 Without moving your photo or picture from the glass, press the

Number of Copies button two times until 2 Copies is showing.

2 Press Start Copy, Black on the front panel.

The HP OfficeJet makes two black and white copies of your picture. Notice that you did not have to do anything else but select the

number of copies and press a start key. Now you will change an additional setting before making more copies.

3 Press Number of Copies one more time to increase the copies to 3. 4 Press the Reduce/Enlarge button.

Custom 100% appears in the front-panel display. Use this option to reduce or enlarge your picture.

hp officejet d series

5 Press 5 and then the 0 button on the keypad so that 50% appears,

then press Enter.

6 Press Color on the front panel.

The HP OfficeJet prints three color copies of your picture, reduced by 50%.

If you do not do anything else with your HP OfficeJet, the settings that you adjusted will return to their default settings within two minutes. The number of copies returns to one and the copy percentage returns to 100%.

7 If you do not want to wait, press Cancel.

Next you will use one of the Special Features options to enlarge your photograph.

8 Press Special Features until Fit to Page appears. 9 Press Enter. 10 Press Start Copy, Black or Start Copy, Color.

A copy of your picture is printed, which fills the whole page. Next, you will review the automatic document feeder.

copy from the automatic document feeder

Your HP OfficeJet has an automatic document feeder (ADF), which you can use to load multipl e orig inals for faster copying or scann ing. In the next part of this tutorial, you are going to make a fast copy of your two or three-page document.

1 Remove the photo from the glass. 2 Place the two or three originals face-up in the automatic document

feeder.

3 Adjust the paper-width guide to fit the size of your original.

A message appears on the front-panel display indicating that the originals are loaded.

4 Press the Quality button until Fast is lit. 5 Press Start Copy, Black or Start Copy, Color.

The documents are fed through the ADF and are quickly copied. Next, you will review the Menu button.

quick start

hp officejet d series

menu button review

The Menu button lets you enter the menu system that you use to change copy settings, as well as perform maintenance and print reports.

1 Press Menu.

The first submenu appears, which depends on what model of HP OfficeJet you have.

2 Press Menu repeatedly to view all the submenus.

The submenus are as follows: – 1:Copy Setup

– 2:Print Report – 3:Status and Maintenance – 4:Network Setup (if network hardware is installed, advanced

users only)

Some options are available only on certain models of your HP OfficeJet.

3 Press Menu. 4 Press 3, then press 1.

This selects Status and Maintenance, then selects the Check Ink Level. The ink supply levels for both the black ink cartridge and the tri-color

ink cartridge appear in the front-panel display.

5 Press Cancel to clear the front-panel display, if desired.

This concludes the brief tutorial. Review the rest of this Reference Guide to find out how to make other

changes and use other features.

front panel overview

Left side of the front pane

front panel overview

hp officejet d series

Right side of the front pane

feature purpose

1 Keypad: use to enter numbers such as the quantity of copies or

percentages when reducing or enlarging.

2 Menu: use to access the menu system. The menus that are available

depend which model of the HP OfficeJet you have. Menu options include; Copy Setup, Print Report, Status & Maintenance, and Network Setup.

3 Arrows: use to scroll through menu settings or through options within

settings.

4 Enter: use to select or save the displayed setting.

5 Two-Sided Copy: use to make hands-free two-sided copies. Available only

if you have the two-sided printing accessory and the automatic document feeder (ADF).

6 Tray Select/Paper Type: use to select the paper type. The main paper tray

supports plain paper and specialty papers. Use this button to select both the paper type and the paper tray to use.

7 Lighter/Darker: use to adjust the lightness and darkness of the copies you

make.

12 13

8 Cancel: use to stop a job, exit a menu, or exit button settings.

9 Number of Copies: use to change the number of copies for this copy job.

This button can be used in conjunction with the arrow keys or the keypad to make additional copies.

10 Special Features: use to access options that let you reduce or enlarge to

a specified copy image size on paper loaded in the selected tray. The options are Normal, Fit to Page, Which Size?, Poster, 2 on 1, MarginShift and Mirror.

11 Reduce/Enlarge: use to reduce or enlarge an original to a specified

image size on paper loaded in the selected tray. The original may be fed from the automatic document feeder (ADF) or placed on the glass.

quick start

feature purpose

12 Scan To: use to access a list of software programs that an image can be

scanned to. You must configure the Scan To list using the HP OfficeJet software on the PC prior to using this feature.

13 On: turns the HP OfficeJet on and off.

14 Quality: use to select the quality of the copy from Best, Normal, or Fast.

15 Start Scan: use to start the scan of an original from the ADF or the glass

to the designated Scan To destination. If no change was made to the Scan To destination, the image will be scanned to the HP Photo View Center (Windows) or HP Scan Window (Macintosh) if the HP OfficeJet software is installed.

16 Start Copy - Black: use to start a black and white copy.

17 Start Copy - Color: use to start a color copy.

use your hp officejet with a computer

If you installed the HP OfficeJet software on your computer according to the Setup Poster, you can access all the features of the HP OfficeJet using the HP Director.

hp officejet d series

review the hp director

The HP Director is available through the desktop shortcut. For Windows Users: Do one of the following:

•Double-click the HP OfficeJet D Series shortcut on the Windows desktop.

• In the Windows taskbar, click Start, point to Programs or All

Programs (XP), point to Hewlett-Packard, choose HP OfficeJet DSeries, then choose HP Director.

For Macintosh Users: Double-click the HP Director icon on the desktop. See the HP OfficeJet D Series: onscreen User’s Guide for comprehensive

onscreen information about the Director. For Windows Users: Go to the HP Director, click Help, and then choose

User’s Guide. For Macintosh Users: Go to the HP Director, click Tools, and then choose

View Onscreen Guide. The following figure shows some of the features available through the

HP Director for Windows.

use your hp officejet with a computer

hp officejet d series

the director for microsoft windows operating systems

feature purpose

1 Help: provides access to onscreen assistance in the form of an onscreen

User’s Guide, Troubleshooting, Product Tour, Director Help, and information about your HP OfficeJet.

456

2 Settings: displays dialog boxes that allow you to view or change various

settings for print, scan, copy, Director, and maintenance.

3 Scan Picture: scans a picture and displays it in the HP Photo View Center

after first previewing it in the HP Image Viewer.

4 Copy: displays the Copy dialog box where you can select the paper type,

number of copies, the color, the size, the Creative Copy features, and start a copy.

5 View Images: displays the Photo View Center, where you can view and

edit images, use creative printing, make and print a photo album, print or e-mail an image, upload an image to the web, or save an image.

6 Scan Document: scans the document and displays it in the HP Image

Viewer for previewing. After you accept the preview, the document is scanned into the text editing program that you have set up.

7 OfficeJetWeb: launches your browser and accesses the HP OfficeJet

website.

8 Status: displays the status window.

quick start

hp officejet d series

The following figure shows some of the features available through the HP Director for Macintosh. Consult the legend for a brief explanation of a specific feature.

the director for macintosh, in os9 and osx

feature purpose

1 Workplace: displays the HP Workplace, where you can view thumbnails,

view and edit images, print single or multiple photos.

2 Scan: scans a document or photo into the HP Scan Window, where you

can select a destination.

3 Scan Chooser: provides a short cut to the chooser, where you can select

the HP OfficeJet D Series as the scanning device.

4 Copy: copies in black and white or color.

5 Email: scans a document or photo and attaches it to an e-mail message.

6 OCR: scans a document and converts it to text for editing in a word

processor.

7 Tools: accesses the Toolbox, which you can use to maintain and configure

the HP OfficeJet D Series.

8 Customize: displays options for customizing the appearance and

functionality of the Director and scanning.

9 Help: accesses Help for assistance with the HP OfficeJet software.

10 About: accesses copyright information about the HP OfficeJet software.

use your hp officejet with a computer

hp officejet d series

hp officejet menu functions

Access Menu functions by pressing the corresponding numbers for each menu option. For example: to set the language and country/region, press

Menu, then press 3 and 7. This automatically selects the Status and Maintenance menu, then selects the Set Country and Language option.

1:Copy Setup 4:Network

1:Enhancements

2:Paper Size

3:Color Intensity

4:Set Copy Defaults

5:Restore Copy Factory Settings

Press Menu to display the menu functions.

Press or to move to the setting you want. Press

Enter to select the displayed

setting.

2:Print Report

1:Menu Settings

2:Self-Test Report

3:Status and Maintenance

1:Check Ink Level

2:Clean PrintHeads

3:Align PrintHeads

4:Perform Color Calibration

5:Restore Factory Defaults

6:Set Power Save Mode Time

7:S e t Language and Country

8:Set Beep Vol ume

Setup

JetDirect

CFG IPX/SPX

CFG TCP/IP

CFG LINK

quick start

load originals and load

load originals

load originals on the glass

paper

You can copy from originals loaded on the glass or in the automatic document feeder. You can also print and copy onto a variety of paper types, weights, sizes, and transparency films. It is important, however, that you choose the right paper and make sure that it is loaded correctly and not damaged.

Your HP OfficeJet provides two ways to load originals for copying and scanning. You can do the following:

• Load originals on the glass

• Load originals in the automatic document feeder

You can copy or scan any original by placing it on the glass.

Many of the Special Features options, such as Which Size? or Poster, will not work correctly if the glass and lid backing are not clean. For more information, see clean the glass and clean the lid

backing on page 35.

load originals

1 Lift the lid and place the original face down on the glass in the

bottom-right corner with the sides of the originals touching the right and bottom edges.

It is important to use the bottom-right corner when using the copy or scan feature.

Tip! If you are copying from a transparency (that is, your original is printed on transparency film), place a blank piece of paper on top of the transparency.

hp officejet d series

Top edge of original

2 Close the lid.

load originals in the automatic document feeder

Your HP OfficeJet has an automatic document feeder (ADF), which you can use to load up to 30 originals of the following paper types:

• Plain Paper 16 to 36 lb. long grain only

• Specialty Paper – HP Premium Inkjet Paper

– HP Bright White Inkjet Paper

You can also use the ADF to load the following types of originals, but you must load them one sheet at a time:

• Other specialty papers, such as glossy paper

• Overhead transparencies, such as HP Premium Inkjet Transparency Media

• Photo paper, such as Kodak EktaColor Edge-5 (glossy)

• Real Estate paper (single sheet only)

1 Place all originals in the ADF print side up. 2 Adjust the paper-width guide to fit the size of your original.

A message appears on the display indicating that the originals are loaded.

load originals and load paper

load paper

hp officejet d series

Following is the basic procedure for loading paper. There are specific considerations for loading certain types of paper, transparency film, and envelopes. After you review this procedure, see tips for loading other types of paper in the main tray on page 18 and load envelopes on page 17.

For best results, adjust the paper settings each time you change paper types or paper sizes. For more information, see choose the paper tray and set the paper type on page 20.

If you have the HP 250-sheet plain paper tray, you can load paper into both the main paper tray and the 250-sheet plain paper tray. If you have the 250-sheet plain paper tray, you should use it for plain paper only. Please refer to the Accessories guide that comes with the paper tray for information about installing the tray, loading paper, and adjusting paperwidth and paper-length guides.

Caution! You must also have the two-sided printing accessory installed to use the 250-sheet plain paper tray.

load paper

to load the main paper tray

1 Lift the output tray up until it catches in the raised position, and slide

the paper-width and paper-length guides to their outermost positions.

hp officejet d series

2 Tap the stack on a flat surface to align the edges of the paper, and

then check the paper for the following: – Make sure it is free of rips, dust, wrinkles, and curled or bent

edges.

– Make sure all the paper in the stack is the same size and type,

unless you are working with photo paper.

3 Insert paper into the main tray print-side down until it stops. If you are

using letterhead, insert the top of the page first. Be careful not to use too much or too little paper. Check that the stack

of paper contains several sheets but is no higher than the top of the paper-length guide.

4 Slide the paper-width and paper-length guides in until they stop at the

edges of the paper. Make sure that the paper stack lies flat in the main tray and fits under the tab of the paper-length guide.

5 Lower the output tray. 6 To prevent printed paper from falling off the tray, fully extend the

output-tray extender.

load originals and load paper

load envelopes

hp officejet d series

To load the 250-sheet plain paper tray

! Review the Accessories guide that came with the 250-sheet plain

paper tray for information on loading paper in this accessory.

Your HP OfficeJet provides two methods for working with envelopes. Do not use shiny or embossed envelopes, or envelopes that have clasps or windows.

• If you are printing one envelope, slide the envelope into the envelope

slot, which is located on the right side toward the back of the output tray. Insert the envelope with the flap up and on the left, as shown in the illustration. Slide the envelope on the top until it stops.

load envelopes

• If you are printing multiple envelopes, remove all paper from the main

tray, and then slide a stack of envelopes into the tray, with the envelope flaps up and to the left (print-side down), until they stop.

hp officejet d series

Adjust the paper-width guide against the envelopes (be careful not to bend the envelopes). Make sure the envelopes fit within the tray (do not overload it).

Consult the help files in your word processing software for details on how to format text for printing on envelopes.

tips for loading other types of paper in the main tray

The following table provides guidelines for loading certain types of paper and transparency film. For best results, adjust the paper settings each time you change paper types and paper sizes. For more information, see choose

the paper tray and set the paper type on page 20.

paper tips

HP papers

Legal-size paper Fully extend the paper-length guide and make sure that the main tray is

• HP Premium Inkjet Paper: Locate the gray arrow on the nonprinting side of the paper, and then insert paper with the arrow side facing up.

• HP Premium or Premium Plus Photo Paper: Load the glossy (print) side down. Always load at least five sheets of regular paper in the main tray first, and then place the photo paper on top of the regular paper.

• HP Premium Inkjet Transparency Film: Insert the film so that the white transparency strip (with arrows and the HP logo) is on top and is going into the tray first.

• HP Iron-On T-shirt Transfers: Flatten the transfer sheet completely before using it; do not load curled sheets. (To prevent curling, keep transfer sheets sealed in the original package until you are ready to use them.) Manually feed one sheet at a time, with the unprinted side facing down (the blue stripe faces up).

• HP Greeting Cards, Glossy Greeting Cards, or Textured Greeting Cards: Insert a small stack of HP greeting-card paper, with the printside down into the main tray until it stops.

• HP Restickable Inkjet Stickers: Place the sheets in the main tray, printside (sticker-side) down.

pushed all the way in.

Postcards (only works with printing)

Insert a stack of postcards with the print-side down into the main tray until it stops. Line the postcards up on the right side of the main tray, slide the width guide up against the left side of the cards, and then slide the paper-length guide in until it stops.

load originals and load paper

paper tips

Labels

• Always use letter-size or A4-size label sheets designed for use with

(works only with printing)

• Fan the stack of labels to make sure none of the pages are sticking

• Place a stack of label sheets on top of standard paper in the main tray,

hp officejet d series

HP inkjet products (like Avery Inkjet Labels), and make sure that the labels are not over two years old.

together.

print-side down. Do not insert labels one sheet at a time.

4” x 6” Photo paper (works only with printing)

Continuous (banner) paper (works only with printing)

Insert the photo paper with the print-side down into the main tray until it stops. Place the long edge of the photo paper against the right side of the main tray, slide the paper-width guide up against the long edge of the photo paper, and slide the paper-length guide in until it stops. If the photo paper you are using has perforated tabs, load the photo paper so that the tabs are closest to you.

Continuous banner paper is also known as computer or z-fold paper.

• Before loading banner paper, remove all other paper from the main tray, then raise the output tray until it catches in the raised position.

Raise the output tray until it stays in the raised position.

Insert first edge of paper into the main tray.

• If you use non-HP banner paper, use 20-lb. paper and fan the paper before loading it.

• Verify that the stack of banner paper contains at least five pages in the stack.

• Carefully tear off the perforated edge strips from both sides of the paper stack, if any, and unfold and refold the paper to make sure the pages do not stick together.

• Put the paper in the main tray so that the unattached edge is at the top of the stack. Insert the first edge into the main tray until it stops, as shown in the illustration above.

tips for loading other types of paper in the main tray

hp officejet d series

choose the paper tray and set the paper type

If you want to use a different type of paper, such as photo paper, transparency film, banner paper, or envelopes, simply load that paper in the main tray. You should then change the paper type settings to ensure the best print quality.

If you have installed HP 250-sheet plain paper tray, that paper tray is the default paper tray that is used for copying. If you load a different type of paper in the main paper tray, you need to not only change the paper type settings, but also specify the paper tray to use.

Caution! You must also have the two-sided printing accessory installed to use the 250-sheet plain paper tray.

You can change copy settings from the front panel or from the HP Director. When you change settings using the front panel, the copy settings are reset two minutes after the unit completes the copy.

HP recommends paper type settings according to the type of paper you’re using. For more information, see recommended paper-type settings for copying in the onscreen User’s Guide.

1 Press Tray Select/Paper Type.

If you have both paper trays, press Tray Select/Paper Type until the desired paper tray is selected, indicated by the dot on the left.

2 When copying from the main tray, press until the appropriate

paper type appears.

3 Press Enter to choose the displayed paper type.

set the paper size

For more information, see adjust paper settings for printing in the onscreen User’s Guide.

1 Press Menu. 2 Press 1, then press 2.

3 Press until the desired size appears, then press Enter to select it.

learn more

See the load section in the onscreen User’s Guide to learn more about the following:

• Recommended paper-type settings for printing

• Recommended paper-type settings for copying

This selects Copy Setup, then selects Paper Size.

load originals and load paper

use the scan features

Scanning is the process of converting text and pictures into an electronic format for your computer. You can scan just about anything:

• Text documents

• Photos

• Magazine articles

• 3D objects (be careful not to scratch the glass) to put into catalogs and flyers

Because the scanned image or text is in an electronic format, you can bring it into your word processor or graphics program and modify it to suit your needs. You can do the following:

• Scan text from an article into your word processor and quote it in a report, saving you a lot of retyping.

• Scan in a logo and use it in your publishing software, allowing you to print business cards and brochures for yourself.

• Scan in photos and e-mail them to coworkers and friends, create a photographic inventory of your office or home, or create an electronic scrapbook.

To use the scan features, your HP OfficeJet and computer must be connected and turned on. The HP OfficeJet software should also be installed on your computer prior to connecting the computer to the HP OfficeJet.

If your HP OfficeJet is connected to a network, you can scan to any of the computers that are on the network from the front panel or computer. The other computers on the network must also have the HP OfficeJet software installed.

scan an original

You can start a scan from your computer or from your HP OfficeJet.

hp officejet d series

to scan an original from your Windows computer

1 Load your original on the glass or in the automatic document feeder

(ADF).

2 Press Start Scan.

A scan of the original appears in the HP Image Viewer.

3 In the HP Image Viewer, you can edit the scanned image. When you

have finished, click Accept. The HP OfficeJet does a final scan of the original and sends the

image to the HP Photo View Center. See the onscreen User’s Guide for more information about using the

HP Image Viewer.

to scan an original from your Macintosh computer

1 Load your original on the glass or in the automatic document feeder

(ADF). For more information, see load originals on page 13.

2 Press Start Scan.

A scan of the original appears in the HP Scan Window.

3 In the HP Scan Window, you can preview the image, change the

image type, and select a different destination. Select a destination, then click Send Now!.

The HP OfficeJet does a final scan of the original and sends the image to the HP Workplace.

See the onscreen User’s Guide for more information about using the HP Workplace.

scan to a different software program

If you prefer to scan your document to a software program other than the HP Photo View Center or HP Workplace, you can choose a different program from the Scan To list that appears in the front-panel display. The HP OfficeJet scans the document, launches the selected software program, and displays the scanned image in that program.

1 Load your original.

For more information, see load originals on page 13.

2 Press Scan to then press to scroll through the Scan To list until the

desired scan-to software program appears.

3 If you have more than one computer networked to the HP OfficeJet,

you see a list of computers that have the HP OfficeJet software installed on them. Press to scroll through the Scan To list until the desired scan-to software program appears.

4 Press Start Scan to begin the scan.

The HP OfficeJet scans your original and displays it in the selected software program.

use the scan features

stop scanning

learn more

hp officejet d series

You can stop a scan by pressing the Cancel button located on the front panel.

See the scanning section in the onscreen User’s Guide to learn more about:

•Scanning text

• Scanning from a software program

• Editing scanned images

• Changing scan settings

• Change the scan-to settings for scanning text or images

• Scanning to a brochure or flyer

stop scanning

hp officejet d series

use the scan features

use the copy features

The copy features let you do the following:

• Produce high-quality color and black-and-white copies using a variety of paper types and sizes, including iron-on transfers.

• Reduce or enlarge the size of the copies you make from 25% to 400% of the copy’s original size. (Percentages may vary between models.)

• Make the copy lighter or darker, adjust the color intensity, select the number of copies, and specify the quality of the copies you make.

• Use special copying features to create a poster, make many sizes of photos, make high-quality copies of photos using special photo paper, or to create transparencies.

• Make two-sided copies or copy from two-sided documents.

make copies

You can make copies using the front panel of your HP OfficeJet or by using the HP OfficeJet software on your computer. Many copy features are available using either method. However, you may find that the software offers easier access to special copy features.

All copy settings that you select on the front panel are reset two minutes after the HP OfficeJet completes the copy, unless you save the settings as the default settings. For more information, see change settings for all copy

jobs in the onscreen User’s Guide.

make a copy 1 Load your original on the glass or in the automatic document feeder

(ADF).

2 Press Start Copy, Black or Start Copy, Color.

make copies

hp officejet d series

increase copy speed or quality

reduce or enlarge a copy

The HP OfficeJet provides three options that affect copy speed and quality.

• Best produces the highest quality for all paper and eliminates the banding (striping) effect that sometimes occurs in solid areas. Best copies more slowly than the other quality settings.

• Normal delivers high-quality output and is the recommended setting for most of your copying. Normal copies faster than Best.

• Fast copies faster than the Normal setting. The text is of comparable quality to the Normal setting, but the graphics may be of lower quality. Using Fast also cuts down on the frequency of replacing your ink cartridges, because it uses less ink.

1 Load your original on the glass or in the ADF. 2 Press Quality until the green light in front of the desired quality is lit. 3 Press Start Copy, Black or Start Copy, Color.

You can reduce or enlarge a copy of an original using either the Reduce/ Enlarge button or the Special Features buttons. This section explains the Reduce/Enlarge features only.

For more information about Special Features options, see perform special copy jobs on page 28 for information about using Fit to Page, Which Size?, Poster, 2 on 1, Margin Shift, or Mirror.

1 Press Reduce/Enlarge to choose one of the following:

– Custom 100%— lets you enter the percentage to reduce or

enlarge your copy.

– Full Page 91% — lets you reduce an original to 91% of its

original size, which prevents cropping that may occur if you make a full-size (100%) copy.

– Legal/Letter 72% — reduces an original to 72% of its original

size, which lets you copy a legal-sized original to letter-sized paper.

2 If you are using the Custom option, press or to reduce or

enlarge the copy. You can also enter a number using the keypad.

3 Press Start Copy, Black or Start Copy, Color.

make copies lighter or darker

Use Lighter/Darker to adjust the lightness and darkness of the copies you make.

1 Press Lighter/Darker. 2 Press to lighten the copy or to darken it.

The circle moves to the left or right, depending on the button you press.

3 Press Start Copy, Black or Start Copy, Color.

use the copy features

hp officejet d series

change color intensity

enhance text sharpness and photo colors

You can adjust color intensity to make colors on your copy more vivid or more subtle.

1 Press Menu. 2 Press 1 and then press 3.

This selects Copy Setup, and then selects Color Intensity.

3 Press to make the image more pale or to make the image

more vivid. The range of color intensity values appears as a circle on a scale on

the front-panel display.

4 Press Start Copy, Black or Start Copy, Color.

Use Text enhancements to sharpen edges of black text. Use Photo for photographs or pictures to enhance light colors that may otherwise appear white.

Text enhancement is the default option. You can turn off Text enhancement by selecting Photo or None if the following occur:

• Stray dots of color surround some text on your copies.

• Large, black typefaces look splotchy (not smooth).

• Thin, colored objects or lines contain black sections.

• Horizontal grainy or white bands appear in light- to medium-gray

areas.

1 Press Menu. 2 Press 1, then press 1.

This selects Copy Setup, and then selects Enhancements.

3 Press until the desired enhancement (Text, Photo, Text and Photo,

or None) appears.

4 Press Start Copy, Black or Start Copy, Color.

set the number of copies

change settings for all copy tasks

make copies

You can set the number of copies using the front panel.

1 Press Number of Copies. 2 Press until the desired number of copies appear, or use the

keypad to enter the desired number of copies.

3 Press Start Copy, Black or Start Copy, Color.

Save the copy settings you use most often by setting them as the default. This includes changes to Copy Setup options in the menu system, as well as other Copy area settings.

1 Make any desired changes to the Copy Setup options. 2 Make any desired changes to the button settings in the Copy Area. 3 Press Menu.

hp officejet d series

4 Press 1, then press 4.

This selects Copy Setup, and then selects Set Copy Defaults. Your settings are saved.

perform special copy jobs

In addition to supporting standard copying, your HP OfficeJet can also do the following:

• copy a photo

• fit a copy to the page

• print several copies on one page

• print two originals on one page

• shift image to increase the margin

• make two-sided copies

• make a poster

• prepare a color t-shirt transfer

copy a photo 1 Load the photo on the glass.

2 If you are using photo paper, you must load it in the main paper tray.

If you have the HP 250-sheet plain paper tray, do not load photo paper into that tray.

3 Press TraySelect/Paper Type until the Upper Tray is selected, as

shown by the dot. If you do not have the HP 250-sheet plain paper tray, the upper tray

(main tray) is selected by default.

4 When Upper Tray is selected, press until the desired photo paper

option appears, then press Enter to select it. For more information, see recommended paper-type settings for

copying in the onscreen User’s Guide.

fit a copy to the page

Tip! To enlarge a photo automatically to a full page, press Special Features until Fit to Page appears, then press Enter.

For more information, see below.

5 Press Menu. 6 Press 1, then press 1 again.

This selects Copy Setup, and then selects Enhancements.

7 Press until Photo appears, then press Enter to select it. 8 Press Start Copy, Black or Start Copy, Color.

Use Fit to Page when you want to automatically enlarge or reduce your original to fit the paper size you have loaded.

use the copy features

hp officejet d series

Tip! Make sure that the glass is clean and the original has been placed in the bottom-right corner of the glass. You cannot use the automatic document feeder (ADF) for this feature.

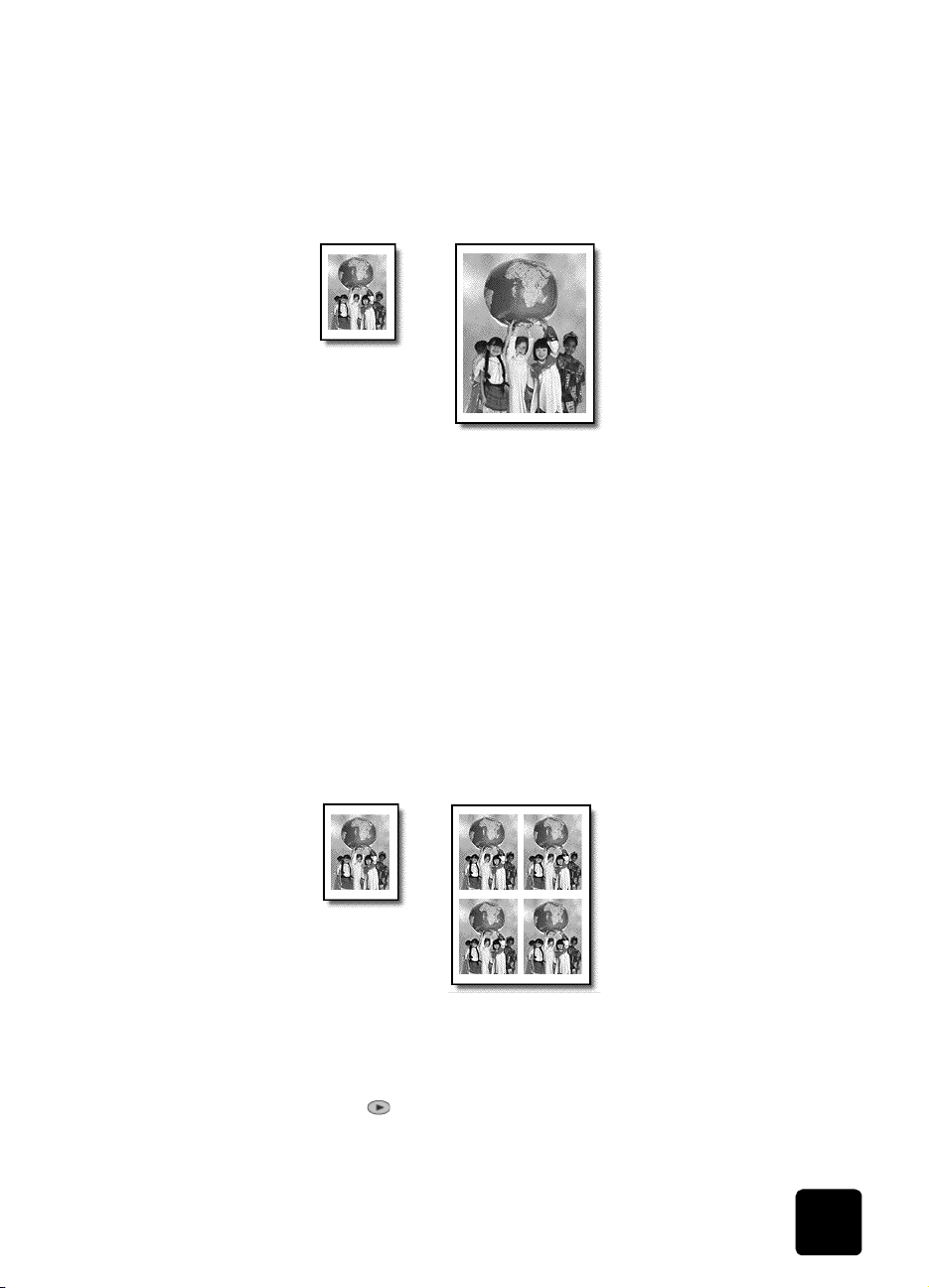

print several copies on one page

Original

Fit to Page

1 Load the original on the glass. 2 Load the appropriate paper. 3 Press Special Features until Fit to Page appears. 4 Press Enter. 5 Press Start Copy, Black or Start Copy, Color.

You can place multiple copies of an original on one page by selecting a photo size and then selecting the number of copies you want.

There are several common photo sizes available from the Which Size? option, which you access from the Special Features button. After you select one of the available sizes, you may be prompted to select the number of copies that can be placed on the page if there is room for more than one.

Origina

Copy

perform special copy jobs

1 Load the original on the glass. 2 Load the appropriate paper in the main tray. 3 Press Special Features until Which Size? appears. 4 Press until the desired photo size appears, then press Enter.

hp officejet d series

5 When How Many? appears, press to select the number of images

that will fit on a page. Some larger sizes do not prompt you for a number of images.

6 Press Enter to select the number of photos you want to appear on a

page.

7 Press Start Copy, Black or Start Copy, Color.

Tip! If the number of copies of the photo on a single page

does not come out as expected, try turning the original on the glass 90 degrees and start the copy again.

print two originals on one page

You can print two different letter- or A4-sized originals on one page using the 2 on 1 feature. The copied images will appear side by side on the page in a landscape format. You can use the automatic document feeder (ADF) to load the originals or place them directly on the glass.

You cannot collate when making a 2 on 1 copy. Clipping may occur with legal-size originals.

This feature can be used with the Two-Sided Copy button to make 2 on 1, two-sided copies. See make two-sided copies on page 31.

Two Ori ginalsTwo origina

s on one page

1 Place the first original on the glass. If you are using the ADF, load

both originals there.

2 Press Special Features until 2 on 1 59% appears, then press Enter. 3 Press Start Copy, Black or Start Copy, Color. 4 If you placed your first original on the glass you will be prompted to

Place 2nd original on glass, then press Enter.

shift image to increase the margin

The Ma rginShift feature lets you s hift the image to the left or right to incre ase the margin for binding. You can also adjust the reduction/enlargement percentage in this mode by entering a number on the numeric keypad.

use the copy features

hp officejet d series

make two-sided copies

Origina

MarginShift

1 Load the original on the glass or in the ADF. 2 Press Special Features until MarginShift 100% appears. 3 Press or to shift the margin to the left or to the right.

Each step is a ¼-inch (6.35 mm) shift.

4 If you wish to change the reduction/enlargement percentage as well,

enter a number using the keypad, then press Enter.

Tip! If you do not wish to change the reduction/enlargement

percentage, press Enter after you have selected the amount of MarginShift you want.

5 Press Start Copy, Black or Start Copy, Color.

The Two-Sided Copy button on the front panel lets you automatically make two-sided copies from single-sided or double-sided originals that are letteror A4-sized.

perform special copy jobs

You can make two-sided copies automatically only if your HP OfficeJet has an HP two-sided printing accessory. The two-sided printing accessory is standard equipment with some models or can be purchased separately.

1 Load your letter- or A4-sized originals in the ADF.

You cannot make two-sided copies from legal-sized originals loaded in the automatic document feeder (ADF).

2 Press the Two-Sided Copy button. 3 Choose one of the following by pressing until the desired setting

appears and then press Enter. – 1-sided original, 1-sided copy

This option produces a standard single-sided copy from a single-sided original.

– 1-sided original, 2-sided copy

hp officejet d series

This option takes 2 single-sided originals and produces a two-sided copy.

– 2-sided original, 1-sided copy

This option produces single-sided copies of a two-sided original.

– 2-sided original, 2-sided copy

This option produces a two-sided copy from a two-sided original.

4 Press Start Copy, Black or Start Copy, Color.

make a poster When you use the Poster feature you divide your original into sections, then

enlarge the sections so you can assemble them into a poster.

Origina

Tip! You can print a poster from a file on your computer. For more information, see print a poster in the onscreen User’s Guide.

Poster

1 Load the original on the glass.

Tip! You cannot use the automatic document feeder (ADF) when making a poster.

2 Load the appropriate paper in the main tray. 3 Press Special Features until Poster appears.

The option Poster 2 pages Wide appears by default.

4 Press to select how wide you want the poster to be. 5 Press Enter to confirm your selection. 6 Press Start Copy, Black or Start Copy, Color.

Tip! After you select the poster width, the HP OfficeJet adjusts the length automatically to maintain the proportions of the original. If the original cannot be enlarged to the selected poster size, an error message appears that tells you the number of pages wide that are possible. Select a smaller poster size and make the copy again.

use the copy features

hp officejet d series

prepare a color t-shirt transfer

Use the Iron-On feature to reverse text and images so that they appear backwards. After you iron a transfer onto a T-shirt, the picture appears properly on the shirt.

Origina

Tip! We recommend that you practice applying a T-shirt transfer on an old garment first.

Iron-On

1 Load the original on the glass or in the ADF. 2 Load the T-shirt transfer paper in the main tray. 3 Press TraySelect/Paper Type until the Upper Tray is selected. 4 Press until Iron-On appears and then press Enter to select it.

Selecting this option automatically activates the Mirror function.

5 Press Start Copy, Black or Start Copy, Color.

stop copying

learn more

stop copying

! To stop copying, press Cancel on the front panel.

See the copy section in the onscreen User’s Guide to learn more about the following:

• Perform special copying

• Change color intensity

• Enhance text sharpness and photo colors

• Change settings for copying

hp officejet d series

copy setup menu options

The following options are available in the Copy Setup menu.

Copy Setup

1:Enhancements

2:Paper Size

3:Color Intensity

4:Set Copy Defaults

5:Restore Copy Factory Settings

Press Menu to display the Copy Setup options.

Press Press

and to move to the setting you want.

Enter to select the displayed setting.

use the copy features

maintain your

hp officejet

clean the glass

This section provides instructions for keeping your HP OfficeJet in top working condition. Perform these maintenance procedures as necessary.

Dirty glass, from fingerprints, smudges, hair, and so on, slows down performance and affects the accuracy of special features such as Fit to Page and Copy.

1 Turn off the unit, unplug the power cord, and raise the lid. 2 Clean the glass with a soft cloth or sponge slightly moistened with a

nonabrasive glass cleaner. Caution! Do not use abrasives, acetone, benzene, or carbon

tetrachloride on the glass; these can damage it. Do not place liquids directly on the glass. They may seep under it and damage the unit.

3 Dry the glass with a chamois or cellulose sponge to prevent spotting.

clean the lid backing

Minor debris can accumulate on the white document-backing located underneath the unit’s lid.

1 Turn off the unit, unplug the power cord, and raise the lid. 2 Clean the white document-backing with a soft cloth or sponge slightly

moistened with a mild soap and warm water.

3 Wash the backing gently to loosen debris; do not scrub the backing. 4 Dry the backing with a chamois or soft cloth.

Caution! Do not use paper-based wipes as th ese may scratch the backing.

5 If this does not clean the backing well enough, repeat the previous

steps using isopropyl (rubbing) alcohol, and wipe the backing thoroughly with a damp cloth to remove any residual alcohol.

clean the glass

hp officejet d series

clean the exterior

Use a soft, damp, lint-free cloth to wipe dust, smudges, and stains off the case. The interior of the unit does not require cleaning. Keep fluids away from the interior of the unit as well as the front panel.

install the automatic document feeder tray

If you remove the automatic document feeder tray for any reason, you can replace it easily. Use the illustration below, and make sure the tray snaps into place.

work with printheads and ink cartridges

As you discovered when you installed your HP OfficeJet, the ink delivery system consists of both ink cartridges, which contain the ink, and printheads, which control the print quality. To ensure the best print quality from your HP OfficeJet, you will need to perform some simple maintenance procedures, and when prompted by a front-panel message, replace the ink cartridges or printheads.

print a self-test report

If you are experiencing problems wit h printing, before cleaning or replacing the ink cartridges or printheads, you should print a self-test report. This report provides useful information about both your ink cartridges and your printheads, including status information, installation and expiration dates, and ink levels. It is useful to know the ink cartridge expiration dates, so you can purchase replacements before that date.

1 Press Menu. 2 Press 2, and then press 2.

This selects the Print Report menu, then selects Self-Test Report. A self-test report is printed for your HP OfficeJet, which may indicate

the source of any problems you may be having. For example, you may notice that one color does not print evenly across the page, which may indicate a problem with the corresponding printhead.

maintain your hp officejet

hp officejet d series

check the ink level

perform color calibration

handle printheads

An easy way to check the ink supply level can be done from the front panel.

1 Press Menu. 2 Press 3, then press 1.

This selects the Status and Maintenance menu, then selects the Check Ink Level option.

A message in the front-panel display lets you know how much ink you have left, for both black and tri-color ink cartridges.

3 Press Cancel to exit the menu.

The Color Calibration option prints out a report that lets you manually improve your color printing or copying. You should perform this procedure only if you see problems with color tints, such as noticeably incorrect flesh tones.

1 Press Menu. 2 Press 3, then press 4.

This selects the Status and Maintenance menu, then selects the Perform Color Calibration option.

A Color Calibration report is printed.

3 Follow the instructions on the report to determine the correct Color

Patch Number.

4 At the prompt on the front-panel display, enter the Color Patch

Number, then press Enter.

Before you replace or clean a printhead, you should know the part names and how to handle the printhead.

Printhead handle

Ink nozzles

Do not touch the copper contacts, the ink nozzles, or the printhead tower.

work with printheads and ink cartridges

Printhead tower

Copper contacts

Plastic tape

hp officejet d series

verify a printhead needs to be replaced

If a printhead error message appears on the front-panel display, verify that the printhead needs to be replaced.

1 Turn the unit off and then turn it on.

If the error message still appears, continue with the following steps.

2 Open the print-carriage access door by lifting the handle until the

door locks into place. The print carriage moves to the center of the unit.

3 After the print carriage stops moving, release the gray print carriage

latch and then lift the print carriage to access the printheads.

4 Remove the old printhead by lifting the printhead handle and pulling

upward.

maintain your hp officejet

hp officejet d series

Pull the printhead handle upward

5 If there is plastic tape on the failed printhead, remove the plastic tape. 6 Push the failed printhead firmly down into the appropriate slot using

the printhead handle. Do not touch the printhead tower, and do not remove the printhead handle.

7 Move the print carriage latch down, and make sure the loops catch

the hooks. Snap the latch into place, then close the print carriage access door.

8 If the error message still appears, remove and reinsert the printhead

again and close the print carriage access drawer.

9 If the error message still appears, replace the printhead as described

in the following section.

replace the printheads

If you experience print quality issues that cannot be resolved by cleaning your printheads and you have verified that the printheads need to be replaced, you may need to replace them. You may also see front-panel display messages that indicate when individual printheads need to be replaced.

See the Support and Specifications booklet for information on ordering replacement printheads.

1 Turn on the unit, then open the print-carriage access door by lifting the

handle until the door locks into place. The print carriage moves to the center of the unit.

work with printheads and ink cartridges

hp officejet d series

2 After the print carriage stops moving, release the gray print carriage

latch and then lift the print carriage to access the printheads.

Caution! To avoid damaging the printer, remove a printhead only when a replacement is available. If a printhead is removed without being replaced:

– Close the print carriage and the print-carriage access door. – Replace the printhead within 24 hours. – Never remove an ink cartridge and a printhead at the same time.

3 Remove the old printhead by lifting the printhead handle and pulling

upward.

Pull the printhead handle upward

maintain your hp officejet

hp officejet d series

4 Remove the new printhead from its packaging and, being careful to

touch only the black plastic, gently remove the plastic tape. Caution! Do not touch the copper contacts, the printhead

tower, or the ink nozzles.

Printhead tower

Copper contacts

Ink nozzles

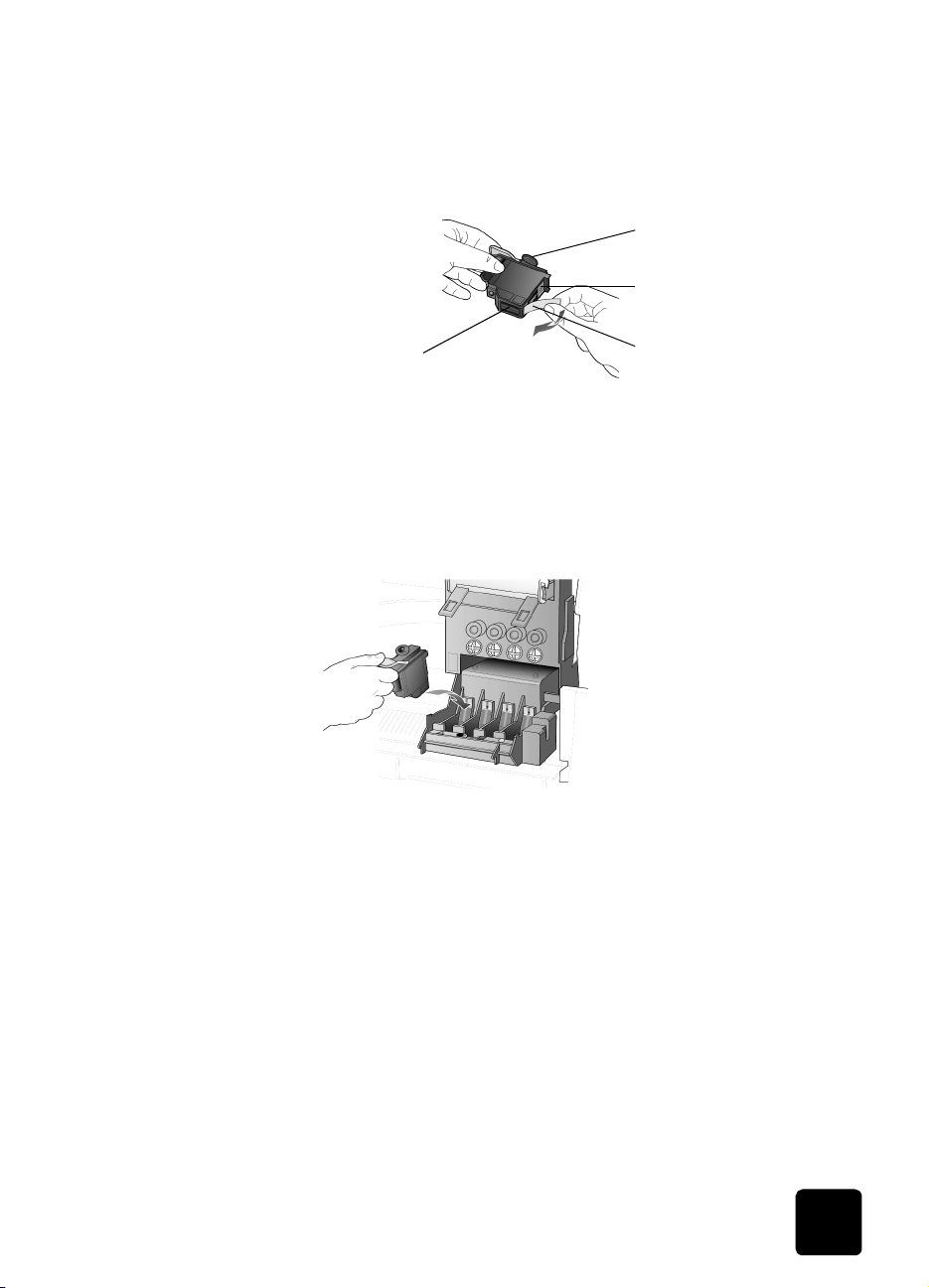

removing the plastic tape from the printhead

Plastic tape

5 Match the color on the top of the printhead to the color on the

printhead carriage.

6 Push the new printhead firmly down into the appropriate slot using the

printhead handle. Do not touch the printhead tower, and do not remove the printhead handle.

7 Move the print carriage latch down, and make sure the loops catch

the hooks. Snap the latch into place, then close the print carriage access door.

8 After the message appears in the front-panel display, press Enter to

align the printheads. A page prints to confirm alignment. You can discard or recycle this

page. If the page does not appear, see the Troubleshooting help, which you access from the HP Director.

handle ink cartridges

work with printheads and ink cartridges

Before you replace or clean an ink cartridge, you should know the part names and how to handle them.

hp officejet d series

Release button

Copper contacts

Plastic tape

Do not touch the copper contacts, and hold the cartridge away from you as you remove the plastic tape so the ink does not spill on you or your clothing.

replace the ink cartridges

Front-panel display messages appear under the following conditions to let you know that you should replace your ink cartridges.

•Low ink levels

• Ink cartridges are approaching their expiration dates Caution! If you ignore the messages and do not replace the

ink cartridges, eventually the HP OfficeJet will stop working completely to avoid damaging the printheads.

See the Support and Specifications booklet for information on ordering replacement ink cartridges.

1 Turn on the unit, then open the print-carriage access door by lifting the

handle until the door locks into place. The print carriage moves to the center of the unit.

2 After the carriage stops moving, press the gray button to release the

ink cartridge, then pull it up and out of its slot.

maintain your hp officejet

hp officejet d series

Caution! To avoid damaging the printer, remove an ink cartridge only when a replacement is available. If an ink cartridge is removed without being replaced:

– Close the print carriage and the print-carriage access door. – Replace the ink cartridge within 24 hours. – Never remove an ink cartridge and a printhead at the same time.

3 Remove the new ink car tridge from its packaging and, being careful to

touch only the black plastic, gently remove the plastic tape. Caution! Hold the cartridge away from you as you remove

the plastic tape so the ink does not spill on you or your clothing.

Caution! Do not touch the copper contacts.

4 Push the new ink cartridge firmly down into the appropriate slot until it

clicks into place. Note the color bars on the print carriage. The ink-cartridge label should be face-up after the cartridge is

inserted.

work with printheads and ink cartridges

hp officejet d series

Color bars

place the ink cartridges into their respective slots on the left and right

5 Close the print-carriage access door.

align the printheads

clean the printheads

The HP OfficeJet prompts you to align the printheads every time you install or replace a printhead or ink cartridge. Aligning the printheads ensures high-quality output.

To align the printheads after the message appears on the display, press Enter on the front panel.

To align the printheads at any other time do the following:

1 Press Menu. 2 Press 3, then press 3.

This selects the Status and Maintenance menu, then selects the Align PrintHeads option.

A page prints to confirm printhead alignment. You can either discard or recycle this page. If the page does not appear, see the Troubleshooting help, which you access from the HP Director.

Use this feature when the Self-Test Report shows streaking or white lines through any of the colored bars. Do not clean printheads unnecessarily. This wastes ink and shortens the life of your printheads.

1 Press Menu. 2 Press 3, then press 2.

This selects the Status and Maintenance menu, then selects the Clean PrintHeads option.

If copy or print quality still seem poor after you clean the printheads, replace the printhead that is affected.

clean the ink cartridge contacts

Clean the ink cartridge contacts only if you get repeated front panel messages prompting you to check a cartridge after you already have.

Caution! Do not remove both ink cartridges at the same time. Remove and clean them one at a time.

maintain your hp officejet

hp officejet d series

Make sure you have the following materials available:

• A clean, lint-free cloth

• Distilled, filtered, or bottled water (do not use tap water, as it may

contain contaminants that can damage the printheads) Caution! Be careful not to get ink on your hands or clothing.

1 Turn the unit on and open the print-carriage access door.

The print carriage moves to the center.

2 After the print carriage has moved to the center, unplug the power

cord from the back of the unit.

Warning! It is very important that you disconnect the printer from its electrical power source before touching the ink cartridge contacts. Electrical shock or severe damage to the printer can occur if you touch the contacts while there is electrical power to the printer. Do not use the On button to turn the printer off.

3 Press the gray button to release the ink cartridge, then pull it up and

out of its slot.

4 Inspect the ink cartridge contacts and the contacts inside the ink

cartridge socket for ink and debris buildup.

5 Clean any visible ink deposits with a clean, soft, lint-free cloth.

If necessary, moisten the cloth with one drop of water.

6 Place the ink cartridge back into the holder. 7 Repeat if necessary for the other ink cartridge. 8 Close the door and plug in the unit.

Because you removed an ink cartridge from its holder, the HP OfficeJet needs to align the printheads.

9 After the message appears in the front-panel display, press Enter to

align the printheads. A page is printed to confirm alignment.

work with printheads and ink cartridges

hp officejet d series

clean the printhead contacts

Clean the printhead copper contacts only if you get repeated front panel messages prompting you to check a printhead after you already have.

Caution! Do not remove all printheads at the same time. Remove and clean them one at a time.

Make sure you have the following materials available:

• A clean, lint-free cloth

• Distilled, filtered, or bottled water (do not use tap water, as it may contain contaminants that can damage the printheads).

Caution! Be careful not to get ink on your hands or clothing.

1 Turn the unit on and open the print-carriage access door.

The print carriage moves to the center.

2 After the print carriage has moved to the center, unplug the power

cord from the back of the unit.

Warning! It is very important that you disconnect the printer from its electrical power source before touching the printhead contacts. Electrical shock or severe damage to the printer can occur if you touch the contacts while there is electrical power to the printer. Do not use the On button to turn the printer off.

3 Release the gray print carriage latch and then lift the print carriage to

access the printheads.

4 Remove the printhead by lifting the printhead handle and pulling

upward.

5 Inspect the copper contacts and the contacts inside the printhead

socket for ink and debris buildup.

6 Clean any visible ink deposits with the clean, soft, lint-free cloth.

If necessary, moisten the cloth with one drop of water. Caution! Clean only the copper contacts in the front of the

printhead, and wipe upwards only. Do not clean the ink nozzles on the under side of the printhead. They can become damaged or clogged by this type of cleaning.

maintain your hp officejet

hp officejet d series

Do not touch the printhead tower.

Do not touch the ink nozzles on the underside of the printhead.

Clean only the copper contacts in the front of the printhead.

Clean only the copper contacts in the back of the print carriage.

7 Place the printhead back into the holder. 8 Repeat cleaning of other printheads, if necessary. 9 Move the print carriage latch down, and make sure the loops catch

the hooks. Snap the latch into place, then close the print-carriage access door.

10 Close the door and plug in the unit.

After cleaning the contacts, you should align the printheads.

11 Press Menu. 12 Press 3, then press 3.

This selects the Status and Maintenance menu, then selects the Align PrintHeads option.

A page prints to confirm printhead alignment. You can either discard or recycle this page. If the page does not appear, see the Troubleshooting help, which you access from the HP Director.

replacement alternatives

To get the best performance from your HP OfficeJet, we recommend using only genuine Hewlett-Packard supplies. See the Support and Specifications booklet for information on ordering replacement ink cartridges and printheads.

Caution! Damage that results from modifying or refilling HP ink cartridges or the use of non-HP in k is specifically excluded from the warranty coverage for the printer and printer supplies.

work with printheads and ink cartridges

hp officejet d series

non-hp ink cartridges

The Ink Level Gauge may not work properly with a non-HP ink cartridge. If you choose to print with a non-HP ink cartridge, you may not know when the cartridge is running low or empty. Printing with an empty ink cartridge may seriously damage the printheads.

Any damage resulting from the use of a non-HP ink cartridge is not the responsibility of Hewlett-Packard.

refilled ink cartridges

To install a refilled HP ink cartridge, you must override the Ink Level Gauge.

override the ink level gauge

Overriding the Ink Level Gauge disables the printer’s ink level tracking feature, but allows you to use a refilled cartridge.

Caution! If you use the override sequence described below, you will disable the Ink Level Gauge for your ink cartridge. If you choose to continue printing with an ink cartridge that has had its Ink Level Gauge disabled, you will not know when the cartridge is running low or empty. Printing with an empty cartridge may seriously damage your printheads. Damage that results from continued use of an ink cartridge with a disabled Ink Level Gauge is not the responsibility of Hewlett-Packard. Damage that results from the use of non-HP ink is not the responsibility of Hewlett-Packard.

The Ink Level Gauge is automatically reset when a different ink cartridge is installed in the printer.

Overriding the Ink Level Gauge does not affect ink cartridge expiration dates. The printer cannot use an expired ink cartridge.

Follow these steps to override the Ink Level Gauge:

to override the ink level gauge for the black ink cartridge

1 Press and at the same time, then release. 2 On the keypad, press in order, 7, 8, 9. 3 When the prompt appears asking if you want to override the ink level

gauge, press 1 for Yes, or 2 for No.

to override the ink level gauge for the tri-color ink cartridge

1 Press and at the same time, then release. 2 On the keypad, press in order, 4, 5, 6. 3 When the prompt appears asking if you want to override the ink level

gauge, press 1 for Yes, or 2 for No.

Always install an ink cartridge before performing an Ink Level Gauge override.

maintain your hp officejet

restore factory defaults

You can restore the original factory settings to what they were when you purchased your HP OfficeJet. Choosing to restore your factory defaults restores all settings, except copy settings and date information.

You can perform this process from the front panel only.

1 Press Menu. 2 Press 3, then press 5.

This selects the Status and Maintenance menu, then selects the Restore Factory Defaults option.

The factory default settings are restored.

set the language or country/region

Usually, the language and country or region are set when you install the HP OfficeJet. If you need to reset either the country, region, or language, use the following procedure.

Tip! If you accidentally choose the wrong language and are unable to read the front-panel display, simply follow the first 3 steps using the keypad to choose the correct language. You may also consider printing a Self-Test report to identify the country and language that have been selected.

hp officejet d series

restore factory defaults

1 Press Menu. 2 Press 3, then press 7, then press Enter.

This selects the Status and Maintenance menu, then selects the Set Country and Language option.

3 To select the language, you can do the following:

– Press until the desired language appears. – Wait until the desired language appears on the front panel

display.

4 Enter the two-digit number corresponding to the language on the

keypad. For example: for English, you would enter 11.

5 After entering the language, you are prompted to confirm that the

language you selected is the one you want.

6 Press 1 for Yes and 2 for No. 7 After the language is selected, you are prompted with all the countries

or regions for that selected language.

hp officejet d series

8 To select the country or region, you can:

– Press until the desired country or region appears. – Wait until the desired country or region appears on the front panel

display.

9 Enter the two-digit number corresponding to the country/region on the

keypad. For example: for USA, you would enter 10.

10 After entering the country, you are prompted to confirm that the

country or region you selected is the one you want.

11 Press 1 for Yes or 2 for No.

You can confirm the country/region and language by printing a SelfTest Report.

12 Press Menu, press 2, and then press 2 to print the Self-Test report.

set the power save mode time

The bulb in your HP OfficeJet remains on for a specified period so that the unit is immediately ready to respond to your request. When the HP OfficeJet has not been used within that specified period, it turns the bulb off to preserve power and displays Power Save On in the front-panel display. (You can exit this mode by pressing any button on the front panel.)

Your unit is automatically set to enter power-save mode after 12 hours. Follow these steps if you want the HP OfficeJet to enter this mode earlier.

1 Press Menu. 2 Press 3, then press 6.

This selects the Status and Maintenance menu, then selects the Set Power Save Mode Time option.

3 Press until the desired time appears, then press Enter.

maintain your hp officejet

maintenance menu options

hp officejet d series

2:Print Report

1:Menu Settings

2:Self-Test Report

Use Menu to display the Status and Maintenance menu options.

Press and to move to the setting you want. Press

Enter to select the displayed setting.

3:Status and Maintenance

1:Check Ink Level

2:Clean PrintHeads

3:Align PrintHeads

4:Perform Color Calibration

5:Restore Factory Defaults

6:Set Power Save Mode Time

7:Set Lan g u a g e and Country

8:Set Beep Volume

maintenance menu options

hp officejet d series

maintain your hp officejet

additional setup

information

This section covers how to handle messages that may or may not appear during installation, how to set up the connection between your computer and your HP OfficeJet, and how to add and remove the HP OfficeJet software. The standard installation instructions are provided in your Setup Poster, which you should keep for later use.

For comprehensive information, see the fully-searchable onscreen User’s Guide, which is accessible only if the software has been installed. To access the guide for Windows, go to the Director, click Help, and then choose User’s Guide.

To access the guide for Macintosh, go to the Director, click Tools, and then choose View Onscreen Guide.

possible installation problems

If you follow the instructions in the Setup Poster correctly, you should not have any problems with the installation of your HP OfficeJet. If you do not follow the instructions, you may see any of the following problems:

If Microsoft’s New Hardware Found message does not appear

If you installed the HP OfficeJet software first as requested on the Setup Poster, and you are a Windows 98/2000/ME/XP user, a series of Microsoft New Hardware Found messages should have appeared on your screen during software installation.

possible installation problems

hp officejet d series

If the Microsoft messages did not appear, try the following:

• Verify that you are using a high-speed (12 Mbps) USB cable and that it does not exceed five meters in length (16.4 feet).

• Verify that the computer is USB-ready. For more information about determining whether your computer is USB-ready, see your computer’s documentation or check with the computer’s manufacturer.

• Verify that the cable is plugged fully into your HP OfficeJet and directly connected to the USB port on your computer. After the cable is connected properly, turn your HP OfficeJet off and then on again.

• Turn your HP OfficeJet off and then on again, then restart your computer.

• If the previous steps do not solve the problem, remove and reinstall the software. For more information, see remove and reinstall your

hp officejet software on page 57.

If the New Hardware Message appears (Windows 98, 2000, XP, or ME)

If you set up your HP OfficeJet and connect it directly to your computer before you install the software, you may encounter one of the following messages:

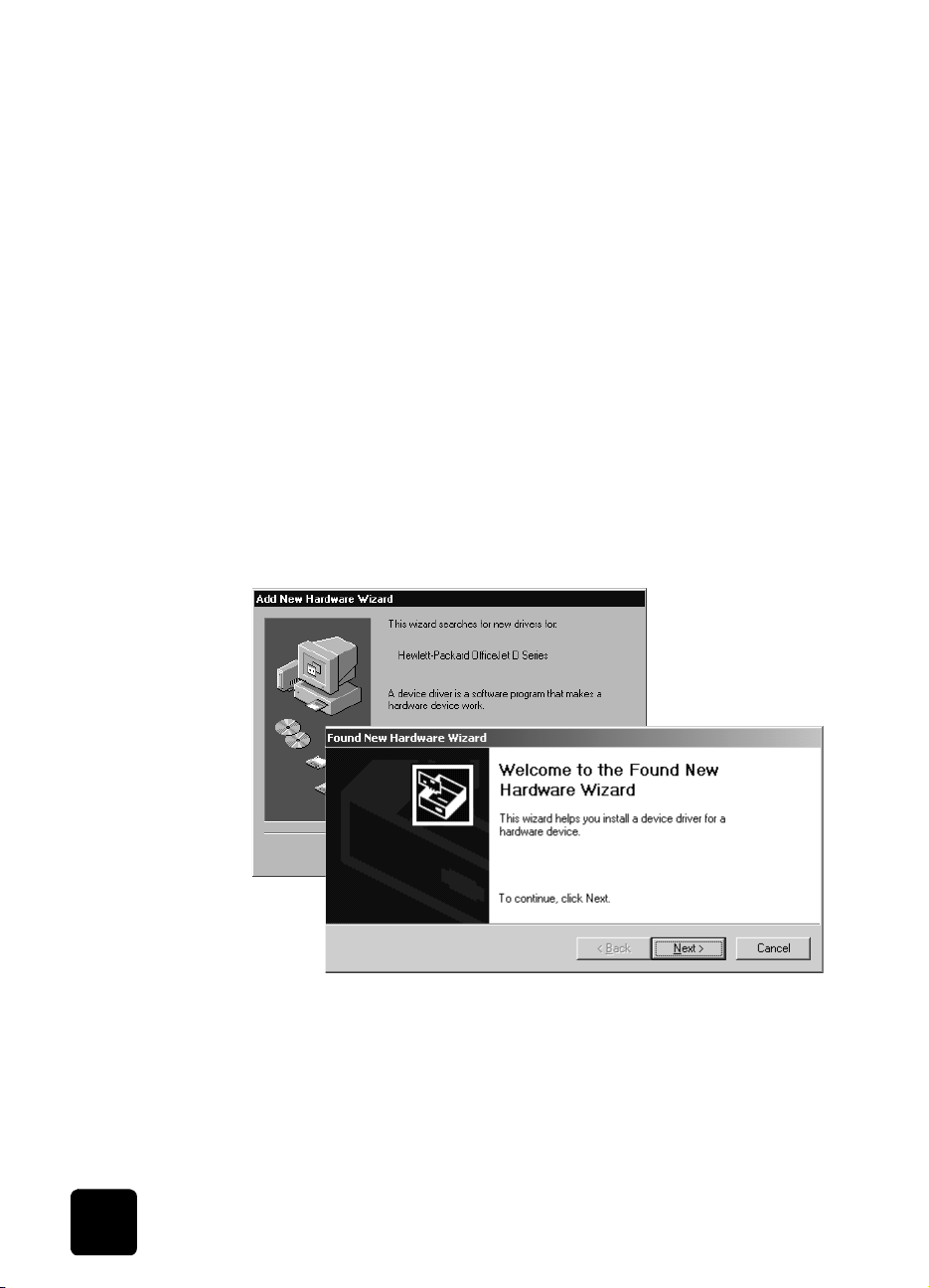

To avoid errors, install the HP OfficeJet software before you connect the HP OfficeJet to your computer. If one of the above messages appeared and you clicked Next or OK, do the following:

1 Press Esc to exit. 2 Turn off your HP OfficeJet.

additional setup information

3 Follow the software installation steps outlined in the Setup Poster that

came with your HP OfficeJet.

If the previous version installed message appears

If you receive a message that you have a previously installed version, you will not be able to finish installing the HP OfficeJet software.

You will have to uninstall the previously installed version in order to install the HP OfficeJet software.

If your computer is unable to communicate with your HP OfficeJet

If communication cannot be established between your computer and HP OfficeJet (for example, the HP OfficeJet status icon has the yellow error triangle), try the same tasks outlined under If Microsoft’s New Hardware

Found message does not appear on page 53.

connect your hp officejet to your computer

Your HP OfficeJet supports HOT Swapping, meaning you can connect to the HP OfficeJet while the power is on at your computer and on the HP OfficeJet.

This section covers the following topics:

• connect your parallel cable adapter

• setup for simple sharing

• connect your usb port For more information about networking options and installation and

configuration issues, see the parallel cable adapter flyer or the HP JetDirect 200m print server connector booklet.

hp officejet d series

connect your parallel cable adapter

connect your hp officejet to your computer

Your HP OfficeJet can be connected to your computer with your parallel printing cable and the parallel cable adapter.

Simply attach your parallel printing cable to the parallel cable adapter and plug the parallel cable adapter into the port on the back of your HP OfficeJet. The parallel cable adapter should click into place when correctly attached.

hp officejet d series

Should you need to disconnect your parallel adapter from the HP OfficeJet, press the buttons found on the top and bottom of the adapter and pull the adapter straight out. You may need to disconnect the power cord to access the lower button on the adapter.

setup for simple sharing

connect your usb port

Your HP OfficeJet can be shared by two different computers by having both computers connected directly to the HP OfficeJet. Both computers must have the HP OfficeJet software installed. The list below shows the supported combinations of communication between the HP OfficeJet and your computers.

The following communication configurations can be used with your HP OfficeJet:

• HP JetDirect 200m print server connector (network) and USB (Windows and Macintosh)

• Parallel cable adapter (parallel) and USB (Windows only)

Simple Sharing is supported by connecting to the HP OfficeJet in one of the following configurations: HP OfficeJet to two Windows computers or HP OfficeJet to two Macintoshes. You cannot mix platforms, that is, you cannot connect the HP OfficeJet to both a Windows computer and a Macintosh.

There can be up to 10 client computers on the network portion of the 200m print server connector and USB combination.

Connecting to your HP OfficeJet with USB is straightforward. Simply plug one end of the USB cable into the back of your computer and the other in the back of the HP OfficeJet.

what works what does not work

Plugging into the USB port on your computer

Plugging into a powered hub that is connected to the USB port on your computer

Plugging into the USB port located on the keyboard

Plugging into a non-powered USB hub

additional setup information

AppleTalk is not supported.

connecting to the USB port on your computer

remove and reinstall your hp officejet software

Do not simply delete the HP OfficeJet program files from your hard drive. Be sure to remove them properly using the uninstall utility provided in the HP OfficeJet program group.

hp officejet d series

to uninstall from a Windows computer

1 On the Windows taskbar, click Start, choose Programs or All

Programs (XP), choose Hewlett-Packard, choose HP OfficeJet DSeries, then choose HP Uninstaller or Uninstall Software.

2 Follow the directions on the screen. 3 If you are asked whether you would like to remove shared files, click

No. Other programs that use these files may not work properly if the files

are deleted.

4 After the program finishes removing the software, disconnect your

HP OfficeJet, and restart your computer.

5 To reinstall the software, insert the HP OfficeJet D Series CD-ROM into

your computer’s CD-ROM drive, and follow the instructions that appear.

to uninstall from a Macintosh computer

1 Double-click on Applications:HP All-in-One Software folder. 2 Double-click on Uninstaller. 3 Follow the directions that appear on the screen.

remove and reinstall your hp officejet software

hp officejet d series

learn more

See the additional setup information section in the onscreen User’s Guide to learn more about:

• Set up your HP OfficeJet for network printing

• Understand point-and-print and peer-to-peer networks

• Set up the host

• Set up a point-and-print client

• Set up a peer-to-peer client (Windows 98 server to 2000 client)

additional setup information

index

Numerics

2 on 1 feature 30 250-sheet plain paper tray 8, 15, 17, 20

adjust settings

copy

align printheads 44 automatic document feeder

copy from load originals in 14 use for two-sided copies 31

banner paper, tips on loading 19 best copy quality 26 buttons

cancel front panel 4 keypad 8 lighter/darker 8, 26 menu 7, 8 number of copies 8, 27 quality 9, 26 reduce/enlarge 8, 26 scan to 9, 22 special features 8, 30, 32 start scan 9, 21 tray select/paper type 8, 33 two-sided copy 31

cancel

button

copy 33 scan 23

cartridge

check ink level clean contacts 44 replace ink cartridges 42

change paper tray 20 clean

ink cartridge contacts printhead contacts 46 printheads 44 the exterior 36 the glass 35 the lid backing 35

color

improve printing

intensity of copy 27 connect your parallel cable adapter 55 continuous paper, tips on loading 19 contrast, enhance photo colors 27 copy

2 on 1

an original 29

buttons 4

change default settings 27

color intensity 27

darken 8, 26

defaults 27

enhancements 27

enlarge 26

fit to page 28

from ADF 6

lighten 8, 26

make a poster 32

make copies 5, 25

photo 28

quality 9, 26

reduce 26

set number of copies 5, 27

index

hp officejet d series

several copies on a page special copy jobs 28 speed 26 stop 33 T-shirt transfer 33 two-sided copies 8, 31

country setup 49

darken a copy 26 default settings

change for copy

restore factory defaults 49 director review 9 double-sided copies 31

enhancements 27 enlarge a copy 8, 26, 28 envelopes, load 17

factory defaults

change for copying

restore 49 fast copy quality 26 fit to page 28 front panel

features

overview 7

scan from 21

tutorial 3 front-panel display 4

set language 49

glass cleaning 35 greeting cards, load 18

help 1 hp director 9–11 hp officejet

menu functions

simple sharing 56

software 9 hp papers, tips on loading 18 hp two-sided printing accessory 31

image, shift 30 ink cartridges

check ink level clean 44 refill 48 replace 42

ink level

check low 42

override gauge 48 inkjet paper, load 18 intensity of color copy 27 introduction to the Director 9 iron-on 33

keypad 8

labels, load 19 lamp power save mode 50 language setup 49 legal-size paper

copy from

tips on loading 18 lid backing, clean 35 light power save mode 50 lighten or darken copies 8, 26 load

250-sheet plain paper tray

change the paper type 20

envelopes 17

ink cartridges 42

multiple originals 6

original in the ADF 6, 14

original on the glass 13

paper 15

photo paper 19

postcards 18

printheads 39

set the paper size 20

tips 18 lower paper tray, see 250-sheet plain paper tray

main paper tray, load 15 maintenance

align printheads

index

hp officejet d series

check ink level clean the exterior 36 clean the glass 35 clean the lid backing 35 clean the printheads 44 power save mode time 50 printhead replacement verification 38 replace ink cartridges 42 replace printheads 39 restore factory defaults 49 self-test report 36

margins, increase 30 menus

copy setup print reports 51 status and maintenance 51

normal copy quality 26 number of copies 8

set 5, 27

originals

how to place in the ADF how to place on glass 13 multiple copies 29 print two on one page 30

output tray 19

extender 16

paper

change default size for copy change the type 20 load 15 recommended 14, 15 set the size 20 tips on loading 18–19

paper size, change for copy 20 paper tray

select

set 20 parallel cable adapter 55 photo mode enhancement 28 photo paper, load 19 photo view center 22 photos

copy

enhance copy 27

postcards, load 18 poster, copy to 32 power save mode setup 50 power save mode time 50 print

color calibration report continuous (banner) paper, tips on loading 19 envelopes 17 self-test report 36

print cartridges, see ink cartridges printheads

align clean 44, 46 load 39 replace 39 replacement verification 38

quality 26 quick start 3

review the director 9 use with a computer 9

reduce a copy 5, 8, 26, 28 reinstall software 57 remove software 57 reports

color calibration self-test 36

restore factory settings 49

save

a scanned image

scan

buttons different destination 22 from front panel 21 stop 23

self-test report 36 set

country and language number of copies 27 power save mode 50

settings

best copy quality copy a photo 28 copy color intensity 27 copy defaults 27

index

hp officejet d series

copy quality copy speed 26 country and language 49 darken a copy 26 enlarge a copy 26 fast copy quality 26 lighten a copy 26 normal copy quality 26 paper tray 20 power save mode 50 reduce a copy 26 save copy 27 text enhancement 27

setup

additional information simple sharing 56

shift margins 30 software

introduction remove and reinstall 57

special features 8, 30, 32

limitations 13

stickers, load 18

stop

copy

scan 23

supply, check ink level 37

text

enhance

transparency film

recommend choices tips on loading 18

troubleshooting

remove and reinstall software

T-shirt transfer 33

load 18

tutorial 3

before you begin 3 front panel features 4 make a copy 5

two-sided copies 8, 31

USB cable installation 56

index

Visit the hp officejet information center

It has everything you need to get the most value from your HP OfficeJet.

•Technical Support

• Supplies and Ordering Information

•Project Tips

• Ways to Enhance Your Product

*C8373-90101* *C8373-90101*

C8373-90101

HP OFFICEJET D User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

get help

tutorial

quick start

before you begin

front panel features

make a copy Follow the instructions below to make a copy of your color photo or picture.

enhance your copy

copy from the automatic document feeder

menu button review

front panel overview

load originals

load originals on the glass

load originals in the automatic document feeder

load paper

load envelopes

tips for loading other types of paper in the main tray

choose the paper tray and set the paper type

set the paper size

learn more

use the scan features

scan an original

scan to a different software program

stop scanning

learn more

use the copy features

make copies

make a copy 1 Load your original on the glass or in the automatic document feeder

increase copy speed or quality

reduce or enlarge a copy

make copies lighter or darker

change color intensity

enhance text sharpness and photo colors

set the number of copies

change settings for all copy tasks

perform special copy jobs

• copy a photo

fit a copy to the page

print several copies on one page

print two originals on one page

shift image to increase the margin

make a poster When you use the Poster feature you divide your original into sections, then

prepare a color t-shirt transfer

stop copying

learn more

copy setup menu options

clean the glass

clean the lid backing

clean the exterior

install the automatic document feeder tray

work with printheads and ink cartridges

check the ink level

perform color calibration

handle printheads

verify a printhead needs to be replaced

replace the printheads

handle ink cartridges

replace the ink cartridges

align the printheads

clean the printheads

clean the ink cartridge contacts

clean the printhead contacts

replacement alternatives

override the ink level gauge

restore factory defaults

set the language or country/region

set the power save mode time

maintenance menu options

possible installation problems

connect your parallel cable adapter

setup for simple sharing

connect your usb port

learn more
