HP Notebook PC (AMD)
Models: HP 17-y000 – 17-y099
Maintenance and Service Guide
© Copyright 2016 HP Development Company,
L.P.
AMD is a trademark of Advanced Micro Devices,
Inc. Bluetooth is a trademark owned by its
proprietor and used by HP Inc. under license.
Intel is a U.S. registered trademark of Intel
Corporation. Microsoft and Windows are U.S.
registered trademarks of Microsoft
Corporation. SD Logo is a trademark of its
proprietor.
The information contained herein is subject to
change without notice. The only warranties for
HP products and services are set forth in the
express warranty statements accompanying
such products and services. Nothing herein
should be construed as constituting an
additional warranty. HP shall not be liable for
technical or editorial errors or omissions
contained herein.
First Edition: April 2016
Document Part Number: 855103-001
Product notice
This guide describes features that are common
to most models. Some features may not be
available on your computer.
Not all features are available on all editions of
Windows. This computer may require upgraded
and/or separately purchased hardware, drivers,
and/or software to take full advantage of
Windows 8.1 functionality. See
http://www.microsoft.com for details.
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the device, do not place the
device directly on your lap or obstruct the device air vents. Use the device only on a hard, at surface. Do not
allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or
clothing, to block airow. Also, do not allow the AC adapter to contact the skin or a soft surface, such as
pillows or rugs or clothing, during operation. The device and the AC adapter comply with the user-accessible
surface temperature limits dened by the International Standard for Safety of Information Technology
Equipment (IEC 60950).
iii
iv Safety warning notice
Table of contents
1 Product description ....................................................................................................................................... 1
2 External component identication .................................................................................................................. 7
Display .................................................................................................................................................................... 7
Right side ............................................................................................................................................................... 8
Left side ................................................................................................................................................................. 9
Top ........................................................................................................................................................................ 10
TouchPad ........................................................................................................................................... 10
Lights ................................................................................................................................................. 11
Button ................................................................................................................................................ 12
Keys ................................................................................................................................................... 13
Using the action keys ........................................................................................................................ 14
Bottom ................................................................................................................................................................. 15
Service tag ........................................................................................................................................................... 16
3 Illustrated parts catalog .............................................................................................................................. 17
Computer major components .............................................................................................................................. 17
Display assembly subcomponents ...................................................................................................................... 21
Miscellaneous parts ............................................................................................................................................. 23
Mass storage devices ........................................................................................................................................... 24
Cables ................................................................................................................................................................... 25
4 Removal and replacement procedures preliminary requirements .................................................................... 27
Tools required ...................................................................................................................................................... 27
Service considerations ......................................................................................................................................... 27
Plastic parts ....................................................................................................................................... 27
Cables and connectors ...................................................................................................................... 27
Drive handling ................................................................................................................................... 28
Grounding guidelines ........................................................................................................................................... 28
Electrostatic discharge damage ........................................................................................................ 28
Packaging and transporting guidelines .......................................................................... 29
Workstation guidelines ................................................................................ 29
5 Removal and replacement procedures for Customer Self-Repair parts ............................................................. 31
Component replacement procedures .................................................................................................................. 31
Battery ............................................................................................................................................... 32
v
Optical drive ....................................................................................................................................... 33
6 Removal and replacement procedures for Authorized Service Provider parts ................................................... 35
Component replacement procedures .................................................................................................................. 35
Display subcomponents (bezel, webcam, panel) ............................................................................. 35
Bottom cover ..................................................................................................................................... 39
Hard drive .......................................................................................................................................... 41
WLAN module .................................................................................................................................... 44
RTC battery ........................................................................................................................................ 46
Memory module ................................................................................................................................ 47
Solid-state drive ................................................................................................................................ 49
Solid-state drive holder and board ................................................................................................... 50
Optical drive connector ..................................................................................................................... 52
TouchPad click board ......................................................................................................................... 53
USB board .......................................................................................................................................... 54
Speakers ............................................................................................................................................ 55
Fan/heat sink assembly .................................................................................................................... 56
System board .................................................................................................................................... 61
Display assembly ............................................................................................................................... 64
Power button board .......................................................................................................................... 73
Power connector ............................................................................................................................... 74
Cable locations .................................................................................................................................. 75
Top cover/keyboard ........................................................................................................................... 76
7 Using Setup Utility (BIOS) in Windows 10 ....................................................................................................... 77
Starting Setup Utility (BIOS) ................................................................................................................................ 77
Updating Setup Utility (BIOS) .............................................................................................................................. 77
Determining the BIOS version ........................................................................................................... 77
Downloading a BIOS update .............................................................................................................. 78
8 Backing up, restoring, and recovering in Windows 10 ..................................................................................... 79
Creating recovery media and backups ................................................................................................................ 79
Creating HP Recovery media (select products only) ......................................................................... 79
Using Windows tools ........................................................................................................................................... 80
Restore and recovery ........................................................................................................................................... 81
Recovering using HP Recovery Manager ........................................................................................... 81
What you need to know before you get started ............................................................. 81
Using the HP Recovery partition (select products only) ................................................. 82
Using HP Recovery media to recover .............................................................................. 82
Changing the computer boot order ................................................................................ 83
vi
Removing the HP Recovery partition (select products only) ......................................... 83
9 Using HP PC Hardware Diagnostics (UEFI) ....................................................................................................... 85
Downloading HP PC Hardware Diagnostics (UEFI) to a USB device .................................................................... 85
10 Specications ............................................................................................................................................ 87
Computer specications ...................................................................................................................................... 87
43.9-cm (17.3-in) display specications ............................................................................................................. 88
Hard drive specications ..................................................................................................................................... 88
DVD±RW SuperMulti DL Drive specications ....................................................................................................... 89
11 Power cord set requirements ...................................................................................................................... 91
Requirements for all countries ............................................................................................................................ 91
Requirements for specic countries and regions ................................................................................................ 92
12 Recycling .................................................................................................................................................. 95
Index ............................................................................................................................................................. 97
vii
viii
1 Product description
UMA Discrete Discrete Discrete UMA
Category Description A8, A6, E2
processors
Product name HP Notebook PC
Models: HP 17-y000 – 17-y099
Processors AMD Quad-Core A-Series Processor (FT3 BGA)
A10-9600P (2.4GHz, turbo up to 3.3GHz),
1866MHz/2MB L2, Quad 15W
A9-9410 (2.3GHz, turbo up to 2.4GHz),
1600MHz/2MB L2, Quad 15W
A8-7410 (2.2GHz, turbo up to 2.5GHz),
1600MHz/2MB L2, Quad 15W
A6-7310 (2.0GHz, turbo up to 2.4GHz),
1600MHz/2MB L2, Quad 15W
E2-7110 (1.8GHz), 1600MHz/2MB L2, Quad 15W √
E1-7010 (1.5GHz), 1333MHz/1MB L2, Quad 10W √
Chipset Integrated SoC FCH √ √ √ √ √
Graphics Internal graphics
AMD Radeon™ R5 Graphics (A10, A8)
√ √ √ √ √
√ √
√ √
√ √
√ √
√ √ √ √
A8, A6, E2
(R16MM1-30)
A8, A6, E2
(R16MM1-70)
A10
(R16MM1-70)
A10
AMD Radeon R4 Graphics (A6) √ √
AMD Radeon R2 Graphics (E2, E1) √
Switchable discrete graphics
AMD Radeon™ R7 M440 R16M-M1-70 with up to
4096 MB of dedicated video memory (512Mx16
DDR3 x 4 PCs)
AMD Radeon™ R7 M440 R16M-M1-70 with up to
2048 MB of dedicated video memory (256Mx16
DDR3 x 4 PCs)
AMD Radeon R5 M430 R16M-M1-30 with up to
2048 MB of dedicated video memory (256Mx16
DDR3 x 4 PCs)
Support HD Decode, DX12, HDMI, and PX7 √ √ √
Supports PX7 √ √
Dual graphics
AMD Radeon R6 M445DX Dual Graphics
AMD Radeon R8 M445DX Dual Graphics
√
√ √
√
√
1
UMA Discrete Discrete Discrete UMA
Category Description A8, A6, E2
processors
Panel 16:9 Ultra Wide Aspect Ratio, 43.9-cm (17.3-in)
HD+, white light-emitting diode (WLED), eDP, SVA,
BrightView, (1600×900) at-at (4.2 mm); typical
brightness: 220 nits (non-touch panel)
HD+, WLED, eDP, SVA, BrightVIew (1600×900)
at-at (4.2 mm), typical brightness: 220 nits
(touch panel)
FHD, white light-emitting diode (WLED), eDP,
UWVA, antiglare, (1920×1080) at-at (4.2 mm);
typical brightness: 300 nits (non-touch panel)
FHD, WLED, eDP, UWVA, antiglare (1920×1080)
at-at (4.2 mm), typical brightness: 300 nits
(touch panel)
Memory Two SODIMM slots - customer accessible /
upgradeable
DDR4-2133 dual channel support 1.2V
Two SODIMM slots - non-accessible/nonupgradeable
DDR4-1866 dual channel support 1.2V
(DDR4-2133 downgraded to DDR4-1866)
Supports up to 16 GB of system RAM in the
following congurations:
●
16384-MB total system memory (8192×2)
●
12288-MB total system memory (8192×1)
+ (4096×1)
●
8192-MB total system memory (8192×1) or
(4096×2)
●
6144-MB total system memory (4096×1)
+ (2048×1)
●
4096-MB total system memory (4096×1) or
(2048×2)
√ √ √ √ √
√ √
A8, A6, E2
(R16MM1-30)
A8, A6, E2
(R16MM1-70)
A10
(R16MM1-70)
A10
Two SODIMM slots - customer accessible/
upgradeable
DDR3L-1600 single channel support 1.35V
Supports up to 16 GB of system RAM in the
following congurations:
●
16384-MB total system memory (8192×2)
●
12288-MB total system memory (8192×1)
+ (4096×1)
●
8192-MB total system memory (8192×1) or
(4096×2)
●
6144-MB total system memory (4096×1)
+ (2048×1)
2 Chapter 1 Product description
√ √ √
UMA Discrete Discrete Discrete UMA
Category Description A8, A6, E2
processors
●
4096-MB total system memory (4096×1) or
(2048×2)
Hard drives Supports 6.35-cm (2.5-in) SATA hard drives in 9.5
mm (.37 in) and 7.0 mm (.28 in) thicknesses
7.0mm/9.5 mm share the same bracket
Accelerometer/HDD protection support
Single HDD congurations
●
2-TB, 5400-rpm, 9.5-mm
●
1-TB, 5400-rpm, 9.5-mm
●
500-GB, 5400-rpm, or 7.2-mm
Hybrid HDD congurations
●
1-TB, 5400-rpm, 9.5-mm SSHD w/8GB NAND
●
500-GB, 5400-rpm, 7.0-mm SSHD w/8GB
NAND
M.2 SATA-3 SSD
●
128-GB
√ √ √ √ √
A8, A6, E2
(R16MM1-30)
A8, A6, E2
(R16MM1-70)
A10
(R16MM1-70)
A10
Fixed optical
drive
Camera and
microphone
Audio Dual speakers
Ethernet Integrated 10/100 network interface card (NIC) √ √ √ √ √
Wireless
networking
Fixed, serial SATA, 9.5-mm tray load
DVD+/-RW Double-Layer SuperMulti
Supports zero power optical drive
HP TrueVision HD
HD camera (xed, no tilt with activity LED, USB
2.0, BSI, 1280×720 by 30 frames per second)
Single digital microphone
HP Webcam: VGA camera
640×480 by 24 frames per second
Single digital microphone
DTS Studio Sound
Integrated wireless options with dual antennas
(M.2/PCIe):
●
Intel Dual Band Wireless-AC 3165 802.11 ac
1x1 WiFi + BT 4.2 Combo Adapter
Integrated Wireless options with single antenna
(M.2/PCIe):
●
Realtek RTL8723BE-VB 802.11b/g/n 1x1 WiFi + BT4.0 Combo Adapter
√ √ √ √ √
√ √ √ √ √
√ √ √ √ √
√ √ √ √ √
3
UMA Discrete Discrete Discrete UMA
Category Description A8, A6, E2
processors
●
Realtek RTL8188EE 802.11b/g/n 1x1 Wi-Fi
Adapter
●
Realtek RTL8188EE-VJ 802.11b/g/n 1x1 WiFi Adapter
Intel WiDi support
Compatible with Miracast-certied devices
External media
card
Ports HDMI version 1.4 supporting 1920 ×1200 @ 60Hz
Keyboard/
pointing
devices
HP Multi-Format Digital Media Card Reader
Support SD/SDHC/SDXC
Push-pull insertion/removal
RJ-45 (Ethernet, includes link and activity lights)
USB 3.0 (1)
USB 2.0 (2)
AC Smart Pin adapter plug
Combo audio jack (headphone/microphone)
Keyboard
Full size standard textured island-style keyboard
with numeric keypad
Full size backlit 2 coat paint island-style keyboard
with numeric key pad
TouchPad
Image sensor
Multitouch gestures enabled
Taps enabled by default
Support Modern Trackpad Gestures
√ √ √ √ √
√ √ √ √ √
√ √ √ √ √
A8, A6, E2
(R16MM1-30)
A8, A6, E2
(R16MM1-70)
A10
(R16MM1-70)
A10
Power
requirements
3-cell, 31-Whr, 2.8Ah, li-ion battery √ √
AC adapters:
AC Adapter 65-W EM Smart nPFC, 3 pin, RC 4.5mm
AC Adapter 45-W Smart nPFC, 3 pin, RC 4.5mm
1 meter power cord √ √ √ √ √
Security TPM 2.0 √ √ √ √ √
Battery
4-cell, 41-Whr, 2.8Ah, li-ion battery
AC Adapter 65-W Smart nPFC, 3 pin, RC 4.5mm
connector
connector (India/People’s Republic of China only)
connector (models with UMA graphics only)
4 Chapter 1 Product description
√ √ √ √ √
√ √ √
√ √ √ √ √
√ √
UMA Discrete Discrete Discrete UMA
Category Description A8, A6, E2
processors
Kensington Security Lock
Operating
system
Serviceability End-user replaceable parts:
Preinstalled
●
Windows 10
●
Windows 10 Pro
●
Windows 10 Home ML
●
Windows 10 Home EM/SL
●
FreeDOS 2.0
●
Windows 10 Home High End ML
●
Windows 10 Home High End EM/SL/China
●
Windows 10 Home Value India Notebook √ √ √
●
AC adapter
●
Battery
●
Optical drive
√ √ √ √ √
√ √ √ √
√ √ √ √ √
A8, A6, E2
(R16MM1-30)
A8, A6, E2
(R16MM1-70)
A10
(R16MM1-70)
A10
5
6 Chapter 1 Product description
2 External component identication
Display
Component Description
(1) WLAN antennas (1 or 2)* Send and receive wireless signals to communicate with wireless local
area networks (WLANs).
(2) Webcam light On: The webcam is in use.
(3) Webcam
‒ or –
3D camera (select products only)
(4) Internal microphone Records sound.
*The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately around the
antennas free from obstructions.
For wireless regulatory notices, see the section of the Regulatory, Safety, and Environmental Notices that applies to your country or
region.
To access this guide:
▲
Select the Start button, select All apps, select HP Help and Support, and then select HP Documentation.
Records video and captures photographs. Some products allow you
to video conference and chat online using streaming video.
To use a webcam (integrated camera):
▲
Type camera in the taskbar search box, and then select
Camera.
Display 7
Right side
Component Description
(1) Power light
(2) Drive light
(3) Memory card reader Reads optional memory cards that enable you to store, manage,
(4) USB 2.0 port Connects an optional USB device, such as a keyboard, mouse,
●
On: The computer is on.
●
Blinking: The computer is in the Sleep state, a powersaving state. The computer shuts o power to the display
and other unneeded components.
●
O: The computer is o or in Hibernation. Hibernation is a
power-saving state that uses the least amount of power.
●
Blinking white: The hard drive is being accessed.
●
Amber: HP 3D DriveGuard has temporarily parked the hard
drive.
share, or access information.
To insert a card:
1.
Hold the card label-side up, with connectors facing the
computer.
2.
Insert the card into the memory card reader, and then
press in on the card until it is rmly seated.
To remove a card:
▲
Press in on the card, and then remove it from the memory
card reader.
external drive, printer, scanner or USB hub.
(5) Optical drive Depending on your computer, reads an optical disc or reads and
(6) Optical drive eject button Opens the optical drive.
(7) Security cable slot Attaches an optional security cable to the computer.
8 Chapter 2 External component identication
writes to an optical disc.
NOTE: For disc compatibility information, type help in the
taskbar search box, select Help and Support, and then type
disc compatibility in the search box.
NOTE: The security cable is designed to act as a deterrent, but
it may not prevent the computer from being mishandled or
stolen.
Left side
Component Description
(1) Power connector Connects an AC adapter.
(2) AC adapter and battery light
(3) Vent Enables air ow to cool internal components.
(4) RJ-45 (network) jack/status lights Connects a network cable.
(5) HDMI port Connects an optional video or audio device, such as a high-
(6) USB 3.0 port Connects an optional USB device, such as a keyboard, mouse,
●
White: The AC adapter is connected and the battery is fully
charged.
●
Blinking white: The AC adapter is disconnected and the
battery has reached a low battery level.
●
Amber: The AC adapter is connected and the battery is
charging.
●
O: The battery is not charging.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal for
the internal fan to cycle on and o during routine operation.
●
White: The network is connected.
●
Amber: Activity is occurring on the network.
denition television, any compatible digital or audio component,
or a high-speed High-Denition Multimedia Interface (HDMI)
device.
external drive, printer, scanner or USB hub.
(7) USB 2.0 port Connects an optional USB device, such as a keyboard, mouse,
external drive, printer, scanner or USB hub.
(8) Audio-out (headphone)/Audio-in (microphone)
combo jack
Connects optional powered stereo speakers, headphones,
earbuds, a headset, or a television audio cable. Also connects an
optional headset microphone. This jack does not support
optional standalone microphones.
Left side 9
Top
TouchPad
Component Description
WARNING! To reduce the risk of personal injury, adjust the
volume before putting on headphones, earbuds, or a headset.
For additional safety information, refer to the Regulatory,
Safety, and Environmental Notices.
To access this guide:
▲
Select the Start button, select All apps, select HP Help and
Support, and then select HP Documentation.
NOTE: When a device is connected to the jack, the computer
speakers are disabled.
Component Description
(1) TouchPad zone Reads your nger gestures to move the pointer or activate items
(2) Left TouchPad button Functions like the left button on an external mouse.
(3) Right TouchPad button Functions like the right button on an external mouse.
10 Chapter 2 External component identication
on the screen.
Lights
Component Description
(1) Caps lock light On: Caps lock is on, which switches the key input to all capital
letters.
(2) Mute light
●
Amber: Computer sound is o.
●
O: Computer sound is on.
Top 11
Button
Component Description
Power button
●
When the computer is o, press the button to turn on the
computer.
●
When the computer is on, press the button briey to initiate
Sleep.
●
When the computer is in the Sleep state, press the button
briey to exit Sleep.
●
When the computer is in Hibernation, press the button briey
to exit Hibernation.
CAUTION: Pressing and holding down the power button results in
the loss of unsaved information.
If the computer has stopped responding and shutdown procedures
are ineective, press and hold the power button down for at least 5
seconds to turn o the computer.
To learn more about your power settings, see your power options.
▲
Type power in the taskbar search box, and then select Power
and sleep settings.
‒ or –
Right-click the Start button, and then select Power Options.
12 Chapter 2 External component identication
Keys
Component Description
(1) esc key Displays system information when pressed in combination with
the fn key.
(2) fn key Executes frequently used system functions when pressed in
combination with the esc key, action keys, or the spacebar.
(3) Windows key Opens the Start menu.
NOTE: Pressing the Windows key again will close the Start
menu.
(4) Action keys Execute frequently used system functions.
NOTE: On select products, the f5 action key turns the keyboard
feature o or on.
(5) num lock key Alternates between the navigational and numeric functions on
the integrated numeric keypad.
(6) Integrated numeric keypad When num lock is on, the keypad can be used like an external
numeric keypad.
Top 13
Using the action keys
●
An action key performs an assigned function.
●
The icon on each action key illustrates the function for that key.
●
To use an action key, press and hold the key.
Icon Description
Opens Help and Support, which provides tutorials, information about the Windows operating system and
your computer, answers to questions, and updates to your computer.
Help and Support also provides automated troubleshooting tools and access to support.
Decreases the screen brightness incrementally as long as you hold down the key.
Increases the screen brightness incrementally as long as you hold down the key.
Switches the screen image between display devices connected to the system. For example, if a monitor is
connected to the computer, repeatedly pressing this key alternates the screen image from the computer
display to the monitor display to a simultaneous display on both the computer and the monitor.
Turns the keyboard backlight o or on (select products only).
NOTE: To conserve battery power, turn o this feature.
Mutes or restores speaker sound.
Decreases speaker volume incrementally while you hold down the key.
Increases speaker volume incrementally while you hold down the key.
Plays the previous track of an audio CD or the previous section of a DVD or a Blu-ray Disc (BD).
Starts, pauses, or resumes playback of an audio CD, a DVD, or a BD.
Plays the next track of an audio CD or the next section of a DVD or a BD.
Turns the airplane mode and wireless feature on or o.
NOTE: The airplane mode key is also referred to as the wireless button.
NOTE: A wireless network must be set up before a wireless connection is possible.
14 Chapter 2 External component identication
Bottom
Component Description
(1) Battery lock Locks the battery in the battery bay.
(2) Battery bay Holds the battery.
(3) Battery release latch Releases the battery.
(4) Speakers Produce sound.
Bottom 15
Service tag
When ordering parts or requesting information, provide the computer serial number and model number
provided on the service tag.
Item Description Function
(1) Product name This is the product name axed to the front of
(2) Serial number (s/n) This is an alphanumeric identier that is unique to
(3) Part number/Product number (p/n) This number provides specic information about
(4) Warranty period This number describes the duration of the warranty period
(5) Model description This is the alphanumeric identier used to locate
16 Chapter 2 External component identication
the computer.
each product.
the product's hardware components. The part number helps
a service technician to determine what components
and parts are needed.
for the computer.
documents, drivers, and support for the computer.
3 Illustrated parts catalog
Computer major components
NOTE: HP continually improves and changes product parts. For complete and current information on
supported parts for your computer, go to http://partsurfer.hp.com, select your country or region, and then
follow the on-screen instructions.
Computer major components 17
Item Component Spare part
number
(1) Display assembly [43.9-cm 17.3-in]
NOTE: Displays are only spared at the subcomponent level.
NOTE: For display assembly spare part information, see Display assembly subcomponents on page 21.
(2) Top cover/keyboard (ash silver) (includes TouchPad)
NOTE: For a detailed list of keyboard country codes, see Top cover/keyboard on page 76.
For use in models without a backlight:
For use in models with a backlight:
●
Black 856698-xx1
●
Turbo silver 856699-xx1
●
White silver 856700-xx1
●
Red 856757-xx1
●
Teal 856758-xx1
●
Blue 856759-xx1
●
Purple 900153-xx1
●
Black 856771-xx1
●
Turbo silver 856772-xx1
●
White silver 856773-xx1
●
Red 856775-xx1
●
Teal 856776-xx1
(3) USB board 856613-001
(4) Power connector cable 856680-001
(5) Power button board 856612-001
(6) TouchPad board 858259-001
Heat sink assembly (includes replacement thermal materials):
(7) For use in models with UMA graphics 856761-001
(8) For use in models with discrete graphics 856762-001
(9) Solid-state drive board 856614-001
(10) Solid-state drive
128 GB 827560-025
(11) Solid-state drive holder 858260-001
(12) Hard drive (does not include bracket)
2-TB, 5400-rpm, 2.5-inch 801808-005
●
Blue 856777-xx1
●
Purple 900154-xx1
18 Chapter 3 Illustrated parts catalog
Item Component Spare part
number
1-TB, 5400-rpm, 2.5-inch, hybrid 8 GB SSD 731999-005
1-TB, 5400-rpm, 2.5-inch 778192-005
500-GB, 5400-rpm, 2.5 inch 778188-005
(13) Hard drive cover 856584-001
(14) RTC battery 858288-001
(15) Speakers (includes left and right speakers and cable) 856617-001
(16) WLAN module
Broadcom BCM43142 802.11 b/g/n 1x1 Wi-Fi + BT4.0 Combo Adapter 792608-005
Intel Dual Band Wireless-AC 3165 802.11 ac 1x1 WiFi + BT 4.2 Combo 806723-005
Realtek RTL8188EE-VJ 802.11b/g/n 1x1 Wi-Fi Adapter 857334-855
Intel Dual Band Wireless-AC 3168 802.11 ac 1x1 WiFi + BT 4.2 Combo 863934-855
(17) Memory module
PC4, 17000, 2133-MHz
For use in models with AMD A10 processors
PC3L, 12800, 1600-MHz
(18) System board (includes replacement thermal materials)
For use in models with discrete graphics:
●
8-GB 820570-005
●
4 GB 820569-005
●
2 GB 851379-005
For use in models with AMD A8, A6, E2, and E1 processors
●
8-GB 693374-005
●
4 GB 691740-005
●
2 GB 691739-005
All system boards use the following part numbers:
xxxxxx-001: Windows 7 or non-Windows operating system
xxxxxx-601: Windows 10
●
AMD A10-9600P processor and 4 GB of dedicated video memory 856770-xxx
●
AMD A10-9600P processor and 2 GB of dedicated video memory 856769-xxx
For use in models with UMA graphics:
●
AMD A8-7410 processor and 2 GB of dedicated video memory 856767-xxx
●
AMD A6-7310 processor and 2 GB of dedicated video memory 856766-xxx
●
AMD A10-9600P processor 856768-xxx
●
AMD A9-9410 processor 859287-xxx
Computer major components 19
Item Component Spare part
number
(19) Optical Drive Connector Cable Kit 856609-001
(20) DVD+/-RW Double-Layer SuperMulti Drive 756564-037
Optical drive bracket (not illustrated) 856610-001
Optical drive bezel (not illustrated) 856598-001
(21) Battery
4-cell, 41-Whr, 2.8-Ah Li-ion 807957-001
3-cell, 31-Whr, 2.8-Ah Li-ion 807956-001
(22) Bottom cover 856601-001
(23) Rubber Kit 856615-001
●
AMD A8-7410 processor 856765-xxx
●
AMD A6-7310 processor 856764-xxx
●
AMD E2-7110 processor 856763-xxx
20 Chapter 3 Illustrated parts catalog
Display assembly subcomponents
Display assembly subcomponents 21
Item Component Spare part number
(1) Display bezel 856597-001
(2) Raw display panel (16:9 Ultra Wide Aspect Ratio [43.9-cm 17.3-in]; includes screw covers
and touch sensor)
FHD, anti glare 798926-007
FHD, Touch On Panel (TOP) 851048-001
HD, Touch On Panel (TOP) 851049-001
HD+, BrightView 851051-002
(3) Hinges touch screen (left and right, includes screw covers) 809299-001
Display cable
(4) Touch displays 856608-001
(5) Non-touch displays 856607-001
(6) Antennas 856611-001
(7) Touch control board 856600-001
(8) Webcam/microphone module
HD 709372-032
VGA 766523-021
(9) Display enclosure (non touch models)
Red models 856594-001
White silver models 856593-001
Blue models 856596-001
Turbo silver models 856592-001
Black models 856591-001
Teal models 856595-001
Purple 900660-001
(9) Display enclosure (touch models)
Red models 856588-001
White silver models 856587-001
Blue models 856590-001
Turbo silver models 856586-001
Black models 856585-001
Teal models 856589-001
Purple 900659-001
22 Chapter 3 Illustrated parts catalog
Miscellaneous parts
Component Spare part number
HP Smart AC adapter
65-W EM 714635-850
65-W 710412-001
45-W 741553-850
Power cord (3-pin, black, 1.0-m) for use in:
Australia 213356-008
Denmark 213353-008
Germany, France, Spain, Nordic countries, Portugal, Greece, Arabia, Netherlands, Belgium, Russia,
Poland, Hungary, Serbia, Adriatic countries, Czech/Slovakia, African English
orth America 213349-009
Switzerland 213354-008
United Kingdom, Arabia, and African English 213351-008
Rubber Kit (includes front and rear feet) 856615-001
Screw Kit 856616-001
HDMI to VGA adapter 701943-001
213350-009
Miscellaneous parts 23
Mass storage devices
Item Component Spare part number
(1) DVD+/-RW Double-Layer SuperMulti Drive 756564-037
(2) Optical drive bracket 856610-001
(3) Optical drive bezel 856598-001
(4) Optical drive connector 856609-001
(5) Hard drive (does not include bracket)
2-TB, 5400-rpm, 2.5-inch 801808-005
1-TB, 5400-rpm, 2.5-inch, hybrid 8 GB SSD 731999-005
1-TB, 5400-rpm, 2.5-in 778192-005
500-GB, 5400-rpm, 2.5 inch 778188-005
(6) Hard drive cover 856584-001
(7) Solid-state drive board 856614-001
(8) Solid-state drive holder 858260-001
24 Chapter 3 Illustrated parts catalog
Cables
Item Component Spare part number
(9) Solid-state drive
128 GB 827560-025
Item Description Spare part number
(1) TouchPad cable 856605-001
(2) Touch click board cable 856606-001
(3) Power button board cable 856604-001
(4) USB board cable 856603-001
(5) Optical drive connector cable 856609-001
Display cable for use in non-touch models (not illustrated) 856607-001
Display cable for use touch models (not illustrated) 856608-001
Cables 25
26 Chapter 3 Illustrated parts catalog
4 Removal and replacement procedures
preliminary requirements
Tools required
You will need the following tools to complete the removal and replacement procedures:
●
Flat-bladed screwdriver
●
Magnetic screwdriver
●
Phillips P0 and P1 screwdrivers
Service considerations
The following sections include some of the considerations that you must keep in mind during disassembly
and assembly procedures.
NOTE: As you remove each subassembly from the computer, place the subassembly (and all accompanying
screws) away from the work area to prevent damage.
Plastic parts
CAUTION: Using excessive force during disassembly and reassembly can damage plastic parts. Use care
when handling the plastic parts. Apply pressure only at the points designated in the
maintenance instructions.
Cables and connectors
CAUTION: When servicing the computer, be sure that cables are placed in their proper locations during the
reassembly process. Improper cable placement can damage the computer.
Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat
the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid
bending, twisting, or tearing cables. Be sure that cables are routed in such a way that they cannot be caught
or snagged by parts being removed or replaced. Handle ex cables with extreme care; these cables tear
easily.
Tools required 27
Drive handling
CAUTION: Drives are fragile components that must be handled with care. To prevent damage to the
computer, damage to a drive, or loss of information, observe these precautions:
Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the computer is
o or in Hibernation, turn the computer on, and then shut it down through the operating system.
Before handling a drive, be sure that you are discharged of static electricity. While handling a drive, avoid
touching the connector.
Before removing a diskette drive or optical drive, be sure that a diskette or disc is not in the drive and be sure
that the optical drive tray is closed.
Handle drives on surfaces covered with at least one inch of shock-proof foam.
Avoid dropping drives from any height onto any surface.
After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.
Avoid exposing an internal hard drive to products that have magnetic elds, such as monitors or speakers.
Avoid exposing a drive to temperature extremes or liquids.
If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective
packaging and label the package “FRAGILE.”
Grounding guidelines
Electrostatic discharge damage
Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine
the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many
cases, ESD contains enough power to alter device parameters or melt silicon junctions.
A discharge of static electricity from a nger or other conductor can destroy static-sensitive devices or
microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.
An electronic device exposed to ESD may not be aected at all and can work perfectly throughout a normal
cycle. Or the device may function normally for a while, then degrade in the internal layers, reducing its life
expectancy.
CAUTION: To prevent damage to the computer when you are removing or installing internal components,
observe these precautions:
Keep components in their electrostatic-safe containers until you are ready to install them.
Before touching an electronic component, discharge static electricity by using the guidelines described in this
section.
Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.
If you remove a component, place it in an electrostatic-safe container.
The following table shows how humidity aects the electrostatic voltage levels generated by
dierent activities.
CAUTION: A product can be degraded by as little as 700 V.
28 Chapter 4 Removal and replacement procedures preliminary requirements
Relative humidity
Event 10% 40% 55%
Walking across carpet 35,000 V 15,000 V 7,500 V
Walking across vinyl oor 12,000 V 5,000 V 3,000 V
Motions of bench worker 6,000 V 800 V 400 V
Removing DIPS from plastic tube 2,000 V 700 V 400 V
Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V
Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V
Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V
Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V
Packaging and transporting guidelines
Follow these grounding guidelines when packaging and transporting equipment:
●
To avoid hand contact, transport products in static-safe tubes, bags, or boxes.
●
Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging.
Typical electrostatic voltage levels
●
Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.
●
Place items on a grounded surface before removing items from their containers.
●
Always be properly grounded when touching a component or assembly.
●
Store reusable ESD-sensitive parts from assemblies in protective packaging or non-conductive foam.
●
Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that mechanized
equipment used for moving materials is wired to ground and that proper materials are selected to avoid
static charging. When grounding is not possible, use an ionizer to dissipate electric charges.
Workstation guidelines
Follow these grounding workstation guidelines:
●
Cover the workstation with approved static-shielding material.
●
Use a wrist strap connected to a properly grounded work surface and use properly grounded tools and
equipment.
●
Use conductive eld service tools, such as cutters, screwdrivers, and vacuums.
●
When xtures must directly contact dissipative surfaces, use xtures made only of static-safe materials.
●
Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids
and Styrofoam.
●
Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle these
items only at static-free workstations.
●
Avoid contact with pins, leads, or circuitry.
●
Turn o power and input signals before inserting or removing connectors or test equipment.
Grounding guidelines 29
Equipment guidelines
Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.
●
When seated, wear a wrist strap connected to a grounded system. Wrist straps are exible straps with a
minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap
snugly against the skin at all times. On grounded mats with banana-plug connectors, use alligator clips
to connect a wrist strap.
●
When standing, use foot straps and a grounded oor mat. Foot straps (heel, toe, or boot straps) can be
used at standing workstations and are compatible with most types of shoes or boots. On conductive
oors or dissipative oor mats, use foot straps on both feet with a minimum of one megohm resistance
between the operator and ground. To be
The following grounding equipment is recommended to prevent electrostatic damage:
●
Antistatic tape
●
Antistatic smocks, aprons, and sleeve protectors
●
Conductive bins and other assembly or soldering aids
●
Nonconductive foam
●
Conductive tabletop workstations with ground cords of one megohm resistance
●
Static-dissipative tables or oor mats with hard ties to the ground
●
Field service kits
eective, the conductive must be worn in contact with the skin.
●
Static awareness labels
●
Material-handling packages
●
Nonconductive plastic bags, tubes, or boxes
●
Metal tote boxes
●
Electrostatic voltage levels and protective materials
The following table lists the shielding protection provided by antistatic bags and oor mats.
Material Use Voltage protection level
Antistatic plastics Bags 1,500 V
Carbon-loaded plastic Floor mats 7,500 V
Metallized laminate Floor mats 5,000 V
30 Chapter 4 Removal and replacement procedures preliminary requirements
5 Removal and replacement procedures for
Customer Self-Repair parts
CAUTION: The Customer Self-Repair program is not available in all locations. Installing a part not supported
by the Customer Self-Repair program may void your warranty. Check your warranty to determine if Customer
Self-Repair is supported in your location.
NOTE: HP continually improves and changes product parts. For complete and current information on
supported parts for your computer, go to http://partsurfer.hp.com, select your country or region, and then
follow the on-screen instructions.
Component replacement procedures
NOTE: Please read and follow the procedures described here to access and replace Customer Self-Repair
parts successfully.
NOTE: Details about the computer, including model, serial number, product key, and length of warranty, are
on the service tag one the bottom of the computer. See Service tag on page 16 for details.
This chapter provides removal and replacement procedures for Customer Self-Repair parts.
There are as many as 2 screws that must be removed, replaced, or loosened when servicing Customer SelfRepair parts. Make special note of each screw size and location during removal and replacement.
Component replacement procedures 31
Battery
Description Spare part number
4-cell, 41-Whr, 2.8-Ah Li-ion battery 807957-001
3-cell, 31-Whr, 2.8-Ah Li-ion battery 807956-001
Before disassembling the computer, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
To remove the battery:
1. Position the computer upside down on a at surface.
2. Slide the battery lock latch (1) to unlock the battery, and then slide the battery release latch (2) to
release the battery.
NOTE: The battery release latch automatically returns to its original position.
3. Remove the battery (3) from the computer.
32 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
Optical drive
Description Spare part number
Optical drive (DVD+/-RW Double-Layer SuperMulti) 756564-037
Optical drive bracket 856610-001
Optical drive bezel 856598-001
Before removing the optical drive, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 32).
To remove the optical drive:
1. Remove the Phillips PM2.5×8.0 screw (1) that secures the optical drive to the computer.
2. Remove the optical drive (2) by sliding it out of the optical drive bay.
Component replacement procedures 33
3. If it is necessary to replace the bracket on the rear of the optical drive, remove the Phillips PM2.0×2.5
screw (1) that secures the bracket to the drive, and then remove the bracket (2).
Reverse this procedure to reassemble and install the optical drive.
34 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
6 Removal and replacement procedures for
Authorized Service Provider parts
CAUTION: Components described in this chapter should only be accessed by an authorized service provider.
Accessing these parts can damage the computer or void the warranty.
NOTE: HP continually improves and changes product parts. For complete and current information on
supported parts for your computer, go to http://partsurfer.hp.com, select your country or region, and then
follow the on-screen instructions.
NOTE: Details about the computer, including model, serial number, product key, and length of warranty, are
on the service tag one the bottom of the computer. See Service tag on page 16 for details.
Component replacement procedures
NOTE: Details about your computer, including model, serial number, product key, and length of warranty,
are on the service tag at the bottom of your computer.
This chapter provides removal and replacement procedures for Authorized Service Provider only parts.
There are as many as 58 screws that must be removed, replaced, or loosened when servicing Authorized
Service Provider only parts. Make special note of each screw size and location during removal and
replacement.
Display subcomponents (bezel, webcam, panel)
This section describes removing display subcomponents that do not require that you remove the entire
display assembly from the computer. You can remove the display bezel, webcam/microphone module, and
display panel while the display assembly is still attached to the computer.
To remove the remaining display subcomponents, you must remove the entire display assembly from the
computer. See Display assembly on page 64 for more information about removing the display assembly in
its entirety.
Description Spare part number
Raw display panel
FHD, anti glare 798926-007
FHD, Touch On Panel (TOP) 851048-001
HD, Touch On Panel (TOP) 851049-001
HD+, BrightView 851051-002
Display bezel 856597-001
Webcam/microphone module
HD 709372-032
VGA 766523-021
Component replacement procedures 35
Before removing display subcomponents while the display assembly is still attached to the computer, follow
these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 32).
To remove the display bezel, webcam/microphone module, and raw display panel:
1. Position the computer upright with the front toward you, and then open it.
2. Flex the inside of the top edge (1), left and right sides (2), and the inside of the bottom edge (3) of the
display bezel until the bezel disengages from the display enclosure.
3. Remove the display bezel (4).
4. To remove the webcam/microphone module:
a. Position the display assembly with the top edge toward you.
b. Lift to disengage the adhesive that secures the webcam/microphone module to the display (1).
c. Disconnect the cable (2) from the module.
36 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
d. Remove the module (3).
5. To remove the display panel:
a. Remove the four Phillips PM2.0×3.0 screws (1) that secure the display panel to the enclosure.
b. Rotate the display panel onto the keyboard (2) to gain access to the display cable connection on
the back of the panel.

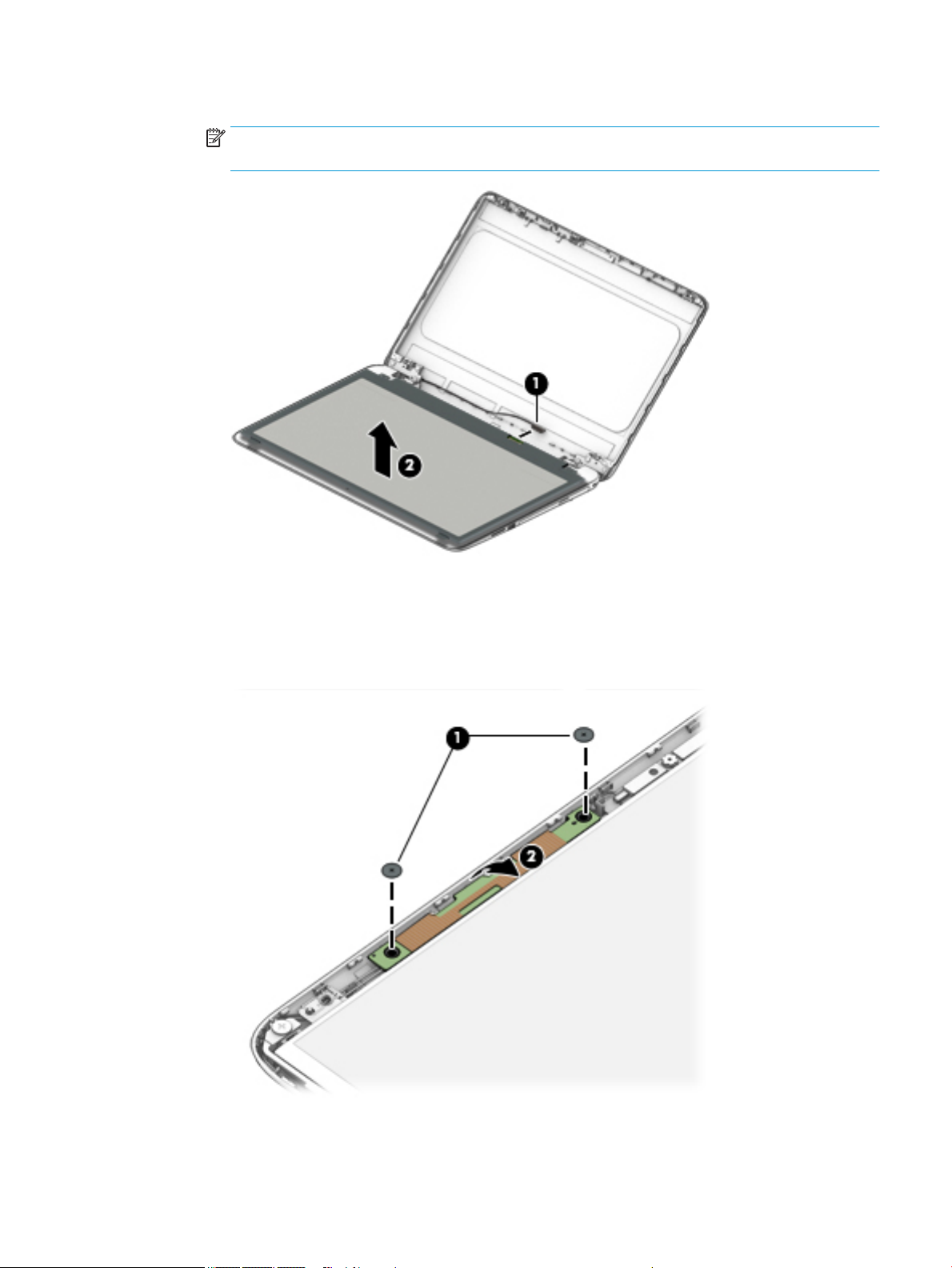

c. On the back of the display panel, release the adhesive strip that secures the display panel cable to
the display panel, and then disconnect the cable (1).
Component replacement procedures 37
d. Remove the display panel from the computer (2).
Reverse this procedure to reassemble and install the display bezel, webcam/microphone module, and display
panel.
38 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
Bottom cover
Description Spare part number
Bottom cover 856601-001
Before removing the bottom cover, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 32).
5. Remove the optical drive (see Optical drive on page 33).
To remove the bottom cover:
1. Position the computer upside down with the front toward you.
2. Remove the two rubber feet (1).
3. Remove the service label screw cutouts from above the two screws under the label (2).
NOTE: Two screws that are located under the regulatory label are marked with a dashed circle and “+”
sign .
Do not remove the regulatory label – only remove or punch holes through the circular cutouts above the
screws.
Component replacement procedures 39
4. Remove the 14 Phillips PM PM2.5×8.0 screws (3) that secure the top cover to the computer.
5. Start at the front of the computer and pry to separate the bottom cover from the computer (1). Work
your way around prying to disengage the bottom cover from the computer, and then remove the cover
(2).
Reverse this procedure to install the bottom cover.
40 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
Hard drive
NOTE: The hard drive spare part kit does not include the hard drive cover.
Description Spare part number
2-TB, 5400-rpm, 2.5-inch 801808-005
1-TB, 5400-rpm, 2.5-inch, hybrid 8 GB SSD 731999-005
1-TB, 5400-rpm, 2.5-in 778192-005
500-GB, 5400-rpm, 2.5 inch 778188-005
Hard drive cover 856584-001
Before removing the hard drive, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
4. Remove the battery (see Battery on page 32).
computer on, and then shut it down through the operating system.
unplugging the AC adapter from the computer.
5. Remove the optical drive (see Optical drive on page 33).
6. Remove the bottom cover (see Bottom cover on page 39).
To remove the hard drive:
1. Remove the USB board cable from atop the hard drive as follows:
a. Lift the ZIF connector (1), and then disconnect the cable from the system board (2).
b. Lift the ZIF connector (3), and then disconnect the cable from the USB board (4).
c. Remove the USB board cable from atop the hard drive (5).
Component replacement procedures 41
2. Rotate the hard drive upward (1).
3. Pull the drive away from the connector, and then remove it from the computer (2).
42 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
4. To disassemble the hard drive, lift the cover o the hard drive
Reverse this procedure to reassemble and install the hard drive.
Component replacement procedures 43
WLAN module
Description Spare part number
Broadcom BCM43142 802.11 b/g/n 1x1 Wi-Fi + BT4.0 Combo Adapter 792608-005
Intel Dual Band Wireless-AC 3165 802.11 ac 1x1 WiFi + BT 4.2 Combo 806723-005
Realtek RTL8188EE-VJ 802.11b/g/n 1x1 Wi-Fi Adapter 857334-855
Intel Dual Band Wireless-AC 3168 802.11 ac 1x1 WiFi + BT 4.2 Combo 863934-855
CAUTION: To prevent an unresponsive system, replace the wireless module only with a wireless module
authorized for use in the computer by the governmental agency that regulates wireless devices in your
country or region. If you replace the module and then receive a warning message, remove the module to
restore device functionality, and then contact support.
Before removing the WLAN module, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 32).
5. Remove the optical drive (see Optical drive on page 33).
6. Remove the bottom cover (see Bottom cover on page 39).
To remove the WLAN module:
1. Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.
NOTE: The #1 WLAN antenna cable is connected to the WLAN module Main terminal. The #2 WLAN
antenna cable is connected to the WLAN module Aux terminal.
2. Remove the Phillips PM2.0×3.0 screw (2) that secures the WLAN module to the system board. (The
WLAN module tilts up.)
44 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
3. Remove the WLAN module by pulling the module away from the slot at an angle (3).
NOTE: If the WLAN antennas are not connected to the terminals on the WLAN module, the protective
sleeves must be installed on the antenna connectors, as shown in the following illustration.
Reverse this procedure to install the WLAN module.
Component replacement procedures 45
RTC battery
Description Spare part number
RTC battery 858288-001
Before removing the RTC battery, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
4. Remove the battery (see Battery on page 32).
5. Remove the optical drive (see Optical drive on page 33).
6. Remove the bottom cover (see Bottom cover on page 39).
To remove the RTC battery:
▲
computer on, and then shut it down through the operating system.
unplugging the AC adapter from the computer.
Using a thin tool or screwdriver, disengage the battery from the socket (1), and then remove the battery
(2).
Reverse this procedure to install the RTC battery.
46 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
Memory module
Description Spare part number
Memory module (PC4, 17000, 2133-MHz)
For use in models with AMD A10 processors
8-GB 820570-005
4-GB 820569-005
2-GB 851379-005
Memory module (PC3L, 12800, 1600-MHz)
For use in models with AMD A8, A6, E2, and E1 processors
8-GB 693374-005
4-GB 691740-005
2-GB 691739-005
Before removing a memory module, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 32).
5. Remove the optical drive (see Optical drive on page 33).
6. Remove the bottom cover (see Bottom cover on page 39).
To remove a memory module:
1. Spread the retaining tabs (1) on each side of the memory module slot to release the memory module.
(The memory module tilts up.)
Component replacement procedures 47
2. Remove the memory module (2) by pulling it away from the slot at an angle.
Reverse this procedure to install a memory module.
48 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
Solid-state drive
Description Spare part number
128-GB solid-state drive 827560-025
Before removing the solid-state drive, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Remove the battery (see Battery on page 32).
4. Remove the optical drive (see Optical drive on page 33).
5. Remove the bottom cover (see Bottom cover on page 39).
Remove the solid-state drive:
1. Remove the Phillips PM2.0×2.0 screw (1) that secures the drive to the system board.
2. Remove the drive (2) by pulling it away from the connector.
NOTE: Solid-state drives are designed with notches to prevent incorrect insertion.
Reverse this procedure to install the solid-state drive.
Component replacement procedures 49
Solid-state drive holder and board
Description Spare part number
Solid-state drive holder 858260-001
Solid-state drive board 856614-001
Before removing the solid-state drive holder and board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 32).
5. Remove the optical drive (see Optical drive on page 33).
6. Remove the bottom cover (see Bottom cover on page 39).
7. Remove the solid-state drive (see Solid-state drive on page 49).
To remove the solid-state drive holder and board:
1. Remove the Phillips PM2.0×4.5 screws (1) that secures the solid-state drive holder to the computer.
2. Pull the board away from the connector on system board (2), and then remove the solid-state drive
holder and board assembly (3).
3. To remove the solid-state drive board from the holder, remove the two Phillips PM2.0×4.0 screws (1)
that secure the board to the holder.
50 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
4. Lift the board out of the holder (2).
Reverse this procedure to install the solid-state drive holder and board.
Component replacement procedures 51
Optical drive connector
Description Spare part number
Optical drive connector 856609-001
Before removing the optical drive connector, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 32).
5. Remove the optical drive (see Optical drive on page 33).
6. Remove the bottom cover (see Bottom cover on page 39).
To remove the optical drive connector:
1. Disconnect the optical drive connector cable from the system board (1).
2. Remove the Phillips PM2.0×3.0 screw (2) that secures the optical drive connector to the computer.
3. Remove the optical drive connector and cable (3).
Reverse this procedure to install the optical drive connector.
52 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
TouchPad click board
Description Spare part number
TouchPad click board 858259-001
TouchPad click board cable 856606-001
TouchPad cable 856605-001
Before removing the TouchPad click board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 32).
5. Remove the optical drive (see Optical drive on page 33).
6. Remove the bottom cover (see Bottom cover on page 39).
To remove the TouchPad click board:
1. Disconnect the cables from the TouchPad cable (1) and the TouchPad click board cable (2).
2. Remove the two Phillips PM2.0×4.0 screws (3) that secure the TouchPad to the computer.
3. Remove the board (4).
Reverse this procedure to install the TouchPad click board.
Component replacement procedures 53
USB board
Description Spare part number
USB board 856613-001
Before removing the USB board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
4. Remove the battery (see Battery on page 32).
5. Remove the optical drive (see Optical drive on page 33).
6. Remove the bottom cover (see Bottom cover on page 39).
To remove the USB board:
1. Disconnect the cable from the USB board (1)
2. Remove the Phillips PM2.0×4.0 screw (2) that secures the USB board to the computer.
computer on, and then shut it down through the operating system.
unplugging the AC adapter from the computer.
3. Remove the USB board (3).
Reverse this procedure to install the USB board.
54 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
Speakers
Before removing the speakers, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
4. Remove the battery (see Battery on page 32).
5. Remove the optical drive (see Optical drive on page 33).
6. Remove the bottom cover (see Bottom cover on page 39).
To remove the speakers:
1. Disconnect the speaker cable from the system board (1).
2. Remove the cable from the routing path (2).
Description Spare part number
Speakers (includes left and right speakers and cable) 856617-001
computer on, and then shut it down through the operating system.
unplugging the AC adapter from the computer.
3. Lift the speakers out of the computer (3).
Reverse this procedure to install the speakers.
Component replacement procedures 55
Fan/heat sink assembly
NOTE: The heat sink assembly spare part kit includes replacement thermal materials.
Description Spare part number
Fan/heat sink assembly for use in models with discrete graphics 856762-001
Fan/heat sink assembly for use in models with UMA graphics 856761-001
NOTE: To properly ventilate the computer, allow at least 7.6 cm (3.0 in) of clearance on the left side of the
computer. The computer uses an electric fan for ventilation. The fan is controlled by a temperature sensor and
is designed to turn on automatically when high temperature conditions exist. These conditions are aected by
high external temperatures, system power consumption, power management/battery conservation
congurations, battery fast charging, and software requirements. Exhaust air is displaced through the
ventilation grill located on the left side of the computer.
Before removing the heat sink assembly, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 32).
5. Remove the optical drive (see Optical drive on page 33).
6. Remove the bottom cover (see Bottom cover on page 39).
To remove the fan/heat sink assembly:
1. If you have a model with discrete graphics:
a. Disconnect the fan cable from the system board (1).
b. In the order indicated, remove the six Phillips PM2.0×3.0 screws (2) that secure the heat sink to the
system board.
56 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
c. Remove the heat sink (3) from the system board.
2. If you have a model with UMA graphics and a fan integrated in the heat sink:
a. Disconnect the fan cable from the system board (1).
b. In the order indicated, remove the four Phillips PM2.0×3.0 screws (2) that secure the heat sink to
the system board.
Component replacement procedures 57
c. Remove the heat sink (3) from the system board.
NOTE: The thermal material must be thoroughly cleaned from the surfaces of the heat sink and the system
board components each time the heat sink is removed. Replacement thermal material is included with the
heat sink, processor, and system board spare part kits.
The following illustrations show the replacement thermal material locations.
●
Discrete graphics: Thermal paste is used on the processor (1) and associated heat sink area (2), as well
as the graphics chip (3) and associated heat sink area (4).
58 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
Component replacement procedures 59
●
UMA graphics: Thermal paste is used on the processor (1) and associated heat sink area (2).
Reverse this procedure to reassemble and install the heat sink assembly.
60 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
System board
NOTE: The system board spare part kit includes replacement thermal materials.
Description Spare part number
System board (includes replacement thermal materials):
All system boards use the following part numbers:
xxxxxx-001: Windows 7 or non-Windows operating system
xxxxxx-601: Windows 10
For use in models with discrete graphics:
●
AMD A10-9600P processor and 4 GB of dedicated video memory 856770-xxx
●
AMD A10-9600P processor and 2 GB of dedicated video memory 856769-xxx
●
AMD A8-7410 processor and 2 GB of dedicated video memory 856767-xxx
●
AMD A6-7310 processor and 2 GB of dedicated video memory 856766-xxx
For use in models with UMA graphics:
●
AMD A10-9600P processor 856768-xxx
●
AMD A9-9410 processor 859287-xxx
●
AMD A8-7410 processor 856765-xxx
●
AMD A6-7310 processor 856764-xxx
●
AMD E2-7110 processor 856763-xxx
Before removing the system board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 32).
5. Remove the optical drive (see Optical drive on page 33).
6. Remove the bottom cover (see Bottom cover on page 39).
NOTE: When replacing the system board, be sure that the following components are removed from the
defective system board and installed on the replacement system board:
●
Memory modules (see Memory module on page 47)
●
WLAN module (see WLAN module on page 44)
●
Fan/heat sink assembly (see Fan/heat sink assembly on page 56)
●
Solid-state drive (if installed) (see Solid-state drive on page 49)
To remove the system board:
Component replacement procedures 61
1. Position the computer upright, and then disconnect the following cables from the system board:
(1): Keyboard cable
(2): Keyboard backlight cable
(3): Optical drive connector cable
(4): USB board cable
(5): TouchPad cable
(6): Power connector cable
(7): Display cable
(8): Power button board
(9): Speaker cable
2. Remove the Phillips PM2.0×3.0 screw (1) that secures the system board to the computer.
3. Remove the eight Phillips PM2.5×7.0 screws (2) that secure the system board to the computer.
62 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
4. Lift the system board out of the computer (3).
Reverse this procedure to install the system board.
Component replacement procedures 63
Display assembly
Description Spare part number
Raw display panel (43.9-cm [17.3-in]; includes screw covers)
FHD, anti glare 798926-007
FHD, Touch On Panel (TOP) 851048-001
HD, Touch On Panel (TOP) 851049-001
HD+, BrightView 851051-002
Display bezel 856597-001
Display cable
Non-touch displays 856607-001
Touch displays 856608-001
Display enclosure for use in non-touch models
Red models 856594-001
White silver models 856593-001
Blue models 856596-001
Turbo silver models 856592-001
Black models 856591-001
Teal models 856595-001
Purple models 900660-001
Display enclosure for use in touch models
Red models 856588-001
White silver models 856587-001
Blue models 856590-001
Turbo silver models 856586-001
Black models 856585-001
Teal models 856589-001
Purple models 900659-001
Hinges (left and right) 856599-001
Webcam/microphone module
HD 709372-032
VGA 766523-021
Antennas 856611-001
Touch control board 856600-001
Before removing the display assembly, follow these steps:
64 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 32).
5. Remove the optical drive (see Optical drive on page 33).
6. Remove the bottom cover (see Bottom cover on page 39).
7. Remove the fan/heat sink (see Fan/heat sink assembly on page 56).
To remove the display assembly:
1. Position the computer with the display open and hanging down o the edge of a table.
2. Disconnect the display cable from the system board (1).
3. Disconnect the wireless antenna cables from the WLAN module (2).
4. Remove the two Phillips PM2.5×7.0 screws (3) that secure the display assembly to the computer.
5. Remove the three Phillips broadhead PM2.0×2.0 screws (4) that secure the display assembly to the
computer.
6. Open the display to rotate the hinges upward to an angle (5).
Component replacement procedures 65
7. Separate the display assembly from the computer (6).
If it is necessary to replace any of the display assembly subcomponents:
1. Flex the inside of the top edge (1), left and right sides (2), and the inside of the bottom edge (3) of the
display bezel until the bezel disengages from the display enclosure.
66 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
2. Remove the display bezel (4).
NOTE: In this procedure the display will not be connected to the computer as shown in the following
image.
3. To remove the webcam/microphone module:
a. Position the display assembly with the top edge toward you.
b. Lift to disengage the adhesive that secures the webcam/microphone module to the display (1).
c. Disconnect the cable (2) from the module.
d. Remove the module (3).
Component replacement procedures 67
4. To remove the display panel:
a. Remove the four Phillips PM2.0×3.0 screws (1) that secure the display panel to the enclosure.
b. Rotate the display panel onto the keyboard (2) to gain access to the display cable connection on
the back of the panel.
NOTE: In this procedure the display will not be connected to the computer as shown in the
following image.
c. On the back of the display panel, release the adhesive strip that secures the display panel cable to
the display panel, and then disconnect the cable (1).
68 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
d. Remove the display panel from the computer (2).
NOTE: In this procedure the display will not be connected to the computer as shown in the
following image.
5. To remove the touch control board from the display:
a. Remove the two Phillips PM2.0×2.0 screws (1) that secure the touch control board to the top of the
display assembly.
b. Rotate the board upside down to access the connectors underneath (2).
c. Disconnect the cable from the end of the board (1).
Component replacement procedures 69
d. Disconnect the two larger cables from the board (2).
e. Remove the touch control board from the display assembly (3).
6. To remove the display hinges:
a. Remove the three Phillips broadhead PM2.5×3.0 screws (1) from the bottom of each hinge and the
Phillips broadhead PM2.5×3.0 screw (2) from the top of each hinge.
70 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
b. Remove the display hinges from the panel (3).
7. To remove the wireless antenna cables and transceivers, release the wireless antenna cables from the
clips (1) built into the back of the display, peel o the transceivers (2), and then remove the antenna
cables and transceivers (3).
NOTE: Number of antennas and transceivers may vary.
Component replacement procedures 71
8. To remove the display/webcam cable, remove the cable from the clips built into the display panel (1),
and then remove the cable from the display (2).
9. If replacing the display enclosure, be sure that the subcomponents (including the webcam/microphone
module, the antenna receivers, and all associated cables and hardware) are transferred to the new
enclosure.
Reverse this procedure to reassemble and install the display assembly.
When reassembling and reinstalling the display assembly, note the routing of the antenna cable (1) and
display/webcam cable (2) as shown in the following image.
72 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
Power button board
Description Spare part number
Power button board 856612-001
Power button board cable 856604-001
Before removing the power button board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 32).
5. Remove the optical drive (see Optical drive on page 33).
6. Remove the bottom cover (see Bottom cover on page 39).
7. Remove the fan/heat sink (see Fan/heat sink assembly on page 56).
8. Remove the display (see Display assembly on page 64).
To remove the power button board:
1. Disconnect the cable from the power button board (1).
2. Remove the Phillips PM2.0×4.0 screw (2) that secures the power button board to the computer.
3. Remove the power button board from the computer (3).
Reverse this procedure to install the power button board.
Component replacement procedures 73
Power connector
Description Spare part number
Power connector cable 856680-001
Before removing the power connector cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 32).
5. Remove the optical drive (see Optical drive on page 33).
6. Remove the bottom cover (see Bottom cover on page 39).
7. Remove the fan/heat sink (see Fan/heat sink assembly on page 56).
8. Remove the display (see Display assembly on page 64).
To remove the power connector cable:
1. Pull the tabs away from the connector (1).
2. Remove the power connector (2) from the computer.
Reverse this procedure to install the power connector cable.
74 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
Cable locations
Description Spare part number
Power button board cable 856604-001
Optical drive cable 856609-001
USB board cable 856603-001
TouchPad cable 856605-001
Touch click board cable 856606-001
Use the following image to determine proper cable routing in the computer.
(1) Power button board cable
(2) Optical drive cable
(3) USB board cable
(4) TouchPad cable
(5) TouchPad click board cable
Component replacement procedures 75
Top cover/keyboard
In this section, the rst table provides the main spare part number for the top cover/keyboard. The second
table provides the country codes. All top cover/keyboard spare part kits include TouchPad.
Description Spare part number
Models without a backlit keyboard:
●
Black 856698-xx1
●
Turbo silver 856699-xx1
●
White silver 856700-xx1
●
Red 856757-xx1
●
Teal 856758-xx1
●
Blue 856759-xx1
●
Purple 900153-xx1
Models with a backlit keyboard:
●
Black 856771-xx1
●
Turbo silver 856772-xx1
●
White silver 856773-xx1
●
Red 856775-xx1
●
Teal 856776-xx1
●
Blue 856777-xx1
●
Purple 900154-xx1
Country or region Spare part
number
Belgium -A41 Greece -151 Saudi Arabia -171
Bulgaria -261 Hungary -211 Slovenia -BA1
Canada -DB1 Israel -BB1 South Korea -AD1
Czech Republic
and Slovakia
Denmark, Finland,
and Norway
France -051 Romania -271 United Kingdom -031
Germany -041 Russia -251 United States -001
-FL1 The Netherlands -B31 Spain -071
-DH1 Portugal -131 Switzerland -BG1
Country or region Spare part
number
Country or region Spare part
number
The top cover/keyboard spare part kit includes the keyboard, keyboard cable and the keyboard backlight
cable.
The top cover/keyboard spare part remains after all other spare parts have been removed.
76 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
7 Using Setup Utility (BIOS) in Windows 10
Setup Utility, or Basic Input/Output System (BIOS), controls communication between all the input and output
devices on the system (such as disk drives, display, keyboard, mouse, and printer). Setup Utility (BIOS)
includes settings for the types of devices installed, the startup sequence of the computer, and the amount of
system and extended memory.
NOTE: To start Setup Utility on convertible computers, your computer must be in notebook mode and you
must use the keyboard attached to your notebook.
Starting Setup Utility (BIOS)
CAUTION: Use extreme care when making changes in Setup Utility (BIOS). Errors can prevent the computer
from operating properly.
▲
Turn on or restart the computer, quickly press esc, and then press f10.
Updating Setup Utility (BIOS)
Updated versions of Setup Utility (BIOS) may be available on the HP website.
Most BIOS updates on the HP website are packaged in compressed les called SoftPaqs.
Some download packages contain a le named Readme.txt, which contains information regarding installing
and troubleshooting the le.
Determining the BIOS version
To decide whether you need to update Setup Utility (BIOS), rst determine the BIOS version on your computer.
To reveal the BIOS version information (also known as ROM date and System BIOS), use one of these options.
●
HP Support Assistant
1.
Type support in the taskbar search box, and then select the HP Support Assistant app.
– or –
Click the question mark icon in the taskbar.
2.
Select My PC, and then select Specications.
●
Setup Utility (BIOS)
1.
Start Setup Utility (BIOS) (see Starting Setup Utility (BIOS) on page 77).
2.
Select Main, select System Information, and then make note of the BIOS version.
3.
Select Exit, select No, and then follow the on-screen instructions.
To check for later BIOS versions, see Downloading a BIOS update on page 78.
Starting Setup Utility (BIOS) 77
Downloading a BIOS update
CAUTION: To reduce the risk of damage to the computer or an unsuccessful installation, download and
install a BIOS update only when the computer is connected to reliable external power using the AC adapter. Do
not download or install a BIOS update while the computer is running on battery power, docked in an optional
docking device, or connected to an optional power source. During the download and installation, follow these
instructions:
●
Do not disconnect power from the computer by unplugging the power cord from the AC outlet.
●
Do not shut down the computer or initiate Sleep.
●
Do not insert, remove, connect, or disconnect any device, cable, or cord.
NOTE: If your computer is connected to a network, consult the network administrator before installing any
software updates, especially system BIOS updates.
1. Type support in the taskbar search box, and then select the HP Support Assistant app.
– or –
Click the question mark icon in the taskbar.
2. Click Updates, and then click Check for updates and messages.
3. Follow the on-screen instructions.
4. At the download area, follow these steps:
a. Identify the most recent BIOS update and compare it to the BIOS version currently installed on your
computer. If the update is more recent than your BIOS version, make a note of the date, name, or
other identier. You may need this information to locate the update later, after it has been
downloaded to your hard drive.
b. Follow the on-screen instructions to download your selection to the hard drive.
Make a note of the path to the location on your hard drive where the BIOS update is downloaded.
You will need to access this path when you are ready to install the update.
BIOS installation procedures vary. Follow any instructions that appear on the screen after the download is
complete. If no instructions appear, follow these steps:
1. Type file in the taskbar search box, and then select File Explorer.
2. Click your hard drive designation. The hard drive designation is typically Local Disk (C:).
3. Using the hard drive path you recorded earlier, open the folder that contains the update.
4. Double-click the le that has an .exe extension (for example, lename.exe).
The BIOS installation begins.
5. Complete the installation by following the on-screen instructions.
NOTE: After a message on the screen reports a successful installation, you can delete the downloaded le
from your hard drive.
78 Chapter 7 Using Setup Utility (BIOS) in Windows 10
8 Backing up, restoring, and recovering in
Windows 10
This chapter provides information about the following processes. The information in the chapter is standard
procedure for most products.
●
Creating recovery media and backups
●
Restoring and recovering your system
For additional information, refer to the HP support assistant app.
▲
Type support in the taskbar search box, and then select the HP Support Assistant app.
‒ or –
Click the question mark icon in the taskbar.
IMPORTANT: If you will be performing recovery procedures on a tablet, the tablet battery must be at least
70% charged before you start the recovery process.
IMPORTANT: For a tablet with a detachable keyboard, connect the keyboard to the keyboard dock before
beginning any recovery process.
Creating recovery media and backups
The following methods of creating recovery media and backups are available on select products only. Choose
the available method according to your computer model.
●
Use HP Recovery Manager to create HP Recovery media after you successfully set up the computer. This
step creates a backup of the HP Recovery partition on the computer. The backup can be used to reinstall
the original operating system in cases where the hard drive is corrupted or has been replaced. For
information on creating recovery media, see Creating HP Recovery media (select products only)
on page 79. For information on the recovery options that are available using the recovery media, see
Using Windows tools on page 80.
●
Use Windows tools to create system restore points and create backups of personal information.
For more information, see Recovering using HP Recovery Manager on page 81.
NOTE: If storage is 32 GB or less, Microsoft System Restore is disabled by default.
Creating HP Recovery media (select products only)
If possible, check for the presence of the Recovery partition and the Windows partition. From the Start menu,
select File Explorer, and then select This PC.
●
If your computer does not list the Windows partition and the Recovery partition, you can obtain recovery
media for your system from support. See the Worldwide Telephone Numbers booklet included with the
computer. You can also nd contact information on the HP website. Go to http://www.hp.com/support,
select your country or region, and follow the on-screen instructions.
Creating recovery media and backups 79
You can use Windows tools to create system restore points and create backups of personal information,
see Using Windows tools on page 80.
●
If your computer does list the Recovery partition and the Windows partition, you can use HP Recovery
Manager to create recovery media after you successfully set up the computer. HP Recovery media can be
used to perform system recovery if the hard drive becomes corrupted. System recovery reinstalls the
original operating system and software programs that were installed at the factory and then congures
the settings for the programs. HP Recovery media can also be used to customize the system or restore
the factory image if you replace the hard drive.
—
Only one set of recovery media can be created. Handle these recovery tools carefully, and keep
them in a safe place.
—
HP Recovery Manager examines the computer and determines the required storage capacity for
the media that will be required.
—
To create recovery discs, your computer must have an optical drive with DVD writer capability, and
you must use only high-quality blank DVD-R, DVD+R, DVD-R DL, or DVD+R DL discs. Do not use
rewritable discs such as CD±RW, DVD±RW, double-layer DVD±RW, or BD-RE (rewritable Blu-ray)
discs; they are not compatible with HP Recovery Manager software. Or, instead, you can use a highquality blank USB ash drive.
—
If your computer does not include an integrated optical drive with DVD writer capability, but you
would like to create DVD recovery media, you can use an external optical drive (purchased
separately) to create recovery discs. If you use an external optical drive, it must be connected
directly to a USB port on the computer; the drive cannot be connected to a USB port on an external
device, such as a USB hub. If you cannot create DVD media yourself, you can obtain recovery discs
for your computer from HP. See the Worldwide Telephone Numbers booklet included with the
computer. You can also nd contact information on the HP website. Go to http://www.hp.com/
support, select your country or region, and follow the on-screen instructions.
—
Be sure that the computer is connected to AC power before you begin creating the recovery media.
—
The creation process can take an hour or more. Do not interrupt the creation process.
—
If necessary, you can exit the program before you have nished creating all of the recovery DVDs.
HP Recovery Manager will nish burning the current DVD. The next time you start HP Recovery
Manager, you will be prompted to continue.
To create HP Recovery media:
IMPORTANT: For a tablet with a detachable keyboard, connect the keyboard to the keyboard dock before
beginning these steps.
1. Type recovery in the taskbar search box, and then select HP Recovery Manager.
2. Select Create recovery media, and then follow the on-screen instructions.
If you ever need to recover the system, see Recovering using HP Recovery Manager on page 81.
Using Windows tools
You can create recovery media, system restore points, and backups of personal information using Windows
tools.
NOTE: If storage is 32 GB or less, Microsoft System Restore is disabled by default.
For more information and steps, see the Get started app.
▲
Select the Start button, and then select the Get started app.
80 Chapter 8 Backing up, restoring, and recovering in Windows 10
Restore and recovery
There are several options for recovering your system. Choose the method that best matches your situation
and level of expertise:
IMPORTANT: Not all methods are available on all products.
●
Windows oers several options for restoring from backup, refreshing the computer, and resetting the
computer to its original state. For more information see the Get started app.
▲
Select the Start button, and then select the Get started app.
●
If you need to correct a problem with a preinstalled application or driver, use the Reinstall drivers and/or
applications option (select products only) of HP Recovery Manager to reinstall the individual application
or driver.
▲
Type recovery in the taskbar search box, select HP Recovery Manager, select Reinstall drivers
and/or applications
●
If you want to recover the Windows partition to original factory content, you can choose the System
Recovery option from the HP Recovery partition (select products only) or use the HP Recovery media.
For more information, see Recovering using HP Recovery Manager on page 81. If you have not already
created recovery media, see Creating HP Recovery media (select products only) on page 79.
●
On select products, if you want to recover the computer's original factory partition and content, or if you
have replaced the hard drive, you can use the Factory Reset option of HP Recovery media. For more
information, see Recovering using HP Recovery Manager on page 81.
, and then follow the on-screen instructions.
●
On select products, if you want to remove the recovery partition to reclaim hard drive space, HP
Recovery Manager oers the Remove Recovery Partition option.
For more information, see Removing the HP Recovery partition (select products only) on page 83.
Recovering using HP Recovery Manager
HP Recovery Manager software allows you to recover the computer to its original factory state by using the
HP Recovery media that you either created or that you obtained from HP, or by using the HP Recovery
partition (select products only). If you have not already created recovery media, see Creating HP Recovery
media (select products only) on page 79.
What you need to know before you get started
●
HP Recovery Manager recovers only software that was installed at the factory. For software not provided
with this computer, you must either download the software from the manufacturer's website or reinstall
the software from the media provided by the manufacturer.
IMPORTANT: Recovery through HP Recovery Manager should be used as a nal attempt to correct
computer issues.
●
HP Recovery media must be used if the computer hard drive fails. If you have not already created
recovery media, see Creating HP Recovery media (select products only) on page 79.
●
To use the Factory Reset option (select products only), you must use HP Recovery media. If you have not
already created recovery media, see Creating HP Recovery media (select products only) on page 79.
●
If your computer does not allow the creation of HP Recovery media or if the HP Recovery media does not
work, you can obtain recovery media for your system from support. See the Worldwide Telephone
Numbers booklet included with the computer. You can also nd contact information from the HP
Restore and recovery 81
website. Go to http://www.hp.com/support, select your country or region, and follow the on-screen
instructions.
IMPORTANT: HP Recovery Manager does not automatically provide backups of your personal data. Before
beginning recovery, back up any personal data you want to retain.
Using HP Recovery media, you can choose from one of the following recovery options:
NOTE: Only the options available for your computer display when you start the recovery process.
●
System Recovery—Reinstalls the original operating system, and then congures the settings for the
programs that were installed at the factory.
●
Factory Reset—Restores the computer to its original factory state by deleting all information from the
hard drive and re-creating the partitions. Then it reinstalls the operating system and the software that
was installed at the factory.
The HP Recovery partition (select products only) allows System Recovery only.
Using the HP Recovery partition (select products only)
The HP Recovery partition allows you to perform a system recovery without the need for recovery discs or a
recovery USB ash drive. This type of recovery can be used only if the hard drive is still working.
To start HP Recovery Manager from the HP Recovery partition:
IMPORTANT: For a tablet with a detachable keyboard, connect the keyboard to the keyboard dock before
beginning these steps (select products only).
1. Type recovery in the taskbar search box, select Recovery Manager, and then select HP Recovery
Environment
- or-
For computers or tablets with keyboards attached, press f11 while the computer boots, or press and
hold f11 as you press the power button.
For tablets without keyboards:
Turn on or restart the tablet, and then quickly hold down the volume down button; then select f11.
- or -
Turn on or restart the tablet, and then quickly hold down the Windows button; then select f11.
2. Select Troubleshoot from the boot options menu.
3. Select Recovery Manager, and then follow the on-screen instructions.
.
Using HP Recovery media to recover
You can use HP Recovery media to recover the original system. This method can be used if your system does
not have an HP Recovery partition or if the hard drive is not working properly.
1. If possible, back up all personal les.
2. Insert the HP Recovery media, and then restart the computer.
NOTE: If the computer does not automatically restart in HP Recovery Manager, change the computer
boot order. See Changing the computer boot order on page 83.
3. Follow the on-screen instructions.
82 Chapter 8 Backing up, restoring, and recovering in Windows 10
Changing the computer boot order
If your computer does not restart in HP Recovery Manager, you can change the computer boot order, which is
the order of devices listed in BIOS where the computer looks for startup information. You can change the
selection to an optical drive or a USB ash drive.
To change the boot order:
IMPORTANT: For a tablet with a detachable keyboard, connect the keyboard to the keyboard dock before
beginning these steps.
1. Insert the HP Recovery media.
2. Access BIOS:
For computers or tablets with keyboards attached:
▲
Turn on or restart the computer or tablet, quickly press esc, and then press f9 for boot options.
For tablets without keyboards:
▲
Turn on or restart the tablet, and then quickly hold down the volume down button; then select f9.
- or -
Turn on or restart the tablet, and then quickly hold down the Windows button; then select f9.
3. Select the optical drive or USB ash drive from which you want to boot.
4. Follow the on-screen instructions.
Removing the HP Recovery partition (select products only)
HP Recovery Manager software allows you to remove the HP Recovery partition to free up hard drive space.
IMPORTANT: After you remove the HP Recovery partition, you will not be able to perform System Recovery
or create HP recovery media from the HP Recovery partition. So before you remove the Recovery partition,
create HP Recovery media; see Creating HP Recovery media (select products only) on page 79.
NOTE: The Remove Recovery Partition option is only available on products that support this function.
Follow these steps to remove the HP Recovery partition:
1. Type recovery in the taskbar search box, and then select HP Recovery Manager.
2. Select Remove Recovery Partition, and then follow the on-screen instructions.
Restore and recovery 83
84 Chapter 8 Backing up, restoring, and recovering in Windows 10
9 Using HP PC Hardware Diagnostics (UEFI)
HP PC Hardware Diagnostics is a Unied Extensible Firmware Interface (UEFI) that allows you to run diagnostic
tests to determine whether the computer hardware is functioning properly. The tool runs outside the
operating system so that it can isolate hardware failures from issues that are caused by the operating system
or other software components.
When HP PC Hardware Diagnostics (UEFI) detects a failure that requires hardware replacement, a 24-digit
Failure ID code is generated. This ID code can then be provided to support to help determine how to correct
the problem.
NOTE: To start diagnostics on a convertible computer, your computer must be in notebook mode and you
must use the keyboard attached.
To start HP PC Hardware Diagnostics (UEFI), follow these steps:
1. Turn on or restart the computer, and quickly press esc.
2. Press f2.
The BIOS searches three places for the diagnostic tools, in the following order:
a. Connected USB drive
NOTE: To download the HP PC Hardware Diagnostics (UEFI) tool to a USB drive, see Downloading
HP PC Hardware Diagnostics (UEFI) to a USB device on page 85.
b. Hard drive
c. BIOS
3. When the diagnostic tool opens, select the type of diagnostic test you want to run, and then follow the
on-screen instructions.
NOTE: If you need to stop a diagnostic test, press esc.
Downloading HP PC Hardware Diagnostics (UEFI) to a USB device
NOTE: The HP PC Hardware Diagnostics (UEFI) download instructions are provided in English only, and you
must use a Windows computer to download and create the HP UEFI support environment because only .exe
les are oered.
There are two options to download HP PC Hardware Diagnostics to a USB device.
Download the latest UEFI version
1. Go to http://www.hp.com/go/techcenter/pcdiags. The HP PC Diagnostics home page is displayed.
2. In the HP PC Hardware Diagnostics section, select the Download link, and then select Run.
Download any version of UEFI for a specic product
1. Go to http://www.hp.com/support.
2. Select Get software and drivers.
Downloading HP PC Hardware Diagnostics (UEFI) to a USB device 85
3. Enter the product name or number.
– or –
Select Identify now to let HP automatically detect your product.
4. Select your computer, and then select your operating system.
5. In the Diagnostic section, follow the on-screen instructions to select and download the UEFI version
you want.
86 Chapter 9 Using HP PC Hardware Diagnostics (UEFI)
10 Specications
Computer specications
Metric U.S.
Dimensions (touch models)
Depth 261.1 mm 10.28 in
Width 384.5 mm 15.14 in
Height (rear) 25.15 mm 0.99 in
Weight
Touch
Non-touch
Input power
Operating voltage and current 19.5 V dc @ 2.31 A – 45 W
Temperature
Operating 5°C to 35°C 41°F to 95°F
Nonoperating ‑20°C to 60°C ‑4°F to 140°F
Relative humidity (noncondensing)
Operating 10% to 90%
Nonoperating 5% to 95%
Maximum altitude (unpressurized)
Operating ‑15 m to 3,048 m ‑50 ft to 10,000 ft
Nonoperating ‑15 m to 12,192 m ‑50 ft to 40,000 ft
NOTE: Applicable product safety standards specify thermal limits for plastic surfaces. The device operates well within this range of
temperatures.
2.499 kg
2.299 kg
18.5 V dc @ 3.5 A or 19.5 V dc @ 3.33 A – 65 W
5.51 lb
5.07 lb
Computer specications 87
43.9-cm (17.3-in) display specications
Metric U.S.
Active diagonal size 43.9-cm 17.3-in
Thickness 6.0 mm or 4.0 mm 0.157 inch or 0.236 inch
Resolution 1920x1080 (FHD)
1920x1080 (HD)
Surface treatment AntiGlare or BrightView
Contrast ratio 300:1 (typical)
Brightness 220 nits (typical)
Viewing angle SVA
Backlight WLED
Companion standard eDP
Hard drive specications
2-TB* 1-TB* 500-GB*
Dimensions
Height 9.5 mm 9.5 mm 7.0 mm or 9.5 mm
Length 100.4 mm 100.4 mm 100.6 mm
Width 69.9 mm 69.9 mm 70.1 mm
Weight 115.0 g 115.0 g 92.0 g
Interface type SATA SATA SATA
Transfer rate
Synchronous (maximum) 300 MB/sec 300 MB/sec 300 MB/sec
Security ATA security ATA security ATA security
Seek times (typical read, including setting)
Single track 1.4 ms 1.4 ms 3 ms
Average (read/write) 10 ms 10 ms 13 ms
Maximum 12 ms 12 ms 24 ms
Logical blocks 3,877,842,922 1,938,921,461 1,048,576,000
Disk rotational speed 5400 rpm 5400 rpm 5400 rpm
Operating temperature 0°C to 60°C (32°F to 140°F)
*1 GB = 1 billion bytes when referring to hard drive storage capacity. Actual accessible capacity is less.
NOTE: Certain restrictions and exclusions apply. Contact technical support for details.
88 Chapter 10 Specications
DVD±RW SuperMulti DL Drive specications
Component Value
Applicable disc Read:
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CDROM XA, MIXED MODE CD, CD-I, CD-I Bridge (PhotoCD, Video CD), Multisession CD (Photo-CD, CDEXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW,
DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVDR, DVD-RW, DVD+R, DVD+RW, DVD-RAM
Center hole diameter 1.5 cm (0.59 in)
Disc diameter
Standard disc 12 cm (4.72 in)
Mini disc 8 cm (3.15 in)
Disc thickness 1.2 mm (0.047 in)
Track pitch 0.74 µm
Access time CD DVD
Random < 175 ms < 230 ms
Full stroke < 285 ms < 335 ms
Audio output level Line-out, 0.7 Vrms
Cache buer 2 MB
Data transfer rate
Write:
CD-R and CD-RW
DVD+R, DVD+RW, DVD-R, DVD-RW,
DVD-RAM
24X CD-ROM 3,600 KB/sec
8X DVD-ROM 10,800 KB/sec
24X CD-R 3,600 KB/sec
16X CD-RW 2,400 KB/sec
8X DVD+R 10,800 KB/sec
4X DVD+RW 5,400 KB/sec
8X DVD-R 10,800 KB/sec
4X DVD-RW 5,400 KB/sec
2.4X DVD+R(9) 2,700 KB/sec
5X DVD-RAM 6,750 KB/sec
Transfer mode Multiword DMA Mode
Startup time < 15 seconds
Stop time < 6 seconds
DVD±RW SuperMulti DL Drive specications 89
90 Chapter 10 Specications
11 Power cord set requirements
The wide-range input feature of the computer permits it to operate from any line voltage from 100 to 120
volts ac, or from 220 to 240 volts ac.
The 3-conductor power cord set included with the computer meets the requirements for use in the country or
region where the equipment is purchased.
Power cord sets for use in other countries and regions must meet the requirements of the country or region
where the computer is used.
Requirements for all countries
The following requirements are applicable to all countries and regions:
●
The length of the power cord set must be at least 1.5 m (5.0 ft) and no more than 2.0 m (6.5 ft).
●
All power cord sets must be approved by an acceptable accredited agency responsible for evaluation in
the country or region where the power cord set will be used.
●
The power cord sets must have a minimum current capacity of 10 A and a nominal voltage rating of 125
or 250 V ac, as required by the power system of each country or region.
●
The appliance coupler must meet the mechanical conguration of an EN 60 320/IEC 320 Standard Sheet
C13 connector for mating with the appliance inlet on the back of the computer.
Requirements for all countries 91
Requirements for specic countries and regions
Country/region Accredited agency Applicable note number
Argentina IRAM 1
Australia SAA 1
Austria OVE 1
Belgium CEBEC 1
Brazil ABNT 1
Canada CSA 2
Chile IMQ 1
Denmark DEMKO 1
Finland FIMKO 1
France UTE 1
Germany VDE 1
India ISI 1
Israel SII 1
Italy IMQ 1
Japan JIS 3
The Netherlands KEMA 1
New Zealand SANZ 1
Norway NEMKO 1
The People's Republic of China CCC 4
Saudi Arabia SASO 7
Singapore PSB 1
South Africa SABS 1
South Korea KTL 5
Sweden SEMKO 1
Switzerland SEV 1
Taiwan BSMI 6
Thailand TISI 1
The United Kingdom ASTA 1
The United States UL 2
1.
The exible cord must be Type HO5VV-F, 3-conductor, 0.75mm2 conductor size. Power cord set ttings (appliance coupler and
wall plug) must bear the certication mark of the agency responsible for evaluation in the country or region where it will be used.
2.
The exible cord must be Type SVT/SJT or equivalent, No. 18 AWG, 3-conductor. The wall plug must be a two-pole grounding type
with a NEMA 5-15P (15 A, 125 V ac) or NEMA 6-15P (15 A, 250 V ac) conguration. CSA or C-UL mark. UL le number must be on
each element.
92 Chapter 11 Power cord set requirements
Loading...
