HP MFP 586dn User Guide

User Guide
PageWide Enterprise Color MFP 586
www.hp.com/support/pagewidecolor586MFP
586z586f
O
i cej
En
ter
p ris
o lo
r M
FP X5
56
586dn
O
i cej
En
ter
p ris
o lo
r M
FP X5
56
O
i cej
En
ter
p ris
o lo
r M
FP X5
56
c a p
s l o
c k
s h i f
t
A S
D F
G
H
J K
L
Z
X
C
V
B
N
M
@
a l
t
a l t
s h i f t
e n t
e r
,
.
?
/
:
;
“ ‘
HP PageWide Enterprise Color MFP 586
User Guide
Copyright and License
Trademark Credits
© Copyright 2016 HP Development Company, L.P.
Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws.
The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Edition 2, 3/2019
Adobe®, Adobe Photoshop®, Acrobat®, and P
ostScript® are trademarks of Adobe Systems
Inc
orporated.
Apple and the Apple logo are trademarks of Apple Computer, Inc., registered in the U.S. and other countries. iPod is a trademark of Apple Computer, Inc. iPod is for legal or rightholder­authorized copying only. Don't steal music.
Microsoft®, Windows®, Windows® XP, and Windows Vista® are U.S. registered trademarks of Microsoft Corporation.
UNIX® is a registered trademark of The Open Gr
oup.
Table of contents
1 Printer overview ............................................................................................................................................ 1
Printer views .......................................................................................................................................................... 2
Printer front view ................................................................................................................................ 2
Printer back view ................................................................................................................................. 3
Interface ports ..................................................................................................................................... 3
Control-panel view .............................................................................................................................. 4
Printer specications ............................................................................................................................................. 6
Technical specications ....................................................................................................................... 6
Supported operating systems ............................................................................................................. 8
Mobile printing solutions .................................................................................................................. 10
Printer dimensions ............................................................................................................................ 11
Power consumption, electrical specications, and acoustic emissions ........................................... 15
Operating-environment range .......................................................................................................... 15
Printer hardware setup and software installation .............................................................................................. 16
2 Paper trays ................................................................................................................................................. 17
Load paper to Tray 1 (multi-purpose tray) .......................................................................................................... 18
Introduction ....................................................................................................................................... 18
Tray 1 paper orientation ................................................................................................................... 19
Use alternative letterhead mode ...................................................................................................... 22
Enable Alternative Letterhead Mode by using the printer control-panel menus .......... 22
Load paper to Tray 2 ............................................................................................................................................ 23
Introduction ....................................................................................................................................... 23
Tray 2 paper orientation ................................................................................................................... 24
Use alternative letterhead mode ...................................................................................................... 26
Enable Alternative Letterhead Mode by using the printer control-panel menus .......... 26
Load paper to Tray 3 ............................................................................................................................................ 27
Introduction ....................................................................................................................................... 27
Tray 3 paper orientation ................................................................................................................... 28
Use alternative letterhead mode ...................................................................................................... 30
Enable Alternative Letterhead Mode by using the printer control-panel menus .......... 30

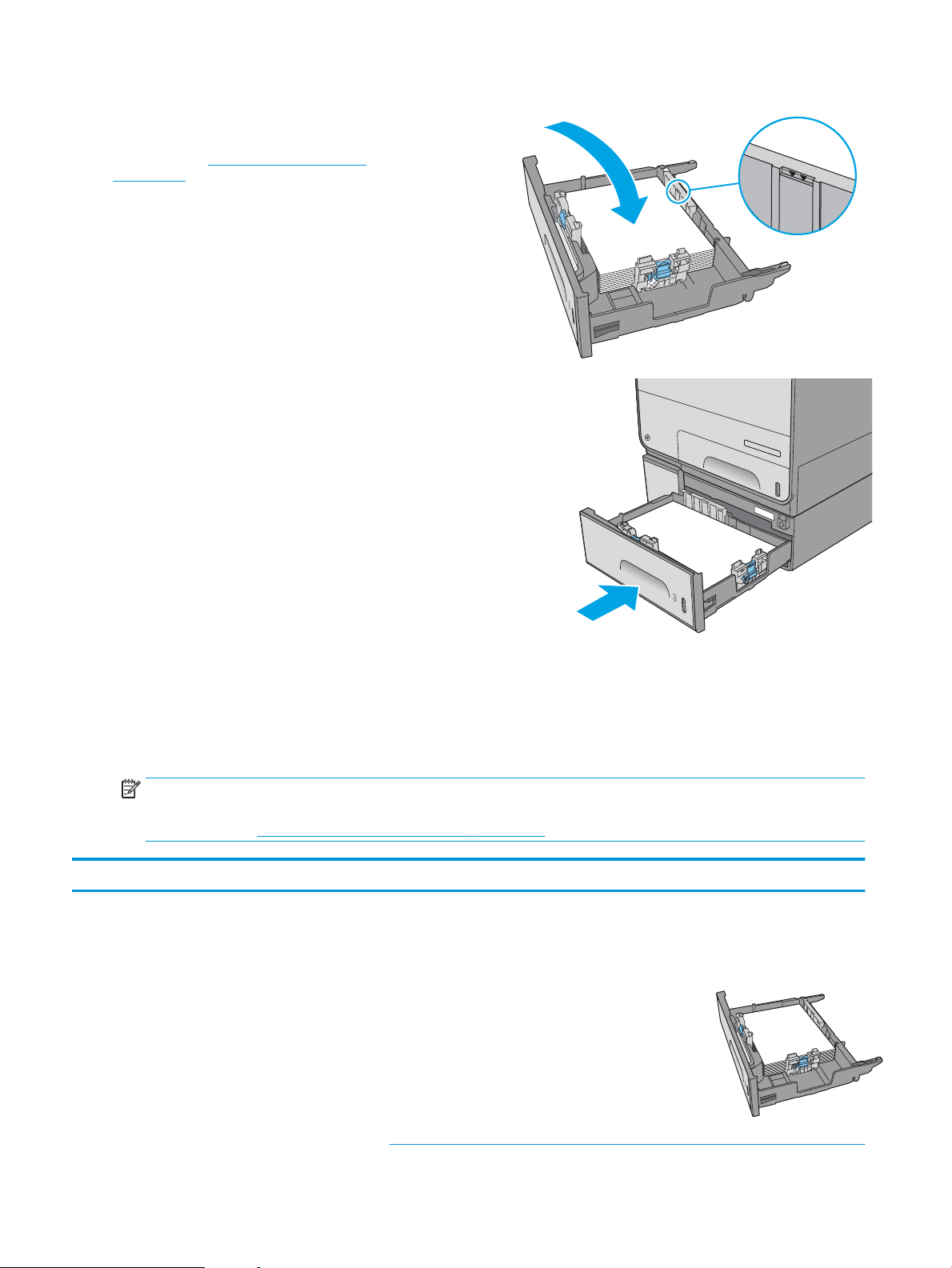

Load paper to the 3 x 500-sheet paper feeder ................................................................................................... 31
ENWW iii
Introduction ....................................................................................................................................... 31

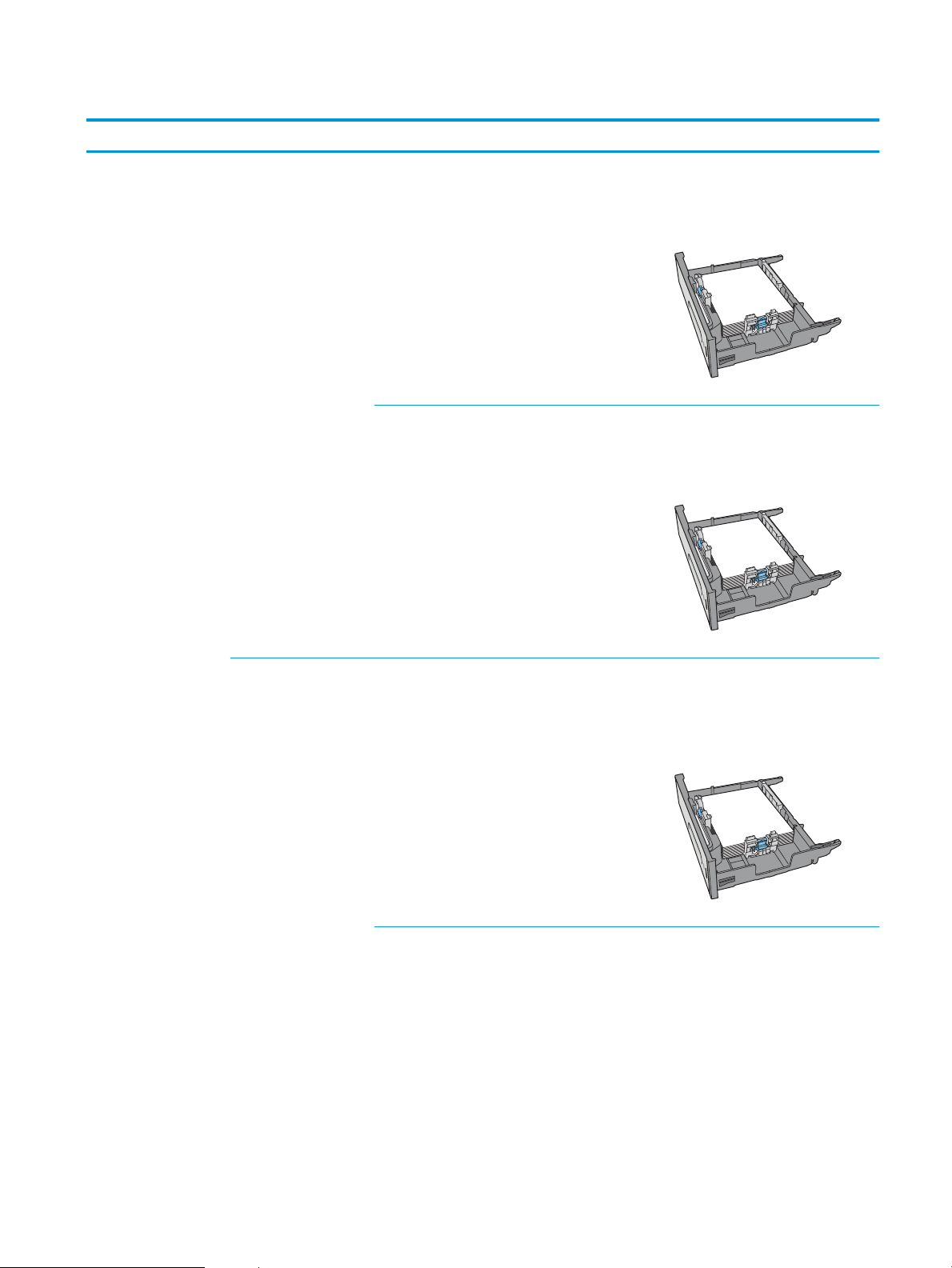

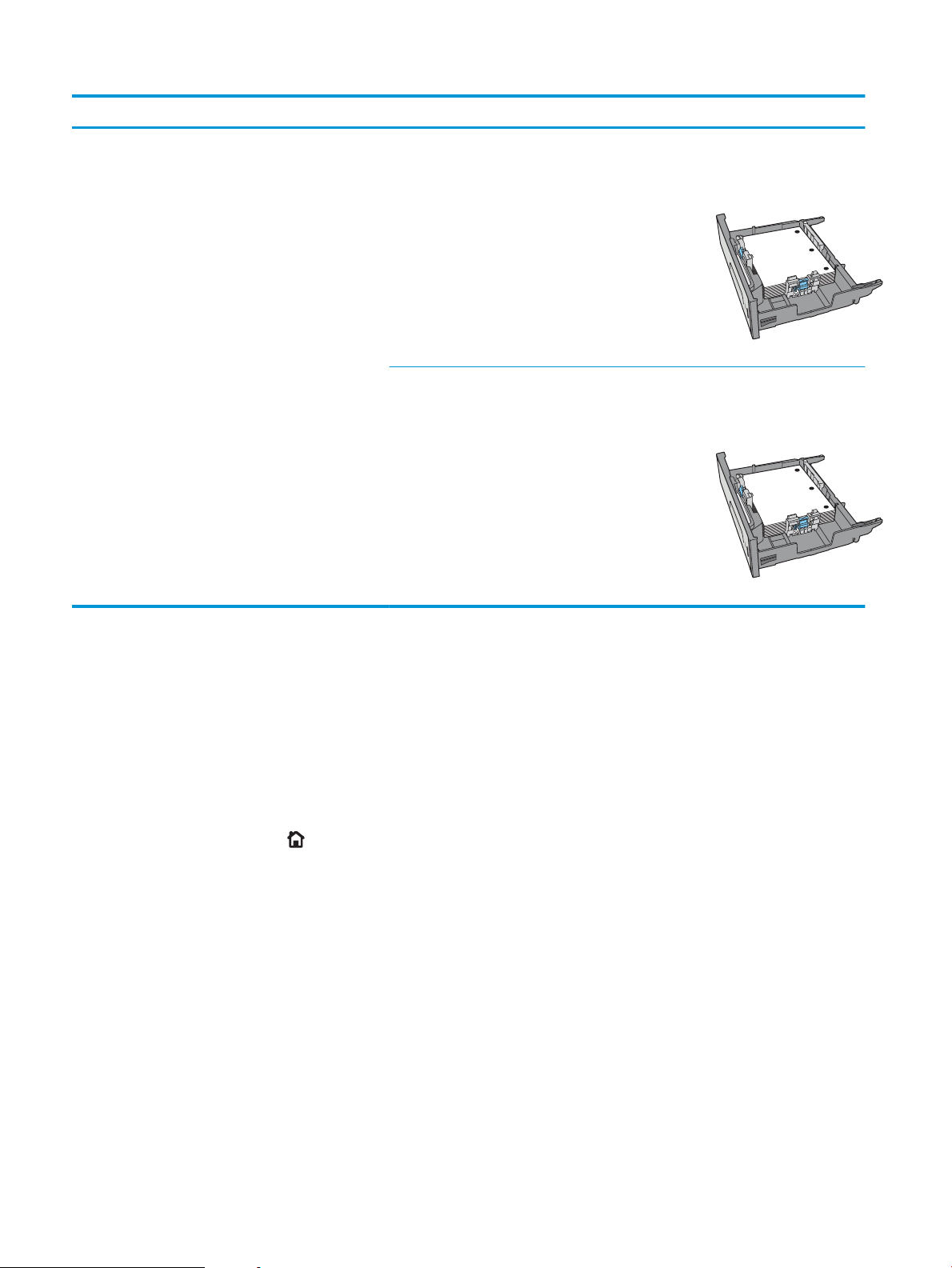

3 x 500-sheet tray paper orientation ............................................................................................... 32
Use alternative letterhead mode ...................................................................................................... 35
Enable Alternative Letterhead Mode by using the printer control-panel menus .......... 35
Load and print envelopes .................................................................................................................................... 36
Introduction ....................................................................................................................................... 36
Print envelopes .................................................................................................................................. 36
Envelope orientation ......................................................................................................................... 36
Load and print labels ........................................................................................................................................... 38
Introduction ....................................................................................................................................... 38
Manually feed labels ......................................................................................................................... 38
Label orientation ............................................................................................................................... 39
3 Supplies, accessories, and parts ................................................................................................................... 41
Order supplies, accessories, and parts ................................................................................................................ 42
Ordering ............................................................................................................................................. 42
Supplies and accessories .................................................................................................................. 42
Customer self-repair parts ................................................................................................................ 43
Replace the cartridges ......................................................................................................................................... 46
Introduction ....................................................................................................................................... 46
Cartridge information ........................................................................................................................ 46
Remove and replace the cartridge .................................................................................................... 48
Replace the ink-collection unit ............................................................................................................................ 51
Introduction ....................................................................................................................................... 51
Remove and replace the ink-collection unit ..................................................................................... 51
4 Print ........................................................................................................................................................... 53
Print tasks (Windows) .......................................................................................................................................... 54
How to print (Windows) ..................................................................................................................... 54
Automatically print on both sides (Windows) ................................................................................... 56
Manually print on both sides (Windows) ........................................................................................... 56
Print multiple pages per sheet (Windows) ........................................................................................ 57
Select the paper type (Windows) ...................................................................................................... 57
Additional print tasks ........................................................................................................................ 58
Print tasks (OS X) ................................................................................................................................................. 59
How to print (OS X) ............................................................................................................................ 59
Automatically print on both sides (OS X) .......................................................................................... 59
Manually print on both sides (OS X) .................................................................................................. 59
Print multiple pages per sheet (OS X) ............................................................................................... 60
Select the paper type (OS X) ............................................................................................................. 60
Additional print tasks ........................................................................................................................ 61
iv ENWW
Store print jobs on the printer to print later or print privately ........................................................................... 62
Introduction ....................................................................................................................................... 62
Create a stored job (Windows) .......................................................................................................... 62
Create a stored job (OS X) .................................................................................................................. 64
Print a stored job ............................................................................................................................... 64
Delete a stored job ............................................................................................................................ 65
Information sent to printer for Job Accounting purposes ................................................................ 65
Mobile printing ..................................................................................................................................................... 66
Introduction ....................................................................................................................................... 66
Wireless Direct Print and NFC Printing .............................................................................................. 66
HP ePrint via email ............................................................................................................................ 67
HP ePrint software ............................................................................................................................ 68
AirPrint ............................................................................................................................................... 68
Google Cloud Print ............................................................................................................................. 68
Android embedded printing .............................................................................................................. 69
Print from the USB port ....................................................................................................................................... 70
Introduction ....................................................................................................................................... 70
Enable the USB port for printing ....................................................................................................... 70
Print USB documents ........................................................................................................................ 71
5 Copy ........................................................................................................................................................... 73
Make a copy .......................................................................................................................................................... 74
Copy on both sides (duplex) ................................................................................................................................ 76
Copy on both sides automatically ..................................................................................................... 76
Copy on both sides manually ............................................................................................................ 76
Additional options when copying ........................................................................................................................ 77
Additional copy tasks ........................................................................................................................................... 79
6 Scan ........................................................................................................................................................... 81
Set up Scan to E-mail using the HP Embedded Web Server ............................................................................... 82
Introduction ....................................................................................................................................... 82
Before you begin ............................................................................................................................... 82
Step one: Access the HP Embedded Web Server (EWS) .................................................................... 82
Step two: Congure the Network Identication settings ................................................................. 83
Step three: Congure the Send to E-mail feature ............................................................................ 83
Option one: Basic conguration using the E-mail Setup Wizard ................................... 84
Option two: Advanced conguration using the E-mail Setup ........................................ 87
Set up Send to E-mail to use Oice 365 Outlook (optional) ............................................................. 91
Introduction .................................................................................................................... 91
Step one: Access the HP Embedded Web Server (EWS) ................................................. 91
ENWW v
Step two: Congure the outgoing email server (SMTP) to send an email from an
Oice 365 Outlook account ............................................................................................ 91
Set up Scan to Network Folder using the HP Embedded Web Server ................................................................. 94
Introduction ....................................................................................................................................... 94
Before you begin ............................................................................................................................... 94
Step one: Access the HP Embedded Web Server .............................................................................. 94
Step two: Set up Save to Network Folder ......................................................................................... 94
Method one: Use the Save to Network Folder Wizard .................................................... 95
Method two: Use Save to Network Folder Setup ............................................................ 96
Step one: Begin the conguration ................................................................ 96
Step two: Congure the Save to Network Folder settings ........................... 96
Step three: Complete the conguration ..................................................... 104
Set up Save to USB using the HP Embedded Web Server ................................................................................. 105
Introduction ..................................................................................................................................... 105
Before you begin ............................................................................................................................. 105
Step one: Access the HP Embedded Web Server ............................................................................ 105
Step two: Enable Save to USB Setup ............................................................................................... 105
Default scan settings for Save to USB setup .................................................................................. 105
Default le settings for Save to USB Setup .................................................................................... 106
Set up Save to SharePoint® (Flow models only) ............................................................................................... 108
Introduction ..................................................................................................................................... 108
Before you begin ............................................................................................................................. 108
Step one: Access the HP Embedded Web Server (EWS) .................................................................. 108
Step two: Enable Save to SharePoint® ............................................................................................ 109
Scan and save a le directly to a Microsoft® SharePoint site ......................................................... 111
Create Quick Sets using the HP Embedded Web Server ................................................................................... 112
Introduction ..................................................................................................................................... 112
Step one: Access the HP Embedded Web Server (EWS) .................................................................. 112
Step two: Create a Quick Set ........................................................................................................... 112
Scan and send to email ...................................................................................................................................... 114
Introduction ..................................................................................................................................... 114
Scan and send a document to email ............................................................................................... 114
Scan and send to network folder ...................................................................................................................... 117
Introduction ..................................................................................................................................... 117
Scan and save the document to a folder ........................................................................................ 117
Scan and send to USB Flash Drive ..................................................................................................................... 120
Introduction ..................................................................................................................................... 120
Scan and save the document to a USB ash drive ......................................................................... 120
Additional options when scanning .................................................................................................................... 123
HP JetAdvantage business solutions ................................................................................................................ 125
Additional scan tasks ......................................................................................................................................... 126
vi ENWW
7 Fax ........................................................................................................................................................... 127
Set up fax ........................................................................................................................................................... 128
Introduction ..................................................................................................................................... 128
Set up fax by using the printer control panel ................................................................................. 128
Change fax congurations ................................................................................................................................ 129
Fax dialing settings ......................................................................................................................... 129
General fax send settings ............................................................................................................... 130
Fax receive settings ......................................................................................................................... 131
Send a fax .......................................................................................................................................................... 133
Additional fax tasks ........................................................................................................................................... 134
8 Manage the printer .................................................................................................................................... 135
Advanced conguration with HP Embedded Web Server (EWS) ....................................................................... 136
Introduction ..................................................................................................................................... 136
How to access the HP Embedded Web Server (EWS) ...................................................................... 136
HP Embedded Web Server features ................................................................................................ 137
Information tab ............................................................................................................. 137
General tab .................................................................................................................... 138
Copy/Print tab ............................................................................................................... 139
Scan/Digital Send tab ................................................................................................... 139
Fax tab ........................................................................................................................... 141
Troubleshooting tab ..................................................................................................... 141
Security tab ................................................................................................................... 142
HP Web Services tab ..................................................................................................... 142
Networking tab ............................................................................................................. 142
Other Links list .............................................................................................................. 144
Advanced conguration with HP Utility for OS X .............................................................................................. 145
Open HP Utility ................................................................................................................................ 145
HP Utility features ........................................................................................................................... 145
Congure IP network settings ........................................................................................................................... 147
Printer sharing disclaimer ............................................................................................................... 147
View or change network settings ................................................................................................... 147
Rename the printer on a network ................................................................................................... 147
Manually congure IPv4 TCP/IP parameters from the control panel ............................................. 148
Manually congure IPv6 TCP/IP parameters from the control panel ............................................. 148
Link speed and duplex settings ...................................................................................................... 149
Printer security features ................................................................................................................................... 151
Introduction ..................................................................................................................................... 151
Security statements ........................................................................................................................ 151
Assign an administrator password ................................................................................................. 151
IP Security ....................................................................................................................................... 152
ENWW vii
Lock the formatter .......................................................................................................................... 152
Encryption support: HP High Performance Secure Hard Disks ...................................................... 152
Energy-conservation settings ........................................................................................................................... 153
Introduction ..................................................................................................................................... 153
Optimize speed or energy usage .................................................................................................... 153
Set the sleep timer and congure the printer to use 1 watt or less of power ............................... 153
Set the sleep schedule .................................................................................................................... 154
HP Web Jetadmin ............................................................................................................................................... 156
Software and rmware updates ........................................................................................................................ 157
9 Solve problems .......................................................................................................................................... 159
Customer support .............................................................................................................................................. 160
Control panel help system ................................................................................................................................. 161
Restore factory settings .................................................................................................................................... 162
Introduction ..................................................................................................................................... 162
Method one: Restore factory settings from the printer control panel .......................................... 162
Method two: Restore factory settings from the HP Embedded Web Server (network-
connected printers only) ................................................................................................................. 162
A “Cartridge is low” or “Cartridge is very low” message displays on the printer control panel ...................... 163
Change the “Very Low” settings ..................................................................................................... 163
For products with fax capability ................................................................................... 163
Order supplies ................................................................................................................................. 164
Printer does not pick up paper or misfeeds ...................................................................................................... 165
Introduction ..................................................................................................................................... 165
The printer does not pick up paper ................................................................................................. 165
The printer picks up multiple sheets of paper ................................................................................ 167
The document feeder jams, skews, or picks up multiple sheets of paper ..................................... 171
Clean the pickup rollers and separation pad in the document feeder ........................................... 172
Clear paper jams ................................................................................................................................................ 174
Introduction ..................................................................................................................................... 174
Jam locations .................................................................................................................................. 174
Auto-navigation for clearing jams .................................................................................................. 176
Experiencing frequent or recurring paper jams? ............................................................................ 176
Clear jams in the document feeder ................................................................................................. 177
Clear jams in the left door ............................................................................................................... 180
Clear jams in Tray 1 (multipurpose tray) ........................................................................................ 181
Clear jams in Tray 2 ......................................................................................................................... 185
Clear jams in Tray 3 (accessory) ...................................................................................................... 187
Clear jams in the 3 x 500-sheet feeder ........................................................................................... 189
Clear jams in the ink-collection unit area ....................................................................................... 192
Clear jams in the output bin ............................................................................................................ 195
viii ENWW
Improve print quality ......................................................................................................................................... 196
Introduction ..................................................................................................................................... 196
Print from a dierent software program ........................................................................................ 196
Check the paper-type setting for the print job ............................................................................... 196
Check the paper type setting (Windows) ..................................................................... 196
Check the paper type setting (OS X) ............................................................................. 197
Check cartridge status .................................................................................................................... 197
Clean the printer .............................................................................................................................. 198
Print a cleaning page .................................................................................................... 198
Check the scanner glass for dirt and smudges ............................................................ 198
Visually inspect the cartridge ......................................................................................................... 199
Check paper and the printing environment .................................................................................... 200
Step one: Use paper that meets HP specications ...................................................... 200
Step two: Check the environment ................................................................................ 200
Step three: Set the individual tray alignment .............................................................. 201
Adjust color settings (Windows) ..................................................................................................... 201
Print and interpret the print quality page ...................................................................................... 202
Calibrate the printer to align the colors .......................................................................................... 202
Try a dierent print driver ............................................................................................................... 203
Improve copy image quality .............................................................................................................................. 205
Check the scanner glass for dirt and smudges ............................................................................... 205
Calibrate the scanner ...................................................................................................................... 206
Check the paper settings ................................................................................................................ 207
Check the paper size and type conguration ............................................................... 207
Select the tray to use for the copy ............................................................................... 207
Check the image-adjustment settings ........................................................................................... 207
Optimize copy quality for text or pictures ...................................................................................... 208
Edge-to-edge copying ..................................................................................................................... 208
Clean the pickup rollers and separation pad in the document feeder ........................................... 209
Improve scan image quality .............................................................................................................................. 211
Check the scanner glass for dirt and smudges ............................................................................... 211
Check the resolution settings ......................................................................................................... 212
Check the color settings .................................................................................................................. 213
Check the image-adjustment settings ........................................................................................... 213
Optimize scan quality for text or pictures ...................................................................................... 214
Check the output-quality settings .................................................................................................. 214
Clean the pickup rollers and separation pad in the document feeder ........................................... 215
Improve fax image quality ................................................................................................................................. 217
Check the scanner glass for dirt and smudges ............................................................................... 217
Check the send-fax resolution settings .......................................................................................... 218
Check the image-adjustment settings ........................................................................................... 219
ENWW ix
Optimize fax quality for text or pictures ......................................................................................... 219
Check the error-correction settings ................................................................................................ 220
Check the t-to-page setting ......................................................................................................... 220
Clean the pickup rollers and separation pad in the document feeder ........................................... 221
Send to a dierent fax machine ...................................................................................................... 222
Check the sender's fax machine ...................................................................................................... 222
Solve wired network problems .......................................................................................................................... 223
Introduction ..................................................................................................................................... 223
Poor physical connection ................................................................................................................ 223
The computer is using the incorrect IP address for the printer ...................................................... 223
The computer is unable to communicate with the printer ............................................................. 223
The printer is using incorrect link and duplex settings for the network ........................................ 224
New software programs might be causing compatibility problems .............................................. 224
The computer or workstation might be set up incorrectly ............................................................. 224
The printer is disabled, or other network settings are incorrect ................................................... 224
Solve wireless network problems ..................................................................................................................... 225
Introduction ..................................................................................................................................... 225
Wireless connectivity checklist ....................................................................................................... 225
The printer does not print after the wireless conguration completes ......................................... 226
The printer does not print, and the computer has a third-party rewall installed ....................... 226
The wireless connection does not work after moving the wireless router or printer .................... 226
Cannot connect more computers to the wireless printer ............................................................... 226
The wireless printer loses communication when connected to a VPN .......................................... 227
The network does not appear in the wireless networks list .......................................................... 227
The wireless network is not functioning ........................................................................................ 227
Perform a wireless network diagnostic test ................................................................................... 227
Reduce interference on a wireless network ................................................................................... 228
Solve fax problems ............................................................................................................................................ 229
Checklist for solving fax problems .................................................................................................. 229
What type of phone line are you using? ....................................................................... 229
Are you using a surge-protection device? .................................................................... 229
Are you using a phone company voice-messaging service or an answering
machine? ....................................................................................................................... 229
Does your phone line have a call-waiting feature? ...................................................... 230
Check fax accessory status ........................................................................................... 230
General fax problems ...................................................................................................................... 231
The fax failed to send ................................................................................................... 231
An Out of Memory status message displays on the printer control panel .................. 231
Print quality of a photo is poor or prints as a gray box ................................................ 231
You touched the Stop button to cancel a fax, but the fax was still sent ...................... 231
No fax address book button displays ........................................................................... 231
x ENWW
Not able to locate the Fax settings in HP Web Jetadmin ............................................. 231
The header is appended to the top of the page when the overlay option is enabled . 231
A mix of names and numbers is in the recipients box .................................................. 231
A one-page fax prints as two pages ............................................................................. 231
A document stops in the document feeder in the middle of faxing ............................ 232
The volume for sounds coming from the fax accessory is too high or too low ........... 232
Index ........................................................................................................................................................... 233
ENWW xi
xii ENWW

1 Printer overview

Printer views
Printer specications
Printer hardware setup and software installation
For more information:
The following information is correct at the time of publication. For current information, see www.hp.com/
support/pagewidecolor586MFP.
HP's all-inclusive help for the printer includes the following information:
Install and congure
Learn and use
Solve problems
Download software and rmware updates
Join support forums
Find warranty and regulatory information
ENWW 1

Printer views

Off
i c
e
j e
t
En
t e
rpr
is
e
C
o
l o
r
M
FP
X
5
5
6
c
a p
s l
ock
s h
i f t
A
S
D
F
G
H
J
K
L
Z
X
C
V
B
N
M
@
a l
t
a l t
s h i
f t
e n
t e r
,
.
?
/
:
;
4
5
6
7
8
9
10
11
12
13
1
2
3

Printer front view

Printer back view
Interface ports
Control-panel view
Printer front view
1 Document-feeder cover (access for clearing jams)
2 Document-feeder input tray
3 Document-feeder output bin
NOTE: When feeding long paper through the document feeder, extend the paper stop at the right side of the output bin.
4 Output-bin extension
5 Standard output bin
6 Output ejector ap
7 Model name
8 Tray 2
9 On/o button
10 Cartridge door
11 Physical keyboard (z model only). Pull the keyboard straight out to use it.
12 Control panel with color touchscreen display (tilts up for easier viewing)
13 Hardware integration pocket (for connecting accessory and third-party devices)
2 Chapter 1 Printer overview ENWW

Printer back view

8
9
3
2
1
4
56
7
1
2
3
4
5
1 Document-feeder cover (access for clearing jams or cleaning rollers)
2 Easy-access USB port
Insert a USB ash drive for printing or scanning without a computer or to update the printer rmware.
NOTE: An administrator must enable this port before use.
3 Left door (access to the ink-collection unit and for clearing jams)
4 Tray 1
5 Power connection
6 Formatter cover
7 Serial number and product number label
8 Formatter (contains the interface ports)
9 Slot for a cable-type security lock (on the rear cover of the printer)

Interface ports

1 Fax port (f and z models only. The port is covered for the dn model.)
2 Slot for a cable-type security lock
ENWW Printer views 3
3 Hi-Speed USB 2.0 printing port
7
9
8
10
111213
1
3
6
5
2
4
4 Local area network (LAN) Ethernet (RJ-45) network port
5 USB port for connecting external USB devices (this port might be covered)
NOTE: For easy-access USB printing, use the USB port near the control panel.

Control-panel view

NOTE: Tilt the control panel for easier viewing.
The Home screen provides access to the printer features and indicates the current status of the printer.
Return to the Home screen at any time by touching the Home button. Touch the Home button on the left side of the printer control panel, or touch the Home button in the upper-left corner of most screens.
NOTE: The features that appear on the Home screen can vary, depending on the printer conguration.
1 Keyboard
(z models only)
2 Easy-access USB port Insert a USB ash drive for printing and scanning without a computer or to update the printer
This printer includes a physical keyboard. The keys are mapped to a language in the same way the virtual keyboard on the printer control panel is mapped. Whenever the keyboard layout for the virtual keyboard changes, the keys on the physical keyboard are remapped to match the new settings.
rmware.
3 Hardware integration
pocket
4
Home button
5 Printer status The status line provides information about the overall printer status.
NOTE: An administrator must enable this port before use.
For connecting accessory and third-party devices.
Touch the Home button to return to the printer Home screen at any time.
4 Chapter 1 Printer overview ENWW
6 HP logo or Home button On any screen other than the Home screen, the HP logo changes to a Home button. Touch the Home
button to return to the Home screen.
7
Help button
8 Scroll bar Use the scroll bar to see the complete list of available features.
9 Features Depending on the printer conguration, the features that appear in this area can include any of the
Touch the Help button to open the embedded help system.
following items:
Quick Sets
Copy
E-mail
Fax
Save to USB
Save to Network Folder
Save to Device Memory
Retrieve from USB
Retrieve from Device Memory
Save to SharePoint®
Job Status
Supplies
Trays
Administration
Device Maintenance
10 Sign In or Sign Out
button
11 Network Address button Touch the Network Address button to nd information about the network connection.
12 Language Selection
button
13 Current date and time Displays the current date and time
Touch the Sign In button to access secured features.
Touch the Sign Out button to sign out of the printer. The printer restores all options to the default settings.
Touch the Language Selection button to select the language for the control-panel display.
ENWW Printer views 5
Printer specications
IMPORTANT: The following specications are correct at the time of publication, but they are subject to
change. For current information, see www.hp.com/support/pagewidecolor586MFP.
Technical specications
Supported operating systems
Mobile printing solutions
Printer dimensions
Power consumption, electrical specications, and acoustic emissions
Operating-environment range
Technical specications
Model name
Product number
Paper handling Tray 1 (50-sheet capacity)
Tray 2 (500-sheet capacity)
Tray 3 (500-sheet capacity) Optional Optional Optional
Printer stand Optional Optional Optional
3 x 500-sheet paper feeder and
Automatic duplex printing
Connectivity 10/100/1000 Ethernet LAN
Hi-Speed USB 2.0
Easy-access USB port for printing
Hardware Integration Pocket for
586dn
G1W39A
Optional Optional Optional stand (combined 1,500-sheet capacity)
connection with IPv4 and IPv6
without a computer and upgrading the rmware
connecting accessory and third­party devices
586f
G1W40A
586z
G1W41A
HP Jetdirect 3000w NFC/Wireless
Accessory for printing from mobile devices
HP Jetdirect 2900nw Print Server
accessory for wireless connectivity
Memory 2 GB base memory
NOTE: The base memory is
expandable to 2.8 GB by adding a DIMM memory module.
Optional Optional Optional
Optional Optional Optional
6 Chapter 1 Printer overview ENWW
Model name
586dn
586f
586z
Product number
Mass storage 320 GB HP Secure High-
Performance Hard Disk
Security HP Trusted Platform Module for
encrypting all data that passes through the printer
Control-panel display and keyboard
Physical keyboard Not supported Not supported
Print Prints 50 pages per minute (ppm)
Easy-access USB printing (no
Store jobs in the printer memory to
Fax Optional
Copy and Scan Copies 45 pages per minute (ppm)
Color touchscreen control panel
on A4 and 50 ppm on letter-size paper in Professional mode.
Prints 75 ppm on A4 and 75 ppm on letter-size paper in General Oice mode
computer required)
print later or print privately
on A4 and letter-size paper
G1W39A
Optional Optional Optional
G1W40A
G1W41A
100-page document feeder with
dual-head scanning for single-pass duplex copying and scanning
HP EveryPage Technologies
including ultrasonic multi-feed detection
Embedded optical character
recognition (OCR) provides the ability to convert printed pages into text that can be edited or searched using a computer
SMART Label feature provides
paper-edge detection for automatic page cropping
Automatic page orientation for
pages that have at least 100 characters of text
Automatic tone adjustment sets
contrast, brightness, and background removal for each page
Digital Send Send documents to E-mail, USB,
and shared folders on a network
Send documents to SharePoint® Not supported Not supported
Not supported Not supported
Not supported Not supported
Not supported Not supported
Not supported Not supported
Not supported Not supported
ENWW Printer specications 7

Supported operating systems

The following information applies to the Printer-Specic Windows PCL 6 and HP print drivers for OS X and to the in-box software installation CD.
">Windows: The HP Software Installer CD installs the “HP PCL.6” version 3 print driver, the “HP PCL 6” version 3 print driver, or the “HP PCL-6” version 4 print driver, depending on the Windows operating system, along with optional software when using the full software installer. Download the "HP PCL.6" version 3 print driver, the "HP PCL 6" version 3 print driver, and the "HP PCL-6" version 4 print driver from the printer-support Web site for this printer: www.hp.com/support/pagewidecolor586MFP.
OS X: Mac computers are supported with this printer. Download HP Easy Start either from 123.hp.com or from the Print Support page, and then use HP Easy Start to install the HP print driver. HP Easy Start is not included in the in-box CD.
1. Go to 123.hp.com.
2. Follow the steps provided to download the printer software.
Linux: For information and print drivers for Linux, go to hplipopensource.com/hplip-web/index.html.
UNIX: For information and print drivers for UNIX®, go to www.hp.com/go/unixmodelscripts.
Table 1-1 Supported operating systems and print drivers
Operating system Print driver installed (from the software
installer CD for Windows, or the installer on the Web for OS X)
Windows® XP SP3, 32-bit The “HP PCL.6” printer-specic print driver
is installed for this operating system as part of the basic software installation. The basic installer installs the driver only.
Windows Vista®, 32-bit The “HP PCL.6” printer-specic print driver
is installed for this operating system as part of the basic software installation. The basic installer installs the driver only.
Windows Server 2003 SP2, 32-bit The “HP PCL.6” printer-specic print driver
is installed for this operating system as part of the basic software installation. The basic installer installs the driver only.
Windows 7 SP1, 32-bit and 64-bit The “HP PCL 6” printer-specic print driver
is installed for this operating system as part of the full software installation.
Notes
The full software installer is not supported for this operating system.
Microsoft retired mainstream support for Windows XP in April 2009. HP will continue to provide best eort support for the discontinued XP operating system.
The full software installer is not supported for this operating system.
The full software installer is not supported for this operating system.
Microsoft retired mainstream support for Windows Server 2003 in July 2010. HP will continue to provide best eort support for the discontinued Server 2003 operating system.
Windows 8, 32-bit and 64-bit The “HP PCL-6” printer-specic print driver
is installed for this operating system as part of the basic software installation. The basic installer installs the driver only.
The full software installer is not supported for this operating system.
Windows 8 RT support is provided through Microsoft IN OS Version 4, 32- bit driver.
8 Chapter 1 Printer overview ENWW
Table 1-1 Supported operating systems and print drivers (continued)
Operating system Print driver installed (from the software
installer CD for Windows, or the installer on the Web for OS X)
Windows 8.1, 32-bit and 64-bit The “HP PCL-6” printer-specic print driver
is installed for this operating system as part of the basic software installation. The basic installer installs the driver only.
Windows 10, 32-bit and 64-bit The “HP PCL-6” printer-specic print driver
is installed for this operating system as part of the basic software installation. The basic installer installs the driver only.
Windows Server 2008 SP2, 32-bit The “HP PCL.6” printer-specic print driver
is installed for this operating system as part of the basic software installation. The basic installer installs the driver only.
Windows Server 2008 SP2, 64-bit The “HP PCL 6” printer-specic print driver
is installed for this operating system as part of the basic software installation. The basic installer installs the driver only.
Windows Server 2008 R2, SP 1, 64-bit The “HP PCL 6” printer-specic print driver
is installed for this operating system as part of the basic software installation. The basic installer installs the driver only.
Notes
The full software installer is not supported for this operating system.
Windows 8.1 RT support is provided through Microsoft IN OS Version 4, 32- bit driver.
The full software installer is not supported for this operating system.
The full software installer is not supported for this operating system.
The full software installer is not supported for this operating system.
The full software installer is not supported for this operating system.
Windows Server 2012, 64-bit The software installer does not support
Windows Server 2012 but the printer- specic print drivers do support it.
Windows Server 2012 R2, 64-bit The software installer does not support
Windows Server 2012 but the printer- specic print drivers do support it.
OS X 10.9 Mavericks, OS X 10.10 Yosemite, OS X 10.11 El Capitan
The HP print driver is available for download from HP Easy Start. The HP installer software for OS X is not included in the in-box CD.
Download the driver from the HP Web site, and use the Windows Add Printer tool to install it.
Download the driver from the HP Web site, and use the Windows Add Printer tool to install it.
For OS X, download the installer from HP Easy Start.
1. Go to 123.hp.com.
2. Follow the steps provided to
download the printer software.
NOTE: For a current list of supported operating systems, go to www.hp.com/support/
pagewidecolor586MFP for HP's all-inclusive help for the printer.
NOTE: For details on client and server operating systems and for HP UPD driver support for this printer, go
to www.hp.com/go/upd. Under Additional information, click the links.
ENWW Printer specications 9
Table 1-2 Minimum system requirements
Windows OS X
CD-ROM drive, DVD drive, or an Internet connection
Dedicated USB 1.1 or 2.0 connection or a network connection
400 MB of available hard-disk space
1 GB RAM (32-bit) or 2 GB RAM (64-bit)

Mobile printing solutions

The printer supports the following software for mobile printing:
HP ePrint software
NOTE: The HP ePrint Software supports the following operating systems: Windows 7 SP 1 (32-bit and
64-bit); Windows 8 (32-bit and 64-bit); Windows 8.1 (32-bit and 64-bit); Windows 10 (32-bit and 64-bit); and OS X versions 10.9 Mavericks, 10.10 Yosemite, and 10.11 El Capitan.
HP ePrint via email (Requires HP Web Services to be enabled and the printer to be registered with HP Connected)
HP ePrint app (Available for Android, iOS, and Blackberry)
ePrint Enterprise app (Supported by all printers using ePrint Enterprise Server Software)
Internet connection
1 GB of available hard-disk space
Google Cloud Print
AirPrint
Android Printing
10 Chapter 1 Printer overview ENWW

Printer dimensions

O
i
c
e
j
e
t
E
nt
e
r
p
r
i
se
C
o
l
o
r
M
F
P
X
556
c
a
p
s
lo
c
k
sh
i
f
t
A
S
D
F
G
H
J
K
L
Z
X
C
V
B
N
M
@
a
l
t
a
l
t
s
h
if
t
e
n
t
e
r
,
.
?
/
:
;
O
i
c
e
j
e
t
E
nte
r
p
r
i
se
C
o
l
o
r
M
F
P
X
5
56
4
c
a
p
s
l
o
c
k
sh
i
f
t
A
S
D
F
G
H
J
K
L
Z
X
C
V
B
N
M
@
a
l
t
a
l
t
s
h
if
t
e
n
t
e
r
,
.
?
/
:
;
2
3
1
2
3
1
2
2
1
2
3
3
1
Figure 1-1 Dimensions for the printer
Printer fully closed Printer fully opened
1. Height 529 mm (20.8 in) 786 mm (30.9 in)
2. Depth 564 mm (22.2 in) 752 mm (29.6 in)
3. Width 530 mm (20.8 in) 934 mm (36.7 in)
Weight 32.3 kg (71.3 lb)
Figure 1-2 Dimensions for Tray 3
1. Height 138 mm (5.4 in)
2. Depth Tray closed: 396 mm (15.5 in)
Tray opened: 678 mm (26.6 in)
3. Width Lower-left door closed: 514 mm (20.2 in)
Weight 5.4 kg (11.8 lb)
ENWW Printer specications 11
Lower-left door opened: 963 mm (37.9 in)
Figure 1-3 Dimensions for the printer stand
2
3
1
2
1
3
1
2
3
3
1
2
1. Height 640 mm (25.1 in)
2. Depth Tray closed: 669 mm (26.3 in)
Tray opened: 810 mm (31.8 in)
3. Width Lower-left door closed: 669 mm (26.3 in)
Lower-left door opened: 1040 mm (40.9 in)
Weight 31.2 kg (69 lb)
Figure 1-4 Dimensions for the 3 x 500-sheet paper feeder and stand
1. Height 642 mm (25.2 in)
2. Depth Tray closed: 669 mm (26.3 in)
Tray opened: 795 mm (31.2 in)
12 Chapter 1 Printer overview ENWW
3. Width Lower-left door closed: 669 mm (26.3 in)
O
i
c
e
j
e
t
E
nt
e
r
p
r
i
se
C
o
l
o
r
M
F
P
X
556
O
i
c
e
j
e
t
E
nte
r
p
r
i
se
C
o
l
o
r
M
F
P
X
5
56
4
3
1
2
3
1
2
4
Lower-left door opened: 1040 mm (40.9 in)
Weight 35.8 kg (79 lb)
Figure 1-5 Dimensions for the printer with Tray 3
Printer and accessories fully closed Printer and accessories fully opened
1. Height 667 mm (26.2 in) 924 mm (36.3 in)
2. Depth 564 mm (22.2 in) 752 mm (29.6 in)
3. Width 530 mm (20.8 in) 963 mm (37.9 in)
Weight 37.7 kg (83.1 lb)
ENWW Printer specications 13
Figure 1-6 Dimensions for the printer with the printer stand
O
i
c
e
j
e
t
E
nt
e
r
p
r
i
se
C
ol
o
r
M
F
P
X
55
6
O
i
c
e
j
e
t
E
nte
r
p
r
i
se
C
o
l
o
r
M
F
P
X
5
5
6
3
3
1
2
2
1
4
Printer and accessories fully closed Printer and accessories fully opened
1. Height 1307 mm (51.4 in) 1564 mm (61.5 in)
2. Depth 669 mm (26.3 in) 810 mm (31.8 in)
3. Width 669 mm (26.3 in) 1040 mm (40.9 in)
Weight 63.5 kg (140.1)
14 Chapter 1 Printer overview ENWW
Figure 1-7 Dimensions for the printer with 3 x 500-sheet paper feeder and stand
4
Offi
ceje
t En
terpri
se Colo
r M
F
P X556
O
icej
et En
te
rp
r
i
se
C
o
lor MFP X556
4
1
1
3
3
2
2
Printer and accessories fully closed Printer and accessories fully opened
1. Height 1171 mm (46.1 in) 1428 mm (56.2 in)
2. Depth 669 mm (26.3 in) 795 mm (31.2 in)
3. Width 669 mm (26.3 in) 1040 mm (40.9 in)
Weight 68.1 kg (150.3 in)
1
These values are subject to change. For current information, go to www.hp.com/support/pagewidecolor586MFP.
2
Do not extend more than one paper tray at a time.
Power consumption, electrical
See www.hp.com/support/pagewidecolor586MFP for current information.
CAUTION: Power requirements are based on the country/region where the printer is sold. Do not convert
o
perating voltages. This will damage the printer and void the printer warranty.

Operating-environment range

Table 1-3 Operating-environment
Environment Recommended Allowed
Temperature 17° to 25°C (62.6° to 77°F) 15° to 30°C (59° to 86°F)
Relative humidity 30% to 70% relative humidity (RH) 10% to 80% (RH)
specications, and acoustic emissions
specications
ENWW Printer specications 15

Printer hardware setup and software installation

For basic setup instructions, see the Hardware Installation Guide that came with the printer. For additional instructions, go to HP support on the Web.
Go to www.hp.com/support/pagewidecolor586MFP for HP's all-inclusive help for the printer. Find the following support:
Install and congure
Learn and use
Solve problems
Download software and rmware updates
Join support forums
Find warranty and regulatory information
16 Chapter 1 Printer overview ENWW

2 Paper trays

Load paper to Tray 1 (multi-purpose tray)
Load paper to Tray 2
Load paper to Tray 3
Load paper to the 3 x 500-sheet paper feeder
Load and print envelopes
Load and print labels
For more information:
The following information is correct at the time of publication. For current information, see www.hp.com/
support/pagewidecolor586MFP.
HP's all-inclusive help for the printer includes the following information:
Install and congure
Learn and use
Solve problems
Download software and rmware updates
Join support forums
Find warranty and regulatory information
ENWW 17

Load paper to Tray 1 (multi-purpose tray)

Introduction

The following information describes how to load paper into Tray 1. This tray holds up to 50 sheets of 75 g/m2 (20 lb) paper or 5 envelopes.
NOTE: Select the correct paper type in the print driver before printing.
CAUTION: To avoid jams, never add or remove paper from Tray 1 during printing.
1. Open Tray 1.
2. Pull out the tray extension to support the paper.
3. Spread the paper guides to the correct size, and
then load paper in the tray. For information about how to orient the paper, see Tray 1 paper
orientation on page 19.
18 Chapter 2 Paper trays ENWW
4. Make sure that the paper ts under the ll line on
the paper guides.
NOTE: The maximum stack height is 5 mm (0.2
in), or approximately 50 sheets of 75g paper.
5. Adjust the side guides so that they lightly touch
the paper stack, but do not bend it.

Tray 1 paper orientation

When using paper that requires a specic orientation, load it according to the information in the following table.
NOTE: The Alternative Letterhead Mode settings aects the way to load letterhead or preprinted paper. This
setting is disabled by default. When using this mode, load paper as for automatic duplex printing. For more information, see Use alternative letterhead mode on page 22
ENWW Load paper to Tray 1 (multi-purpose tray) 19
Paper type Image Orientation Duplex mode Paper size How to load paper
123
123
123
Letterhead or preprinted Portrait 1-sided printing Letter, Legal, Executive,
Statement, Ocio (8.5 x 13), 3 x 5, 4 x 6, 5 x 7, 5 x 8, A4, A5, A6, RA4, B5 (JIS), B6 (JIS), L (90 x 130 mm), 10 x 15 cm, Ocio (216 x 340), 16K 195 x 270 mm, 16K 184 x 260 mm, 16K 197 x 273 mm, Japanese Postcard (Postcard (JIS)), Double Japan Postcard Rotated (Double Postcard (JIS))
Automatic 2-sided printing or with Alternative Letterhead Mode enabled
Letter, Legal, Executive, Ocio (8.5 x 13), A4, RA4, B5 (JIS), Ocio (216 x 340)
Face-down
Top edge leading into the printer
Face-up
Bottom edge leading into the printer
Landscape 1-sided printing Letter, Legal, Executive,
Statement, Ocio (8.5 x 13), 3 x 5, 4 x 6, 5 x 7, 5 x 8, A4, A5, A6, RA4, B5 (JIS), B6 (JIS), L (90 x 130 mm), 10 x 15 cm, Ocio (216 x 340), 16K 195 x 270 mm, 16K 184 x 260 mm, 16K 197 x 273 mm, Japanese Postcard (Postcard (JIS)), Double Japan Postcard Rotated (Double Postcard (JIS))
Face-down
Top edge toward the back of the printer
20 Chapter 2 Paper trays ENWW
Paper type Image Orientation Duplex mode Paper size How to load paper
123
Automatic 2-sided printing or with Alternative Letterhead Mode enabled
Prepunched Portrait and landscape 1-sided printing Letter, Legal, Executive,
Letter, Legal, Executive, Ocio (8.5 x 13), A4, RA4, B5 (JIS), Ocio (216 x 340)
Statement, Ocio (8.5 x 13), 3 x 5, 4 x 6, 5 x 7, 5 x 8, A4, A5, A6, RA4, B5 (JIS), B6 (JIS), L (90 x 130 mm), 10 x 15 cm, Ocio (216 x 340), 16K 195 x 270 mm, 16K 184 x 260 mm, 16K 197 x 273 mm, Japanese Postcard (Postcard (JIS)), Double Japan Postcard Rotated (Double Postcard (JIS))
Face-up
Top edge toward the back of the printer
Holes toward the back of the printer
Automatic 2-sided printing or with Alternative Letterhead Mode enabled
Letter, Legal, Executive, Ocio (8.5 x 13), A4, RA4, B5 (JIS), Ocio (216 x 340)
Holes toward the back of the printer
ENWW Load paper to Tray 1 (multi-purpose tray) 21

Use alternative letterhead mode

Use the Alternative Letterhead Mode feature to load letterhead or preprinted paper into the tray the same way for all jobs, whether printing to one side of the sheet of paper or to both sides. When using this mode, load paper as for automatic duplex printing.
To use the feature, enable it by using the printer control-panel menus.
Enable Alternative Letterhead Mode by using the printer control-panel menus
1. Press the Home button on the product control panel.
2. Open the following menus:
Administration
Manage Trays
Alternative Letterhead Mode
3. Select Enabled, and then touch the Save button.
22 Chapter 2 Paper trays ENWW

Load paper to Tray 2

Offic
ej
e
t E
nt
erpr
is
e Co
l or X5
56

Introduction

The following information describes how to load paper in Tray 2. This tray holds up to 500 sheets of 75 g/m2 (20 lb) paper.
CAUTION: Do not extend more than one paper tray at a time.
1. Open the tray.
NOTE: Do not open this tray while it is in use.
2. Before loading paper, adjust the paper-width
guides by squeezing the adjustment latches and sliding the guides to the size of the paper being used. The edge of the tray guide should line up exactly with the marking on the tray.
3. Adjust the paper-length guide by squeezing the
adjustment latch and sliding the guide to the size of the paper being used.
ENWW Load paper to Tray 2 23
4. Load paper into the tray. Check the paper to
Offic
ej
e
t E
nt
erpr
is
e Co
l or X5
56
verify the guides lightly touch the stack, but do not bend it. For information about how to orient the paper, see Tray 2 paper orientation
on page 24.
NOTE: Do not adjust the paper guides tightly
against the paper stack. Adjust them to the indentations or markings in the tray.
NOTE: To prevent jams, adjust the paper guides
to the correct size and do not overll the tray. Be sure that the top of the stack is below the tray full indicator.
5. Close the tray.

Tray 2 paper orientation

When using paper that requires a specic orientation, load it according to the information in the following table.
NOTE: The Alternative Letterhead Mode settings aects the way to load letterhead or preprinted paper. This
setting is disabled by default. When using this mode, load paper as for automatic duplex printing. For more information, see Use alternative letterhead mode on page 26
Paper type Image Orientation Duplex mode Paper size How to load
Letterhead or preprinted Portrait 1-sided printing Letter, Executive,
Statement, A4, A5, B5 (JIS), 16K 195 x 270 mm, 16K 184 x 260 mm, 16K 197 x 273 mm
Face-up
Top edge toward the right
24 Chapter 2 Paper trays ENWW
Paper type Image Orientation Duplex mode Paper size How to load
123
123
123
Automatic 2-sided printing or with Alternative Letterhead Mode enabled
Landscape 1-sided printing Letter, Executive,
Letter, Executive, Ocio (8.5 x 13), A4, B5 (JIS)
Statement, A4, A5, B5 (JIS), 16K 195 x 270 mm, 16K 184 x 260 mm, 16K 197 x 273 mm
Face-down
Top edge toward the left
Face-up
Top edge toward the back of the printer
Automatic 2-sided printing or with Alternative Letterhead Mode enabled
Letter, Executive, Ocio (8.5 x 13), A4, B5 (JIS)
Face-down
Top edge toward the back of the printer
ENWW Load paper to Tray 2 25
Paper type Image Orientation Duplex mode Paper size How to load
Prepunched Portrait and landscape 1-sided printing Letter, Executive,
Statement, A4, A5, B5 (JIS), 16K 195 x 270 mm, 16K 184 x 260 mm, 16K 197 x 273 mm
Automatic 2-sided printing or with Alternative Letterhead Mode enabled
Letter, Executive, Ocio (8.5 x 13), A4, B5 (JIS)
Holes toward the back of the printer
Holes toward the back of the printer

Use alternative letterhead mode

Use the Alternative Letterhead Mode feature to load letterhead or preprinted paper into the tray the same way for all jobs, whether printing to one side of the sheet of paper or to both sides. When using this mode, load paper as for automatic duplex printing.
To use the feature, enable it by using the printer control-panel menus.
Enable Alternative Letterhead Mode by using the printer control-panel menus
1. Press the Home button on the product control panel.
2. Open the following menus:
Administration
Manage Trays
Alternative Letterhead Mode
3. Select Enabled, and then touch the Save button.
26 Chapter 2 Paper trays ENWW

Load paper to Tray 3

Off
i
c ej
e
t
E
nterprise
C
o
l o
r
X5
5
6
2

Introduction

The following information describes how to load paper in Tray 3. These trays hold up to 500 sheets of 75 g/m2 (20 lb) paper.
CAUTION: Do not extend more than one paper tray at a time.
1. Open the tray.
NOTE: Do not open this tray while it is in use.
2. Before loading paper, adjust the paper-width
guides by squeezing the adjustment latches and sliding the guides to the size of the paper being used. The edge of the tray guide should line up exactly with the marking on the tray.
3. Adjust the paper-length guide by squeezing the
adjustment latch and sliding the guide to the size of the paper being used.
ENWW Load paper to Tray 3 27
4. Load paper into the tray. Check the paper to
Off
i
c ej
e
t
E
nterprise
C
o
l o
r
X5
5
6
2
123
verify the guides lightly touch the stack, but do not bend it. For information about how to orient the paper, see Tray 3 paper orientation
on page 28.
NOTE: To prevent jams, adjust the paper guides
to the correct size and do not overll the tray. Be sure that the top of the stack is below the tray full indicator.
5. Close the tray.

Tray 3 paper orientation

When using paper that requires a specic orientation, load it according to the information in the following table.
NOTE: The Alternative Letterhead Mode settings aects the way to load letterhead or preprinted paper. This
setting is disabled by default. When using this mode, load paper as for automatic duplex printing. For more information, see Use alternative letterhead mode on page 30
Paper type Image Orientation Duplex mode Paper size How to load paper
Letterhead or preprinted Portrait 1-sided printing Letter, Legal, Executive,
Statement, Ocio (8.5 x 13), A4, A5, RA4, B5 (JIS), Ocio (216 x 340), 16K 195 x 270 mm, 16K 184 x 260 mm, 16K 197 x 273 mm
Face-up
Top edge toward the right
28 Chapter 2 Paper trays ENWW
Paper type Image Orientation Duplex mode Paper size How to load paper
123
123
123
Automatic 2-sided printing or with Alternative Letterhead Mode enabled
Landscape 1-sided printing Letter, Legal, Executive,
Letter, Legal, Executive, Ocio (8.5 x 13), A4, RA4, B5 (JIS), Ocio (216 x 340)
Statement, Ocio (8.5 x 13), A4, A5, RA4, B5 (JIS), Ocio (216 x 340), 16K 195 x 270 mm, 16K 184 x 260 mm, 16K 197 x 273 mm
Face-down
Top edge toward the left
Face-up
Top edge toward the back of the printer
Automatic 2-sided printing or with Alternative Letterhead Mode enabled
Letter, Legal, Executive, Ocio (8.5 x 13), A4, RA4, B5 (JIS), Ocio (216 x 340)
Face-down
Top edge toward the back of the printer
ENWW Load paper to Tray 3 29
Paper type Image Orientation Duplex mode Paper size How to load paper
Prepunched Portrait and landscape 1-sided printing Letter, Legal, Executive,
Statement, Ocio (8.5 x 13), A4, A5, RA4, B5 (JIS), Ocio (216 x 340), 16K 195 x 270 mm, 16K 184 x 260 mm, 16K 197 x 273 mm
Automatic 2-sided printing or with Alternative Letterhead Mode enabled
Letter, Legal, Executive, Ocio (8.5 x 13), A4, RA4, B5 (JIS), Ocio (216 x 340)
Holes toward the back of the printer
Holes toward the back of the printer

Use alternative letterhead mode

Use the Alternative Letterhead Mode feature to load letterhead or preprinted paper into the tray the same way for all jobs, whether printing to one side of the sheet of paper or to both sides. When using this mode, load paper as for automatic duplex printing.
To use the feature, enable it by using the printer control-panel menus.
Enable Alternative Letterhead Mode by using the printer control-panel menus
1. Press the Home button on the product control panel.
2. Open the following menus:
Administration
Manage Trays
Alternative Letterhead Mode
3. Select Enabled, and then touch the Save button.
30 Chapter 2 Paper trays ENWW

Load paper to the 3 x 500-sheet paper feeder

O ffi
c
e je
t E nt
e
rp
ri s
e
C
olor
X
556
2

Introduction

The following information describes how to load paper in any of the trays in the 3 x 500-sheet paper feeder. Each tray holds up to 500 sheets of 75 g/m2 (20 lb) paper.
CAUTION: Do not extend more than one paper tray at a time.
1. Open the tray.
NOTE: Do not open this tray while it is in use.
2. Before loading paper, adjust the paper-width
guides by squeezing the adjustment latches and sliding the guides to the size of the paper being used. The edge of the tray guide should line up exactly with the marking on the tray.
3. Adjust the paper-length guide by squeezing the
adjustment latch and sliding the guide to the size of the paper being used.
ENWW Load paper to the 3 x 500-sheet paper feeder 31
4. Load paper into the tray. Check the paper to
O ffi
c
e j e
t E nt
e
r
pris
e
C
o l
o
r X
5 56
2
verify the guides lightly touch the stack, but do not bend it. For information about how to orient the paper, see 3 x 500-sheet tray paper
orientation on page 32.
5. Close the tray.

3 x 500-sheet tray paper orientation

When using paper that requires a specic orientation, load it according to the information in the following table.
NOTE: The Alternative Letterhead Mode settings aects the way to load letterhead or preprinted paper. This
setting is disabled by default. When using this mode, load paper as for automatic duplex printing. For more information, see Use alternative letterhead mode on page 35
32 Chapter 2 Paper trays ENWW
Paper type Image orientation Duplex mode Paper size How to load paper
123
123
123
Preprinted or letterhead Portrait 1-sided printing Letter, Legal, Executive,
Automatic 2-sided printing or with Alternative Letterhead Mode enabled
Statement, Ocio (8.5 x 13), A4, A5, RA4, B5 (JIS), Ocio (216 x
340), 16K 195 x 270 mm, 16K 184 x 260 mm, 16K 197 x 273 mm
Letter, Legal, Executive, Ocio (8.5 x 13), A4, RA4, B5 (JIS), Ocio (216 x
340)
Face-up
Top edge toward the right
Face-down
Top edge toward the left
Landscape 1-sided printing Letter, Legal, Executive,
Statement, Ocio (8.5 x 13), A4, A5, RA4, B5 (JIS), Ocio (216 x
340), 16K 195 x 270 mm, 16K 184 x 260 mm, 16K 197 x 273 mm
Face-up
Top edge toward the back of the printer
ENWW Load paper to the 3 x 500-sheet paper feeder 33
(continued)
123
Paper type Image orientation Duplex mode Paper size How to load paper
Automatic 2-sided printing or with Alternative Letterhead Mode enabled
Prepunched Portrait 1-sided printing Letter, Legal, Executive,
Letter, Legal, Executive,
Ocio (8.5 x 13), A4, RA4,
B5 (JIS), Ocio (216 x
340)
Statement, Ocio
(8.5 x 13), A4, A5, RA4,
B5 (JIS), Ocio (216 x
340), 16K 195 x 270 mm,
16K 184 x 260 mm, 16K
197 x 273 mm
Face-down
Top edge toward the back of the printer
Holes toward the back of the printer
Automatic 2-sided printing or with Alternative Letterhead Mode enabled
Letter, Legal, Executive,
Ocio (8.5 x 13), A4, RA4,
B5 (JIS), Ocio (216 x
340)
Holes toward the back of the printer
34 Chapter 2 Paper trays ENWW

Use alternative letterhead mode

Use the Alternative Letterhead Mode feature to load letterhead or preprinted paper into the tray the same way for all jobs, whether printing to one side of the sheet of paper or to both sides. When using this mode, load paper as for automatic duplex printing.
To use the feature, enable it by using the printer control-panel menus.
Enable Alternative Letterhead Mode by using the printer control-panel menus
1. Press the Home button on the product control panel.
2. Open the following menus:
Administration
Manage Trays
Alternative Letterhead Mode
3. Select Enabled, and then touch the Save button.
ENWW Load paper to the 3 x 500-sheet paper feeder 35

Load and print envelopes

Introduction

The following information describes how to print and load envelopes. Use only Tray 1 or Tray 2 to print on envelopes. Tray 1 holds up to 5 envelopes. Tray 2 holds up to 30 envelopes.
To print envelopes using the manual feed option, follow these steps to select the correct settings in the print driver, and then load the envelopes into the tray after sending the print job to the printer.

Print envelopes

1. From the software program, select the Print option.
2. Select the printer from the list of printers, and then click or tap the Properties or Preferences button to
open the print driver.
NOTE: The name of the button varies for dierent software programs.
NOTE: To access these features from a Windows 8 or 8.1 Start screen, select Devices, select Print, and
then select the printer.
3. Click or tap the Paper/Quality tab.
4. In the Paper size drop-down list, select the correct size for the envelopes.
5. In the Paper type drop-down list, select Envelope.
6. In the Paper source drop-down list, select Manual feed.
7. Click the OK button to close the Document Properties dialog box.
8. In the Print dialog box, click the OK button to print the job.

Envelope orientation

Tray Envelope size How to load
Tray 1 Envelope #9, Envelope #10, Envelope
Monarch, Envelope DL, Japanese Envelope Chou #3, Japanese Envelope Chou #4
Face-down
Top edge toward the front of the printer
36 Chapter 2 Paper trays ENWW
Tray Envelope size How to load
Envelope B5, Envelope C5, Envelope C6 Face-down
Top edge leading into the printer
Tray 2 Envelope #10, Envelope DL, Japanese
Envelope Chou #3
Envelope B5, Envelope C5 Face-up
Face-up
Top edge toward the right of the printer
Top edge toward the right of the printer
ENWW Load and print envelopes 37

Load and print labels

Introduction

The following information describes how to print and load labels.
To print labels using the manual feed option, follow these steps to select the correct settings in the print driver, and then load the labels into the tray after sending the print job to the printer. When using manual feed, the printer waits to print the job until it detects the tray has been opened and closed.

Manually feed labels

1. From the software program, select the Print option.
2. Select the printer from the list of printers, and then click or tap the Properties or Preferences button to
open the print driver.
NOTE: The name of the button varies for dierent software programs.
NOTE: To access these features from a Windows 8 or 8.1 Start screen, select Devices, select Print, and
then select the printer.
3. Click or tap the Paper/Quality tab.
4. In the Paper size drop-down list, select the correct size for the sheets of labels.
5. In the Paper type drop-down list, select Labels.
6. In the Paper source drop-down list, select Manual feed.
NOTE: When using manual feed, the printer prints from the lowest-numbered tray that is congured
for the correct size of paper, so it is not necessary to specify a particular tray. For example, if Tray 2 is congured for labels, the printer will print from Tray 2. If Tray 3 is installed and congured for labels, but Tray 2 is not congured for labels, the printer will print from Tray 3.
7. Click the OK button to close the Document Properties dialog box.
8. In the Print dialog box, click the OK button to print the job.
9. Load sheets of labels face-up with the top of the sheet toward the right side of the printer.
38 Chapter 2 Paper trays ENWW

Label orientation

Tray How to load
Tray 1 Face-down
Tray 2 Face-up
Top edge leading into the printer
Top edge toward the right of the printer
Tray 3 and the 3 x 500-sheet paper feeder trays Face-up
Top edge toward the right of the printer
ENWW Load and print labels 39
40 Chapter 2 Paper trays ENWW

3 Supplies, accessories, and parts

Order supplies, accessories, and parts
Replace the cartridges
Replace the ink-collection unit
For more information:
The following information is correct at the time of publication. For current information, see www.hp.com/
support/pagewidecolor586MFP.
HP's all-inclusive help for the printer includes the following information:
Install and congure
Learn and use
Solve problems
Download software and rmware updates
Join support forums
Find warranty and regulatory information
ENWW 41

Order supplies, accessories, and parts

Ordering

Order supplies and paper www.hp.com/go/suresupply
Order genuine HP parts or accessories www.hp.com/buy/parts
Order through service or support providers Contact an HP-authorized service or support provider.
Order using the HP Embedded Web Server (EWS) To access, in a supported Web browser on your computer, enter
the printer IP address or host name in the address/URL eld. The
EWS contains a link to the HP SureSupply Web site, which provides
options for purchasing Original HP supplies.

Supplies and accessories

Item Description Cartridge number Part number
Supplies
HP 981A Black Original PageWide Cartridge
HP 981X High Yield Black Original PageWide Cartridge
HP 981Y Extra High Yield Black Original PageWide Cartridge
HP 981A Cyan Original PageWide Cartridge
HP 981X High Yield Cyan Original PageWide Cartridge
HP 981Y Extra High Yield Cyan Original PageWide Cartridge
HP 981A Yellow Original PageWide Cartridge
HP 981X High Yield Yellow Original PageWide Cartridge
HP 981Y Extra High Yield Yellow Original PageWide Cartridge
HP 981A Magenta Original PageWide Cartridge
HP 981X High Yield Magenta Original PageWide Cartridge
Standard-capacity replacement black cartridge
High-capacity replacement black cartridge
Extra high-capacity replacement black cartridge
Standard-capacity replacement cyan cartridge
High-capacity replacement cyan cartridge
Extra high-capacity replacement cyan cartridge
Standard-capacity replacement yellow cartridge
High-capacity replacement yellow cartridge
Extra high-capacity replacement yellow cartridge
Standard-capacity replacement magenta cartridge
High-capacity replacement magenta cartridge
981A J3M71A
981X L0R12A
981Y L0R16A
981A J3M68A
981X L0R09A
981Y L0R13A
981A J3M70A
981X L0R11A
981Y L0R15A
981A J3M69A
981X L0R10A
HP 981Y Extra High Yield Magenta Original PageWide Cartridge
Ink-collection unit Replacement ink-collection unit Not applicable B5L09A
HP 200 ADF Roller Replacement Kit Replacement feed rollers for the
Accessories
Extra high-capacity replacement magenta cartridge
document feeder
981Y L0R14A
Not applicable B5L52A
42 Chapter 3 Supplies, accessories, and parts ENWW
Item Description Cartridge number Part number
HP PageWide Enterprise 500-sheet Paper Tray
HP PageWide Enterprise Printer Stand Optional stand to support the printer
HP PageWide Enterprise 3 x 500-sheet Paper Feeder and Stand
Ink-collection unit Replacement ink-collection unit Not applicable B5L09A
HP 1GB DDR3 x32 144­Pin 800MHz SODIMM
HP Internal USB Ports Optional USB ports for connecting
HP LaserJet MFP Analog Fax Accessory 500
HP Foreign Interface Harness Optional port for connecting third-
HP Trusted Platform Module Automatically encrypts all data that
HP Jetdirect 2900nw Print Server USB wireless print server accessory Not applicable J8031A
Optional Tray 3 (1 x 500-sheet paper feeder)
Includes installation instructions
Optional 3 x 500-sheet paper feeder with a stand to support the printer
Includes installation instructions
Optional DIMM for expanding the memory
third-party devices
Optional fax accessory Not applicable CC487A
party devices
passes through the printer
Not applicable G1W43A
Not applicable G1W44A
Not applicable G1W45A
Not applicable E5K48
Not applicable B5L28A
Not applicable B5L31A
Not applicable F5S62A
HP Jetdirect 3000w NFC/Wireless Accessory
HP LaserJet Keyboard Overlay Kit for Simplied Chinese & Traditional Chinese
(z model only)
HP LaserJet Keyboard Overlay Kit for Swedish
(z model only)
Wireless Direct Print accessory for “touch” printing from mobile devices
Language-specic, adhesive overlay for the physical keyboard
Language-specic, adhesive overlay for the physical keyboard

Customer self-repair parts

Customer Self-Repair (CSR) parts are available for HP PageWide printers to reduce repair time. More information about the CSR program and benets can be found at www.hp.com/go/csr-support and
www.hp.com/go/csr-faq.
Genuine HP replacement parts can be ordered at www.hp.com/buy/parts or by contacting an HP-authorized service or support provider. When ordering, one of the following will be needed: part number, serial number (found on back of printer), product number, or printer name.
Parts listed as Mandatory self-replacement are to be installed by customers, unless you are willing to pay HP service personnel to perform the repair. For these parts, on-site or return-to-depot support is not provided under the HP printer warranty.
Not applicable J8030A
Not applicable A7W12A
Not applicable A7W14A
Parts listed as Optional self-replacement can be installed by HP service personnel at your request for no additional charge during the printer warranty period.
ENWW Order supplies, accessories, and parts 43
Item Description Self-replacement options Part number
Ink-collection Unit Replacement ink-collection unit Mandatory B5L09
Left Door Assembly, Tray 1 Kit Replacement left door and Tray 1 kit Optional G1W39-67901
Tray 2 Assembly Kit Replacement Tray 2 Mandatory G1W39-67908
Tray 3 Assembly Kit Replacement Tray 3 Mandatory G1W39-67909
Tray 4 Assembly Kit Replacement Tray 4 Mandatory G1W39-67910
Tray 5 Assembly Kit Replacement Tray 5 Mandatory G1W39-67911
Printer Stand kit Replacement printer stand Mandatory G1W44A
3 x 500-sheet Paper Feeder and Stand Replacement 3 x 500-sheet paper feeder
and stand
Flap-Eject Assembly Kit Replacement output ejector ap Mandatory G1W39-67902
HP 200 ADF Roller Replacement Kit Replacement feed rollers for the
document feeder
Scanner white backing Replacement white plastic backing for the
scanner
Retention-Clip Assembly Replacement retention clips that are
behind the scanner white backing
Control Panel Assembly Kit Replacement touchscreen control panel Mandatory G1W39-67904
Front top cover (under control panel) Replacement front top cover Mandatory G1W39-40002
HIP2 cover Replacement HIP2 cover Mandatory G1W39-67905
USB cover Replacement easy access USB cover Mandatory G1W39-67907
U.S. English Keyboard Kit Replacement keyboard for the z model Mandatory B5L47-67019
U.K. English Keyboard Kit Replacement keyboard for the z model Mandatory B5L47-67020
Keyboard Overlay Kit
French, Italian, Russian, German, Spanish, Ukrainian
Replacement keyboard overlay for the z model
Mandatory G1W45A
Mandatory B5L52-67903
Mandatory 5851-6570
Mandatory 5851-6573
Mandatory 5851-6019
Keyboard Overlay Kit
Canadian French, Latin American Spanish, U.S. Spanish
Keyboard Overlay Kit
Swiss French, Swiss German, Danish
Keyboard Overlay Kit
Simplied Chinese, Traditional Chinese
Keyboard Overlay Kit
Spanish, Portuguese
Keyboard Overlay Kit
Japanese (KG and KT)
Replacement keyboard overlay for the z model
Replacement keyboard overlay for the z model
Replacement keyboard overlay for the z model
Replacement keyboard overlay for the z model
Replacement keyboard overlay for the z model
Mandatory 5851-6020
Mandatory 5851-6021
Mandatory 5851-6022
Mandatory 5851-6023
Mandatory 5851-6024
44 Chapter 3 Supplies, accessories, and parts ENWW
Item Description Self-replacement options Part number
HP Jetdirect 2900nw Print Server Replacement USB wireless print server
accessory
HP Jetdirect 3000w NFC/Wireless Accessory
HP 1GB DDR3 x32 144­Pin 800MHz SODIMM
HP LaserJet MFP Analog Fax Accessory 500
HP Foreign Interface Harness Replacement HP Foreign Interface Harness Mandatory B5L31-67902
HP Trusted Platform Module Replacement HP Trusted Platform Module Mandatory F5S62-61001
320 GB Hard Disk Drive Kit Replacement hard-disk drive Optional G1W39-67903
FIPS HDD 140 Encrypted 500GB kit Replacement 500GB hard-disk drive Mandatory B5L29-67903
Replacement Wireless Direct Print accessory for “touch” printing from mobile devices
Replacement memory DIMM Mandatory E5K48-67902
Replacement fax board Mandatory A2W77-67910
Mandatory J8031-61001
Mandatory J8030-61001
ENWW Order supplies, accessories, and parts 45

Replace the cartridges

Introduction

Cartridge information

Remove and replace the cartridge
Introduction
The following information provides details about the cartridges for the printer, and it includes instructions to replace them.
Cartridge information
This printer indicates when the cartridge level is low and very low. The actual cartridge life remaining can vary. Consider having a replacement cartridge available to install when print quality is no longer acceptable.
To purchase cartridges or check cartridge compatibility for the printer, go to HP SureSupply at
www.hp.com/go/suresupply. Scroll to the bottom of the page and verify that the country/region is correct.
The printer uses four colors and has a dierent cartridge for each color: yellow (Y), cyan (C), magenta (M), and black (K).
Item Description Cartridge number Part number
Supplies
HP 981A Black Original PageWide Cartridge
HP 981X High Yield Black Original PageWide Cartridge
HP 981Y Extra High Yield Black Original PageWide Cartridge
HP 981A Cyan Original PageWide Cartridge
HP 981X High Yield Cyan Original PageWide Cartridge
HP 981Y Extra High Yield Cyan Original PageWide Cartridge
HP 981A Yellow Original PageWide Cartridge
HP 981X High Yield Yellow Original PageWide Cartridge
HP 981Y Extra High Yield Yellow Original PageWide Cartridge
HP 981A Magenta Original PageWide Cartridge
Standard-capacity replacement black cartridge
High-capacity replacement black cartridge
Extra high-capacity replacement black cartridge
Standard-capacity replacement cyan cartridge
High-capacity replacement cyan cartridge
Extra high-capacity replacement cyan cartridge
Standard-capacity replacement yellow cartridge
High-capacity replacement yellow cartridge
Extra high-capacity replacement yellow cartridge
Standard-capacity replacement magenta cartridge
981A J3M71A
981X L0R12A
981Y L0R16A
981A J3M68A
981X L0R09A
981Y L0R13A
981A J3M70A
981X L0R11A
981Y L0R15A
981A J3M69A
46 Chapter 3 Supplies, accessories, and parts ENWW
Item Description Cartridge number Part number
C
1
HP 981X High Yield Magenta Original PageWide Cartridge
HP 981Y Extra High Yield Magenta Original PageWide Cartridge
NOTE: High-yield cartridges contain more pigment than standard cartridges for increased page yield. For
more information, go to www.hp.com/go/learnaboutsupplies.
Do not remove the cartridge from its package until it is time to replace it.
CAUTION: To prevent damage to the cartridge do not touch the gold-colored metal contacts of the
cartridge.
The following illustration shows the cartridge components.
High-capacity replacement magenta cartridge
Extra high-capacity replacement magenta cartridge
981X L0R10A
981Y L0R14A
1 Metal connector. Do not touch. Fingerprints may cause supply error messages. Dust may also cause supply error
messages; do not leave cartridges outside the printer for prolonged periods of time.
NOTE: Information about recycling used cartridges is in the cartridge box.
ENWW Replace the cartridges 47

Remove and replace the cartridge

2
Y
M
C
K
2
Y
M
C
K
Y
M
C
K
Magenta
B
2
Y
M
C
K
Y
e
llow
Cyan
M
agent
a
Blac
k
Y
M
Yellow
Cy
a
n
M
ag
e
n
ta
B
lack
C
K
1. Open the cartridge door.
2. Push the old cartridge inward to unlock it.
3. Grasp the edge of the old cartridge and then pull
the cartridge straight out to remove it.
48 Chapter 3 Supplies, accessories, and parts ENWW
4. Remove the new cartridge from the packaging.
C
C
2
Y
M
C
K
Y
e
llow
C
y
an
M
agent
a
Blac
k
Y
M
Yellow
Cy
a
n
M
ag
e
n
ta
B
lack
C
K
5. Do not touch the gold-colored metal contacts of
the cartridge. Fingerprints on the contacts can cause print-quality problems.
6. Insert the new cartridge into the product. Make
sure the cartridge is rmly in place.
ENWW Replace the cartridges 49
7. Close the cartridge door.
2
Y
M
C
K
8. Pack the used cartridge in the box that the new
cartridge came in. See the enclosed recycling guide for information about recycling.
HP helps you recycle your Original HP cartridges —it’s easy and free with the HP Planet Partners program, available in more than 50 countries/ regions around the world1).
To nd information about how to recycle used HP cartridges, please go to www.hp.com/recycle.
1)
Program availability varies. For more information, visit www.hp.com/recycle.
50 Chapter 3 Supplies, accessories, and parts ENWW

Replace the ink-collection unit

Introduction

Remove and replace the ink-collection unit

Introduction
The following information provides details about the ink-collection unit for the printer, and it includes instructions to replace it.
The printer indicates when the ink-collection unit is nearly full and when it is completely full. When it is completely full, printing stops until the ink-collection unit is replaced.
To purchase a ink-collection unit (part number B5L09A), go to the HP Parts Store at www.hp.com/buy/parts.
NOTE: The ink-collection unit is designed for a single use. Do not attempt to empty the ink-collection unit
and reuse it. Doing so could lead to pigment being spilled inside the printer, which could result in reduced print quality. After use, return the ink-collection unit to HP’s Planet Partners program for recycling.
Remove and replace the ink-collection unit
1. Open the left door.
2. Remove the ink-collection unit by pulling it out
with both hands. Set the unit aside, upright, on a piece of paper to prevent spills.
CAUTION: When pulling out the ink-collection
unit, avoid making direct contact with the black cylinder to prevent pigment smear on skin or clothes.
ENWW Replace the ink-collection unit 51
3. Remove the new ink-collection unit from its
packaging.
4. Install the ink-collection unit.
5. Close the left door.
52 Chapter 3 Supplies, accessories, and parts ENWW

4 Print

Print tasks (Windows)
Print tasks (OS X)
Store print jobs on the printer to print later or print privately
Mobile printing
Print from the USB port
For more information:
The following information is correct at the time of publication. For current information, see www.hp.com/
support/pagewidecolor586MFP.
HP's all-inclusive help for the printer includes the following information:
Install and congure
Learn and use
Solve problems
Download software and rmware updates
Join support forums
Find warranty and regulatory information
ENWW 53

Print tasks (Windows)

How to print (Windows)

The following procedure describes the basic printing process for Windows.
1. From the software program, select the Print option.
2. Select the printer from the list of printers. To change settings, click or tap the Properties or Preferences
button to open the print driver.
NOTE: The name of the button varies for dierent software programs.
NOTE: To access these features from a Windows 8 or 8.1 Start screen app, select Devices, select Print,
and then select the printer.
NOTE: For more information, click the Help (?) button in the print driver.
NOTE: The print driver might look dierent than what is shown here, but the steps are the same.
54 Chapter 4 Print ENWW
3. Click or tap the tabs in the print driver to congure the available options. For example, set the paper
orientation on the Finishing tab, and set the paper source, paper type, paper size, and quality settings on the Paper/Quality tab.
4. Click or tap the OK button to return to the Print dialog box. Select the number of copies to print from
this screen.
5. Click or tap the OK button to print the job.
ENWW Print tasks (Windows) 55

Automatically print on both sides (Windows)

Use this procedure for printers that have an automatic duplexer installed. If the printer does not have an automatic duplexer installed, or to print on paper types that the duplexer does not support, print on both sides manually.
1. From the software program, select the Print option.
2. Select the printer from the list of printers, and then click or tap the Properties or Preferences button to
open the print driver.
NOTE: The name of the button varies for dierent software programs.
NOTE: To access these features from a Windows 8 or 8.1 Start screen app, select Devices, select Print,
and then select the printer.
3. Click or tap the Finishing tab.
4. Select the Print on both sides check box. Click the OK button to close the Document Properties dialog
box.
5. In the Print dialog box, click the OK button to print the job.

Manually print on both sides (Windows)

Use this procedure for printers that do not have an automatic duplexer installed or to print on paper that the duplexer does not support.
1. From the software program, select the Print option.
2. Select the printer from the list of printers, and then click or tap the Properties or Preferences button to
open the print driver.
NOTE: The name of the button varies for dierent software programs.
NOTE: To access these features from a Windows 8 or 8.1 Start screen app, select Devices, select Print,
and then select the printer.
3. Click or tap the Finishing tab.
4. Select the Print on both sides (manually) check box. Click the OK button to print the rst side of the job.
5. Retrieve the printed stack from the output bin, and place it in Tray 1.
6. If prompted, touch the appropriate control panel button to continue.
56 Chapter 4 Print ENWW

Print multiple pages per sheet (Windows)

1. From the software program, select the Print option.
2. Select the printer from the list of printers, and then click or tap the Properties or Preferences button to
open the print driver.
NOTE: The name of the button varies for dierent software programs.
NOTE: To access these features from a Windows 8 or 8.1 Start screen app, select Devices, select Print,
and then select the printer.
3. Click or tap the Finishing tab.
4. Select the number of pages per sheet from the Pages per sheet drop-down list.
5. Select the correct Print page borders, Page order, and Orientation options. Click the OK button to close
the Document Properties dialog box.
6. In the Print dialog box, click the OK button to print the job.

Select the paper type (Windows)

1. From the software program, select the Print option.
2. Select the printer from the list of printers, and then click or tap the Properties or Preferences button to
open the print driver.
NOTE: The name of the button varies for dierent software programs.
NOTE: To access these features from a Windows 8 or 8.1 Start screen app, select Devices, select Print,
and then select the printer.
3. Click or tap the Paper/Quality tab.
4. From the Paper type drop-down list, click the More... option.
5. Expand the list of Type is: options.
6. Expand the category of paper types that best describes your paper.
7. Select the option for the type of paper you are using, and then click the OK button.
8. Click the OK button to close the Document Properties dialog box. In the Print dialog box, click the OK
button to print the job.
If the tray needs to be congured, a tray conguration message displays on the printer control panel.
9. Load the tray with the specied type and size of paper, and then close the tray.
10. Touch the OK button to accept the detected type and size, or touch the Modify button to choose a
dierent paper size or type.
11. Select the correct type and size, and then touch the OK button.
ENWW Print tasks (Windows) 57

Additional print tasks

Go to www.hp.com/support/pagewidecolor586MFP.
Instructions are available for performing specic print tasks, such as the following:
Create and use printing shortcuts or presets
Select the paper size, or use a custom paper size
Select the page orientation
Create a booklet
Scale a document to t a specic paper size
Print the rst or last pages of the document on dierent paper
Print watermarks on a document
58 Chapter 4 Print ENWW

Print tasks (OS X)

How to print (OS X)

The following procedure describes the basic printing process for OS X.
1. Click the File menu, and then click the Print option.
2. Select the printer.
3. Click Show Details or Copies & Pages, and then select other menus to adjust the print settings.
NOTE: The name of the item varies for dierent software programs.
4. Click the Print button.

Automatically print on both sides (OS X)

NOTE: This information applies to printers that include an automatic duplexer.
NOTE: This feature is available if you install the HP print driver. It might not be available if you are using
AirPrint.
1. Click the File menu, and then click the Print option.
2. Select the printer.
3. Click Show Details or Copies & Pages, and then click the Layout menu.
NOTE: The name of the item varies for dierent software programs.
4. Select a binding option from the Two-Sided drop-down list.
5. Click the Print button.

Manually print on both sides (OS X)

NOTE: This feature is available if you install the HP print driver. It might not be available if you are using
AirPrint.
1. Click the File menu, and then click the Print option.
2. Select the printer.
3. Click Show Details or Copies & Pages, and then click the Manual Duplex menu.
NOTE: The name of the item varies for dierent software programs.
4. Click the Manual Duplex box, and select a binding option.
5. Click the Print button.
6. Go to the printer, and remove any blank paper that is in Tray 1.
ENWW Print tasks (OS X) 59
7. Retrieve the printed stack from the output bin and place it with the printed-side facing down in the input
tray.
8. If prompted, touch the appropriate control panel button to continue.

Print multiple pages per sheet (OS X)

1. Click the File menu, and then click the Print option.
2. Select the printer.
3. Click Show Details or Copies & Pages, and then click the Layout menu.
NOTE: The name of the item varies for dierent software programs.
4. From the Pages per Sheet drop-down list, select the number of pages that you want to print on each
sheet.
5. In the Layout Direction area, select the order and placement of the pages on the sheet.
6. From the Borders menu, select the type of border to print around each page on the sheet.
7. Click the Print button.

Select the paper type (OS X)

1. Click the File menu, and then click the Print option.
2. Select the printer.
3. Click Show Details or Copies & Pages, and then click the Media & Quality menu or the Paper/Quality
menu.
NOTE: The name of the item varies for dierent software programs.
4. Select from the Media & Quality or Paper/Quality options.
NOTE: This list contains the master set of options available. Some options are not available on all
printers.
Media Type: Select the option for the type of paper for the print job.
Print Quality: Select the resolution level for the print job.
Edge-To-Edge Printing: Select this option to print close to the paper edges.
5. Click the Print button.
60 Chapter 4 Print ENWW

Additional print tasks

Go to www.hp.com/support/pagewidecolor586MFP.
Instructions are available for performing specic print tasks, such as the following:
Create and use printing shortcuts or presets
Select the paper size, or use a custom paper size
Select the page orientation
Create a booklet
Scale a document to t a specic paper size
Print the rst or last pages of the document on dierent paper
Print watermarks on a document
ENWW Print tasks (OS X) 61

Store print jobs on the printer to print later or print privately

Introduction

The following information provides procedures for creating and printing documents that are stored on the printer. These jobs can be printed at a later time or printed privately.

Create a stored job (Windows)

Create a stored job (OS X)
Print a stored job
Delete a stored job
Information sent to printer for Job Accounting purposes
Create a stored job (Windows)
Store jobs on the printer for private or delayed printing.
NOTE: The print driver might look dierent than what is shown here, but the steps are the same.
1. From the software program, select the Print option.
2. Select the printer from the list of printers, and then select Properties or Preferences (the name varies
for dierent software programs).
NOTE: The name of the button varies for dierent software programs.
NOTE: To access these features from a Windows 8 or 8.1 Start screen app, select Devices, select Print,
and then select the printer.
62 Chapter 4 Print ENWW
3. Click the Job Storage tab.
4. Select a Job Storage Mode option.
Proof and Hold: Print and proof one copy of a job, and then print more copies.
Personal Job: The job does not print until you request it at the printer control panel. For this job­storage mode, you can select one of the Make Job Private/Secure options. If you assign a personal identication number (PIN) to the job, you must provide the required PIN at the control panel. If you encrypt the job, you must provide the required password at the control panel. The print job is deleted from memory after it prints and is lost if the printer loses power.
Quick Copy: Print the requested number of copies of a job and store a copy of the job in the printer memory so you can print it again later.
Stored Job: Store a job on the printer and allow other users to print the job at any time. For this job-storage mode, you can select one of the Make Job Private/Secure options. If you assign a personal identication number (PIN) to the job, the person who prints the job must provide the required PIN at the control panel. If you encrypt the job, the person who prints the job must provide the required password at the control panel.
5. To use a custom user name or job name, click the Custom button, and then enter the user name or the
job name.
Select which option to use if another stored job already has that name:
Use Job Name + (1-99): Append a unique number to the end of the job name.
Replace Existing File: Overwrite the existing stored job with the new one.
6. Click the OK button to close the Document Properties dialog box. In the Print dialog box, click the OK
button to print the job.
7. For information about how to print the job, see the topic for "Print a stored job."
ENWW Store print jobs on the printer to print later or print privately 63

Create a stored job (OS X)

Store jobs on the printer for private or delayed printing.
1. Click the File menu, and then click the Print option.
2. In the Printer menu, select the printer.
3. By default, the print driver displays the Copies & Pages menu. Open the menus drop-down list, and then
click the Job Storage menu.
4. In the Mode drop-down list, select the type of stored job.
Proof and Hold: Print and proof one copy of a job, and then print more copies.
Personal Job: The job does not print until someone requests it at the printer control panel. If the job has a personal identication number (PIN), provide the required PIN at the control panel. The print job is deleted from memory after it prints and is lost if the printer loses power.
Quick Copy: Print the requested number of copies of a job and store a copy of the job in the printer memory to print it again later.
Stored Job: Store a job on the printer and allow other users to print the job at any time. If the job has a personal identication number (PIN), the person who prints the job must provide the required PIN at the control panel.
5. To use a custom user name or job name, click the Custom button, and then enter the user name or the
job name.
Select which option to use if another stored job already has that name.
Use Job Name + (1-99): Append a unique number to the end of the job name.
Replace Existing File: Overwrite the existing stored job with the new one.
6. If you selected the Stored Job or Personal Job option in step 3, you can protect the job with a PIN. Type
a 4-digit number in the Use PIN to Print eld. When other people attempt to print this job, the printer prompts them to enter this PIN number.
7. Click the Print button to process the job.

Print a stored job

Use the following procedure to print a job that is stored in the printer memory.
1. Touch or press the Home button on the printer control panel.
2. Select Retrieve from Device Memory.
3. Select the name of the folder where the job is stored.
4. Select the name of the job. If the job is private or encrypted, enter the PIN or password.
5. Adjust the number of copies, and then touch the Start button or press the OK button to print the job.
64 Chapter 4 Print ENWW

Delete a stored job

When you send a stored job to the printer memory, the printer overwrites any previous jobs with the same user and job name. If a job is not already stored under the same user and job name, and the printer needs additional space, the printer might delete other stored jobs starting with the oldest. You can change the number of jobs that the printer can store from the General Settings menu on the printer control panel.
Use this procedure to delete a job that is stored in the printer memory.
1. Touch or press the Home button on the printer control panel.
2. Select Retrieve from Device Memory.
3. Select the name of the folder where the job is stored.
4. Select the name of the job, and then select the Delete button.
5. If the job is private or encrypted, enter the PIN or the password, and then select the Delete button.

Information sent to printer for Job Accounting purposes

Printing jobs sent from drivers on the client (e.g., PC) may send personally identiable information to HP’s Printing and Imaging devices. This information may include, but is not limited to, user name and client name from which the job originated that may be used for job accounting purposes, as determined by the Administrator of the printing device. This same information may also be stored with the job on the mass storage device (e.g., disk drive) of the printing device when using the job storage feature.
ENWW Store print jobs on the printer to print later or print privately 65

Mobile printing

Introduction

HP oers multiple mobile and ePrint solutions to enable easy printing to an HP printer from a laptop, tablet, smartphone, or other mobile device. To see the full list and to determine the best choice, go to
www.hp.com/go/LaserJetMobilePrinting.

Wireless Direct Print and NFC Printing

HP ePrint via email
HP ePrint software
AirPrint
Google Cloud Print
Android embedded printing
Wireless Direct Print and NFC Printing
HP provides Wireless Direct Print and NFC (Near Field Communication) printing for printers with a supported HP Jetdirect 3000w NFC/Wireless Accessory. This accessory is available as an option for HP Entperprise printers that include a hardware-integration pocket (HIP2).
Wireless Direct Print and NFC printing enable Wi-Fi capable (mobile) devices to make a wireless network connection directly to the printer without using a wireless router.
The printer does not need to be connected to the network for this mobile walk-up printing to work.
Use Wireless Direct Print to print wirelessly from the following devices:
iPhone, iPad, or iPod touch using Apple AirPrint or the HP ePrint app
Android mobile devices using the HP ePrint App or the Android embedded print solution
PC and Mac devices using the HP ePrint Software
For more information on wireless printing, go to www.hp.com/go/wirelessprinting.
NFC and Wireless Direct Print capabilities can be enabled or disabled from the printer control panel.
1. From the Home screen on the printer control panel, scroll to and select the Administration menu.
2. Open the following menus:
Network Settings
Wireless Menu
Wireless Direct
3. Select On to enable wireless printing.
NOTE: In environments where more than one model of the same printer is installed, it might be helpful to
provide each printer a more unique Wireless Direct Name for easier printer identication for HP Wireless Direct printing. The Wireless Direct Name is also available on the How to Connect Page by touching the Network button from the Home screen on the printer control panel.
66 Chapter 4 Print ENWW
Follow this procedure to change the printer Wireless Direct Name:
1. From the Home screen on the printer control panel, scroll to and select the Administration menu.
2. Open the following menus:
Network Settings
Wireless Menu
Wireless Direct
Wireless Direct Name
3. Select the Wireless Direct Name area.
4. Use the keyboard to change the name.
5. Select OK.

HP ePrint via email

Use HP ePrint to print documents by sending them as an email attachment to the printer's email address from any email enabled device.
To use HP ePrint, the printer must meet these requirements:
The printer must be connected to a wired or wireless network and have Internet access.
HP Web Services must be enabled on the printer, and the printer must be registered with HP Connected.
Follow this procedure to enable HP Web Services and register with HP Connected:
1. Open the HP Embedded Web Server (EWS):
a. From the Home screen on the printer control panel, touch the Network button to display the IP
address or host name.
b. Open a Web browser, and in the address line, type the IP address or host name exactly as it
displays on the printer control panel. Press the Enter key on the computer keyboard. The EWS opens.
NOTE: If the Web browser displays a message indicating that accessing the website might not be
safe, select the option to continue to the website. Accessing this website will not harm the computer.
2. Click the HP Web Services tab.
3. Select the option to enable Web Services.
NOTE: Enabling Web Services might take several minutes.
4. Go to www.hpconnected.com to create an HP ePrint account and complete the setup process.
ENWW Mobile printing 67

HP ePrint software

The HP ePrint software makes it easy to print from a Windows or Mac desktop or laptop computer to any HP ePrint-capable printer. This software makes it easy to nd HP ePrint-enabled printers that are registered to your HP Connected account. The target HP printer can be located in the oice or at locations across the globe.
Windows: After installing the software, open the Print option from within your application, and then select HP ePrint from the installed printers list. Click the Properties button to congure print options.
OS X: After installing the software, select File, Print, and then select the arrow next to PDF (in the bottom left of the driver screen). Select HP ePrint.
For Windows, the HP ePrint software supports TCP/IP printing to local printers on the network (LAN or WAN) and that support UPD PostScript®.
Windows and OS X both support IPP printing to LAN or WAN network-connected printers that support ePCL.
Windows and Mac also both support printing PDF documents to public print locations and printing using HP ePrint via email through the cloud.
Go to www.hp.com/go/eprintsoftware for drivers and information.
NOTE: The HP ePrint software is a PDF workow utility for Mac, and is not technically a print driver.
NOTE: HP ePrint Software does not support USB printing.

AirPrint

Direct printing using Apple’s AirPrint is supported for iOS 4.2 or later and from Mac computers running OS X
10.7 Lion and newer. Use AirPrint to print directly to the printer from an iPad, iPhone (3GS or later), or iPod
touch (third generation or later) in the following mobile applications:
Mail
Photos
Safari
iBooks
Select third-party applications
NOTE: Before using AirPrint with a USB connection, verify the version number. AirPrint versions 1.3 and
earlier do not support USB connections.

Google Cloud Print

Google Cloud Print is a mobile printing solution available to Gmail account users that allows you to print over the web from anywhere, including your phone or tablet, to any printer.
For more information, go to www.google.com/cloudprint/learn/printers.html, and then select the HP link.
68 Chapter 4 Print ENWW

Android embedded printing

HP's print solution for Android and Kindle enables mobile devices to automatically nd and print to HP printers that are on a network.
The printer must be connected to the same network (sub-net) as the Android device.
HP print solutions are embedded in some Android and Kindle devices and available for others at:
play.google.com.
For more information on how to use Android embedded printing and which Android devices are supported, go
www.hp.com/go/LaserJetMobilePrinting.
to
ENWW Mobile printing 69

Print from the USB port

Introduction

This printer features easy-access USB printing, for quickly printing les without sending them from a computer. The printer accepts standard USB ash drives in the USB port near the control panel. It supports the following types of les:
.pdf
.prn
.pcl
.ps
.cht

Enable the USB port for printing

The USB port is disabled by default. Before using this feature, enable the USB port. Use one of the following methods to enable the port:
Method one: Enable the USB port from the printer control-panel menus
1. Press the Home button on the printer control panel.
2. Open the following menus:
Administration
General Settings
Enable Retrieve from USB
3. Select the Enabled option, and then touch the Save button or press the OK button.
Method two: Enable the USB port from the HP Embedded Web server (network-connected printers only)
1. Open the HP Embedded Web Server (EWS):
a. From the Home screen on the printer control panel, touch the Network button to display the IP
address or host name.
b. Open a Web browser, and in the address line, type the IP address or host name exactly as it
displays on the printer control panel. Press the Enter key on the computer keyboard. The EWS opens.
NOTE: If the Web browser displays a message indicating that accessing the website might not be
safe, select the option to continue to the website. Accessing this website will not harm the computer.
2. Open the Print tab.
3. On the left side of the screen, click Retrieve from USB Setup.
70 Chapter 4 Print ENWW
4. Select the Enable Retrieve from USB check box.
5. Click Apply.

Print USB documents

1. Insert the USB ash drive into the easy-access USB port.
NOTE: The port might be covered. For some printers, the cover ips open. For other printers, pull the
cover straight out to remove it.
2. The printer detects the USB ash drive. Touch or press the OK button to access the drive, or, if prompted,
select the Retrieve from USB option from the list of available applications. The Retrieve from USB screen opens.
3. Select the name of the document to print.
NOTE: The document might be in a folder. Open folders as necessary.
4. To adjust the number of copies, select Copies, and then use the keypad to change the number of copies.
5. Touch the Start button or press the OK button to print the document.
ENWW Print from the USB port 71
72 Chapter 4 Print ENWW

5 Copy

Make a copy
Copy on both sides (duplex)
Additional options when copying
Additional copy tasks
For more information:
The following information is correct at the time of publication. For current information, see www.hp.com/
support/pagewidecolor586MFP.
HP's all-inclusive help for the printer includes the following information:
Install and congure
Learn and use
Solve problems
Download software and rmware updates
Join support forums
Find warranty and regulatory information
ENWW 73

Make a copy

1. Place the document face-down on the scanner
glass, or place it face-up in the document feeder and adjust the paper guides to t the size of the document.
2. From the Home screen on the product control
panel, touch the Copy button.
3. To adjust the number of copies, touch the Copies
eld to open a keypad.
74 Chapter 5 Copy ENWW
4. Enter the number of copies, and then touch the
OK button.
5. Touch the Copy button.
The following copy-quality settings are available:
Text: Use this setting for documents that
contain mostly text.
Printed Picture: Use this setting for line
drawings and preprinted images, such as magazine clippings or pages from books.
Photograph: Use this setting for
photographic prints.
ENWW Make a copy 75

Copy on both sides (duplex)

Copy on both sides automatically

1. Load the original documents face-up in the document feeder with the top of the page leading. Adjust the
paper guides to t the size of the document.
2. From the Home screen on the product control panel, touch the Copy button.
3. Touch the Sides button.
4. To make a two-sided copy from a one-sided original, touch the 1-sided original, 2-sided output button.
To make a two-sided copy from a two-sided original, touch the 2-sided original, 2-sided output button.
To make a one-sided copy from a two-sided original, touch the 2-sided original, 1-sided output button.
5. Touch the OK button.
6. Touch the Start button.

Copy on both sides manually

1. Load the document on the scanner glass according to the indicators on the product.
2. From the Home screen on the product control panel, touch the Copy button.
3. Touch the Sides button.
4. To make a two-sided copy from a one-sided original, touch the 1-sided original, 2-sided output button.
To make a two-sided copy from a two-sided original, touch the 2-sided original, 2-sided output button.
To make a one-sided copy from a two-sided original, touch the 2-sided original, 1-sided output button.
5. Touch the OK button.
6. Touch the Start button.
7. The product prompts you to load the next original document. Place it on the glass, and then touch the
Scan button.
8. The product temporarily saves the scanned images. Touch the Finish button to nish printing the copies.
76 Chapter 5 Copy ENWW

Additional options when copying

The following settings are available in the More Options list when copying.
NOTE: The following list contains the master set of options available for HP Enterprise MFP printers. Some
options are not available on all printers.
Number of Copies Specify the number of copies to make.
Sides Specify whether the original document is printed on one side or both sides, and whether the copies
are to be print on one side or both sides.
Color/Black
For color printers only.
Staple
For printers with automatic nishing accessories only. This feature does not apply to printers with convenience staplers.
Book Mode Scan an open book and output each page of the book onto dierent pages.
2-sided ID Copy Scan each side of an identication card on the atbed glass and output them onto one page. After
Reduce/Enlarge Scale the size of the scanned document up or down.
Original Size Specify the paper size for the original document.
Paper Selection Specify the paper size and type for the copies.
Booklet Format and rearrange original scanned images into pages that print as a booklet.
Hole Punch
For printers with hole-punch accessories only.
Specify whether copies are to be printed in color, black and gray, or black only.
Specify the placement of staples.
scanning the rst side, the printer prompts to place the second side in the correct position on the glass.
Specify the number and placement of punched holes.
Content Orientation Specify whether the original document is printed in Portrait or Landscape orientation.
Pages per Sheet Copy multiple sheets of paper onto a single sheet. Select one, two, or four pages per sheet.
Output Bin
For printers with multiple output bins only.
Paper Path
For printers that have an option to ip pages inside the paper path.
Specify which output bin to use for the job when the printer output bins are congured for mailbox mode.
NOTE: This option does not appear when the output bins are congured for stacker mode or
function-separator mode.
Select a specic paper path:
Face-up (straightest path): Pages output to the bin in the opposite order that they were placed in the
document feeder.
Face-down (correct order): Pages are stacked in the same order as they were placed in the document
feeder.
ENWW Additional options when copying 77
Image Adjustment Sharpness: Clarify or soften the image. For example, increasing the sharpness could make text
appear crisper, but decreasing it could make photos appear smoother.
Darkness: Increase or decrease the amount of white and black used in colors in scanned images.
Contrast: Increase or decrease the dierence between the lightest and the darkest color on the
page.
Background Cleanup: Remove faint colors from the background of scanned images. For example, if
the original document is printed on colored paper, use this feature to lighten the background without aecting the darkness of the image.
Automatic Tone: Available for Flow printers only. For original documents that have at least 100
characters of text on the page, the printer can detect which edge is the top of the page, and it orients the scanned images appropriately. If some of the pages are upside-down in relation to the other pages, the resulting scanned image has all pages right-side-up. If some of the pages have a landscape orientation, the printer rotates the image so that the top of the page is at the top of the image.
Optimize Text/Picture Optimize the job for the type of image being scanned: text, graphics, or photos.
Edge-to-Edge Scan and print a copy closer to the edge of the page than is normally allowed. Printing close to the
edge can result in some print-quality issues.
Erase Edges Remove blemishes, such as dark borders or staple marks, by cleaning the edges of the scanned
image.
Blank Page Suppression Exclude blank pages in the original document from scanned images. This feature is useful for
scanning pages printed on both sides to eliminate blank pages in the resulting scanned document.
Multi-feed Detection Enable or disable multi-feed detection. When enabled, scanning stops when the printer detects
more than one page at a time being fed in the document feeder. When disabled, scanning continues when a multi-feed is detected, to allow scanning pages that are stuck together, originals with self­adhesive notes on them, or thick paper.
Collate Assemble each set of pages in the same order as the original document when making multiple
copies of a document.
Job Build Mode Divide a complex job into smaller segments.
78 Chapter 5 Copy ENWW

Additional copy tasks

Go to www.hp.com/support/pagewidecolor586MFP.
Instructions are available for performing specic copy tasks, such as the following:
Copy or scan pages from books or other bound documents
Copy mixed-size documents
Copy or scan both sides of an identication card
Copy or scan a document into a booklet format
ENWW Additional copy tasks 79
80 Chapter 5 Copy ENWW

6 Scan

Set up Scan to E-mail using the HP Embedded Web Server
Set up Scan to Network Folder using the HP Embedded Web Server
Set up Save to USB using the HP Embedded Web Server
Set up Save to SharePoint® (Flow models only)
Create Quick Sets using the HP Embedded Web Server
Scan and send to email
Scan and send to network folder
Scan and send to USB Flash Drive
Additional options when scanning
HP JetAdvantage business solutions
Additional scan tasks
For more information:
The following information is correct at the time of publication. For current information, see www.hp.com/
support/pagewidecolor586MFP.
HP's all-inclusive help for the printer includes the following information:
Install and congure
Learn and use
Solve problems
Download software and rmware updates
Join support forums
Find warranty and regulatory information
ENWW 81

Set up Scan to E-mail using the HP Embedded Web Server

Introduction

Before you begin

Step one: Access the HP Embedded Web Server (EWS)

Step two: Congure the Network Identication settings
Step three: Congure the Send to E-mail feature
Set up Send to E-mail to use Oice 365 Outlook (optional)
Introduction
The printer has a feature that enables it to scan a document and send it to one or more email addresses. To use this scan feature, the printer must be connected to a network; however, the feature is not available until it has been congured through the HP Embedded Web Server (EWS). There are two methods for conguring Scan to Email, the Scan to E-mail Setup Wizard for basic setup and E-mail Setup for advanced setup. Use the following information to set up the Scan to Email feature.
Before you begin
To set up the Scan to E-mail feature, the printer must have an active network connection.
Administrators need the following information before beginning the conguration process.
Administrative access to the printer
DNS suix (e.g., companyname.com)
SMTP server (e.g., smtp.mycompany.com)
NOTE: If you do not know the SMTP server name, SMTP port number, or authentication information,
contact the email/Internet service provider or system administrator for the information. SMTP server names and port names are typically easy to nd by doing an Internet search. For example, use terms like "gmail smtp server name" or "yahoo smtp server name" to search.
SMTP server authentication requirements for outgoing email messages, including the user name and password used for authentication, if applicable.
IMPORTANT: Consult your email service provider's documentation for information on digital sending limits
for your email account. Some providers may temporarily lock your account if you exceed your sending limit.
Step one: Access the HP Embedded Web Server (EWS)
1. From the Home screen on the printer control panel, touch the Network button to display the IP
address or host name.
82 Chapter 6 Scan ENWW
2. Open a Web browser, and in the address line, type the IP address or host name exactly as it displays on
the printer control panel. Press the Enter key on the computer keyboard. The EWS opens.
NOTE: If the Web browser displays a message indicating that accessing the website might not be safe,
select the option to continue to the website. Accessing this website will not harm the computer.
Step two: Congure the Network Identication settings
NOTE: Conguring email setup on the Networking tab is an advanced process and might require the
assistance of a system administrator.
1. Using the EWS top navigation tabs, click Networking.
2. In the left navigation pane, click TCP/IP Settings.
3. On the TCP/IP Settings dialog, click the Network Identication tab.
4. If DNS is required on the network, in the TCP/IP Domain Suix area, verify that the DNS suix for the
email client being used is listed. DNS suixes have this format: companyname.com, gmail.com, etc.
NOTE: If the Domain Name suix is not set up, use the IP address.
5. Click Apply.
Step three: Congure the Send to E-mail feature
The two options for conguring Send to E-mail are the E-mail Setup Wizard for basic conguration and E­mail Setup for advanced conguration. Use the following options to congure the Send to E-mail feature:
Option one: Basic conguration using the E-mail Setup Wizard
Option two: Advanced conguration using the E-mail Setup
ENWW Set up Scan to E-mail using the HP Embedded Web Server 83
Option one: Basic conguration using the E-mail Setup Wizard
This option opens the E-mail Setup Wizard in the HP Embedded Web Server (EWS) for basic conguration.
1. Using the EWS top navigation tabs, click Scan/Digital Send.
2. In the E-mail and Save to Network Folder Quick Setup Wizards area, click the E-mail Setup Wizard link.
3. On the E-mail Setup Wizard dialog, click Continue to proceed with the conguration.
4. On the Congure E-mail Servers (SMTP) dialog, select one of the following options and complete the
steps:
Option one: Use a server already in use by E-mail
Select Use a server already in use by E-mail, and then click Next.
Option two: Search network for outgoing e-mail server
NOTE: This option nds outgoing SMTP servers inside your rewall only.
a. Select Search network for outgoing e-mail server, and then click Next.
b. Select the appropriate server from the Congure E-mail Server (SMTP) list, and then click Next.
c. Select the option that describes the server’s authentication requirements:
Server does not require authentication: Select Server does not require authentication, and then click Next.
-OR-
Server requires authentication: From the drop-down list, select an authentication option:
Use credentials of user to connect after Sign In at the control panel: Select Use credentials of user to connect after Sign In at the control panel, and then click Next.
-OR-
Always use these credentials: Select Always use these credentials, enter the User name and Password, and then click Next.
Option three: Add SMTP server
a. Select Add SMTP server
b. Enter the Server Name and Port Number, and then click Next.
NOTE: In most cases, the default port number does not need to be changed.
NOTE: If you are using a hosted SMTP service such as Gmail, verify the SMTP address, port
number, and SSL settings from the service provider’s Web site or other sources. Typically, for Gmail, the SMTP address is smtp.gmail.com, port number 465, and the SSL should be enabled.
Please refer to online sources to conrm these server settings are current and valid at the time of
conguration.
c. Select the appropriate server authentication option:
84 Chapter 6 Scan ENWW
Server does not require authentication: Select Server does not require authentication, and then click Next.
-OR-
Server requires authentication: Select an option from the Server requires authentication drop-down list:
Use credentials of user to connect after Sign In at the control panel: Select Use credentials of user to connect after Sign In at the control panel, and then click Next.
-OR-
Always use these credentials: Select Always use these credentials, enter the User name and Password, and then click Next.
5. On the Congure E-mail Settings dialog, enter the following information about for the sender’s email
address, and then click Next.
NOTE: When setting up the From, Subject, and Message elds, if the User editable check box is
unchecked, users will not be able to edit those elds at the printer control panel when sending an e­mail.
Option Description
From
(Required)
Subject
(Optional)
Message
(Optional)
Select one of the following options from the From drop-down list:
User’s address (sign-in required)
Default From: Enter a default email address and display name in the Default From E- mail Address and Default Display Name elds
TIP: Create an email account for the printer, and use this address for the default e-
mail address.
TIP: Congure the email feature so that users must sign in before using it. This
prevents users from sending an email from an address that is not their own.
Provide a default subject line for the email messages.
Create a custom message.
To use this message for all emails sent from the printer, clear the User editable check box for Message.
6. In the Congure File Scan Settings area, set the default scanning preferences, and then click Next.
ENWW Set up Scan to E-mail using the HP Embedded Web Server 85
Option Description
Default File Type Select the default le type that the for the scanned document:
PDF
JPEG
TIFF
MTIFF
XPS
PDF/A
Text (OCR)
Unicode Text (OCR)
RTF (OCR)
Searchable PDF (OCR)
Searchable PDF/A (OCR)
HTML (OCR)
CSV (OCR)
Default Color Preferences Select the default color setting for the scanned document:
Color
Black
Black/Gray
Automatically detect
Default Output Quality Select the default output quality for the scanned document:
Low (small le)
Medium
High (large le)
Default Resolution Select the default scan resolution for the scanned document:
75 dpi
150 dpi
200 dpi
300 dpi
400 dpi
600 dpi
7. Review the Summary area, and then click Finish to complete the setup.
86 Chapter 6 Scan ENWW
