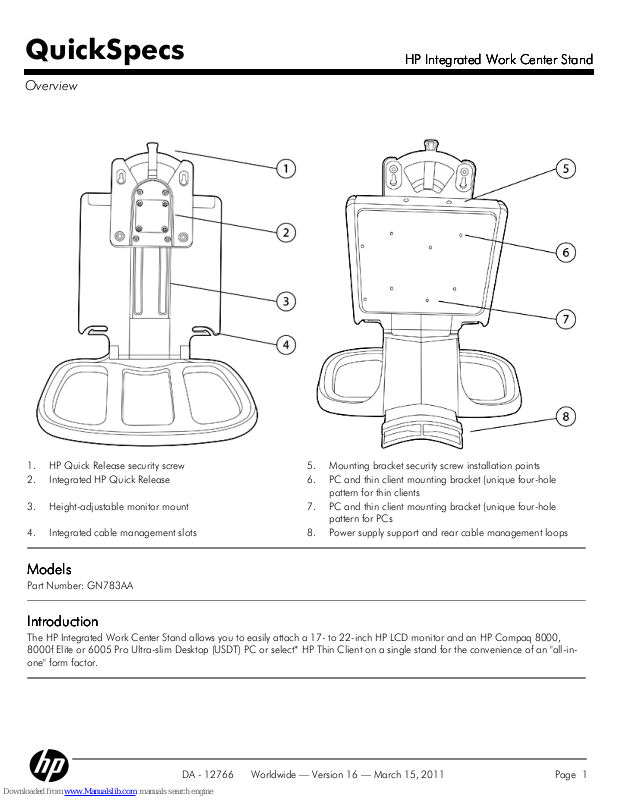

Page 1
1.
HP Quick Release security screw
5.
Mounting bracket security screw installation points
2.
Integrated HP Quick Release
6.
PC and thin client mounting bracket (unique four-hole
pattern for thin clients
3.
Height-adjustable monitor mount
7.
PC and thin client mounting bracket (unique four-hole
pattern for PCs
4.
Integrated cable management slots
8.
Power supply support and rear cable management loops
Models
ModelsModels
Models
Part Number: GN783AA
Introduction
IntroductionIntroduction
Introduction
The HP Integrated Work Center Stand allows you to easily attach a 17- to 22-inch HP LCD monitor and an HP Compaq 8000,
8000f Elite or 6005 Pro Ultra-slim Desktop (USDT) PC or select* HP Thin Client on a single stand for the convenience of an "all-inone" form factor.
QuickSpecs
HP Integrated Work Center Stand
HP Integrated Work Center StandHP Integrated Work Center Stand
HP Integrated Work Center Stand
Overview
DA - 12766 Worldwide — Version 16 — March 15, 2011
Page 1
Page 2
Key features and benefits
Key features and benefitsKey features and benefits
Key features and benefits
Integrates your HP Compaq 8000, 8000f Elite or 6005 Pro Ultra-slim Desktop PC or select* HP Thin Client and a 17- to 22inch diagonal HP LCD monitor, allowing you to conveniently put the entire compact system configuration at your fingertips,
saving valuable desktop space and making the most efficient use of space-constrained office environments
Cable management solution keeps the PC and monitor cables together and hidden from view
Industry-standard VESA mounting bracket accommodates most LCD monitors
Vertical height adjustment allows the monitor to be adjusted for maximum user comfort
Built-in HP Quick Release enables easy installation and removal of monitor
Compatibility
CompatibilityCompatibility
Compatibility
The Integrated Work Center Stand is designed to exclusively accommodate the HP Compaq 8000, 8000f Elite or 6005 Pro Ultraslim Desktop PC or a select* HP Thin Client and the HP LCD monitors shown below.
Monitor
MonitorMonitor
Monitor
Monitor Part Number(s)
Monitor Part Number(s)Monitor Part Number(s)
Monitor Part Number(s)
L1710
GS917AA
LE1711
EM886AA
L1910
GS918AA
LE1911
EM887AA
LE1851w
NK033AA
LE1901w
NK570AA
LE1901wm
NP446A (available in select regions)
LE2001w
NK128AA
LE2001wm
VN692AA (available in select regions)
LE2201w
NK571AA
L1745
GE178AA (available in select regions)
L1750
GF904AA, GF904A2 (TAA compliant/US only)
LA1751g
EM889AA (available in select regions)
L1950g
KR145AA, KR145A2 (TAA compliant/US only)
LA1951g
EM890AA, EM890A2 (TAA compliant/US only)
L1945w
KD286AA
L1945wv
KH128AA
LA1905wg
NM360AA, NM360A2 (TAA compliant/US only)
LE19f
VV081AA
L2245wg
FL472AA
LA2205wg
NM274AA, NM274A2 (TAA compliant/US only)
LA22f
VU893AA
L2105tm
EM891AA
LP1965
RA373AA, RA374AA
ZR22w
VM626A4
Service and support
Service and supportService and support
Service and support
The Integrated Work Center Stand carries a one-year limited warranty. Technical support is available seven days a week, 24 hours a
day, by phone, as well as online support forums. Certain restrictions and exclusions apply.
QuickSpecs
HP Integrated Work Center Stand
HP Integrated Work Center StandHP Integrated Work Center Stand
HP Integrated Work Center Stand
Overview
DA - 12766 Worldwide — Version 16 — March 15, 2011
Page 2
Page 3
Mechanical
MechanicalMechanical
Mechanical
Tilt range
Tilt rangeTilt range
Tilt range
-3 to +20 degrees vertical tilt
Swivel range
Swivel rangeSwivel range
Swivel range
-180° to + 180°
Height adjustable
Height adjustableHeight adjustable
Height adjustable
Yes, range:5.3 in (13.5 cm)
Pivot rotation
Pivot rotationPivot rotation
Pivot rotation
No
Dimensions
DimensionsDimensions
Dimensions
(Unpackaged)
Cable management slot
in:
16.5 x 14.5 x 10.25 in
(41.91 x 36.83 x 26.06 cm)
Cable management slot
out:
16.5 x 14.5 x 12.25 in
(41.91 x 36.83 x 31.12 cm)
Weight
WeightWeight
Weight
Unpackaged
6.12 lbs (2.78 kg)
Other
OtherOther
Other
Accessories included
Accessories includedAccessories included
Accessories included
Exclusive Integrated Work Center VGA video cable, HP Compaq Ultra-slim
Desktop cable cover (rear port cover), PC mounting bracket, HP Quick
Release, documentation kit, and User CD
User guide languages
User guide languagesUser guide languages
User guide languages
English, French, German, Spanish, Italian, Dutch, Brazilian Portuguese,
Danish, Finnish, Greek, Japanese, Korean, Latin American Spanish,
Norwegian, Polish, Russian, Slovenian, Turkish, Swedish, Traditional
Chinese, Simplified Chinese
Warranty languages
Warranty languagesWarranty languages
Warranty languages
English, German, French, Italian, Spanish and Japanese
Color
ColorColor
Color
Carbonite
VESA external mounting
VESA external mountingVESA external mounting
VESA external mounting
Yes (Standard 4 hole pattern, two separate 100 mm patterns on the
mounting bracket)
Option kit contents
Option kit contentsOption kit contents
Option kit contents
Integrated Work Center Stand and PC mounting bracket, Integrated Work
Center VGA video cable, HP Compaq Ultra-slim Desktop cable cover (rear
port cover), Quick Release bracket (to attach to back of monitor)
Supported weight capacity
Supported weight capacitySupported weight capacity
Supported weight capacity
The Integrated Work Center Stand has been designed to support the weight of a 17-, 19-, or 22-inch
diagonal HP LCD monitor only.
QuickSpecs
HP Integrated Work Center Stand
HP Integrated Work Center StandHP Integrated Work Center Stand
HP Integrated Work Center Stand
Technical Specifications
DA - 12766 Worldwide — Version 16 — March 15, 2011
Page 3
Page 4

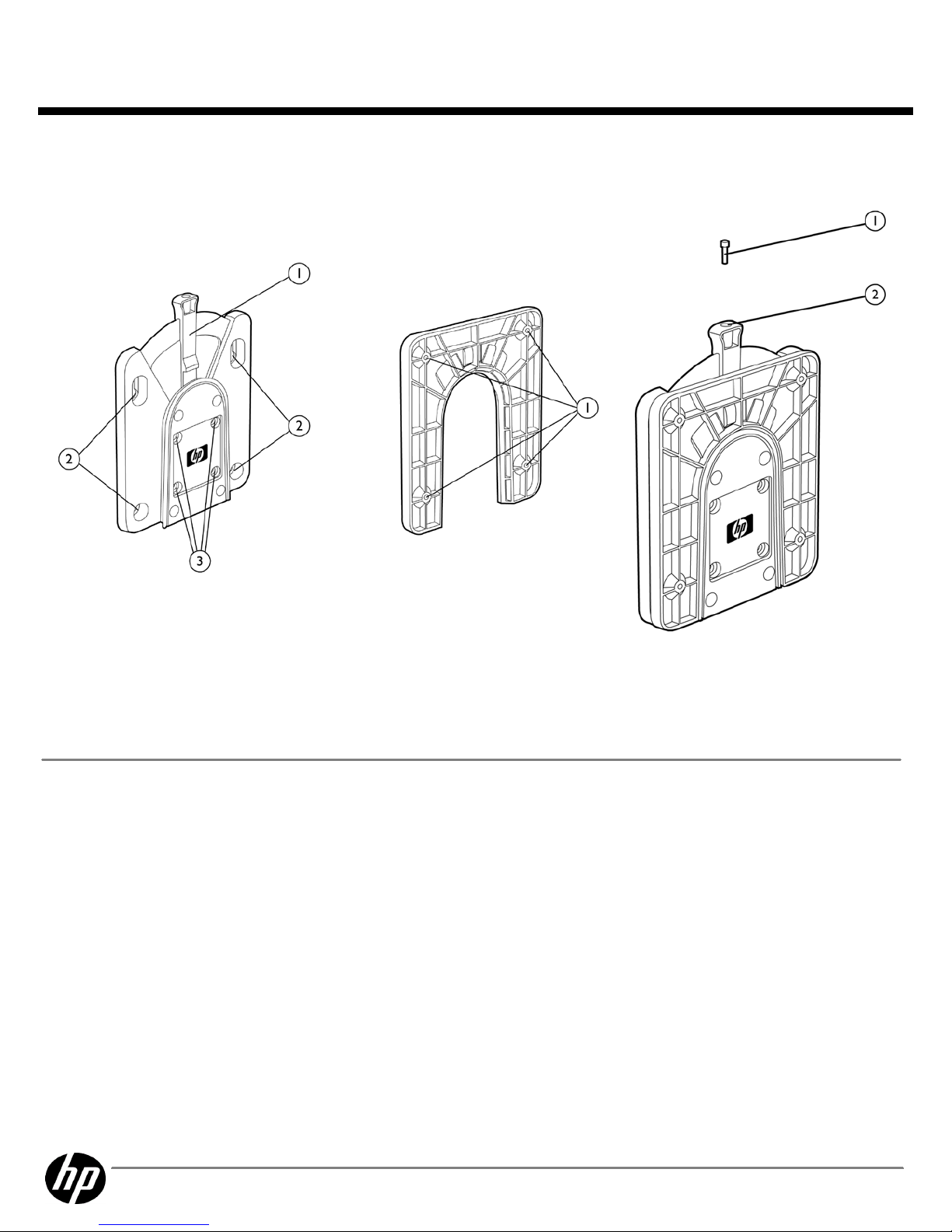

HP LCD Monitor Quick Release (included)
HP LCD Monitor Quick Release (included)HP LCD Monitor Quick Release (included)
HP LCD Monitor Quick Release (included)
1.
1.1.
1.
Release/locking
1.
1.1.
1.
Four 100 mm VESA mount screw holes
1.
1.1.
1.
Locking pin screw
2.
2.2.
2.
Four 100 mm VESA mount screw holes
2.
2.2.
2.
Locking pin hole on release/locking
arm
3.
3.3.
3.
Mounting holes for attachment to back
of monitor stands
Introduction
IntroductionIntroduction
Introduction
The HP Quick Release, which ships standard with the HP Integrated Work Center Stand, is an easy to use, 100 mm VESA-compliant,
LCD monitor mounting solution that allows you to quickly and securely attach an LCD monitor to a variety of stands, brackets, arms,
wall mounts or to an HP Ultra-slim Desktop PC or Thin Client. The failsafe "Sure-Lock" mechanism snaps the monitor (or mounted
device) securely in place, and can be further secured with a theft-deterrent security screw.
QuickSpecs
HP Integrated Work Center Stand
HP Integrated Work Center StandHP Integrated Work Center Stand
HP Integrated Work Center Stand
Overview - HP LCD Monitor Quick Release
DA - 12766 Worldwide — Version 16 — March 15, 2011
Page 4
Page 5
1.
2.
3.
Mechanical
MechanicalMechanical
Mechanical
Dimensions
Dimensions Dimensions
Dimensions
(H x W x D)
Packaged:
Packaged:Packaged:
Packaged:
7.8 x 6.25 x 1.5 in (19.8 x 15.9 x 3.8 cm)
Unpackaged:
Unpackaged:Unpackaged:
Unpackaged:
6.3 x 5.2 x 0.65 in (16 x 13.2 x 1.65 cm)
Weight
WeightWeight
Weight
Packaged:
Packaged:Packaged:
Packaged:
1.1 lb (0.49 kg)
Unpackaged:
Unpackaged:Unpackaged:
Unpackaged:
0.82 lb (0.37 kg)
Additional components
Additional componentsAdditional components
Additional components
Eight 10 mm mounting screws (for attachment to VESA compliant monitor mounts)
Eight 15.5 mm mounting screws (for attachment to HP Compaq t5000 Thin Client products)
Four 20 mm mounting screws (for attachment to back of select HP LCD monitor stands)
One Quick Release "locking" screw
Color
ColorColor
Color
Carbonite
Notes
NotesNotes
Notes
No HP monitors allow positioning of a thin client product between a monitor screen and its stand.
The Quick Release device is not to be used between a monitor screen and its stand unless
provided that way from the factory.
Under no circumstances is the Quick Release device intended to be used in an orientation where
the Release/Lock lever is oriented downward.
Supported weight capacity
Supported weight capacitySupported weight capacity
Supported weight capacity
The HP Quick Release has been designed to support a maximum of up to 24 lbs (10.9 kg) depending
upon the mounting configuration used. Please note this is a total weight limit for all devices mounted,
i.e. the combined weight of the monitor and a second device such as an HP Thin Client cannot exceed
24 pounds. Because mounting surfaces vary widely and the final mounting method and configuration
may vary, mounting fasteners are not supplied (other than the VESA-compliant screws). HP recommends
that you consult with a qualified engineering, architectural or construction professional to determine the
appropriate type and quantity of mounting fasteners required for your application and to ensure that
your mounting solution is properly installed to support applied loads.
© 2009, 2010, 2011 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth
in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an
additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
QuickSpecs
HP Integrated Work Center Stand
HP Integrated Work Center StandHP Integrated Work Center Stand
HP Integrated Work Center Stand
Technical Specifications - HP LCD Monitor Quick Release
DA - 12766 Worldwide — Version 16 — March 15, 2011
Page 5
