QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Overview
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 1

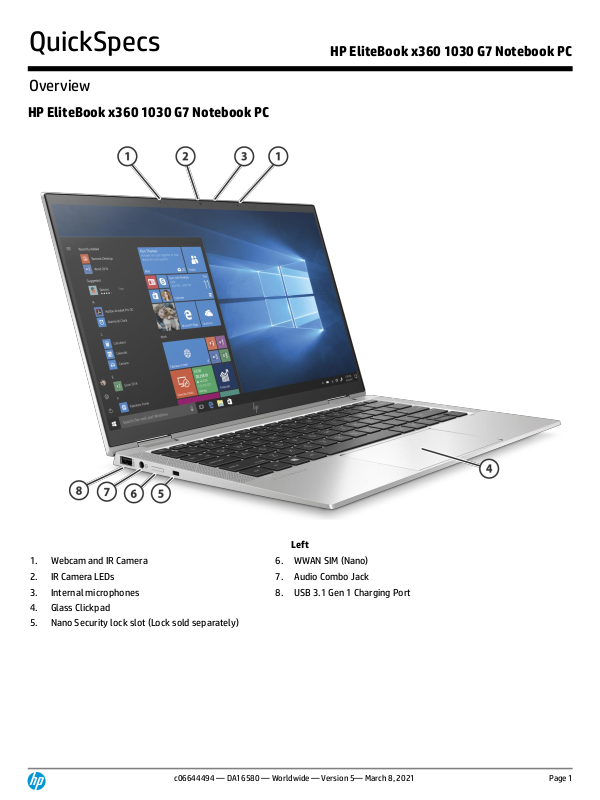

HP EliteBook x360 1030 G7 Notebook PC
Left
1.
Webcam and IR Camera
6.
WWAN SIM (Nano)
2.
IR Camera LEDs
7.
Audio Combo Jack
3.
Internal microphones
8.
USB 3.1 Gen 1 Charging Port
4.
Glass Clickpad
5.
Nano Security lock slot (Lock sold separately)
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Overview
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 2
Right
1.
Power button
4.
USB Type-C® with Thunderbolt™
2.
USB 3.1 Gen 1 charging port
5.
USB Type-C® with Thunderbolt™
3.
HDMI port (Cable not included)
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Overview
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 3
AT A GLANCE
• An updated all metal CNC Aluminum chassis that is .6 inches (1.61 cm) thin and with a starting weight of 2.88 lbs. (1.21
Kg)
• A 360° convertible notebook with 4 usage modes: Laptop mode, Tablet mode, Tent mode, and Media mode.
• Choice of 10th Generation Intel® Core™ i5, i7 Processors (with up to 6 cores) with integrated Intel® UHD Premium
Graphics
• Display choices include 33.78 cm (13.3") diagonal IPS FHD touch screen or UHD OLED touch screen. Brightness choices up
to 1000 Nits. Optional Anti-glare screen available on FHD panels. Get added protection in open or public places with the
optional HP Sure View Reflect integrated privacy screen
• Connectivity with 4G/LTE WWAN, 5G/LTE WWAN, WiFi6 + Bluetooth®5 WLAN, USB Type-C®, USB Type-A, HDMI and
Thunderbolt™ Docking1
• Featuring redesigned quiet HP Keyboard with the HP Programmable key. The power button and the fingerprint sensor
have been moved to the keyboard
• HP Sure Shutter - industry’s 1st and only privacy camera with an electric shutter. The on/off button for this shutter is
located on the function row of the keyboard.
• An optional HP Rechargeable Active Pen 3
1
with Magnetic Attach and 4096 Levels of pressure
• Never forget your password with your choice of simple authentication methods, including the IR camera for face
recognition and Touch Fingerprint Sensor for Windows Hello
• Enterprise grade security with HP Sure Sense, HP SureStart Gen5, HP Privacy Camera, HP Sure View Reflect, HP Sure Run
Gen2, HP Sure Recover Gen2 with Embedded Reimaging, HP Sure Click, and Touch Fingerprint sensor
• Track your PC and use it to find other Tile-enabled devices with optional Tile™
2
• Battery life up to 21 hours and 30 minutes
3
• Supports HP Fast Charge (50% in 30 minutes) with no impact on battery recharge cycles
• Choice of solid state drives up to 2 TB and LPDDR4 memory up to 32 GB
• Tested for 19 MIL-STD 810H tests
4
1. Sold separately or as an optional feature.
2. Tile is an optional feature that must be configured at the factory and requires Windows 10. Some features require optional
subscription to Tile Premium. Not available on models with WWAN M.2 module. Tile application for Windows 10 available for
download from the Windows Store. Mobile phone app available for download from App Store and Google Play. Requires iOS 11
and greater or Android 6.0 and greater see https://support.thetileapp.com/hc/en-us/articles/200424778 for more information.
HP Tile will function as long as the PC has battery power.
3. Windows 10 MM14 battery life will vary depending on various factors including product model, configuration, loaded
applications, features, use, wireless functionality, and power management settings. The maximum capacity of the battery will
naturally decrease with time and usage. See www.bapco.com for additional details.
4. MIL-STD 810H is not intended to demonstrate fitness of U.S. Department of Defense contract requirements or for military use.
Test results are not a guarantee of future performance under these test conditions. Accidental damage requires an optional HP
Accidental Damage Protection Care Pack.
NOTE: See important legal disclosures for all listed specs in their respective features sections.
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Technical Specifications
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 4
PRODUCT NAME
HP EliteBook x360 1030 G7 Notebook PC
OPERATING SYSTEM
Preinstalled
Windows 10 Pro 64
1
Windows 10 Pro 64 (National Academic only)
2
Windows 10 Home 64
1
Windows 10 Home Single Language 64
1
Windows 10 Pro (Windows 10 Enterprise available with a Volume Licensing Agreement)
1
FreeDOS
1. Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately
purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is
automatically updated, which is always enabled. ISP fees may apply and additional requirements may apply over time for
updates. See http://www.windows.com.
2. Some devices for academic use will automatically be updated to Windows 10 Pro Education with the Windows 10 Anniversary
Update. Features vary; see https://aka.ms/ProEducation for Windows 10 Pro Education feature information.
PROCESSORS
Intel® Core™ i7-10810U with Intel® UHD Graphics Premium (1.1 GHz base frequency, up to 4.7 GHz with Intel® Turbo Boost
Technology, 12 MB L3 cache, 6 cores)
3,4,5,6
Intel® Core™ i7-10710U with Intel® UHD Graphics Premium (1.1 GHz base frequency, up to 4.7 GHz with Intel® Turbo Boost
Technology, 12 MB L3 cache, 6 cores)
3,4,5,6
Intel® Core™ i7-10610U with Intel® UHD Graphics Premium (1.8 GHz base frequency, up to 4.3 GHz with Intel® Turbo Boost
Technology, 8 MB L3 cache, 4 cores)
3,4,5,6
Intel® Core™ i5-10310U with Intel® UHD Graphics Premium (1.7 GHz base frequency, up to 4.8 GHz with Intel® Turbo Boost
Technology, 6 MB L3 cache, 4 cores)
3,4,5,6
Intel® Core™ i5-10210U with Intel® UHD Graphics Premium (1.6 GHz base frequency, up to 4.2 GHz with Intel® Turbo Boost
Technology, 6 MB L3 cache, 4 cores)
3,4,5,6
Processor Family
10th Generation Intel® Core™ i7 processor (i7-10810U, i7-10710U, i7-10610U)
10th Generation Intel® Core™ i5 processor (i5-10310U, i5-10210U)
3. Multicore is designed to improve performance of certain software products. Not all customers or software applications will
necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload
and your hardware and software configurations. Intel’s numbering, branding and/or naming is not a measurement of higher
performance.
4. Processor speed denotes maximum performance mode; processors will run at lower speeds in battery optimization mode.
5. Intel® Turbo Boost performance varies depending on hardware, software and overall system configuration. See
http://www.intel.com/technology/turboboost for more information.
6. NOTE: In accordance with Microsoft’s support policy, HP does not support the Windows 8 or Windows 7 operating system on
products configured with Intel and AMD 7th generation and forward processors or provide any Windows 8 or Windows 7 drivers on
http://www.support.hp.com.
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Technical Specifications
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 5
CHIPSET
Chipset is integrated with processor.
GRAPHICS
Integrated
Intel® HD Graphics Premium
7
Supports
Support HD decode, DX12, HDMI 1.4b
8
7. HD content required to view HD images.
8. HDMI cable sold separately
DISPLAY
Touch
33.8 cm (13.3") diagonal FHD IPS Ultraslim 2.0mm eDP + PSR2 BrightView touch screen with 0.4mm Gorilla® Glass 5 , 400
nits, 72% NTSC (1920 x 1080)
7,9,10
33.8 cm (13.3") diagonal FHD IPS Ultraslim 2.0mm eDP + PSR2 Anti-Glare touch screen with 0.4mm Gorilla® Glass 5, 400 nits,
72% NTSC (1920 x 1080)
7,9,10
HP Sure View Reflect Integrated Privacy Screen 33.8 cm (13.3") diagonal FHD IPS Ultraslim 2.0mm eDP + PSR BrightView
touch screen with 0.4mm Gorilla® Glass 5, 1000 nits, 72% NTSC (1920 x 1080)
7,9,10,11
HP Sure View Reflect Integrated Privacy Screen 33.8 cm (13.3") diagonal FHD IPS Ultraslim 2.0mm eDP + PSR Anti-Glare
touch screen with 0.4mm Gorilla® Glass 5, 1000 nits, 72% NTSC (1920 x 1080)
7,9,10,11
33.8 cm (13.3") diagonal UHD OLED* IPS Ultraslim 1.21mm eDP + PSR2 BrightView touch screen with 0.4mm Gorilla® Glass 5,
400 nits, 72% NTSC (3840 x 2160)
7,9,10
HDMI 1.4b
Supports resolutions up to 4K@60Hz
7. HD content required to view HD images.
9. Sold separately or as an optional feature.
10. Resolutions are dependent upon monitor capability, and resolution and color depth settings.
11. HP Sure View integrated privacy screen is an optional feature that must be configured at purchase and is designed to function
in landscape orientation
12. HP Sure View integrated privacy screen is an optional feature that must be configured at purchase and functions in landscape
orientation.
*Platforms configured with OLED panel will have a 1 year limited warranty.
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Technical Specifications
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 6
STORAGE AND DRIVES
Primary M.2 Storage
128 GB M.2 SATA-3 SS TLC12
256 GB PCIe® NVMe™ M.2 SS Value12
256 GB PCIe® Gen3x4 NVMe™ M.2 SS TLC12
256 GB PCIe® TLC Opal 212
256 GB PCIe® Gen3x2x2 SS QLC + 16 GB Intel Optane Memory
512 GB PCIe® Gen3x4 NVMe™ M.2 SS TLC12
512 GB PCIe® Gen3x4 NVMe™ M.2 SED SS TLC (OPAL 2)
12
512 GB PCIe® NVMe™ M.2 SS Value12
512 GB PCIe® Gen3x2x2 QLC + 32GB Intel Optane Memory
12
1 TB PCIe® Gen3x4 NVMe™ M.2 SS TLC12
2 TB PCIe® Gen3x4 NVMe™ M.2 SS TLC
12
12. For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30 GB (for Windows 10) is
reserved for system recovery software.
MEMORY
Maximum Memory
32 GB LPDDR4-2933 SDRAM
Memory
32 GB LPDDR4-2933 SDRAM
16 GB LPDDR4-2933 SDRAM
8 GB LPDDR4-2933 SDRAM
Memory Slots
Memory soldered down
LPDDR4, System runs at: 2933
Supports Dual Channel Memory
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Technical Specifications
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 7
NETWORKING/COMMUNICATIONS
WLAN
Intel® Dual Band Wireless-AX201 (2x2) Wi-Fi 6 and Bluetooth® 5 Combo, vPro™
13
Intel® Dual Band Wireless-AX201 (2x2) Wi-Fi 6 and Bluetooth® 5 Combo, non-vPro™
13
WWAN
Intel® XMM™ 7360 LTE-Advanced Cat 9
14
Qualcomm® Snapdragon™ X55 5G Modem (5G + LTE CAT 20)
PC Locator
Built-in Tile® Module (select models)™37
NFC
NPC300 Near Field Communication module9
Miracast
Native Miracast Support
15
9. Sold separately or as an optional feature.
13. Wireless access point and internet service required and sold separately. Availability of public wireless access points limited.
Wi-Fi 6 is backwards compatible with prior 802.11 specs. The specifications for Wi-Fi 6 (802.11ax) are draft and are not final. If the
final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other
802.11ax devices.
14. WWAN module is an optional feature, requires factory configuration and requires separately purchased service contract. Check
with service provider for coverage and availability in your area. Connection speeds will vary due to location, environment, network
conditions, and other factors. 4G LTE not available on all products, in all regions.
15. Miracast is a wireless technology your PC can use to project your screen to TVs, projectors, and streaming.
37. Tile is an optional feature that must be configured at the factory and requires Windows 10. Some features require optional
subscription to Tile Premium. Not available on models with WWAN M.2 module. Tile application for Windows 10 available for
download from the Windows Store. Mobile phone app available for download from App Store and Google Play. Requires iOS 11
and greater or Android 6.0 and greater see https://support.thetileapp.com/hc/en-us/articles/200424778 for more information.
HP Tile will function as long as the PC has battery power.
AUDIO/MULTIMEDIA
Audio
Bang & Olufsen
4 Premium Stereo Speakers
Microphones (Multi Array including two user facing and two world-facing microphones)
Camera
Hybrid 720p HD/IR camera with integrated privacy shutter
7
Sensors
Accelerometer
Magnetometer
Gyroscope
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Technical Specifications
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 8
Ambient light
Hall
Time of Flight
7. HD content required to view HD images.
KEYBOARDS/POINTING DEVICES/BUTTONS & FUNCTION KEYS
Keyboard
HP Quiet Keyboard, spill resistant, Backlit keyboard and Durakeys
HP Quiet Keyboard, spill resistant, Backlit keyboard and Durakeys, privacy
Pointing Device
Glass ClickPad with multi-touch gesture support
Function Keys
F1 - Display Switching
F2 - Blank or Sure View
F3 - Brightness Down
F4 - Brightness up
F5 - Audio Mute
F6 - Volume Down
F7 - Volume Up
F8 - Mic Mute
F9 - Keyboard Backlight
F10 - Insert
F11 – Airplane Mode
F12 – Programmable Key
Hidden Function Keys
Fn+R = Break
Fn+S = Sys Rq
Fn+C = Scroll Lock
Fn+E - Insert
Fn+W - Pause
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Technical Specifications
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 9
SOFTWARE AND SECURITY
Preinstalled Software
BIOS
HP BIOSphere Gen5
16
HP Drive Lock & Automatic Drive Lock
17
BIOS Update via Network
Master Boot Record Security
Power On Authentication
HP Secure Erase
18
Absolute Persistence Module
19
Pre-boot Authentication
Software
HP Connection Optimizer
HP Image Assistant
HP Hotkey Support
HP JumpStarts
HP Support Assistant
20
HP Noise Cancellation Software
Buy Office (Sold separately)
HP WorkWell
HP Presence Aware
Manageability Features
HP Driver Packs
21
HP System Software Manager (SSM)
HP BIOS Config Utility (BCU)
HP Client Catalog
HP Manageability Integration Kit Gen4
22
Sure Recover Gen3 with embedded reimaging
Client Security Software
HP Client Security Manager Gen6
23
HP Fingerprint Sensor
HP Power On Authentication
Windows Defender24
Security Management
Pre-boot Authentication
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Technical Specifications
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 10
TPM 2.0 Embedded Security Chip shipped with Windows 10 (Common Criteria EAL4+ Certified) (FIPS 140-2 Level 2 Certified)
25
SATA 0,1 port disablement (via BIOS)
Serial, USB enable/disable (via BIOS)
Power-on password (via BIOS)
Setup password (via BIOS)
Support for chassis padlocks and cable lock devices
HP Sure Click
26
HP Sure Start Gen6
27
HP Sure Run Gen328
HP Sure Recover Gen329
HP Sure Sense30
16. HP BIOSphere Gen5 is available on select HP Pro and Elite PCs. See product specifications for details. Features may vary
depending on the platform and configurations.
17. HP Automatic Drive Lock is not supported on NVMe drives.
18. HP Secure Erase for the methods outlined in the National Institute of Standards and Technology Special Publication 80088 "Clear" sanitation method. HP Secure Erase does not support platforms with Intel® Optane™.
19. Absolute agent is shipped turned off, and will be activated when customers activate a purchased subscription.
Subscriptions can be purchased for terms ranging multiple years. Service is limited, check with Absolute for availability
outside the U.S. The Absolute Recovery Guarantee is a limited warranty. Certain conditions apply. For full details visit:
http://www.absolute.com/company/legal/agreements/computrace-agreement. Data Delete is an optional service provided
by Absolute Software. If utilized, the Recovery Guarantee is null and void. In order to use the Data Delete service, customers
must first sign a Pre-Authorization Agreement and either obtain a PIN or purchase one or more RSA SecurID tokens from
Absolute Software.
20. HP Support Assistant requires Windows and Internet access.
21. HP Driver Packs not preinstalled, however available for download at http://www.hp.com/go/clientmanagement.
22. HP Manageability Integration Kit can be downloaded from
http://www8.hp.com/us/en/ads/clientmanagement/overview.html.
23. HP Client Security Manager Gen6 requires Windows and is available on the select HP Pro and Elite PCs.
24. Windows Defender Opt in and internet connection required for updates.
25.Firmware TPM is version 2.0. Hardware TPM is v1.2, which is a subset of the TPM 2.0 specification version v0.89 as
implemented by Intel Platform Trust Technology (PTT).re TPM is version 2.0. Hardware TPM is v1.2, which is a subset of the
TPM 2.0 specification version v0.89 as implemented by Intel Platform Trust Technology (PTT).
26. HP Sure Click is available on select HP platforms and supports Microsoft Internet Explorer, Google Chrome™, and
Chromium™. Supported attachments include Microsoft Office (Word, Excel, PowerPoint) and PDF files in read only mode,
when Microsoft Office or Adobe Acrobat are installed.
27. HP Sure Start Gen6 is available on select HP PCs with Intel processors.
28. HP Sure Run Gen3 is available on select Windows 10 based HP Pro, Elite and Workstation PCs with select Intel® or AMD
processors.
29. HP Sure Recover Gen3 is available on select HP PCs and requires an open network connection. Not available on platforms
with multiple internal storage drives. You must back up important files, data, photos, videos, etc. before using HP Sure
Recover to avoid loss of data.
30. HP Sure Sense requires Windows 10.
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Technical Specifications
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 11
POWER
Power Supply
HP Smart 65 W USB Type-C® adapter31
Primary Battery
HP Long Life 4-cell, 54 Wh Li-ion polymer
32, 33
Power Cord
Premium 1m C5 power cord
Conventional 1m C5 power cord
Battery Life
MM14 Battery life
Up to 21 hours 30 minutes33 FHD Display (Non-Sure View): Intel® 10th generation CPU and 4-cell 54 Wh battery
MM18 Battery life
Up to 15 hours 15 minutes33 FHD Display (Non-Sure View): Intel® 10th generation CPU and 4-cell 54 Wh battery
31. Availability may vary by country.
32. Battery is internal and not replaceable by customer. Serviceable by warranty.
33. Windows 10 MM14 battery life will vary depending on various factors including product model, configuration, loaded
applications, features, use, wireless functionality, and power management settings. The maximum capacity of the battery
will naturally decrease with time and usage. See http://www.bapco.com for additional details.
WEIGHTS & DIMENSIONS
Weight
Product Weight
Starting at 2.68 lbs
34
Starting at 1.21 kg
34
Product Dimensions (w x d x h)
11.96 x 7.63 x 0.63 in
30.37 x 19.39 x 1.61 cm
34. Weight will vary by configuration. Starting weight configuration: FHD, 54WHr battery, 8GB of memory, 128GB SSD, WLAN + BT,
No WWAN, No NFC, No Pen
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Technical Specifications
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 12
PORTS/SLOTS
Ports
2 USB-C® (Thunderbolt, Supports Power Deliver 3.0, DisplayPort TM 1.2)
2 USB 3.1 Gen 1 (5Gbps signaling rate) Charging Ports
1 HDMI 1.4B
8
1 External Nano SIM slot for WWAN
1 Headphone/Microphone combo
8. HDMI cable sold separately.
SERVICE AND SUPPORT
HP Care Services offers up to 3-year limited warranties and 90 day software limited warranty options depending on country.
Batteries have a default one year limited warranty except for Long Life batteries which will have same 1-year or 3-year
limited warranty as the platform. Refer to http://www.hp.com/support/batterywarranty/ for additional battery information.
On-site service and extended coverage is also available. HP Care Pack Services are optional extended service contracts that
go beyond the standard limited warranties. To choose the right level of service for your HP product, use the HP Care Services
Lookup Tool at: http://www.hp.com/go/cpc.35
35. HP Care Services are sold separately. Service levels and response times for HP Care Packs may vary depending on your
geographic location. Service starts on date of hardware purchase. Restrictions and limitations apply. For details, visit
http://www.hp.com/go/cpc. HP services are governed by the applicable HP terms and conditions of service provided or indicated
to Customer at the time of purchase. Customer may have additional statutory rights according to applicable local laws, and such
rights are not in any way affected by the HP terms and conditions of service or the HP Limited Warranty provided with your HP
Product.
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Technical Specifications
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 13
SYSTEM UNIT
Stand-Alone Power
Requirements (AC Power)
Nominal Operating
Voltage
AC 15V
Average Operating Power
Win 10
Integrated Graphics
Yes
Max Operating Power
UMA < 65W
Temperature
Operating
32° to 95° F (0° to 35° C) (not writing optical)
Non-operating
41° to 95° F (5° to 35° C) (writing optical)
Relative Humidity
Operating
32° to 95° F (0° to 35° C) (not writing optical)
Non-operating
5% to 95%, 101.6° F (38.7° C) maximum wet bulb temperature
Shock
Operating
40 G, 2 ms, half-sine
Non-operating
200 G, 2 ms, half-sine
Random Vibration
Operating
1.043 grms
Non-operating
3.5 grms
Altitude (unpressurized)
Operating
-50 to 10,000 ft (-15.24 to 3,048 m)
Non-operating
-50 to 40,000 ft (-15.24 to 12,192 m)
Planned Industry Standard
Certifications
UL
Yes
CSA
Yes
FCC Compliance
Yes
ENERGY STAR®
Yes
37
EPEAT 2020
TBD
38
ICES
Yes
Australia
Yes
NZ A-Tick Compliance
Yes
CCC
Yes
Japan VCCI Compliance
Yes
KC
Yes
BSMI
Yes
CE Marking Compliance
Yes
BNCI or BELUS
Yes
CIT
Yes
GOST
Yes
Saudi Arabian Compliance
(ICCP)
Yes
SABS
Yes
UKRSERTCOMPUTER
Yes
37. Configurations of the HP EliteBook x360 1030 G7 Notebook PC that are ENERGY STAR® certified are identified as HP EliteBook
x360 1030 G7 Notebook PC ENERGY STAR® on HP websites and on http://www.energystar.gov.
38. Based on US EPEAT® registration according to IEEE 1680.1-2018 EPEAT®. Status varies by country. Visit http://www.epeat.net
for more information.
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Technical Specifications
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 14
DISPLAYS
Panel LCD 13.3 inch diagonal
FHD (1920 x 1080) Anti-Glare
WLED UWVA sRGB 100% NTSC
400 nits eDP 1.4+PSR2 bent LP
Outline Dimensions (W x H x D)
299.06 x 176.54 (FPC folding included)
Active Area
293.76 x 165.24 mm (typ.)
Weight
175 g max.
Diagonal Size
13.3 inch
Thickness
2.0mm / 3.8mm (PCB) max.
Interface
eDP 1.4 w/ PSRII (2 lane)
Surface Treatment
Anti - Glare
Touch Enabled
Yes
Contrast Ratio
1500:1 /typ.)
Refresh Rate
60 Hz
Brightness
400 nits
Pixel Resolution
1920 x 1080
Format of LCD Pixel Arrangement
RGB stripe
Backlight
LED
Color Gamut Coverage
sRGB 100% (NTSC 72%)
Color Depth
8 bits
Viewing Angle
UWVA 85/85/85/85
Panel LCD 13.3-in diagonal
FHD (1920 x 1080) Anti-Glare
WLED UWVA 72% NTSC 1000
nits eDP 1.4+PSR PrivacyG4
Outline Dimensions (W x H x D)
299.06 x 176.54 mm (max)
Active Area
293.76 x 165.24 mm (typ.)
Weight
220 g (max)
Diagonal Size
13.3 inch
Thickness
3.9 mm (max)
Interface
eDP 1.4a PSR (4 lane)
Surface Treatment
Anti – glare (AG)
Touch Enabled
Yes
Contrast Ratio
1500:1 (typ.)
Refresh Rate
60 Hz
Brightness
1000 nits
Pixel Resolution
1920 x 1080 (FHD)
Format of LCD Pixel Arrangement
RGB
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Technical Specifications
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 15
Backlight
LED
Color Gamut Coverage
72% of NTSC
Color Depth
8 bits
Viewing Angle
UWVA 85/85/85/85
Panel OLED* 13.3-in diagonal
UHD (3840 x 2160) BrightView
AMOLED UWVA DCI-P3 100%
NTSC 400 nits eDP 1.4+PSR
NWBZ bent
Outline Dimensions (W x H x D)
297.76 x 173.34 mm (max)
Active Area
293.76 x 165.24 mm (typ)
Weight
185 g (max)
Diagonal Size
13.3 inch
Thickness
3.24 mm (w/PCB) (max)
Interface
eDP 1.4
Surface Treatment
BrightView
Touch Enabled
Yes
Contrast Ratio
100000:1 (typ.)
Refresh Rate
60 Hz
Brightness
400 nits @ OPR100%
Pixel Resolution
3840 x 2160 (UHD)
Format of LCD Pixel Arrangement
RGB Stripe
Backlight
OLED
Color Gamut Coverage
DCI-P3 100%
Color Depth
8 bits+2FRC
Viewing Angle
UWVA 85/85/85/85
NOTE: All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may
vary either higher or lower.
*Platforms configured with OLED panel will have a 1 year limited warranty.
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Technical Specifications
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 16
STORAGE
SSD 128 GB 2280 M2
SATA-3 TLC
Form Factor
M.2 2280
Capacity
128 GB
NAND Type
TLC
Height
0.09 in (2.3 mm)
Width
0.87 in (22 mm)
Weight
0.02 lb (10 g)
Interface
ATA-8, SATA 3.0
Maximum Sequential Read
550 MB/s～ 560 MB/s
Maximum Sequential Write
380 MB/s～ 530 MB/s
Logical Blocks
250,069,680
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security; DIPM; TRIM; DEVSLP
For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30GB of disk is reserved for
system recovery software.
SSD 1 TB 2280 PCIe-3x4
NVMe Three Layer Cell
single-sided
Form Factor
M.2 2280
Capacity
1 TB
NAND Type
TLC
Height
0.09 in (2.3 mm)
Width
0.87 in (22 mm)
Weight
0.02 lb (10 g)
Interface
PCIe NVMe Gen3X4
Maximum Sequential Read
3100 ～ 3500 MB/s
Maximum Sequential Write
2770 ～ 3037 MB/s
Logical Blocks
2,000,409,264
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security (Option); TRIM; L1.2
For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30GB of disk is reserved for
system recovery software.
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Technical Specifications
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 17
SSD 256 GB 2280 M2
PCIe-3x4 SS NVMe TLC
Form Factor
M.2 2280
Capacity
256 GB
NAND Type
TLC
Height
0.09 in (2.3 mm)
Width
0.87 in (22 mm)
Weight
0.02 lb (10 g)
Interface
PCIe NVMe Gen3X4
Maximum Sequential Read
2800 MB/s～ 3500 MB/s
Maximum Sequential Write
1400 MB/s～ 2200 MB/s
Logical Blocks
500,118,192
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security; TRIM; L1.2
For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30GB of disk is reserved for
system recovery software.
SSD 256 GB 2280 PCIe
NVMe Value
Form Factor
M.2 2280
Capacity
256 GB
NAND Type
Value
Height
0.09 in (2.3 mm)
Width
0.87 in (22 mm)
Weight
0.02 lb (10 g)
Interface
PCIe NVMe Gen3
Maximum Sequential Read
2100 MB/s ～ 2200 MB/s
Maximum Sequential Write
900 MB/s ～ 1400 MB/s
Logical Blocks
500,118,192
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security (optional); TRIM; L1.2
For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30GB of disk is reserved for
system recovery software.
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Technical Specifications
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 18
SSD 256 GB 2280 PCIe-3x2x2
NVMe+SSD 16 GB 3D Xpoint
Form Factor
M.2 2280
Capacity
256 GB
NAND Type
QLC + 3D XPoint
Height
0.09 in (2.3 mm)
Width
0.87 in (22 mm)
Weight
0.02 lb (10 g)
Interface
PCIe NVMe Gen3X2X2
Maximum Sequential Read
Up To 1450 MB/s
Maximum Sequential Write
Up To 500 MB/s
Logical Blocks
500, 118, 192
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security; TRIM; L1.2
For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30GB of disk is reserved for
system recovery software.
SSD 256 GB 2280 PCIe-3x4
NVMe Self Encrypted OPAL2
Three Layer Cell
Form Factor
M.2 2280
Capacity
256 GB
NAND Type
TLC
Height
0.09 in (2.3 mm)
Width
0.87 in (22 mm)
Weight
0.02 lb (10 g)
Interface
PCIe NVMe Gen3X4
Maximum Sequential Read
2800 MB/s ～ 3500 MB/s
Maximum Sequential Write
1663 MB/s ～ 2200 MB/s
Logical Blocks
500, 118, 192
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security (Option); TCG Opal 2.0; TRIM; L1.2
For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30GB of disk is reserved for
system recovery software.
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Technical Specifications
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 19
SSD 512 GB 2280 M2
PCIe-3x4 SS NVMe TLC
Form Factor
M.2 2280
Capacity
512 GB
NAND Type
TLC
Height
0.09 in (2.3 mm)
Width
0.87 in (22 mm)
Weight
0.02 lb (10 g)
Interface
PCIe NVMe Gen3X4
Maximum Sequential Read
3100 MB/s ～ 3500 MB/s
Maximum Sequential Write
2400 MB/s ～ 2956 MB/s
Logical Blocks
1,000, 215, 215
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security; TRIM; L1.2
For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30GB of disk is reserved for
system recovery software.
SSD 512 GB 2280 PCIe NVMe
Value
Form Factor
M.2 2280
Capacity
512 GB
NAND Type
Value
Height
0.09 in (2.3 mm)
Width
0.87 in (22 mm)
Weight
0.02 lb (10 g)
Interface
PCIe NVMe Gen3
Maximum Sequential Read
2200 MB/s ～ 2300 MB/s
Maximum Sequential Write
1000 MB/s ～ 1600 MB/s
Logical Blocks
1,000, 215, 215
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security (optional); TRIM; L1.2
For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30GB of disk is reserved for
system recovery software.
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Technical Specifications
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 20
SSD 512 GB 2280 PCIe-3x2x2
NVMe+SSD 32 GB 3D Xpoint
Form Factor
M.2 2280
Capacity
512 GB
NAND Type
QLC + 3D XPoint
Height
0.09 in (2.3 mm)
Width
0.87 in (22 mm)
Weight
0.02 lb (10 g)
Interface
PCIe NVMe Gen3X2X2
Maximum Sequential Read
Up To 2400 MB/s
Maximum Sequential Write
Up to 1300 MB/s
Logical Blocks
1,000, 215, 215
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security, TRIM; L1.2
For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30GB of disk is reserved for
system recovery software.
SSD 512 GB 2280 PCIe-3x4
NVMe Self Encrypted OPAL2
Three Layer
Form Factor
M.2 2280
Capacity
512 GB
NAND Type
TLC
Height
0.09 in (2.3 mm)
Width
0.87 in (22 mm)
Weight
0.02 lb (10 g)
Interface
PCIe NVMe Gen3X4
Maximum Sequential Read
3100 ~ 3500 MB/s
Maximum Sequential Write
2400 ~ 2956 MB/s
Logical Blocks
1,000, 215, 215
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security (Option); TCG Opal 2.0; TRIM; L1.2
For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30GB of disk is reserved for
system recovery software.
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Technical Specifications
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 21
NETWORKING/COMMUNICATIONS
Intel® Wi-Fi 61 AX201 and
Bluetooth® 5.0 802.11ax
(2 x 2), non-vPro,
supporting gigabit file
transfer speeds non-vPro
Wireless LAN Standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
IEEE 802.11ax
IEEE 802.11d
IEEE 802.11e
IEEE 802.11h
IEEE 802.11i
IEEE 802.11k
IEEE 802.11r
IEEE 802.11v
Interoperability
Wi-Fi CERTIFIED™
Frequency Band
•802.11b/g/n/ax
2.402 – 2.482 GHz
•802.11a/n/ac/ax
4.9 – 4.95 GHz (Japan)
5.15 – 5.25 GHz
5.25 – 5.35 GHz
5.47 – 5.725 GHz
5.825 – 5.850 GHz
Data Rates
•802.11b: 1, 2, 5.5, 11 Mbps
•802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
•802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
•802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)
•802.11ac: MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz, 80MHz &
160MHz)
• 802.11ax: MCS0 ~ MCS11, (1SS and 2SS) (20MHz, 40MHz, 80MHz &
160MHz)
Modulation
Direct Sequence Spread Spectrum
OFDM, BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
Security
3
•IEEE compliant 64 / 128 bit WEP encryption for a/b/g mode only
•AES-CCMP: 128 bit in hardware
•802.1x authentication
•WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
•WPA2 certification
•WPA3 certification
•IEEE 802.11i
•WAPI
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Technical Specifications
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 22
Network Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
Output Power2
• 802.11b: +18.5dBm minimum
• 802.11g: +17.5dBm minimum
• 802.11a: +18.5dBm minimum
• 802.11n HT20(2.4GHz): +15.5dBm minimum
• 802.11n HT40(2.4GHz): +14.5dBm minimum
• 802.11n HT20(5GHz): +15.5dBm minimum
• 802.11n HT40(5GHz): +14.5dBm minimum
• 802.11ac VHT80(5GHz): +11.5dBm minimum
• 802.11ac VHT160(5GHz): +11.5dBm minimum
• 802.11ax HT40(2.4GHz): +10dBm minimum
• 802.11ax VHT160(5GHz): +10dBm minimum
Power Consumption
•Transmit mode: 2.0 W
•Receive mode: 1.6 W
•Idle mode (PSP) 180 mW (WLAN Associated)
•Idle mode: 50 mW (WLAN unassociated)
•Connected Standby: 10 mW
•Radio disabled: 8 mW
Power Management
ACPI and PCI Express compliant power management
802.11 compliant power saving mode
Receiver Sensitivity4
•802.11b, 1Mbps: -93.5dBm maximum
•802.11b, 11Mbps: -84dBm maximum
•802.11a/g, 6Mbps: -86dBm maximum
•802.11a/g, 54Mbps: -72dBm maximum
•802.11n, MCS07: -67dBm maximum
•802.11n, MCS15: -64dBm maximum
•802.11ac, MCS0: -84dBm maximum
•802.11ac, MCS9: -59dBm maximum
•802.11ax, MCS11(HT40): -59dBm maximum
•802.11ax, MCS11(VHT160): -58.5dBm maximum
Antenna type
High efficiency antenna with spatial diversity, mounted in the display
enclosure
Two embedded dual band 2.4/5 GHz antennas are provided to the card to
support WLAN MIMO communications and Bluetooth communications
Form Factor
PCI-Express M.2 MiniCard with CNVi Interface
Dimensions
Type 2230: 2.3 x 22.0 x 30.0 mm
Type 1216: 1.67 x 12.0 x 16.0 mm
Weight
Type 2230: 2.8 g
Type 126: 1.3 g
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Technical Specifications
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 23
Operating Voltage
3.3 v +/- 9%
Temperature
Operating: 14° to 158° F (–10° to 70° C)
Non-operating: –40° to 176° F (–40° to 80° C)
Humidity
Operating: 10% to 90% (non-condensing)
Non-operating: 5% to 95% (non-condensing)
Altitude
Operating: 0 to 10,000 ft (3,048 m)
Non-operating: 0 to 50,000 ft (15,240 m)
LED Activity
LED Amber – Radio OFF
LED OFF – Radio ON
HP Integrated Module with Bluetooth 4.0/4.1/4.2/5.0/5.1 Wireless Technology
Bluetooth Specification
4.0/4.1/4.2/5.0/5.1 Compliant
Frequency Band
2402 to 2480 MHz
Number of Available
Channels
Legacy: 0~79 (1 MHz/CH)
BLE: 0~39 (2 MHz/CH)
Signaling Data Rate
Legacy: 3 Mbps signaling data rate 2.17 Mbps
BLE: 1 Mbps signaling data rate 0.2 Mbps
1. Actual throughput may vary.
Legacy: Synchronous Connection Oriented links, 3, 64 kbps, voice
channels
Legacy: Asynchronous Connection Less links 2178.1 kbps/177.1 kbps
asymmetric (3-DH5) or 864 kbps symmetric (3-EV5)
Transmit Power
The Bluetooth® component shall operate as a Class II Bluetooth device
with a maximum transmit power of + 9.5 dBm for BR and EDR.
1. Wireless access point and internet service required and sold separately. Availability of public wireless access points limited. WiFi 6 is backwards compatible with prior 802.11 specs. The specifications for Wi-Fi 6 (802.11ax) are draft and are not final. If the
final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other
802.11ax devices. Only available in countries where 802.11ax is supported.
2. The FCC has declared as of September 1, 2014 products that utilize passive scanning on channel 12/13 and are capable of
transmitting must fully comply with requirements of 15.247 or otherwise disable those channels.
3. Check latest software/driver release for updates on supported security features.
4. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet error rate of 10%
for802.11a/g (OFDM modulation).
Intel® Wi-Fi 6 AX201 and
Bluetooth® 5.0 802.11ax
(2 x 2) vPro, supporting
gigabit file transfer
speeds vPro
Wireless LAN Standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
IEEE 802.11ax
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Technical Specifications
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 24
IEEE 802.11d
IEEE 802.11e
IEEE 802.11h
IEEE 802.11i
IEEE 802.11k
IEEE 802.11r
IEEE 802.11v
Interoperability
Wi-Fi CERTIFIED™
Frequency Band
•802.11b/g/n/ax
2.402 – 2.482 GHz
•802.11a/n/ac/ax
4.9 – 4.95 GHz (Japan)
5.15 – 5.25 GHz
5.25 – 5.35 GHz
5.47 – 5.725 GHz
5.825 – 5.850 GHz
Data Rates
•802.11b: 1, 2, 5.5, 11 Mbps
•802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
•802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
•802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)
•802.11ac: MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz, 80MHz &
160MHz)
• 802.11ax: MCS0 ~ MCS11, (1SS and 2SS) (20MHz, 40MHz, 80MHz &
160MHz)
Modulation
Direct Sequence Spread Spectrum
OFDM, BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
Security
3
•IEEE compliant 64 / 128 bit WEP encryption for a/b/g mode only
•AES-CCMP: 128 bit in hardware
•802.1x authentication
•WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
•WPA2 certification
•WPA3 certification
•IEEE 802.11i
•WAPI
Network Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
Output Power2
• 802.11b: +18.5dBm minimum
• 802.11g: +17.5dBm minimum
• 802.11a: +18.5dBm minimum
• 802.11n HT20(2.4GHz): +15.5dBm minimum
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Technical Specifications
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 25
• 802.11n HT40(2.4GHz): +14.5dBm minimum
• 802.11n HT20(5GHz): +15.5dBm minimum
• 802.11n HT40(5GHz): +14.5dBm minimum
• 802.11ac VHT80(5GHz): +11.5dBm minimum
• 802.11ac VHT160(5GHz): +11.5dBm minimum
• 802.11ax HT40(2.4GHz): +10dBm minimum
• 802.11ax VHT160(5GHz): +10dBm minimum
Power Consumption
•Transmit mode: 2.0 W
•Receive mode: 1.6 W
•Idle mode (PSP) 180 mW (WLAN Associated)
•Idle mode: 50 mW (WLAN unassociated)
•Connected Standby: 10 mW
•Radio disabled: 8 mW
Power Management
ACPI and PCI Express compliant power management
802.11 compliant power saving mode
Receiver Sensitivity4
•802.11b, 1Mbps: -93.5dBm maximum
•802.11b, 11Mbps: -84dBm maximum
•802.11a/g, 6Mbps: -86dBm maximum
•802.11a/g, 54Mbps: -72dBm maximum
•802.11n, MCS07: -67dBm maximum
•802.11n, MCS15: -64dBm maximum
•802.11ac, MCS0: -84dBm maximum
•802.11ac, MCS9: -59dBm maximum
•802.11ax, MCS11(HT40): -59dBm maximum
•802.11ax, MCS11(VHT160): -58.5dBm maximum
Antenna type
High efficiency antenna with spatial diversity, mounted in the display
enclosure
Two embedded dual band 2.4/5 GHz antennas are provided to the card to
support WLAN MIMO communications and Bluetooth communications
Form Factor
PCI-Express M.2 MiniCard with CNVi Interface
Dimensions
Type 2230: 2.3 x 22.0 x 30.0 mm
Type 1216: 1.67 x 12.0 x 16.0 mm
Weight
Type 2230: 2.8 g
Type 126: 1.3 g
Operating Voltage
3.3 v +/- 9%
Temperature
Operating: 14° to 158° F (–10° to 70° C)
Non-operating: –40° to 176° F (–40° to 80° C)
Humidity
Operating: 10% to 90% (non-condensing)
Non-operating: 5% to 95% (non-condensing)
Altitude
Operating: 0 to 10,000 ft (3,048 m)
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Technical Specifications
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 26
Non-operating: 0 to 50,000 ft (15,240 m)
LED Activity
LED Amber – Radio OFF
LED White – Radio ON
HP Integrated Module with Bluetooth 4.0/4.1/4.2/5.0/5.1 Wireless Technology
Bluetooth Specification
4.0/4.1/4.2/5.0/5.1 Compliant
Frequency Band
2402 to 2480 MHz
Number of Available
Channels
Legacy: 0~79 (1 MHz/CH)
BLE: 0~39 (2 MHz/CH)
Signaling Data Rate
Legacy: 3 Mbps signaling data rate 2.17 Mbps
BLE: 1 Mbps signaling data rate 0.2 Mbps
1. Actual throughput may vary.
Legacy: Synchronous Connection Oriented links, 3, 64 kbps, voice
channels
Legacy: Asynchronous Connection Less links 2178.1 kbps/177.1 kbps
asymmetric (3-DH5) or 864 kbps symmetric (3-EV5)
Transmit Power
The Bluetooth component shall operate as a Class II Bluetooth device with
a maximum transmit power of + 9.5 dBm for BR and EDR.
1. Wireless access point and internet service required and sold separately. Availability of public wireless access points limited. WiFi 6 is backwards compatible with prior 802.11 specs. The specifications for Wi-Fi 6 (802.11ax) are draft and are not final. If the
final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other
802.11ax devices. Only available in countries where 802.11ax is supported.
2. The FCC has declared as of September 1, 2014 products that utilize passive scanning on channel 12/13 and are capable of
transmitting must fully comply with requirements of 15.247 or otherwise disable those channels.
3. Check latest software/driver release for updates on supported security features.
4. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet error rate of 10% for
802.11a/g (OFDM modulation).
Intel® XMM™ 7360 LTEAdvanced CAT91
Technology/Operating
bands
FDD LTE: 2100 (Band 1), 1900 (Band 2), 1800 (Band 3),
1700/2100 (Band 4), 850 (Band 5), 2600 (Band 7), 900 (Band 8), 1400
(Band 11), 700 (Band 12 lower), 700 (Band 13 upper), 700 (Band 17 lower),
850 (Band 18 lower), 850 (Band 19 upper), 800 (Band 20), 1400 (Band 21),
850 (Band 26), 700 (Band 28), 700 (Band 29 RX only), 2300 (Band 30),
1700/2100 (Band 66).
TDD LTE: 2600 (Band 38), 1900 (Band 39), 2400 (Band 40), 2500 (Band
41).
HSPA+: 2100 (Band 1), 1900 (Band 2), 1700/2100 (Band 4),
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Technical Specifications
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 27
850 (Band 5), 900 (Band 8) MHz
Wireless protocol
standards
3GPP Release 11 LTE Specification CAT.9, DL 60MHz BW throughput up to
450Mbps; UL 20MHz throughput up to 50Mbps
WCDMA R99, 3GPP Release 5, 6, 7 and 8 UMTS Specification
GPS
Standalone, A-GPS (MS-A, MS-B)
GPS bands
1575.42 MHz ± 1.023 MHz, GLONASS 1596-1607MHz, Beidou 1561.098
MHz
Maximum data rates
LTE: 450 Mbps (Download), 50 Mbps (Upload)
DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload)
HSPA+: 21Mbps (Download), 5.76 Mbps (Upload)
Maximum output power
LTE: 23 dBm
HSPA+: 23.5 dBm
Maximum power
consumption
LTE: 1,200 mA (peak); 900 mA (average)
HSPA+: 1,100 mA (peak); 800 mA (average)
Form Factor
M.2, 3042-S3 Key B
Weight
5.8 g
Dimensions
(Length x Width x
Thickness)
42 x 30 x 2.3 mm
Mobile Broadband is an optional feature. Connection requires wireless data service contract, network support, and is not available
in all areas. Contact service provider to determine the coverage area and availability. Connection speeds will vary due to location,
environment, network conditions, and other factors. 4G LTE not available on all products or in all countries.
Qualcomm® Snapdragon™
X55 5G Modem
Technology/Operating
bands
WCDMA/HSDPA/HSUPA/HSPA+ operating bands:
Band 1: 1920 to 1980 MHz (UL), 2110 to 2170 MHz (DL)
Band 2: 1850 to 1910 MHz (UL), 1930 to 1990 MHz (DL)
Band 4: 1710 to 1755 MHz (UL), 2110 to 2155 MHz (DL)
Band 5: 824 to 849 MHz (UL), 869 to 894 MHz (DL)
Band 6: 830 to 840 MHz (UL), 875 to 885 MHz (DL)
Band 8: 880 to 915 MHz (UL), 925 to 960 MHz (DL)
Band 9: 1750 to 1785 MHz (UL), 1845to 1880 MHz (DL)
Band 19: 830 to 845 MHz (UL), 875 to 890 MHz (DL)
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Technical Specifications
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 28
LTE FDD/TDD operating bands:
Band 1: 1920 to 1980 MHz (UL), 2110 to 2170 MHz (DL)
Band 2: 1850 to 1910 MHz (UL), 1930 to 1990 MHz (DL)
Band 3: 1710 to 1785 MHz (UL), 1805 to 1880 MHz (DL)
Band 4: 1710 to 1755 MHz (UL), 2110 to 2155 MHz (DL)
Band 5: 824 to 849 MHz (UL), 869 to 894 MHz (DL)
Band 7: 2500 to 2570 MHz (UL), 2620 to 2690 MHz (DL)
Band 8: 880 to 915 MHz (UL), 925 to 960 MHz (DL)
Band 12: 699 to 716 MHz (UL), 729 to 746 MHz (DL)
Band 13: 777 to 787 MHz (UL), 746 to 756 MHz (DL)
Band 14: 788 to 798 MHz (UL), 758 to 768 MHz (DL)
Band 17: 704 to 716 MHz (UL), 734 to 746 MHz (DL)
Band 18: 815 to 830 MHz (UL), 860 to 875 MHz (DL)
Band 19: 830 to 845 MHz (UL), 875 to 890 MHz (DL)
Band 20: 832 to 862 MHz (UL), 791 to 821 MHz (DL)
Band 25: 1850 to 1915 MHz (UL), 1930 to 1995 MHz (DL)
Band 26: 814 to 849 MHz (UL), 859 to 894 MHz (DL)
Band 28: 703 to 748 MHz (UL), 758 to 803 MHz (DL)
Band 29: 717 to 728 MHz (DL)
Band 30: 2305 to 2315 MHz (UL) 2350 to 2360 MHz (DL)
Band 32: 1452 to 1496 MHz (DL)
Band 34: 2010 to 2025 MHz (UL/DL)
Band 38: 2570 to 2620 MHz (UL/DL)
Band 39: 1880 to 1920 MHz (UL/DL)
Band 40: 2300 to 2400 MHz (UL/DL)
Band 41: 2496 to 2690 MHz (UL/DL)
Band 42: 3400 to 3600 MHZ (UL/DL)
Band 46: 5150 to 5925 MHZ (DL)
Band 48: 3550 to 3700 MHZ (UL/DL)
Band 66: 1710 to 1800 MHz (UL), 2110 to 2200 MHz (DL)
Band 71: 663 to 698 MHz (UL), 617 to 652 MHz (DL)
5GNR Sub 6GHZ
n1: 1920 to 1980 MHz (UL), 2110 to 2170 MHz (DL)
n2: 1850 to 1910 MHz (UL), 1930 to 1990 MHz (DL)
n3: 1710 to 1785 MHz (UL), 1805 to 1880 MHz (DL)
n5: 824 to 849 MHz (UL), 869 to 894 MHz (DL)
n7: 2500 to 2570 MHz (UL), 2620 to 2690 MHz (DL)
n8: 880 to 915 MHz (UL), 925 to 960 MHz (DL)
n12: 699 to 716 MHz (UL), 729 to 746 MHz (DL)
n20: 832 to 862 MHz (UL), 791 to 821 MHz (DL)
n28: 703 to 748 MHz (UL), 758 to 803 MHz (DL)
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Technical Specifications
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 29
n41: 2496 to 2690 MHz (UL/DL)
n66: 1710 to 1800 MHz (UL), 2110 to 2200 MHz (DL)
n71: 663 to 698 MHz (UL), 617 to 652 MHz (DL)
n77: 3300 to 4200 MHz (UL/DL)
n78: 3300 to 3800 MHz (UL/DL)
n79: 4400 to 5000 MHz (UL/DL)
Wireless protocol
standards
5GNR Air Interface
3GPP Rel15 5G NR sub-6
LTE Rel14
20 layers and 2 Gbps downlink (DL) throughput – 4 × 4 MIMO across 5x CA
200 Mbps uplink (UL) throughput – 40 MHz ULCA and 256 QAM
WCDMA
R99, 3GPP Release 5, 6, 7 and 8 UMTS Specification
GPS
Standalone, A-GPS (MS-A, MS-B)
GPS bands
GPS: L1 (1575.42MHz); L5 (1176MHz)
GLONASS: L1 (1602MHz)
BeidouB1(1561.098MHz)
Galileo E1 (1575.42); E5a (1176MHz)
Maximum data rates
5G sub 6G: TBD
LTE: ue-CategoryDL 20, (DL: 2 Gbps)
ue-CategoryUL 13, (UL: 150Mbps)
DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload)
HSPA+: 21Mbps (Download), 5.76 Mbps (Upload)
Maximum output power
LTE: 23 dBm in all band except B41
LTE B41 HPUE = 26dBm
HSPA+: 23.5 dBm
Maximum power
consumption
5G Sub 6: TBD
LTE: 1,300 mA (peak); 1100 mA (average)
LTE HPUE: TBD
HSPA+: 1,100 mA (peak); 800 mA (average)
Form Factor
M.2, 3042-S3 Key B
Weight
8 g
Dimensions
(Length x Width x
Thickness)
42 mm x 30 mm x 2.6 mm
Built-in Tile module
Bluetooth Specification
Bluetooth Core Specification v5.0
Bluetooth® 5, IEEE 802.15.4-2006
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Technical Specifications
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 30
Frequency Band
2400 to 2483.5 MHz
Number of Available
Channels
TBD
Data Rate
BLE: 1 Mbps data rate
Transmit Power
Max TX power: 8dBm
Power Consumption
<0.1mW at idle mode (ready to be found)
Bluetooth Profiles
Supported
TBD
Form Factor
PCI-Express M.2 MiniCard
Dimensions
Type 3042: 30 x 42 x 2.3 mm
Weight
4.0 g
Operating Voltage
DC 3.135V～3.6V, Typical 3.3V
Temperature
Operating: -10°C ～ +55°C
Non-operating: –40°C ～ +85°C
Near Field
Communications
Controller (optional)
Dimensions (L x W x H)
Module 25 mm by 10 mm by 2.0 mm
Chipset
NPC100
System interface
I2C
NFC RF standards
ISO/IEC 14443 A
ISO/IEC 14443 B
ISO/IEC 15693
ISO/IEC 18092
ECMA-340 NFCIP-1 Target and Initiator
ECMA-320 NFCIP-2
NFC Forum Support
Tag Type 1, Type 2, Type3 and Type 4, NFCIP-1 and NFCIP-2
Reader (PCD-VCD)
Mode (1)
ISO/IEC 14443 A
ISO/IEC 14443 B
ISO/IEC 15693
MIFARE 1K
MIFARE 4K
MIFARE DESFire
FeliCa
Jewel and Topaz cards
Card Emulation (PICC-VICC)
Mode (1)
ISO/IEC 14443 A
ISO/IEC 14443 B and B’
MIFARE
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Technical Specifications
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 31
FeliCa
Frequency
13.56 MHz
NFC Modes Supported
Reader/Writer, Peer-to-Peer
Raw RF Data Rates
106, 212, 424, 848 kbps
Operating temperature
0°C to 70°C
Storage temperature
-20°C to 125°C
Humidity
10-90% operating
5-95% non-operating
Supply Operating voltage
4.35 to 5.25 Volts
I/O Voltage
1.8V or 3.3V
Mode
Power Consumption, Typical
Polling
7.3 mA
Detected Test Tag Type 1
Total 283.8 mA
Net Module 236.8 mA
Detected Test Tag Type 2
Total 288.8 mA
Net Module 241.8 mA
Detected Test Tag Type 3
Total 287.7 mA
Net Module 240.7 mA
Antenna
Antenna connector, 0.5mm pitch, 7 connector FPC. Antenna matching is
external to module.
POWER
AC Adapter 65 Watt nPFC
Slim USB type C® Straight
1.8 m
Dimensions
88.0 x 53.5 x 21.0 mm
Weight
Unit: 220 g +/- 10 g
Not including power cord. Power cord varies by country
Input
Input Efficiency
81.5% min at 115 Vac/ 230Vac @ 5V/3A
86.7% min at 115 Vac/ 230Vac @ 9V/3A
88% min at 115 Vac/ 230Vac @ 12V/5A
89% min at 115 Vac/ 230Vac @ 15V/4.33A
89% min at 115 Vac/ 230Vac @ 20V/3.25A
Input frequency range
47 ~ 63 Hz
Input AC current
Max. 1.6 A at 90 VAC
Output
Output power
65 W
DC output
5V / 9V / 12V / 15V / 20V
Hold-up time
5ms at 115 Vac input
Output current limit
< 8.0 A
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Technical Specifications
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 32
Connector
USB Type-C®
Environmental Design
Operating temperature
32° to 95° F (0° to 35° C)
Non-operating (storage)
temperature
-4° to 185° F (-20° to 85° C)
Altitude
0 to 16,400 ft (0 to 5000m)
Humidity
5% to 95%
Storage Humidity
5% to 95%
EMI and Safety
Certifications
CE Mark- full compliance with LVD and EMC directives
Worldwide safety standards- IEC950, EN60950, UL1950, Class 1, SELV;
Agency approvals- C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class
B, CISPR22 Class B, CCC, NOM-1 NYCE
MTBF- over 200,000 hours at 25°C ambient condition.
AC Adapter 65 Watt nPFC
Standard USB type C®
Straight 1.8 m
Dimensions
90.0 x 51 x 28.5 mm
Weight
Unit: 250 g +/- 10 g
Not including power cord. Power cord varies by country
Input
Input Efficiency
81.5% min at 115 Vac/ 230Vac @ 5V/3A
86.7% min at 115 Vac/ 230Vac @ 9V/3A
88% min at 115 Vac/ 230Vac @ 10V/5A
88% min at 115 Vac/ 230Vac @ 12V/5A
89% min at 115 Vac/ 230Vac @ 15V/4.33A
89% min at 115 Vac/ 230Vac @ 20V/3.25A
Input frequency range
47 ~ 63 Hz
Input AC current
1.6 A at 90 VAC and maximum load
Output
Output power
65 W
DC output
5V/9V/12V/15V/20V
Hold-up time
5ms at 115 Vac input
Output current limit
8.0 A Max.
Connector
USB Type-C®
Environmental Design
Operating temperature
32° to 95° F (0° to 35° C)
Non-operating (storage)
temperature
-4° to 185° F (-20° to 85° C)
Altitude
0 to 16,400 ft (0 to 5000m)
Humidity
20% to 95%
Storage Humidity
10% to 95%
EMI and Safety
Certifications
CE Mark- full compliance with LVD and EMC directives
Worldwide safety standards -IEC60950, EN60950, UL60950, UL62368,
Class1, SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022
Class B, FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE
MTBF- over 200,000 hours at 25°C ambient condition.
Battery HK 4 Cell WHr 54
Long Life -PL Fast Charge
Dimensions (H x W x L)
5.85 x 89.7 x 268.2 mm
Weight
221g ± 10g
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Technical Specifications
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 33
Cells/Type
4-cell; Polymer
Energy
Voltage
7.7V
Amp-hour capacity
7.013Ah
Watt-hour capacity
54Wh
Temperature
Operating (Charging)
0˚ to 45˚ C
Operating (Discharging)
-10˚ to 60˚ C
Fuel Gauge LED
No
COUNTRY OF ORIGIN
China
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Summary of Changes
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 34
Type
Description
Part #
Cases
HP Executive 14.1 Slim Topload
6KD04AA
HP Executive 15.6 Top Load
6KD06AA
HP Executive 15.6 Backpack
6KD07AA
HP Recycle Series Top Load
5KN29AA
Docking
HP Thunderbolt Dock 120W G2 (Hook)
2UK37AA
HP Thunderbolt Dock w/Audio Module
3YE87AA
HP Audio Module (Hook base dock required)
3AQ21AA
HP Thunderbolt Dock 120W Cable
3XB94AA
HP Thunderbolt Dock Combo Cable
3XB96AA
HP USB-C® Mini Dock
1PM64AA
HP USB-C® Dock G5
5TW10AA
HP USB-C®/A Universal Dock G2
5TW13AA
HP EliteDisplay E223d Docking monitor
5VT82AA
HP EliteDisplay E273d Docking monitor
5WN63AA
Input/Output
HP Wireless (Link-5) Keyboard
T6U20AA
HP USB Collaboration Keyboard
Z9N38AA
HP Wireless Collaboration Keyboard
Z9N39AA
HP USB Essential Keyboard and Mouse
H6L29AA
HP Slim Wireless Keyboard and Mouse
T6L04AA
HP Comfort Grip Wireless Mouse
H2L63AA
HP X4000b Bluetooth Mouse
H3T50AA
HP 3-button USB Laser Mouse
H4B81AA
HP Ultra Mobile Wireless Mouse
H6F25AA
HP USB Travel Mouse
G1K28AA
HP Wireless Premium Mouse
1JR31AA
HP USB Premium Mouse
1JR32AA
HP Essential USB Mouse
2TX37AA
HP Elite Presenter Mouse
2CE30AA
HP Bluetooth Travel Mouse
6SP30AA
HP UC Speaker Phone
4VW02AA
HP Stereo USB Headset
T1A67AA
HP UC Wireless Mono Headset
W3K08AA
HP UC Wireless Duo Headset
W3K09AA
HP Rechargeable Active Pen G3
6SG43AA
HP USB-C® to USB-A Hub
Z6A00AA
HP USB-C® to DP
N9K78AA
HP USB-C® to VGA
N9K76AA
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Summary of Changes
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 35
HP USB-C® to RJ45 Adapter
V7W66AA
HP HDMI to VGA
H4F02AA
HP USB 3.0 to Gigabit Adapter
N7P47AA
HP Elite USB-C® Hub
4WX89AA
HP USB-C® Travel Hub G2
7PJ38AA
HP USB-C® to 4.5mm Adapter
4ST73AA
Power
HP 65W USB-C® Power Adapter
1HE08AA
HP 65W USB-C® Slim Power Adapter
3PN48AA
HP 65W USB-C® Auto Adapter
5TQ76AA
Storage
HP External USB DVDRW Drive
F2B56AA
Security
HP Nano Keyed Cable Lock
1AJ39AA
HP Nano Dual-Head Keyed Cable Lock
1AJ41AA
HP Sure Key Cable Lock
6UW42AA
QuickSpecs
HP EliteBook x360 1030 G7 Notebook PC
Summary of Changes
c06644494 — DA16580 — Worldwide — Version 5— March 8, 2021
Page 36
Date of change:
Version History:
Description of change:
September , 2020
V1 to V2
Added
Battery life.
December 14, 2020
V2 to V3
Updated
OLED disclaimer
January 21, 2021
V3 to V4
Added
WPA3 certification in Security, Networking section
March 8, 2021
V4 to V5
Update
TPM in Software and Security section
V5 to V6
Copyright © 2020 HP Development Company, L.P. The only warranties for HP products are set forth in the express limited
warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP
shall not be liable for technical or editorial errors or omissions contained herein.
Intel®, Core®, vPro™ and Optane™ are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United
States and other countries. Bluetooth is a trademark owned by its proprietor and used by HP Inc. under license. USB Type-C® and
USB-C® are registered trademarks of USB Implementers Forum. ENERGY STAR® is a registered trademark of the U.S.
Environmental Protection Agency. Microsoft and Windows are either trademarks or registered trademarks of Microsoft
Corporation in the United States and/or other countries.
Loading...
