Honeywell TH6320R User Manual

FocusPRO®TH6320R

Wireless Thermostat Termóstato inalámbrico

Thermostat Sans Fil

Operating Manual

® U.S. Registered Trademark. Patents pending.

Read and save these instructions

Quick Reference Card

Grasp and pull to see basic operating instructions at a glance.

Need Help?

For assistance with this product please visit http://yourhome.honeywell.com

or call Honeywell Customer Care toll-free at 1-800-468-1502

Battery Holder

Press down and pull to remove batteries. Batteries should be replaced once a year (see page 16).

CAUTION: EQUIPMENT DAMAGE HAZARD. To prevent possible compressor damage, do not operate cooling system when outdoor temperature is below 50°F (10°C).

About your new thermostat

Programming at a glance............2

Quick reference to controls ........3

Quick reference to display..........4

Programming & Operation

Set time and day ........................5

Fan settings (auto/on) ................6

System settings (heat/cool)..........7

Program schedules ....................8

Program schedule overrides ....10

Auto-changeover (heat/cool) ....12

Remote control..........................13

Display outdoor climate............14

Find lost remote control............14

Special features ........................15

Appendices

Battery replacement..................16

In case of difficulty....................18

Limited warranty........................19

Regulatory information..............60

Contents Español: vea la página 20 • Français : voir la page 40

About your new thermostat

Your new thermostat is pre-programmed and ready to go. All you have to do is set the time and day. Then check the settings below and change if needed:

1 Set time and day (required for proper operation)...............See page 5

2 Select fan setting (Auto/On)....................................................See page 6

3 Select system setting (Heat/Cool) .........................................See page 7

4 Program schedules: Preset to energy-saving levels

while you’re at work or asleep (assumes you wake at 6 am, leave at 8 am, return at 6 pm

and go to bed at 10 pm).........................................................See pages 8-9

ONE-TOUCH TEMP CONTROL: You can override the program schedule at any time, and manually adjust the temperature (see pages 10-11).

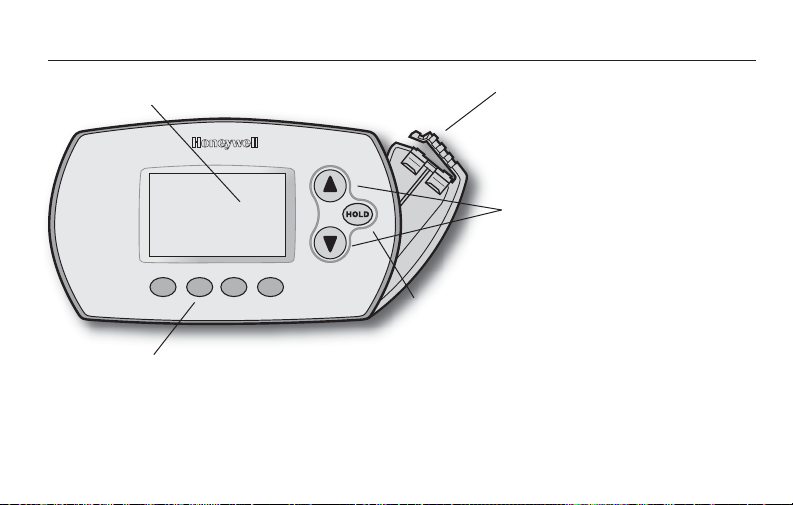

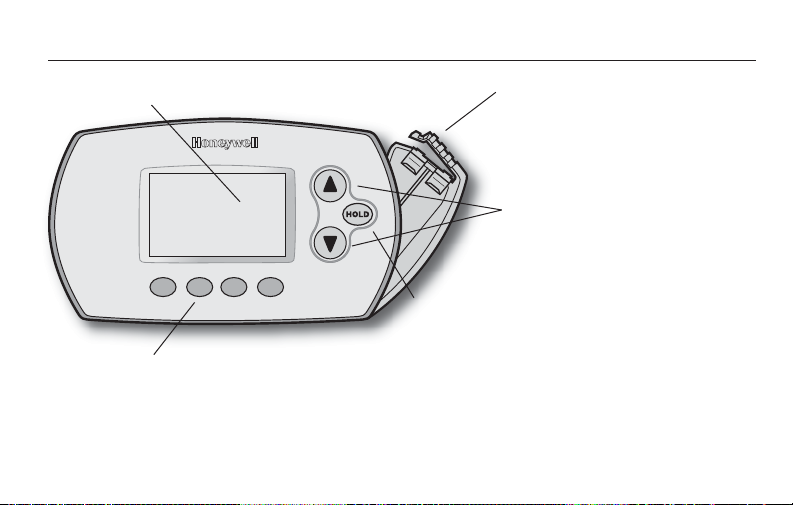

Quick reference to controls

Digital display (see page 4) Battery holder (see page 16)

Temperature buttons

Press to adjust temperature settings (see page 10-11)

Hold button

Press to override programmed temperature control (see page 11)

Function buttons

Press to select the function displayed just above each button. (Functions change depending on the task.)

Quick reference to display screen

System setting

Heat/Cool/Auto/Off/Em Heat (see page 7)

Fan setting

Auto/On (see page 6)

Current program period

Wake/Leave/Return/Sleep (see pages 8-9)

Set Clock/Day/Schedule

(see pages 5 & 9)

Current inside temperature

Recovery

(see page 15)

Low battery warnings

(see pages 16-17)

System status

Heat On/Cool On (If flashing, see p. 15)

Auxiliary heat

(Only for heat pumps with auxiliary heat)

Press to view outdoor climate (if outdoor sensor is installed), or to find a misplaced remote control if installed (see page 14)

Current time/day

(see page 5)

Temperature setting

(see pages 9-11)

Heat OnAux

Indoor Recovery Replace Battery

Heat

Setting

6:30

Set

Clock/Day Schedule

System

Heat

Fan

Auto

Wake

Set the time and day

1 Press

SET CLOCK/DAY/SCHEDULE

, then

press or to set clock.

2 Press

SET DAY

, then press or

to select the day of week.

3 Press

DONE

to save.

Press

SET CLOCK/DAY/SCHEDULE

, then adjust time

4:30

Press

SET DAY

, then select current day

Wed

Done

Set

Day

Set

Schedule

Set

Clock/Day Schedule

System

Heat

Fan

Auto

Note: If the

SET CLOCK/DAY/SCHEDULE

option is not displayed, press

DONE

CANCEL

Note: If the display flashes Set Clock, the thermostat will follow your settings for the weekday “Wake” time period until you reset the time and day.

Select the fan setting

Press

FAN

to select Auto or On.

In “Auto” mode (the most commonly used setting), the fan runs only when the heating or cooling system is on.

If set to “On,” the fan runs continuously.

Set

Clock/Day Schedule

System

Heat

Fan

Auto

Set

Clock/Day Schedule

System

Heat

Fan

Note: Options may vary depending on your heating/ cooling equipment.

Select the system setting

Note: Options may vary

depending on your heating/ cooling equipment.

Press

SYSTEM

to select:

• Heat: Thermostat controls only the heating system.

• Cool: Thermostat controls only the cooling system.

• Off: All systems are off.

• Auto: Thermostat automatically selects heating or cooling depending on the indoor temperature.

• Em Heat (only for heat pumps with auxiliary heat): Thermostat controls Emergency and Auxiliary Heat. Compressor is locked out.

Set

Clock/Day Schedule

System

Heat

Fan

Auto

Set

Clock/Day Schedule

System

Cool

Fan

Auto

EnergyStar®settings for maximum cost savings

This thermostat is pre-set to use EnergyStar®program settings. We recommend these settings, since they can reduce your heating/cooling expenses by as much as 33%. (See next page to adjust times and temperatures of each time period.)

Heat (Mon-Fri) Cool (Mon-Fri) Heat (Sat-Sun) Cool (Sat-Sun)

Wake

(6:00 am)

Leave

(8:00 am)

Return

(6:00 pm)

Sleep

(10:00 pm)

[Or cancel period]

To adjust program schedules

1Press

SET CLOCK/DAY/SCHEDULE

, then

SET

SCHEDULE

2 Press or to set your weekday

Wake time (Mon-Fri), then press

3 Press or to set the temperature

for this time period, then press

4 Set time and temperature for the next

time period (Leave). Repeat steps 2 and 3 for each weekday time period.

5 Press

to set weekend time

periods (Sat-Sun), then press

DONE

save & exit.

Heat

Setting

Set Schedule

6:00

Wake

Mon Tue Wed Thu Fri

Done

Set

Day

Set

Schedule

Done Next

Cancel Period

Note: Make sure the thermostat is set to the

system you want to program (Heat or Cool).

Set

Clock/Day Schedule

System

Heat

Fan

Auto

Program schedule override (temporary)

Press or to immediately adjust the temperature. This will temporarily override the temperature setting for the current time period.

The new temperature will be maintained only until the next programmed time period begins (see page 8).

To cancel the temporary setting at any time, press

CANCEL

Temperature will be maintained until time shown

Press to resume program schedule

Press to temporarily adjust temperature

Indoor

Heat

Setting

6:00

Cancel System

Heat

Hold Until

Fan

Auto

Program schedule override (permanent)

Press

HOLD

to permanently adjust the temperature. This will override the temperature settings for all time periods.

The “Hold” feature turns off the program schedule and allows you to adjust the thermostat manually, as needed.

Whatever temperature you set will be maintained 24 hours a day, until you manually change it, or press

CANCEL

to resume the pro-

grammed schedule.

Press to resume program schedule

Press to permanently adjust temperature

Indoor

Heat

Setting

6:00

Hold

Cancel System

Heat

Fan

Auto

Auto Changeover (heat/cool)

Auto Changeover is a feature used in climates where both air conditioning and heating are often used on the same day. When the system is set to Auto, the thermostat automatically selects heating or cooling depending on the indoor temperature.

Heat and cool settings must be at least 3 degrees apart. The thermostat will automatically adjust settings to maintain this 3-degree separation.

Press until screen displays “Auto”

Note: The Auto system setting may not appear, depending on how your thermostat was installed.

Set

Clock/Day Schedule

System

Auto

Fan

Auto

Remote control

The optional remote control can act as a mobile thermostat, to maintain a comfortable temperature as you move from room to room.

When the system is responding to temperatures measured at the Remote, the thermostat will display Remote has Control.

Press

CANCEL

to restore temperature control to the thermostat (the system will only respond to temperatures measured at the thermostat).

Cancel

Temperature is measured at location of remote control

Reading at Remote

at Thermostat

Remote has Control

Fan

Auto

Note: The thermostat may take up to 15 seconds to respond to commands entered at the remote control. See Remote Control Operating Manual for more information.

Additional features

To display outdoor climate

If you have an outdoor air sensor, press

to display the current outdoor tem-

perature and humidity. Press

DONE

to exit.

To find a lost remote control

If you misplace a remote control, press

, then

FIND REMOTE

. The remote will beep for two minutes to help you locate it. Press anywhere on the display screen to stop the beeping.

Press to display more options

Set

Clock/Day Schedule

System

Heat

Fan

Auto

Outdoor

FindRemote

Done

Outdoor temperature

Outdoor humidity

Press to find a lost remote control

Outdoor Humidity

Special features

Built-in compressor protection: This feature helps prevent damage to the

compressor in your air conditioning or heat pump system. Damage can occur if the compressor is re-started too soon after shutdown. This feature forces the compressor to wait for a few minutes before restarting.

During the wait time, the display will flash the message Cool On (or Heat On if you have a heat pump).

Adaptive Intelligent Recovery: This feature eliminates guesswork when setting your schedule. It allows the thermostat to “learn” how long your furnace and air conditioner take to reach programmed temperature settings, so the temperature is reached at the time you set.

Note: When Adaptive Intelligent Recovery is in effect, the thermostat will display “Recovery”.

Battery replacement (thermostat)

Install fresh batteries when the

REPLACE

BATTERY

warning begins flashing. The warning flashes about two months before the batteries are depleted.

Remove the battery holder and install 2 fresh AA alkaline batteries.

After batteries are installed, the thermostat will automatically restore communication with the wireless network within a few minutes.

Press and pull to remove

Insert fresh AA alkaline batteries, then reinstall battery holder

Note: If batteries are inserted within t2 minutes, the time and day will not have to be reset. All other settings are retained in memory.

Replace outdoor sensor batteries when the

REPLACE BATTERY OUTDOOR

warning begins flashing on the thermostat. The warning flashes about two months before the batteries are depleted.

Remove the sensor from the bracket, remove the cover and install 2 fresh AA lithium batteries.

After batteries are installed, the sensor will automatically restore communication with the wireless network within a few minutes.

Remove cover and install 2 fresh AA lithium batteries

Battery replacement (outdoor air sensor)

Remove sensor from bracket

Heating or cooling system does not respond

• Check circuit breaker and reset if necessary.

• Make sure power switch at heating & cooling system is on.

• Make sure furnace door is closed securely.

• Wait 5 minutes for the system to respond.

In case of difficulty

Screen displays “No Signal”

Thermostat has lost radio contact with the wireless network (usually because of a power outage). To restore power:

• Check circuit breaker and reset if necessary.

• Make sure power switch at heating & cooling system is on.

• Make sure furnace door is closed securely.

After power is restored, the thermostat will automatically restore wireless communication within a few minutes.
