Congratulations on your purchase of a QuickNetwork QND88P/48P Distribution Panel. Your Distribution Panel

seamlessly combines both external services and internal signals to give you complete control over which signals
or services are used in any location of your home or office.

External Services – External Services are those services that originate outside your home. The three most
common services are telephone service, TV service (this may be antenna, cable or Satellite TV) and, in certain
locations, high-speed Internet service.

Internal Signals – Internal Signals are those signals generated inside the home. Examples of Internal Signals
include movies from a DVD player or VCR, pictures from a security camera at the front gate or by the swimming
pool, music from your CD player or radio, or MP3 files from your computer. Another example of Internal signals
is a print command sent from the laptop computer in the kitchen to the computer and printer in the home office.

Your Distribution Panel collects all these types of services and signals and allows you to control where they go.
If you decide to move your home office or add another computer, your Distribution Panel will allow you to quickly
and conveniently reroute the desired services and signals to the new locations. In addition, built in expansion
slots give you peace of mind in knowing that when new services or products become available, you can add
them to your Distribution Panel.

This Users Guide contains information about your Distribution Panel, its benefits, and the ways in which you can
control, change or add to your Distribution Panel.

-2-

Benefits of a Structured Wiring System

If we compare today’s home to those of the previous decade, we see many differences. One of the biggest
changes we find is the amount of electronics, and the types of services that are available. Today’s homes
have satellite dishes, multiple computers, VCR’s, TV’s and stereo equipment along with services like the
Internet that have brought information to us in ways we could not have imagined.

These new products and services bring the need to to manage and control them. For instance, which rooms
in your home or office receive telephone line 1 and which ones receive line 2? Which rooms do you want to
have access to the Internet? What about controlling access to offensive or mature web pages? Which room
will you be able to watch Satellite TV in? If you move your home office, can you reroute the telephone line or
high-speed Internet line connected to your computer, or will you have to call the service provider and wait for
them to schedule a house call?

The benefit of a Structured Wiring System is that it allows you to manage signal distribution in your home
and make changes as your needs change. In addition, installing telephone, data and coax lines in all the
rooms of your home now saves you the time and money of trying to add wiring to your home later.

Components of a Structured Wiring System

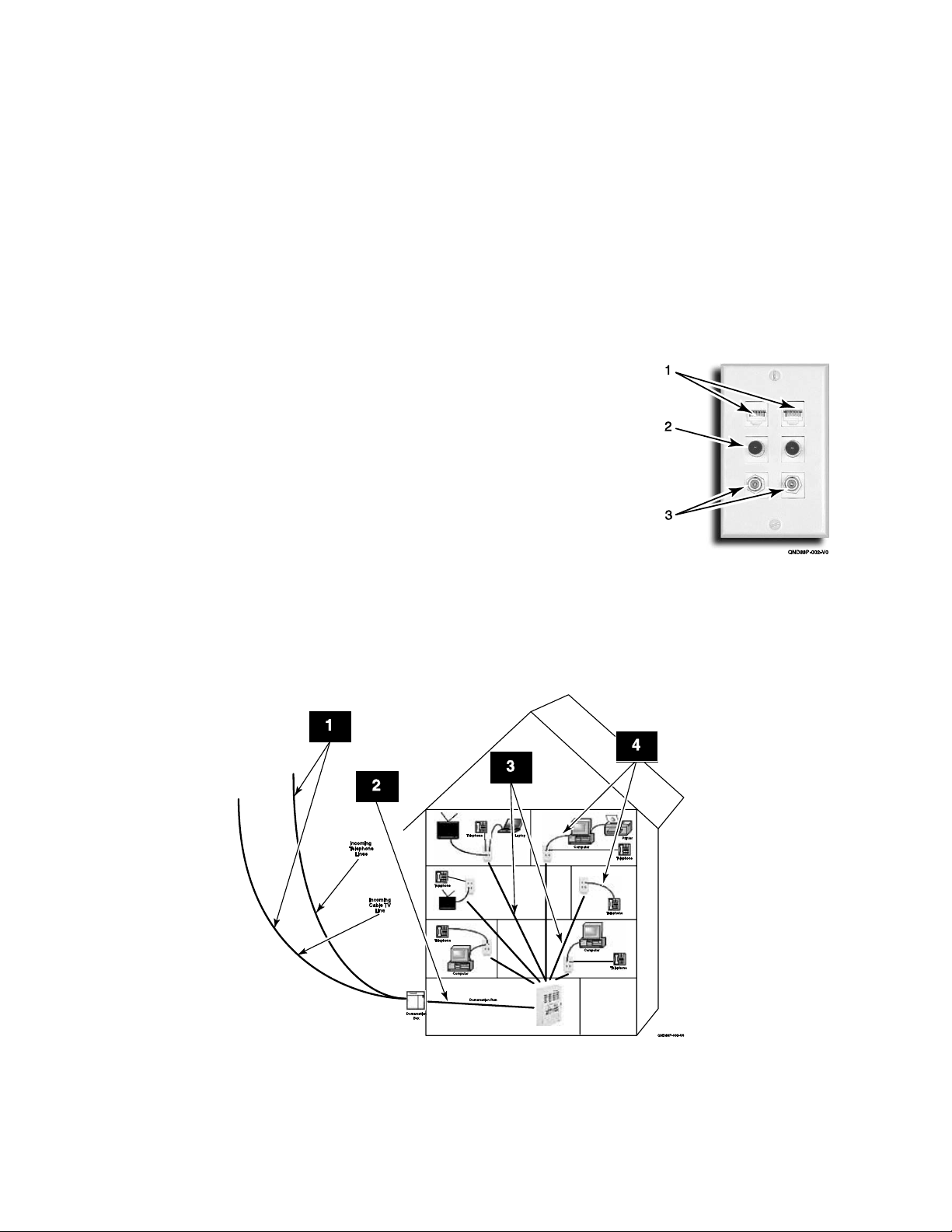

There are four main components in a Structured Wiring System.

• The Distribution Panel

• The Wiring and Multi-Media Cable and Wire

• The Receptacles and Multi-Media Outlets

• System Options

Distribution Panels

The Distribution Panel acts as the “brain” of your Structured Wiring System. It collects all the incoming
services and signals and routes them to the desired locations. The QND88P/48P Distribution panel
provides you with the highest level of control and customization. These panels were designed to allow
you, the homeowner, to make simple changes to your system, such as activating phone and/or TV
outlets in your home, or even disconnecting or moving the signals around in the home. The design also
allows your installer to make quick and easy upgrades to your system.
The features that make up the system will vary from home to home depending on the services used. A
QND88P/48P Distribution Panel includes the following features and functions.

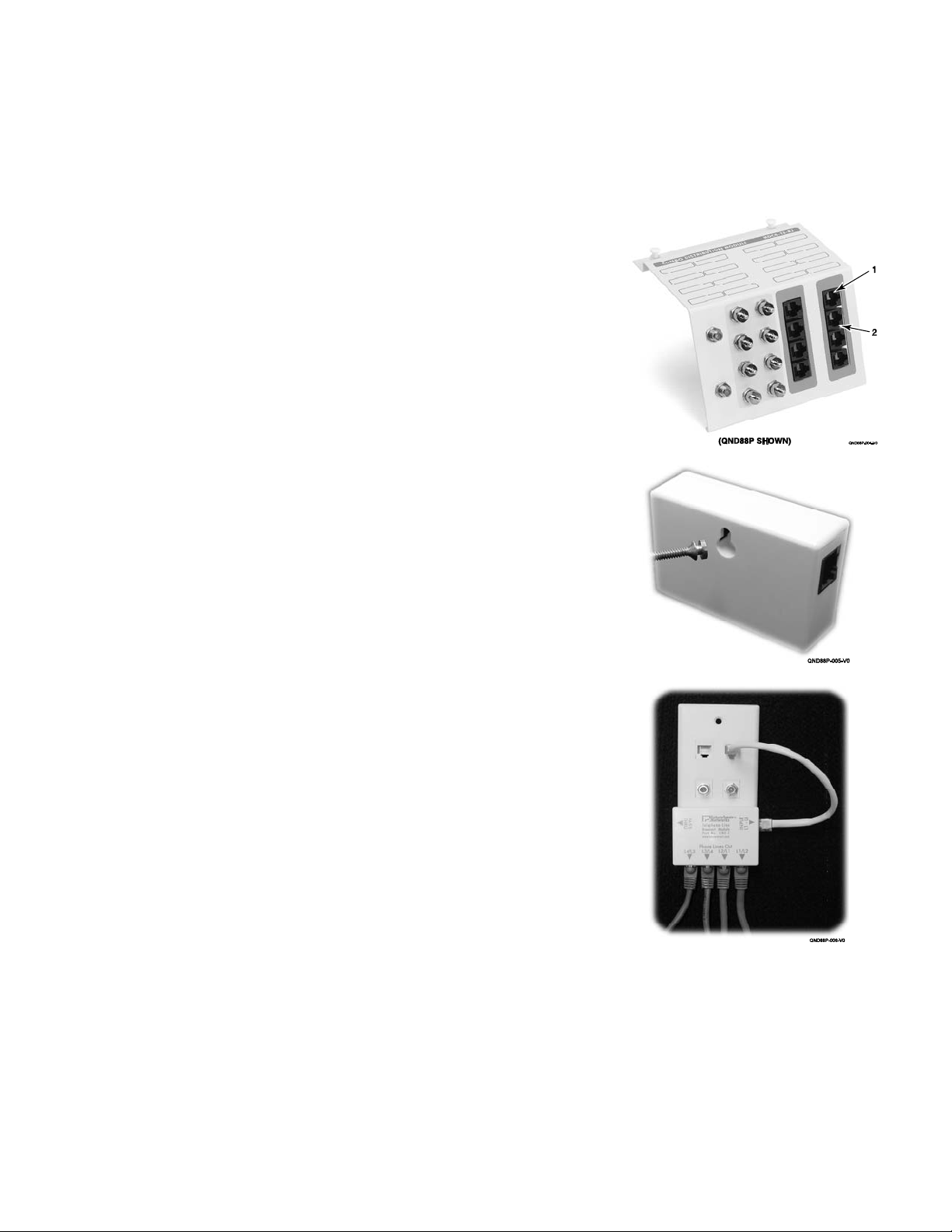

Telephone and Coax Distribution Module

The Telephone and Coax Module is used to distribute TV,
Cable TV and Satellite TV signals to multiple locations
throughout the house. As well as 4 incoming telephone lines
to 8 locations. In addition, the Telephone and Coax
Distribution Module can distribute modulated signals from
VCR’s, DVD’s, cameras, and even computers to multiple
locations throughout the house.

Expansion Bays

Expansion Bays provide room for adding additional
components to your Distribution Panel, either at the time of
installation, or at a later date. Optional Modules include high­speed Internet access, computer networking, video
distribution, satellite TV, home automation, distributed home
audio, etc.

-3-
