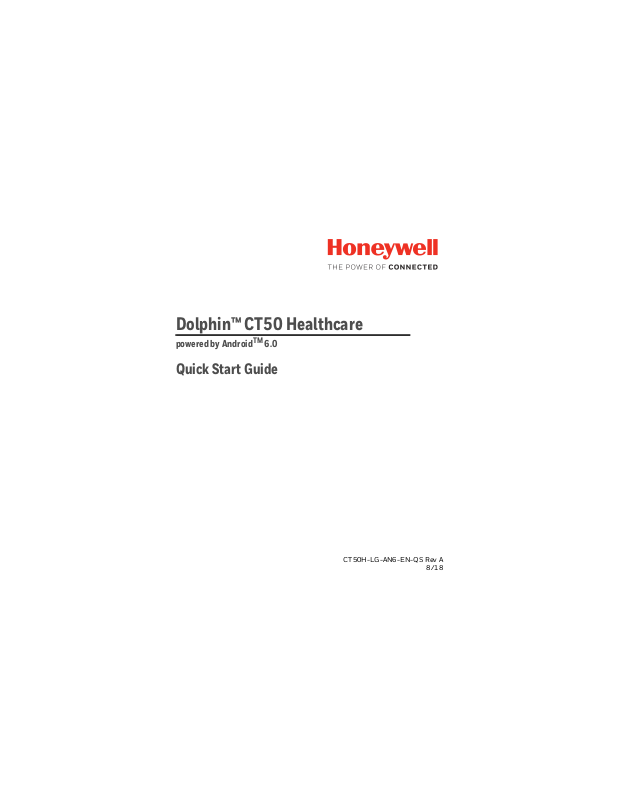

Dolphin™ CT50 Healthcare

powered by AndroidTM 6.0

Quick Start Guide

CT50H-LG-AN6-EN-QS Rev A

8/18

Out of the Box

Make sure that your shipping box contains these items:

• Dolphin CT50 Healthcare mobile computer
(Model CT50L0N)

• Rechargeable 3.8 VDC Li-ion battery

• Product Documentation

If you ordered accessories for your mobile computer, verify that
they are also included with the order. Be sure to keep the original
packaging in case you need to return the mobile computer for
service.

Memory Card Specifications

Honeywell recommends the use of Single Level Cell (SLC)
industrial grade microSD™ or microSDHC™ memory cards with
Dolphin mobile computers for maximum performance and
durability. Contact a Honeywell sales representative for
additional information on qualified memory card options.

1

Accessories for the CT50h

These accessories are available for the computer:

• Ethernet HomeBase (Model CT50-EB)

• ChargeBase (Model CT50-CB)

• NetBase (Model CT50-NB)

• Quad Battery Charger (Model CT50-QBC)

• USB Adapter (Model CT50-USB)

2

Front Features

Volume buttons

Battery status LED

Good read LED

Speaker

Navigation panel

Microphone

Touch panel

Scan buttons

Power button

3

Back Features

Camera

Camera lens

Battery door latch

Battery door latch

SIM and
MicroSD door

Battery

4

Install a microSIM Card

5

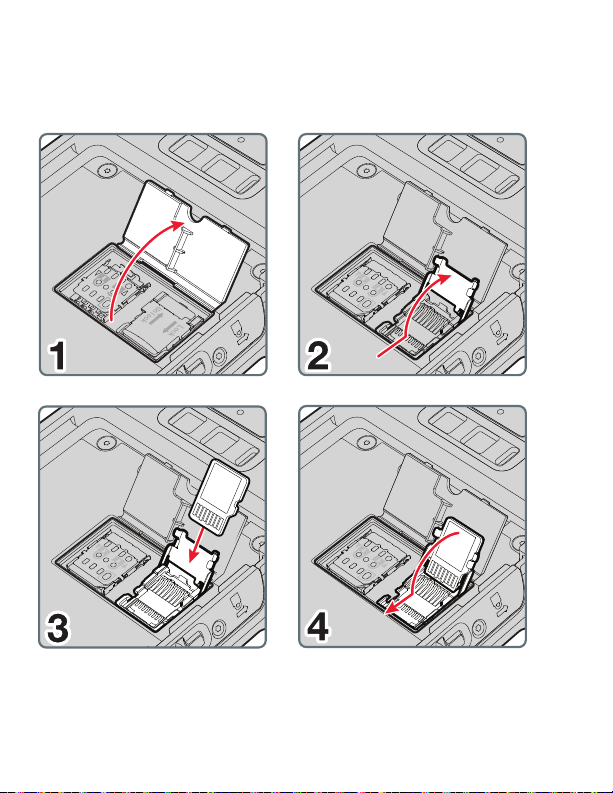

Install a microSD Card

Note: Format the microSD card before initial use.

6

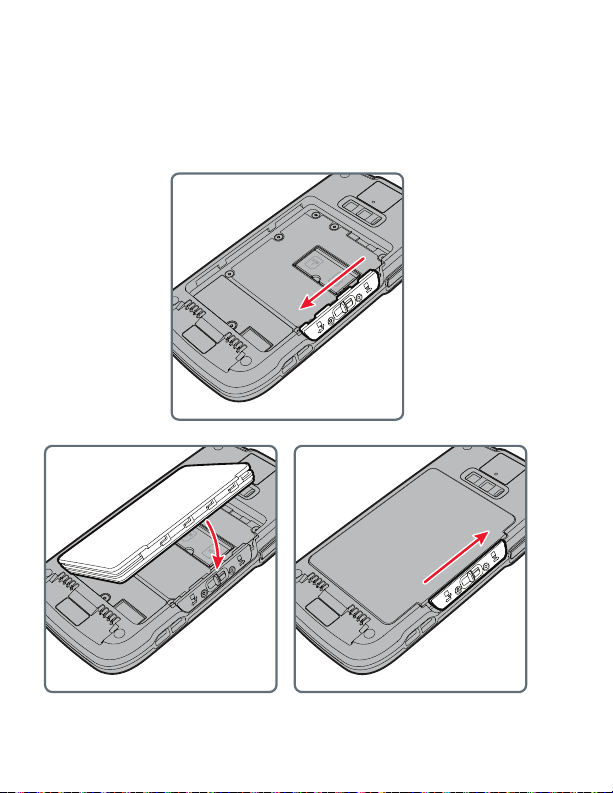

Install the Battery

2 3

1

The CT50H mobile computers ship with a Li-ion 3.8 VDC,

15.5 watt-hour battery manufactured for Honeywell

International Inc.

7

Charge the Computer

The CT50H mobile computer ships with a partially charged
battery. Charge the battery with a CT50 charging device for a
minimum of 4 hours. Using the computer while charging the
battery increases the time required to reach a full charge.

Caution: We recommend the use of Honeywell
accessories and power adapters. Use of any non­Honeywell accessories or power adapters may cause
damage not covered by the warranty.

Mise en garde : Il est recommandé d'utiliser les
périphériques, les cordons d'alimentation et les
adaptateurs secteur conçus par Honeywell.
L'utilisation de tout périphérique, cordon
d'alimentation ou adaptateur secteur d'une autre
marque est susceptible de provoquer des dommages
non couverts par la garantie.

The CT50h mobile computers are designed for use with the
following charging accessories: Ethernet HomeBase,
ChargeBase, NetBase, Quad Battery Charger, and USB Adapter.

Caution: Make sure that all components are dry prior
to using the computers and batteries with
accessories. Using wet components may cause
damage not covered by the warranty.

Mise en garde : Assurez-vous que tous les
composants sont secs avant de connecter les
terminaux/batteries à des périphériques. L'insertion
de composants humides risque de provoquer des
dommages non couverts par la garantie.

8

Caution: This device shall not be used directly for
active patient monitoring purposes or used for
displaying alerts and alarms directly from a patient’s
medical device.

Mise en garde : Cet appareil ne peut pas être utilisé
directement à des fins de suivi actif des patients, ni
pour afficher des alertes et alarmes directement à
partir du dispositif médical d’un patient.

Turn Power On/Off

To turn the computer on:

• Press and release the Power button.

To turn the computer off:

1. Press and hold the Power button until the options menu

appears.

2. Touch Power Off.

3. When prompted to shut down the phone, touch OK.

Note: You should always power off the computer before

removing the battery.

9

Sleep Mode (Suspend Mode)

Sleep mode automatically turns the touch panel display off and
locks the computer to save battery power when the computer is
inactive for a programmed period of time.

1. Press and release the Power button to wake the computer.

2. Drag the toward the top of the display to unlock the

computer.

Adjust the Display Sleep Time

To adjust the amount of time before the display sleeps after
inactivity:

1. Touch All Apps > Settings > Display > Sleep.

2. Select the amount of time for inactivity before the display

goes to sleep.

3. Touch Home icon to return to the Home screen.

Turn Airplane Mode On/Off

1. Swipe down from the top of the display to open the

notifications panel.

2. Swipe down again to access the quick settings.

3. Touch Airplane Mode to toggle the mode On or Off.

Note: When Airplane Mode is turned on, appears on the

status bar.

10

About the Home Screen

/

Notifications panel
Status bar

Search bar

Home screen

Favorites tray

11

Navigation and Function Buttons

Buttons Description Function

Back Back to the previous screen.

Recent Apps View and switch between recently

used apps.

Home Return to the Home screen.

Search Start a search on the computer or

the Internet.

Volume Raises or lowers the volume of the

speaker.

Note: Additional functionality varies according to the application

in use.

To change the default button function of the Scan button or the
Left and Right side buttons, use the Key remap option under
Settings. For additional information on how to remap a button
function, see the user guide.

12

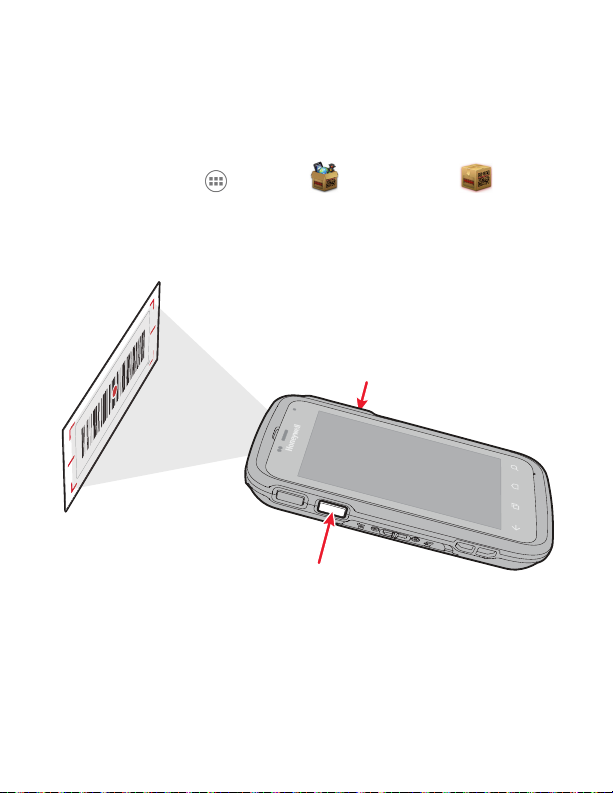

Scan a Bar Code with the Scan Demo

Note: For optimum performance, avoid reflections by scanning

the bar code at a slight angle.

1. Touch All Apps > Demos > Scan Demo .

2. Point the computer at the bar code.

3. Touch Scan on the touch screen or press and hold a Scan

button. Center the aiming beam over the bar code.

The decode results appear on the screen.

13

Take a Photo or Video

1. Touch on the Home Screen. The camera application opens

on the computer.

2. Swipe from the left side of the screen to select either single

photo mode or video mode .

3. Point the camera lens at the object you want to capture. The

camera lens is located on the back of the computer.

4. Touch to capture a single photo or touch to start

recording video. Touch to stop recording video.

Restart the Computer

You may need to restart the mobile computer to correct conditions
where an application stops responding to the system or the com­puter seems to be locked up.

1. Press and hold the Power button until the options menu

appears.

2. Select Reboot and then Reboot.

To restart the computer if the touch panel display is unresponsive:

•Press and hold the Power button for approximately 8 seconds
until the computer restarts.

Note: If you try to restart the computer and still experience issues,

you may need to see the user guide for information on how to
perform a Factory Reset (Clean Boot).

14

Support

To search our knowledge base for a solution or log into the
Technical Support portal and report a problem, go to

www.hsmcontactsupport.com.

User Documentation

For the user guide and other documentation, go to

www.honeywellaidc.com.

Limited Warranty

For warranty information, go to www.honeywellaidc.com and
click Get Resources > Product Warranty.

Patents

For patent information, see www.hsmpats.com.

Trademarks

Android and Google and other marks are trademarks of Google
Inc.

15
