CATALOG OF
REPLACEMENT PARTS
HSROG SERIES
SINGLE RACK OVEN
HSROG ML-111148
A product of HOBART CORPORATION 701 S. RIDGE AVENUE TROY, OHIO 45374-0001
FORM 43003 (June 2001)
HSRO SERIES SINGLE RACK OVEN REPLACEMENT PARTS
HOT SECTION
26
OVEN TOP SECTION
25
24
21-22-23
15
14
20
16
ROOF
FAN
RELAY
1
SERVICE
CONNECTION
2
3
4
5
18
17
13
11
19
10
12
6
7
8
9
PL-55431
ELECTRONIC CONTROLS AND POWER SUPPLY
F-43003 (June 2001) © HOBART CORPORATION
- 2 -
HSRO SERIES SINGLE RACK OVEN REPLACEMENT PARTS
ELECTRONIC CONTROLS AND POWER SUPPLY
ILLUS. PART NO. NAME OF PART AMT.
PL-55431
1 00-837022-00027 Contactor – Roof Fan ................................................................................................ 1
2 00-281979 Block – Terminal ........................................................................................................ 1
3 00-837022-00026 Switch – Master (On/Off) .......................................................................................... 1
4 00-837022-00078 Harness – Cable (6 Pin) (Output) ............................................................................. 1
5 00-837022-00050 Harness – Wiring Assy. (9 Pin) (Output) .................................................................. 1
6 00-837022-00051 Harness – Wiring Assy. (12 Pin) (Output) ................................................................ 1
7 00-837022-00052 Harness – Wiring Assy. (15 Pin) (Output) ................................................................ 1
8 00-837022-00027 Contactor – Circulating Fan ...................................................................................... 1
9 00-837022-00020 Transformer – Hi-Voltage Box ................................................................................... 1
10 00-837022-00024 Fuse (10 Amp.) Buss ................................................................................................ 2
11 00-837022-00025 Fuse (4 Amp.) Buss .................................................................................................. 2
12 00-837022-00022 Relay (120 VAC) ........................................................................................................ 1
13 00-837022-00023 Relay (120 VAC) ........................................................................................................ 1
14 00-837022-00021 Relay (12 VDC) .........................................................................................................3
15 00-837022-00083 Board – Printed Circuit (Hi-Voltage Box) .................................................................. 1
16 00-837022-00028 EPROM – (Hi-Voltage Box) ....................................................................................... 1
17 00-837022-00011 Transformer (208-240 S/D, 24 V.) ............................................................................ 1
18 00-837022-00015 Module – Ignition ........................................................................................................1
19 00-837022-00006 Cable Assy. DBM-9 (R5232)..................................................................................... 1
20 00-837022-00004 Thermocouple (W/12-Ft. Extension Cable) .............................................................. 1
21 00-837022-00003 Panel – Control .......................................................................................................... 1
22 00-837022-00107 EPROM – Version OG-105B ..................................................................................... 1
23 00-837022-00117 Battery – Control Panel ............................................................................................. 1
24 00-837022-00034 Alarm ..........................................................................................................................1
25 00-837022-00019 Switch – Hi-Temp Sensor (Manual) .......................................................................... 1
26 00-837022-00105 Switch – Hi-Limit (Auto Cycle) .................................................................................. 1
- 3 -
F-43003 (June 2001)
HSRO SERIES SINGLE RACK OVEN REPLACEMENT PARTS
HOT SECTION
1
2
3
5
(Alarm Buzzer now mounted
in Front Panel except for
Prison Package.)
4
OVEN TOP SECTION
16
15
14
13
8
6
7
9
10
12
11
F-43003 (June 2001)
PL-55432
ELECTRONIC CONTROL BOXES, BRACKETS, AND COVERS
- 4 -
HSRO SERIES SINGLE RACK OVEN REPLACEMENT PARTS
ELECTRONIC CONTROL BOXES, BRACKETS, AND COVERS
ILLUS. PART NO. NAME OF PART AMT.
PL-55432
1 00-837021-00258 Cover – Limit Switch (Pre 03-01, Prison Pkg. Only) ................................................1
2 SD-033-33 Self-Tapping Screw 8 x 5/8 Phil. Truss Hd. ................................................................. 4
3 00-837021-00257 Bracket – Limit Switch Mounting ............................................................................... 1
4 00-837021-00123 Cover – Ignition Module ............................................................................................. 1
5 00-837021-00310 Cover – Limit Switch (New 03-01) ............................................................................1
6 FE-004-16 Cover – Electrical ...................................................................................................... 1
7 FE-013-26 Box – Conduit (Input Power Junction Box) ............................................................... 1
8 00-837022-00070 Cover Assy. – Hi-Voltage Box (Incls. Item 8) ...........................................................1
9 00-837022-00128 Knob Kit – Main Power Switch................................................................................... 1
10 00-837022-00126 Bracket – Upper Mounting (Hi-Voltage Box) ............................................................ 1
11 SC-117-73 Mach. Screw 10-32 x 5/8 Phil. Truss Hd. .................................................................... 4
12 00-837022-00069 Enclosure – Hi-Voltage Box ...................................................................................... 1
13 FE-013-26 Box – Conduit (Roof Fan Relay) ............................................................................... 1
14 FE-004-16 Cover – Electrical ...................................................................................................... 1
15 00-837022-00126 Bracket – Upper Mounting (Hi-Voltage Box) ............................................................ 1
16 SC-117-73 Mach. Screw 10-32 x 5/8 Phil. Truss Hd. .................................................................... 4
- 5 -
F-43003 (June 2001)
HSRO SERIES SINGLE RACK OVEN REPLACEMENT PARTS
6-7-8
23-24
25
1-2
17
3-4
9-10
5
11
12-13
22
18 THRU 21
PL-55433
14
15-16
HOT SECTION DOOR AND PANELS
F-43003 (June 2001)
- 6 -
HSRO SERIES SINGLE RACK OVEN REPLACEMENT PARTS
HOT SECTION DOOR AND PANELS
ILLUS. PART NO. NAME OF PART AMT.
PL-55433
1 00-837021-00044 Door – Hot Section .................................................................................................... 1
2 00-837021-00300 Door – Hot Section (New 03-01) .............................................................................. 1
3 00-837021-00011 Panel – Top Front Exterior (Pre 03-01, Prison Pkg. Only) ....................................... 1
4 00-837021-00302 Panel – Top Front Exterior (New 03-01) ................................................................... 1
5 SD-036-60 Self-Tapping Screw 10-16 x 1/2 Hex Washer Hd., Type AB ..................................... 2
6 00-837021-00299 Panel – Left Front Exterior ........................................................................................ 1
7 SD-036-60 Self-Tapping Screw 10-16 x 1/2 Hex Washer Hd., Type AB ..................................... 5
8 SC-066-19 Mach. Screw 10-32 x 7/16 Phil. Truss Hd. ................................................................... 7
9 SC-041-05 Cap Screw 1/4-20 x 5/8 Hex Hd. .................................................................................. 4
10 WL-006-17 Lockwasher 1/4 Helical ............................................................................................... 4
11 SD-036-60 Self-Tapping Screw 10-16 x 1/2 Hex Washer Hd., Type AB ..................................... 6
12 00-837022-00003 Panel – Control .......................................................................................................... 1
13 00-837022-00131 Overlay ......................................................................................................................1
14 00-837022-00039 Catch – Door ............................................................................................................. 2
15 00-837021-00293 Panel – Front Lower Exterior (New 03-01) ..............................................................1
16 SD-036-60 Self-Tapping Screw 10-16 x 1/2 Hex Washer Hd., Type AB ..................................... 3
17 00-837021 00124 Bracket – Mounting Handle ....................................................................................... 1
18 SC-041-05 Cap Screw 1/4-20 x 5/8 Hex Hd. .................................................................................. 6
19 WS-030-60 Washer ...................................................................................................................... 6
20 WL-006-17 Lockwasher 1/4 Helical ............................................................................................... 6
21 NS-013-02 Nut 1/4-20 Hex ............................................................................................................ 6
22 PB-004-26 Plug – Button (1/2) .......................................................................................................2
23 00-281450 Handle – Door ............................................................................................................ 1
24 SC-066-19 Mach. Screw 10-32 x 7/16 Phil. Truss Hd. ................................................................... 3
25 00-431797 Molding – Control Panel ............................................................................................. 1
- 7 -
F-43003 (June 2001)
HSRO SERIES SINGLE RACK OVEN REPLACEMENT PARTS
7 THRU 12
32
30-31
27
1 THRU 6
13 THRU 16
17
18
37-38
19
20
33 THRU 36
21-22
29
28
23
25-26
F-43003 (June 2001)
24
PL-55434
HOT SECTION BLOWERS
- 8 -
HSRO SERIES SINGLE RACK OVEN REPLACEMENT PARTS
HOT SECTION BLOWERS
ILLUS. PART NO. NAME OF PART AMT.
PL-55434
1 00-837021-00311 Motor – Open Drip Proof (
2 00-837021-00264 Motor – Open Drip Proof (3/4 Hp., 50 Hz.) ................................................................ 1
3 00-837021-00106 Motor Assy. (Wired CW) (60 Hz.) (Incls. Items 1 & 25 thru 36) .............................. 1
4 00-837021-00104 Blower Assy. (CW) (60 Hz.) (Incls. Items 3 & 24) .................................................... 1
5 00-837021-00244 Motor Assy. (Wired CW) (50 Hz.) (Incls. Items 2, 3 thru 22, 37, & 38) ................... 1
6 00-837021-00245 Blower Assy. (CW) (50 Hz.) (Incls. Items 5 & 24) .................................................... 1
7 00-837021-00311 Motor – Open Drip Proof (1/3 Hp., 60 Hz.) ................................................................ 1
8 00-837021-00264 Motor – Open Drip Proof (3/4 Hp., 50 Hz.) ................................................................ 1
9 00-837021-00105 Motor Assy. (Wired CCW) (60 Hz.) (Incls. Items 1 & 25 thru 36) ........................... 1
10 00-837021-00065 Blower Assy. (CCW) (60 Hz.) (Incls. Items 9 & 23) ................................................. 1
11 00-837021-00246 Motor Assy. (Wired CCW) (50 Hz.) (Incls. Items 2, 13 thru 22, 37, & 38) ..............1
12 00-837021-00247 Blower Assy. (CCW) (50 Hz.) (Incls. Items 11 & 23) ............................................... 2
13 NS-013-25 Nut 3/8-16 Hex ............................................................................................................ 4
14 WL-006-28 Lockwasher 3/8 Helical ............................................................................................... 4
15 WS-026-06 Washer ...................................................................................................................... 4
16 00-837008-00026 Gasket – Fiber Washer ............................................................................................. 8
17 00-837021-00262 Bracket – Motor Mounting ......................................................................................... 1
18 00-837021-00234 Gasket – Motor Bracket ............................................................................................ 2
19 00-837021-00224 Rulon Bearing ............................................................................................................ 2
20 00-837021-00261 Retainer Plate – Bearing ............................................................................................ 1
21 00-630151-00053 Tape – Double Sided (3 Ft.) ...................................................................................... 1
22 00-837002-00001 Gasket – Fiberglass (1 In. x 3 Ft.) ........................................................................... 1
23 00-837021-00056 Wheel – Inlet Assy. (CCW) ........................................................................................ 1
24 00-837021-00057 Wheel – Inlet Assy. (CW) .......................................................................................... 1
25 00-630151-00053 Tape – Double Sided (3 Ft.) ...................................................................................... 1
26 00-837002-00001 Gasket – Fiberglass (1 In. x 3 Ft.) ........................................................................... 1
27 00-837021-00261 Retainer Plate – Bearing ............................................................................................ 1
28 00-837021-00224 Rulon Bearing ............................................................................................................ 2
29 00-837021-00234 Gasket – Motor Bracket ............................................................................................ 2
30 WL-006-28 Lockwasher 3/8 Helical ............................................................................................... 4
31 SC-041-28 Cap Screw 3/8-16 x 3/4 Hex Hd. .................................................................................. 4
32 00-837021-00262 Bracket – Motor Mounting ......................................................................................... 1
33 NS-013-25 Nut 3/8-16 Hex ............................................................................................................ 4
34 WL-006-28 Lockwasher 3/8 Helical ............................................................................................... 4
35 WS-026-06 Washer ...................................................................................................................... 4
36 00-837008-00026 Gasket – Fiber Washer ............................................................................................. 8
37 WL-006-28 Lockwasher 3/8 Helical ............................................................................................... 4
38 SC-041-28 Cap Screw 3/8-16 x 3/4 Hex Hd. .................................................................................. 4
1
/3 Hp., 60 Hz.) ................................................................ 1
- 9 -
F-43003 (June 2001)
HSRO SERIES SINGLE RACK OVEN REPLACEMENT PARTS
30
29
28
2
4
5
6
7
1
CUSTOMER
HOOKUP
3
8
9-10-11
12
13
14
23
27
26
25
24
22
21
20
19
18
15
17
16
PL-55435
F-43003 (June 2001)
STEAM GENERATOR AND WATER
FEED SYSTEM (Former Construction)
- 10 -
HSRO SERIES SINGLE RACK OVEN REPLACEMENT PARTS
STEAM GENERATOR AND WATER
FEED SYSTEM (Former Construction)
ILLUS. PART NO. NAME OF PART AMT.
PL-55435
1 00-837009-00094 Tubing – Solenoid Valve Inlet Assy. ........................................................................... 1
2 00-837009-00091 Fitting – Male 3/8 Tube 1/4 NPT .................................................................................... 2
3 00-837022-00017 Valve – Water Solenoid.............................................................................................. 1
4 00-837009-00089 Line – Water Supply ..................................................................................................1
5 00-837009-00095 Fitting – Male 3/8 Tube x 1/2 NPT ................................................................................. 1
6 00-837022-00038 Valve – Water Regulator ............................................................................................ 1
7 00-837022-00127 Guage – Water Pressure .......................................................................................... 1
8 00-837021-00150 Bracket – Mounting (Water Pressure Regulator) ....................................................1
9 00-837009-00043 Generator – Steam (Incls. Items 10 & 11) ................................................................ 1
10 00-837009-00036 Weldment – Steam Accumulator ............................................................................... 1
11 00-837009-00093 Cover – Spray Bar .................................................................................................... 1
12 00-837009-00011 Accumulator – 3 Row ............................................................................................... 20
13 00-837009-00012 Accumulator – 4 Row ............................................................................................... 20
14 00-837009-00013 Baffle – Accumulator ................................................................................................ 10
15 00-837009-00059 Pan – Drain ................................................................................................................1
16 00-837021-00058 Weldment – Frame Cover ......................................................................................... 1
17 00-837009-00099 Header – Spray Assy. (Lower) ................................................................................. 1
18 00-837009-00081 Elbow – Street 90 Deg., 3/8 NPT ................................................................................2
19 00-837009-00082 Union – 3/8 NPT .......................................................................................................... 2
20 00-837009-00083 Pipe – Threaded 3/8 NPT x 5 ...................................................................................... 2
21 00-837009-00084 Pipe Tee – 3/8 NPT ......................................................................................................1
22 00-837009-00090 Fitting – Male 3/8 NPT x 3/8 NPT ................................................................................. 1
23 00-837009-00087 Inlet Tube Assy. ......................................................................................................... 1
24 00-837009-00084 Pipe Tee – 3/8 NPT ......................................................................................................1
25 00-837009-00082 Union – 3/8 NPT .......................................................................................................... 2
26 00-837009-00081 Elbow – Street 90 Deg., 3/8 NPT ................................................................................2
27 00-837021-00098 Header – Spray Assy. (Upper) .................................................................................1
28 00-837021-00187 Cover – Insulation Housing, Lower .......................................................................... 1
29 00-837009-00092 Ball Valve (Water Shutoff) .......................................................................................... 1
30 00-837009-00091 Fitting – Male 3/8 Tube 1/4 NPT .................................................................................... 2
- 11 -
F-43003 (June 2001)
HSRO SERIES SINGLE RACK OVEN REPLACEMENT PARTS
21
20
4
5
6
7
2
1
CUSTOMER
HOOKUP
3
8
9-10-11
12
19
13
14
15
18
17
16
PL-55436
STEAM GENERATOR AND WATER
FEED SYSTEM (Present Construction)
F-43003 (June 2001)
- 12 -
HSRO SERIES SINGLE RACK OVEN REPLACEMENT PARTS
STEAM GENERATOR AND WATER
FEED SYSTEM (Present Construction)
ILLUS. PART NO. NAME OF PART AMT.
PL-55436
1 00-837009-00094 Tubing (Solenoid Valve Inlet) ..................................................................................... 1
2 00-837009-00091 Fitting – Male 3/8 Tube 1/4 NPT .................................................................................... 2
3 00-837022-00017 Valve – Water Solenoid.............................................................................................. 1
4 00-837009-00089 Line (Water Supply) ................................................................................................... 1
5 00-837009-00095 Fitting – Male 3/8 Tube 1/2 NPT .................................................................................... 1
6 00-837022-00038 Valve – Water Regulator ............................................................................................ 1
7 00-837022-00127 Guage – Water Pressure .......................................................................................... 1
8 00-837021-00150 Bracket – Mounting (Water Pressure Regulator) .................................................... 1
9 00-837009-00176 Generator – Steam (Incls. Items 10 & 11) ................................................................ 1
10 00-837009-00014 Cover – Steam Accumulator ..................................................................................... 1
11 00-837009-00177 Weldment – Housing Accumulator ........................................................................... 1
12 00-837009-00011 Accumulator – 3 Row ...............................................................................................20
13 00-837009-00012 Accumulator – 4 Row ...............................................................................................20
14 00-837009-00013 Baffle – Accumulator ................................................................................................ 10
15 00-837009-00171 Tubing (Water Line) ...................................................................................................1
16 00-837009-00090 Fitting – Male 3/8 Tube 3/8 NPT .................................................................................... 1
17 00-837009-00172 Elbow – 90 Deg., 3/8 NPT (SST) ................................................................................1
18 00-837021-00098 Header – Spray Assy. (Upper) ................................................................................. 1
19 00-837021-00295 Cover – Insulation Housing (Lower) ......................................................................... 1
20 00-837009-00092 Ball Valve (Water Shutoff) .......................................................................................... 1
21 00-837009-00091 Fitting – Male 3/8 NPT x 1/2 NPT ................................................................................. 2
- 13 -
F-43003 (June 2001)
HSRO SERIES SINGLE RACK OVEN REPLACEMENT PARTS
12-13
14-15
1
2
3
4-5
6
7
16
22
21
20
17
18
19
23-24
25
11
10
8
9
F-43003 (June 2001)
26-27
PL-55437

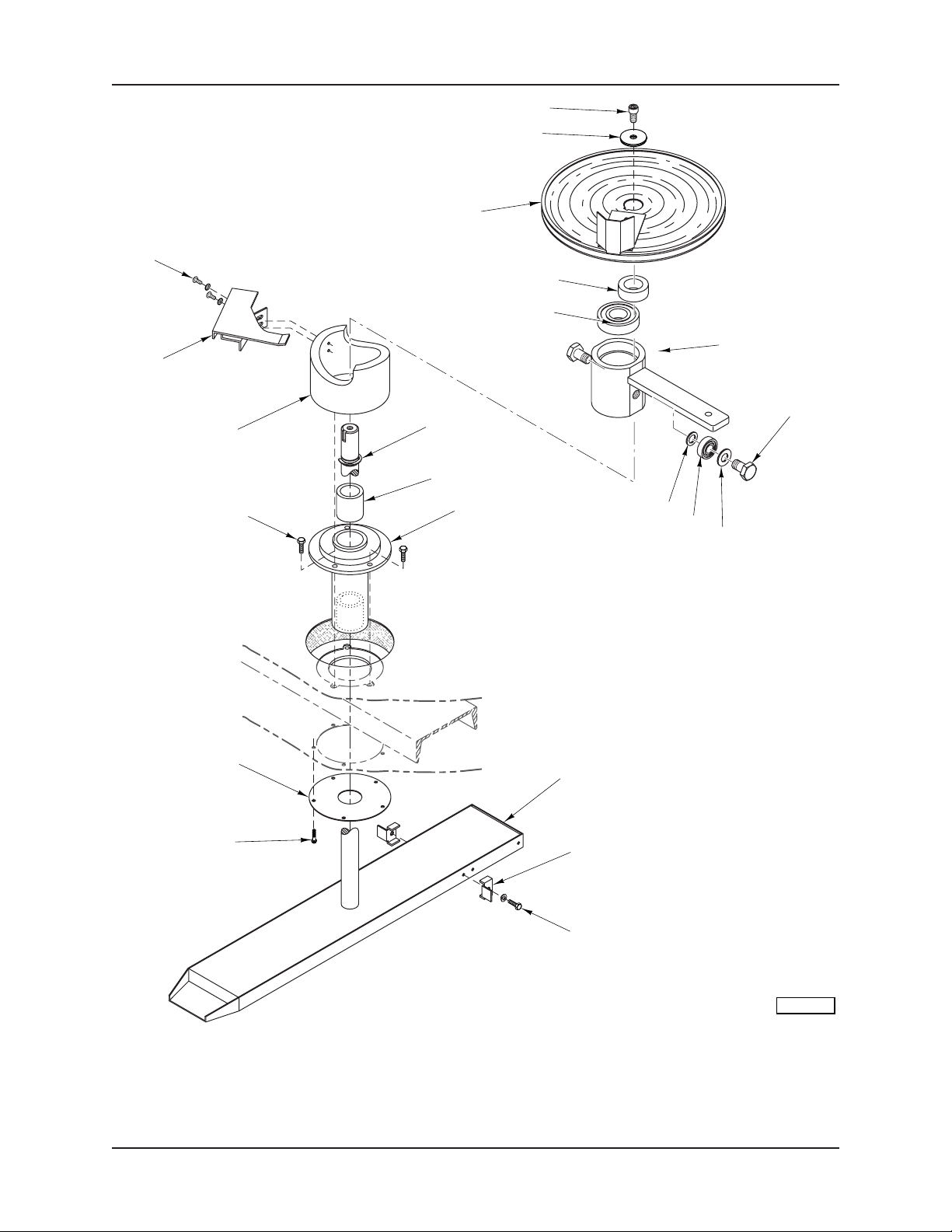

RACK LIFT MECHANISM
- 14 -
HSRO SERIES SINGLE RACK OVEN REPLACEMENT PARTS
RACK LIFT MECHANISM
ILLUS. PART NO. NAME OF PART AMT.
PL-55437
1 SC-087-50 Cap Screw 1/2-13 x 1 Soc. Hex Hd. .......................................................................... 1
2 00-837013-00002 Washer – Pulley Top .................................................................................................. 2
3 00-837013-00083 Pulley – Drive Assy. ..................................................................................................1
4 00-837013-00028 Washer – Shaft Height Adjuster ................................................................................ 1
5 00-837009-00096 Shim – Rack Height Adjustments (Sent with Oven for Field Adjustments) ............ 3
6 00-837013-00005 Bearing – Single Row Radial ..................................................................................... 1
7 00-837013-00018 Actuator Housing ....................................................................................................... 1
8 00-837013-00010 Bolt – Cam Lift Bearing Support ................................................................................ 2
9 00-837013-00013 Washer – Grease Distributor .................................................................................... 4
10 00-837013-00012 Bearing – Cam Lift ..................................................................................................... 2
11 00-837013-00014 Washer – Cam Follower Bearing Mounting ..............................................................4
12 SC-041-05 Cap Screw 1/4-20 x 5/8 Hex Hd. .................................................................................. 2
13 WL-006-17 Lockwasher 1/4 Helical ............................................................................................... 2
14 00-837013-00098 Bracket – Down Force (Rack Lift) ........................................................................... 1
15 00-837013-00097 Bracket – Down Force (Rack Lift) (Former Construction) ..................................... 1
16 00-837013-00009 Cam ............................................................................................................................ 1
17 00-837013-00101 E-Ring (Rack Shaft) .................................................................................................. 1
18 00-630153-00051 Bushing (Graphalloy Grade 212) .............................................................................. 2
19 00-837013-00095 Guide – Upper Mounting Assy. (Incls. Item 9) .......................................................... 1
20 SC-040-14 Cap Screw 5/16-18 3/4 Soc. Hex Hd. ........................................................................... 3
21 00-837013-00058 Plate – Bearing Cup Cover ....................................................................................... 1
22 SC-012-35 Mach. Screw 10-24 x 4 Slotted Fil. Hd. ..................................................................... 5
23 00-837013-00104 Support – Rack Assy. (C-Lift) (Incls. Items 25, 26, & 27) ........................................ 1
24 00-837013-00090 Support – Rack Assy. (Extended C-Lift) (Incls. Items 25, 26, & 27) ....................... 1
25 00-837013-00046 Block – Rack Stop (C-Lift) ........................................................................................ 2
26 SC-041-05 Cap Screw 1/4-20 x 5/8 Hex Hd. .................................................................................. 2
27 WL-006-17 Lockwasher 1/4 Helical ............................................................................................... 2
00-837022-00033 Switch – Limit ............................................................................................................. 1
00-837013-00091 Arm – Limit Switch Actuator ...................................................................................... 1
- 15 -
F-43003 (June 2001)
HSRO SERIES SINGLE RACK OVEN REPLACEMENT PARTS
29
28
27
26
25
22-23-24
30
34
31
33
32
13
12
1
4
2
3
5-6
7-8-9
10-11
20-21
14-15-16
17
18-19
PL-55438
LIFT MECHANISM
(Drive Motor Assembly)
F-43003 (June 2001)
- 16 -
HSRO SERIES SINGLE RACK OVEN REPLACEMENT PARTS
LIFT MECHANISM
(Drive Motor Assembly)
ILLUS. PART NO. NAME OF PART AMT.
PL-55438
1 00-837013-00069 V-Belt Rotator ............................................................................................................. 1
2 00-837013-00037 Sheave – Gear Motor ................................................................................................ 1
3 00-837013-00038 Reducer – Gear Motor .............................................................................................. 1
4 00-837013-00062 Bracket – Motor Mount .............................................................................................. 1
5 SC-041-11 Cap Screw 5/16-18 x 3/4 Hex Hd. ................................................................................. 4
6 WS-017-08 Washer ...................................................................................................................... 4
7 NS-013-25 Nut 3/8-16 Hex ............................................................................................................ 2
8 WL-006-28 Lockwasher 3/8 Helical ............................................................................................... 7
9 WS-026-06 Washer ...................................................................................................................... 2
10 00-837013-00039 Motor – Lifting Mechanism (60 Hz.) ......................................................................... 1
11 00-837013-00092 Motor – Lifting Mechanism (50 Hz.) ......................................................................... 1
12 WL-006-28 Lockwasher 3/8 Helical ............................................................................................... 4
13 SC-036-59 Cap Screw 3/8-16 x 1-1/2 Hex Hd. .............................................................................. 4
14 00-837013-00062 Bracket – Motor Mount .............................................................................................. 1
15 SC-041-11 Cap Screw 5/16-18 x 3/4 Hex Hd. ................................................................................. 4
16 WS-017-08 Washer ...................................................................................................................... 4
17 00-837016-00010 Plate – Mounting Rotator Motor ................................................................................ 1
18 SC-118-21 Cap Screw 3/8-16 x 3 Hex Hd. ................................................................................... 2
19 WS-026-06 Washer ...................................................................................................................... 2
20 SC-037-73 Cap Screw 3/8-16 x 1 Hex Hd. ................................................................................... 2
21 WS-026-06 Washer ...................................................................................................................... 2
22 NS-013-25 Nut 3/8-16 Hex ............................................................................................................ 2
23 WL-006-28 Lockwasher 3/8 Helical ............................................................................................... 2
24 WS-026-06 Washer ...................................................................................................................... 2
25 00-837013-00064 Bracket – Belt Tensionser ......................................................................................... 1
26 00-837013-00084 Bushing – Belt Tensionser ......................................................................................... 1
27 00-630151-00003 Spring – Torsion ......................................................................................................... 1
28 00-837013-00070 Arm – Idler ................................................................................................................. 1
29 NS-013-25 Nut 3/8-16 Hex ............................................................................................................ 1
30 WS-026-06 Washer ...................................................................................................................... 1
31 NS-013-25 Nut 3/8-16 Hex ............................................................................................................ 1
32 00-837013-00066 Sheave – Idler Assy. ................................................................................................. 1
33 WS-026-06 Washer ...................................................................................................................... 1
34 SC-118-21 Cap Screw 3/8-16 x 3 Hex Hd. ................................................................................... 1
00-837013-00040 Reducer Motor Assy. (60 Hz.) (Incls. Items 2, 3, 4, 10, & 13)................................. 1
00-837013-00093 Reducer Motor Assy. (50 Hz.) (Incls. Items 2, 3, 4, 11, & 13)................................. 1
- 17 -
F-43003 (June 2001)
HSRO SERIES SINGLE RACK OVEN REPLACEMENT PARTS
1
2
17
19-20
18
6
3
4
5
7
8
9
15
F-43003 (June 2001)
16
14
13
12
11
10

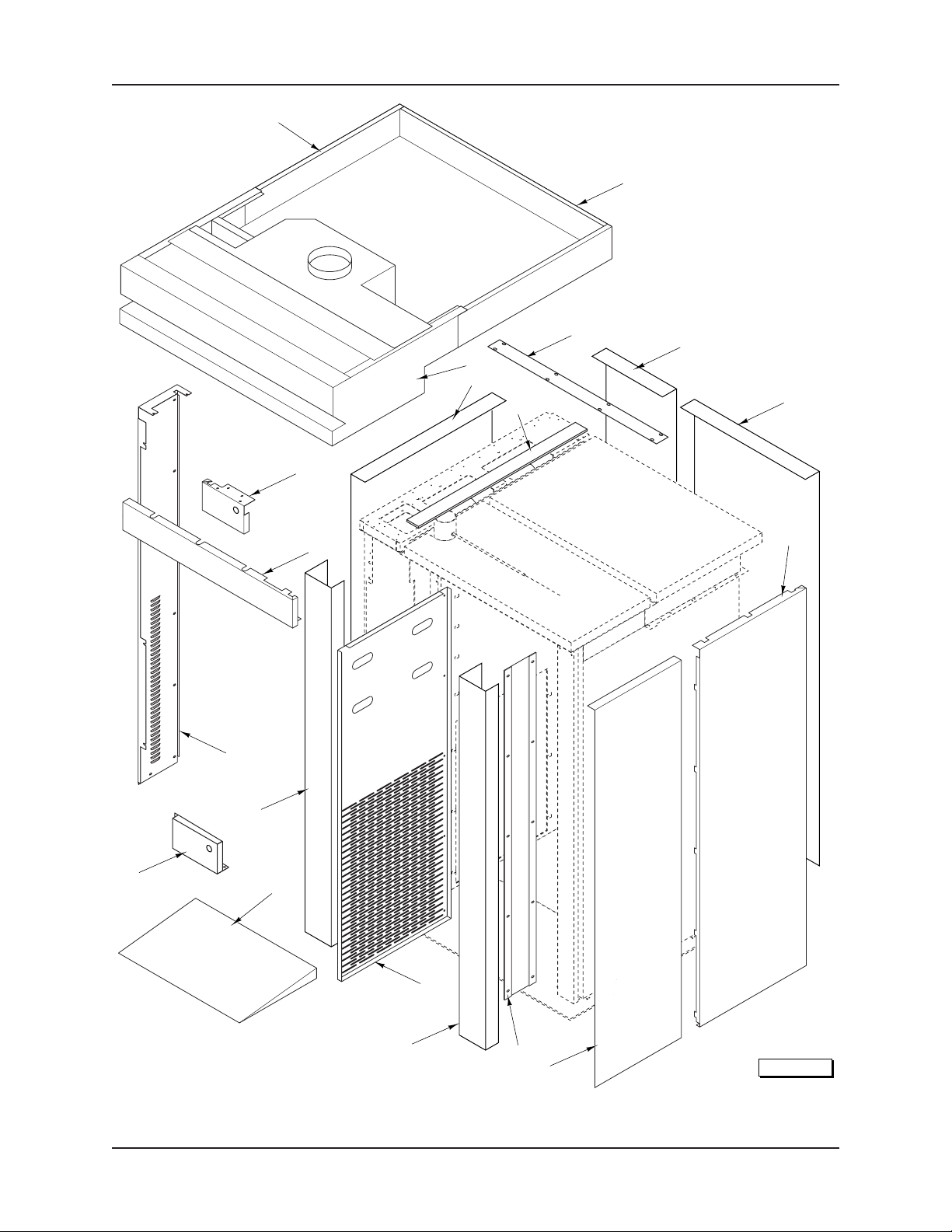

HOOD, RAMP, AND PANELS
- 18 -
PL-55439
HSRO SERIES SINGLE RACK OVEN REPLACEMENT PARTS
HOOD, RAMP, AND PANELS
ILLUS. PART NO. NAME OF PART AMT.
PL-55439
1 00-837020-00013 Side Trim – Oven ....................................................................................................... 2
2 00-837020-00012 Rear Trim – Oven ......................................................................................................1
3 00-837020-00021 Hood Assy. ................................................................................................................ 1
4 00-837021-00013 Panel – Left Rear Exterior .........................................................................................1
5 00-837016-00012 Cover – Joint Side Top Assy. .................................................................................... 1
6 00-837016-00013 Panel – Mid Joint Cover ............................................................................................ 1
7 00-837021-00014 Panel – Rear Exterior (Hot Section) .........................................................................1
8 00-837016-00005 Panel – Rear Exterior ................................................................................................ 1
9 00-837016-00004 Panel – Right Rear Exterior ...................................................................................... 1
10 00-837016-00003 Panel – Right Front Exterior ......................................................................................1
11 00-837017-00001 Cover – Right Side Interior Wall ................................................................................1
12 00-837014-00001 Cover – Right Front Exterior ..................................................................................... 1
13 00-837017-00002 Cover – Right Side Interior Wall ................................................................................1
14 00-837019-00005 Ramp Assy. ............................................................................................................... 1
15 00-837021-00293 Panel – Lower Front Exterior (New 03-01) ..............................................................1
16 00-837014-00003 Cover – Left Front Exterior ....................................................................................... 1
17 00-837021-00012 Panel – Left Front Exterior ........................................................................................ 1
18 00-837014-00002 Cover – Top Front Exterior ....................................................................................... 1
19 00-837021-00011 Panel – Front Top Exterior (Pre 03-01, New Prison Pkg. Only) .............................. 1
20 00-837021-00302 Panel – Front Top Exterior (New 03-01) ................................................................... 1
- 19 -
F-43003 (June 2001)
HSRO SERIES SINGLE RACK OVEN REPLACEMENT PARTS
1
2
3
4
5
6
7
8
9
37
36
38
39
34
35
40
33
32
41
42
26
31
30
29
28
27
23
24
25
21
20
22
19
12
13
18
14
10
11
15
17
16
PL-55440
F-43003 (June 2001)
DOOR UNIT
- 20 -
HSRO SERIES SINGLE RACK OVEN REPLACEMENT PARTS
DOOR UNIT
ILLUS. PART NO. NAME OF PART AMT.
PL-55440
1 SC-037-73 Cap Screw 3/8-16 x 1 Hex Hd. ................................................................................... 2
2 WS-026-06 Washer ...................................................................................................................... 2
3 00-837018-00036 Bearing Plate Assy. ................................................................................................... 1
4 00-837018-00028 Top Shaft Assy. ......................................................................................................... 1
5 00-837018-00037 Top Hinge Assy. ........................................................................................................1
6 WS-026-06 Washer ...................................................................................................................... 4
7 SC-037-73 Cap Screw 3/8-16 x 1 Hex Hd. ................................................................................... 4
8 00-837018-00021 Glass – Oven Door ................................................................................................... 1
9 00-837018-00042 Molding – Door Window Weldment ........................................................................... 1
10 00-837018-00029 Bottom Shaft Assy. .................................................................................................... 1
11 00-630113-00011 Bushing – Door ..........................................................................................................1
12 00-630113-00040 Spacer – Inside Handle .............................................................................................1
13 00-630113-00037 Plate – Mounting Outside Handle .............................................................................. 1
14 00-630113-00038 Collar – Outside Handle ............................................................................................ 1
15 00-630113-00035 Base – Outside Handle ............................................................................................. 1
16 00-630113-00036 Shaft – Outside Handle ............................................................................................. 1
17 SC-125-86 Mach. Screw 1/4-20 x 3/4 Phil. Flat Hd. ........................................................................ 1
18 00-837018-00026 Shaft – Door Handle .................................................................................................. 1
19 00-837018-00033 Cover Plate – Interior Handle .................................................................................... 1
20 00-630113-00033 Shaft – Inside Handle ................................................................................................ 1
21 00-630113-00032 Base – Inside Handle ................................................................................................ 1
22 00-837018-00035 Door Assy. ................................................................................................................. 1
23 SC-022-74 Mach. Screw 1/4-20 x 11/2 Slotted Flat Hd. .................................................................4
24 00-630151-00022 Lock Mechanism ....................................................................................................... 1
25 SC-022-35 Mach. Screw 1/4-20 x 1 Slotted Flat Hd. ....................................................................8
26 00-837018-00025 Plate – Lock Mechanism Cover ................................................................................ 1
27 WL-006-17 Lockwasher 1/4 Helical ............................................................................................... 8
28 NS-013-02 Nut 1/4-20 Hex ............................................................................................................ 8
29 WL-006-17 Lockwasher 1/4 Helical ............................................................................................... 4
30 NS-013-02 Nut 1/4-20 Hex ............................................................................................................ 4
31 00-837018-00017 Bracket – Lock Mechanism ......................................................................................1
32 00-837018-00022 Wiper – Door Bottom ................................................................................................. 1
33 00-837018-00024 Cover – Door Bottom Wiper ......................................................................................1
34 00-837014-00008 Gasket – Door Seal ................................................................................................. AR
35 SC-123-64 Mach. Screw 10-32 x 11/4 Phil. Oval Hd. ...................................................................8
36 WS-017-08 Washer ...................................................................................................................... 4
37 SC-041-11 Cap Screw 5/16-18 x ¾ Hex Hd. ................................................................................. 4
38 00-837018-00046 Latch – Door Strike ................................................................................................... 2
39 NS-048-56 Lock Nut 5/16-18 ..........................................................................................................2
40 00-837018-00044 Plate – Slotted Strike ................................................................................................. 2
41 00-630151-00090 Bearing – Roller ......................................................................................................... 2
42 SC-123-86 Cap Screw 5/16-18 x 1 Hex Button Hd. ......................................................................2
00-837022-00032 Switch – Door .......................................................................................................... AR
00-837018-00047 Latch – Door Strike Assy. (Incls. Items 36 thru 42) ............................................... AR
00-837018-00035 Oven Door Assy. ..................................................................................................... AR
- 21 -
F-43003 (June 2001)
HSRO SERIES SINGLE RACK OVEN REPLACEMENT PARTS
1
6-7
5
2
4
3
8
9
10-11
12 THRU 25
26
27
PL-55442
F-43003 (June 2001)
GAS OVEN HEATING
(Former Construction Pre 04-01)
- 22 -
HSRO SERIES SINGLE RACK OVEN REPLACEMENT PARTS
GAS OVEN HEATING
(Former Construction Pre 04-01)
ILLUS. PART NO. NAME OF PART AMT.
PL-55442
1 00-837021-00160 Pipe Assy. (Gas Line) ................................................................................................ 1
2 00-837021-00161 Ball Valve (Gas Shutoff) ............................................................................................. 1
3 00-837022-00013 Valve – Gas ............................................................................................................... 1
4 00-837008-00003 Tube – Gas Line to Ignitor ......................................................................................... 1
5 00-837022-00055 Pilot – Burner (Intermittent) .......................................................................................1
6 00-837009-00151 Weldment – Continuous Tube (Heat Exchanger) ..................................................... 1
7 00-837031-00002 Kit – Heat Exchanger Replacement ......................................................................... 1
8 00-837001-00004 Jam Nut 1/2-13 Hex (UNC 2B) ................................................................................... 8
9 00-837022-00119 Burner – In-Shot (Beckett) ........................................................................................ 8
10 00-837008-00035 Orifice – Flow Control (#45 Drill) Natural Gas ......................................................... 8
11 00-837008-00008 Orifice – Flow Control (#55 Drill) LP Gas .................................................................8
12 00-837023-00001 Gas Manifold Assy. (Under 2000 Ft.) (Natural Gas) ............................................... 1
13 00-837023-00002 Gas Manifold Assy. (2000 to 3000 Ft.) (Natural Gas) ............................................. 1
14 00-837023-00003 Gas Manifold Assy. (3000 to 4000 Ft.) (Natural Gas) ............................................. 1
15 00-837023-00004 Gas Manifold Assy. (4000 to 5000 Ft.) (Natural Gas) ............................................. 1
16 00-837023-00005 Gas Manifold Assy. (5000 to 6000 Ft.) (Natural Gas) ............................................. 1
17 00-837023-00006 Gas Manifold Assy. (6000 to 7000 Ft.) (Natural Gas) ............................................. 1
18 00-837023-00007 Gas Manifold Assy. (Over 7000 Ft.) (Natural Gas) ................................................. 1
19 00-837023-00008 Gas Manifold Assy. (Under 2000 Ft.) (LP Gas) ....................................................... 1
20 00-837023-00009 Gas Manifold Assy. (2000 to 3000 Ft.) (LP Gas)..................................................... 1
21 00-837023-00010 Gas Manifold Assy. (3000 to 4000 Ft.) (LP Gas)..................................................... 1
22 00-837023-00011 Gas Manifold Assy. (4000 to 5000 Ft.) (LP Gas)..................................................... 1
23 00-837023-00012 Gas Manifold Assy. (5000 to 6000 Ft.) (LP Gas)..................................................... 1
24 00-837023-00013 Gas Manifold Assy. (6000 to 7000 Ft.) (LP Gas)..................................................... 1
25 00-837023-00014 Gas Manifold Assy. (Over 7000 Ft.) (LP Gas) ........................................................ 1
26 SC-109-44 Mach. Screw 1/4-20 x 3/4 Hex Washer Hd. ................................................................. 4
27 00-837021-00211 Plate – Cover (Gas Manifold) ................................................................................... 1
- 23 -
F-43003 (June 2001)
HSRO SERIES SINGLE RACK OVEN REPLACEMENT PARTS
1
6-7
5
2
4
3
8
9
10-11
12 THRU 25
26
27
PL-55524
F-43003 (June 2001)
GAS OVEN HEATING
(Present Construction New 04-01)
- 24 -
HSRO SERIES SINGLE RACK OVEN REPLACEMENT PARTS
GAS OVEN HEATING
(Present Construction New 04-01)
ILLUS. PART NAME OF PART AMT.
PL-55524
1 00-837021-00160 Pipe Assy. (Gas Line) ................................................................................................ 1
2 00-837021-00161 Ball Valve (Gas Shutoff) ............................................................................................. 1
3 00-837022-00013 Valve – Gas ............................................................................................................... 1
4 00-837008-00038 Tube – Gas Line to Ignitor ......................................................................................... 1
5 00-837022-00055 Pilot – Burner (Intermittent) .......................................................................................1
6 00-837009-00191 Weldment – Continuous Tube (Heat Exchanger) (Elongated) ................................. 1
7 00-837031-00011 Kit – Heat Exchanger Replacement ......................................................................... 1
8 00-837001-00004 Jam Nut 1/2-13 Hex (UNC 2B) ................................................................................... 8
9 00-837022-00119 Burner – In-Shot (Beckett) ........................................................................................ 8
10 00-837008-00035 Orifice – Flow Control (#45 Drill) Natural Gas ......................................................... 8
11 00-837008-00008 Orifice – Flow Control (#55 Drill) LP Gas .................................................................8
12 00-837023-00001 Gas Manifold Assy. (Under 2000 Ft.) (Natural Gas) ............................................... 1
13 00-837023-00002 Gas Manifold Assy. (2000 to 3000 Ft.) (Natural Gas) ............................................. 1
14 00-837023-00003 Gas Manifold Assy. (3000 to 4000 Ft.) (Natural Gas) ............................................. 1
15 00-837023-00004 Gas Manifold Assy. (4000 to 5000 Ft.) (Natural Gas) ............................................. 1
16 00-837023-00005 Gas Manifold Assy. (5000 to 6000 Ft.) (Natural Gas) ............................................. 1
17 00-837023-00006 Gas Manifold Assy. (6000 to 7000 Ft.) (Natural Gas) ............................................. 1
18 00-837023-00007 Gas Manifold Assy. (Over 7000 Ft.) (Natural Gas) ................................................. 1
19 00-837023-00008 Gas Manifold Assy. (Under 2000 Ft.) (LP Gas) ....................................................... 1
20 00-837023-00009 Gas Manifold Assy. (2000 to 3000 Ft.) (LP Gas)..................................................... 1
21 00-837023-00010 Gas Manifold Assy. (3000 to 4000 Ft.) (LP Gas)..................................................... 1
22 00-837023-00011 Gas Manifold Assy. (4000 to 5000 Ft.) (LP Gas)..................................................... 1
23 00-837023-00012 Gas Manifold Assy. (5000 to 6000 Ft.) (LP Gas)..................................................... 1
24 00-837023-00013 Gas Manifold Assy. (6000 to 7000 Ft.) (LP Gas)..................................................... 1
25 00-837023-00014 Gas Manifold Assy. (Over 7000 Ft.) (LP Gas) ........................................................ 1
26 SC-109-44 Mach. Screw 1/4-20 x 3/4 Hex Washer Hd. ................................................................. 4
27 00-837021-00303 Plate – Cover (Gas Manifold) ................................................................................... 1
- 25 -
F-43003 (June 2001)
HSRO SERIES SINGLE RACK OVEN REPLACEMENT PARTS
1-2-3
4
5
20
6
7
8
10
9
11
12
13-14
15
16-17-18
19
PL-55443
F-43003 (June 2001)

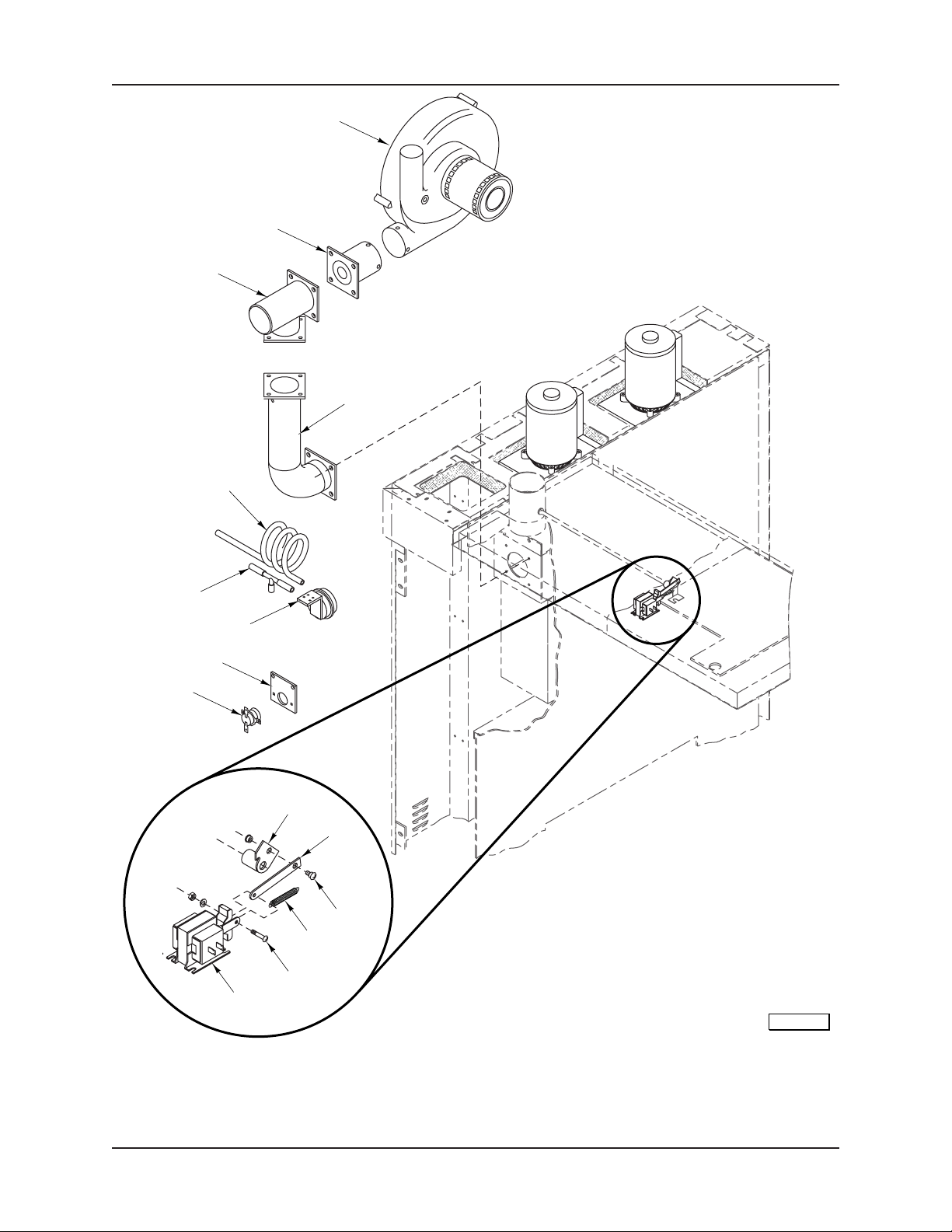

GAS OVEN VENTING
(Former Construction Pre 09-00)
- 26 -
HSRO SERIES SINGLE RACK OVEN REPLACEMENT PARTS
GAS OVEN VENTING
(Former Construction Pre 09-00)
ILLUS. PART NO. NAME OF PART AMT.
PL-55443
1 00-837021-00072 Weldment – Blower Assy. (Incls Items 2, 3, & 4) ..................................................... 1
2 00-837021-00215 Motor – Venter (11 In., 120 V.) (Plastic) .................................................................... 1
3 00-837022-00037 Plug – Pipe 1/8 NPT .................................................................................................... 1
4 00-837021-00219 Weldment – Flange Nozzle ....................................................................................... 1
5 00-837021-00139 Pipe Tee Weldment .................................................................................................... 1
6 00-837021-00202 Line – Vacuum Switch ................................................................................................1
7 00-837021-00206 Line – Vacuum Test Port ............................................................................................ 1
8 00-837022-00018 Sensor – Vacuum ...................................................................................................... 1
9 00-837022-00041 Switch – Roll-Out Sensor .......................................................................................... 1
10 00-837021-00168 Bracket – Roll-Out Switch Mounting ......................................................................... 1
11 00-837004-00031 Weldment – Collar Plate (Steam Vent) ...................................................................... 1
12 00-837004-00029 Arm – Spring Return .................................................................................................. 1
13 SC-066-19 Mach. Screw 10-32 x 3/16 Phil. Truss Hd. ................................................................... 1
14 00-265780-00001 Insert – AVDEL 10-32................................................................................................ 1
15 00-837022-00061 Spring – Return (Steam Vent) ................................................................................... 1
16 SC-018-60 Mach. Screw 6-32 x 11/8 Phil. Pan Hd. ...................................................................... 1
17 WL-006-42 Lockwasher #6 Medium ............................................................................................ 1
18 NS-010-06 Nut 6-32 Hex (Brass) ................................................................................................ 1
19 00-837022-00058 Solenoid – Actuator Steam Vent ................................................................................1
20 00-837021-00100 Vent – Stack Assy. ....................................................................................................1
- 27 -
F-43003 (June 2001)
HSRO SERIES SINGLE RACK OVEN REPLACEMENT PARTS
4
5
6
7
PL-55525
9
8
18
10
14
15-16-17
11
12-13
2
3
1
F-43003 (June 2001)

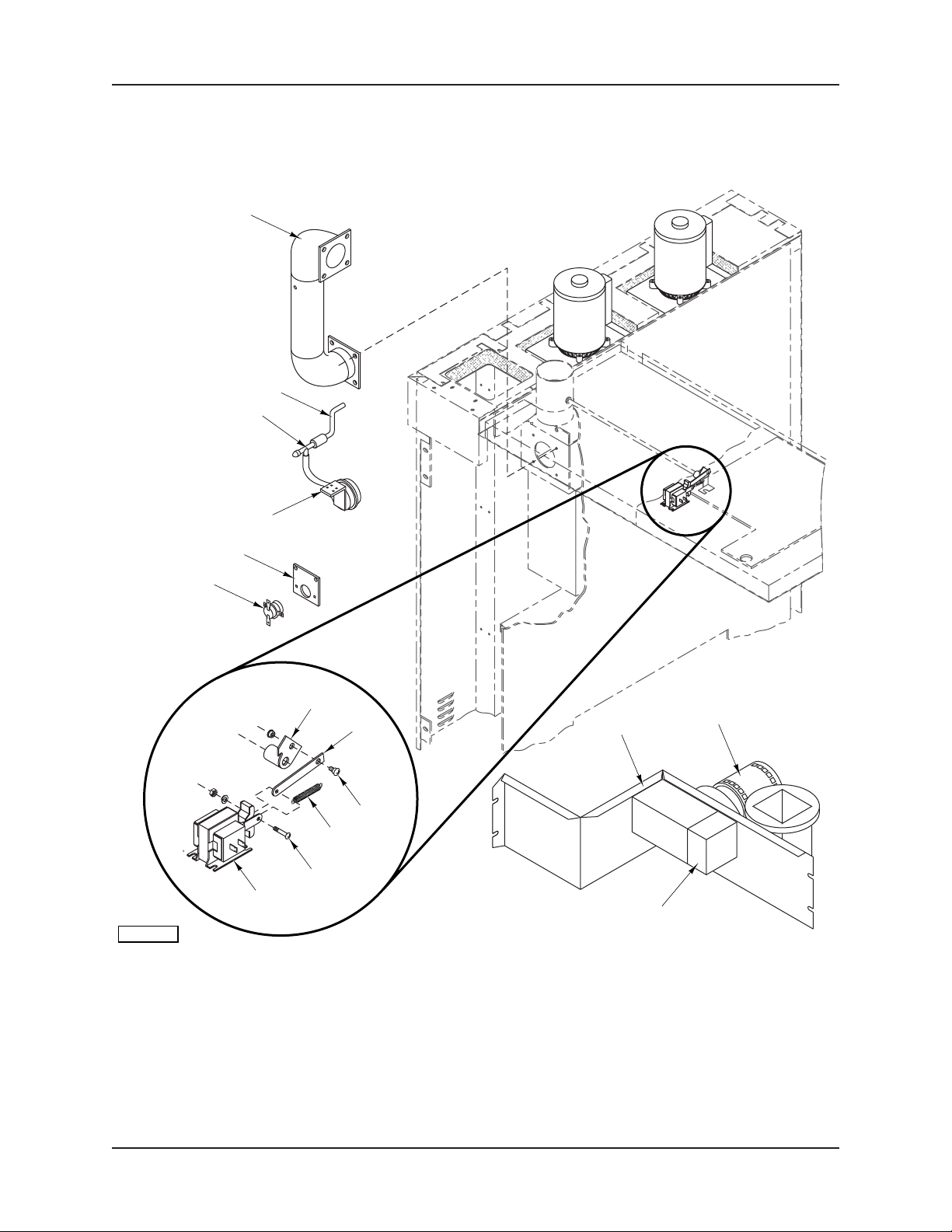

GAS OVEN VENTING
(Present Construction New 09-00)
- 28 -
HSRO SERIES SINGLE RACK OVEN REPLACEMENT PARTS
GAS OVEN VENTING
(Present Construction New 09-00)
ILLUS. PART NAME OF PART AMT.
PL-55525 NO.
1 00-837100-00019 Blower Assy. Power Venter ........................................................................................ 1
2 00-837100-00009 Weldment – Wall Duct ............................................................................................... 1
3 00-837100-00008 Duct – Sliding ............................................................................................................. 1
4 00-837021-00290 Vent – Stack Assy. .................................................................................................... 1
5 00-837021-00301 Line – Vacuum Switch ................................................................................................1
6 00-837021-00206 Line – Vacuum Test Port ............................................................................................ 1
7 00-837022-00018 Sensor – Vacuum ...................................................................................................... 1
8 00-837022-00041 Switch – Roll-Out Sensor .......................................................................................... 1
9 00-837021-00168 Bracket – Roll-Out Switch Mounting ......................................................................... 1
10 00-837004-00031 Weldment – Collar Plate (Steam Vent) ...................................................................... 1
11 00-837004-00029 Arm – Spring Return .................................................................................................. 1
12 SC-066-19 Mach. Screw 10-32 x
13 00-265780-00001 Insert – AVDEL 10-32................................................................................................ 1
14 00-837022-00061 Spring - Return (Steam Vent) .................................................................................... 1
15 SC-018-60 Mach. Screw 6-32 x 11/8 Phil. Pan Hd. ...................................................................... 1
16 WL-006-42 Lockwasher #6 Medium ............................................................................................ 1
17 NS-010-06 Nut 6-32 Hex (Brass) ................................................................................................ 1
18 00-837022-00058 Solenoid – Actuator Steam Vent ................................................................................1
7
/16 Phil. Truss Hd. ................................................................... 1
- 29 -
F-43003 (June 2001)
HSRO SERIES SINGLE RACK OVEN REPLACEMENT PARTS
1
2
3
4
5
6
7
F-43003 (June 2001)
PL-55441
LIGHT FIXTURE UNIT
- 30 -
HSRO SERIES SINGLE RACK OVEN REPLACEMENT PARTS
LIGHT FIXTURE UNIT
ILLUS. PART NO. NAME OF PART AMT.
PL-55441
1 00-837005-00028 Socket – Ceramic Lamp ............................................................................................ 6
2 00-837005-00029 Lamp – Incandescent ................................................................................................ 6
3 00-837005-00007 Glass – Light Fixture ................................................................................................. 1
4 00-837002-00001 Fiberglass Strip ....................................................................................................... AR
5 00-265780-00001 Insert – ADVEL 10-32 ................................................................................................ 8
6 00-837005-00010 Cover – Glass ...........................................................................................................1
7 SC-066-19 Mach. Screw 10-32 x 7/16 Phil. Truss Hd. ................................................................... 8
00-837022-00053 Wiring Harness – Gas Oven ....................................................................................1
00-837022-00063 Wiring Harness – Lights (Thru Wall Connectors) .................................................... 2
- 31 -
F-43003 (June 2001)
HSRO SERIES SINGLE RACK OVEN REPLACEMENT PARTS
FORM 43003 JUNE 2001 PRINTED IN U.S.A.
Loading...
