CATALOG OF
REPLACEMENT
PARTS
HP SERIES PROOFER
MODEL HP1 MODEL HP2
ML-132394 ML-132291
ML-132395 ML-132292
ML-132396 ML-132293
ML-132397 ML-132294
ML-132398 ML-132295
ML-132399 ML-132296
ML-132400 ML-132303
ML-132401 ML-132304
ML-132402 ML-132305
ML-132403 ML-132306
ML-132404 ML-132307
ML-132405 ML-132308
MODEL HP3
ML-132367
PRIOR MLS COVERED IN THIS CATALOG
MODEL HP1
ML-132285
ML-132286
ML-132287
ML-132288
ML-132289
ML-132290
ML-132298
ML-132299
ML-132301
ML-132302
A product of HOBART 701 S. RIDGE AVENUE TROY, OHIO 45374-0001
FORM 43076 Rev. A (April 2005)
HP SERIES PROOFER REPLACEMENT PARTS
F-43076 Rev. A (April 2005)
- 2 -
© HOBART
HP SERIES PROOFER REPLACEMENT PARTS
Table of Contents
4 Control Panel (Previous Construction)
5 Control Panel (Current Construction)
7 Service Entrance (Previous Construction)
9 Service Entrance (Current Construction)
11 Single-Wide Cabinet (Previous Construction)
13 Single-Wide Cabinet (Current Construction)
15 Double-Wide Cabinet (Previous Construction)
17 Double-Wide Cabinet (Current Construction)
19 Triple-Wide Cabinet (ML-132367)
(Previous Construction)
21 Triple-Wide Cabinet (ML-132367)
(Current Construction)
23 Single Door Assembly (Previous Construction)
25 Single Door Assembly (Current Construction)
27 Double Door Assembly
29 Triple Door Assembly (ML-132367)
31 Trim and Interior Bumpers (Previous Construction)
33 Trim and Interior Bumpers (Current Construction)
35 Steam Unit
37 Drain Assembly
39 Exterior Water Supply
- 3 -
F-43076 Rev. A (April 2005)
HP SERIES PROOFER REPLACEMENT PARTS
6
7
PL-57385
1 THRU 5
CONTROL PANEL
(PREVIOUS CONSTRUCTION, MANUFACTURED PRIOR TO 1/3/05)
ILLUS. PART NO. NAME OF PART AM T.
PL-57385
1 01-1P2168-00001 Plate – Control Panel .................................................................................................................. 1
2 01-1P2024-00002 Plate – Control Panel (Blank) (Pass Thru) (Not Shown) ...........................................................1
3 01-100V21-00092 Gasket ..................................................................................................................................... 4 Ft.
4 01-1P1854-00001 Panel – Control (Incls. Items 1, 3, 5, 6, & 7) ............................................................................... 1
5 01-100V16-0279H Overlay.......................................................................................................................................1
6 01-1M3001-00003 Spacer – PC Board..................................................................................................................... 8
7 01-1P1255-00005 Board – PC Control .....................................................................................................................1
F-43076 Rev. A (April 2005)
- 4 -
HP SERIES PROOFER REPLACEMENT PARTS
6
7
PL-57745
1 THRU 5
CONTROL PANEL
(CURRENT CONSTRUCTION, MANUFACTURED AFTER 1/3/05)
ILLUS. PART NO. NAME OF PART AM T.
PL-57745
1 01-1P2168-00003 Plate – Control Panel .................................................................................................................. 1
2 01-1P2024-00002 Plate – Control Panel (Blank) (Pass Thru) (Not Shown) ...........................................................1
3 01-100V21-00092 Gasket ..................................................................................................................................... 4 Ft.
4 01-1P1854-00003 Panel – Control (Advanced) (Incls. Items 1, 3, 5, 6, & 7) .......................................................... 1
5 01-100V16-0599H Overlay.......................................................................................................................................1
6 01-1M3001-00003 Spacer – PC Board..................................................................................................................... 8
7 01-100V16-00624 Board – PC Control ..................................................................................................................... 1
- 5 -
F-43076 Rev. A (April 2005)
HP SERIES PROOFER REPLACEMENT PARTS
26
28
29
31
30
20
THRU
25
18-19
27
1
16-17
4
3
2
8-9-10
5
6
7
13
14-15
11
12
PL-57396
SERVICE ENTRANCE
(PREVIOUS CONSTRUCTION)
F-43076 Rev. A (April 2005)
- 6 -
HP SERIES PROOFER REPLACEMENT PARTS
SERVICE ENTRANCE
(PREVIOUS CONSTRUCTION)
ILLUS. PART NO. NAME OF PART AM T.
PL-57396
1 01-1P2030-00101 Solenoid Assy. (1- & 2-Duct Unit) .............................................................................................. 1
2 01-100V17-00339 Elbow.......................................................................................................................................... 1
3 01-100V11-00102 Nipple – Bushed Chase .............................................................................................................. 1
4 01-1P2025-00001 Box – Component ....................................................................................................................... 1
5 01-1P2026-00001 Panel – Side, Component Box....................................................................................................2
6 01-1P1749-00001 Beeper Assy...............................................................................................................................1
7 01-1000V5-00164 Spacer ........................................................................................................................................4
8 01-1P1384-00003 Conduit – Wire Package (1-Wide) ..............................................................................................1
9 01-1P1384-00004 Conduit – Wire Package (2-Wide) ..............................................................................................1
10 01-1P1214-00006 Board – Power Supply ............................................................................................................... 1
11 01-1000V6-00070 Relay – Fan DPDT 1/4 Hp., 120 VAC ......................................................................................... AR
12 01-1000V6-00225 Relay – Heater............................................................................................................................ 1
13 01-1000V5-00059 Bushing – Snap .......................................................................................................................... 1
14 01-1000V5-00105 Terminal (1 & 2 Duct)................................................................................................................ AR
15 01-1000V5-00209 Terminal (3 Duct) ........................................................................................................................ 1
16 01-1000V5-00106 End – Section (600 V.) ............................................................................................................... 1
17 01-1000V5-00210 End – Section Flat Base ............................................................................................................. 1
18 01-1000V6-00191 Breaker – Circuit (15 A., 120/240 V.) ........................................................................................ 1
19 01-100V11-00139 Box – Breaker ............................................................................................................................1
20 01-1P1869-00001 Cover Assy. – Component Box (1 Duct Unit, 1 Ph.) .................................................................. 1
21 01-1P1869-00002 Cover Assy. – Component Box (2 Duct Unit, 1 Ph.) .................................................................. 1
22 01-1P1869-00003 Cover Assy. – Component Box (3 Duct Unit, 1 Ph.) .................................................................. 1
23 01-1P1869-00004 Cover Assy. – Component Box (1 Duct Unit, 3 Ph.) .................................................................. 1
24 01-1P1869-00005 Cover Assy. – Component Box (2 Duct Unit, 3 Ph.) .................................................................. 1
25 01-1P1869-00006 Cover Assy. – Component Box (3 Duct Unit, 3 Ph.) .................................................................. 1
26 01-1P2048-00001 Box Assy. – Junction ................................................................................................................. 2
27 01-1P2030-00201 Conduit – Air Duct (1-, 2-, & 3-Duct Unit) .................................................................................. 1
28 01-1P2048-00001 Box Assy. – Junction ................................................................................................................. 1
29 01-1P2030-00203 Conduit – Air Duct (3-Duct Unit)................................................................................................. 1
30 01-1P2030-00202 Conduit – Air Duct (2- & 3-Duct Unit)......................................................................................... 1
31 01-1P2048-00001 Box Assy. – Junction ................................................................................................................. 1
01-1P2030-00010 Box – Standard Control (1-Duct Unit, 1 & 3 Ph.) ....................................................................... 1
01-1P2030-00011 Box – Standard Control (2-Duct Unit, 3 Ph.) .............................................................................. 1
01-1P2030-00013 Box – Standard Control (3-Duct Unit, 3 Ph.) .............................................................................. 1
01-1P2030-00015 Box – Standard Control (2-Duct Unit, 1 Ph.) .............................................................................. 1
01-1P2030-00016 Box – Standard Control (3-Duct Unit, 1 Ph.) .............................................................................. 1
01-1P2030-00001 Box – Standard Control (1-Duct Unit) ........................................................................................ 1
01-1P2030-00002 Box – Standard Control (2-Duct Unit) ........................................................................................ 1
01-1P2030-00003 Box – Standard Control (3-Duct Unit) ........................................................................................ 1
01-1P2030-00017 Box – Advanced Control (1-Duct Unit, 1 & 3 Ph.) ..................................................................... 1
01-1P2030-00018 Box – Advanced Control (2-Duct Unit, 1 Ph.) ............................................................................1
01-1P2030-00019 Box – Advanced Control (2-Duct Unit, 3 Ph.) ............................................................................1
01-1P2030-00020 Box – Advanced Control (3-Duct Unit, 1 Ph.) ............................................................................1
01-1P2030-00021 Box – Advanced Control (3-Duct Unit, 3 Ph.) ............................................................................1
01-1000V6-00241 (1-Duct Unit) Holder – Fuse (Single) ......................................................................................... 1
01-1000V6-00242 (2-Duct Unit) Holder – Fuse (Double) ........................................................................................ 1
01-1000V6-00243 (3-Duct Unit) Holder – Fuse (Triple) .......................................................................................... 1
01-1000V6-00244 Fuse (20 Amp.) ......................................................................................................................... AR
- 7 -
F-43076 Rev. A (April 2005)
HP SERIES PROOFER REPLACEMENT PARTS
1-2-3
26
28
27
29
30
33-34
32
35
31
18-19
20
THRU
25
17
16
14
13
6
5
4
10
7
8
9
PL-57646
15
12
11
SERVICE ENTRANCE
(CURRENT CONSTRUCTION)
F-43076 Rev. A (April 2005)
- 8 -
HP SERIES PROOFER REPLACEMENT PARTS
SERVICE ENTRANCE
(CURRENT CONSTRUCTION)
ILLUS. PART NO. NAME OF PART AM T.
PL-57646
1 01-1P2030-00101 Solenoid Assy. (1- & 2-Duct Unit) .............................................................................................. 1
2 01-1P2030-00102 Solenoid Assy. (3-Duct Unit)...................................................................................................... 1
3 01-100V17-00075 Valve – Solenoid (2-Way) .......................................................................................................... 1
4 01-100V17-00339 Elbow.......................................................................................................................................... 1
5 01-100V11-00102 Nipple – Bushed Chase .............................................................................................................. 1
6 01-1P2025-00003 Base – Component .....................................................................................................................1
7 01-1P2026-00002 Panel – Side (Component Box) .................................................................................................. 2
8 01-1P1749-00001 Beeper Assy............................................................................................................................... 1
9 01-1000V5-00164 Spacer ........................................................................................................................................4
10 01-100V16-00627 Board – Power Supply (Advanced) (Used with Items 15 thru 19) ..........................................1
11 01-1000V5-00096 Block – Distribution..................................................................................................................... 1
12 01-1000V5-00037 Lug – Terminal ............................................................................................................................1
13 01-100V10-00234 Terminal – Section, Flat Mount (600 V.) ..................................................................................... 1
14 01-100V10-00235 End – Section, Flat Mount (600 V.) ............................................................................................ 1
15 01-1000V5-00059 Bushing – Snap .......................................................................................................................... 1
16 01-100V10-00245 Fuse (25 Amp.) (1 & 3 Ph. & 3 PH.) ......................................................................................... AR
17 01-100V10-00232 Fuse Holder .............................................................................................................................. AR
18 01-1000V6-00191 Breaker – Circuit (15 A., 120/240 V.) ........................................................................................ 1
19 01-100V11-00139 Box – Breaker ............................................................................................................................1
20 01-1P2196-00001 Cover Assy. – Component Box (1-Duct Unit, 1 Ph.) .................................................................. 1
21 01-1P2196-00002 Cover Assy. – Component Box (2-Duct Unit, 1 Ph.) .................................................................. 1
22 01-1P2196-00003 Cover Assy. – Component Box (3-Duct Unit, 1 Ph.) .................................................................. 1
23 01-1P2196-00004 Cover Assy. – Component Box (1-Duct Unit, 3 Ph.) .................................................................. 1
24 01-1P2196-00005 Cover Assy. – Component Box (2-Duct Unit, 3 Ph.) .................................................................. 1
25 01-1P2196-00006 Cover Assy. – Component Box (3-Duct Unit, 3 Ph.) .................................................................. 1
26 01-100V11-0024C Box Assy. – Junction ............................................................................................................... AR
27 01-1P2030-00201 Conduit – First Air Duct (1-, 2-, & 3-Duct Unit) .......................................................................... 1
28 01-100V11-0024C Box Assy. – Junction .................................................................................................................1
29 01-1P2030-00202 Conduit – Second Air Duct (2- & 3-Duct Unit) ...........................................................................1
30 01-1P2030-00203 Conduit – Third Air Duct (3-Duct Unit) ....................................................................................... 1
31 01-100V11-0024C Box Assy. – Junction .................................................................................................................1
32 01-100V11-00102 Nipple – Bushed Chased............................................................................................................ 1
33 01-100V17-00075 Valve – Solenoid 2-Way............................................................................................................. 1
34 01-1P2030-00103 Solenoid Assy. (3-Duct Unit) ...................................................................................................... 1
35 01-100V17-00339 Elbow.......................................................................................................................................... 1
01-1P1875-00001 Sensor Assy. – Humidity ............................................................................................................ 1
01-1P2030-00017 Box – Advanced Control (1-Duct Unit, 1 & 3 Ph.) ..................................................................... 1
01-1P2030-00018 Box – Advanced Control (2-Duct Unit, 1 Ph.) ............................................................................1
01-1P2030-00019 Box – Advanced Control (2-Duct Unit, 3 Ph.) ............................................................................1
01-1P2030-00020 Box – Advanced Control (3-Duct Unit, 1 Ph.) ............................................................................1
01-1P2030-00021 Box – Advanced Control (3-Duct Unit, 3 Ph.) ............................................................................1
- 9 -
F-43076 Rev. A (April 2005)
HP SERIES PROOFER REPLACEMENT PARTS
39
THRU
41
6-7
2
THRU
5
8
THRU
11
38
37
PL-57391
(PREVIOUS CONSTRUCTION, MANUFACTURED PRIOR TO 1/3/05)
F-43076 Rev. A (April 2005)
36
26
THRU
35

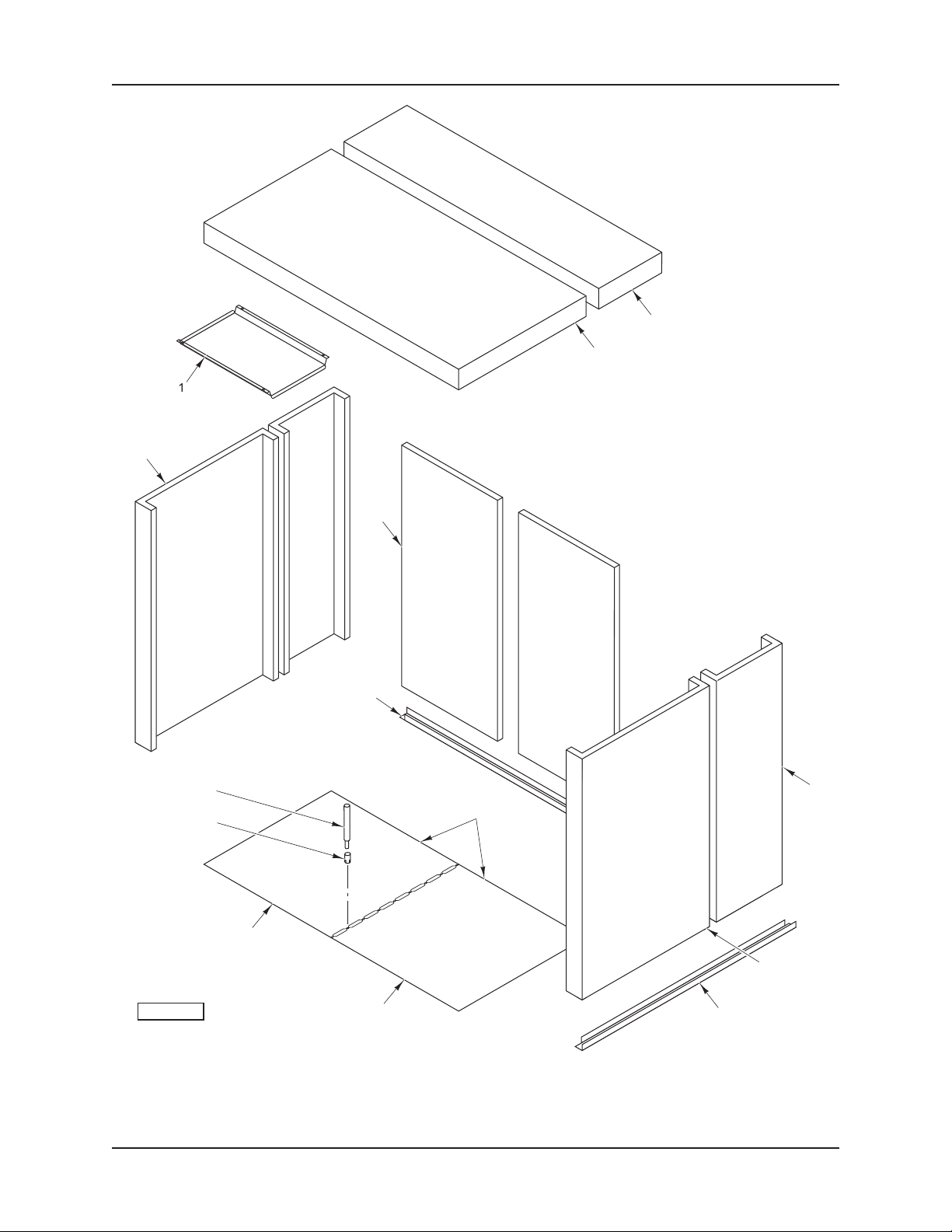

SINGLE-WIDE CABINET
- 10 -
12
THRU
15
16-17-18
19
THRU
25
HP SERIES PROOFER REPLACEMENT PARTS
SINGLE-WIDE CABINET
(PREVIOUS CONSTRUCTION, MANUFACTURED PRIOR TO 1/3/05)
ILLUS. PART NO. NAME OF PART AM T.
PL-57391
1 01-1P1898-00001 Duct – Ceiling.............................................................................................................................. 1
2 01-1P1851-00001 Panel – Ceiling .......................................................................................................................... AR
3 01-1000V5-00059 Bushing – Snap (Plastic).......................................................................................................... AR
4 01-1000V5-00073 Bushing – Snap ........................................................................................................................ AR
*5 01-100V21-00092 Gasket – PVC-Extruded (“B” Shape) .................................................................................... 30 Ft.
6 01-1P1851-00002 Ceiling Assy. – Half Panel ........................................................................................................... 1
*7 01-100V21-00092 Gasket – PVC-Extruded (“B” Shape) .................................................................................... 30 Ft.
8 01-1P1839-00001 Panel Assy. – Rear ..................................................................................................................... 1
9 01-100V18-00144 Latch – Cam Lock ...................................................................................................................... 2
10 01-100V18-00145 Receptacle – Cam Lock ............................................................................................................. 2
*11 01-100V21-00092 Gasket – PVC-Extruded (“B” Shape) .................................................................................... 30 Ft.
12 01-100V18-00144 Latch – Cam Lock .................................................................................................................... AR
13 01-100V18-00145 Receptacle – Cam Lock ...........................................................................................................AR
*14 01-100V21-00092 Gasket – PVC-Extruded (“B” Shape) .................................................................................... 30 Ft.
15 01-1P1841-00002 Wall – Half Weldment ................................................................................................................ 2
16 01-1P1841-00001 Wall Assy. (RH) .......................................................................................................................... 1
17 01-100V18-00145 Receptacle – Cam Lock ...........................................................................................................AR
*18 01-100V21-00092 Gasket – PVC-Extruded (“B” Shape) .................................................................................... 30 Ft.
19 01-1P1997-00001 Channel – Base Side (30 In.) ..................................................................................................... 1
20 01-1P1997-00004 Channel – Base Side (50 In.) ..................................................................................................... 1
21 01-1P1997-00002 Channel – Base Side (63 In.) ..................................................................................................... 1
22 01-1P1997-00005 Channel – Base Side (83 In.) ..................................................................................................... 1
23 01-1P1997-00003 Channel – Base Side (96 In.) ..................................................................................................... 1
24 01-1P1997-00006 Channel – Base Side (116 In.) ................................................................................................... 1
25 01-100V21-0005C Caulk – Silicone (Clear) (Tube) .................................................................................................. 1
26 01-1P2038-00001 Floor (30 In. STD) ....................................................................................................................... 1
27 01-1P2038-00002 Floor (63 In. STD) ....................................................................................................................... 1
28 01-1P2038-00005 Floor (83 In. STD) ....................................................................................................................... 1
29 01-1P2038-00003 Floor (96 In. STD) ....................................................................................................................... 1
30 01-1P2038-00006 Floor (116 In. STD) ..................................................................................................................... 1
31 01-1P2038-0001P Floor (30 In. Pass Thru) ............................................................................................................. 1
32 01-1P2038-0002P Floor (63 In. Pass Thru) ............................................................................................................. 1
33 01-1P2038-0005P Floor (83 In. Pass Thru) ............................................................................................................. 1
34 01-1P2038-0003P Floor (96 In. Pass Thru) ............................................................................................................. 1
35 01-1P2038-0006P Floor (116 In. Pass Thru)............................................................................................................ 1
36 01-1P1996-00001 Channel – Base Rear ................................................................................................................. 1
37 01-1000V4-00073 Anchor – Drop-In
38 01-1000V4-0073A Tool – Setting .............................................................................................................................. 1
39 01-1P1843-00002 Wall Assy. (LH)........................................................................................................................... 1
40 01-100V18-00144 Latch – Cam Lock .................................................................................................................... AR
*41 01-100V21-00092 Gasket – PVC-Extruded (“B” Shape) .................................................................................... 30 Ft.
01-100V21-00057 Adhesive – Floor (11 Oz. Tube) .............................................................................................. AR
01-100V19-00024 Trowel – Mastic (For Floor Adhesive) ....................................................................................... 1
01-1P2034-00001 Wire – Light Fixture Kit ............................................................................................................... 1
01-1000V7-00019 Light Fixture ................................................................................................................................1
01-100V11-0024A Box – J ....................................................................................................................................... 2
01-1000V5-00015 Nut – Wire ................................................................................................................................... 2
01-100V15-00066 Plug – Button 1/2 In. ................................................................................................................... AR
01-100V15-00067 Plug – Button 7/8 In. ..................................................................................................................... 9
01-1P1907-00001 Panel – Stop Top ......................................................................................................................... 2
01-1P1907-00002 Panel – Stop Top ......................................................................................................................... 1
1
/4-20 ............................................................................................................ AR
* Quantity Listed is Per Panel or Wall Assy.
- 11 -
F-43076 Rev. A (April 2005)
HP SERIES PROOFER REPLACEMENT PARTS
35-36-37
6-7
2
THRU
5
34
33
8
THRU
11
21
THRU
32
12
THRU
15
16 THRU 20
PL-57746
(CURRENT CONSTRUCTION, MANUFACTURED AFTER 1/3/05)
F-43076 Rev. A (April 2005)
SINGLE-WIDE CABINET
- 12 -
HP SERIES PROOFER REPLACEMENT PARTS
SINGLE-WIDE CABINET
(CURRENT CONSTRUCTION, MANUFACTURED AFTER 1/3/05)
ILLUS. PART NO. NAME OF PART AM T.
PL-57746
1 01-1P1898-00001 Duct – Ceiling.............................................................................................................................. 1
2 01-1P1851-00004 Panel – Ceiling .......................................................................................................................... AR
3 01-1000V5-00059 Bushing – Snap (Plastic).......................................................................................................... AR
4 01-1000V5-00073 Bushing – Snap ........................................................................................................................ AR
*5 01-100V21-00092 Gasket – PVC-Extruded (“B” Shape) .................................................................................... 30 Ft.
6 01-1P1851-00005 Ceiling Assy. – Half Panel ........................................................................................................... 1
*7 01-100V21-00092 Gasket – PVC-Extruded (“B” Shape) .................................................................................... 30 Ft.
8 01-1P1839-00004 Panel Assy. – Rear ..................................................................................................................... 1
9 01-100V18-00144 Latch – Cam Lock ...................................................................................................................... 2
10 01-100V18-00145 Receptacle – Cam Lock ............................................................................................................. 2
*11 01-100V21-00092 Gasket – PVC-Extruded (“B” Shape) .................................................................................... 30 Ft.
12 01-100V18-00144 Latch – Cam Lock .................................................................................................................... AR
13 01-100V18-00145 Receptacle – Cam Lock ...........................................................................................................AR
*14 01-100V21-00092 Gasket – PVC-Extruded (“B” Shape) .................................................................................... 30 Ft.
15 01-1P1841-00002 Wall – Half Weldment ................................................................................................................ 1
16 01-1P1841-00003 Wall Assy. (RH) .......................................................................................................................... 1
17 01-1P1841-00004 Wall Assy. (RH, 1/2 Panel) ........................................................................................................... 1
18 01-1P1841-00005 Wall Assy. (RH, 1 Wide Rear) ....................................................................................................1
19 01-100V18-00145 Receptacle – Cam Lock ...........................................................................................................AR
*20 01-100V21-00092 Gasket – PVC-Extruded (“B” Shape) .................................................................................... 30 Ft.
21 01-1P2223-00030 Floor (30 In. STD) ....................................................................................................................... 1
22 01-1P2223-00050 Floor (50 In. STD) ....................................................................................................................... 1
23 01-1P2223-00063 Floor (63 In. STD) ....................................................................................................................... 1
24 01-1P2223-00083 Floor (83 In. STD) ....................................................................................................................... 1
25 01-1P2223-00096 Floor (96 In. STD) ....................................................................................................................... 1
26 01-1P2223-00116 Floor (116 In. STD) ..................................................................................................................... 1
27 01-1P2223-0030P Floor (30 In. Pass Thru) ............................................................................................................. 1
28 01-1P2223-0050P Floor (50 In. Pass Thru) ............................................................................................................. 1
29 01-1P2223-0063P Floor (63 In. Pass Thru) ............................................................................................................. 1
30 01-1P2223-0083P Floor (83 In. Pass Thru) ............................................................................................................. 1
31 01-1P2223-0096P Floor (96 In. Pass Thru) ............................................................................................................. 1
32 01-1P2223-0116P Floor (116 In. Pass Thru)............................................................................................................ 1
33 01-1000V4-00073 Anchor – Drop-In 1/4-20 ............................................................................................................ AR
34 01-1000V4-0073A Tool – Setting .............................................................................................................................. 1
35 01-1P1843-00002 Wall Assy. (LH)........................................................................................................................... 1
36 01-100V18-00144 Latch – Cam Lock .................................................................................................................... AR
*37 01-100V21-00092 Gasket – PVC-Extruded (“B” Shape) .................................................................................... 30 Ft.
01-100V21-00057 Adhesive – Floor (11 Oz. Tube) .............................................................................................. AR
01-100V19-00024 Trowel – Mastic (For Floor Adhesive) ....................................................................................... 1
01-1P2034-00001 Wire – Light Fixture Kit ............................................................................................................... 1
01-1000V7-00019 Light Fixture ................................................................................................................................1
01-100V11-0024A Box – J ....................................................................................................................................... 2
01-1000V5-00015 Nut – Wire ................................................................................................................................... 2
01-100V15-00066 Plug – Button 1/2 In. ................................................................................................................... AR
01-100V15-00067 Plug – Button 7/8 In. ..................................................................................................................... 9
01-1P1907-00001 Panel – Stop Top ......................................................................................................................... 2
01-1P1907-00002 Panel – Stop Top ......................................................................................................................... 1
* Quantity Listed is Per Panel or Wall Assy.
- 13 -
F-43076 Rev. A (April 2005)
HP SERIES PROOFER REPLACEMENT PARTS
51-52-53
7-8
2
THRU
6
9
THRU
12
PL-57392
50
49
48
40
THRU
47
32
THRU
39
26 THRU 31
19
THRU
25
DOUBLE-WIDE CABINET
(PREVIOUS CONSTRUCTION, MANUFACTURED PRIOR TO 5/1/05)
13
14
15
16
17
18
F-43076 Rev. A (April 2005)
- 14 -
HP SERIES PROOFER REPLACEMENT PARTS
DOUBLE-WIDE CABINET
(PREVIOUS CONSTRUCTION, MANUFACTURED PRIOR TO 5/1/05)
ILLUS. PART NO. NAME OF PART AM T.
PL-57392
1 01-1P1898-00001 Duct – Ceiling.............................................................................................................................. 1
2 01-1P1853-00001 Panel – Ceiling .......................................................................................................................... AR
3 01-1000V5-00059 Bushing – Snap (Plastic).......................................................................................................... AR
4 01-1000V5-00073 Bushing – Snap ........................................................................................................................ AR
5 01-100V15-00067 Plug – Button
*6 01-100V21-00092 Gasket – PVC Extruded (“B” Shape) ..................................................................................... 30 Ft.
7 01-1P1853-00002 Ceiling Assy. – Half Panel ........................................................................................................... 1
*8 01-100V21-00092 Gasket – PVC Extruded (“B” Shape) ..................................................................................... 30 Ft.
9 01-1P1839-00001 Panel Assy. – Rear ..................................................................................................................... 2
10 01-100V18-00144 Latch – Cam Lock ...................................................................................................................... 2
11 01-100V18-00145 Receptacle – Cam Lock ............................................................................................................. 2
*12 01-100V21-00092 Gasket – PVC-Extruded (“B” Shape) .................................................................................... 30 Ft.
13 01-1P1841-00002 Wall – Half Weldment ................................................................................................................. 2
14 01-100V18-00144 Latch – Cam Lock .................................................................................................................... AR
15 01-100V18-00145 Receptacle – Cam Lock ...........................................................................................................AR
16 01-1P1841-00001 Wall Assy. (RH) .......................................................................................................................... 1
17 01-100V18-00145 Receptacle – Cam Lock ...........................................................................................................AR
*18 01-100V21-00092 Gasket – PVC-Extruded (“B” Shape) .................................................................................... 30 Ft.
19 01-1P1997-00001 Channel – Base Side (30 In.) ..................................................................................................... 1
20 01-1P1997-00004 Channel – Base Side (50 In.) ..................................................................................................... 1
21 01-1P1997-00002 Channel – Base Side (63 In.) ..................................................................................................... 1
22 01-1P1997-00005 Channel – Base Side (83 In.) ..................................................................................................... 1
23 01-1P1997-00003 Channel – Base Side (96 In.) ..................................................................................................... 1
24 01-1P1997-00006 Channel – Base Side (116 In.) ................................................................................................... 1
25 01-100V21-0005C Caulk – Silicone (Clear) (Tube) .................................................................................................. 1
26 01-1P2017-00002 Floor (30 In. STD) ....................................................................................................................... 1
27 01-1P2017-00003 Floor (50 In. STD) ....................................................................................................................... 1
28 01-1P2017-0003L Floor(50 In. LH) ........................................................................................................................... 1
29 01-1P2017-0003R Floor (50 In RH) .......................................................................................................................... 1
30 01-1P2037-0002P Floor (30 In. Pass Thru) ............................................................................................................. 1
31 01-1P2037-0003P Floor (50 In. Pass Thru) ............................................................................................................. 1
32 01-1P2017-0004R Floor (63 In. STD, RH) ................................................................................................................ 1
33 01-1P2017-0005R Floor (83 In. STD, RH) ................................................................................................................ 1
34 01-1P2017-0006R Floor (96 In. STD, RH) ................................................................................................................ 1
35 01-1P2017-0007R Floor (116 In. STD, RH) ...............................................................................................................1
36 01-1P2037-004PR Floor (63 In. Pass Thru, RH) ...................................................................................................... 1
37 01-1P2037-005PR Floor (83 In. Pass Thru, RH) ...................................................................................................... 1
38 01-1P2037-006PR Floor (96 In. Pass Thru, RH) ...................................................................................................... 1
39 01-1P2037-007PR Floor (116 In. Pass Thru, RH) ..................................................................................................... 1
40 01-1P2017-00004 Floor (63 In. STD, LH) .................................................................................................................1
41 01-1P2017-00005 Floor (83 In. STD, LH) .................................................................................................................1
42 01-1P2017-00006 Floor (96 In. STD, LH) .................................................................................................................1
43 01-1P2017-00007 Floor (116 In. STD, LH) ............................................................................................................... 1
44 01-1P2037-0004P Floor (63 In. Pass Thru, LH) .......................................................................................................1
45 01-1P2037-0005P Floor (83 In. Pass Thru, LH) .......................................................................................................1
46 01-1P2037-0006P Floor (96 In. Pass Thru, LH) .......................................................................................................1
47 01-1P2037-0007P Floor (116 In. Pass Thru, LH) .....................................................................................................1
48 01-1000V4-00073 Anchor – Drop-In 1/4-20 ............................................................................................................ AR
49 01-1000V4-0073A Tool – Setting .............................................................................................................................. 1
50 01-1P1996-00002 Channel – Base Rear ................................................................................................................. 1
*51 01-100V21-00092 Gasket – PVC Extruded (“B” Shape) ..................................................................................... 30 Ft.
52 01-100V18-00144 Latch – Cam Lock .................................................................................................................... AR
53 01-1P1843-00003 Wall Assy. (LH)........................................................................................................................... 1
01-100V21-00057 Adhesive – Floor (11 Oz. Tube) .............................................................................................. AR
01-100V19-00024 Trowel – Mastic (For Floor Adhesive) ....................................................................................... 1
01-1P2034-00001 Wire – Light Fixture Kit ............................................................................................................... 1
01-1000V7-00019 Light Fixture ................................................................................................................................1
01-1000V5-00015 Nut – Wire ................................................................................................................................... 2
01-100V15-00066 Plug – Button 1/2 In. ................................................................................................................... AR
01-100V15-00067 Plug – Button 7/8 In. ................................................................................................................... AR
01-1P1907-00001 Panel – Stop, Top ........................................................................................................................ 2
01-1P1907-00002 Panel – Stop, Top ........................................................................................................................ 1
* Quantity Listed is Per Panel or Wall Assy.
7
/8 In. ..................................................................................................................... 2
- 15 -
F-43076 Rev. A (April 2005)
HP SERIES PROOFER REPLACEMENT PARTS
43-44-45
7-8
2
THRU
6
9
THRU
12
42
41
31
THRU
40
PL-57747
(CURRENT CONSTRUCTION, MANUFACTURED AFTER 5/1/05)
F-43076 Rev. A (April 2005)
19-20
21
THRU
30
DOUBLE-WIDE CABINET
- 16 -
13
14
15
16
17
18
HP SERIES PROOFER REPLACEMENT PARTS
DOUBLE-WIDE CABINET
(CURRENT CONSTRUCTION, MANUFACTURED AFTER 5/1/05)
ILLUS. PART NO. NAME OF PART AM T.
PL-57747
1 01-1P1898-00001 Duct – Ceiling.............................................................................................................................. 1
2 01-1P1853-00001 Panel – Ceiling .......................................................................................................................... AR
3 01-1000V5-00059 Bushing – Snap (Plastic).......................................................................................................... AR
4 01-1000V5-00073 Bushing – Snap ........................................................................................................................ AR
5 01-100V15-00067 Plug – Button 7/8 In. ..................................................................................................................... 2
*6 01-100V21-00092 Gasket – PVC Extruded (“B” Shape) ..................................................................................... 30 Ft.
7 01-1P1853-00002 Ceiling Assy. – Half Panel ........................................................................................................... 1
*8 01-100V21-00092 Gasket – PVC Extruded (“B” Shape) ..................................................................................... 30 Ft.
9 01-1P1839-00001 Panel Assy. – Rear ..................................................................................................................... 1
10 01-100V18-00144 Latch – Cam Lock ...................................................................................................................... 2
11 01-100V18-00145 Receptacle – Cam Lock ............................................................................................................. 2
*12 01-100V21-00092 Gasket – PVC-Extruded (“B” Shape) .................................................................................... 30 Ft.
13 01-1P1841-00002 Wall – Half Weldment ................................................................................................................. 2
14 01-100V18-00144 Latch – Cam Lock .................................................................................................................... AR
15 01-100V18-00145 Receptacle – Cam Lock ...........................................................................................................AR
16 01-1P1841-00001 Wall Assy. (RH) .......................................................................................................................... 1
17 01-100V18-00145 Receptacle – Cam Lock ...........................................................................................................AR
*18 01-100V21-00092 Gasket – PVC-Extruded (“B” Shape) .................................................................................... 30 Ft.
19 01-1P2224-00030 Floor (30 In. STD) ....................................................................................................................... 1
20 01-1P2224-0030P Floor (30 In. Pass Thru) ............................................................................................................. 1
21 01-1P2224-0050R Floor (50 In. STD, RH) ................................................................................................................ 1
22 01-1P2224-0063R Floor (63 In. STD, RH) ................................................................................................................ 1
23 01-1P2224-0083R Floor (83 In. STD, RH) ................................................................................................................ 1
24 01-1P2224-0096R Floor (96 In. STD, RH) ................................................................................................................ 1
25 01-1P2224-0116R Floor (116 In. STD, RH) ...............................................................................................................1
26 01-1P2224-050RP Floor (50 In. Pass Thru, RH) ...................................................................................................... 1
27 01-1P2224-063RP Floor (63 In. Pass Thru, RH) ...................................................................................................... 1
28 01-1P2224-083RP Floor (83 In. Pass Thru, RH) ...................................................................................................... 1
29 01-1P2224-096RP Floor (96 In. Pass Thru, RH) ...................................................................................................... 1
30 01-1P2224-116RP Floor (116 In. Pass Thru, RH) ..................................................................................................... 1
31 01-1P2224-0050L Floor (50 In. STD, LH) .................................................................................................................1
32 01-1P2224-0063L Floor (63 In. STD, LH) .................................................................................................................1
33 01-1P2224-0083L Floor (83 In. STD, LH) .................................................................................................................1
34 01-1P2224-0096L Floor (96 In. STD, LH) .................................................................................................................1
35 01-1P2224-0116L Floor (116 In. STD, LH) ............................................................................................................... 1
36 01-1P2224-050LP Floor (50 In. Pass Thru, LH) .......................................................................................................1
37 01-1P2224-063LP Floor (63 In. Pass Thru, LH) .......................................................................................................1
38 01-1P2224-083LP Floor (83 In. Pass Thru, LH) .......................................................................................................1
39 01-1P2224-096LP Floor (96 In. Pass Thru, LH) .......................................................................................................1
40 01-1P2224-116LP Floor (116 In. Pass Thru, LH) ..................................................................................................... 1
41 01-1000V4-00073 Anchor – Drop-In 1/4-20 ............................................................................................................ AR
42 01-1000V4-0073A Tool – Setting .............................................................................................................................. 1
*43 01-100V21-00092 Gasket – PVC Extruded (“B” Shape) ..................................................................................... 30 Ft.
44 01-100V18-00144 Latch – Cam Lock .................................................................................................................... AR
45 01-1P1843-00003 Wall Assy. (LH)........................................................................................................................... 1
01-100V21-00057 Adhesive – Floor (11 Oz. Tube) .............................................................................................. AR
01-100V19-00024 Trowel – Mastic (For Floor Adhesive) ....................................................................................... 1
01-1P2034-00001 Wire – Light Fixture Kit ............................................................................................................... 1
01-1000V7-00019 Light Fixture ................................................................................................................................1
01-1000V5-00015 Nut – Wire ................................................................................................................................... 2
01-100V15-00066 Plug – Button 1/2 In. ................................................................................................................... AR
01-100V15-00067 Plug – Button 7/8 In. ................................................................................................................... AR
01-1P1907-00001 Panel – Stop, Top ........................................................................................................................ 2
01-1P1907-00002 Panel – Stop, Top ........................................................................................................................ 1
* Quantity Listed is Per Panel or Wall Assy.
- 17 -
F-43076 Rev. A (April 2005)
HP SERIES PROOFER REPLACEMENT PARTS
U
24
THR
27
2
THRU
6
7
THRU
12
21
23
22
20
19
13
18
14-15
PL-57386
16-17
TRIPLE-WIDE CABINET (ML-132367)
(PREVIOUS CONSTRUCTION, MANUFACTURED PRIOR TO 1/3/05)
F-43076 Rev. A (April 2005)
- 18 -
HP SERIES PROOFER REPLACEMENT PARTS
TRIPLE-WIDE CABINET (ML-132367)
(PREVIOUS CONSTRUCTION, MANUFACTURED PRIOR TO 1/3/05)
ILLUS. PART NO. NAME OF PART AM T.
PL-57386
1 01-1P1898-00001 Duct – Ceiling.............................................................................................................................. 3
2 01-1P2139-00001 Panel – Ceiling ............................................................................................................................2
3 01-1000V5-00059 Bushing – Snap (Plastic).......................................................................................................... AR
4 01-1000V5-00073 Bushing – Snap ........................................................................................................................ AR
5 01-100V15-00067 Plug – Button
*6 01-100V21-00092 Gasket – PVC Extruded (“B” Shape) ..................................................................................... 30 Ft.
7 01-1P1839-00001 Panel Assy. – Rear ..................................................................................................................... 2
8 01-1P1839-00002 Panel Assy. – Rear ..................................................................................................................... 1
9 01-1P1839-00003 Panel Assy. – Rear ..................................................................................................................... 1
10 01-100V18-00144 Latch – Cam Lock .................................................................................................................... AR
11 01-100V18-00145 Receptacle – Cam Lock ...........................................................................................................AR
*12 01-100V21-00092 Gasket – PVC-Extruded (“B” Shape) .................................................................................... 30 Ft.
13 01-1P1843-00004 Wall Assy. (RH Air Duct) ............................................................................................................ 1
14 01-1P1841-00001 Wall Assy. (RH) .......................................................................................................................... 1
*15 01-100V21-00092 Gasket – PVC-Extruded (“B” Shape) .................................................................................... 30 Ft.
16 01-1P2165-00102 Channel – Base Side (63 In.) ..................................................................................................... 2
17 01-100V21-0005C Caulk – Silicone (Clear) (Tube) .................................................................................................. 1
18 01-1P2164-00103 Floor Section .............................................................................................................................. 1
19 01-1P2164-00102 Floor Section .............................................................................................................................. 1
20 01-1P2164-00101 Floor Section .............................................................................................................................. 1
21 01-1000V4-00073 Anchor – Drop-In 1/4-20 ............................................................................................................ AR
22 01-1000V4-0073A Tool – Setting .............................................................................................................................. 1
23 01-1P2165-00101 Channel – Base Rear ................................................................................................................. 1
*24 01-100V21-00092 Gasket – PVC Extruded (“B” Shape) ..................................................................................... 30 Ft.
25 01-100V18-00144 Latch – Cam Lock .................................................................................................................... AR
26 01-1P1843-00002 Wall Assy. (LH)........................................................................................................................... 2
27 01-100V18-00145 Receptacle – Cam Lock ...........................................................................................................AR
01-100V21-00057 Adhesive – Floor (11 Oz. Tube) .............................................................................................. AR
01-100V19-00024 Trowel – Mastic (For Floor Adhesive) ....................................................................................... 1
01-1P2034-00001 Wire – Light Fixture Kit ............................................................................................................... 1
01-1000V7-00019 Light Fixture ................................................................................................................................1
01-1000V5-00015 Nut – Wire ................................................................................................................................... 2
01-100V15-00066 Plug – Button 1/2 In. ................................................................................................................... AR
01-100V15-00067 Plug – Button 7/8 In. ................................................................................................................... AR
01-1P1907-00001 Panel – Stop, Top ........................................................................................................................ 6
01-1P1907-00002 Panel – Stop, Top ........................................................................................................................ 1
7
/8 In. ................................................................................................................... AR
* Quantity Listed is Per Panel or Wall Assy.
- 19 -
F-43076 Rev. A (April 2005)
HP SERIES PROOFER REPLACEMENT PARTS
U
21
THR
25
2
THRU
6
7
THRU
12
PL-57748
20
19
18
17
13
16
14-15
TRIPLE-WIDE CABINET (ML-132367)
(CURRENT CONSTRUCTION, MANUFACTURED AFTER 1/3/05)
F-43076 Rev. A (April 2005)
- 20 -
HP SERIES PROOFER REPLACEMENT PARTS
TRIPLE-WIDE CABINET (ML-132367)
(CURRENT CONSTRUCTION, MANUFACTURED AFTER 1/3/05)
ILLUS. PART NO. NAME OF PART AM T.
PL-57748
1 01-1P1898-00001 Duct – Ceiling.............................................................................................................................. 2
2 01-1P2139-00001 Panel – Ceiling ............................................................................................................................2
3 01-1000V5-00059 Bushing – Snap (Plastic).......................................................................................................... AR
4 01-1000V5-00073 Bushing – Snap ........................................................................................................................ AR
5 01-100V15-00067 Plug – Button 7/8 In. ................................................................................................................... AR
*6 01-100V21-00092 Gasket – PVC Extruded (“B” Shape) ..................................................................................... 30 Ft.
7 01-1P1839-00001 Panel Assy. – Rear ..................................................................................................................... 2
8 01-1P1839-00002 Panel Assy. – Rear ..................................................................................................................... 1
9 01-1P1839-00003 Panel Assy. – Rear ..................................................................................................................... 1
10 01-100V18-00144 Latch – Cam Lock .................................................................................................................... AR
11 01-100V18-00145 Receptacle – Cam Lock ...........................................................................................................AR
*12 01-100V21-00092 Gasket – PVC-Extruded (“B” Shape) .................................................................................... 30 Ft.
13 01-1P1843-00004 Wall Assy. (RH Air Duct) ............................................................................................................ 1
14 01-1P1841-00001 Wall Assy. (RH) .......................................................................................................................... 1
*15 01-100V21-00092 Gasket – PVC-Extruded (“B” Shape) .................................................................................... 30 Ft.
16 01-1P2225-0063R Floor Section (RH) ......................................................................................................................1
17 01-1P2225-0063C Floor Section (Center) ................................................................................................................ 1
18 01-1P2224-0063L Floor Section (LH) ...................................................................................................................... 1
19 01-1000V4-00073 Anchor – Drop-In 1/4-20 ............................................................................................................ AR
20 01-1000V4-0073A Tool – Setting .............................................................................................................................. 1
*21 01-100V21-00092 Gasket – PVC Extruded (“B” Shape) ..................................................................................... 30 Ft.
22 01-100V18-00144 Latch – Cam Lock .................................................................................................................... AR
23 01-1P1843-00002 Wall Assy. (LH)........................................................................................................................... 1
24 01-1P1843-00003 Wall Assy. (LH)........................................................................................................................... 1
25 01-100V18-00145 Receptacle – Cam Lock ...........................................................................................................AR
01-100V21-00057 Adhesive – Floor (11 Oz. Tube) .............................................................................................. AR
01-100V19-00024 Trowel – Mastic (For Floor Adhesive) ....................................................................................... 1
01-1P2034-00001 Wire – Light Fixture Kit ............................................................................................................... 1
01-1000V7-00019 Light Fixture ................................................................................................................................1
01-1000V5-00015 Nut – Wire ................................................................................................................................... 2
01-100V15-00066 Plug – Button 1/2 In. ................................................................................................................... AR
01-100V15-00067 Plug – Button 7/8 In. ................................................................................................................... AR
01-1P1907-00001 Panel – Stop, Top ........................................................................................................................ 3
01-1P1907-00002 Panel – Stop, Top ........................................................................................................................ 1
* Quantity Listed is Per Panel or Wall Assy.
- 21 -
F-43076 Rev. A (April 2005)

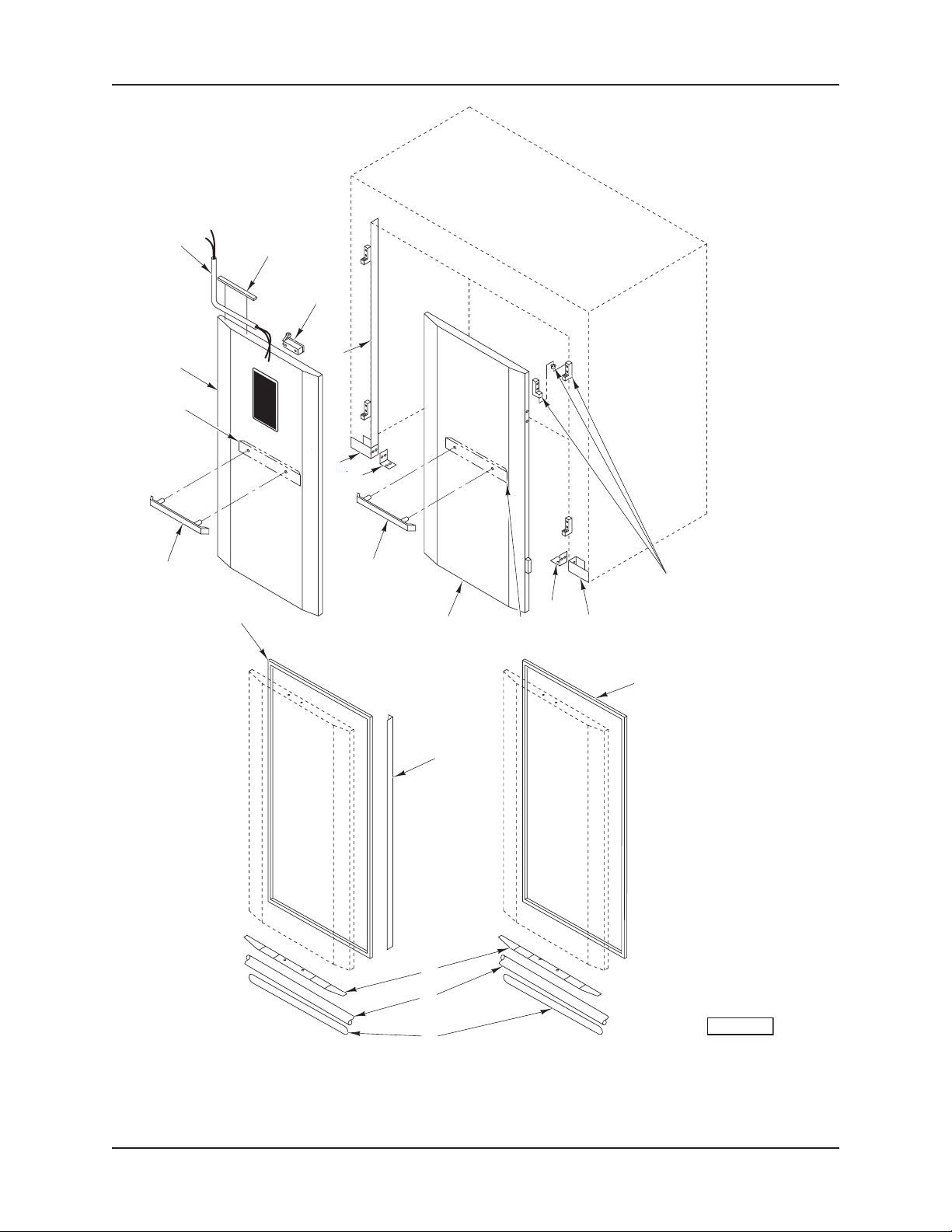

HP SERIES PROOFER REPLACEMENT PARTS
5
6
10
9
3-4
1
7-8
13
14
2
12
11
15
16
17
PL-57387
(PREVIOUS CONSTRUCTION, MANUFACTURED PRIOR TO 1/3/05)
F-43076 Rev. A (April 2005)
SINGLE DOOR ASSEMBLY
- 22 -
HP SERIES PROOFER REPLACEMENT PARTS
SINGLE DOOR ASSEMBLY
(PREVIOUS CONSTRUCTION, MANUFACTURED PRIOR TO 1/3/05)
ILLUS. PART NO. NAME OF PART AM T.
PL-57387
1 01-1P1499-00002 Handle – Door ............................................................................................................................. 1
2 01-1P1837-00001 Bumper – Door ........................................................................................................................... 1
3 01-1P1845-00001 Door – W/Control Panel ..............................................................................................................1
4 01-1P1845-00002 Door – W/Control Panel Plate (Pass Thru) (Not Shown) .......................................................... 1
5 01-1P1383-00003 Conduit – Wire ............................................................................................................................1
6 01-1P1485-00002 Clamp – Wire Tube, Door ........................................................................................................... 1
7 01-100V18-00152 Closer – Door (W/Flush Strike) ..................................................................................................1
8 01-1P1914-00001 Bracket – Door Closer ................................................................................................................ 1
9 01-100V16-0576A Gasket – Magnetic ..................................................................................................................... 1
10 01-1P1867-00001 Hinge – Package ........................................................................................................................ 2
11 01-1P2019-00001 Trim – Jamb ................................................................................................................................ 1
12 01-1P2018-00001 Angle – Retainer ........................................................................................................................ 2
*13 01-1P2021-00001 Strip – Cover (Jamb) .................................................................................................................. 2
14 01-1P2019-00001 Trim – Jamb ................................................................................................................................ 2
15 01-1P2109-00001 Retainer – Floor Seal .................................................................................................................. 1
16 01-1P2106-00001 Seal – Floor ................................................................................................................................ 1
17 01-1P2107-00001 Retainer – Floor Seal .................................................................................................................. 1
01-1P2108-00001 Floor Seal Assy. (Incls. Items 15, 16, & 17)............................................................................... 1
* Used Where Two Side Wall Panels Meet.
- 23 -
F-43076 Rev. A (April 2005)
HP SERIES PROOFER REPLACEMENT PARTS
9
4
5
3
2
1
8
6-7
12
13
11
10
14
15
PL-57749
16
(CURRENT CONSTRUCTION, MANUFACTURED AFTER 1/3/05)
F-43076 Rev. A (April 2005)
SINGLE DOOR ASSEMBLY
- 24 -
HP SERIES PROOFER REPLACEMENT PARTS
SINGLE DOOR ASSEMBLY
(CURRENT CONSTRUCTION, MANUFACTURED AFTER 1/3/05)
ILLUS. PART NO. NAME OF PART AM T.
PL-57749
1 01-1P1499-00002 Handle – Door ............................................................................................................................. 1
2 01-1P1837-00002 Bumper – Door ........................................................................................................................... 1
3 01-1P1845-00004 Door – Control ............................................................................................................................ 1
4 01-1P1383-00003 Conduit – Wire ............................................................................................................................1
5 01-1P1485-00002 Clamp – Wire Tube, Door ........................................................................................................... 1
6 01-100V18-00152 Closer – Door (W/Flush Strike) ..................................................................................................1
7 01-1P1914-00001 Bracket – Door Closer ................................................................................................................ 1
8 01-1P2146-00008 Gasket – Magnetic ..................................................................................................................... 1
9 01-1P1867-00001 Hinge – Package ........................................................................................................................ 2
10 01-1P2019-00002 Trim – Jamb ................................................................................................................................ 1
11 01-1P2018-00002 Angle – Retainer ........................................................................................................................ 2
*12 01-1P2021-00001 Strip – Cover (Jamb) (Except ML-132394 & ML-132400) ......................................................... 2
13 01-1P2019-00004 Trim – Jamb ................................................................................................................................ 2
14 01-1P2109-00004 Retainer – Floor Seal .................................................................................................................. 1
15 01-1P2106-00004 Seal – Floor ................................................................................................................................ 1
16 01-1P2107-00004 Retainer – Floor Seal .................................................................................................................. 1
01-1P2108-00004 Floor Seal Assy. (Incls. Items 14, 15, & 16)............................................................................... 1
* Used Where Two Side Wall Panels Meet.
- 25 -
F-43076 Rev. A (April 2005)
HP SERIES PROOFER REPLACEMENT PARTS
3-4
1
5
2
20
6
7-8
9
10
11
12
13
14
15
16
17
18
F-43076 Rev. A (April 2005)
19
21
22
23
DOUBLE DOOR ASSEMBLY
- 26 -
PL-57388
HP SERIES PROOFER REPLACEMENT PARTS
DOUBLE DOOR ASSEMBLY
ILLUS. PART NO. NAME OF PART AM T.
PL-57388
1 01-1P1499-00002 Handle – Door ............................................................................................................................. 1
2 01-1P1837-00001 Bumper – Door ........................................................................................................................... 1
3 01-1P1847-00001 Door – W/Control Panel ..............................................................................................................1
4 01-1P1847-00002 Door – W/Control Panel Plate (Pass Thru) (Not Shown) .......................................................... 1
5 01-1P1383-00003 Conduit – Wire ............................................................................................................................1
6 01-1P1485-00002 Clamp – Wire Tube, Door ........................................................................................................... 1
7 01-1P1914-00001 Bracket – Door Closer ................................................................................................................ 1
8 01-100V18-00152 Closer – Door (W/Flush Strike) ..................................................................................................1
*9 01-1P2021-00001 Strip – Cover, Jamb .................................................................................................................... 2
10 01-1P2019-00001 Trim – Jamb ................................................................................................................................ 2
11 01-1P2018-00002 Angle – Retainer ........................................................................................................................ 2
12 01-1P1499-00002 Handle – Door ............................................................................................................................. 1
13 01-1P1849-00001 Door – Blank ............................................................................................................................. AR
14 01-1P1837-00001 Bumper – Door ........................................................................................................................... 1
15 01-1P2018-00002 Angle – Retainer ........................................................................................................................ 2
16 01-1P2019-00001 Trim – Jamb ................................................................................................................................ 2
17 01-1P1867-00001 Hinge – Package ........................................................................................................................ 2
18 01-100V16-0576B Gasket – Magnetic ..................................................................................................................... 1
19 01-1P2002-00001 Strip – Door Lap .......................................................................................................................... 1
20 01-100V16-0576B Gasket – Magnetic ..................................................................................................................... 1
21 01-1P2109-00002 Retainer – Floor Seal .................................................................................................................. 2
22 01-1P2106-00001 Seal – Floor ................................................................................................................................ 2
23 01-1P2107-00002 Retainer – Floor Seal .................................................................................................................. 2
01-1P2108-00002 Floor Seal Assy. (Incls. Items 21, 22, & 23)............................................................................... 2
* Used Where Two Side Wall Panels Meet.
- 27 -
F-43076 Rev. A (April 2005)
HP SERIES PROOFER REPLACEMENT PARTS
11
1
4
3
2
5
6
7-8
10
9
22
21
20
19
18
23
24
25
17
16
15
12
14
13
PL-57390
F-43076 Rev. A (April 2005)
TRIPLE DOOR ASSEMBLY (ML-132367)
- 28 -
HP SERIES PROOFER REPLACEMENT PARTS
TRIPLE DOOR ASSEMBLY (ML-132367)
ILLUS. PART NO. NAME OF PART AM T.
PL-57390
1 01-1P1499-00002 Handle – Door ............................................................................................................................. 1
2 01-1P1837-00001 Bumper – Door ........................................................................................................................... 1
3 01-1P2152-00002 Door – W/Control Panel ..............................................................................................................1
4 01-1P1384-00004 Conduit – Wire ............................................................................................................................1
5 01-1P1485-00002 Clamp – Wire Tube, Door ........................................................................................................... 1
6 01-1P2146-00002 Gasket – Magnetic ..................................................................................................................... 3
7 01-100V18-00152 Closer – Door (W/Flush Strike) ..................................................................................................3
8 01-1P1914-00001 Bracket – Door Closer ................................................................................................................ 3
9 01-1P1466-00002 Strip – Door Lap.......................................................................................................................... 1
10 01-1P2021-00001 Strip – Cover (Jamb) .................................................................................................................. 2
11 01-1P2166-00010 Post – Center (Door) .................................................................................................................. 1
12 01-1P1867-00001 Hinge – Package ........................................................................................................................ 6
13 01-1P2019-00001 Trim – Jamb ................................................................................................................................ 1
14 01-1P2018-00002 Angle – Retainer ........................................................................................................................ 1
15 01-1P1837-00001 Bumper – Door ........................................................................................................................... 1
16 01-1P2153-00001 Door – Blank ............................................................................................................................... 1
17 01-1P1499-00002 Handle – Door ............................................................................................................................. 1
18 01-1P2153-00002 Door – Blank ............................................................................................................................... 1
19 01-1P1837-00001 Bumper – Door ........................................................................................................................... 1
20 01-1P1499-00002 Handle – Door ............................................................................................................................. 1
21 01-1P2018-00002 Angle – Retainer ........................................................................................................................ 1
22 01-1P2019-00001 Trim – Jamb ................................................................................................................................ 1
23 01-1P2147-00001 Retainer – Floor Seal .................................................................................................................. 3
24 01-1P2106-00001 Seal – Floor ................................................................................................................................ 3
25 01-1P2107-00002 Retainer – Floor Seal .................................................................................................................. 3
01-1P2108-00002 Floor Seal Assy. (Incls. Items 23, 24, & 25)............................................................................... 3
- 29 -
F-43076 Rev. A (April 2005)
HP SERIES PROOFER REPLACEMENT PARTS
8
9
13 THRU 24
5-6-7
2-3-4
12
10
11
25
1
26
27
F-43076 Rev. A (April 2005)
29
30
33
TRIM AND INTERIOR BUMPERS
(PREVIOUS CONSTRUCTION)
- 30 -
28
31
32
PL-57389
34 THRU 41
HP SERIES PROOFER REPLACEMENT PARTS
TRIM AND INTERIOR BUMPERS
(PREVIOUS CONSTRUCTION)
ILLUS. PART NO. NAME OF PART AM T.
PL-57389
1 01-100V16-00531 Logo – Hobart ............................................................................................................................. 1
2 01-1P2097-00001 Trim – Front Lower (HP1) (Units Manufactured Prior To 1/3/05) ..............................................1
3 01-1P2097-00002 Trim – Front Lower (HP2) .......................................................................................................... 1
4 01-1P2097-00007 Trim – Front Lower (ML-132367) ..............................................................................................1
5 01-1P2096-00001 Trim – Front Upper (HP1) (Units Manufactured Prior To 1/3/05) ...............................................1
6 01-1P2096-00002 Trim – Front Upper (HP2) ........................................................................................................... 1
7 01-1P2096-00013 Trim – Front Upper (ML-132367) (Used With Side Trim) ........................................................... 1
8 01-1P2095-00002 Trim – Side (LH)........................................................................................................................ AR
9 01-1P1912-00001 Strap – Support Top Trim............................................................................................................ 2
10 01-1P2098-00001 Retainer – Forward Trim Assy. .................................................................................................. 2
11 01-1P2095-00001 Trim – Side (RH) ....................................................................................................................... AR
12 01-1P1913-00001 Strap – Connector Top Trim (Used With Side Trim) ................................................................... 2
13 01-1P1911-00001 Trim – Side Top (30 In. STD) ...................................................................................................... 2
14 01-1P1911-00004 Trim – Side Top (50 in. STD) ...................................................................................................... 1
15 01-1P1911-00002 Trim – Side Top (63 In. STD) ...................................................................................................... 2
16 01-1P1911-00005 Trim – Side Top (83 in. STD) ...................................................................................................... 1
17 01-1P1911-00003 Trim – Side Top (96 In. STD) ...................................................................................................... 2
18 01-1P1911-00006 Trim – Side Top (116 In. STD) ..................................................................................................... 1
19 01-1P1911-0001P Trim – Side Top (30 In. Pass Thru) ............................................................................................. 2
20 01-1P1911-0004P Trim – Side Top (50 In. Pass Thru) ............................................................................................. 1
21 01-1P1911-0002P Trim – Side Top (63 In. Pass Thru) ............................................................................................. 2
22 01-1P1911-0005P Trim – Side Top (83 In. Pass Thru) ............................................................................................. 1
23 01-1P1911-0003P Trim – Side Top (96 In. Pass Thru) ............................................................................................. 2
24 01-1P1911-0006P Trim – Side Top (116 In. Pass Thru) ........................................................................................... 1
25 01-1P1837-00002 Bumper (Per Panel) .................................................................................................................... 1
26 01-1P1837-00003 Bumper (1/2 Panel) (Per Panel) ................................................................................................... 1
27 01-1P2012-00002 Support – Bumper (1/2 Panel) ................................................................................................... AR
28 01-1P2013-00001 Bracket – Bumper Support (RH Panel) ...................................................................................... 1
29 01-1P1837-00002 Bumper (Per Panel) .................................................................................................................... 1
30 01-1P2012-00001 Support – Bumper (RH) ............................................................................................................ AR
31 01-1P2013-00001 Bracket – Bumper Support (RH) (Units Manufactured Prior To 1/3/05).................................. AR
*32 01-1P2016-00002 Trim – Inner-Bottom (15 In.) (1/2 Panel) ..................................................................................... AR
*33 01-1P2016-00001 Trim – Inner-Bottom .................................................................................................................. AR
34 01-1P2020-00001 Trim – Inner/Outer (Bottom, Side) (30 In.) ................................................................................ AR
35 01-1P2020-00006 Trim – Inner/Outer (Bottom, Side) (50 In.) ................................................................................ AR
36 01-1P2020-00002 Trim – Inner/Outer (Bottom, Rear) (50 In.) (2-Wide Units Prior To 5/1/05) .............................. AR
37 01-1P2020-00004 Trim – Inner/Outer (Bottom, Side) (63 In.) ................................................................................ AR
38 01-1P2020-00009 Trim – Inner/Outer (Bottom, Side 1/2 Panel) (83 In.) .................................................................. AR
39 01-1P2020-00003 Trim – Inner/Outer (Bottom) (83 In.) (1-Wide Units Prior To 1/3/05) ........................................ AR
40 01-1P2020-00005 Trim – Inner/Outer (Bottom, Side) (96 In.) ................................................................................ AR
41 01-1P2020-00010 Trim – Inner/Outer (Bottom, Side 1/2 Panel) (116 In.) ................................................................ AR
01-1P1910-00001 Trim – Rear (Top) (HP2) (HP1 Units Manufactured Prior To 1/3/05) ......................................... 1
01-1P1910-00003 Trim – Rear (Top) (ML-132367) ................................................................................................. 1
01-1P2099-00001 Cover – Slot .............................................................................................................................. AR
01-1P2042-00001 Trim – Inner Base (HP2) (HP1 Units Manufactured Prior To 1/3/05) ....................................... AR
01-1P2163-00101 Trim – Inner Base (ML-132367) ............................................................................................... AR
* Used On 1-Wide Units Built Prior To 1/3/05 and 2-Wide Units Built Prior To 5/1/05.
- 31 -
F-43076 Rev. A (April 2005)
HP SERIES PROOFER REPLACEMENT PARTS
8
9
13 THRU 24
5-6-7
2-3-4
12
10
11
25
1
26
27
F-43076 Rev. A (April 2005)
29
30
TRIM AND INTERIOR BUMPERS
(CURRENT CONSTRUCTION)
- 32 -
28
31
PL-57793
32 THRU 43
HP SERIES PROOFER REPLACEMENT PARTS
TRIM AND INTERIOR BUMPERS
(CURRENT CONSTRUCTION)
ILLUS. PART NO. NAME OF PART AM T.
PL-57793
1 01-100V16-00531 Logo – Hobart ............................................................................................................................. 1
2 01-1P2097-00011 Trim – Front Lower (HP1) (Units Manufactured After 1/3/05) .................................................. 1
3 01-1P2097-00002 Trim – Front Lower (HP2) .......................................................................................................... 1
4 01-1P2097-00007 Trim – Front Lower (ML-132367) ..............................................................................................1
5 01-1P2096-00011 Trim – Front Upper (HP1) (Units Manufactured After 1/3/05) ................................................... 1
6 01-1P2096-00002 Trim – Front Upper (HP2) ........................................................................................................... 1
7 01-1P2096-00013 Trim – Front Upper (ML-132367) (Used With Side Trim) ........................................................... 1
8 01-1P2095-00002 Trim – Side (LH)........................................................................................................................ AR
9 01-1P1912-00001 Strap – Support Top Trim............................................................................................................ 2
10 01-1P2098-00001 Retainer – Forward Trim Assy. .................................................................................................. 2
11 01-1P2095-00001 Trim – Side (RH) ....................................................................................................................... AR
12 01-1P1913-00001 Strap – Connector Top Trim (Used With Side Trim) ................................................................... 2
13 01-1P1911-00001 Trim – Side Top (30 In. STD) ...................................................................................................... 2
14 01-1P1911-00004 Trim – Side Top (50 in. STD) ...................................................................................................... 1
15 01-1P1911-00002 Trim – Side Top (63 In. STD) ...................................................................................................... 2
16 01-1P1911-00005 Trim – Side Top (83 in. STD) ...................................................................................................... 1
17 01-1P1911-00003 Trim – Side Top (96 In. STD) ...................................................................................................... 2
18 01-1P1911-00006 Trim – Side Top (116 In. STD) ..................................................................................................... 1
19 01-1P1911-0001P Trim – Side Top (30 In. Pass Thru) ............................................................................................. 2
20 01-1P1911-0004P Trim – Side Top (50 In. Pass Thru) ............................................................................................. 1
21 01-1P1911-0002P Trim – Side Top (63 In. Pass Thru) ............................................................................................. 2
22 01-1P1911-0005P Trim – Side Top (83 In. Pass Thru) ............................................................................................. 1
23 01-1P1911-0003P Trim – Side Top (96 In. Pass Thru) ............................................................................................. 2
24 01-1P1911-0006P Trim – Side Top (116 In. Pass Thru) ........................................................................................... 1
25 01-1P1837-00002 Bumper (Per Panel) .................................................................................................................... 1
26 01-1P1837-00003 Bumper (
27 01-1P2012-00002 Support – Bumper (1/2 Panel) ................................................................................................... AR
28 01-1P2013-00002 Bracket – Bumper Support (RH Panel) (Units Manufactured After 1/3/05) .............................. 1
29 01-1P1837-00002 Bumper (Per Panel) .................................................................................................................... 1
30 01-1P2012-00001 Support – Bumper (RH) ............................................................................................................ AR
31 01-1P2013-00002 Bracket – Bumper Support (RH) .............................................................................................. AR
32 01-1P2222-00001 Bracket Assy. – Floor Retainer (Full Wall Panel) ..................................................................... AR
33 01-1P2222-00002 Bracket Assy. – Floor Retainer (1/2 Wall Panel) (1- & 2-Wide Units) ....................................... AR
34 01-1P2222-00003 Bracket Assy. – Floor Retainer (1-Wide Rear Panel) .............................................................. AR
35 01-1P2222-00004 Bracket Assy. – Floor Retainer (2-Wide)................................................................................. AR
36 01-1P2222-00005 Bracket Assy. – Floor Retainer (3-Wide)................................................................................. AR
37 01-1P2229-00001 Floor Angle (Rear RH, Full Panel) ............................................................................................. AR
38 01-1P2229-00002 Floor Angle (1/2 Panel)............................................................................................................... AR
39 01-1P2229-00003 Floor Angle (1-Wide Rear) ....................................................................................................... AR
40 01-1P2229-00004 Floor Angle (2-Wide Rear) ....................................................................................................... AR
41 01-1P2229-00005 Floor Angle (3-Wide Rear) ....................................................................................................... AR
42 01-1P2229-00006 Floor Angle (RH Panel) ............................................................................................................. AR
43 01-100V21-0005C Caulk – Silicone (Clear) (Tube) .................................................................................................. 1
01-1P1910-00003 Trim – Rear (Top) (ML-132367) ................................................................................................. 1
01-1P1910-00004 Trim – Rear (Top) (HP1 Units Manufactured After 1/3/05) ........................................................ 1
01-1P2099-00001 Cover – Slot .............................................................................................................................. AR
01-1P2042-00002 Trim – Inner Base (HP1 Units Manufactured After 1/3/05) ..................................................... AR
01-1P2163-00101 Trim – Inner Base (ML-132367) ............................................................................................... AR
01-1P2019-00003 Trim – Rear Corner (HP1 Units Manufactured After 1/3/05) ..................................................... 2
1
/2 Panel) (Per Panel) ................................................................................................... 1
- 33 -
F-43076 Rev. A (April 2005)
HP SERIES PROOFER REPLACEMENT PARTS
1
2 THRU 7
8
9
10-11-12
22
18
17
15
16
21
20
19
14
13
PL-57393
STEAM UNIT
F-43076 Rev. A (April 2005)
- 34 -
HP SERIES PROOFER REPLACEMENT PARTS
STEAM UNIT
ILLUS. PART NO. NAME OF PART AM T.
PL-57393
1 01-1P2050-00001 Switch – Hi-Limit ........................................................................................................................ 1
2 01-1P1362-00002 Bracket – Mounting Spray Nozzle.............................................................................................. 1
3 01-1P1363-00003 Nozzle – Spray ........................................................................................................................... 1
4 01-100V17-00258 Ell
5 01-100V17-00272 Fitting – Straight 3/8 In. NPTM x 3 ................................................................................................. 1
6 01-100V17-00281 Coupler – Reducer 3/8 In. to 1/4 In. ............................................................................................... 1
7 01-100V17-00378 Nozzle – Spray Built-In ...............................................................................................................1
8 01-100V10-00123 Heating Element (240 V., 2200 W.) (Per Air Duct) ..................................................................... 2
9 01-1P1906-00002 Shield – Spray ............................................................................................................................ 2
10 01-1000V5-00143 Bushing ...................................................................................................................................... 1
11 01-1P1875-00001 Sensor Assy. – Humidity ............................................................................................................ 1
12 01-1P1905-00002 Bracket – Sensor ....................................................................................................................... 1
13 01-1P1837-00002 Bumper ....................................................................................................................................... 1
14 01-1P1902-00001 Panel – Intake ............................................................................................................................. 2
15 01-1P1901-00002 Guide – Drip ................................................................................................................................ 1
16 01-1P1903-00001 Panel – Intermediate ................................................................................................................... 2
17 01-1P1874-00002 Plate – Heater (Incls. Items 8 & 18) ............................................................................................1
18 01-1P1859-00001 Plate – Heater Mounting ............................................................................................................. 1
19 01-1000V8-00117 Blade – Fan ................................................................................................................................ 2
20 01-1P1904-00001 Bracket – Motor .......................................................................................................................... 2
21 01-1000V8-00115 Motor – C-Frame (3K RPM, 120 VAC, 1/2 Hp.) ............................................................................2
22 01-1P1909-00001 Cup – Wall Motor ........................................................................................................................ 2
01-1000V4-00047 Nutsert ...................................................................................................................................... AR
01-100V21-00092 Gasket 6.75 ................................................................................................................................ 1
01-1P1908-00001 Deflector – Top ........................................................................................................................... 2
3
/8 In. NPT (Brass) .................................................................................................................. 1
- 35 -
F-43076 Rev. A (April 2005)
HP SERIES PROOFER REPLACEMENT PARTS
1
3 THRU 7
2
9
8
PL-57394
F-43076 Rev. A (April 2005)
DRAIN ASSEMBLY
- 36 -
HP SERIES PROOFER REPLACEMENT PARTS
DRAIN ASSEMBLY
ILLUS. PART NO. NAME OF PART AM T.
PL-57394
1 01-1P1900-00001 Pan – Drain ................................................................................................................................. 1
2 01-1P1899-00001 Screen – Drain Pan .................................................................................................................... 1
3 01-1P2036-00101 Tube 5/8 In. Bent (Copper)......................................................................................................... AR
4 01-1P2036-00102 Tube 5/8 In. Straight (Copper) (2 Duct) (Not Shown) ............................................................... AR
5 01-1P2036-00103 Tube 5/8 In. Straight (Copper) (3 Duct) (Not Shown) ............................................................... AR
6 01-1P2036-00104 Tube 5/8 In. Straight (Copper) (Not Shown).............................................................................. AR
7 01-100V17-00394 Tee – Union (Brass) (2 & 3 Duct) (Not Shown) ...................................................................... AR
8 01-100V17-00326 Fitting 5/8 In. Comp. x 1/2 In. NPTM .............................................................................................. AR
9 01-1M1758-00003 Elbow.......................................................................................................................................... 1
01-100V17-00313 Tube Ell (Brass) 1/2 In. NPT (Not Shown) ................................................................................... 2
01-100V17-00392 Union 5/8 In. Comp. (Brass) (Not Shown)................................................................................... 1
01-1P2036-00001 Drain (1 Duct) (Incls. Items 3, 8, & 9) ........................................................................................ 1
01-1P2036-00002 Drain (2 Duct) (Incls. Items 3, 4, & 6 thru 9) .............................................................................. 1
01-1P2036-00003 Drain (1 & 2 Wide Only) (Incls. Items 3 & 5 thru 9) ................................................................... 1
01-1P2036-00004 Drain (1/2 Panel) ........................................................................................................................... 1
01-1P2036-00005 Drain (3W, 2 Duct) (Incls. Items 3, 5, & 8) ................................................................................. 1
- 37 -
F-43076 Rev. A (April 2005)
HP SERIES PROOFER REPLACEMENT PARTS
SUPPLY
LINE
1
2
3
4
9
8
10
13-14
12
11
15
16
5
6
7
F-43076 Rev. A (April 2005)
PL-57395
EXTERIOR WATER SUPPLY
- 38 -
HP SERIES PROOFER REPLACEMENT PARTS
EXTERIOR WATER SUPPLY
ILLUS. PART NO. NAME OF PART AM T.
PL-57395
1 01-100V17-00511 Union – Compression (Brass) (1 Duct) .....................................................................................1
2 01-100V17-00424 Pipe – Hex 1/4 In. NPT x 1/2 In. NPT ...............................................................................................1
3 01-100V17-00089 Valve – Ball 1/2 In. NPTF (Bronze)............................................................................................... 1
4 01-100V17-00288 Pipe 1/2 In. Dia. Close (Brass) ..................................................................................................... 1
5 01-100V17-00322 Elbow 1/2 In. Street (Brass) ........................................................................................................ 1
6 01-100V17-00275 Strainer (Y) – Liquid (Brass) .....................................................................................................1
7 01-100V17-00424 Pipe – Hex 1/4 In. NPT x 1/2 In. NPT. .............................................................................................. 1
8 01-100V17-00075 Valve – Solenoid – 2 Way (120 V.) ............................................................................................ 1
9 01-1P2030-00101 Solenoid Assy............................................................................................................................. 1
10 01-100V17-00339 Elbow – 90 Deg. (Brass) ...........................................................................................................1
11 01-100V17-00506 Tee 3/8 In. Compression (Brass) (2 Duct) (3 Duct, Previous Construction) ............................ AR
12 01-100V17-00396 Elbow – Union (Brass) (2 Duct) (3 Duct, Previous Construction) ............................................ 1
13 01-1P2035-00101 Tube 3/8 In. x 32 In. (Copper) (3 Duct, Previous Construction) ................................................ AR
14 01-1P2035-00102 Tube 3/8 In. x 19 In. (Copper) (2 Duct) (3 Duct, Current Construction) ................................... AR
15 01-1P2035-00103 Tube 3/8 In. x 3 In. (Copper) ........................................................................................................ 1
16 01-100V17-00027 Tubing – Copper 3/8 In. Dia. x 12 Ft. (3 Duct, Current Construction) (Not Shown) ................. 1
01-1P2035-00001 Water Supply Assy. (30 In. and 50 In.) (1 Duct) ....................................................................... 1
01-1P2035-00002 Water Supply Assy. (63 In. and 83 In.) (2 Duct) ....................................................................... 1
01-1P2035-00003 Water Supply Assy. (96 In. and 116 In.) (3 Duct, Previous Construction) ................................ 1
01-1P2035-00004 Water Supply Assy. (3 Duct, 1L/1R, Current Construction) .....................................................1
- 39 -
F-43076 Rev. A (April 2005)
HP SERIES PROOFER REPLACEMENT PARTS
FORM 43076 Rev. A APRIL 2005 PRINTED IN U.S.A.
Loading...
