HL300 SERIES LEGACY MIXER REPLACEMENT PARTS

F-43136 (May 2007)

- 2 -

© HOBART

HL300 SERIES LEGACY MIXER REPLACEMENT PARTS

Table Of Contents

5 CONTROL PANEL
7 ELECTRICAL COMPONENTS
9 BASE AND PEDESTAL
10 ATTACHMENT HUB
11 TRANSMISSION CASE AND MOTOR
13 TRANSMISSION
15 PLANETARY
17 BOWL AND BOWL GUARD
19 BOWL SUPPORT
20 AGITATORS AND ACCESSORIES

- 3 -

F-43136 (May 2007)

HL300 SERIES LEGACY MIXER REPLACEMENT PARTS

4

3

2

1

5

19

17-18

16

8

6

7

9

10

11-12

F-43136 (May 2007)

13

15

PL-58432

14

CONTROL PANEL

- 4 -

HL300 SERIES LEGACY MIXER REPLACEMENT PARTS

CONTROL PANEL

ILLUS. PART NO. NAME OF PART AMT.
PL-58432

1 NS-038-13 Lock Nut 10-24 (ML-134358) .....................................................................................................3

2 00-916759 Latch (ML-134358) ....................................................................................................................1

3 SC-128-69 Mach. Screw 10-24 x 3/8 Tx. Button Hd. (ML-134358) ............................................................... 3

4 SC-128-69 Mach. Screw 10-24 x 3/8 Tx. Button Hd. (ML-134358) ............................................................... 3

5 00-874338 Fastener – Self Retaining ..........................................................................................................4

6 NS-038-13 Lock Nut 10-24 (ML-134358) .....................................................................................................3

7 00-916760 Cover – Security (ML-134358) ...................................................................................................1

8 00-916613 Seal – Control Panel .................................................................................................................. 1

9 00-916621 Panel – Control ..........................................................................................................................1

10 SC-128-40 Mach. Screw 8-32 x 21/4 Phil. Oval Hd. (SST) ...........................................................................2

11 00-916765 Overlay – Standard ....................................................................................................................1

12 00-916766 Overlay – Recipe ....................................................................................................................... 1

13 WS-031-55 Washer .......................................................................................................................................1

14 00-874809 Knob ..........................................................................................................................................2

15 SC-128-39 Mach. Screw 8-32 x 11/2 Phil. Oval Hd. (SST) ............................................................................2

16 00-874831 Switch – Speed Selector Assembly ........................................................................................... 1

17 00-874883 PCB Assembly (Standard) .........................................................................................................1

18 00-874806 PCB Assy. (Recipe Timer)..........................................................................................................1

19 SD-039-23 Self-Tapping Screw 6-32 x 1/4 Hex Hd. Type RL ........................................................................ 5

00-916566-00001 Harness – Switch .......................................................................................................................1

- 5 -

F-43136 (May 2007)

HL300 SERIES LEGACY MIXER REPLACEMENT PARTS

8

7

6

5

1 THRU 4

10-11

9

22

21

20

19

18

17

16

15

12-13

14

PL-58465

F-43136 (May 2007)

ELECTRICAL COMPONENTS

- 6 -

HL300 SERIES LEGACY MIXER REPLACEMENT PARTS

ELECTRICAL COMPONENTS

ILLUS. PART NO. NAME OF PART AMT.
PL-58465

1 00-916761 Controller (100/120 V., 50/60 Hz., 1 Ph.) ...................................................................................1

2 00-916762 Controller (200/230 V., 50/60 Hz., 1 Ph.) ...................................................................................1

3 00-916763 Controller (200/230 V., 50/60 Hz., 3 Ph.) ...................................................................................1

4 00-916764 Controller (380/480 V., 50/60 Hz., 3 Ph.) ...................................................................................1

5 WS-023-48 Washer ....................................................................................................................................... 4

6 NS-038-04 Lock Nut 1/4-20 ........................................................................................................................... 4

7 00-916871 Plate – Controller Mounting .......................................................................................................1

8 NS-038-04 Lock Nut 1/4-20 ........................................................................................................................... 4

9 SC-018-34 Mach. Screw 8-32 x 1/2 Phil. Pan Hd. .........................................................................................4

10 SC-053-46 Mach. Screw 1/4-20 x 3/4 Slotted Truss Hd. (SST) (ML-134351) .................................................7

11 SC-128-74 Mach. Screw 1/4-20 x 5/8 Tx. Button Hd. (SST) (ML-134358) .....................................................7

12 00-916772-00001 Cover – Back & Studs (100/120 V. & 200/230 V., 1 Ph.) ........................................................... 1

13 00-916772-00002 Cover – Back & Studs (200/230 V. & 380/480 V., 3 Ph.) ........................................................... 1

14 00-557188 Foam – Tape .............................................................................................................................AR

15 SC-018-34 Mach. Screw 8-32 x 1/2 Phil. Pan Hd. ......................................................................................... 5

16 00-065890-00090 Terminal ..................................................................................................................................... 1

17 NS-009-12 Nut 8-32 Hex .............................................................................................................................. 1

18 00-916269 Block – Terminal.........................................................................................................................1

19 NS-009-12 Nut 8-32 Hex .............................................................................................................................. 2

20 00-087714-042-5 Relay (2-Pole, 30 Amp.) ............................................................................................................. 1

21 WS-023-48 Washer .......................................................................................................................................2

22 NS-009-12 Nut 8-32 Hex .............................................................................................................................. 2

00-874833-00001 Cord & Plug Assy. (Standard) ....................................................................................................1

00-874833-00002 Cord & Plug Assy. (Recipe Timer)..............................................................................................1

FE-026-34 Strain Relief – Electrical ............................................................................................................. 1

00-916649 Harness – Main Wiring .............................................................................................................. 1

- 7 -

F-43136 (May 2007)

HL300 SERIES LEGACY MIXER REPLACEMENT PARTS

11

12

6-7

41

42

10

9

40

39

43

5

4

3

2

1

8

38

13

14

15

21

16

17

18

19

20

22

24

23

25

26

27

28

37

36

35

57

56

55

54

53

44

45

46

47

34

29

33

32

31

30

48

49

50

51

52

PL-58435

F-43136 (May 2007)

BASE AND PEDESTAL

- 8 -

HL300 SERIES LEGACY MIXER REPLACEMENT PARTS

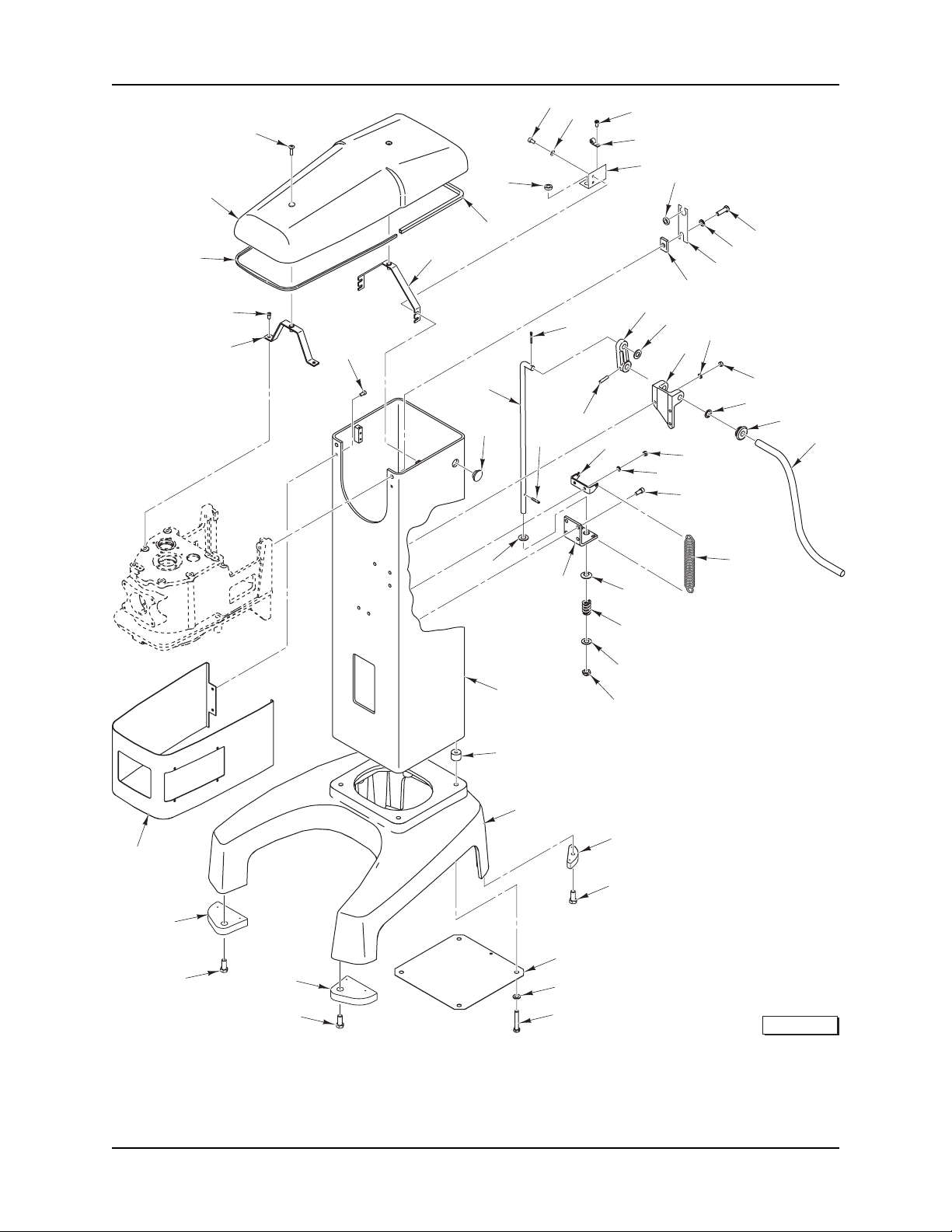

BASE AND PEDESTAL

ILLUS. PART NO. NAME OF PART AMT.
PL-58435

1 SC-089-01 Cap Screw 1/4-20 x 1/2 Hex Socket Hd. .......................................................................................2

2 00-916452 Strap – Front Cover Mounting ................................................................................................... 1

3 SC-089-19 Cap Screw 5/16-18 x 13/8 Hex Socket Hd. ...................................................................................2

4 00-874512-00003 Seal – Top Cover .......................................................................................................................1

5 00-916440 Cover – Top................................................................................................................................ 1

6 SC-120-29 Mach. Screw 1/4-20 x 1 Phil. Oval Hd. (ML-134351) .................................................................. 2

7 SC-128-64 Mach. Screw 1/4-20 x 1 Tx. Flat Hd. (SST) (ML-134358) ........................................................... 2

8 00-916454 Strap – Rear Cover Mounting ....................................................................................................1

9 00-916535-00001 Seal – Top Cover .......................................................................................................................1

10 FE-021-13 Bushing – Split Electric ..............................................................................................................1

11 SC-089-01 Cap Screw 1/4-20 x 1/2 Hex Socket Hd. .......................................................................................4

12 WS-003-19 Washer .......................................................................................................................................4

13 SD-019-23 Self-Tapping Screw 10-16 x

14 00-078758-00009 Clamp – Cable ...........................................................................................................................1

15 00-916813 Plate – Electric Connection ........................................................................................................ 1

16 FE-021-13 Bushing – Split Electric ..............................................................................................................1

17 SC-118-09 Cap Screw

3

/8-16 x 11/4 Hex Hd. ................................................................................................. 6

18 WL-004-06 Lockwasher 3/8 Helical ................................................................................................................ 6

19 00-916815 Plate – Wire Routing .................................................................................................................. 1

20 00-271340 Bar – Reinforcing .......................................................................................................................6

21 00-916467 Arm – Bowl Lift ...........................................................................................................................1

22 WS-008-47 Washer .......................................................................................................................................1

23 00-916442 Block – Bowl Lift Bearing ........................................................................................................... 1

24 WL-003-38 Lockwasher 1/4 Helical ................................................................................................................ 3

25 NS-013-02 Nut 1/4-20 Hex ............................................................................................................................3

26 WS-020-01 Washer (SST) ............................................................................................................................1

27 00-271343 Grommet – Handle ....................................................................................................................1

28 00-916482 Handle – Bowl Lift ...................................................................................................................... 1

29 00-916463 Spring – Bowl Lift ....................................................................................................................... 2

30 NS-031-39 Stop Nut 1/2-20 ...........................................................................................................................1

31 WS-008-47 Washer .......................................................................................................................................1

32 00-070104 Spring – Bowl Lift ....................................................................................................................... 1

33 00-070131 Washer – Cup Bowl Lift .............................................................................................................1

34 00-916469 Bracket – Bowl Lift Support .......................................................................................................1

35 SC-040-14 Cap Screw 5/16-18 x 3/4 Hex Socket Hd. .....................................................................................4

36 WL-003-38 Lockwasher 1/4 Helical................................................................................................................2

37 NS-013-02 Nut 1/4-20 Hex ............................................................................................................................2

38 00-916449 Hook – Bowl Lift Spring .............................................................................................................1

39 RP-002-26 Pin – Roll ...................................................................................................................................1

40 PC-006-13 Cotter Pin ................................................................................................................................... 1

41 00-916468 Rod – Bowl Lift ...........................................................................................................................1

42 PB-005-30 Plug – Button ............................................................................................................................. 1

43 RP-002-10 Pin – Roll ...................................................................................................................................1

44 WS-008-47 Washer .......................................................................................................................................1

45 00-916364-00004 Column ...................................................................................................................................... 1

46 00-916508 Lug – Threaded Column ............................................................................................................ 4

47 00-916213-00004 Base ........................................................................................................................................... 1

48 00-916309 Pad – Rear .................................................................................................................................2

49 SC-110-36 Cap Screw 3/8-16 x 1 Hex Hd. .................................................................................................... 2

50 00-916987 Cover – Bottom .......................................................................................................................... 1

51 WS-018-24 Washer .......................................................................................................................................4

52 SC-097-53 Cap Screw 3/8-16 x 21/4 Hex Hd. ................................................................................................. 4

53 SC-110-36 Cap Screw 3/8-16 x 1 Hex Hd. .................................................................................................... 1

54 00-916308 Pad – Front (RH) .......................................................................................................................1

55 SC-110-36 Cap Screw 3/8-16 x 1 Hex Hd. .................................................................................................... 1

56 00-916307 Pad – Front (LH) ........................................................................................................................ 1

57 00-916387 Wrapper – Transmission ............................................................................................................1

00-916546 Kit – Corroision Protection Pad .................................................................................................. 1

00-916353 Kit – Foot Pad (Incls. Items 48, 49, & 53 thru 56) ...................................................................... 1

3

/8 Phil. Pan Hd., Type B ............................................................... 1

- 9 -

F-43136 (May 2007)

HL300 SERIES LEGACY MIXER REPLACEMENT PARTS

13

12

11

10

7-8

6

5

4

2-3

1

9

14

15

PL-58434

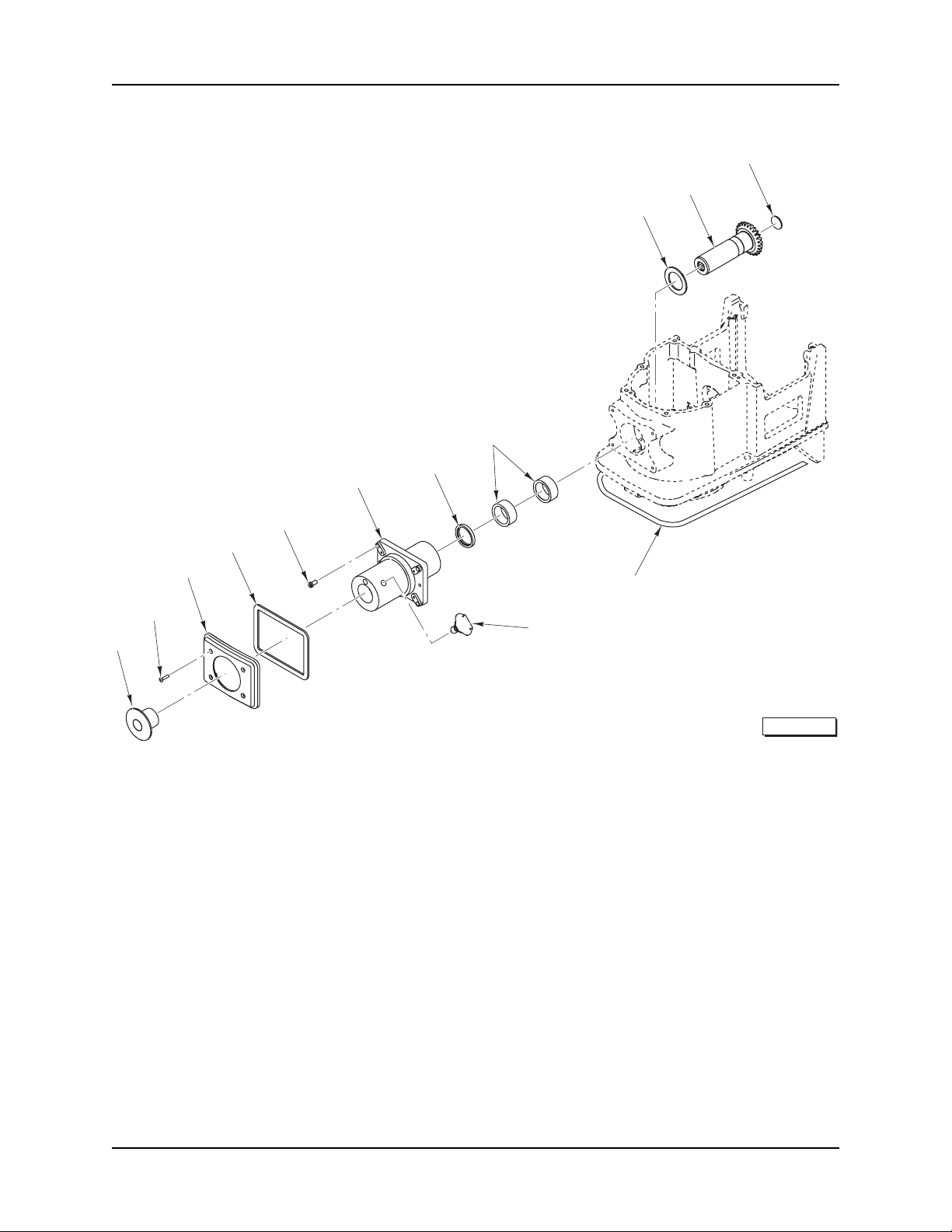

ATTACHMENT HUB

ILLUS. PART NO. NAME OF PART AMT.
PL-58434

1 00-114824-00001 Plug – Attachment ...................................................................................................................... 1

2 SC-079-04 Mach. Screw 8-32 x
3 SC-128-65 Mach. Screw 8-32 x

4 00-873973-00002 Panel – Front .............................................................................................................................1

5 00-875813 Seal – Front Cover ..................................................................................................................... 1

6 SC-040-09 Cap Screw 1/4-20 x 11/4 Hex Socket Hd. ..................................................................................... 4

7 00-916662-00002 Hub – Attachment ......................................................................................................................1

8 OR-001-09 O-Ring .......................................................................................................................................1

9 00-916733 Seal – Attachment Hub .............................................................................................................. 1

10 BN-005-11 Bearing – Needle ....................................................................................................................... 2

11 00-061920-00009 Washer .......................................................................................................................................1

12 00-916601-00002 Gear – Drive Attachment (Incls. Item 13) ................................................................................... 1

13 PL-003-17 Plug – Expansion ....................................................................................................................... 1

14 00-874925-00005 Seal – Neopreme ....................................................................................................................... 1

15 00-108197-00001 Screw – Thumb .......................................................................................................................... 1

3

/4 Phil. Oval Hd. (SST) (ML-134351) ........................................................ 4

3

/4 Tx. Flat Hd. (SST) (ML-134358) ........................................................... 4

F-43136 (May 2007)

- 10 -

HL300 SERIES LEGACY MIXER REPLACEMENT PARTS

2

1

15

14

13

12

11

10

9

8

3

4

5

6

7

PL-58437

TRANSMISSION CASE AND MOTOR

ILLUS. PART NO. NAME OF PART AMT.
PL-58437

1 SC-040-15 Cap Screw 5/16 x 18 x 11/4 Hex Socket Hd. .................................................................................6

2 SC-018-62 Mach. Screw 10-24 x 3/8 Phil. Pan Hd ........................................................................................ 1

3 00-078752-00003 Clamp – Cable ........................................................................................................................... 1

4 00-916324 Cover – Top................................................................................................................................ 1

5 00-916446 Motor .......................................................................................................................................... 1

6 00-087711-00352 Switch – Reed ............................................................................................................................ 1

7 00-916533 Holder – Reed Switch ................................................................................................................1

8 00-012430-00069 Key 3/16 x 3/16 x 139/64 .................................................................................................................... 1

9 NS-032-23 Lock Nut 7/16-20 Special ............................................................................................................. 1

10 WS-021-08 Washer .......................................................................................................................................1

11 00-916338 Worm – Motor ............................................................................................................................ 1

12 00-916388 Defl ector – Grease (LH) .............................................................................................................1

13 00-916445 Bushing – Motor .........................................................................................................................1

14 00-916326-00003 Transmission ..............................................................................................................................1

15 00-011800-00187 Dowel ......................................................................................................................................... 2

- 11 -

F-43136 (May 2007)

HL300 SERIES LEGACY MIXER REPLACEMENT PARTS

26

1

2

3

4

24

20

23

22

25

21

5

27

6

7

8

9

10

19

18

17

16

F-43136 (May 2007)

11

12

13

14

15

PL-58438

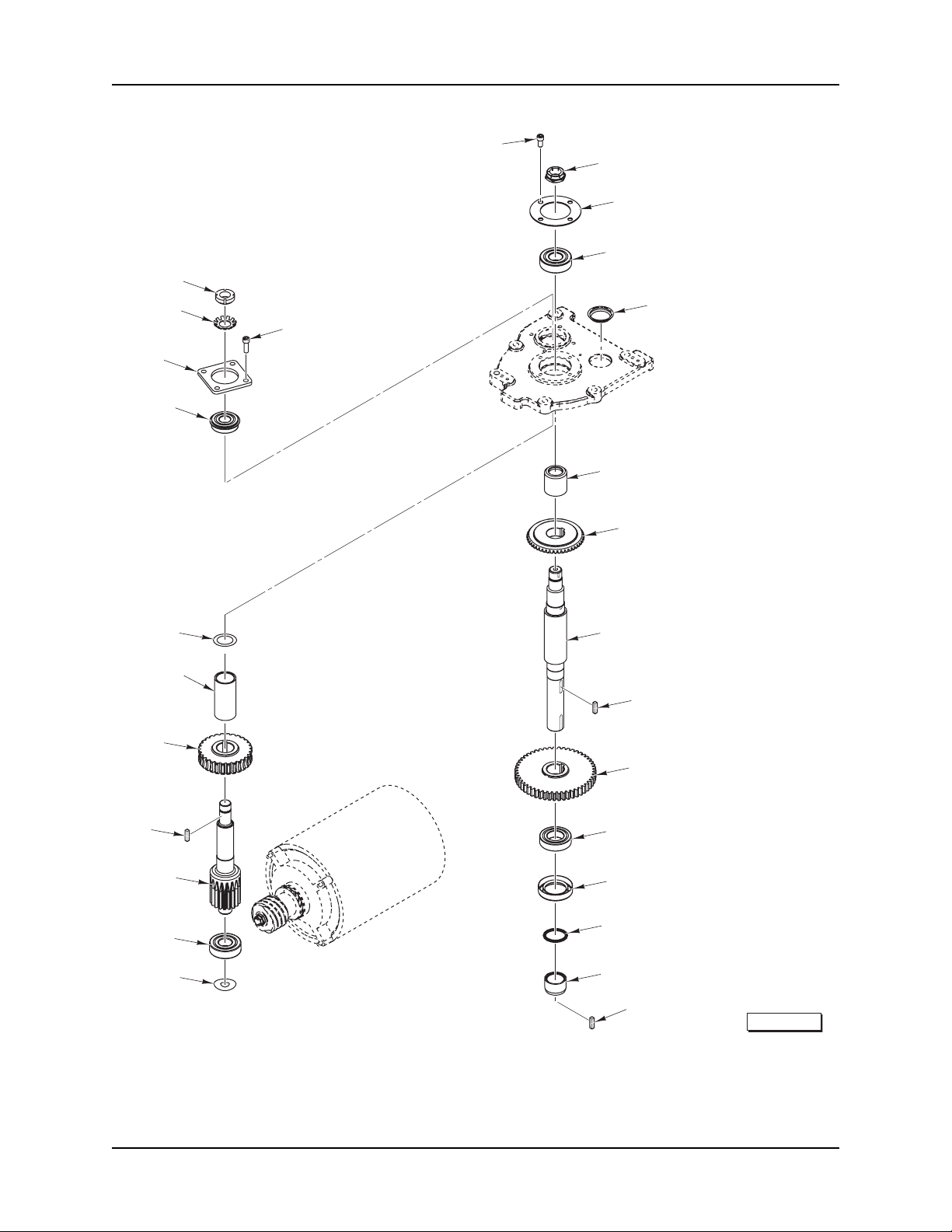

TRANSMISSION

- 12 -

HL300 SERIES LEGACY MIXER REPLACEMENT PARTS

TRANSMISSION

ILLUS. PART NO. NAME OF PART AMT.
PL-58438

1 SC-089-01 Cap Screw 1/4-20 x 1/2 Hex Socket Hd. .......................................................................................4

2 NS-032-32 Lock Nut 3/4-16 ........................................................................................................................... 1

3 00-916439-00002 Retainer – Planetary .................................................................................................................. 1

4 BB-005-34 Bearing – Ball ............................................................................................................................ 1

5 00-064871 Plug – Friction ............................................................................................................................ 1

6 00-916665 Spacer – Upper Planetary ......................................................................................................... 1

7 00-070020-00002 Gear – Bevel (46T) ....................................................................................................................1

8 00-916667 Shaft – Planetary .......................................................................................................................1

9 00-012430-00136 Key ............................................................................................................................................. 1

10 00-916666 Gear – Helical (51T) ..................................................................................................................1

11 BB-015-08 Bearing – Ball ............................................................................................................................1

12 00-110334 Seal – Planetary ........................................................................................................................1

13 00-067500-00068 O-Ring ....................................................................................................................................... 1

14 00-916663 Spacer – Lower Planetary .........................................................................................................1

15 00-012430-00158 Key ............................................................................................................................................. 1

16 SL-005-04 Spring – Loading ........................................................................................................................ 1

17 BB-020-06 Bearing – Ball ............................................................................................................................1

18 00-916340 Shaft – Worm Gear .................................................................................................................... 1

19 00-012430-00138 Key ............................................................................................................................................. 1

20 00-916339 Gear – Worm ............................................................................................................................1

21 00-916357 Spacer – Input Shaft .................................................................................................................. 1

22 00-916358 Spacer - Upper Input Shaft ........................................................................................................ 1

23 BB-021-21 Bearing – Ball ............................................................................................................................1

24 00-916438 Retainer – Wormwheel ..............................................................................................................1

25 WL-012-04 Lockwasher ................................................................................................................................ 1

26 NS-034-04 Lock Nut 3/4-16 ........................................................................................................................... 1

27 SC-089-02 Cap Screw 1/4-20 x 3/4 Hex Socket Hd. ....................................................................................... 4

- 13 -

F-43136 (May 2007)

HL300 SERIES LEGACY MIXER REPLACEMENT PARTS

5-6

1

2

10

11

18

19

7

8

9

3

4

12

13

14

15

16

F-43136 (May 2007)

17

20

21

PL-58439

PLANETARY

- 14 -

HL300 SERIES LEGACY MIXER REPLACEMENT PARTS

PLANETARY

ILLUS. PART NO. NAME OF PART AMT.
PL-58439

1 00-916363 Flange – Dripcup .......................................................................................................................1

2 00-916416-00001 Gear – Internal ........................................................................................................................... 1

3 WL-003-48 Lockwasher 5/16 Helical ..............................................................................................................6

4 SC-089-19 Cap Screw 5/16-18 x 1 3/8 Hex Socket Hd. ..................................................................................6

5 SC-066-13 Mach. Screw 8-32 x 1/4 Phil. Truss Hd. (SST) (ML-134351) ...................................................... 3

6 SC-128-73 Mach. Screw 8-32 x 1/4 Tx. Button Hd. (ML-134358) ................................................................. 3

7 00-064871 Plug – Friction ............................................................................................................................ 1

8 RR-004-06 Retaining Ring ...........................................................................................................................1

9 00-916461 Pinion – Agitator Shaft ...............................................................................................................1

10 00-916563 Seal – Upper Agitator Shaft ....................................................................................................... 1

11 BB-020-06 Bearing – Ball ............................................................................................................................1

12 00-916435 Planetary ....................................................................................................................................1

13 00-874770 Spacer – Bowl Scraper .............................................................................................................. 2

14 SC-053-46 Mach. Screw 1/4-20 x 3/4 Slotted Truss Hd. (SST) ....................................................................... 2

15 00-070047-00001 Washer – Planetary ................................................................................................................... 1

16 WL-006-27 Lockwasher 3/8 Helical................................................................................................................1

17 SC-062-58 Cap Screw 3/8-24 x 11/4 Hex Socket Hd. ..................................................................................... 1

18 BB-017-36 Bearing – Ball ............................................................................................................................1

19 00-110335 Seal – Agitator Shaft .................................................................................................................. 1

20 00-916457 Shaft – Agitator ..........................................................................................................................1

21 00-070019 Pin – Agitator ............................................................................................................................. 1

- 15 -

F-43136 (May 2007)

HL300 SERIES LEGACY MIXER REPLACEMENT PARTS

4

5

3

2

1

7

6

8

16

15

14

11

10

9

12

13

23

17

18

21-22

19-20

F-43136 (May 2007)

PL-58440

BOWL AND BOWL GUARD

- 16 -

HL300 SERIES LEGACY MIXER REPLACEMENT PARTS

BOWL AND BOWL GUARD

ILLUS. PART NO. NAME OF PART AMT.
PL-58440

1 NS-048-96 Crown Nut 6-32 (SST) ...............................................................................................................1

2 00-916424-00002 Carrier – Wire Cage Bypass ...................................................................................................... 1

3 SC-129-39 Mach. Screw 6-32 x 5/16 Slotted Oval Hd. (SST) ........................................................................1

4 SC-129-39 Mach. Screw 6-32 x 5/16 Slotted Oval Hd. (SST) ........................................................................1

5 00-916424-00001 Carrier – Wire Cage Standard ...................................................................................................1

6 00-916424-00001 Carrier – Wire Cage Standard ...................................................................................................1

7 SC-129-39 Mach. Screw 6-32 x 5/16 Slotted Oval Hd. (SST) ........................................................................ 1

8 00-916610 Spacer – Splash Guard ............................................................................................................. 4

9 00-916671 Rod – Splash Guard ..................................................................................................................4

10 WS-003-19 Washer .......................................................................................................................................8

11 NS-013-02 Nut 1/4-20 Hex ............................................................................................................................4

12 SD-034-19 Self-Tapping Screw 10-16 x 3/8 Phil. Truss Hd., Type AB ........................................................... 1

13 00-087711-00352 Switch – Reed ............................................................................................................................ 1

14 00-916407 Guard – Splash Back ................................................................................................................. 1

15 00-874887 Holder – Upper Magnet .............................................................................................................1

16 00-874875 Magnet – Disc ............................................................................................................................ 1

17 00-874886 Holder – Lower Magnet .............................................................................................................1

18 NS-048-96 Crown Nut 6-32 (SST) ............................................................................................................... 1

19 00-916617 Bowl Assy. (20 Qt.)..................................................................................................................... 1

20 00-916616 Bowl Assy. (30 Qt.)..................................................................................................................... 1

21 00-916423-00001 Cage – Wire Weldment (ML-134351) ........................................................................................ 1

22 00-916423-00002 Cage – Security (ML-134358) .................................................................................................... 1

23 NS-048-96 Crown Nut 6-32 (SST) ............................................................................................................... 1

00-916422-00001 Wire Cage Assy. (Incls. Items 1 thru 7, 15 thru 18, 21, & 23) (ML-134351) .............................. 1

00-916422-00002 Wire Cage Assy. (Incls. Items 1 thru 7, 15 thru 18, 22, & 23) (ML-134358) .............................. 1

- 17 -

F-43136 (May 2007)

HL300 SERIES LEGACY MIXER REPLACEMENT PARTS

4

3

5

1

2

27

26

10

28

8

9

7

6

23-24

25

22

21

15-16

20

11

12

13

14

17

18

19

PL-58436

BOWL SUPPORT

F-43136 (May 2007)

- 18 -

HL300 SERIES LEGACY MIXER REPLACEMENT PARTS

BOWL SUPPORT

ILLUS. PART NO. NAME OF PART AMT.
PL-58436

1 00-916516 Pin – Bowl (LH) .......................................................................................................................... 1

2 00-916497 Support – Bowl .......................................................................................................................... 1

3 00-011800-00141 Dowel 1/16 x 13/16 .........................................................................................................................2

4 00-916365-00001 Slideway – Bowl Lift (LH) ........................................................................................................... 1

5 00-011800-00141 Dowel 1/16 x 13/16 .........................................................................................................................2

6 00-916365-00002 Slideway – Bowl Lift (RH) ..........................................................................................................1

7 SC-089-19 Cap Screw 5/16-18 x 13/8 Hex Socket Hd. ...................................................................................8

8 00-916501 Ramp ......................................................................................................................................... 1

9 00-916502 Bushing – Split ........................................................................................................................... 1

10 RR-012-30 Retaining Ring ........................................................................................................................... 1

11 00-916488 Spring – Compression ............................................................................................................... 1

12 00-916505 Pin – Bowl (RH) .........................................................................................................................1

13 00-916550 Glide – Bowl Release ................................................................................................................1

14 00-916506 Plate – Bowl Release ................................................................................................................. 1

15 SC-093-23 Mach. Screw 10-24 x 3/8 Phil. Pan Hd. (SST) (ML-134351) ....................................................... 4

16 SC-128-64 Mach. Screw 1/4-20 x 1 Tx. Flat Hd. (ML-134358) ......................................................................4

17 SC-047-74 Set Screw 8-32 x 1/4 Hex Hdls., Cup Pt......................................................................................1

18 00-916552 Shaft – Bowl Pin Handle (ML-134351) ......................................................................................1

19 00-875356 Handle – Lift Lever (ML-134351) ............................................................................................... 1

20 00-916503 Block – Bowl Handle (ML-134351) ............................................................................................ 1

21 00-916504-00002 Handle – Bowl Release (ML-134358) ........................................................................................1

22 00-916470 Apron – Lower ...........................................................................................................................1

23 SC-093-23 Mach. Screw 10-24 x 3/8 Phil. Pan Hd. (SST) (ML-134351) ....................................................... 3

24 SC-128-69 Mach. Screw 10-24 x 3/8 Tx. Button Hd. (ML-134358) ............................................................... 3

25 SC-129-59 Set Screw 3/8-16 x 1 ................................................................................................................... 2

26 SC-097-15 Cap Screw 1/4-20 x 15/8 Hex Hd. ................................................................................................. 2

27 00-916515 Catch – Rear Bowl ..................................................................................................................... 1

28 PB-004-96 Cap ............................................................................................................................................ 8

- 19 -

F-43136 (May 2007)

HL300 SERIES LEGACY MIXER REPLACEMENT PARTS

1 3 42

5 7-8 9106

1412-1311

PL-58466

AGITATORS AND ACCESSORIES

ILLUS. PART NO. NAME OF PART AMT.
PL-58466

1 00-916573 “C” Wire Whip (30 & 40 Qt.) (Packaged) ...................................................................................1

2 00-916598 “D” Wire Whip (20 Qt.) (Packaged) ............................................................................................ 1

3 00-916520 “I” Wire Whip (30 & 40 Qt.) (Packaged) ..................................................................................... 1

4 00-916421 “D” Wire Whip (30 & 40 Qt.) (Packaged) ...................................................................................1

5 00-916372 “B” Beater (30 & 40 Qt.) (Packaged) ......................................................................................... 1

6 00-916582 “B” Flat Beater (20 Qt.) (Packaged) ........................................................................................... 1

7 00-916827 “ED” Dough Arm (20 Qt.) (Packaged) ........................................................................................ 1

8 00-916618-00001 “ED” Hook (30 & 40 Qt.) (Packaged) ......................................................................................... 1

9 00-916838 Bowl Scraper (30 Qt.) (Packaged) ............................................................................................. 1

10 00-916481 “P” Pastry Knife (30 & 40 Qt.) (Packaged) ................................................................................. 1

11 00-916883 Bowl Truck Assy. ........................................................................................................................ 1

12 00-438079 Splash Cover (20 Qt.) (Packaged) (Lexan) ...............................................................................1

13 00-438080 Splash Cover (30 Qt.) (Packaged) (Lexan) ...............................................................................1

14 00-875677 Splash Cover (20 Qt.) (Packaged) (SST) ..................................................................................1

00-916684 Chute – Ingredient (20 Qt.) (Packaged) ..................................................................................... 1

00-438607 Chute – Ingredient (30 Qt.) (Packaged) ..................................................................................... 1

FORM 43136 MAY 2007 PRINTED IN U.S.A.
