CATALOG OF REPLACEMENT PARTS

MINI RACK OVEN

HO300E ML-132177

A product of HOBART 701 S. RIDGE AVENUE TROY, OHIO 45374-0001

FORM 43049 Rev. B (June 2009)

HO300E MINI RACK OVEN REPLACEMENT PARTS

F-43049 Rev. B (June 2009)

- 2 -

HO300E MINI RACK OVEN REPLACEMENT PARTS

Table of Contents

5 ELECTRICAL COMPONENTS 6 ADVANCED CONTROL PANEL ASSEMBLY

(CURRENT CONSTRUCTION)

7 CONTROL PANEL ASSEMBLY

(PREVIOUS CONSTRUCTION) 9 CABINET UNIT 10 ROTATOR AND RACK ASSEMBLY 13 WATER/STEAM SUPPLY 15 HEATING ELEMENTS AND AIR CIRCULATION SYSTEM

- 3 -

F-43049 Rev. B (June 2009)

HO300E MINI RACK OVEN REPLACEMENT PARTS

12-13

10-11

2 THRU 6

7-8

PL-57918

F-43049 Rev. B (June 2009)

ELECTRICAL COMPONENTS

- 4 -

HO300E MINI RACK OVEN REPLACEMENT PARTS

ELECTRICAL COMPONENTS

ILLUS. PART NO. NAME OF PART AMT. PL-57918

1 01-1000V6-00271 Relay DPDT (1/2 Hp., 120 VAC) .................................................................................................3

2 01-100V10-00234 Terminal – Section (Flat Mount) (Fuseholder White) (600 V.) ....................................................6

3 01-100V10-00238 Fuse (20 Amp., 380 V. Only) ......................................................................................................6

4 01-100V10-00236 Fuse (30 Amp., 208-240/480 V. Only) ........................................................................................6

5 01-100V10-00232 Fuse Holder (30 Amp.) ...............................................................................................................1

6 01-100V10-00235 End – Section (Flat Mount) (600 V.) ........................................................................................... 1

7 01-1000V6-00070 Relay DPDT (1/4 Hp., 120 VAC) (Previous Construction) ........................................................... 1

8 01-1000V6-00271 Relay DPDT (1/2 Hp., 120 VAC) (Current Construction) ............................................................. 1

9 01-1000V6-00185 Contactor 3-Pole (60 Amp.) ....................................................................................................... 1

10 01-1000V5-00106 End – Section (Flat Base) (600 V.) ............................................................................................1

11 01-1000V5-00105 Terminal – Section (Flat Base) (600 V.) ..................................................................................... 6

12 01-1M5387-00001 Plate – Relay Mounting (Machines Built Before 3/27/06) ..........................................................1

13 01-1M5387-00003 Plate – Mounting (Machines Built On Or After 3/27/06) ............................................................. 1

14 01-100V10-00219 Fuse – Panel Mount (0.5 Amp.) .................................................................................................1

01-1M5821-00001 Module – Electric (208-240 V., 3 Ph.) (Machines Built On Or After 3/27/06) ............................. 1

01-1M5821-00003 Module – Electric (480 V., 3 Ph.) (Machines Built On Or After 3/27/06) .................................... 1

01-1000V6-00215 Contactor (60 Amp, 3-Pole) ....................................................................................................... 1

01-1000V5-00096 Block – Power Distribution .........................................................................................................1

01-1000V5-00231 Cover – Power Distribution Block ..............................................................................................1

01-1000V5-00220 Spacer ......................................................................................................................................AR

01-1000V5-00166 Bushing – Snap ........................................................................................................................AR

01-1000V6-00266 Breaker – CRT/U (63 Amp., 3-Pole) (With 110 V. Under Voltage Breaker) ............................... 1

01-1000V6-00269 Breaker – CRT/U (35 Amp., 3-Pole) (With 110 V. Under Voltage Breaker) ............................... 1

01-1000V6-00261 Protector – Supplementary (120 V.) (With 110 V. Under Voltage Breaker) ................................ 1

01-1M5567-00001 Kit – Electric Module (208/240 V.) (From Heat Relay To Contactor) ..........................................1

01-1M5567-00002 Kit – Electric Module (380 V., 50 Hz.) (From Heat Relay To Contactor) ....................................1

01-1M5567-00003 Kit – Electric Module (480 V.) (From Heat Relay To Contactor) .................................................1

01-1M5963-00001 Kit – Electric Module Retroﬁ t (480V.) (Adding Under Voltage Breaker) (Machines Built On Or After 12/01/2004 With 480 V. Elements)

(Replaces Element Fuses) ........................................................................................................1

01-1M5963-00002 Kit – Electric Module Retroﬁ t (208/240 V.) (Adding Under Voltage Breaker) .............................1

01-1M5963-00003 Kit – Electric Module Retroﬁ t (480 V.) (Adding Under Voltage Breaker)

(Machines Built Before 12/01/2004 With 240 V. Elements) ....................................................... 1

- 5 -

F-43049 Rev. B (June 2009)

HO300E MINI RACK OVEN REPLACEMENT PARTS

12-13-14

1-2-3

5 THRU 9

10-11

PL-57933

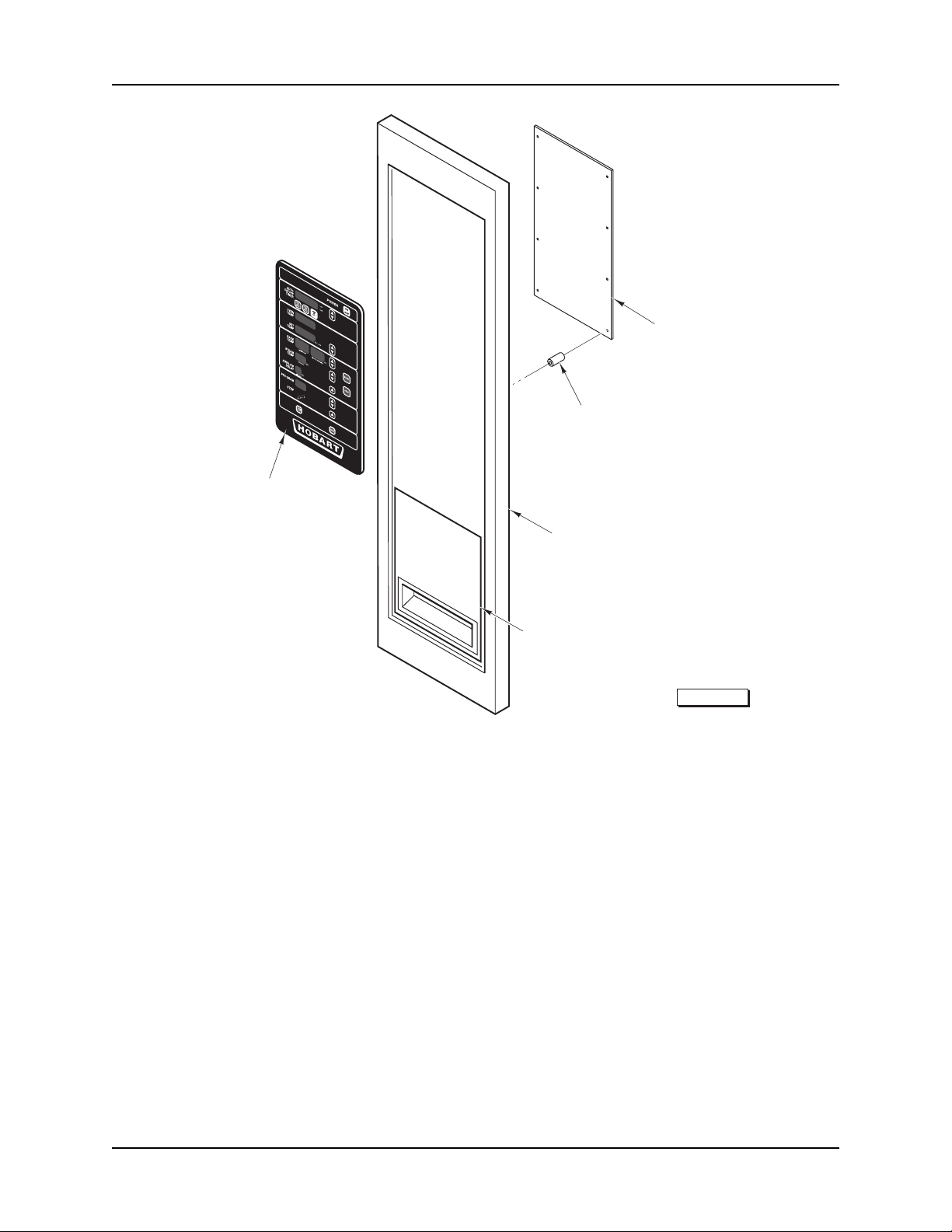

ADVANCED CONTROL PANEL ASSEMBLY

(CURRENT CONSTRUCTION)

ILLUS. PART NO. NAME OF PART AMT. PL-57933

1 01-100V16-0565E PC Board Assy. (W/V16-759).....................................................................................................1

2 01-100V16-00759 Chip – EPROM ..........................................................................................................................1

3 01-100V23-00F10 Fuse (1 Amp., 250 V.) ................................................................................................................ 1

4 01-1000V5-00164 Spacer .......................................................................................................................................8

5 01-1M4269-00001 Control Door Weldment (Incls. Items 6 & 7) ..............................................................................1

6 01-1M4386-00001 Hinge .........................................................................................................................................1

7 01-1M4386-00002 Hinge .........................................................................................................................................1

*8 01-100V16-00404 Gasket – Control Door (Machines Built Before 1/18/06) ..........................................................3 In.

*9 01-100V21-00092 Gasket – Control Door (Machines Built On Or After 1/18/06) ..................................................3 In.

10 01-1M4186-0001E Door – Access Assy. (For Breaker) ............................................................................................ 1

11 01-1000V5-00164 Spacer .......................................................................................................................................4

12 01-1M5389-00004 Panel – Control (Incls. Item 14) (Machines Built Before 3/26/06) ..............................................1

13 01-1M5389-00006 Panel – Control (Incls. Item 14) (Machines Built On Or After 3/26/06) ......................................1

14 01-100V16-0580H Label – Advanced Controls ........................................................................................................ 1

01-1M5390-00004 Control Door Assy. (Incls. Items 1, 4 thru 7, 9, 12, & 14) (Machines Built Before 3/26/06) ....... 1

01-1M5390-00006 Control Door Assy. (Incls. Items 1, 4 thru 7, 9, 13, & 14) (Machines Built On Or After 3/26/06) 1

* Sold Per Inch

F-43049 Rev. B (June 2009)

- 6 -

HO300E MINI RACK OVEN REPLACEMENT PARTS

1-2-3

4-5

PL-57934

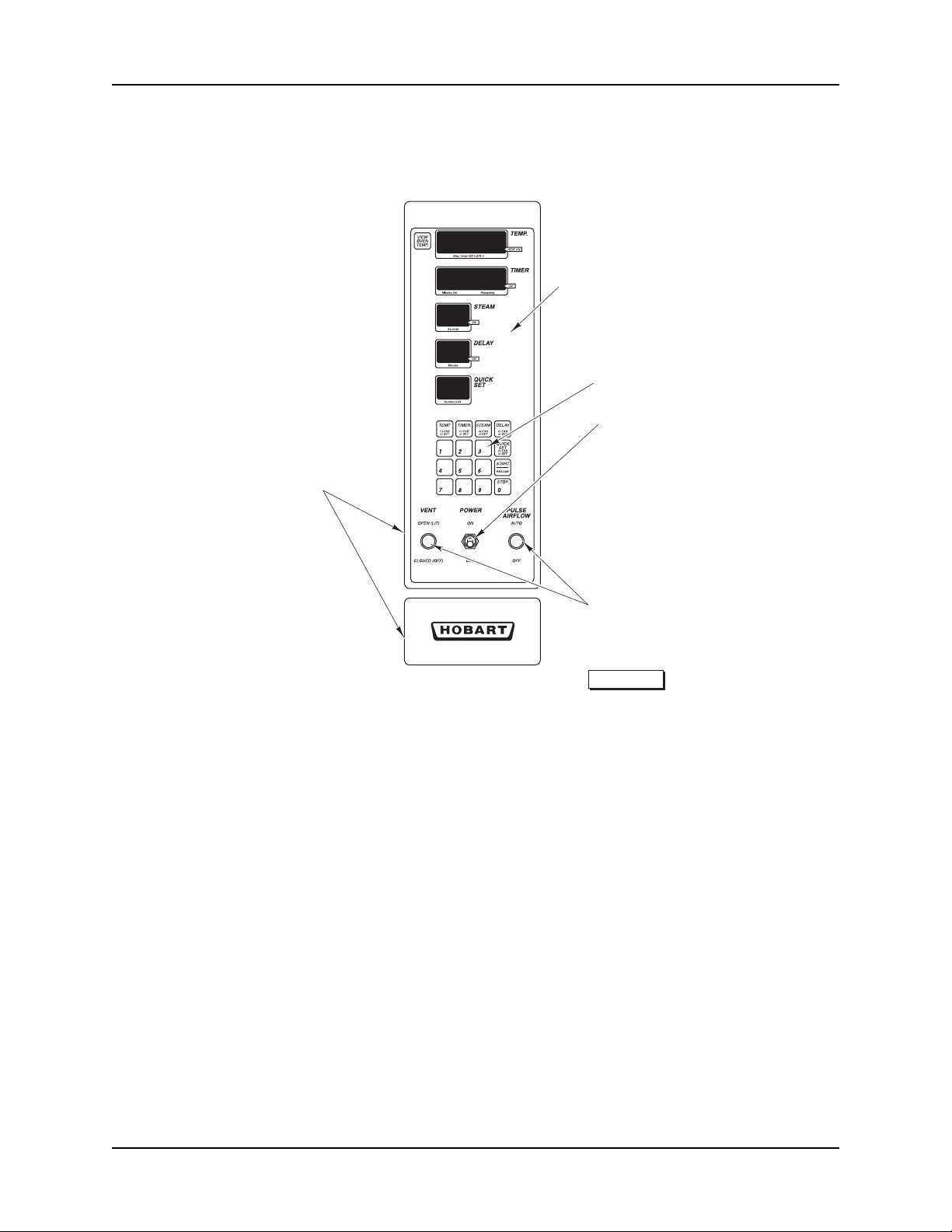

CONTROL PANEL ASSEMBLY (PREVIOUS CONSTRUCTION)

ILLUS. PART NO. NAME OF PART AMT. PL-57934

1 01-1M4703-00001 Buzzer Assy. ..............................................................................................................................1

2 01-1M5377-00007 Kit – Advanced Controls (Upgrade) ........................................................................................... 1

3 01-1M5377-00008 Kit – Advanced Controls (Upgrade) (With Advanced Non Cool Down Controls) .......................1

4 01-1M2899-00001 Kit – Keypad Replacement ........................................................................................................1

5 01-1M2429-00001 Retainer – Key Pad .................................................................................................................... 1

6 01-1000V6-00151 Switch – Toggle ..........................................................................................................................1

7 01-1000V6-00183 Switch – Push-Button (6 V., LED) .............................................................................................. 2

8 01-100V16-0493H Label – Control ..........................................................................................................................1

- 7 -

F-43049 Rev. B (June 2009)

HO300E MINI RACK OVEN REPLACEMENT PARTS

10-11

15 THRU 19

21 THRU 29

30-31-32

33-34

5-6-7

3-4

48-49

36 THRU 43

F-43049 Rev. B (June 2009)

CABINET UNIT

- 8 -

PL-57911

HO300E MINI RACK OVEN REPLACEMENT PARTS

CABINET UNIT

ILLUS. PART NO. NAME OF PART AMT. PL-57911

1 01-1M4198-00001 Skin – RH Outer (Service) .........................................................................................................1

2 01-1M4221-00001 Cover – Rotator ........................................................................................................................1

3 01-1000V6-00198 Switch – Door Magnetic & Rotation Switch (Machines Built Before 4/09/08) ............................ 1

4 01-1M5816-00101 Switch Assy. – Door Magnet (Machines Built On Or After 4/09/08) ........................................... 1

5 01-1M4844-00002 Bracket – Switch (LH) ................................................................................................................ 1

6 01-1M4844-00001 Bracket – Switch (RH) ...............................................................................................................1

7 01-1M3384-00002 Bracket – Mounting Switch ........................................................................................................1

8 01-1A2836-00001 Kit – Hinge Retroﬁ t ..................................................................................................................... 1

9 01-1M5548-00001 Block – Terminal Door Switch ....................................................................................................1

10 01-1A1828-00001 Kit – Thermocouple ....................................................................................................................1

11 01-100V17-00279 Fitting – Compression

12 01-1M4147-00001 Cap – Vent .................................................................................................................................1

13 01-1M4202-00001 Cover – Rear Outer ...................................................................................................................1

14 01-1M3382-00001 Rod – Vent Actuator ................................................................................................................... 1

15 01-1M3382-00002 Solenoid – Vent Assy. ................................................................................................................1

16 01-1M3374-00001 Bracket – Mounting Solenoid .....................................................................................................1

17 01-1000V2-00034 Coupling – Motor (Machines Built On Or After Serial Number 24-1051517) ............................. 1

18 01-1M6055-00001 Vent Assy. – Motor (Machines Built On Or After Serial Number 24-1051517) ........................... 1

19 01-1M6055-00101 Motor Assy. (Machines Built On Or After Serial Number 24-1051517) ...................................... 1

20 01-1M4203-00001 Cover – Front Outer ...................................................................................................................1

21 01-1M3340-00001 Trim – Left (Machines Built Before 5/16/01) ..............................................................................1

22 01-1M3341-00001 Trim – Right (Machines Built Before 5/16/01) ............................................................................1

23 01-1M4732-00001 Trim – Front (Machines Built Before 5/16/01) ............................................................................1

24 01-1M3480-00001 Trim – Rear (Machines Built Before 5/16/01) ............................................................................. 1

***25 01-1M4459-00003 Panel – Trim Top (LH) ................................................................................................................1

***26 01-1M4459-00004 Panel – Trim Top (RH) ...............................................................................................................1

***27 01-1M4459-00005 Panel – Trim (Back) ................................................................................................................... 1

28 01-1M4656-00001 Panel – Trim (Front) (Machines Built On Or After 5/16/01) ........................................................ 1

29 01-100V16-00531 Logo – Hobart (Machines Built On Or After 5/16/01) .................................................................1

30 01-1000V7-00027 Lamp – Oven Assy. (Machines Built On Or After 6/6/03) ...........................................................2

31 01-1000V7-00028 Bulb (40 W.) Appliance Type ...................................................................................................... 1

32 01-1M3937-00001 Light – Weldment (Machines Built Before 6/6/03) .....................................................................1

33 01-100V18-00123 Support – Handle (One Pair) .....................................................................................................1

34 01-1M3952-00001 Tube – Handle ...........................................................................................................................2

35 01-1M5398-00001 Kit – Gasket Loading Doors .......................................................................................................1

36 01-1M3445-0002L Door Assy. (LH) (Incls. Items 8, 33, & 34) .................................................................................. 1

37 01-1M3445-0002R Door Assy. (RH) (Incls. Items 8, 33, & 34) ................................................................................. 1

38 01-1M4716-00002 Gasket – Door (Center) .............................................................................................................2

*39 01-100V21-0155A Door Gasket – Woven............................................................................................................ 12 Ft.

40 01-1M5259-00001 Clamp – Gasket (LH) ................................................................................................................. 1

41 01-1M5259-00002 Clamp – Gasket (RH) ................................................................................................................1

42 01-1M5259-00004 Clamp – Gasket (Bottom) ..........................................................................................................1

43 01-1M5260-00001 Clamp – Gasket (Top) ................................................................................................................ 1

44 01-100V14-00047 Caster – Rigid Plate (With Brake) ..............................................................................................2

45 01-100V14-00046 Caster – Swivel Plate ................................................................................................................. 2

46 01-1M5548-00003 Block – Terminal (34/32) ............................................................................................................1

47 01-1M5548-00002 Block – Terminal (120 V.) ...........................................................................................................1

**48 01-1M4533-00012 Stand Assy. (12-Pan Capacity) (Incls. Items 44 & 45) ...............................................................1

**49 01-1M3457-00016 Stand Assy. (16-Pan Capacity) (Incls. Items 44 & 45) ...............................................................1

50 01-1M3475-00001 Retainer ..................................................................................................................................... 2

01-1M5860-00001 Thermostat Assy. With Stufﬁ ng .................................................................................................. 1

01-1M5832-00001 Cover – Wiring ........................................................................................................................... 1

01-1M5575-00001 Cord – Power (120 V.) (Black 8 Ft.) ........................................................................................... 1

01-100V18-00121 Magnet (Door Switch) ................................................................................................................ 2

01-1M5760-00001 Bracket – Magnet Mount (Door Switch Magnet) ........................................................................2

01-1M5393-00002 Kit – Airﬂ ow ................................................................................................................................ 1

01-1000V4-00121 Insert – Nut 10-32 (For Door Gasket Retainer) ........................................................................AR

01-1M5379-00001 Shutter – Airﬂ ow (Back LH) ........................................................................................................1

01-1M5379-00002 Shutter – Airﬂ ow (Front RH) .......................................................................................................4

01-1P1465-00001 Hinge – Lift Off ...........................................................................................................................4

01-1P1464-00001 Bushing – Hinge Mounting (For 01-1P1465) .............................................................................4

/4 NPTM x 3/16 ........................................................................................ 1

* Sold Per Foot. ** Optional Part. ***Use for complete trim replacement on machines with serial numbers prior to serial number 24-1046461.

- 9 -

F-43049 Rev. B (June 2009)

HO300E MINI RACK OVEN REPLACEMENT PARTS

9-10

2 THRU 5

PL-57912

29-30

22-23-24

25-26-27

31 THRU 36

37 THRU 50

ROTATOR AND RACK ASSEMBLY

ILLUS. PART NO. NAME OF PART AMT. PL-57912

1 - Screw 1/4-20 x 1/2 Truss Hd. ........................................................................................................1

2 01-1000V6-00203 Actuator – Magnet (Machines Built Before 4/13/07) .................................................................. 1

3 00-175999 Actuator – Magnetic (Machines Built On Or After 4/13/07) ........................................................ 1

4 01-1M3383-00001 Plate – Magnet Mounting ...........................................................................................................1

5 - Screw 6-32 x 3/8 Pan Hd.............................................................................................................2

6 01-1000V3-00090 Sheave .......................................................................................................................................1

F-43049 Rev. B (June 2009)

- 10 -

HO300E MINI RACK OVEN REPLACEMENT PARTS

ROTATOR AND RACK ASSEMBLY (CONT.)

ILLUS. PART NO. NAME OF PART AMT. PL-57912

7 01-1000V0-00071 Bearing – Rotator Thrust............................................................................................................1

8 - Screw

/4-20 x 1/2 Truss Hd. ........................................................................................................4

**9 01-1M3358-00003 Disk – Thrust (With Removable Rack) .......................................................................................1

*10 01-1M3380-00002 Disc – Rotator Clutch (Without Removable Rack) .....................................................................1

11 01-100V20-00009 Spring – Tension ........................................................................................................................1

12 - Nut 5/16-18 Hex (Nylock) ............................................................................................................. 1

13 01-1000V4-00064 Bolt – Shouldered 1/2 x 1/2 Allen Hex Hd. ....................................................................................1

14 01-1M3527-00001 Bracket – Rotator Idler ...............................................................................................................1

15 01-1M3526-00001 Tube – Rotator Idler ...................................................................................................................1

16 01-1M3528-00001 Pulley – Rotator Idler .................................................................................................................1

17 01-1000V0-00038 Bearing – Journal ....................................................................................................................... 1

18 - Washer 3/8 (Black) ...................................................................................................................... 3

19 01-1000V4-00134 Bolt – Shouldered 3/8 x 3/4 Allen Hex Hd. ....................................................................................1

20 01-1000V3-00093 V-Belt .........................................................................................................................................1

21 - Screw 10-32 x 1/2 Truss Hd. ....................................................................................................... 8

22 01-1M3389-00001 Bushing – Rotator ...................................................................................................................... 1

23 01-1000V3-00106 Sheave – Die Cast (3/8 In. Bore).................................................................................................1

24 01-1000V3-00091 Sheave (1/2 In. Bore) ..................................................................................................................1

25 01-1M3360-00001 Plate – Rotator Drive .................................................................................................................1

26 01-1000V8-00078 Motor – Gear-Shaded Pole (6 RPM) .........................................................................................1

27 01-1M6053-00001 Motor – Gear Mini Rack (21/2 In. Blade Assy.) ............................................................................1

28 - Screw 10-32 x 1/2 Truss Hd. ....................................................................................................... 4

*29 01-1M3363-00002 Housing – Upper Rotator (Without Removable Rack) ............................................................... 1

**30 01-1M3363-00003 Housing – Upper Rotator (With Removable Rack) .................................................................... 1

31 01-1M4015-00001 Spacer ....................................................................................................................................... 1

*32 01-1M3365-00002 Shaft – Rotator (Without Removable Rack) ............................................................................... 1

**33 01-1M3365-00003 Shaft – Rotator (With Removable Rack) .................................................................................... 1

34 01-1000V0-0072A Bearing – Rotator (Upper) ......................................................................................................... 1

**35 01-1000V1-00076 Collar – Two-Piece Set (5/8 In.) (With Removable Rack) ............................................................ 1

36 01-1000V1-00043 Pin – Cotter ...............................................................................................................................AR

*37 01-1M5256-00005 Rack – End Load (5-Pan) (Non-Removable) .............................................................................1

*38 01-1M3954-00008 Rack – End Load (8-Pan) (Non-Removable) .............................................................................1

*39 01-1M3954-00006 Rack – End Load (6-Pan) (Non-Removable) .............................................................................1

*40 01-1M3954-00010 Rack – End Load (10-Pan) (Non-Removable) ...........................................................................1

*41 01-1M3433-00008 Rack – Side Load (8-Pan) (Non-Removable) ............................................................................ 1

*42 01-1M3433-00006 Rack – Side Load (6-Pan) (Non-Removable) ............................................................................ 1

*43 01-1M5271-00012 Rack – End Load (12-Pan) (Non-Removable) ...........................................................................1

**44 01-1M5965-00005 Rack – End Load (5-Pan) (Removable) ..................................................................................... 1

**45 01-1M5965-00006 Rack – End Load (6-Pan) (Removable) ..................................................................................... 1

**46 01-1M5965-00008 Rack – End Load (8-Pan) (Removable) ..................................................................................... 1

**47 01-1M5965-00010 Rack – End Load (10-Pan) (Removable) ................................................................................... 1

**48 01-1M5965-00012 Rack – End Load (12-Pan) (Removable) ................................................................................... 1

**49 01-1M5967-00006 Rack – Side Load (6-Pan) (Removable) ....................................................................................1

**50 01-1M5967-00008 Rack – Side Load (8-Pan) (Removable) ....................................................................................1

51 01-1M3366-00001 Shaft – Lower Rotator ................................................................................................................1

52 01-1M3364-00002 Bearing – Lower Rotator ............................................................................................................1

53 01-1000V0-0072B Bearing – Rotator (Lower) ......................................................................................................... 1

*54 01-1M3380-00002 Disc – Rotator Clutch (Without Removable Rack) .....................................................................1

*55 01-1000V1-00029 O-Ring – Snap (Without Removable Rack) ............................................................................... 1

01-1M3525-00001 Pulley – Idler (Incls. Items 13 thru 19) .......................................................................................1

01-100V17-00572 Grip – Cord (Aluminum) .............................................................................................................1

01-1M6104-00101 Cover – Stepper Motor ..............................................................................................................1

01-1M6104-00102 Harness – Stepper Motor ........................................................................................................... 1

01-1M3375-00001 Bracket – Vent ...........................................................................................................................1

01-100V21-0094A Liner – Cement Fiber Tray (Stone Baking) ................................................................................1

01-1M6099-005EL Kit – Retroﬁ t To Removable Rack (5-Pan) End Load ................................................................1

01-1M6099-006EL Kit – Retroﬁ t To Removable Rack (6-Pan) End Load ................................................................1

01-1M6099-008EL Kit – Retroﬁ t To Removable Rack (8-Pan) End Load ................................................................1

01-1M6099-010EL Kit – Retroﬁ t To Removable Rack (10-Pan) End Load ..............................................................1

01-1M6099-012EL Kit – Retroﬁ t To Removable Rack (12-Pan) End Load ..............................................................1

01-1M6099-006SL Kit – Retroﬁ t To Removable Rack (6-Pan) Side Load ................................................................ 1

01-1M6099-008SL Kit – Retroﬁ t To Removable Rack (8-Pan) Side Load ................................................................ 1

* Use on machines with non-removable racks built on or before serial number 24-1050848. ** Use on machines with removable racks built after serial number 24-1050848.

- 11 -

F-43049 Rev. B (June 2009)

HO300E MINI RACK OVEN REPLACEMENT PARTS

17-18

23-24-25

THRU

11- 12

MACHINES BUILT

BEFORE 6/08/08

PL-56229

F-43049 Rev. B (June 2009)

WATER/STEAM SUPPLY

- 12 -

HO300E MINI RACK OVEN REPLACEMENT PARTS

WATER/STEAM SUPPLY

ILLUS. PART NO. NAME OF PART AMT. PL-56229

1 01-100V17-00322 Tube – Ell 1/2 In. (Brass) .............................................................................................................1

2 01-100V17-00351 Pipe – Hex (Brass) ..................................................................................................................... 1

3 01-100V17-00286 Union 1/2 (Brass).........................................................................................................................1

4 01-100V17-00424 Pipe – Close 1/4 (Brass)..............................................................................................................2

5 01-100V17-00351 Pipe – Hex (Brass) ..................................................................................................................... 1

6 01-100V17-00312 Tee 1/2 (Brass) ............................................................................................................................ 1

7 01-100V17-00229 Bushing – Reducer (Brass) ........................................................................................................ 1

8 01-100V17-00341 Fitting – Straight (Brass) ............................................................................................................ 1

9 01-100V17-00229 Bushing – Reducer (Brass) ........................................................................................................ 1

10 01-100V17-00204 Gauge – Pressure (100 PSI) .....................................................................................................1

11 01-100V17-00330 Regulator – Water Pressure (Machines Built Before 5/31/06) ...................................................1

12 01-100V17-00566 Regulator – Flow (Machines Built On Or After 5/31/06) .............................................................1

13 01-100V17-00075 Valve – Solenoid ........................................................................................................................1

14 01-100V17-00027 Tubing – Copper 3/8 x 51/2 Lg. ..................................................................................................... 1

15 01-100V17-00162 Bushing 3/8 x 1/4 (Brass) ..............................................................................................................1

16 01-100V17-00272 Fitting – Straight 3/8 (Brass) ........................................................................................................ 1

17 01-1M5547-00001 Tube – Steam Generator (Machines Built Before 6/11/04) ........................................................1

18 01-1M5547-00003 Tube – Steam Generator (Machines Built On Or After 6/11/04) ................................................1

19 01-100V17-00261 Tee – Female 3/8 (Brass) ............................................................................................................ 1

20 01-100V17-00272 Fitting – Straight 3/8 (Brass) ........................................................................................................ 1

21 01-100V17-00272 Fitting – Straight 3/8 (Brass) ........................................................................................................ 2

22 01-1M5547-00002 Tube – Steam Generator ........................................................................................................... 1

23 01-1M4272-00001 Steam Manifold Assy. (Incls. Items 21 & 26) (Machines Built Before 6/08/08) ..........................2

24 01-1M4272-00002 Manifold – Steamer Assy. (Machines Built On Or After 6/08/08) ...............................................2

*25 01-100V21-0039A Tape – Silicone Gasket ...........................................................................................................20 In.

26 01-100V17-00487 Nozzle – Spray ..........................................................................................................................2

27 01-1M6004-00001 Steamer Assy. ( Machines Built On Or After 6/08/08) ................................................................ 1

28 01-1M6004-00101 Retainer – Steamer Balls ...........................................................................................................1

29 01-1M6004-00102 Retainer – Steamer Bottom .......................................................................................................1

30 01-1M6004-00103 Cover – Steamer Assy. ..............................................................................................................1

31 01-1M4411-00002 Pan – Auxiliary Drain .................................................................................................................1

32 01-1M4274-00001 Steamer Assy. (Machines Built Before 6/08/08)......................................................................... 2

01-1M3434-00001 Water Supply Assy. (Incls. Items 1 thru 11 & 13)

(Machines Built Before 4/5/05) ..................................................................................................1

01-1M5664-00001 Water Supply Assy. (Incls. Items 15, 16, 20, & 21) ....................................................................1

01-1M3434-00003 Water Supply (Incls. Items 1 thru 5, 7, 8, 9, 12, & 13) ............................................................... 1

01-100V15-00057 Grommet ....................................................................................................................................1

01-1M5196-00001 Cover Plate – Drain Hole ........................................................................................................... 1

* Sold Per Inch.

- 13 -

F-43049 Rev. B (June 2009)

HO300E MINI RACK OVEN REPLACEMENT PARTS

2 THRU 7

18-19

PL-57917

11-12

HEATING ELEMENTS AND AIR CIRCULATION SYSTEM

F-43049 Rev. B (June 2009)

- 14 -

HO300E MINI RACK OVEN REPLACEMENT PARTS

HEATING ELEMENTS AND AIR CIRCULATION SYSTEM

ILLUS. PART NO. NAME OF PART AMT. PL-57917

1 01-1000V8-00094 Blade – Fan Circulation .............................................................................................................1

2 01-100V10-00207 Element – Heating (240 V.) W-Shape (Current Construction) ...................................................6

3 01-100V10-00208 Element – Heating (208 V.) W-Shape (Current Construction) ...................................................6

4 01-100V10-00246 Element – Heating (480 V.) W-Shape (Current Construction) ...................................................6

5 01-100V10-00155 Element – Heating (208 V.) U-Shape (Previous Construction) ..................................................6

6 01-100V10-00156 Element – Heating (240 V.) U-Shape (Previous Construction) ..................................................6

7 01-1000V5-00029 Terminal – Bare Ring Tongue #10 ............................................................................................12

8 01-1M4354-00001 Support – Element ..................................................................................................................... 1

9 01-1M3343-00002 Seal – Fan .................................................................................................................................1

10 01-1M3342-00001 Retainer – Seal .......................................................................................................................... 1

11 01-1M4352-00001 Cover (Machines Built Before 4/18/08) ......................................................................................1

12 01-1M4352-00002 Cover – Insulation (Machines Built On Or After 4/18/08) ........................................................... 1

13 - Bolt 1/4-20 x 1/2 Hex Hd. .............................................................................................................. 3

14 - Lockwasher 1/4 ........................................................................................................................... 3

15 - Washer 1/4 ..................................................................................................................................3

16 01-1M4881-00001 Motor – Circulation ..................................................................................................................... 1

17 01-1000V8-00097 Blade – Fan (Motor) ...................................................................................................................1

18 01-1M4390-00002 Base – Motor Bracket ................................................................................................................1

19 01-1000V4-00122 Insert – Threaded....................................................................................................................... 3

20 01-1M4447-00002 Channel – Fan Inlet ...................................................................................................................1

21 01-1A2141-00001 Kit – Rotator Capacitor ..............................................................................................................1

22 01-1000V8-0049D Capacitor Mounting Bracket ......................................................................................................1

23 01-1M4356-00002 Plate – Element Mounting .......................................................................................................... 1

01-1M4446-00001 Circulation Motor Assy. (Incls. Items 13 thru 22)........................................................................ 1

01-1M5268-00001 Shutter – Front Bottom ..............................................................................................................1

01-1M5268-00002 Shutter – Front Top ....................................................................................................................1

01-1M5379-00001 Shutter – Airﬂ ow ......................................................................................................................... 1

01-1M4208-00001 Shutter – Rear Wall (Machines Built Before 7/28/03) ................................................................ 1

01-1M4214-00001 Shutter – Rear Side Panel (Machines Built Before 7/28/03) ...................................................... 1

01-1M4268-00001 Panel – Pressure Weldment (Machines Built Before 7/28/03) ................................................... 1

01-1M5593-00001 Panel – Pressure Assy. .............................................................................................................. 1

01-1M4355-00002 Plate – Element Locking ............................................................................................................ 1

01-1000V6-00118 Thermostat – High Limit ............................................................................................................. 1

- 15 -

F-43049 Rev. B (June 2009)

HO300E MINI RACK OVEN REPLACEMENT PARTS

FORM 43049 Rev. B JUNE 2009 PRINTED IN U.S.A.

Hobart HO300E Parts List

Specifications and Main Features

Frequently Asked Questions

User Manual

ELECTRICAL COMPONENTS

CONTROL PANEL ASSEMBLY (PREVIOUS CONSTRUCTION)

CABINET UNIT

ROTATOR AND RACK ASSEMBLY

WATER/STEAM SUPPLY

HEATING ELEMENTS AND AIR CIRCULATION SYSTEM
