CATALOG OF

REPLACEMENT PARTS

MODEL

HCG CONVENIENCE GRILL

HCG1 ML-132000 HCG2 ML-132001 HCG3 ML-132002

A p r o d u c t o f H O B A R T C O R P O R A T I O N 7 0 1 S . RI D G E AVENUE T R O Y , O H I O 45 3 7 4 - 0 0 0 1

FORM 34499 (Dec. 2000)

HCG CONVENIENCE GRILL REPLACEMENT PARTS

– 2 –

REPLACEMENT PARTS HCG CONVENIENCE GRILL

TABLE OF CONTENTS

PAGE DESCRIPTION

3 TABLE OF CONTENTS 5 GRILL (HCG1) (UPPER PORTION) 7 GRILL (HCG1) (LOWER PORTION)

9 GRILL (HCG2) (UPPER PORTION) 11 GRILL (HCG2) (LOWER PORTION) 13 GRILL (HCG3) (UPPER PORTION) 15 GRILL (HCG3) (LOWER PORTION)

– 3 –

HCG CONVENIENCE GRILL REPLACEMENT PARTS

1 - 2

4 - 5

6 - 7 - 8

9 - 10 - 11

32 33 34

36 THRU 39

28 29 30

13 14

15 16

25 26 27

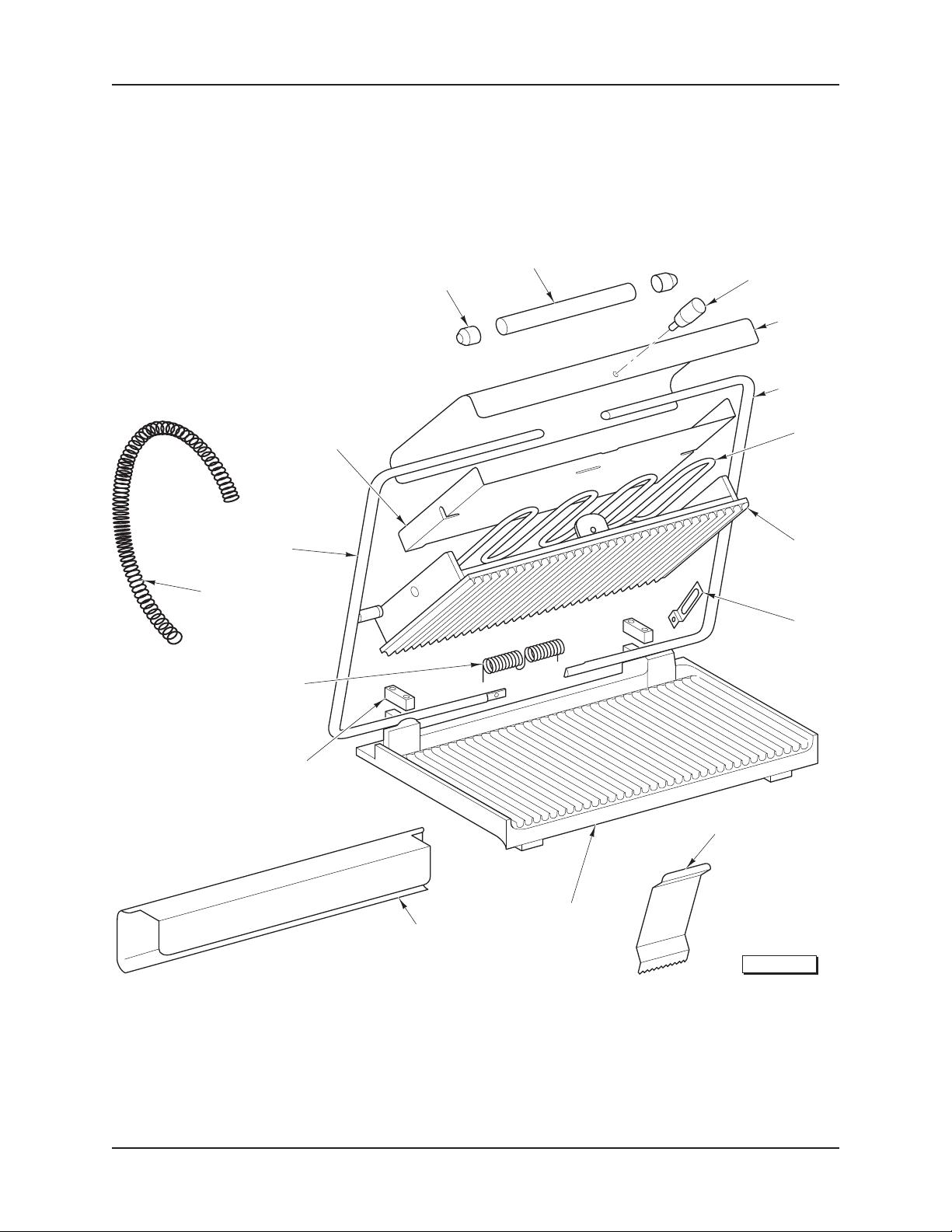

GRILL (HCG1)

(UPPER PORTION)

– 4 –

18 THRU 24

PL-55073

REPLACEMENT PARTS HCG CONVENIENCE GRILL

GRILL (HCG1) (UPPER PORTION)

ILLUS. PART NAME OF PART AMT. PL-55073 NO.

1 00-877547 Handle - Tip ............................................................................................................................2

2 SC-124-07 Set Screw - M4x0.7 x 4mm Hdls. Flat Pt. ...............................................................................2

3 00-877546 Handle - Insulated ...................................................................................................................1

4 00-877536 Knob - Top Plate .....................................................................................................................1

5 NS-047-13 Nut - M6 x 1.0 Hex SST ..........................................................................................................1

6 00-877535 Cover - Top .............................................................................................................................1

7 SC-121-53 Mach. Screw - M6 x 1.0 x 10mm Truss Hd. ............................................................................ 1

8 00-438131-00003 Label - Hot Surface .................................................................................................................1

9 00-877545 Handle - W/Thread (RIGHT-B) ............................................................................................... 1

10 SC-127-70 Mach. Screw - M5 x 0.8 x 25mm Phil. Fil. Hd. ........................................................................1

11 NS-047-37 Nut - M5 x 0.8 Hex SST ..........................................................................................................1

12 00-877577 Element (Top Heat) 120V. ...................................................................................................... 1

13 00-877531 Top - Cast Iron (Grooved) (GRV-A) ........................................................................................1

14 00-877532 Top - Cast Iron (Smooth) (SMT-A) .......................................................................................... 1

15 00-877541 Guide - Top Plate ....................................................................................................................1

16 SC-118-32 Mach. Screw - M5 x 0.8 x 10mm Pan Hd. .............................................................................. 2

17 00-877549 Scraper - Groovy ..................................................................................................................... 1

18 00-877579 Bottom - Cast Iron (Grooved) .................................................................................................. 1

19 00-877580 Bottom - Cast Iron (Smooth) ...................................................................................................1

20 NS-047-13 Nut - M6 x 1.0 Hex SST ..........................................................................................................4

21 WS-003-48 Washer - M6 Flat ....................................................................................................................4

22 WL-019-55 Washer - M6 External Star ...................................................................................................... 4

23 00-877585 Spacer - 17mm .......................................................................................................................4

24 00-549232 Stud - M6 x 1.0 x 40mm ..........................................................................................................4

25 00-877581 Cover - Handle Hinge .............................................................................................................1

26 00-438131-00033 Label - Disconnect (English) ...................................................................................................1

27 00-421908-00002 Label - Disconnect (French) .................................................................................................... 1

28 00-877540 Block Assy. - Handle Hinge ....................................................................................................2

29 SC-121-60 Mach. Screw - M5 x 0.8 x 20mm Truss Hd. ............................................................................ 4

30 00-877509 Spring ...................................................................................................................................... 4

31 00-877539 Spring - Double .......................................................................................................................1

32 00-877537 Spring - Wire Raceway Girdle ................................................................................................. 1

33 SC-122-37 Mach. Screw - M4 x 0.7 x 10mm Phil. Pan Hd. SST .............................................................. 2

34 NS-048-46 Nut - Lock Special M4 x 0.7 Hex.............................................................................................2

35 00-877544 Handle - W/O Thread (LEFT-B) ..............................................................................................1

36 00-877534 Plate - Press (Top Element) .................................................................................................... 1

37 WS-003-48 Washer - M6 Flat ....................................................................................................................2

38 WL-019-55 Washer - M6 External Star ...................................................................................................... 2

39 SC-127-71 Mach. Screw - M6 x 1.0 x 15mm Hex Hd. .............................................................................. 2

– 5 –

HCG CONVENIENCE GRILL REPLACEMENT PARTS

28 - 29

33 THRU 37

2 - 3 - 4

5 - 6

7 - 8

9 THRU 13

25 - 26

22 - 23 - 24

20 - 21

PL-55134

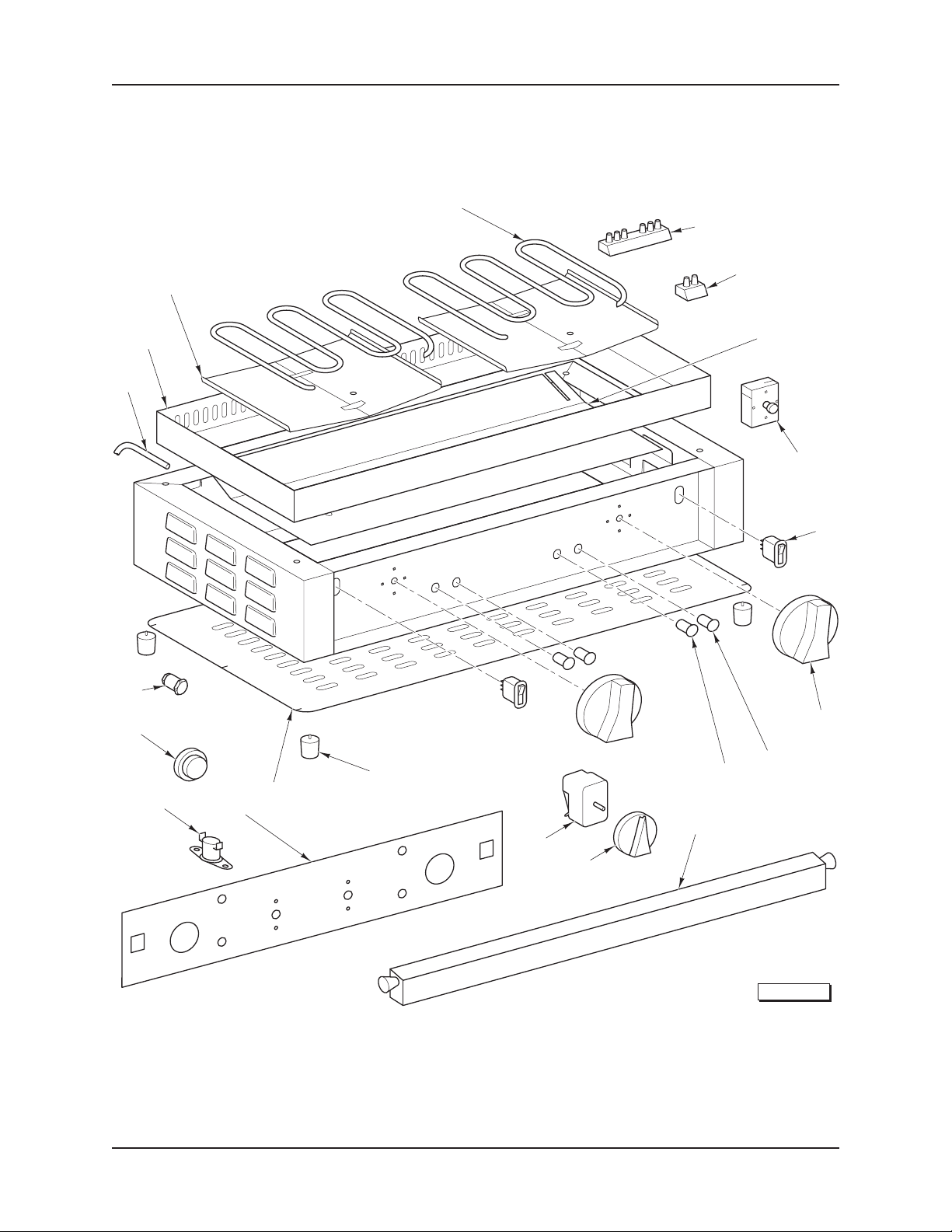

GRILL (HCG1)

(LOWER PORTION)

– 6 –

REPLACEMENT PARTS HCG CONVENIENCE GRILL

GRILL (HCG1) (LOWER PORTION)

ILLUS. PART NAME OF PART AMT. PL-55134 NO.

1 00-877578 Element (Bottom Heating) (120V.) ..........................................................................................1

2 00-877552 Terminal Block - (3 Position) ...................................................................................................1

3 SD-017-35 Self-Tapping Screw - 6-20 x 5⁄8 Phil. Bind. Hd., Type AB ........................................................1

4 WS-023-47 Washer - #6 Flat .....................................................................................................................1

5 00-877512 Terminal Block - (2 Position) ...................................................................................................1

6 SD-017-35 Self-Tapping Screw - 6-20 x 5⁄8 Phil. Bind. Hd., Type AB ........................................................1

7 00-877591 Shield - Heat ........................................................................................................................... 1

8 NS-047-13 Nut - M6 x 1.0 Hex SST ..........................................................................................................2

9 00-877516 Thermostat - Regulating .........................................................................................................1

10 SC-123-28 Mach. Screw - M4 x 0.7 x 8mm Phil. Pan Hd. ........................................................................ 2

11 00-877586 Spacer - 4mm .........................................................................................................................2

12 00-877583 Nut - Speed .............................................................................................................................1

13 SC-127-74 Mach. Screw - M5 x 0.8 x 12mm Phil. Pan Hd. ...................................................................... 1

14 00-877521 Switch Assy. - On/Off ..............................................................................................................1

15 00-877517 Knob - Thermostat .................................................................................................................. 1

16 00-877553 Pilot Light - (Red) (110V.) ....................................................................................................... 1

17 00-877554 Pilot Light - (Green) (110V.) ....................................................................................................1

18 00-877582 Tray - Drip ...............................................................................................................................1

19 00-877515 Knob - Timer ........................................................................................................................... 1

20 SD-017-05 Self-Tapping Screw - 6-20 x 5⁄8 Phil. Bind Hd., Type AB .........................................................2

21 00-877514 Timer - (5 Minute) ...................................................................................................................1

22 00-877513 Foot .........................................................................................................................................4

23 WL-019-32 Lockwasher - 6 External Shakeproof ......................................................................................4

24 SD-017-35 Self-Tapping Screw - 6-20 x 5⁄8 Phil. Bind. Hd., Type AB ........................................................4

25 SD-014-28 Self-Tapping Screw - 6-32 x 3⁄8 Phil. Pan Hd., Type D ............................................................8

26 00-877574 Plate - Bottom ......................................................................................................................... 1

27 00-877575 Plate - Face ............................................................................................................................. 1

28 00-877520 Thermostat - (High Limit) ........................................................................................................ 1

29 RS-032-64 Pop - Rivet 1⁄8" x 1⁄8" ................................................................................................................. 2

30 00-877523 Strain - Relief .......................................................................................................................... 1

31 00-877556 Cord, Power (5-15P) (15A, 120V.) (Non-locking) ................................................................... 1

32 00-877576 Frame - Middle ........................................................................................................................1

33 00-877637 Spacer - 12mm .......................................................................................................................2

34 NS-047-13 Nut - M6 x 1.0 Hex SST ..........................................................................................................2

35 WS-003-48 Washer - M6 Flat ....................................................................................................................2

36 00-877527 Plate - Press (Bottom Element) ..............................................................................................1

37 00-549232 Stud - M6 x 1.0 x 40mm ..........................................................................................................2

– 7 –

HCG CONVENIENCE GRILL REPLACEMENT PARTS

1 - 2

43 - 44 - 45

39 40 41

4 - 5

6 - 7 - 8

21 22

10 - 11 - 12

13 - 14 - 15

17 THRU 20

35 36 37

32 - 33 - 34

24 THRU 31

PL-55075

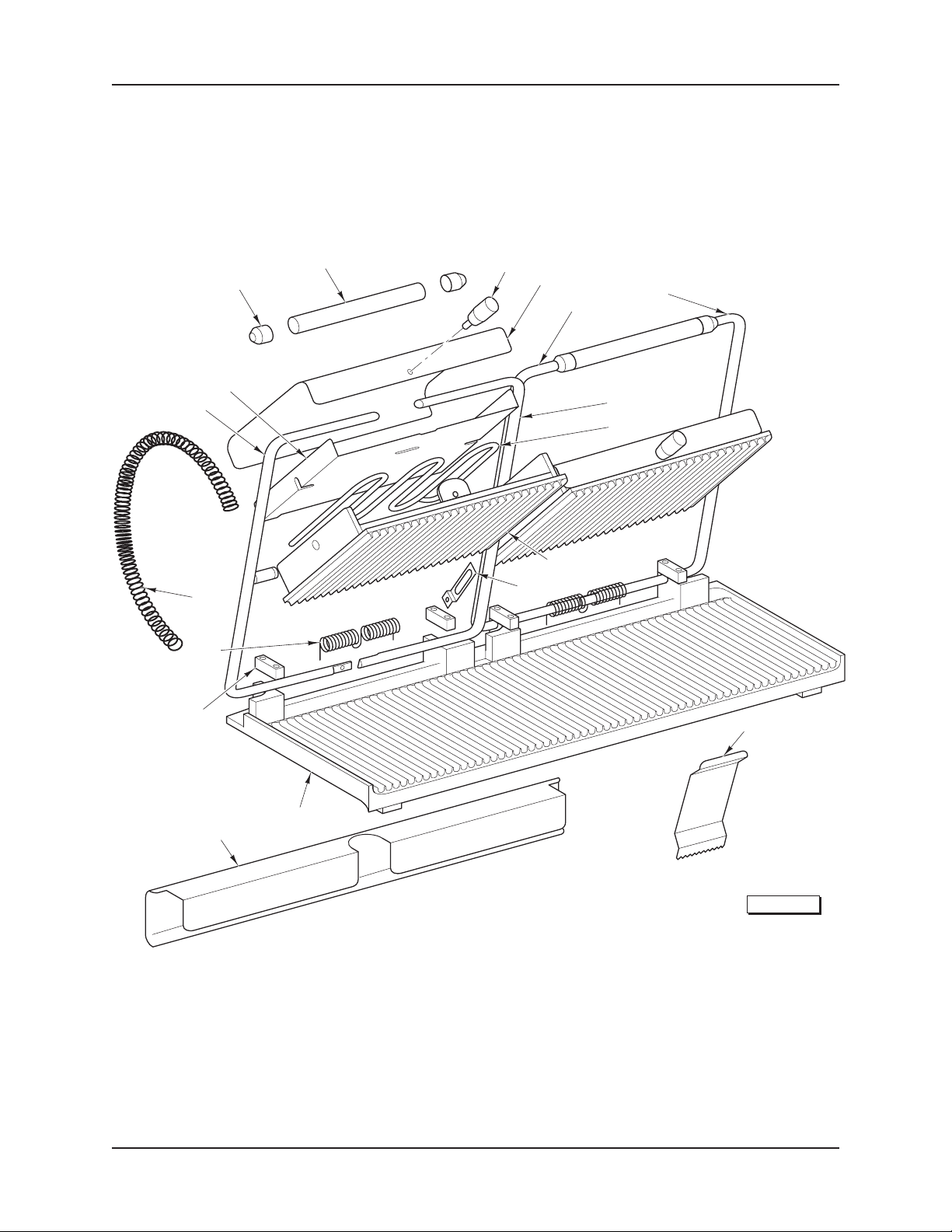

GRILL (HCG2)

(UPPER PORTION)

– 8 –

REPLACEMENT PARTS HCG CONVENIENCE GRILL

GRILL (HCG2) (UPPER PORTION)

ILLUS. PART NAME OF PART AMT. PL-55075 NO.

1 00-877547 Handle - Tip ............................................................................................................................4

2 SC-124-07 Set Screw - M4x0.7 x 4mm Hdls. Flat Pt. ...............................................................................4

3 00-844546 Handle - Insulated ...................................................................................................................2

4 00-877536 Knob - Top Plate .....................................................................................................................2

5 NS-047-13 Nut - M6 x 1.0 Hex SST ..........................................................................................................2

6 00-877535 Cover - Top .............................................................................................................................2

7 SC-121-53 Mach. Screw - M6 x 1.0 x 10mm Truss Hd. ............................................................................ 2

8 00-438131-00003 Label - Hot Surface .................................................................................................................2

9 00-877544 Handle - W/O Thread (LEFT-B) ..............................................................................................1

10 00-877545 Handle - W/Thread (RIGHT-B) ............................................................................................... 1

11 SC-127-70 Mach. Screw - M5 x 0.8 x 25mm Phil. Fil. Hd. ........................................................................1

12 NS-047-37 Nut - M5 x 0.8 Hex SST ..........................................................................................................1

13 00-877543 Handle - W/Thread (RIGHT-A) ............................................................................................... 1

14 SC-127-70 Mach. Screw - M5 x 0.8 x 25mm Phil. Fil. Hd. ........................................................................1

15 NS-047-37 Nut - M5 x 0.8 Hex SST ..........................................................................................................1

16 00-877533 Element (Top Heat) S, HCG2 ................................................................................................. 2

17 00-877531 Top - Cast Iron (Grooved) (GRV-A) ........................................................................................1

18 00-877587 Top - Cast Iron (Grooved) (GRV-B) ........................................................................................1

19 00-877532 Top - Cast Iron (Smooth) (SMT-A) .......................................................................................... 1

20 00-877588 Top - Cast Iron (Smooth) (SMT-B) .......................................................................................... 1

21 00-877541 Guide - Top Plate ....................................................................................................................2

22 SC-118-32 Mach. Screw - M5 x 0.8 x 10mm Pan Hd. .............................................................................. 4

23 00-877549 Scraper - Groovy ..................................................................................................................... 1

24 00-877529 Bottom - Cast Iron (Grooved/Grooved) ...................................................................................1

25 00-877530 Bottom - Cast Iron (Grooved/Smooth) .................................................................................... 1

26 00-877589 Bottom - Cast Iron (Smooth/Smooth) ...................................................................................... 1

27 NS-047-13 Nut - M6 x 1.0 Hex SST ..........................................................................................................4

28 WS-003-48 Washer - M6 Flat ....................................................................................................................4

29 WL-019-55 Washer - M6 External Star ...................................................................................................... 4

30 00-877585 Spacer - 17mm .......................................................................................................................4

31 00-549232 Stud - M6 x 1.0 x 40mm ..........................................................................................................4

32 00-877538 Cover - Handle Hinge .............................................................................................................1

33 00-438131-00033 Label - Disconnect (English) ...................................................................................................1

34 00-421908-00002 Label - Disconnect (French) .................................................................................................... 1

35 00-877540 Block Assy. - Handle Hinge ....................................................................................................4

36 SC-121-60 Mach. Screw - M5 x 0.8 x 20mm Truss Hd. ............................................................................ 8

37 00-877509 Spring ...................................................................................................................................... 8

38 00-877539 Spring - Double .......................................................................................................................2

39 00-877537 Spring - Wire Raceway Girdle ................................................................................................. 2

40 SC-122-37 Mach. Screw - M4 x 0.7 x 10mm Phil. Pan Hd. SST .............................................................. 4

41 NS-048-46 Nut - Lock Special M4 x 0.7 Hex.............................................................................................4

42 00-877542 Handle - W/O Thread (LEFT-A) ..............................................................................................1

43 00-877534 Plate - Press (Top Element) .................................................................................................... 2

44 WS-031-33 Washer - M6 Flat ....................................................................................................................4

45 SC-127-71 Mach. Screw - M6 x 1.0 x 15mm Hex Hd. .............................................................................. 4

– 9 –

HCG CONVENIENCE GRILL REPLACEMENT PARTS

36 THRU 40

2 - 3 - 4

5 - 6

30 - 31

27 - 28

24 - 25 - 26

22 - 23

7 THRU 10

11 THRU 15

GRILL (HCG2)

(LOWER PORTION)

– 10 –

PL-55136

REPLACEMENT PARTS HCG CONVENIENCE GRILL

GRILL (HCG2) (LOWER PORTION)

ILLUS. PART NAME OF PART AMT. PL-55136 NO.

1 00-877528 Element (Bottom Heating) S ................................................................................................... 2

2 00-877511 Terminal Block - (6 Position) ...................................................................................................1

3 SD-017-35 Self-Tapping Screw - 6-20 x 5⁄8 Phil. Bind. Hd., Type AB ........................................................2

4 WS-023-47 Washer - #6 Flat .....................................................................................................................2

5 00-877512 Terminal Block - (2 Position) ...................................................................................................2

6 SD-017-35 Self-Tapping Screw - 6-20 x 5⁄8 Phil. Bind. Hd., Type AB ........................................................2

7 00-877526 Shield - Heat ........................................................................................................................... 1

8 NS-047-13 Nut - M6 x 1.0 Hex SST ..........................................................................................................4

9 WS-003-48 Washer - M6 Flat ....................................................................................................................4

10 WL-019-55 Washer - M6 External Star ...................................................................................................... 4

11 00-877516 Thermostat - Regulating .........................................................................................................2

12 SC-123-28 Mach. Screw - M4 x 0.7 x 8mm Phil. Pan Hd. ........................................................................ 4

13 00-877586 Spacer - 4mm .........................................................................................................................4

14 00-877583 Nut - Speed .............................................................................................................................2

15 SC-127-74 Mach. Screw - M5 x 0.8 x 12mm Phil. Pan Hd. ...................................................................... 2

16 00-877521 Switch Assy. - On/Off ..............................................................................................................2

17 00-877517 Knob - Thermostat .................................................................................................................. 2

18 00-877518 Pilot Light - (Red) (220V.) ....................................................................................................... 2

19 00-877519 Pilot Light - (Green) (220V.) ....................................................................................................2

20 00-877548 Tray - Drip ...............................................................................................................................1

21 00-877515 Knob - Timer ........................................................................................................................... 2

22 SD-017-05 Self-Tapping Screw - 6-20 x 5⁄8 Phil. Bind Hd., Type AB .........................................................4

23 00-877514 Timer - (5 Minute) ...................................................................................................................2

24 00-877513 Foot .........................................................................................................................................4

25 WL-019-32 Lockwasher - 6 External Shakeproof ......................................................................................4

26 SD-017-35 Self-Tapping Screw - 6-20 x 5⁄8 Phil. Bind. Hd., Type AB ........................................................4

27 SD-014-28 Self-Tapping Screw - 6-32 x 3⁄8 Phil. Pan Hd., Type D ............................................................8

28 00-877510 Plate - Bottom ......................................................................................................................... 1

29 00-877525 Plate - Face ............................................................................................................................. 1

30 00-877520 Thermostat - (High Limit) ........................................................................................................ 2

31 RS-032-64 Pop - Rivet 1⁄8" x 1⁄8" ................................................................................................................. 4

32 00-877524 Plug - Rubber ..........................................................................................................................1

33 00-877523 Strain - Relief .......................................................................................................................... 1

34 00-877522 Cord - Power (L6-30P) (30A) (208-240V.) (Non-locking) ........................................................ 1

35 00-877550 Frame - Middle ........................................................................................................................1

36 00-877584 Spacer - 10mm .......................................................................................................................4

37 00-877527 Plate - Press (Bottom Element) ..............................................................................................2

38 00-549232 Stud - M6 x 1.0 x 40mm ..........................................................................................................4

39 NS-047-13 Nut - M6 x 1.0 Hex SST ..........................................................................................................4

40 WS-003-48 Washer - M6 Flat ....................................................................................................................4

– 11 –

HCG CONVENIENCE GRILL REPLACEMENT PARTS

33 34 35

37 THRU 40

1 - 2

4 - 5

6 - 7 - 8

9 - 10 - 11

12 - 13

14 15

16 17

29 30 31

19 THRU 25

26 27 28

GRILL (HCG3)

(UPPER PORTION)

– 12 –

PL-55074

REPLACEMENT PARTS HCG CONVENIENCE GRILL

GRILL (HCG3) (UPPER PORTION)

ILLUS. PART NAME OF PART AMT. PL-55074 NO.

1 00-877547 Handle - Tip ............................................................................................................................2

2 SC-124-07 Set Screw - M4x0.7 x 4mm Hdls. Flat Pt. ...............................................................................2

3 00-844546 Handle - Insulated ...................................................................................................................1

4 00-877536 Knob - Top Plate .....................................................................................................................1

5 NS-047-13 Nut - M6 x 1.0 Hex SST ..........................................................................................................1

6 00-877569 Cover - Top .............................................................................................................................1

7 SC-121-53 Mach. Screw - M6 x 1.0 x 10mm Truss Hd. ............................................................................ 1

8 00-438131-00003 Label - Hot Surface .................................................................................................................1

9 00-877572 Handle - W/Thread .................................................................................................................. 1

10 SC-127-70 Mach. Screw - M5 x 0.8 x 25mm Phil. Fil. Hd. ........................................................................1

11 NS-047-37 Nut - M5 x 0.8 Hex SST ..........................................................................................................1

12 00-877566 Element - (Top Heat) (220V.) .................................................................................................. 1

13 00-877567 Element - (Top Heat) (120V.) .................................................................................................. 1

14 00-877564 Top - Cast Iron (Grooved) (GRV-A) ........................................................................................1

15 00-877565 Top - Cast Iron (Smooth) (SMT-A) .......................................................................................... 1

16 00-877541 Guide - Top Plate ....................................................................................................................1

17 SC-118-32 Mach. Screw - M5 x 0.8 x 10mm Pan Hd. .............................................................................. 2

18 00-877549 Scraper - Groovy ..................................................................................................................... 1

19 00-877562 Bottom - Cast Iron (Grooved) .................................................................................................. 1

20 00-877563 Bottom - Cast Iron (Smooth) ...................................................................................................1

21 NS-047-13 Nut - M6 x 1.0 Hex SST ..........................................................................................................4

22 WS-003-48 Washer - M6 Flat ....................................................................................................................4

23 WL-019-55 Washer - M6 External Star ...................................................................................................... 4

24 00-877585 Spacer - 17mm .......................................................................................................................4

25 00-549232 Stud - M6 x 1.0 x 40mm ..........................................................................................................4

26 00-877570 Cover - Handle Hinge .............................................................................................................1

27 00-438131-00033 Label - Disconnect (English) ...................................................................................................1

28 00-421908-00002 Label - Disconnect (French) .................................................................................................... 1

29 00-877540 Block Assy. - Handle Hinge ....................................................................................................2

30 SC-121-60 Mach. Screw - M5 x 0.8 x 20mm Truss Hd. ............................................................................ 4

31 00-877509 Spring ...................................................................................................................................... 4

32 00-877539 Spring - Double .......................................................................................................................1

33 00-877537 Spring - Wire Raceway Girdle ................................................................................................. 1

34 SC-122-37 Mach. Screw - M4 x 0.7 X 10mm Phil. Pan Hd. SST .............................................................. 2

35 NS-048-46 Nut - Lock Special M4 x 0.7 Hex.............................................................................................2

36 00-877571 Handle - W/O Thread ..............................................................................................................1

37 00-877568 Plate - Press (Top Element) .................................................................................................... 1

38 WS-003-48 Washer - M6 Flat ....................................................................................................................4

39 SC-122-10 Cap Screw - M6 X 1.0 x 8mm Soc. Hd. SST (Ends of pressure plate) ................................... 2

40 SC-121-82 Cap Screw - M6 x 1.0 x10mm Hex Hd. (Middle of pressure plate) ......................................... 2

– 13 –

HCG CONVENIENCE GRILL REPLACEMENT PARTS

1 - 2

34 - 35

31 - 32

37 THRU 42

3 - 4 - 5

6 - 7

8 - 9

10 THRU 14

28 - 29

17 - 18

25 - 26 - 27

19 - 20

23 - 24

PL-55135

GRILL (HCG3)

(LOWER PORTION)

– 14 –

REPLACEMENT PARTS HCG CONVENIENCE GRILL

GRILL (HCG3) (LOWER PORTION)

ILLUS. PART NAME OF PART AMT. PL-55135 NO.

1 00-877560 Element - (Bottom Heating) (220V.) ........................................................................................ 1

2 00-877561 Element - (Bottom Heating) (120V.) ........................................................................................ 1

3 00-877552 Terminal Block - (3 Position) ...................................................................................................1

4 SD-017-35 Self-Tapping Screw - 6-20 x 5⁄8 Phil. Bind. Hd., Type AB ........................................................1

5 WS-023-47 Washer - #6 Flat .....................................................................................................................1

6 00-877512 Terminal Block - (2 Position) ...................................................................................................1

7 SD-017-35 Self-Tapping Screw - 6-20 x 5⁄8 Phil. Bind. Hd., Type AB ........................................................1

8 00-877590 Shield - Heat ........................................................................................................................... 1

9 NS-047-13 Nut - M6 x 1.0 Hex SST ..........................................................................................................2

10 00-877516 Thermostat - Regulating .........................................................................................................1

11 SC-123-28 Mach. Screw - M4 x 0.7 x 8mm Phil. Pan Hd. ........................................................................ 2

12 00-877586 Spacer - 4mm .........................................................................................................................2

13 00-877583 Nut - Speed .............................................................................................................................1

14 SC-127-74 Mach. Screw - M5 x 0.8 x 12mm Phil. Pan Hd. ...................................................................... 1

15 00-877521 Switch Assy. - On/Off ..............................................................................................................1

16 00-877517 Knob - Thermostat .................................................................................................................. 1

17 00-877518 Pilot Light - (Red) (220V.) ....................................................................................................... 1

18 00-877553 Pilot Light - (Red) (110V.) ....................................................................................................... 1

19 00-877519 Pilot Light - (Green) (220V.) ....................................................................................................1

20 00-877554 Pilot Light - (Green) (110V.) ....................................................................................................1

21 00-877573 Tray - Drip ...............................................................................................................................1

22 00-877515 Knob - Timer ........................................................................................................................... 1

23 SD-017-05 Self-Tapping Screw - 6-20 x 5⁄8 Phil. Bind Hd., Type AB .........................................................2

24 00-877514 Timer - (5 Minute) ...................................................................................................................1

25 00-877513 Foot .........................................................................................................................................4

26 WL-019-32 Lockwasher - 6 External Shakeproof ......................................................................................4

27 SD-017-35 Self-Tapping Screw - 6-20 x 5⁄8 Phil. Bind. Hd., Type AB ........................................................4

28 SD-014-28 Self-Tapping Screw - 6-32 x 3⁄8 Phil. Pan Hd., Type D ............................................................8

29 00-877551 Plate - Bottom ......................................................................................................................... 1

30 00-877557 Plate - Face ............................................................................................................................. 1

31 00-877520 Thermostat - (High Limit) ........................................................................................................ 1

32 RS-032-64 Pop - Rivet 1⁄8" x 1⁄8" ................................................................................................................. 2

33 00-877523 Strain - Relief .......................................................................................................................... 1

34 00-877555 Cord - Power (6-15P) (15A, 208-240V.) (Non-locking) ...........................................................1

35 00-877556 Cord - Power (5-15P) (15A, 120V.) (Non-locking) .................................................................. 1

36 00-877558 Frame - Middle ........................................................................................................................1

37 00-877637 Spacer - 12mm .......................................................................................................................2

38 WS-003-48 Washer - M6 Flat ....................................................................................................................6

39 SC-121-82 Cap Screw - M6 x 1.0 x10mm Hex Hd. (Middle of pressure plate) ......................................... 2

40 00-877559 Plate - Press (Bottom Element) ..............................................................................................1

41 00-549232 Stud - M6 x 1.0 x 40mm ..........................................................................................................2

42 NS-047-13 Nut - M6 x 1.0 Hex SST ..........................................................................................................2

– 15 –

HCG CONVENIENCE GRILL REPLACEMENT PARTS

FORM 34499 DECEMBER 2000 PRINTED IN U.S.A.

– 16 –

Hobart HCG1-3 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
