Hobart FRC100A Parts List

Download
Page 1
CATALOG OF
REPLACEMENT PARTS
FRC DISHWASHERS
ML-103147 FRC44A R-L ML-103148 FRC44A L-R ML-103157 FRC66A R-L ML-103158 FRC66A L-R ML-103165 FRC80A R-L ML-103166 FRC80A L-R ML-110088 FRC88A R-L ML-110087 FRC88A L-R ML-110090 FRC110A R-L ML-110089 FRC110A L-R ML-110092 FRC124A R-L ML-110091 FRC124A L-R ML-104290 FRC54A R-L ML-104289 FRC54A L-R ML-104292 FRC76A R-L ML-104291 FRC76A L-R ML-104294 FRC90A R-L ML-104293 FRC90A L-R ML-104132 FRC64A R-L ML-104133 FRC64A L-R ML-104142 FRC86A R-L ML-104145 FRC86A L-R ML-104150 FRC100A R-L ML-104153 FRC100A L-R
A product of HOBART CORPORATION 701 S. RIDGE AVENUE TROY, OHIO 45374-0001
FORM 43020 (July 2001)
Page 2
Table of Contents
Page Description
3-5 FRCA COMMON
3 Push – Button Control Box 4 Dish Racks 5 Chain, Chain Guides, and
Rack Guides
7-35 RS22 A UNIT
7 Flow Back Tube
9 Door and Curtain 11 Prewash Motor and Pump 13 Prewash Chamber and Tank 15 Prewash Arms and Tubes 17 Drain 19 Water Level Floats 21 Prewash Temperature Control – Piping 22 Prewash Temperature Control –
Electrical 23 Bucket and Strainer Pans 24 Miscellaneous 25 Pump Motor Parts (RS-22 on Curve) 27 Motor and Pump (H-6-F)
(RS-22 on Curve) 29 Inside Door Unit (Prewash)
(RS-22 on Curve) 31 Outside Door Unit (Prewash)
(RS-22 on Curve) 33 Strainer Pans (RS-22 on Curve) 35 Wash Piping (RS-22 on Curve)
37-55 PW36A UNIT
37 Flow Back Tube 39 Door and Curtain 41 Prewash Motor and Pump 43 Prewash Chamber and Tank 45 Prewash Arms and Tubes 47 Drain 49 Water Level Floats 51 Prewash Temperature Control – Piping 52 Prewash Temperature Control –
Electrical 53 Bucket and Strainer Pans 55 Miscellaneous
57-99 FRC44A, FRC54A, FRC88A UNIT
57 Control Box 58 Component Panel (Control Box) 61 Wash Motor and Pump Unit 63 Wash Arms and Tubes (Wash Section) 64 Fill and Outside Rinse Piping
(Previous Construction) 67 Fill and Outside Rinse Piping
(Current Construction)
Page Description
69 Inside Metallic Rinse Piping 71 Inside Non-Metallic Rinse Piping
(FRC44A Series) 73 Track and Chain Guide 75 Rinse Drain-Off Pan 77 Drain Unit (Wash Section) 79 Door, Curtain, Baffles, and
Strainers 80 Vent Hood 81 Extended Hood 82 Miscellaneous (Wash Section) 85 Low Water Protection
(Steam Heat/Wash Tank) 87 Steam Coil Heat 89 Piping – Steam Coils 91 Steam Injector Heat 92 Control Box – Gas Heat 95 Gas Burner and Flue 96 Gas Heat Components 99 Electric Heat
101-140 FRC64A UNIT
101 Control Box 102 Component Panel (Control Box) 105 Wash Motor and Pump Units
(2 Units Required)
107 Track and Chain Guide 109 Wash Arms and Tubes
(Wash/Rinse Section)
110 Fill and Outside Rinse Piping 113 Inside Metallic Rinse Piping 115 Inside Rinse Piping (Non-Metallic) 117 Actuator Mechanism and Rinse
Drain-Off Pan
119 Drain Unit (Wash/Rinse Section) 121 Doors, Curtains, Baffles, and
Strainers
122 Vent Hood 123 Extended Hood 124 Miscellaneous
(Wash/Rinse Section)
127 Low Water Protection
(Steam Heat/Wash and Rinse Tank)
129 Electric Heat 130 Gas Heat Burners, Flues, and
Wireways
132 Gas Heat Components 135 Steam Coils (2 Units Required) 136 Steam Coil Piping 139 Steam Injector and Previous
Construction Steam Coil Piping
140 Steam Injector Heat
(2 Units Required)
F-43020 (July 2001)
- 2 -
© HOBART CORPORATION
Page 3
1-2
6
PUMP START
5
4
3
PUMP STOP
PL-55664
PUSH – BUTTON CONTROL BOX
ILLUS. PART NO. NAME OF PART AMT. PL-55664
1 00-115214-00001 Push – Button Station – Remote Mounted (RH) (Incls. Items 3, 4, 5, & 6) .................................. 1
2 00-115214-00002 Push – Button Station – Remote Mounted (LH) (Incls. Items 3, 4, 5, & 6) .................................. 1
3 00-106656-00001 Button – Push (Stop) ..................................................................................................................... 1
4 00-082765 Plate – Identification (Pumps-Stop) ............................................................................................... 1
5 00-106657-00001 Button – Push (Start) ..................................................................................................................... 1
6 00-082764 Plate – Identification (Pumps-Start) ............................................................................................... 1
- 3 -
F-43020 (July 2001)
Page 4
2
1
PL-55632
DISH RACKS
ILLUS. PART NO. NAME OF PART AMT. PL-55632
1 00-315191 Rack – Peg (Packaged) ................................................................................................................1
2 00-315193 Rack – Combination (Packaged) ..................................................................................................1
00-295288 Peg Type Tray Rack (P1400) ........................................................................................................ 1
00-295372 Rack Assy. (250TX) (Tray & Bun Pans) (Packaged) ..................................................................1
F-43020 (July 2001)
- 4 -
Page 5
1
2 3
4
6
5
7
8
9
PL-55571
CHAIN, CHAIN GUIDES, AND RACK GUIDES
ILLUS. PART NO. NAME OF PART AMT. PL-55571
1 NS-031-15 Stop Nut 10-24 (SST) ...................................................................................................................11
2 00-118265-00001 Wear Strip – Rack (90 Deg.) ....................................................................................................... AR
3 00-118265-00002 Wear Strip – Rack (180 Deg.) ..................................................................................................... AR
*4 SC-053-05 Mach. Screw 10-24 x 3/8 Truss Hd. (SST) .................................................................................... 11
5 00-110336-00001 Link – Connecting .......................................................................................................................... 1
6 00-110337-00002 Chain – Roller (SST) (Give Length by the Foot) ........................................................................ AR
7 NS-031-15 Stop Nut 10-24 (SST) ...................................................................................................................20
8 00-289318-00001 Chain Guide Assy. (Flat Drive Only) (RH Rear, LH Front) .......................................................... 1
9 00-289318-00001 Chain Guide Assy. (Flat Drive Only) (RH Front, LH Rear) .......................................................... 1
*Amt. Per 90 Deg. Length.
- 5 -
F-43020 (July 2001)
Page 6
QUANTITIES ARE PER CONNECTION AS SHOWN
22 - 23
24
5-6
1-2
10
9
11
12
13
14-15-16
3
FRC66A FRC76A
4
FRC86A
17-18-19-20
21
7-8
PL-55609
F-43020 (July 2001)
FRC110A

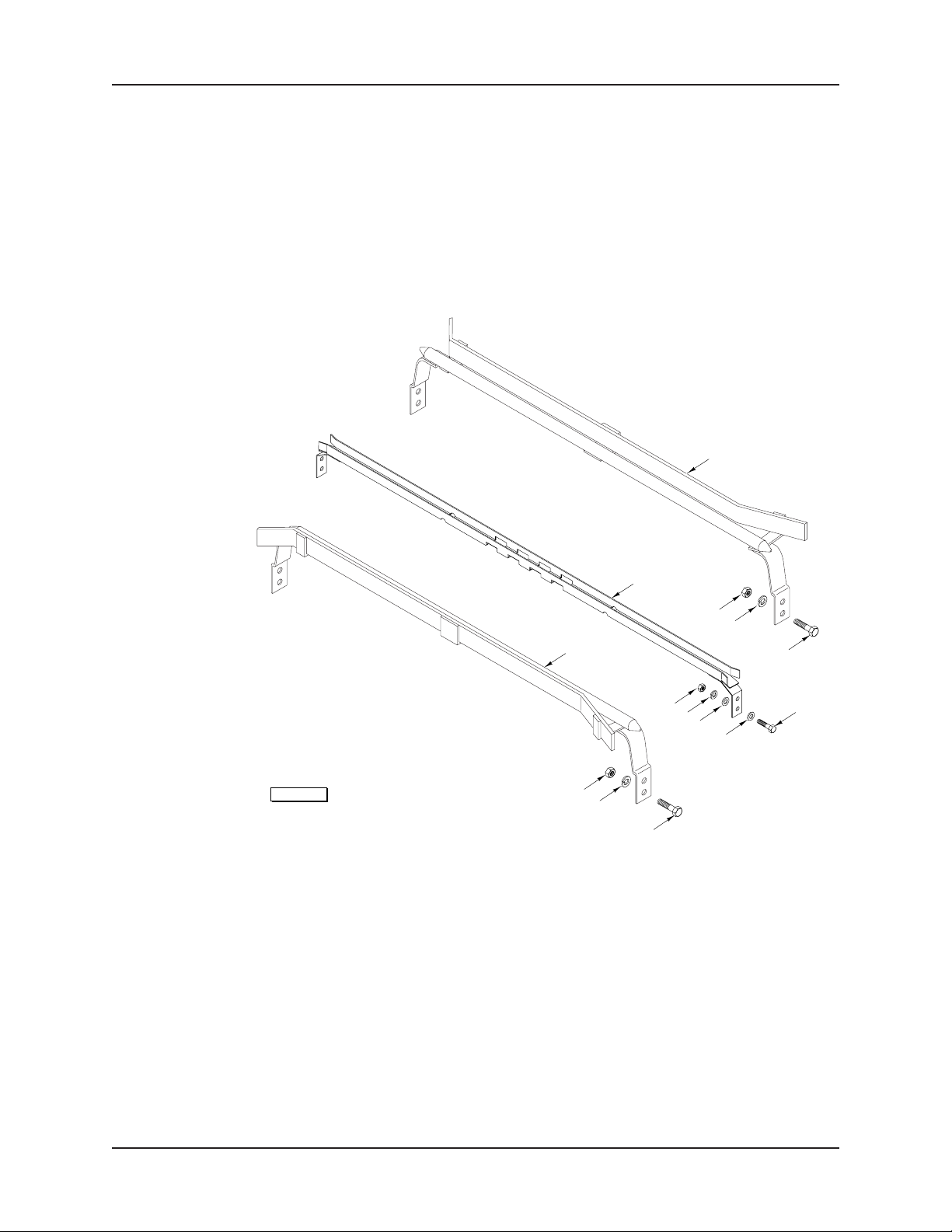

FLOW BACK TUBE
- 6 -
Page 7
FLOW BACK TUBE
ILLUS. PART NO. NAME OF PART AMT. PL-55609
1 00-274113-00001 Flow Back Tube (R-L) (FRC66A & FRC76A) ............................................................................... 1
2 00-274113-00002 Flow Back Tube (L-R) (FRC66A & FRC76A) ............................................................................... 1
3 00-436708 Flow Back Tube – Inside (FRC86A) .............................................................................................. 1
4 00-436710-00001 Flow Back Tube – Outside (FRC86A) .......................................................................................... 1
5 00-329664 Flow Back Tube – Outside (R-L) (FRC110A) ............................................................................... 1
6 00-289502 Flow Back Tube – Outside (L-R) (FRC110A) ............................................................................... 1
7 00-329658-00002 Flow Back Tube – Inside (R-L) (FRC110A) .................................................................................. 1
8 00-329659-00002 Flow Back Tube – Inside (L-R) (FRC110A) .................................................................................. 1
9 00-120115 Retainer – Seal ...............................................................................................................................1
10 00-120603 Gasket – Seal Retainer ................................................................................................................. 1
11 00-077621-00002 Ring – Sealing ................................................................................................................................ 1
12 00-120603 Gasket – Seal Retainer ................................................................................................................. 1
13 00-120115 Retainer – Seal ...............................................................................................................................1
14 WS-017-08 Washer ........................................................................................................................................... 4
15 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 4
16 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 4
17 SC-041-15 Cap Screw 5/16-18 x 11/4 Hex Hd. ...................................................................................................4
18 WS-017-08 Washer ........................................................................................................................................... 8
19 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 4
20 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 4
21 00-120603 Gasket – Seal Retainer ................................................................................................................. 2
22 SC-041-15 Cap Screw 5/16-18 x 11/4 Hex Hd. ...................................................................................................4
23 00-545595 Sealer (1/8 Rd.) .............................................................................................................................. AR
24 WS-017-08 Washer ........................................................................................................................................... 4
- 7 -
F-43020 (July 2001)
Page 8
4
5
3
1-2
6-7
8-9
OR
26-27
22
Identify door by quantity of studs on lip
THRU
25
14
Previous Construction
15
16
13
THRU
21
10
11
12
PL-55608
F-43020 (July 2001)
DOOR AND CURTAIN
- 8 -
Page 9
DOOR AND CURTAIN
ILLUS. PART NO. NAME OF PART AMT. PL-55608
1 00-112378-00049 Door Slide (261/8 Door Height) ....................................................................................................... 2
2 00-112378-00050 Door Slide (321/8 Door Height) ....................................................................................................... 2
3 00-185864 Catch – Door .................................................................................................................................. 1
4 PC-005-02 Cotter Pin 1/16 x 1/2 (SST) ................................................................................................................ 1
5 00-012114 Pin ...................................................................................................................................................1
6 00-120151-00001 Splash Curtain (10-C1) .................................................................................................................. 1
7 00-120266-00001 Curtain Rod .................................................................................................................................. AR
8 00-328065 Actuator – Lift Drain .......................................................................................................................1
9 NS-031-21 Stop Nut – Special 1/4-20 Hex ...................................................................................................... AR
10 00-270996 Insulator – Switch ........................................................................................................................... 1
11 NS-031-50 Stop Nut 6-32 Hex (SST) .............................................................................................................. 2
12 00-749347 Switch – Reed Encapsulated ........................................................................................................ 1
13 00-290160 Magnet ............................................................................................................................................ 1
14 00-290159 Retainer – Magnet .......................................................................................................................... 1
15 NS-031-50 Stop Nut 6-32 Hex (SST) .............................................................................................................. 2
16 00-328080-00003 Door (261/8) (R-L) (4 Studs) ........................................................................................................... 1
17 00-328080-00004 Door (261/8) (L-R) (4 Studs) ........................................................................................................... 1
18 00-328081-00003 Door (321/8) (R-L) (4 Studs) ........................................................................................................... 1
19 00-328081-00004 Door (321/8) (L-R) (4 Studs) ........................................................................................................... 1
20 00-329296-00003 Door (261/8) (R-L & L-R) (8 Studs) ................................................................................................ 1
21 00-329297-00003 Door (321/8) (R-L & L-R) (8 Studs) ................................................................................................ 1
*22 - Door (261/8) (R-L) ........................................................................................................................... 1
*23 - Door (261/8) (L-R) ........................................................................................................................... 1
*24 - Door (321/8) (R-L) ........................................................................................................................... 1
*25 - Door (321/8) (L-R) ........................................................................................................................... 1
26 00-274767 Actuator – Lift Drain ....................................................................................................................... 1
27 NS-031-21 Stop Nut – Special 1/4-20 Hex ........................................................................................................ 2
00-120152-00001 Splash Curtain Assy. (Incls. Items 6 & 7) ...................................................................................... 1
*No longer available. Order either item 16, 17, 18, or 19 & item 8 to convert to present style.
- 9 -
F-43020 (July 2001)
Page 10
1
2-3
4
5
7 OR 8-9
6
28
29
30-31
22
20 21
19
23-24
17 18
12
TANK WALL
16
14
15
PL-55604
10-11
13
27
26
25
F-43020 (July 2001)

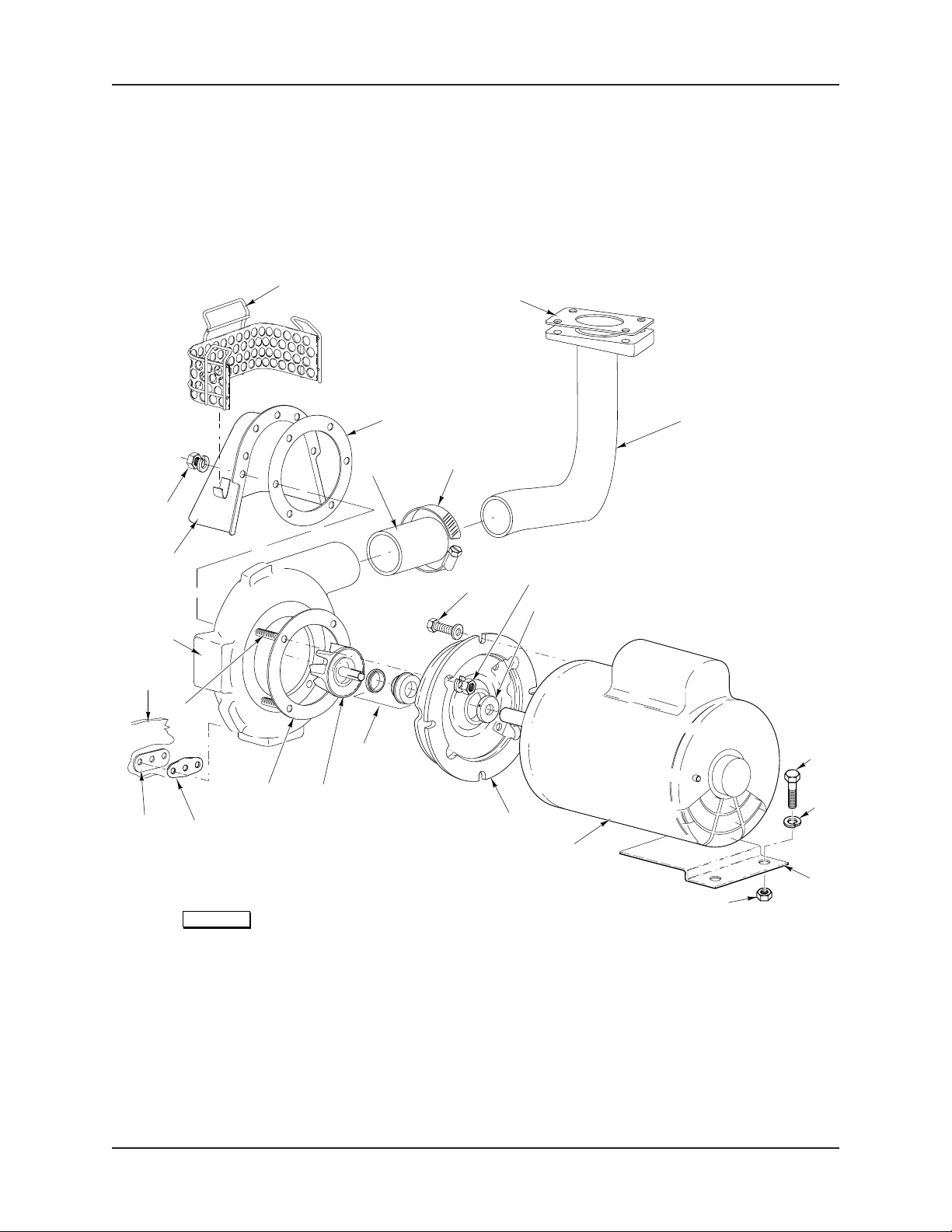

PREWASH MOTOR AND PUMP
- 10 -
Page 11
PREWASH MOTOR AND PUMP
ILLUS. PART NO. NAME OF PART AMT. PL-55604
1 00-270968 Gasket – Wash Pipe ......................................................................................................................1
2 00-274133 Tube – Discharge (R-L) ................................................................................................................. 1
3 00-274148 Tube – Discharge (L-R) (Not Shown) ........................................................................................... 1
4 00-749586 Hose – Discharge .......................................................................................................................... 1
5 00-542337 Clamp – Hose ................................................................................................................................ 2
6 00-274227-00001 Pump Shell (Incls. Item 7) ..............................................................................................................1
7 00-274223 Shroud (Service Only) ................................................................................................................... 1
8 00-274246 Shroud ............................................................................................................................................1
9 00-328362 Strainer – Pump .............................................................................................................................1
10 WL-006-23 Lockwasher 5/16 Medium (SST) .................................................................................................... 10
11 NS-015-11 Nut 5/16-18 Hex ............................................................................................................................... 10
12 00-274227-00005 Stud .............................................................................................................................................. AR
13 00-119050 Gasket............................................................................................................................................ 1
14 00-274227-00004 Gasket............................................................................................................................................ 1
15 00-812776 Support Plate ..................................................................................................................................2
16 00-119051 Gasket – Pump Drain Hole ............................................................................................................ 2
17 00-274227-00008 Impeller & Sleeve (60 Hz.)............................................................................................................. 1
18 00-274227-00011 Impeller & Sleeve (50 Hz.)............................................................................................................. 1
19 00-274227-00006 Seal – Shaft .................................................................................................................................... 1
20 WL-006-22 Lockwasher 5/16 Light ..................................................................................................................... 4
21 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 4
22 00-274227-00003 Adapter ...........................................................................................................................................1
23 00-274230-00006 Motor (3 Ph., 60 Hz.) (1 Hp.) ........................................................................................................ 1
24 00-274230-00008 Motor (3 Ph., 50 Hz.) (1 Hp.) ........................................................................................................ 1
25 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 2
26 00-812069 Bracket – Motor Support ............................................................................................................... 1
27 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................2
28 SC-041-05 Cap Screw 1/4-20 x 5/8 Hex Hd. (SST) ............................................................................................ 2
29 00-274227-00002 Clamp ............................................................................................................................................. 1
30 SC-041-29 Cap Screw 3/8-16 x 7/8 Hex Hd. (SST) ............................................................................................ 4
31 WS-006-44 Washer ........................................................................................................................................... 4
- 11 -
F-43020 (July 2001)
Page 12
43
42
44
34
41 40
45 46
47
37-38-39
48-49-50
36 35
1
5
THRU
OR
THRU
4
8
14
13
15
16
12
30 THRU 33
25 THRU 29
10
11
23 24
19-20-21-22
17
9
18
PREWASH CHAMBER AND TANK
PL-55610
F-43020 (July 2001)
- 12 -
Page 13
PREWASH CHAMBER AND TANK
ILLUS. PART NO. NAME OF PART AMT. PL-55610
1 00-435775 Chamber Assy. (26
2 00-435777 Chamber Assy. (26
3 00-435776 Chamber Assy. (32
4 00-435778 Chamber Assy. (32
5 00-274106-00001 Chamber Assy. (26
6 00-274129-00001 Chamber Assy. (261/8 Door Height) (L-R) ..................................................................................... 1
7 00-274577-00001 Chamber Assy. (32
8 00-274702-00001 Chamber Assy. (32
9 SC-041-11 Cap Screw 10 WL-006-23 Lockwasher
1
/8 Door Height) (R-L) ..................................................................................... 1
1
/8 Door Height) (L-R) ..................................................................................... 1
1
/8 Door Height) (R-L) ..................................................................................... 1
1
/8 Door Height) (L-R) ..................................................................................... 1
1
/8 Door Height) (R-L) ..................................................................................... 1
1
/8 Door Height) (R-L) ..................................................................................... 1
1
5
/8 Door Height) (L-R) ..................................................................................... 1
/16-18 x 3/4 Hex Hd. (SST) ..........................................................................................2
5
/16 Medium (SST) ..................................................................................................... 4
11 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 4
12 00-274091 Bracket – Strut Support .................................................................................................................2
13 WS-017-08 Washer ........................................................................................................................................... 2
14 NS-015-11 Nut 15 WL-006-23 Lockwasher
5
/16-18 Hex ................................................................................................................................ 2
5
/16 Medium (SST) ..................................................................................................... 2
16 SC-041-11 Cap Screw 5/16-18 x 3/4 Hex Hd. (SST) ..........................................................................................4
17 WS-017-01 Washer ........................................................................................................................................... 4
18 00-274092-00001 Strut – Tank-to-Tank ...................................................................................................................... 2
19 SC-041-11 Cap Screw 5/16-18 x 3/4 Hex Hd. (SST) ..........................................................................................4
20 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 6
21 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 6
22 WS-017-01 Washer ........................................................................................................................................... 6
23 00-274467 Tank Assy. (R-L) ............................................................................................................................ 1
24 00-274466 Tank Assy. (L-R) ............................................................................................................................ 1
25 00-274746-00001 Guide – Chain ................................................................................................................................1
26 SC-041-30 Cap Screw 3/8-16 x 1 Hex Hd. (SST) ............................................................................................. 2
27 WS-006-27 Washer ........................................................................................................................................... 4
28 WL-006-27 Lockwasher 3/8 Light ...................................................................................................................... 2
29 NS-015-13 Nut 3/8-16 ......................................................................................................................................... 2
30 00-435052 Support – Tank ............................................................................................................................... 2
31 SC-041-05 Cap Screw 1/4-20 x 5/8 Hex Hd. (SST) ............................................................................................ 4
32 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................4
33 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 4
34 SC-041-05 Cap Screw 1/4-20 x 5/8 Hex Hd. (SST) ........................................................................................... 15
35 00-274736-00001 Rack Track (LH) ............................................................................................................................ 1
36 00-274736-00002 Rack Track (RH) ............................................................................................................................ 1
37 NS-015-11 Nut 5/16-18 .......................................................................................................................................4
38 WL-006-23 Lockwasher 5/16 .............................................................................................................................. 4
39 SC-041-12 Cap Screw 5/16-18 x 7/8 .................................................................................................................... 4
40 WL-006-17 Lockwasher 1/4 Medium ................................................................................................................15
41 NS-015-01 Nut 1/4-20 Hex (SST) ..................................................................................................................... 15
42 00-075621 Vent Stack Assy. ............................................................................................................................ 1
43 NS-036-12 Stop Nut 3/8-24 Elastic ....................................................................................................................1
44 00-075623 Damper – Vent Stack .....................................................................................................................1
45 SC-021-11 Mach. Screw 6-32 x 3/4 Rd. Hd. ..................................................................................................... 3
46 NS-031-50 Stop Nut 6-32 Hex (SST) .............................................................................................................. 3
47 00-064919 Shaft – Damper ..............................................................................................................................1
48 SC-053-02 Mach. Screw 10-24 x 1/2 Truss Hd. (SST) ..................................................................................... 8
49 NS-031-15 Stop Nut 10-24 Hex (SST) ............................................................................................................8
50 00-508453 Sealer ........................................................................................................................................... AR
- 13 -
F-43020 (July 2001)
Page 14
29 28
12-13-14
15
16 THRU 19
OR
47
THRU
50
22 23
24 THRU 27
Previous Construction
21
51 THRU 54
20
6 THRU 10
60-61
1 THRU 4
11
5
Previous Construction
31
32 THRU 35
36 THRU 41
64
65
59
62-63
57-58
Previous Construction
PREWASH ARMS AND TUBES
43 THRU 46
42
30
55 56
PL-55612
F-43020 (July 2001)
- 14 -
Page 15
PREWASH ARMS AND TUBES
ILLUS. PART NO. NAME OF PART AMT. PL-55612
1 SC-125-85 Mach. Screw
2 WS-022-01 Washer ........................................................................................................................................... 4
3 WL-006-17 Lockwasher 4 NS-015-01 Nut
1
/4-20 Hex (SST) ...................................................................................................................... 2
5 00-271026 Hanger – Upper Wash Arm ........................................................................................................... 1
6 SC-041-11 Cap Screw 5/16-18 x 3/4 Hex Hd. (SST) .......................................................................................... 2
7 WS-017-01 Washer ........................................................................................................................................... 2
8 WS-017-08 Washer ........................................................................................................................................... 2
9 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2
10 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
11 00-271029 Guide – Upper Wash Arm ............................................................................................................. 1
12 SC-053-42 Mach. Screw
13 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................1
14 NS-015-01 Nut
1
/4-20 Hex (SST) ...................................................................................................................... 1
15 00-185732 Bracket ...........................................................................................................................................1
16 SC-041-05 Cap Screw 1/4-20 x 5/8 Hex Hd. (SST) ............................................................................................ 1
17 WS-022-01 Washer ........................................................................................................................................... 1
18 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................1
19 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 1
20 00-289760 Latch ............................................................................................................................................... 1
21 00-067500-00019 O-Ring ............................................................................................................................................ 1
22 SC-041-01 Cap Screw 1/4-20 x 3/4 Hex Hd. (SST) ............................................................................................ 2
23 NS-031-19 Stop Nut 1/4-20 Elastic (SST) .........................................................................................................2
24 00-274135 Wash Pipe (R-L) (261/8 Ht.) ............................................................................................................ 1
25 00-274138 Wash Pipe (L-R) (261/8 Ht.) ............................................................................................................ 1
26 00-274725 Wash Pipe (R-L) (321/8 Ht.) ............................................................................................................ 1
27 00-274728 Wash Pipe (L-R) (321/8 Ht.) ............................................................................................................ 1
28 00-274145 Wash Pipe (261/8 Ht.) ..................................................................................................................... 1
29 00-274726 Wash Pipe (321/8 Ht.) ..................................................................................................................... 1
30 00-475087 Plug – Wash Arm ...........................................................................................................................3
31 00-270968 Gasket – Wash Pipe ......................................................................................................................1
32 SC-041-68 Cap Screw 5/16-18 x 17/8 Hex Hd. (SST) ........................................................................................ 4
33 WS-017-08 Washer ........................................................................................................................................... 8
34 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 4
35 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 4
36 00-274108-00002 Catch – Adjustable (R-L) ...............................................................................................................1
37 00-274108-00001 Catch – Adjustable (L-R) ...............................................................................................................1
38 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
39 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2
40 WS-017-08 Washer ........................................................................................................................................... 2
41 SC-041-11 Cap Screw 5/16-18 x 3/4 Hex Hd. (SST) .......................................................................................... 2
42 00-274222 Support – Adjustable ...................................................................................................................... 1
43 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
44 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2
45 WS-017-08 Washer ........................................................................................................................................... 2
46 SC-041-11 Cap Screw 5/16-18 x 3/4 Hex Hd. (SST) .......................................................................................... 2
47 SC-041-01 Cap Screw 1/4-20 x 3/4 Hex Hd. (SST) ............................................................................................ 1
48 WS-022-01 Washer ........................................................................................................................................... 2
49 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................1
50 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 1
51 00-812821 Bracket ...........................................................................................................................................1
52 WS-017-08 Washer ........................................................................................................................................... 2
53 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2
54 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
*55 00-274136 Wash Arm – Upper (R-L) .............................................................................................................. 1
*56 00-274130 Wash Arm – Upper (L-R) .............................................................................................................. 1
*57 00-274131 Wash Arm – Lower (R-L) .............................................................................................................. 1
*58 00-274155 Wash Arm – Lower (L-R) .............................................................................................................. 1
59 00-067500-00110 O-Ring ............................................................................................................................................ 1
60 00-749426 Wash Arm – Upper (R-L) .............................................................................................................. 1
61 00-749425 Wash Arm – Upper (L-R) .............................................................................................................. 1
62 00-749424 Wash Arm – Lower (R-L) .............................................................................................................. 1
63 00-749423 Wash Arm – Lower (L-R) .............................................................................................................. 1
64 00-067500-00127 O-Ring ............................................................................................................................................ 3
65 00-475589 Plug – Wash Arm ...........................................................................................................................3
1
/4-20 x 5/8 Truss Hd. (SST) ...................................................................................... 2
1
/4 Medium .................................................................................................................2
1
/4-20 x 5/8 Truss Hd. (SST) ...................................................................................... 1
*Obsolete part number. For replacement, use item 60, 61, 62, or 63 with items 64 and 65.
- 15 -
F-43020 (July 2001)
Page 16
9
TANK WALL
3
17
13
6
4-5
10-11
14
16
8
7
12
18
1
2
15
19
25-26-27
24
23
DRAIN
20
29
28
30
21
22
PL-55606
F-43020 (July 2001)
- 16 -
Page 17
DRAIN
ILLUS. PART NO. NAME OF PART AMT. PL-55606
1 SC-021-22 Mach. Screw 10-24 x 3/8 Rd. Hd. (SST) ......................................................................................... 1
2 WL-006-07 Lockwasher #10 Medium ..............................................................................................................1
3 WS-023-34 Washer ........................................................................................................................................... 1
4 00-274096 Drain Lever (R-L) ........................................................................................................................... 1
5 00-271070 Drain Lever (L-R) ........................................................................................................................... 1
6 00-119116 Axle – Drain Lever ......................................................................................................................... 1
7 WS-022-01 Washer ........................................................................................................................................... 1
8 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................1
9 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 1
10 00-274080 Lift Rod Overflow (R-L) ................................................................................................................. 1
11 00-274079 Lift Rod Overflow (L-R) ................................................................................................................. 1
12 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
13 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 1
14 WS-017-01 Washer ........................................................................................................................................... 2
15 00-270952 Retainer ..........................................................................................................................................1
16 WS-017-01 Washer ........................................................................................................................................... 2
17 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 1
18 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
19 00-119099-00002 Tube – Overflow ............................................................................................................................. 1
20 00-067500-00120 O-Ring ............................................................................................................................................ 1
21 00-289464 Gasket – Drain ............................................................................................................................... 1
22 00-270947 Sleeve – Drain Body ......................................................................................................................1
23 00-289465 Drain Body ..................................................................................................................................... 1
24 00-328813 Bushing – Drain ............................................................................................................................ AR
25 00-274132-00001 Pipe – Drain (R-L) (FRC66A, FRC76A, & FRC110A) .................................................................. 1
26 00-274132-00002 Pipe – Drain (L-R) (FRC66A, FRC76A, & FRC110A) .................................................................. 1
27 00-274132-00006 Pipe – Drain (FRCS86A) ............................................................................................................... 1
28 WL-006-28 Lockwasher 3/8 Medium .................................................................................................................6
29 SC-041-28 Cap Screw 3/8-16 x 3/4 Hex Hd. ......................................................................................................6
30 WS-006-44 Washer ........................................................................................................................................... 6
- 17 -
F-43020 (July 2001)
Page 18
Previous Construction
1
19
20
11
2
3
4
14
THRU
16
7 6
9
8
5
To Horizontal Wireway
17-18
12
13
To Pump
Motor
PL-55611
10
WATER LEVEL FLOATS
F-43020 (July 2001)
- 18 -
Page 19
WATER LEVEL FLOATS
ILLUS. PART NO. NAME OF PART AMT. PL-55611
1 00-122674 Float Assy. ..................................................................................................................................... 2
2 00-112467 Retainer – Float .............................................................................................................................. 2
3 00-328495 Switch & Probe Assy. (Includes Items 1, 2, & 5) (Must Order 2 Jumper Wires,
4 00-067500-00072 O-Ring ............................................................................................................................................ 2
5 RR-010-13 Retaining Ring ................................................................................................................................2
6 00-274224 Box – Probe (R-L) .......................................................................................................................... 1
7 00-274097 Box – Probe (L-R) .......................................................................................................................... 1
8 00-112005 Gasket (Lid) ................................................................................................................................... 1
9 00-289146-00001 Lid & Gasket Assy. (Incls. Item 8) ................................................................................................. 1
10 SD-012-20 Self-Tapping Screw 8-32 x 1/2 Phil. Truss Hd., Type T ...................................................................6
11 WS-010-40 Washer – Thrust ............................................................................................................................ 2
12 WL-014-31 Lockwasher 1/2 External Shakeproof (SST) .................................................................................. 2
13 NS-018-28 Jam Nut 1/2-20 Hex ........................................................................................................................ 2
14 FE-024-58 Connector – Straight (Non-Metallic) Sealtite (3/4 Male Thd. x 3/4 Flex. Cnd.) ................................ 1
15 FE-024-66 Connector – 90 Deg. (Non-Metallic) Sealtite (3/4 Male Thd. x 3/4 Flex. Cnd.) ................................ 1
16 FE-008-11 Gasket – Electrical ...................................................................................................................... AR
17 FE-024-61 Connector 1/2 x 45 Deg. (Non-Metallic) Sealtite (1/2 Male Thd. x 1/2 Flex. Cnd.) ............................ 2
18 FE-008-10
19 00-065890-00085 Line – Splice ................................................................................................................................. AR
20 PB-004-08 Plug – Button 7/8 (Heyco 2703) ......................................................................................................1
Part #328758) ............................................................................................................................. 2
1
/2 Gasket Assy. ............................................................................................................................. 2
- 19 -
F-43020 (July 2001)
Page 20
1-2
3
4-5
28-29
26-27
6 THRU 10
19-20-21
23
17
THRU
35
25
16
36
34
22
30
THRU
33
PL-55605
11
THRU
15
F-43020 (July 2001)
18
PREWASH TEMPERATURE
CONTROL – PIPING
- 20 -
Page 21
PREWASH TEMPERATURE
CONTROL – PIPING
ILLUS. PART NO. NAME OF PART AMT. PL-55605
1 00-274486 Piping – Upper Prewash ................................................................................................................ 1
2 00-276407 Gasket – Rinse Pipe ...................................................................................................................... 1
3 SC-128-07 Mach. Screw
4 WL-006-22 Lockwasher
5 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
6 00-289971-00001 Inside Fill Pipe Assy. (L-R) (FRC86A & FRC110A) ...................................................................... 1
7 00-289971-00002 Inside Fill Pipe Assy. (R-L) (FRC86A & FRC110A) ...................................................................... 1
8 00-812779-00001 Inside Fill Pipe Assy. (L-R) (FRC66A & FRC76A) ........................................................................ 1
9 00-812779-00002 Inside Fill Pipe Assy. (R-L) (FRC66A & FRC76A) ........................................................................ 1
10 00-067500-00013 O-Ring ............................................................................................................................................ 1
11 00-270329-00002 Valve – Solenoid 240 V. (FRCS66A) (Incls. Items 10 & 12) .......................................................... 1
12 00-270318-00002 Coil – Solenoid Valve (240 V.) ........................................................................................................1
13 00-270329-00001 Valve – Solenoid 120 V. (Incls. Items 14 & 15) .............................................................................. 1
14 00-270318-00001 Coil – Solenoid Valve (120 V.) ........................................................................................................1
15 00-270336 Service Kit – Solenoid Valve........................................................................................................... 1
16 FP-041-55 Pipe 3/4 x 21/8 (Brass) ...................................................................................................................... 1
17 00-435797 Bracket – Piping ............................................................................................................................. 1
18 FP-015-23 Elbow – Pipe 3/4 x 90 Deg. (Brass) ................................................................................................ 1
19 SC-041-10 Cap Screw 5/16-18 x 5/8 Hex Hd. .....................................................................................................2
20 WL-006-22 Lockwasher 5/16 Light ..................................................................................................................... 2
21 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
22 00-274481-00001 Bracket – Piping (R-L) ...................................................................................................................1
23 SC-041-10 Cap Screw 5/16-18 x 5/8 Hex Hd. .....................................................................................................2
24 WL-006-22 Lockwasher 5/16 Light ..................................................................................................................... 2
25 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
26 00-292911-00003 Piping (433/8) ................................................................................................................................... 1
27 00-292911-00004 Piping (493/8) ................................................................................................................................... 1
28 00-292909-00002 Breaker – Vacuum 1/2 (Incls. Item 29) ............................................................................................ 1
29 00-292910 Vacuum Breaker Float & Seal Assy. .............................................................................................1
30 00-186922 Strainer – Line 3/4 (Brass) (Incls. Items 31, 32, & 33) ................................................................... 1
31 00-186923 Plug – Branch ................................................................................................................................. 1
32 00-186924 Gasket – Branch Plug ................................................................................................................... 1
33 00-186925 Screen – Line Strainer ................................................................................................................... 1
34 FP-041-50 Pipe 3/4 x 13/8 Brass TBE................................................................................................................. 2
35 00-274484 Piping – Lower ................................................................................................................................1
36 FP-022-18 Union – Pipe 3/4 Straight Female (Brass) ...................................................................................... 1
5
/16-18 x 11/4 Rd. Hd. (SST) ....................................................................................... 2
5
/16 Light ..................................................................................................................... 2
- 21 -
F-43020 (July 2001)
Page 22
4
THRU
10
13 14
12
1 - 2 - 3
11
15-16-17
PL-55607
PREWASH TEMPERATURE CONTROL – ELECTRICAL
ILLUS. PART NO. NAME OF PART AMT. PL-55607
1 NS-011-18 Mach. Nut 10-24 Hex (SST) .......................................................................................................... 2
2 WL-006-07 Lockwasher #10 Medium ..............................................................................................................2
3 WS-019-06 Washer ........................................................................................................................................... 2
4 00-274253 Box – Float & Probe (R-L) (Previous Construction) .................................................................... 1
5 00-274254 Box – Float & Probe (L-R) (Previous Construction) .................................................................... 1
6 00-749116 Box – Float & Probe (R-L) ............................................................................................................. 1
7 00-749115 Box – Float & Probe (L-R) ............................................................................................................. 1
8 FE-007-03 Connector – 90 Deg. Sealtite (1/2 Male Thd. x 3/8 Flex. Cnd.) ........................................................ 1
9 FE-007-01 Connector – Straight Sealtite (1/2 Male Thd. x 3/8 Flex. Cnd.) ........................................................ 1
10 FE-008-10
11 00-294681-021-6 Thermostat – Tank Heat ................................................................................................................1
12 00-079531 Adapter – Tank ............................................................................................................................... 1
13 WS-012-40 Washer ........................................................................................................................................... 1
14 FP-053-05 Pipe Lock Nut 1/2 NPSL (SST) ....................................................................................................... 1
15 00-289146-00001 Lid & Gasket Assy. (Incls. Item 16) ............................................................................................... 1
16 00-112005 Gasket (Lid) ................................................................................................................................... 1
17 SD-012-20 Self-Tapping Screw 8-32 x 1/2 Phil. Truss Hd., Type T ................................................................... 6
1
/2 Gasket Assy. ............................................................................................................................. 1
F-43020 (July 2001)
- 22 -
Page 23
1
2
3
PL-55602
BUCKET AND STRAINER PANS
ILLUS. PART NO. NAME OF PART AMT. PL-55602
1 00-271878 Bucket – Strainer ........................................................................................................................... 1
2 00-271880 Strainer ........................................................................................................................................... 2
3 00-274143 Cover – Overflow........................................................................................................................... 1
- 23 -
F-43020 (July 2001)
Page 24
1
THRU
4
25
24
PL-55603
23
15
26-27
16
THRU
22
5
THRU
10
7
6
11
12
13
14
MISCELLANEOUS
ILLUS. PART NO. NAME OF PART AMT. PL-55603
1 00-274123-00001 Wireway – Horizontal (Front R-L) or (Rear L-R, Previous Construction) ................................... 1
2 00-274123-00002 Wireway – Horizontal (Front L-R) or (Rear R-L, Previous Construction) ................................... 1
3 WS-017-06 Washer ......................................................................................................................................... AR
4 NS-015-01 Nut 1/4-20 Hex (SST) .................................................................................................................... AR
5 00-271057 Cap – Wireway ............................................................................................................................. AR
6 SD-007-38 Self-Tapping Screw 8 x 1/4 Phil. Bind Hd., Type B ........................................................................ AR
7 00-436888 Cover – Panel Notch ................................................................................................................... AR
8 WS-019-06 Washer ......................................................................................................................................... AR
9 NS-031-16 Stop Nut 10-24 Hex (SST) .......................................................................................................... AR
10 SC-053-05 Mach. Screw 10-24 x 3/8 Truss Hd., Slotted ................................................................................ AR
11 00-436831-00001 Panel – Front Trim ..........................................................................................................................1
12 00-271061 Support ........................................................................................................................................... 1
13 00-289771 Retainer – Panel ............................................................................................................................. 1
14 SC-066-06 Mach. Screw 10-24 x 1/2 Truss Hd. (SST) ..................................................................................... 2
15 00-288946-00002 Foot – Adjustable (11/2 to 23/4) ........................................................................................................ 2
16 00-271055 Wireway – Vertical ........................................................................................................................ AR
17 SC-021-22 Mach. Screw 10-24 x 3/8 Rd. Hd. (SST) ....................................................................................... AR
18 WL-006-07 Lockwasher #10 Medium ............................................................................................................ AR
19 WS-017-06 Washer ......................................................................................................................................... AR
20 WL-006-17 Lockwasher 1/4 Medium ............................................................................................................... AR
21 NS-015-01 Nut 1/4-20 Hex (SST) .................................................................................................................... AR
22 WS-019-19 Washer ......................................................................................................................................... AR
23 SC-021-03 Mach. Screw 4-40 x 3/8 Rd. Hd. (SST) ........................................................................................... 2
24 00-274252 Raceway – Wire ............................................................................................................................. 1
25 00-072937 Speed Nut 4-40 .............................................................................................................................. 2
26 00-294677-00003 Clamp – Wire (3/4 I.D.) .................................................................................................................... 2
27 NS-047-94 Lock Nut 3/16 Stud Special .............................................................................................................. 2
F-43020 (July 2001)
- 24 -
Page 25
78
6
5
4
3
1-2
13
10-11-12
15
14
9
16
17
18
19
20
21-22
23
26 25
24
PL-55669
PUMP MOTOR PARTS
(RS-22 ON CURVE)
ILLUS. PART NO. NAME OF PART AMT. PL-55669
1 00-077067 Cover – Motor End ........................................................................................................................ 1
2 SC-009-65 Mach. Screw 8-32 x 1/4 Rd. Hd. ..................................................................................................... 2
3 00-111493-00001 Fan – Ventilating .............................................................................................................................. 1
4 SL-002-04 Loading Spring – N.D. #S-17 ......................................................................................................... 1
5 RR-004-17 Retaining Ring ................................................................................................................................1
6 BB-020-18 Ball Bearing – N.D. 77503 .............................................................................................................. 1
7 SC-081-76 Mach. Screw 10-24 x 7 Rd. Hd. .................................................................................................... 4
8 WL-008-13 Lockwasher #10 Internal Shakeproof ........................................................................................... 4
9 00-114379-00002 Bracket – Bearing (Fan End) ......................................................................................................... 1
10 00-113403 Box – Terminal ................................................................................................................................ 1
11 SD-015-27 Self-Tapping Screw 10-24 x 5/16 Pan Hd. Taptite ........................................................................... 2
12 WL-007-12 Lockwasher #10 External Shakeproof ......................................................................................... 2
13 SD-012-45 Self-Tapping Screw 8-32 x 5/16 Pan Hd., Type 23 .......................................................................... 2
14 00-079118 Bushing – Snap (Field Ring) .......................................................................................................... 1
15 00-060395 Grommet ........................................................................................................................................ 1
16 SD-012-45 Self-Tapping Screw 8-32 x 5/16 Pan Hd., Type 23 .......................................................................... 2
17 00-113405 Cover – Terminal Box .................................................................................................................... 1
18 00-114811 Gasket – Terminal Box Cover .......................................................................................................1
19 00-113417 Connector Block Assy. .................................................................................................................. 1
20 00-113552 Terminal Block Base Assy. ............................................................................................................ 1
21 00-065478-110-1 Stator Assy. (230/460 V., 60 Hz.) .................................................................................................. 1
22 00-065478-112-1 Stator Assy. (220/380 V., 50 Hz.) .................................................................................................. 1
23 00-015747-00288 Rotor Assy. ....................................................................................................................................1
24 BB-020-18 Ball Bearing – N.D. 77503 .............................................................................................................. 1
25 00-118969-00001 Bracket – Bearing (Pump End) (60 Hz.) ....................................................................................... 1
26 00-118969-00002 Bracket – Bearing (Pump End) (50 Hz.) ....................................................................................... 1
- 25 -
F-43020 (July 2001)
Page 26
34
32 33
29
31
30
1
2
3
45
25262728
23 24
22
21
8 7
6
20
9
19
F-43020 (July 2001)
PL-55670
10
18
MOTOR AND PUMP (H-6-F)
(RS-22 ON CURVE)
- 26 -
11 12 13
15 14
16
17
Page 27
MOTOR AND PUMP (H-6-F)
(RS-22 ON CURVE)
ILLUS. PART NO. NAME OF PART AMT. PL-55670
1 ML-018491 Motor Unit (Give Electrical Spec.) ................................................................................................. 1
2 00-009934-00001 Gasket – Pump Outlet ................................................................................................................... 1
3 00-067500-00007 O-Ring ............................................................................................................................................ 1
4 00-104329 Shaft Seal Assy. ............................................................................................................................. 1
5 00-077726 Shell – Pump .................................................................................................................................. 1
6 00-009925 Lock Nut – Inlet ............................................................................................................................ AR
7 WS-016-18 Washer ........................................................................................................................................... 2
8 00-508458 Sealer (1/4 Rd.) .............................................................................................................................. AR
9 00-087954 Pump Intake Screen Assy ............................................................................................................. 1
10 00-077727 Plate – Face ................................................................................................................................... 1
*11 00-080432 Face Plate Gasket Kit (1 Set Consists of: 1 Blue [0.055 Thk.], 1 Brown [0.010 Thk.],
12 00-022465 Gasket – Face Plate Cover ........................................................................................................... 1
13 00-112558 Cover – Face Plate ........................................................................................................................ 1
14 SC-041-10 Cap Screw 5/16-18 x 5/8 Hex Hd. .....................................................................................................3
15 WL-003-43 Lockwasher 5/16 Light ..................................................................................................................... 3
16 SC-041-12 Cap Screw 5/16-18 x 7/8 Hex Hd. .....................................................................................................6
17 WL-003-43 Lockwasher 5/16 Light ..................................................................................................................... 6
18 00-011800-00037 Dowel .............................................................................................................................................. 1
19 NS-024-06 Acorn Nut 7/16-20 .............................................................................................................................1
20 WL-006-32 Lockwasher 7/16 Light ..................................................................................................................... 1
21 WS-021-01 Washer ........................................................................................................................................... 1
22 KW-003-03 Key #404 Woodruff ........................................................................................................................ 1
23 00-074299 Impeller (3450 RPM) (60 Hz.) ....................................................................................................... 1
24 00-074542 Impeller (2850 RPM) (50 Hz.) ....................................................................................................... 1
25 FP-052-20 Pipe Plug 1/8 Sq. Hd. ....................................................................................................................... 1
26 00-012137 Gasket ............................................................................................................................................ 1
27 00-112478 Cover – Hand Hole ........................................................................................................................ 1
28 SC-041-10 Cap Screw 5/16-18 x 5/8 Hex Hd. .....................................................................................................4
29 WL-003-43 Lockwasher 5/16 Light ..................................................................................................................... 4
30 FP-064-15 Pipe 3/8 x 21/4 Lg. (S.T.O.E.) ............................................................................................................ 1
31 00-104032 Gasket ............................................................................................................................................ 1
32 WS-017-08 Washer ........................................................................................................................................... 6
33 00-508454 Sealer (1/8 Rd.) .............................................................................................................................. AR
34 SC-041-12 Cap Screw 5/16-18 x 7/8 Hex Hd. .....................................................................................................6
00-080431-00001 H-6-F Pump Assy. (60 Hz.) (Incls. Items 2 thru 7, 10 thru 23, 25, 26 thru 29, 31, 32, & 34) ..... 1
00-080431-00002 H-6-F Pump Assy. (50 Hz.) (Incls. Items 2 thru 7, 10 thru 22, 24 thru 29, 31, 32, & 34) ........... 1
00-112417-00003 Motor & Impeller Assy. (60 Hz., 1 Ph.) (Incls. Items 1, 3, 4, 19, 20, 21, 22, 23, 30, & 31) .......... 1
00-112417-00004 Motor & Impeller Assy. (60 Hz., 3 Ph.) (Incls. Items 1, 3, 4, 19, 20, 21, 22, 23, 30, & 31) .......... 1
00-112417-00005 Motor & Impeller Assy. (50 Hz., 1 Ph.) (Incls. Items 1, 3, 4, 19, 20, 21, 22, & 24) ...................... 1
00-112417-00006 Motor & Impeller Assy. (50 Hz., 3 Ph.) (Incls. Items 1, 3, 4, 19, 20, 21, 22, & 24) ...................... 1
and 1 Yellow [0.020 Thk.])......................................................................................................... AR
*Select gasket to obtain 0.008″ to 0.010″ clearance between face plate and impeller.
- 27 -
F-43020 (July 2001)
Page 28
1
2
3
4 5
6 7
8
9
10 11
12 13
16
15
14
26
25
23
22
24
20 21
18 19
17
PL-55572
F-43020 (July 2001)
INSIDE DOOR UNIT (PREWASH)
(RS-22 ON CURVE)
- 28 -
Page 29
INSIDE DOOR UNIT (PREWASH)
(RS-22 ON CURVE)
ILLUS. PART NO. NAME OF PART AMT. PL-55572
1 PC-005-02 Cotter Pin 1/16 x 1/2 ......................................................................................................................... AR
2 00-012114 Pin ................................................................................................................................................. AR
3 00-290164 Latch – Door ................................................................................................................................ AR
4 00-112394-00001 Inside Door Assy. (120 Deg. Chamber) ........................................................................................1
5 00-112396-00001 Inside Door Assy. (90 Deg. Chamber) ..........................................................................................1
6 SC-053-02 Mach. Screw 10-24 x 1/2 Slotted Truss Hd. (SST) .........................................................................8
7 NS-031-15 Stop Nut 10-24 (Elastic) (SST) ..................................................................................................... 8
8 00-121222 Panel Chamber End .......................................................................................................................1
9 NS-031-15 Stop Nut 10-24 (Elastic) ................................................................................................................ 2
10 SC-053-02 Mach. Screw 10-24 x 1/2 Slotted Truss Hd. (SST) .........................................................................2
11 00-101357 Hook – Curtain ...............................................................................................................................2
12 00-120265-00001 Curtain – Splash (18-N-7) ............................................................................................................. 1
13 00-120266-00005 Rod – Curtain ................................................................................................................................. 1
14 00-526408 Tape – Foam ................................................................................................................................ AR
15 SC-022-18 Mach. Screw 10-24 x 7/16 Slotted Flat Hd. (SST) ........................................................................... 4
16 NS-031-16 Stop Nut 10-24 (Elastic) (SST) .................................................................................................... 12
17 00-112392-00001 Door Guide Assy. (RH) .................................................................................................................. 1
18 00-022413-00002 Handle – Door (120 Deg. Chamber) ............................................................................................. 1
19 00-022413-00003 Handle – Door (90 Deg. Chamber) ............................................................................................... 1
20 00-063486 Stud – Door Handle (120 Deg. Chamber) ..................................................................................... 1
21 00-104044 Stud – Door Handle (90 Deg. Chamber) ....................................................................................... 1
22 WL-008-17 Lockwasher 1/4 Internal Shakeproof .............................................................................................. 2
23 NS-025-04 Acorn Nut 1/4-20 (SST) ................................................................................................................... 2
24 NS-025-01 Acorn Nut 10-24 (SST) .................................................................................................................. 4
25 00-112393-00001 Door Guide Assy. (LH) ..................................................................................................................1
26 00-112378-00015 Slide – Door .................................................................................................................................... 2
00-120152-00037 Splash Curtain Assy. (Incls. Items 12 & 13) .................................................................................. 1
- 29 -
F-43020 (July 2001)
Page 30
1
2
14
3
19
20
13
21
22
23
24
27
26
25
PL-55568
4
5
6
7
8 9
15
10
16
17
11
12
18
F-43020 (July 2001)
OUTSIDE DOOR UNIT (PREWASH)
(RS-22 ON CURVE)
- 30 -
Page 31
OUTSIDE DOOR UNIT (PREWASH)
(RS-22 ON CURVE)
ILLUS. PART NO. NAME OF PART AMT. PL-55568
1 NS-031-16 Stop Nut 10-24 (Elastic) (SST) .................................................................................................... 12
2 WL-014-07 Lockwasher #10 External Shakeproof (SST) .............................................................................. 12
3 SC-022-18 Mach. Screw 10-24 x 7/16 Slotted Flat Hd. (SST) ........................................................................... 4
4 00-526408 Tape – Foam ................................................................................................................................ AR
5 00-112393-00001 Door Guide Assy. (LH) ..................................................................................................................1
6 00-112378-00015 Slide – Door .................................................................................................................................... 2
7 NS-025-01 Acorn Nut 10-24 (SST) .................................................................................................................. 4
8 00-101344-00001 Outside Door Assy. (Radius & Flat) (CW• Operation) ................................................................... 1
9 00-101345-00001 Outside Door Assy. (Radius & Flat) (CCW Operation) ................................................................ 1
10 NS-025-04 Acorn Nut 1/4-20 (SST) ................................................................................................................... 2
11 WL-008-17 Lockwasher 1/4 Internal .................................................................................................................. 2
12 00-063486 Stud – Door Handle ....................................................................................................................... 1
13 00-022413-00002 Handle – Door ................................................................................................................................ 1
14 00-112392-00001 Door Guide Assy. (RH) .................................................................................................................. 1
15 NS-031-16 Stop Nut 10-24 (Elastic) (SST) .................................................................................................... 12
16 WL-014-07 Lockwasher #10 External Shakeproof (SST) .............................................................................. 12
17 SC-022-18 Mach. Screw 10-24 x 7/16 Slotted Flat Hd. (SST) ........................................................................... 4
18 00-526408 Tape – Foam ................................................................................................................................ AR
19 00-112393-00001 Door Guide Assy. (LH) ..................................................................................................................1
20 00-112378-00015 Slide – Door .................................................................................................................................... 2
21 NS-025-01 Acorn Nut 10-24 (SST) .................................................................................................................. 4
22 00-101343-00001 Outside Door Assy. (Full Radius) .................................................................................................. 1
23 NS-025-04 Acorn Nut 1/4-20 (SST) ................................................................................................................... 2
24 WL-008-17 Lockwasher 1/4 Internal .................................................................................................................. 2
25 00-063486 Stud – Door Handle ....................................................................................................................... 1
26 00-022413-00002 Handle – Door ................................................................................................................................ 1
27 00-112392-00001 Door Guide Assy. (RH) .................................................................................................................. 1
For curtain & curtain hardware, see INSIDE DOOR UNIT (RS-22 on Curve).
- 31 -
F-43020 (July 2001)
Page 32
1
2
3
4 5 6
7
8-9
10
PL-55567
F-43020 (July 2001)
STRAINER PANS
(RS-22 ON CURVE)
- 32 -
Page 33
STRAINER PANS
(RS-22 ON CURVE)
ILLUS. PART NO. NAME OF PART AMT. PL-55567
1 00-287146 Pan – Deflector .............................................................................................................................. 1
2 00-101280-00002 Pan – Strainer ................................................................................................................................ 1
3 00-079517 Strainer Pan Chute Cover Assy. ................................................................................................... 1
4 00-060468 Knob – Drain Handle ......................................................................................................................1
5 SC-041-26 Cap Screw 3/8-16 x 1/2 Hex Hd. (SST) ............................................................................................ 1
6 WL-006-27 Lockwasher 3/8 Light (SST) ............................................................................................................ 1
7 00-101341 Strainer Bucket Assy. .................................................................................................................... 1
8 00-288655-00001 Foot (15/8 Dia.) (STL) ..................................................................................................................... 2
9 00-288655-00002 Foot (15/8 Dia.) (SST) .....................................................................................................................2
10 00-071710 Plug – Foot (Use with Items 9 & 10) ............................................................................................. 2
00-079437 Strainer Pan Chute Cover Assy. (Incls. Items 3 thru 6) ............................................................... 1
- 33 -
F-43020 (July 2001)
Page 34
15
5
4
1
2
3
8 9
42
41
7
6
13
12
11
10
14
17
16
18
19
20
21
22
23 24
F-43020 (July 2001)
40
39
38 37
36
35 34
WASH PIPING
(RS-22 ON CURVE)
- 34 -
25
26
27
28
29
30 31
32
33
PL-55569
Page 35
WASH PIPING
(RS-22 ON CURVE)
ILLUS. PART NO. NAME OF PART AMT. PL-55569
1 00-293858 End Cap – Hex ............................................................................................................................... 6
2 00-107965 Arm – Upper Prewash Sub-Assy. (Incls. Items 8 & 9) .................................................................1
3 00-067500-00119 O-Ring ............................................................................................................................................ 1
4 SC-024-22 Mach. Screw
5 WL-006-29 Lockwasher
6 00-083073 Hinge – Upper Discharge .............................................................................................................. 1
7 00-107477 Gasket – Discharge Hinge ............................................................................................................ 1
8 00-061521 Baffle – Wash Arm ......................................................................................................................... 2
9 SC-069-06 Mach. Screw
10 PC-005-25 Cotter Pin 1/32 x 1/2 (SST) ................................................................................................................ 2
11 00-083076 Pin – Bracket .................................................................................................................................. 1
12 00-276030 Clamp – Lever Bracket Assy. .......................................................................................................1
13 00-104175 Ell – Upper Wash ........................................................................................................................... 1
14 SC-053-16 Mach. Screw 5/16-18 x 5/8 Slotted Truss Hd. (SST) .........................................................................2
15 00-067500-00013 O-Ring ............................................................................................................................................ 1
16 WL-006-22 Lockwasher 5/16 Light (SST) ........................................................................................................... 2
17 NS-015-11 Nut 5/16-18 (SST) ............................................................................................................................. 2
18 00-101973 Spacer – Wash Pipe ......................................................................................................................2
19 00-101974 Clamp – Wash Pipe ....................................................................................................................... 1
20 SC-053-18 Mach. Screw 5/16-18 x 7/8 Slotted Truss Hd. (SST) .........................................................................2
21 00-101540-00001 Tube – Upper Prewash ..................................................................................................................1
22 00-067500-00013 O-Ring ............................................................................................................................................ 2
23 00-103269-00001 Tube – Lower Prewash (CCW, Inside Access to Sump; Outside Access to Sump) .................. 1
24 00-103269-00002 Tube – Lower Prewash (CCW, Outside Access to Sump; Inside Access to Sump) .................. 1
25 00-067500-00013 O-Ring ............................................................................................................................................ 2
26 00-082645 Discharge – Pump ......................................................................................................................... 1
27 00-021104 Washer (SST) ................................................................................................................................1
28 00-021105 Washer ........................................................................................................................................... 1
29 SC-041-34 Cap Screw 3/8-16 x 2 Hex Hd. (SST) ............................................................................................. 3
30 00-103262 Flange – Pump ............................................................................................................................... 1
31 WS-006-44 Washer (SST) ................................................................................................................................3
32 WL-006-27 Lockwasher 3/8 Light (SST) ............................................................................................................ 3
33 NS-015-13 Nut 3/8-16 (SST) .............................................................................................................................. 3
34 NS-015-13 Nut 3/8-16 (SST) .............................................................................................................................. 1
35 WL-006-27 Lockwasher 3/8 Light (SST) ............................................................................................................ 1
36 WS-006-44 Washer (SST) ................................................................................................................................1
37 WS-006-44 Washer (SST) ................................................................................................................................1
38 WL-006-27 Lockwasher 3/8 Light (SST) ............................................................................................................ 1
39 NS-015-13 Nut 3/8-16 (SST) .............................................................................................................................. 1
40 00-103030 Rod – Pump Support ..................................................................................................................... 1
41 WS-006-44 Washer (SST) ................................................................................................................................1
42 NS-015-13 Nut 3/8-16 (SST) .............................................................................................................................. 1
00-107964 Upper Prewash Arm Assy. (Incls. Items 1, 2, & 3) .......................................................................1
3
/8-16 x 7/8 Slotted Fil. Hd. (SST) ............................................................................... 4
3
/8 High Collar (SST) ................................................................................................. 4
1
/4-20 x 3/8 Slotted Rd. Hd. (Nylok) (SST) ................................................................ 2
- 35 -
F-43020 (July 2001)
Page 36
QUANTITIES ARE PER CONNECTION AS SHOWN
22 - 23
24
5-6
1-2
10
9
11
12
13
14-15-16
3
FRC80A FRC90A
4
FRC100A
17-18-19-20
21
7-8
PL-55594
F-43020 (July 2001)
FRC124A
FLOW BACK TUBE
- 36 -
Page 37
FLOW BACK TUBE
ILLUS. PART NO. NAME OF PART AMT. PL-55594
1 00-274113-00003 Flow Back Tube (R-L) (FRC80A & FRC90A) ............................................................................... 1
2 00-274113-00004 Flow Back Tube (L-R) (FRC80A & FRC90A) ............................................................................... 1
3 00-436708 Flow Back Tube – Inside (FRC100A) ............................................................................................ 1
4 00-436710-00002 Flow Back Tube – Outside (FRC100A) ........................................................................................ 1
5 00-329664 Flow Back Tube – Outside (R-L) (FRC124A) ............................................................................... 1
6 00-289502 Flow Back Tube – Outside (L-R) (FRC124A) ............................................................................... 1
7 00-329658-00001 Flow Back Tube – Inside (R-L) (FRC124A) .................................................................................. 1
8 00-329659-00001 Flow Back Tube – Inside (L-R) (FRC124A) .................................................................................. 1
9 00-120115 Retainer – Seal ...............................................................................................................................1
10 00-120603 Gasket – Seal Retainer ................................................................................................................. 1
11 00-077621-00002 Ring – Sealing ................................................................................................................................ 1
12 00-120603 Gasket – Seal Retainer ................................................................................................................. 1
13 00-120115 Retainer – Seal ...............................................................................................................................1
14 WS-017-08 Washer ........................................................................................................................................... 4
15 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 4
16 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 4
17 SC-041-15 Cap Screw 5/16-18 x 11/4 Hex Hd. ...................................................................................................4
18 WS-017-08 Washer ........................................................................................................................................... 8
19 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 4
20 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 4
21 00-120603 Gasket – Seal Retainer ................................................................................................................. 2
22 SC-041-15 Cap Screw 5/16-18 x 11/4 Hex Hd. ...................................................................................................4
23 00-545595 Sealer (1/8 Rd.) .............................................................................................................................. AR
24 WS-017-08 Washer ........................................................................................................................................... 4
- 37 -
F-43020 (July 2001)
Page 38
1-2
4
3
5
6-7-8
PL-55597
18
17
16
DOOR AND CURTAIN
15
23 24
19-20
21-22
Previous Construction
13
14
THRU
9
12
F-43020 (July 2001)
- 38 -
Page 39
DOOR AND CURTAIN
ILLUS. PART NO. NAME OF PART AMT. PL-55597
1 00-112378-00049 Door Slide (261/8 Door Height) ....................................................................................................... 2
2 00-112378-00050 Door Slide (321/8 Door Height) ....................................................................................................... 2
3 00-185864 Catch – Door .................................................................................................................................. 1
4 PC-005-02 Cotter Pin 1/16 x 1/2 (SST) ................................................................................................................ 1
5 00-012114 Pin ...................................................................................................................................................1
6 00-271084 Splash Curtain (261/8 Door Height) ................................................................................................ 1
7 00-271084-00002 Splash Curtain (321/8 Door Height) ................................................................................................ 1
8 00-120266-00001 Curtain Rod .................................................................................................................................... 1
*9 - Door (261/8) (L-R) ........................................................................................................................... 1
*10 - Door (261/8) (R-L) ........................................................................................................................... 1
*11 - Door (321/8) (L-R) ........................................................................................................................... 1
*12 - Door (321/8) (R-L) ........................................................................................................................... 1
13 00-270996 Insulator – Switch ........................................................................................................................... 1
14 NS-031-50 Stop Nut 6-32 Hex (SST) .............................................................................................................. 2
15 00-749347 Switch – Reed Encapsulated ........................................................................................................ 1
16 00-290160 Magnet ............................................................................................................................................ 1
17 00-290159 Retainer – Magnet .......................................................................................................................... 1
18 NS-031-50 Stop Nut 6-32 Hex (SST) .............................................................................................................. 2
19 00-328065 Actuator – Lift Drain ....................................................................................................................... 1
20 NS-031-21 Stop Nut – Special 1/4-20 Hex ...................................................................................................... AR
21 00-274767 Actuator – Lift Drain ....................................................................................................................... 1
22 NS-031-21 Stop Nut – Special 1/4-20 Hex ........................................................................................................ 2
23 00-328064-00007 Door (261/8) (R-L & L-R) ................................................................................................................ 1
24 00-328079-00007 Door (321/8) (R-L & L-R) ................................................................................................................ 1
*No longer available. Order item 19 and 23 or 24 to convert to present style.
- 39 -
F-43020 (July 2001)
Page 40
1
33
34-35
2 - 3
4
5
7 OR 8-9
6
10
13
11-12
31
32
30
29
F-43020 (July 2001)
25
28
26 27
21
THRU
24
17 18 19 20
PREWASH MOTOR AND PUMP
- 40 -
16
14
15
PL-55591
Page 41
PREWASH MOTOR AND PUMP
ILLUS. PART NO. NAME OF PART AMT. PL-55591
1 00-270968 Gasket – Wash Pipe ......................................................................................................................1
2 00-274063 Tube – Discharge (R-L) ................................................................................................................. 1
3 00-274064 Tube – Discharge (L-R) (Not Shown) ........................................................................................... 1
4 00-749586 Hose – Discharge .......................................................................................................................... 1
5 00-542337 Clamp – Hose ................................................................................................................................ 2
6 00-274227-00001 Pump Shell (Incls. Item 7) ..............................................................................................................1
7 00-274223 Shroud ............................................................................................................................................1
8 00-274246 Shroud ............................................................................................................................................1
9 00-328362 Strainer – Pump ............................................................................................................................. 1
10 00-119050 Gasket – Pump Intake ................................................................................................................... 1
11 WL-006-23 Lockwasher 5/16 Medium (SST) .................................................................................................... 10
12 NS-015-11 Nut 5/16-18 Hex ............................................................................................................................... 10
13 00-274227-00005 Stud .............................................................................................................................................. AR
14 00-274227-00004 Gasket............................................................................................................................................ 1
15 00-812776 Support Plate ..................................................................................................................................2
16 00-119051 Gasket – Pump Drain Hole ............................................................................................................ 2
17 00-274227-00008 Impeller & Sleeve (60 Hz.) (1 Hp.) ................................................................................................ 1
18 00-274227-00011 Impeller & Sleeve (50 Hz.) (1 Hp.) ................................................................................................ 1
19 00-274227-00009 Impeller & Sleeve (60 Hz.) (2 Hp.) ................................................................................................ 1
20 00-274227-00007 Impeller & Sleeve (50 Hz.) (2 Hp.) ................................................................................................ 1
21 00-274230-00006 Motor (3 Ph., 60 Hz.) (1 Hp.) ........................................................................................................ 1
22 00-274230-00008 Motor (3 Ph., 50 Hz.) (1 Hp.) ........................................................................................................ 1
23 00-274230-00002 Motor (3 Ph., 60 Hz.) (2 Hp.) ........................................................................................................ 1
24 00-274230-00004 Motor (3 Ph., 50 Hz.) (2 Hp.) ........................................................................................................ 1
25 00-274227-00006 Seal – Shaft .................................................................................................................................... 1
26 WL-006-22 Lockwasher 5/16 Light ..................................................................................................................... 4
27 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 4
28 00-274227-00003 Adapter ...........................................................................................................................................1
29 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 2
30 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................2
31 SC-041-05 Cap Screw 1/4-20 x 5/8 Hex Hd. (SST) ............................................................................................ 2
32 00-475216 Bracket – Motor Support ............................................................................................................... 1
33 00-274227-00002 Clamp ............................................................................................................................................. 1
34 SC-041-29 Cap Screw 3/8-16 x 7/8 Hex Hd. (Wax-Coated Threads) (SST) .................................................... 4
35 WS-006-44 Washer ........................................................................................................................................... 4
- 41 -
F-43020 (July 2001)
Page 42
1
5
THRU
OR
THRU
4
8
36 35
34
30 THRU 33
17
18
19
25 THRU 29
20
39 38 37
41 40
21 THRU 24
11
16
15
F-43020 (July 2001)
14
9
10
12
13
PREWASH CHAMBER AND TANK
- 42 -
PL-55600
Page 43
PREWASH CHAMBER AND TANK
ILLUS. PART NO. NAME OF PART AMT. PL-55600
1 00-435779 Chamber Assy. W/Studs (261/8 Door Height) (R-L) ...................................................................... 1
2 00-435781 Chamber Assy. W/Studs (261/8 Door Height) (L-R) ...................................................................... 1
3 00-435780 Chamber Assy. W/Studs (321/8 Door Height) (R-L) ...................................................................... 1
4 00-435782 Chamber Assy. W/Studs (321/8 Door Height) (L-R) ...................................................................... 1
5 00-274214-00001 Chamber Assy. (261/8 Door Height) (R-L) ..................................................................................... 1
6 00-274213-00001 Chamber Assy. (261/8 Door Height) (L-R) ..................................................................................... 1
7 00-274704-00001 Chamber Assy. (321/8 Door Height) (R-L) ..................................................................................... 1
8 00-274703-00001 Chamber Assy. (321/8 Door Height) (L-R) ..................................................................................... 1
9 00-274469 Tank Assy. (R-L) ............................................................................................................................ 1
10 00-274468 Tank Assy. (L-R) ............................................................................................................................ 1
11 00-274092-00002 Strut – Tank-to-Tank ...................................................................................................................... 2
12 SC-041-11 Cap Screw 5/16-18 x 3/4 Hex Hd. (SST) .......................................................................................... 2
13 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 4
14 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 4
15 00-274091 Bracket – Strut Support .................................................................................................................2
16 WS-017-08 Washer ........................................................................................................................................... 2
17 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
18 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2
19 SC-041-11 Cap Screw 5/16-18 x 3/4 Hex Hd. (SST) .......................................................................................... 4
20 WS-017-01 Washer ........................................................................................................................................... 4
21 SC-041-11 Cap Screw 5/16-18 x 3/4 Hex Hd. (SST) .......................................................................................... 4
22 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 6
23 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 6
24 WS-017-01 Washer ........................................................................................................................................... 6
25 00-274747-00001 Guide – Chain ................................................................................................................................ 1
26 SC-041-30 Cap Screw 3/8-16 x 1 Hex Hd. (SST) ............................................................................................. 2
27 WS-006-27 Washer ........................................................................................................................................... 4
28 WL-006-27 Lockwasher 3/8 Light (SST) ............................................................................................................ 2
29 NS-015-13 Nut 3/8 -16 Hex ................................................................................................................................ 2
30 00-435052 Support – Tank ............................................................................................................................... 2
31 SC-041-05 Cap Screw 1/4-20 x 5/8 Hex Hd. (SST) ............................................................................................ 4
32 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................4
33 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 4
34 SC-041-05 Cap Screw 1/4-20 x 5/8 Hex Hd. (SST) ........................................................................................... 15
35 NS-015-01 Nut 1/4-20 Hex (SST) ..................................................................................................................... 15
36 WL-006-17 Lockwasher 1/4 Medium ................................................................................................................ 15
37 SC-041-12 Cap Screw 5/16-8 x 7/8 Hex Hd. (SST) .............................................................................................4
38 WL-006-23 Lockwasher 5/16 Regular ................................................................................................................4
39 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 4
40 00-274737-00001 Track – Rack (LH) ......................................................................................................................... 1
41 00-274737-00002 Track – Rack (RH) ........................................................................................................................ 1
- 43 -
F-43020 (July 2001)
Page 44
41
THRU
44
15 16
Previous Construction
50-51-52
53
THRU
OR
45
THRU
13
14
35
48
57
9
49
THRU
12
6
27-28
63
58
THRU
5
62
7-8
1
THRU
4
Previous Construction
17
18 19
40
36
THRU
THRU
34
29
F-43020 (July 2001)
39
22
26
PREWASH ARMS AND TUBES
- 44 -
THRU
25
20 - 21
Previous Construction
PL-55598
Page 45
PREWASH ARMS AND TUBES
ILLUS. PART NO. NAME OF PART AMT. PL-55598
1
1 SC-125-85 Mach. Screw
2 WS-022-01 Washer ........................................................................................................................................... 8
3 WL-006-17 Lockwasher
4 NS-015-01 Nut
1
/4-20 Hex (SST) ...................................................................................................................... 4
5 00-271026 Hanger – Upper Wash Arm ........................................................................................................... 2
6 00-289760 Latch ...............................................................................................................................................1
7 00-749417 Wash Arm – Upper (R-L) .............................................................................................................. 1
8 00-749419 Wash Arm – Upper (L-R) .............................................................................................................. 1
9 00-271031 Bracket ...........................................................................................................................................1
10 WS-017-08 Washer ........................................................................................................................................... 2
11 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2
12 NS-015-11 Nut
5
/16-18 Hex ................................................................................................................................ 2
13 00-067500-00127 O-Ring ............................................................................................................................................ 5
14 00-475589 Plug – Wash Arm ........................................................................................................................... 5
15 SC-041-01 Cap Screw 1/4-20 x 3/4 Hex Hd. (SST) ............................................................................................ 2
16 NS-031-19 Stop Nut 1/4-20 Elastic (SST) .........................................................................................................2
17 00-475087 Plug – Wash Arm ........................................................................................................................... 5
*18 00-436946 Wash Arm – Upper (R-L) .............................................................................................................. 1
*19 00-436945 Wash Arm – Upper (L-R) .............................................................................................................. 1
*20 00-274248 Wash Arm – Lower (R-L) .............................................................................................................. 1
*21 00-274251 Wash Arm – Lower (L-R) .............................................................................................................. 1
22 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
23 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2
24 WS-017-08 Washer ........................................................................................................................................... 2
25 SC-041-13 Cap Screw 5/16-18 x 1 Hex Hd. (SST) ............................................................................................ 2
26 00-274222 Support – Adjustable ...................................................................................................................... 1
27 00-749422 Wash Arm – Lower (R-L) .............................................................................................................. 1
28 00-749429 Wash Arm – Lower (L-R) .............................................................................................................. 1
29 00-274108-00002 Catch – Adjustable (R-L) ...............................................................................................................1
30 00-274108-00001 Catch – Adjustable (L-R) ...............................................................................................................1
31 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
32 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2
33 WS-017-08 Washer ........................................................................................................................................... 2
34 SC-041-11 Cap Screw 5/16-18 x 3/4 Hex Hd. (SST) .......................................................................................... 2
35 00-067500-00110 O-Ring ............................................................................................................................................ 1
36 SC-041-18 Cap Screw 5/16-18 x 13/4 Hex Hd. (SST) ........................................................................................ 4
37 WS-017-08 Washer ........................................................................................................................................... 8
38 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 4
39 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 4
40 00-270968 Gasket – Wash Pipe ......................................................................................................................1
41 00-274061 Wash Pipe (R-L, with Lower Wash Arm) (261/8 Ht.) ..................................................................... 1
42 00-274062 Wash Pipe (L-R, with Lower Wash Arm) (261/8 Ht.) ..................................................................... 1
43 00-274576 Wash Pipe (R-L, with Lower Wash Arm) (321/8 Ht.) ..................................................................... 1
44 00-274731 Wash Pipe (L-R, with Lower Wash Arm) (321/8 Ht.) ..................................................................... 1
45 SC-041-01 Cap Screw 1/4-20 x 3/4 Hex Hd. (SST) ............................................................................................ 1
46 WS-022-01 Washer ........................................................................................................................................... 2
47 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................1
48 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 1
49 00-067500-00110 O-Ring ............................................................................................................................................ 1
50 SC-053-42 Mach. Screw 1/4-20 x 5/8 Truss Hd. (SST) ...................................................................................... 1
51 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................1
52 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 1
53 00-185732 Bracket ...........................................................................................................................................1
54 SC-041-05 Cap Screw 1/4-20 x 5/8 Hex Hd. (SST) ............................................................................................ 1
55 WS-022-01 Washer ........................................................................................................................................... 1
56 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................1
57 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 1
58 SC-041-11 Cap Screw 5/16-18 x 3/4 Hex Hd. (SST) .......................................................................................... 2
59 WS-017-01 Washer ........................................................................................................................................... 2
60 WS-017-08 Washer ........................................................................................................................................... 2
61 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2
62 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
63 00-271029 Guide – Upper Wash Arm ............................................................................................................. 1
/4-20 x 5/8 Truss Hd. (SST) ...................................................................................... 4
1
/4 Medium .................................................................................................................4
*Obsolete part number. For replacement, use item 7, 8, 27, or 28 with items 13 & 14.
- 45 -
F-43020 (July 2001)
Page 46
2
4 - 5
6
7
8
3
1
9
TANK WALL
18
12
13
10 - 11
30
14
1617
15
19
20
21
22
23
F-43020 (July 2001)
29
24
28
25 - 26 - 27
PL-55599
DRAIN
- 46 -
Page 47
DRAIN
ILLUS. PART NO. NAME OF PART AMT. PL-55599
1 SC-114-15 Mach. Screw 10-24 x 3/8 Rd. Hd. (SST) ......................................................................................... 1
2 WL-006-07 Lockwasher #10 Medium ..............................................................................................................1
3 WS-019-06 Washer ........................................................................................................................................... 1
4 00-274096 Drain Lever (R-L) ........................................................................................................................... 1
5 00-271070 Drain Lever (L-R) ........................................................................................................................... 1
6 00-119116 Axle – Drain Lever ......................................................................................................................... 1
7 WS-022-01 Washer ........................................................................................................................................... 1
8 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................1
9 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 1
10 00-274080 Lift Rod Overflow (R-L) ................................................................................................................. 1
11 00-274079 Lift Rod Overflow (L-R) ................................................................................................................. 1
12 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
13 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 1
14 WS-017-01 Washer ........................................................................................................................................... 2
15 00-270952 Retainer ..........................................................................................................................................1
16 WS-017-01 Washer ........................................................................................................................................... 2
17 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 1
18 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
19 00-119099-00002 Tube – Overflow ............................................................................................................................. 1
20 SC-041-28 Cap Screw 3/8-16 x 3/4 Hex Hd. ......................................................................................................6
21 WL-006-28 Lockwasher 3/8 Medium .................................................................................................................6
22 WS-006-44 Washer ........................................................................................................................................... 6
23 00-289464 Gasket – Drain ............................................................................................................................... 1
24 00-270947 Sleeve – Drain Body ......................................................................................................................1
25 00-274132-00003 Pipe – Drain (R-L) (FRC80, FRC90A, & FRC124A) .................................................................... 1
26 00-274132-00004 Pipe – Drain (L-R) (FRC80, FRC90A, & FRC124A) .................................................................... 1
27 00-274132-00007 Pipe – Drain (FRC100A) ................................................................................................................1
28 00-328813 Bushing – Drain ............................................................................................................................ AR
29 00-289465 Drain Body ..................................................................................................................................... 1
30 00-067500-00120 O-Ring ............................................................................................................................................ 1
- 47 -
F-43020 (July 2001)
Page 48
Previous Construction
1
19
20
13
12
11
6
THRU
10
9
3
4
5
8
2
To Horizontal Wireway
18 17
14
15
To Pump
Motor
PL-55601
16
WATER LEVEL FLOATS
F-43020 (July 2001)
- 48 -
Page 49
WATER LEVEL FLOATS
ILLUS. PART NO. NAME OF PART AMT. PL-55601
1 00-122674 Float Assy. ..................................................................................................................................... 2
2 RR-010-13 Retaining Ring ................................................................................................................................2
3 00-112467 Retainer – Float .............................................................................................................................. 2
4 00-328495 Switch & Probe Assy. (Incls. Items 1, 2, & 3) (Must Order 2 Jumper Wires Part # 328758) .....2
5 00-067500-00072 O-Ring ............................................................................................................................................ 2
6 FE-024-58 Connector – Straight (Non-Metallic) Sealtite (3/4 Male Thd. x 3/4 Flex Cnd.) ................................. 1
7 FE-024-66 Connector 90 Deg. (Non-Metallic) Sealtite (3/4 Male Thd. x 3/4 Flex Cnd.) .................................... 1
8 FE-008-11 Gasket – Electrical ...................................................................................................................... AR
9 00-274097 Box – Probe (L-R) .......................................................................................................................... 1
10 00-274224 Box – Probe (R-L) .......................................................................................................................... 1
11 00-112005 Gasket (Lid) ................................................................................................................................... 1
12 00-289146-00001 Lid & Gasket Assy. (Incls. Item 11) ............................................................................................... 1
13 WS-010-40 Washer – Thrust ............................................................................................................................ 2
14 WL-014-31 Lockwasher 1/2 External Shakeproof (SST) .................................................................................. 2
15 NS-018-28 Jam Nut 1/2-20 Hex ........................................................................................................................ 2
16 SD-012-20 Self-Tapping Screw 8-32 x 1/2 Phil. Truss Hd., Type T ................................................................... 6
17 FE-024-61 Connector – 45 Deg. (Non-Metallic) Sealtite (1/2 Male Thd. x 1/2 Flex Cnd.) ................................. 2
18 FE-008-10
19 PB-004-08 Plug Button Heyco #2703 .............................................................................................................. 1
20 00-065890-00085 Line – Splice (Shown) .................................................................................................................. AR
1
/2 Gasket Assy. ............................................................................................................................. 2
- 49 -
F-43020 (July 2001)
Page 50
1 - 2
35
30-31
3-4
5-6
32-33-34
22-23-24
21
27-28-29
26
25
19
18
7-8
14
THRU
17
PL-55593
9
THRU
13
F-43020 (July 2001)
20
PREWASH TEMPERATURE
CONTROL – PIPING
- 50 -
Page 51
PREWASH TEMPERATURE
CONTROL – PIPING
ILLUS. PART NO. NAME OF PART AMT. PL-55593
1 00-274486 Piping – Upper Prewash ................................................................................................................1
2 00-276407 Gasket – Rinse Pipe ...................................................................................................................... 1
3 00-292909-00002 Breaker – Vacuum 1/2 (Incls. Item 28) ............................................................................................ 1
4 00-292910 Vacuum Breaker Float & Seal Assy. .............................................................................................1
5 00-292911-00003 Piping (433/8) ................................................................................................................................... 1
6 00-292911-00004 Piping (493/8) ................................................................................................................................... 1
7 00-274481-00001 Bracket – Piping (R-L) ...................................................................................................................1
8 00-274481-00002 Bracket – Piping (L-R) ...................................................................................................................1
9 00-270329-00002 Valve – Solenoid (240 V.) (FRC66A & FRC80A, Without Pilot Circuit) (Incls. Items 10 & 13) ..... 1
10 00-270318-00002 Coil – Solenoid Valve (240 V.) ........................................................................................................1
11 00-270329-00001 Valve – Solenoid (120 V.) (Incls. Items 12 & 13) ........................................................................... 1
12 00-270318-00001 Coil – Solenoid Valve (120 V.) ........................................................................................................1
13 00-270336 Service Kit – Solenoid Valve........................................................................................................... 1
14 00-186922 Strainer – Line 3/4 (Brass) (Incls. Items 15, 16, & 17) ...................................................................1
15 00-186923 Plug – Branch ................................................................................................................................. 1
16 00-186924 Gasket – Branch Plug ................................................................................................................... 1
17 00-186925 Screen – Line Strainer ...................................................................................................................1
18 FP-041-50 Pipe 3/4 x 13/8 TBE (Brass) .............................................................................................................. 2
19 FP-022-18 Union – Pipe 3/4 Straight Female (Brass) ...................................................................................... 1
20 FP-015-23 Elbow – Pipe 3/4 x 90 Deg. (Brass) ................................................................................................ 1
21 00-435797 Bracket – Piping ............................................................................................................................. 1
22 SC-041-10 Cap Screw 5/16-18 x 5/8 Hex Hd. .....................................................................................................2
23 WL-006-22 Lockwasher 5/16 Light ..................................................................................................................... 2
24 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
25 FP-041-55 Pipe 3/4 x 21/8 (Brass) ...................................................................................................................... 1
26 00-274485 Piping – Lower ................................................................................................................................1
27 SC-041-10 Cap Screw 5/16-18 x 5/8 Hex Hd. .....................................................................................................2
28 WL-006-22 Lockwasher 5/16 Light ..................................................................................................................... 2
29 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
30 WL-006-22 Lockwasher 5/16 Light ..................................................................................................................... 2
31 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
32 00-289971-00001 Inside Fill Pipe Assy. (L-R) ............................................................................................................. 1
33 00-289971-00002 Inside Fill Pipe Assy. (R-L) ............................................................................................................. 1
34 00-067500-00013 O-Ring ............................................................................................................................................ 1
35 SC-128-07 Mach. Screw 5/16-18 x 11/4 Rd. Hd. (SST) ....................................................................................... 2
- 51 -
F-43020 (July 2001)
Page 52
THRU
1
7
910
8
11-12-13
14
15 - 16 - 17
PL-55595
PREWASH TEMPERATURE
CONTROL – ELECTRICAL
ILLUS. PART NO. NAME OF PART AMT. PL-55595
1 00-274253 Box – Float & Probe (R-L) (Previous Construction) .................................................................... 1
2 00-274254 Box – Float & Probe (L-R) (Previous Construction) .................................................................... 1
3 00-749116 Box – Float & Probe (R-L) ............................................................................................................. 1
4 00-749115 Box – Float & Probe (L-R) ............................................................................................................. 1
5 FE-007-03 Connector – 90 Deg. Sealtite (1/2 Male Thd. x 3/8 Flex. Cnd.) ........................................................ 1
6 FE-007-01 Connector – Straight Sealtite (1/2 Male Thd. x 3/8 Flex. Cnd.) ........................................................ 1
7 FE-008-10
8 00-079531 Adapter – Tank ............................................................................................................................... 1
9 WS-012-40 Washer ........................................................................................................................................... 1
10 FP-053-05 Pipe Lock Nut 1/2 NPSL (SST) ....................................................................................................... 1
11 NS-011-18 Mach. Nut 10-24 Hex (SST) ..........................................................................................................2
12 WL-006-07 Lockwasher #10 Medium .............................................................................................................. 2
13 WS-019-06 Washer ........................................................................................................................................... 2
14 00-294681-021-6 Thermostat – Tank Heat ................................................................................................................1
15 00-289146-00001 Lid & Gasket Assy. (Incls. Item 10) ............................................................................................... 1
16 00-112005 Gasket (Lid) ................................................................................................................................... 1
17 SD-012-20 Self-Tapping Screw 8-32 x 1/2 Phil. Truss Hd., Type T ................................................................... 6
1
/2 Gasket Assy. ............................................................................................................................. 1
F-43020 (July 2001)
- 52 -
Page 53
1
2
3
PL-55596
BUCKET AND STRAINER PANS
ILLUS. PART NO. NAME OF PART AMT. PL-55596
1 00-271878 Bucket – Strainer ........................................................................................................................... 1
2 00-271880 Strainer ........................................................................................................................................... 2
3 00-274143 Cover – Overflow........................................................................................................................... 1
- 53 -
F-43020 (July 2001)
Page 54
1
THRU
16
7
THRU
22
24
31 30
26
25
8
THRU
11
PL-55592
27
23
15
14
12
13
28
29
F-43020 (July 2001)
MISCELLANEOUS
- 54 -
Page 55
MISCELLANEOUS
ILLUS. PART NO. NAME OF PART AMT. PL-55592
1 00-274059 Wireway – Horizontal (Front R-L) ................................................................................................. 1
2 00-274211 Wireway – Horizontal (Front L-R) ................................................................................................. 1
3 00-274123-00001 Wireway – Horizontal (Rear L-R) .................................................................................................. 1
4 00-274123-00002 Wireway – Horizontal (Rear R-L) .................................................................................................. 1
5 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 0
6 WS-017-06 Washer ......................................................................................................................................... AR
7 WL-006-17 Lockwasher 1/4 Medium ............................................................................................................... AR
8 00-436888 Cover – Panel Notch ................................................................................................................... AR
9 WS-019-06 Washer ........................................................................................................................................... 0
10 NS-031-16 Stop Nut 10-24 Hex (SST) ............................................................................................................0
11 SC-053-05 Mach. Screw 10-24 x 3/8 Slotted Truss Hd. ................................................................................... 0
12 00-436832-00001 Panel – Front Trim ..........................................................................................................................1
13 00-271061 Support ........................................................................................................................................... 1
14 00-289771 Retainer – Panel ............................................................................................................................. 1
15 SC-053-05 Mach. Screw 10-24 x 3/8 Slotted Truss Hd. ................................................................................... 2
16 00-271055 Wireway – Vertical ........................................................................................................................ AR
17 SC-021-22 Mach. Screw 10-24 x 3/8 Rd. Hd. (SST) ....................................................................................... AR
18 WL-006-07 Lockwasher #10 Medium ............................................................................................................ AR
19 WS-017-06 Washer ......................................................................................................................................... AR
20 WL-006-17 Lockwasher 1/4 Medium ............................................................................................................... AR
21 NS-015-01 Nut 1/4-20 Hex (SST) .................................................................................................................... AR
22 WS-019-19 Washer ......................................................................................................................................... AR
23 SC-021-03 Mach. Screw 4-40 x 3/8 Rd. Hd. (SST) ........................................................................................... 2
24 00-072937 Speed Nut 4-40 .............................................................................................................................. 2
25 00-271057 Cap – Wireway ............................................................................................................................. AR
26 SD-007-38 Self-Tapping Screw 8 x 1/4 Phil. Bind Hd., Type B ........................................................................ AR
27 00-274252 Raceway – Wire ............................................................................................................................. 1
28 00-288946-00002 Foot – Adjustable (11/2 to 23/4) ........................................................................................................ 2
29 00-329688 Foot – Flanged ...............................................................................................................................2
30 00-294677-00003 Clamp – Wire (3/4 I.D.) .................................................................................................................... 2
31 NS-047-94 Lock Nut 3/16 Stud Special .............................................................................................................. 2
- 55 -
F-43020 (July 2001)
Page 56
29
28
1
27
26
25
2
24
23
22
4-5
6
3
7
8
9-10
OR 11-12
OR
13-14
18
17
15 16
PL-55663
F-43020 (July 2001)
19-20-21
CONTROL BOX
- 56 -
Page 57
CONTROL BOX
ILLUS. PART NO. NAME OF PART AMT. PL-55663
1 SC-066-05 Mach. Screw 10-24 x 3/8 Phil. Truss Hd. (SST) .............................................................................. 2
2 00-436755-00001 Cover – Control Box ...................................................................................................................... 1
3 00-274884 Guard – Fan ................................................................................................................................... 1
4 WS-012-40 Washer ........................................................................................................................................... 4
5 FP-053-05 Pipe Lock Nut 1/2 NPSL (SST) ....................................................................................................... 2
6 00-107218 Coupling – Thermometer Bulb ....................................................................................................... 2
7 00-435505-00001 Control Box (Give Electric Spec., Machine Model, & Serial Number) .........................................1
8 00-274947 Grommet ........................................................................................................................................ 1
9 00-328137 Shield .............................................................................................................................................. 1
10 NS-031-15 Stop Nut 10-24 Hex (SST) ............................................................................................................2
11 00-274948 Shield .............................................................................................................................................. 1
12 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B ................................................................... 1
13 00-474072 Bracket – Capillary ........................................................................................................................ 1
14 SD-003-25 Self-Tapping Screw 10-16 Phil. Pan Hd. Type B ........................................................................... 2
15 00-274962 Label – Instruction (FRC44A Series) ............................................................................................ 1
16 00-475088 Label – Instruction (FRC54A Series) ............................................................................................ 1
17 WL-006-42 Lockwasher #6 Medium ................................................................................................................3
18 NS-011-07 Mach. Nut 6-32 Hex ....................................................................................................................... 3
19 WS-022-01 Washer ........................................................................................................................................... 6
20 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................6
21 NS-031-21 Stop Nut – Special 1/4-20 Hex ........................................................................................................ 6
22 00-435072 Gasket ............................................................................................................................................ 1
23 00-437041-00003 Thermometer (8 Ft.) (Rinse) ......................................................................................................... 1
24 00-437041-00004 Thermometer (11 Ft.) (Wash) ....................................................................................................... 1
25 00-355504-00001 Fan (115 V.) .................................................................................................................................... 1
26 00-812850 Label – Control Box ..................................................................................................................... AR
27 00-087711-228-1 Switch – Rocker (Motor On/Off) ................................................................................................... 1
28 00-087711-198-2 Switch – Rocker (Power On/Off) .................................................................................................. 1
29 00-435382 Blank Switch ................................................................................................................................... 1
FE-021-12 Plug – 1/2 Knockout (Plastic) ........................................................................................................ AR
FE-023-26 Plug – 1 Knockout (Plastic) ......................................................................................................... AR
- 57 -
F-43020 (July 2001)
Page 58
60 59
61
54-55-56
51-52-53
49-50
47-48
58 57
45 46 40 THRU 44
62
38 39
64 63
66 65
36 37
2 1
35
4 3
32 33 34
6 5
31
7-8-9
25-26-27
28 29 30
10
17
THRU
THRU
22 23
24
16
21
PL-55655
COMPONENT PANEL
(CONTROL BOX)
ILLUS. PART NO. NAME OF PART AMT. PL-55655
1 00-087714-020-2 Relay – 3 PDT ................................................................................................................................ 4
2 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B .....................................................................8
3 00-294677-00004 Clamp – Wire (1 I.D.) ..................................................................................................................... 2
4 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B ...................................................................2
5 87714-46-1 Relay – 2 Pole (30 Amp.) ...............................................................................................................1
6 SD-008-18 Self-Tapping Screw 8-18 x 3/8 Phil. Bndg. Hd., Type B .................................................................. 2
7 00-437103 Bracket – Relay Mounting ............................................................................................................. 1
8 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B ...................................................................2
9 WL-014-07 Lockwasher #10 External Shakeproof (SST) ............................................................................... 2
10 00-294500-046-1 Transformer (150 VAC) Pilot Control ............................................................................................. 1
11 00-294500-046-2 Transformer (300 VAC) Pilot Control ............................................................................................. 1
12 00-294500-046-3 Transformer (500 VAC) Pilot Control ............................................................................................. 1
13 SD-008-25 Self-Tapping Screw 10-16 x 3/8 Phil. Bind Hd., Type B (Use W/Item 10 or 11) ............................ 4
F-43020 (July 2001)
- 58 -
Page 59
COMPONENT PANEL (Cont.)
(CONTROL BOX)
ILLUS. PART NO. NAME OF PART AMT. PL-55655
14 WL-014-07 Lockwasher #10 External Shakeproof (SST) (Use W/Item 10 or 11) ......................................... 4
15 SD-035-77 Self-Tapping Screw 1/4-20 x 3/8 Phil. Pan Hd., Type TT (Use W/Item 12)...................................... 4
16 WL-007-15 Lockwasher 1/4 External Shakeproof (Use W/Item 43) ................................................................4
17 00-087714-020-2 Relay – 3 PDT (5CR) (Gas Heat) ................................................................................................. 1
18 00-437102 Bracket – Relay Mounting ............................................................................................................. 1
19 SD-008-18 Self-Tapping Screw 8-18 x
20 WL-014-05 Lockwasher #8 External Shakeproof ............................................................................................ 2
21 SD-019-29 Self-Tapping Screw 6-20 x
22 00-294677-00002 Clamp – Wire (11/2 I.D.) .................................................................................................................. 2
23 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B ...................................................................2
24 00-435508 Base Plate ...................................................................................................................................... 1
25 00-274629-00001 Thermostat – Solid State (120 V.) .................................................................................................. 1
26 SC-098-07 Mach. Screw 4-40 x 13/4 Rd. Hd. (SST) ......................................................................................... 3
27 WS-028-12 Washer ........................................................................................................................................... 3
28 00-087714-031-2 Relay Time Delay (5 Sec.) ............................................................................................................. 1
29 SD-036-13 Self-Tapping Screw 1/4-20 x 11/4 Hex Washer Hd., Type T ........................................................... 1
30 WL-007-15 Lockwasher 1/4 External Shakeproof ............................................................................................. 1
31 SD-008-18 Self-Tapping Screw 8-18 x 3/8 Phil. Bind Hd., Type B .................................................................... 4
32 FE-022-39 Fuse (1.5 Amp.) (250 V.) (60 Hz. Machines W/O Blower Dryer or Condenser)......................... 1
33 FE-021-19 Fuse (3.2 Amp.) (125 V.) (50 Hz. & 50/60 Hz. Machines W/Blower Dryer and/or Condenser) .. 1 34 FE-023-25 Fuse (5 Amp.) (125 V.) (380-480 V. Gas Heat Machine W/Blower Dryer and/or Condenser) ...1
35 00-294676 PCB – Terminal & Fuse ..................................................................................................................1
36 00-087713-040-2 Contactor – 30 Amp., 3 Pole .......................................................................................................... 1
37 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B ...................................................................2
38 00-294677-00004 Clamp – Wire (1 I.D.) ..................................................................................................................... 3
39 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B ...................................................................3
40 00-294325-013-4 Block – Terminal (Machines W/Vent Fan Control) ........................................................................ 1
41 00-437101 Bracket – Vent Fan Control ............................................................................................................ 1
42 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B ...................................................................2
43 WL-014-07 Lockwasher #10 External Shakeproof (SST) ............................................................................... 2
44 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B .....................................................................2
45 SC-053-05 Mach. Screw 10-24 x 3/8 Truss Hd., Slotted .................................................................................. 6
46 WL-007-12 Lockwasher #10 External Shakeproof ......................................................................................... 6
47 00-294325-013-4 Block – Terminal ............................................................................................................................. 1
48 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B .....................................................................2
49 00-294325-015-1 Block – Terminal (W/O SPEC) ....................................................................................................... 1
50 SD-037-21 Self-Tapping Screw 8-32 x 1 Fil. Phil. Hd., Type F ........................................................................ 2
51 00-118544-00002 Lug – Grounding ............................................................................................................................ 2
52 SD-035-77 Self-Tapping Screw 1/4-20 x 3/8 Phil. Pan Hd., Type TT .................................................................. 2
53 WL-007-15 Lockwasher 1/4 External Shakeproof ............................................................................................. 2
54 00-118544-00002 Lug – Grounding (Electric Heat W/O SPEC) ................................................................................ 1
55 SD-035-77 Self-Tapping Screw 1/4-20 x 3/8 Phil. Pan Hd., Type TT .................................................................. 1
56 WL-007-15 Lockwasher 1/4 External Shakeproof ............................................................................................. 1
57 00-294325-015-1 Block – Terminal (Electric Heat) .................................................................................................... 1
58 SD-037-21 Self-Tapping Screw 8-32 x 1 Fil. Phil. Hd. Type F ......................................................................... 2
59 00-294325-004-1 Block – Terminal (Electric Heat W/SPEC) ..................................................................................... 1
60 SD-008-36 Self-Tapping Screw 8-18 x 7/8 Phil. Rd. Hd., Type B ...................................................................... 2
61 00-294500-026-1 Transformer 24 & 120 V. Secondary (Gas Heat) ......................................................................... 1
62 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B ...................................................................4
63 00-087713-041-2 Contactor – 40 Amp., 3 Pole (Electric Heat) ................................................................................. 1
64 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B ...................................................................2
65 00-294677-00005 Clamp – Wire (11/2 I.D.) .................................................................................................................. 2
66 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B ...................................................................2
3
/8 Phil. Bind Hd., Type B .................................................................... 2
1
/2 Phil. Pan Hd., Type B .....................................................................2
- 59 -
F-43020 (July 2001)
Page 60
28 29
27
26
Tank Wall
25
1
2
3
4
5
6
8 7
10
9
11
24
23
PL-55643
F-43020 (July 2001)
22
19
20 21
18
WASH MOTOR AND PUMP UNIT
- 60 -
12
13
16-17
14
15
Page 61
WASH MOTOR AND PUMP UNIT
ILLUS. PART NO. NAME OF PART AMT. PL-55643
1 00-328362 Strainer – Pump ............................................................................................................................. 1
2 00-119050 Gasket ............................................................................................................................................ 1
3 00-749586 Hose – Discharge .......................................................................................................................... 1
4 00-542337 Clamp – Hose ................................................................................................................................ 2
5 00-270968 Gasket – Wash Pipe ......................................................................................................................1
6 00-270970 Tube – Discharge ........................................................................................................................... 1
7 SC-041-29 Cap Screw 3/8-16 x 7/8 Hex Hd. (SST) ............................................................................................ 4
8 WS-006-44 Washer ........................................................................................................................................... 4
9 WL-006-22 Lockwasher 5/16 Light ..................................................................................................................... 4
10 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 4
11 00-274227-00002 Clamp ............................................................................................................................................. 1
12 SC-041-05 Cap Screw 1/4-16 x 5/8 Hex Hd. (SST) ............................................................................................ 2
13 WL-007-16 Lockwasher 1/4 ............................................................................................................................... 2
14 00-812069 Bracket – Motor Support ............................................................................................................... 1
15 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 2
16 00-274230-00002 Motor (3 Ph., 60 Hz.) (2 Hp.) ........................................................................................................ 1
17 00-274230-00004 Motor (3 Ph., 50 Hz.) (2 Hp.) ........................................................................................................ 1
18 00-274227-00003 Adapter ...........................................................................................................................................1
19 00-274227-00006 Seal – Shaft .................................................................................................................................... 1
20 00-274227-00007 Impeller & Sleeve (60 Hz.)............................................................................................................. 1
21 00-274227-00010 Impeller & Sleeve (50 Hz.)............................................................................................................. 1
22 00-274227-00004 Gasket............................................................................................................................................ 1
23 00-119051 Gasket ............................................................................................................................................ 2
24 00-812776 Plate – Support ...............................................................................................................................2
25 00-274227-00005 Stud .............................................................................................................................................. AR
26 00-274227-00001 Pump Shell (Incls. Items 17) .......................................................................................................... 1
27 00-274246 Shroud ............................................................................................................................................1
28 WL-006-23 Lockwasher 5/16 Medium (SST) .................................................................................................... 10
29 NS-015-11 Nut 5/16-18 Hex ............................................................................................................................... 10
- 61 -
F-43020 (July 2001)
Page 62
1 THRU 4
6 THRU 10
52-53
Previous Construction
49 50
51
12
5
11
23
19 THRU 22
24
13 THRU 16
17 18
25 26
42 THRU 45
35 THRU 40
PL-55635
41
46
32
34
33
WASH ARMS AND TUBES
(WASH SECTION)
47
Previous Construction
27 THRU 30
31
48
F-43020 (July 2001)
- 62 -
Page 63
WASH ARMS AND TUBES
(WASH SECTION)
ILLUS. PART NO. NAME OF PART AMT. PL-55635
1 00-436947-00001 Hanger – Upper Wash Arm ......................................................................................................... AR
2 SC-041-50 Mach. Screw 1/4-20 x 5/8 Truss Hd. (SST) .................................................................................... AR
3 WS-022-01 Washer ......................................................................................................................................... AR
4 WL-006-17 Lockwasher 1/4 Medium ............................................................................................................... AR
5 00-436007 Guide – Upper Wash Arm ............................................................................................................. 1
6 SC-041-11 Cap Screw
7 WS-017-01 Washer ........................................................................................................................................... 2
8 WS-017-08 Washer ........................................................................................................................................... 2
9 WL-006-23 Lockwasher
10 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
11 00-289760 Latch ............................................................................................................................................... 1
12 00-067500-00110 O-Ring ............................................................................................................................................ 1
13 SC-041-01 Cap Screw 1/4-20 x 3/4 Hex Hd. (SST) ............................................................................................ 1
14 WS-022-01 Washer ........................................................................................................................................... 2
15 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................1
16 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 1
17 SC-041-01 Cap Screw 1/4-20 x 3/4 Hex Hd. (SST) ............................................................................................ 2
18 NS-031-19 Stop Nut 1/4-20 Elastic (SST) .........................................................................................................2
19 00-812817 Bracket (Incls. Items 11, 17, & 18) ................................................................................................ 1
20 WS-017-08 Washer ........................................................................................................................................... 2
21 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2
22 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
23 00-067500-00127 O-Ring .......................................................................................................................................... AR
24 00-475589 Plug – Wash Arm ......................................................................................................................... AR
25 00-329595 Wash Pipe (261/8 Door Height) ...................................................................................................... 1
26 00-329597 Wash Pipe (321/8 Door Height) ...................................................................................................... 1
27 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 4
28 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 4
29 WS-017-08 Washer ........................................................................................................................................... 8
30 SC-041-18 Cap Screw 5/16-18 x 13/4 Hex Hd. (SST) ........................................................................................ 4
31 00-270968 Gasket – Wash Pipe ......................................................................................................................1
32 00-067500-00110 O-Ring ............................................................................................................................................ 1
33 00-475589 Plug – Wash Arm ......................................................................................................................... AR
34 00-067500-00127 O-Ring .......................................................................................................................................... AR
35 00-436939-00002 Catch – Adjustable (RH) ................................................................................................................1
36 00-436939-00001 Catch – Adjustable (LH) ................................................................................................................1
37 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
38 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2
39 WS-017-08 Washer ........................................................................................................................................... 2
40 SC-041-11 Cap Screw 5/16-18 x 3/4 Hex Hd. (SST) .......................................................................................... 2
41 00-274222 Support – Adjustable ...................................................................................................................... 1
42 SC-041-11 Cap Screw 5/16-18 x 3/4 Hex Hd. (SST) .......................................................................................... 2
43 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2
44 WS-017-08 Washer ........................................................................................................................................... 2
45 NS-015-11 Nut 5/16-18 Hex .............................................................................................................................. AR
46 00-749405 Wash Arm – Lower ........................................................................................................................ 1
47 00-271035 Wash Arm – Lower ........................................................................................................................ 1
48 00-475087 Plug – Wash Arm ......................................................................................................................... AR
49 00-271040 Wash Arm – Upper (R-L) .............................................................................................................. 1
50 00-271831 Wash Arm – Upper (L-R) .............................................................................................................. 1
51 00-475087 Plug – Wash Arm ......................................................................................................................... AR
52 00-749406 Wash Arm – Upper (R-L) .............................................................................................................. 1
53 00-749407 Wash Arm – Upper (L-R) .............................................................................................................. 1
5
/16-18 x 3/4 Hex Hd. (SST) .......................................................................................... 2
5
/16 Medium (SST) ..................................................................................................... 2
- 63 -
F-43020 (July 2001)
Page 64
66-67
5
3
1 - 2
4
6
7
THRU
10
11-12
14
THRU
13
17
31
18-19
30
27 28 29
26
25
20
22
23 24
21
65
PL-55624
57
62 63 64
56
55
54
32 33
52 51 50
48
47
34 35
49
46
59 60 61
58
53
FILL AND OUTSIDE RINSE PIPING
(PREVIOUS CONSTRUCTION)
Previous Construction
44
45
36 37
43
42
Previous Construction
39 40 41
38
ILLUS. PART NO. NAME OF PART AMT. PL-55624
1 00-277112 Vacuum Breaker (3/4) ..................................................................................................................... 1
2 00-118270 Service Kit – Vacuum Breaker (Float & Seal Assy.) ..................................................................... 1
3 FP-015-23 Elbow – Pipe 3/4 x 90 Deg. (Brass) ................................................................................................ 1
4 FP-041-88 Pipe 3/4 x 5 Lg. TBE (Brass) ...........................................................................................................1
5 FP-042-12 Pipe 3/4 x 81/4 Lg. TBE (Brass) ........................................................................................................1
6 00-271022 Bracket ........................................................................................................................................... 1
7 00-186922 Line Strainer (3/4) (Incls. Items 8, 9, & 10) ..................................................................................... 1
8 00-186923 Plug – Branch ................................................................................................................................. 1
9 00-186924 Gasket – Branch Plug ................................................................................................................... 1
F-43020 (July 2001)
- 64 -
Page 65
FILL AND OUTSIDE RINSE PIPING (Cont.)
(PREVIOUS CONSTRUCTION)
ILLUS. PART NO. NAME OF PART AMT. PL-55624
10 00-186925 Screen – Line Strainer ................................................................................................................... 1
11 00-328247 Gauge – Water Pressure ..............................................................................................................1
12 00-436319 Petcock 1/4 ...................................................................................................................................... 1
13 00-063262-00031 Flange & Nipple .............................................................................................................................. 1
14 00-271006-00001 Solenoid Valve 3/8 (120 V.) (Incls. Items 17 & 19) (Fill) .................................................................. 1
15 00-271839-00001 Coil – Solenoid Valve ...................................................................................................................... 1
16 00-271839-00002 Coil – Solenoid Valve ...................................................................................................................... 1
17 00-271837 Service Kit – 1/2 Solenoid Valve ...................................................................................................... 1
18 00-271008 Vacuum Breaker 3/8 ........................................................................................................................ 1
19 00-274233 Service Kit – Vacuum Breaker .......................................................................................................1
20 00-271007 Fill Piping – Outside ....................................................................................................................... 1
21 SC-041-15 Cap Screw 5/16-18 x 11/4 Hex Hd. ...................................................................................................2
22 00-067500-00012 O-Ring ............................................................................................................................................ 1
23 WL-006-23 Lockwasher 24 NS-015-11 Nut
5
25 00-271023 Piping – Inside ................................................................................................................................ 1
26 00-271009 Fill Piping ......................................................................................................................................... 1
27 SC-041-15 Cap Screw 5/16-18 x 11/4 Hex Hd. ...................................................................................................2
28 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2
29 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
30 00-067500-00012 O-Ring ............................................................................................................................................ 2
31 00-435074 Piping – Common Connection ....................................................................................................... 1
32 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
33 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2
34 WS-029-05 Washer ........................................................................................................................................... 2
35 SC-041-10 Cap Screw 5/16-18 x 5/8 Hex Hd. .....................................................................................................2
*36 00-112007 Gasket............................................................................................................................................ 1
*37 00-288465 Lid & Gasket Assy. (Incls. Item 58) ............................................................................................... 1
*38 SD-012-20 Self-Tapping Screw 8-32 x 1/2 Phil. Truss Hd., Type T ...................................................................4
*39 NS-018-28 Jam Nut 1/2-20 Hex ........................................................................................................................ 1
*40 WL-014-31 Lockwasher 1/2 External Shakeproof (SST) .................................................................................. 1
*41 WS-010-40 Washer – Thrust ............................................................................................................................ 1
*42 00-270926 Junction Box – Auto Fill (RH) (R-L) .............................................................................................. 1
*43 FE-006-07 Lock Nut 1/2 (Cnd.) .........................................................................................................................1
*44 00-067500-00072 O-Ring ............................................................................................................................................ 1
*45 00-112467 Retainer – Float .............................................................................................................................. 1
***46 00-328486 Probe & Switch Assy. (2 Wire) (Water Level) (Incls. Items 45, 47, & 48) .................................... 1
*47 RR-010-13 Retaining Ring ................................................................................................................................1
*48 00-122674 Float Assy. .....................................................................................................................................1
*49 FE-008-10
1
/2 Gasket Assy. ............................................................................................................................. 2
*50 FE-006-45 Connector – Straight 1/2 (Thinwall) ................................................................................................. 1
*51 FE-024-49 Connector – Straight 1/2 (Thinwall) ................................................................................................. 1
*52 FE-006-05 Lock Nut 1/2 ..................................................................................................................................... 1
**53 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 1
**54 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................1
**55 00-119254 Retainer – Cap & Stud ................................................................................................................... 1
**56 00-067500-00031 O-Ring ............................................................................................................................................1
**57 00-119244 Cap & Stud Assy. ........................................................................................................................... 1
58 00-063262-00006 Flange & Nipple .............................................................................................................................. 1
59 SC-041-15 Cap Screw 5/16-18 x 11/4 Hex Hd. ...................................................................................................2
60 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2
61 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
62 00-271002-00001 Solenoid Valve 3/4 (120 V.) (Incls. Items 63 & 64) (Rinse) ............................................................. 1
63 00-271839-00001 Coil – Solenoid Valve (120 V.) ........................................................................................................1
64 00-271838 Service Kit – 3/4 Solenoid Valve ...................................................................................................... 1
65 00-271001 Piping – Final Rinse ....................................................................................................................... 1
66 00-119611 Valve – Pressure Regulating 3/4 ..................................................................................................... 1
67 00-289091-00001 Kit – Service ...................................................................................................................................1
5
/16 Medium (SST) ..................................................................................................... 2
/16-18 Hex ................................................................................................................................ 2
*FRC54A, 44A. **FRC76A, 66A & FRC90A, 80A. ***Must order two jumper wires, Part #328758.
- 65 -
F-43020 (July 2001)
Page 66
THRU
1
4
5-6
7-8-9
10-11
57-58
51
52-53
48 49 50
38
39
40
54
34 33 32
55 56
42 THRU 47
35
36
15
18 19
21 20
12
13
14
16 17
22
37
PL-55660
F-43020 (July 2001)
41
31
30
29
28
27
FILL AND OUTSIDE RINSE PIPING
(CURRENT CONSTRUCTION)
- 66 -
23 24 25
26
Previous Construction
Page 67
FILL AND OUTSIDE RINSE PIPING
(CURRENT CONSTRUCTION)
ILLUS. PART NO. NAME OF PART AMT. PL-55660
1 00-186922 Line Strainer (3/4) (Incls. Items 2, 3, & 4) ....................................................................................... 1
2 00-186923 Plug – Branch .................................................................................................................................1
3 00-186924 Gasket – Branch Plug ................................................................................................................... 1
4 00-186925 Screen – Line Strainer ................................................................................................................... 1
5 00-328247 Gauge – Water Pressure .............................................................................................................. 1
6 00-436319 Petcock 1/4 ...................................................................................................................................... 1
7 00-271006-00001 Solenoid Valve 3/8 (120 V.) (Incls. Items 8 & 9) ............................................................................... 1
8 00-271839-00001 Coil – Solenoid Valve ...................................................................................................................... 1
9 00-271837 Service Kit – 1/2 Solenoid Valve ...................................................................................................... 1
10 00-271008-00002 Vacuum Breaker 3/8 ........................................................................................................................ 1
11 00-274233 Service Kit – Vacuum Breaker .......................................................................................................1
12 00-329609 Fill Piping – Outside ....................................................................................................................... 1
13 SC-041-15 Cap Screw 5/16-18 x 11/4 Hex Hd. ...................................................................................................2
14 00-067500-00012 O-Ring ............................................................................................................................................ 1
15 00-328765 Adapter – Elbow ............................................................................................................................. 1
16 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2
17 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
18 00-435972-00002 Piping – Inside (RH) .......................................................................................................................1
19 00-435972-00001 Piping – Inside (LH) ....................................................................................................................... 1
*20 00-288465 Lid & Gasket Assy. (Incls. Item 21) ............................................................................................... 1
*21 00-112007 Gasket............................................................................................................................................ 1
*22 SD-012-20 Self-Tapping Screw 8-32 x 1/2 Phil. Truss Hd., Type T ...................................................................4
*23 NS-018-28 Jam Nut 1/2-20 Hex ........................................................................................................................ 1
*24 WL-014-31 Lockwasher 1/2 External Shakeproof (SST) .................................................................................. 1
*25 WS-010-40 Washer – Thrust ............................................................................................................................ 1
*26 00-270926 Junction Box – Auto Fill (RH) (R-L) .............................................................................................. 1
*27 00-067500-00072 O-Ring ............................................................................................................................................ 1
*28 00-112467 Retainer – Float .............................................................................................................................. 1
*29 00-328486 Probe & Switch Assy. (Water Level) (Incls. Items 27, 28, & 31) .................................................. 1
*30 RR-010-13 Retaining Ring ................................................................................................................................1
*31 00-122674 Float Assy. .....................................................................................................................................1
*32 FE-006-45 Connector – Straight 1/2 (Thinwall) ................................................................................................. 1
*33 FE-024-49 Connector – Straight 1/2 (Thinwall) ................................................................................................. 1
*34 FE-006-05 Lock Nut 1/2 ..................................................................................................................................... 1
*35 FE-008-10
*36 FE-006-07 Lock Nut 1/2 (Cnd.) .........................................................................................................................1
**37 00-119244 Cap & Stud Assy. ........................................................................................................................... 1
**38 00-067500-00031 O-Ring ............................................................................................................................................1
**39 00-119254 Retainer – Cap & Stud ................................................................................................................... 1
**40 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................1
**41 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 1
42 00-435974 Bracket – Fill Piping ....................................................................................................................... 1
43 SC-041-12 Cap Screw 5/16-18 x 7/8 Hex Hd. .....................................................................................................2
44 SC-041-11 Cap Screw 5/16-18 x 3/4 Hex Hd. (SST) .......................................................................................... 2
45 WS-029-05 Washer ........................................................................................................................................... 6
46 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 4
47 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 4
48 00-271002-00001 Solenoid Valve 3/4 (120 V.) (Incls. Items 49 & 50) .......................................................................... 1
49 00-271839-00001 Coil – Solenoid Valve ...................................................................................................................... 1
50 00-271838 Service Kit – 3/4 Solenoid Valve ...................................................................................................... 1
51 00-328764 Adapter Elbow 3/4 x 90 Deg. ........................................................................................................... 1
*52 00-277112-00003 Vacuum Breaker ............................................................................................................................ 1
53 00-118270 Service Kit – Vacuum Breaker (Float & Seal Assy.) ..................................................................... 1
54 00-435967 Plate – Fill Piping ............................................................................................................................ 1
55 00-812946-00001 Piping Sub-Assy. R-L ..................................................................................................................... 1
56 00-812946-00002 Piping Sub-Assy. L-R ..................................................................................................................... 1
57 00-119611 Valve – Pressure Regulating 3/4 ..................................................................................................... 1
58 00-289091-00001 Kit – Repair (Pressure Regulating Valve) ...................................................................................... 1
1
/2 Gasket Assy. ............................................................................................................................. 2
*FRC54A & 44A. **FRC76A, 66A & FRC90A, 80A.
- 67 -
F-43020 (July 2001)
Page 68
Chamber Top
49
THRU
52
1-2
48
47
43
THRU
FRC54A Series
40-41-42
30
46
31-32
33
39
38
THRU
36
37
3
4
6
7
8
9
12
5
THRU
10
11
15
FRC44A Series
17
16
18 19
26
F-43020 (July 2001)
27-28
29
22
THRU
25
INSIDE METALLIC RINSE PIPING
- 68 -
20
21
PL-55640
Page 69
INSIDE METALLIC RINSE PIPING
ILLUS. PART NO. NAME OF PART AMT. PL-55640
1 00-271004 Final Rinse Outside Piping (R-L) ................................................................................................... 1
2 00-329610-00002 Final Rinse Outside Piping (L-R) ................................................................................................... 1
3 00-119127 Pipe Plug 4 SC-041-15 Cap Screw
5 00-067500-00012 O-Ring ............................................................................................................................................ 2
6 00-067500-00012 O-Ring ............................................................................................................................................ 1
7 SC-053-18 Mach. Screw 5/16-18 x 7/8 Truss Hd. (SST) ..................................................................................... 2
8 WL-006-23 Lockwasher
9 NS-015-11 Nut 10 WL-006-23 Lockwasher 11 NS-015-11 Nut
*12 00-271010-00001 Final Rinse Inside Piping (R-L) (261/8 Door Height) ......................................................................1
*13 00-271010-00002 Final Rinse Inside Piping (L-R) (261/8 Door Height) ......................................................................1
*14 00-274707-00001 Final Rinse Inside Piping (R-L) (321/8 Door Height) ......................................................................1
*15 00-274707-00002 Final Rinse Inside Piping (L-R) (321/8 Door Height) ......................................................................1
16 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 1
17 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 1
18 SC-125-28 Mach. Screw 10-24 x 1 Truss Hd. (SST) ...................................................................................... 1
19 NS-031-16 Stop Nut 10-24 Hex (SST) ............................................................................................................1
20 SC-127-93 Mach. Screw 5/16-18 x 1/2 Truss Hd. (SST) ..................................................................................... 1
21 00-274058 Bracket ...........................................................................................................................................1
*22 00-271027-00001 Lower Rinse Arm (R-L) 5 Nozzles (Incls. Items 26, 27, & 29) .................................................... 1
*23 00-271027-00002 Lower Rinse Arm (L-R) 5 Nozzles (Incls. Items 26, 27, & 29) .................................................... 1
**24 00-328807-00001 Lower Rinse Arm (R-L) 5 Nozzles (Incls. Items 26, 28, & 29) .................................................... 1
**25 00-328807-00002 Lower Rinse Arm (L-R) 5 Nozzles (Incls. Items 26, 28, & 29) .................................................... 1
26 FP-029-08 Pipe Cap 1/2 (Brass) .......................................................................................................................1
*27 00-022731-00003 Nozzle – Rinse (SST) #50 Drill (0.070 Dia. Orifice) ..................................................................... 5
**28 00-022731-00002 Nozzles – Rinse (SST) (0.093 Dia. Orifice) .................................................................................. 5
29 FP-030-27 Lock Nut 1/2 NPSL Pipe (Brass) .................................................................................................... 1
30 FP-029-08 Pipe Cap 1/2 (Brass) .......................................................................................................................1
*31 00-081812 Nozzle – Rinse (Brass) (0.078 Dia. Orifice) ................................................................................. 6
**32 00-081812-00004 Nozzles – Rinse (Brass) (0.094 Dia. Orifice) ............................................................................... 6
*33 00-271088-00001 Upper Rinse Arm (R-L) 6 Nozzles (Incls. Items 30, 31, & 37) .................................................... 1
*34 00-271088-00002 Upper Rinse Arm (L-R) 6 Nozzles (Incls. Items 30, 31, & 37) .................................................... 1
**35 00-328808-00001 Upper Rinse Arm (R-L) 6 Nozzles (Incls. Items 30, 32, & 37) .................................................... 1
**36 00-328808-00002 Upper Rinse Arm (L-R) 6 Nozzles (Incls. Items 30, 32, & 37) .................................................... 1
37 FP-030-27 Lock Nut 1/2 NPSL Pipe (Brass) .................................................................................................... 1
**38 00-328806 Connector – Rinse Piping .............................................................................................................. 1
**39 00-067500-00012 O-Ring ............................................................................................................................................2
**40 SC-041-15 Cap Screw 5/16-18 x 11/4 Hex Hd. ...................................................................................................2
**41 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2
**42 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
**43 00-328805-00001 Final Rinse Inside Piping (R-L) (261/8 Door Height) ......................................................................1
**44 00-328805-00002 Final Rinse Inside Piping (L-R) (261/8 Door Height) ......................................................................1
**45 00-328812-00001 Final Rinse Inside Piping (R-L) (321/8 Door Height) ......................................................................1
**46 00-328812-00002 Final Rinse Inside Piping (L-R) (321/8 Door Height) ......................................................................1
**47 00-122402-00002 Flange ............................................................................................................................................. 1
**48 00-276407 Gasket – Rinse Pipe ...................................................................................................................... 1
**49 SC-127-94 Mach. Screw 5/16-18 x 7/8 Truss Hd. (SST) ..................................................................................... 2
**50 WS-029-05 Washer ...........................................................................................................................................2
**51 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2
**52 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
1
/8 Sq. Hd. ....................................................................................................................... 1
5
/16-18 x 11/4 Hex Hd. ...................................................................................................2
5
5
/16-18 Hex ................................................................................................................................ 2
5
/16-18 Hex ................................................................................................................................ 2
/16 Medium (SST) ..................................................................................................... 2
5
/16 Medium (SST) ..................................................................................................... 2
*FRC44A Series. **FRC54A Series.
- 69 -
F-43020 (July 2001)
Page 70
44
1-2
45
3
34
30 31
36-37
35
32
33
38
43
42
41
39-40
10
7
11
20
17-18
4
5-6
8
9
12-13
14-15-16
19
28
27
26
F-43020 (July 2001)
29
21
22-23
24
25
INSIDE NON-METALLIC RINSE PIPING
(FRC44A SERIES)
- 70 -
PL-55641
Page 71
INSIDE NON-METALLIC RINSE PIPING
(FRC44A SERIES)
ILLUS. PART NO. NAME OF PART AMT. PL-55641
1 00-329608-00001 Final Outside Rinse Piping (R-L) ................................................................................................... 1
2 00-329608-00002 Final Outside Rinse Piping (L-R) ................................................................................................... 1
3 SC-041-15 Cap Screw 4 00-119127 Pipe Plug 5 WL-006-23 Lockwasher 6 NS-015-11 Nut
7 00-067500-00012 O-Ring ............................................................................................................................................ 2
8 00-274533 Flange .............................................................................................................................................1
9 00-185781 Elbow – 1/2 x 90 Deg. (PVC) ...........................................................................................................1
10 00-435070 Mixer – Spiral ................................................................................................................................. 1
11 00-274531-00001 Tube – Inside Rinse (61/8 Lg.) ........................................................................................................1
12 00-274708 Tube – Inside Rinse (321/8 Door Height) ....................................................................................... 1
13 00-274536 Tube – Inside Rinse (261/8 Door Height) ....................................................................................... 1
14 SC-053-50 Mach. Screw 10-24 x 11/2 Truss Hd. (SST) ................................................................................... 1
15 WL-006-07 Lockwasher #10 Medium ..............................................................................................................1
16 NS-011-18 Mach. Nut 10-24 Hex (SST) .......................................................................................................... 1
17 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 1
18 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 1
19 SC-053-15 Mach. Screw 5/16-18 x 1/2 Truss Hd. (SST) ..................................................................................... 1
20 00-274058 Bracket ...........................................................................................................................................1
21 00-185781 Elbow – 1/2 x 90 Deg. (PVC) ...........................................................................................................1
22 00-274534 Lower Rinse Arm (R-L) 5 Nozzles (Incls. Items 28 & 29) ........................................................... 1
23 00-274534-00002 Lower Rinse Arm (L-R) 5 Nozzles (Incls. Items 28 & 29) ........................................................... 1
24 WL-006-16 Lockwasher 1/4 Light ...................................................................................................................... 2
25 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 2
26 00-274570 Bracket ...........................................................................................................................................1
27 SC-128-05 Mach. Screw 1/4-20 x 1/2 Fil. Hd. (SST) ...........................................................................................2
28 00-276380-00002 Cap – Lower Rinse Arm ................................................................................................................1
29 00-022731-00006 Nozzle – Rinse (SST) (0.035 Dia. Orifice) .................................................................................... 5
30 00-274532-00001 Bracket (R-L) ................................................................................................................................. 1
31 00-274532-00002 Bracket (L-R) ................................................................................................................................. 1
32 WL-006-16 Lockwasher 1/4 Light ...................................................................................................................... 2
33 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 2
34 SC-024-06 Mach. Screw 1/4-20 x 1/2 Fil. Hd. (SST) ...........................................................................................2
35 00-276380-00002 Cap – Lower Rinse Arm ................................................................................................................1
36 00-274535 Upper Rinse Arm (R-L) 6 Nozzles (Incls. Items 35 & 38) ........................................................... 1
37 00-274535-00002 Upper Rinse Arm (L-R) 6 Nozzles (Incls. Items 35 & 38) ........................................................... 1
38 00-081812-00002 Nozzle – Rinse (SST) (0.078 Dia. Orifice) .................................................................................... 6
39 FP-085-51 Tee 1/2 x 1/2 x 1/2 NPT Schedule 80 (PVC) ...................................................................................... 2
40 00-274531-00002 Tube (11/4 Lg.) ................................................................................................................................. 1
41 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
42 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2
43 00-274533 Flange .............................................................................................................................................1
44 SC-053-18 Mach. Screw 5/16-18 x 7/8 Truss Hd. (SST) ..................................................................................... 2
45 00-067500-00012 O-Ring ............................................................................................................................................ 1
5
/16-18 x 11/4 Hex Hd. ...................................................................................................2
1
/8 Sq. Hd. ....................................................................................................................... 2
5
5
/16-18 Hex ................................................................................................................................ 2
/16 Medium (SST) ..................................................................................................... 2
- 71 -
F-43020 (July 2001)
Page 72
1-2
PL-55644
12-13
16
15
6
5
4
3
14
11
10
9
8
7
F-43020 (July 2001)
TRACK AND CHAIN GUIDE
- 72 -
Page 73
TRACK AND CHAIN GUIDE
ILLUS. PART NO. NAME OF PART AMT. PL-55644
1 00-812918-00001 Track Weldment (R-L Rear) .......................................................................................................... 1
2 00-812918-00001 Track Weldment (L-R Front) ......................................................................................................... 1
3 SC-041-11 Cap Screw 5/16-18 x 3/4 Hex Hd. (SST) .......................................................................................... 4
4 WL-006-23 Lockwasher 5/16 Regular (SST) ..................................................................................................... 4
5 NS-015-11 Nut 5/16-18 (SST) ............................................................................................................................. 4
6 00-274745-00001 Guide – Chain ................................................................................................................................ 1
7 SC-041-30 Cap Screw 3/8-16 x 1 Hex Hd. (SST) ............................................................................................. 4
8 WS-006-27 Washer (SST) ................................................................................................................................4
9 WS-006-27 Washer (SST) ................................................................................................................................4
10 WL-006-27 Lockwasher 3/8 Light (SST) ............................................................................................................ 4
11 NS-015-13 Nut 3/8-16 (SST) .............................................................................................................................. 4
12 00-812918-00002 Track Weldment (R-L Front) ......................................................................................................... 1
13 00-812918-00002 Track Weldment (L-R Rear) .......................................................................................................... 1
14 SC-041-11 Cap Screw 5/16-18 x 3/4 Hex Hd. (SST) ........................................................................................ 4
15 WL-006-23 Lockwasher 5/16 Regular (SST) ..................................................................................................... 4
16 NS-015-11 Nut 5/16-18 (SST) ............................................................................................................................. 4
- 73 -
F-43020 (July 2001)
Page 74
Previous Construction
40 41
37-38
35-36
34
32-33
30
31
39
11
THRU
9 10
15
3
THRU
1
8
2
19
F-43020 (July 2001)
18
26
THRU
17
20
THRU
16
25
23
24
RINSE DRAIN-OFF PAN
- 74 -
29
PL-55636
Page 75
RINSE DRAIN-OFF PAN
ILLUS. PART NO. NAME OF PART AMT. PL-55636
1 00-812922-00001 Strainer ...........................................................................................................................................1
2 00-276407 Gasket – Rinse Pipe ...................................................................................................................... 1
3 00-122402-00002 Flange ............................................................................................................................................. 1
4 SC-041-12 Cap Screw 5/16-18 x 7/8 Hex Hd. .....................................................................................................2
5 WS-029-05 Washer ........................................................................................................................................... 2
6 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2
7 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
8 00-545595 Sealer (1/8 Rd.) .............................................................................................................................. AR
9 00-436828-00002 Rinse Pan Assy. (R-L) ................................................................................................................... 1
10 00-436828-00001 Rinse Pan Assy. (L-R) ................................................................................................................... 1
11 00-328326 Flange & Nipple Assy. (3/4 In.) ........................................................................................................ 1
12 00-475056 Flange & Nipple Assy. (1 In.) .........................................................................................................1
13 00-436827 Gasket ............................................................................................................................................ 1
14 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2
15 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
16 00-328803 Pan Rinse (FRC54A) ..................................................................................................................... 2
17 00-120115 Retainer – Seal ...............................................................................................................................2
18 00-077621-00002 Ring – Sealing ................................................................................................................................ 1
19 00-120603 Gasket – Seal Retainer ................................................................................................................. 2
20 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 4
21 SC-041-15 Cap Screw 5/16-18 x 11/4 Hex Hd. ...................................................................................................4
22 WS-017-08 Washer ........................................................................................................................................... 8
23 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 4
24 00-328798 Flowback Pipe (FRC54A) .............................................................................................................. 1
25 00-120603 Gasket – Seal Retainer ................................................................................................................. 1
26 SC-041-11 Cap Screw 5/16-18 x 3/4 Hex Hd. (SST) .......................................................................................... 4
27 WS-017-08 Washer ........................................................................................................................................... 8
28 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 4
29 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 4
30 FP-085-06 Elbow 3/4 Hose Male to 3/4 Male Pipe Thd. (PVC) ........................................................................... 1
31 00-534177 Clamp – Hose #12 ......................................................................................................................... 1
32 00-271013-00002 Hose – Drain (L-R) ........................................................................................................................1
33 00-271013-00001 Hose – Drain (R-L) ........................................................................................................................1
34 00-534177 Clamp – Hose #12 ......................................................................................................................... 1
35 00-270948 Final Rinse Fitting ........................................................................................................................... 1
36 00-270949 Spacer – Final Rinse Fitting ........................................................................................................... 1
37 00-271077 Strainer (L-R) ................................................................................................................................. 1
38 00-274258 Strainer (R-L) ................................................................................................................................. 1
39 FE-024-31 Cover – Electric Box ...................................................................................................................... 1
40 00-274256 Rinse Pan Assy. (R-L) ................................................................................................................... 1
41 00-271843 Rinse Pan Assy. (L-R) ................................................................................................................... 1
- 75 -
F-43020 (July 2001)
Page 76
1
2
3
4
5
47
6
9
7
8
51-52 - 53
10
11
12
16
14
13
48
15
43
46
45
44
PL-55625
33
32
38
37
34
31
30
35
39
40
36
41-42
50
26
25
49
28
29
17
18
19
20
21
22
27
23
24
F-43020 (July 2001)
DRAIN UNIT
(WASH SECTION)
- 76 -
Page 77
DRAIN UNIT
(WASH SECTION)
ILLUS. PART NO. NAME OF PART AMT. PL-55625
3
1 SC-021-22 Mach. Screw 10-24 x
2 WL-006-07 Lockwasher #10 Medium ..............................................................................................................1
3 WS-023-34 Washer ........................................................................................................................................... 1
4 00-271070 Drain Lever (L-R) ........................................................................................................................... 1
5 00-119116 Axle – Drain Lever ......................................................................................................................... 1
6 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................1
7 NS-015-01 Nut
1
/4-20 Hex (SST) ...................................................................................................................... 1
8 00-270953 Lift Rod Overflow ........................................................................................................................... 1
*9 SC-021-22 Mach. Screw 10-24 x
*10 WL-006-07 Lockwasher #10 Medium .............................................................................................................. 1
*11 WS-023-34 Washer ........................................................................................................................................... 1
*12 00-271070 Drain Lever (L-R) ........................................................................................................................... 1
*13 00-119116 Axle – Drain Lever ......................................................................................................................... 1
*14 WL-006-17 Lockwasher
1
/4 Medium .................................................................................................................1
*15 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 1
*16 00-274147 Lift Rod – Drain .............................................................................................................................. 1
*17 WS-017-08 Washer ........................................................................................................................................... 1
*18 00-079410 Pull Rod Assy. – Upper ..................................................................................................................1
*19 NS-018-06 Jam Nut 5/16-18 Hex ....................................................................................................................... 1
*20 00-016269 Nut – Pull Rod Adjustor ..................................................................................................................1
*21 NS-018-06 Jam Nut 5/16-18 Hex ....................................................................................................................... 1
*22 00-289519 Pull Rod Assy. – Lower ..................................................................................................................1
*23 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 1
*24 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 1
*25 00-067500-00118 O-Ring ............................................................................................................................................ 1
*26 SC-041-17 Cap Screw 5/16-18 x 11/2 Hex Hd. (SST) ........................................................................................ 1
*27 00-077466 Plug – Drain ....................................................................................................................................1
*28 WS-017-08 Washer ........................................................................................................................................... 1
*29 PC-005-02 Cotter Pin 1/16 x 1/2 (SST) ................................................................................................................ 2
30 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
31 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 1
32 WS-017-01 Washer ........................................................................................................................................... 2
33 00-270952 Retainer ..........................................................................................................................................1
34 WS-017-01 Washer ........................................................................................................................................... 2
35 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 1
36 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
37 00-119099-00002 Tube – Overflow ............................................................................................................................. 1
38 00-067500-00120 O-Ring ............................................................................................................................................ 1
39 00-289464 Gasket – Drain ............................................................................................................................... 1
40 00-270947 Sleeve – Drain Body ......................................................................................................................1
41 00-289465 Drain Body ..................................................................................................................................... 1
42 00-270946 Drain Body (With 3/4-14 FPT Port on Side) ....................................................................................1
43 FP-028-32 Pipe Plug 2 Sq. Hd. ........................................................................................................................ 1
44 WS-006-44 Washer ........................................................................................................................................... 6
45 WL-006-28 Lockwasher 3/8 Medium .................................................................................................................6
46 SC-041-30 Cap Screw 3/8-16 x 1 Hex Hd. (SST) ............................................................................................. 6
47 WS-022-01 Washer ........................................................................................................................................... 1
*48 WS-022-01 Washer ........................................................................................................................................... 1
*49 00-106283 Sleeve – Drain Valve Body............................................................................................................. 1
50 00-328813 Bushing – Drain .............................................................................................................................. 1
*51 SC-041-10 Cap Screw 5/16-18 x 5/8 Hex Hd. .....................................................................................................2
*52 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2
*53 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
/8 Rd. Hd. (SST) ......................................................................................... 1
3
/8 Rd. Hd. (SST) ......................................................................................... 1
*Use in wash on machines with RS or PW.
- 77 -
F-43020 (July 2001)
Page 78
5-6
7
8-9-10
11
38 39
12
13
29-30
27-28
21
22 THRU 26
Previous Construction
36-37
63 62 61
1
55-56-57
14 THRU 18
19-20
40 THRU 43
44 45 46
2-3
49-50
51-52-53
47-48
54
PL-55634
F-43020 (July 2001)
59
34
60
58
33
32
DOOR, CURTAIN, BAFFLES,
AND STRAINERS
- 78 -
35
31
4
Page 79
DOOR, CURTAIN, BAFFLES,
AND STRAINERS
ILLUS. PART NO. NAME OF PART AMT. PL-55634
1 00-271043-00001 Baffle – Unloading (R-L) ................................................................................................................1
2 00-271048 Baffle – Loading (L-R Steam or Electric Heat, FRC44A Series) .................................................. 1
3 00-271048-00002 Baffle – Loading (L-R Gas Heat, FRC44A Series) (L-R, FRC54A Series) ................................. 1
4 NS-031-50 Stop Nut 6-32 Hex (SST) .............................................................................................................. 2
5 00-271046 Baffle – Loading (R-L Steam or Electric Heat, FRC44A Series) .................................................. 1
6 00-271046-00002 Baffle – Loading (R-L Gas Heat, FRC44A Series) (R-L, FRC54A Series) ................................. 1
7 00-271047-00001 Baffle – Unloading (L-R) ................................................................................................................1
8 00-120151-00001 Splash Curtain (10-C1) ................................................................................................................ AR
9 00-120151-00001 Splash Curtain (10-C1) (Gas Heat, FRC44A Series or All Heats, FRC54A Series) .................. 1
10 00-120266-00001 Curtain Rod .................................................................................................................................. AR
11 00-185864 Catch – Door .................................................................................................................................. 1
12 PC-005-02 Cotter Pin
13 00-012114 Pin ...................................................................................................................................................1
14 00-271084 Splash Curtain (261/8 Door Height) ................................................................................................ 2
15 00-271084-00002 Splash Curtain (321/8 Door Height) ................................................................................................ 2
16 00-120266-00001 Curtain Rod ....................................................................................................................................2
17 00-120152-00055 Splash Curtain Assy. (Incls. Items 14 & 16) (261/8 Door Height) ................................................ AR
18 00-120152-00056 Splash Curtain Assy. (Incls. Items 15 & 16) (321/8 Door Height) ................................................ AR
19 00-112378-00049 Door Slide (261/8 Door Height) ....................................................................................................... 2
20 00-112378-00050 Door Slide (321/8 Door Height) ....................................................................................................... 2
21 00-271834 Bracket ...........................................................................................................................................1
22 00-271833 Baffle – RH Lower (L-R Operation) ............................................................................................... 1
23 SC-041-05 Cap Screw 1/4-20 x 5/8 Hex Hd. (SST) ............................................................................................ 3
24 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................3
25 WS-017-06 Washer ........................................................................................................................................... 6
26 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 3
27 00-328065 Actuator – Lift Drain ....................................................................................................................... 1
28 NS-031-21 Stop Nut – Special 1/4-20 Hex ........................................................................................................ 2
29 00-328065 Actuator – Lift Drain ....................................................................................................................... 1
30 NS-031-21 Stop Nut – Special 1/4-20 Hex ........................................................................................................ 2
31 00-270996 Insulator – Switch ........................................................................................................................... 1
32 00-290160 Magnet ............................................................................................................................................ 1
33 00-290159 Retainer – Magnet .......................................................................................................................... 1
34 NS-031-50 Stop Nut 6-32 Hex (SST) .............................................................................................................. 2
35 00-749347 Switch – Reed Encapsulated ........................................................................................................ 1
*36 - Door (261/8) .....................................................................................................................................1
*37 - Door (321/8) .....................................................................................................................................1
38 00-328064-00007 Door (261/8) .....................................................................................................................................1
39 00-328079-00007 Door (321/8) .....................................................................................................................................1
40 SC-041-05 Cap Screw 1/4-20 x 5/8 Hex Hd. (SST) ............................................................................................ 4
41 WS-017-06 Washer ........................................................................................................................................... 8
42 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................4
43 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 4
44 WS-022-01 Washer ........................................................................................................................................... 9
45 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................9
46 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 9
47 00-271049-00001 Baffle – Vertical (261/8 Door Height) ............................................................................................... 3
48 00-274720-00001 Baffle – Vertical (321/8 Door Height) ............................................................................................... 3
49 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................4
50 SC-041-50 Cap Screw 1/4-20 x 1/2 Hex Hd. ......................................................................................................4
51 WS-022-01 Washer ........................................................................................................................................... 4
52 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................4
53 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 4
54 00-271832 Baffle – LH Lower ........................................................................................................................... 1
55 SC-053-41 Mach. Screw 1/4-20 x 1/2 Truss Hd. (SST) ...................................................................................... 2
56 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................2
57 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 2
58 00-271878 Bucket – Strainer ........................................................................................................................... 1
59 00-271845 Strainer – Front ..............................................................................................................................1
60 00-271847 Strainer – Rear (Not Shown) ......................................................................................................... 1
61 00-271084 Splash Curtain (261/8 Door Height) (FRC54A) .............................................................................. 1
62 00-271084-00002 Splash Curtain (321/8 Door Height) (FRC54A) .............................................................................. 1
63 00-120266-00001 Curtain Rod ....................................................................................................................................1
1
/16 x 1/2 (SST) ................................................................................................................ 1
*No longer available. Order either item 38 or 39 & item 29 to convert to present style.
- 79 -
F-43020 (July 2001)
Page 80
Previous Constructions
1
10
6
7
5
2
9
15
8
11-12
18
16
20
19
13 -14
PL-55626
4
3
17
VENT HOOD
ILLUS. PART NO. NAME OF PART AMT. PL-55626
1 00-080553 Drip Shield Assy. ............................................................................................................................ 1
2 00-079467-00002 Vent Hood Assy. ............................................................................................................................. 1
3 SC-041-05 Cap Screw 1/4-20 x 5/8 Hex Hd. (SST) ........................................................................................... 11
4 NS-031-19 Stop Nut 1/4-20 Elastic (SST) ........................................................................................................11
5 NS-036-12 Stop Nut 3/8-24 Elastic .................................................................................................................... 1
6 SC-125-25 Mach. Screw 6-32 x 3/4 Rd. Hd. (SST) ........................................................................................... 3
7 00-075623 Damper – Vent Stack .....................................................................................................................1
8 00-064919 Shaft – Damper .............................................................................................................................. 1
9 NS-031-50 Stop Nut 6-32 Hex (SST) .............................................................................................................. 3
10 00-075621 Vent Stack Assy. ............................................................................................................................ 1
11 SC-053-02 Mach. Screw 10-24 x 1/2 Truss Hd. (SST) ..................................................................................... 8
12 NS-031-15 Stop Nut 10-24 Hex (SST) ............................................................................................................8
13 00-435799 Drip Shield Assy. ............................................................................................................................ 1
14 NS-031-15 Stop Nut 10-24 Hex (SST) ............................................................................................................4
15 NS-036-12 Stop Nut 3/8-24 Elastic .................................................................................................................... 1
16 00-075623 Damper – Vent Stack .....................................................................................................................1
17 00-435794-00001 Vent Hood Assy. (Incls. Items 13 thru 16, 18, 19, & 20) ............................................................... 1
18 SC-125-25 Mach. Screw 6-32 x 3/4 Rd. Hd. (SST) ........................................................................................... 3
19 NS-031-50 Stop Nut 6-32 Hex (SST) .............................................................................................................. 3
20 00-064919 Shaft – Damper .............................................................................................................................. 1
F-43020 (July 2001)
- 80 -
Page 81
6
Previous Construction
1
2
10
7
5
8
9
11 - 12
18
15
16-17
19
4
13-14
PL-55637
3
EXTENDED HOOD
ILLUS. PART NO. NAME OF PART AMT. PL-55637
1 00-080553 Drip Shield Assy. ............................................................................................................................ 1
2 00-079463-00002 Extended Hood Assy. .................................................................................................................... 1
3 SC-041-05 Cap Screw 1/4-20 x 5/8 Hex Hd. (SST) ........................................................................................... 13
4 NS-031-19 Stop Nut 1/4-20 Elastic (SST) ........................................................................................................13
5 NS-036-12 Stop Nut 3/8-24 Elastic .................................................................................................................... 1
6 SC-125-25 Mach. Screw 6-32 x 3/4 Rd. Hd. (SST) ........................................................................................... 3
7 00-075623 Damper – Vent Stack .....................................................................................................................1
8 00-064919 Shaft – Damper .............................................................................................................................. 1
9 NS-031-50 Stop Nut 6-32 Hex (SST) .............................................................................................................. 3
10 00-075621 Vent Stack Assy. ............................................................................................................................ 1
11 SC-053-02 Mach. Screw 10-24 x 1/2 Truss Hd. (SST) ..................................................................................... 8
12 NS-031-15 Stop Nut 10-24 Hex (SST) ............................................................................................................8
13 00-435799 Drip Shield Assy. ............................................................................................................................ 1
14 NS-031-15 Stop Nut 10-24 Hex (SST) ............................................................................................................4
15 NS-036-12 Stop Nut 3/8-24 Elastic .................................................................................................................... 1
16 SC-125-25 Mach. Screw 6-32 x 3/4 Rd. Hd. (SST) ........................................................................................... 3
17 NS-031-50 Stop Nut 6-32 Hex (SST) .............................................................................................................. 3
18 00-075623 Damper – Vent Stack .....................................................................................................................1
19 00-064919 Shaft – Damper ..............................................................................................................................1
- 81 -
F-43020 (July 2001)
Page 82
2 1
4 THRU 7
3
69
THRU
73
59 THRU 62
57-58
8
56 55
51 THRU 54
17
9
18-19-20
10-11-12
13 THRU 16
21 THRU 24
25
68
63 THRU 67
28
29
30
PL-55661
34-35-36-37
33
31
50
43 THRU 49
41-42
38-39-40
32
27
26
MISCELLANEOUS
(WASH SECTION)
ILLUS. PART NO. NAME OF PART AMT. PL-55661
1 00-274232 Conduit – PVC (261/8 Door Height) (Incls. Item 4) ........................................................................ 1
2 00-274709 Conduit – PVC (321/8 Door Height) (Incls. Item 4) ...................................................................... AR
3 00-122577-00002 Wire Tie ........................................................................................................................................... 2
4 00-271044 Bracket ........................................................................................................................................... 2
5 SC-041-50 Cap Screw 1/4-20 x 1/2 Hex Hd. ...................................................................................................... 1
6 WL-006-17 Lockwasher 1/4 Medium ................................................................................................................. 2
7 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 2
8 FE-009-07 Lock Nut 11/4 ................................................................................................................................... 2
9 00-270925 Bracket (RH) .................................................................................................................................. 1
10 SC-041-12 Cap Screw 5/16-18 x 7/8 Hex Hd. .....................................................................................................2
F-43020 (July 2001)
- 82 -
Page 83
MISCELLANEOUS (Cont.)
(WASH SECTION)
ILLUS. PART NO. NAME OF PART AMT. PL-55661
5
11 WL-006-23 Lockwasher 12 NS-015-11 Nut
5
/16-18 Hex ................................................................................................................................ 2
13 SC-041-05 Cap Screw 1/4-20 x 5/8 Hex Hd. (SST) ............................................................................................ 2
14 WS-003-49 Washer ........................................................................................................................................... 2
15 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................2
16 NS-015-01 Nut
1
/4-20 Hex (SST) ...................................................................................................................... 2
17 00-270923-00002 Box – Junction (RH) ...................................................................................................................... 1
18 00-288465 Lid & Gasket Assy. (Incls. Item 21) ............................................................................................... 1
19 00-112007 Gasket ............................................................................................................................................ 1
20 SD-012-20 Self-Tapping Screw 8-32 x
21 00-328804 Wireway – Horizontal (FRC54A Series) .......................................................................................1
22 WS-017-06 Washer ........................................................................................................................................... 2
23 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................2
24 NS-015-01 Nut
1
/4-20 Hex (SST) ...................................................................................................................... 2
25 00-072937 Speed Nut 4-40 .............................................................................................................................. 2
26 SC-127-55 Mach. Screw 4-40 x
27 00-271061 Support ........................................................................................................................................... 2
28 00-119244 Cap & Stud Assy. ........................................................................................................................... 1
29 00-067500-00031 O-Ring ............................................................................................................................................ 1
30 00-119254 Retainer – Cap & Stud ................................................................................................................... 1
31 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................1
32 00-288946-00002 Foot – Adjustable (11/2 to 23/4) ........................................................................................................ 4
33 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 1
34 00-436888 Cover – Panel Notch ..................................................................................................................... 2
35 SC-066-05 Mach. Screw 10-24 x 3/8 Phil. Truss Hd. ........................................................................................ 2
36 WS-019-06 Washer ........................................................................................................................................... 2
37 NS-031-16 Stop Nut 10-24 Hex (SST) ............................................................................................................2
38 00-288465 Lid & Gasket Assy. (Incls. Item 39) ............................................................................................... 1
39 00-112007 Gasket ............................................................................................................................................ 1
40 SD-012-20 Self-Tapping Screw 8-32 x 1/2 Phil. Truss Hd., Type T ...................................................................4
41 00-436798 Panel – Front Trim (FRC44A) ........................................................................................................ 1
42 00-328809 Panel – Front Trim (FRC54A) ........................................................................................................ 1
43 00-271055 Wireway – Vertical ..........................................................................................................................2
44 SC-114-15 Mach. Screw 10-24 x 3/8 Rd. Hd. (SST) ......................................................................................... 2
45 WL-006-07 Lockwasher #10 Medium ..............................................................................................................2
46 WS-019-06 Washer ........................................................................................................................................... 4
47 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................4
48 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 4
49 WS-019-19 Washer ........................................................................................................................................... 2
50 00-274252 Wire Raceway (FRC54A Series) .................................................................................................. 2
51 00-271056 Wireway – Horizontal .....................................................................................................................1
52 WS-017-06 Washer ........................................................................................................................................... 3
53 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................3
54 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 3
55 NS-047-94 Lock Nut 3/16 Stud Special ............................................................................................................ AR
56 00-294677-00003 Clamp – Wire (3/4 I.D.) .................................................................................................................. AR
57 00-271057 Cap – Wireway ............................................................................................................................... 2
58 SD-007-38 Self-Tapping Screw 8 x 1/4 Phil. Bind Hd., Type B ..........................................................................2
59 FE-008-44 Connector 45 Deg. (3/4 Male Thd. x 3/4 Thinwall) ............................................................................ 2
60 FE-008-11 Gasket – Electrical ........................................................................................................................2
61 FE-006-06 Lock Nut 3/4 ..................................................................................................................................... 2
62 FE-007-32 Connector – Conduit 3/4 TS ............................................................................................................ 2
63 00-270923-00001 Box – Junction (LH) ....................................................................................................................... 1
64 SC-041-05 Cap Screw 1/4-20 x 5/8 Hex Hd. (SST) ............................................................................................ 2
65 WS-003-49 Washer ........................................................................................................................................... 2
66 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................2
67 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 2
68 PB-004-08 Plug Button 7/8 (Heyco #2703) ..................................................................................................... AR
69 00-270922 Bracket (LH) ..................................................................................................................................1
70 SC-041-12 Cap Screw 5/16-18 x 7/8 Hex Hd. .....................................................................................................2
71 WS-017-08 Washer ........................................................................................................................................... 2
72 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2
73 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
/16 Medium (SST) ..................................................................................................... 2
1
/2 Phil. Truss Hd., Type T ...................................................................4
3
/8 Rd. Hd. (SST) ........................................................................................... 2
- 83 -
F-43020 (July 2001)
Page 84
Previous Construction
19
22
17
18
20
21
3
4
5
2
1
8
10
9
6
7
15 16
F-43020 (July 2001)
11
12
13
14
LOW WATER PROTECTION
(STEAM HEAT/WASH TANK)
- 84 -
PL-55627
Page 85
LOW WATER PROTECTION
(STEAM HEAT/WASH TANK)
ILLUS. PART NO. NAME OF PART AMT. PL-55627
1 00-067500-00072 O-Ring .......................................................................................................................................... AR
**2 00-328495 Probe & Switch Assy. (2 Wire) (Water Level) (Incls. Items 3, 4, & 5) ........................................ AR
3 00-122674 Float Assy. ................................................................................................................................... AR
4 00-112467 Retainer – Float ............................................................................................................................ AR
5 RR-010-13 Retaining Ring .............................................................................................................................. AR
6 RR-010-13 Retaining Ring ................................................................................................................................1
7 00-112467 Retainer – Float .............................................................................................................................. 1
8 00-186091 Probe & Switch Assy. (4 Wire) (Temperature & Water Level) (Incls. Items 6, 7, & 9) ................ 1
9 00-122674 Float Assy. ..................................................................................................................................... 1
10 00-067500-00072 O-Ring ............................................................................................................................................ 1
11 00-271112-00001 Box – Steam Heat ..........................................................................................................................1
12 WS-010-40 Washer – Thrust .......................................................................................................................... AR
13 WL-014-31 Lockwasher 1/2 External Shakeproof (SST) ................................................................................ AR
14 NS-018-28 Jam Nut 1/2-20 Hex ...................................................................................................................... AR
15 00-288465 Lid & Gasket Assy. (Incls. Item 16) ............................................................................................... 1
16 00-112007 Gasket ............................................................................................................................................ 1
*17 WL-006-17 Lockwasher 1/4 Medium ............................................................................................................... AR
*18 00-119244-00002 Cap ............................................................................................................................................... AR
19 SD-012-20 Self-Tapping Screw 8-32 x 1/2 Phil. Truss Hd., Type T ...................................................................4
*20 WS-003-47 Washer ......................................................................................................................................... AR
*21 00-067500-00031 O-Ring .......................................................................................................................................... AR
*22 NS-015-01 Nut 1/4-20 Hex (SST) .................................................................................................................... AR
00-294357-00001 Housing – Connector (Nat) ......................................................................................................... AR
00-294357-00002 Housing – Connector (Black) ...................................................................................................... AR
00-065890-00029 Connector – Insulated ................................................................................................................. AR
*Used on FRC76A, FRC66A, FRC80A, and 90A in place of items 1 thru 5 in wash tank. **Must order two jumper wires, Part #328758.
- 85 -
F-43020 (July 2001)
Page 86
2
1
Previous Construction
21
20
19
3
14
23
15
16
18
17
13
PL-55633
F-43020 (July 2001)
4
22
5
7
STEAM COIL HEAT
- 86 -
12 11
6
8
9
10
Page 87
STEAM COIL HEAT
ILLUS. PART NO. NAME OF PART AMT. PL-55633
1 FP-052-09 Pipe Plug 3/4 Sq. Hd. (SST) ............................................................................................................. 1
2 00-274547 Coil – Steam (Side Inlet) ................................................................................................................ 1
3 00-329243 Coil – Steam ................................................................................................................................... 1
4 FP-080-17 Pipe 3/4 x 2 (TBE; 11/2 RTOE) (SST) .............................................................................................. 1
5 FP-053-09 Lock Nut 3/4 NPSL (SST) ............................................................................................................... 1
6 WS-013-45 Washer ........................................................................................................................................... 1
7 FP-013-22 Elbow 3/4 x 90 Deg. ......................................................................................................................... 1
8 FP-036-12 Pipe 3/4 x 73/4 TBE ............................................................................................................................1
9 FP-022-17 Union 3/4 (Grd. Seat) ....................................................................................................................... 1
10 FP-036-92 Pipe 3/4 x 13/8 TBE ............................................................................................................................1
11 00-118316 Steam Trap (0-20 PSI) ................................................................................................................... 1
12 00-118317 Steam Trap (21-50 PSI) ................................................................................................................. 1
13 FP-049-15 Elbow 3/4 x 90 Deg. (SST) .............................................................................................................. 1
14 FP-054-27 Pipe 3/4 x 13/8 TBE (SST) ................................................................................................................. 1
15 FP-077-29 Elbow 3/4 x 45 Deg. (SST) .............................................................................................................. 1
16 FP-054-28 Pipe 3/4 x 11/2 TBE (SST) ................................................................................................................. 1
17 FP-054-27 Pipe 3/4 x 13/8 TBE (SST) ................................................................................................................. 1
18 FP-050-14 Union 3/4 (Grd. Seat) (SST) ............................................................................................................ 1
19 FP-054-44 Pipe 3/4 x 21/2 TBE (SST) ................................................................................................................. 1
20 FP-049-15 Elbow 3/4 x 90 Deg. (SST) .............................................................................................................. 1
21 FP-054-28 Pipe 3/4 x 11/2 TBE (SST) ................................................................................................................. 1
22 WS-013-45 Washer ........................................................................................................................................... 1
23 FP-052-09 Pipe Plug 3/4 Sq. Hd. (SST) ............................................................................................................. 2
- 87 -
F-43020 (July 2001)
Page 88
1-2
Previous Construction
5
TANK ASSY.
7-8
3
4
29 28
18
17
26
19
25
OR
24
20
THRU
31
12
OR
13
23
14-15-16
TANK ASSY.
45
THRU 48
32
33
11
27
10
34 35
36
9
6
44
43
42
37
41
F-43020 (July 2001)
30
40
PL-55628
39
38
PIPING – STEAM COILS
- 88 -
Page 89
PIPING – STEAM COILS
ILLUS. PART NO. NAME OF PART AMT. PL-55628
5
1 NS-015-11 Nut
2 WL-006-23 Lockwasher
3 00-435027 Plate ................................................................................................................................................ 1
4 00-435026 Gasket ............................................................................................................................................ 1
5 00-271109 Gasket – Mounting ........................................................................................................................ 1
6 00-271108 Plate – Mounting ............................................................................................................................. 1
7 WS-017-08 Washer .......................................................................................................................................... 14
8 SC-041-15 Cap Screw 5/16-18 x 11/4 Hex Hd. ...................................................................................................7
9 FP-036-92 Pipe 10 FP-013-22 Elbow 11 FP-036-92 Pipe 12 FP-036-13 Pipe
13 FP-036-12 Pipe 3/4 x 73/4 TBE (Used on Side Inlet Construction) .................................................................... 1
14 00-270329-00001 Solenoid Valve (120 V.) (Incls. Items 15 & 16)............................................................................... 1
15 00-270318-00001 Coil – Solenoid Valve (120 V.) ........................................................................................................1
16 00-270336 Service Kit – Solenoid Valve........................................................................................................... 1
17 FP-036-92 Pipe 3/4 x 13/8 TBE ............................................................................................................................1
18 FP-013-22 Elbow 3/4 x 90 Deg. ......................................................................................................................... 1
19 FP-036-92 Pipe 3/4 x 13/8 TBE ............................................................................................................................1
20 00-186922 Line Strainer 3/4 (Brass) (Incls. Items 21 thru 23) .........................................................................1
21 00-186923 Plug – Branch ................................................................................................................................. 1
22 00-186924 Gasket – Branch Plug ................................................................................................................... 1
23 00-186925 Screen – Line Strainer ................................................................................................................... 1
24 FP-059-76 Pipe 3/4 x 21/4 TBE (Used on Side Inlet Construction) .................................................................... 1
25 FP-059-22 Pipe 3/4 x 13/4 TBE ............................................................................................................................1
26 FP-013-22 Elbow 3/4 x 90 Deg. ......................................................................................................................... 1
27 FP-022-17 Union 3/4 (Grd. Seat) ....................................................................................................................... 1
28 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 7
29 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 7
30 00-328776 Plate – Outer ..................................................................................................................................1
31 00-271109 Gasket – Mounting ........................................................................................................................ 1
32 00-435026 Gasket ............................................................................................................................................ 1
33 00-328777 Plate – Inner ................................................................................................................................... 1
34 SC-041-15 Cap Screw 5/16-18 x 11/4 Hex Hd. ...................................................................................................7
35 WS-017-08 Washer .......................................................................................................................................... 14
36 FP-013-22 Elbow 3/4 x 90 Deg. ......................................................................................................................... 1
37 FP-036-05 Pipe 3/4 x 3 TBE ............................................................................................................................... 1
38 FP-013-22 Elbow 3/4 x 90 Deg. ......................................................................................................................... 1
39 FP-087-48 Pipe 3/4 x 8 TBE ............................................................................................................................... 1
40 FP-013-22 Elbow 3/4 x 90 Deg. ......................................................................................................................... 1
41 FP-053-09 Lock Nut 3/4 NPSL (SST) ............................................................................................................... 1
42 WS-013-45 Washer ........................................................................................................................................... 1
43 WS-013-45 Washer ........................................................................................................................................... 1
44 FP-080-17 Pipe 3/4 x 2 (TBE; 11/2 RTOE) (SST) .............................................................................................. 1
45 00-289721 Bracket – Air Baffle ........................................................................................................................ 1
46 WS-003-49 Washer ........................................................................................................................................... 1
47 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................1
48 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 1
/16-18 Hex ................................................................................................................................ 7
5
/16 Medium (SST) ..................................................................................................... 7
3
/4 x 13/8 TBE ............................................................................................................................1
3
/4 x 90 Deg. ......................................................................................................................... 1
3
/4 x 13/8 TBE ............................................................................................................................1
3
/4 x 73/8 TBE ............................................................................................................................1
- 89 -
F-43020 (July 2001)
Page 90
25
THRU
28
1-2
29
30
31
23
24
4
5
TANK ASSY.
3
6
7
8
9
10
11
33
16
F-43020 (July 2001)
17
18
32
12
13-14-15
19
THRU
22
STEAM INJECTOR HEAT
- 90 -
PL-55629
Page 91
STEAM INJECTOR HEAT
ILLUS. PART NO. NAME OF PART AMT. PL-55629
1 00-271110 Piping – Steam Injector (Incls. Items 2, 31, & 32) ......................................................................... 1
2 FP-085-05 Pipe 1 x 101/2 STOE (SST) ............................................................................................................ 1
3 FP-054-32 Pipe
4 00-271109 Gasket – Mounting ........................................................................................................................ 1
5 00-271108 Plate – Mounting ............................................................................................................................. 1
6 FP-036-92 Pipe
7 FP-013-22 Elbow 3/4 x 90 Deg. ......................................................................................................................... 1
8 FP-036-92 Pipe 3/4 x 13/8 TBE ............................................................................................................................1
9 FP-022-17 Union 3/4 (Grd. Seat) ....................................................................................................................... 1
10 FP-036-92 Pipe 3/4 x 13/8 TBE ............................................................................................................................1
11 00-074696 Check Valve 3/4 ............................................................................................................................... 1
12 FP-059-14 Pipe 3/4 x 41/2 TBE ............................................................................................................................1
13 00-270329-00001 Solenoid Valve 3/4 (120 V.) (Incls. Items 14 & 15) .......................................................................... 1
14 00-270318-00001 Coil – Solenoid Valve (120 V.) ........................................................................................................1
15 00-270336 Service Kit – Solenoid Valve........................................................................................................... 1
16 FP-036-92 Pipe 3/4 x 13/8 TBE ............................................................................................................................1
17 FP-013-22 Elbow 3/4 x 90 Deg. ......................................................................................................................... 1
18 FP-036-92 Pipe 3/4 x 13/8 TBE ............................................................................................................................1
19 00-186922 Line Strainer 3/4 (Incls. Items 20, 21, & 22) .................................................................................... 1
20 00-186923 Plug – Branch ................................................................................................................................. 1
21 00-186924 Gasket – Branch Plug ................................................................................................................... 1
22 00-186925 Screen – Line Strainer ................................................................................................................... 1
23 00-435027 Plate ................................................................................................................................................ 1
24 00-435026 Gasket ............................................................................................................................................ 1
25 SC-041-15 Cap Screw 5/16-18 x 11/4 Hex Hd. ...................................................................................................7
26 WS-017-08 Washer .......................................................................................................................................... 14
27 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 7
28 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 7
29 00-288671 Heater – Water ............................................................................................................................... 1
30 FP-054-44 Pipe 3/4 x 21/2 TBE (SST) ................................................................................................................. 1
31 FP-049-15 Elbow 3/4 x 90 Deg. (SST) .............................................................................................................. 1
32 FP-059-76 Pipe 3/4 x 21/4 TBE ............................................................................................................................1
33 FP-013-22 Elbow 3/4 x 90 Deg. ......................................................................................................................... 1
00-538850-00002 Sealer – Pipe ................................................................................................................................ AR
00-545595 Sealer (1/8 Rd.) .............................................................................................................................. AR
3
/4 x 43/8 Lg. TBE (SST) ........................................................................................................... 1
3
/4 x 13/8 TBE ............................................................................................................................1
- 91 -
F-43020 (July 2001)
Page 92
2
3 THRU 6
7 THRU 10
1
13
15 14
62
17 16
12 11
18
19 THRU 23
25 24
26
27
28
61
59 60
58
56 57
54 55
50 51 52
53
43 44 45
38 THRU 42
46 47 48
49
31
32
33 THRU 37
29 30
PL-55630
CONTROL BOX – GAS HEAT
ILLUS. PART NO. NAME OF PART AMT. PL-55630
1 00-526454 Foam Tape (1 Wide x 1/8 Thk.) ..................................................................................................... AR
2 00-435539 Plate – Adjusting ............................................................................................................................. 1
3 00-274569 Plate – Restrictor (12 Holes) (Marked NG 60 Hz.) (Shown) ..................................................... AR
4 00-436065 Plate – Restrictor (16 Holes) (Marked NG & LP 60 Hz. or 60 Hz.)
5 00-436763 Plate – Restrictor (24 Holes) (Marked NG 50 Hz.) .................................................................... AR
6 00-436765 Plate – Restrictor (28 Holes) (Marked LP 50 Hz.) ..................................................................... AR
7 00-274524-00002 Blower Motor (120 V.) .................................................................................................................... 1
8 SC-113-26 Mach. Screw 1/4-20 x 5/8 Hex Hd. ...................................................................................................4
(Nat. or LP Gas) ....................................................................................................................... AR
F-43020 (July 2001)
- 92 -
Page 93
CONTROL BOX – GAS HEAT (Cont.)
ILLUS. PART NO. NAME OF PART AMT. PL-55630
9 NS-031-21 Stop Nut – Special
10 WS-003-48 Washer ........................................................................................................................................... 4
11 SD-012-20 Self-Tapping Screw 8-32 x 1/2 Phil. Truss Hd., Type T ...................................................................2
12 00-328650 Air Inlet Channel (Nat. Gas) ........................................................................................................... 1
13 00-529390 Foam Tape (3/4 Wide x 1/16 Thk.) ................................................................................................... AR
14 SD-009-40 Self-Tapping Screw 6-32 x 3/4 Phil. Pan Hd., Type F .....................................................................4
15 00-436853 Ignitor Board (24 VAC) ................................................................................................................... 1
16 00-294325-014-1 Block – Terminal .............................................................................................................................2
17 SD-009-17 Self-Tapping Screw 8-32 x 5/8 Phil. Pan Hd., Type F .....................................................................4
18 00-436102 Bracket – Lid Mounting (Use W/Item 60) ...................................................................................... 1
19 00-436757 Gas Heat Box (Shown) (Use W/Item 60) ..................................................................................... 1
20 00-435022 Gas Heat Box (Use W/Item 59) .................................................................................................... 1
21 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 7
22 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................7
23 WS-017-06 Washer ........................................................................................................................................... 7
24 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 1
25 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................1
26 00-119244 Cap & Stud Assy. ........................................................................................................................... 1
27 00-067500-00031 O-Ring ............................................................................................................................................ 1
28 00-119254 Retainer – Cap & Stud ................................................................................................................... 1
29 00-274514-00001 Bracket ........................................................................................................................................... 1
30 SC-067-07 Mach. Screw 10-24 x 1/2 Hex Hd. (SST) ....................................................................................... 2
31 NS-031-15 Stop Nut 10-24 Hex (SST) ............................................................................................................2
32 00-271122 Bracket – Thermostat .................................................................................................................... 1
33 00-087711-00221 Switch – Door S.P.D.T. ................................................................................................................... 1
34 00-270280 Insulator – Door Switch ................................................................................................................. 1
35 SC-112-90 Mach. Screw 4-40 x 1 Pan Hd. ..................................................................................................... 2
36 WL-003-03 Lockwasher #4 Medium ................................................................................................................2
37 NS-009-02 Mach. Nut 4-40 Hex ....................................................................................................................... 2
38 00-271123 Protector – High Limit .................................................................................................................... 1
39 00-328758 Jumper Wire – Socket Type Connector (Use W/Item 38) ........................................................... 2
40 00-293946 Sleeve – Lead ................................................................................................................................ 1
41 SC-021-08 Mach. Screw 6-32 x 3/8 Rd. Hd. (SST) ........................................................................................... 2
42 NS-031-50 Stop Nut 6-32 Hex (SST) .............................................................................................................. 2
43 SC-113-26 Mach. Screw 1/4-20 x 5/8 Hex Hd. ...................................................................................................2
44 WS-003-48 Washer ........................................................................................................................................... 2
45 NS-031-21 Stop Nut – Special 1/4-20 Hex ........................................................................................................ 2
46 00-435046 Control Plate ...................................................................................................................................1
47 SC-018-01 Mach. Screw 10-24 x 3/8 Pan Hd. .................................................................................................. 3
48 WL-014-07 Lockwasher #10 External Shakeproof (SST) ............................................................................... 3
49 00-436745 Gasket – Lid ................................................................................................................................... 1
50 WS-029-79 Washer ......................................................................................................................................... AR
51 WL-006-07 Lockwasher #10 Medium ............................................................................................................ AR
52 SC-067-07 Machine Screw 10-24 x 1/2 Hex Hd. (SST) ................................................................................. AR
53 NS-031-15 Stop Nut 10-24 Hex (SST) ............................................................................................................3
54 00-435024 Eye – Box ....................................................................................................................................... 1
55 NS-035-25 Lock Nut 3/4-16 Palnut ....................................................................................................................1
56 00-435375 Data Plate (L.P. Gas) ..................................................................................................................... 1
57 00-435374 Data Plate (Natural Gas) ...............................................................................................................1
58 00-114247-00001 Drive Rivet ..................................................................................................................................... 2
59 00-435023-00001 Lid – Gas Heat Box (W/O Notches) .............................................................................................1
60 00-436101-00001 Lid – Gas Heat Box (Shown) (W/Notches) .................................................................................. 1
61 00-271146 Cable – High Voltage ...................................................................................................................... 1
62 SD-009-05 Self-Tapping Screw 6-32 x 5/16 Phil. Rd. Hd.,Type F ...................................................................... 1
00-294357-00001 Housing – Connector (Nat.) ........................................................................................................ AR
00-294357-00002 Housing – Connector (Black) ...................................................................................................... AR
00-294677-00003 Clamp – Wire (3/4 I.D.) .................................................................................................................... 3
NS-031-16 Stop Nut 10-24 Hex (SST) ............................................................................................................ 3
00-526408 Foam Tape ................................................................................................................................... AR
00-436766 Lid Assy. (Natural Gas) (Incls. Items 49, 57, 58, & 59) ................................................................1
00-436767 Lid Assy. (Natural Gas) (Incls. Items 49, 57, 58, & 60) ................................................................1
00-436768 Lid Assy. (L.P. Gas) (Incls. Items 49, 56, 58, & 60) ...................................................................... 1
1
/4-20 Hex ........................................................................................................ 4
- 93 -
F-43020 (July 2001)
Page 94
1-2-3-4
5
22-23-24
21
20
Previous Construction
6
7
8
9
10-11-12-13
F-43020 (July 2001)
19
14
17 18
15
16
GAS BURNER AND FLUE
- 94 -
PL-55638
Page 95
GAS BURNER AND FLUE
ILLUS. PART NO. NAME OF PART AMT. PL-55638
1 SC-041-14 Cap Screw 5/16-18 x 11/8 Hex Hd. (SST) ...................................................................................... AR
2 WS-017-08 Washer ......................................................................................................................................... AR
3 WL-006-22 Lockwasher 5/16 Light ................................................................................................................... AR
4 NS-015-11 Nut 5/16-18 Hex .............................................................................................................................. AR
5 00-274495 Tube – Immersion (With O-Ring Sealing Flange) ......................................................................... 1
6 00-435952 Flange – Immersion Tube .............................................................................................................. 1
7 00-067500-00123 O-Ring ............................................................................................................................................ 1
8 00-067500-00122 O-Ring ............................................................................................................................................ 2
9 00-436087 Tube – Immersion (W/Gasket Sealing Flange) ............................................................................. 1
10 SC-121-43 Cap Screw 7/16-14 x 13/4 Hex Hd. ................................................................................................. AR
11 WS-021-07 Washer ......................................................................................................................................... AR
12 WL-019-77 Lockwasher 7/16 Medium .............................................................................................................. AR
13 NS-047-97 Nut 7/16-14 Hex .............................................................................................................................. AR
14 00-435952 Flange – Immersion Tube .............................................................................................................. 1
15 00-436100 Gasket – Immersion Tube ............................................................................................................. 2
16 SC-066-06 Mach. Screw 10-24 x 1/2 Phil. Truss Hd. (SST) .............................................................................. 5
17 00-274496-00001 Shroud ............................................................................................................................................1
18 00-274544 Shroud Assy. (Incls. Items 16, 17, 19, & 20)................................................................................. 1
19 00-274520 Insulation ........................................................................................................................................ 1
20 00-274498-00001 Liner – Shroud ................................................................................................................................ 1
21 00-274565 Flue ................................................................................................................................................. 1
22 NS-015-01 Nut 1/4-20 Hex (SST) ..................................................................................................................... 11
23 WL-006-17 Lockwasher 1/4 Medium ................................................................................................................ 11
24 WS-017-06 Washer .......................................................................................................................................... 11
- 95 -
F-43020 (July 2001)
Page 96
15
14 Previous Construction
39
17
57
38
56
16
DIM.
55 54
31-32
1
66
Previous Construction
DIM.
53
33
12
44 45
2-3-4
DIM.
65
46
47 THRU 50
62
26
28
27
25
34 THRU 37
29
30
21 THRU 24
DIM.
63 64
7-8
6
42 43
58
59
9-10-11
DIM.
61 60
40 41
18 19 20
15 14
16
13
5
OR
51 52
GAS HEAT COMPONENTS
ILLUS. PART NO. NAME OF PART AMT. PL-55631
1 FP-015-10 Elbow – Street 3/8 x 90 Deg. ........................................................................................................... 1
2 FP-040-22 Pipe 3/8 x 2 TBE (Use W/Two 2" Valves; Ref. Item 6) .................................................................. AR
3 FP-040-18 Pipe 3/8 x 1 (Use W/Two 21/2" Valves; Ref. Item 5) ....................................................................... AR
4 FP-076-07 Pipe 3/8 x 11/2 (Use W/One 2" Valve and one 21/2" Valve Combination) ....................................... AR
5 - Gas Valve (Dim. 21/2) (Not Available) (Order Items 2, 3, or 4 & Item 6 as Required)................ AR
6 00-436118 Gas Valve (Dim. 2) ......................................................................................................................... 2
7 SC-093-03 Mach. Screw 8-32 x 3/8 Phil. Pan Hd. (SST) .................................................................................. 2
8 WL-014-05 Lockwasher #8 External Shakeproof ............................................................................................ 2
9 00-435028 Electrode Ignition – Natural Gas (Dim. 3) (Marked #659) .......................................................... AR
10 00-436792 Electrode Ignition – Natural Gas (Dim. 31/8) (Marked #665) ....................................................... AR
11 00-436067 Electrode Ignition – L.P. Gas (Dim. 33/8) (Marked #662) ............................................................. AR
12 - Plate – Mounting (Not Available) (Order Items 14 & 16) .............................................................. 1
PL-55631
F-43020 (July 2001)
- 96 -
Page 97
GAS HEAT COMPONENTS (Cont.)
ILLUS. PART NO. NAME OF PART AMT. PL-55631
13 - Gasket (Not Available) (Order Items 14 & 16) ............................................................................. 1
14 00-435960-00002 Plate – Spacer (Shown) ............................................................................................................... AR
15 00-435960-00001 Plate – Spacer (W/O Mounting Holes) ........................................................................................ AR
16 00-435961 Gasket (Service) ......................................................................................................................... AR
17 00-291988-00003 Valve – Gas Cock .......................................................................................................................... 1
18 NS-018-28 Jam Nut 19 WL-014-31 Lockwasher
20 WS-010-40 Washer – Thrust .......................................................................................................................... AR
21 SC-041-14 Cap Screw
22 WS-017-08 Washer ......................................................................................................................................... AR
23 WL-006-22 Lockwasher 5/16 Light ................................................................................................................... AR
24 NS-015-11 Nut
25 00-067500-00072 O-Ring .......................................................................................................................................... AR
****26 00-328495 Probe & Switch Assy. (2 Wire) (Water Level) (Incls. Items 28, 29, & 30) .................................. AR
27 00-186091 Probe & Swich Assy. (4 Wire) (Temperature & Water Level) (Incls. Items 28, 29, & 30) ........... 1
28 00-112467 Retainer – Float ............................................................................................................................ AR
29 RR-010-13 Retaining Ring .............................................................................................................................. AR
30 00-122674 Float Assy. ................................................................................................................................... AR
**31 - Bracket – Orifice Natural Gas (Dim. 3/4) (Marked NG) ............................................................... AR
***32 00-436761 Bracket – Orifice L.P. Gas Only (Dim. 1/2) (Marked NAT/LP) ..................................................... AR
33 00-435591 Bracket – Orifice .......................................................................................................................... AR
34 SC-121-43 Cap Screw 7/16-14 x 13/4 Hex Hd. ...................................................................................................4
35 WL-019-77 Lockwasher 7/16 Medium ................................................................................................................ 4
36 WS-021-07 Washer ........................................................................................................................................... 8
37 NS-047-97 Nut 7/16-14 Hex ................................................................................................................................ 4
38 - Cover – Adjusting (No Longer Available) ...................................................................................... 2
39 NS-031-15 Stop Nut 10-24 Hex (SST) ............................................................................................................2
40 00-435701-00001 Angle Fitting Natural Gas #20 Drill (0.161) ................................................................................... 1
41 00-435701-00002 Angle Fitting L.P. Gas #43 Drill (0.089) .......................................................................................... 1
42 00-435836-00002 Tube – Aluminum (21/8 Lg.) ............................................................................................................. 1
43 00-435836-00001 Tube – Aluminum (21/4 Lg.) (Nat. Gas) .......................................................................................... 1
44 00-063262-00034 Flange & Nipple (Dim. 115/16) ...........................................................................................................1
45 00-063262-00033 Flange & Nipple (Dim. 21/16) (Nat. Gas) ......................................................................................... 1
46 00-063262-00032 Flange & Nipple .............................................................................................................................. 1
47 SC-041-17 Cap Screw 5/16-18 x 11/2 Hex Hd. (SST) ........................................................................................ 2
48 WS-017-08 Washer ........................................................................................................................................... 4
49 WL-006-22 Lockwasher 5/16 Light ..................................................................................................................... 2
50 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2
51 FP-028-07 Pipe Plug 1/4 Sq. Hd. ....................................................................................................................... 1
52 FP-086-62 Tee 3/8 x 1/4 x 3/8 Reducing ............................................................................................................... 1
53 FP-086-63 Pipe 3/8 x 13/8 ................................................................................................................................... 1
54 00-435706-00001 Regulator – Natural Gas ................................................................................................................ 1
55 00-435706-00002 Regulator – L.P. Gas ......................................................................................................................1
56 FP-035-58 Pipe 3/8 x 23/4 ................................................................................................................................... 1
57 FP-026-14 Bushing 1/2 to 3/8 .............................................................................................................................. 1
*58 00-067500-00031 O-Ring .......................................................................................................................................... AR
*59 WS-003-47 Washer ......................................................................................................................................... AR
*60 NS-015-01 Nut 1/4-20 Hex (SST) .................................................................................................................... AR
*61 WL-006-17 Lockwasher 1/4 Medium ............................................................................................................... AR
*62 00-119244-00002 Cap ............................................................................................................................................... AR
63 00-328649 Bracket – Orifice (Nat. Gas) (Shown) (Dim 1/2) (Marked NAT) .................................................... 1
*64 00-436761 Bracket – Orifice (L.P. Gas Only) (Dim 1/2) (Marked LP) .............................................................. 1
65 00-435702 Connector – Male 7/16 ..................................................................................................................... 1
66 00-435762 Gasket ............................................................................................................................................ 2
00-508454 Sealer (1/8 Rd.) .............................................................................................................................. AR
00-526408 Foam Tape ................................................................................................................................... AR
00-546292 Sealer – Pipe ................................................................................................................................ AR
00-065890-00029 Connector – Insulated ................................................................................................................... 2
00-435538 Wire Harness – Ignitor Board ........................................................................................................1
1
/2-20 Hex ...................................................................................................................... AR
1
/2 External Shakeproof (SST) ................................................................................ AR
5
/16-18 x 11/8 Hex Hd. (SST) ...................................................................................... AR
5
/16-18 Hex .............................................................................................................................. AR
*Used on FRC76A, 66A, 80A, or FRC90A machines in place of item 26 in wash tank. **No longer available. Order items 1, 2, 6, 10, 40, 43, 45, 63, & 65 & Part No. 436065. ***Orifice bracket used previously on Nat. & L.P. gas heat machines. ****Must order 2 jumper wires Part No. 328758.
- 97 -
F-43020 (July 2001)
Page 98
Previous Construction
2
THRU
5
1
42
38
39-40-41
36-37
35
30
THRU
27-28
29
34
26
21
25
20
24
23
22
THRU
13
10
15
16
19
Previous Construction
6
THRU
14
PL-55639
9
17
18
F-43020 (July 2001)
ELECTRIC HEAT
- 98 -
Page 99
ELECTRIC HEAT
ILLUS. PART NO. NAME OF PART AMT. PL-55639
**1 - Heater – Tank Electric (Flat Ribbon Type) (Not Available; See Below) ...................................... AR
2 00-435990-00001 Heater – Tank Electric (208 V., 60 Hz./200 V., 50 Hz.) (3 Ph.) ..................................................... 1
3 00-435990-00002 Heater – Tank Electric (240 V., 50/60 Hz.) (3 Ph.) ....................................................................... 1
4 00-435990-00005 Heater – Tank Electric (480 V., 60 Hz.) (3 Ph.) ............................................................................. 1
5 00-435990-00006 Heater – Tank Electric (380 V., 50 Hz.) (3 Ph.) ............................................................................. 1
6 SC-041-13 Cap Screw
7 WS-017-08 Washer ........................................................................................................................................... 2
8 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2
9 NS-015-11 Nut
10 SC-041-13 Cap Screw 5/16-18 x 1 Hex Hd. (SST) ............................................................................................ 6
11 WS-029-05 Washer .......................................................................................................................................... 12
12 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 6
13 NS-015-11 Nut
14 00-112467 Retainer – Float ............................................................................................................................ AR
15 00-067500-00072 O-Ring .......................................................................................................................................... AR
16 00-186091 Probe & Switch Assy. (4 Wire) (Temperature & Water Level) (Incls. Items 14, 17, & 18) .......... 1
17 RR-010-13 Retaining Ring .............................................................................................................................. AR
18 00-122674 Float Assy. ................................................................................................................................... AR
***19 00-328495 Probe & Switch Assy. (2 Wire) (Water Level) (Incls. Items 14, 17, & 18) .................................. AR
20 00-271109 Gasket – Mounting ........................................................................................................................ 1
21 00-271118-00001 Plate – Mounting ............................................................................................................................. 1
*22 NS-015-01 Nut
*23 WL-006-17 Lockwasher 1/4 Medium ............................................................................................................... AR
*24 WS-003-47 Washer ......................................................................................................................................... AR
*25 00-067500-00031 O-Ring .......................................................................................................................................... AR
*26 00-119244-00002 Cap ............................................................................................................................................... AR
27 00-271122 Bracket – Thermostat .................................................................................................................... 1
28 NS-031-15 Stop Nut 10-24 Hex (SST) ............................................................................................................2
29 00-474512-00001 Box – Electric Heat ........................................................................................................................ 1
30 00-293946 Sleeve – Lead ................................................................................................................................ 1
31 00-271123 Protector – High Limit (Order Item 35 as Required) .................................................................... 1
32 SC-021-08 Mach. Screw 6-32 x 3/8 Rd. Hd. (SST) ........................................................................................... 2
33 NS-031-50 Stop Nut 6-32 Hex (SST) .............................................................................................................. 2
34 00-328758 Jumper Wire – Socket-Type Connector (Use W/Item 31) ........................................................... 2
35 00-271168 Insulator – Terminal (Above 250 V.)............................................................................................... 1
36 00-474574-00002 Lid Assy. (Incls. Item 39) ................................................................................................................ 1
37 00-474569 Gasket – Electric Heat Box ........................................................................................................... 1
38 NS-031-15 Stop Nut 10-24 Hex (SST) ............................................................................................................6
39 WS-010-40 Washer – Thrust .......................................................................................................................... AR
40 WL-014-31 Lockwasher 1/2 External Shakeproof (SST) ................................................................................ AR
41 NS-018-28 Jam Nut 1/2-20 Hex ...................................................................................................................... AR
42 00-293598 Gasket – Heater Mounting ............................................................................................................ 1
00-526454 Foam Tape ................................................................................................................................... AR
00-545595 Sealer (1/8 Rd.) .............................................................................................................................. AR
00-294357-00001 Housing – Connector (Nat.) ........................................................................................................ AR
00-294357-00002 Housing – Connector (Black) ...................................................................................................... AR
00-065890-00029 Connector – Insulated ................................................................................................................... 2
5
/16-18 x 1 Hex Hd. (SST) ............................................................................................ 2
5
/16-18 Hex ................................................................................................................................ 2
5
/16-18 Hex ................................................................................................................................ 6
1
/4-20 Hex (SST) .................................................................................................................... AR
*Used on FRC76A, FRC66A, FRC90A, or FRC80A machines in place of item 19 in wash tank. **Order tubular-type heater, items 2 thru 5, as required & wiring kit 00-436074. ***Must order two jumper wires, Part No. 328758.
- 99 -
F-43020 (July 2001)
Page 100
33 34 35
37
38-39
28
40-41-42-43
36
29
44-45-46
47-48-49
31 32
30
1
50
2-3
6-7-8
4
5
27
PL-55666
26
25
24
22 23
CONTROL BOX
21
20
19
18
15 16 17
14
9
10-11
OR
12-13
F-43020 (July 2001)
- 100 -
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
