Hobart D330 PARTS LIST

CATALOG OF

REPLACEMENT

PARTS

D330 Series Mixers ML- 104481

A product of HOBART 701 S. RIDGE AVENUE TROY, OHIO 45374-0001

FORM 19153 Rev. A (April 2016)

D330 Series Mixers ML- 104481 REPLACEMENT PARTS

F-19153 Rev. A (April 2016) - 2 - © HOBART 2016

D330 Series Mixers ML- 104481 REPLACEMENT PARTS

Table of Contents

5 TIMER CONTROL AND SWITCH UNIT
7 ELECTRICAL COMPONENT PANEL - 1 PHASE

9 ELECTRICAL COMPONENT PANEL - 3 PHASE
11 BASE AND PEDESTAL
13 SHIFTER UNIT
15 TRANSMISSION CASE
17 MOTOR PARTS - 1 PHASE
19 MOTOR PARTS - 3 PHASE
21 TRANSMISSION
23 PLANETARY AND ATTACHMENT HUB
25 BOWL GUARD UNIT
27 BOWL LIFT UNIT
29 BOWL
31 AGITATORS

- 3 - F-19153 Rev. A (April 2016)

D330 Series Mixers ML- 104481 REPLACEMENT PARTS

TIMER CONTROL AND SWITCH UNIT

F-19153 Rev. A (April 2016) - 4 -

D330 Series Mixers ML- 104481 REPLACEMENT PARTS

TIMER CONTROL AND SWITCH UNIT

ILLUS.
PL-51512

10 00-271313 Insulator - Timer.........................................................................................................................1

11 SC-013-07 Mach. Screw 5-40 x 1/4 Flat Hd.................................................................................................2

12 SD-024-01 Self-Tapping Screw 10-24 x 3/8 Pan Hd., Type TT....................................................................4

13 00-087711-183-4 Switch - Push Button (N.O.).......................................................................................................1

14 00-438488 NLA - Obsolete--Buzzer.............................................................................................................1

15 00-102467-00001 Cap - Push Button (Start) (Black)...............................................................................................1

16 SC-053-38 Mach. Screw 6-32 x 1/4 Truss Hd. (SST)...................................................................................4

17 00-087711-183-2 Switch - Push Button (N.C.).......................................................................................................1

18 00-087711-183-3 Switch - Push Button (N.C.).......................................................................................................1

19 00-102467-00002 Cap - Push Button (Stop) (Red).................................................................................................1

20 SD-024-01 Self-Tapping Screw 10-24 x 3/8 Pan Hd., Type TT....................................................................4

21 00-437775 Knob - Potentiometer.................................................................................................................1

22 00-437742 Seal - Shaft.................................................................................................................................1

23 00-438323-00001 Switch Plate & Keypad Assy. (120 VAC)...................................................................................1

24 00-438355-00001 NLA - Obsolete--Board Assy. (120 VAC)...................................................................................1

25 00-438355-00002 NLA - Obsolete--Board Assy. (240 VAC)...................................................................................1

26 NS-046-17 Stop Nut 4-40 Hex......................................................................................................................2

PART NO. NAME OF PART AMT.

1 00-271312 Plate - Switch & Timer................................................................................................................1

2 SC-013-12 Mach. Screw 6-32 x 1/4 Flat Hd.................................................................................................4

3 00-087711-183-4 Switch - Push Button (N.O.).......................................................................................................1

4 00-102467-00001 Cap - Push Button (Start) (Black)...............................................................................................1

5 00-087711-183-2 Switch - Push Button (N.C.).......................................................................................................1

6 00-102467-00002 Cap - Push Button (Stop) (Red).................................................................................................1

7 00-291748 Knob - Timer...............................................................................................................................1

8 00-294650-004-1 Timer Assy. (115 V., 60 Hz.)......................................................................................................1

9 00-294650-004-2 Timer Assy. (200/300 V., 60 Hz.)...............................................................................................1

- 5 - F-19153 Rev. A (April 2016)

D330 Series Mixers ML- 104481 REPLACEMENT PARTS

ELECTRICAL COMPONENT PANEL - 1 PHASE

F-19153 Rev. A (April 2016) - 6 -

D330 Series Mixers ML- 104481 REPLACEMENT PARTS

ELECTRICAL COMPONENT PANEL - 1 PHASE

ILLUS.
PL-55617

*10 Heater Element (Overload Relay)...........................................................................................AR

11 SC-060-03 Mach. Screw 10-24 x 3/4 Rd. Hd...............................................................................................1

12 WL-007-12 Lockwasher 10 External Shakeproof..........................................................................................1

13 00-070486-00002 Cap - Capacitor End...................................................................................................................1

14 SD-015-20 Self-Tapping Screw 10-32 x 3/8 Phil. Pan Hd., Type TT............................................................1

15 00-078752-00009 Clamp - Cable............................................................................................................................1

16 00-070487-00006 Capacitor (Motor Start)...............................................................................................................1

17 SD-029-06 Self-Tapping Screw 10-24 x 1/2 Phil. Flat Hd., Type F..............................................................2

18 00-066621-00001 Bracket - Capacitor (Motor Start)...............................................................................................1

19 00-274034 Capacitor (Motor Run)................................................................................................................1

20 SD-015-20 Self-Tapping Screw 10-32 x 3/8 Phil. Pan Hd., Type TT............................................................1

21 WL-007-12 Lockwasher 10 External Shakeproof..........................................................................................2

22 00-118544-00001 Lug - Solderless.........................................................................................................................1

23 SD-015-20 Self-Tapping Screw 10-32 x 3/8 Phil. Pan Hd., Type TT............................................................2

24 00-274032 Bracket - Capacitor (Motor Run)................................................................................................1

25 00-274033 Nut - Well (Component Bracket)................................................................................................2

26 SC-060-85 Mach. Screw 10-24 x 1 Rd. Hd..................................................................................................2

27 WL-007-12 Lockwasher 10 External Shakeproof..........................................................................................2

28 SD-015-20 Self-Tapping Screw 10-32 x 3/8 Phil. Pan Hd., Type TT............................................................1

29 00-078752-00009 Clamp - Cable............................................................................................................................1

30 SD-015-20 Self-Tapping Screw 10-32 x 3/8 Phil. Pan Hd., Type TT............................................................2

31 00-087525-00669 Lead Wire Assy..........................................................................................................................1

PART NO. NAME OF PART AMT.

1 00-274031 Bracket - Support (Component Panel).......................................................................................1

2 00-087713-037-1 Contactor (220 V. Coil) (2 Pole).................................................................................................1

3 00-087713-037-2 Contactor (115 V. Coil) (2 Pole).................................................................................................1

4 SD-015-20 Self-Tapping Screw 10-32 x 3/8 Phil. Pan Hd., Type TT............................................................2

5 00-274027 Panel - Component Mounting.....................................................................................................1

6 00-078752-00009 Clamp - Cable............................................................................................................................1

7 SD-015-20 Self-Tapping Screw 10-32 x 3/8 Phil. Pan Hd., Type TT............................................................1

8 SD-015-20 Self-Tapping Screw 10-32 x 3/8 Phil. Pan Hd., Type TT............................................................2

9 00-088196-006-1 Relay - Thermal Overload (1 Ph.)..............................................................................................1

00-113703 Cable Tie.................................................................................................................................AR

* Give Elec. Spec., Mach. Model, & Motor Type

- 7 - F-19153 Rev. A (April 2016)

D330 Series Mixers ML- 104481 REPLACEMENT PARTS

ELECTRICAL COMPONENT PANEL - 3 PHASE

F-19153 Rev. A (April 2016) - 8 -

D330 Series Mixers ML- 104481 REPLACEMENT PARTS

ELECTRICAL COMPONENT PANEL - 3 PHASE

ILLUS.
PL-55620

10 SC-060-03 Mach. Screw 10-24 x 3/4 Rd. Hd...............................................................................................1

11 WL-007-12 Lockwasher 10 External Shakeproof..........................................................................................1

12 SD-015-20 Self-Tapping Screw 10-32 x 3/8 Phil. Pan Hd., Type TT............................................................2

13 SD-033-72 Self-Tapping Screw 10-24 x 7/8 Phil. Pan Hd., Type TT............................................................2

14 00-271336 Terminal Block............................................................................................................................1

15 SD-015-20 Self-Tapping Screw 10-32 x 3/8 Phil. Pan Hd., Type TT............................................................1

16 00-078752-00009 Clamp - Cable............................................................................................................................1

**17 00-294436-00003 Block - Fuse...............................................................................................................................1

**18 FE-009-25 Fuse (250 V., 0.5 Amp.).............................................................................................................1

**19 SD-015-38 Self-Tapping Screw 6-32 x 3/8 Phil. Pan Hd., Type TT..............................................................1

**20 SD-015-20 Self-Tapping Screw 10-32 x 3/8 Phil. Pan Hd., Type TT............................................................2

21 SD-015-20 Self-Tapping Screw 10-32 x 3/8 Phil. Pan Hd., Type TT............................................................1

22 WL-007-12 Lockwasher 10 External Shakeproof..........................................................................................2

23 00-118544-00001 Lug - Solderless.........................................................................................................................1

**24 00-101935 Transformer................................................................................................................................1

25 00-274033 Nut - Well (Component Bracket)................................................................................................2

26 SC-060-85 Mach. Screw 10-24 x 1 Rd. Hd..................................................................................................2

27 WL-007-12 Lockwasher 10 External Shakeproof..........................................................................................2

28 SD-015-20 Self-Tapping Screw 10-32 x 3/8 Phil. Pan Hd., Type TT............................................................1

29 00-078752-00009 Clamp - Cable............................................................................................................................1

30 SD-015-20 Self-Tapping Screw 10-32 x 3/8 Phil. Pan Hd., Type TT............................................................2

31 00-087525-00669 Lead Wire Assy..........................................................................................................................1

PART NO. NAME OF PART AMT.

1 00-274031 Bracket - Support (Component Panel).......................................................................................1

2 00-087713-102-1 Contactor (208/240 V., 60 Hz., 3 Ph.) (30 Amp.) (3 Pole)..........................................................1

3 00-087713-102-2 Contactor (480 V., 60 Hz., 3 Ph.) (30 Amp.) (3 Pole).................................................................1

4 SD-015-20 Self-Tapping Screw 10-32 x 3/8 Phil. Pan Hd., Type TT............................................................2

5 00-274027 Panel - Component Mounting.....................................................................................................1

6 00-078752-00009 Clamp - Cable............................................................................................................................1

7 SD-015-20 Self-Tapping Screw 10-32 x 3/8 Phil. Pan Hd., Type TT............................................................1

8 00-088196-009-1 Relay - Thermal Overload (3 Ph.) (With Overload Protection)...................................................1

*9 Heater Element (Overload Relay)...........................................................................................AR

00-113703 Cable Tie.................................................................................................................................AR

* Give Elec. Spec., Mach. Model, & Motor Type.

** Above 250 V. Machines.

- 9 - F-19153 Rev. A (April 2016)

D330 Series Mixers ML- 104481 REPLACEMENT PARTS

BASE AND PEDESTAL

F-19153 Rev. A (April 2016) - 10 -

D330 Series Mixers ML- 104481 REPLACEMENT PARTS

BASE AND PEDESTAL

ILLUS.
PL-55649

10 SC-023-19 Mach. Screw 1/4-20 x 3/4 Oval Hd. (SST).................................................................................2

11 00-274038 Cover - Top Assy. (Incls. Item 12)..............................................................................................1

12 00-123687-00007 Gasket........................................................................................................................................1

13 00-274668 Vent - Air Intake (1 Phase).........................................................................................................1

14 00-271300-00001 Vent - Air Intake (3 Phase) (Not Shown)....................................................................................1

15 SC-053-41 Mach. Screw 1/4-20 x 1/2 Slotted Truss Hd. (SST)...................................................................2

16 SC-053-41 Mach. Screw 1/4-20 x 1/2 Slotted Truss Hd. (SST)...................................................................1

17 00-271299-00001 Cover - Lift Mechanism..............................................................................................................1

18 00-271284-00002 NLA - Obsolete--Pedestal..........................................................................................................1

19 00-271227-002-2 Base Assy..................................................................................................................................1

20 00-110717-00003 Plug - Base Assy. (Contains Four Plugs in a Bag).....................................................................1

21 WL-004-11 Lockwasher 1/2 Helical..............................................................................................................4

22 SC-120-28 Cap Screw 1/2-13 x 2 Hex Hd....................................................................................................4

23 00-087668-00002 Caster.........................................................................................................................................4

24 00-070590-00001 Leg (6 Lg.) (30 Qt.).....................................................................................................................4

25 00-315015 Bowl Truck Assy. (Incls. Items 23, 24, & 26)..............................................................................1

26 00-018682-00001 Foot............................................................................................................................................4

27 SC-112-65 Set Screw 5/16-18 x 3/4 Hdls., Cone Pt.....................................................................................2

28 SC-047-30 Set Screw 5/16-18 x 5/16 Hdls., Flat Pt.....................................................................................2

29 SC-036-11 NLA - Obsolete--Cap Screw 1/4-20 x 2 Hex Hd.........................................................................2

30 WL-006-16 Lockwasher 1/4 Helical (SST)....................................................................................................2

31 SC-109-85 NLA - Obsolete--Set Screw 5/16-18 x 1 1/2 Hdls., Oval Pt........................................................1

32 NS-017-08 Jam Nut 5/16-18 Hex.................................................................................................................1

33 00-271267 Block - Stop................................................................................................................................1

34 SC-063-33 Set Screw 3/8-16 x 3/8 Hdls., Flat Pt.........................................................................................2

35 SC-036-06 Cap Screw 1/4-20 x 1 Hex Hd....................................................................................................4

36 WL-006-16 Lockwasher 1/4 Helical (SST)....................................................................................................4

37 00-087711-306-1 Switch - Bowl Height Sensing....................................................................................................1

38 00-438577 Bracket - Sensor.........................................................................................................................1

39 WL-006-16 Lockwasher 1/4 Light (Use to Mount Item 38) (SST).................................................................1

40 NS-013-02 Nut 1/4-20 Hex (Use to Mount Item 38).....................................................................................1

41 00-271343 Grommet - Handle......................................................................................................................1

42 00-011800-00118 Dowel.........................................................................................................................................2

PART NO. NAME OF PART AMT.

1 00-437824 Cover - Bowl Support.................................................................................................................1

2 00-070641-00001 Thumb Screw.............................................................................................................................4

3 SC-061-06 Cap Screw 5/16-18 x 13/4 Flat Hd.............................................................................................8

4 00-271257 NLA - Obsolete--Gib - Upper......................................................................................................2

5 00-271265-00001 Shim - Gib (0.003 Thk.)...........................................................................................................AR

6 00-271265-00002 Shim - Gib (0.005 Thk.)...........................................................................................................AR

7 00-271265-00003 Shim - Gib (0.010 Thk.)...........................................................................................................AR

8 00-271262 NLA - Obsolete--Gib - Center.....................................................................................................2

9 00-271260 NLA - Obsolete--Gib - Lower......................................................................................................2

- 11 - F-19153 Rev. A (April 2016)

D330 Series Mixers ML- 104481 REPLACEMENT PARTS

SHIFTER UNIT

F-19153 Rev. A (April 2016) - 12 -

D330 Series Mixers ML- 104481 REPLACEMENT PARTS

SHIFTER UNIT

ILLUS.
PL-55653

10 PS-003-08 Spiral Pin 1/8 Dia. x 3/4 Lg.........................................................................................................1

11 00-873504 Cam - Gear Shifter.....................................................................................................................1

12 00-271291 Rod - Shifter Guide.....................................................................................................................1

13 00-271245-00002 Yoke - Shifter..............................................................................................................................1

14 00-012733 Plunger - Shifter Yoke................................................................................................................2

15 00-012734 Spring - Shifter Yoke..................................................................................................................2

16 00-012732 Retainer - Shifter Yoke Spring....................................................................................................2

17 BA-002-09 Ball 1/4 Dia.................................................................................................................................2

18 00-111170 Spring - Detent...........................................................................................................................2

19 SC-021-05 Mach. Screw 4-40 x 5/8 Rd. Hd. (SST)......................................................................................2

20 WL-003-01 Lockwasher #4 Light..................................................................................................................2

21 00-271315 Switch - Interlock (10 Amp., 250 VAC).......................................................................................1

22 00-271277 Plate - Switch Mounting..............................................................................................................1

23 WL-003-20 Lockwasher #10 Light................................................................................................................2

24 SC-009-25 Mach. Screw 10-24 x 5/8 Slotted Rd. Hd...................................................................................2

25 00-070085 Knob - Shifter Handle Ball..........................................................................................................1

PART NO. NAME OF PART AMT.

1 SC-047-17 Set Screw 1/4-20 x 3/4 Hdls., Cup Pt.........................................................................................1

2 00-291272 Shifter Handle Assy. (Incls. Items 1 & 25)..................................................................................1

3 00-110961 Grommet - Shifter Handle..........................................................................................................1

4 00-271276 Cam - Interlock Assy..................................................................................................................1

5 SC-047-70 Set Screw 10-32 x 3/8 Hdls., Cup Pt..........................................................................................1

6 00-875238 Shaft - Shifter.............................................................................................................................1

7 00-290115-00001 Plate - Index...............................................................................................................................1

8 00-067500-00044 O-Ring........................................................................................................................................1

9 00-023946 Gasket - Index Plate................................................................................................................AR

- 13 - F-19153 Rev. A (April 2016)

D330 Series Mixers ML- 104481 REPLACEMENT PARTS

TRANSMISSION CASE

F-19153 Rev. A (April 2016) - 14 -

D330 Series Mixers ML- 104481 REPLACEMENT PARTS

TRANSMISSION CASE

ILLUS.
PL-55648

10 WL-003-37 Lockwasher 1/4 Medium............................................................................................................4

11 00-271225-00002 Retainer - Bearing (Worm Gear Shaft).......................................................................................1

12 00-011800-00249 Dowel.........................................................................................................................................2

13 00-271218-002-1 Transmission Case Cover Assy.................................................................................................1

14 00-271340 Bar - Reinforcing........................................................................................................................6

15 WL-004-06 Lockwasher 3/8 Helical..............................................................................................................6

16 SC-116-83 Cap Screw 3/8-16 x 1 1/2 Hex Hd..............................................................................................6

17 00-011800-00118 Dowel.........................................................................................................................................2

18 00-437809 Gasket - Reed Housing..............................................................................................................1

19 00-437793-00002 Housing - Reed..........................................................................................................................1

20 SC-022-22 Mach. Screw 10-24 x 3/4 Flat Hd. (SST)....................................................................................2

21 00-437435 Spring - Reed Switch..................................................................................................................1

22 00-08771-304-1 Housing - Reed Switch...............................................................................................................1

23 SC-122-48 Mach. Screw 8-32 x 13/4 Rd. Hd. (SST)....................................................................................1

24 SC-018-50 Mach. Screw 6-32 x 1/4 Pan Hd.................................................................................................2

25 NS-031-08 Nut - Stop Special 8 x 32 Hex (SST)..........................................................................................1

26 FP-085-17 Pipe Plug 5/8 Hex Socket...........................................................................................................1

PART NO. NAME OF PART AMT.

1 00-271206-002-2 NLA - Obsolete--Case - Transmission (ML-104483, ML-104484, & ML-134118)......................1

2 WL-003-44 Lockwasher 5/16 Helical............................................................................................................7

3 SC-120-38 Cap Screw 5/16-18 x 1 Hex Hd..................................................................................................7

4 WL-003-37 Lockwasher 1/4 Medium............................................................................................................4

5 SC-036-06 Cap Screw 1/4-20 x 1 Hex Hd....................................................................................................4

6 00-064871 Plug - Friction.............................................................................................................................1

7 00-271222-00002 Retainer - Bearing (Planetary Shaft)..........................................................................................1

8 SC-047-70 Set Screw 10-32 x 3/8 Hdls., Cup Pt..........................................................................................2

9 SC-036-06 Cap Screw 1/4-20 x 1 Hex Hd....................................................................................................4

00-068288 Shim (Between Trans. Case & Pedestal) (Not Shown)...........................................................AR

- 15 - F-19153 Rev. A (April 2016)

D330 Series Mixers ML- 104481 REPLACEMENT PARTS

MOTOR PARTS - 1 PHASE

F-19153 Rev. A (April 2016) - 16 -

D330 Series Mixers ML- 104481 REPLACEMENT PARTS

MOTOR PARTS - 1 PHASE

ILLUS.
PL-55646

10 00-435868 NLA - Obsolete--Shroud - Motor................................................................................................1

11 00-271335-00001 NLA - Obsolete--Bolt - Motor (1-Phase).....................................................................................4

12 WL-003-22 Lockwasher #10 Light................................................................................................................4

13 SC-018-34 Mach. Screw 8-32 x 1/2 Phil. Pan Hd.........................................................................................3

14 WL-003-12 Lockwasher #8 Helical...............................................................................................................3

15 00-873505-00002 Housing - Motor (Front)..............................................................................................................1

16 BB-015-08 Bearing - Ball..............................................................................................................................1

17 SL-005-04 Spring - Loading.........................................................................................................................1

18 OR-001-01 O-Ring........................................................................................................................................1

19 00-873508 Oil Seal.......................................................................................................................................1

PART NO. NAME OF PART AMT.

1 00-022275-00276 Rotor Assy. (1 Phase)................................................................................................................1

2 00-065477-162-1 Stator Assy. (120/240 V., 60 Hz.)...............................................................................................1

3 00-065477-162-2 Stator Assy. (208 V., 60 Hz.)......................................................................................................1

4 00-435867-00002 NLA - Obsolete--Housing - Motor (Rear)....................................................................................1

5 SC-009-49 Mach. Screw 6-32 x 3/8 Rd. Hd.................................................................................................2

6 00-121110 Switch - Starting (Stationary Part)..............................................................................................1

7 BB-005-34 Ball Bearing................................................................................................................................1

8 RR-011-05 Retaining Ring............................................................................................................................1

9 00-292466-00001 Fan - Ventilating.........................................................................................................................1

00-275152 Shim........................................................................................................................................AR

00-271255-00003 NLA - Obsolete--Motor Assy. (120/230 V., 60 Hz.)....................................................................1

00-271255-00004 NLA - Obsolete--Motor Assy. (208 V., 60 Hz.)...........................................................................1

- 17 - F-19153 Rev. A (April 2016)

D330 Series Mixers ML- 104481 REPLACEMENT PARTS

MOTOR PARTS - 3 PHASE

F-19153 Rev. A (April 2016) - 18 -

D330 Series Mixers ML- 104481 REPLACEMENT PARTS

MOTOR PARTS - 3 PHASE

ILLUS.
PL-55619

10 WL-003-22 Lockwasher #10 Light................................................................................................................4

11 SC018-34 Mach. Screw 8-32 x 1/2 Phil. Pan Hd.........................................................................................3

12 WL-003-12 Lockwasher #8 Helical...............................................................................................................3

13 00-271254-00002 Housing - Motor (Front)..............................................................................................................1

14 BB-015-08 Ball Bearing (MRC 105KSZZ-01-ST-A-92-C).............................................................................1

15 SL-005-04 Spring - Loading.........................................................................................................................1

16 OR-001-01 O-Ring........................................................................................................................................1

PART NO. NAME OF PART AMT.

1 00-015747-00312 Rotor Assy. (3 Phase)................................................................................................................1

2 65478-184-1 Stator Assy. (208 V., 60 Hz.)......................................................................................................1

3 65478-184-2 NLA - Obsolete--Stator Assy (240/480 V., 60 Hz.).....................................................................1

4 00-435867-00002 NLA - Obsolete--Housing - Motor (Rear)....................................................................................1

5 BB-005-34 Ball Bearing (N.D. #Z99504)......................................................................................................1

6 RR-011-5 Retaining Ring............................................................................................................................1

7 00-292466-00001 Fan - Ventilating.........................................................................................................................1

8 00-435868 NLA - Obsolete--Shroud - Motor................................................................................................1

9 00-271335-00002 Bolt - Motor (3 Phase)................................................................................................................4

00-275152 Shim........................................................................................................................................AR

00-271256-00003 NLA - Obsolete--Motor Assy. (208 V., 60 Hz.) (For Service Use 00-875334-00001)

...................................................................................................................................................1

00-875334-00001 Motor Assy. (208 V., 60 Hz.) (Replacement for 00-271256-00003)...........................................1

00-271256-00004 NLA - Obsolete--Motor Assy. (240/480 V., 60 Hz.) (For Service Use

00-875334-00002)......................................................................................................................1

00-875334-00002 Motor Assy. (240/480 V., 60 Hz.) (Replacement for 00-271256-00004)....................................1

- 19 - F-19153 Rev. A (April 2016)

D330 Series Mixers ML- 104481 REPLACEMENT PARTS

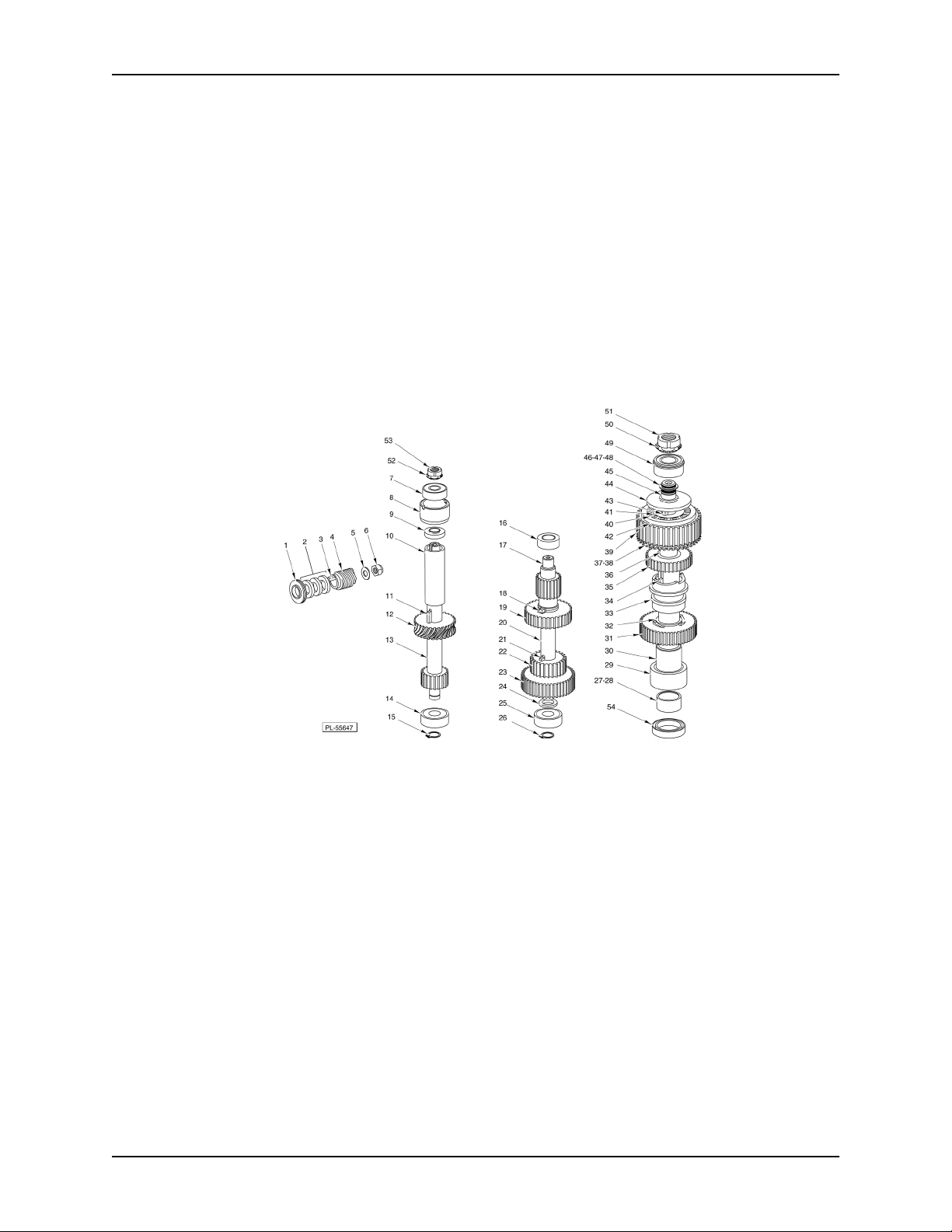

TRANSMISSION

F-19153 Rev. A (April 2016) - 20 -

D330 Series Mixers ML- 104481 REPLACEMENT PARTS

TRANSMISSION

ILLUS.
PL-55647

10 00-271280 Spacer (Worm Gear)..................................................................................................................1

11 00-012430-00151 Key 1/4 Sq. x 15/16 Lg...............................................................................................................1

12 00-271244 Gear - Worm (29T) (60 Hz.).......................................................................................................1

13 00-271242 Shaft - Worm Gear.....................................................................................................................1

14 BB-020-06 Ball Bearing (Fafnir 204KDFA51580).........................................................................................1

15 RR-004-07 Retaining Ring............................................................................................................................1

16 BB-005-46 Ball Bearing (Fafnir 204KDDFS50545)......................................................................................1

17 00-271238 Shaft - Transmission..................................................................................................................1

18 00-012430-00138 Key 1/4 Sq. x 3/4 Lg...................................................................................................................1

19 00-271239 Gear (36T)..................................................................................................................................1

20 00-271282 Spacer........................................................................................................................................1

21 00-012430-00152 Key 1/4 Sq. x 113/16 Lg.............................................................................................................1

22 00-271240 Gear (27T)..................................................................................................................................1

23 00-271241 Gear (44T)..................................................................................................................................1

24 00-271283 Spacer - Lower Center Shaft......................................................................................................1

25 BB-020-06 Ball Bearing (Fafnir 204KDFA51580).........................................................................................1

26 RR-004-07 Retaining Ring............................................................................................................................1

27 00-067500-00070 O-Ring........................................................................................................................................1

28 00-437599 Seal - Hub..................................................................................................................................1

29 BB-015-36 Ball Bearing - Hoover (NSK 6007 DDUCE1SRIS).....................................................................1

30 00-271278 Spacer - Lower Planetary Shaft.................................................................................................1

31 00-271237 Gear - Lower Clutch (46T)..........................................................................................................1

32 00-271287 Bearing - Lower Clutch Gear......................................................................................................1

33 00-271226-00002 Sleeve - Clutch...........................................................................................................................1

34 00-012430-00182 Key 1/4 Sq. x 2 Lg......................................................................................................................2

35 00-271236 Gear - Upper Clutch (33T)..........................................................................................................1

36 00-271285 Bearing - Upper Clutch Drive.....................................................................................................1

37 00-271234 Gear - Bevel (45T)......................................................................................................................1

38 00-271234-00002 Gear - Bevel (45T) (Starting with Serial No. 31-1101-889, 01/13/97)........................................1

39 00-271233 Gear - Roller Clutch (SST).........................................................................................................1

40 00-271289 Spring - Roller..........................................................................................................................10

41 00-271288 Roller - Clutch...........................................................................................................................10

42 00-271279 Sleeve - Drive.............................................................................................................................1

43 00-109070-00028 Key.............................................................................................................................................1

44 00-271286 Spacer - Planetary Shaft............................................................................................................1

45 00-271229 Planetary Shaft...........................................................................................................................1

46 WS-030-25 Washer (0.002 Thk.)................................................................................................................AR

47 WS-030-26 Washer (0.003 Thk.)................................................................................................................AR

48 WS-030-27 Washer (0.010 Thk.)................................................................................................................AR

49 BB-021-22 Ball Bearing (SKF 5205A2ZNRC3)............................................................................................1

50 WL-012-06 Lockwasher N.D. #W-05............................................................................................................1

51 NS-034-06 Lock Nut - Bearing......................................................................................................................1

52 WL-012-04 Lockwasher................................................................................................................................1

53 NS-034-04 Lock Nut.....................................................................................................................................1

54 00-271341 Seal - Planetary Shaft................................................................................................................1

PART NO. NAME OF PART AMT.

1 00-271253 Deflector - Grease......................................................................................................................1

2 00-077840 Washer - Belleville......................................................................................................................6

3 00-012430-00069 Key 3/16 Sq. x 139/64 Lg...........................................................................................................1

4 00-271243 Worm (5T) (60 Hz.)....................................................................................................................1

5 WS-021-01 Washer (SST).............................................................................................................................1

6 NS-047-99 Lock Nut 7/16-20........................................................................................................................1

7 BB-021-21 Ball Bearing................................................................................................................................1

8 00-271301 Sleeve - Worm Gear...................................................................................................................1

9 00-271281 Spacer (Top of Worm Gear).......................................................................................................1

00-437603 Planetary Shaft & Gear Assy. (Incls. Items 27 thru 32 & 45).....................................................1

00-274039 Center Shaft Assy. (Incls. Items 16 thru 26)...............................................................................1

- 21 - F-19153 Rev. A (April 2016)

D330 Series Mixers ML- 104481 REPLACEMENT PARTS

PLANETARY AND ATTACHMENT HUB

F-19153 Rev. A (April 2016) - 22 -

D330 Series Mixers ML- 104481 REPLACEMENT PARTS

PLANETARY AND ATTACHMENT HUB

ILLUS.
PL-55650

10 SC-062-58 Cap Screw 3/8-24 x 11/4 Hex Hd...............................................................................................1

11 WL-006-27 Lockwasher 3/8 Light (SST).......................................................................................................1

12 00-070047-00001 Washer - Planetary.....................................................................................................................1

13 00-114824-00001 Plug - Attachment Hub...............................................................................................................1

14 00-437708 NLA - Obsolete--Cup - Planetary Drip........................................................................................1

15 00-439291-00002 Gear - Internal (59T)...................................................................................................................1

16 SC-089-19 Cap Screw 5/16-18 x 13/8 Soc. Hex Hd.....................................................................................6

17 WL-003-48 Lockwasher 5/16 High Collar.....................................................................................................6

18 00-012430-00173 Key 1/4 Sq. x 2-1/4 Lg................................................................................................................1

19 00-271324-00002 Attachment Drive Gear (34T) & Expansion Plug Assy...............................................................1

20 00-070045-00002 Washer - Thrust (0.119 Thk.)..................................................................................................AR

21 00-070045-00003 Washer - Thrust (0.121 Thk.)..................................................................................................AR

22 00-070045-00004 Washer - Thrust (0.123 Thk.)..................................................................................................AR

23 00-070045-00005 Washer - Thrust (0.127 Thk.)..................................................................................................AR

24 00-070045-00001 Washer - Thrust (0.125 Thk.)..................................................................................................AR

25 00-070045-00006 Washer - Thrust (0.129 Thk.)..................................................................................................AR

26 BN-005-09 Needle Bearing (Torrington TRB 1828)......................................................................................1

27 BN-005-10 Needle Bearing (Torrington NTA-1828).....................................................................................1

28 BN-002-12 Needle Bearing...........................................................................................................................2

29 00-070511-00003 Attachment Hub & Bearing Assy. (Incls. Item 28)......................................................................1

30 00-070090 Seal - Attachment Hub...............................................................................................................1

31 00-108197-00001 Thumb Screw 1-1/4....................................................................................................................1

32 WL-003-43 Lockwasher 5/16 Light...............................................................................................................3

33 SC-040-50 Cap Screw 5/16-18 x 21/4 Soc. Hex Hd.....................................................................................3

PART NO. NAME OF PART AMT.

1 RR-009-19 Retaining Ring............................................................................................................................1

2 00-012430-00180 Key 1/4 Sq. x 13/6 Lg.................................................................................................................1

3 00-435548 Pinion - Agitator Shaft (18T).......................................................................................................1

4 BB-021-34 Ball Bearing................................................................................................................................1

5 00-438240-00002 Planetary (Painted).....................................................................................................................1

6 00-438229 Agitator Shaft Assy. (Incls. Item 7).............................................................................................1

7 00-070019 Pin - Agitator...............................................................................................................................1

8 00-439286 Seal - Agitator Shaft...................................................................................................................1

9 BB-021-35 Ball Bearing................................................................................................................................1

00-438230 Planetary Assy. (Incls. Items 1 thru 6, 8, & 9)............................................................................1

- 23 - F-19153 Rev. A (April 2016)

D330 Series Mixers ML- 104481 REPLACEMENT PARTS

BOWL GUARD UNIT

F-19153 Rev. A (April 2016) - 24 -

D330 Series Mixers ML- 104481 REPLACEMENT PARTS

BOWL GUARD UNIT

ILLUS.
PL-55651

10 SC-122-45 Mach. Screw - Special 1/4-20 x 3/8 Truss Hd. (SST).................................................................2

11 00-437822 NLA - Obsolete--Wire Cage Assy...............................................................................................1

12 SC-122-46 Mach. Screw - Special 1/4-20 x 3/4 Truss Hd. (SST).................................................................2

13 00-437817 Stop - Cage................................................................................................................................1

14 00-437436 Pin - Plunger...............................................................................................................................1

15 00-437799 Housing - Plunger.......................................................................................................................1

16 00-437446-00002 Spring - Cage On/Off..................................................................................................................1

17 00-437432 Plunger.......................................................................................................................................1

18 00-437718-00002 Saddle - Shoe.............................................................................................................................1

19 00-437715 Shoe - Saddle.............................................................................................................................1

20 00-437720 Key - Shoe..................................................................................................................................1

21 SC-122-45 Mach. Screw - Special 1/4-20 x 3/8 Truss Hd. (SST).................................................................2

22 00-437714 Shoe - Adjustable.......................................................................................................................1

23 SC-122-44 Mach. Screw - Special 8-32 x 3/8 Truss Hd. (SST)....................................................................1

24 00-437805 Retainer - Magnet.......................................................................................................................1

25 SC-122-44 Mach. Screw - Special 8-32 x 3/8 Truss Hd. (SST)....................................................................1

PART NO. NAME OF PART AMT.

1 00-070641-00011 Thumb Screw 8-32 Special........................................................................................................3

2 00-479006 Latch - Cage Detent...................................................................................................................1

3 00-478602 Screw - Shoulder........................................................................................................................1

4 NS-031-50 Nut - Stop Special 6-32 Hex (SST)............................................................................................1

5 00-437446-00001 Spring - Cage Detent..................................................................................................................1

6 00-437724 Plunger - Detent.........................................................................................................................1

7 00-437725 Bushing - Detent.........................................................................................................................1

8 00-437792 NLA - Obsolete--Splash Guard & Drip Cup Assy. (Painted)......................................................1

9 00-437713 Shoe - Fixed...............................................................................................................................1

00-438608 Ingredient Chute.........................................................................................................................1

- 25 - F-19153 Rev. A (April 2016)

D330 Series Mixers ML- 104481 REPLACEMENT PARTS

BOWL LIFT UNIT

F-19153 Rev. A (April 2016) - 26 -

D330 Series Mixers ML- 104481 REPLACEMENT PARTS

BOWL LIFT UNIT

ILLUS.
PL-55618

10 SC-036-09 Cap Screw 1/4-20 x 11/4 Hex Hd...............................................................................................2

11 00-271342 Spring - Counterbalance............................................................................................................1

12 00-271345 Bracket - Spring..........................................................................................................................1

13 SC-036-06 Cap Screw 1/4-20 x 1 Hex Hd....................................................................................................2

14 WL-006-16 Lockwasher 1/4 Light (SST).......................................................................................................2

15 NS-013-02 Nut 1/4-20 Hex...........................................................................................................................2

16 RP-002-25 Roll Pin 1/8 Dia. x 7/8 Lg............................................................................................................1

17 00-068718 Rod - Bowl Lift............................................................................................................................1

18 WS-008-47 Washer.......................................................................................................................................1

19 00-271259-00002 Arm - Bowl Lift............................................................................................................................1

20 RP-002-26 Roll Pin 1/4 Dia. x 1 1/8 Lg.........................................................................................................1

21 00-271269-00002 Bearing - Bowl Lift Handle..........................................................................................................1

22 WS-020-01 Washer (SST).............................................................................................................................1

23 RP-002-25 Roll Pin 1/8 Dia. x 7/8 Lg............................................................................................................1

24 00-271322 Handle - Bowl Lift.......................................................................................................................1

25 RP-002-10 Roll Pin 3/16 Dia. x 1 Lg.............................................................................................................1

26 WS-008-47 Washer.......................................................................................................................................1

27 00-438576 Bracket - Lower Lift....................................................................................................................1

28 WL-003-41 Lockwasher 5/16 Light...............................................................................................................2

29 SC-037-75 Cap Screw 5/16-18 x 3/4 Hex Hd...............................................................................................2

30 00-070131 Washer - Cup Bowl Lift...............................................................................................................1

31 00-070104 Spring - Bowl Lift........................................................................................................................1

32 WS-008-47 Washer.......................................................................................................................................1

33 NS-017-31 Jam Nut 1/2-20 Hex...................................................................................................................1

34 00-271346 Bracket - Lower Spring Lift.........................................................................................................1

35 NS-017-31 Jam Nut 1/2-20 Hex...................................................................................................................1

36 00-271319 Bumper.......................................................................................................................................2

37 00-435269-00003 NLA - Obsolete--Support - Bowl.................................................................................................1

38 WL-003-01 Lockwasher #4 Light..................................................................................................................2

39 SC-021-01 Mach. Screw 4-40 x 1/4 Rd. Hd. (SST)......................................................................................2

40 00-120332 Retainer - Magnet.......................................................................................................................1

41 00-111941 Magnet.......................................................................................................................................1

PART NO. NAME OF PART AMT.

1 NS-032-13 Lock Nut 5/16-18 Flexloc............................................................................................................2

2 SC-037-75 Cap Screw 5/16-18 x 3/4 Hex Hd...............................................................................................2

3 00-070411 Pin - Bowl Locating.....................................................................................................................2

4 SC-062-28 Cap Screw 5/16-18 x 3-1/2 Hex Hd............................................................................................2

5 00-070087 Washer - Spring.........................................................................................................................2

6 00-070057 Clamp - Bowl..............................................................................................................................2

7 WS-004-18 Washer.......................................................................................................................................2

8 00-070044 Retainer - Bowl...........................................................................................................................1

9 WL-006-16 Lockwasher 1/4 Light (SST).......................................................................................................2

- 27 - F-19153 Rev. A (April 2016)

D330 Series Mixers ML- 104481 REPLACEMENT PARTS

BOWL

F-19153 Rev. A (April 2016) - 28 -

D330 Series Mixers ML- 104481 REPLACEMENT PARTS

BOWL

ILLUS.
PL-51477

PART NO. NAME OF PART AMT.

1 00-295649 Bowl - 30 Qt. (Tinned)................................................................................................................1

2 00-295646 Bowl - 20 Qt. (Not Shown) (Tinned) (For Service Use 00-295647)............................................1

3 00-437410 Bowl - 30 Qt. (SST)....................................................................................................................1

4 00-295647 Bowl - 20 Qt. (SST)....................................................................................................................1

5 00-438080 Splash Cover Assy. - 30 Qt........................................................................................................1

6 00-438079 Splash Cover Assy. - 20 Qt........................................................................................................1

- 29 - F-19153 Rev. A (April 2016)

D330 Series Mixers ML- 104481 REPLACEMENT PARTS

AGITATORS

F-19153 Rev. A (April 2016) - 30 -

AGITATORS

D330 Series Mixers ML- 104481 REPLACEMENT PARTS

ILLUS.
PL-51492

PART NO. NAME OF PART AMT.

...................................................................................................................................................1

1 00-295120 "E" Dough Arm (Alum.)...............................................................................................................1

2 00-295037 "P" Pastry Knife..........................................................................................................................1

3 00-295163 "I" Wire Whip (SST)....................................................................................................................1

4 00-275450 "B" Flat Beater (Alum.)...............................................................................................................1

5 00-275451 "B" Flat Beater (SST).................................................................................................................1

6 00-275899 "D" Wire Whip (SST)..................................................................................................................1

7 00-295161 "C" Wing Whip............................................................................................................................1

00-315556 "ED" Dough Arm - Spiral (Not Shown) (SST).............................................................................1

...................................................................................................................................................1

1 00-275465 "E" Dough Arm (Alum.)...............................................................................................................1

4 00-275461 "B" Flat Beater (Alum.)...............................................................................................................1

5 00-275462 "B" Flat Beater (SST).................................................................................................................1

6 00-295029 "D" Wire Whip (SST)..................................................................................................................1

7 00-295164 "C" Wing Whip............................................................................................................................1

- 31 - F-19153 Rev. A (April 2016)

D330 Series Mixers ML- 104481 REPLACEMENT PARTS

FORM 19153 Rev. A APRIL 2016 PRINTED IN U.S.A.
