Hobart 6115 Parts List

CATALOG OF

REPLACEMENT

PARTS

MODEL 6115 POTATO PEELER

ML-137600
ML-137601

PRIOR MLS COVERED IN THIS

CATALOG

ML-19869
ML-19683

A product of HOBART 701 S. RIDGE AVENUE TROY, OHIO 45374-0001

FORM 43064 Rev. C (April 2015)

MODEL 6115 POTATO PEELER REPLACEMENT PARTS

F-43064 Rev. C (April 2015) - 2 - © HOBART 2015

MODEL 6115 POTATO PEELER REPLACEMENT PARTS

Table of Contents

5 HOUSING UNIT
7 DRIVE UNIT

9 PEEL TRAP UNIT (ML-16952-Z)
11 LINER

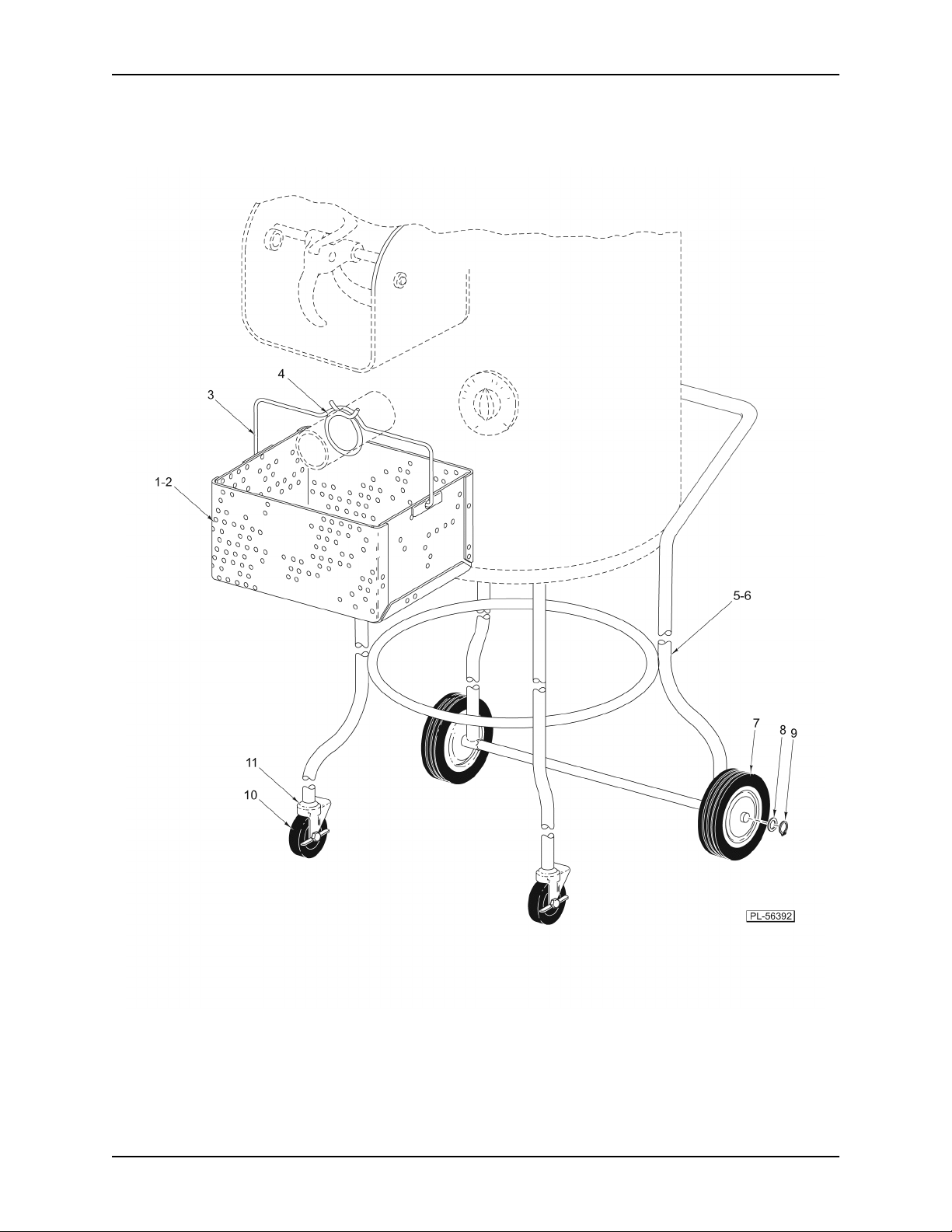

13 PORTABLE STAND AND BASKET

- 3 - F-43064 Rev. C (April 2015)

MODEL 6115 POTATO PEELER REPLACEMENT PARTS

HOUSING UNIT

F-43064 Rev. C (April 2015) - 4 -

MODEL 6115 POTATO PEELER REPLACEMENT PARTS

HOUSING UNIT

ILLUS.
PL-58157

10 SC-025-07 Mach. Screw 10-24 x 5/16 Slotted Bndg. Hd. (SST)................................................................11

11 00-891504 Housing Assy.............................................................................................................................1

12 00-070641-00018 Thumb Screw.............................................................................................................................2

13 NS-031-08 Stop Nut 8-32 Special (SST)......................................................................................................1

14 00-124526 Cover - Reset Button..................................................................................................................1

15 00-124529 Gasket - Reset Cover.................................................................................................................1

16 00-062635-00001 Base - Rubber............................................................................................................................1

*17 00-891510 Timer - Spring Wound (Intermatic) (Incls. Item 20)....................................................................1

18 WS-003-25 Washer.......................................................................................................................................1

19 00-914432 Dial - Adhesive (6430/6460) (Current Construction)..................................................................1

20 00-891509 Knob - Timer (Current Construction)..........................................................................................1

21 SC-021-08 Mach. Screw 6-32 x 3/8 Slotted Rd. Hd. (SST)..........................................................................2

22 WL-014-03 Lockwasher #6 External (SST)...................................................................................................2

23 NS-011-07 Nut 6-32 Hex (SST)....................................................................................................................2

24 NS-018-06 Jam Nut 5/16-18 Hex (SST).......................................................................................................8

25 SC-041-10 Cap Screw 5/16-18 x 5/8 Hex Hd. (SST)...................................................................................4

26 WS-017-08 Washer (SST).............................................................................................................................4

27 00-064351 Cover - Bottom Plate..................................................................................................................1

28 00-538412 Clamp - Hose.............................................................................................................................1

29 00-069642 Hose - Drain...............................................................................................................................1

30 00-291592 Plug - Button (2 In.) (Use With Peel Trap Only).........................................................................1

31 NS-009-22 Nut 10-24 Hex............................................................................................................................1

32 WL-010-06 Lockwasher #10 External Shakeproof........................................................................................1

33 WS-018-09 Washer.......................................................................................................................................1

34 WS-022-16 Washer.......................................................................................................................................1

35 00-063215 Timer Hole Cover & Screw Assy................................................................................................1

36 00-292011-00004 Pin - Lock...................................................................................................................................1

37 00-437454 Door Handle - Locking Assy.......................................................................................................1

38 00-064200-00002 Stud - Latch................................................................................................................................2

39 WL-008-22 Lockwasher 5/16 Internal Shakeproof........................................................................................2

40 NS-018-06 Jam Nut 5/16-18 Hex (SST).......................................................................................................2

41 00-064219 Chute - Housing.........................................................................................................................1

42 00-078145 Bushing - Chute Door.................................................................................................................1

43 00-102826 Door & Seal Assy. (Incls. Items 42 & 44)...................................................................................1

44 00-062372-00001 Seal - Chute Door.......................................................................................................................1

45 00-292011-00002 Pin - Lock...................................................................................................................................1

46 00-062387 Gasket - Chute Housing.............................................................................................................1

47 WS-003-25 Washer.......................................................................................................................................1

48 00-063206 Dial - Timer (Previous Construction)..........................................................................................1

49 00-291748 Knob - Timer (Previous Construction)........................................................................................1

50 00-937924 Kit - Leg (Incls. Items 51 thru 54)...............................................................................................4

51 SC-041-12 Cap Screw 5/16-18 x 7/8 Hex Hd. (SST)...................................................................................4

52 00-937923 Leg Assy. (Incls. Items 53 & 54).................................................................................................4

53 00-914835 Foot - Base.................................................................................................................................4

54 SC-059-32 Cap Screw 5/16-18 x 1 Hex Socket Hd......................................................................................4

55 00-437419 Door & Handle Assy. (Incls. Items 36, 37, & 43)........................................................................1

56 00-914431 Kit - Spring Wound Timer Assy. (Incls. Items 17, 19, 21, 22, & 23)...........................................1

PART NO. NAME OF PART AMT.

1 00-891514 Top - Hopper..............................................................................................................................1

2 00-064350 Fill Tube & Bracket Assy............................................................................................................1

3 NS-025-01 Crown Nut 10-24 (SST)..............................................................................................................4

4 WS-002-30 Washer....................................................................................................................................AR

5 00-063294 Gasket - Fill Assy.......................................................................................................................1

6 SC-025-07 Mach. Screw 10-24 x 5/16 Slotted Bndg. Hd. (SST)..................................................................4

7 00-063242 Clamp - Hose.............................................................................................................................1

8 00-079404-00001 Coupling (1/2 In. Female Pipe x 1/2 In. Tube) (Use With Peel Trap Only).................................1

9 00-063456 Hose - Fill...................................................................................................................................1

* On Machines Built Before March 7, 2006, Order 00-914431

- 5 - F-43064 Rev. C (April 2015)

MODEL 6115 POTATO PEELER REPLACEMENT PARTS

DRIVE UNIT

F-43064 Rev. C (April 2015) - 6 -

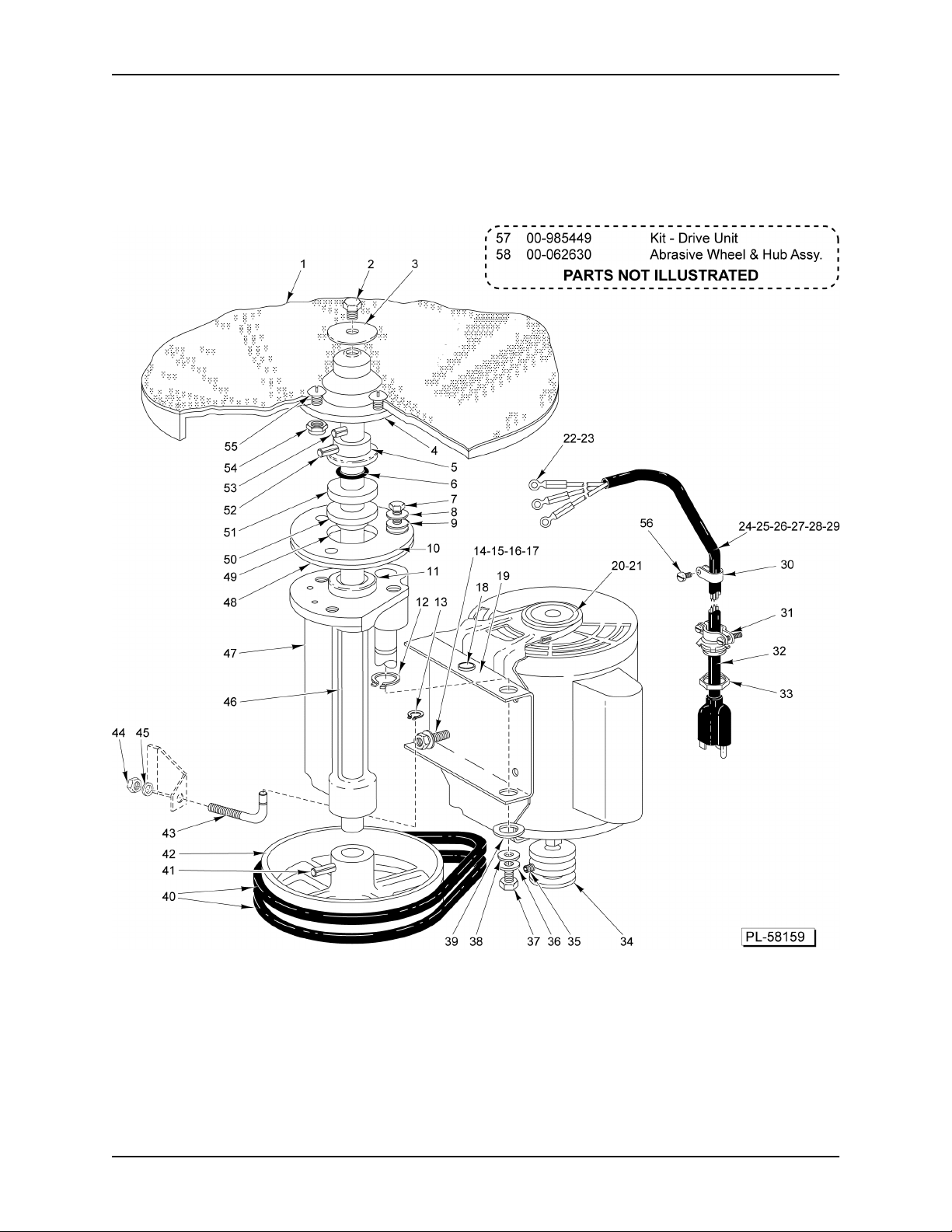

DRIVE UNIT

MODEL 6115 POTATO PEELER REPLACEMENT PARTS

ILLUS.
PL-58159

10 00-063208 Plate - Retaining.........................................................................................................................1

11 00-108394-00046 Sleeve - Bearing.........................................................................................................................2

12 RR-004-18 Retaining Ring............................................................................................................................1

13 RR-007-10 Retaining Ring............................................................................................................................1

14 SC-037-85 Cap Screw 5/16-18 x 1 Hex Hd..................................................................................................4

15 WL-003-44 Lockwasher 5/16 Helical............................................................................................................4

16 NS-013-14 Nut 5/16-18 Hex.........................................................................................................................4

17 WS-017-08 Washer (SST).............................................................................................................................4

18 FE-022-43 Bushing - Electric Snap..............................................................................................................1

19 00-290027 Motor Sub-Base.........................................................................................................................1

20 00-278187-00001 Motor (115/230 V., 60 Hz., 1 Ph.)...............................................................................................1

21 00-278187-00002 Motor (115/220 V., 50 Hz., 1 Ph.)...............................................................................................1

22 SC-007-33 Mach. Screw 8-32 x 3/8 Rd. Hd.................................................................................................1

23 WL-008-07 Lockwasher #8 Internal Shakeproof...........................................................................................1

24 00-117542-00092 Cord & Plug Assy. (3 Cond., 125 V.) (Previous Construction)...................................................1

25 00-117542-00093 Cord & Plug Assy. (Previous Construction)................................................................................1

26 00-117542-00094 Cord Assy. (Previous Construction)...........................................................................................1

27 00-117542-00108 Cord & Plug Assy. (3 Cond., 125 V.) (Current Construction).....................................................1

28 00-117542-00109 Cord & Plug Assy. (Current Construction)..................................................................................1

29 00-117542-00107 Cord Assy. (Current Construction).............................................................................................1

30 00-078752-00003 Clamp - Cable (Cord & Plug)......................................................................................................1

31 FE-002-27 Connector 1/2 Cord....................................................................................................................1

32 FE-026-33 Relief - Strain..............................................................................................................................1

33 FE-006-05 Lock Nut 1/2 ..............................................................................................................................1

34 00-062670 Pulley - Motor.............................................................................................................................1

35 SC-047-26 Set Screw 1/4-28 x 3/8 Soc. Hd., Cup Pt...................................................................................1

36 WL-003-38 Lockwasher 1/4 Helical..............................................................................................................1

37 SC-036-14 Cap Screw 1/4-20 x 1/2 Hex Hd.................................................................................................1

38 WS-003-45 Washer.......................................................................................................................................1

39 WS-010-36 Washer.......................................................................................................................................1

40 00-063267 V-Belt (Order in Pairs Only)........................................................................................................2

41 RP-002-19 Rollpin 3/16 Dia. x 13/8 Lg.........................................................................................................1

42 00-063207 Pulley - Driven............................................................................................................................1

43 00-875580 Tightener - Belt...........................................................................................................................1

44 NS-032-12 Stop Nut 5/16-18 Flexloc............................................................................................................1

45 WS-017-08 Washer (SST).............................................................................................................................1

46 00-062370 Shaft - Main Drive.......................................................................................................................1

47 00-063260 Bearing Carrier & Pivot Shaft Assy. (Incls. Items 11 & 50)........................................................1

48 00-064722 Gasket - Bearing Carrier............................................................................................................1

49 00-067500-00018 O-Ring........................................................................................................................................1

50 00-062368 Flange - Seal..............................................................................................................................1

51 00-062367 Seal - Graphitar..........................................................................................................................1

52 RP-002-18 Rollpin 1/4 Dia. x 1-1/4 Lg..........................................................................................................1

53 RP-002-20 Rollpin 5/16 Dia. x 13/8 Lg.........................................................................................................1

54 NS-032-35 Stop Nut 5/16-18 Flexloc............................................................................................................4

55 SC-041-15 Cap Screw 5/16-18 x 1-1/4 Hex Hd. (SST)................................................................................4

56 SC-007-33 Mach. Screw 8-32 x 3/8 Rd. Hd.................................................................................................1

57 00-985449 Kit - Drive Unit (Incls. Items 5, 6, 11, 40, 49, 51, & 53)..............................................................1

58 00-062630 Abrasive Wheel & Hub Assy. (Incls. Items 1 thru 4, 54, & 55)...................................................1

PART NO. NAME OF PART AMT.

1 00-117105 Abrasive Wheel..........................................................................................................................1

2 SC-067-23 Mach. Screw 5/16-18 x 3/8 Hex Hd............................................................................................1

3 00-070706-00002 Washer - Sealer.........................................................................................................................1

4 00-291252 Hub - Abrasive Wheel................................................................................................................1

5 00-875019 Flange - Drive.............................................................................................................................1

6 00-067500-00009 O-Ring........................................................................................................................................1

7 SC-041-12 Cap Screw 5/16-18 x 7/8 Hex Hd. (SST)...................................................................................3

8 WL-006-23 Lockwasher 5/16 Helical (SST)..................................................................................................3

9 WS-004-21 Washer.......................................................................................................................................3

- 7 - F-43064 Rev. C (April 2015)

MODEL 6115 POTATO PEELER REPLACEMENT PARTS

PEEL TRAP UNIT (ML-16952-Z)

F-43064 Rev. C (April 2015) - 8 -

MODEL 6115 POTATO PEELER REPLACEMENT PARTS

PEEL TRAP UNIT (ML-16952-Z)

ILLUS.
PL-56393

10 00-063273 Hose - Drain (Peel Trap)............................................................................................................1

11 00-291592 Plug - Button (2 In.)....................................................................................................................1

12 00-064953 Gasket - Plug Button..................................................................................................................1

13 00-077620 Inside Leg Clamp and Bolt Assy................................................................................................3

14 00-062601-00002 Gasket - Leg Screw....................................................................................................................3

15 00-077619 Cover - Leg Slot.........................................................................................................................3

16 NS-025-16 Acorn Nut 3/8-16........................................................................................................................6

17 00-077618 Leg - Peel Trap...........................................................................................................................3

18 WS-006-13 Washer (Lead)............................................................................................................................3

19 WS-006-44 Washer.......................................................................................................................................3

20 SC-041-28 Cap Screw 3/8-16 x 3/4 Hex Hd.................................................................................................3

21 00-437460 Strainer Bucket & Door Assy. (Incls. Items 1 thru 7)..................................................................1

22 00-290580 Leg Pack (Set of 3 Legs)............................................................................................................1

PART NO. NAME OF PART AMT.

1 SC-053-05 Mach. Screw 10-24 x 3/8 Slotted Truss Hd. (SST)....................................................................4

2 NS-031-15 Stop Nut 10-24 Hex (SST) (Elastic)...........................................................................................4

3 00-111303-00002 Handle - Door Strainer...............................................................................................................1

4 SC-053-05 Mach. Screw 10-24 x 3/8 Slotted Truss Hd. (SST)....................................................................2

5 NS-031-15 Stop Nut 10-24 Hex (SST) (Elastic)...........................................................................................2

6 00-291437 Door - Strainer............................................................................................................................1

7 00-437461 Strainer Bucket Assy..................................................................................................................1

8 00-064877 Grommet - Drain Hose...............................................................................................................1

9 00-290404 Peel Trap Housing Assy.............................................................................................................1

- 9 - F-43064 Rev. C (April 2015)

MODEL 6115 POTATO PEELER REPLACEMENT PARTS

LINER

F-43064 Rev. C (April 2015) - 10 -

LINER

MODEL 6115 POTATO PEELER REPLACEMENT PARTS

ILLUS.
PL-58158

10 00-479494-00001 Liner Service Assy. (Use For Service).......................................................................................1

PART NO. NAME OF PART AMT.

1 00-479480 Latch - Keeper & Draw...............................................................................................................1

2 SC-021-98 Mach. Screw 8-32 x 3/8 Phil. Rd. Hd. (SST)..............................................................................2

3 NS-031-08 Stop Nut 8-32 Special (SST)......................................................................................................2

4 00-479473 Bracket - Liner............................................................................................................................1

5 WL-006-11 Lockwasher #12 Light (SST)......................................................................................................1

6 SC-066-26 Mach. Screw 12-24 x 1/2 Phil. Truss Hd. (SST).........................................................................1

7 SC-109-62 Mach. Screw 10-24 x 3/8 Slotted Pan Hd..................................................................................2

8 00-479475 Bracket - Liner LH......................................................................................................................2

9 NS-031-15 Stop Nut 10-24 Hex (SST).........................................................................................................2

- 11 - F-43064 Rev. C (April 2015)

MODEL 6115 POTATO PEELER REPLACEMENT PARTS

PORTABLE STAND AND BASKET

F-43064 Rev. C (April 2015) - 12 -

MODEL 6115 POTATO PEELER REPLACEMENT PARTS

PORTABLE STAND AND BASKET

ILLUS.
PL-56392

10 00-068881-00014 Caster - Front.............................................................................................................................2

11 00-068881-00015 Socket - Caster...........................................................................................................................2

PART NO. NAME OF PART AMT.

1 00-290322 Basket Assy. (Peel Trap) (Incls. Items 3 & 4) (ML-19869 & ML-137600)..................................1

2 00-290471 Basket Assy. (Peel Trap) (Incls. Items 3 & 4) (ML-19683 & ML-137601)..................................1

3 00-069560 Handle - Basket..........................................................................................................................1

4 00-534651 Clamp - Hose #32......................................................................................................................1

5 00-290321 Portable Stand Assy. (Incls. Items 7 thru 11) (ML-19869 & ML-137600)...................................1

6 00-290472 Portable Stand Assy. (Incls. Items 7 thru 11) (ML-19683 & ML-137601)...................................1

7 00-068881-00013 Wheel - Rear..............................................................................................................................2

8 WS-008-09 Washer.......................................................................................................................................2

9 RR-010-12 Retaining Ring............................................................................................................................2

- 13 - F-43064 Rev. C (April 2015)

MODEL 6115 POTATO PEELER REPLACEMENT PARTS

FORM 43064 Rev. C APRIL 2015 PRINTED IN U.S.A.
