Hitachi CPX960WE User Manual

Download

Page 1

HITACHI

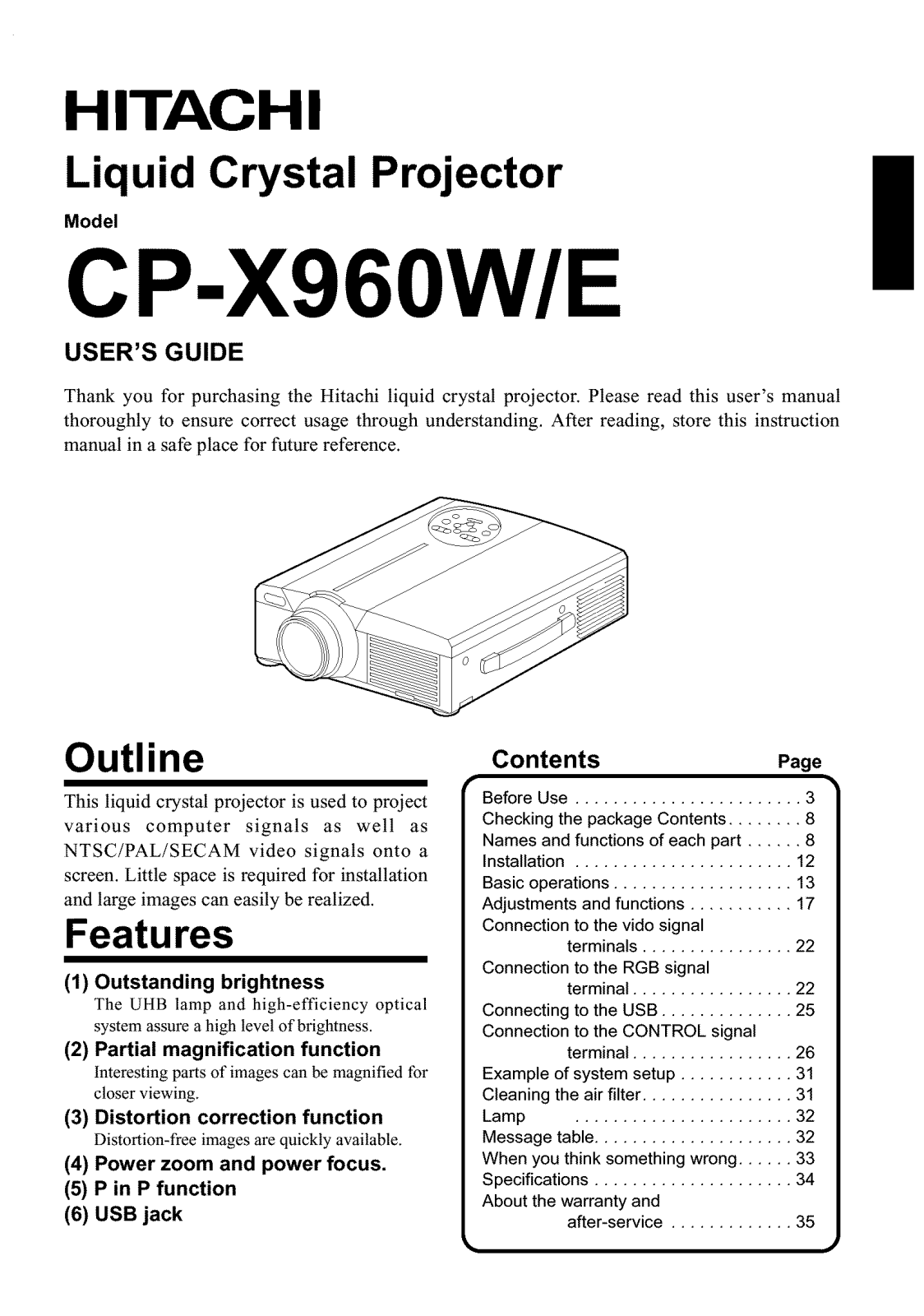

Liquid Crystal Projector

Model

CP-X960W/E

USER'S GUIDE

Thank you for purchasing the Hitachi liquid crystal projector. Please read this user's manual

thoroughly to ensure correct usage through understanding. After reading, store this instruction

manual in a safe place for future reference.

Outline

This liquid crystal projector is used to project various computer signals as well as

NTSC/PAL/SECAM video signals onto a

screen. Little space is required for installation and large images can easily be realized.

Features

(1) Outstanding brightness

The UHB lamp and high-efficiency optical system assure a high level of brightness.

(2) Partial magnification function

Interesting parts of images can be magnified for closer viewing.

(3) Distortion correction function

Distortion-free images are quickly available.

(4) Power zoom and power focus. (5) P in P function (6) USB jack

Contents Page

Before Use ........................ 3

Checking the package Contents ........ 8

Names and functions of each part ...... 8

Installation ....................... 12

Basic operations ................... 13

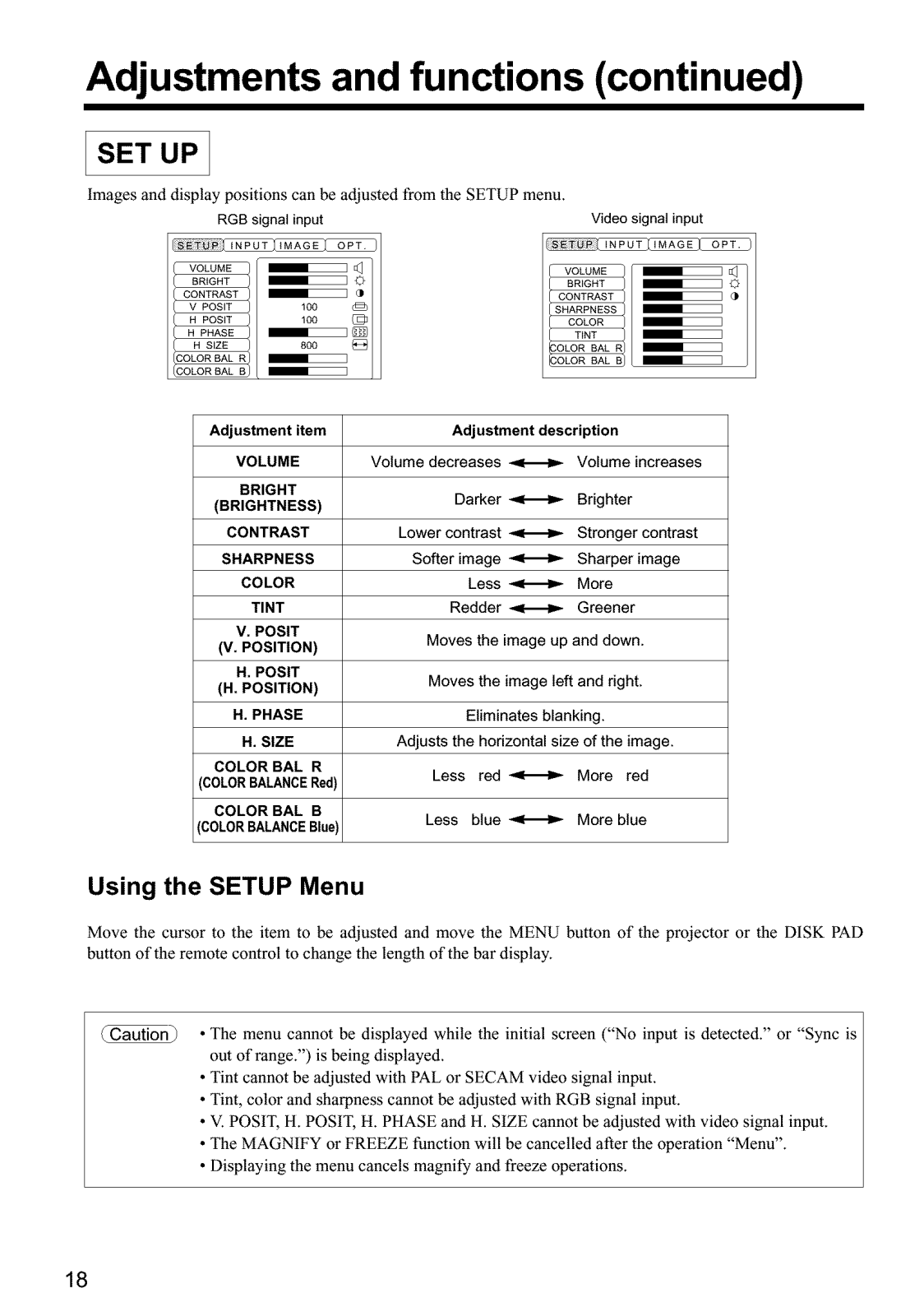

Adjustments and functions ........... 17

Connection to the vido signal

terminals ................ 22

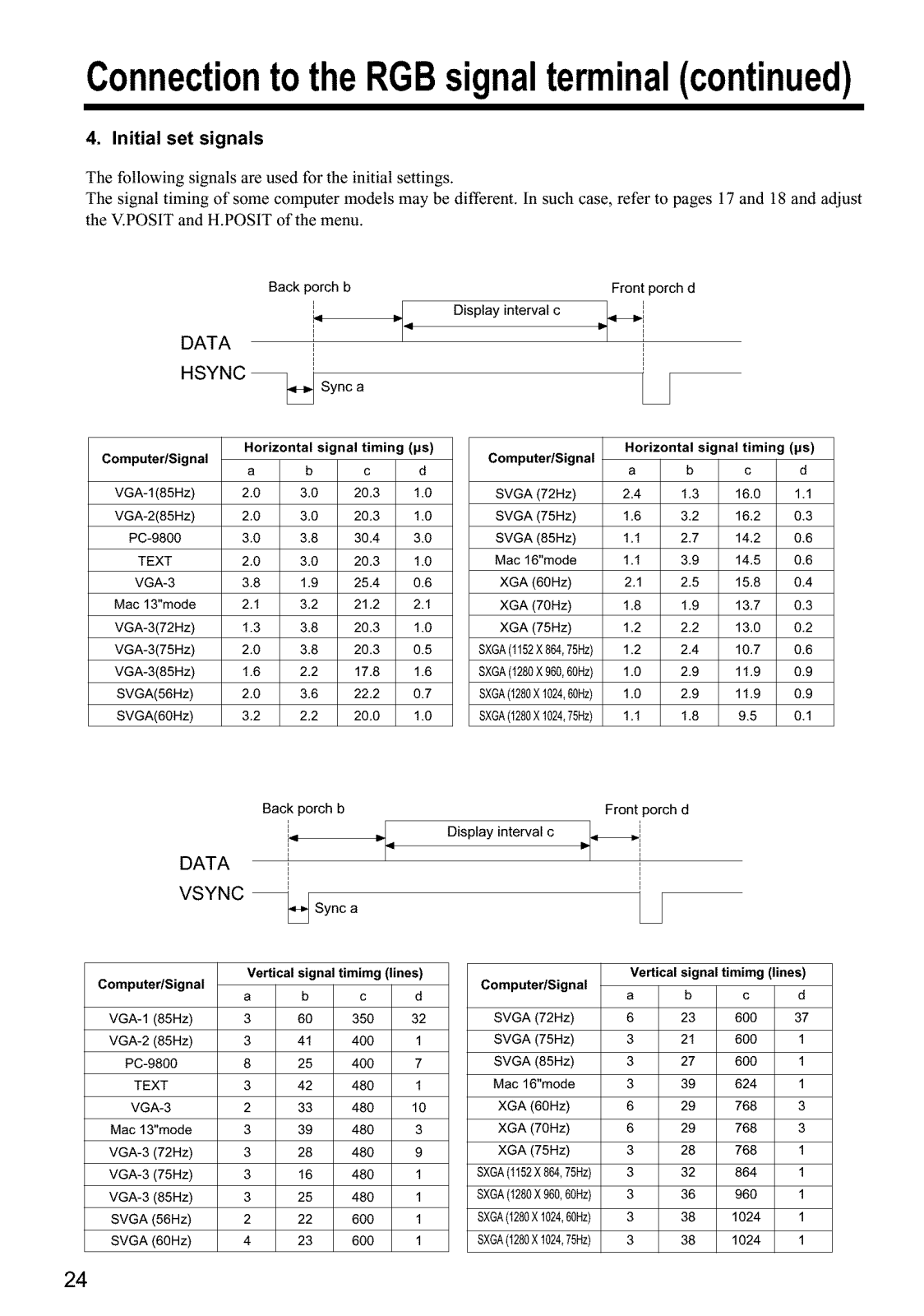

Connection to the RGB signal

terminal ................. 22

Connecting to the USB .............. 25

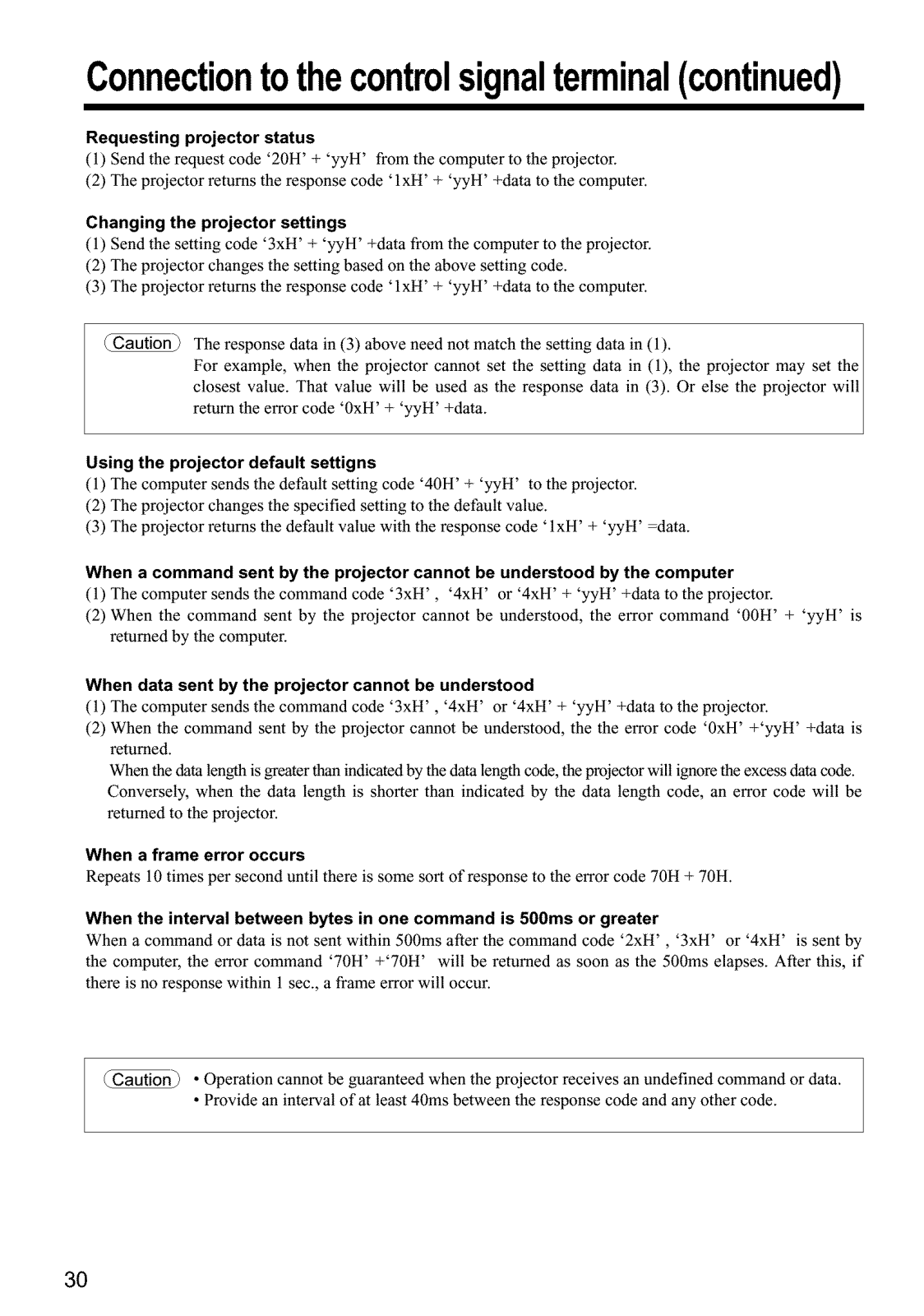

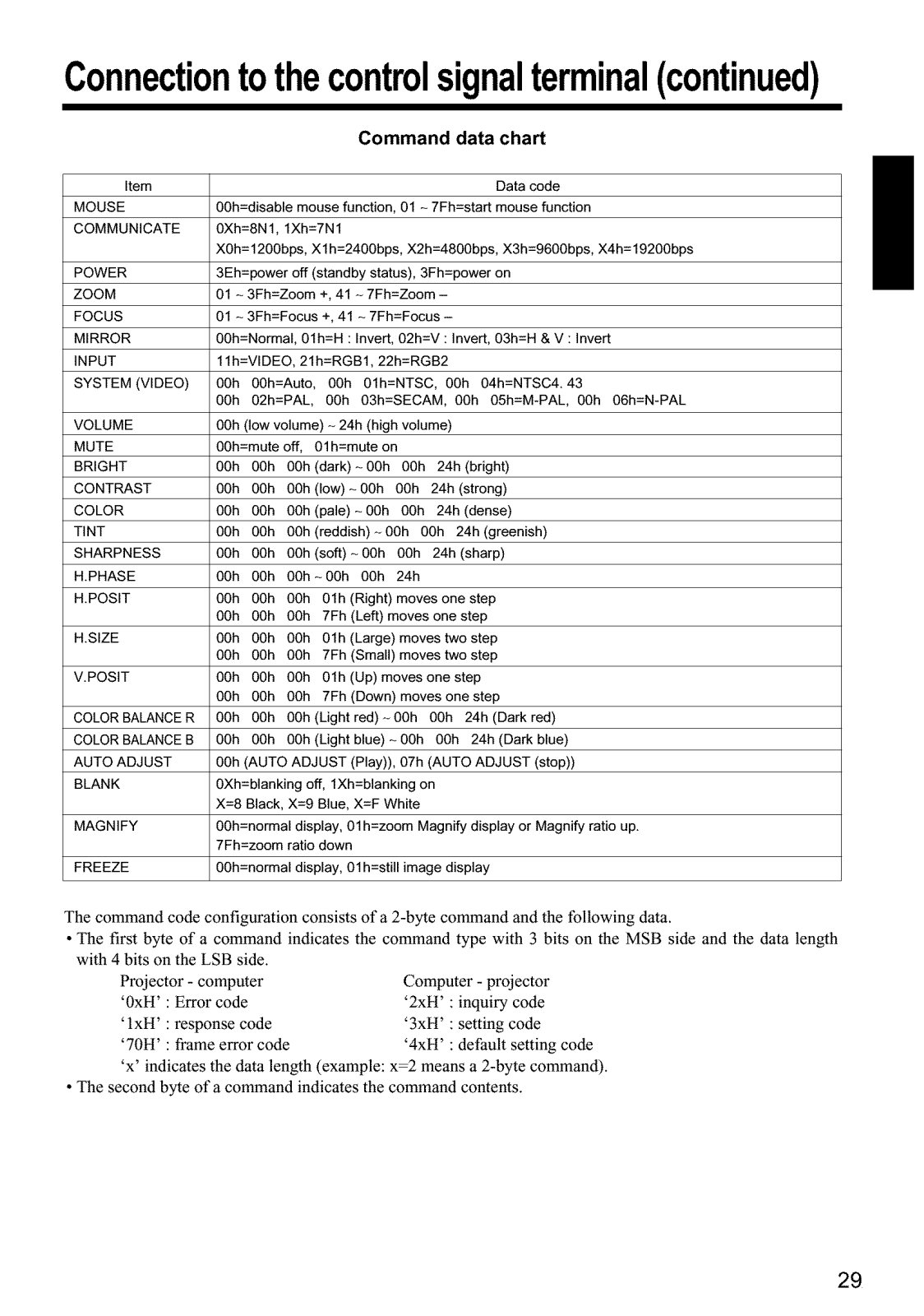

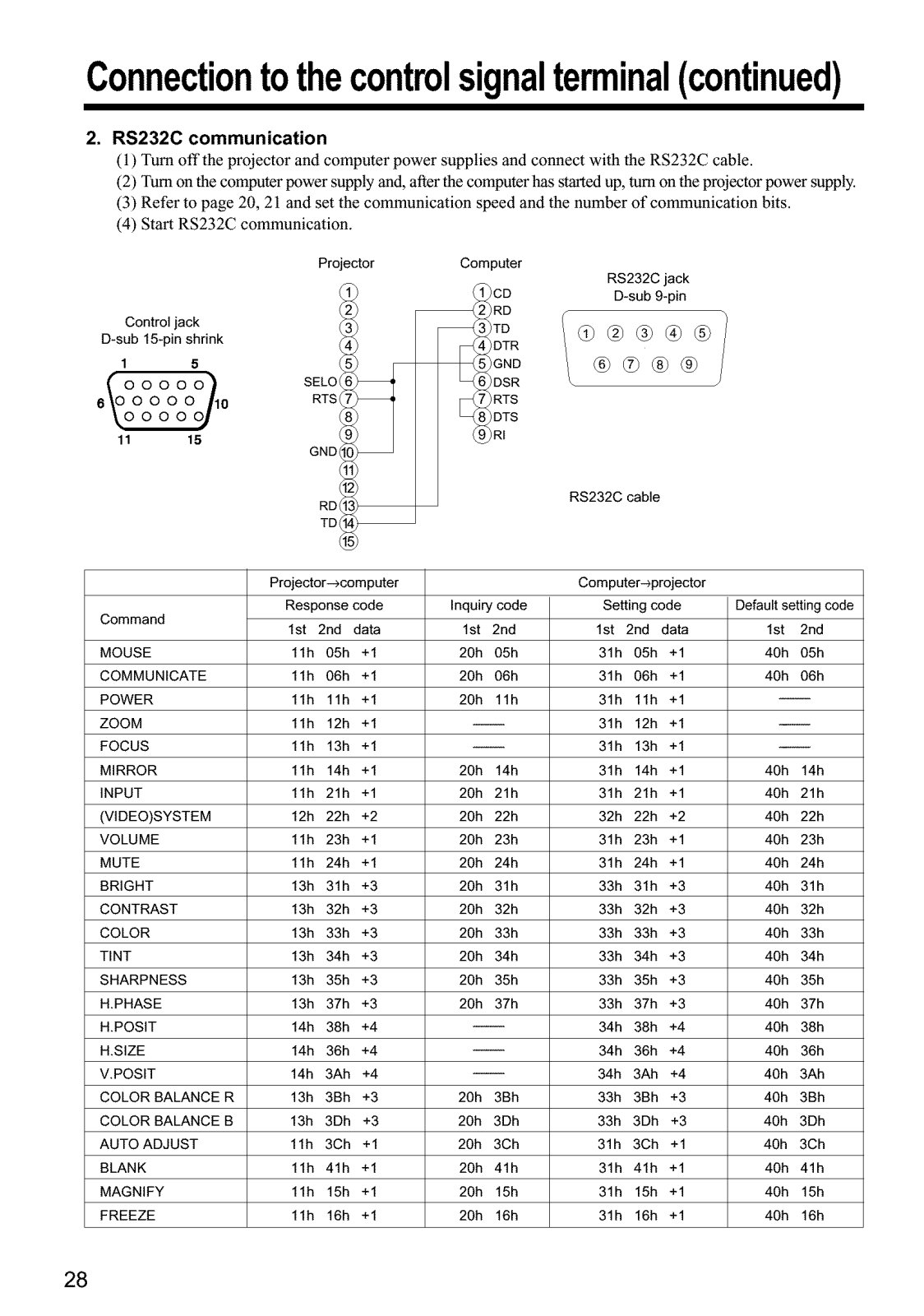

Connection to the CONTROL signal

terminal ................. 26

Example of system setup ............ 31

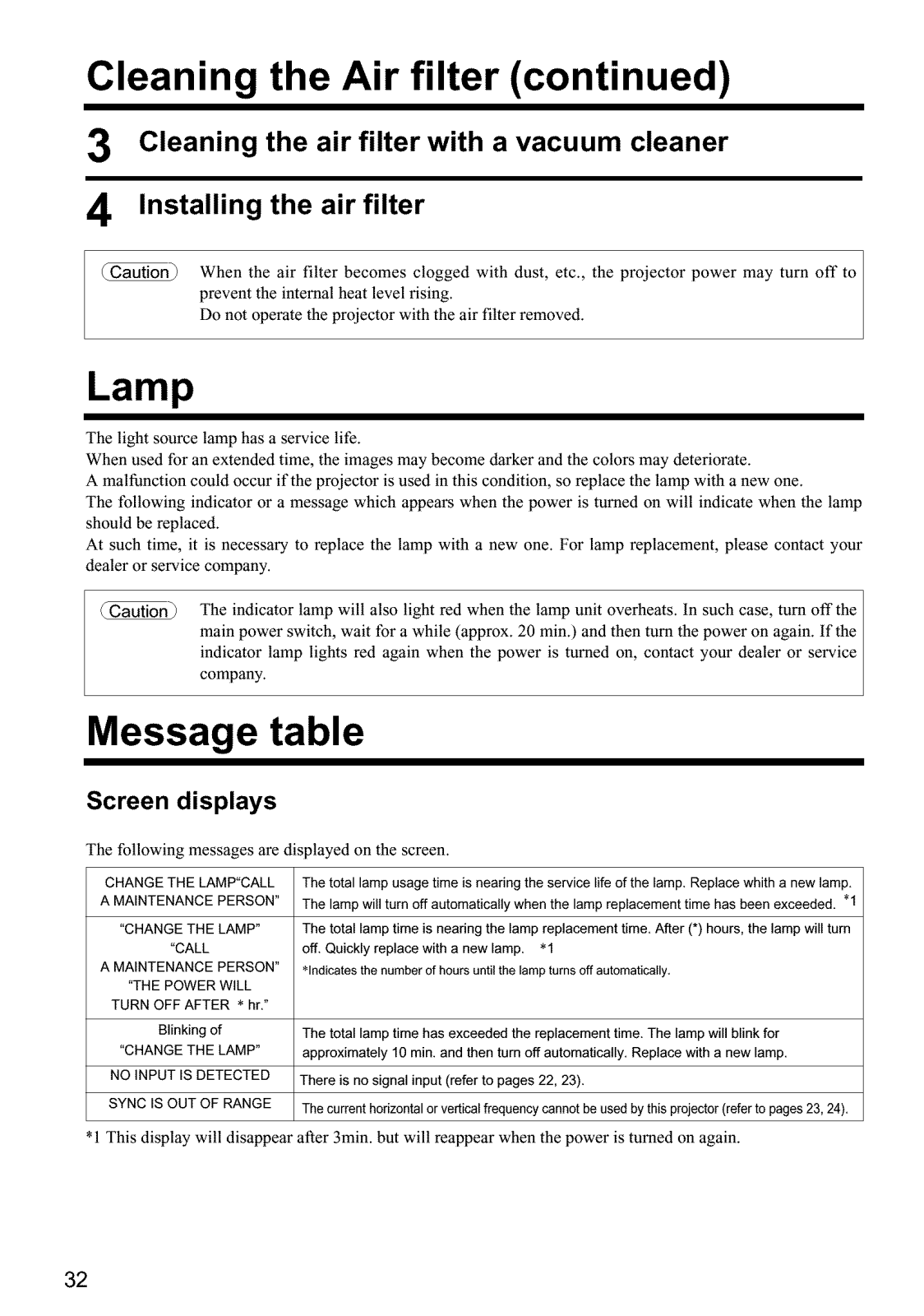

Cleaning the air filter ................ 31

Lamp ....................... 32

Message table ..................... 32

When you think something wrong ...... 33

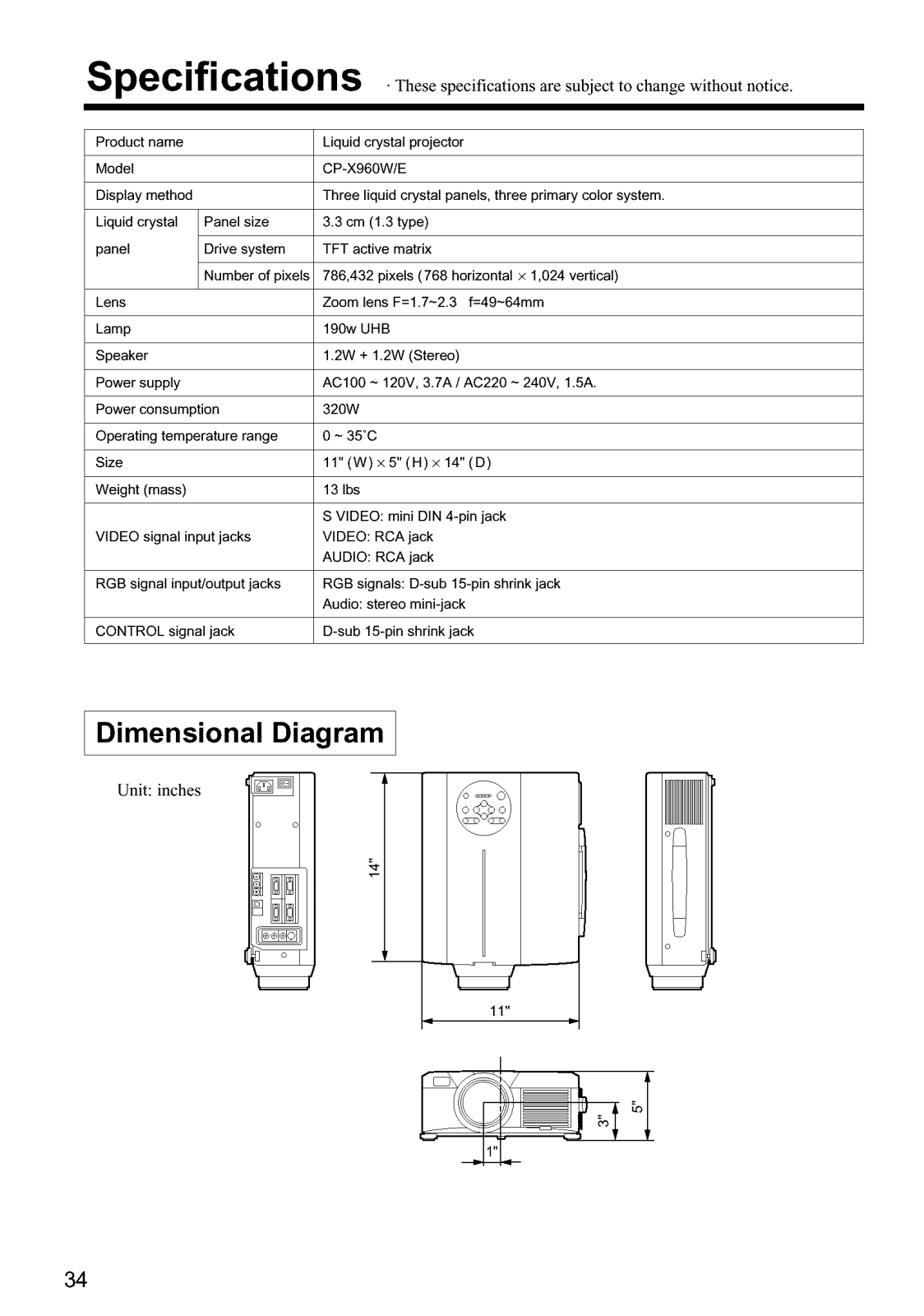

Specifications ..................... 34

About the warranty and

after-service ............. 35

Page 2

Page 3

Before Use

<Before Using> About the Symbols Various symbols are used in this instruction manual and on the product itself to

ensure correct usage, to prevent danger to the user and others, and to prevent property damage. The meanings of these symbols are described below. It is

important that you read these descriptions thoroughly and fully understand the contents.

Typical Symbols

Warning

Caution

This symbol indicates an additional warning (including cautions). An illustration is provided to clarify the contents (the illustration to the left

indicates danger of electrical shock).

indicated in an illustration or nearby (the symbol to the left indicates that This symbol indicates a prohibited action. The contents will be clearly

disassembly is prohibited).

indicated in an illustration or nearby (the symbol to the left indicates that This symbol indicates a compulsory action. The contents will be clearly

the power plug should be disconnected from the power outlet).

This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling.

This symbol indicates information that, if ignored, could result possibly in personal injury or physical damage due to incorrect

handling.

Page 4

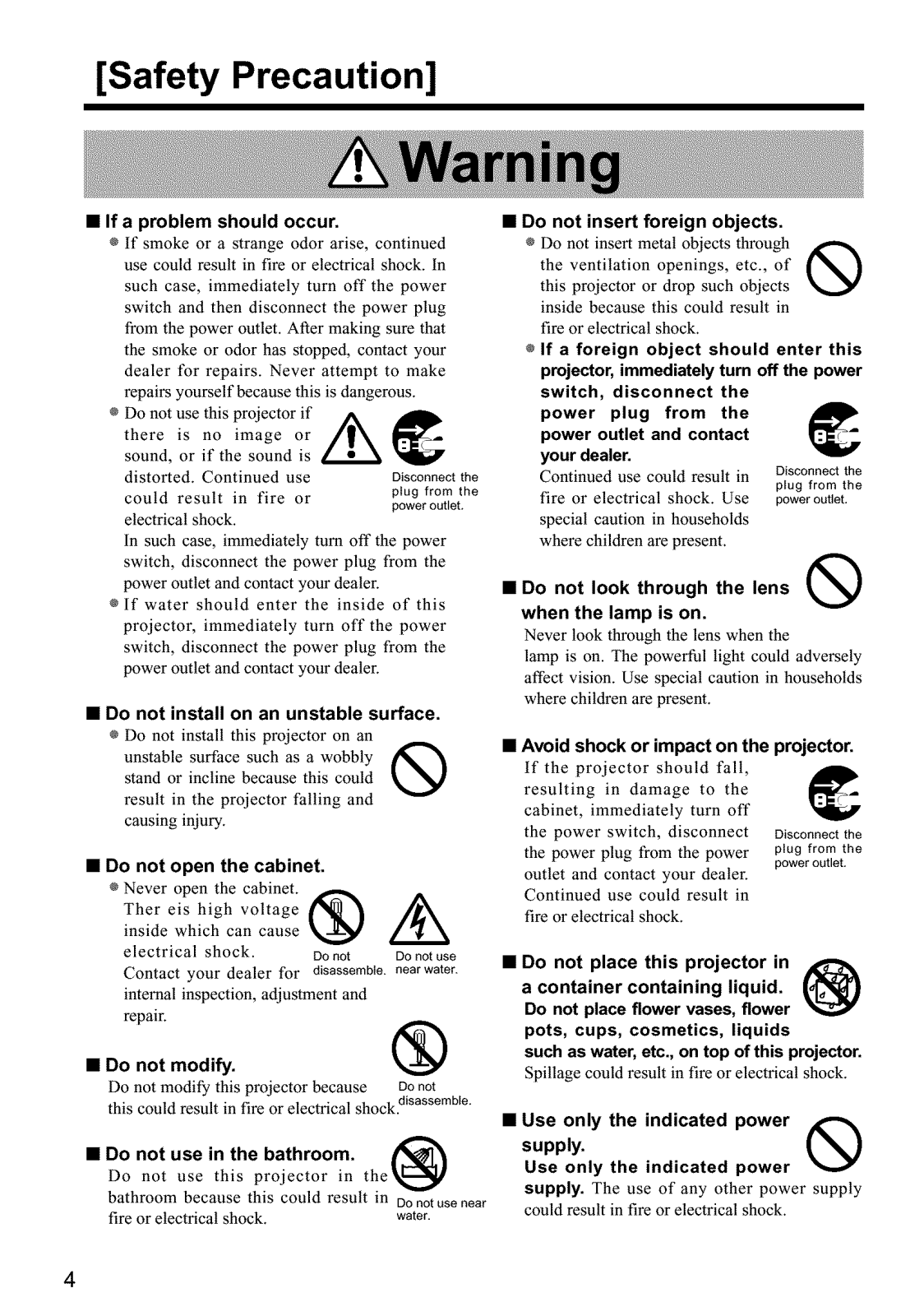

[Safety Precaution]

• If a problem should occur.

® If smoke or a strange odor arise, continued

use could result in fire or electrical shock. In such case, immediately turn off the power

switch and then disconnect the power plug from the power outlet. After making sure that

the smoke or odor has stopped, contact your dealer for repairs. Never attempt to make repairs yourself because this is dangerous.

® Do not use this projector if

there is no image or sound, or if the sound is

distorted. Continued use could result in fire or

electrical shock. In such case, immediately turn off the power

switch, disconnect the power plug from the

power outlet and contact your dealer.

® If water should enter the inside of this

projector, immediately turn off the power

switch, disconnect the power plug from the

power outlet and contact your dealer.

Disconnect the plug from the

power outlet.

• Do not install on an unstable surface.

® Do not install this projector on an

unstable surface such as a wobbly _'_ stand or incline because this could

result in the projector falling and causing injury.

• Do not open the cabinet.

® Never open the cabinet.

Ther eis high voltage _

inside which can cause

electrical shock. Do not Do not use Contact your dealer for disassemble, nearwater.

internal inspection, adjustment and

repair.

• Do not modify. _._

Do not modify this projector because Donot

this could result in fire or electrical shock, disassemble"

• Do not use in the bathroom. /_

Do not use this projector in the

bathroom because this could result in De netuse near

fire or electrical shock, water.

• Do not insert foreign objects.

® Do not insert metal objects through

the ventilation openings, etc., of this projector or drop such objects

inside because this could result in fire or electrical shock.

If a foreign object should enter this projector, immediately tum off the power switch, disconnect the

power plug from the power outlet and contact

your dealer.

Continued use could result in Disconnectthe fire or electrical shock. Use poweroutlet.

special caution in households where children are present.

• Do not look through the lens _

when the lamp is on.

Never look through the lens when the

lamp is on. The powerful light could adversely affect vision. Use special caution in households

where children are present.

plug from the

• Avoid shock or impact on the projector.

If the projector should fall,

resulting in damage to the

cabinet, immediately turn off

the power switch, disconnect the power plug from the power

outlet and contact your dealer. Continued use could result in

fire or electrical shock.

• Do not place this projector in

a container containing liquid.

Do not place flower vases, flower pots, cups, cosmetics, liquids

such as water, etc., on top of this projector.

Spillage could result in fire or electrical shock.

• Use only the indicated power

supply.

Use only the indicated power supply. The use of any other power supply

could result in fire or electrical shock.

Disconnect the plug from the

power outlet.

Page 5

• Handle the power cord with care. ®Do not damage, cut, process or

strongly twist the power cord. Placing

heavy objects on the power cord, heating or

strongly pulling the power cord can result in damage as welt as fire or electrical shock.

• Pulling on the power cord

• Placing heavy objects on the power cord /r_'_

• Damaging the cord

• Placing near heaters

Do not position the power cord under the projector. This can

damage the power cord and cause fire or electrical shock. Also, do not place a spread,

cover, etc., over the power cord because this could result in the inadvertent placing of

heavy objects on the concealed power cord.

® If the power cord is damaged

(exposed or broken core wires, /g|_k etc.), contact your dealer for

replacement; otherwise, fire or

electrical shock could result.

® Make sure there is no dust, etc., on the power

plug and insert a knife blade to make sure that there is no looseness.

k,Y

/.'x

• High temperatures are generated when

the lamp is lit, so do not place objects in front of the lens. _.

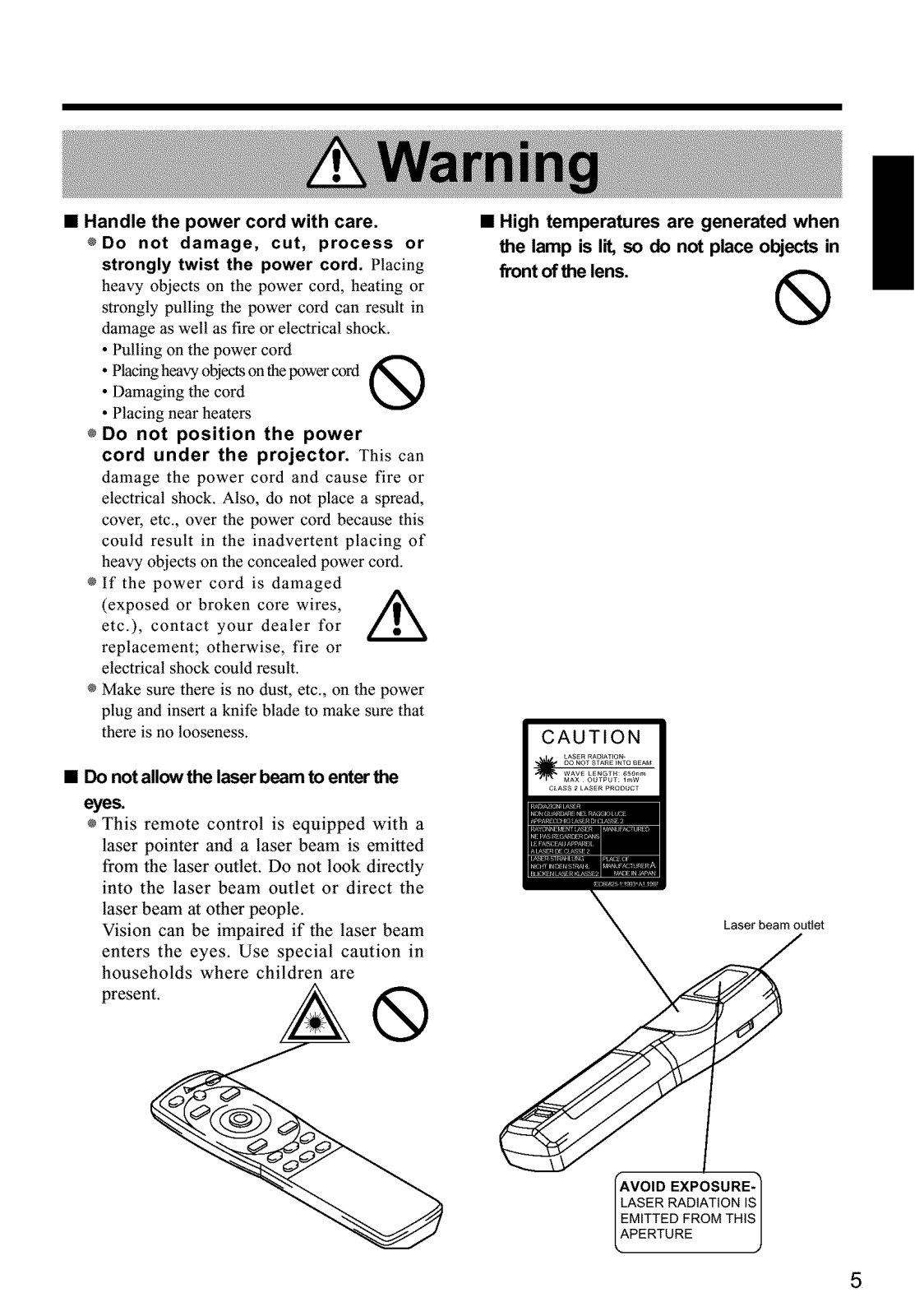

• Do not allow the laser beam to enter the

eyes.

This remote control is equipped with a laser pointer and a laser beam is emitted

from the laser outlet. Do not look directly into the laser beam outlet or direct the

laser beam at other people. Vision can be impaired if the laser beam

enters the eyes. Use special caution in

households where children are

present.

Laser beam outlet

Page 6

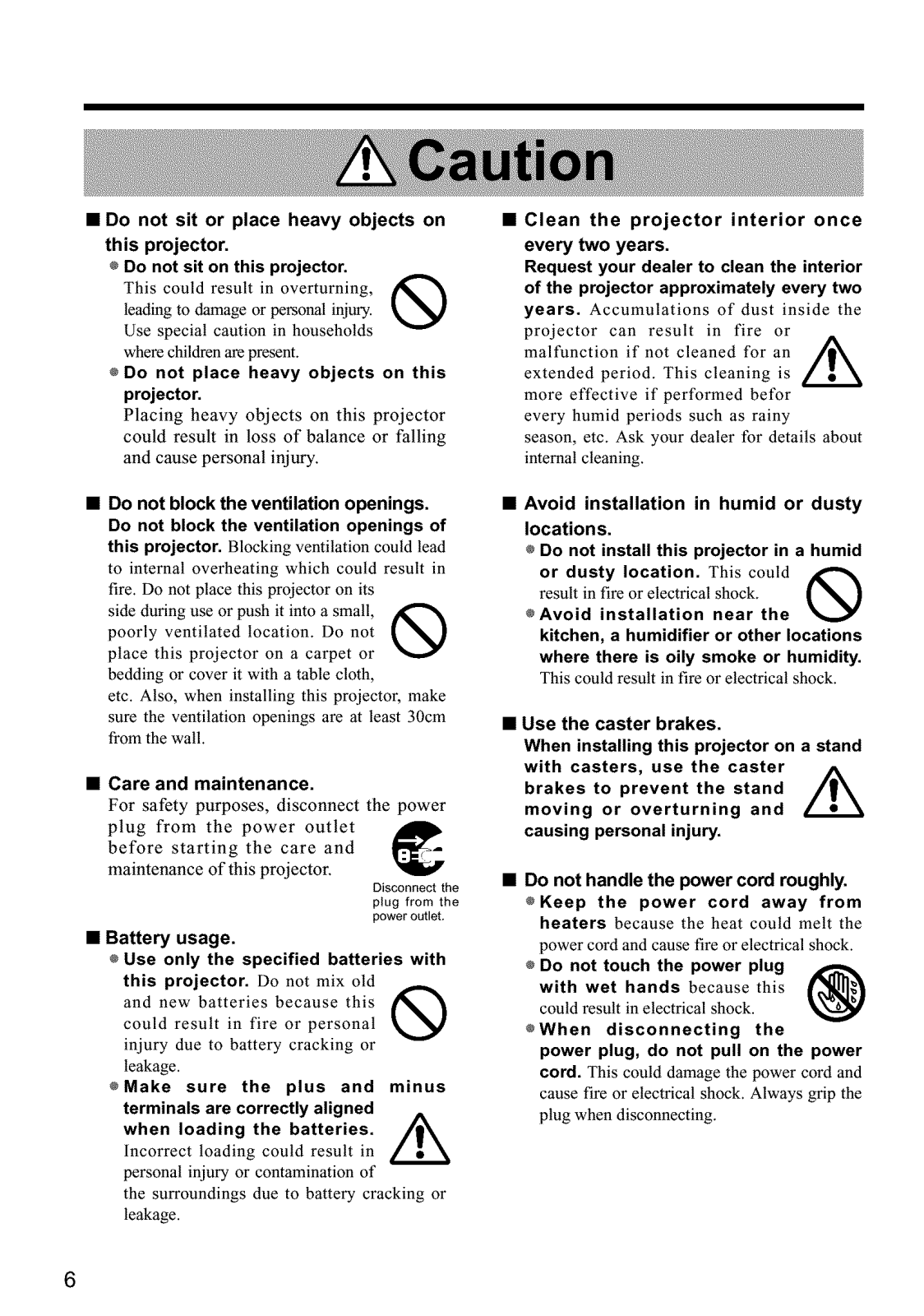

• Do not sit or place heavy objects on

this projector.

® Do not sit on this projector.

This could result in overturning, _"_

leading to damage or personal injury. Use special caution in households

where children are present.

Do not place heavy objects on this projector.

Placing heavy objects on this projector could result in loss of balance or falling

and cause personal injury.

• Clean the projector interior once

every two years. Request your dealer to clean the interior

of the projector approximately every two

years. Accumulations of dust inside the

projector can result in fire or malfunction if not cleaned for an /€|_

extended period. This cleaning is

more effective if performed befor

every humid periods such as rainy season, etc. Ask your dealer for details about

internal cleaning.

/,'x

• Do not block the ventilation openings.

Do not block the ventilation openings of

this projector. Blocking ventilation could lead

to internal overheating which could result in

fire. Do not place this projector on its side during use or push it into a small,

poorly ventilated location. Do not place this projector on a carpet or

bedding or cover it with a table cloth,

etc. Also, when installing this projector, make sure the ventilation openings are at least 30cm

from the wall.

• Care and maintenance.

For safety purposes, disconnect the power

plug from the power outlet before starting the care and

maintenance of this projector.

• Battery usage.

® Use only the specified batteries with

this projector. Do not mix old

and new batteries because this _'_ could result in fire or personal

injury due to battery cracking or leakage.

®Make sure the plus and minus

terminals are correctly aligned when loading the batteries, f|_k

Incorrect loading could result in

personal injury or contamination of the surroundings due to battery cracking or

leakage.

t,N

Disconnect the plug from the

power outlet.

• Avoid installation in humid or dusty

locations. ® Do not install this projector in a humid

or dusty location. This could

result in fire or electrical shock.

®Avoid installation near the

kitchen, a humidifier or other locations

where there is oily smoke or humidity.

This could result in fire or electrical shock.

• Use the caster brakes.

When installing this projector on a stand with casters, use the caster A

brakes to prevent the stand moving or overturning and causing personal injury.

• Do not handle the power cord roughly. ®Keep the power cord away from

heaters because the heat could melt the

power cord and cause fire or electrical shock.

Do not touch the power plug

with wet hands because this

could result in electrical shock.

®When disconnecting the

power plug, do not pull on the power

cord. This could damage the power cord and

cause fire or electrical shock. Always grip the plug when disconnecting.

Page 7

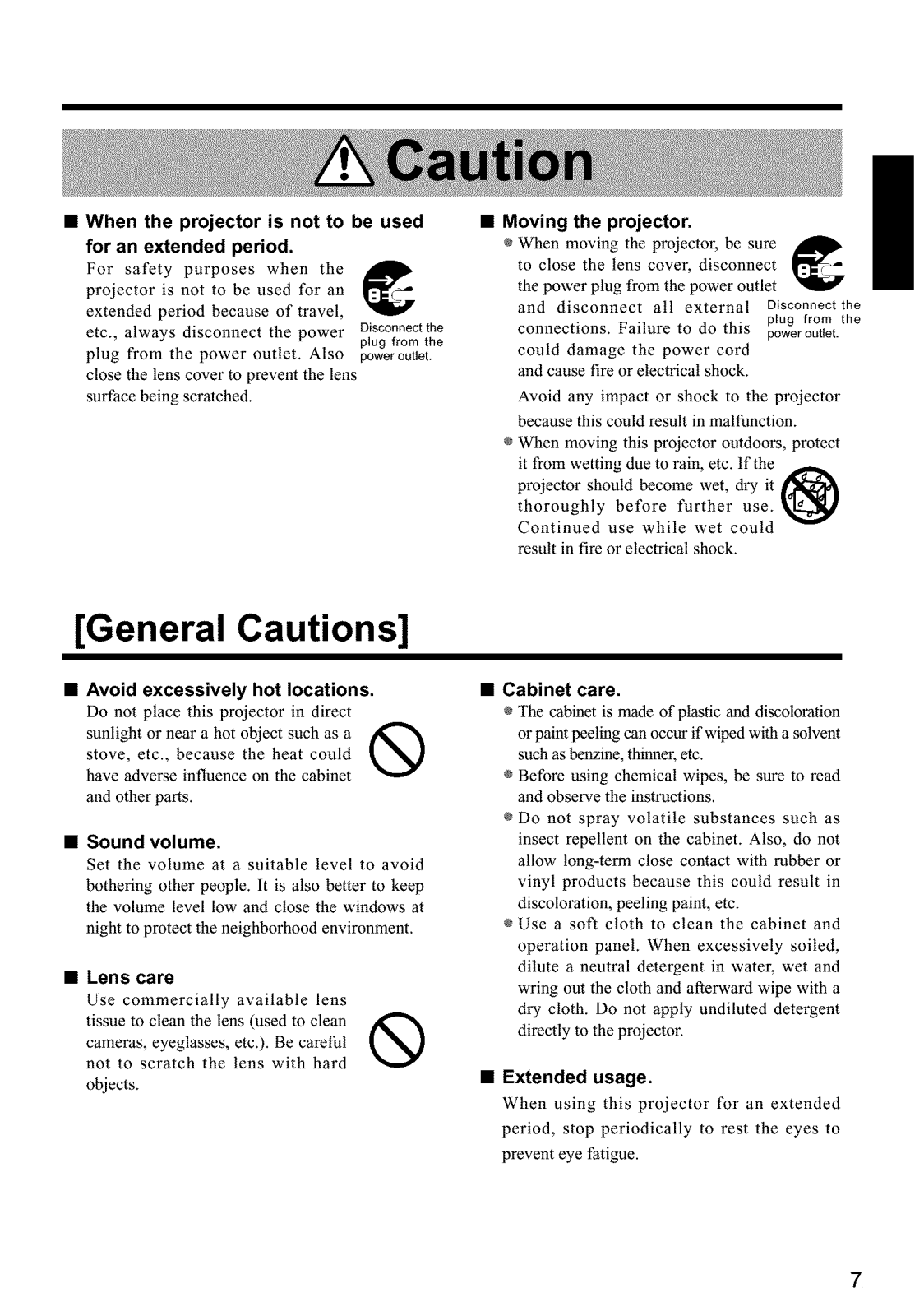

• When the projector is not to be used

for an extended period.

For safety purposes when the projector is not to be used for an

extended period because of travel, etc., always disconnect the power Disconnect the

plug from the power outlet. Also power outlet. close the lens cover to prevent the lens

surface being scratched.

plug from the

[General Cautions]

• Moving the projector.

® When moving the projector, be sure _1_

to close the lens cover, disconnect the power plug from the power outlet

and disconnect all external Disconnect the

plug from the

connections. Failure to do this poweroutlet. could damage the power cord

and cause fire or electrical shock. Avoid any impact or shock to the projector

because this could result in malfunction.

® When moving this projector outdoors, protect

it from wetting due to rain, etc. If the projector should become wet, dry it thoroughly before further use. I_1._

Continued use while wet could result in fire or electrical shock.

• Avoid excessively hot locations.

Do not place this projector in direct sunlight or near a hot object such as a

stove, etc., because the heat could have adverse influence on the cabinet

and other parts.

• Sound volume.

Set the volume at a suitable level to avoid bothering other people. It is also better to keep

the volume level low and close the windows at night to protect the neighborhood environment.

• Lens care

Use commercially available lens tissue to clean the lens (used to clean

cameras, eyeglasses, etc.). Be careful not to scratch the lens with hard

objects.

t.y

• Cabinet care.

® The cabinet is made of plastic and discoloration

or paint peeling can occur if wiped with a solvent

such as benzine, thinner, etc.

® Before using chemical wipes, be sure to read

and observe the instructions.

® Do not spray volatile substances such as

insect repellent on the cabinet. Also, do not allow long-term close contact with rubber or

vinyl products because this could result in discoloration, peeling paint, etc.

® Use a soft cloth to clean the cabinet and

operation panel. When excessively soiled, dilute a neutral detergent in water, wet and

wring out the cloth and afterward wipe with a dry cloth. Do not apply undiluted detergent

directly to the projector.

• Extended usage.

When using this projector for an extended period, stop periodically to rest the eyes to prevent eye fatigue.

Page 8

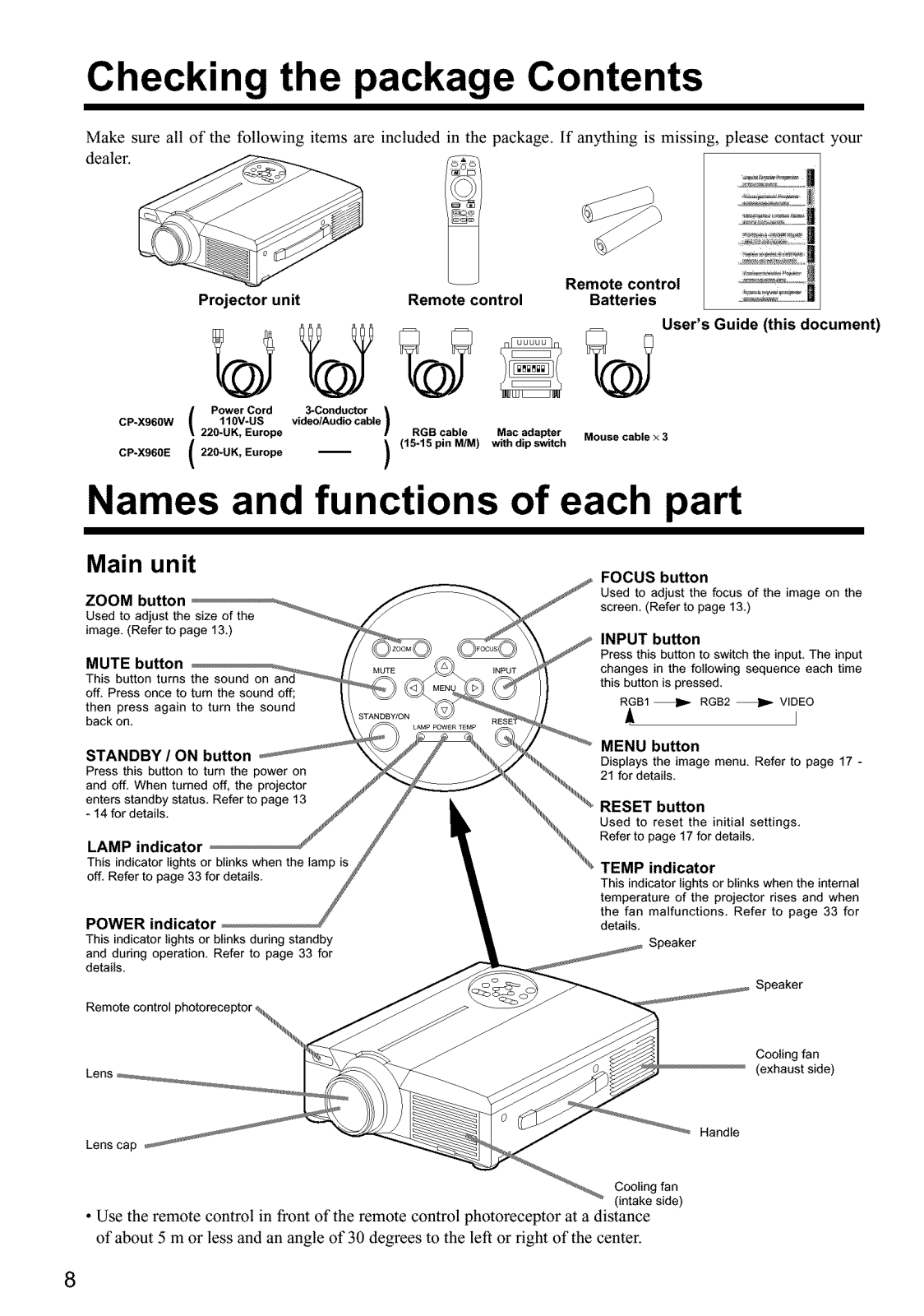

Checking the package Contents

Make sure all of the following items are included in the package. If anything is missing, please contact your

dealer.

Remote control

Projector unit Remote control

Batteries

User's Guide (this document)

CP-X960W 110V-US video/Audio cable

CP_XO60E ( 220.UK, Europe __ ) (15"15 pin MIMj witb dip switch

Power Cord 3_Conductor )

220*UK, Europe RGB cable Mac adapter

Mouse cable x 3

Names and functions of each part

Main unit

ZOOM button

Used to adjust the size of the image. (Referto page 13.)

MUTE button

This button turns the sound off. Press once to turn the sound off;

then press again to turn the sound

back on.

STANDBY / ON button Press this button to turn the power on

and off. When turned off, the projector

enters standby status. Refer to page 13

- 14 for details.

LAMP indicator

This indicator lights or blinks when the lamp is off. Referto page 33 for details.

POWER indicator

This indicatorlights or blinks during standby

and during operation. Refer to page 33 for

details.

Remote control

FOCUS button

Used to adjust the focus of the image on the screen. (Refer to page 13.)

INPUT button

Press this button to switch the input. The input

changes in the following sequence each time this button is pressed.

RGB1 _ RGB2 _ VIDEO

MENU button

Displays the image menu. Refer to page 17 - 21 for details.

Used to reset the initial settings.

Refer to page 17 for details.

TEMP indicator

This indicator lights or blinks when the internal temperature of the projector rises and when the fan malfunctions. Refer to page 33 for

details.

Speaker

Lens cap

• Use the remote control in front of the remote control photoreceptor at a distance

of about 5 in or less and an angle of 30 degrees to the left or fight of the center.

Cooling fan (exhaust side)

Handle

Cooling fan (intake side)

Page 9

Names and functions of each part (continued)

Remote control photoreceptor

Main power switch

Used toturn the power on and off, © : OFF

I:ON

AC IN jack /

Used to connect the

accessory power cord.

I/_Cautionl Connecting to the AC IN jack

Make sure the accesory power cord is plugged into the AC IN jack as far as it will go. Incomplete

connection can result in fire or electrical shock.

1 RGB IN 2

RGB IN jack

D-sub 15-pin shrink (1/2)

CONTROL RGB OUT

CONTROL jack_ D-sub 15-pin shrink

VIDEO IN jack

S-VIDEO iN jack

Mini DIN 4-pin connector

VIDEO IN jack

RCA jack

AUDIO L/R IN jack

RCA jack

VIDEO IN

AUDIO IN

[]

AUDIO IN jack (RGB) Stereominijack

AUDIO OUT jack (RGBNIDEO) Stereominijack

USB jack

The meusecursor can be controlled by

remote control by connecting to a personalcomputer.

f--

RGB OUT jack

D-sub 15-pin shrink

Page 10

Names and functions of each part (continued)

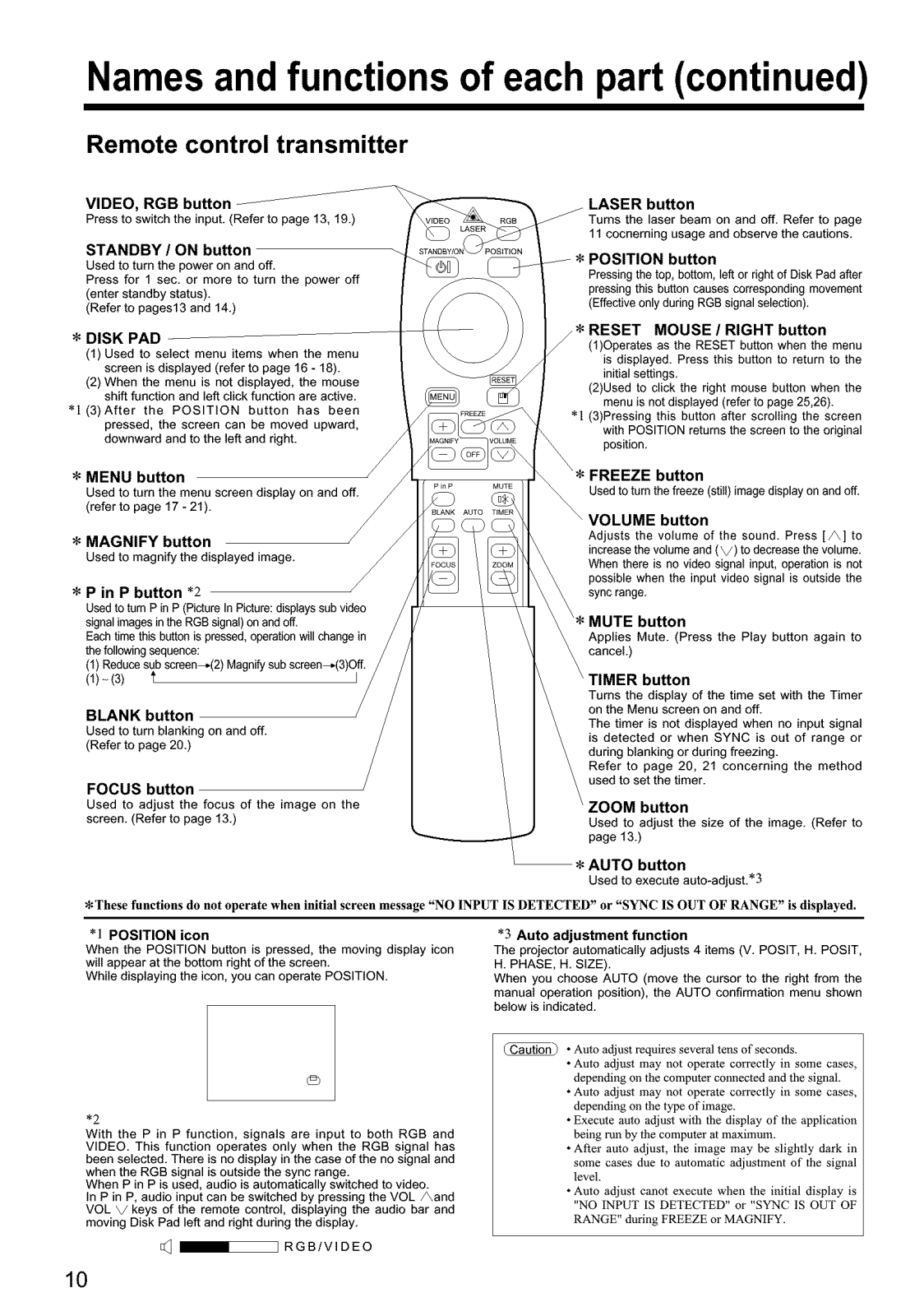

Remote control transmitter

Pressto switchthe input. (Refer to page 13, 19.) VEOEO Turns the laser beam on and off. Refer to page

VIDEO, RGB button _ _ LASER button

STANDBY / ON button _ sTAN_B¥/oN_PosmoN

Used to turn the power on and off. Press for 1 sec. or more to turn the power off (enter standby status). (Refer to pages13 and 14.)

$ DISK PAD

(1) Used to select menu items when the menu

screen is displayed (refer to page 16 - 18).

(2) When the menu is not displayed, the mouse

shift function and left click function are active.

*! (3)After the POSITION button has been

pressed, the screen can be moved upward, downward and ght.

_ Pressingthetop,bottom,leftor rightof DiskPadafter

11cocnerning usage andobserve thecautions.

$ POSITION button

pressing this button causes corresponding movement (Effective only during RGB signal selection).

_¢ RESET MOUSE / RIGHT button

(1)Operates as the RESET batten when the menu

is displayed. Press this button to return to the initial settings,

(2)Used to click the right mouse button when the

menu is not displayed (refer to page 25,26).

*! (3)Pressing this button after scrolling the screen

with POSITION returns the screen to the original

* MENU button

Usedto turn the menu screen display on and off. (referto page 17 -21).

¢ MAGNIFY button

Usedto magnify the displayed =mage.

* P in P button *2

Used to turnP in P (Picture In Picture: displayssub video

signal images inthe RG8 signal)on and off.

Each time this button is pressed, operation will change in

the following sequence:

Usedto turnthefreeze(still)imagedisplayonandoff.

VOLUME button

Adjusts the volume of the sound. Press [/\] to

increase the volume and (_/) to decrease the volume.

When there is no video signal input, operation is not

possible when the input video signal is outside the

sync range,

Applies Mute. (Press the Play button again to canceL)

button

(1)

(1)- (3) t

BLANK button

Usedto turn blanking on and off. (Refer to page 20.)

FOCUS button

Used to adjust the focus of the image on the screen. (Refer to page 13.)

•These functions do not operate when initial screen message "NO INPUT IS DETECTED" or "SYNC IS OUT OF RANGE" is displayed.

TIMER button

Turns the display of the time set with the Timer on the Menu screen on and off.

The timer is not displayed when no input signal

is detected or when SYNC is out of range or

during blanking or during freezing.

Refer to page 20, 21 concerning the method used to set the timer.

ZOOM button

Used to adjust the size of the image. (Refer to page 13.)

* AUTO button

Usedto execute auto-adjust.*3

*1 POSITION icon

When the POSITION button is pressed, the moving display icon wii[ appear at the bottom right of the screen.

While displaying the icon, you can operate POSITION.

With the P in P function, signals are input to both RGB and VIDEO. This function operates only when the RGB signal has

been selected. There is no display in the case of the no signal and

when the RGB signal is outside the sync range. When P in P is used, audio is automatically switched to video.

in P in P, audio input can be switched by pressing the VOL /\and

VOL _/keys of the remote control, displaying the audio bar and

moving Disk Pad left and right during the display.

E_ _ RGB/VIDEO

*3 Auto adjustment function

The projector automatically adjusts 4 items (V. POSIT, H. POSIT,

H. PHASE, H. SIZE). When you choose AUTO (move the cursor to the right from the manual operation position), the AUTO confirmation menu shown

below is indicated.

• Auto adjust requires several tens of seconds.

• Auto adjust may not operate correctly in some cases

depending on the computer connected and the signal.

• Auto adjust may not operate correctly in some case: depending on the type of image.

• Execute auto adjust with the display of the applicafior being run by the computer at maximum.

• After auto adjust, the image may be slightly dark in some cases due to automatic adjustment of the signal

level.

• Auto adjust canot execute when the initial display is "NO INPUT IS DETECTED" or "SYNC IS OUT OF

RANGE" during FREEZE or MAGNIFY.

Page 11

Names and functions of each part (continued)

fLoading the batteries Loading AA batteries into the remote control.

[]Remove the battery

cover.

Push the knob while lifting up the battery

cover. oadnghebaeres

Make sure the plus and minus poles are correctly _._..._ _

oriented.

[]Close the battery cover.

[/t_Caution] Battery usage cautions

®Use only the specified batteries with this

projector. Also, do not mix new and old batteries. This could cause in battery cracking or

leakage, which could result in fire or personal injury.

When loading the batteries, make sure the plus and minus poles are correctly oriented as

indicated in the projector. Incorrect orientation could cause battery cracking or leakage, which

could result in personal injury or pollution of the surrounding environment.

(Caution') Remote control usage cautions

®Do not drop the remote control or apply impact. ®Do not wet the remote control or place it on any

wet object. Such actions could result in malfunction.

®When not to be used for an extended period,

remove the batteries from the remote control.

®Replace the batteries when remote control

operation becomes difficult.

®Do not place the remote control close to the

cooling fan of the projector.

®Do not disassemble the remote control in case of

malfunction, please bring it to the service station.

CAUTION

LASER RADIATION IS EMITTED FROM THIS

APERTURE

Page 12

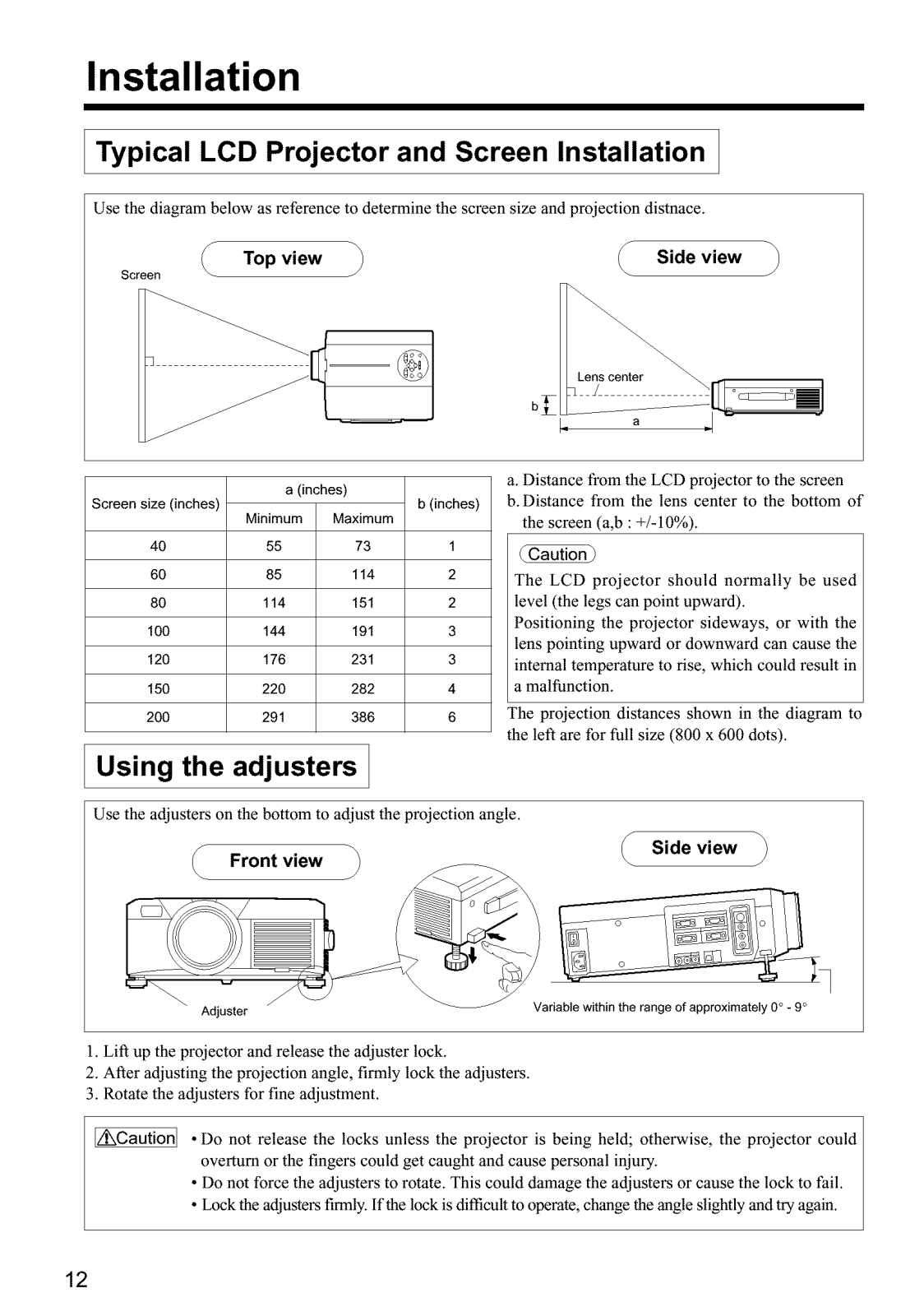

Installation

Typical LCD Projector and Screen Installation

Use the diagram below as reference to determine the screen size and projection distnace.

-" S

Screen

Screen size (inches) b (inches)

4O 1

6O 2

8O 2 100 3 120 3 150 4

200 6

To_D view ) \_

a (inches)

Minimum Maximum

55 73

85 114 114 151 144 191 176 231

220 282 291 386

_) Side view

)

a. Distance from the LCD projector to the screen b.Distance from the lens center to the bottom of

the screen (a,b : +/-10%).

(Caution)

The LCD projector should normally be used level (the legs can point upward).

Positioning the projector sideways, or with the lens pointing upward or downward can cause the

internal temperature to rise, which could result in a malfunction.

The projection distances shown in the diagram to the left are for full size (800 x 600 dots).

Using the adjusters ]

Use the adjusters on the bottom to adjust the projection angle.

f , Side view

( Front view ) __ \

Adjuster Variable within the range of approximately 0° - 9°

1. Lift up the projector and release the adjuster lock.

2. After adjusting the projection angle, firmly lock the adjusters.

3. Rotate the adjusters for fine adjustment.

IAkCautionl • Do not release the locks unless the projector is being held; otherwise, the projector could

overturn or the fingers could get caught and cause personal injury.

• Do not force the adjusters to rotate. This could damage the adjusters or cause the lock to fail.

• Lock the adjusters firmly. If the lock is difficult to operate, change the angle slightly and try again.

Page 13

Basic operations

To project 1

5 7 4 2

1 Turn on the main power switch of the projector [ I: ON].

• The Power indicator lights orange.

3 Remove the lens cap.

Press the STANDBY / ON button.

• The Power indicator will blink green and then light green.

• The green blinking indicates warmup.

• After the power is turned on, the lamp will be cooled for approximately 1 rain. and the power cannot be turned on even by pressing the STANDBYJON button.

4 Use the ZOOM button to adjust the screen size.

6 Turn on the power to the connected equipment.

7 Press either the INPUT button of the

Use the FOCUS button to adjust the focus.

( 1)The display shown to the right will appear when the FOCUS button is pressed. + + + FOCUS+ ++ (2) Use the FOCUS button to adjust the focus until the image is sharp.

(3) The message "Focus" will disappear if any other button is pressed.

• (When there is no input signal, the Focus characters are not displayed when the input signal is outside the sync range.)

Refer to page 31 concerning the connection of other equipment.

projector or the VIDEO/RGB button of the remote control to select the signal to be projected on the screen.

The selected signal input channel will be displayed in the lower right part of the screen.

Exampleon-screendisplay

RGB 1

Page 14

Basic operations (continued)

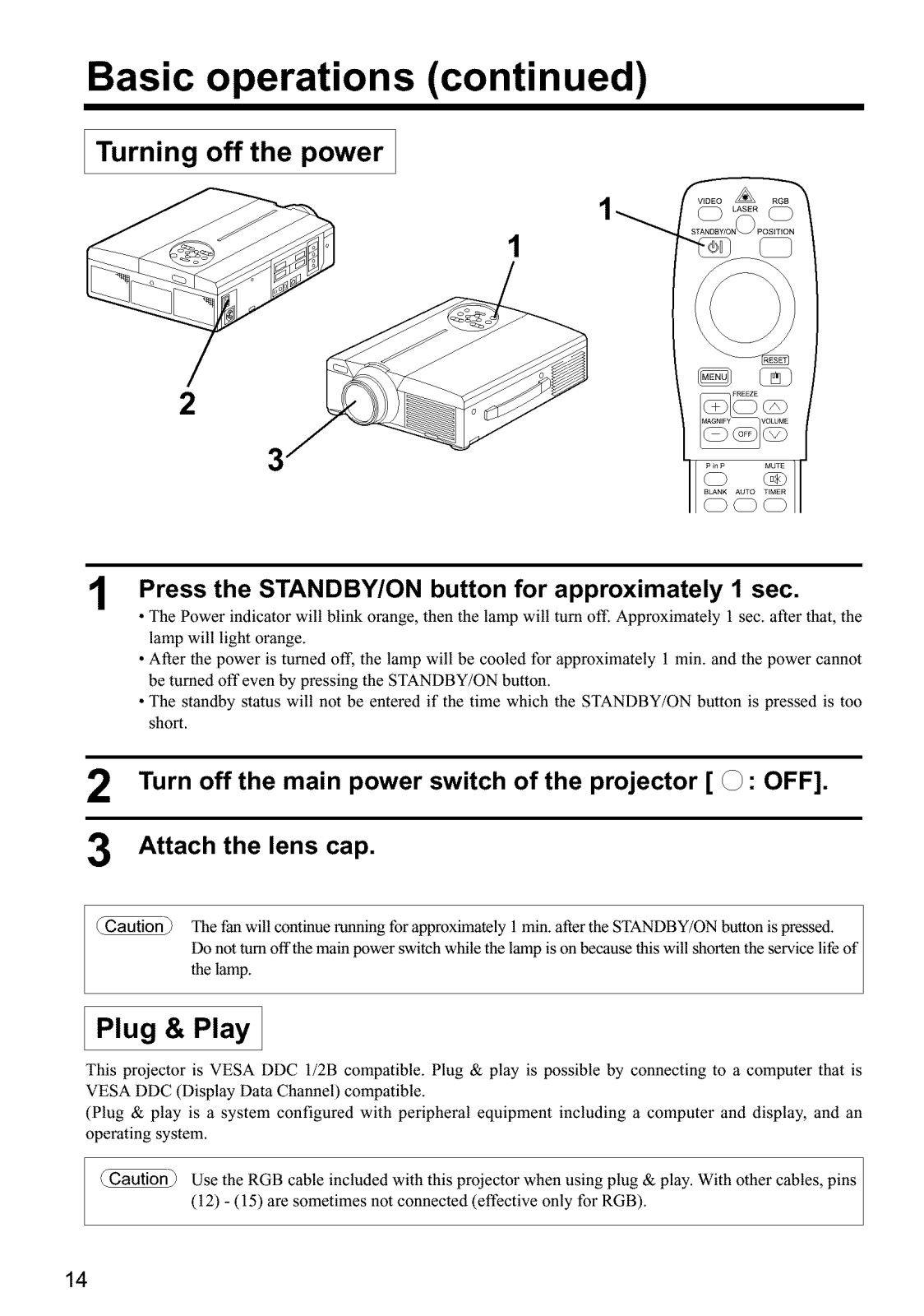

Turning off the power]

P _n P MUTE

BLANK AUTO TIMER

Press the STANDBY/ON button for approximately 1 sec.

• The Power indicator wilt blink orange, then the lamp wilt turn off. Approximately 1 sec. after that, the

lamp will light orange.

• After the power is turned off, the lamp will be cooled for approximately 1 min. and the power cannot be turned off even by pressing the STANDBY/ON button.

• The standby status wilt not be entered if the time which the STANDBY/ON button is pressed is too

short.

2 Turn off the main power switch of the projector [ _ : OFF]. 3 Attach the lens cap.

(Caution-) The fan will continue nmning for approximately 1 min. after the STANDBY/ON button is pressed.

Do not turn offthe main power switch while the lamp is on because this will shorten the service life of

the lamp.

Plug & Play

This projector is VESA DDC 1/2B compatible. Plug & play is possible by connecting to a computer that is VESA DDC (Display Data Channel) compatible.

(Plug & play is a system configured with peripheral equipment including a computer and display, and an operating system.

[Caution') Use the RGB cable included with this projector when using plug & play. With other cables, pins ]

(12) - (15) are sometimes not connected (effective only for RGB).

Page 15

Basic operations (continued)

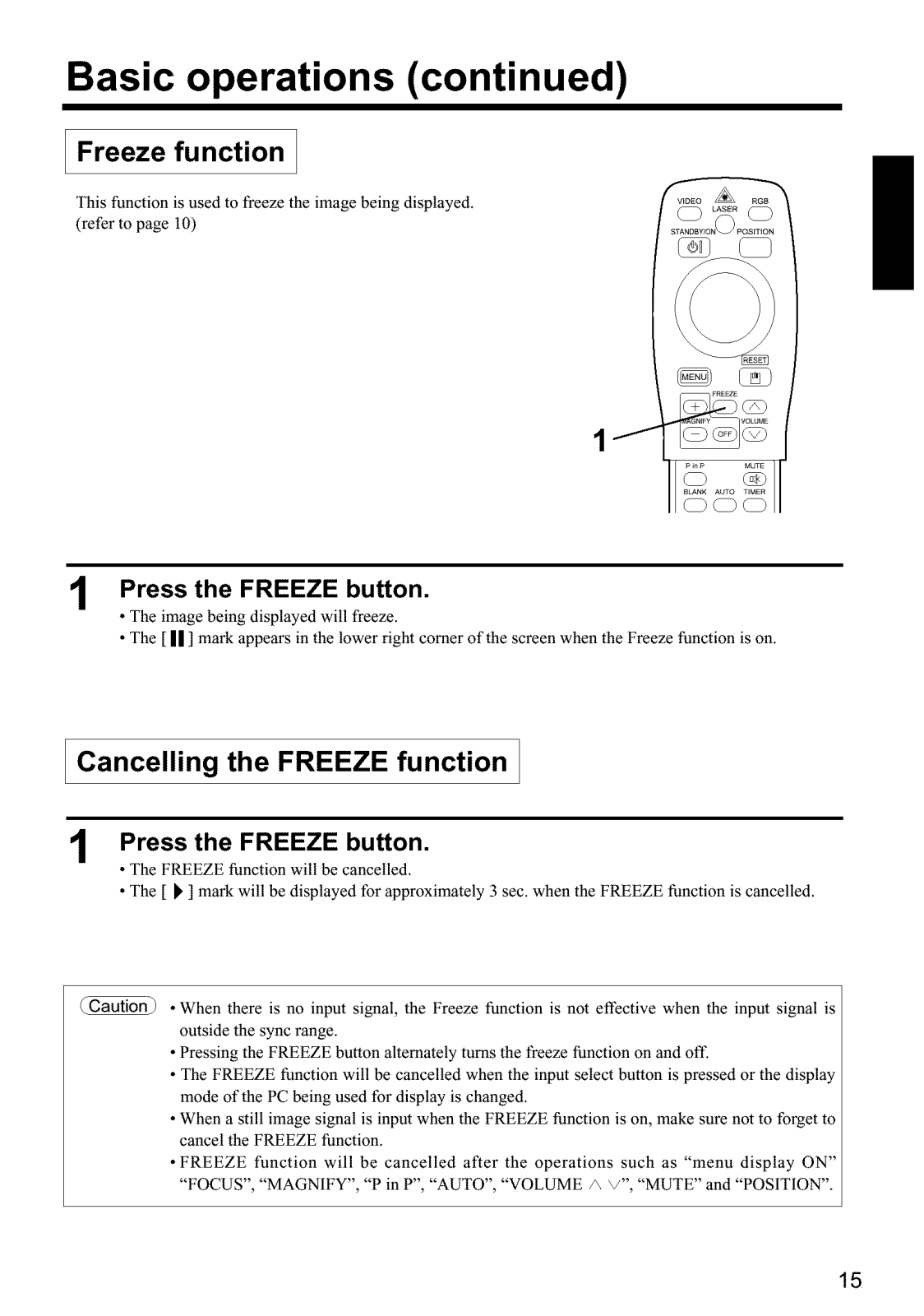

[Freeze function]

This function is used to freeze the image being displayed. (refer to page 10)

p _nP MUTE

C) @

BkANK AUTO TIMER

C)(2)C)

Press the FREEZE button.

• The image being displayed will freeze.

• The [ || ] mark appears in the lower fight corner of the screen when the Freeze function is on.

Cancelling the FREEZE function I

Press the FREEZE button.

• The FREEZE function will be cancelled.

• The [ _ ] mark will be displayed for approximately 3 sec. when the FREEZE function is cancelled.

(Caution) • When there is no input signal, the Freeze function is not effective when the input signal is

outside the sync range.

• Pressing the FREEZE button alternately turns the freeze function on and off.

• The FREEZE function will be cancelled when the input select button is pressed or the display mode of the PC being used for display is changed.

• When a still image signal is input when the FREEZE function is on, make sure not to forget to cancel the FREEZE function.

• FREEZE function will be cancelled after the operations such as "menu display ON" "FOCUS", "MAGNIFY", "P in P", "AUTO", "VOLUME/\ _/", "MUTE" and "POSITION".

Page 16

Basic operations (continued)

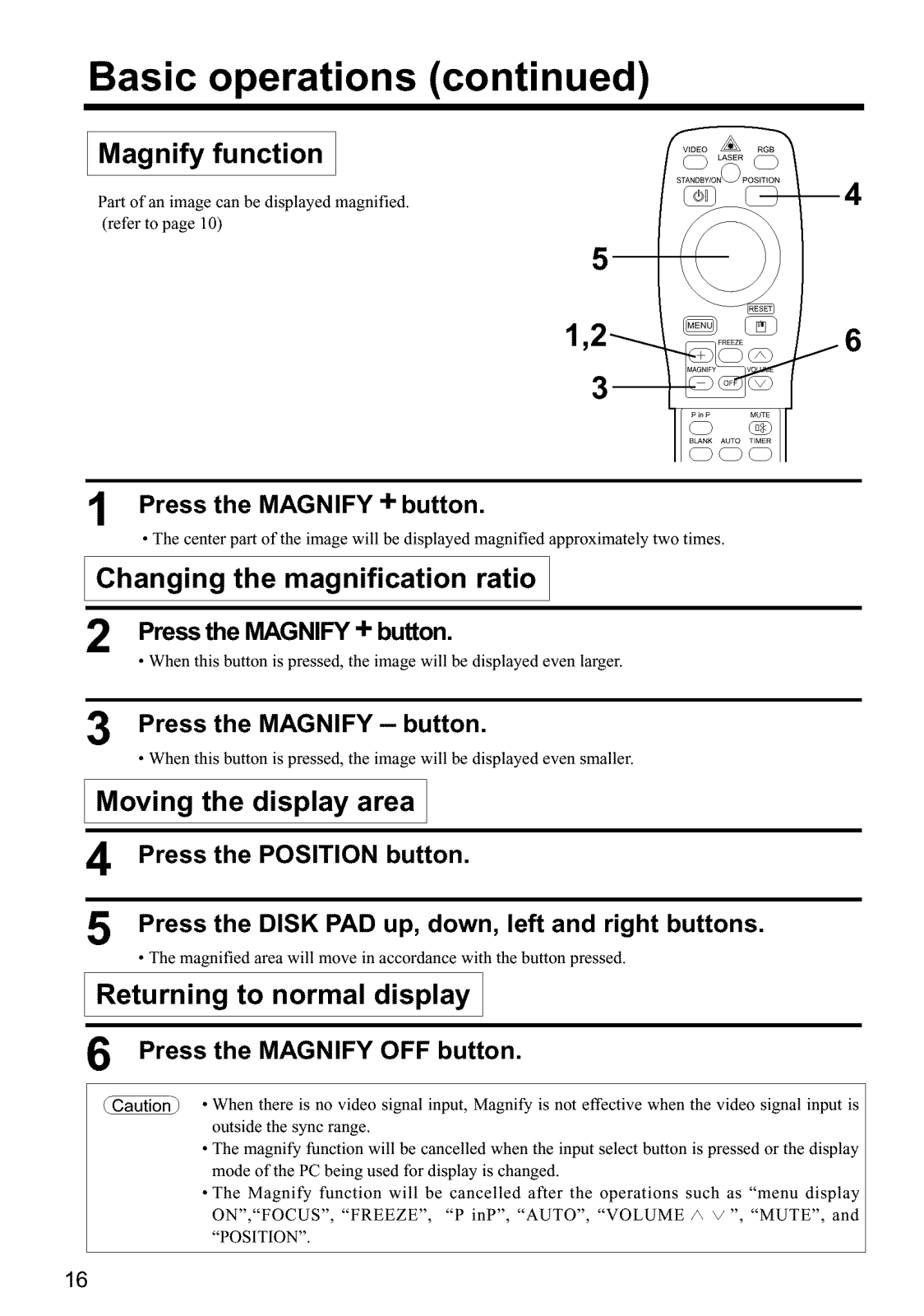

I Magnify function

Part of an image can be displayed magnified.

(refer to page 10)

1 Press the MAGNIFY + button.

• The center part of the image wilt be displayed magnified approximately two times.

Changing the magnification ratio ]

Press the MAGNIFY + button.

• When this button is pressed, the image wilt be displayed even larger.

p _np MUTE

BL_NK AUTO TIMER

3 Press the MAGNIFY- button.

• When this button is pressed, the image wilt be displayed even smaller.

Moving the display area

4 Press the POSITION button.

5 Press the DISK PAD up, down, left and right buttons.

• The magnified area will move in accordance with the button pressed.

Returning to normal display I

6 Press the MAGNIFY OFF button.

_-Caution_ • When there is no video signal input, Magnify is not effective when the video signal input is

outside the sync range.

• The magnify function will be cancelled when the input select button is pressed or the display mode of the PC being used for display is changed.

• The Magnify function will be cancelled after the operations such as "menu display ON","FOCUS", "FREEZE", "P inP", "AUTO", "VOLUME/_ _/", "MUTE", and "POSITION".

Page 17

Adjustments and functions

1,2,3

Press the MENU ( _)_)(_(_ ) buttons of the projector or the MENU button of the remote control.

• The Menu screen wilt appear. (refer to page 18 - 21 for details.)

2 Press the MENU ((i)_)_)(_)) buttons of the projector or the DISK

PAD button of the remote control to select the menu item to be

adjusted. • The selected menu item will be displayed in orange.

Adjust the selected menu item with the MENU ((i)(_)_i)_))

buttons of the projector or the DISK PAD button of the remote control.

• The selected menu item wilt be displayed in orange.

Returning to the initial settings I

• Select the adjustment item to be returned to the initial settings.

• Press the RESET button.

Page 18

Adjustments and functions (continued)

SET UP

Images and display positions can be adjusted from the SETUP menu.

RGB signal input Video signal input

[ ETUP INPUT /__

VOLUME _ E_

BRtGHT _ _

CONTRAST _

V POSIT 100 H POSIT

H PHASE

H SIZE 800

COLOR BALE

Adjustment item Adjustment description

VOLUME Volume decreases _ Volume increases

BRIGHT

(BRIGHTNESS) Darker _ Brighter

CONTRAST Lower contrast _ Stronger contrast

SHARPNESS Softer image _ Sharper image

COLOR Less _ More

TINT Redder _ Greener

V, POSIT

(V. POSITION) Moves the image up and down.

H, POSIT

(H. POSITION) Moves the image left and right.

H, PHASE Eliminates blanking.

H, SIZE Adjusts the horizontal size of the image.

COLOR BAL R

(COLORBALANCERed) Less red _ More red

COLOR BAL B

(COLORBALANCEBlue Less blue _ More blue

Using the SETUP Menu

Move the cursor to the item to be adjusted and move the MENU button of the projector or the DISK PAD button of the remote control to change the length of the bar display.

(Caution) • The menu cannot be displayed while the initial screen ("No input is detected." or "Sync is

out of range.") is being displayed.

• Tint cannot be adjusted with PAL or SECAM video signal input.

• Tint, color and sharpness cannot be adjusted with RGB signal input.

• V. POSIT, H. POSIT, H. PHASE and H. SIZE cannot be adjusted with video signal input.

• The MAGNIFY or FREEZE function will be cancelled after the operation "Menu".

• Displaying the menu cancels magnify and freeze operations.

Page 19

Adjustments and functions (continued)

INPUT 1

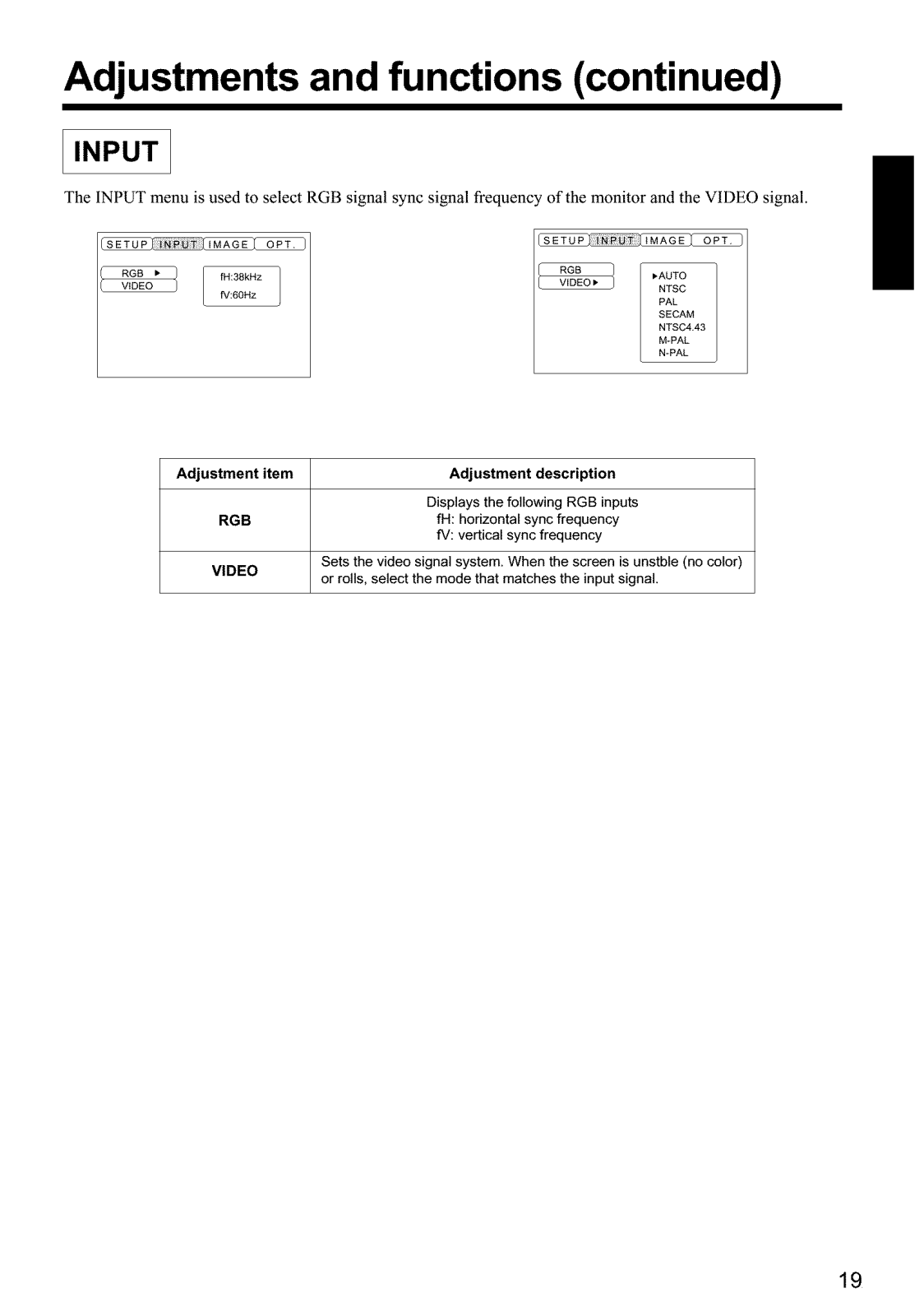

The INPUT menu is used to select RGB signal sync signal frequency of the monitor and the VIDEO signal.

I M A G E

RGB • _ fH:38kHz

VIDEO

fV:60Hz

Adjustment item Adjustment description

RGB fH: horizontal sync frequency

VIDEO Sets the video signal system. When the screen is unstble (no color)

RGB t,AUTO VIDEO _.

Displays the following RGB inputs

fV: vertical sync frequency

or rolls, select the mode that matches the input signal,

t M A G E

NTSC PAL SECAM NTSC4 43 M_PAL N-PAL

Page 20

Adjustments and functions (continued)

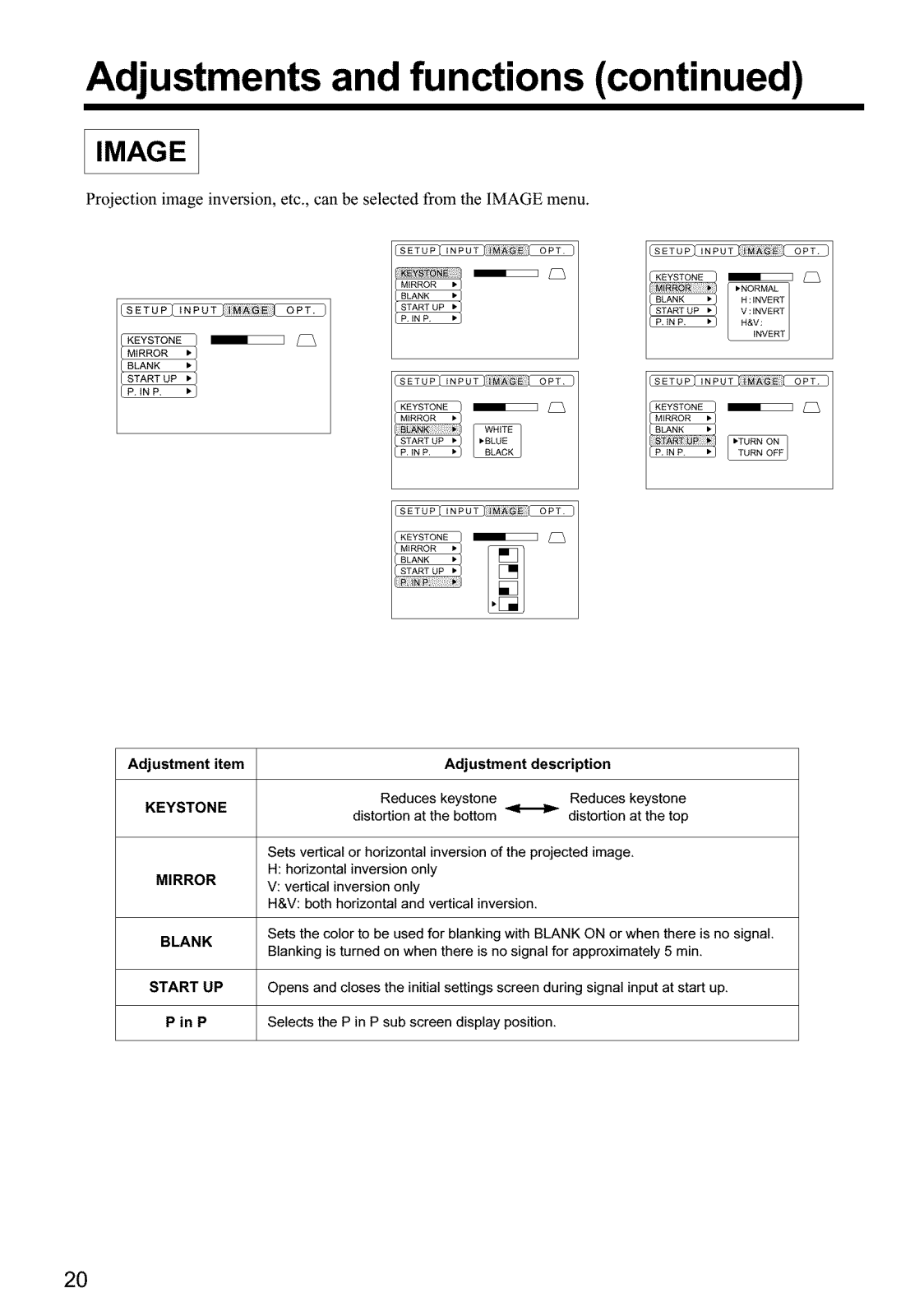

Projection image inversion, etc., can be selected from the IMAGE menu.

_P_ IN FL b

_E5

SETUP INPUT IMAGE OPT

EL1

SETUP iNPUT iMAGE OPT

SETUP INPUT _M_,GE OPT

KEYSTONE _

STARTUP •

[S E TU P ] IN P U T

KEYSTONE } _ /_

BLANK •

MIRROR_

Adjustment item Adjustment description

Reduces keystone Reduces keystone

KEYSTONE distortion at the bottom _ distortion at the top

Sets vertical or horizontal inversion of the projected image,

H: horizontal inversion only

MIRROR V: vertical inversion only

H&V: both horizontal and vertical inversion,

BLANK

Sets the color to be used for blanking with BLANK ON or when there is no signal.

Blanking is turned on when there is no signal for approximately 5 min,

START UP Opens and closes the initial settings screen during signal input at start up.

P in P Selects the P in P sub screen display position.

Page 21

Adjustments and functions (continued)

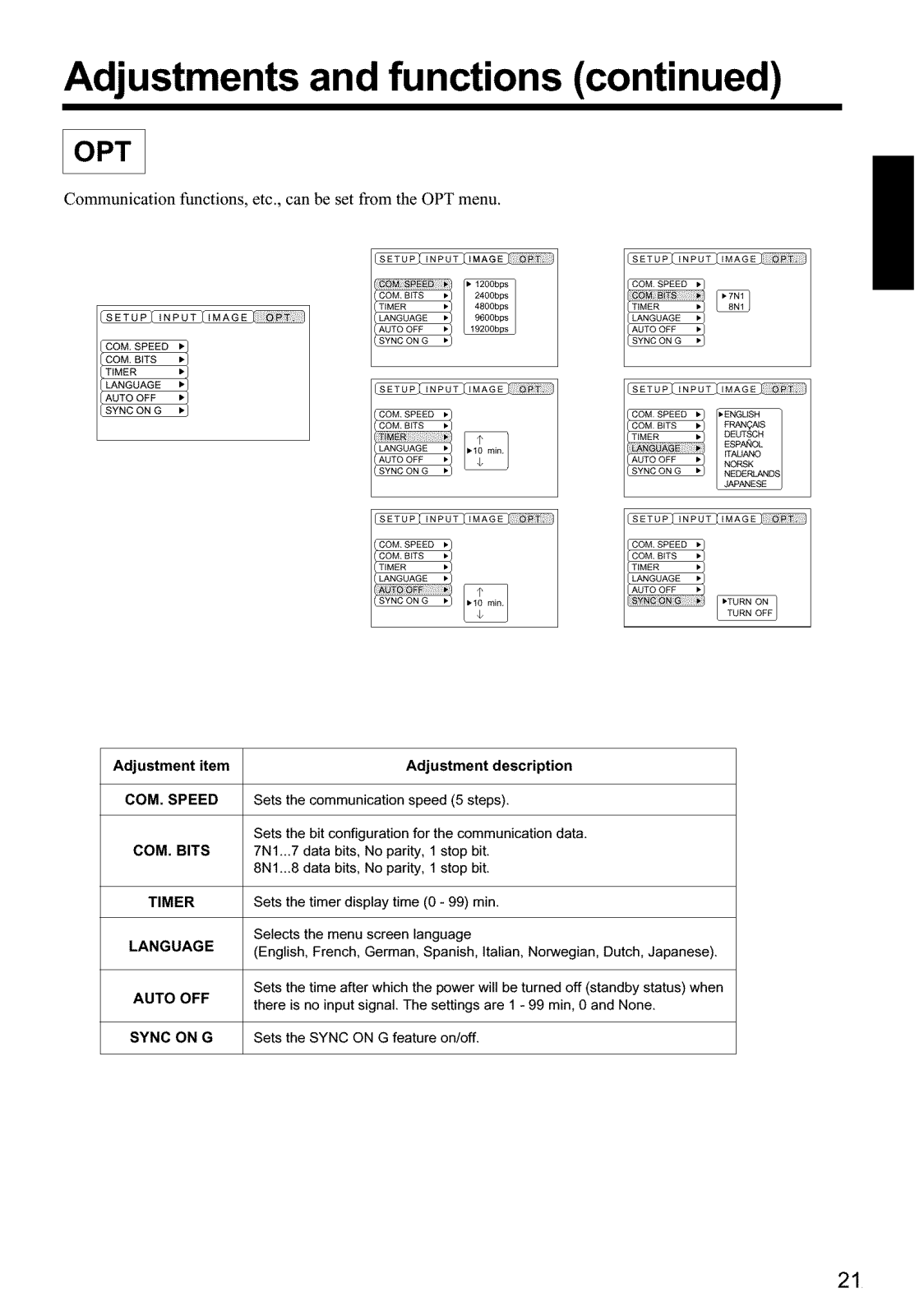

OPT

Communication functions, etc., can be set from the OPT menu.

OM BITS

[SETUP[ _NPUT

COMSPEED COMBITS

TIMER LANGUAGE

AUTO OFF SYNC ON G •

TIMER

LANGUAGE

COMSPEED

SYNC ON G •

SETUP INPUT IMAGE bOR_

C_COM_TS _MER

Adjustment item Adjustment description

COM. SPEED Sets the communication speed (5 steps).

Sets the bit configuration for the communication data.

COM. BITS 7N1...7 data bits, No parity, 1 stop bit.

8N1...8 data bits, No parity, 1 stop bit.

TIMER Sets the timer display time (0 - 99) min.

Selects the menu screen language

LANGUAGE (English, French, German, Spanish, Italian, Norwegian, Dutch, Japanese).

[ S E TU P ] IN P U T [ [ MA G E

COMSPEED

_TIMER

LANGUAGE

Sets the time after which the power will be turned off (standby status) when

AUTO OFF there is no input signal. The settings are 1 - 99 min, 0 and None.

SYNC ON G Sets the SYNC ON G feature on/off.

Page 22

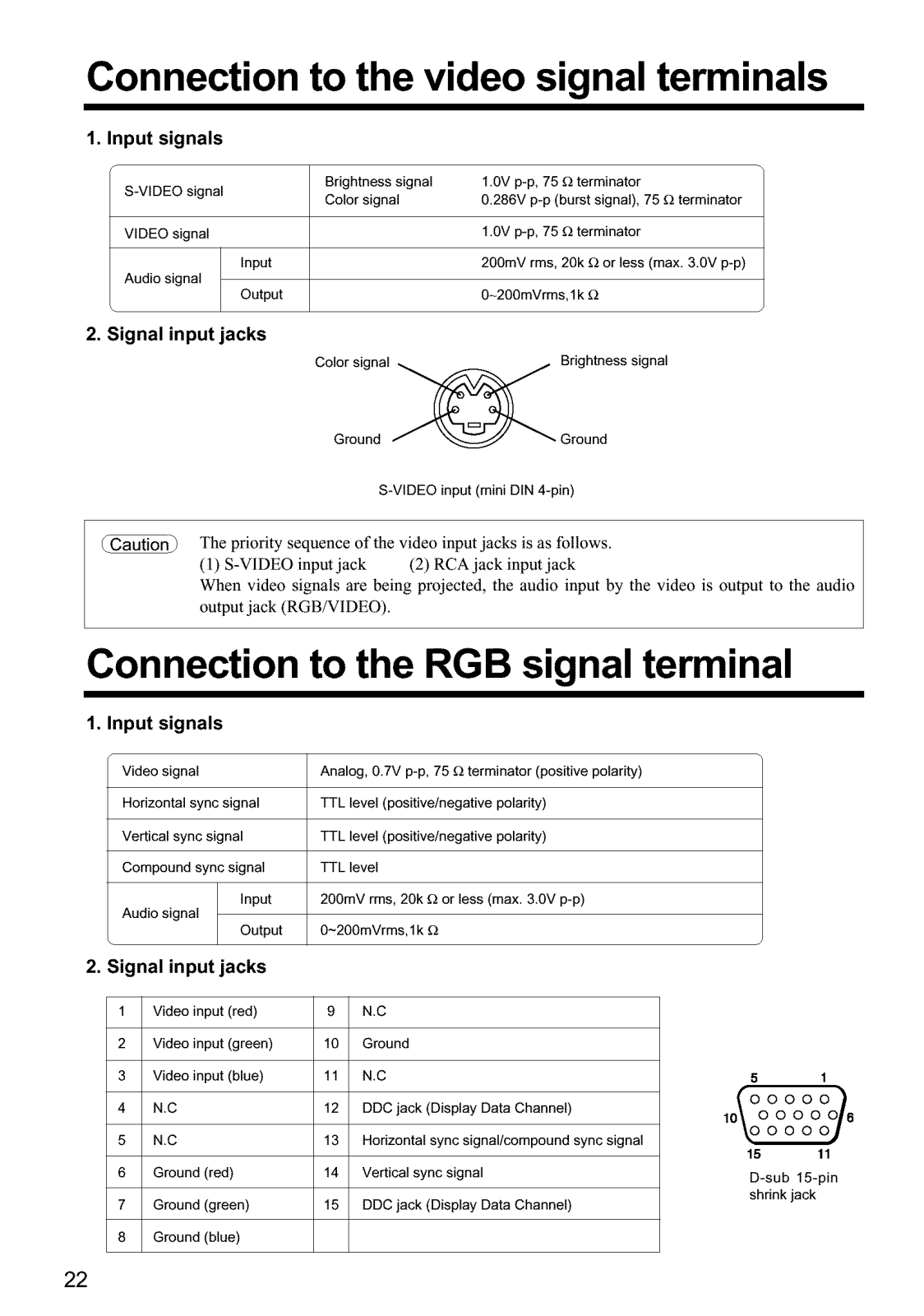

Connection to the video signal terminals

1. Input signals

S-VIDEO signal

VIDEO signal

Input

Audio signal

Output

2. Signal input jacks

_Caution_

The priority sequence of the video input jacks is as follows. (1) S-VIDEO input jack (2) RCA jack input jack

When video signals are being projected, the audio input by the video is output to the audio output jack (RGB/V1DEO).

Brightness signal Color signal

Color signal

Ground Ground

S-VIDEO input (mini DIN 4-pin)

1.0V p-p, 75 £2terminator

0.286V p-p (burst signal), 75 £2terminator

1.0V p-p, 75 £2terminator

200mV rms, 20k £2or less (max. 3.0V p-p)

0-200mVrms, 1k

Brightness signal

Connection to the RGB signal terminal

1. Input signals

Video signal

Horizontal sync signal

Vertical sync signal

Compound sync signal

Input

Audio signal

Output

2. Signal input jacks

1 Video input (red)

2 Video input (green)

3 Video input (blue) 4 N.C

5 N.C

6 Ground (red)

7 Ground (green)

Analog, 0.7V p-p, 75 £2terminator (positive polarity)

TTL level (positive/negative polarity)

TTL level (positive/negative polarity) TTL level

200mV rms, 20k £2or less (max. 3.0V p-p) O~200mVrms, 1k £2

9 N.C

10 Ground

11 N.C

12 DDC jack (Display Data Channel)

13 Horizontal sync signal/compound sync signal

14 Vertical sync signal

15 DDC jack (Display Data Channel)

5 1

,0(OoOoOoOoo&

15 11

D-sub 15-pin shrink jack

8 Ground (blue)

Page 23

ConnectiontotheRGBsignalterminal(continued)

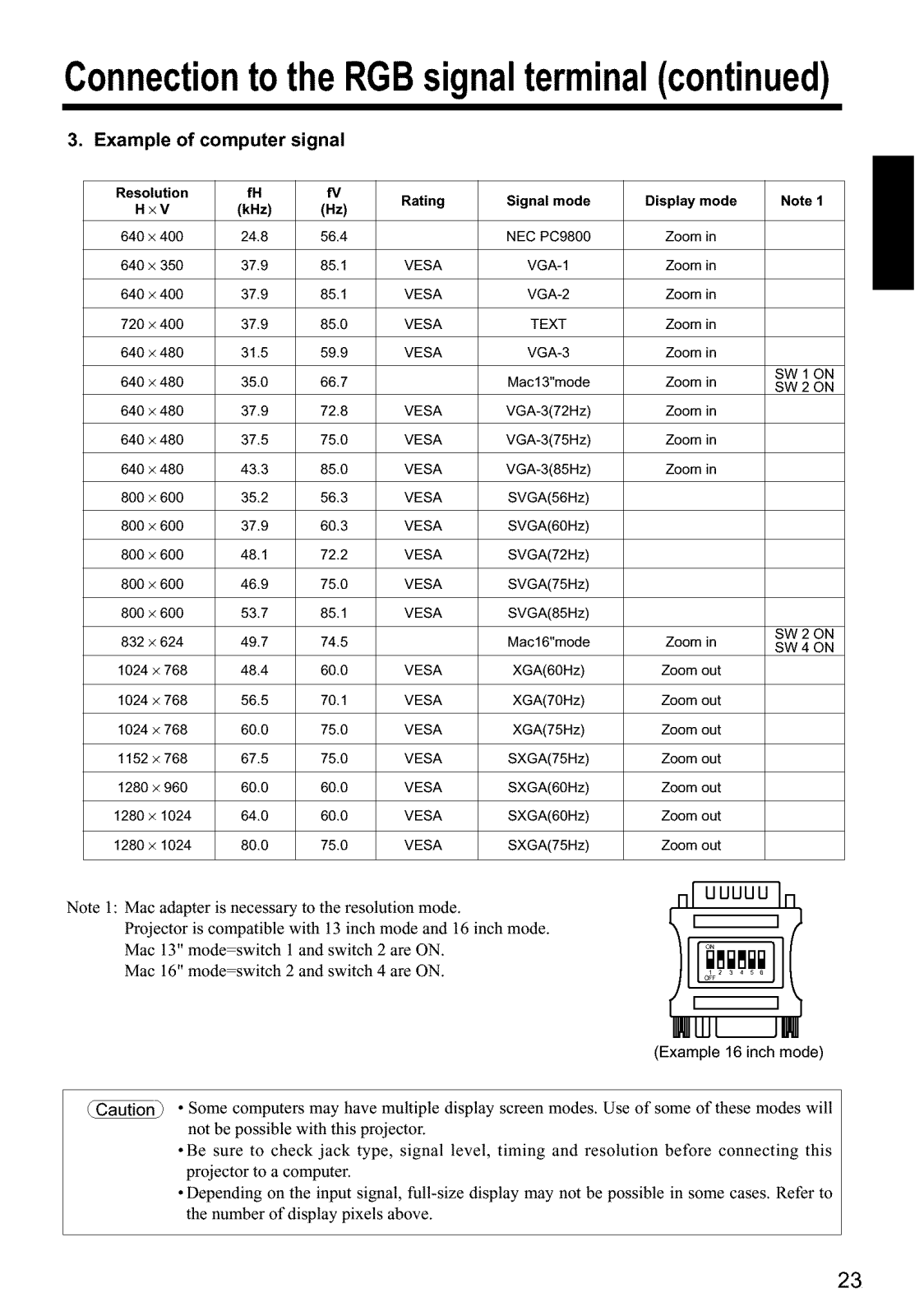

3. Example of computer signal

Resolution fH fV

H x V (kHz) (Hz) Rating Signal mode Display mode Note 1

640 x 400 24.8 56,4 NEC PC9800 Zoom in 640 x 350 37.9 85,1 VESA VGA-1 Zoom in

640 x 400 37.9 85.1 VESA VGA-2 Zoom in 720 x 400 37.9 85.0 VESA TEXT Zoom in

640 x 480 31,5 59.9 VESA VGA-3 Zoom in

SW 1 ON

640 x 480 35,0 66.7 Mac13"mode Zoom in SW 2 ON 640 x 480 37,9 72.8 VESA VGA-3(72Hz) Zoom in

640 x 480 37,5 75.0 VESA VGA-3(75Hz) Zoom in 640 x 480 43,3 85.0 VESA VGA-3(85Hz) Zoom in

800 x 600 35,2 56.3 VESA SVGA(56Hz) 800 x 600 37,9 60.3 VESA SVGA(6OHz)

Note 1:

800 x 600 48,1 72.2 VESA SVGA(72Hz) 800 x 600 46,9 75.0 VESA SVGA(75Hz)

800 x 600 53,7 85.1 VESA SVGA(85Hz)

SW 2 ON

832 x 624 49,7 74.5 Mac16"mode Zoom in SW 4 ON

1024 x 768 48,4 60.0 VESA XGA(6OHz) Zoom out 1024 x 768 56,5 70.1 VESA XGA(7OHz) Zoom out

1024 x 768 60,0 75.0 VESA XGA(75Hz) Zoom out 1152 x 768 67,5 75.0 VESA SXGA(75Hz) Zoom out

1280 x 960 60,0 60.0 VESA SXGA(6OHz) Zoom out

1280 x 1024 64,0 60.0 VESA SXGA(60Hz) Zoom out 1280 x 1024 80,0 75.0 VESA SXGA(75Hz) Zoom out

UUUUU

Mac adapter is necessary to the resolution mode. Projector is compatible with 13 inch mode and 16 inch mode. Mac 13" mode switch 1 and switch 2 are ON. Mac 16" mode switch 2 and switch 4 are ON.

(Example 16 inch mode)

(Caution) ° Some computers may have multiple display screen modes. Use of some of these modes will

not be possible with this projector.

• Be sure to check jack type, signal level, timing and resolution before connecting this projector to a computer.

• Depending on the input signal, full-size display may not be possible in some cases. Refer to the number of display pixels above.

Page 24

ConnectiontotheRGBsignalterminal(continued)

4. Initial set signals

The following signals are used for the initial settings. The signal timing of some computer models may be different. In such case, refer to pages 17 and 18 and adjust the V_POS1T and H.POS1T of the menu.

Back porch b

:_'-! _ ,I Display interval c

DATA !

HSYNC _C_ Synca

Computer/Signal

VGA-1(85Hz) 2.0 3.0 20.3 1.0 VGA-2(85Hz) 2.0 3.0 20.3 1.0

PC-9800 3.0 3.8 30.4 3.0

TEXT 2.0 3.0 20.3 1.0

VGA-3 3.8 1.9 25.4 0.6

Mac 13"mode 2.1 3.2 21.2 2.1 VGA-3(72Hz) 1.3 3.8 20.3 1.0

VGA-3(75Hz) 2.0 3.8 20.3 0.5 VGA-3(85Hz) 1.6 2.2 17.8 1.6

SVGA(56Hz) 2.0 3.6 22.2 0.7 SVGA(60Hz) 3.2 2.2 20.0 1.0

Horizontal signal timing (ps)

a b c d

Front porch d

Computer/Signal

SVGA (72Hz) 2.4 1.3 16.0 1.1 SVGA (75Hz) 1.6 3.2 16.2 0.3 SVGA (85Hz) 1.1 2.7 14.2 0.6

Mac 16"mode 1.1 3.9 14.5 0.6

XGA (60Hz) 2.1 2.5 15.8 0.4 XGA (70Hz) 1.8 1.9 13.7 0.3

XGA (75Hz) 1.2 2.2 13.0 0.2 SXGA(1152X964,75Hz) 1.2 2.4 10.7 0.6 SXGA(1286X960,60Hz) 1.0 2.9 11.9 0.9

SXGA(1280X1024,60Hz) 1.0 2.9 11.9 0.9 SXGA(1280X1024,75Hz) 1.1 1.8 9.5 0.1

Horizontal signal timing (ps)

a b c d

Back porch b

DATA VSYNC

Computer/Signal

VGA-1 (85Hz) 3 60 350 32 VGA-2 (85Hz) 3 41 400 1

PC-9800 8 25 400 7

TEXT 3 42 480 1

VGA-3 2 33 480 10

Mac 13"mode 3 39 480 3

VGA-3 (72Hz) 3 28 480 9 VGA-3 (75Hz) 3 16 480 1

VGA-3 (85Hz) 3 25 480 1

SVGA (56Hz) 2 22 600 1 SVGA (60Hz) 4 23 600 1

]_ Sync a

Vertical signal timimg (lines)

a b c d

_ Display intervalc "]'Hi

Computer/Signal

SVGA (72Hz) SVGA (75Hz)

SVGA (85Hz) Mac 16"mode

XGA (60Hz) XGA (70Hz)

XGA (75Hz) SXGA(1152X964,75Hz) SXGA(1280X960,6OHz)

SXGA(1280X1024,60Hz) SXGA(1280X1024,75Hz)

Front

)orch d

Vertical signal timimg (lines)

3 3

3 6 6

b c d

23 600 37 21 600 1

27 600 1 39 624 1

29 768 3 29 768 3 28 768 1 32 864 1 36 960 1 38 1024 1

38 1024 1

Page 25

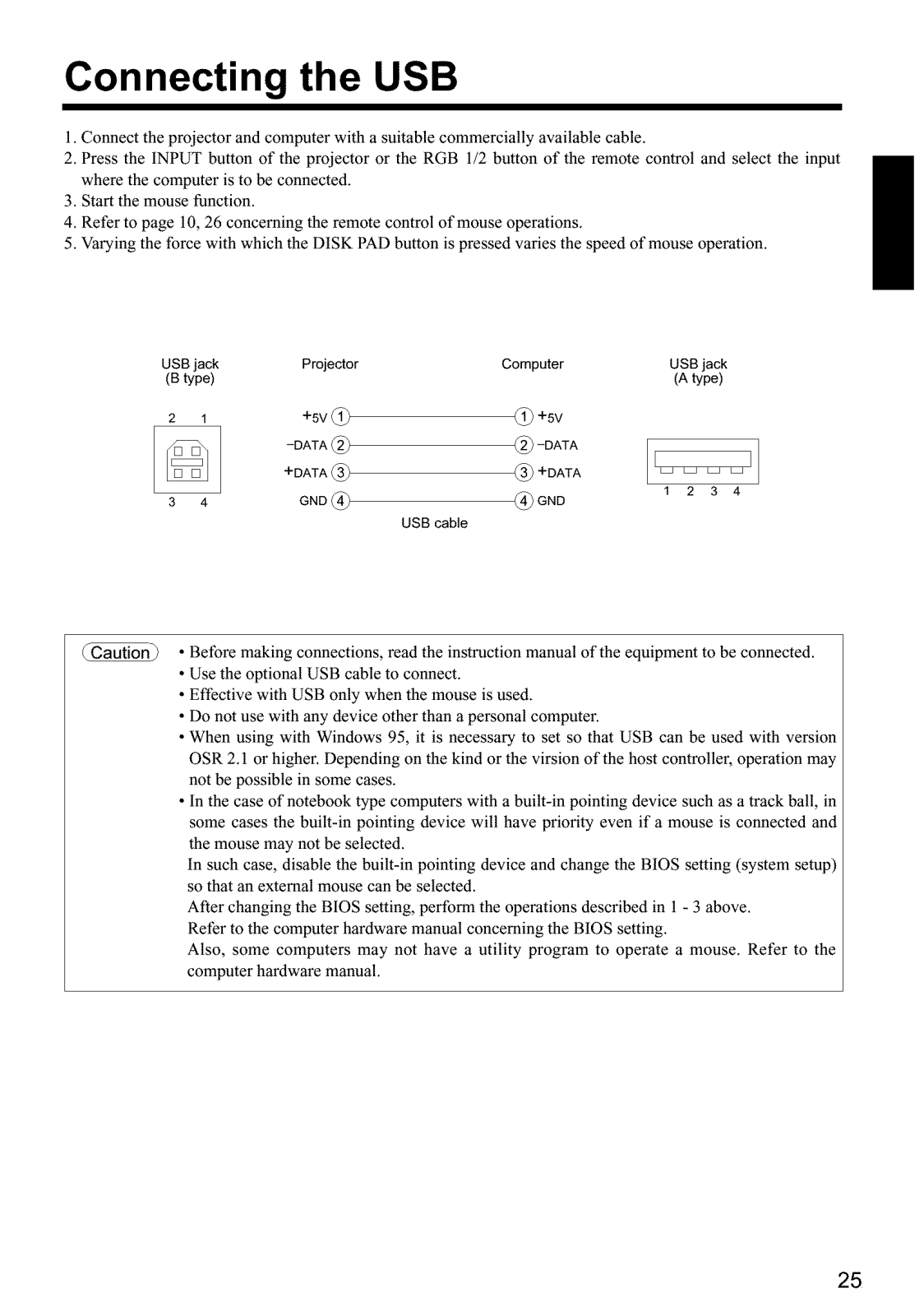

Connecting the USB

1. Connect the projector and computer with a suitable commercially available cable.

2. Press the 1NPUT button of the projector or the RGB 1/2 button of the remote control and select the input where the computer is to be connected.

3. Start the mouse function.

4. Refer to page 10, 26 concerning the remote control of mouse operations.

5. Varying the force with which the DISK PAD button is pressed varies the speed of mouse operation.

USB jack Projector Computer USB jack

(B type) (A type)

2 1 +5V(_1_ @+5V

-DATA@ @-DATA

+DATA@ @+DATA

1 2 3 4

3 4 GND@ @GND

USB cable

_Caution-)

• Before making connections, read the instruction manual of the equipment to be connected.

• Use the optional USB cable to connect.

• Effective with USB only when the mouse is used.

• Do not use with any device other than a personal computer.

• When using with Windows 95, it is necessary to set so that USB can be used with version OSR 2.1 or higher. Depending on the kind or the virsion of the host controller, operation may

not be possible in some cases.

• In the case of notebook type computers with a built-in pointing device such as a track ball, in some cases the built-in pointing device wilt have priority even if a mouse is connected and

the mouse may not be selected.

In such case, disable the built-in pointing device and change the BIOS setting (system setup) so that an external mouse can be selected.

After changing the B1OS setting, perform the operations described in 1 - 3 above. Refer to the computer hardware manual concerning the BIOS setting.

Also, some computers may not have a utility program to operate a mouse. Refer to the computer hardware manual.

Page 26

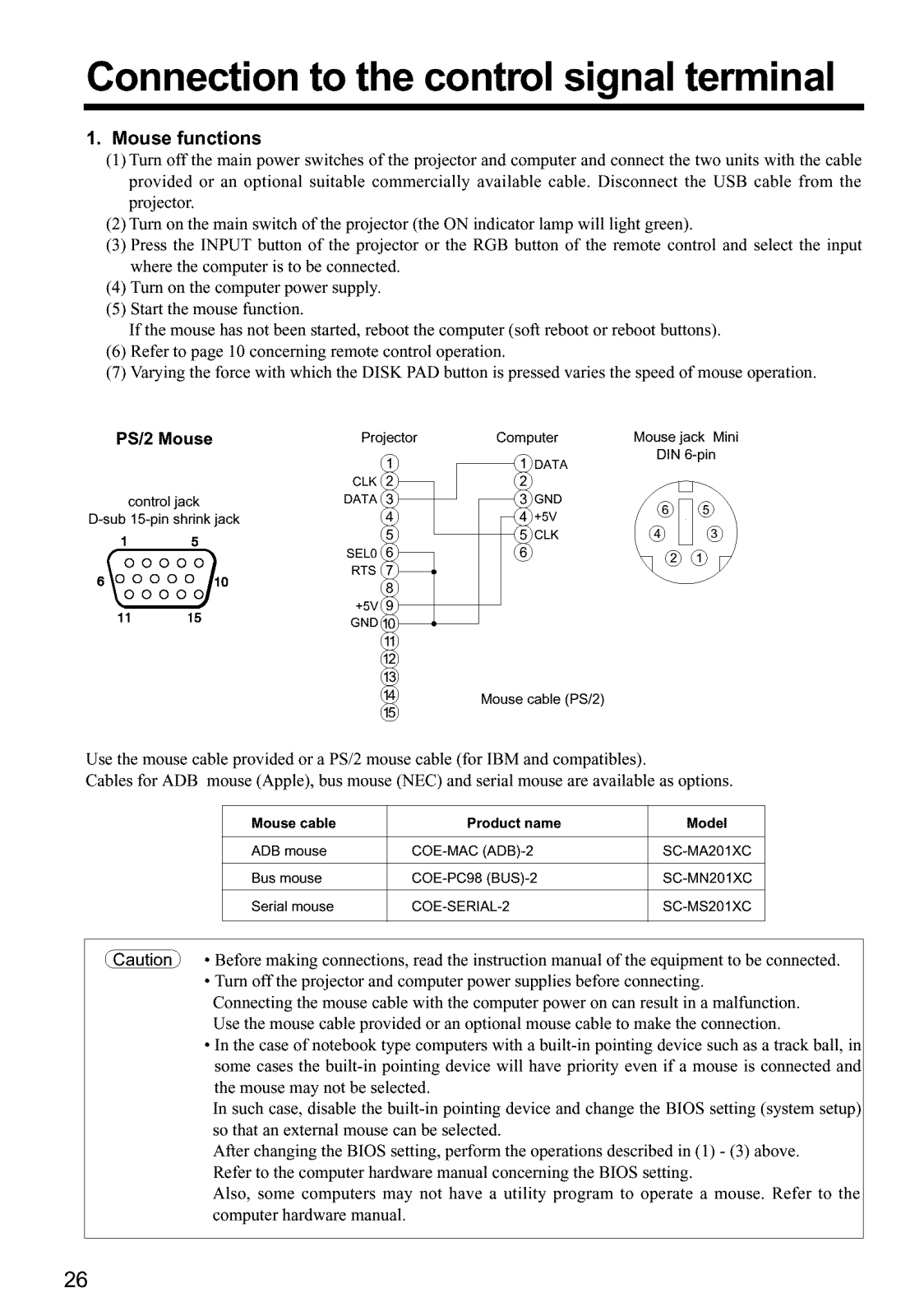

Connection to the control signal terminal

1. Mouse functions

(1) Turn off the main power switches of the projector and computer and connect the two units with the cable

provided or an optional suitable commercially available cable. Disconnect the USB cable from the projector.

(2) Turn on the main switch of the projector (the ON indicator lamp will light green). (3) Press the 1NPUT button of the projector or the RGB button of the remote control and select the input

where the computer is to be connected. (4) Turn on the computer power supply. (5) Start the mouse function.

If the mouse has not been started, reboot the computer (soft reboot or reboot buttons).

(6) Refer to page 10 concerning remote control operation. (7) Varying the force with which the DISK PAD button is pressed varies the speed of mouse operation.

PSI2 Mouse Projector Corn _uter

CLK

control jack

D-sub 15-pin shrink jack

1 5

0IoOOOOoOL

11 15

Use the mouse cable provided or a PS/2 mouse cable (for IBM and compatibles).

Cables for ADB mouse (Apple), bus mouse (NEC) and serial mouse are available as options.

Mouse cable Product name Model

ADB mouse COE-MAC (ADB)-2 SC-MA201XC Bus mouse COE-PC98 (BUS)-2 SC-MN201XC

Serial mouse COE-SERIAL-2 SC-MS201XC

DATA

SEL0

RTS

+5V

GND

Mouse jack Mini

DIN 6-pin

(Caution-)

• Before making connections, read the instruction manual of the equipment to be connected.

• Turn off the projector and computer power supplies before connecting. Connecting the mouse cable with the computer power on can result in a malfunction.

Use the mouse cable provided or an optional mouse cable to make the connection.

• In the case of notebook type computers with a built-in pointing device such as a track ball, in

some cases the built-in pointing device wilt have priority even if a mouse is connected and the mouse may not be selected.

In such case, disable the built-in pointing device and change the B1OS setting (system setup) so that an external mouse can be selected.

After changing the B1OS setting, perform the operations described in (1) - (3) above.

Refer to the computer hardware manual concerning the BIOS setting.

Also, some computers may not have a utility program to operate a mouse. Refer to the computer hardware manual.

Page 27

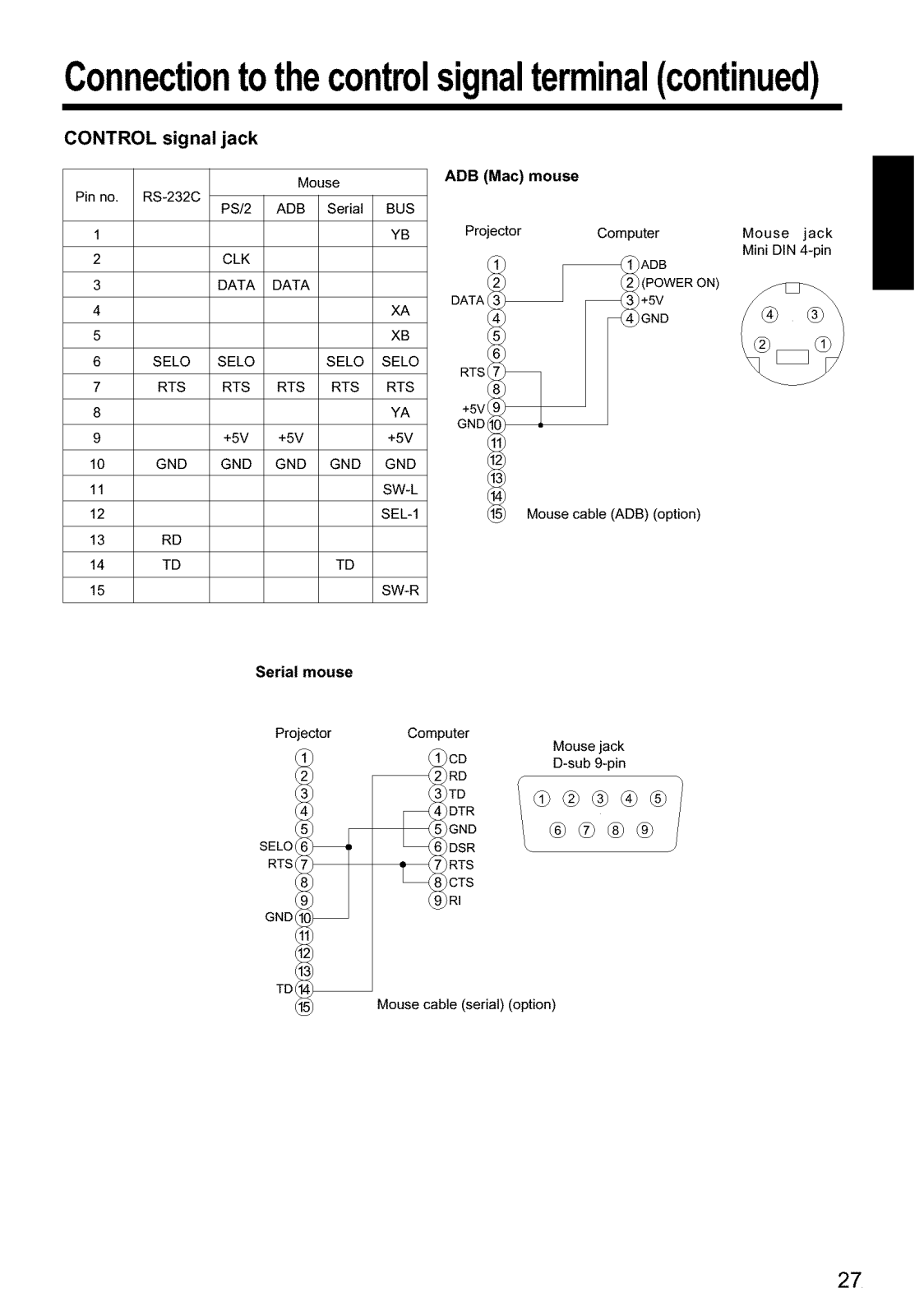

Connectiontothecontrolsignalterminal(continued)

CONTROL signal jack

Pin no. RS-232C

1 YB

2 CLK 3 DATA DATA

4 XA 5 XB 6 SELO SELO SELO SELO

7 RTS RTS RTS RTS RTS 8 YA 9 +5V +5V +5V

10 GND GND GND GND GND 11 SW-L

12 SEL-1 13 RD 14 TD TD 15 SW-R

PS/2 ADB Serial BUS

Mouse

ADB (Mac) mouse

Projector

DATA(

(

+5V_

GND_

Mouse cable (ADB) (option)

Computer Mouse jack

Mini DIN 4-pin

ADB(POWER ON)

Serial mouse

Pro

_ctor

SELO

RTS

GND

Computer

DTR

GND

_DSR

t _RTS

_CTS

Mouse cable (serial) (option)

_@®®®

Mouse jack D-sub 9-pin

®_®®

Page 28

Connectiontothecontrolsignalterminal(continued)

2. RS232C communication

(1) Turn off the projector and computer power supplies and connect with the RS232C cable. (2) Turn on the computer power supply and, after the computer has started up, mm on the projector power supply.

(3) Refer to page 20, 21 and set the communication speed and the number of communication bits. (4) Start RS232C communication.

Projector

Control jack

D-sub 15-pin shrink

1 5

SELO

RTS

6_10

11 15

Command 1st 2nd MOUSE

COMMUNICATE

POWER

ZOOM

FOCUS MIRROR

INPUT (VIDEO)SYSTEM

VOLUME

MUTE BRIGHT

CONTRAST COLOR

TINT SHARPNESS

H.PHASE H.POSIT

H.SlZE V.POSIT COLOR BALANCE R COLOR BALANCE B AUTO ADJUST

BLANK

MAGNIFY

FREEZE 20h 16h

GND

Pr_ector-_computer

Response code

1st 2nd da_

11h 05h +1 11h 06h +1

11h 11h +1 11h 12h +1 11h 13h +1 11h 14h +1 11h 21h +1

12h 22h +2 11h 23h +1

11h 24h +1 13h 31h +3 13h 32h +3 13h 33h +3 13h 34h +3 13h 35h +3 13h 37h +3 14h 38h +4 14h 36h +4

14h 3Ah +4 13h 3Bh +3

13h 3Dh +3 11h 3Ch +1

11h 41h +1 11h 15h +1 11h 16h +1

_)DSR

Computer

DTR GND

RTS

DTS

Inqui_ code

1st 2nd

20h 05h 20h 06h

20h 11h

20h 14h 20h 21h

20h 22h 20h 23h

20h 24h 20h 31h 20h 32h 20h 33h 20h 34h 20h 35h 20h 37h

20h 3Bh 20h 3Dh 20h 3Ch

20h 41h 20h 15h

RS232C jack

D-sub 9-pin

®®®®

RS232C cable

Computer4projector

Setting code

1st 2rid data

31h 05h +1 31h 06h +1

31h 11h +1 31h 12h +1

31h 13h +1 31h 14h +1

31h 21h +1 32h 22h +2 31h 23h +1

31h 24h +1 33h 31h +3 33h 32h +3 33h 33h +3 33h 34h +3 33h 35h +3 33h 37h +3 34h 38h +4 34h 36h +4

34h 3Ah +4 33h 3Bh +3

33h 3Dh +3 31h 3Ch +1

31h 41h +1 31h 15h +1

31h 16h +1

DeNults_ting cede

40h 05h 40h 06h

40h 14h 40h 21h

40h 22h 40h 23h

40h 24h 40h 31h 40h 32h 40h 33h 40h 34h 40h 35h 40h 37h 40h 38h 40h 36h

40h 3Ah 40h 3Bh

40h 3Dh 40h 3Ch

40h 41h 40h 15h

40h 16h

Page 29

Connectiontothecontrolsignalterminal(continued)

Command data chart

Item Data code

MOUSE 00h=disable mouse function, 01 - 7Fh=start mouse function COMMUNICATE 0Xh=8N1, 1Xh=7N1

X0h=1200bps, X1h=2400bps, X2h=4800bps, X3h=9600bps, X4h=19200bps

POWER 3Eh=power off (standby status), 3Fh=power on

ZOOM 01 - 3Fh=Zoom +, 41 - 7Fh=Zoom -

FOCUS 01 - 3Fh=Focus +, 41 - 7Fh=Focus - MIRROR 00h=Normal, 01h=H : Invert, 02h=V : Invert, 03h=H & V : Invert

INPUT 1lh=VIDEO, 21h=RGB1, 22h=RGB2 SYSTEM(VIDEO) 00h 00h=Auto, 00h 01h=NTSC, 00h 04h=NTSC4.43

00h 02h=PAL, 00h 03h=SECAM, 00h 05h=M-PAL, 00h 06h=N-PAL

VOLUME 00h (low volume) - 24h (high volume) MUTE 00h=mute off, 01h=mute on BRIGHT 00h 00h 00h(dark)-00h 00h 24h(bright)

CONTRAST 00h 00h 00h(Iow)-00h 00h 24h(strong) COLOR 00h 00h 00h(pale)-00h 00h 24h (dense) TINT 00h 00h 00h(reddish)-00h 00h 24h(greenish)

SHARPNESS 00h 00h 00h(soft)-00h 00h 24h (sharp) H.PHASE 00h 00h 00h-00h 00h 24h

H.POSIT 00h 00h 00h 01h (Right) moves one step

00h 00h 00h 7Fh (Left) moves one step

H.SIZE 00h 00h 00h 01h(Large) moves two step

00h 00h 00h 7Fh (Small) moves two step

V.POSIT 00h 00h 00h 01h(Up) moves one step

00h 00h 00h 7Fh (Down) moves one step COLOR BALANCE R 00h 00h 00h (Light red) -00h 00h 24h (Dark red) COLOR BALANCE B 00h 00h 00h (Light blue) - 00h 00h 24h (Dark blue) AUTO ADJUST 00h (AUTO ADJUST (Play)), 07h (AUTO ADJUST (stop)) BLANK 0Xh=blanking off, 1Xh=blanking on

X=8 Black, X=9 Blue, X=F White MAGNIFY 00h=normal display, 01h=zoom Magnify display or Magnify ratio up.

7Fh=zoom ratio down FREEZE 00h=normal display, 01h=still image display

The command code configuration consists of a 2-byte command and the following data.

• The first byte of a command indicates the command type with 3 bits on the MSB side and the data length with 4 bits on the LSB side.

Projector - computer

'0xH' : Error code 'lxH' : response code

'70H' : frame error code 'x' indicates the data length (example: x_ means a 2-byte command).

• The second byte of a command indicates the command contents.

Computer - projector '2xH' : inquiry code

'3xH' : setting code '4xH' : default setting code

Page 30

Connectiontothecontrolsignalterminal(continued)

Requesting projector status

(1) Send the request code '20H' + 'yyH' from the computer to the projector. (2) The projector returns the response code ' 1xH' + 'yyH' +data to the computer.

Changing the projector settings

(1) Send the setting code '3xH' + 'yyH' +data from the computer to the projector. (2) The projector changes the setting based on the above setting code.

(3) The projector returns the response code ' 1xH' + 'yyH' +data to the computer.

( Caution ) The response data in (3) above need not match the setting data in (1).

For example, when the projector cannot set the setting data in (1), the projector may set the/ closest value. That value will be used as the response data in (3). Or else the projector wilt]

return the error code '0xH' + 'yyH' +data.

Using the projector default settigns

(1) The computer sends the default setting code '40H' + 'yyH' to the projector. (2) The projector changes the specified setting to the default value.

(3) The projector returns the default value with the response code ' 1xH' + 'yyH' -data.

When a command sent by the projector cannot be understood by the computer

(1) The computer sends the command code '3xH', '4xH' or '4xH' + 'yyH' +data to the projector. (2) When the command sent by the projector cannot be understood, the error command '0OH' + 'yyH' is

returned by the computer.

When data sent by the projector cannot be understood

(1) The computer sends the command code '3xH', '4xH' or '4xH' + 'yyH' +data to the projector. (2) When the command sent by the projector cannot be understood, the the error code '0xH' +'yyH' +data is

returned.

When the data length is greater than indicated by the data length code, the projector wilt ignore the excess data code.

Conversely, when the data length is shorter than indicated by the data length code, an error code will be retumed to the projector.

When a frame error occurs

Repeats 10 times per second until there is some sort of response to the error code 70H + 70H.

When the interval between bytes in one command is 500ms or greater

When a command or data is not sent within 500ms after the command code '2xH', '3xH' or '4xH' is sent by the computer, the error command '70H' +'70H' will be returned as soon as the 500ms elapses. After this, if

there is no response within 1 sec, a frame error will occur.

(Caution) • Operation cannot be guaranteed when the projector receives an undefined command or data.

• Provide an interval of at least 40ms between the response code and any other code.

Page 31

Example of system setup

Computer

(notebook type)

Computer

(desktop type)

Speaker (with built-in amp)

( Caution Turn power off to all devices before connecting.

Refer to the instruction manual of each device before connecting.

Display monitor

AC input

i i

Video tape recorder

/ \

Video tape recorder with S jack

Cleaning the Air filter

Clean the air filter about every 100 hours.

1 Turn off the MAIN POWER switch of the projector and

pull out the power cord.

2 Remove the front air filter.

Filter Model

Air Filter MU00831

Page 32

Cleaning the Air filter (continued)

3 Cleaning the air filter with a vacuum cleaner

4 Installing the air filter

(Caution)

When the air filter becomes clogged with dust, etc., the projector power may turn off to] prevent the internal heat level rising. Do not operate the projector with the air filter removed.

Lamp

The light source lamp has a service life. When used for an extended time, the images may become darker and the colors may deteriorate.

A malfunction could occur if the projector is used in this condition, so replace the lamp with a new one. The following indicator or a message which appears when the power is turned on will indicate when the lamp

should be replaced.

At such time, it is necessary to replace the lamp with a new one. For lamp replacement, please contact your dealer or service company.

(Caution_

The indicator lamp will also light red when the lamp unit overheats. In such case, turn off the 1 main power switch, wait for a while (approx. 20 min.) and then turn the power on again. If the] indicator lamp lights red again when the power is turned on, contact your dealer or service]

company, j

Message table

Screen displays

The following messages are displayed on the screen.

CHANGETHE LAMP"CALL Thetotal lampusagetime is nearingtheservicelifeof the lamp. Replacewhith a newlamp.

A MAINTENANCEPERSON" The lamp will turnoff automatically whenthe lamp replacement time hasbeenexceeded. '1

"CHANGETHE LAMP" Thetotal lamp timeis nearing the lamp replacement time. After (*) hours,the lamp willturn

"CALL off. Quickly replace with anew lamp. "1

A MAINTENANCE PERSON" *Indicates the number of hours until the lamp turns off automatically.

"THE POWER WILL

TURN OFF AFTER * hr."

Blinking of The total lamp time has exceeded the replacement time. The lamp will blink for

"CHANGE THE LAMP" approximately 10 min. and then turn off automatically. Replace with a new lamp.

NO INPUT IS DETECTED There is no signal input (refer to pages 22, 23).

SYNC IS OUT OF RANGE The current horizontalor verticalfrequency cannot be usedby thisprojector (refer to pages 23, 24).

• 1 This display will disappear after 3min. but wilt reappear when the power is turned on again.

Page 33

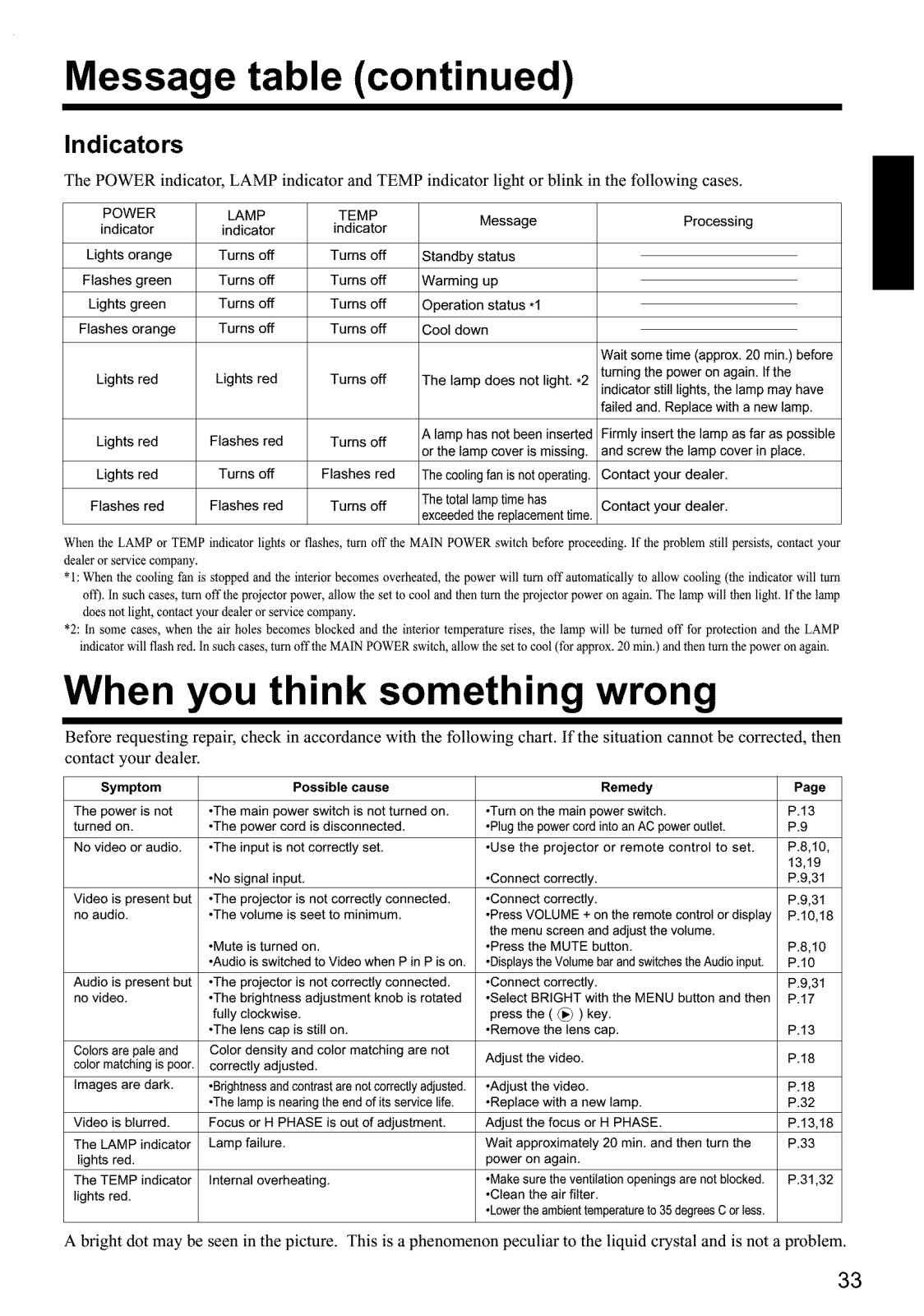

Message table (continued)

Indicators

The POWER indicator, LAMP indicator and TEMP indicator light or blink in the following cases.

POWER

indicator

Lights orange

Flashes green

Lights green

Flashes orange

Lights red Lights red Turns off The lamp does not light. *2 turning the power on again, Ifthe

Lights red Flashes red Turns off A lamp has not been inserted Firmly insert the lamp as far as possible

Lights red Turns off Flashes red The coolingfanis notoperating. Contact your dealer,

Flashes red Flashes red Turns off The totallamptime has Contact your dealer,

When the LAMP e!' TEMP indicator lights or flashes, turn off the MAIN POWER switch before proceeding. If the problem still persists, contact your

dealer or service company.

*1: When the cooling fan is stopped and the interior becomes overheated, the power will tam off automatically to allow cooling (the indicator will turn

off). In such cases, turn offthe projector power, allow the set to cool and then tam the projector power on again. The lamp will then ligN. If the lamp does not light, contact your dealer or service company.

*2: In some cases, when the air holes becomes blocked and the interior temperature rises, the lamp will be turned off for protection and the LAMP

iMicator will flash red. In such cases, turn offthe MAIN POWER switch, allow the set to cool (for approx. 20 min.) and then turn the power on again.

LAMP

indicator

Turns off Turns off Turns off

Turns off

TEMP

indicator

Turns off Turns off

Message Processing

Standby status Warming up Operation status ,1

Cool down

Wait some time (approx. 20 min.) before

indicator still lights, the lamp may have

failed and. Replace with a new lamp.

or the lamp cover is missing, and screw the lamp cover in place,

exceededthe replacementtime.

When you think something wrong

Before requesting repair, check in accordance with the following chart. If the situation cannot be corrected, then contact your dealer.

Symptom Possible cause Remedy Page

The power is not ,The main power switch is not turned on. ,Tom on the mainpower switch. P.13

turned on. ,The power cord is disconnected. ,Plug thepowercord into anAC poweroutlet. P.9

No video or audio. ,The input is not correctly set. ,Use the projector or remote control to set. P.8.10,

•No signal input. ,Connect correctly. P.9.31

Video is present but ,The projector is not correctly connected. ,Connect correctly. P.9.31

no audio. ,The volume is seet to minimum. ,Press VOLUME + on the remote control or display P.10.18

the menuscreen and adjustthe volume.

•Mute is turned on. ,Press the MUTE button. P.8.10

•Audio is switchedto Video when Pin Pis on. ,DisplaystheVolumebarandswitchestheAudioinput. P.10

Audio is present but ,The projector is not correctly connected. ,Connect correctly. P.9.31

no video. ,The brightness adjustment knob is rotated ,Select BRIGHT with the MENU button and then P.17

fully clockwise, press the (@) ) key.

•The lens cap is still on. ,Remove the lens cap. P.13

Colorsarepale and Color density and color matching are not Adjust the video. P.18 colormatching ispoor. correctly adjusted.

Images are dark. ,Brightnessandcontrastare notcorrectlyadjusted. ,Adjust the video. P.18

•The lamp isnearingthe endof its servicelife. ,Replace with a new lamp. P.32

Video is blurred. Focus or H PHASE is out of adjustment. Adjust the focus or H PHASE. P.13.18

The LAMP indicator Lamp failure. Wait approximately 20 min. and then turn the P.33

lights red. power on again.

The TEMP indicator Internal overheating. ,Make surethe ventilationopeningsare notblocked. P.31.32 lights red. ,Clean the air filter.

•Lowertheambienttemperatureto 35degreesCorless.

13,19

A bright dot may be seen in the picture. This is a phenomenon peculiar to the liquid crystal and is not a problem.

Page 34

Specifi cations .Thesespeoi'_oationsaresobjecttochangewithoutno.ce.

Product name Liquid crystal projector Model CP-X960W/E

Display method Three liquid crystal panels, three primary color system. Liquid crystal Panel size 3.3 cm (1.3 type) panel Drive system TFT active matrix

Number of pixels 786,432 pixels (768 horizontal x1,024 vertical)

Lens Zoom lens F=1.7-2.3 f=49-64mm Lamp 190w UHB

Speaker 1.2W + 1.2W (Stereo) Power supply AC100 ~ 120V, 3.7A / AC220 - 240V, 1.5A.

Power consumption 320W Operating temperature range 0 - 35°C

Size 11" (W) x 5" (H) x 14" (D)

Weight (mass) 13 Ibs

S VIDEO: mini DIN 4-pin jack

VIDEO signal input jacks VIDEO: RCA jack

AUDIO: RCA jack

RGB signal input/output jacks RGB signals: D-sub 15-pin shrink jack

Audio: stereo mini-jack

CONTROL signal jack D-sub 15-pin shrink jack

Dimensional Diagram 1

Unit: inches

Page 35

About the warranty and after-service

About the warranty]

A warranty is provided for this product. Fill in the necessary items and store in a safe place.

About after-service]

When a problem occurs, please check first using the Troubleshooting Chart provided in this instruction manual. If the problem still persists, contact your dealer or service company.

About repairs during the warranty period

Repairs will be made as described in the warranty. For details, please read the warranty.

Repairs after the warranty period has elapsed ]

Paid repairs will be made if desired in the event that the function can be restored by such repairs. Parts will be made available for a minimum period of 8 years.
